Exploring the Effects of Various Two-Dimensional Supporting Materials on the Water Electrolysis of Co-Mo Sulfide/Oxide Heterostructure

by
Ngoc-Diem Huynh
,
Won Mook Choi
* and
Seung Hyun Hur
*
School of Chemical Engineering, University of Ulsan, Daehak-ro 93, Nam-gu, Ulsan 44610, Republic of Korea
*
Authors to whom correspondence should be addressed.
Nanomaterials 2023, 13(17), 2463; https://doi.org/10.3390/nano13172463
Submission received: 13 August 2023 / Revised: 25 August 2023 / Accepted: 29 August 2023 / Published: 31 August 2023
(This article belongs to the Special Issue Advanced Nanostructures for Electrochemical Energy Conversion and Storage)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this study, various two-dimensional (2D) materials were used as supporting materials for the bimetallic Co and Mo sulfide/oxide (CMSO) heterostructure. The water electrolysis activity of CMSO supported on reduced graphene oxide (rGO), graphite carbon nitride (gC3N4), and siloxene (SiSh) was better than that of pristine CMSO. In particular, rGO-supported CMSO (CMSO@rGO) exhibited a large surface area and a low interface charge-transfer resistance, leading to a low overpotential and a Tafel slope of 259 mV (10 mA/cm2) and 85 mV/dec, respectively, with excellent long-term stability over 40 h of continuous operation in the oxygen evolution reaction.

1. Introduction

Hydrogen produced by electrolysis is one of the sustainable and promising energies to alter the energy from fossil fuels because of several factors, including the abundance of water as a feedstock, it being free of carbon dioxide emissions, and its wide range of applications [1]. However, the efficiency and utilization of water electrolysis are hindered by the low kinetics of the oxygen evolution reaction (OER) [2], which is the half-reaction of the water-splitting reaction.
The heterostructure material, which is composed of two or more components, possesses the synergistic effect of all components to overcome the disadvantages of individual ones. Additionally, the contact of the crystal components might change the electronic structure and strain the material, rendering it appropriate for OER [3,4,5]. As a result, various transition metals have been integrated in heterogeneous manners [6,7,8] to replace the scarce and expensive benchmark precious-metal-based electrocatalysts such as RuO2 or IrO2 in the OER process [9]. Among the transition metals, cobalt (Co) and molybdenum (Mo) are considered to be the most promising candidates because of their earth abundance and cost-effectiveness, as well as the excellent redox behavior of Co and high electrical conductivity of Mo [10,11,12,13].
Recently, several studies revealed that the introduction of a sulfur anion into Co is favorable for driving water oxidation. Wang et al. confirmed that the moderate replacement of oxygen with sulfur could modify the electronic structure of the composite to achieve optimal intrinsic OER activity [14]. Fei et al. reported that the co-substitution of Fe and S in CoMoO4 increased the charge-transfer ability and decreased the energy barrier of the rate-determining step during OER [15]. Hu et al. confirmed that compared to a pure oxide surface, a lattice oxygen–sulfur co-existing shell surface of (NiCo)OxS1.33−x lowered the applied potential for surface reconstruction [16].
Employing a two-dimensional (2D) material as a supporting material for electrocatalysts can be an efficient strategy to increase the number of active sites and improve long-term stability [17]. Reduced graphene oxide (rGO) has been widely used as a supporting material owing to its high specific surface area, high conductivity, and excellent mechanical strength [18]. As another carbon-based 2D material, graphitic carbon nitride (gC3N4) can also be used as a support because of its facile availability, simple production route, cost-effectiveness, and excellent chemical and thermal robustness [19,20]. Additionally, as a hexagonal 2D material composed of six-membered rings of silicon separated from each other by Si–O–Si bridges, siloxene (SiSh) also exhibits excellent properties when used as a support [21,22], owing to the high specific surface area and the presence of hydroxyl groups on the siloxene sheet [23].
Therefore, the heterogeneous structure of an oxide–sulfide composite of CoMoO4/CoS/MoS2 (CMSO) combined with the 2D material (CMSO@2D) is thought to be a good candidate out of the high-performance anode materials for the water-splitting reaction. This study aimed to explore the potential of 2D materials, including rGO, gC3N4, and SiSh, as supporting materials for CMSO to enhance the electrochemical activity and stability during the OER process. By conducting instrumental analysis and electrochemical characterization, rGO was found to be the best support for CMSO, and CMSO@rGO exhibited a low OER overpotential and a Tafel slope of 259 mV (10 mA/cm2) and 85 mV/dec, respectively, which were comparable to those of RuO2. In addition, a clear current drop was not observed even after 40 h of continuous operation.

2. Experimental Section

2.1. Synthesis of Various 2D Materials

Graphene oxide was prepared by using the modified Hummer’s method, as reported previously [24], and subsequently reduced using hydrazine monohydrate (N2H4·H2O) to obtain rGO nanosheets. SiSh was synthesized using the procedure described previously [22]. To prepare gC3N4, 10 g of melamine was added into a porcelain crucible and heated at 600 °C for 4 h. Then, the resulting yellow powder was mixed with 100 mL of deionized (DI) water and subjected to sonication. The final product was obtained after centrifugation and subsequent drying overnight at 100 °C in air.

2.2. Synthesis of CMSO@2D Materials

The CMSO@2D materials (viz. rGO, gC3N4, and SiSh) were fabricated using a two-step method of solvothermal synthesis and vacuum annealing, respectively. In the solvothermal step, thioacetamide (TAA) was added as a sulfur source of CMSO. Co-glycerate and ammonium molybdate tetrahydrate ((NH4)6Mo7O24·4H2O) were used as the precursors for Co2+ and Mo6+, respectively, which reacted with TAA to form Co/Mo sulfide. The used 2D material served as a support and template for the anchoring sites of Co/Mo sulfide. During the vacuum annealing process, the materials were partially oxidized, resulting in the formation of CoMoO4/CoS/MoS2@2D (CMSO@2D, Scheme 1).
Typically, mixture A was prepared by dissolving 20 mg of the Co-glycerate precursor (following the procedure in the Supplementary Information, SI), 10 mg of (NH4)6Mo7O24·4H2O, and 50 mg of TAA in 20 mL of ethanol. Simultaneously, mixture B was formed by sonicating 20 mg of gC3N4 in 20 mL of ethanol. Then, mixture A was slowly added to mixture B and stirred for 1 h. The resulting mixture was transferred into a Teflon-lined autoclave and heated, and the temperature was maintained at 200 °C for 6 h. After centrifugation and washing with ethanol and DI water, the product was dried in a vacuum oven at 60 °C for 12 h. Subsequently, the product was annealed at 500 °C under vacuum for 2 h. A similar procedure was followed for the reactions of the other 2D materials, with gC3N4 substituted by SiSh and rGO. In the case of rGO, 0.1 mL of N2H4·H2O was added to mixture B.

2.3. Synthesis of CMSO

CMSO spheres were synthesized using a process similar to that of CMSO@2D except for the addition of the 2D materials.

3. Result and Discussion

3.1. Characterization of As-Prepared Materials

The crystal structure and phase composition of all materials were analyzed via X-ray diffraction (XRD), as shown in Figure 1a. The XRD patterns of CMSO@rGO, CMSO@gC3N4, and CMSO@SiSh were similar to that of CMSO, indicating that a structural change did not occur during the deposition of CMSO on 2D materials and that all samples exhibited distinct MoS2, CoMoO4, and CoS phases. The diffraction peaks at 14.4° and 29.2° corresponded to the (002) and (004) planes of MoS2, respectively (JCPDS No. 037-1492) [25]. The diffraction peaks at 26.5°, 36.5°, 42.4°, 53.5°, 61.5°, 73.7°, and 77.5° were characteristic of the (220), (400), (123), (333), (061), (622), and (350) planes of CoMoO4 (JCPDS No. 04-017-6377), respectively [26]. The peaks observed at 34.4° and 47.1° were ascribed to the (101) and (102) planes of hexagonal CoS, respectively (JCPDS No. 65–3418) [27].
Additionally, in the XRD pattern of CMSO@SiSh, the characteristic peaks of SiSh were observed at 14.1°, 28.5°, and 56.1°, corresponding to the (001), (111), and (311) planes of siloxene, respectively. The peak located at 27.5° in the XRD pattern of CMSO@gC3N4 was attributed to gC3N4 (JCPDS No. 87-1526). Because the specific peak of rGO at 26.8° (JCPDS No. 89-8487) was overlapped with those of MoS2 at 28.5° and CoMoO4 at 26.5°, distinguishing the rGO-related peaks in the XRD pattern of CMSO@rGO was difficult. The Raman spectra of the prepared materials are shown in Figure 1b. In the Raman spectrum of CMSO, characteristic peaks for the bonding vibrations of Co–O–Mo at 808, 865, and 925 cm−1; MoO4 at 328 and 352 cm−1 [28]; CoS at 511 and 676 cm−1 [27]; and MoS2 at 280 cm−1 were observed [29]. In the Raman spectrum of CMSO@rGO, two additional peaks were observed at 1351 cm−1 and 1596 cm−1. These peaks were assigned to the D band and G band of rGO, respectively. The integrated area ratio of the D and G bands of pristine rGO (Figure S1a) was 1.27, while that of CMSO@rGO increased to 1.46, indicating that after the anchoring of CMSO, the defect density of the rGO surface increased. In the Raman spectrum of CMSO@gC3N4, a broad peak was observed at approximately 1600 cm−1, which was similar to that of bulk gC3N4 (Figure S1b). In the Raman spectrum of CMSO@SiSh, an intense peak at 513 cm−1 corresponding to the Si–Si vibration of SiSh was observed, which was same as that of SiSh shown in Figure S1c.
Figure 2 shows the Brunauer–Emmett–Teller (BET) analysis of all materials. This result revealed that the material exhibited a type IV isotherm according to the IUPAC classification [30], indicative of the presence of a mesoporous structure with a pore size ranging from 2 to 50 nm. Notably, CMSO@rGO exhibited a significantly higher nitrogen adsorption amount, leading to the highest surface area among all of the materials. According to Figure S2 and Table 1, the average pore radii of CMSO, CMSO@rGO, CMSO@gC3N4, and CMSO@SiSh were approximately distributed at 3.9, 1.6, 1.6, and 2.0 nm, respectively, corresponding to the pore volumes of 0.320, 1.154, 0.463, and 0.398 cm3/g.
The specific surface area increased in the order of CMSO (116 m2/g) < CMSO@gC3N4 (156 m2/g) < CMSO@SiSh (201 m2/g) < CMSO@rGO (1392 m2/g), indicating that the modification of CMSO with 2D materials led to an increase in the specific surface area. Notably, the introduction of rGO substantially increased the specific surface area of the composite.
To investigate the morphology of the as-prepared materials, field-emission scanning electron microscopy (FESEM) (Hitachi High-Tech Corporation, SU7000, Tokyo, Japan) was conducted. The FESEM images are shown in Figure 3. CMSO exhibited highly agglomerated nanosphere particles, resulting in the formation of large clusters (Figure 3a). In contrast, when CMSO was supported on 2D materials, especially rGO (Figure 3b) and gC3N4 (Figure 3c), the interparticle voids were increased, which could provide additional pathways and spaces for the electrolytic ions to access the active sites. CMSO on SiSh (Figure 3d) exhibited a non-uniform morphology and a high degree of agglomeration, which could be attributed to a low number of functional groups that could anchor CMSO nanoparticles. The elemental mapping of all materials is shown in Figures S3–S6. The constitutional elements exhibited a uniform distribution.
The elemental electronic states were investigated using X-ray photoelectron spectroscopy (XPS). In the deconvoluted Mo 3d spectra of CMSO (Figure 4a), dominant peaks observed at 235.4 and 232.3 eV corresponded to 3d3/2 and 3d5/2 of Mo6+, respectively, and those at 234.7 and 231.2 eV corresponded to 3d3/2 and 3d5/2 of Mo4+, respectively [31]. The weak peak located at approximately 228 eV was associated with S 2s [32]. After the addition of 2D materials, these peaks were positively shifted relative to bare CMSO. In the deconvoluted Co 2p spectrum of CMSO (Figure 4b), two peaks located at 780.9 and 796.3 eV, accompanied by two satellite peaks indicated by asterisks, were attributed to Co 2p3/2 and Co 2p1/2 of Co2+, respectively [33]. An additional peak at 779.8 eV was attributed to Co–S bonding [27]. Interestingly, the position of Co 2p peaks in CMSO@rGO, CMSO@gC3N4, and CMSO@SiSh shifted to higher binding energies compared with that of pristine CMSO, indicative of the loss of electrons in Co [34]. The deconvoluted S 2p spectrum (Figure 4c) revealed four peaks. The peaks observed at 162.6 and 161.3 eV corresponded to S2− of Co–S and Mo–S, respectively [35,36]. Two additional peaks at 169 and 167.7 eV corresponded to oxidized sulfur [32]. The high-resolution O 1s XPS spectra (Figure 4d) showed a major peak at 530.2 eV, corresponding to O in CoMoO4 [37]. After modification with 2D materials, the S 2p peaks exhibited a negative shift, and the O 1s peaks exhibited a positive shift, indicative of the electronic interaction between CMSO and 2D materials [34]. Such charge transfer between CMSO and supporting materials could induce adjustments in energy-band alignment, which might thermodynamically facilitate the OER process [38].

3.2. Electrocatalytic Activity of As-Prepared Materials

To evaluate the effect of 2D supporting materials on the activity of CMSO in the OER process, the electrocatalytic properties of CMSO, CMSO@rGO, CMSO@gC3N4, and CMSO@SiSh were investigated and compared with those of RuO2, which was widely recognized as a benchmark material for OER. The OER overpotentials of 2D material-supported CMSO such as CMSO@rGO (259 mV 10 mA/cm2), CMSO@gC3N4 (270 mV), and CMSO@SiSh (287 mV) were less than that of CMSO (384 mV), which indicated the improved OER properties of CMSO by the 2D supporting materials (Figure 5a,b). In addition, the overpotential of CMSO@rGO was less than that of RuO2 (315 mV). To gain insights into the OER kinetics, the Tafel slope was calculated based on overpotential and the logarithm of current density data (Figure 5c). Same as the OER overpotential, the Tafel slopes of CMSO@rGO (85 mV/dec), CMSO@gC3N4 (109 mV/dec), and CMSO@SiSh (86 mV/dec) were lower than that of CMSO (141 mV/dec), which indicated the faster OER kinetics of 2D material-supported CMSO. Among the other material-supported CMSO, CMSO@rGO exhibited the lowest Tafel slope, which was less than that of RuO2 (136 mV/dec).
The electrochemically active surface area (ECSA) and electrochemical impedance spectroscopy (EIS) were measured to obtain better understanding of the improved OER activity of CMSO rendered by the 2D supporting materials. The double layer capacitance (Cdl), which was directly proportional to the ECSA value, of each material was measured from the cyclic voltammetry curves shown in Figure S7. The Cdl of CMSO was 2.9 mF/cm2, and it was increased to 11.0 mF/cm2 (CMSO@SiSh), 16.2 mF/cm2 (CMSO@gC3N4), and 35.2 mF/cm2(CMSO@rGO) (Figure 5d), which clearly indicated the effects of 2D materials on the Cdl value. The highest Cdl of CMSO@rGO could be strongly related to its highest BET surface area, as shown in Figure S8.
The Nyquist plots obtained from the EIS of all materials exhibited a semicircle (Figure 5e). Notably, the charge transfer resistance (Rct) of CMSO@rGO was measured to be 3.9 Ω, which was significantly lower than those obtained from other materials, as summarized in Table 2. This result implied that CMSO@rGO exhibited a higher electron and charge-transfer velocity than the other samples. The lower Rct value of CMSO@rGO was consistent with its superior electrocatalytic activity, including lower overpotential, smaller Tafel slope, and higher ECSA. The electrochemical performances of the investigated materials are summarized in Table 2.
The role of 2D materials as templates for anchoring CMSO not only exposed more active sites to the electrolyte but also facilitated electron and charge transfer processes. The combination of the high surface area and superior conductivity of rGO might enable CMSO@rGO to achieve the fastest reaction rate compared to the other materials [51]. The observed overpotential and kinetics of CMSO@rGO fabricated herein were comparable to those of previously reported cobalt-based electrocatalysts (Table S1 and Figure 5f), revealing the high potential of CMSO@rGO as a promising electrocatalyst for OER in water electrolysis.
Stability is another key parameter to evaluate electrochemical catalysts. Chronoamperometry (CA) measurements at a constant current density were conducted to evaluate the stability of the investigated materials. The results are shown in Figure 6a. For CMSO, CMSO@rGO, CMSO@gC3N4, and CMSO@SiSh, the potentials applied to achieve a current density of ~10 mA/cm2 were 1.60 V, 1.49 V, 1.50 V, and 1.52 V, respectively. The current densities of CMSO, CMSO@gC3N4, and CMSO@SiSh started to decrease after 10 h of continuous operation. However, the current density of CMSO@rGO decreased negligibly, almost similar to that observed for the OER LSV curves (Figure 6b) and the unchanged morphology (Figure S9) even after 40 h of continuous operation, indicative of the superior long-term stability of as-prepared CMSO@rGO. The strong interaction between rGO sheets and CMSO might prevent the change in the morphology. Instead, a new peak was observed at 504 cm−1 in the Raman spectrum of CMSO@rGO after 40 h of the OER process (Figure S10a), which could be attributed to the presence of CoOOH [52]. Similarly, in the XRD pattern of CMSO@rGO after the stability test (Figure S10b), a new peak was observed at 20.2°, corresponding to the (003) plane of CoOOH (JCPDS No. 01-073-0497). The XPS deconvoluted spectrum of Co 2p after the stability test (Figure S10c) exhibited a positive shift, and two new peaks appeared at 780 and 795 eV, respectively, originating from the Co3+ species in CoOOH [53]. These results revealed that the active site CMSO on the rGO sheet was partially converted into CoOOH, corresponding to the reconstruction phenomenon that occurred typically on the surface of transition-metal-based electrocatalysts in the water oxidation process [52,54]. This result suggested that the Co sites in CMSO@rGO served as favorable catalytic reaction sites for OER. The presence of a highly active CoOOH surface possibly impeded the further oxidation of the core electrocatalyst, and the interaction between the in situ oxyhydroxide and the original catalyst might be favorable in driving water oxidation. Thus, the stability of the electrocatalyst was maintained during the OER process [15,54]. The mechanism was described in the following reaction steps (* corresponds to an active site):
* + OH− → *OH− + e−
*OH− + OH− → *O + H2O + e−
*O + OH− → *OOH + e−
*OOH + OH− → * + O2 + H2O + e−
A two-electrode system with CMSO@rGO as the anode and Pt/C (20%) as the cathode was designed for overall water splitting to ensure stability and scalability in large-scale industrial applications. The LSV curve (Figure 7a) of this system indicated that the potential of the cell reached 10 mA/cm2 at 1.54 V, while that of the RuO2//Pt/C system was greater by 60 mV. Even after a 40 h stability test, the chronopotentiometry curve of CMSO@rGO//Pt/C in Figure 7b exhibited an excellent activity retention of 94.8%. Particularly, the potential slightly increased from 1.54 V to 1.62 V. This result indicated that CMSO@rGO demonstrated excellent long-term stability even for the overall water-splitting reaction.

4. Conclusions

In this study, Co and Mo bimetallic oxide/sulfide hybrid structures supported on various 2D materials such as rGO, gC3N4, and SiSh were successfully synthesized. Among these materials, CMSO@rGO exhibited the highest electrochemical activity, with a low overpotential and a Tafel slope of 259 mV at 10 mA/cm2 and 85 mV/dec, respectively. Owing to the strong interaction between rGO and CMSO, the electronic structure of the composite system was modulated, promoting the formation of oxyhydroxide surfaces, and optimizing the performance of the electrocatalyst in driving water oxidation. Furthermore, the current density of CMSO@rGO changed negligibly even after a 40 h long-term stability test with no clear physical and electronic deformation, which was attributed to the high number of functional groups and high surface area of rGO.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano13172463/s1, Scheme S1: the synthesis procedure of CMSO@2D; Figure S1: Raman spectrum of (a) rGO, (b) gC3N4, and (c) SiSh; Figure S2: Pore size distribution by density functional theory of various materials; Figure S3: Elemental mapping of CMSO; Figure S4: Elemental mapping of CMSO@rGO; Figure S5: Elemental mapping of CMSO@gC3N4; Figure S6: Elemental mapping of CMSO@SiSh; Figure S7: Cyclic voltammetry curves at scan rates from 20 to 100 mV/s of prepared materials; Figure S8: Comparison of BET and ECSA of synthesized materials; Figure S9: FESEM of CMSO@rGO at different magnification after OER; Figure S10: Comparison of (a) Raman spectrum, (b) XRD pattern, and (c) XPS of Co 2p of CMSO@rGO before and after OER; Figure S11: Calibration of Hg/HgO electrode; Table S1: Comparison of OER activity in 1 M KOH of different electrocatalyst. References [55,56,57,58,59,60,61,62] are cited in the Supplementary Materials.

Author Contributions

Conceptualization and data curation: N.-D.H.; methodology and visualization: N.-D.H.; formal analysis and investigation: N.-D.H.; writing—original draft preparation: N.-D.H.; writing—review and editing: S.H.H.; project administration and funding acquisition, W.M.C. and S.H.H. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIT) (2022R1A2C1002901), Priority Research Centers Program (MOE) (2021R1A6A1A03038858), and Regional Innovation Strategy (MOE) (2021RIS-003). This study was also supported by Korea Hydro & Nuclear Power Co. (2021).

Data Availability Statement

The data presented in this study are available on request from the corresponding authors.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yue, M.; Lambert, H.; Pahon, E.; Roche, R.; Jemei, S.; Hissel, D. Hydrogen energy systems: A critical review of technologies, applications, trends and challenges. Renew. Sustain. Energy Rev. 2021, 146, 111180. [Google Scholar] [CrossRef]
  2. Xie, X.; Du, L.; Yan, L.; Park, S.; Qiu, Y.; Sokolowski, J.; Wang, W.; Shao, Y. Oxygen Evolution Reaction in Alkaline Environment: Material Challenges and Solutions. Adv. Funct. Mater. 2022, 32, 2110036. [Google Scholar] [CrossRef]
  3. Xu, X.; Pan, Y.; Ge, L.; Chen, Y.; Mao, X.; Guan, D.; Li, M.; Zhong, Y.; Hu, Z.; Peterson, V.K.; et al. High-Performance Perovskite Composite Electrocatalysts Enabled by Controllable Interface Engineering. Small 2021, 17, 2101573. [Google Scholar] [CrossRef]
  4. Shifa, T.A.; Wang, F.; Liu, Y.; He, J. Heterostructures Based on 2D Materials: A Versatile Platform for Efficient Catalysis. Adv. Mater. 2019, 31, 1804828. [Google Scholar] [CrossRef] [PubMed]
  5. Fei, L.; Sun, H.; Xu, X.; Li, Y.; Ran, R.; Zhou, W.; Shao, Z. Understanding the bifunctional catalytic ability of electrocatalysts for oxygen evolution reaction and urea oxidation Reaction: Recent advances and perspectives. Chem. Eng. J. 2023, 471, 144660. [Google Scholar] [CrossRef]
  6. Van Phuc, T.; Kang, S.G.; Chung, J.S.; Hur, S.H. Highly CO selective Ca and Zn hybrid metal-organic framework electrocatalyst for the electrochemical reduction of CO2. Curr. Appl. Phys. 2021, 27, 31–37. [Google Scholar] [CrossRef]
  7. Jana, J.; Van Phuc, T.; Chung, J.S.; Choi, W.M.; Hur, S.H. Nano-Dimensional Carbon Nanosphere Supported Non-Precious Metal Oxide Composite: A Cathode Material for Sea Water Reduction. Nanomaterials 2022, 12, 4348. [Google Scholar] [CrossRef]
  8. Park, H.; Park, B.H.; Choi, J.; Kim, S.; Kim, T.; Youn, Y.-S.; Son, N.; Kim, J.H.; Kang, M. Enhanced Electrochemical Properties and OER Performances by Cu Substitution in NiCo2O4 Spinel Structure. Nanomaterials 2020, 10, 1727. [Google Scholar] [CrossRef] [PubMed]
  9. Jiao, Y.; Zheng, Y.; Jaroniec, M.; Qiao, S.Z. Design of electrocatalysts for oxygen- and hydrogen-involving energy conversion reactions. Chem. Soc. Rev. 2015, 44, 2060–2086. [Google Scholar] [CrossRef]
  10. Hong, W.T.; Risch, M.; Stoerzinger, K.A.; Grimaud, A.; Suntivich, J.; Shao-Horn, Y. Toward the rational design of non-precious transition metal oxides for oxygen electrocatalysis. Energy Environ. Sci. 2015, 8, 1404–1427. [Google Scholar] [CrossRef]
  11. Yu, M.Q.; Jiang, L.X.; Yang, H.G. Ultrathin nanosheets constructed CoMoO4 porous flowers with high activity for electrocatalytic oxygen evolution. Chem. Commun. 2015, 51, 14361–14364. [Google Scholar] [CrossRef]
  12. Fang, L.; Wang, F.; Zhai, T.; Qiu, Y.; Lan, M.; Huang, K.; Jing, Q. Hierarchical CoMoO4 nanoneedle electrodes for advanced supercapacitors and electrocatalytic oxygen evolution. Electrochim. Acta 2018, 259, 552–558. [Google Scholar] [CrossRef]
  13. Xun, S.; Xu, Y.; He, J.; Jiang, D.; Yang, R.; Li, D.; Chen, M. MOF-derived cobalt oxides nanoparticles anchored on CoMoO4 as a highly active electrocatalyst for oxygen evolution reaction. J. Alloys Compd. 2019, 806, 1097–1104. [Google Scholar] [CrossRef]
  14. Wang, B.; Tang, C.; Wang, H.-F.; Chen, X.; Cao, R.; Zhang, Q. A Nanosized CoNi Hydroxide@Hydroxysulfide Core–Shell Heterostructure for Enhanced Oxygen Evolution. Adv. Mater. 2019, 31, 1805658. [Google Scholar] [CrossRef] [PubMed]
  15. Fei, B.; Chen, Z.; Ha, Y.; Wang, R.; Yang, H.; Xu, H.; Wu, R. Anion-cation co-substitution activation of spinel CoMoO4 for efficient oxygen evolution reaction. Chem. Eng. J. 2020, 394, 124926. [Google Scholar] [CrossRef]
  16. Hu, Y.; Zheng, Y.; Jin, J.; Wang, Y.; Peng, Y.; Yin, J.; Shen, W.; Hou, Y.; Zhu, L.; An, L.; et al. Understanding the sulphur-oxygen exchange process of metal sulphides prior to oxygen evolution reaction. Nat. Commun. 2023, 14, 1949. [Google Scholar] [CrossRef] [PubMed]
  17. Deng, D.; Novoselov, K.S.; Fu, Q.; Zheng, N.; Tian, Z.; Bao, X. Catalysis with two-dimensional materials and their heterostructures. Nat. Nanotechnol. 2016, 11, 218–230. [Google Scholar] [CrossRef]
  18. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Katsnelson, M.I.; Grigorieva, I.V.; Dubonos, S.V.; Firsov, A.A. Two-dimensional gas of massless Dirac fermions in graphene. Nature 2005, 438, 197–200. [Google Scholar] [CrossRef] [PubMed]
  19. Zulqarnain, M.; Shah, A.; Khan, M.A.; Jan Iftikhar, F.; Nisar, J. FeCoSe2 Nanoparticles Embedded in g-C3N4: A Highly Active and Stable bifunctional electrocatalyst for overall water splitting. Sci. Rep. 2020, 10, 6328. [Google Scholar] [CrossRef]
  20. Jana, J.; Nivetha, R.; Diem, H.N.; Van Phuc, T.; Kang, S.G.; Chung, J.S.; Choi, W.M.; Hur, S.H. Improved kinetics of reduction of alkaline water on the g-CN-supported transition metal oxide/boride hetero-interface: A case study. Int. J. Energy Res. 2022, 46, 14979–14993. [Google Scholar] [CrossRef]
  21. Dai, Q.; Meng, Q.; Du, C.; Ding, F.; Huang, J.; Nie, J.; Zhang, X.; Chen, J. Spontaneous deposition of Ir nanoparticles on 2D siloxene as a high-performance HER electrocatalyst with ultra-low Ir loading. Chem. Commun. 2020, 56, 4824–4827. [Google Scholar] [CrossRef] [PubMed]
  22. Huynh, N.-D.; Jana, J.; Nivetha, R.; Van Phuc, T.; Chung, J.S.; Hur, S.H. 2D siloxene supported NiO/Co3O4 electrocatalyst for the stable and efficient hydrogen evolution reaction. Curr. Appl. Phys. 2022, 44, 102–109. [Google Scholar] [CrossRef]
  23. Yamanaka, S.; Matsu-ura, H.; Ishikawa, M. New deintercalation reaction of calcium from calcium disilicide. Synthesis of layered polysilane. Mater. Res. Bull. 1996, 31, 307–316. [Google Scholar] [CrossRef]
  24. Ngo, Y.-L.T.; Hur, S.H. Low-temperature NO2 gas sensor fabricated with NiO and reduced graphene oxide hybrid structure. Mater. Res. Bull. 2016, 84, 168–176. [Google Scholar] [CrossRef]
  25. Hasmin, H.F.; Imawan, C.; Fauzia, V. The Role of Temperature in the Hydrothermal Synthesis on the Structural and Morphological Properties of MoS2. J. Phys. Conf. Ser. 2021, 1951, 012014. [Google Scholar] [CrossRef]
  26. Yu, H.; Guan, C.; Rui, X.; Ouyang, B.; Yadian, B.; Huang, Y.; Zhang, H.; Hoster, H.E.; Fan, H.J.; Yan, Q. Hierarchically porous three-dimensional electrodes of CoMoO4 and ZnCo2O4 and their high anode performance for lithium ion batteries. Nanoscale 2014, 6, 10556–10561. [Google Scholar] [CrossRef]
  27. Ma, D.; Hu, B.; Wu, W.; Liu, X.; Zai, J.; Shu, C.; Tadesse Tsega, T.; Chen, L.; Qian, X.; Liu, T.L. Highly active nanostructured CoS2/CoS heterojunction electrocatalysts for aqueous polysulfide/iodide redox flow batteries. Nat. Commun. 2019, 10, 3367. [Google Scholar] [CrossRef]
  28. Xiao, H.; Chi, K.; Yin, H.; Zhou, X.; Lei, P.; Liu, P.; Fang, J.; Li, X.; Yuan, S.; Zhang, Z.; et al. Excess Activity Tuned by Distorted Tetrahedron in CoMoO4 for Oxygen Evolution. Energy Environ. Mater. 2022, e12495, early view. [Google Scholar] [CrossRef]
  29. Wei, W.; Sun, K.; Hu, Y.H. An efficient counter electrode material for dye-sensitized solar cells—Flower-structured 1T metallic phase MoS2. J. Mater. Chem. A 2016, 4, 12398–12401. [Google Scholar] [CrossRef]
  30. Brunauer, S.; Emmett, P.H.; Teller, E. Adsorption of Gases in Multimolecular Layers. J. Am. Chem. Soc. 1938, 60, 309–319. [Google Scholar] [CrossRef]
  31. Liu, Y.-R.; Shang, X.; Gao, W.-K.; Dong, B.; Li, X.; Li, X.-H.; Zhao, J.-C.; Chai, Y.-M.; Liu, Y.-Q.; Liu, C.-G. In situ sulfurized CoMoS/CoMoO4 shell–core nanorods supported on N-doped reduced graphene oxide (NRGO) as efficient electrocatalyst for hydrogen evolution reaction. J. Mater. Chem. A 2017, 5, 2885–2896. [Google Scholar] [CrossRef]
  32. Yang, Y.; Yao, H.; Yu, Z.; Islam, S.M.; He, H.; Yuan, M.; Yue, Y.; Xu, K.; Hao, W.; Sun, G.; et al. Hierarchical Nanoassembly of MoS2/Co9S8/Ni3S2/Ni as a Highly Efficient Electrocatalyst for Overall Water Splitting in a Wide pH Range. J. Am. Chem. Soc. 2019, 141, 10417–10430. [Google Scholar] [CrossRef]
  33. McIntyre, N.S.; Johnston, D.D.; Coatsworth, L.L.; Davidson, R.D.; Brown, J.R. X-ray photoelectron spectroscopic studies of thin film oxides of cobalt and molybdenum. Surf. Interface Anal. 1990, 15, 265–272. [Google Scholar] [CrossRef]
  34. Liu, J.; Wang, J.; Zhang, B.; Ruan, Y.; Wan, H.; Ji, X.; Xu, K.; Zha, D.; Miao, L.; Jiang, J. Mutually beneficial Co3O4@MoS2 heterostructures as a highly efficient bifunctional catalyst for electrochemical overall water splitting. J. Mater. Chem. A 2018, 6, 2067–2072. [Google Scholar] [CrossRef]
  35. Battistoni, C.; Gastaldi, L.; Lapiccirella, A.; Mattogno, G.; Viticoli, S. Octahedral vs tetrahedral coordination of the co(II) ion in layer compounds: CoxZn1−xIn2S4(O ≤ x ≤ 0.46) solid solution. J. Phys. Chem. Solids 1986, 47, 899–903. [Google Scholar] [CrossRef]
  36. de Jong, A.M.; Borg, H.J.; van Ijzendoorn, L.J.; Soudant, V.G.F.M.; de Beer, V.H.J.; van Veen, J.A.R.; Niemantsverdriet, J.W. Sulfidation mechanism by molybdenum catalysts supported on silica/silicon(100) model support studied by surface spectroscopy. J. Phys. Chem. 1993, 97, 6477–6483. [Google Scholar] [CrossRef]
  37. Kasztelan, S.; Grimblot, J.; Bonnelle, J.P.; Payen, E.; Toulhoat, H.; Jacquin, Y. Preparation of Co-Mo-γAl2O3 and Ni-Mo-γAl2O3 catalysts by ph regulation of molybdenum solution. characterization of supported species and hydrogenation activities. Appl. Catal. 1983, 7, 91–112. [Google Scholar] [CrossRef]
  38. Sun, Y.; Gao, S.; Lei, F.; Xie, Y. Atomically-thin two-dimensional sheets for understanding active sites in catalysis. Chem. Soc. Rev. 2015, 44, 623–636. [Google Scholar] [CrossRef] [PubMed]
  39. Meng, J.; Fu, J.; Yang, X.; Wei, M.; Liang, S.; Zang, H.-Y.; Tan, H.; Wang, Y.; Li, Y. Efficient MMoO4 (M = Co, Ni) carbon cloth electrodes for water oxidation. Inorg. Chem. Front. 2017, 4, 1791–1797. [Google Scholar] [CrossRef]
  40. Zhang, W.; Qu, M.; Chai, D.-F.; Han, Y.; Dong, G.; Zhang, Z.; Bai, L.; Guo, D. A facile ion-conversion-exchange strategy for designing nitrogen-doped CoMoO4@Co3O4 double-shell nanoboxs: A competitive candidate for supercapacitor and oxygen evolution reaction. J. Energy Storage 2023, 57, 106170. [Google Scholar] [CrossRef]
  41. Wu, Z.; Sun, L.-P.; Yang, M.; Huo, L.-H.; Zhao, H.; Grenier, J.-C. Facile synthesis and excellent electrochemical performance of reduced graphene oxide–Co3O4 yolk-shell nanocages as a catalyst for oxygen evolution reaction. J. Mater. Chem. A 2016, 4, 13534–13542. [Google Scholar] [CrossRef]
  42. Bao, W.; Li, Y.; Zhang, J.; Ai, T.; Yang, C.; Feng, L. Interface engineering of the NiCo2O4@MoS2/TM heterostructure to realize the efficient alkaline oxygen evolution reaction. Int. J. Hydrogen Energy 2023, 48, 12176–12184. [Google Scholar] [CrossRef]
  43. Pei, X.; Mu, Y.; Dong, X.; Ding, C.; Xu, L.; Cui, M.; Meng, C.; Zhang, Y. Ion-change promoting Co nanoparticles@N-doped carbon framework on Co2SiO4/rGO support forming “double-triple-biscuit” structure boosts oxygen evolution reaction. Carbon Neutralization 2023, 2, 115–126. [Google Scholar] [CrossRef]
  44. Yang, L.; Zhang, L.; Xu, G.; Ma, X.; Wang, W.; Song, H.; Jia, D. Metal–Organic-Framework-Derived Hollow CoSx@MoS2 Microcubes as Superior Bifunctional Electrocatalysts for Hydrogen Evolution and Oxygen Evolution Reactions. ACS Sustain. Chem. Eng. 2018, 6, 12961–12968. [Google Scholar] [CrossRef]
  45. Liang, D.; Zhang, H.; Ma, X.; Liu, S.; Mao, J.; Fang, H.; Yu, J.; Guo, Z.; Huang, T. MOFs-derived core-shell Co3Fe7@Fe2N nanopaticles supported on rGO as high-performance bifunctional electrocatalyst for oxygen reduction and oxygen evolution reactions. Mater. Today Energy 2020, 17, 100433. [Google Scholar] [CrossRef]
  46. Abd-Elrahim, A.G.; Chun, D.-M. Nanosized Co3O4–MoS2 heterostructure electrodes for improving the oxygen evolution reaction in an alkaline medium. J. Alloys Compd. 2021, 853, 156946. [Google Scholar] [CrossRef]
  47. Li, Y.; Wang, C.; Cui, M.; Chen, S.; Ma, T. A novel strategy to synthesize CoMoO4 nanotube as highly efficient oxygen evolution reaction electrocatalyst. Catal. Commun. 2019, 131, 105800. [Google Scholar] [CrossRef]
  48. Yang, G.; Meng, M.; Wang, X.; Peng, C.; Xue, Y.; Yang, J.; Tang, Z. Three-dimensional crumpled reduced graphene oxide/Co9S8 nanocomposites as efficient electrocatalyst for oxygen evolution reaction. J. Alloys Compd. 2022, 905, 164253. [Google Scholar]
  49. Suliman, M.A.; Suliman, M.H.; Adam, A.; Basheer, C.; Yamani, Z.H.; Qamar, M. Interfacial coupling of amorphous cobalt boride with g-C3N4 nanosheets for superior oxygen evolution reaction. Mater. Lett. 2020, 268, 127593. [Google Scholar] [CrossRef]
  50. Borthakur, P.; Boruah, P.K.; Das, M.R.; Ibrahim, M.M.; Altalhi, T.; El-Sheshtawy, H.S.; Szunerits, S.; Boukherroub, R.; Amin, M.A. CoS2 Nanoparticles Supported on rGO, g-C3N4, BCN, MoS2, and WS2 Two-Dimensional Nanosheets with Excellent Electrocatalytic Performance for Overall Water Splitting: Electrochemical Studies and DFT Calculations. ACS Appl. Energy Mater. 2021, 4, 1269–1285. [Google Scholar] [CrossRef]
  51. Hu, M.; Yao, Z.; Wang, X. Graphene-Based Nanomaterials for Catalysis. Ind. Eng. Chem. Res. 2017, 56, 3477–3502. [Google Scholar] [CrossRef]
  52. Lee, W.H.; Han, M.H.; Ko, Y.-J.; Min, B.K.; Chae, K.H.; Oh, H.-S. Electrode reconstruction strategy for oxygen evolution reaction: Maintaining Fe-CoOOH phase with intermediate-spin state during electrolysis. Nat. Commun. 2022, 13, 605. [Google Scholar] [CrossRef] [PubMed]
  53. Schenck, C.V.; Dillard, J.G.; Murray, J.W. Surface analysis and the adsorption of Co(II) on goethite. J. Colloid Interface Sci. 1983, 95, 398–409. [Google Scholar] [CrossRef]
  54. Wang, Q.; Xu, H.; Qian, X.; He, G.; Chen, H. Sulfur vacancies engineered self-supported Co3S4 nanoflowers as an efficient bifunctional catalyst for electrochemical water splitting. Appl. Catal. B Environ. 2023, 322, 122104. [Google Scholar] [CrossRef]
  55. Li, Y.; Wang, W.; Huang, B.; Mao, Z.; Wang, R.; He, B.; Gong, Y.; Wang, H. Abundant heterointerfaces in MOF-derived hollow CoS2–MoS2 nanosheet array electrocatalysts for overall water splitting. J. Energy Chem. 2021, 57, 99–108. [Google Scholar] [CrossRef]
  56. McCrory, C.C.L.; Jung, S.; Peters, J.C.; Jaramillo, T.F. Benchmarking Heterogeneous Electrocatalysts for the Oxygen Evolution Reaction. J. Am. Chem. Soc. 2013, 135, 16977–16987. [Google Scholar] [CrossRef]
  57. Xiong, Q.; Wang, Y.; Liu, P.-F.; Zheng, L.-R.; Wang, G.; Yang, H.-G.; Wong, P.-K.; Zhang, H.; Zhao, H. Cobalt Covalent Doping in MoS2 to Induce Bifunctionality of Overall Water Splitting. Adv. Mater. 2018, 30, 1801450. [Google Scholar] [CrossRef]
  58. Zhao, Z.-Y.; Li, F.-L.; Shao, Q.; Huang, X.; Lang, J.-P. Co-Modified MoS2 Hybrids as Superior Bifunctional Electrocatalysts for Water Splitting Reactions: Integrating Multiple Active Components in One. Adv. Mater. Interfaces 2019, 6, 1900372. [Google Scholar] [CrossRef]
  59. Tao, B.; Yang, L.; Miao, F.; Zang, Y.; Chu, P.K. An MoS2/NiCo2O4 composite supported on Ni foam as a bifunctional electrocatalyst for efficient overall water splitting. J. Phys. Chem. Solids 2021, 150, 109842. [Google Scholar] [CrossRef]
  60. Yang, J.; Chai, C.; Jiang, C.; Liu, L.; Xi, J. MoS2–CoS2 heteronanosheet arrays coated on porous carbon microtube textile for overall water splitting. J. Power Sources 2021, 514, 230580. [Google Scholar] [CrossRef]
  61. Ganesan, V.; Kim, J. Multi-shelled CoS2–MoS2 hollow spheres as efficient bifunctional electrocatalysts for overall water splitting. Int. J. Hydrogen Energy 2020, 45, 13290–13299. [Google Scholar] [CrossRef]
  62. Tong, Y.; Sun, Q.; Chen, P.; Chen, L.; Fei, Z.; Dyson, P.J. Nitrogen-Incorporated Cobalt Sulfide/Graphene Hybrid Catalysts for Overall Water Splitting. ChemSusChem 2020, 13, 5112–5118. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 13 02463 sch001

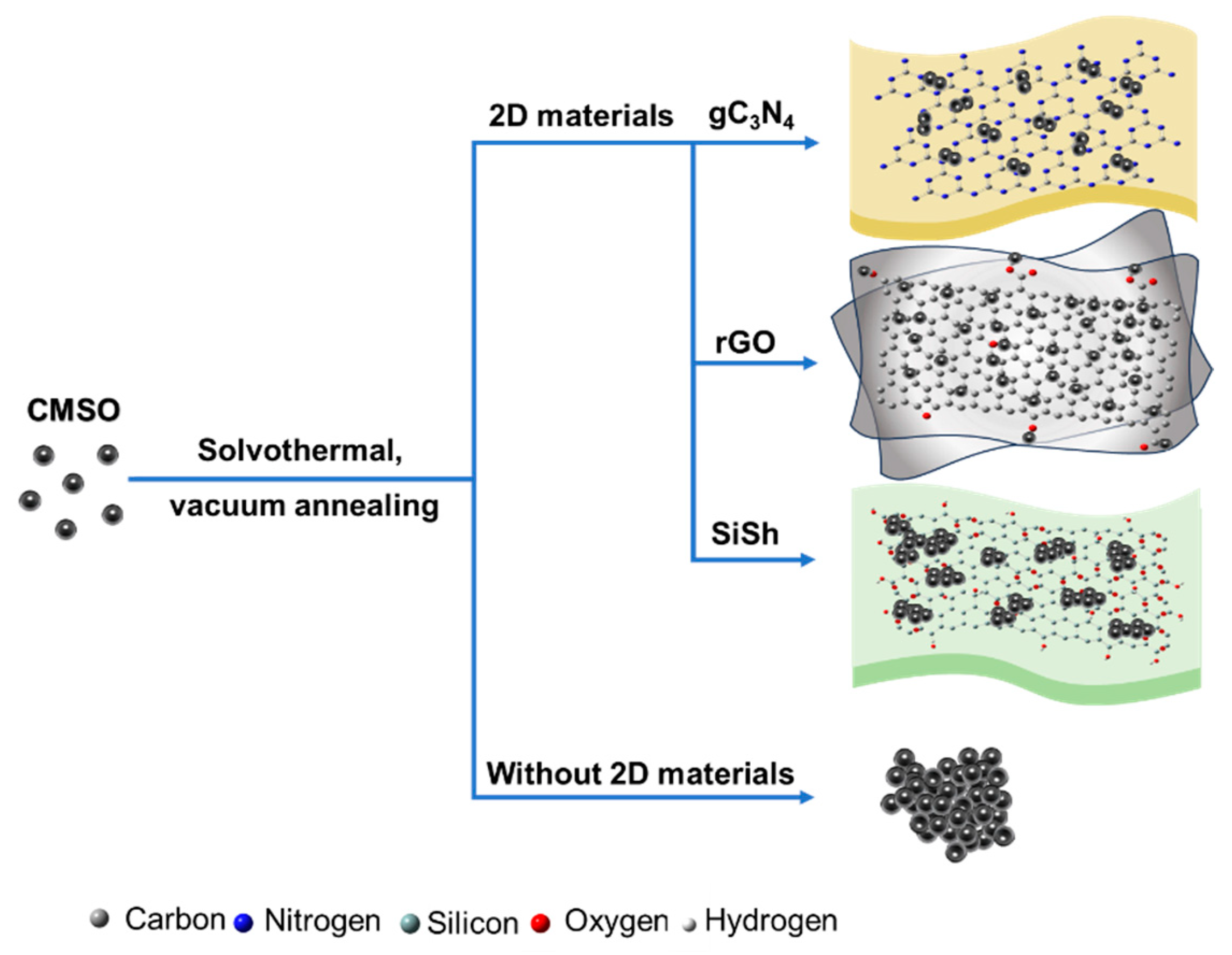

Scheme 1. Schematic of CMSO and various CMSO@2D materials (2D materials: rGO, gC3N4, and SiSh).
Scheme 1. Schematic of CMSO and various CMSO@2D materials (2D materials: rGO, gC3N4, and SiSh).
Nanomaterials 13 02463 sch001
Nanomaterials 13 02463 g001

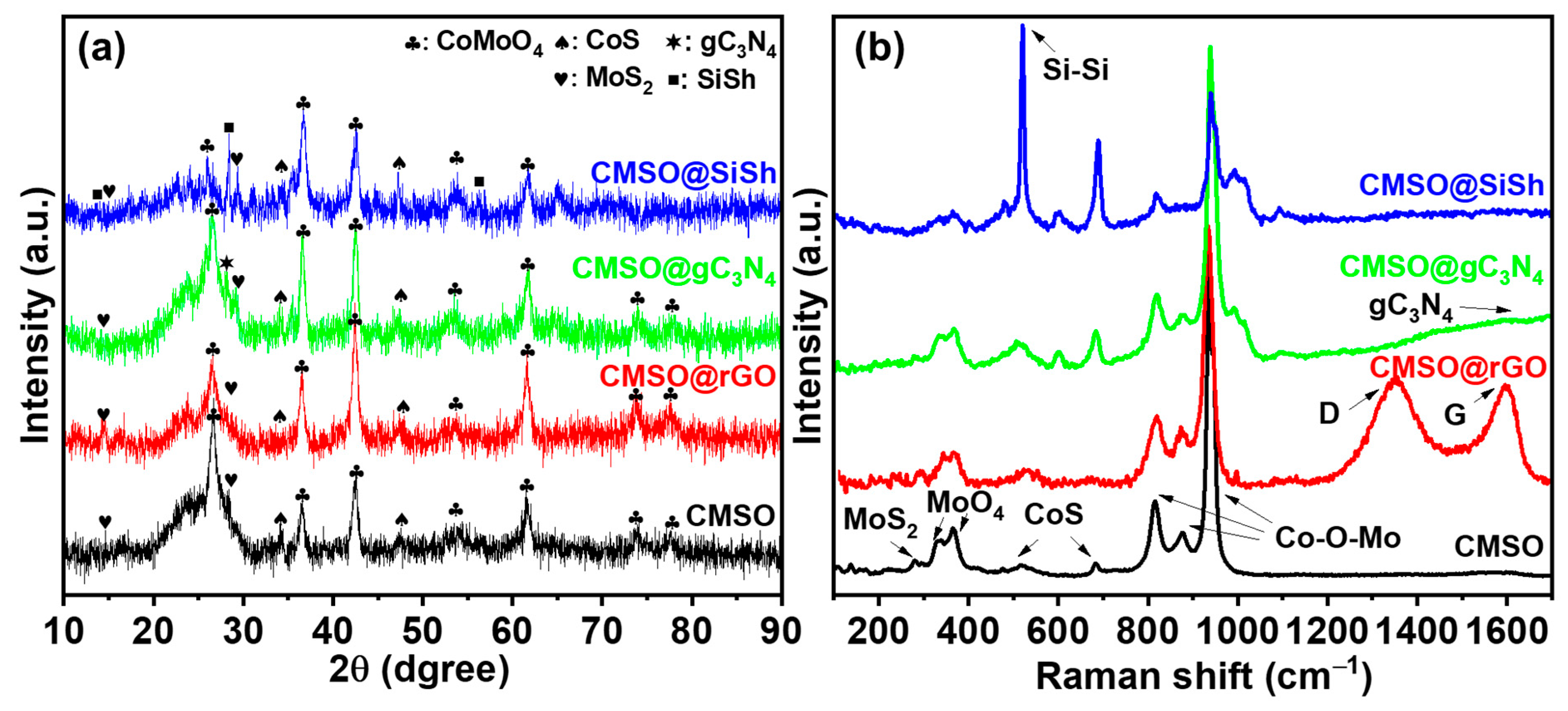

Figure 1. (a) XRD patterns and (b) Raman spectra of various materials.
Figure 1. (a) XRD patterns and (b) Raman spectra of various materials.
Nanomaterials 13 02463 g001
Nanomaterials 13 02463 g002
Figure 2. N2 adsorption–desorption isotherms of various materials.
Figure 2. N2 adsorption–desorption isotherms of various materials.
Nanomaterials 13 02463 g002
Nanomaterials 13 02463 g003
Figure 3. FESEM images of (a) CMSO, (b) CMSO@rGO, (c) CMSO@gC3N4, and (d) CMSO@SiSh.
Figure 3. FESEM images of (a) CMSO, (b) CMSO@rGO, (c) CMSO@gC3N4, and (d) CMSO@SiSh.
Nanomaterials 13 02463 g003
Nanomaterials 13 02463 g004

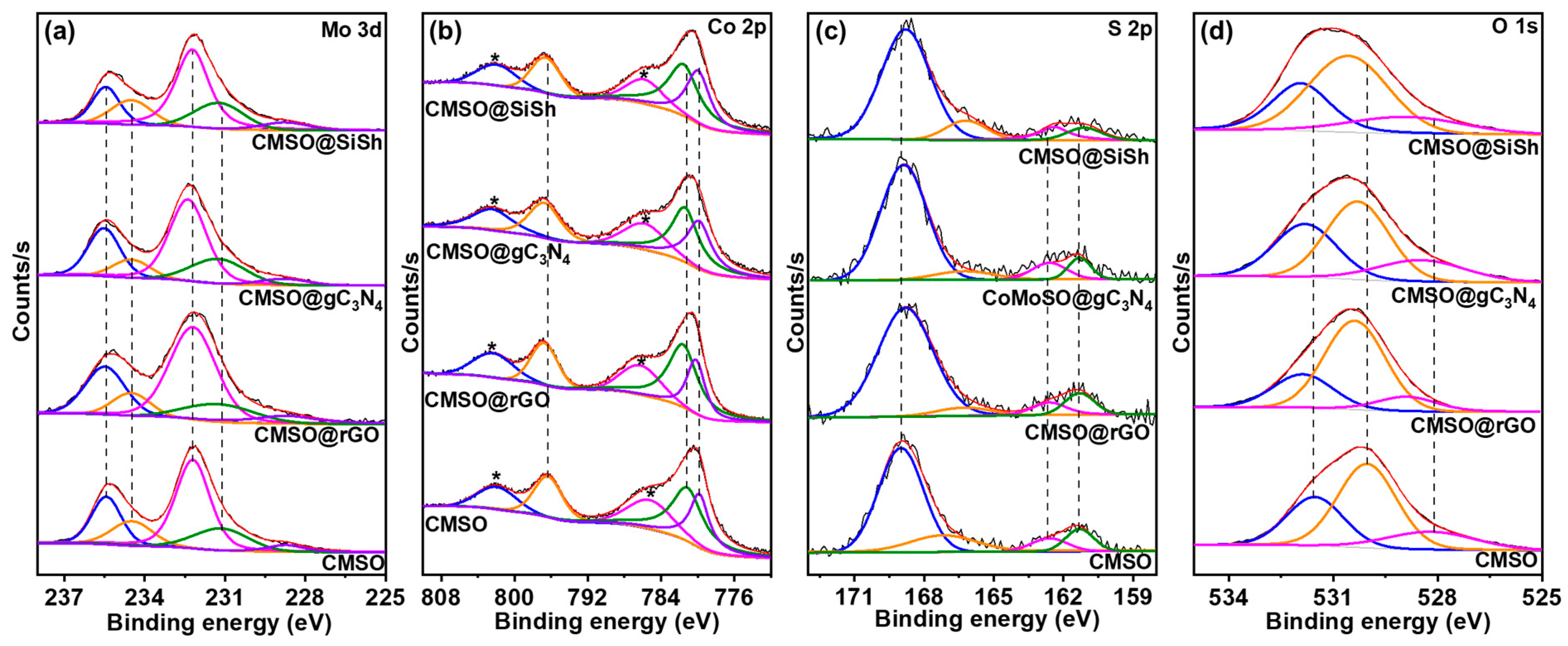

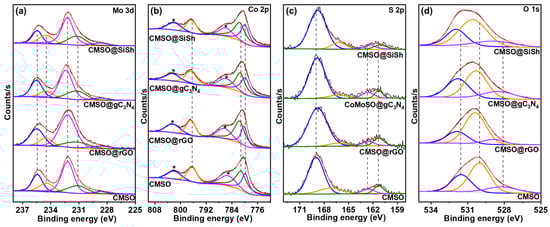

Figure 4. Deconvoluted high-resolution XPS spectra of (a) Mo 3d, (b) Co 2p, (c) S 2p, and (d) O 1s of various materials (Asterisks indicate the satellite peak).
Figure 4. Deconvoluted high-resolution XPS spectra of (a) Mo 3d, (b) Co 2p, (c) S 2p, and (d) O 1s of various materials (Asterisks indicate the satellite peak).
Nanomaterials 13 02463 g004
Nanomaterials 13 02463 g005

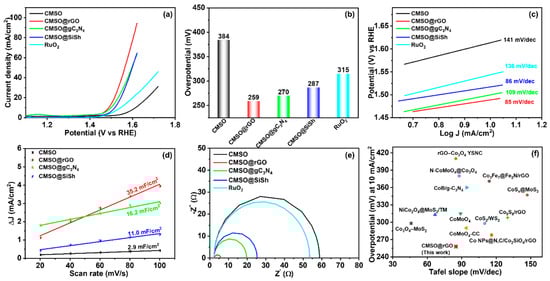

Figure 5. (a) LSV curves, (b) comparison of the overpotential at 10 mA/cm2, (c) Tafel slope, (d) linear fitting of the current density against scan rates, and (e) Nyquist plots of various materials. (f) Comparison of the overpotential and Tafel slope of CMSO@rGO with those of previously reported cobalt-based electrocatalysts [39,40,41,42,43,44,45,46,47,48,49,50] in OER.
Figure 5. (a) LSV curves, (b) comparison of the overpotential at 10 mA/cm2, (c) Tafel slope, (d) linear fitting of the current density against scan rates, and (e) Nyquist plots of various materials. (f) Comparison of the overpotential and Tafel slope of CMSO@rGO with those of previously reported cobalt-based electrocatalysts [39,40,41,42,43,44,45,46,47,48,49,50] in OER.
Nanomaterials 13 02463 g005
Nanomaterials 13 02463 g006

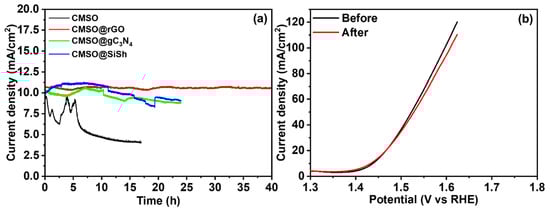

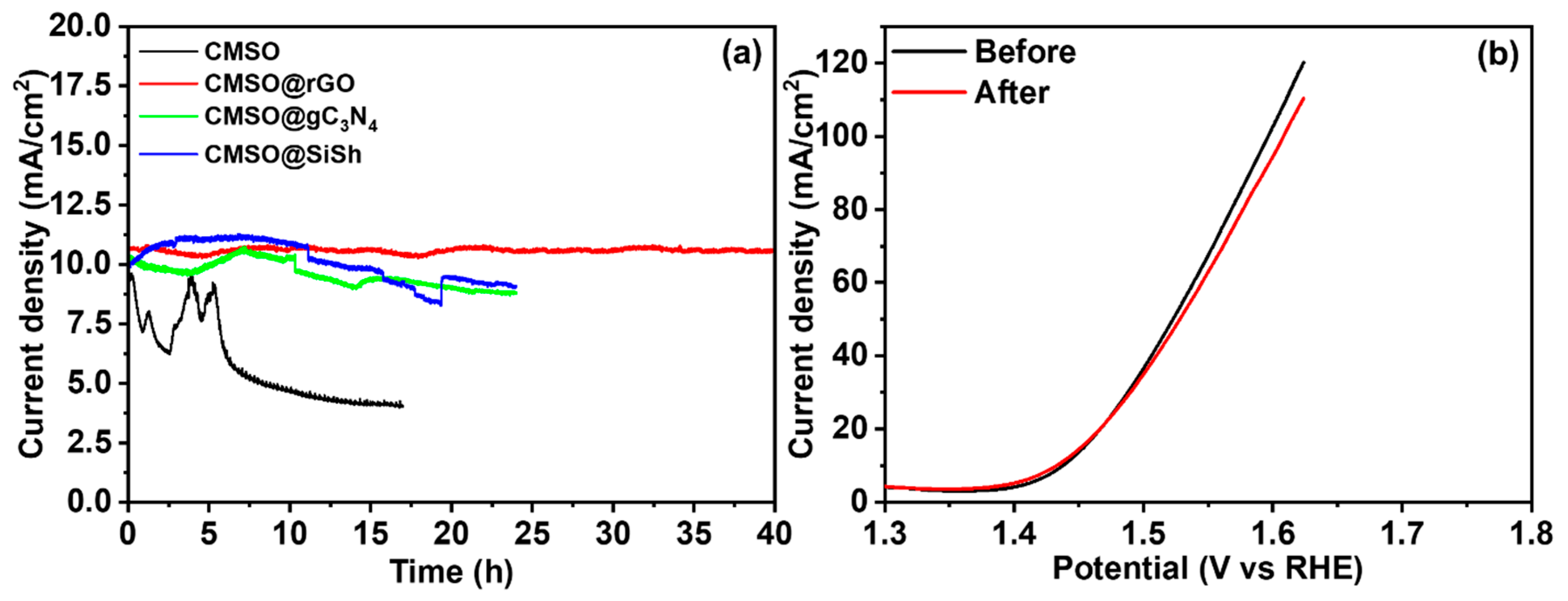

Figure 6. (a) Chronoamperometry curves of CMSO (at 1.60 V), CMSO@rGO (at 1.49 V), CMSO@gC3N4 (at 1.50 V), and CMSO@SiSh (at 1.52 V). (b) LSV curves of CMSO@rGO before and after a 40 h stability test.
Figure 6. (a) Chronoamperometry curves of CMSO (at 1.60 V), CMSO@rGO (at 1.49 V), CMSO@gC3N4 (at 1.50 V), and CMSO@SiSh (at 1.52 V). (b) LSV curves of CMSO@rGO before and after a 40 h stability test.
Nanomaterials 13 02463 g006
Nanomaterials 13 02463 g007

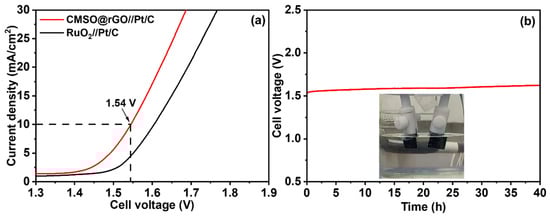

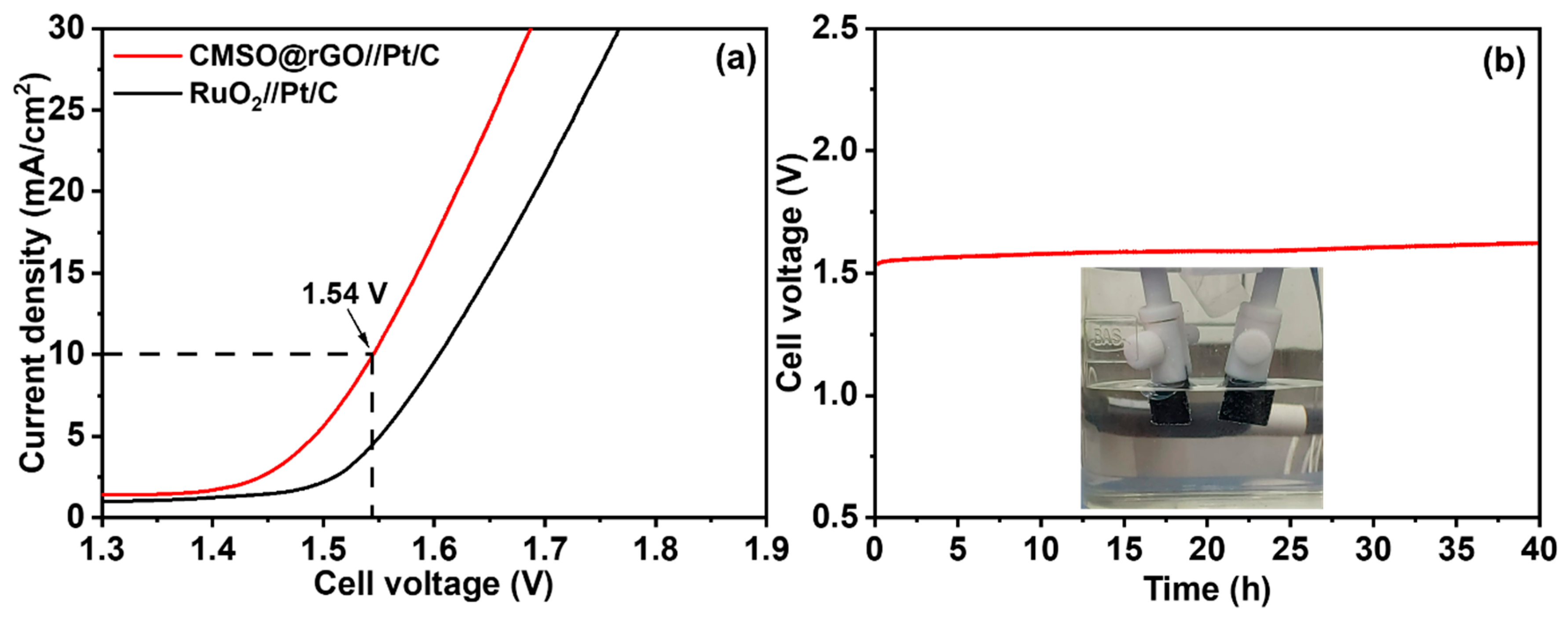

Figure 7. (a) LSV curves of two-electrode systems, (b) Chronopotentiometry curve for the overall water-splitting reaction at 10 mA/cm2 (inset photograph: CMSO@rGO(anode)//Pt/C(cathode); the overall water-splitting system).
Figure 7. (a) LSV curves of two-electrode systems, (b) Chronopotentiometry curve for the overall water-splitting reaction at 10 mA/cm2 (inset photograph: CMSO@rGO(anode)//Pt/C(cathode); the overall water-splitting system).
Nanomaterials 13 02463 g007
Table 1. Specific surface area, pore volume, and pore radius of various materials.
Table 1. Specific surface area, pore volume, and pore radius of various materials.
MaterialsSpecific Surface Area
(m2/g)		Pore Volume
(cm3/g)		Pore Radius
(nm)
CMSO1160.3203.9
CMSO@rGO13921.1541.6
CMSO@gC3N41560.4631.6
CMSO@SiSh2010.3982.0
Table 2. OER properties and interfacial charge-transfer resistance of various materials.
Table 2. OER properties and interfacial charge-transfer resistance of various materials.
MaterialOverpotential at 10 mA/cm2 (mV)Tafel Slope (mV/dec)Interface Charge-Transfer Resistance (Rct) (Ω)
CMSO38414156.5
CMSO@rGO259853.9
CMSO@gC3N427010917.5
CMSO@SiSh2878623.1
RuO231513651.3
