Review

Encapsulation of Pharmaceutical and Nutraceutical Active Ingredients Using Electrospinning Processes

by
Mina Zare
1,2,*,
Karolina Dziemidowicz
2,
Gareth R. Williams
2,* and
Seeram Ramakrishna
1,*
1
Center for Nanotechnology and Sustainability, National University of Singapore, Singapore 117581, Singapore
2
UCL School of Pharmacy, University College London, 29-39 Brunswick Square, London WC1N 1AX, UK
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(8), 1968; https://doi.org/10.3390/nano11081968
Submission received: 8 June 2021 / Revised: 22 July 2021 / Accepted: 26 July 2021 / Published: 30 July 2021
(This article belongs to the Special Issue Functionalization of Electrospun Nanofibers in Bioengineering)
Browse Figures
Versions Notes

Abstract

:
Electrospinning is an inexpensive and powerful method that employs a polymer solution and strong electric field to produce nanofibers. These can be applied in diverse biological and medical applications. Due to their large surface area, controllable surface functionalization and properties, and typically high biocompatibility electrospun nanofibers are recognized as promising materials for the manufacturing of drug delivery systems. Electrospinning offers the potential to formulate poorly soluble drugs as amorphous solid dispersions to improve solubility, bioavailability and targeting of drug release. It is also a successful strategy for the encapsulation of nutraceuticals. This review aims to briefly discuss the concept of electrospinning and recent progress in manufacturing electrospun drug delivery systems. It will further consider in detail the encapsulation of nutraceuticals, particularly probiotics.

1. Introduction

Nanotechnology has great promise for the prevention, diagnosis, and treatment of disease [1]. Drug delivery using nanocarriers has received particularly extensive attention (Figure 1) [2]. Nanocarriers can help to minimize the side effects of drugs, and enhance the therapeutic efficacy and targeting precision [3,4,5]. Liposomes [6], nanoemulsions [7,8], Pickering emulsions [9], micelles [10,11], dendrimers [12], and polymeric nanoparticles have all been widely explored as carriers for drug delivery systems [3], but despite the significant body of work carried out there remain many challenges to overcome, particularly in terms of solubility and the accuracy of targeting [13,14].
The drug release from the delivery carrier system can be controlled by diffusion, degradation, swelling, and affinity-based mechanisms. The balance and rate of these is a function of the materials from which the carrier is constructed. Polymers in particular offer the opportunity to tune the release rate over a wide range. Synthethic and natural polymers are both widely available, and many are biodegradable and biocompatible [15].
The electrohydrodynamic (EHD) technique is a material fabrication method in which a polymer solution is dispersed into a fine jet under the influence of an electric field. This results in the formation of fibers (electrospinning) or particles (electrospraying). The main difference between electrospinning and electrospraying is the solution viscosity: electrospray uses a less viscous polymer solution, while at higher viscosities electrospinning occurs [16]. EHD is a low-cost, time-effective and versatile method has been used to process a wide range of pharmaceutically relevant materials into polymer carriers [17]. Polymer-based electrospun fibers loaded with therapeutic agents ranging from small molecules [18] to proteins [19] and bacteria [20] have shown both sustained and localised drug release in preclinical models. Moreover, electrospun nanofibers have potential as biomaterials for tissue engineering applications due to their tunable mechanical and handling properties, large surface area, and a 3D structure that mimics the extracellular matrix [21,22].
Key advantages of electrospinning include (i) the ability to process diverse polymers; (ii) submicron diameters are easily attained; (iii) portable systems are available; (iv) generation of a 3D fibrous structure. Disadvantages include (i) potential issues with solvent removal; (ii) and typically low throughput rates [23]. The fabrication rate of laboratory-scale electrospinning is usually in the range of 0.01–1 g/h, [24], much lower than pharmaceutical industry requirements. To resolve this issue, a number of companies have developed technological solutions for large-scale production [25]. As a result, it is now possible to produce electrospun materials on the tonnes p.a. scale under Good Manufacturing Practice conditions.
In this review, we will discuss the principles of electrospinning and the fabrication of electrospun fibers in the context of biomedical applications. Because the latter are well explored, they allow us to illustrate the power of the electrospinning approach. We will then focus in detail on the nascent field of using electrospinning for encapsulation of nutraceuticals within polymer nanofibers, which again shows great promise.

2. Principles of Electrospinning

The main components of the EHD apparatus include a high-voltage power supply, a precision syringe pump, a syringe loaded with a polymer solution and fitted with a conductive metal needle (the spinneret) and a collector. To maintain an electric field, the power supply is connected to both the spinneret and the collector. The polymer solution is extruded through the charged spinneret, with the syringe pump ensuring a controlled flow rate. Without the application of electric charge, the polymer solution exits the needle forming a spherical droplet owing to the surface tension forces [14]. When subjected to high voltage during extrusion through a metal needle, the liquid surface becomes charged, causing the spherical droplet to be retained at the capillary tip. With sufficient voltage applied, the meniscus deforms into a conical structure, which is often referred to as the Taylor cone [26]. In electrospinning, a polymer jet is emitted at the tip of the Taylor cone, and this then stretches and reduces in diameter as it travels towards the collector. The solvent present in the polymer solution evaporates as the jet is drawn and accelerates towards the collector, therefore producing a solid fibrous product [14].
Although the assembly of the EHD apparatus and product collection is relatively simple, the optimisation of experimental parameters necessary for the fabrication of uniform and reproducible scaffolds requires extensive and detailed experimentation. Critical variables can be broadly classified into solution properties and processing parameters. Key solution properties include the nature of the polymer(s) to be processed, their concentration and molecular weight, and solvent volatility. These all influence the conductivity and viscosity of the solution, and thus impact its spinnability.
Several aspects need to be considered when choosing the polymer carrier for the electrospinning solution. Probably the most important consideration is the intended application of the product. The polymer degradation half-life and by-products, biocompatibility, and solubility will heavily influence the potential applications of the product. For example, for fast-release applications, a polymer with a relatively rapid dissolution/degradation rate and high solubility in aqueous solvents (such as polyvinylpyrrolidone (PVP)) would be preferred [14]. In contrast, when designing a long-term surgical implant, a hydrophobic polymer with slow degradation rates would be more suitable. Many biodegradable synthetic polymers have been explored in electrospinning, including poly(ε-caprolactone) (PCL), polylactic-co-glycolic acid (PLGA), and polylactic acid (PLA) [27,28]. In some cases, polymers with special characteristics such as thermo- or pH-sensitivity are of interest, aiding targeted delivery to a chosen site [29]. Probably the most investigated stimuli-responsive polymers include poly(N-iopropylacrylamide), which has thermoresponsive properties, as well as the polymethacrylate family of polymers and poly(4-vinylpyridine), which are pH-sensitive [30,31,32].
The factors affecting the electrospinning process can be divided into (i) processing, (ii) solution and solvent, and (iii) environment parameters (Table 1) [15,33,34,35]. Important processing parameters include the flow rate, applied voltage, and the distance between the collector and the spinneret. The latter two determine the electric field strength, and typically we would work at a distance of 5–20 cm and applied voltage of 5–35 kV. These factors, together with the flow rate, will affect the stability of the spinning process and the diameter of the resultant fibers [23,32]. The solution parameters include the solvent, polymer concentration, viscosity and solution conductivity. Environmental parameters (temperature and relative humidity) also need to be taken into consideration [36].

2.1. Electrospinning Methods

There are several electrospinning approaches that can be applied for the incorporation of drugs into polymer carriers. These include blend electrospinning, emulsion electrospinning, side by side electrospinning (yielding Janus products), multi-jet electrospinning, and coaxial/multiaxial electrospinning, which result in multilayer structures (see Figure 2). It is also possible to surface functionalise the fibers after spinning. The cross-sections of the resultant nanofibers are illustrated in Figure 3.

2.2. Single Fluid Electrospinning

2.2.1. Blend Electrospinning

In this technique, the drug and the polymer carrier are dissolved in a suitable solvent to form a homogenous spinning solution. This approach can yield a wide range of drug release profiles, from very rapid release (in seconds) to sustained release over weeks or months. [37,38]. The main weakness of this approach is the commonly observed burst release phenomenon [39]. This arises because the surface area to volume ratio of the fibers is very high, and thus a large amount of drug is present at the surface. This can easily diffuse into solution, while the drug at the center of the fiber takes longer to escape. As a result, first-order release profiles are commonly observed. Further, the drug loading which can be achieved may be limited, as it can be challenging to identify a suitable solvent in which both the drug and polymer are soluble [40].

2.2.2. Emulsion Electrospinning

Emulsion electrospinning fabricates core–shell nanofibers using an emulsion for spinning. This can be beneficial for the encapsulation of growth factors, proteins, and drugs in the core of the product. Three key components are required to form a stable emulsion: (a) an oil phase, (b) a water phase, and (c) surfactants/emulsifiers. These also impact the drug release properties. Typically, a hydrophobic polymer is dissolved in an organic solvent (oil phase), while hydrophilic drugs are dispersed in water. For instance, Tao, et al. in 2020 manufactured polycaprolactone/carboxymethyl chitosan (CS)/sodium alginate fibers by emulsion electrospinning with minimal use of organic solvents, which had a positive impact on osteoblast viability and osteogenesis g [41]. In other work, a reservoir-type system comprising PLA/theophylline was fabricated via emulsion electrospinning, showing that nanofibers can be prepared to incorporate a water-soluble drug in a hydrophobic polymer. The core/shell structure was able to prevent any burst release [42].

2.3. Multi-Fluid Electrospinning

2.3.1. Multi-Jet Electrospinning

Multi-jet electrospinning exists in two forms: needleless and needle-based. It is beneficial for large-scale nanofiber fabrication since it can significantly increase throughput. It also affords the opportunity to prepare multicomponent fiber mats, with multiple populations of fibers made from different materials integrated into the same scaffold. This can be useful when it is desirable to have multiple polymers in a formulation but they cannot be dissolved in the same solution. The resultant fiber mat can deliver multiple drugs at varied rates, and the different fiber populations can also influence the mechanical and cell adhesion properties. The drawback of multi-jet spinning in the needle modality is that the electric fields around the different needles interact with one another, which can cause spinning to be erratic. It is also difficult to calculate the optimal arrangement of needles. These issues can be ameliorated by using a needleless process, or employing secondary or auxiliary electrodes [43,44,45,46].

2.3.2. Side by Side Electrospinning

In this approach, multiple spinning solutions are fed through separate spinnerets placed next to each other. The key advantage of this approach is the side-by-side Janus morphology of the resultant materials, which allows for the direct contact of both compartments with the biological microenvironment [47,48]. The spinneret design and careful optimization of electrospinning parameters are critical to the success of this method. One example of this was reported by Zheng et al. in 2021. Tamoxifen was included as a chemotherapeutic drug, and PVP and ethyl cellulose (EC) were used as the polymer matrices. Zheng’s study revealed that shape, structure, and composition are clearly all critical elements for designing functional nanomaterials [49].

2.3.3. Coaxial/Multiaxial Electrospinning

Coaxial electrospinning features a concentrically aligned dual nozzle. This results in core–shell fibers, which can have beneficial properties [50] and advantages over blend and emulsion techniques (e.g., overcoming the burst release commonly seen with monolithic fibers from blend spinning) [16]. In coaxial EHD, two fluids are dispensed simultaneously. The core solution is pumped through an inner needle and the shell solution through an outer needle. This technique is often used for encapsulation of labile biomolecules such as protein active ingredients [21,51], employing an organic solvent for the polymer shell solution and an aqueous solution of protein as the core. As both solutions are physically separated until the formation of the fiber, protein exposure to organic solvents can be limited and accidental degradation minimised. The benefits of using coaxial EHDA to process protein active ingredients were recently reviewed in detail by Moreira et al. [16]. The coaxial electrospinning approach can also be used to slow down the release rate of small drug molecules from a hydrophobic matrix or to encapsulate a liquid in the core. For instance, Baykara and Taylan employed coaxial electrospinning to generate antimicrobial PVA (shell)/Nigella sativa seed oil (core) fibers [52]. It is also possible to prepare multilayer fibers using triaxial spinning (three fluids). Liu et al. used the triaxial electrospinning technique to encapsulate ferulic acid in cellulose acetate nanofibers. An in vitro study showed almost zero-order release [53]. Quad-axial nanofibers (generated by processing four fluids simultaneously) can further be prepared; Zhang et al. employed polycaprolactone and gelatin for encapsulation of the antimicrobial moxifloxacin [54].

2.4. Electrospun Drug Delivery Systems

There is a very significant body of literature reporting the use of electrospun fibers for drug delivery. Some examples are discussed above, and a further (non-exhaustive) selection of representative examples is given in Table 2.

3. Encapsulation of Nutraceuticals by Electrospinning

3.1. Nutraceuticals

Nutraceuticals are food-derived supplements that are potentially beneficial in the prevention and treatment of disease. They include probiotics (living bacteria thought to positively affect health), prebiotics (compounds that promote the growth of beneficial microorganisms), omega-3 and structured lipids, phytochemicals and plant extracts, carbohydrates, carotenoids and antioxidants, amino acids, peptides, and proteins, vitamins, and minerals. A brief summary is given in Table 3. Precise strategies are needed for nutraceutical delivery to aid in protecting sensitive moieties from stress conditions during processing, prevent unwanted interactions between the nutraceuticals and food matrix, and obviate degradation before release at the target site. These challenges can be overcome through encapsulation [77,78]. Food products such as meat (fermented sausages), dairy (cheese and yogurt), juices (from fruits and vegetables), bakery products (biscuits, cakes, bread), and others (fermented beverages, mayonnaise, ice cream) can all be functionalized by adding probiotic microcapsules [79].
Considering some of the examples from Table 3, probiotics such as Lactobacillus plantarum, Lactobacillus sp., Lactobacillus casei, and Bifidobacterium are naturally present in yogurt, cheese, and fermented milk. These can have a number of benefits. Lactobacillus sp. and Lactobacillus casei aid in the removal of cholesterol, and possess activity against cancer cell proliferation, as well as in reducing the risk of osteoporosis [80]. They can thus effectively be used for the development of functional foods. Minerals are present in animal meat, plant products and milk products, and are important for the treatment of many diseases such as anemia and osteoporosis [81]. Carotenoids are present in most fruits and vegetables, plants, algae, and photosynthetic bacteria. They are reported to have a range of benefits in eye health, cognitive function and cardiovascular health, and also there are possible benefits in preventing some types of cancer [82]. Importantly, humans cannot synthesize carotenoids, and thus must obtain them from food.

3.2. Small Molecule Nutraceuticals

Many nutraceuticals comprise small molecules. The challenges in delivering these often mirror those encountered with drugs and detailed in Section 3.1. Such bioactive compounds (e.g., vitamins, essential oils) can have antimicrobial, antioxidant, antifungal, and antiseptic properties [90,91,92,93]. However, they tend also to suffer from low aqueous solubility, which can be overcome by electrospinning nanofibers. In the context of nutraceuticals, one approach which has attracted particular attention is to generate fibers from inclusion complexes of the compound of interest with a cyclodextrin (CD). Fibers can be prepared either using the inclusion complex and a polymer, or from highly concentrated solutions of the inclusion complex alone [94,95]. A number of studies report the successful electrospinning of fast dissolving fibers comprising inclusion complexes of curcumin [96], ferulic acid [97], and α-lipoic acid [98], among others. Fiber formation can also help to overcome issues other than solubility. For instance, α-lipoic acid is a natural antioxidant with low solubility and poor thermal and oxidative stability. Electrospun nanofibers of α-lipoic acid–CD complexes can help to retain their antioxidant properties, as well as accelerate the dissolution rate [98]. Similar results have been reported for vitamin E, where fibers prepared from CD inclusion complexes could prolong the shelf life and increase the photostability.

3.3. Pre- and Probiotics

There are well-known beneficial interactions between the bacteria in the gut (the microbiota) and the human body. The manner in which bacteria contained within the gut “talk” to the immune system is of great importance to human health, and probiotics and nutraceuticals can play a major role in improving this [99,100]. Nutraceuticals and probiotics can for instance cause a significant reduction in insulin resistance, improve the level of glucose in the blood, lower the prevalence of obesity, and reduce total and visceral adipose tissue (VAT) weight [101,102]. As a result, both probiotics and prebiotics have attracted significant research attention [100,103].
Interest in the human microbiota has grown considerably in recent years, with a wide range of probiotic products available on the market. While most probiotics are living microorganisms that confer health benefits to the host, it has been shown that dead bacteria and their components can also exhibit probiotic properties [104]. Probiotics are offered in a variety of delivery systems ranging from capsules or biopolymeric gel matrices to food products such as yoghurts [105,106]. Studies on probiotics have demonstrated they can lead to an enhancement in intestinal epithelial integrity, regulation of the immune system in the gastrointestinal tract, protection from gut barrier disruption, and inhibition of the growth of pathogenic bacteria [107,108,109]. Research has further revealed the positive impact of ingesting these types of organisms on the alleviation of symptoms associated with irritable bowel syndrome (IBS), counteracting antibiotic-induced diarrhea, obesity and obesity-related disorders in glucose metabolism, and ulcerative colitis [103,109,110,111,112]. Probiotics are additionally reported to have health benefits beyond the gastrointestinal tract, including for cancer, diabetes, human immunodeficiency virus infection [111,112], central nervous system disorders, cardiovascular diseases, and liver disease [107,108]. In December 2020, there were 245 registered clinical trials exploring the effect of prebiotics (with or without probiotics) on autism, colic, colon cancer, aging, atopic dermatitis, infant growth, obesity, bariatric surgery, constipation and diarrhea, and IBS; this clearly demonstrates significant investment and potential for a range of healthcare applications [103].
Probiotics are living microorganisms, which makes them particularly challenging to safely process and deliver to the target site. They need to be viable upon arrival in order to elicit therapeutic responses, and so great care must be taken during formulation to prevent their accidental death. There is a range of pharmaceutical technologies which could be considered for probiotic encapsulation, including spray drying, hot-melt extrusion, spray-freeze drying, freeze-drying, and coacervation [113]. Many of these methods require harsh conditions (e.g., heat in spray drying or hot melt extrusion) that can damage probiotics during manufacturing. Since electrospinning does not require the use of any heat, it has great potential in this field and offers advantages over more traditional pharmaceutical technologies. It should be noted in addition that, once the manufacturing hurdles are overcome, probiotics still need to reach the lower parts of the intestinal tract to have the desired therapeutic effect. To be effective they must be metabolically active, and therefore able to survive storage, transport, digestive enzymes (lipase, protease, amylase), mineral ions, stomach acids (pH 1–3) and bile during gastrointestinal tract transit [111,112,114]. The ability of electrospun fibers to overcome some of these challenges is depicted schematically in Figure 4.
A range of probiotic microorganisms has been integrated into electrospun nanofibers with the ultimate aim of reaching these goals [115]. These studies are summarized in Table 4. Commonly explored probiotic strains are Bifidobacterium bifidum, Bifidobacterium breve, Lactobacillus acidophilus, and Lactobacillus rhamnosus [111]. For instance, Mojaveri et al. fabricated a nanofiber mat using a PVA/CS blend and loaded it with both the probiotic Bifidobacterium animalis and inulin as a prebiotic. The authors found that electrospinning was a promising approach for the protection of living probiotics and functional food products [116].
In general, the viability of probiotics is found to be high after electrospinning both when the fibers are stored at room temperature and in the refrigerator [117]. Electrospun fibers can possess high loading capacities for probiotics, and could lead to formulations able to yield local delivery to re-establish the microbiota balance, e.g., in the vagina or intestine [118]. While most studies have focused on simple blend electrospinning, coaxial electrospinning has also recently been explored for delivery of probiotics, again showing that the encapsulated probiotics have improved thermal stability and are able to resist harsh conditions [119]. In this study, the monolithic fibers from blend spinning were found to be unable to protect the probiotics from damage in the acidic conditions of the stomach, and almost all the cells lost their viability. In contrast, coaxial electrospinning could provide better protection and controlled release [119,120]. In vivo studies using multi-layer fiber mats encapsulating Bacillus coagulans using CS/alginate/CS/alginate found that this strategy protects probiotics against gastrointestinal tract insults and improves their adhesion and growth in the intestine [121]. In contrast, single layer CS alone did not provide benefits against simulated gastric fluid and bile insults in vitro [121]. Overall, it is clear that electrospinning circumvents the common drawbacks of probiotic degradation within a formulation, and preserves biological action after complete release from polymer fiber [122]. While some studies suggest that simple blend electrospinning is sufficient to provide these advantages, others indicate that a coaxial or multilayer is more effective at protecting the incorporated probiotics.

4. Conclusions, Challenges, and Future Perspectives

Recent progress clearly indicates the great potential of electrohydrodynamic processes in the fabrication of nanofibers for pharmaceutical applications. As a versatile and highly tunable nanomaterial fabrication technology, electrospinning can be used to encapsulate a wide array of therapeutic agents, with most attention having been devoted to working with pharmaceutical active ingredients ranging from small molecules to proteins. In addition, however, there are significant opportunities for the delivery of nutraceutical molecules. Challenges of low solubility and stability for nutraceutical small molecules can be overcome by preparing electrospun formulations, with cyclodextrin inclusion complex fibers having been shown to be particularly promising here. In the latter context, electrospun fibers are found to lead to improved probiotic viability, their ability to resist harsh conditions (e.g., heat) commonly used in food processing, improved storage stability, and the potential to localise delivery to the target site in the lower parts of the gastrointestinal tract. There remain challenges to be overcome, however, and it will be necessary to perform significant amounts of additional in vivo work and clinical trials to fully validate the potential of such electrospun formulations. In addition, methods by which the fiber formulations could be incorporated into food processing pathways will need careful attention. However, these obstacles are clearly surmountable: the pharmaceutical industry has extensive experience of this, and significantly more complex formulations than those from electrospinning have already made it to the clinic. To date, there are no commercial pharmaceutical or nutraceutical products from electrospinning on the market, but there are formulations in stage II clinical trials and the direction of travel is very positive. Given the huge recent advances which have been made in the scale-up of electrospinning, the authors are confident that in the next 10 years, we will see both pharmaceutical and nutraceutical products from EHDA enter the market.

Author Contributions

M.Z. collected data for the review article, collated the data, prepared the initial draft of the manuscript, and worked with the coauthors to edit and refine the manuscript before submission. K.D. and G.R.W. revised and edited the manuscript. S.R. supervised the work, revised the manuscript, and approved the final version to be published. All authors have read and agreed to the published version of the manuscript.

Funding

The authors received no specific funding for this work.

Conflicts of Interest

The authors declare no competing interests. The authors declare no competing financial interest.

References

  1. Mei, L.; Wang, Y.; Tong, A.; Guo, G. Facile electrospinning of an efficient drug delivery system. Expert Opin. Drug Deliv. 2016, 13, 741–753. [Google Scholar] [CrossRef]
  2. Contreras-Cáceres, R.; Cabeza, L.; Perazzoli, G.; Díaz, A.; López-Romero, J.M.; Melguizo, C.; Prados, J. Electrospun Nanofibers: Recent Applications in Drug Delivery and Cancer Therapy. Nanomaterials 2019, 9, 656. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Din, F.U.; Aman, W.; Ullah, I.; Qureshi, O.S.; Mustapha, O.; Shafique, S.; Zeb, A. Effective use of nanocarriers as drug delivery systems for the treatment of selected tumors. Int. J. Nanomed. 2017, 12, 7291–7309. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Mediaswanti, K. Influence of Physicochemical Aspects of Substratum Nanosurface on Bacterial Attachment for Bone Implant Applications. J. Nanotechnol. 2016, 2016, 5026184. [Google Scholar] [CrossRef] [Green Version]
  5. Shi, J.; Votruba, A.R.; Farokhzad, O.C.; Langer, R. Nanotechnology in drug delivery and tissue engineering: From discovery to applications. Nano Lett. 2010, 10, 3223–3230. [Google Scholar] [CrossRef] [Green Version]
  6. Mickova, A.; Buzgo, M.; Benada, O.; Rampichova, M.; Fisar, Z.; Filova, E.; Tesarova, M.; Lukas, D.; Amler, E. Core/shell nanofibers with embedded liposomes as a drug delivery system. Biomacromolecules 2012, 13, 952–962. [Google Scholar] [CrossRef]
  7. Alcalá-Alcalá, S.; Benítez-Cardoza, C.G.; Lima-Muñoz, E.J.; Piñón-Segundo, E.; Quintanar-Guerrero, D. Evaluation of a combined drug-delivery system for proteins assembled with polymeric nanoparticles and porous microspheres; Characterization and protein integrity studies. Int. J. Pharm. 2015, 489, 139–147. [Google Scholar] [CrossRef]
  8. Soppimath, K.S.; Aminabhavi, T.M.; Kulkarni, A.R.; Rudzinski, W.E. Biodegradable polymeric nanoparticles as drug delivery devices. J. Control. Release 2001, 70, 1–20. [Google Scholar] [CrossRef]
  9. Chevalier, Y.; Bolzinger, M.A. Emulsions stabilized with solid nanoparticles: Pickering emulsions. Colloids Surf. A Physicochem. Eng. Asp. 2013, 439, 23–34. [Google Scholar] [CrossRef]
  10. Abyaneh, H.S.; Vakili, M.R.; Zhang, F.; Choi, P.; Lavasanifar, A. Rational design of block copolymer micelles to control burst drug release at a nanoscale dimension. Acta Biomater. 2015, 24, 127–139. [Google Scholar] [CrossRef]
  11. Kataoka, K.; Harada, A.; Nagasaki, Y. Block copolymer micelles for drug delivery: Design, characterization and biological significance. Adv. Drug Deliv. Rev. 2001, 47, 113–131. [Google Scholar] [CrossRef]
  12. Zheng, Y.; Li, S.; Weng, Z.; Gao, C. Hyperbranched polymers: Advances from synthesis to applications. Chem. Soc. Rev. 2015, 44, 4091–4130. [Google Scholar] [CrossRef] [PubMed]
  13. Li, C.; Wang, J.; Wang, Y.; Gao, H.; Wei, G.; Huang, Y.; Yu, H.; Gan, Y.; Wang, Y.; Mei, L.; et al. Recent progress in drug delivery. Acta Pharm. Sin. B 2019, 9, 1145–1162. [Google Scholar] [CrossRef]
  14. Williams, G.R.; Raimi-Abraham, B.T.; Luo, C.J. Nanofibres in Drug Delivery; UCL Press: London, UK, 2018; ISBN 9781787350182. [Google Scholar]
  15. Luraghi, A.; Peri, F.; Moroni, L. Electrospinning for drug delivery applications: A review. J. Control. Release 2021, 334, 463–484. [Google Scholar] [CrossRef]
  16. Moreira, A.; Lawson, D.; Onyekuru, L.; Dziemidowicz, K.; Angkawinitwong, U.; Costa, P.F.; Radacsi, N.; Williams, G.R. Protein encapsulation by electrospinning and electrospraying. J. Control. Release 2021, 329, 1172–1197. [Google Scholar] [CrossRef] [PubMed]
  17. Xie, J.; Jiang, J.; Davoodi, P.; Srinivasan, M.P.; Wang, C.-H. Electrohydrodynamic atomization: A two-decade effort to produce and process micro-/nanoparticulate materials. Chem. Eng. Sci. 2015, 125, 32–57. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Bukhary, H.; Williams, G.R.; Orlu, M. Fabrication of Electrospun Levodopa-Carbidopa Fixed-Dose Combinations. Adv. Fiber Mater. 2020, 2, 194–203. [Google Scholar] [CrossRef] [Green Version]
  19. Angkawinitwong, U.; Awwad, S.; Khaw, P.T.; Brocchini, S.; Williams, G.R. Electrospun formulations of bevacizumab for sustained release in the eye. Acta Biomater. 2017, 64, 126–136. [Google Scholar] [CrossRef] [PubMed]
  20. Diep, E.; Schiffman, J.D. Encapsulating bacteria in alginate-based electrospun nanofibers. Biomater. Sci. 2021, 9, 4364–4373. [Google Scholar] [CrossRef] [PubMed]
  21. Dziemidowicz, K.; Sang, Q.; Wu, J.; Zhang, Z.; Zhou, F.; Lagaron, J.M.; Mo, X.; Parker, G.J.M.; Yu, D.-G.; Zhu, L.-M.; et al. Electrospinning for healthcare: Recent advancements. J. Mater. Chem. B 2021, 9, 939–951. [Google Scholar] [CrossRef] [PubMed]
  22. Sell, S.; Barnes, C.; Smith, M.; McClure, M.; Madurantakam, P.; Grant, J.; McManus, M.; Bowlin, G. Extracellular matrix regenerated: Tissue engineering via electrospun biomimetic nanofibers. Polym. Int. 2007, 56, 1349–1360. [Google Scholar] [CrossRef]
  23. dos Santos, D.M.; Correa, D.S.; Medeiros, E.S.; Oliveira, J.E.; Mattoso, L.H.C. Advances in Functional Polymer Nanofibers: From Spinning Fabrication Techniques to Recent Biomedical Applications. ACS Appl. Mater. Interfaces 2020, 12, 45673–45701. [Google Scholar] [CrossRef] [PubMed]
  24. Vass, P.; Szabó, E.; Domokos, A.; Hirsch, E.; Galata, D.; Farkas, B.; Démuth, B.; Andersen, S.K.; Vigh, T.; Verreck, G.; et al. Scale-up of electrospinning technology: Applications in the pharmaceutical industry. Wiley Interdiscip. Rev. Nanomed. Nanobiotechnol. 2020, 12, e1611. [Google Scholar] [CrossRef] [Green Version]
  25. Omer, S.; Forgách, L.; Zelkó, R.; Sebe, I. Scale-up of Electrospinning: Market Overview of Products and Devices for Pharmaceutical and Biomedical Purposes. Pharmaceutics 2021, 13, 286. [Google Scholar] [CrossRef]
  26. Yarin, A.L.; Koombhongse, S.; Reneker, D.H. Taylor cone and jetting from liquid droplets in electrospinning of nanofibers. J. Appl. Phys. 2001, 90, 4836–4846. [Google Scholar] [CrossRef] [Green Version]
  27. Agarwal, S.; Wendorff, J.H.; Greiner, A. Progress in the field of electrospinning for tissue engineering applications. Adv. Mater. 2009, 21, 3343–3351. [Google Scholar] [CrossRef] [PubMed]
  28. Frenot, A.; Chronakis, I.S. Polymer nanofibers assembled by electrospinning. Curr. Opin. Colloid Interface Sci. 2003, 8, 64–75. [Google Scholar] [CrossRef]
  29. Frizzell, H.; Ohlsen, T.J.; Woodrow, K.A. Protein-loaded emulsion electrospun fibers optimized for bioactivity retention and pH-controlled release for peroral delivery of biologic therapeutics. Int. J. Pharm. 2017, 533, 99–110. [Google Scholar] [CrossRef]
  30. Oh, J.K.; Lee, D.I.; Park, J.M. Biopolymer-based microgels/nanogels for drug delivery applications. Prog. Polym. Sci. 2009, 34, 1261–1282. [Google Scholar] [CrossRef]
  31. Oh, J.K.; Drumright, R.; Siegwart, D.J.; Matyjaszewski, K. The development of microgels/nanogels for drug delivery applications. Prog. Polym. Sci. 2008, 33, 448–477. [Google Scholar] [CrossRef]
  32. Chew, S.; Wen, Y.; Dzenis, Y.; Leong, K. The Role of Electrospinning in the Emerging Field of Nanomedicine. Curr. Pharm. Des. 2006, 12, 4751–4770. [Google Scholar] [CrossRef] [Green Version]
  33. He, H.; Wang, Y.; Farkas, B.; Nagy, Z.K.; Molnar, K. Analysis and prediction of the diameter and orientation of AC electrospun nanofibers by response surface methodology. Mater. Des. 2020, 194, 108902. [Google Scholar] [CrossRef]
  34. Topuz, F.; Abdulhamid, M.A.; Holtzl, T.; Szekely, G. Nanofiber engineering of microporous polyimides through electrospinning: Influence of electrospinning parameters and salt addition. Mater. Des. 2021, 198, 109280. [Google Scholar] [CrossRef]
  35. Mendes, A.C.; Chronakis, I.S. Electrohydrodynamic encapsulation of probiotics: A review. Food Hydrocoll. 2021, 117, 106688. [Google Scholar] [CrossRef]
  36. Haider, A.; Haider, S.; Kang, I.K. A comprehensive review summarizing the effect of electrospinning parameters and potential applications of nanofibers in biomedical and biotechnology. Arab. J. Chem. 2018, 11, 1165–1188. [Google Scholar] [CrossRef]
  37. Wu, J.; Zhang, Z.; Gu, J.; Zhou, W.; Liang, X.; Zhou, G.; Han, C.C.; Xu, S.; Liu, Y. Mechanism of a long-term controlled drug release system based on simple blended electrospun fibers. J. Control. Release 2020, 320, 337–346. [Google Scholar] [CrossRef] [PubMed]
  38. Amarjargal, A.; Brunelli, M.; Fortunato, G.; Spano, F.; Kim, C.S.; Rossi, R.M. On-demand drug release from tailored blended electrospun nanofibers. J. Drug Deliv. Sci. Technol. 2019, 52, 8–14. [Google Scholar] [CrossRef]
  39. Hu, J.; Prabhakaran, M.P.; Tian, L.; Ding, X.; Ramakrishna, S. Drug-loaded emulsion electrospun nanofibers: Characterization, drug release and in vitro biocompatibility. RSC Adv. 2015, 5, 100256–100267. [Google Scholar] [CrossRef]
  40. Lian, H.; Meng, Z. Melt electrospinning vs. solution electrospinning: A comparative study of drug-loaded poly (ε-caprolactone) fibres. Mater. Sci. Eng. C 2017, 74, 117–123. [Google Scholar] [CrossRef] [PubMed]
  41. Tao, F.; Cheng, Y.; Tao, H.; Jin, L.; Wan, Z.; Dai, F.; Xiang, W.; Deng, H. Carboxymethyl chitosan/sodium alginate-based micron-fibers fabricated by emulsion electrospinning for periosteal tissue engineering. Mater. Des. 2020, 194, 108849. [Google Scholar] [CrossRef]
  42. Liu, M.; Hao, X.; Wang, Y.; Jiang, Z.; Zhang, H. A biodegradable core-sheath nanofibrous 3D hierarchy prepared by emulsion electrospinning for sustained drug release. J. Mater. Sci. 2020, 55, 16730–16743. [Google Scholar] [CrossRef]
  43. Zheng, J.; Zhou, C.; Zhang, Z.; Pan, Y.; Kang, G.; Jiang, J.; Liu, J.; Zheng, G. Highly efficient air-assisted multi-jet electrospinning with curved arranged spinnerets. AIP Adv. 2020, 10, 025307. [Google Scholar] [CrossRef] [Green Version]
  44. El-Sayed, H.; Vineis, C.; Varesano, A.; Mowafi, S.; Andrea Carletto, R.; Tonetti, C.; Abou Taleb, M. A critique on multi-jet electrospinning: State of the art and future outlook. Nanotechnol. Rev. 2019, 8, 236–245. [Google Scholar] [CrossRef]
  45. Bhattarai, R.S.; Bachu, R.D.; Boddu, S.H.S.; Bhaduri, S. Biomedical applications of electrospun nanofibers: Drug and nanoparticle delivery. Pharmaceutics 2019, 11, 5. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Kalepu, S.; Nekkanti, V. Improved delivery of poorly soluble compounds using nanoparticle technology: A review. Drug Deliv. Transl. Res. 2016, 6, 319–332. [Google Scholar] [CrossRef] [PubMed]
  47. Yu, D.G.; Li, J.J.; Zhang, M.; Williams, G.R. High-quality Janus nanofibers prepared using three-fluid electrospinning. Chem. Commun. 2017, 53, 4542–4545. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Yu, D.G.; Yang, C.; Jin, M.; Williams, G.R.; Zou, H.; Wang, X.; Annie Bligh, S.W. Medicated Janus fibers fabricated using a Teflon-coated side-by-side spinneret. Colloids Surf. B Biointerfaces 2016, 138, 110–116. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Zheng, X.; Kang, S.; Wang, K.; Yang, Y.; Yu, D.G.; Wan, F.; Williams, G.R.; Bligh, S.W.A. Combination of structure-performance and shape-performance relationships for better biphasic release in electrospun Janus fibers. Int. J. Pharm. 2021, 596, 120203. [Google Scholar] [CrossRef]
  50. Rathore, P.; Schiffman, J.D. Beyond the Single-Nozzle: Coaxial Electrospinning Enables Innovative Nanofiber Chemistries, Geometries, and Applications. ACS Appl. Mater. Interfaces 2020, 13, 48–66. [Google Scholar] [CrossRef] [PubMed]
  51. Jiang, H.; Wang, L.; Zhu, K. Coaxial electrospinning for encapsulation and controlled release of fragile water-soluble. J. Control Release 2014, 193, 296–303. [Google Scholar] [CrossRef]
  52. Baykara, T.; Taylan, G. Coaxial electrospinning of PVA/Nigella seed oil nanofibers: Processing and morphological characterization. Mater. Sci. Eng. B Solid-State Mater. Adv. Technol. 2021, 265, 115012. [Google Scholar] [CrossRef]
  53. Liu, X.; Yang, Y.; Yu, D.G.; Zhu, M.J.; Zhao, M.; Williams, G.R. Tunable zero-order drug delivery systems created by modified triaxial electrospinning. Chem. Eng. J. 2019, 356, 886–894. [Google Scholar] [CrossRef] [Green Version]
  54. Zhang, X.; Chi, C.; Chen, J.; Zhang, X.; Gong, M.; Wang, X.; Yan, J.; Shi, R.; Zhang, L.; Xue, J. Electrospun quad-axial nanofibers for controlled and sustained drug delivery. Mater. Des. 2021, 206, 109732. [Google Scholar] [CrossRef]
  55. Liu, D.; Liu, S.; Jing, X.; Li, X.; Li, W.; Huang, Y. Necrosis of cervical carcinoma by dichloroacetate released from electrospun polylactide mats. Biomaterials 2012, 33, 4362–4369. [Google Scholar] [CrossRef]
  56. Yuan, Y.; Choi, K.; Choi, S.O.; Kim, J. Early stage release control of an anticancer drug by drug-polymer miscibility in a hydrophobic fiber-based drug delivery system. RSC Adv. 2018, 8, 19791–19803. [Google Scholar] [CrossRef] [Green Version]
  57. Wang, B.; Li, H.; Yao, Q.; Zhang, Y.; Zhu, X.; Xia, T.; Wang, J.; Li, G.; Li, X.; Ni, S. Local in vitro delivery of rapamycin from electrospun PEO/PDLLA nanofibers for glioblastoma treatment. Biomed. Pharmacother. 2016, 83, 1345–1352. [Google Scholar] [CrossRef]
  58. Canbolat, M.F.; Celebioglu, A.; Uyar, T. Drug delivery system based on cyclodextrin-naproxen inclusion complex incorporated in electrospun polycaprolactone nanofibers. Colloids Surf. B Biointerfaces 2014, 115, 15–21. [Google Scholar] [CrossRef]
  59. Zupančič, Š.; Preem, L.; Kristl, J.; Putrinš, M.; Tenson, T.; Kocbek, P.; Kogermann, K. Impact of PCL nanofiber mat structural properties on hydrophilic drug release and antibacterial activity on periodontal pathogens. Eur. J. Pharm. Sci. 2018, 122, 347–358. [Google Scholar] [CrossRef]
  60. Potrč, T.; Baumgartner, S.; Roškar, R.; Planinšek, O.; Lavrič, Z.; Kristl, J.; Kocbek, P. Electrospun polycaprolactone nanofibers as a potential oromucosal delivery system for poorly water-soluble drugs. Eur. J. Pharm. Sci. 2015, 75, 101–113. [Google Scholar] [CrossRef] [PubMed]
  61. Che, H.L.; Lee, H.J.; Uto, K.; Ebara, M.; Kim, W.J.; Aoyagi, T.; Park, I.K. Simultaneous drug and gene delivery from the biodegradable poly(ε-caprolactone) nanofibers for the treatment of liver cancer. J. Nanosci. Nanotechnol. 2015, 15, 7971–7975. [Google Scholar] [CrossRef] [PubMed]
  62. Chen, S.; Ge, L.; Mueller, A.; Carlson, M.A.; Teusink, M.J.; Shuler, F.D.; Xie, J. Twisting electrospun nanofiber fine strips into functional sutures for sustained co-delivery of gentamicin and silver. Nanomed. Nanotechnol. Biol. Med. 2017, 13, 1435–1445. [Google Scholar] [CrossRef] [Green Version]
  63. Ramírez-Agudelo, R.; Scheuermann, K.; Gala-García, A.; Monteiro, A.P.F.; Pinzón-García, A.D.; Cortés, M.E.; Sinisterra, R.D. Hybrid nanofibers based on poly-caprolactone/gelatin/hydroxyapatite nanoparticles-loaded Doxycycline: Effective anti-tumoral and antibacterial activity. Mater. Sci. Eng. C 2018, 83, 25–34. [Google Scholar] [CrossRef] [PubMed]
  64. Adeli-Sardou, M.; Yaghoobi, M.M.; Torkzadeh-Mahani, M.; Dodel, M. Controlled release of lawsone from polycaprolactone/gelatin electrospun nano fibers for skin tissue regeneration. Int. J. Biol. Macromol. 2019, 124, 478–491. [Google Scholar] [CrossRef]
  65. Yang, G.; Wang, J.; Li, L.; Ding, S.; Zhou, S. Electrospun micelles/drug-loaded nanofibers for time-programmed multi-agent release. Macromol. Biosci. 2014, 14, 965–976. [Google Scholar] [CrossRef] [PubMed]
  66. Han, D.; Sherman, S.; Filocamo, S.; Steckl, A.J. Long-term antimicrobial effect of nisin released from electrospun triaxial fiber membranes. Acta Biomater. 2017, 53, 242–249. [Google Scholar] [CrossRef] [PubMed]
  67. de Cassan, D.; Sydow, S.; Schmidt, N.; Behrens, P.; Roger, Y.; Hoffmann, A.; Hoheisel, A.L.; Glasmacher, B.; Hänsch, R.; Menzel, H. Attachment of nanoparticulate drug-release systems on poly(ε-caprolactone) nanofibers via a graftpolymer as interlayer. Colloids Surf. B Biointerfaces 2018, 163, 309–320. [Google Scholar] [CrossRef] [PubMed]
  68. Lancina, M.G.; Shankar, R.K.; Yang, H. Chitosan nanofibers for transbuccal insulin delivery. J. Biomed. Mater. Res. Part A 2017, 105, 1252–1259. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Chen, J.; Pan, H.; Yang, Y.; Xiong, S.; Duan, H.; Yang, X.; Pan, W. Self-assembled liposome from multi-layered fibrous mucoadhesive membrane for buccal delivery of drugs having high first-pass metabolism. Int. J. Pharm. 2018, 547, 303–314. [Google Scholar] [CrossRef] [PubMed]
  70. Castillo-Ortega, M.M.; Montaño-Figueroa, A.G.; Rodríguez-Félix, D.E.; Munive, G.T.; Herrera-Franco, P.J. Amoxicillin embedded in cellulose acetate-poly (vinyl pyrrolidone) fibers prepared by coaxial electrospinning: Preparation and characterization. Mater. Lett. 2012, 76, 250–254. [Google Scholar] [CrossRef]
  71. Li, J.; Xu, W.; Li, D.; Liu, T.; Zhang, Y.S.; Ding, J.; Chen, X. Locally Deployable Nanofiber Patch for Sequential Drug Delivery in Treatment of Primary and Advanced Orthotopic Hepatomas. ACS Nano 2018, 12, 6685–6699. [Google Scholar] [CrossRef]
  72. Haider, A.; Gupta, K.C.; Kang, I.K. Morphological effects of HA on the cell compatibility of electrospun HA/PLGA composite nanofiber scaffolds. Biomed Res. Int. 2014, 2014, 308306. [Google Scholar] [CrossRef]
  73. Bonadies, I.; Maglione, L.; Ambrogi, V.; Paccez, J.D.; Zerbini, L.F.; Rocha e Silva, L.F.; Picanço, N.S.; Tadei, W.P.; Grafova, I.; Grafov, A.; et al. Electrospun core/shell nanofibers as designed devices for efficient Artemisinin delivery. Eur. Polym. J. 2017, 89, 211–220. [Google Scholar] [CrossRef]
  74. Lu, H.; Wang, Q.; Li, G.; Qiu, Y.; Wei, Q. Electrospun water-stable zein/ethyl cellulose composite nanofiber and its drug release properties. Mater. Sci. Eng. C 2017, 74, 86–93. [Google Scholar] [CrossRef]
  75. Wright, M.E.; Parrag, I.C.; Yang, M.; Santerre, J.P. Electrospun polyurethane nanofiber scaffolds with ciprofloxacin oligomer versus free ciprofloxacin: Effect on drug release and cell attachment. J. Control. Release 2017, 250, 107–115. [Google Scholar] [CrossRef] [PubMed]
  76. Martínez-Ortega, L.; Mira, A.; Fernandez-Carvajal, A.; Reyes Mateo, C.; Mallavia, R.; Falco, A. Development of a new delivery system based on drug-loadable electrospun nanofibers for psoriasis treatment. Pharmaceutics 2019, 11, 14. [Google Scholar] [CrossRef] [Green Version]
  77. Mishra, S.S.; Behera, P.K.; Kar, B.; Ray, R.C. Advances in Probiotics, Prebiotics and Nutraceuticals. In Innovations in Technologies for Fermented Food and Beverage Industries; Springer International Publishing: Cham, Switzerland, 2018; pp. 121–141. [Google Scholar]
  78. Augustin, M.A.; Sanguansri, L. Challenges and Solutions to Incorporation of Nutraceuticals in Foods. Annu. Rev. Food Sci. Technol. 2015, 6, 463–477. [Google Scholar] [CrossRef] [PubMed]
  79. Misra, S.; Pandey, P.; Mishra, H.N. Novel approaches for co-encapsulation of probiotic bacteria with bioactive compounds, their health benefits and functional food product development: A review. Trends Food Sci. Technol. 2021, 109, 340–351. [Google Scholar] [CrossRef]
  80. Dimitrellou, D.; Kandylis, P.; Petrović, T.; Dimitrijević-Branković, S.; Lević, S.; Nedović, V.; Kourkoutas, Y. Survival of spray dried microencapsulated Lactobacillus casei ATCC 393 in simulated gastrointestinal conditions and fermented milk. LWT Food Sci. Technol. 2016, 71, 169–174. [Google Scholar] [CrossRef]
  81. Marques, C.; Manuela Amorim, M.; Odila Pereira, J.; Estevez Pintado, M.; Moura, D.; Calhau, C.; Pinheiro, H. Bioactive Peptides—Are There More Antihypertensive Mechanisms Beyond ACE Inhibition? Curr. Pharm. Des. 2012, 18, 4706–4713. [Google Scholar] [CrossRef]
  82. Eggersdorfer, M.; Wyss, A. Carotenoids in human nutrition and health. Arch. Biochem. Biophys. 2018, 652, 18–26. [Google Scholar] [CrossRef]
  83. Mattarelli, P.; Biavati, B.; Holzapfel, W.H.; Wood, B.J.B. The Bifidobacteria and Related Organisms; Elsevier: London, UK, 2018. [Google Scholar]
  84. Giraffa, G.; Chanishvili, N.; Widyastuti, Y. Importance of lactobacilli in food and feed biotechnology. Res. Microbiol. 2010, 161, 480–487. [Google Scholar] [CrossRef] [PubMed]
  85. Lane, K.E.; Derbyshire, E. Systematic review of omega-3 enriched foods and health. Br. Food J. 2014, 116, 165–179. [Google Scholar] [CrossRef] [Green Version]
  86. Bassaganya-Riera, J.; Hontecillas, R.; Wannemuehler, M.J. Nutritional impact of conjugated linoleic acid: A model functional food ingredient. In Vitro Cell Dev. Biol. Plant 2002, 38, 241–246. [Google Scholar] [CrossRef]
  87. Ghani, U.; Naeem, M.; Rafeeq, H.; Imtiaz, U.; Amjad, A.; Ullah, S.; Rehman, A.; Qasim, F. A Novel Approach towards Nutraceuticals and Biomedical Applications. Sch. Int. J. Biochem. 2019, 2, 2617–3476. [Google Scholar] [CrossRef]
  88. Aboul-Enein, Y.H.; Berczynski, P.; Kruk, I. Phenolic Compounds: The Role of Redox Regulation in Neurodegenerative Disease and Cancer. Mini Rev. Med. Chem. 2013, 13, 385–398. [Google Scholar]
  89. Estrada-Gil, L.E.; Contreras-Esquivel, J.C.; Mata-Gómez, M.A.; Flores-Gallegos, A.C.; Zugasti-Cruz, A.; Rodríguez-Herrera, R.; Govea-Salas, M.; Ascacio-Valdés, J.A. Functional Foods and Ingredients, Supplements, Nutraceuticals, and Superfoods Uses and Regulation. In Natural Food Products and Waste Recovery; Apple Academic Press: Palm Bay, FL, USA, 2021; pp. 51–67. [Google Scholar]
  90. Bhavaniramya, S.; Vishnupriya, S.; Al-Aboody, M.S.; Vijayakumar, R.; Baskaran, D. Role of essential oils in food safety: Antimicrobial and antioxidant applications. Grain Oil Sci. Technol. 2019, 2, 49–55. [Google Scholar] [CrossRef]
  91. Nieto, G.; Ros, G.; Castillo, J. Antioxidant and Antimicrobial Properties of Rosemary (Rosmarinus officinalis, L.): A Review. Medicines 2018, 5, 98. [Google Scholar] [CrossRef] [Green Version]
  92. Mutlu-Ingok, A.; Devecioglu, D.; Dikmetas, D.N.; Karbancioglu-Guler, F.; Capanoglu, E. Antibacterial, antifungal, antimycotoxigenic, and antioxidant activities of essential oils: An updated review. Molecules 2020, 25, 4711. [Google Scholar] [CrossRef]
  93. Ali, B.; Al-Wabel, N.A.; Shams, S.; Ahamad, A.; Khan, S.A.; Anwar, F. Essential oils used in aromatherapy: A systemic review. Asian Pac. J. Trop. Biomed. 2015, 5, 601–611. [Google Scholar] [CrossRef] [Green Version]
  94. Balusamy, B.; Celebioglu, A.; Senthamizhan, A.; Uyar, T. Progress in the design and development of “fast-dissolving” electrospun nanofibers based drug delivery systems—A systematic review. J. Control. Release 2020, 326, 482–509. [Google Scholar] [CrossRef]
  95. Coban, O.; Aytac, Z.; Yildiz, Z.I.; Uyar, T. Colon targeted delivery of niclosamide from β-cyclodextrin inclusion complex incorporated electrospun Eudragit® L100 nanofibers. Colloids Surf. B Biointerfaces 2021, 197, 111391. [Google Scholar] [CrossRef]
  96. Celebioglu, A.; Uyar, T. Fast-dissolving antioxidant curcumin/cyclodextrin inclusion complex electrospun nanofibrous webs. Food Chem. 2020, 317, 126397. [Google Scholar] [CrossRef]
  97. Celebioglu, A.; Uyar, T. Development of ferulic acid/cyclodextrin inclusion complex nanofibers for fast-dissolving drug delivery system. Int. J. Pharm. 2020, 584, 119395. [Google Scholar] [CrossRef]
  98. Celebioglu, A.; Uyar, T. Encapsulation and Stabilization of α-Lipoic Acid in Cyclodextrin Inclusion Complex Electrospun Nanofibers: Antioxidant and Fast-Dissolving α-Lipoic Acid/Cyclodextrin Nanofibrous Webs. J. Agric. Food Chem. 2019, 67, 13093–13107. [Google Scholar] [CrossRef] [PubMed]
  99. Markowiak, P.; Śliżewska, K. Effects of probiotics, prebiotics, and synbiotics on human health. Nutrients 2017, 9, 1021. [Google Scholar] [CrossRef] [PubMed]
  100. Kobyliak, N.; Falalyeyeva, T.; Boyko, N.; Tsyryuk, O.; Beregova, T.; Ostapchenko, L. Probiotics and nutraceuticals as a new frontier in obesity prevention and management. Diabetes Res. Clin. Pract. 2018, 141, 190–199. [Google Scholar] [CrossRef]
  101. Savcheniuk, O.; Kobyliak, N.; Kondro, M.; Virchenko, O.; Falalyeyeva, T.; Beregova, T. Short-term periodic consumption of multiprobiotic from childhood improves insulin sensitivity, prevents development of non-alcoholic fatty liver disease and adiposity in adult rats with glutamate-induced obesity. BMC Complement. Altern. Med. 2014, 14, 247. [Google Scholar] [CrossRef] [Green Version]
  102. Mohajeri, M.H.; Brummer, R.J.M.; Rastall, R.A.; Weersma, R.K.; Harmsen, H.J.M.; Faas, M.; Eggersdorfer, M. The role of the microbiome for human health: From basic science to clinical applications. Eur. J. Nutr. 2018, 57, 1–4. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  103. Cunningham, M.; Azcarate-Peril, M.A.; Barnard, A.; Benoit, V.; Grimaldi, R.; Guyonnet, D.; Holscher, H.D.; Hunter, K.; Manurung, S.; Obis, D.; et al. Shaping the Future of Probiotics and Prebiotics. Trends Microbiol. 2021, 29, 667–685. [Google Scholar] [CrossRef]
  104. Plaza-Diaz, J.; Ruiz-Ojeda, F.J.; Gil-Campos, M.; Gil, A. Mechanisms of Action of Probiotics. Adv. Nutr. 2019, 10, S49–S66. [Google Scholar] [CrossRef] [Green Version]
  105. Terpou, A.; Papadaki, A.; Lappa, I.K.; Kachrimanidou, V.; Bosnea, L.A.; Kopsahelis, N. Probiotics in food systems: Significance and emerging strategies towards improved viability and delivery of enhanced beneficial value. Nutrients 2019, 11, 1591. [Google Scholar] [CrossRef] [Green Version]
  106. Zommiti, M.; Feuilloley, M.G.J.; Connil, N. Update of probiotics in human world: A nonstop source of benefactions till the end of time. Microorganisms 2020, 8, 1907. [Google Scholar] [CrossRef] [PubMed]
  107. Ait-Belgnaoui, A.; Durand, H.; Cartier, C.; Chaumaz, G.; Eutamene, H.; Ferrier, L.; Houdeau, E.; Fioramonti, J.; Bueno, L.; Theodorou, V. Prevention of gut leakiness by a probiotic treatment leads to attenuated HPA response to an acute psychological stress in rats. Psychoneuroendocrinology 2012, 37, 1885–1895. [Google Scholar] [CrossRef]
  108. Patel, R.M.; Myers, L.S.; Kurundkar, A.R.; Maheshwari, A.; Nusrat, A.; Lin, P.W. Probiotic bacteria induce maturation of intestinal claudin 3 expression and barrier function. Am. J. Pathol. 2012, 180, 626–635. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  109. Bajaj, B.K.; Claes, I.J.J.; Lebeer, S. Functional Mechanisms of Probiotics. J. Microbiol. Biotechnol. Food Sci. 2015, 4, 321–327. [Google Scholar]
  110. Gazerani, P. Probiotics for Parkinson’s disease. Int. J. Mol. Sci. 2019, 20, 4121. [Google Scholar] [CrossRef] [Green Version]
  111. Kim, J.; Muhammad, N.; Jhun, B.H.; Yoo, J.-W. Probiotic delivery systems: A brief overview. J. Pharm. Investig. 2016, 46, 377–386. [Google Scholar] [CrossRef]
  112. López-Rubio, A.; Sanchez, E.; Wilkanowicz, S.; Sanz, Y.; Lagaron, J.M. Electrospinning as a useful technique for the encapsulation of living bifidobacteria in food hydrocolloids. Food Hydrocoll. 2012, 28, 159–167. [Google Scholar] [CrossRef]
  113. Rodrigues, F.J.; Cedran, M.F.; Bicas, J.L.; Sato, H.H. Encapsulated probiotic cells: Relevant techniques, natural sources as encapsulating materials and food applications—A narrative review. Food Res. Int. 2020, 137, 109682. [Google Scholar] [CrossRef]
  114. Yao, M.; Xie, J.; Du, H.; McClements, D.J.; Xiao, H.; Li, L. Progress in microencapsulation of probiotics: A review. Compr. Rev. Food Sci. Food Saf. 2020, 19, 857–874. [Google Scholar] [CrossRef] [Green Version]
  115. Stojanov, S.; Berlec, A. Electrospun Nanofibers as Carriers of Microorganisms, Stem Cells, Proteins, and Nucleic Acids in Therapeutic and Other Applications. Front. Bioeng. Biotechnol. 2020, 8, 130. [Google Scholar] [CrossRef] [PubMed]
  116. Mojaveri, S.J.; Hosseini, S.F.; Gharsallaoui, A. Viability improvement of Bifidobacterium animalis Bb12 by encapsulation in chitosan/poly(vinyl alcohol) hybrid electrospun fiber mats. Carbohydr. Polym. 2020, 241, 116278. [Google Scholar] [CrossRef] [PubMed]
  117. López-Rubio, A.; Sanchez, E.; Sanz, Y.; Lagaron, J.M. Encapsulation of living bifidobacteria in ultrathin PVOH electrospun fibers. Biomacromolecules 2009, 10, 2823–2829. [Google Scholar] [CrossRef]
  118. Škrlec, K.; Zupančič, Š.; Prpar Mihevc, S.; Kocbek, P.; Kristl, J.; Berlec, A. Development of electrospun nanofibers that enable high loading and long-term viability of probiotics. Eur. J. Pharm. Biopharm. 2019, 136, 108–119. [Google Scholar] [CrossRef] [PubMed]
  119. Feng, K.; Huang, R.M.; Wu, R.Q.; Wei, Y.S.; Zong, M.H.; Linhardt, R.J.; Wu, H. A novel route for double-layered encapsulation of probiotics with improved viability under adverse conditions. Food Chem. 2020, 310, 125977. [Google Scholar] [CrossRef]
  120. Feng, K.; Zhai, M.Y.; Zhang, Y.; Linhardt, R.J.; Zong, M.H.; Li, L.; Wu, H. Improved Viability and Thermal Stability of the Probiotics Encapsulated in a Novel Electrospun Fiber Mat. J. Agric. Food Chem. 2018, 66, 10890–10897. [Google Scholar] [CrossRef] [PubMed]
  121. Anselmo, A.C.; McHugh, K.J.; Webster, J.; Langer, R.; Jaklenec, A. Layer-by-Layer Encapsulation of Probiotics for Delivery to the Microbiome. Adv. Mater. 2016, 28, 9486–9490. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  122. Soares, J.M.D.; Abreu, R.E.F.; da Costa, M.M.; de Melo, N.F.; de Oliveira, H.P. Investigation of Lactobacillus paracasei encapsulation in electrospun fibers of Eudragit® L100. Polimeros 2020, 30, 3. [Google Scholar]
  123. Çanga, E.M.; Dudak, F.C. Improved digestive stability of probiotics encapsulated within poly(vinyl alcohol)/cellulose acetate hybrid fibers. Carbohydr. Polym. 2021, 264, 117990. [Google Scholar] [CrossRef]
  124. Yilmaz, M.T.; Taylan, O.; Karakas, C.Y.; Dertli, E. An alternative way to encapsulate probiotics within electrospun alginate nanofibers as monitored under simulated gastrointestinal conditions and in kefir. Carbohydr. Polym. 2020, 244, 116447. [Google Scholar] [CrossRef]
  125. Kurečič, M.; Rijavec, T.; Hribernik, S.; Lapanje, A.; Kleinschek, K.S.; Maver, U. Novel electrospun fibers with incorporated commensal bacteria for potential preventive treatment of the diabetic foot. Nanomedicine 2018, 13, 1583–1594. [Google Scholar] [CrossRef] [PubMed]
  126. Zupančič, Š.; Rijavec, T.; Lapanje, A.; Petelin, M.; Kristl, J.; Kocbek, P. Nanofibers with Incorporated Autochthonous Bacteria as Potential Probiotics for Local Treatment of Periodontal Disease. Biomacromolecules 2018, 19, 4299–4306. [Google Scholar] [CrossRef] [PubMed]
  127. Heunis, T.D.J.; Botes, M.; Dicks, L.M.T. Encapsulation of Lactobacillus plantarum 423 and its bacteriocin in nanofibers. Probiotics Antimicrob. Proteins 2010, 2, 46–51. [Google Scholar] [CrossRef]
  128. Fung, W.Y.; Yuen, K.H.; Liong, M.T. Agrowaste-based nanofibers as a probiotic encapsulant: Fabrication and characterization. J. Agric. Food Chem. 2011, 59, 8140–8147. [Google Scholar] [CrossRef]
  129. Nagy, Z.K.; Wagner, I.; Suhajda, Á.; Tobak, T.; Harasztos, A.H.; Vigh, T.; Sóti, P.L.; Pataki, H.; Molnár, K.; Marosi1, G. Nanofibrous solid dosage form of living bacteria prepared by electrospinning. eXPRESS Polym. Lett. 2014, 8, 352–361. [Google Scholar] [CrossRef] [Green Version]
Nanomaterials 11 01968 g001 550

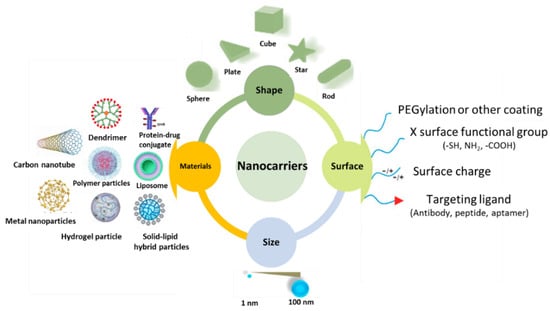

Figure 1. Nanocarriers for drug delivery and their biophysiochemical properties. Many factors are involving in determining their therapeutic potential including size, shape, materials, and surface chemistry.
Figure 1. Nanocarriers for drug delivery and their biophysiochemical properties. Many factors are involving in determining their therapeutic potential including size, shape, materials, and surface chemistry.
Nanomaterials 11 01968 g001
Nanomaterials 11 01968 g002 550

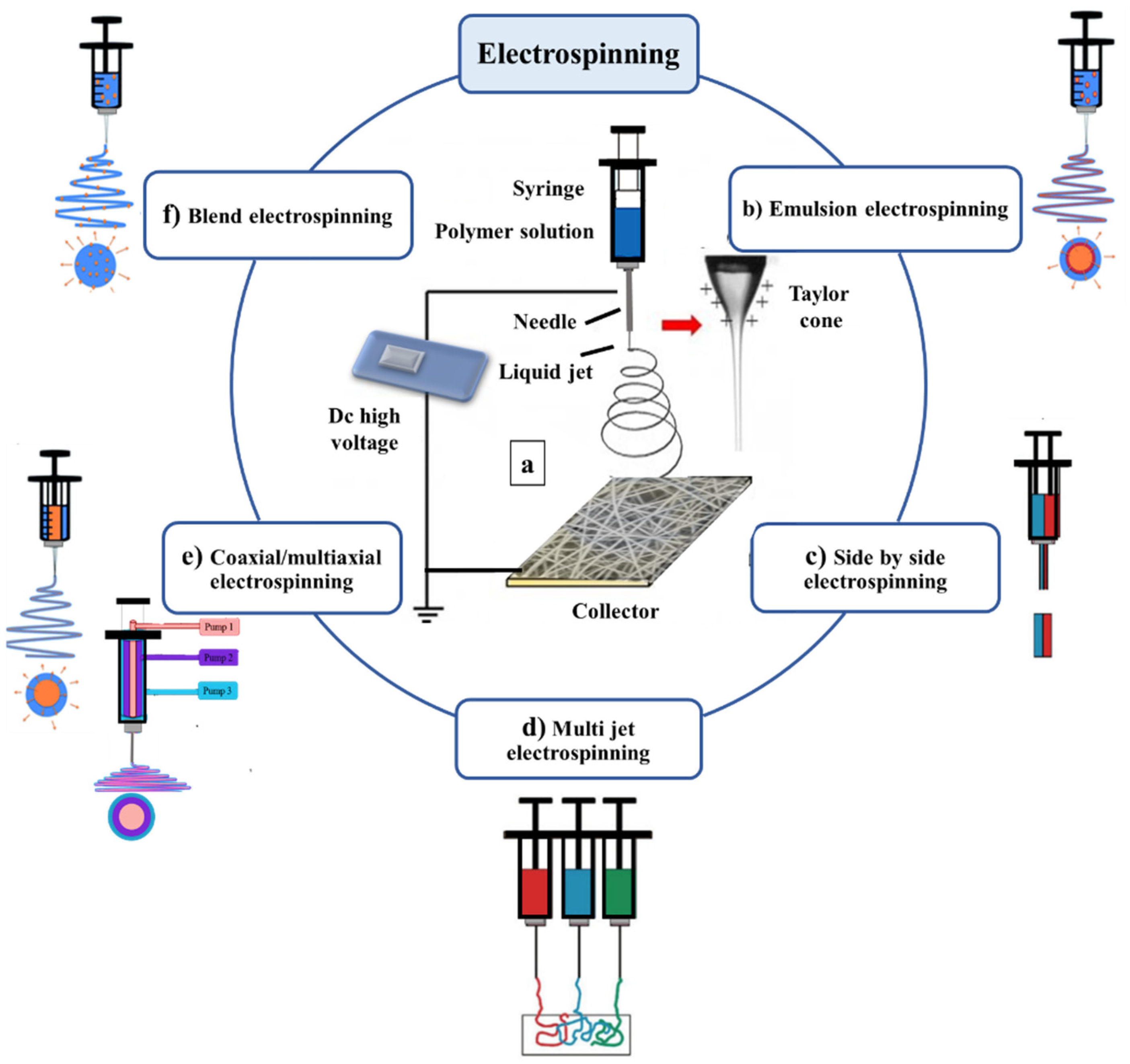

Figure 2. Schematic of the different routes to drug incorporation into a polymer carrier through electrospinning.
Figure 2. Schematic of the different routes to drug incorporation into a polymer carrier through electrospinning.
Nanomaterials 11 01968 g002
Nanomaterials 11 01968 g003 550

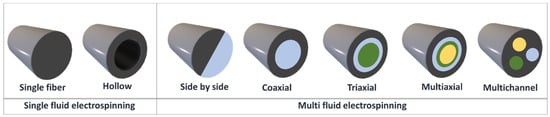

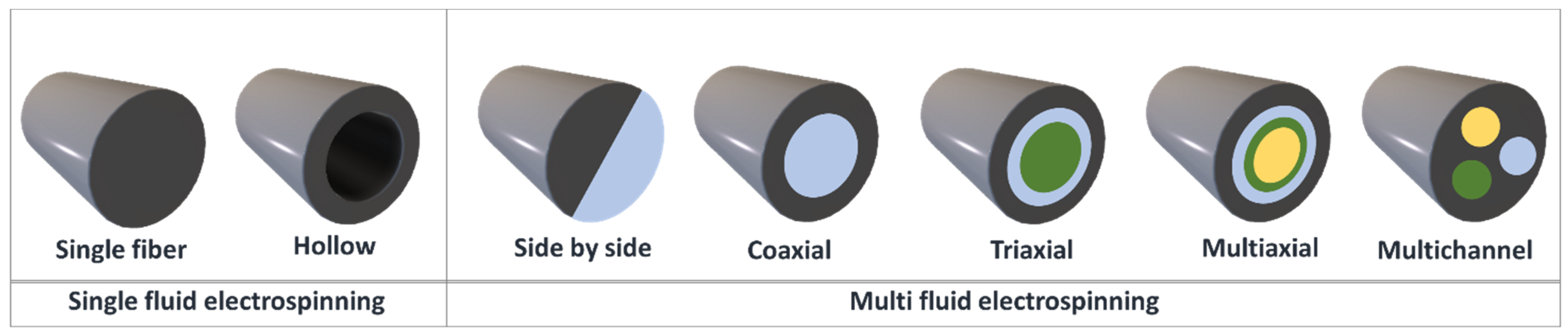

Figure 3. The cross-sections of fibers generated using the various electrospinning approaches.
Figure 3. The cross-sections of fibers generated using the various electrospinning approaches.
Nanomaterials 11 01968 g003
Nanomaterials 11 01968 g004 550

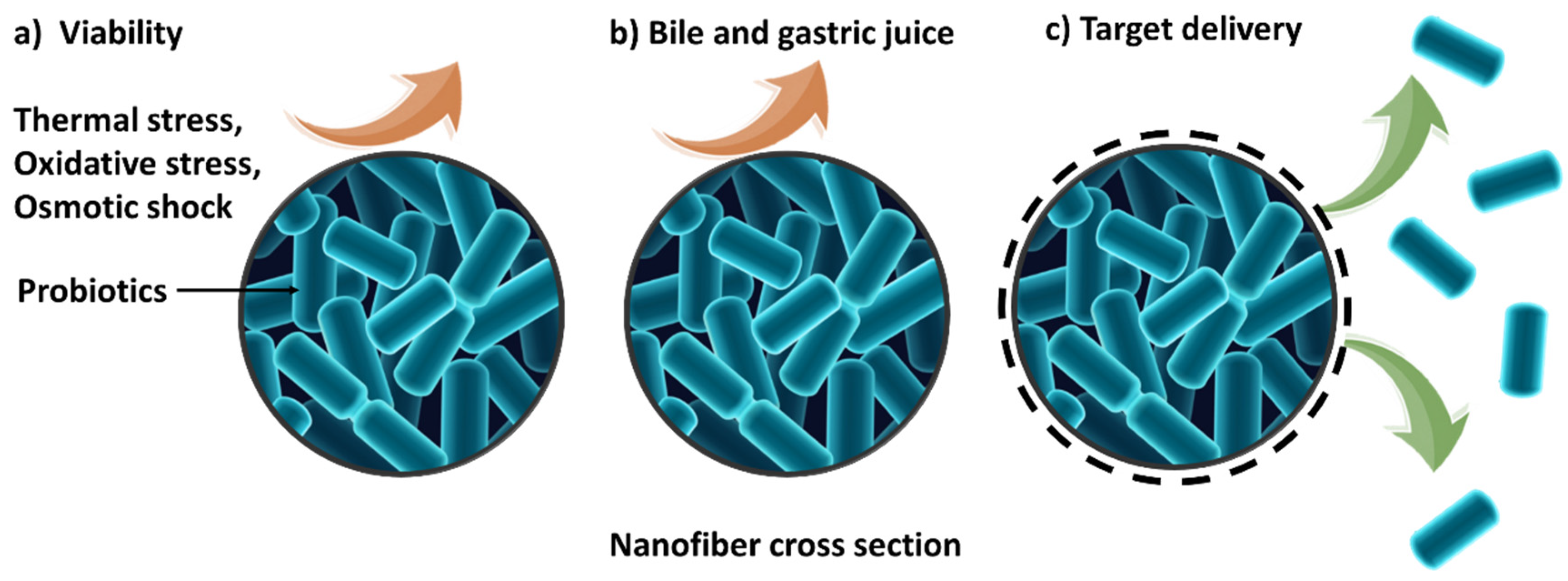

Figure 4. A schematic for the use of electrospun nanofibers in probiotic delivery. Encapsulation in a polymer matrix can (a) protect the organisms from external stresses and thus maintain viability during manufacturing and storage, (b) protect the probiotics from the bile and stomach acids, and (c) permit dissolution of the formulation and release of viable probiotics at the target site.
Figure 4. A schematic for the use of electrospun nanofibers in probiotic delivery. Encapsulation in a polymer matrix can (a) protect the organisms from external stresses and thus maintain viability during manufacturing and storage, (b) protect the probiotics from the bile and stomach acids, and (c) permit dissolution of the formulation and release of viable probiotics at the target site.
Nanomaterials 11 01968 g004
Table
Table 1. Key factors affecting the electrospinning process.
Table 1. Key factors affecting the electrospinning process.
ParameterEffect
Processing parameters
Flow rate↑ Flow rate leads to ↑ fiber diameter and ultimately unstable Taylor cone
Voltage↑ Fiber diameter decrease, ↓ no fiber formation
CollectorType of collector impacts 3D structure and fiber alignment
Distance needle-collector↑ Non-uniform beaded fibers are formed, ↓ no fiber formation
Solvent parameters
Dielectric constant↑ Fiber diameter decreases, ↓ beaded fibers are formed
Volatility↑ High porosity and surface area, ↓ difficult to remove solvent
Solution parameters
Viscosity↑ Thicker and continuous nanofibers. If too high, beads and nozzle clogging are observed. ↓ Finer nanofibers, but if viscosity too low then electrospraying will result
Concentration↑ Fiber formation with higher diameter and fewer beads. If too high nozzle clogging can be observed. ↓ If too low sputtering can happen
Environmental parameters
HumidityHumidity impacts solvent evaporation rate. ↑ Humidity can led to incomplete drying
TemperatureTemperature impacts viscosity and solvent evaporation rate.
↑ Temperature led to ↓ viscosity and more efficient evaporation of solvent.
Table
Table 2. Exemplar drug delivery applications of electrospun nanocarriers.
Table 2. Exemplar drug delivery applications of electrospun nanocarriers.
Polymer CarrierDrugIndicationsRef.
Polylactic acid (PLA)DichloroacetateAntineoplastic [55]
PLADoxorubicin/doxorubicin hydrochloride (Dox-HCl)Antineoplastic [56]
PLA, polyethylene oxide (PEO)RapamycinAntineoplastic [57]
Polycaprolactone (PCL)Naproxen Anti-inflammatory [58]
PCLMetronidazole/ciprofloxacinAntimicrobial[59]
PCLIbuprofen
Carvedilol		Anti-inflammatory
Beta blocker		[60]
PCLPaclitaxelAntineoplastic [61]
PCLGentamicin/AgAntimicrobial[62]
PCL, gelatinDoxorubicin (Dox)Antineoplastic [63]
PCL, gelatinKetoprofenAnti-inflammatory [64]
PCL, Polyethylene glycol (PEG)Curcumin/doxorubicinAntineoplastic[65]
PCL, Polyvinylpyrrolidone (PVP), Cellulose acetate (CA)NisinAntimicrobial[66]
PCL, Chitosan (CS)CiprofloxacinAntimicrobial[67]
CS, PEOInsulinTransbuccal insulin delivery [68]
PVPCarvedilolBuccal delivery [69]
CA, PVPAmoxicillinAntimicrobial[70]
PEG, Polylactic-co-Glycolic Acid (PLGA)10-Hydroxycamptothecin/hydrophilic tea polyphenol Antineoplastic [71]
PLGAGrowth factorsRegenerative medicine [72]
PVP, hyperbranched poly(butylene adipate (HB)Artemisinin Antineoplastic [73]
Ethyl cellulose (EC), zeinIndomethacinAnti-inflammatory [74]
Polycarbonate polyurethane (PCNU)Antimicrobial oligomerAntimicrobial[75]
Polymethyl vinyl ether-alt-maleic ethyl monoesterSalicylic acid/methyl salicylate capsaicinPsoriatic lesion treatment[76]
Table
Table 3. Selected nutraceuticals of interest to the food industry, and their associated health benefits.
Table 3. Selected nutraceuticals of interest to the food industry, and their associated health benefits.
CategoryFood SourceExamplesSome Associated Health BenefitsRef.
ProbioticsYogurt, sourdough, kimchi, sauerkraut, organic whey, bread, milk, cheeseLactobacillus plantarum,
Lactobacillus sp.,
Lactobacillus casei,
Bifidobacterium		Modulation of microbial signatures of health and disease, improved immune status and intestinal health[83,84]
Bioactive peptidesFish, meat, milk, plantsPeptides in milk, eggs, and sardines Antihypertensive properties[81]
Dietary lipidsFish, flaxseed, canola, calamari, krill, algae, genetically modified plants and seedsAlpha-linoleic acid, docosahexaenoic acid, eicosapentaenoic acidReduced risk of atherosclerosis
Improved cardiovascular health
Improved cognition and brain health
Reduced risk of certain cancers		[78,85]
Milk fatConjugated linolenic acidReduced risk of atherosclerosis
Anticarcinogenic, immunomodulatory, and anti-inflammatory properties		[78,86]
VitaminsFruits, dairy products, vegetables and meat Vitamin A, C, D, E, K, B1, B3, B6, B9, B12Range of health benefits, (e.g., vitamin A/C/E are antioxidants, vitamin K is essential for clotting of blood)[78,87]
MineralsUsually available as saltsZinc, calcium, iron, magnesium, phosphorus Range of health benefits (e.g., zinc essential for cell reproduction)[78,87]
Phenolic compounds and polyphenolsWine, olives, tea, pomegranates, cocoa, vegetables, grapeseed, grapes, seedsFlavones, flavanols, catechins, curcuminoids, resveratrol phenolic acidsReduced oxidative stress
Protection against cardiovascular, neurodegenerative, and metabolic diseases and cancer		[78,88]
CarotenoidsGreen leafy vegetables, microalgae, marigolds, carrots, tomatoesAstaxanthin, lutein, lycopene, β-caroteneProtection against cancer, heart disease, and age-related macular degeneration, age-related macular eye disease and cataracts[78,89]
Table
Table 4. A list of probiotics that have been incorporated into electrospun nanofibers, along with the potential applications.
Table 4. A list of probiotics that have been incorporated into electrospun nanofibers, along with the potential applications.
PolymerBacteriumSource Code/StrainType of ElectrospinningPurposeRef.
PVA/CAE. coliEcN1917Dual/multi-nozzle Delivery system enhancing viability in the gastrointestinal tract, and storage stability [123]
Alginate, PEO, polysorbate 80 E. coliK12 MG1655BlendBiocompatible, edible delivery system targeted to the gut[20]
Eudragit® L100, sodium alginateLb. paracasei BlendControlled release of probiotics, and pH-targeted release. [122]
Alginate Lb. paracaseiKS-199BlendIncreased viability of probiotic cargo[124]
PEOLb. plantarumATCC 8014BlendHigh loading and long-term viability; local delivery to re-establish the microbiota balance, e.g., in vagina[118]
Carboxymethyl cellulose/PEOS. epidermidisBH1BlendPotential preventive treatment of the diabetic foot[125]
PEO/CSBacillus sp.25.2.MBlend Periodontal disease [126]
Fructo-oligosaccharides, PVALb. plantarum Blend Improvement of probiotic viability and thermal stability[120]
PVAB. animalisBb12Blend Increased viability on storage[117]
PEOLb. plantarum423Blend Bacteriocin and probiotic delivery system [127]
Enterococcus faeciumHKLHS
Soluble dietary fiber, oil-palm trunk, oil-palm fronds, PVALb. acidophilusFTDC 8933Blend Soluble dietary fiber, thermal protection of probiotics in heat-processed foods, improved viability on storage[128]
PVA, PVPLb. acidophilus Blend Bacterial vaginosis [129]
CS, PVA, INUB. animalislactis Bb12Blend Delivery system[116]
Sodium alginate, PVAL. plantarum Coaxial Improved thermal stability, ability to resist harsh conditions.[119]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zare, M.; Dziemidowicz, K.; Williams, G.R.; Ramakrishna, S. Encapsulation of Pharmaceutical and Nutraceutical Active Ingredients Using Electrospinning Processes. Nanomaterials 2021, 11, 1968. https://doi.org/10.3390/nano11081968

AMA Style

Zare M, Dziemidowicz K, Williams GR, Ramakrishna S. Encapsulation of Pharmaceutical and Nutraceutical Active Ingredients Using Electrospinning Processes. Nanomaterials. 2021; 11(8):1968. https://doi.org/10.3390/nano11081968

Chicago/Turabian Style

Zare, Mina, Karolina Dziemidowicz, Gareth R. Williams, and Seeram Ramakrishna. 2021. "Encapsulation of Pharmaceutical and Nutraceutical Active Ingredients Using Electrospinning Processes" Nanomaterials 11, no. 8: 1968. https://doi.org/10.3390/nano11081968

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
