Polymeric Pseudo-Liquid Membranes from Poly(N-oleylacrylamide)
Hiroko Shiono and Masakazu Yoshikawa *
Department of Biomolecular Engineering, Kyoto Institute of Technology, Matsugasaki, Kyoto 606-8585, Japan
*
Author to whom correspondence should be addressed; E-Mail: masahiro@kit.ac.jp; Tel.: +81-75-724-7816; Fax: +81-75-724-7800.
Received: 10 March 2014; in revised form: 8 April 2014 / Accepted: 18 April 2014 /
Published: 30 April 2014

Abstract

: A polymeric pseudo-liquid membrane (PPLM) was constructed from poly(N-oleylacrylamide) (PC18AAm), which exhibited a rubbery state under membrane transport conditions and used as the membrane matrix. In the present study, dibenzo-18-crown-6 (DB18C6) and dibenzo-21-crown-7 (DB21C7) were adopted as transporters for alkali metal ions. KCl was adopted as a model substrate for DB18C6 and CsCl the latter. Chiral transporter, O-allyl-N-(9-anthracenylmethyl)cinchonidinium bromide (AAMC) was used as a transporter for chiral separation of a racemic mixture of phenylglycine (Phegly). The l-somer was transported in preference to the antipode. The present study revealed that PPLMs are applicable to membrane transport, such as metal ion transport and chiral separation.
Keywords:
cesium ions; chiral separation; crown ether; liquid membrane; phenylglycine; polymeric pseudo-liquid membrane; poly(N-oleylacrylamide); potassium ions

1. Introduction

Membrane separation is perceived to be an environmentally benign separation technology compared with other separation methods [1,2,3]. Membranes have gained much attention since they are expected to solve problems the globe is faced with that have to be immediately solved. Membranes have been already applied to many fields, such as production of drinking water from sea water by reverse osmosis (RO), production of ultrapure water by nanofiltration (NF), separation and concentration of macromolecules and colloidal particles by ultrafiltration (UF), removal of microorganisms by microfiltration (MF), concentration or removal of ionic materials by electrodialysis (ED), gas separation for recovery of H2, concentration of O2, and removal of CO2, dehydration or purification of biofuel by pervaporation (PV), hemofiltration, hemodiafiltration, hemodialysis, and so forth.

Systems for membrane separation can be divided into two categories, such as liquid membranes and solid membranes. The former directly and effectively reflects the affinity of the molecular recognition material (transporter or carrier), which is found in the liquid membrane. In addition to this, a construction of liquid membrane is easy, that is, dissolution of the transporter into a given solvent is just a manipulation that membranologists have to do. However, the drawback of a liquid membrane is its lack of long-term stability; the solvent consisting of membrane solution may evaporate, or the transporter and/or transporter/target molecule complex may be washed out during operation [4,5,6,7,8,9]. If these drawbacks are eliminated, a liquid membrane is a promising membrane system for the separation of target molecule from a mixture containing compounds with similar or same molecular dimensions and compounds that exhibit similar or the same chemical and/or physical properties.

There have been various approaches to endow liquid membranes with durability; (1) polymer liquid crystal composite membranes [10,11]; (2) polymer inclusion membranes [12,13,14,15,16,17,18,19,20,21,22]; (3) organogel membranes [23,24]; (4) stabilization of supported liquid membranes [25,26]; (5) room temperature ionic liquids [27,28]; and (6) polymeric pseudo-liquid membranes (PPLMs) [29,30,31,32,33,34,35]. PPLM is a liquid membrane that consists of polymeric materials in a rubbery state and a transporter for a given target molecule. In PPLMs, polymeric materials, which show rubbery state and fluidity, are chosen as membrane components dissolving a transporter and working as a barrier separating source and receiving phases. Exploration of more suitable membrane materials for PPLMs is not only an interesting but also an indispensable approach. From this, poly(2-ethylhexyl methacrylate) (P2EHMA) with glass transition temperature (Tg) of −14.3 °C [32], poly(2-ethylhexyl acrylate) (P2EHA) with Tg of −60.5 °C [33], poly(dodecyl methacrylate) (PC12MA) with Tg of −66.3 °C [34], and poly(octadecyl methacrylate) (PC18MA) with Tg of −100 °C [35] were adopted as membrane matrices for PPLMs. Against expectation deduced from Tg values, PC18MA/DB18C6 PPLM did not give the highest normalized flux of K+ among above PPLMs. This might be due to the long alkyl moiety of PC18MA. The double bond leads to the introduction of a rigid 30° bend in the octadecyl chain. As a result, unsaturated octadecyl moieties, oleyl moieties, pack together less effectively than octadecyl ones. The reduced van der Waals interactions of oleyl moieties cause their melting points to decrease. Consequently, the fluidity of oleyl moieties would become more than that of PC18MA. To this end, in the present study, poly(N-oleylacryamide) (PC18AAm), of which Tg was reported to be −99 °C [36], was adopted as a candidate membrane matrix for a PPLM. PC18AAm is consisted of oleyl moiety, which has one double bond with cis configuration in the middle of it.

In the present study, the transport of KCl and CsCl through PPLMs from PC18AAm and dibenzo-18-crown-6 (DB18C6) for KCl or dibenzo-21-crown-7 (DB21C7) for CsCl and chiral separation of a recemic mixture of phenylglycine (Phegly) through a PC18AAm and O-allyl-N-(9-anthracenylmethyl)cinchonidium bromide (AAMC) membrane were investigated.

2. Results and Discussion

2.1. Preparation of PC18AAm

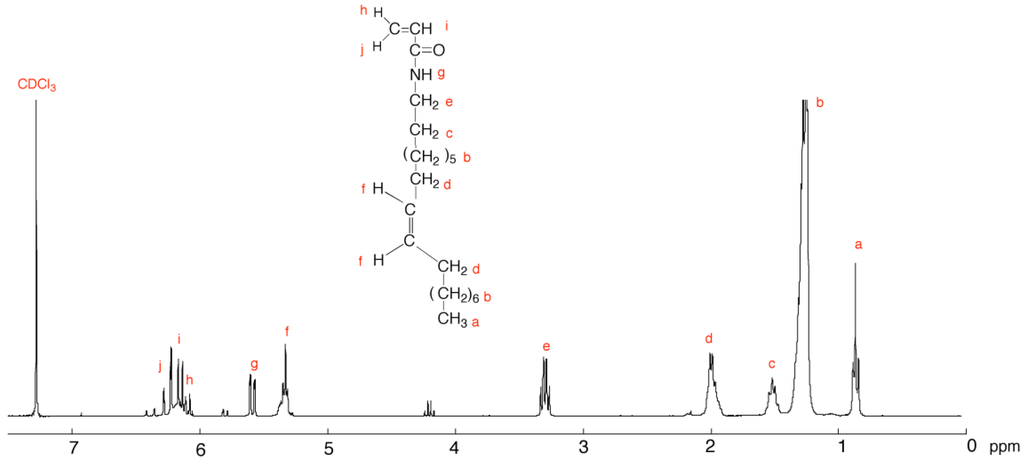

Figure 1 shows the 1H NMR spectrum of N-oleylacryamide (C18AAm). The [M-Na+] value for C18AAm was determined to be 344.32, while the calculated value to be 344.60. 1H NMR and ESI-TOF MS spectra confirmed the successful synthesis of C18AAm.

Membranes 04 00210 g001 200
Figure 1. 1H NMR spectrum of C18AAm (300 MHz, CDCl3).

Click here to enlarge figure

Figure 1. 1H NMR spectrum of C18AAm (300 MHz, CDCl3).
Membranes 04 00210 g001 1024

In the present study, C18AAm was polymerized by radical polymerization using AIBN as a radical initiator. The number-average molecular weight of PC18AAm, Mn, was determined to be 7.70 × 104, and its polydispersity index, Mw/Mn, to be 1.52.

Figure 2 shows the obtained differential scanning calorimetry thermograph of PC18AAm. The glass transition temperature, Tg, of the present polymer was determined to be −85 °C, which was 14 °C higher than the reported value [36]. Contrary to PC18MA [35], the endothermic peak corresponding to the melting point was hardly observed at around 22 °C, where an endothermic peak for oleyl moieties was expected to be observed. The presence of the cis-double bond in the 9–10 position led to elimination of side-chain ordering. As a result, PC18AAm prepared in the present study showed the amorphous state.

Membranes 04 00210 g002 200
Figure 2. DSC thermograph of PC18AAm (Heating rate, 10 °C·min−1; N2, flow, 50 cm3·min−1).

Click here to enlarge figure

Figure 2. DSC thermograph of PC18AAm (Heating rate, 10 °C·min−1; N2, flow, 50 cm3·min−1).
Membranes 04 00210 g002 1024

2.2. Transport of KCl through the Membranes

DB18C6 was used as a model transporter and KCl was used as a target substrate to compare the present membrane with previous results [32,33,34,35]. Figure 3 shows the time-transport curves of KCl through the three types of PPLM that consist of PC18AAm and DB18C6 and through the corresponding control membrane. The straight line for each transport curve in Figure 3 was regarded as a steady state for each transport experiment. KCl was slightly transported through the control membrane, which consisted of just PC18AAm. The transport of KCl through the control membrane was thought to be a simple diffusion of KCl, the diffusion of free KCl and uncomplexed ion pairs through the membrane.

Membranes 04 00210 g003 200

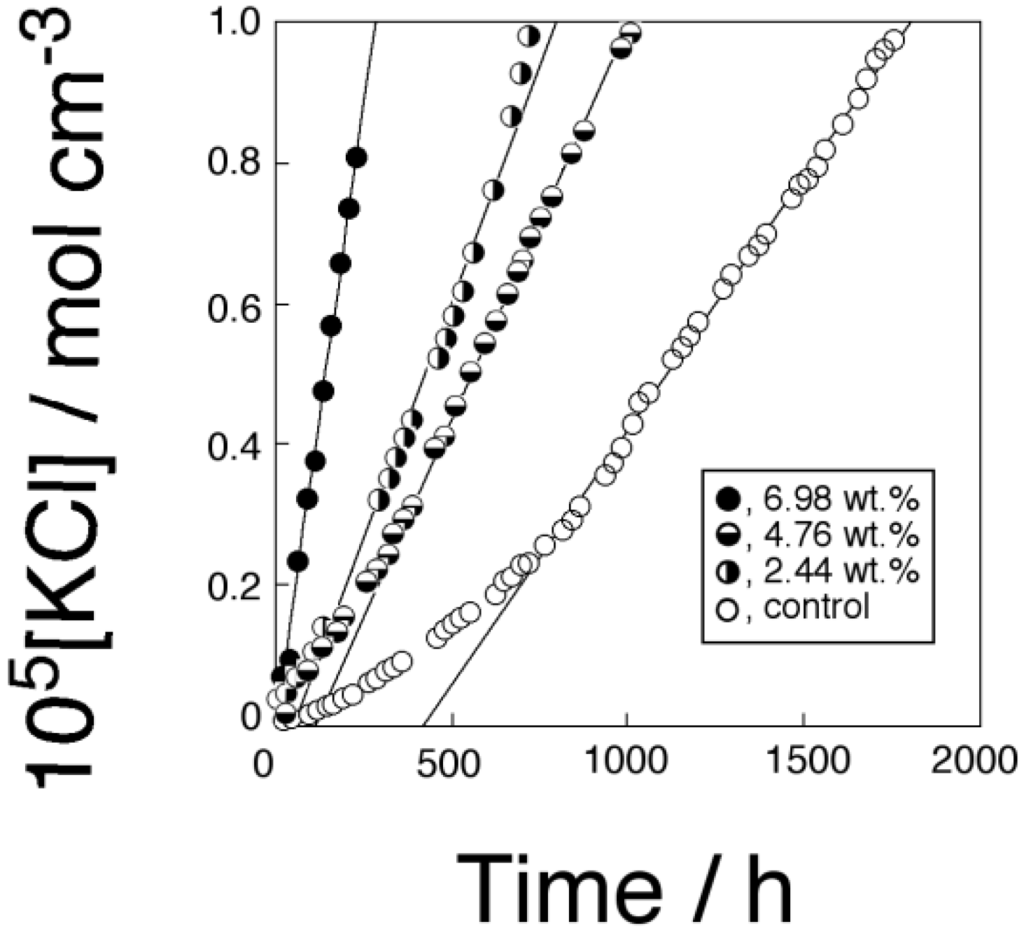

Figure 3. Time-transport curves of KCl through the PC18AAm liquid membranes (Operating temperature, 50 °C (323 K); [KCl]0 = 1.0 × 10−4 mol·cm−3).

Click here to enlarge figure

Figure 3. Time-transport curves of KCl through the PC18AAm liquid membranes (Operating temperature, 50 °C (323 K); [KCl]0 = 1.0 × 10−4 mol·cm−3).
Membranes 04 00210 g003 1024

In the case of the transport of uni-univalent salt, such as KCl, in which the salt is transported through a given liquid membrane simultaneously by simple diffusion and by facilitated transport, the flux of the uni-univalent salt can be represented by the following Equation [37,38]:

JC,obsd = (DCAk/δ)[K+]2 + (DCLAkK[DB18C6]/δ)[K+]2

Figure 4 shows the flux dependence on the transporter concentration. In Figure 4, the product of JC,obsd and membrane thickness δ, JC (mol·cm·cm−2·h−1), which is a flux per unit membrane thickness and per unit membrane area, is plotted as a function of transporter concentration. The total flux of K+ through the PPLM (JC) exhibited a linear relationship to the transporter concentration of DB18C6. The relationship held for the flux of control membrane, with no transporter. The relationship shown in Figure 4 revealed that the membrane transport of KCl was carried out by carrier-diffusion mechanism [37,38] not by fixed-site jumping [15,39,40]. This revealed that the membrane matrix of PC18AAm was fluid enough so that transporter and transporter/substrate complex could diffuse freely within the membrane. In the present study, KCl was transported like usual liquid membrane [37,38].

Following Equation (1), both K+ flux facilitated by transporter and that of simple diffusion should be dependent on the square of the initial feed K+ concentration. To confirm this, the logarithms of both K+ fluxes are plotted as functions of the logarithms of the initial K+ concentrations (Figure 5). Figure 4 and Figure 5 revealed that K+ transport through the present membranes took place by means of the mobile carrier mechanism.

Membranes 04 00210 g004 200

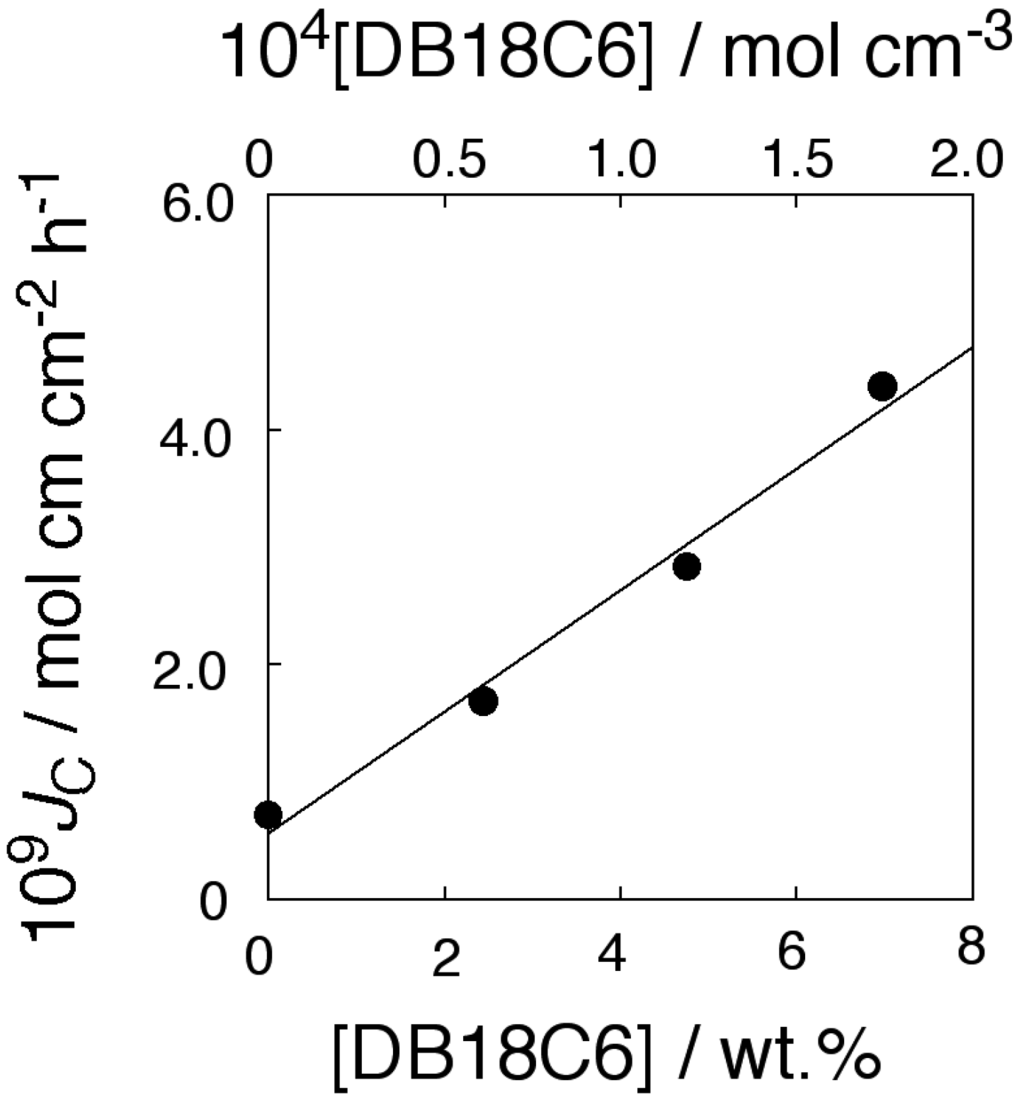

Figure 4. Relationship between KCl flux and the DB18C6 concentration through the PC18AAm liquid membranes (Operating temperature, 50 °C (323 K); [KCl]0 = 1.0 × 10−4 mol·cm−3).

Click here to enlarge figure

Figure 4. Relationship between KCl flux and the DB18C6 concentration through the PC18AAm liquid membranes (Operating temperature, 50 °C (323 K); [KCl]0 = 1.0 × 10−4 mol·cm−3).
Membranes 04 00210 g004 1024
Membranes 04 00210 g005 200

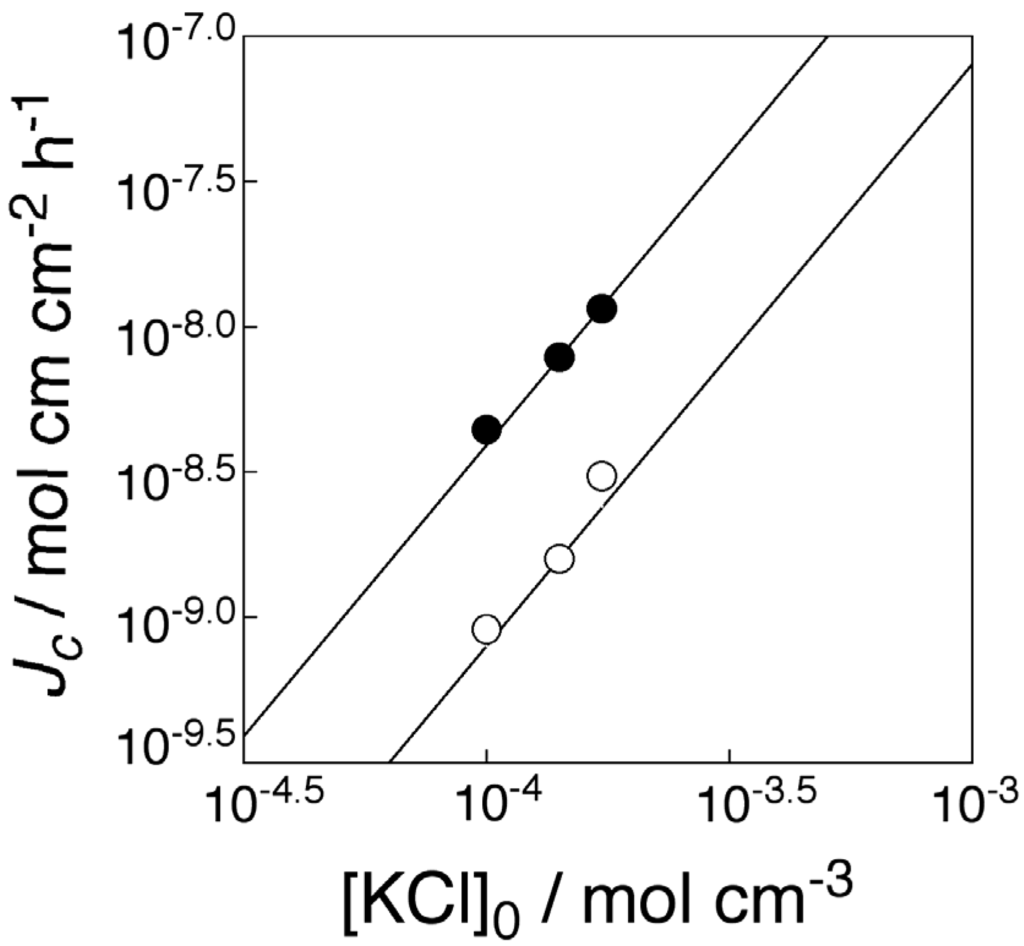

Figure 5. Dependence of facilitated KCl transport and simple diffusion fluxes on KCl feed concentration at the operating temperature of 50 °C (323 K) ([DB18C6] = 1.32 × 10−4 mol·cm−3).

Click here to enlarge figure

Figure 5. Dependence of facilitated KCl transport and simple diffusion fluxes on KCl feed concentration at the operating temperature of 50 °C (323 K) ([DB18C6] = 1.32 × 10−4 mol·cm−3).
Membranes 04 00210 g005 1024

2.3. Dependence of Membrane Transport on Operating Temperature

The membrane transport of K+ through the present PPLM, of which DB18C6 concentration of 1.32 × 10−4 mol·cm−3 (4.76 wt %), was studied at three different operating temperatures, such as 70 °C (343 K), 60 °C (333 K), and 50 °C (323 K). Adopting flux values for those three types of membrane transport experiment, Arrhenius plot of K+ flux was plotted against reciprocal of absolute temperature, which is shown in Figure 6. From the slope of the straight line in the figure, the activation energy of K+ transport was determined to be 45.7 kJ·mol−1.

So far, four types of polymeric materials were studied as membrane matrices for PPLM. The relationship between activation energy of membrane transport of K+ and the glass transition temperature is shown in Figure 7. As anticipated from previous study [35], the present membrane from PC18AAm gave higher activation energy than those for P2EHMA and PC12MA. However, the activation energy of PC18AAm of 45.7 kJ·mol−1 was an expected value among PPLMs consisting of side chain with 18 carbons, since PC18AAm showed higher Tg value than PC18MA. From Figure 7, the plots of P2EHMA, P2EHA, and PC12MA seem to constitute one group and those of PC18AAm and PC18MA to form another one. The former group and the latter one seem to form each straight line independently. Those two straight lines would cross at around −260 °C (13 K). Accumulation of the relationship between activation energy of membrane transport and the corresponding Tg value would lead to an interesting result.

Membranes 04 00210 g006 200

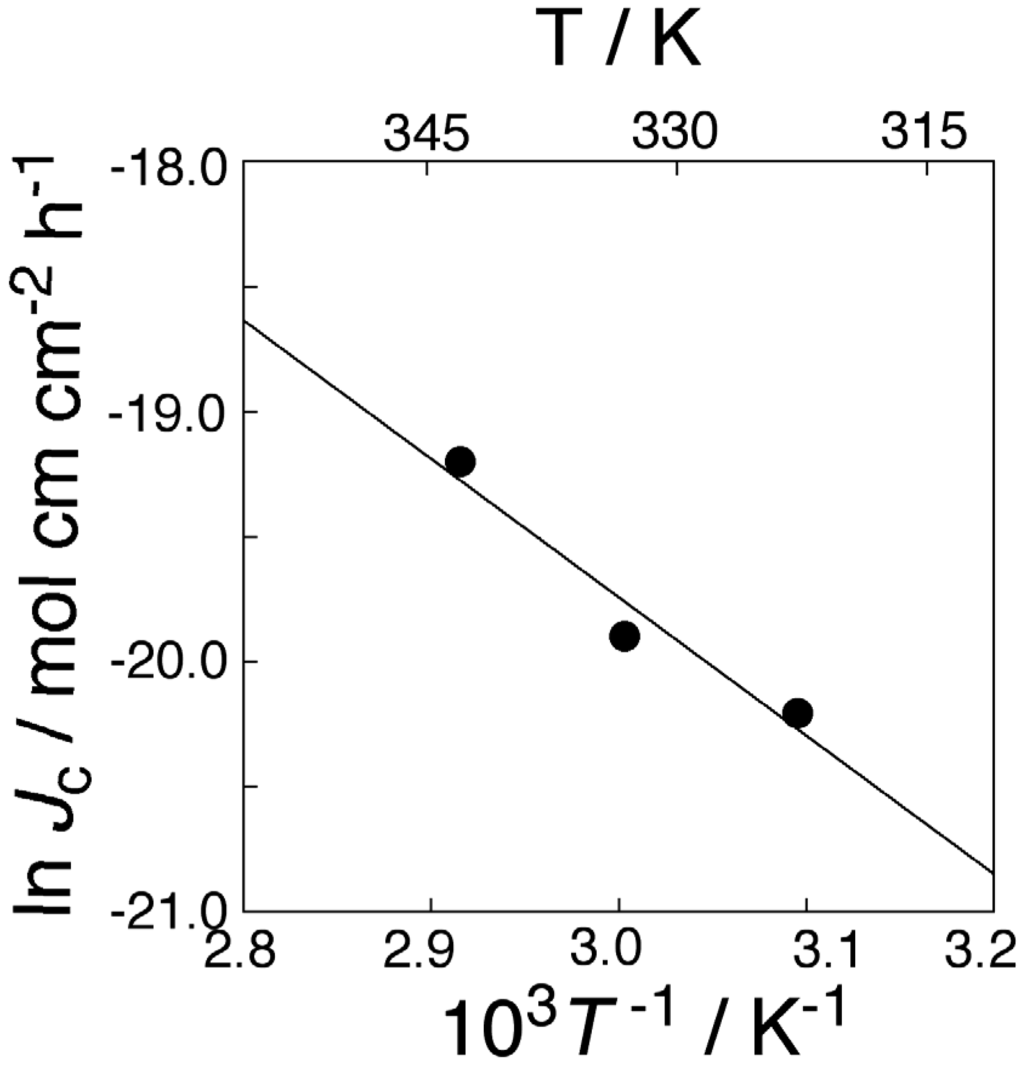

Figure 6. Temperature dependence of KCl transport through the PC18AAm liquid membrane ([DB18C6] = 1.32 × 10−4 mol·cm−3; [KCl]0 = 1.0 × 10−4 mol·cm−3).

Click here to enlarge figure

Figure 6. Temperature dependence of KCl transport through the PC18AAm liquid membrane ([DB18C6] = 1.32 × 10−4 mol·cm−3; [KCl]0 = 1.0 × 10−4 mol·cm−3).
Membranes 04 00210 g006 1024
Membranes 04 00210 g007 200
Figure 7. Relationship between activation energy of KCl transport and glass transition temperature of membrane matrix.

Click here to enlarge figure

Figure 7. Relationship between activation energy of KCl transport and glass transition temperature of membrane matrix.
Membranes 04 00210 g007 1024

2.4. Comparison of the Present PPLM with Others

The flux values observed in the present study are summarized in Table 1 together with results for PPLMs from P2EHMA [32], P2EHA [33], PC12MA [34], and PC18MA [35], supported liquid membrane [41], and polymer inclusion membrane [14]. In the table, normalized fluxes, which are fluxes per unit membrane thickness, per unit membrane area, per unit transporter concentration, and per square of unit substrate concentration, are given so that each membrane performance can be compared. In the case of polymer inclusion membrane, the result obtained, using dicyclohexyl-18-crown-6 (DC18C6) as a transporter instead of DB18C6, was cited.

Table Table 1. Comparison of normalized K+ flux values for various membranes.

Click here to display table

Table 1. Comparison of normalized K+ flux values for various membranes.
Liquid membraneJ (normalized flux of K+)Flux ratio aOperating temperature (°C)
(mol·cm·cm−2·h−1)
(mol·cm−3)(mol·cm−3)2
PC18AAm/DB18C6 b6.75 × 1034070
PC18AAm/DB18C6 b6.43 × 1033860
PC18AAm/DB18C6 b4.86 × 1032950
PC18MA/DB18C6 c6.89 × 1034160
PC12MA/DB18C6 d5.79 × 10435040
P2EHA/DB18C6 e5.88 × 1033540
P2EHMA/DB18C6 f6.20 × 1033740
CHCl3/DB18C6 g1.67 × 102125
PIM/DC18C6 h2.37 × 1021.425

a Flux ratios are the relative values; the flux value for the supported liquid membrane being set as unity; b Present study; c Cited from [35]; d Cited from [34]; e Cited from [33]; f Cited from [32]; g Cited from [41]; h Cited from [14].

PC12MA still showed the highest normalized flux value among those PPLMs. The long alkyl moiety might reduce the normalized flux of PC18AAm against expectation deduced from Tg values. Adopting PC18AAm with lower molecular weight as membrane matrix, a better membrane performance would be observed as observed in the study on P2EHA [33].

2.5. Transport of CsCl through the Membrane

As expected from the composition of liquid membrane, the membrane performance is exclusively dependent on the nature of transporter in the membrane. The situation is the same for PPLM. From this, dibenzo-21-crown-7 (DB21C7) [42,43] was adopted as a transporter instead of DB18C6, membrane transport of Cs+ was studied since the isotope 135Cs, which is formed in nuclear reactors, has a long half-life of 2.3 × 106 years, 137Cs 30.17 years, 134Cs 2 years, and so forth [44,45].

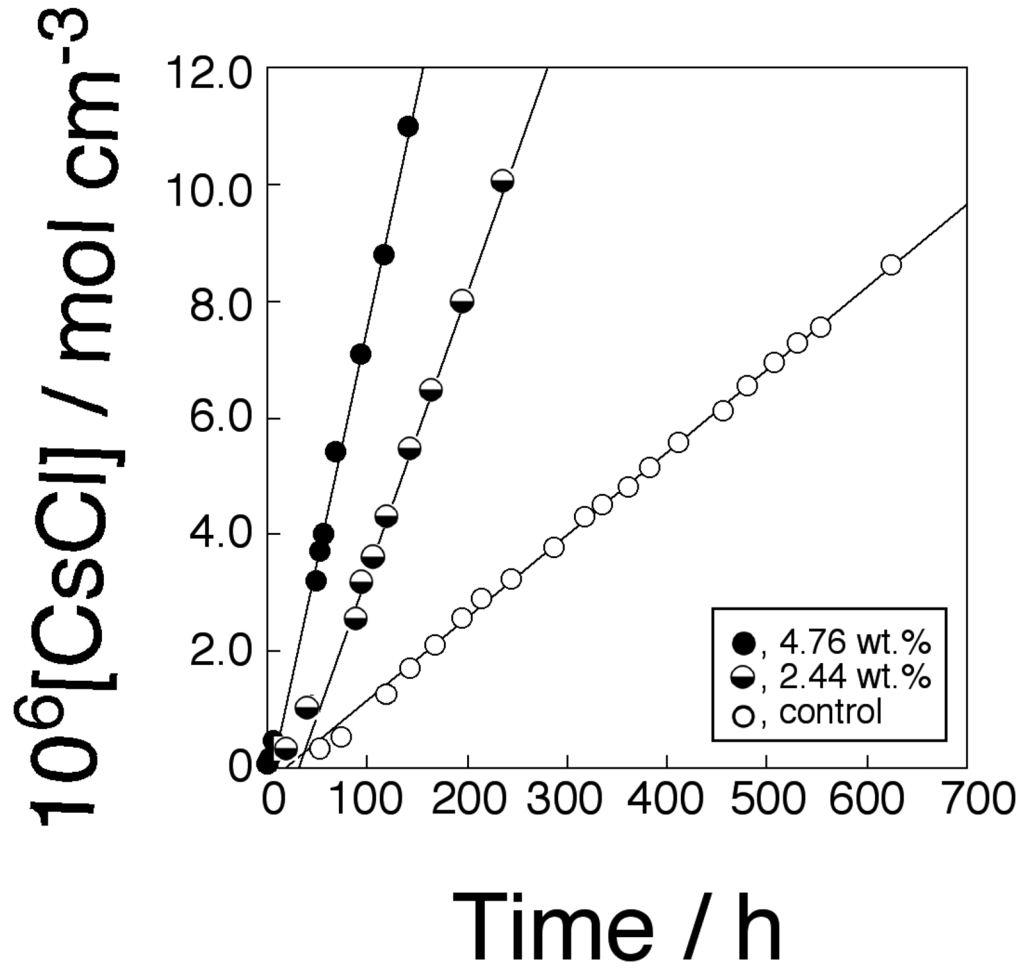

Figure 8 shows time-transport curves of CsCl through PPLMs that consisted of PC18AAm and DB21C7 and the corresponding control membrane. The flux dependence on transporter concentration is shown in Figure 9. Figure 9 revealed that the transport of CsCl was also carried out by the mobile carrier mechanism like that of KCl through the present PC18AAm/DB18C6 membrane.

Membranes 04 00210 g008 200
Figure 8. Time-transport curves of CsCl through the PC18AAm liquid membrane (Operating temperature, 50 °C (323 K); [CsCl]0 = 1.0 × 10−4 mol·cm−3).

Click here to enlarge figure

Figure 8. Time-transport curves of CsCl through the PC18AAm liquid membrane (Operating temperature, 50 °C (323 K); [CsCl]0 = 1.0 × 10−4 mol·cm−3).
Membranes 04 00210 g008 1024
Membranes 04 00210 g009 200

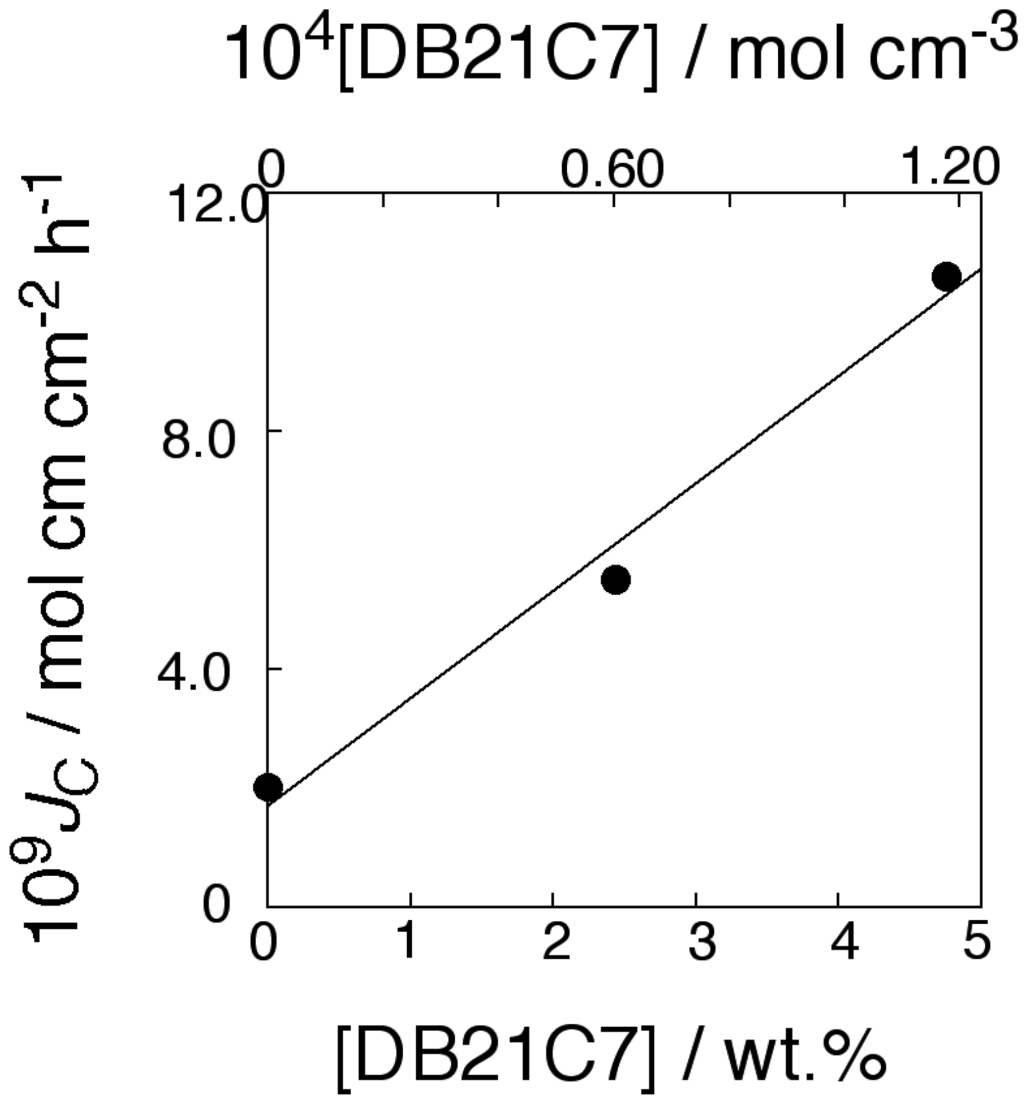

Figure 9. Relationship between CsCl flux and the DB21C7 concentration through the PC18AAm liquid membrane (Operating temperature, 50 °C (323 K); [CsCl]0 = 1.0 × 10−4 mol·cm−3).

Click here to enlarge figure

Figure 9. Relationship between CsCl flux and the DB21C7 concentration through the PC18AAm liquid membrane (Operating temperature, 50 °C (323 K); [CsCl]0 = 1.0 × 10−4 mol·cm−3).
Membranes 04 00210 g009 1024

2.6. Chiral Separation of Racemic Mixture of Phenylglycine (Phegly)

In the previous sections, it was confirmed that the membrane performance of liquid membrane is greatly dependent on the transporter in it and that the membrane matrix consisting of a given liquid membrane can be transformed to be any membranes to separate any target materials. In the previous studies, the authors confirmed that PPLMs had potential to resolve enantiomers [34,35]. Separation of chiral compounds is an interesting and important subject since optical resolution is carried out in industries such as pharmaceuticals, agrochemicals, food additives, perfumes, and so forth [46,47,48,49,50].

O-Allyl-N-(9-anthracenylmethyl)cinchonidinium bromide (AAMC) was adopted as a transporter showing chiral recognition ability since cinchona alkaloids have been used as resolving agents for chiral binaphthols [51], chiral acids [52], amino acid derivatives [52,53], and oligopeptides [54]. Cinchona alkaloid was also used as a transporter for optical resolution [55]. Based on those studies described above, AAMC was chosen as a transporter for enantioselective transport. A racemic mixture of phenylglycine (Phegly) was adopted as a model racemate.

Figure 10 shows the time-transport curves of racemic mixture of Phegly through the membrane. The l-isomer of Phegly was preferentially transported through the membrane as expected [34,35,55]. The permselectivity toward l-Phegly was determined to be 1.19. The liquid membrane [55] and PPLMs [34,35] bearing AAMC as a transporter gave higher permselectivity than that observed in the present study. The membrane performance for chiral separation was dependent on experimental conditions. It was already reported that the permselectivity was controlled from l-isomer permselectivity to d-isomer one by adjusting the operating temperature [35]. The membrane performance of the present membrane would be improved by adjusting operating conditions.

Membranes 04 00210 g010 200

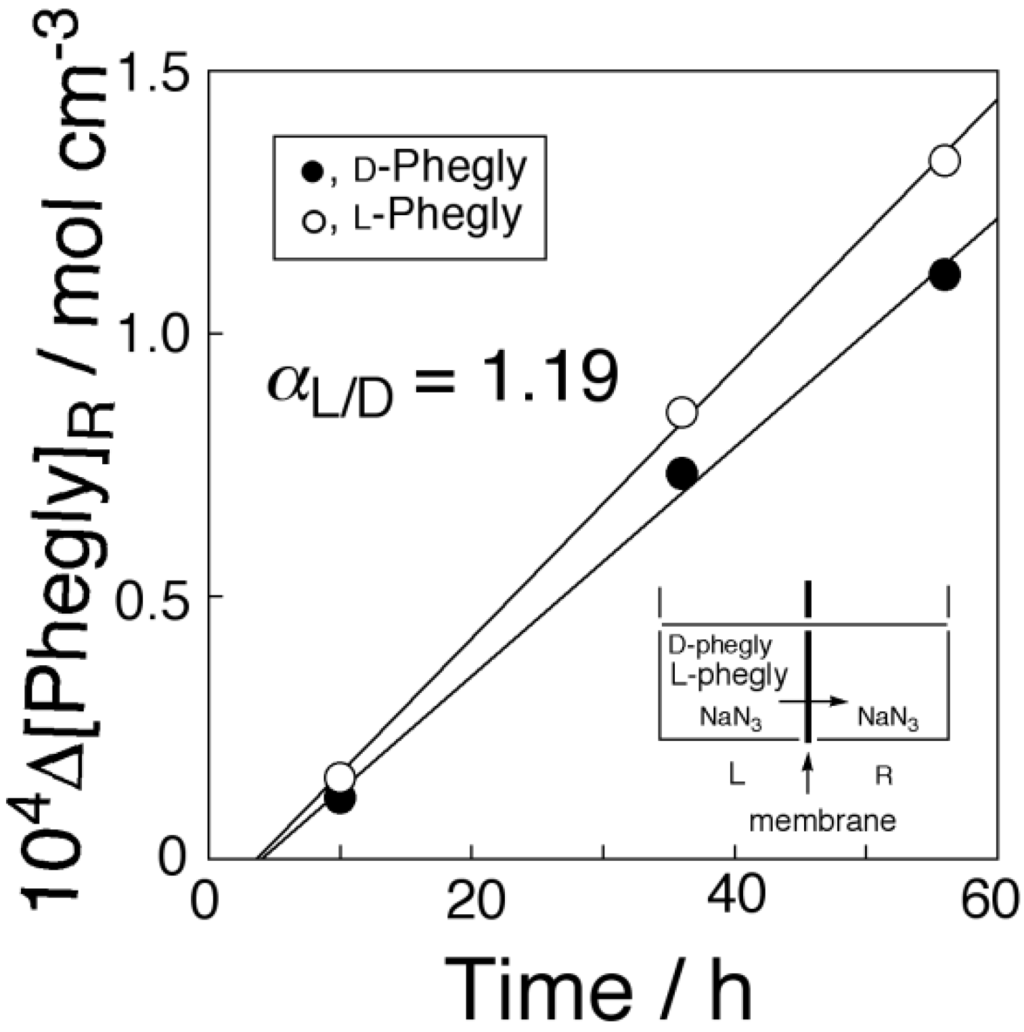

Figure 10. Chiral separation of reacmic mixture of Phegly through the PC18AAm liquid membrane (Operating temperature, 50 °C (323 K); [AAMC] = 4.13 × 10−5 mol·cm−3: [d-Phegly]L,0 = [l-Phegly]L,0 = 1.0 × 10−6 mol·cm−3).

Click here to enlarge figure

Figure 10. Chiral separation of reacmic mixture of Phegly through the PC18AAm liquid membrane (Operating temperature, 50 °C (323 K); [AAMC] = 4.13 × 10−5 mol·cm−3: [d-Phegly]L,0 = [l-Phegly]L,0 = 1.0 × 10−6 mol·cm−3).
Membranes 04 00210 g010 1024

3. Experimental Section

3.1. Materials

Acryloyl chloride, N-oleylamine, toluene, chloroform, KCl, CsCl, d-phenylglycine (d-Phegly), and l-phenylglycine (l-Phegly) were purchased from Nacalai Tesque, Inc. (Kyoto Japan) and used without further purification. Dibenzo-18-crown-6 (DB18C6), dibenzo-21-crown-7 (DB21C7), and O-allyl-N-(9-anthracenylmethyl)cinchonidinium bromide (AAMC) (Figure 11) were obtained from Sigma-Aldrich (St. Louis, MO, USA) and used as received. N-oleylacrylamide (C18AAm) was prepared from acryloyl chloride and N-oleylamine [56]. 2,2′-Azobis(2-methylpropionitrile) (AIBN) [57] and toluene [58] were purchased from Nacalai Tesque, Inc. (Kyoto, Japan) and purified by conventional methods. Water purified with an ultrapure water system (Simpli Lab, Millipores S.A., Molsheim, France) was used.

Membranes 04 00210 g011 200

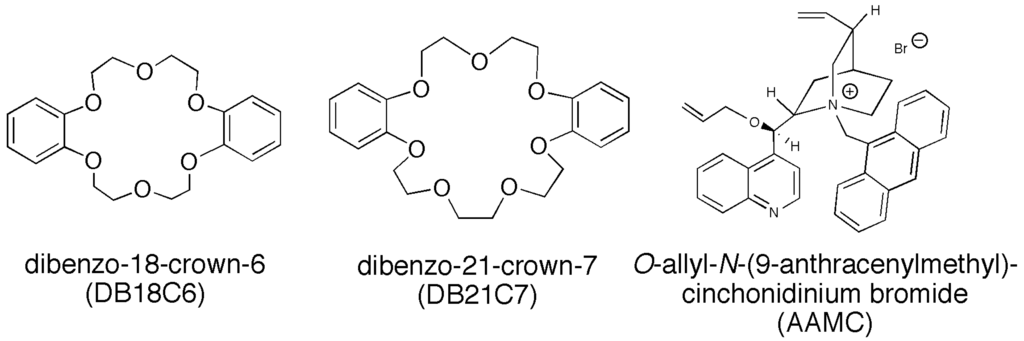

Figure 11. Chemical structures of various transporters.

Click here to enlarge figure

Figure 11. Chemical structures of various transporters.
Membranes 04 00210 g011 1024

3.2. Characterization of C18AAm

The 1H NMR spectrum was recorded in CDCl3 using a BRUKER AV-300 (Bruker Co., Billerica, MA, USA) with residual partially protonated solvent of CDCl3 as an internal standard (δ = 7.26 ppm [59]).

Mass spectrum of C18AAm was recorded using a BRUKER microTOF LC (Bruker Co., Billerica, MA, USA).

3.3. Preparation of poly(N-oleylacrylamide) (PC18AAm)

The polymerization scheme was shown in Figure 12. PC18AAm was synthesized as follows: 3.86 g (1.2 × 10−2 mol) of C18AAm, 10.2 mg (6.3 × 10−5 mol) of AIBN, and 46 cm3 of toluene were placed in an ampoule. The ampoule containing above mixture was degassed three freeze-pump-thaw cycles and sealed off under reduced pressure, which was below 1.3 × 10−2 Pa (1.0 × 10−4 mmHg). The sealed ampoule was shaken in a water bath at a constant temperature of 45 °C for 144 h. The solution was poured into methanol, which was kept around −80 °C and the resulting precipitate was collected. The polymer PC18AAm thus obtained was dried in vacuo. A 2.69 g (yield, 69.7%) of PC18AAm was obtained.

Membranes 04 00210 g012 200

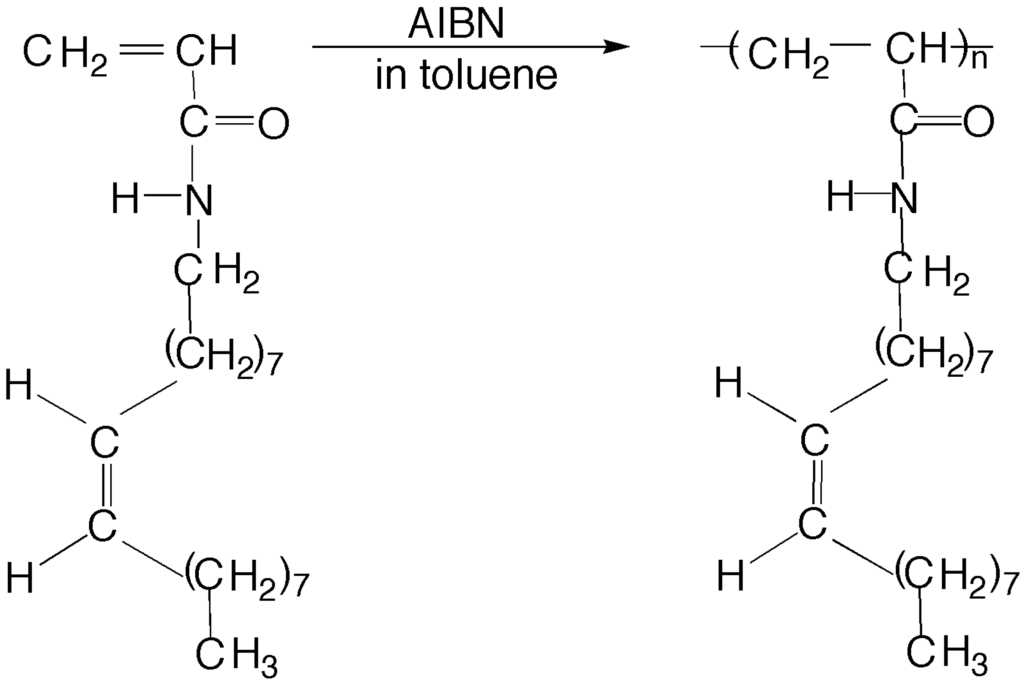

Figure 12. Preparation of PC18AAm.

Click here to enlarge figure

Figure 12. Preparation of PC18AAm.
Membranes 04 00210 g012 1024

3.4. Characterization of PC18AAm

Gel permeation chromatograph (GPC) was performed on a JASCO liquid chromatography system composed of a PU-2089 HPLC pump (JASCO Co., Hachioji, Japan) and an 890-CO column oven (JASCO Co., Hachioji, Japan) (operated at 35 °C) equipped with a JASCO 870-UV (JASCO Co., Hachioji, Japan) and a Shodex RI-101 detector (Showa Denko K.K., Tokyo, Japan). Polystyrene standards (Tosoh Co., Tokyo, Japan) were used for calibration and THF as eluent at a flow rate of 1.0 cm3·min−1.

Differential scanning calorimetry (DSC) measurements were performed with Shimadzu DSC-60 (Shimadzu Co., Kyoto, Japan). The heating rate was fixed to be 10 °C·min−1 and the sample was purged with nitrogen at a flow rate of 50 cm3·min−1.

3.5. Preparation of Polymeric Pseudo-Liquid Membranes

Polymeric pseudo-liquid membrane was prepared as follows: about 100.0 mg of PC18AAm and the prescribed amount of DB18C6, of which amount was 2.50 mg, 5.00 mg, and 7.50 mg, were dissolve in 1.0 cm3 of CHCl3. In the case that DB21C7 was used as a transporter instead of DB18C6, about 100.0 mg of PC18AAm and 2.50 mg of DB21C7 or 5.00 mg of that were dissolved in 1.0 cm3 of CHCl3. The polymer solution was poured into a flat-laboratory-dish (48 mm diameter), followed by immersing a PTFE membrane filter (Omnipore Membrane Filter (Merck Millipore, Bellerica, MA, USA); diameter 47 mm; pore radius, 0.10 µm; porosity 0.80; thickness, 80 µm) into the cast solution. Then, the flat-laboratory-dish was evacuated in a desiccator so that the cast solution could thoroughly penetrate into pores in the PTFE membrane filter. The solvent was allowed to evaporate at 25 °C for 5 h and then additionally at 60 °C for 24 h.

Control membrane was prepared as follows: 100.0 mg of PC18AAm was dissolved in 1.0 cm3 of CHCl3. Control membrane for PPLM was constructed from the solution thus prepared as described above.

PPLM for chiral separation of Phegly was prepared as described above. Instead of transporter for alkali metal ion, 2.50 mg of O-allyl-N-(-9-anthracenylmethyl)cinchonidinium bromide (AAMC) was adopted as a transporter for chiral separation of racemic mixture of Phegly.

3.6. Transport of Alkali Metal Salts

Transport of alkali metal salt, such as KCl and CsCl, was studied using apparatus schematically shown in Figure 13. The PTFE filter membrane impregnated with membrane component, such as PC18AAm and transporter or just PC18AAm, was secured tightly with Parafilm between two chambers of a permeation cell. The thickness of the PTFE filter, 80 µm, was adopted as a membrane thickness for the present study. In the present study, the membrane area for PTFE filter membrane was 3.0 cm2; the effective membrane area was determined to be 2.4 cm2. The volume of each chamber was 40.0 cm3. A 1.0 × 10−4 mol·cm−3 of KCl or CsCl aqueous solution was placed in the left-hand side chamber (L-side) and deionized water in the right-hand side chamber (R-side). Transport experiments were carried out at 70 °C (343 K), 60 °C (333 K), and 50 °C (323 K) for KCl transport, and at 50 °C (323 K) for CsCl transport, respectively. Aqueous solutions in both chambers were stirred by magnetic stirrers. The revolution rate of magnetic stirrer was kept apparently constant as possible, though that could not be specified in the present study. Concentration of KCl or CsCl in the permeate side (R-side) was determined by conductometric analysis by using Portable Kohlrausch Bridge TYPR BF-62A (Shimadzu Rika Instruments Co., Ltd., Kyoto, Japan) and CO-1305 oscilloscope (Kenwood Co., Hachioji, Tokyo), of which a schematic diagram is shown in Figure 13.

Membranes 04 00210 g013 200
Figure 13. Schematic representation of the setup for alkali metal ion transport.

Click here to enlarge figure

Figure 13. Schematic representation of the setup for alkali metal ion transport.
Membranes 04 00210 g013 1024

3.7. Transport of Racemic Mixture of Phegly

Aqueous solution of racemic Phegly was placed in the left-hand side chamber (L-side) and aqueous solution in the right-hand side chamber (R-side). Each concentration of racemic Phegly was fixed to be 1.0 × 10−6 mol cm−3. Transport experiment was carried out at 50 °C (323 K). The pH condition of the source phase (L-side) was kept to be 11 by Na2HPO4/NaOH and that of the receiving phase was maintained at pH 3 by H3PO4/NaH2PO5.

The amounts of D-Phegly and L-Phegyl transported through the PPLM were determined by liquid chromatography (LC) [JASCO PU-2080, equipped with a UV detector (JASCO UV-2075) (JASCO Co., Hachioji, Japan)], using a CHIRALPAK MA(+) column [50 × 4.6 mm (i.d.)] (Daicel Co., Osaka, Japan) and aqueous copper sulfate as an eluent.

The permselectivity αL/D is defined as the flux ratio, JL/JD, divided by the concentration ratio [l-Phegly]/[d-Phegly]

αL/D = (JL/JD)/([L-Phegly]/[D-Phegly])

4. Conclusions

A polymeric pseudo-liquid membrane (PPLM) was constructed from poly(N-oleylacrylamide) (PC18AAm), which exhibited a rubbery state under membrane transport conditions and used as the membrane matrix. In the present study, dibenzo-18-crown-6 (DB18C6) and dibenzo-21-crown-7 (DB21C7) were adopted as transporters for alkali metal ions. KCl was adopted as a model substrate for DB18C6 and CsCl the latter. Chiral transporter, O-allyl-N-(9-anthracenylmethyl)cinchonidinium bromide (AAMC) was used as a transporter for chiral separation of a racemic mixture of phenylglycine (Phegly). The l-isomer was transported in preference to the antipode. The present study revealed that PPLMs are applicable to membrane transport, such as metal ion transport and chiral separation.

Acknowledgments

The present study was supported in part by a Gran-in-Aid from The Salt Science Research Foundation, No. 1306 (Japan).

Author Contributions

Hiroko Shiono performed the experiments. Masakazu Yoshikawa is the corresponding author, who initiated and supervised the project and wrote the entire paper. All two authors read and approved the final manuscript.

Nomenclature

DCAdiffusion coefficient of the free solute (cm2·h−1)
DCLAdiffusion coefficient of the complexed solute (cm2·h−1)
JCtotal flux of the diffusing solute, K+, across the membrane per unit membrane thickness (JC = δx JC,obsd) (mol·cm·cm−2·h−1)
JC,obsd observed total flux of the diffusing solute, K+, across the membrane (mol·cm−2·h−1)
kpartition coefficient of the solute between water and the organic membrane
Kequilibrium constant for the association (mol−1·cm3)
δmembrane thickness (cm)
[DB18C6]total concentration of complexed and uncomplexed transporter, DB18C6, in the membrane (mol·cm−3)
[K+]concentration of the diffusing solutes, K+, in the source phase (mol·cm−3)
