Appl. Sci. 2018, 8(7), 1086; https://doi.org/10.3390/app8071086

An Automated IoT Visualization BIM Platform for Decision Support in Facilities Management

Department of Civil Engineering, National Chiao Tung University, 1001 University Road, Hsinchu 30010, Taiwan
*
Author to whom correspondence should be addressed.
Received: 24 May 2018 / Revised: 28 June 2018 / Accepted: 1 July 2018 / Published: 4 July 2018
(This article belongs to the Special Issue Selected Papers from the 2017 International Conference on Inventions)
View Full-Text   |   Download PDF [12434 KB, uploaded 19 July 2018]   |

Abstract

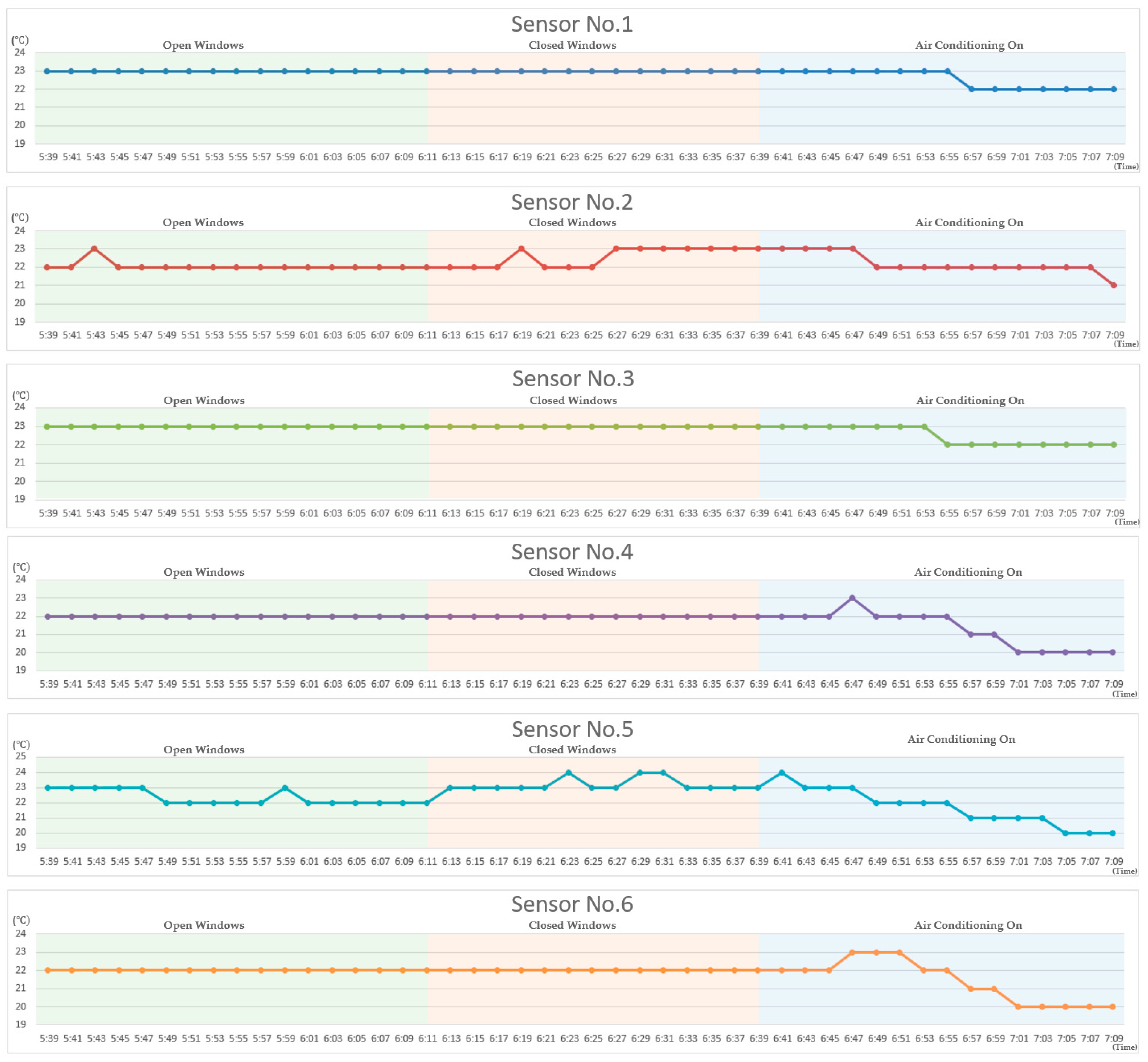

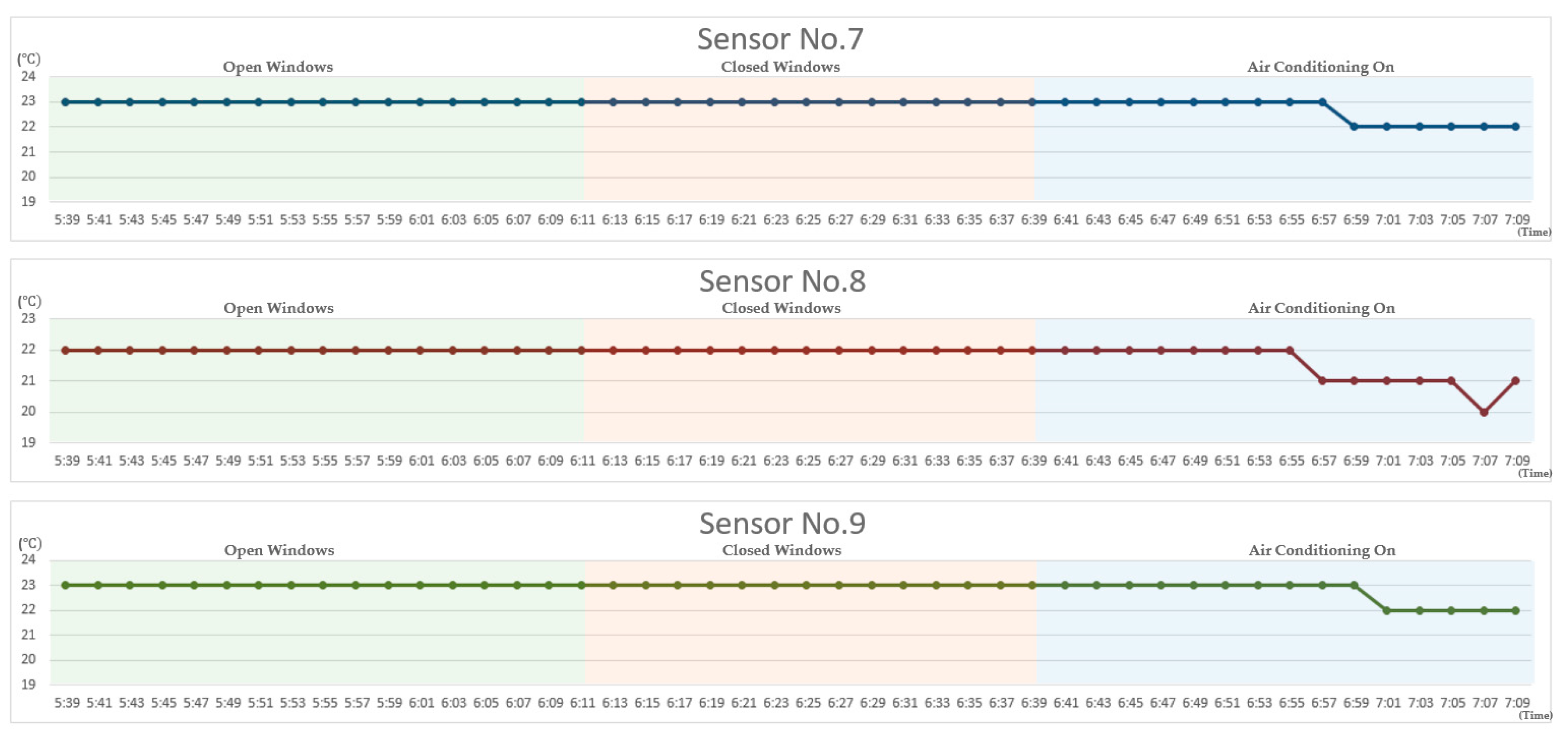

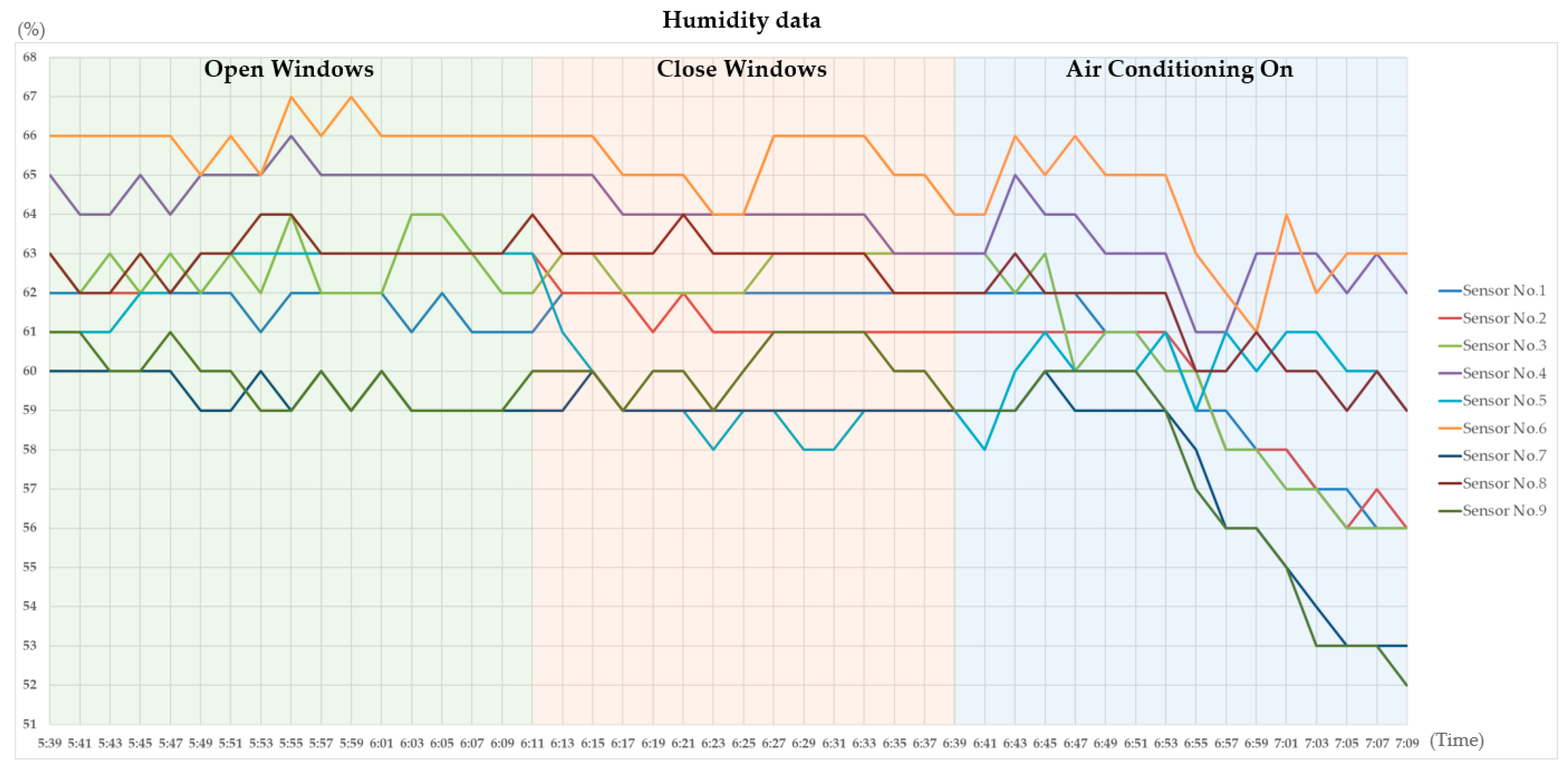

Building information modeling (BIM) is the digital representation of physical and functional characteristics (such as geometry, spatial relationship, and geographic information) of a facility to support decisions during its life cycle. BIM has been extended beyond 3D geometrical representations in recent years, and now includes time as a fourth dimension and cost as a fifth dimension, as well as such other applications as virtual reality and augmented reality. The Internet of Things (IoT) has been increasingly applied in various products (smart homes, wearables) to enhance work productivity, living comfort, and entertainment. However, research addressing the integration of these two technologies (BIM and IoT) is still very limited, and has focused exclusively on the automatic transmission of sensor information to BIM models. This paper describes an attempt to represent and visualize sensor data in BIM with multiple perspectives in order to support complex decisions requiring interdisciplinary information. The study uses a university campus as an example and includes several scenarios, such as an auditorium with a dispersed audience and energy-saving options for rooms with different functions (mechanical/electrical equipment, classrooms, and laboratory). This paper also discusses the design of a common platform allowing communication among sensors with different protocols (Arduino, Raspberry Pi), the use of Dynamo to accept sensor data as input and automatically redraw visualized information in BIM, and how visualization may help in making energy-saving management decisions. View Full-Text
Keywords: building information modeling; industry foundation classes; Internet of Things; smart campus; environmental sensors; Dynamo building information modeling; industry foundation classes; Internet of Things; smart campus; environmental sensors; Dynamo
Figures

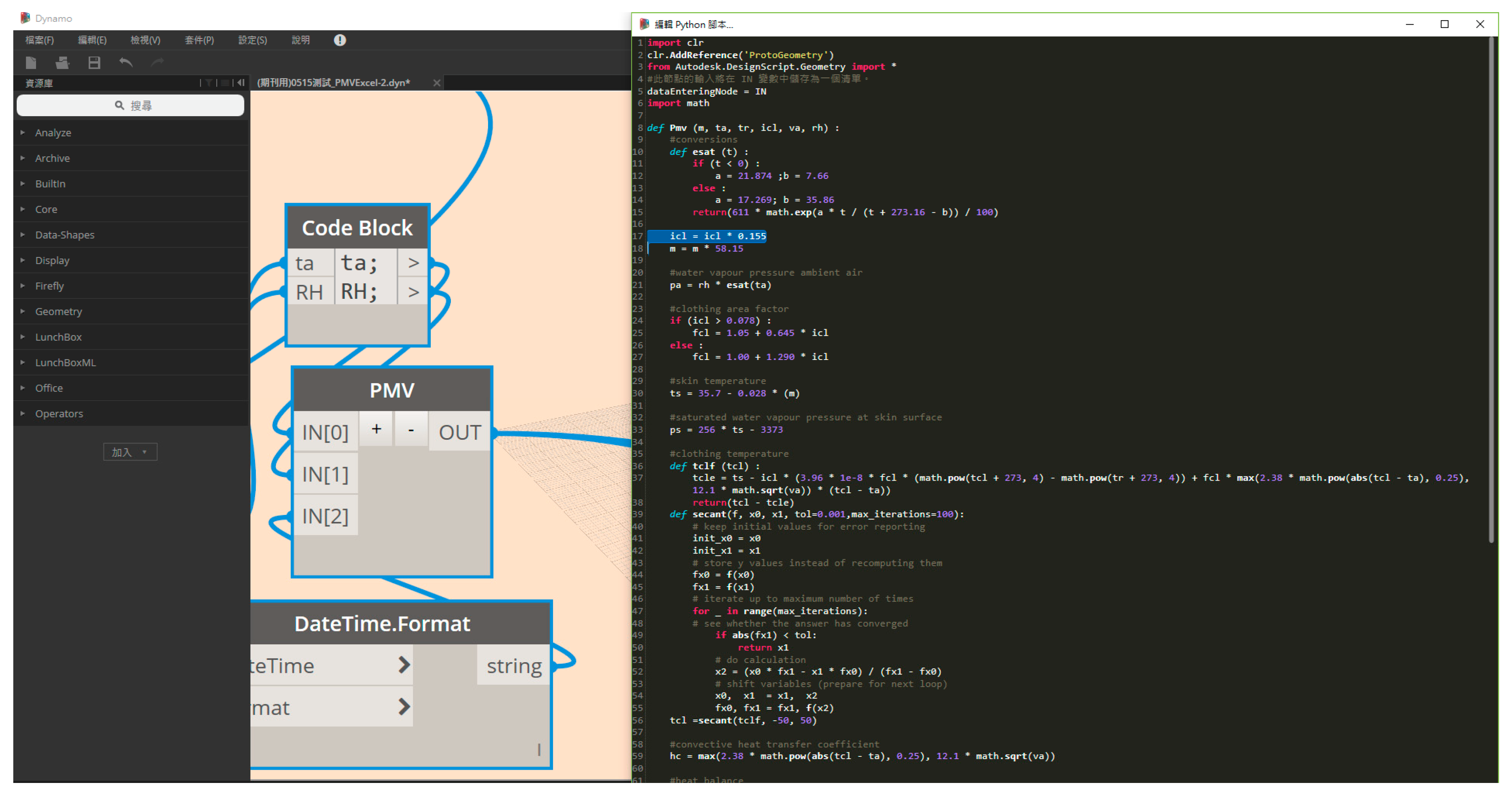

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
