Open AccessReview
Appl. Sci. 2018, 8(7), 1054; https://doi.org/10.3390/app8071054

Multi-Modal Ptychography: Recent Developments and Applications

1
Diamond Light Source Ltd., Harwell Science and Innovation Campus, Didcot, Oxfordshire OX11 0DE, UK
2
Advanced Light Source, Lawrence Berkeley National Laboratory, 1 Cyclotron Rd, Berkeley, CA 94720, USA
3
London Centre for Nanotechnology, University College London, London WC1H 0AH, UK
4
Department of Condensed Matter Physics and Materials Science, Brookhaven National Laboratory, Upton, NY 11973, USA
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed.
Received: 7 April 2018 / Revised: 20 June 2018 / Accepted: 20 June 2018 / Published: 28 June 2018
(This article belongs to the Special Issue Applications of Digital Holographic Microscopy)
Full-Text   |   PDF [4173 KB, uploaded 28 June 2018]   |

Abstract

Utilisation of partially coherent X-rays in Coherent X-ray Diffraction Imaging (CDI) and X-ray ptychography have brought intense research and developments for the past few years. Generally, data reconstructions convergence can be achieved by considering to incorporate partially coherent X-rays in ptychographic iterative reconstructions algorithms. Recently, exploration of both X-ray probe and sample modes have been studied and it was suggested that sufficient constraints are required to achieve accurate data reconstructions due to the mathematical inseparability of multiple sample modes that are superimposed into a single set of ptychographic intensity patterns. Here we review the multi-modal ptychography that can be used as a new emerging technique to investigate dynamical sample systems with partially coherent X-rays by recent experimental and simulated demonstrations. View Full-Text
Keywords: X-ray diffraction; X-ray imaging; coherence; phase retrieval; X-ray ptychography X-ray diffraction; X-ray imaging; coherence; phase retrieval; X-ray ptychography
Figures

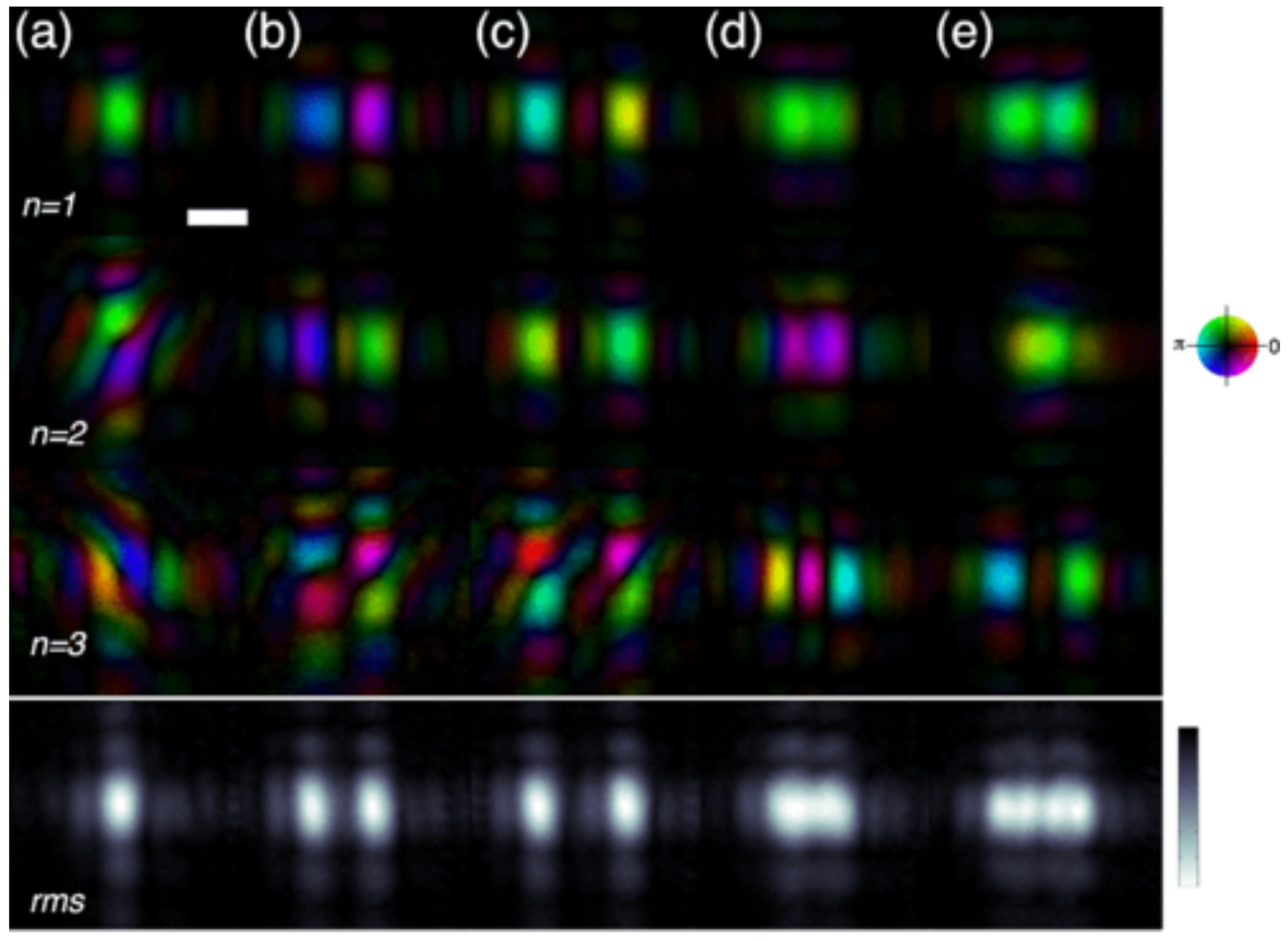

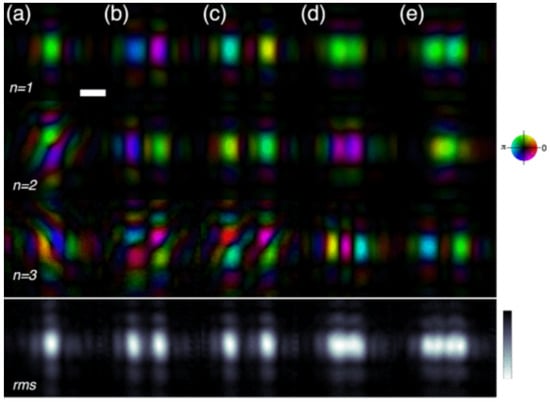

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
