Appl. Sci. 2018, 8(5), 756; https://doi.org/10.3390/app8050756

The Role of the Process and Design Variables in Improving the Performance of Heat Exchanger Tube Expansion

School of Mechanical Engineering, Pusan National University, 30 Jangjeon-dong, Geumjeong-gu, Busan 609-735, Korea
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed.
Received: 26 March 2018 / Revised: 18 April 2018 / Accepted: 9 May 2018 / Published: 10 May 2018
(This article belongs to the Section Mechanical Engineering)
View Full-Text   |   Download PDF [4896 KB, uploaded 10 May 2018]   |

Abstract

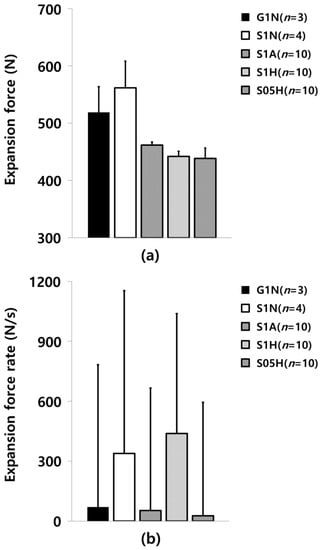

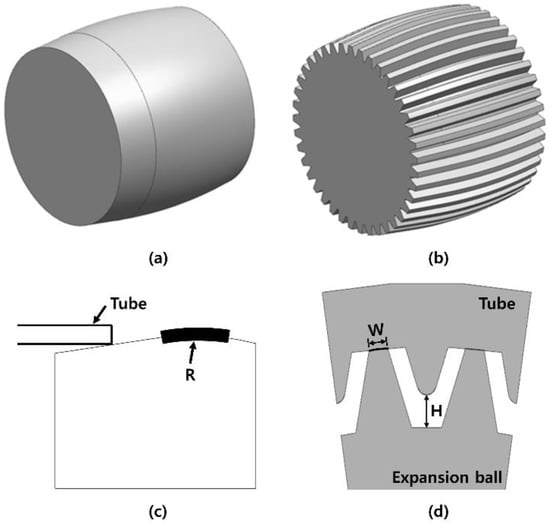

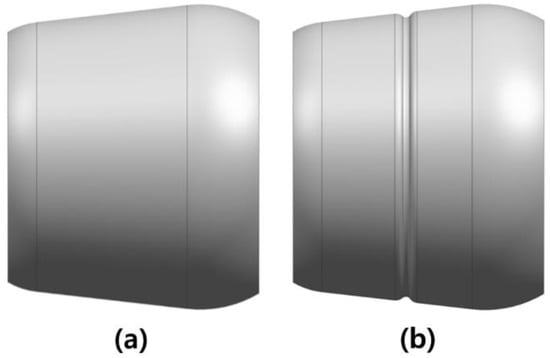

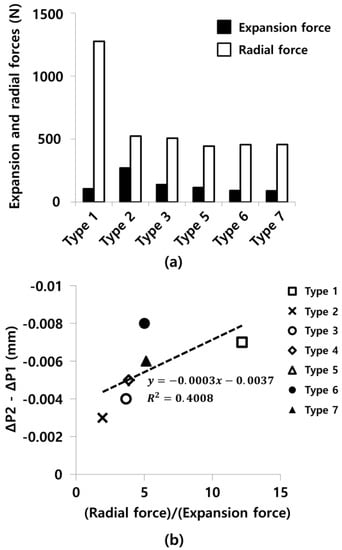

In the expansion process of a fin-tube heat exchanger, the process variables and shape of the expansion ball affect the deformation of the tube’s inner grooves, the adhesion, and the expansion force. These factors influence the efficiency of heat transfer and the lifetime of the expansion equipment. Therefore, this study analyzed the influential variables of the tube expansion process as well as the expansion ball design through experiments and simulations. A new method was proposed to determine the severity of adhesion in the tube’s inner grooves using the expansion force rate. Expansion experiments with Al tubes show that the expansion force decreases when using a lubricant with high viscosity and when the lubricant remains on the expansion ball for a longer duration. Finite element analysis was also performed to examine the expansion of Cu tubes, which showed that the expansion force was higher when using expansion ball shapes that have higher contact area between the ball and tube surface. The radius of curvature of the expansion ball also influenced the expansion force. However, increasing the ratio of the radial force to the expansion force increased the deformation of the tube’s inner grooves. View Full-Text
Keywords: tube expansion; Inner grooved tube; Al and Cu tubes; expansion ball design; fin-tube heat exchanger tube expansion; Inner grooved tube; Al and Cu tubes; expansion ball design; fin-tube heat exchanger
Figures

Figure 1a

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Han, C.; Sin, I.; Kwon, H.; Park, S. The Role of the Process and Design Variables in Improving the Performance of Heat Exchanger Tube Expansion. Appl. Sci. 2018, 8, 756.
