Microstructure and Mechanical Properties of Magnesium Matrix Composites Interpenetrated by Different Reinforcement

Abstract

The present work discusses the microstructure and mechanical properties of the as-cast and as-extruded metal matrix composites interpenetrated by stainless steel (Fe–18Cr–9Ni), titanium alloy (Ti–6Al–4V), and aluminum alloy (Al–5Mg–3Zn) three-dimensional network reinforcement materials. The results show that the different reinforcement materials have different degrees of improvement on the microstructures and mechanical properties of the magnesium matrix composites. Among them, magnesium matrix composites interpenetrated by stainless steel reinforcement have maximum tensile strength, yield strength, and elongation, which are 355 MPa, 241 MPa, and 13%, respectively. Compared with the matrix, it increases by 47.9%, 60.7% and 85.7%, respectively. Moreover, compared with the as-cast state, the as-extruded sample has a relatively small grain size and a uniform size distribution. The grain size of the as-cast magnesium matrix composites is mainly concentrated at 200–300 μm, whereas the extruded state is mainly concentrated at 10–30 μm. The reason is that the coordination deformation of reinforcement and matrix, and the occurrence of dynamic recrystallization, cause grain refinement of magnesium matrix composite during the extrusion process, thereby improving its mechanical properties. Moreover, the improvement is attributed to the effect of the reinforcement itself, and the degree of grain refinement of the metal matrix composites.

1. Introduction

The metal matrix composites (MMCs) are a new type of structural material which is compounded by metal and alloy, as a matrix, through a certain process. The composite material has outstanding advantages, such as high specific modulus and specific strength, which is widely used in the fields of aviation, aerospace, and military protection [1,2]. In the area of the matrix, most metallic systems have been explored for use in metal matrix composites, including Al, Be, Ti, Mg, Fe, Ni, Co, and Ag, and, by far, the most mature technology is the preparation of aluminum matrix composites [3]. However, the traditional composite materials are usually reinforced by particles, fibers, and whiskers [4,5,6]. In recent years, with the requirement of the “structure–function” integration of composite materials and the development trend of increasing the volume fraction of the second phase particles, a new type of composite material has emerged, namely, the network interpenetrating structure of the reinforced the composite material. There is a new reinforcement method in which MMCs penetrate each other through three-dimensional network reinforcements, which have the mechanical characteristics of continuous enhancement, and the microstructure characteristics of intertwisting and interpenetrating with the matrix [7,8,9]. Since the matrix and reinforcement form a three-dimensional network structure in which the respective continuous and interpenetrating structures are formed in the space, the characteristics of each component constituting the network structure remain substantially unchanged, so its comprehensive reinforcement effect is generally better than the traditional reinforcement method, which makes it possible to obtain high-performance, multi-functional composite materials [10,11]. However, up to now, the metal matrix has been almost reinforced by ceramic, carbon nanotubes, or another brittle three-dimensional network reinforcement [12,13,14]. Due to the low toughness and shock resistance of brittle materials, these interpenetrating composites cannot undergo more machining deformation [15]. Particularly, in the case of fabricating structures having irregular cross-sectional shapes, their applications will be limited.

In order to solve the above problems, the further development direction of the network interpenetrating metal matrix composites may be on the choice of the reinforcement materials, which can not only improve the strength of the composites, but also improve the plasticity [16]. Therefore, when metal is selected as a reinforcement for the composites, the metal matrix composites interpenetrated by metal reinforcement (MIMC) will have good forgeability and workability, which can be processed and deformed by multiple machining processes, such as torsion straining (TS), warm rolling (WR), twin-roll casting (TRC), and reciprocal extrusion (RE), etc. [17,18,19]. Among them, the extrusion process of the metal matrix composites can significantly improve the combined quality between matrix and reinforcement [20,21]. However, few researchers have studied the microstructure and mechanical properties of MIMC, especially magnesium matrix composites [22,23]. At the same time, magnesium and its alloy have the advantages of being lightweight, and having good casting performance, good damping, and shock absorbability, but their mechanical strength is poor [24,25]. Therefore, this article proposes a network interpenetrating bimetallic magnesium matrix composite using three metal-made network skeletons as reinforcements. This bimetallic magnesium matrix composite can not only make up for the deficiency of magnesium alloy in terms of strength and hardness, but also has a better toughness and absorbing properties as a metal material than ceramic materials.

Therefore, the current work is mainly to manufacture the magnesium matrix composites interpenetrated by steel reinforcement, titanium reinforcement, and aluminum reinforcement and the subsequent extrusion process and, then, study the effects of different three-dimensional network reinforcement on the mechanical properties and microstructure of the magnesium matrix composites.

2. Materials and Methods

2.1. MIMC Composites Fabrication

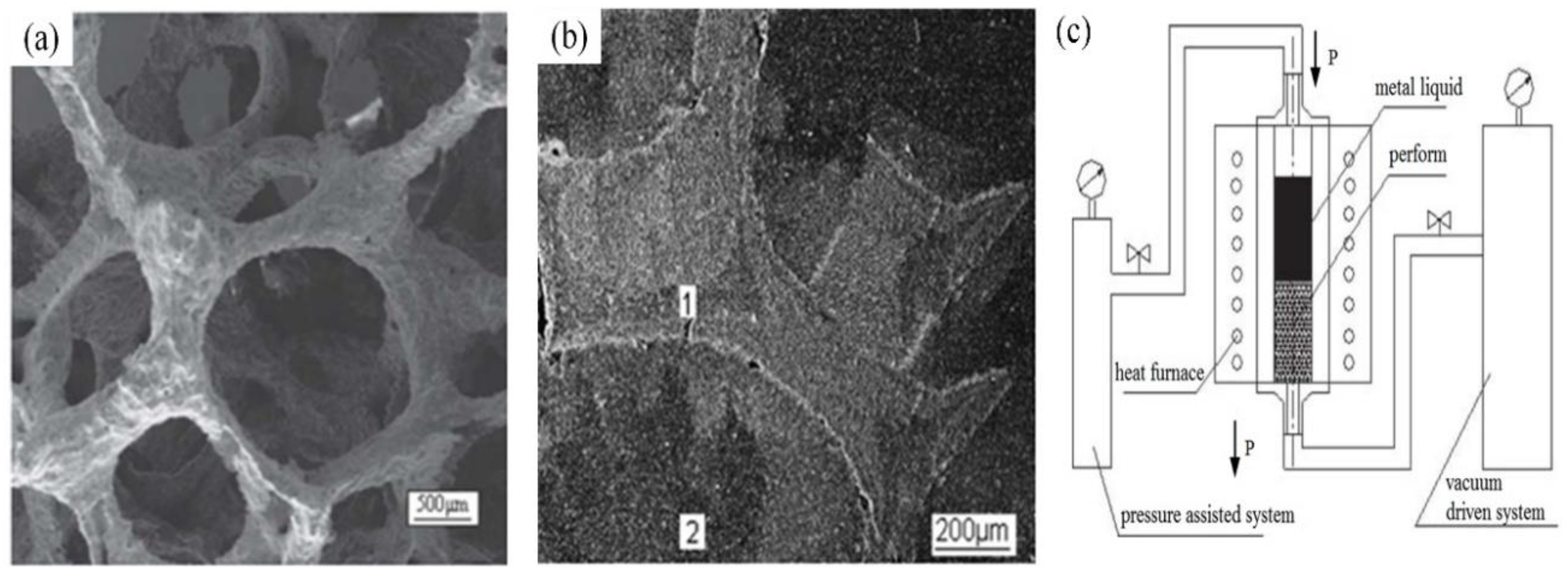

Previously, our team used a three-dimensional network of Si₃N₄ ceramic structure and pressure-assisted and vacuum-driven permeation technique to reinforce magnesium matrix composites (Si₃N₄–Mg) [26]. The preparation process was as follows: a porous ceramic skeleton was prepared from high-purity β-Si₃N₄ powder (97% of Si₃N₄ and less than 100 μm in diameter, Shanghai Silicon Materials Plant, Shanghai, China). The porous reticulated polyurethane (PU) was selected as the original framework, and the porous prefabricated parts were prepared through the replication process. Figure 1a shows the porous network of Si₃N₄ ceramic skeleton after impregnation and sintering. Then, it was heated in a nitrogen-filled muffle furnace (SQFL-1700, Shanghai, China) until it reached the desired processing temperature of 750 °C, at which time, the liquid magnesium alloy was infiltrated into the preform skeleton by means of pressure-assisted and vacuum-driven permeation techniques. Figure 1b shows a Si₃N₄–Mg metal matrix composite, in which zone “1” is the Si₃N₄ three-dimensional network skeleton, and zone “2” is the Mg matrix. Figure 1c shows the schematic diagram of the infiltration device, and the mechanical properties of Si₃N₄–Mg matrix composite are shown in

Table 1. The mechanical properties of Mg alloy and Si₃N₄–Mg composite.

Materials	Elastic Module (GPa)	Rockwell Hardness (HRB)	Elongation (%)	Tensile Strength (MPa)
Mg alloy	70	65	9.5	330
12Si3N4–Mg	110	71	3.2	345
25Si3N4–Mg	133	78	1.6	340

, which indicates that the ceramic network reinforcement significantly enhances the elastic modulus, rockwell hardness, and tensile strength of the matrix, while the elongation is decreased [27,28].

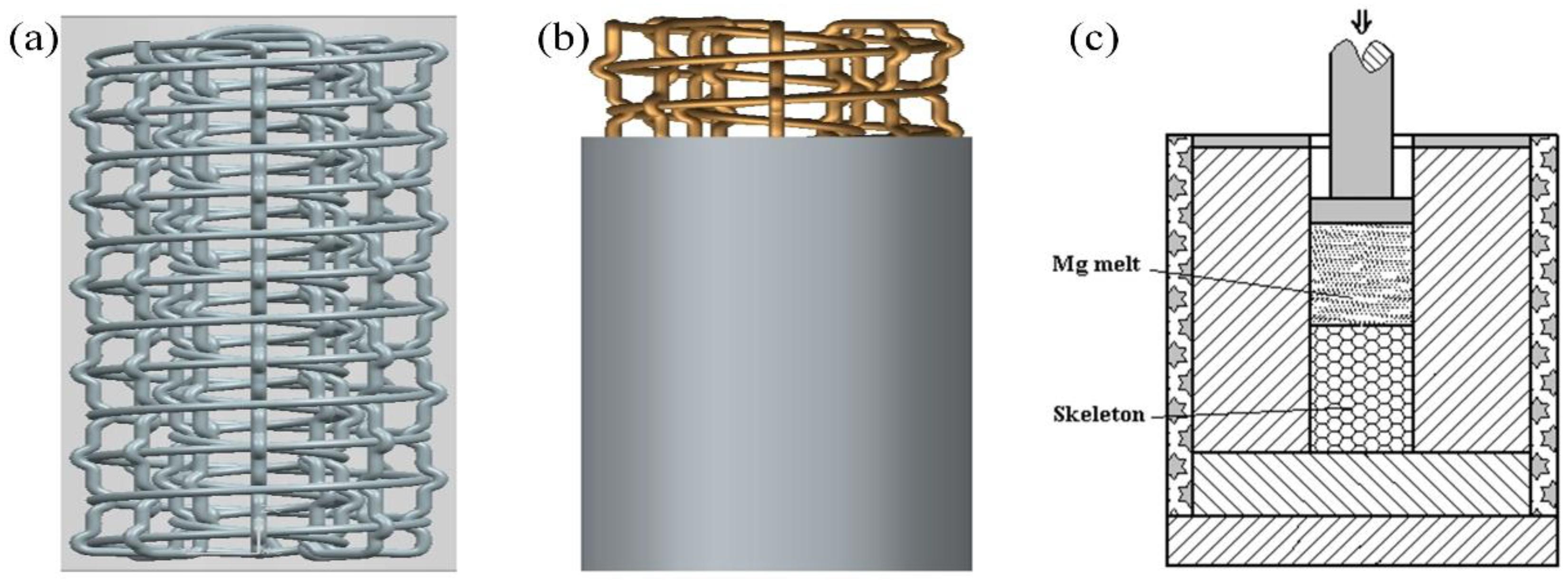

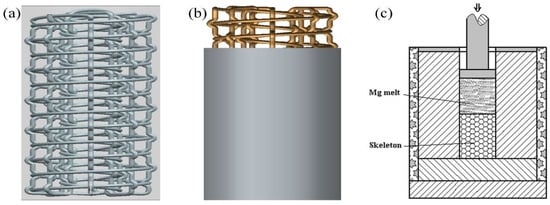

Recently, however, our team tried a new and simple process to fabricate the magnesium matrix composites. The network skeleton of the reinforcement designed by three-dimensional weaving technology was shown in Figure 2a, and the model of the metal matrix composite of the infiltrated reinforcement was shown in Figure 2b. The reinforcement skeleton materials were chosen as stainless steel (Fe–18Cr–9Ni), titanium alloy (Ti–6Al–4V), and aluminum alloy (Al–5Mg–3Zn), respectively, while magnesium matrix was selected as AZ31(Mg–3.31Al–1.05Zn). The skeleton was fabricated using the three-dimensional weaving techniques, and measured by Archimedes measurements (ASTM C373), with a reinforcement volume fraction of approximately 15%. Unlike the preparation of Si₃N₄–Mg matrix composites, the MIMC composites’ fabrication processing was applied pressure infiltration technology, which is shown in Figure 2c. The entire experiment was carried out under an inert gas argon atmosphere. Firstly, in the inert atmosphere of a mixture of CO₂ and SF₆, the furnace temperature was set to 720 °C to melt the AZ31 alloy. Then, the molten magnesium alloy liquid was poured into an infiltration mold having a temperature of 650 °C and, finally, the pressure head started to be pressed. At last, the magnesium matrix composites interpenetrated by stainless steel reinforcement (MISC), the magnesium matrix composites interpenetrated by titanium alloy reinforcement (MITC), and the magnesium matrix composites interpenetrated by aluminum alloy reinforcement (MIAC), were fabricated successfully.

2.2. The Extrusion Process

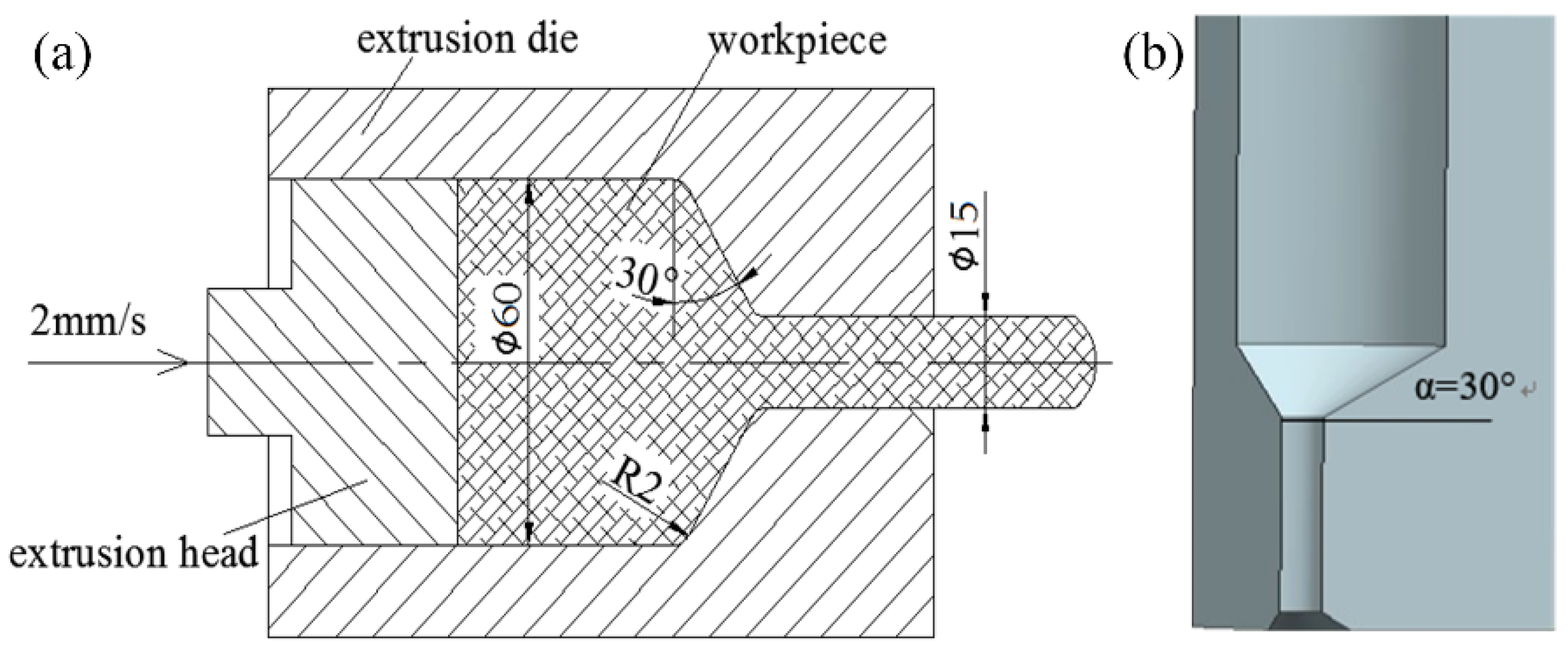

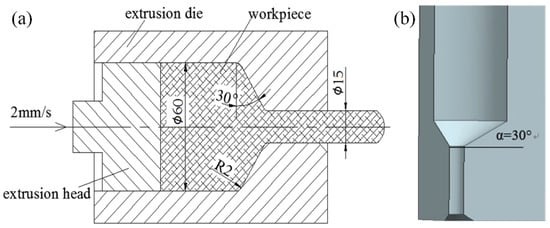

The diameter of the extruded blank was machined to 59 mm prior to extrusion of the metal matrix composite. Under the temperature of 300 °C, the billet was extruded at a speed of 2 mm/s with an extrusion ratio of 30, and a half-angle of the extrusion die of 30°, as shown as in Figure 3a. The geometric model of extrusion die was shown in Figure 3b. The extruded material was immediately quenched to prevent the grain from growing.

2.3. Microstructure Characterization

The samples were mechanically polished using a polycrystalline diamond suspension ethylene glycol organic solution for observation of the optical microstructure (OM, Keyence VW-5000, Osaka, Japan). Then, the samples were subjected to etching in a solution consisting of acetic acid (5 mL), picric acid (5 g), ethanol (100 mL), and distilled water (10 mL), for 7 s, to reveal the crystal structure. The average grain size was analyzed by the Image Pro Plus (IPP, Media Cybernetics, Rockville, MD, USA). In addition, the EBSD samples were prepared by mechanical polishing using 2000# sandpaper and, then, by electric polishing in an electrolyte consisting of 400 mL butyl glycol (C₄H₁₀O₂, 99.5%), 80 mL ethanol (C₂H₆O, 95%), and 40mL perchloric acid (HClO₄, 70%), at a voltage of 11 V for 120 s. Microstructure and morphology of MIMC composites were investigated by scanning electron microscopy (SEM, Hitachi S-4800, Tokyo, Japan), and the elemental composition of the samples was determined by the energy dispersive spectroscopy (EDS, Oxford Instruments Inca Energy 350, Oxford, UK), as well as grain distribution and diameter measurements, which were determined using electron backscatter diffraction (EBSD, Oxford Instruments NordlysMax2, Oxford, UK).

2.4. Mechanical Properties Test

The extruded samples used for tensile testing were processed on a CNC lathe (CJK6130L, Shanghai, China), in accordance to the procedure outlined in American Society for Testing and Materials (ASTM E8M-96). There were no obvious processing marks on the surface of the test piece, nor were there any signs of breaking nucleation. The mechanical properties of the samples were tested using an Instron 5569 testing machine (Instron, Shanghai, China) with a crosshead moving speed of 0.1 mm/min, and the strain was monitored by a strain gage of 20 mm in length. At the same time, the test comparisons of the AZ31 magnesium alloy were carried out, and each tensile value was the average of at least three measurements.

3. Results

3.1. Microstructure

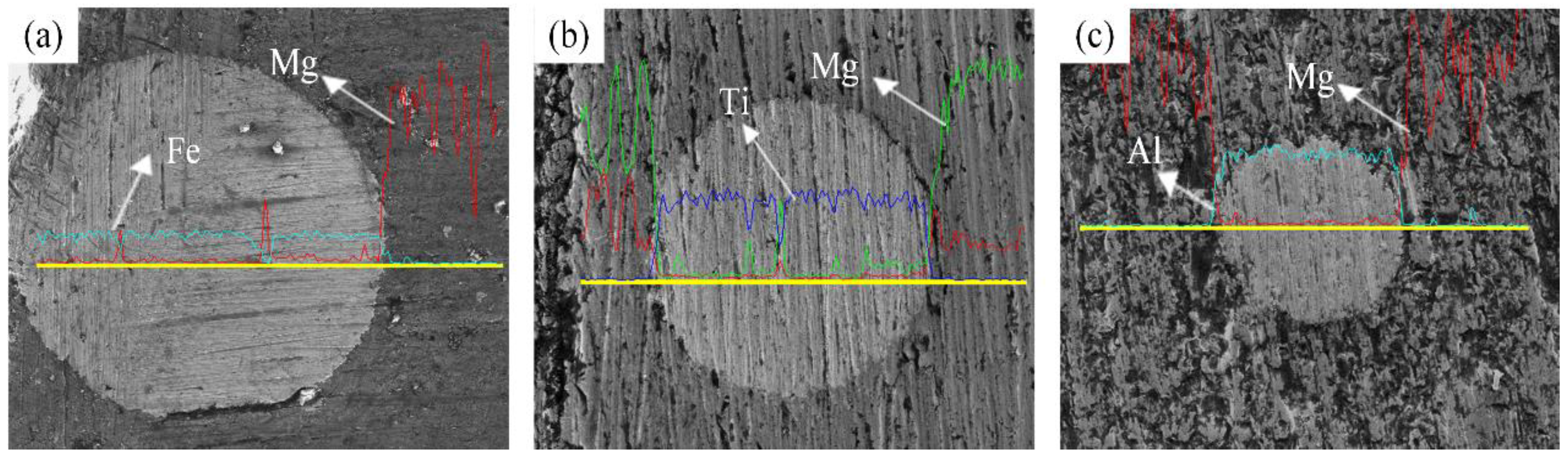

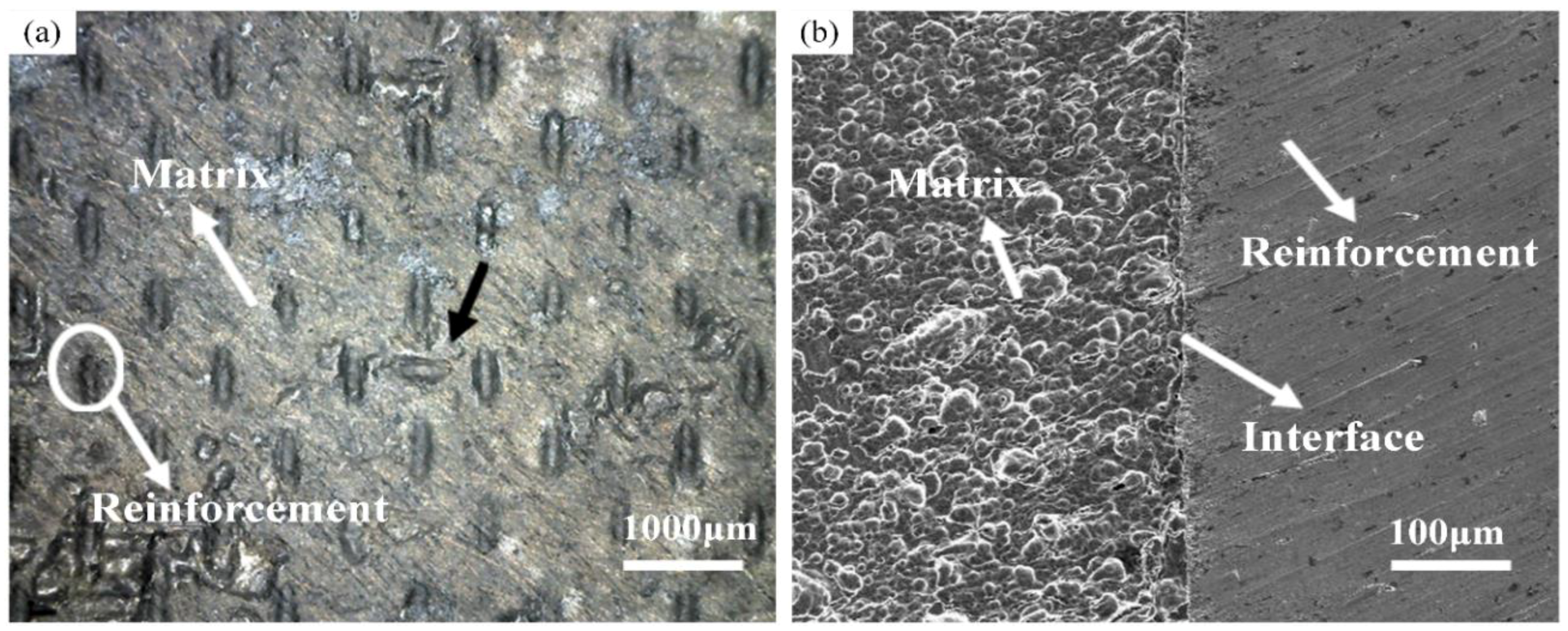

Figure 4 shows the surface microstructure and cross-section characteristics of MIMC composites. From Figure 4a, the matrix and reinforcement are interpenetrating, anisotropic, and interwoven. In addition, in the longitudinal direction, a portion of the structure of the interpenetrating network of reinforcements is exposed from the matrix (white circles), and another portion of the reinforcement is wrapped and buried by magnesium matrix. Only a few are exposed from the matrix in the transverse direction (black arrow). In addition, the matrix and reinforcement form a good interface combination, as shown as in Figure 4b. Furthermore, the distribution of the chemical elements of the samples are examined by EDS, and subjected to line scanning, as shown as in Figure 5. The reinforcements of the circular area are stainless steel (cyan line in Figure 5a), titanium alloy (blue line in Figure 5b), and aluminum alloy (cyan line in Figure 5c), respectively. The magnesium matrix is represented as a red line in the MISC and MIAC composites, however, it is described as a green line in MITC composite.

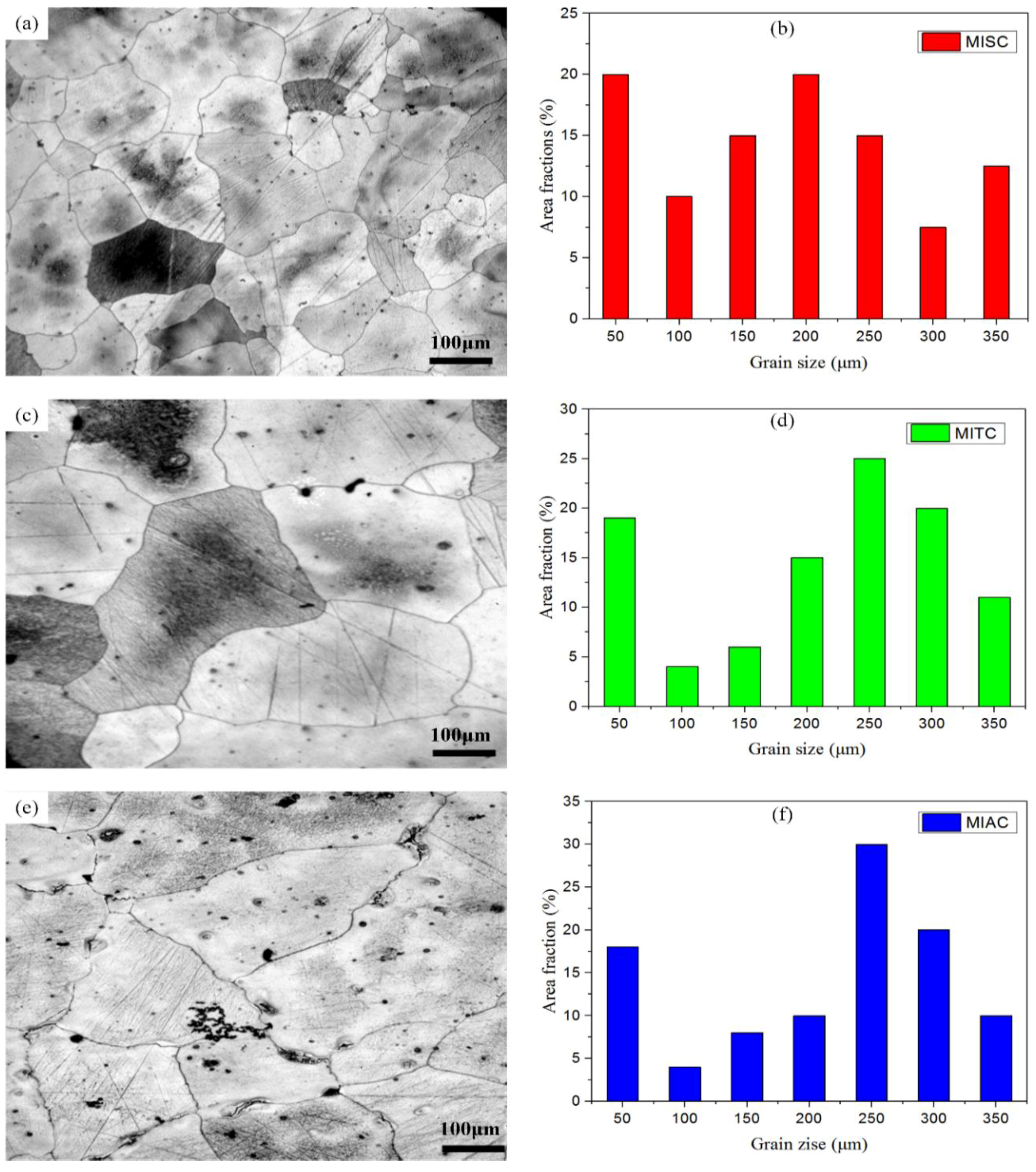

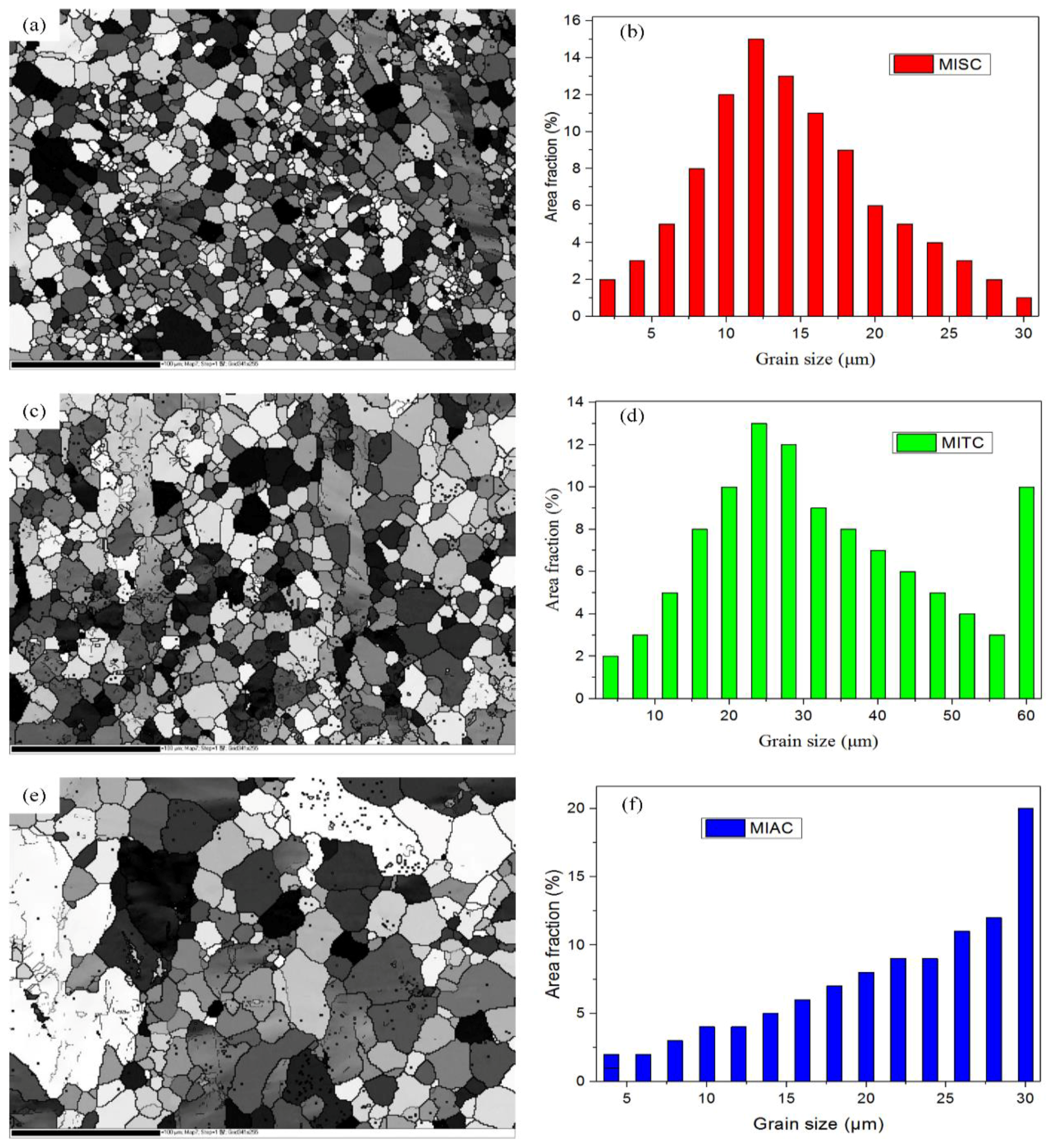

Figure 6 shows the OM microstructure morphology and grain size distribution of magnesium matrix in three kinds of composite as-cast states. In MIMC composites, their grain distribution and grain size have the same characteristics, that is, the grain distribution does not obey a normal distribution and is randomly distributed. In addition, the grain size is mainly concentrated in the range 200–300 μm. Therefore, the results show that the grain and its area fraction are not affected by any of the reinforcement materials. However, compared with the as-cast state (Figure 6a,c,e), the micromorphology of the as-extruded samples has greater changes, which are shown in Figure 7a,c,e. The relatively small grain size of the as-extruded samples is owing to the accumulation of shear strain and dynamic recrystallization during extrusion. However, the grain refinement degree is different in three kinds of composites. In MISC composites, it can be seen, from Figure 7a, that the grain size follows a normal distribution. Moreover, most of the grain size is 10–20 μm, so the average grain size is 14 μm. In MITC composites, although the grain size does not conform to the normal distribution (Figure 7d), most of them are concentrated between 15–30 μm. Therefore, the average grain size is 20 μm. In MIAC composites, the grain size adheres to the Weibull distribution (Figure 7f), and most of them are concentrated between 20–30 μm. The average grain size is 24 μm. In short, the different reinforcement materials result in different microstructure characterization of magnesium matrix during deformation. The reason is that, due to the different strengths of reinforcement, the magnesium matrix bears a different stress from the reinforcement during extrusion. As we know, magnesium matrix alloys usually form a strong texture, resulting in the decreases of ductility at room temperature because of their intrinsic characterization of the hexagonal close-packed structure [29]. Since the room temperature-forming properties of the magnesium alloys are mainly affected by the initial crystal structure of the basal plane, the improvement of the crystal grains will significantly improve the formability of the MIMC composites [30]. In MISC composites, the three-dimensional network of stainless-steel has the highest strength, which leads to greater stress on magnesium grains, thus causing a till of the basal plane during coordinated deformation, and a minimum average grain size. Therefore, the dynamic recrystallization occurs in the vicinity of the reinforcement of magnesium matrix composite. Furthermore, the difference between size distribution and grain refinement can be explained by the changes in the grain orientation of magnesium matrix composite by EBSD test. Figure 8a shows that the grain orientation of the as-cast magnesium matrix composite (MIMC) is almost randomly distributed. Figure 8b–d reveal the grain orientation changes of the as-extruded magnesium matrix composite. From Figure 8b (MISC), the results show that during the extrusion, the grain orientation forms a strong peak at the center of the basal pole figure of {0001}. However, in the MIAC composites, {0001} basal pole figure exhibits a divergence state, due to a relatively small stress for the aluminum alloy imposed to magnesium matrix, as shown as in Figure 8d. From Figure 8c (MITC), it is shown that the grain orientation is between MISC and MIAC.

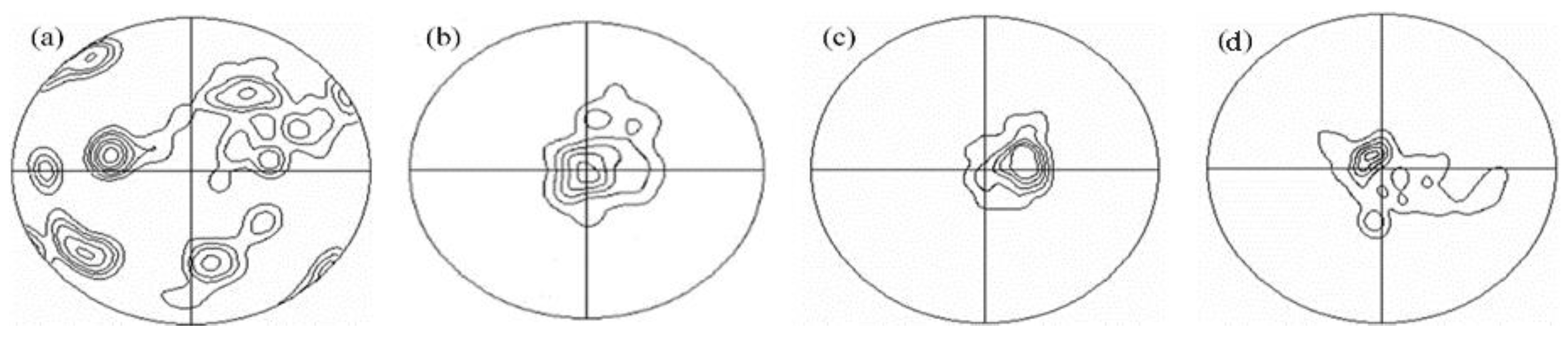

3.2. Mechanical Properties

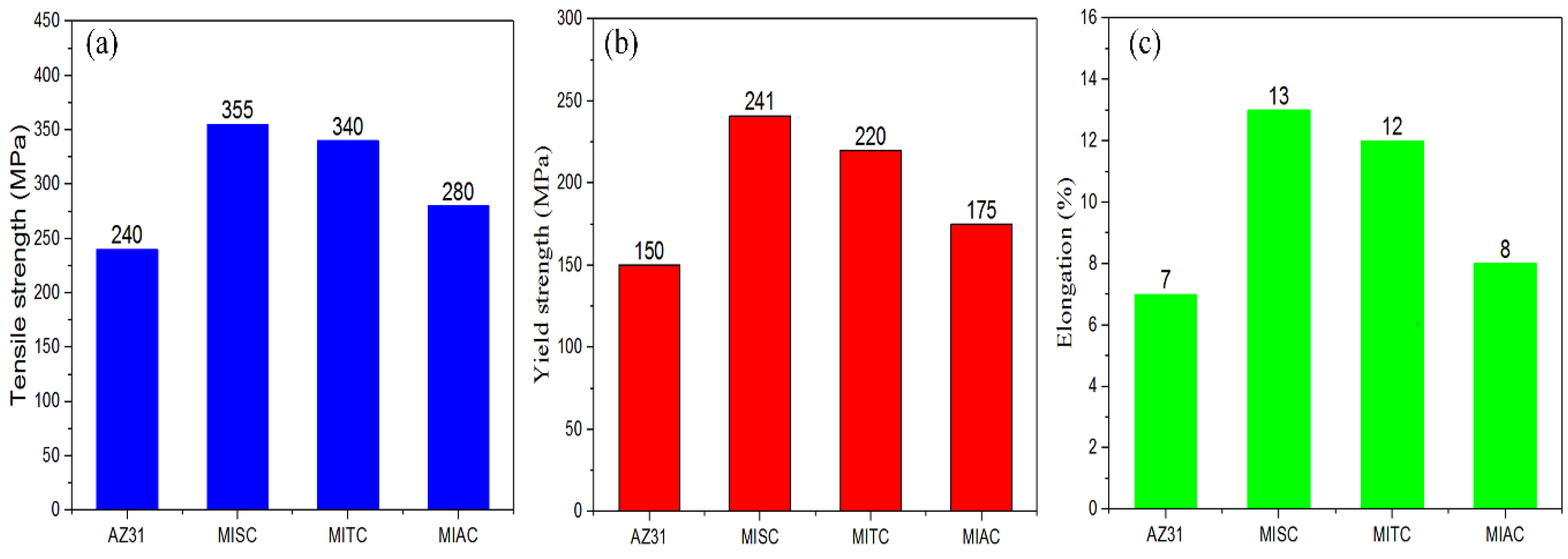

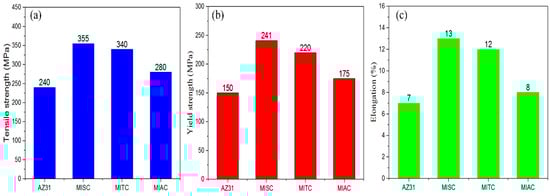

The MIMC composites exhibit different mechanical properties because of the difference of reinforcement materials. Figure 9 shows the mechanical properties change with different reinforcement materials. Compared with AZ31 magnesium alloy, the MIMC composites have a significant improvement in the yield strength (YS), ultimate tensile strength (UTS), and elongation (E). The improvement in mechanical performance is attributed to the following as (1) superior mechanical properties of the reinforcement itself; (2) the reinforcements have a good interface with the matrix; (3) effective load transfer can be carried out from matrix to reinforcement; and (4) fine and evenly distributed grain are produced during coordination deformation of the reinforcement and matrix.

Among the three kinds of composites, the MISC composites have the maximum values of UTS (Figure 9a), YS (Figure 9b), and E (Figure 9c), which are 355 MPa, 241 MPa, and 13%. For each parameter, comparing with the AZ31, the increase is 47.9%, 60.7%, and 85.7%, respectively, while the MITC composites followed, the mechanical properties are 340 MPa, 220 MPa, and 12%, increasing by 41.7%, 46.7%, and 71.4%, respectively. The MIAC composites are the minimum, the mechanical properties of which are 280 MPa, 175 MPa, and 8%, increasing by 16.7%, 16.7%, and 14.3%, respectively. These changes are ascribed to two factors. One is the influence of reinforcement itself, and the mechanical properties of the three network reinforcements are shown in

Table 2. The mechanical properties of the three network reinforcements.

Materials	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
Fe–18Cr–9Ni	893	824	36
Ti–6Al–4V	790	710	21
Al–5Mg–3Zn	542	520	11

. Another is the influence of the grain refinement degree of matrix alloy.

4. Discussions

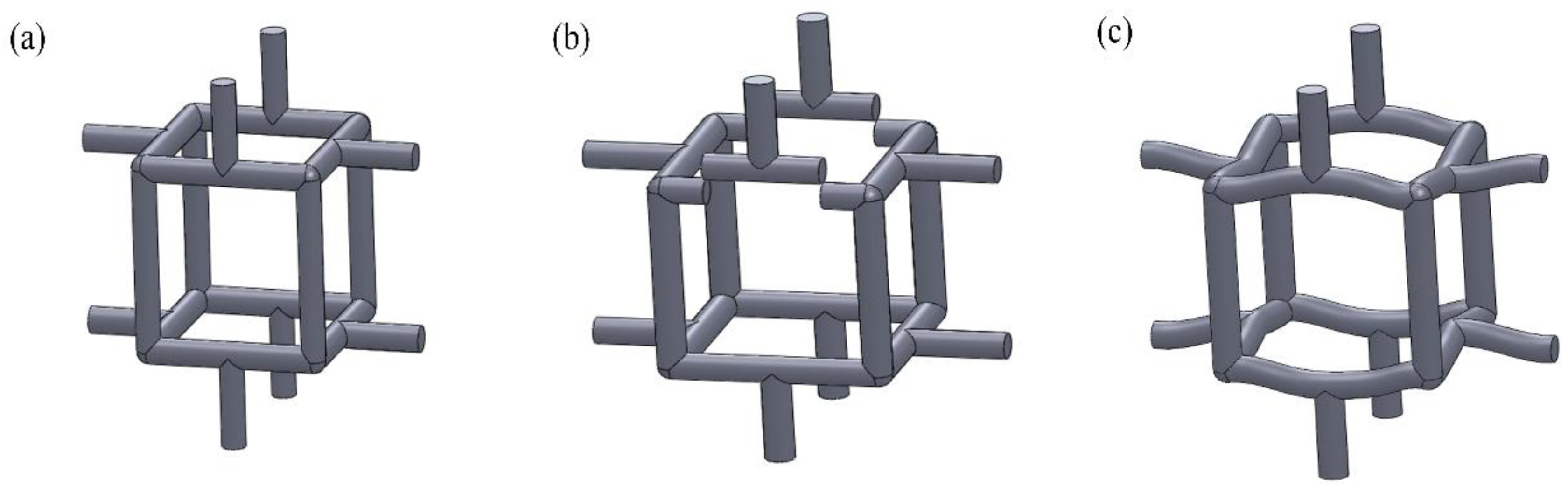

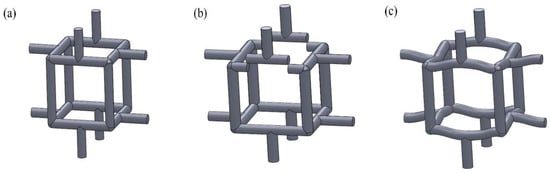

The reinforcement and matrix of MIMC composites are regarded as two interpenetrating pore structures or network structures, which are shown in Figure 10a. Owing to that one kind of metal phase is interpenetrated by another metal phase, the mechanical models of the network structure of MIMC composites does not follow the brittle fracture mode which is shown in Figure 10b, it follows the elastic plastic mode which is shown in Figure 10c, and this deformation mode is the main failure mode of MIMC composites [31,32]. Considering the linear elastic elements, the elastic modulus of interpenetrating composites is estimated as Equation (1), according to the mixing rule

$$E_C{=E}_M{V}_M{+E}_R{V}_R,$$

(1)

where E_C, E_M, and E_R are, respectively, the elastic modulus of composites (C), matrix (M), and reinforcement (R), and V_M and V_R are, respectively, the volume fraction of matrix and reinforcement.

Considering the elastic modulus influence, the constitutive mechanical mode of MIMC is proposed according to mixture law of composites, as shown in Equations (2) and (3).

$$\mathrm{Upper} \mathrm{limit} \mathrm{model}: E_C{X}_C={\sum }_{i=1}^n{E}_i{X}_i{V}_i,$$

(2)

$$\mathrm{Lower} \mathrm{limit} \mathrm{model}: \frac{E_C}{X_C}={\sum }_{i=1}^n\frac{E_i{V}_i}{X_i},$$

(3)

where X_C represents the mechanical properties of composite materials, and X_i and V_i represent the mechanical properties and volume fractions of different composite phase, respectively. For two phases interpenetrating composites, the mechanical properties, such as tensile strength, yield strength, and elongation, are rewritten as Equations (4)–(7), according to the above equations,

$$E_C{\sigma }_C=E_M{V}_M{\sigma }_M+E_R{V}_R{\sigma }_R,$$

(4)

$$\frac{E_C}{{\sigma }_C}=E_M\frac{V_M}{{\sigma }_M}+E_R\frac{V_R}{{\sigma }_R},$$

(5)

$$E_C{\delta }_C=E_M{V}_M{\delta }_M+E_R{V}_R{\delta }_R,$$

(6)

$$\frac{E_C}{{\delta }_C}=E_M\frac{V_M}{{\delta }_M}+E_R\frac{V_R}{{\delta }_R},$$

(7)

where σ and V represent, respectively, the tensile strength or yield strength and volume fractions of the matrix (M) and reinforcement (R), and δ represents the elongation of the matrix (M) and reinforcement (R).

Combining Equation (1) to Equations (4)–(7), the following Equations (8)–(11) are obtained:

$$\mathrm{Upper} \mathrm{limit} \mathrm{model}: {\sigma }_C=\frac{E_M}{E_M{V}_M+E_R{V}_R}{V}_M{\sigma }_M+\frac{E_R}{E_M{V}_M+E_R{V}_R}{V}_R{\sigma }_R,$$

(8)

$$\mathrm{Lower} \mathrm{limit} \mathrm{model}: \frac{1}{{\sigma }_C}=\frac{E_M}{E_M{V}_M+E_R{V}_R}\frac{V_M}{{\sigma }_M}+\frac{E_R}{E_M{V}_M+E_R{V}_R}\frac{V_R}{{\sigma }_R},$$

(9)

$$\mathrm{Upper} \mathrm{limit} \mathrm{model}: {\delta }_C=\frac{E_M}{E_M{V}_M+E_R{V}_R}{V}_M{\delta }_M+\frac{E_R}{E_M{V}_M+E_R{V}_R}{V}_R{\delta }_R,$$

(10)

$$\mathrm{Lower} \mathrm{limit} \mathrm{model}: \frac{1}{{\delta }_C}=\frac{E_M}{E_M{V}_M+E_R{V}_R}\frac{V_M}{{\delta }_M}+\frac{E_R}{E_M{V}_M+E_R{V}_R}\frac{V_R}{{\delta }_R}.$$

(11)

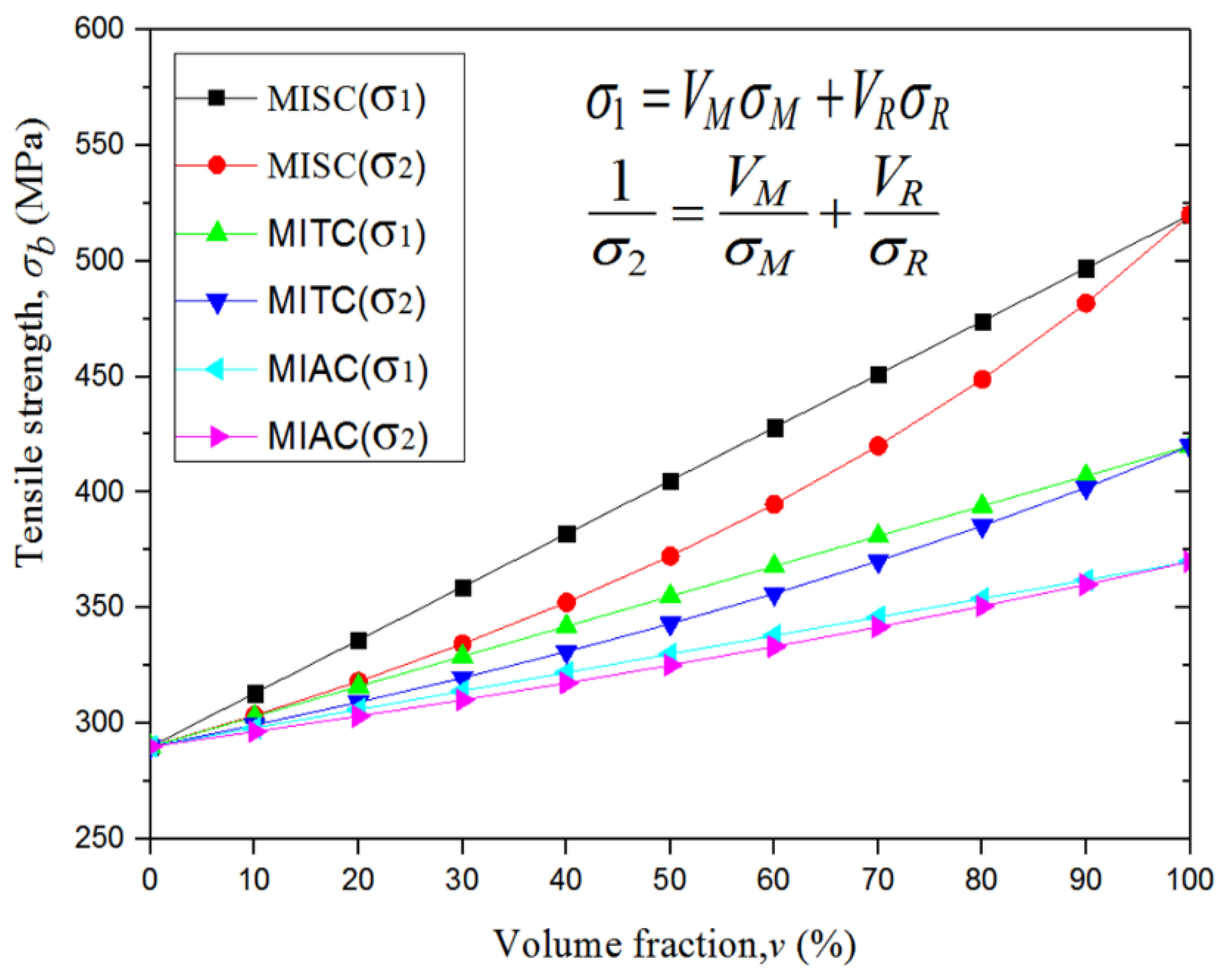

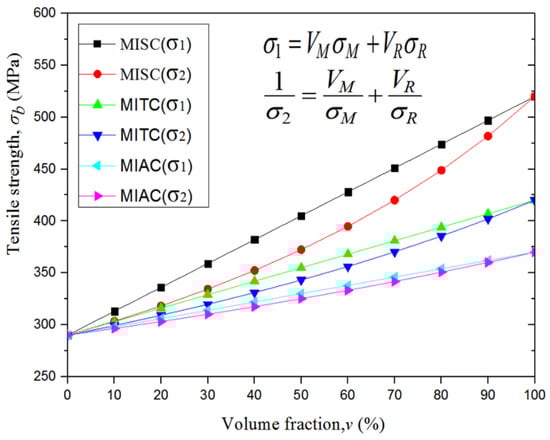

According to the above mathematics model, the relationship between volume fraction and tensile strength of magnesium matrix composites interpenetrated by different reinforcement is shown in Figure 11. The results show that as the volume fraction of reinforcement increases, the continuous improving trend of tensile strength is more obvious. Similarly, the yield strength and elongation also have the same regularity. Compared with the tested results in Figure 9, the results of the mathematics model are the same. Therefore, it can be considered that the mathematics model of the composite material, derived from this paper, is correct and provides a good theoretical guidance for the test.

5. Conclusions

1. The magnesium matrix composites reinforced by stainless steel (Fe–18Cr–9Ni), titanium alloy (Ti–6Al–4V), and aluminum alloy (Al–5Mg–3Zn), were prepared by the pressure infiltration technology. The reinforcements of the composites are interwoven with the matrix and have an integrated interface.

2. The grain size and distribution in the as-cast magnesium matrix composites have the same characteristics, and their sizes are mainly concentrated at 200–300 μm, and the size distribution is random and does not obey normal distribution. However, during the extrusion process, the grain size of magnesium matrix composite is more refined than that of the as-cast state, because of the dynamic recrystallization and the superposition of shear strain, and its size is mostly concentrated at 10–30 μm. In addition, the grain size distributions of MISC and MIAC follow the normal distribution and the Wien distribution, respectively.

3. Different reinforcement materials result in different microstructure characterization of magnesium matrix during extrusion. The average grain sizes of magnesium matrix composites with the reinforcements of MISC, MITC, and MIAC are 14, 20, and 24 μm, respectively.

4. Compared with AZ31, the mechanical properties of metal composites interpenetrated by metal reinforcement have a significant improvement. Different MIMCs with different reinforcements exhibit different mechanical properties. Among the three composite materials, the tensile strength, yield strength, and elongation of MISC are 355 MPa, 241 MPa, and 13%, with an increase of 47.9%, 60.7%, and 85.7%, respectively; while for MITC, they are 340 MPa, 220 MPa, and 12%, with an increase of 41.7%, 46.7%, and 71.4%, respectively; and for MIAC, are 280 MPa, 175 MPa, and 8%, an increase of 16.7%, 16.7%, and 14.3%, respectively.
