A Semi-Explicit Multi-Step Method for Solving Incompressible Navier-Stokes Equations
Previous Article in Journal
Electromechanical Anisotropy at the Ferroelectric to Relaxor Transition of (Bi0.5Na0.5)0.94Ba0.06TiO3 Ceramics from the Thermal Evolution of Resonance Curves
Article Menu
Issue 1 (January) cover image

Export Article

Open AccessArticle
Appl. Sci. 2018, 8(1), 120; https://doi.org/10.3390/app8010120

A Distribution Power Electronic Transformer with MMC

1
Department of Electrical Eng. and IT, DIETI, University of Naples Federico II, 80125 Naples, Italy
2
GETRA Engineering & Consulting, 81025 Caserta, Italy
*
Author to whom correspondence should be addressed.
Received: 4 December 2017 / Revised: 28 December 2017 / Accepted: 12 January 2018 / Published: 16 January 2018
(This article belongs to the Section Computer Science and Electrical Engineering)
Full-Text   |   PDF [2363 KB, uploaded 16 January 2018]   |

Abstract

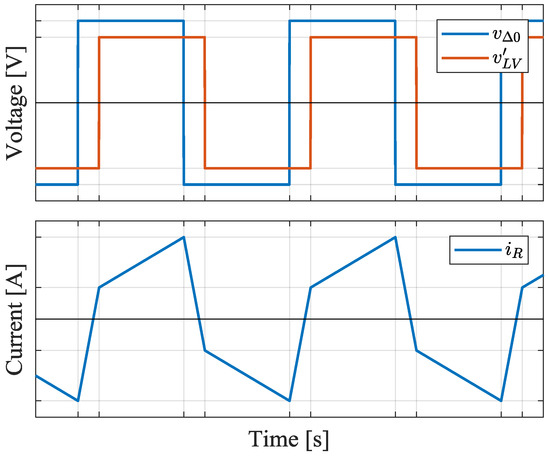

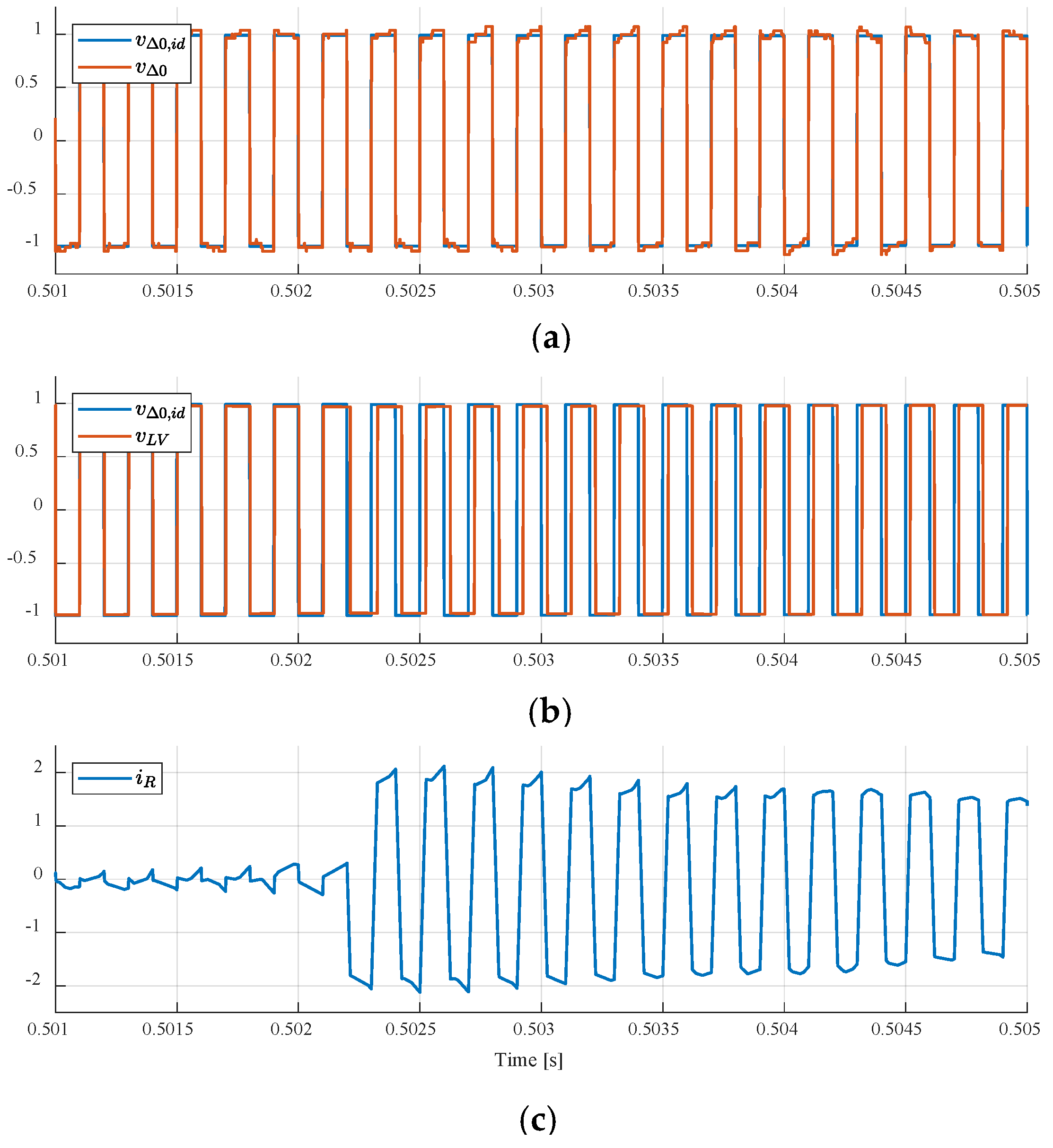

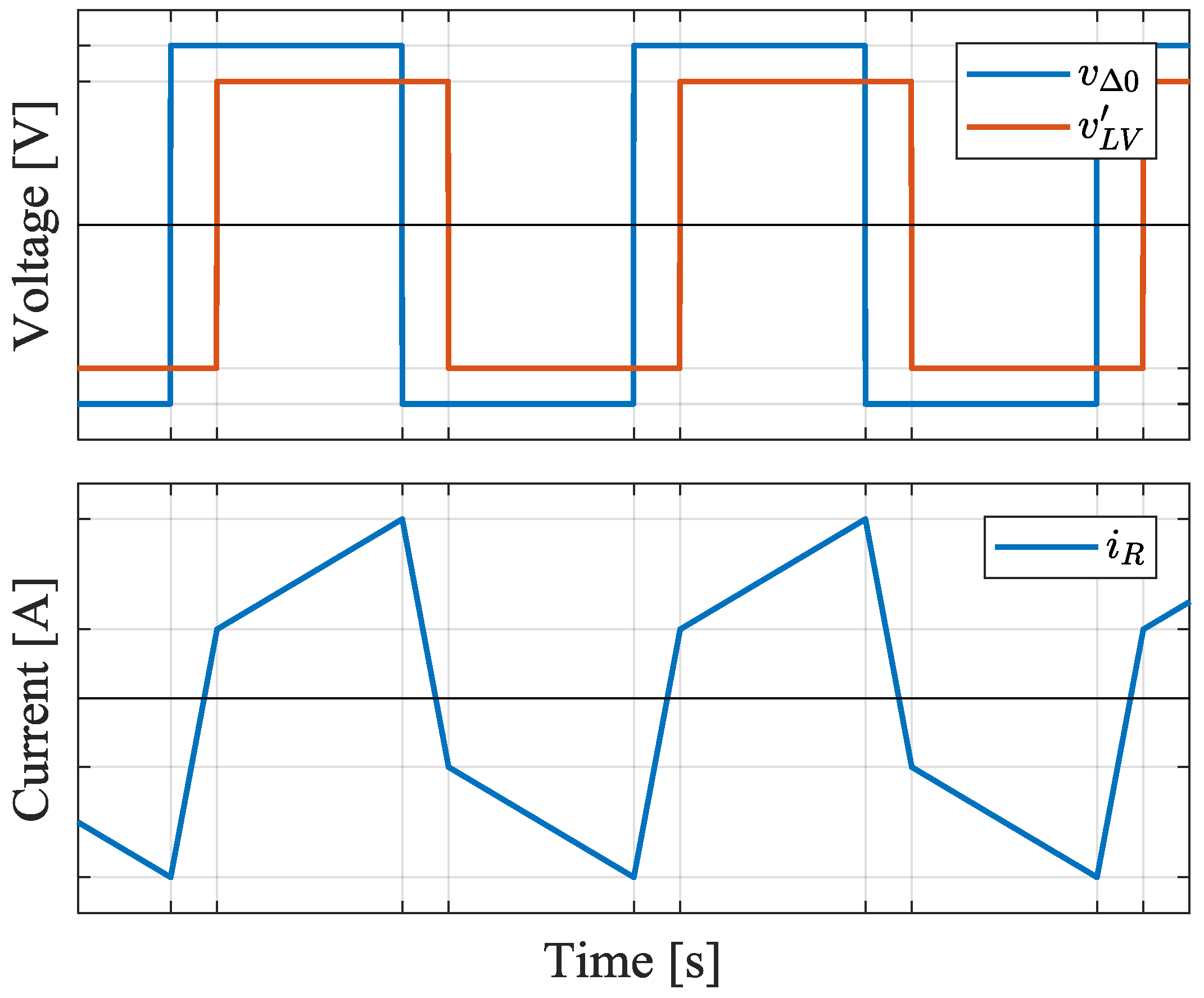

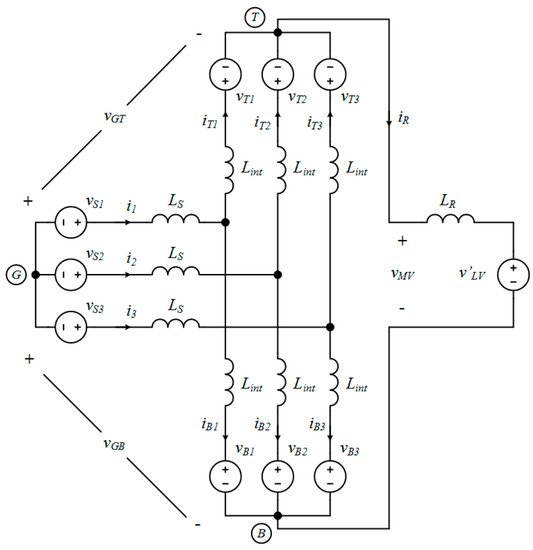

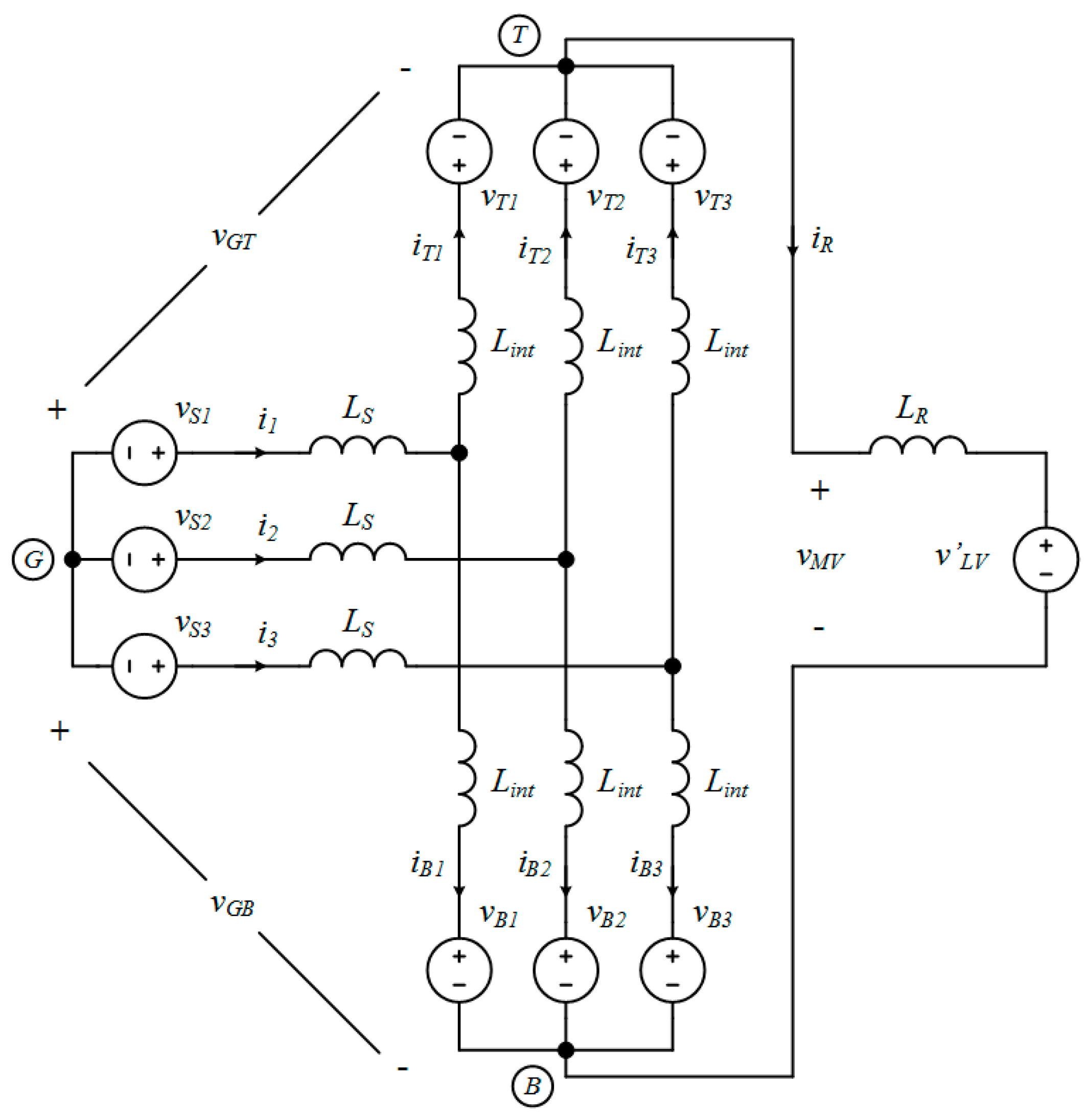

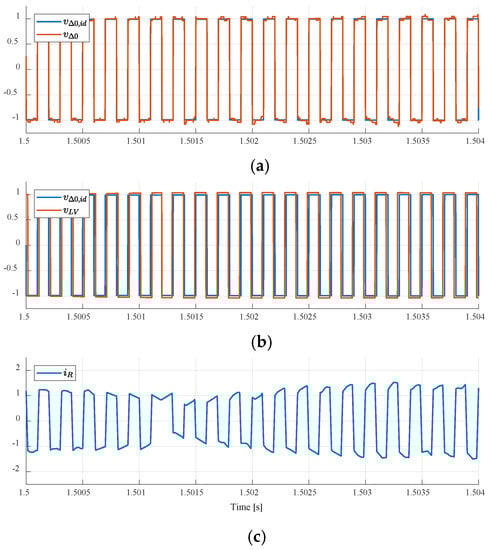

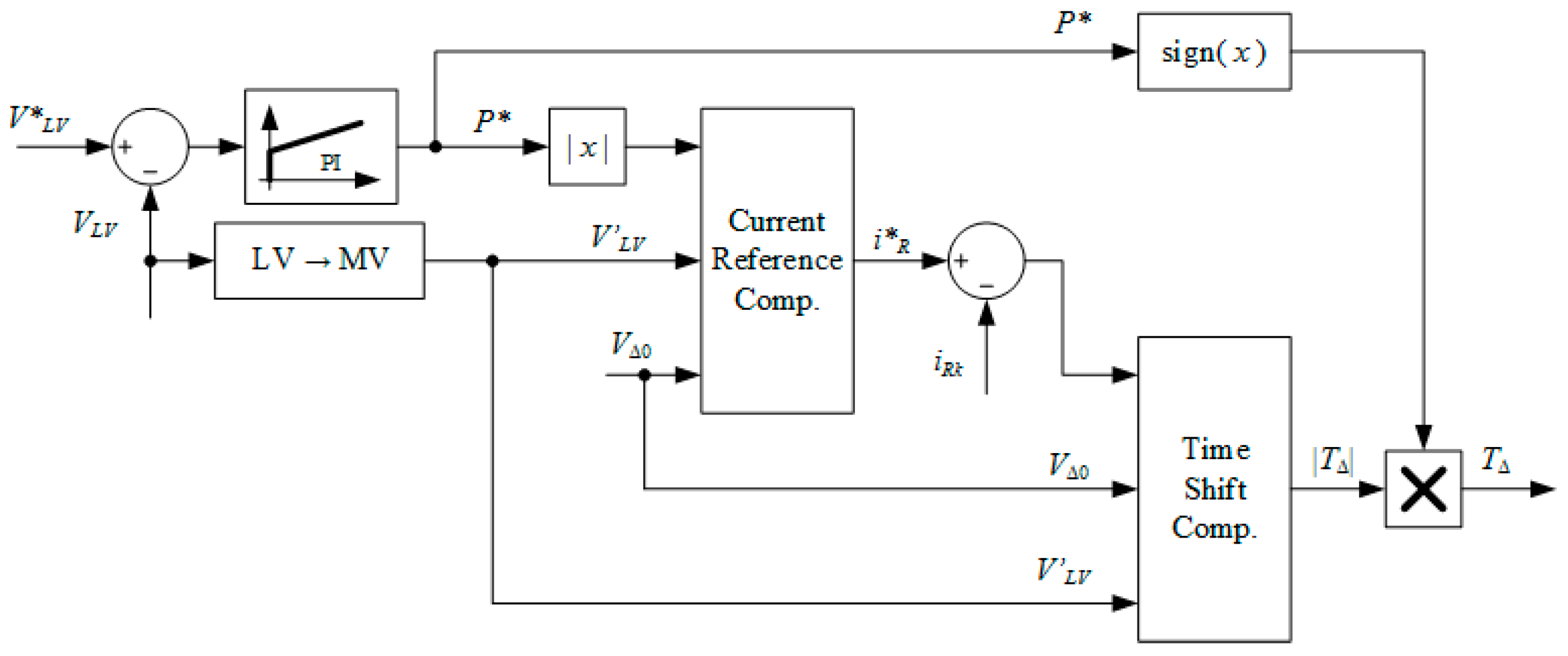

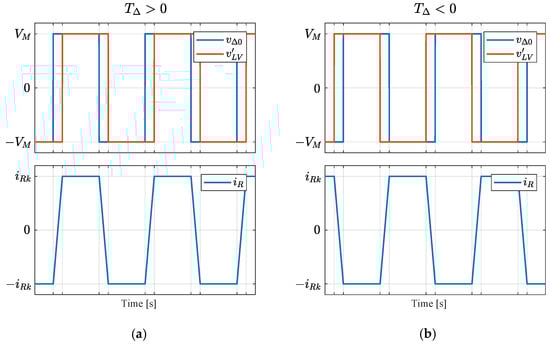

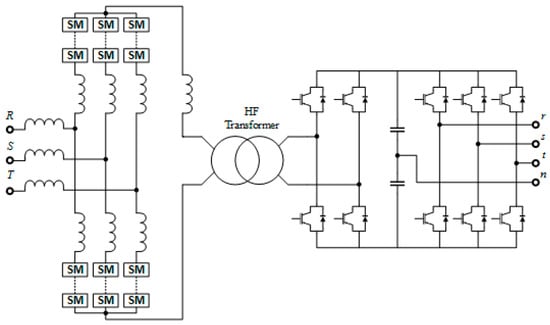

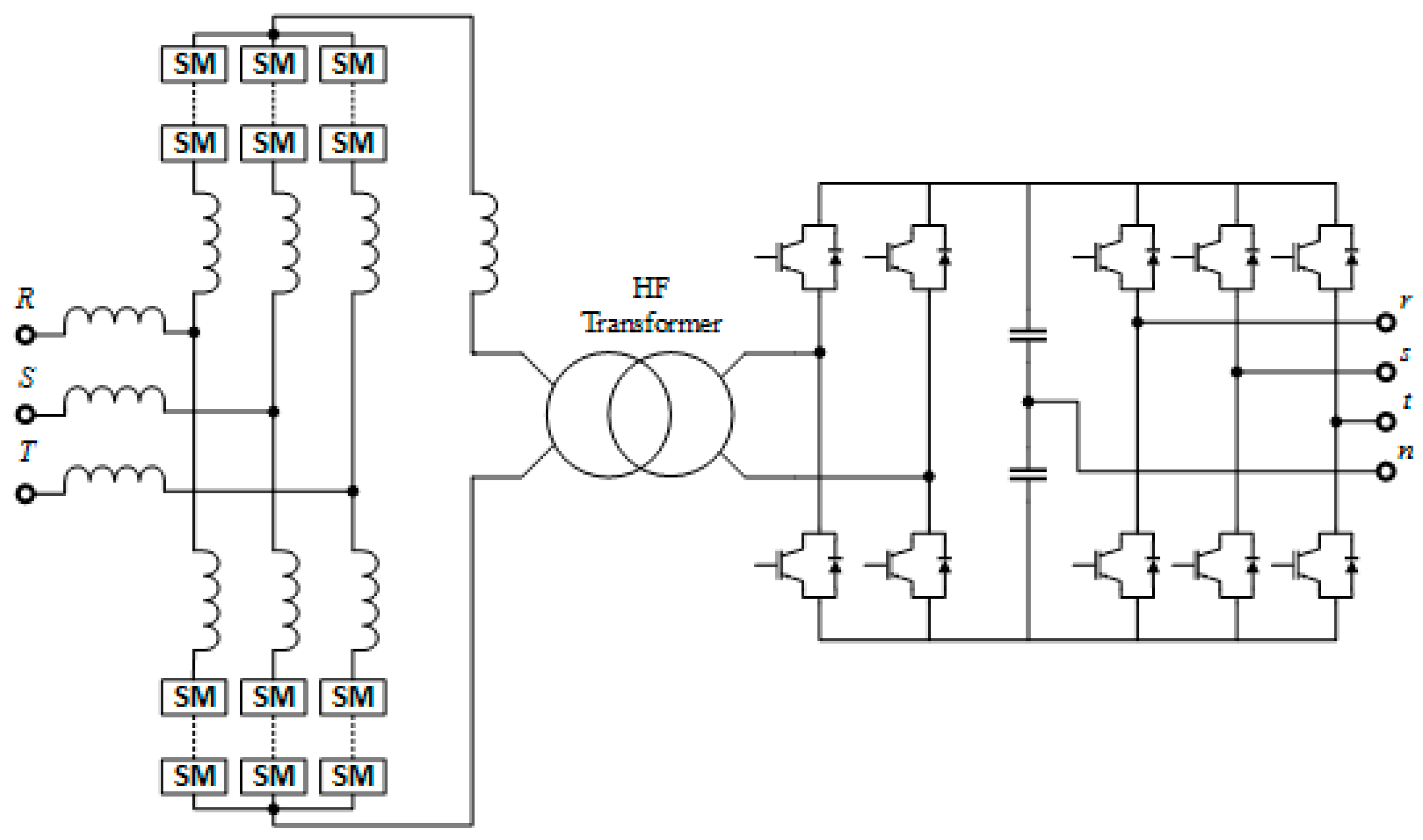

This paper deals with a Power Electronic Transformer (PET) topology for a 3-phase AC distribution grid. In the discussed topology, a Modular Multilevel Converter (MMC) and a Full-Bridge converter are employed for the medium voltage (MV) and the low voltage (LV) side, respectively. By using the space vector, approach a mathematical model for the MMC is presented and a grid-synchronous algorithm is implemented to easily control the power flow through the structure. The MV and LV side converters are linked through a High Frequency (HF) transformer, whose control strategy is a Dual-Active Phase-Shift Control (PSC) with Square Wave Modulation (SQM). This technique is combined with a predictive algorithm, which is able to keep each leg’s capacitors’ voltages balanced both in stationary and in transient conditions. The proposed algorithm is numerically validated in the Matlab/Simulink® environment. View Full-Text
Keywords: power electronic transformer; modular multilevel converter; square wave modulation; voltage balancing; dual active phase shift control; predictive control algorithm; modulation technique power electronic transformer; modular multilevel converter; square wave modulation; voltage balancing; dual active phase shift control; predictive control algorithm; modulation technique
Figures

Figure 1
