Next Article in Journal
Influence of Welding Parameters on the Weld Pool Dimensions and Shape in a TIG Configuration
Next Article in Special Issue
Performance of Nanostructures within InGaN-Based Multiquantum-Well Light-Emitting Devices
Previous Article in Journal
Development of Auto-Seeding System Using Image Processing Technology in the Sapphire Crystal Growth Process via the Kyropoulos Method
Article Menu
Issue 4 (April) cover image

Export Article

Open AccessArticle
Appl. Sci. 2017, 7(4), 372; doi:10.3390/app7040372

Grain Size in Aluminum Alloy 6061 under Hot Ring Compression Test and after T6 Temper

Department of Mechanical Engineering, National Chung Hsing University, Taichung 40227, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editor: Yasuhide Shindo
Received: 27 January 2017 / Revised: 19 March 2017 / Accepted: 4 April 2017 / Published: 8 April 2017
View Full-Text   |   Download PDF [2252 KB, uploaded 8 April 2017]   |

Abstract

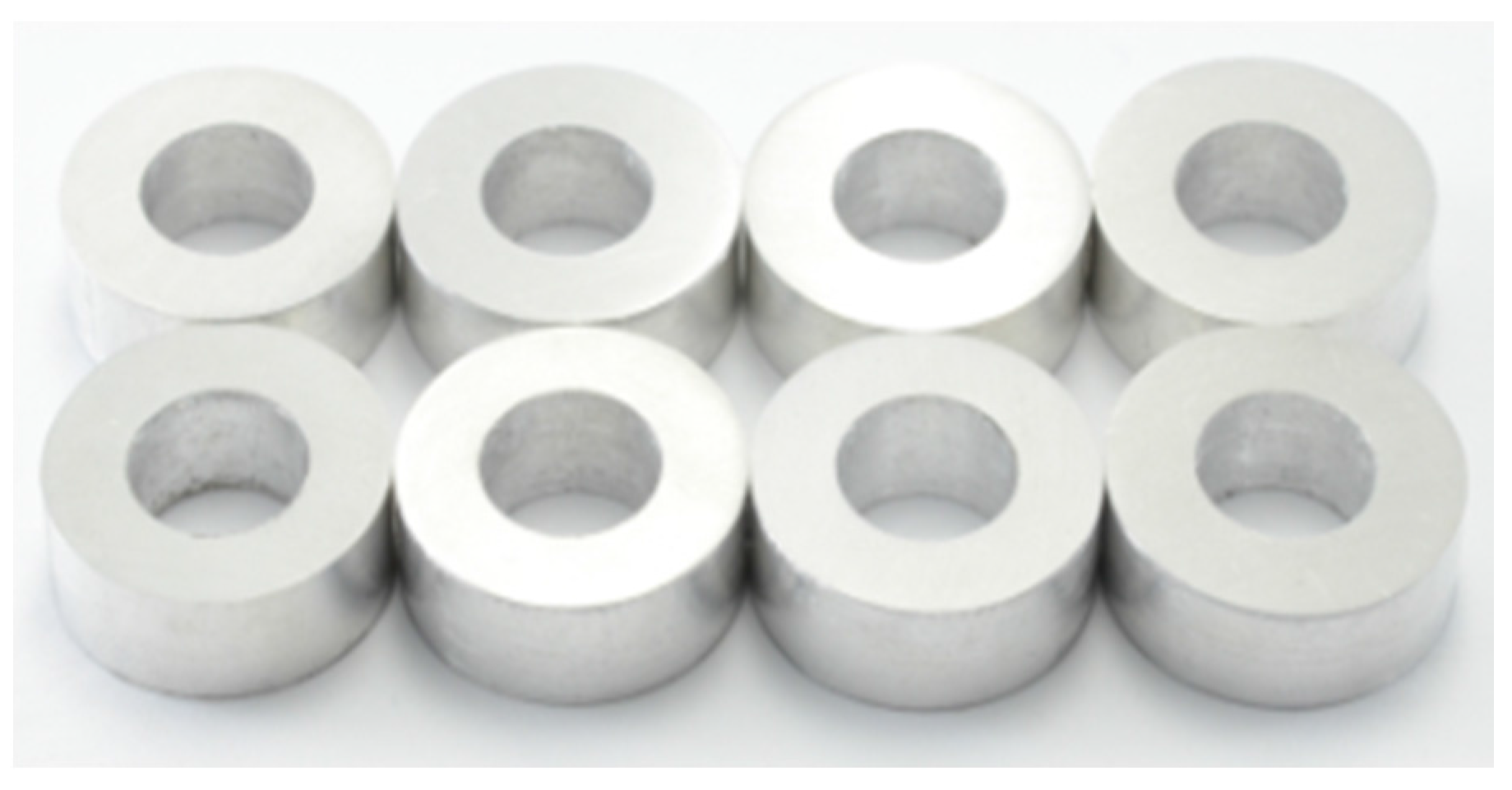

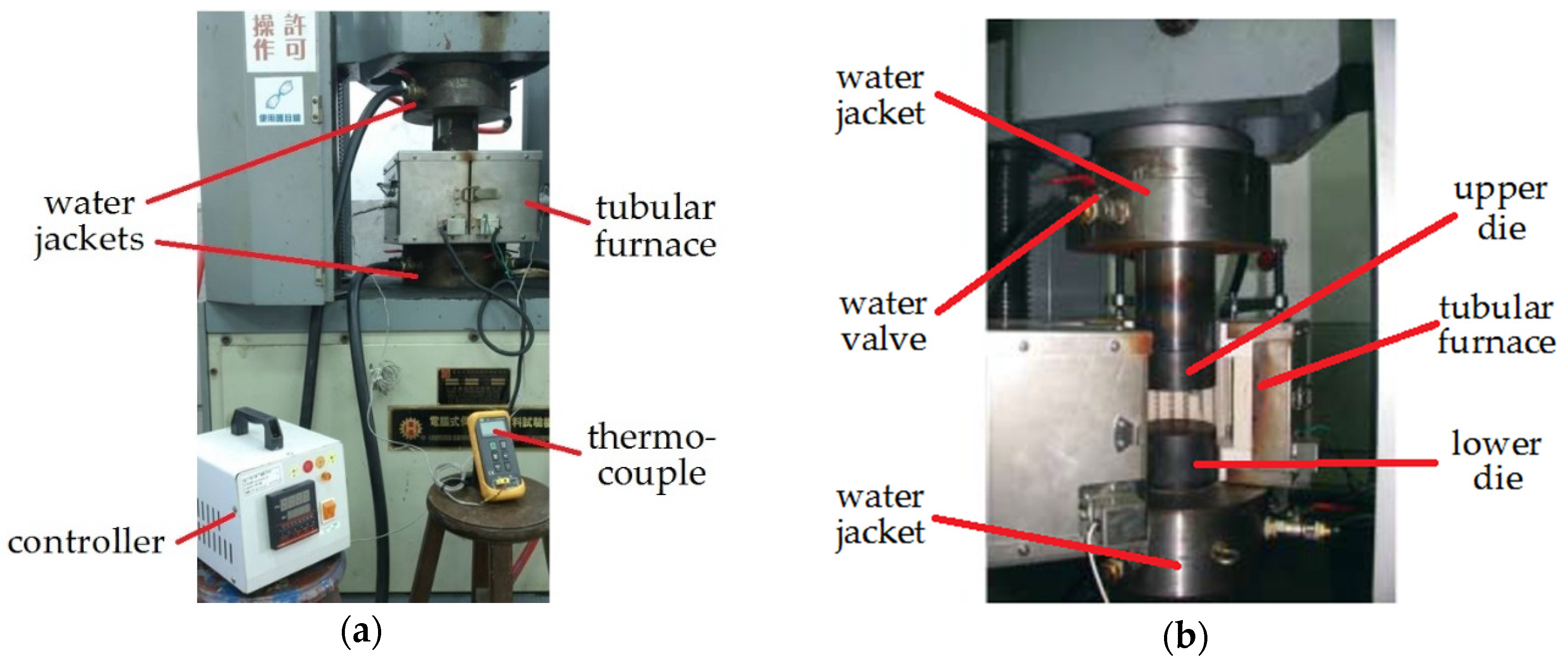

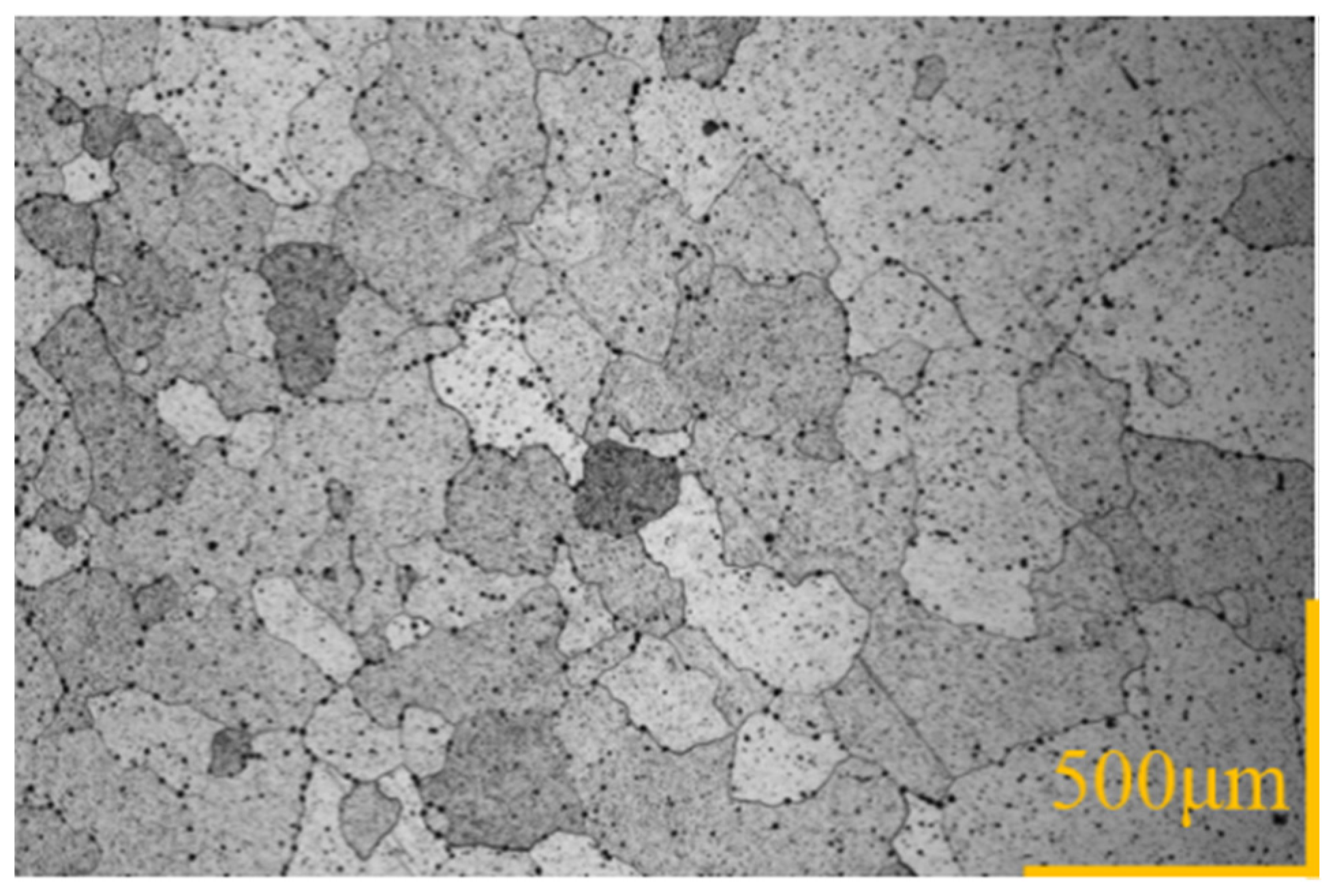

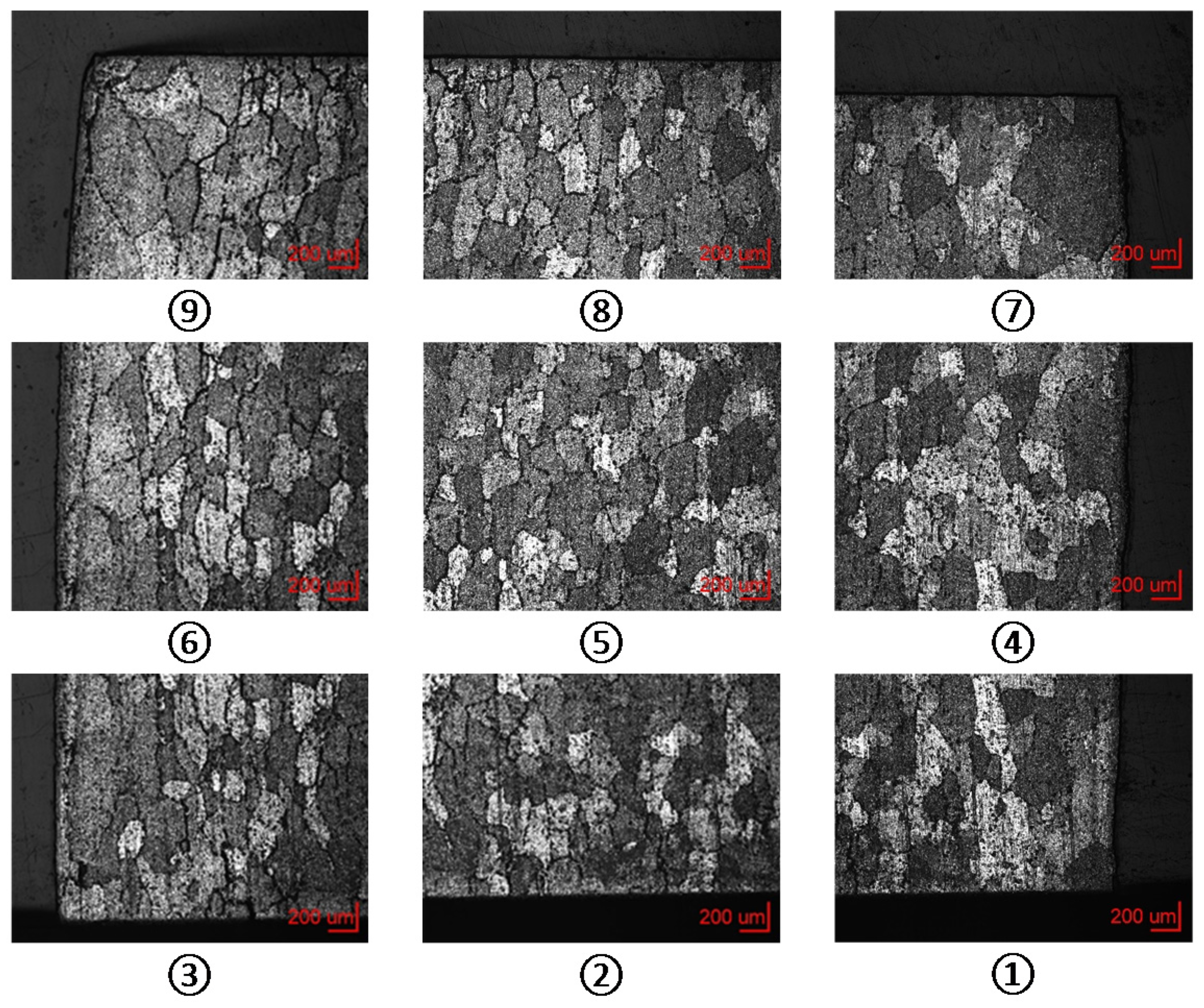

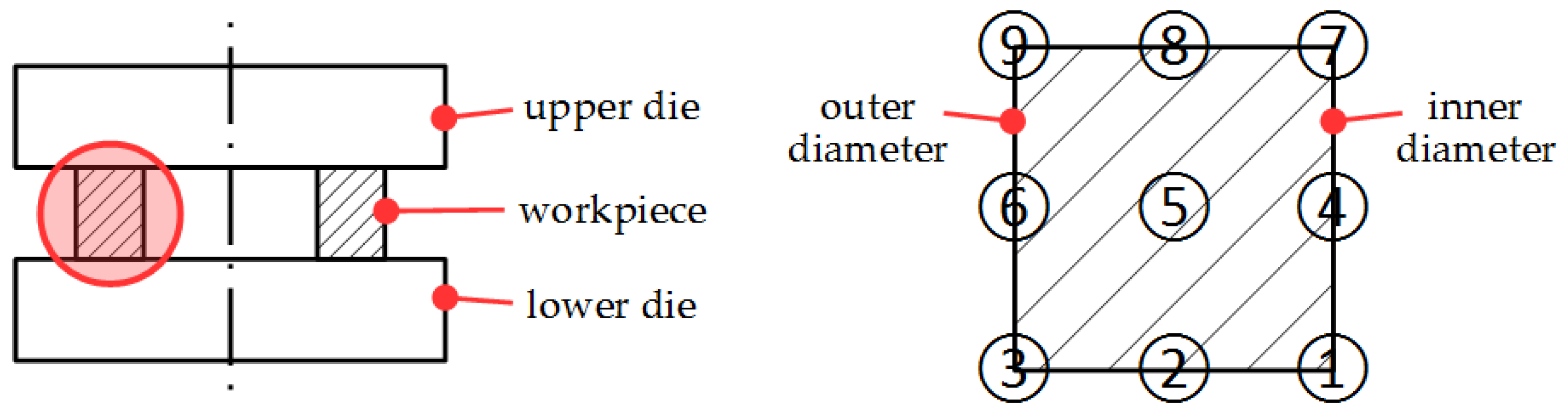

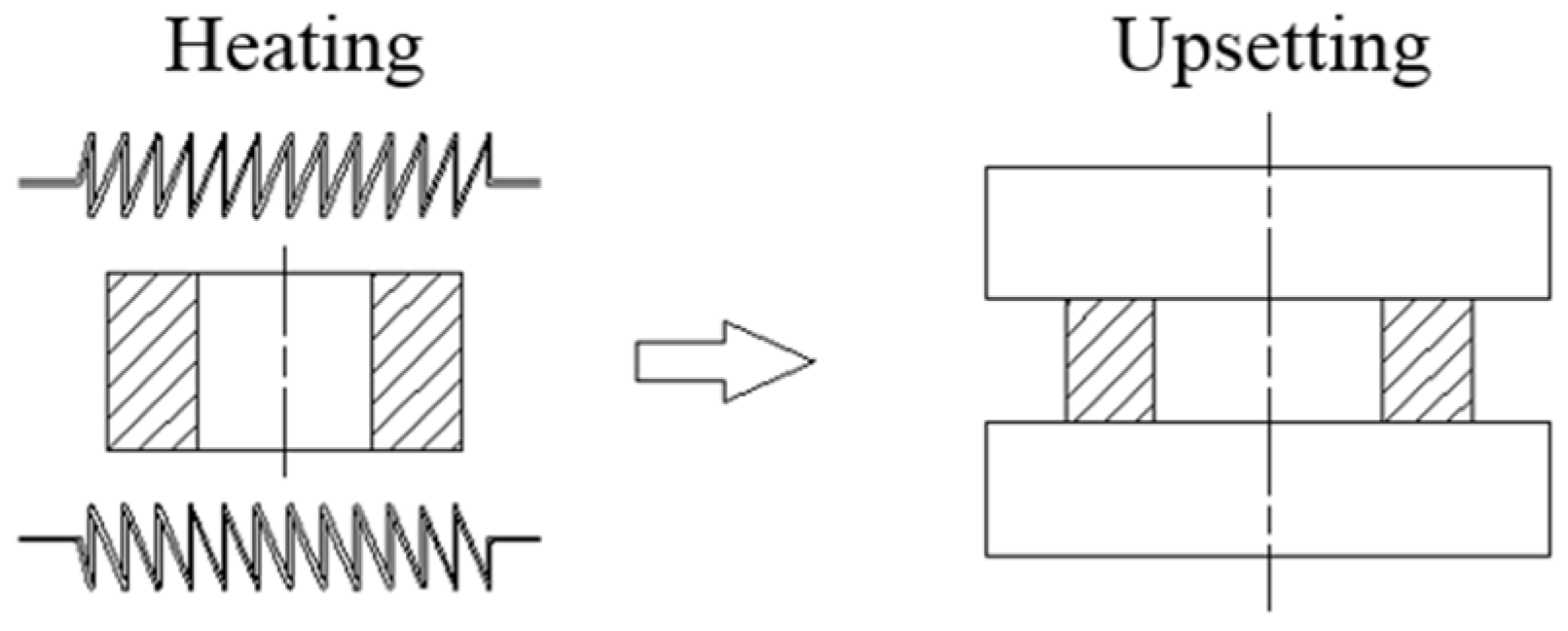

Peripheral coarse grain during and after hot forming is often a major inconvenience for manufacturing aluminum alloy parts. Not only is the strength reduced, but the subsequent surface treatments are also hard to realize. The literature has shown that peripheral coarse grain is very likely induced by the previous process, such as extrusion. To investigate if peripheral coarse grain could be caused solely by hot forming, this study removed the billet surface layers. This eliminates the effect from the previous processes preparing the billets and forms ring specimens for executing ring compression test. The ring compression test can reveal the friction circumstance of the specimen to the die surface and create versatile deformation in the specimens to simulate forging situations, thereby providing multifaceted conditions to develop diverse grain size in specimen, particularly on its surface. The experiments were designed and analyzed under the Taguchi method, with consideration for factors such as working temperature, speed and amount of compression, and lubricant. Under each experiment, no peripheral coarse grains were found in the specimen, which were peeled and compressed, and even the average grain size after compression test is larger than that of the received billet. No peripheral coarse grains were found in the subsequent T6 temper either, which could, however, refine the grains. View Full-Text
Keywords: peripheral coarse grain; aluminum alloy; hot forging; aging; ring compression test peripheral coarse grain; aluminum alloy; hot forging; aging; ring compression test
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Fann, K.-J.; Chen, C.-C. Grain Size in Aluminum Alloy 6061 under Hot Ring Compression Test and after T6 Temper. Appl. Sci. 2017, 7, 372.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Appl. Sci. EISSN 2076-3417 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
