Appl. Sci. 2017, 7(3), 251; doi:10.3390/app7030251

Design and Testing of a Novel Building Integrated Cross Axis Wind Turbine

1
Department of Mechanical Engineering, Faculty of Engineering, University of Malaya, Kuala Lumpur 50603, Malaysia
2
Department of Physics, Kebbi State University of Science and Technology, Aliero, Kebbi State 1144, Nigeria
3
Faculty of Engineering, Universiti Malaysia Sabah, Jalan UMS, Sabah 88400, Malaysia
*
Author to whom correspondence should be addressed.
Academic Editor: Antonio Ficarella
Received: 31 December 2016 / Revised: 6 February 2017 / Accepted: 27 February 2017 / Published: 8 March 2017
(This article belongs to the Section Energy)
View Full-Text   |   Download PDF [6169 KB, uploaded 9 March 2017]   |

Abstract

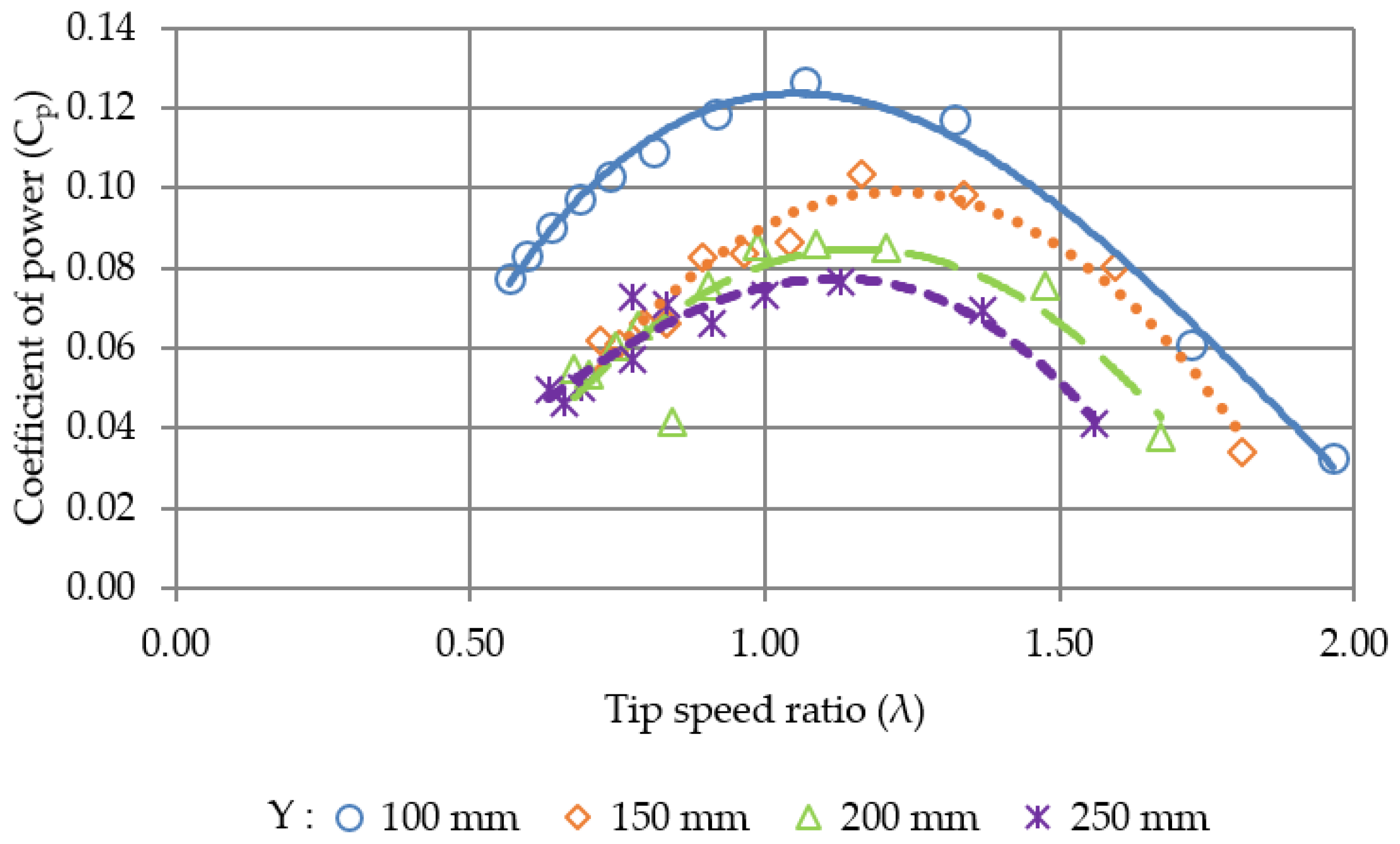

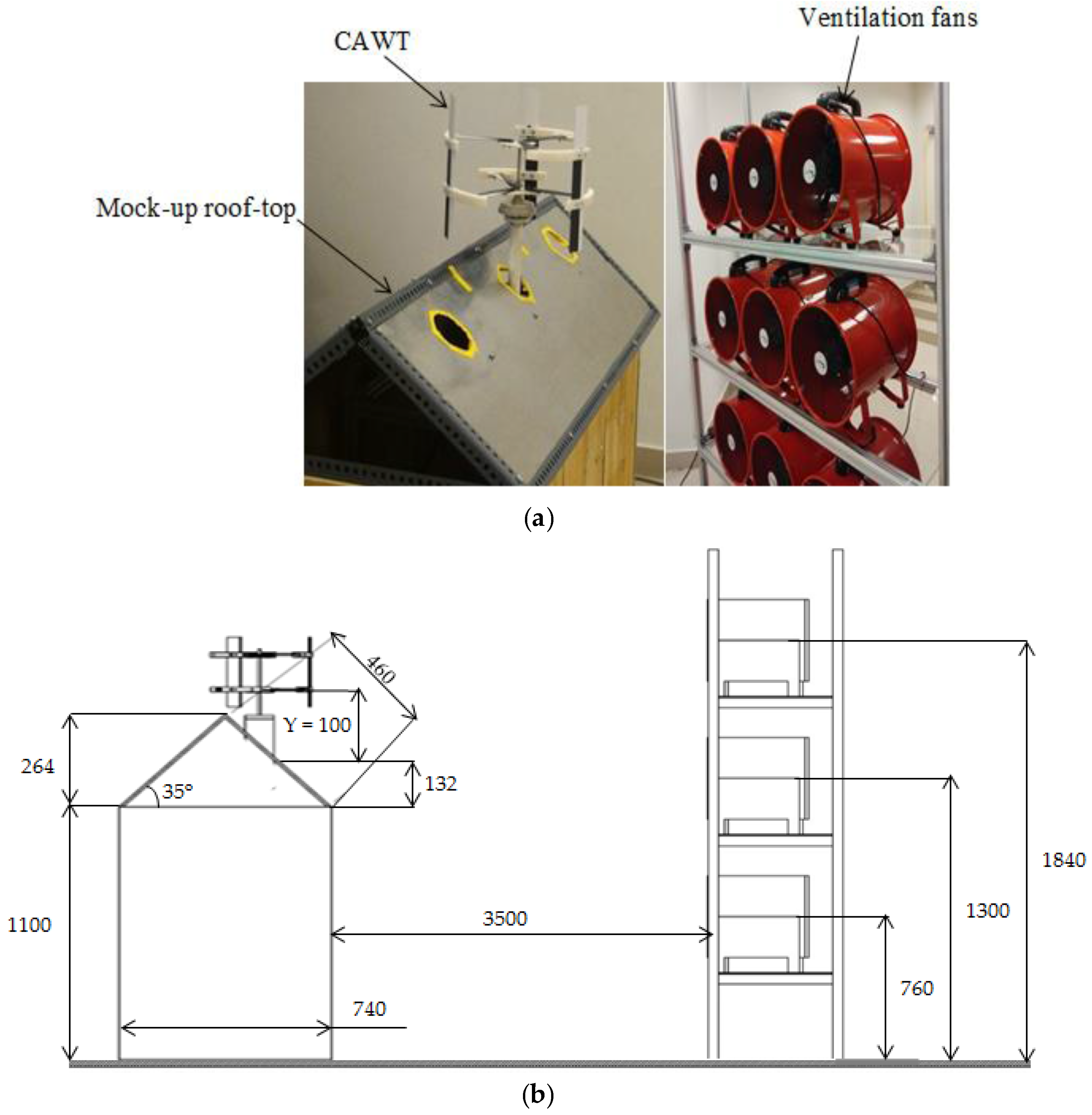

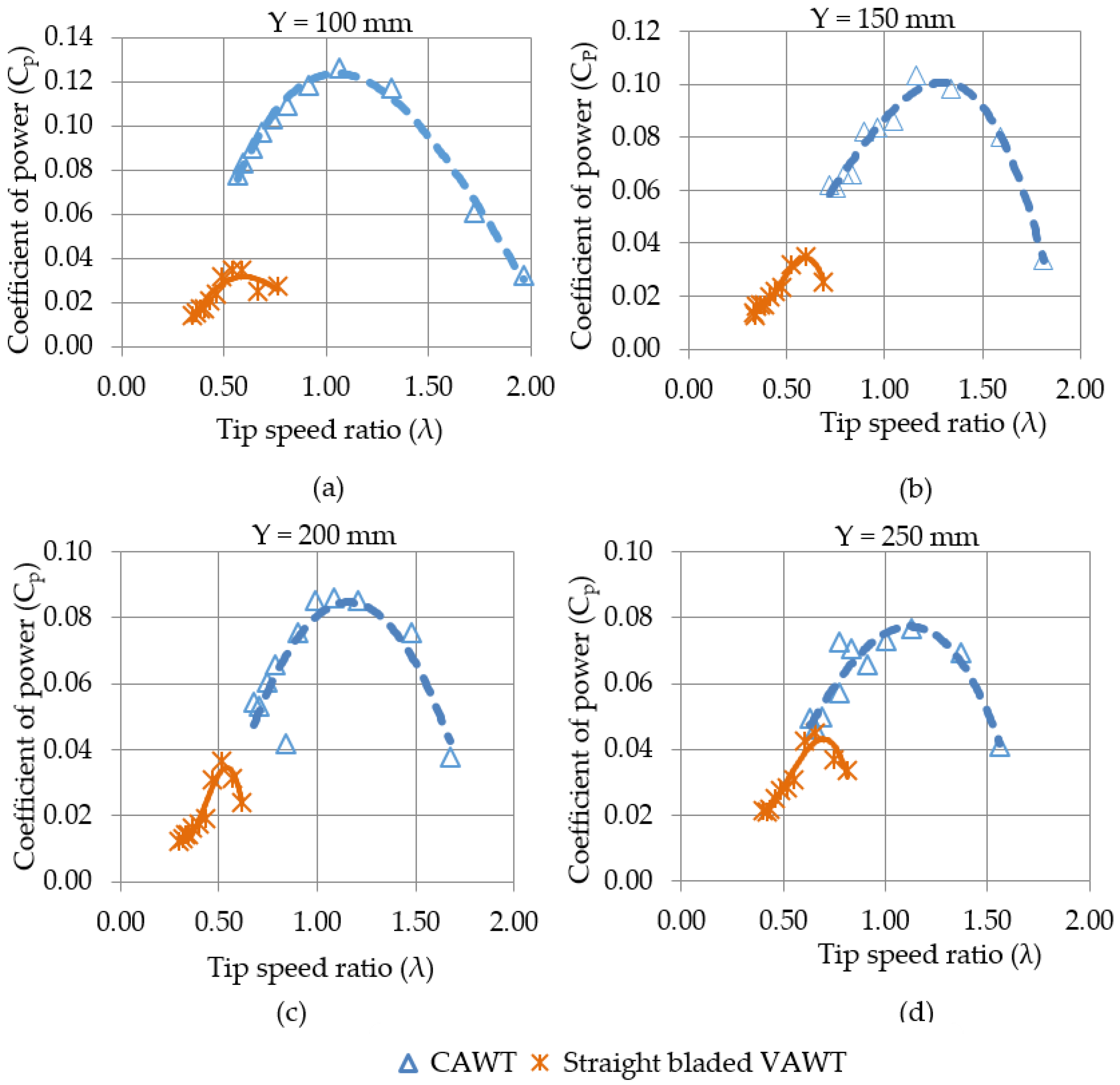

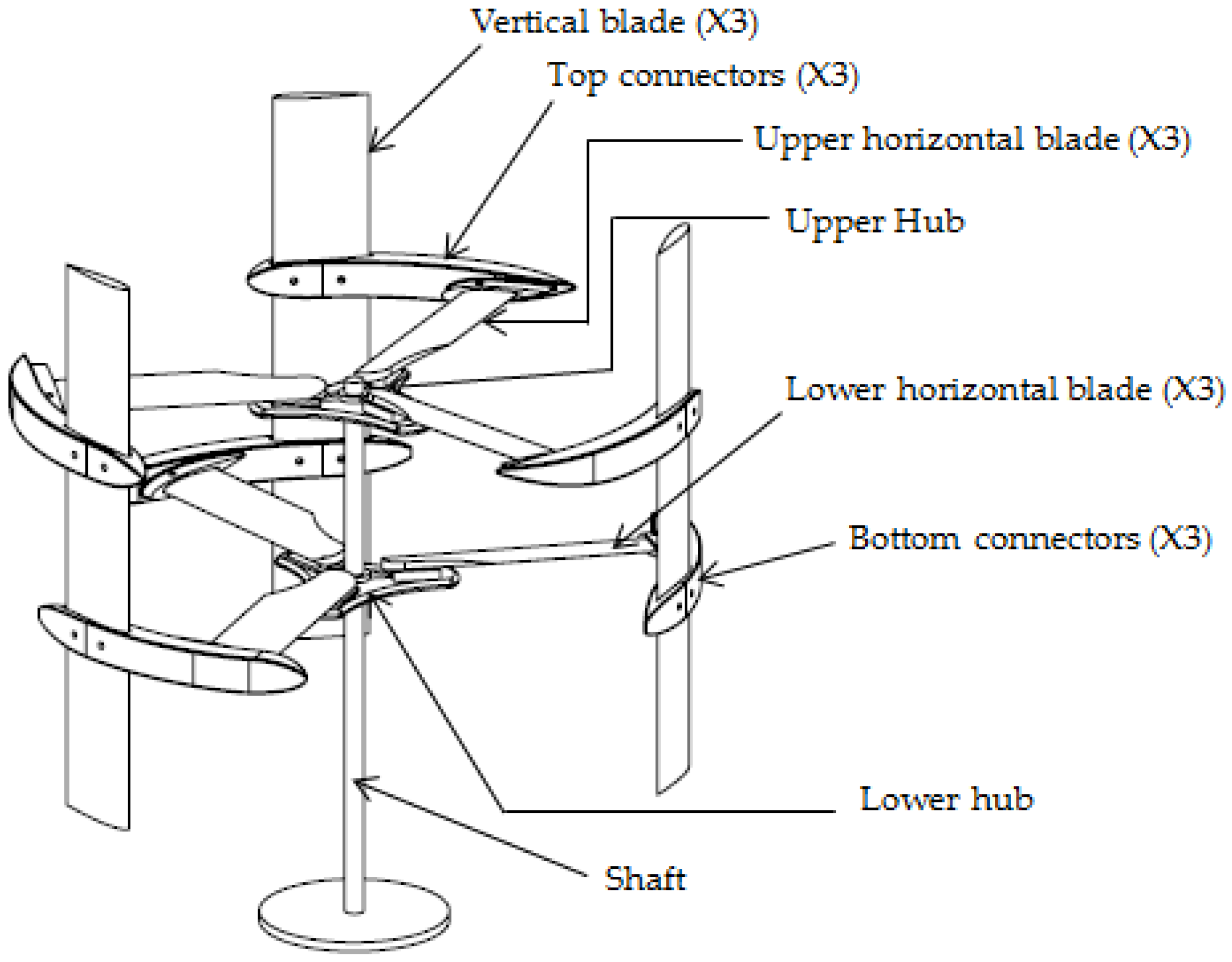

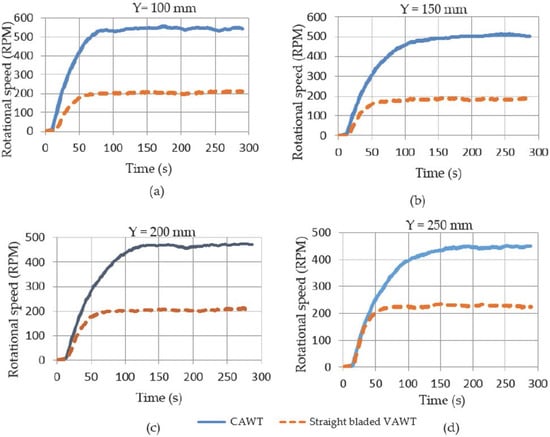

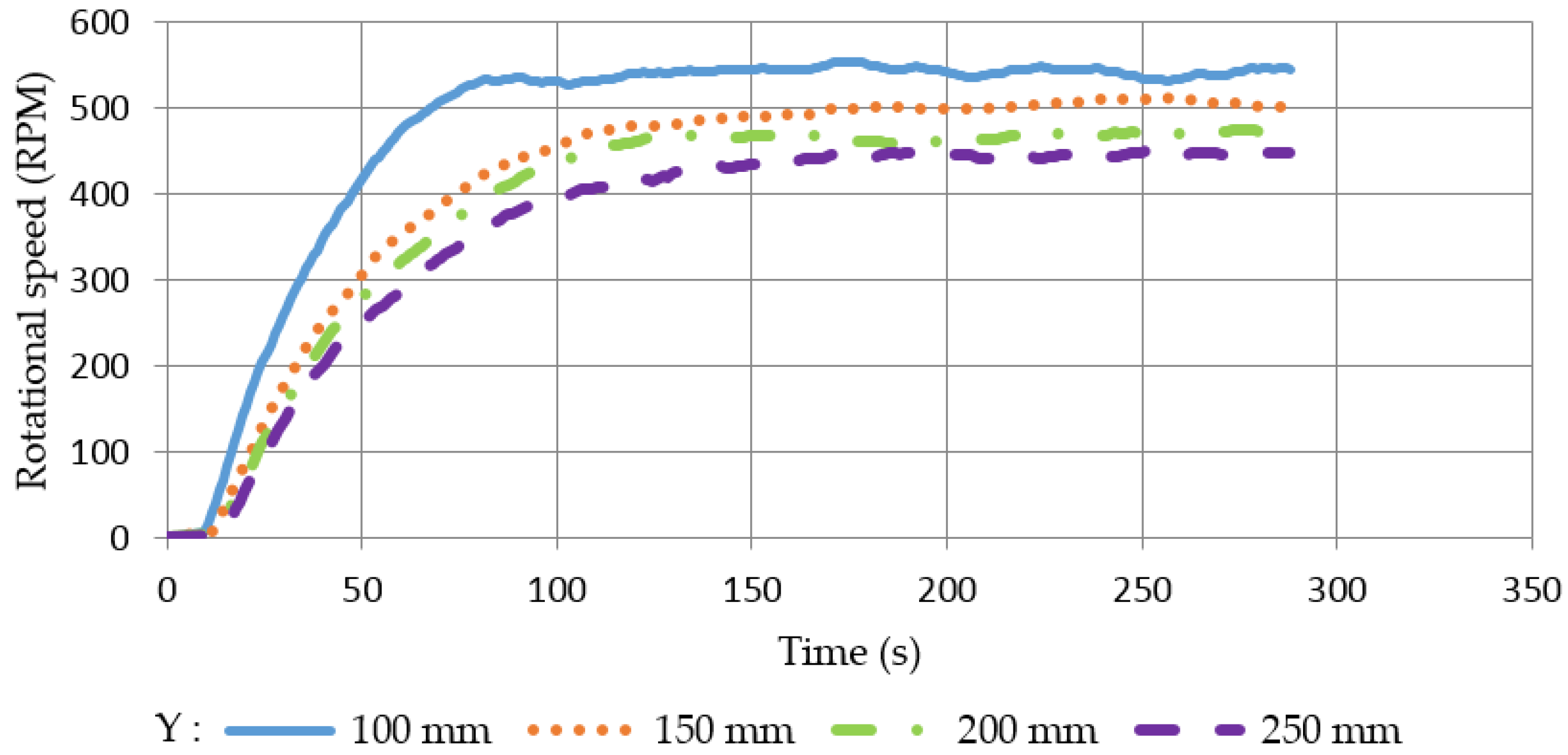

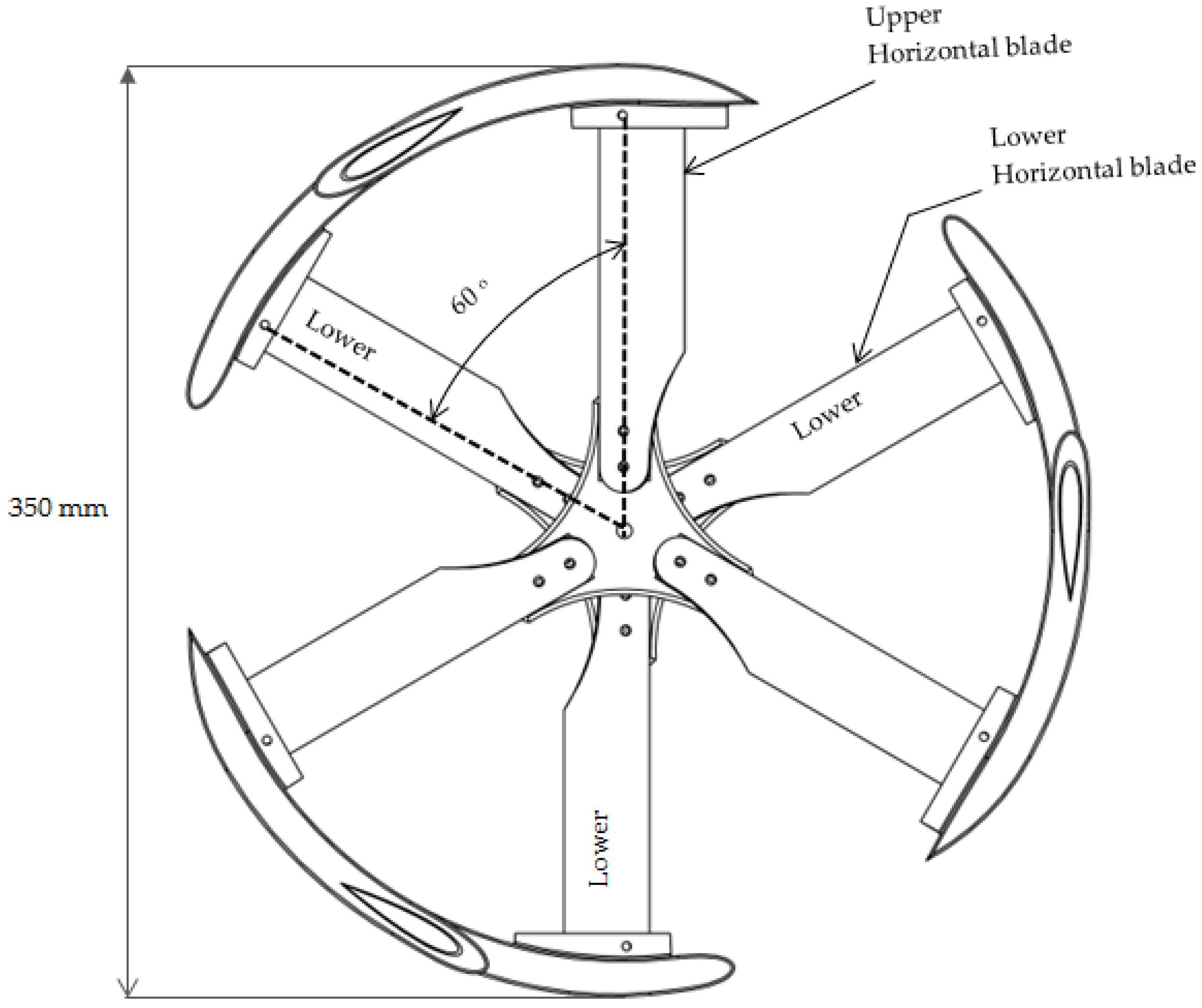

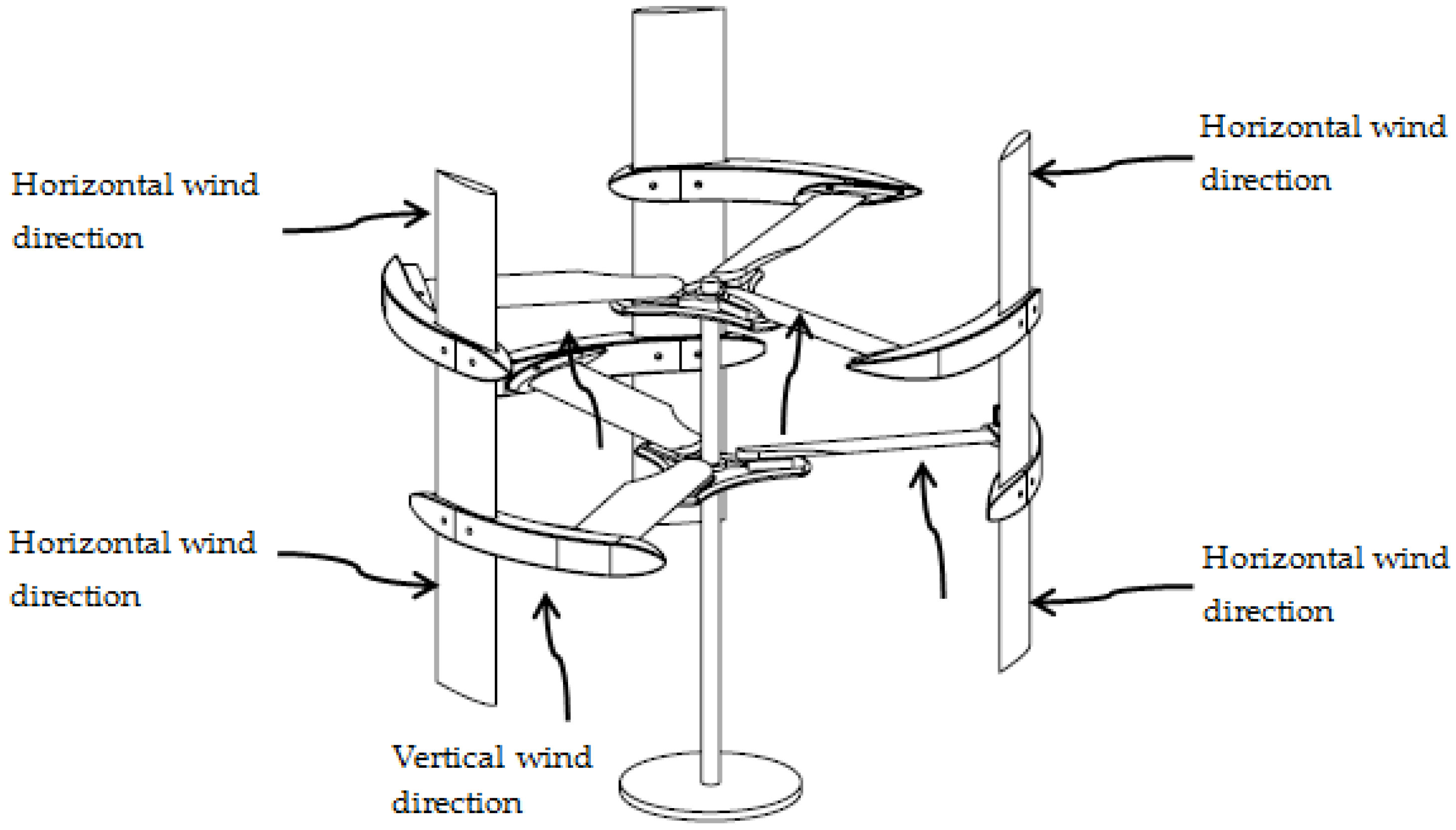

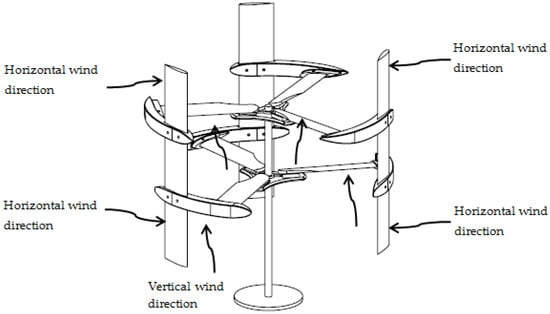

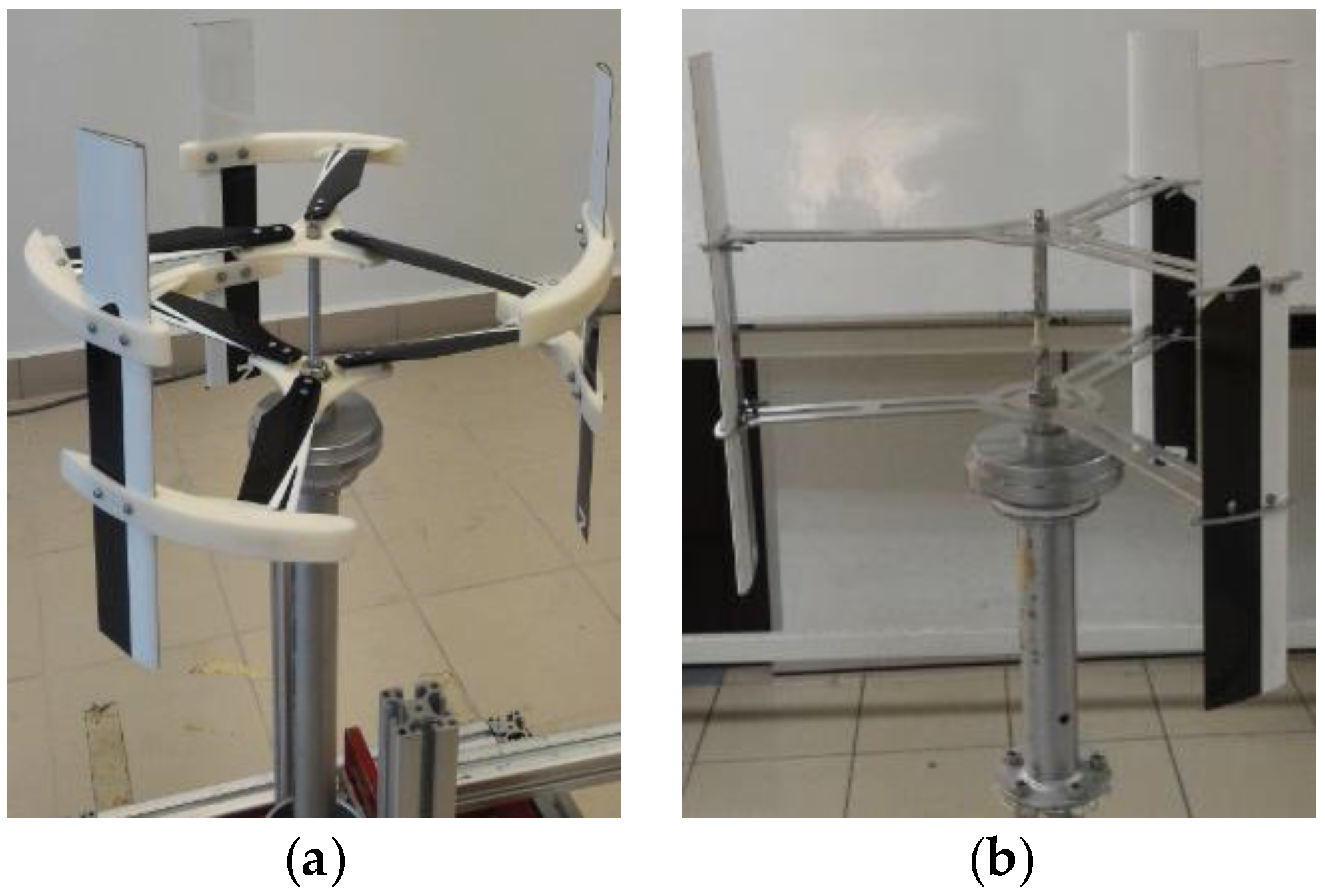

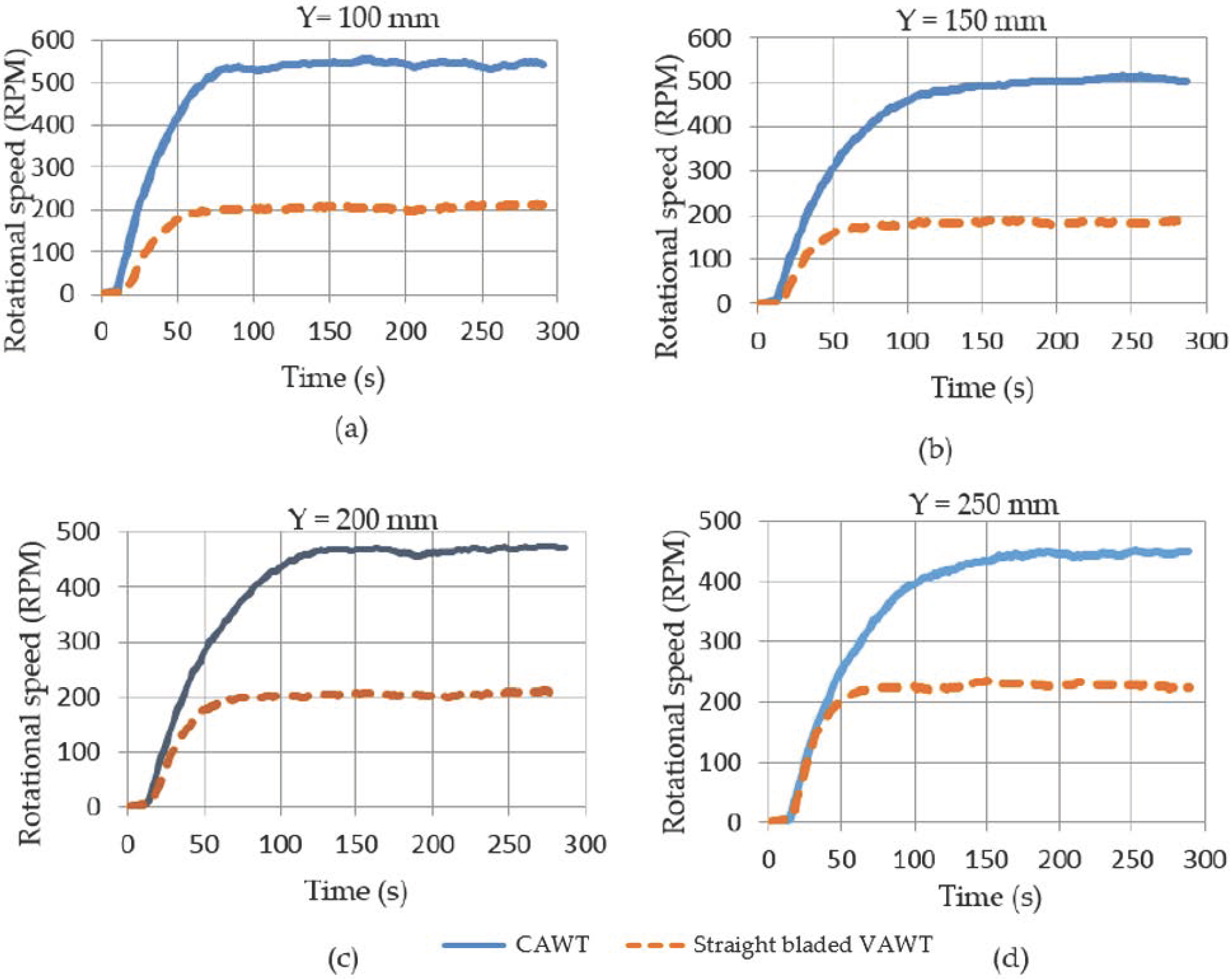

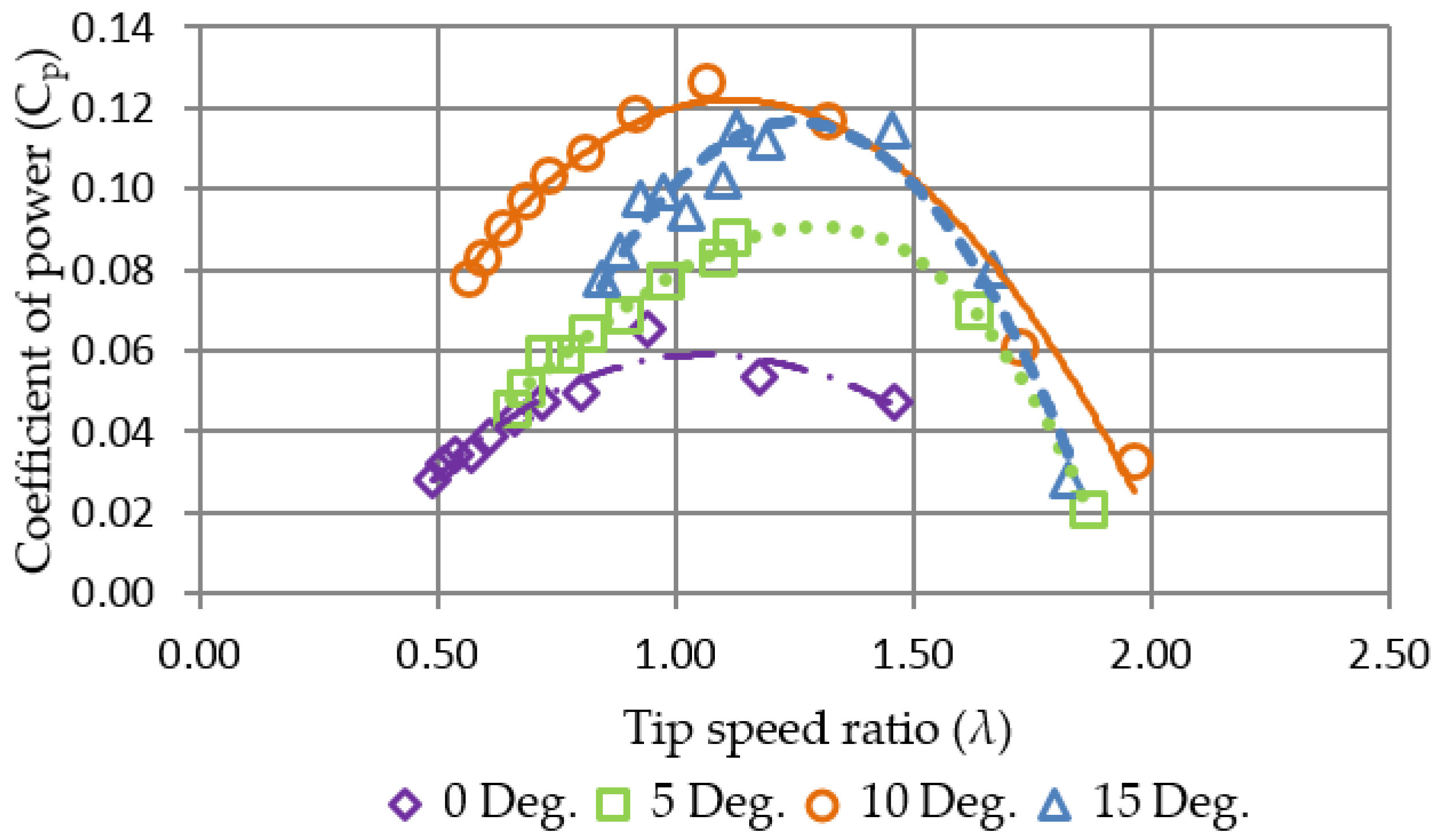

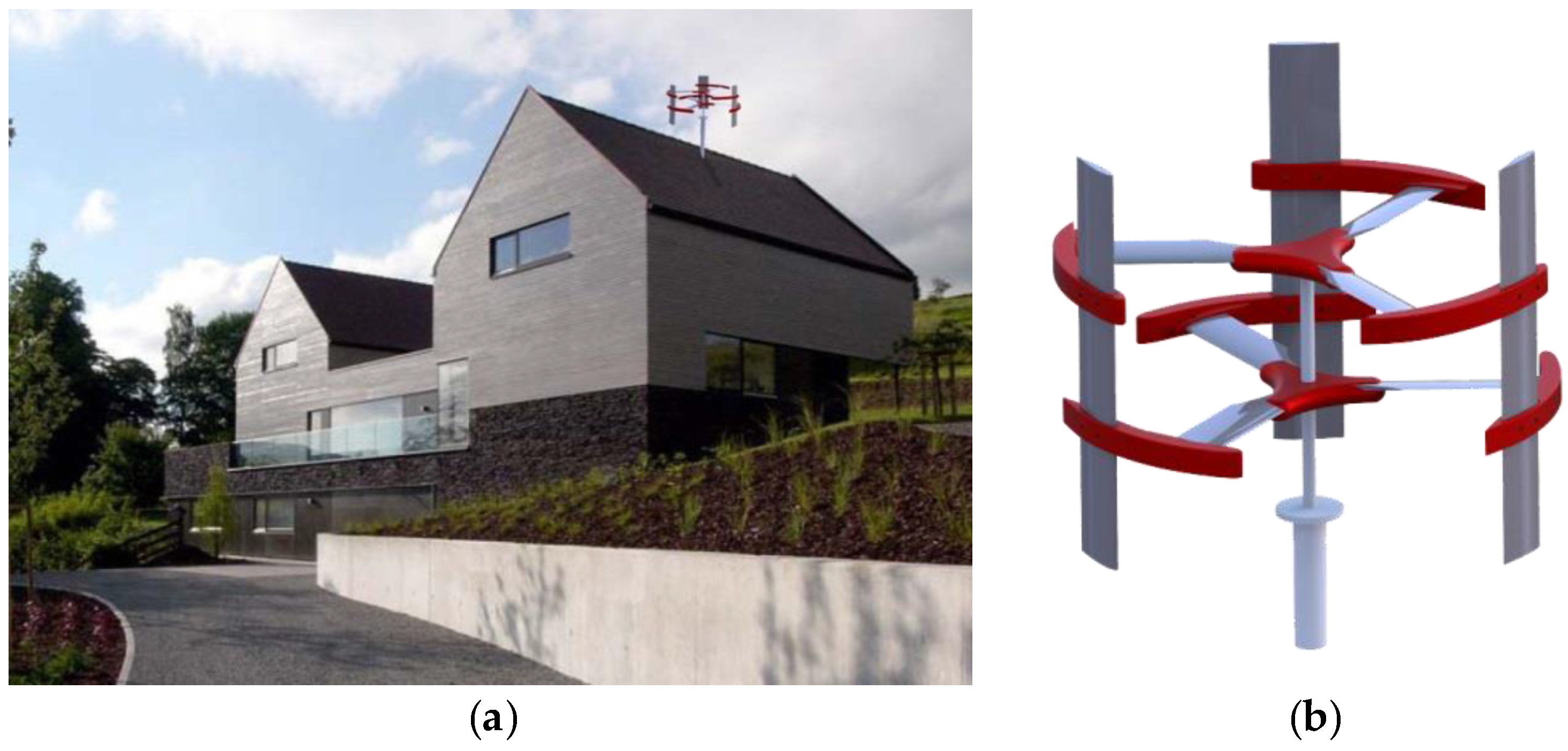

The prospect of harnessing wind energy in urban areas is not promising owing to low wind speeds and the turbulence caused by surrounding obstacles. However, these challenges can be overcome through an improved design of wind turbine that can operate efficiently in an urban environment. This paper presents a novel design of a building integrated cross axis wind turbine (CAWT) that can operate under dual wind direction, i.e., horizontal wind and vertical wind from the bottom of the turbine. The CAWT consists of six horizontal blades and three vertical blades for enhancing its self-starting behavior and overall performance. The study employed a mock-up building model with gable rooftop where both of the developed CAWT and the conventional straight-bladed vertical axis wind turbine (VAWT) are mounted and tested on the rooftop. The height of the CAWT and the VAWT above the rooftop was varied from 100 to 250 mm under the same experimental conditions. The results obtained from the experimental study showed that there is significant improvement in the coefficient of power (Cp) and self-starting behavior of the building integrated CAWT compared to the straight-bladed VAWT. At 100 mm height, the Cp,max value of the CAWT increased by 266%, i.e., from 0.0345 to 0.1263, at tip speed ratio (TSR) (λ) of 1.1 and at wind speed of 4.5 m/s. Similar improvements in performance are also observed for all condition of CAWT heights above the rooftop where the CAWT outperformed the straight-bladed VAWT by 196%, 136% and 71% at TSR of 1.16, 1.08, and 1.12 for Y = 150, 200, and 250 mm, respectively. Moreover, the CAWT performs better at 10° pitch angle of the horizontal blade compared to other pitch angles. View Full-Text
Keywords: cross axis wind turbine; gable roof shape; wind energy; renewable energy; urban wind energy system; building integrated wind turbine cross axis wind turbine; gable roof shape; wind energy; renewable energy; urban wind energy system; building integrated wind turbine
