Open AccessArticle
Appl. Sci. 2017, 7(12), 1273; doi:10.3390/app7121273

A Performance Test and Internal Flow Field Simulation of a Vortex Pump

1
,
1,* , 2
,
1
,
3,4,5,* , 3,4,5
and
3,4,5
1
School of Automation and Electrical Engineering/ School of Mechanical & Automotive Engineering, Zhejiang University of Science and Technology, Hangzhou 310023, China
2
College of Energy and Power Engineering, Lanzhou University of Technology, Lanzhou 730050, China
3
College of Control Science and Engineering, Zhejiang University, Hangzhou 310027, China
4
College of Electrical Engineering, Zhejiang University, Hangzhou 310027, China
5
China Academy of West Region Development, Zhejiang University, Hangzhou 310027, China
*
Authors to whom correspondence should be addressed.
Received: 17 September 2017 / Revised: 29 November 2017 / Accepted: 1 December 2017 / Published: 7 December 2017
(This article belongs to the Special Issue Power Transmission and Control in Power and Vehicle Machineries)
View Full-Text   |   Download PDF [5302 KB, uploaded 7 December 2017]   |

Abstract

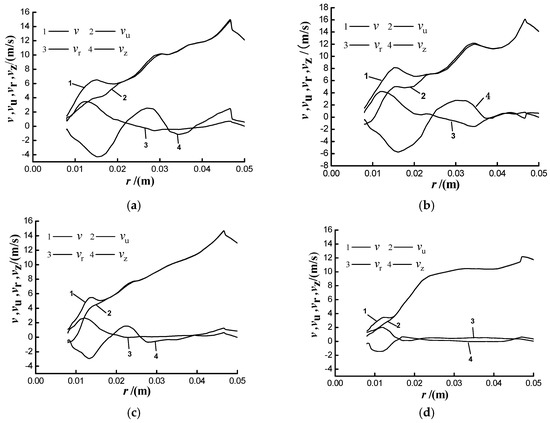

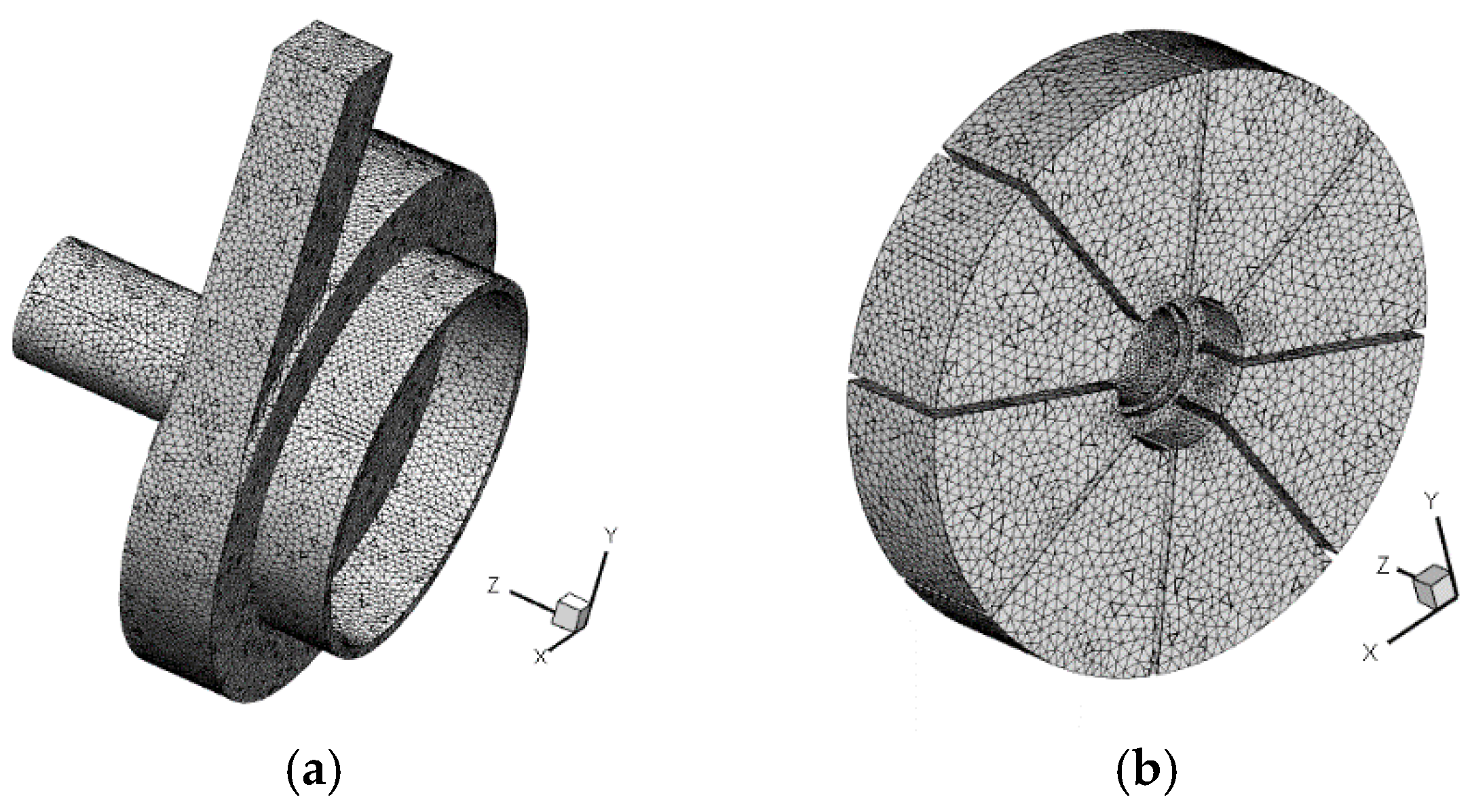

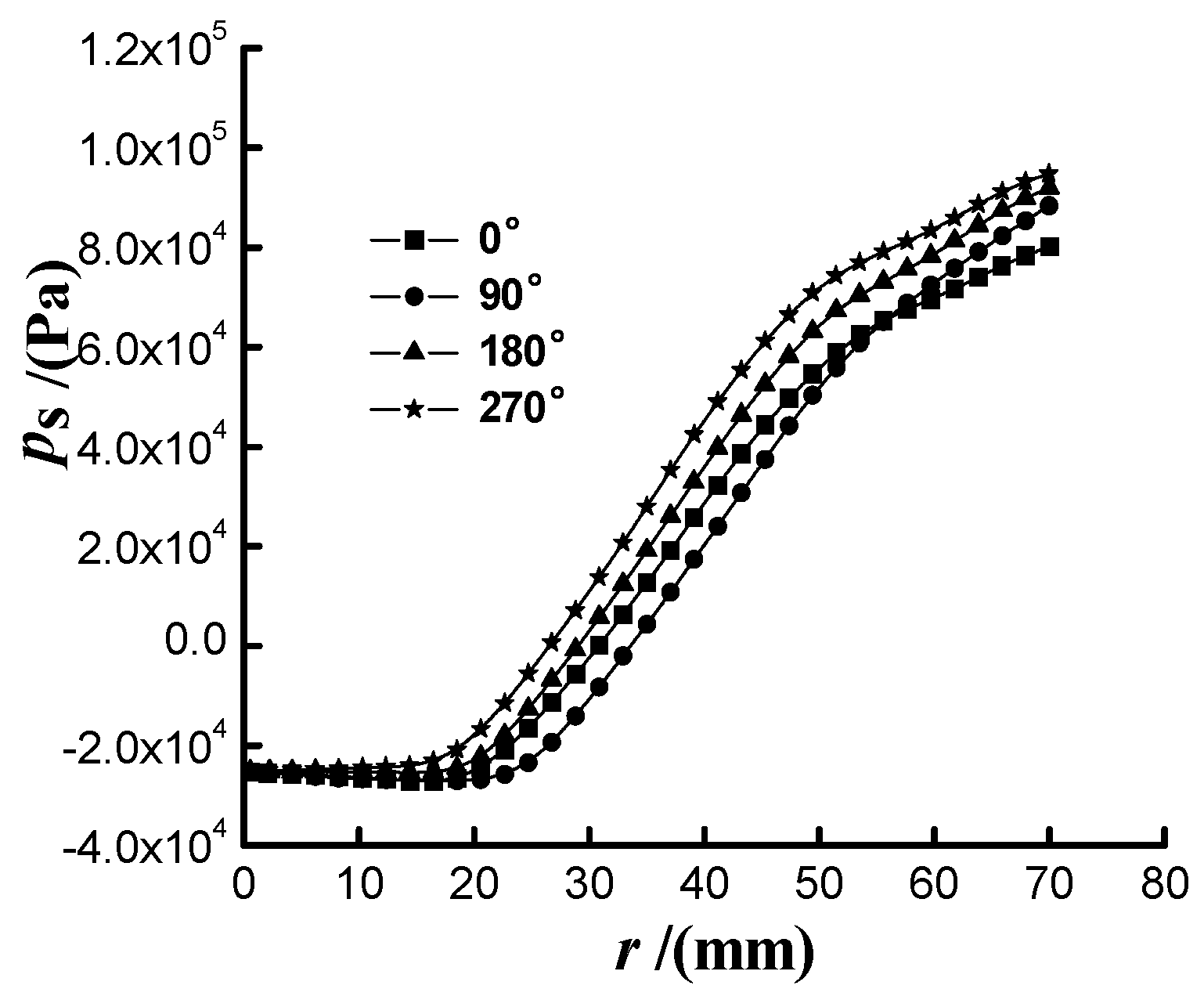

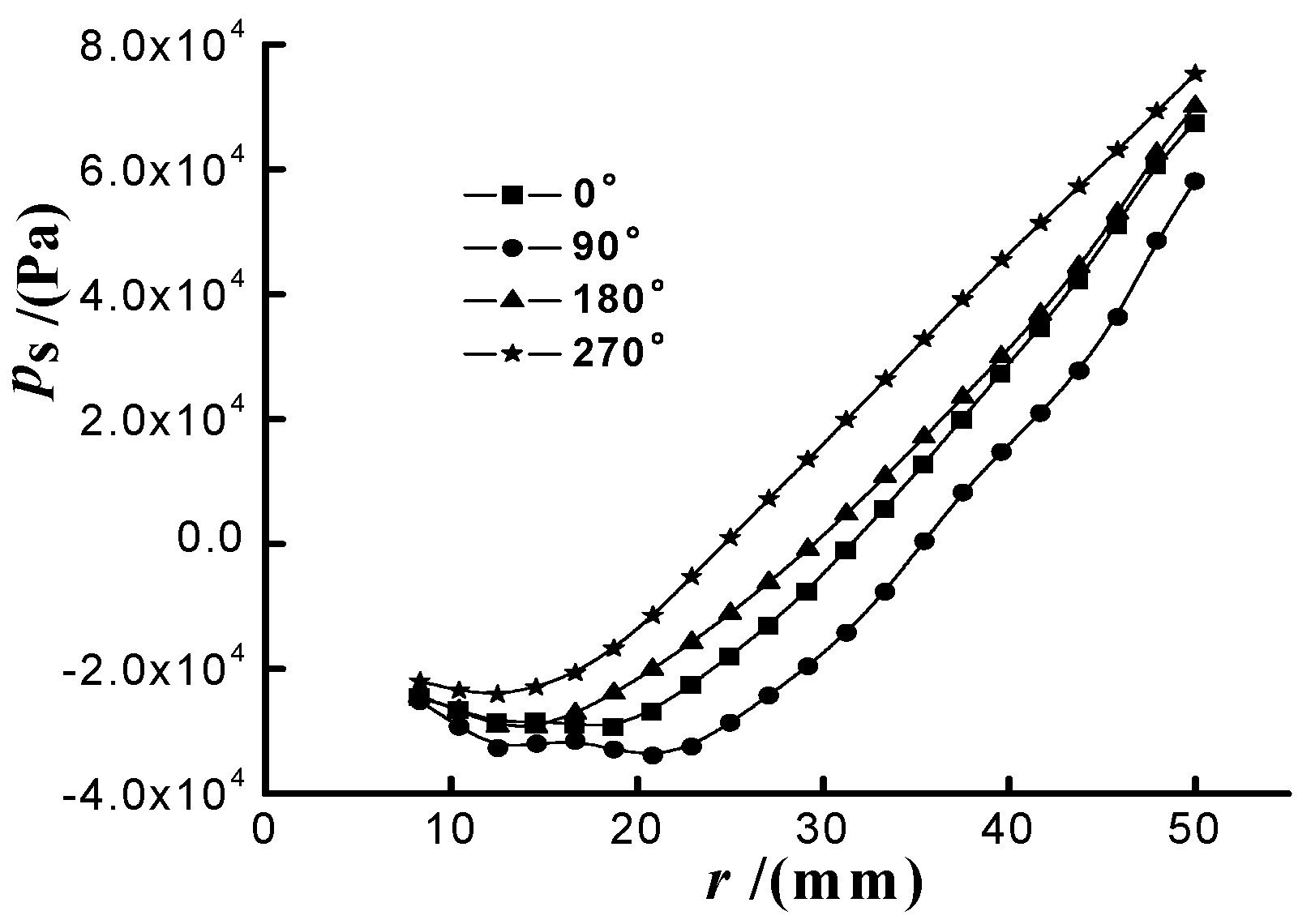

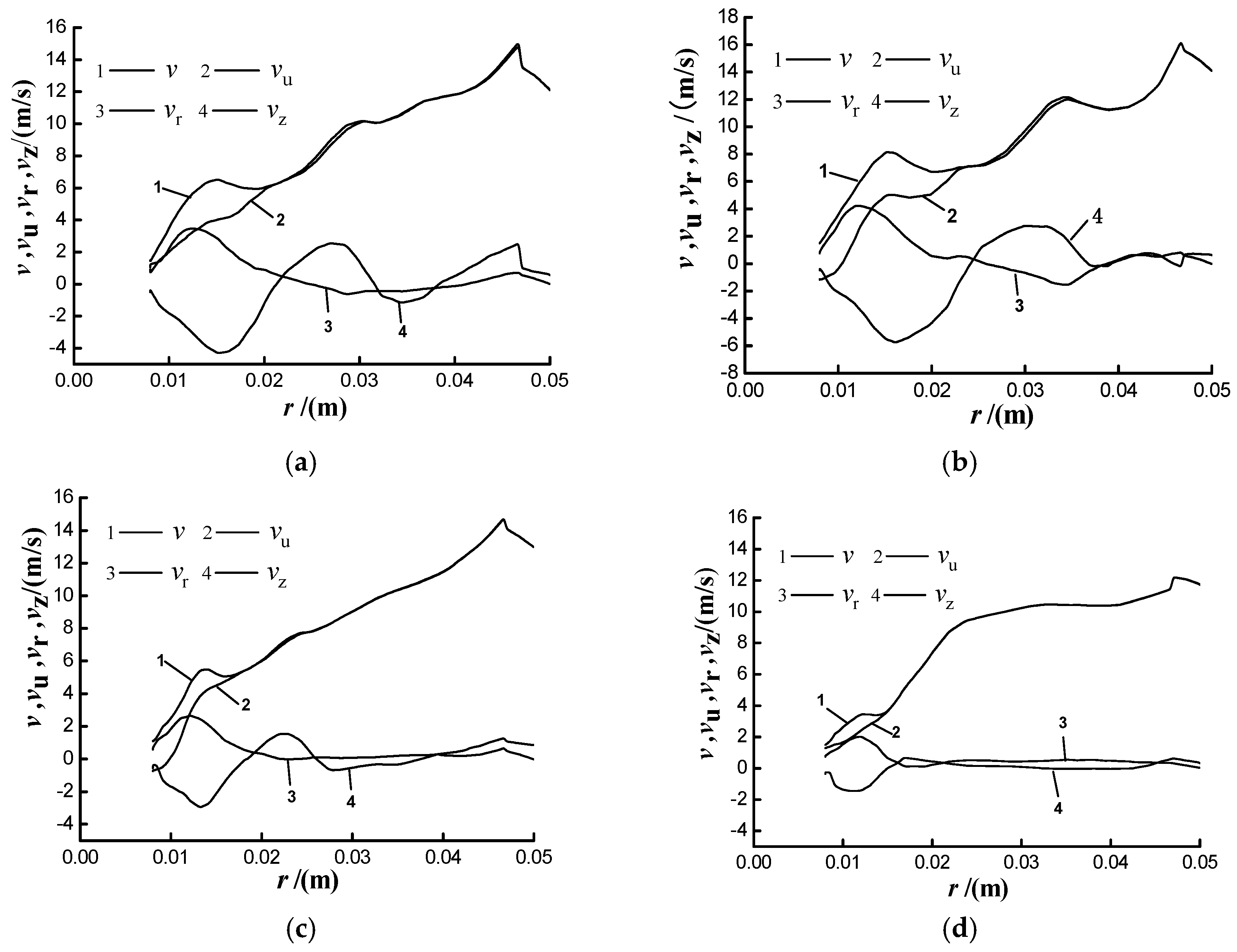

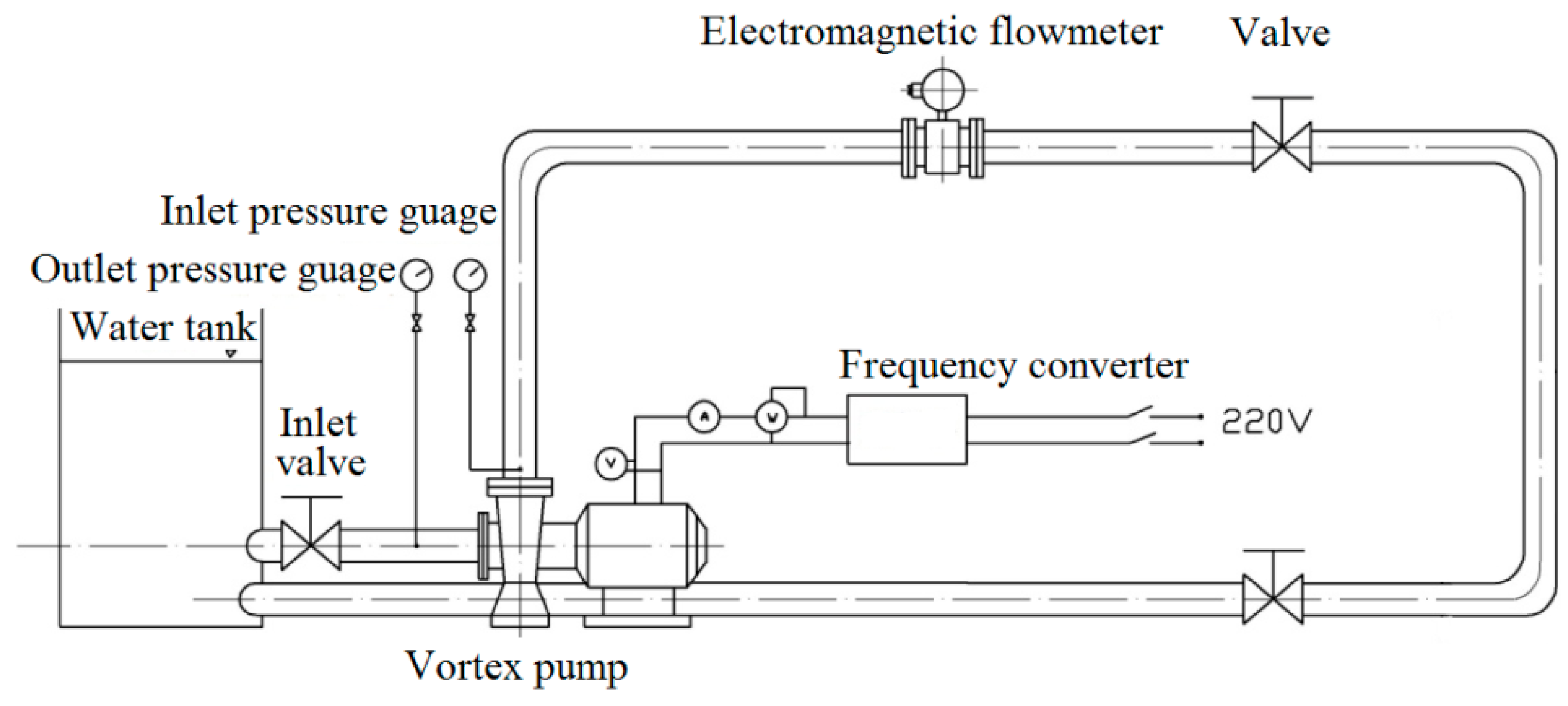

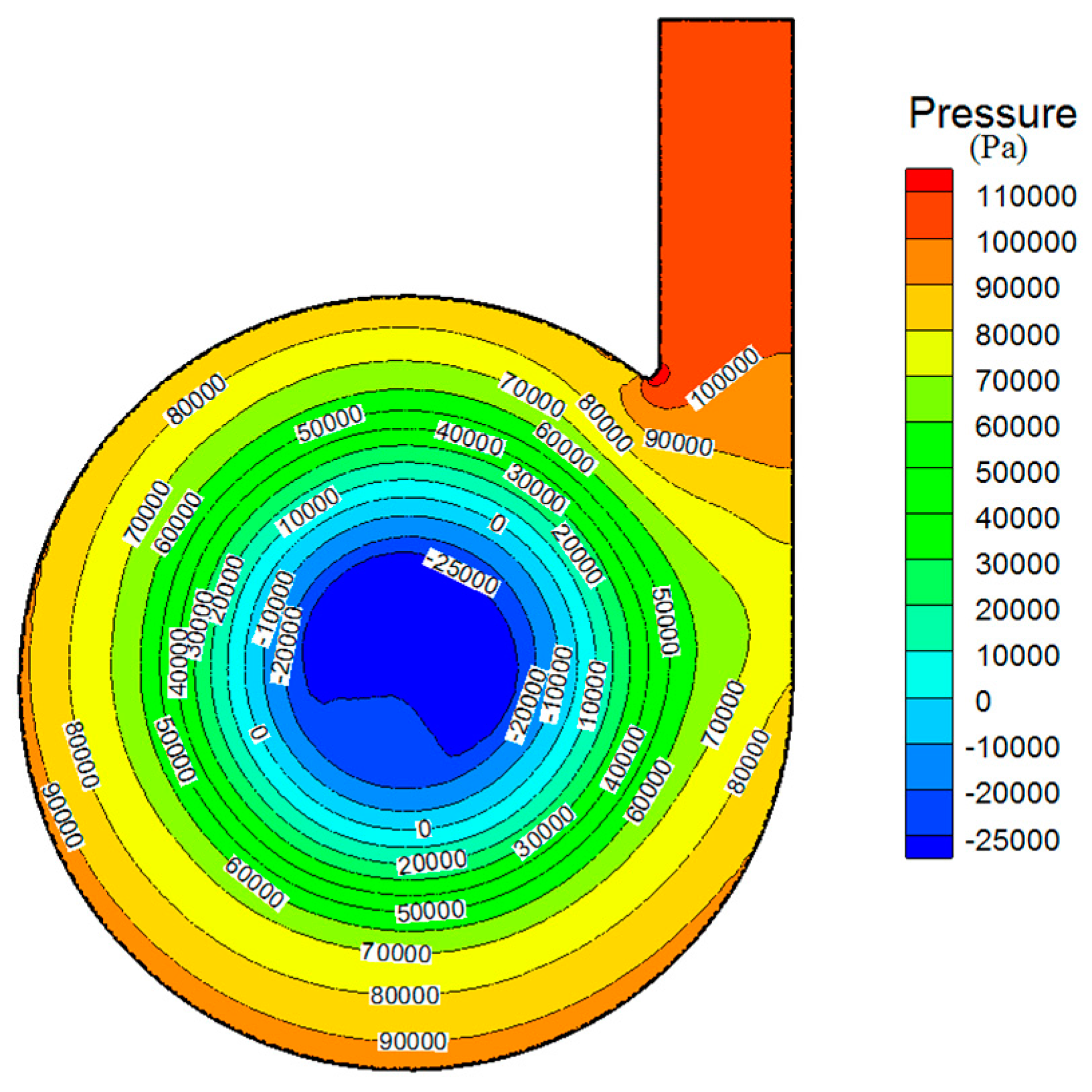

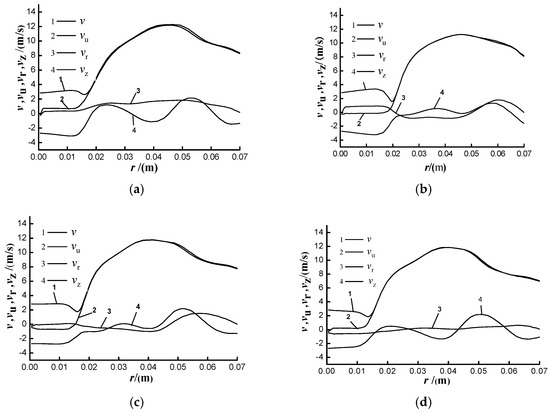

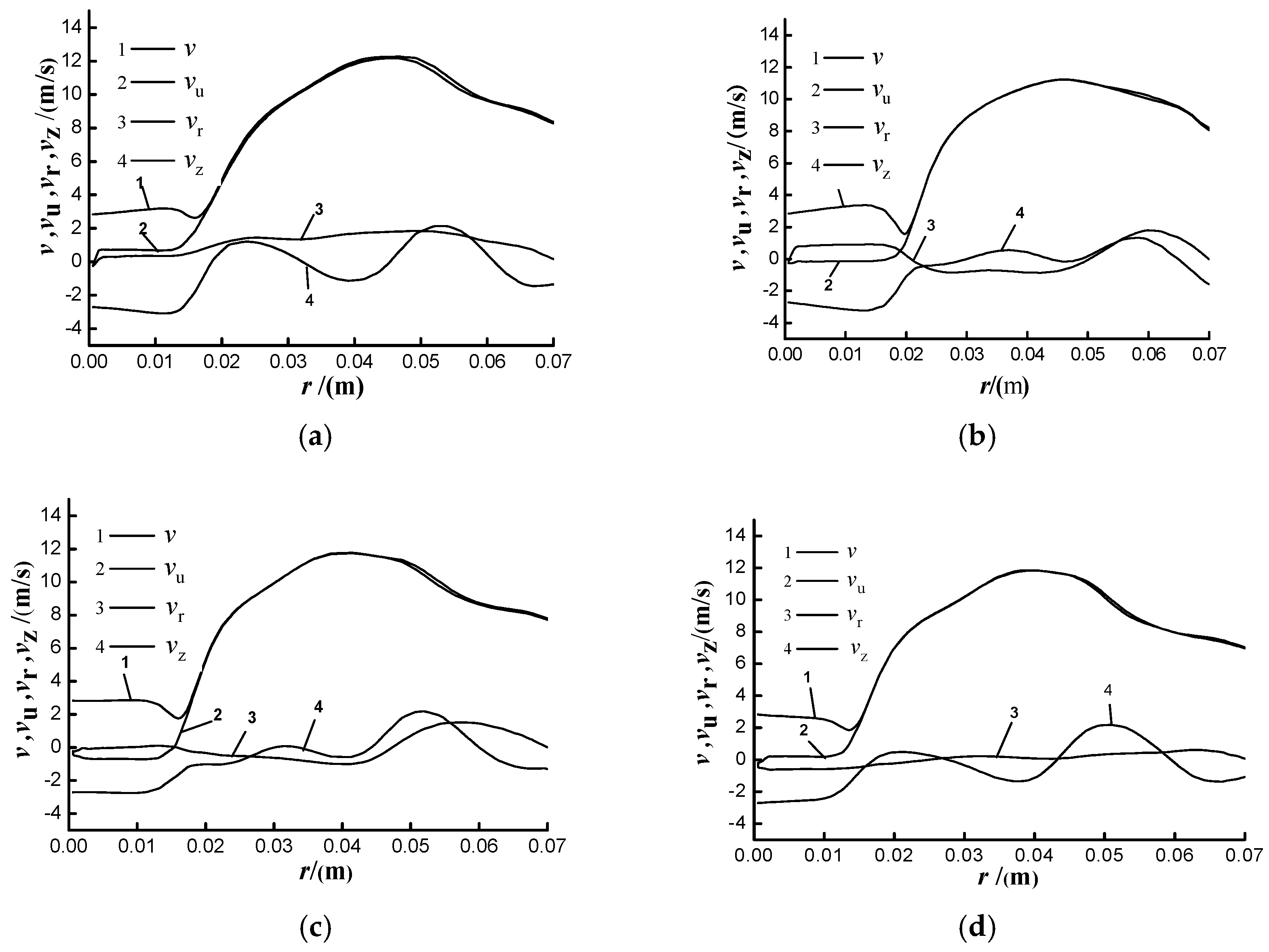

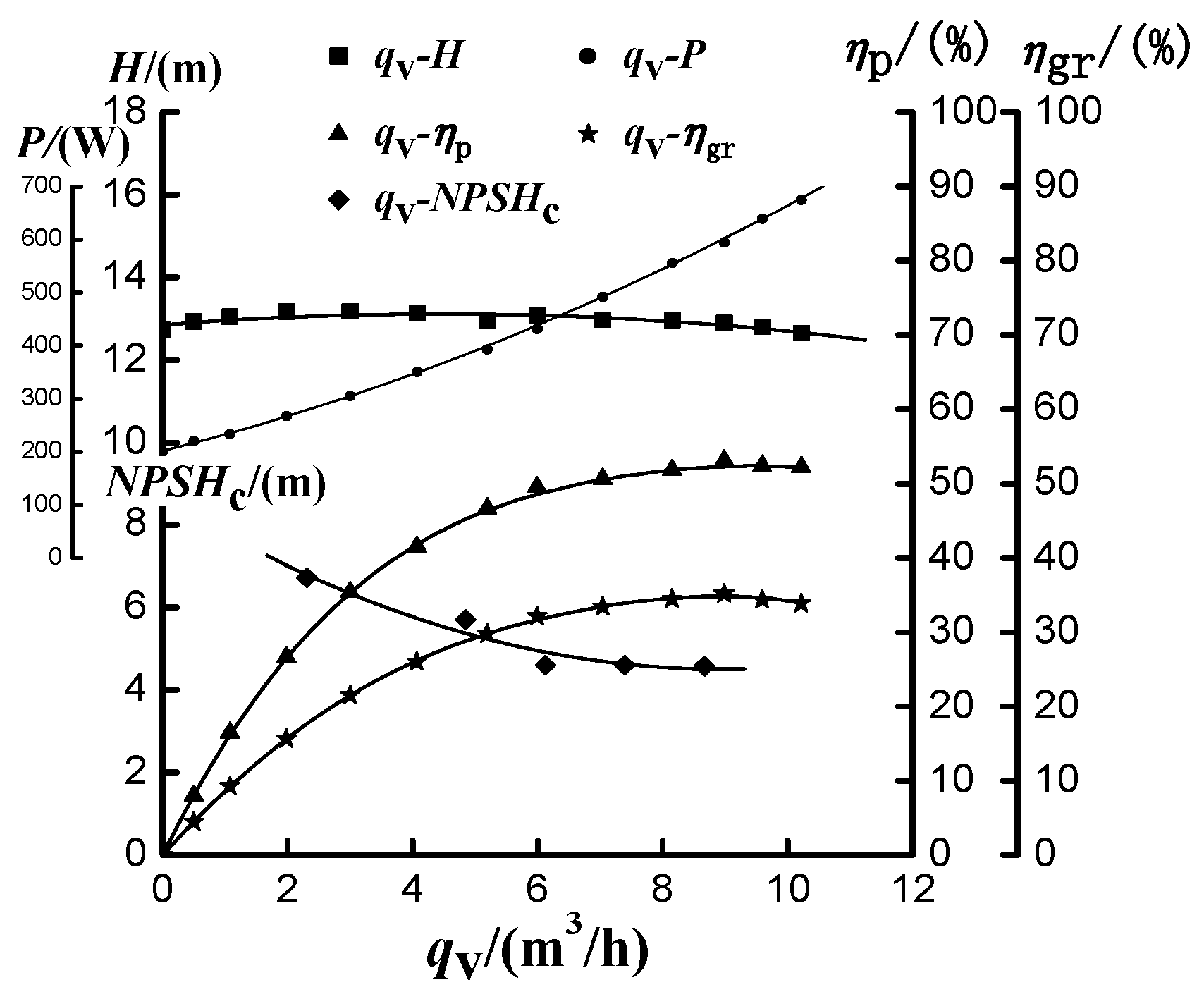

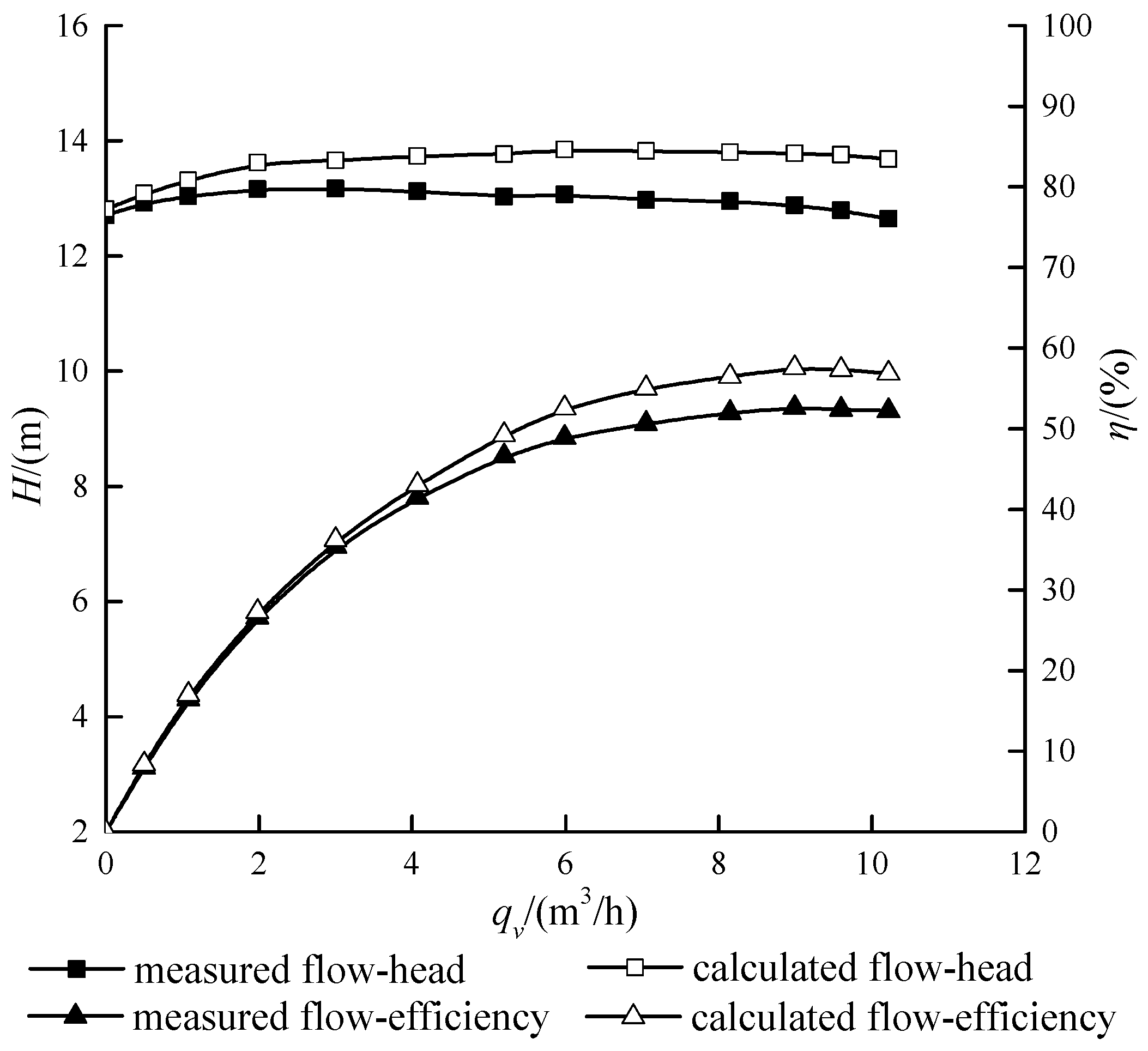

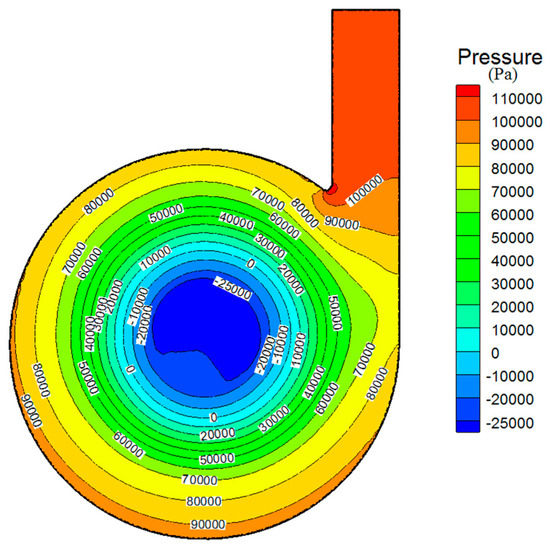

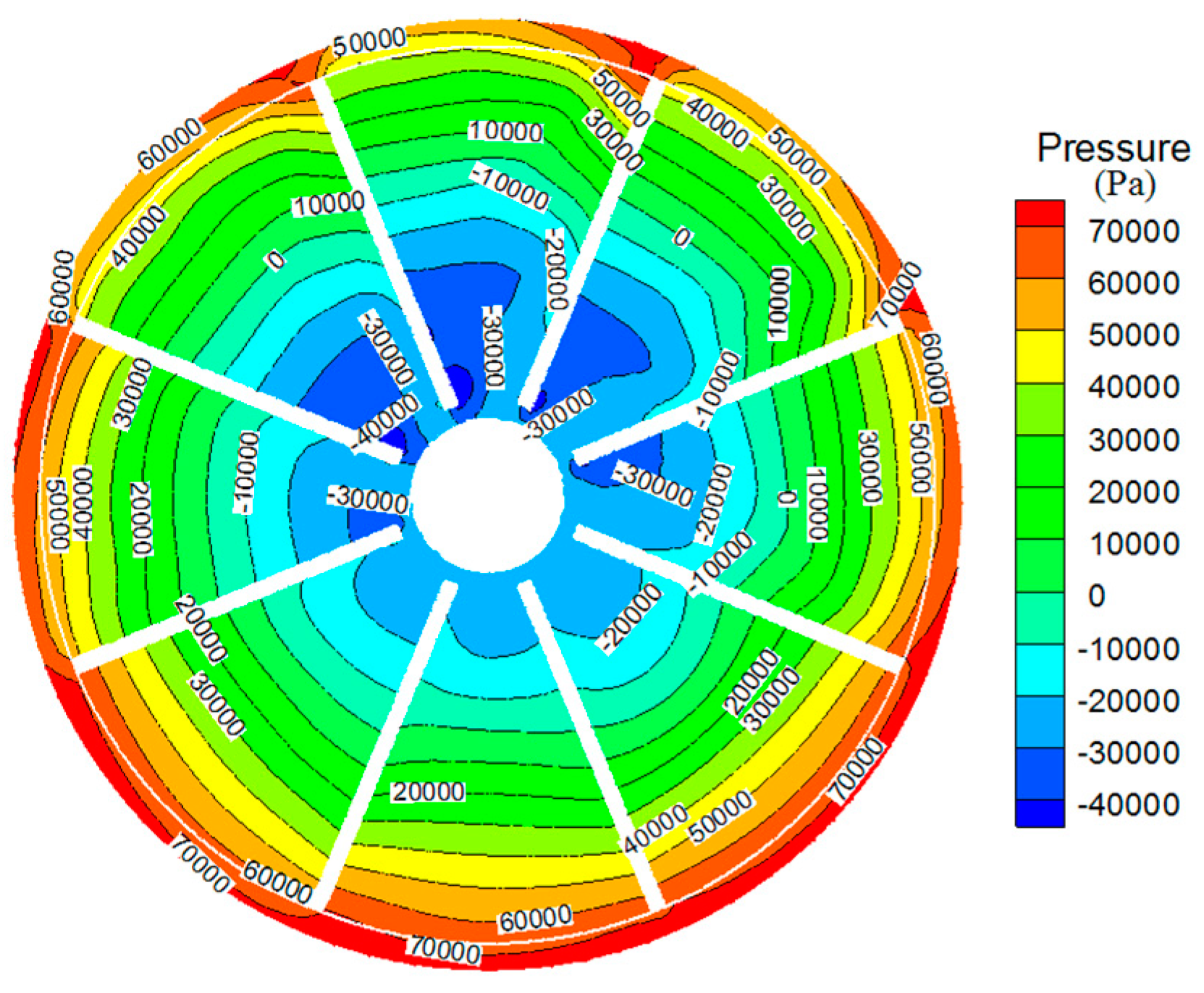

Vortex pumps have good non-clogging performance and are widely used in the fluid transportation of food, sewage treatment, and mineral and coal slurry transportation. In order to design and manufacture a vortex pump with good performance and establish a method of optimum design, we must master the internal flow rules of the pump. Based on the self-design vortex pump (32WB8-12) experiment, the discharge-pump head (qv-H), discharge-pump shaft power (qv-P), discharge-pump efficiency (qv-η), and discharge-critical net positive suction head (qv-NPSHc) curves are obtained, and the qv-NPSHc curve shows an opposite tendency compared with the centrifugal pump. With the mathematical model selected with respect to the optimal condition, the three-dimensional internal flow within the vortex pump has been numerically simulated by a renormalization group k-ε (RNG k-ε) turbulence model. The static pressure (ps) and velocity distribution of the impeller and the middle section of the volute at 0°, 90°, 180°, and 270° are obtained, and the performance curves have been fitted using a CFX-calculated energy parameter. It was illustrated that the velocity field is relatively disordered and the flow in the impeller region is of a forced vortex character. The flow in the volute is similar to that of the combined vortex with backflow, which is a non-axisymmetric unsteady flow with quite high turbulence intensity. These factors are the main reasons for the relatively low efficiency of the vortex pump. The measurement of flow field in volute with a five-hole probe was conducted, and it is demonstrated that the numerical results are in good agreement with the flow field measurement data. An upward pressure gradient forms in the portal area of the impeller, and it is confirmed that the lowest pressure point is located in the upper position of the impeller hub. It is revealed that for the vortex pump to have advanced suction and anti-cavitation performance, the lowest pressure in the pump should be −4 × 104 Pa and it should be located at the center of the vortex chamber cavity. View Full-Text

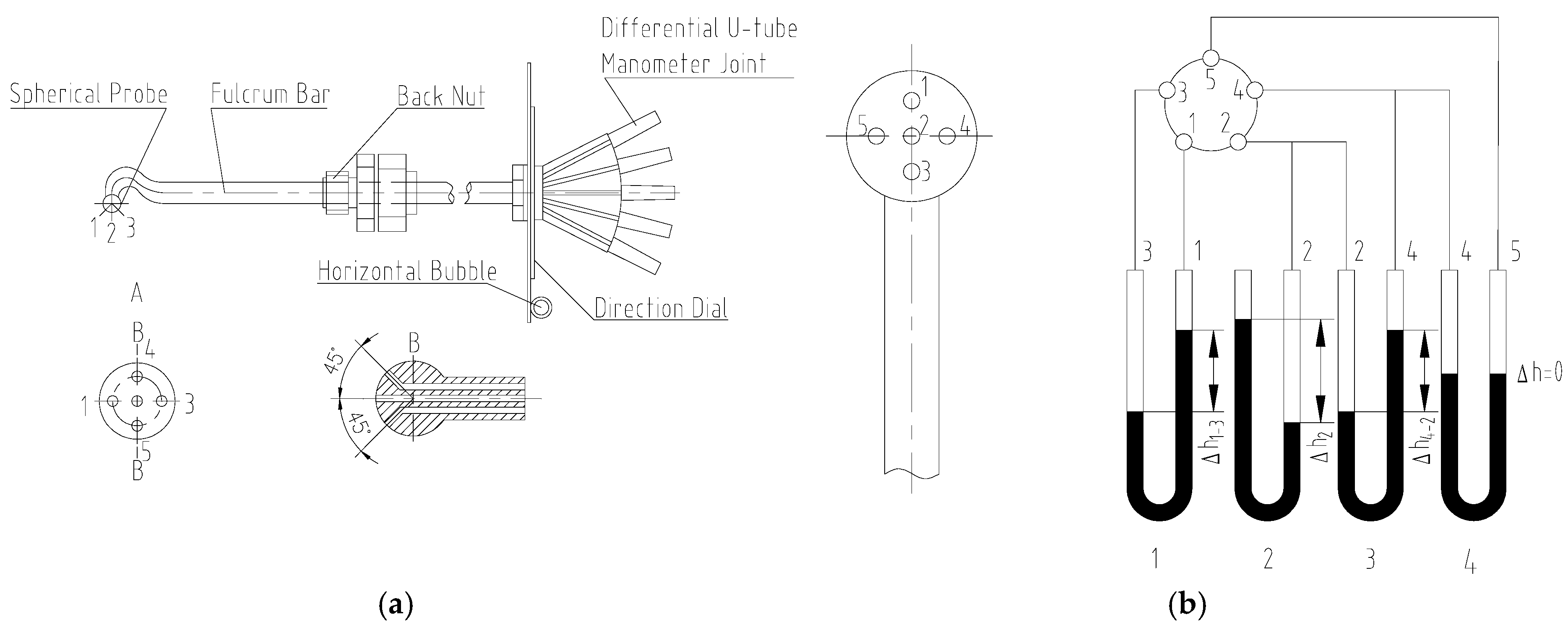

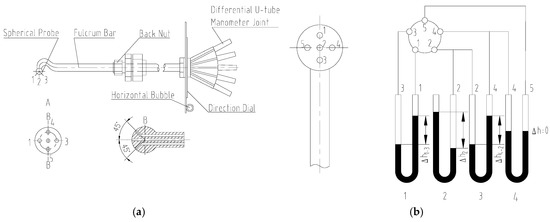

Keywords: vortex pump; computational fluid dynamics (CFD); five-hole spherical probe; NPSH vortex pump; computational fluid dynamics (CFD); five-hole spherical probe; NPSH

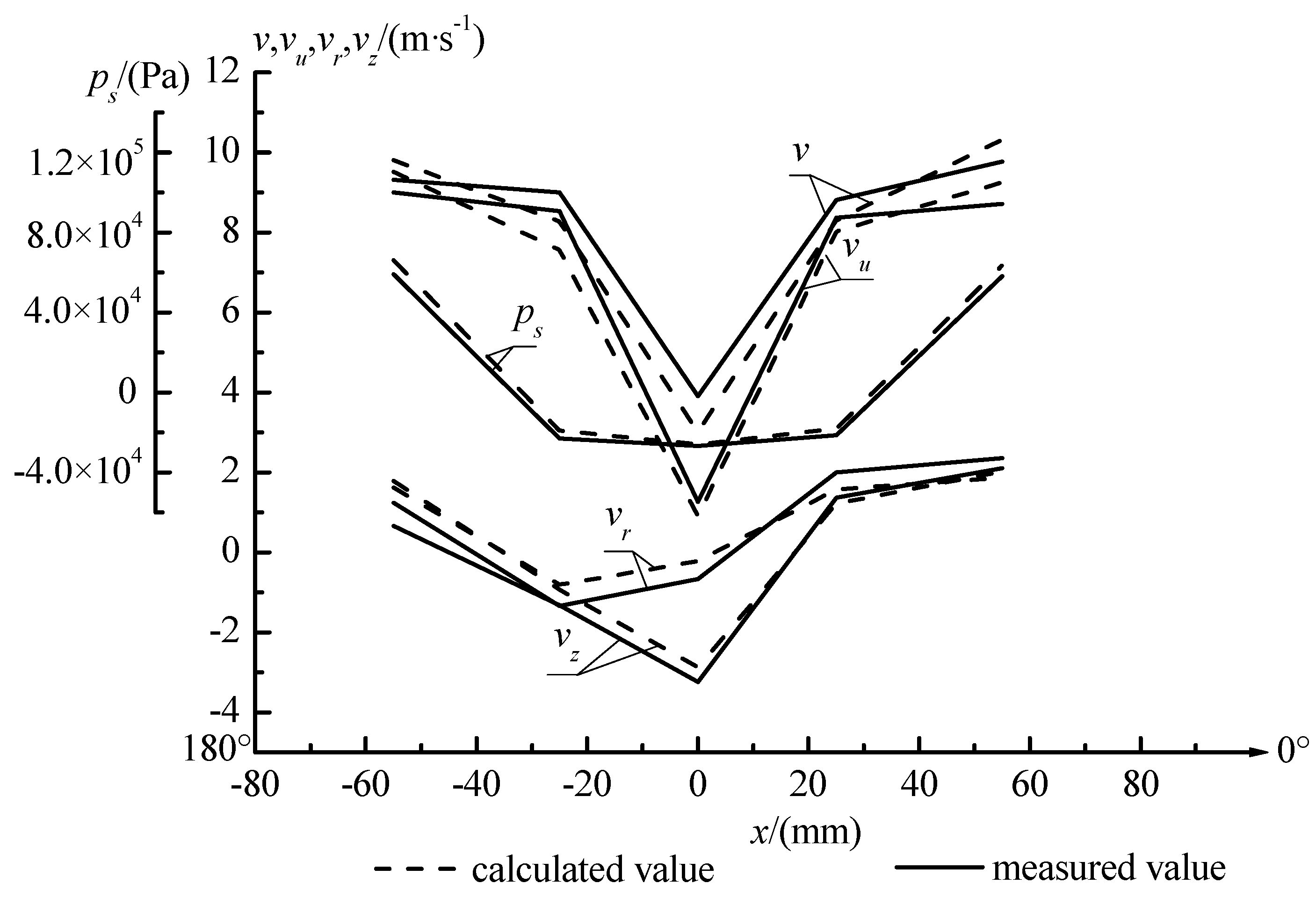

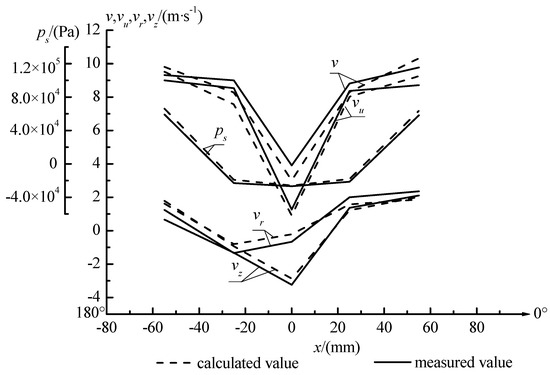

Figures

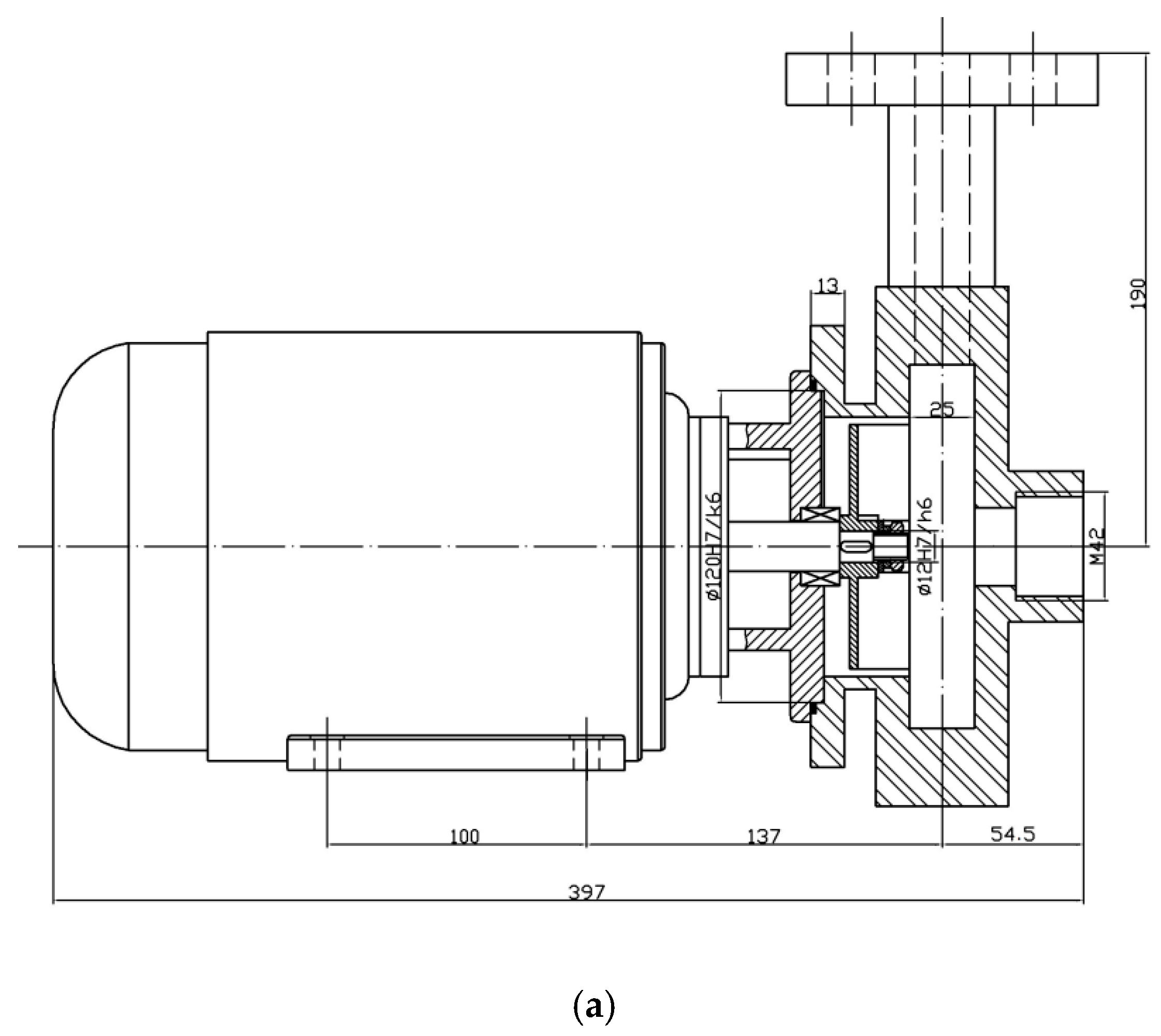

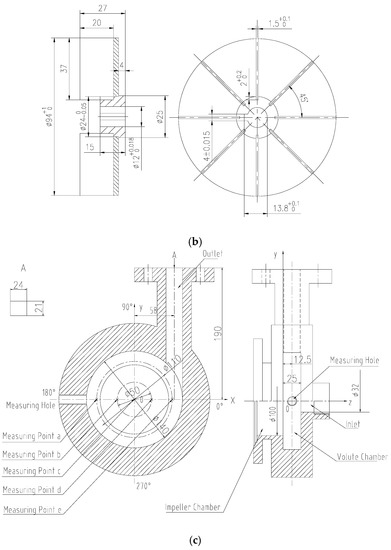

Figure 1a

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Tan, P.; Sha, Y.; Bai, X.; Tu, D.; Ma, J.; Huang, W.; Fang, Y. A Performance Test and Internal Flow Field Simulation of a Vortex Pump. Appl. Sci. 2017, 7, 1273.
