Appl. Sci. 2017, 7(12), 1240; doi:10.3390/app7121240

A Transplantable Frequency Selective Metasurface for High-Order Harmonic Suppression

Key Laboratory of High Speed Circuit Design and EMC of Ministry of Education, School of Electronic Engineering, Collaborative Innovation Center of Information Sensing and Understanding, Xidian University, Xi’an 710071, China
Authors to whom correspondence should be addressed.
Received: 5 November 2017 / Revised: 17 November 2017 / Accepted: 23 November 2017 / Published: 1 December 2017
(This article belongs to the Special Issue Metasurfaces: Physics and Applications)
View Full-Text   |   Download PDF [6451 KB, uploaded 1 December 2017]   |

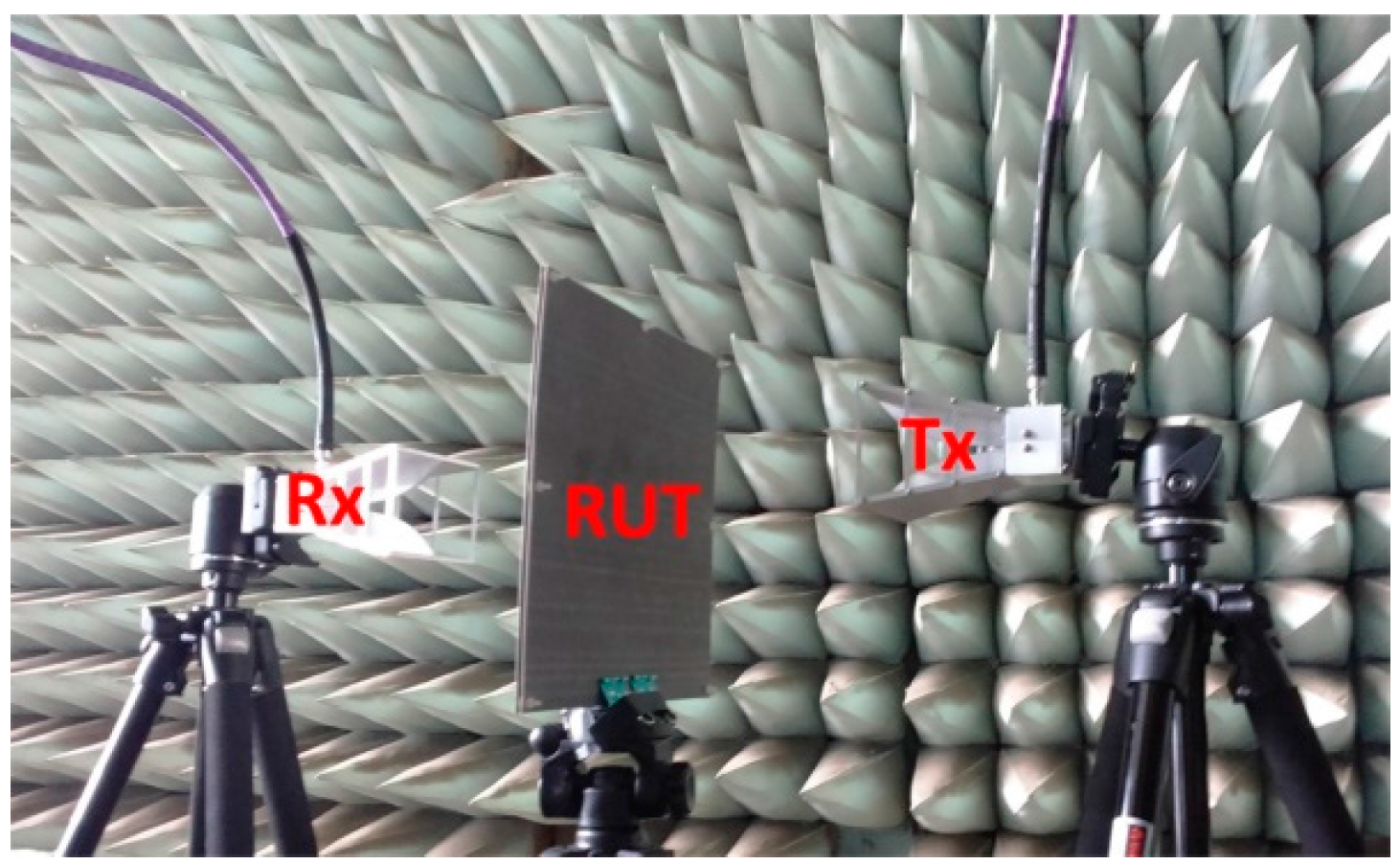

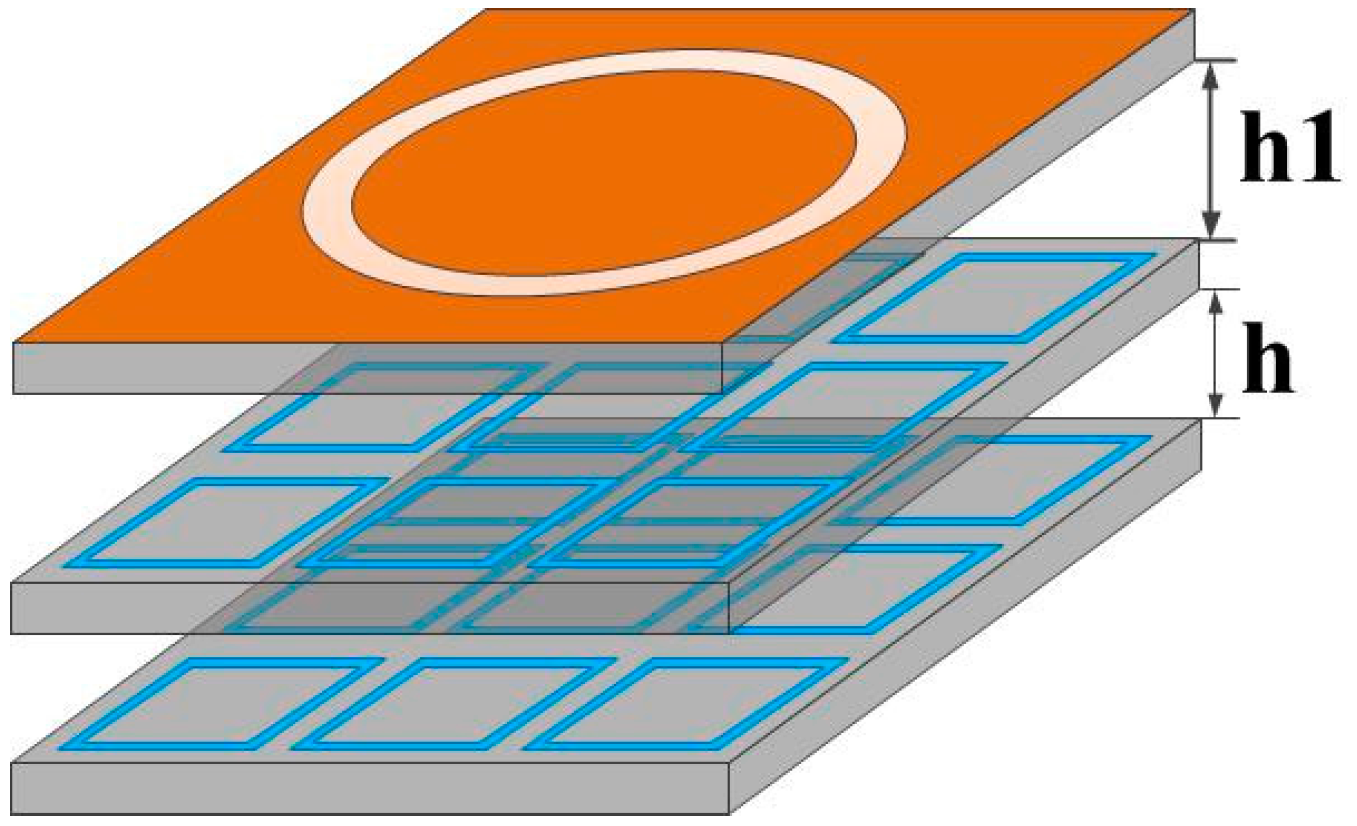

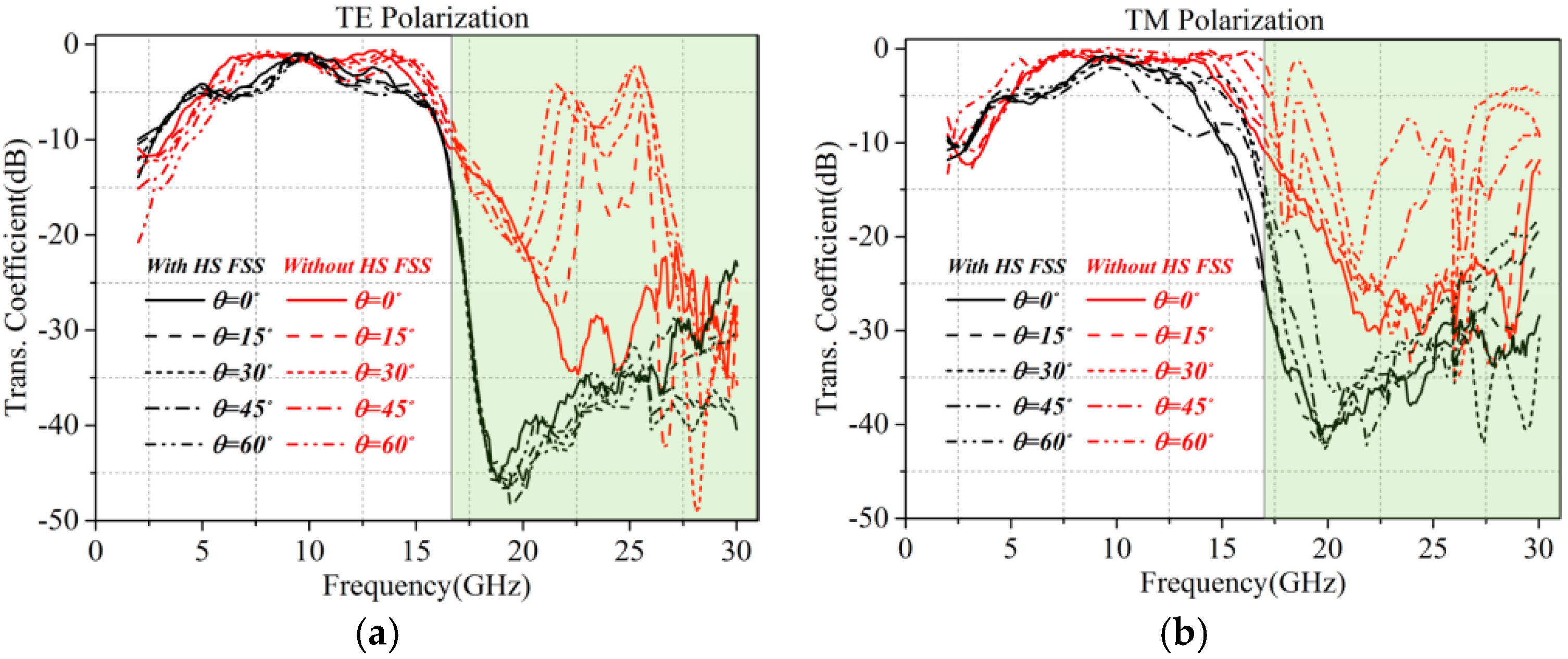

A transplantable frequency selective metasurface element (FSMSE) for high-order harmonic suppression (HS) is presented in this paper. The proposed harmonic free FSMSE can be integrated with arbitrary frequency selective surfaces (FSSs) operating at the same frequency band. The designed HS-FSMSE is applied to two different types of FSSs for verification of harmonic suppression, respectively. One is a multilayer sub-wavelength patch-grid FSS that has weak resonant behavior, and the other is a complementary resonant loop FSS which has strong resonant behavior, especially for high-order harmonic waves. By integrating with HS-FSMSE, the two kinds of FSSs operating at 10 GHz are free of harmonic transmission bands up to 30 GHz. The simulation and measurement results show feasibility of the harmonic suppression FSMSW and good polarization and angle stabilities. View Full-Text
Keywords: frequency selective metasurface element (FSMSE); harmonic suppression; transplantable frequency selective metasurface element (FSMSE); harmonic suppression; transplantable
