Open AccessArticle
Appl. Sci. 2016, 6(4), 90; doi:10.3390/app6040090

Simulation of a Narrowband Power Line Communications System over Medium Voltage

1
Department of Electrical Engineering and Computer Science, University of Michigan, Ann Arbor, MI 48109-2122, USA
2
School of Electrical and Computer Engineering, National Technical University of Athens, Zografou 15780, Greece
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed.
Academic Editor: Hung-Yu Wang
Received: 28 September 2015 / Revised: 10 March 2016 / Accepted: 14 March 2016 / Published: 23 March 2016
View Full-Text   |   Download PDF [847 KB, uploaded 23 March 2016]   |

Abstract

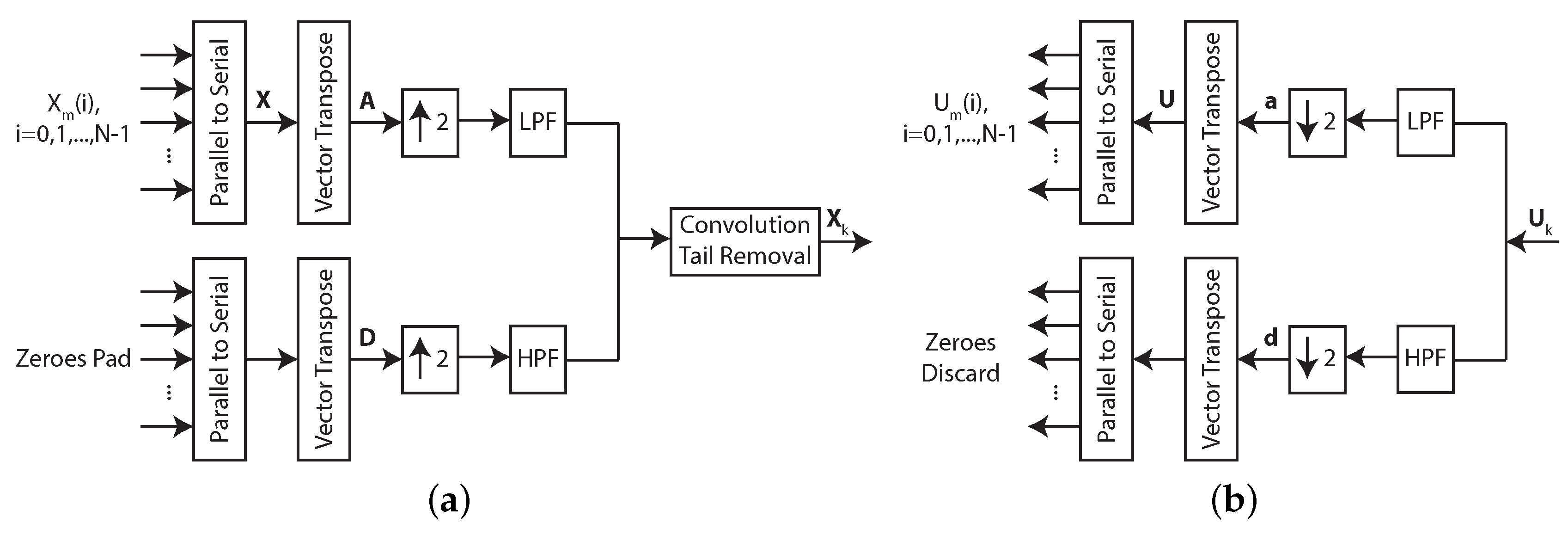

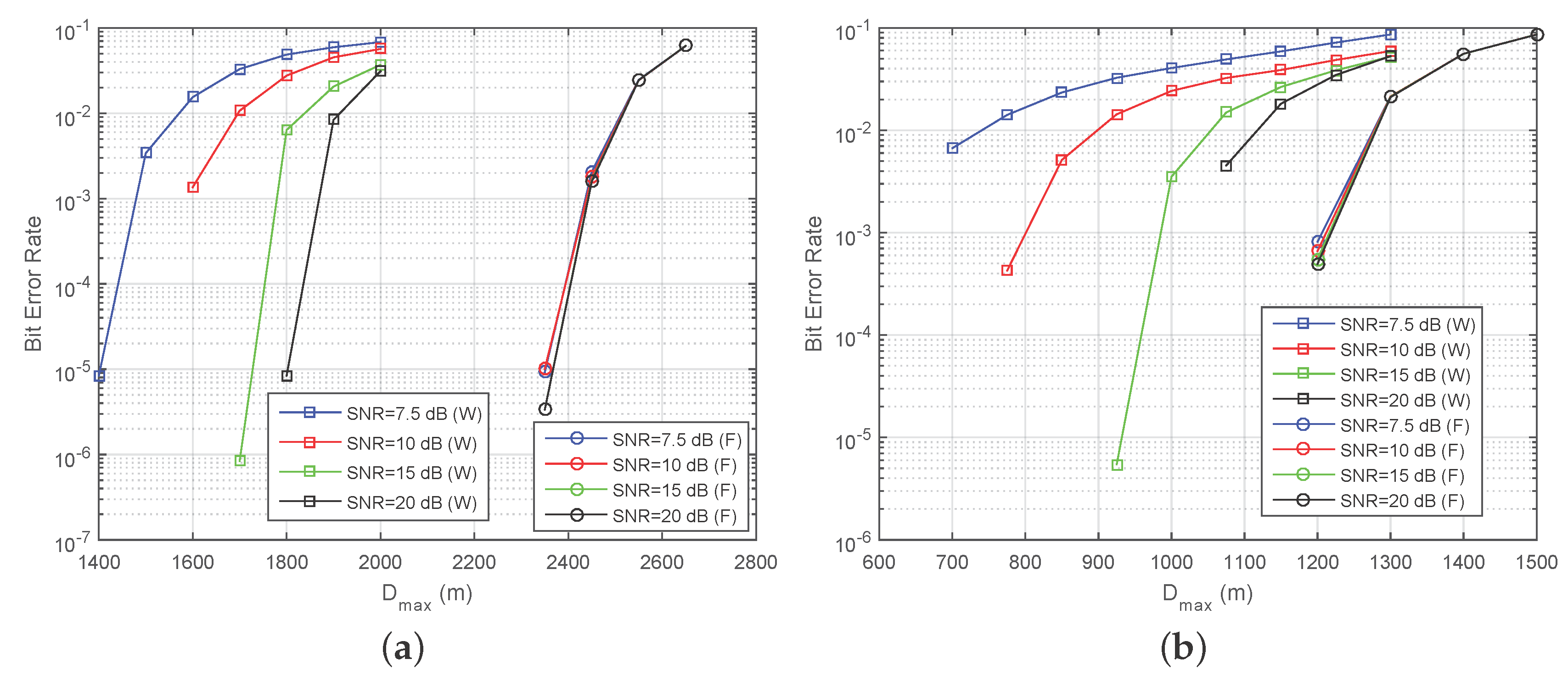

Narrowband Power Line Communications (NB-PLCs) are investigated as an alternative option for transferring low rate smart grid (SG) data via Medium Voltage (MV) power lines. In this framework, two variants of orthogonal frequency division multiplexing are examined, namely Filtered-OFDM (F-OFDM) and Wavelet-OFDM (W-OFDM), in an attempt to determine which of them is capable of transmitting low rate SG data to greater distances over non-branched MV power lines. The reach of NB-PLC signals via MV power lines is estimated, taking into account the transfer function of the relevant PLC channels and noise mechanisms as well as the specific features of the two modulation options under consideration. Simulations show that NB-PLC transmission constitutes a technically feasible and economically affordable option for exchanging low rate data with remote SG nodes dispersed over the MV grid. Moreover, simulations show that F-OFDM allows low rate data transmission to considerably greater distances compared to W-OFDM. View Full-Text
Keywords: Filtered-OFDM; medium voltage; Nakagami; power line communications; smart grid; Wavelet-OFDM Filtered-OFDM; medium voltage; Nakagami; power line communications; smart grid; Wavelet-OFDM
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Chiotellis, N.; Cottis, P.G. Simulation of a Narrowband Power Line Communications System over Medium Voltage. Appl. Sci. 2016, 6, 90.
