Open AccessArticle
Appl. Sci. 2016, 6(10), 288; doi:10.3390/app6100288

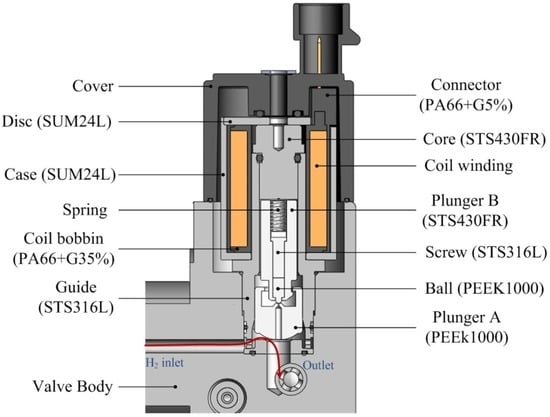

Design of a Solenoid Actuator for a Cylinder Valve in a Fuel Cell Vehicle

1
School of Mechanical Engineering, Pusan National University, 2, Busandaehak-ro 63beon gil, Geumjeong-gu, Busan 46241, Korea
2
Research Institute of Mechanical Technology, Pusan National University, 2, Busandaehak-ro 63beon gil, Geumjeong-gu, Busan 46241, Korea
*
Author to whom correspondence should be addressed.
Academic Editor: Chien-Hung Liu
Received: 26 August 2016 / Revised: 27 September 2016 / Accepted: 28 September 2016 / Published: 12 October 2016
View Full-Text   |   Download PDF [4851 KB, uploaded 12 October 2016]   |

Abstract

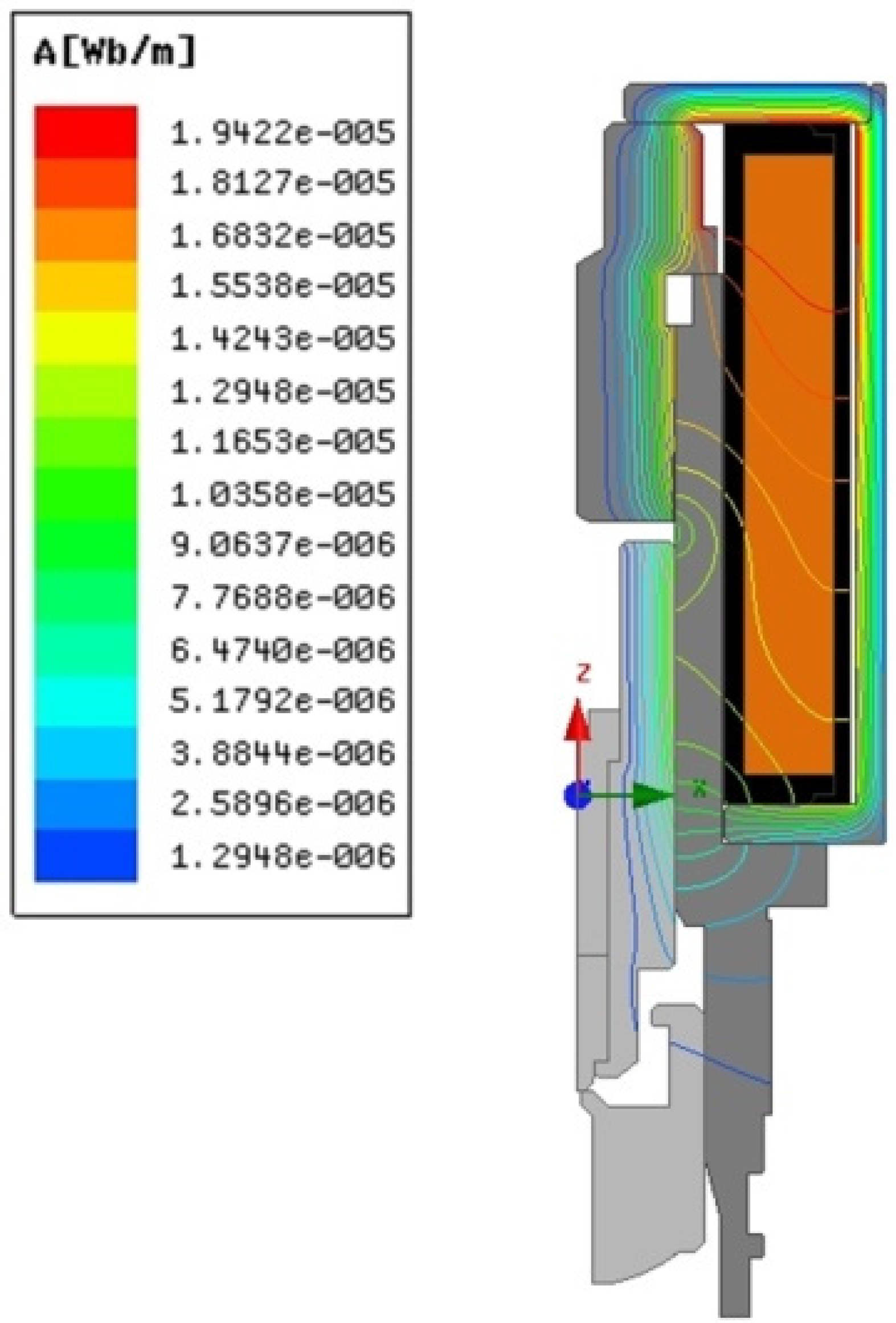

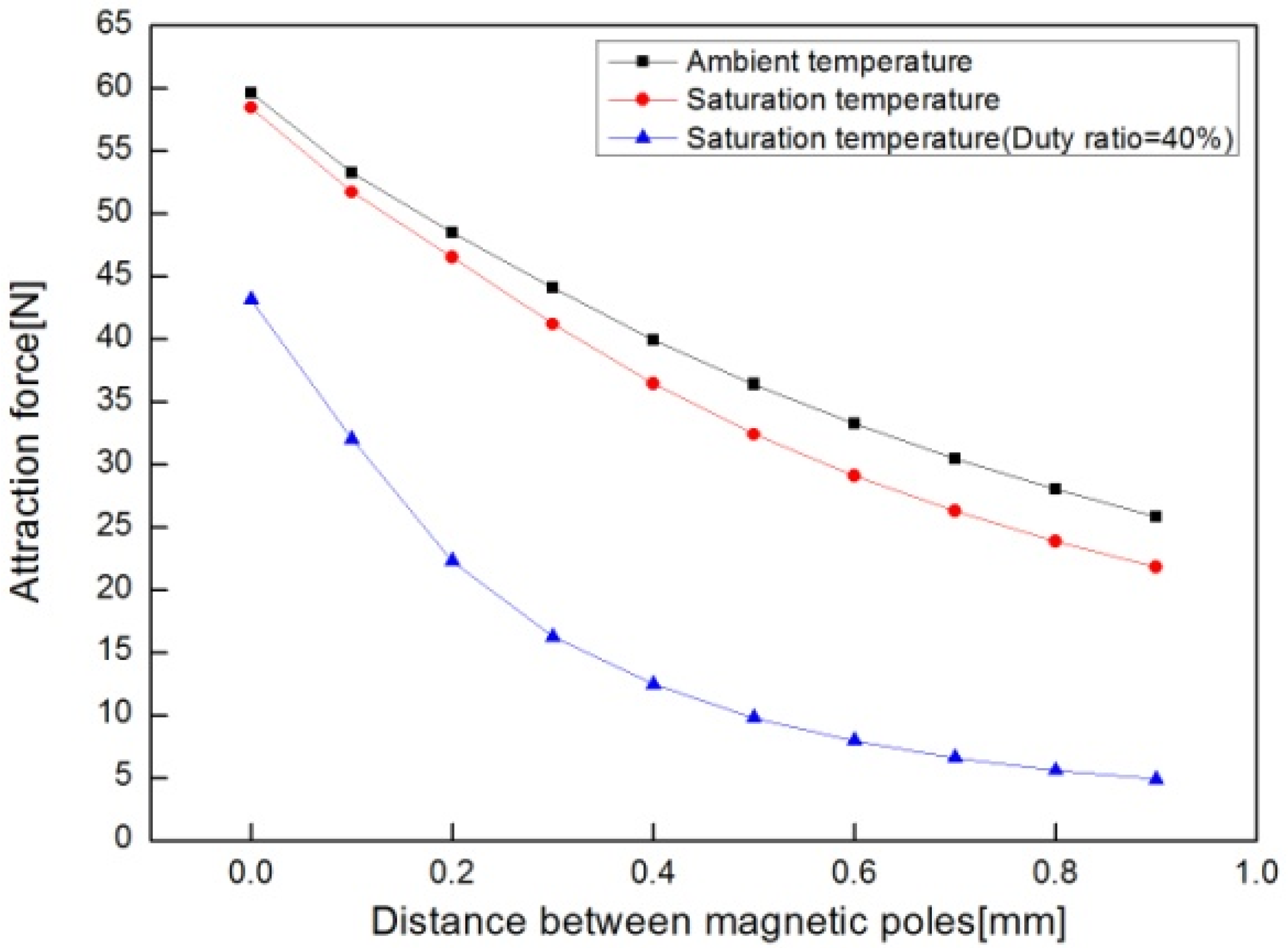

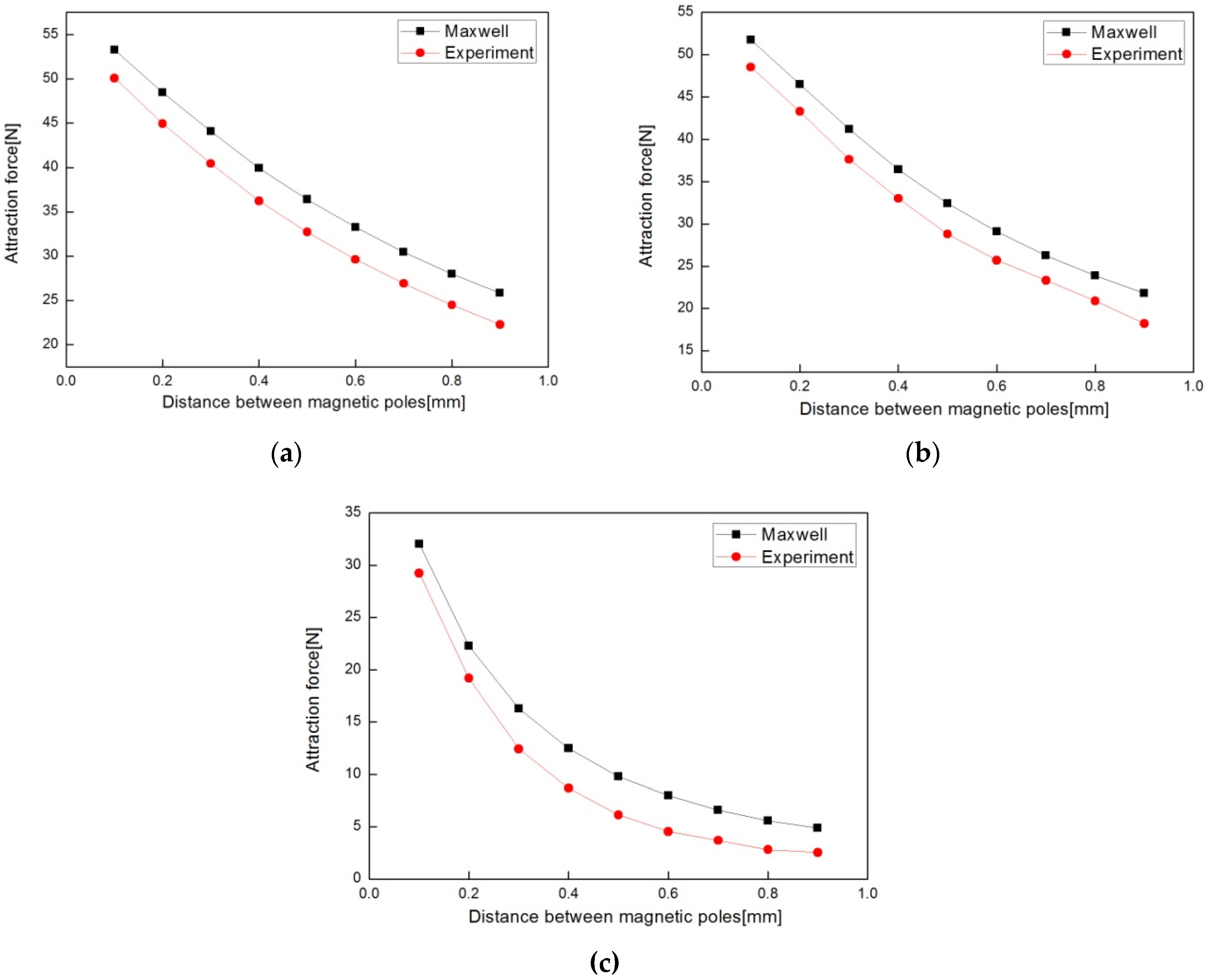

Green vehicles include electric vehicles, natural gas vehicles, fuel cell vehicles (FCV), and vehicles running on fuel such as a biodiesel or an ethanol blend. An FCV is equipped with a cylinder valve installed in an ultra-high pressure vessel to control the hydrogen flow. For this purpose, an optimum design of the solenoid actuator is necessary to ensure reliability when driving an FCV. In this study, an electromagnetic field analysis for ensuring reliable operation of the solenoid actuator was conducted by using Maxwell V15. The electromagnetic field analysis was performed by magneto static technique, according to the distance between magnetic poles, in order to predict the attraction force. Finally, the attraction force was validated through comparison between the Maxwell results and measurement results. From the results, the error of attraction force ranged from 2.33 to 3.85 N at testing conditions. View Full-Text
Keywords: fuel cell vehicle; cylinder valve; solenoid actuator; electromagnetic field analysis; heat transfer analysis fuel cell vehicle; cylinder valve; solenoid actuator; electromagnetic field analysis; heat transfer analysis
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Lee, H.R.; Ahn, J.H.; Kim, H.Y. Design of a Solenoid Actuator for a Cylinder Valve in a Fuel Cell Vehicle. Appl. Sci. 2016, 6, 288.
