Appl. Sci. 2016, 6(1), 9; doi:10.3390/app6010009

A Notched Long-Period Fiber Grating Magnetic Field Sensor Based on Nanoparticle Magnetic Fluid

Department of Mechanical Engineering, National Kaohsiung University of Applied Sciences, No. 415, Jiangong Road, Sanmin District, Kaohsiung City 807, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editor: Chien-Hung Liu
Received: 2 November 2015 / Revised: 20 December 2015 / Accepted: 21 December 2015 / Published: 4 January 2016
(This article belongs to the Special Issue Selected Papers from the 2015 International Conference on Inventions)
View Full-Text   |   Download PDF [2471 KB, uploaded 4 January 2016]   |

Abstract

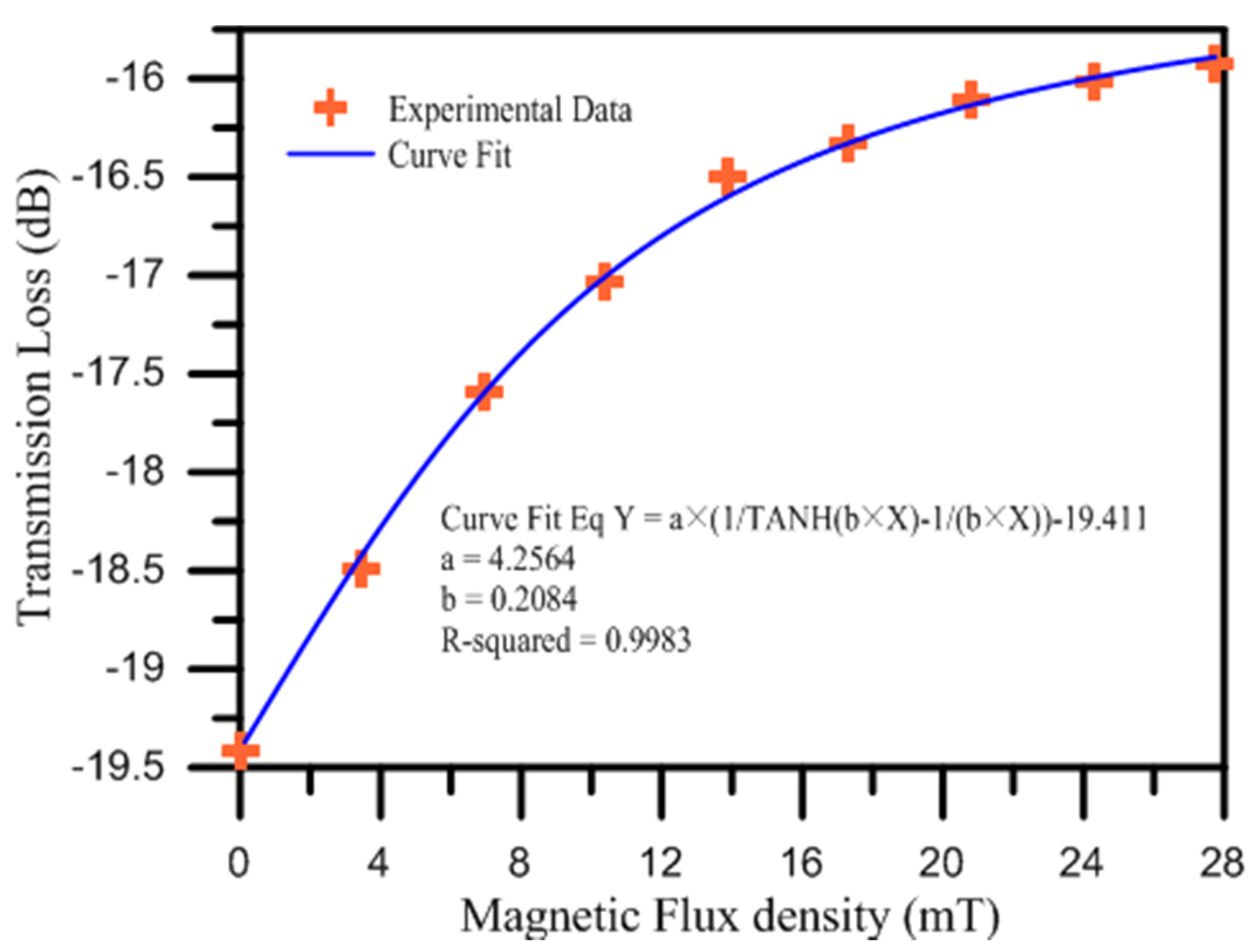

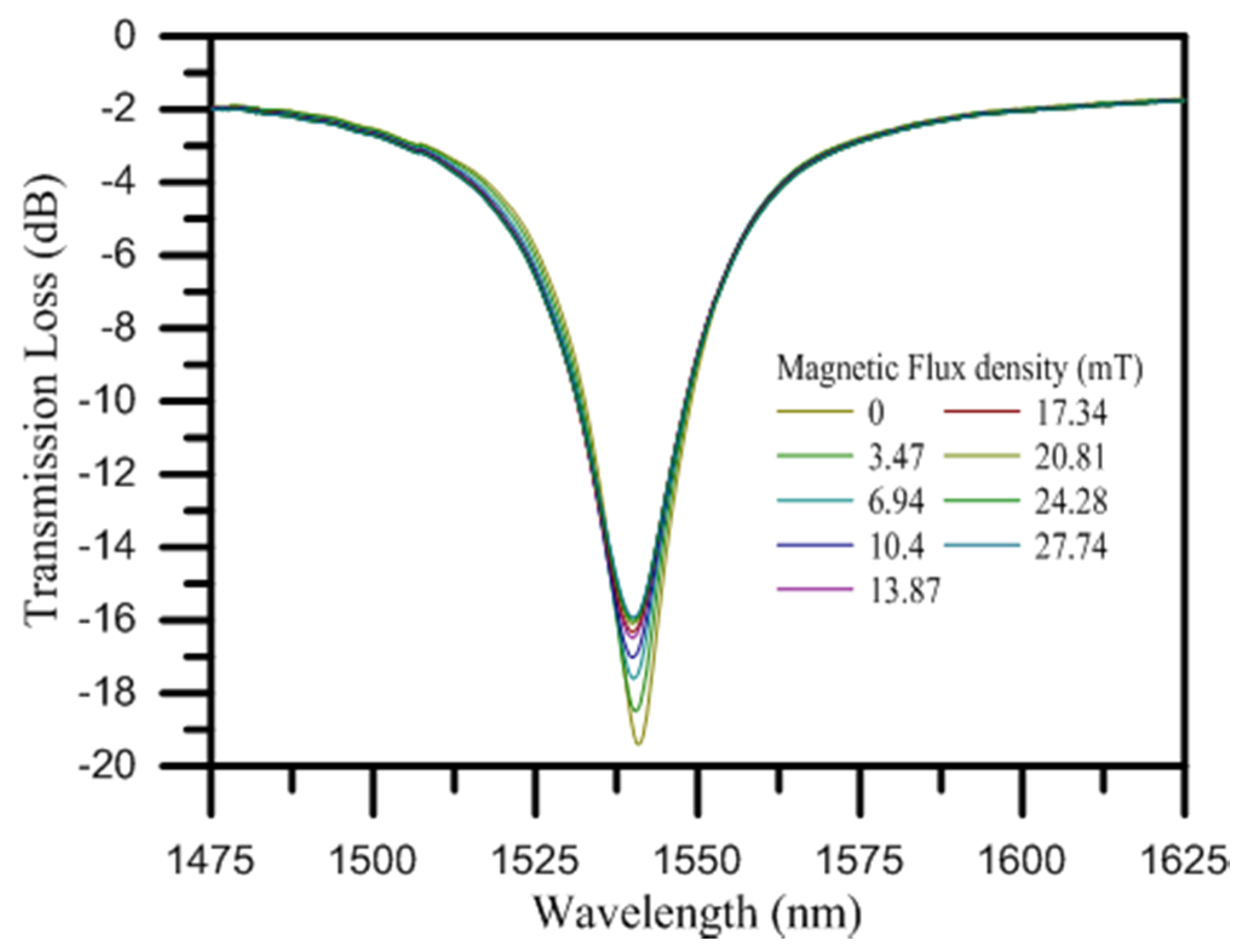

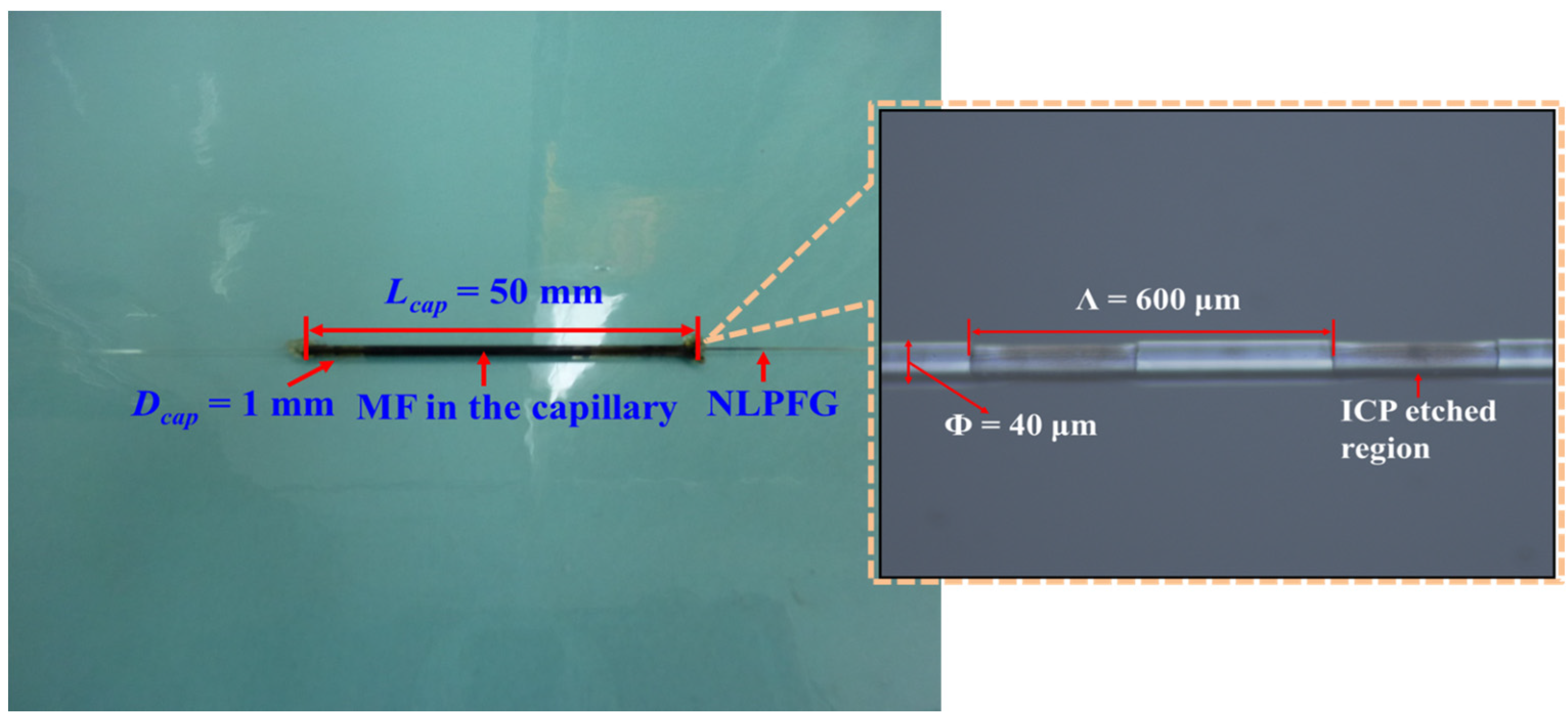

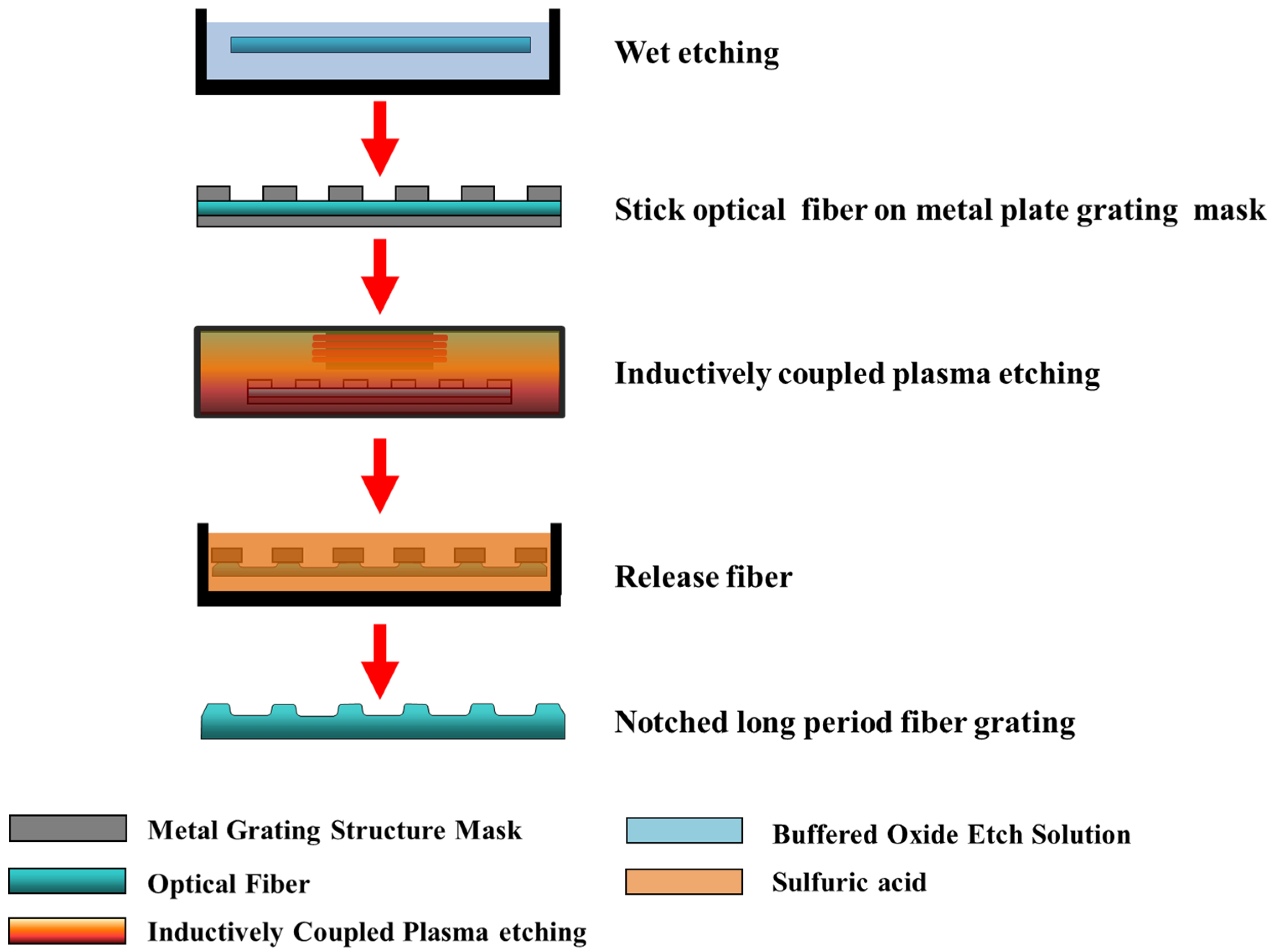

In this paper, we propose using an inductively coupled plasma (ICP) etching technique to fabricate a notched long-period fiber grating (NLPFG) for magnetic sensing application. An optical fiber magnetic field sensor based on NLPFG filled with nanoparticle magnetic fluid is proposed and demonstrated. The magnetic fluid nanoparticles were attached on the grating structure section and used as a magneto-optical sensing layer to measure magnetic flux density. The external applied magnetic flux density ranged from 0 to 27.74 mT. As the magnetic flux density was increased, the spectra of the NLPFG were changed. The resonant wavelength of the attenuation band did not shift obviously, but the transmission loss of the resonant dip was increased by 3.48 dB from −19.41 dB to −15.93 dB. The experimental results indicated that the sensitivity of the sensor is approximately 0.125 dB/mT. View Full-Text
Keywords: magnetic field; notched long-period fiber grating; magnetic fluid magnetic field; notched long-period fiber grating; magnetic fluid
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
