Appl. Sci. 2013, 3(1), 55-69; doi:10.3390/app3010055

Review
Glycerol: A promising Green Solvent and Reducing Agent for Metal-Catalyzed Transfer Hydrogenation Reactions and Nanoparticles Formation
Alba E. Díaz-Álvarez and Victorio Cadierno *
Laboratory of Organometallic Compounds and Catalysis (CSIC Associated Unit). Department of Organic and Inorganic Chemistry, Institute of Organometallic Chemistry “Enrique Moles”, Faculty of Chemistry, University of Oviedo, E-33006 Oviedo, Spain; E-Mail: aestrelladiaz@hotmail.com
Present address: Department of Chemistry-BMC, Uppsala University, Box 576, SE-75123 Uppsala, Sweden.
*
Author to whom correspondence should be addressed; E-Mail: vcm@uniovi.es; Tel.: +34-985-103-453; Fax: +34-985-103-446.
Received: 19 December 2012; in revised form: 15 January 2013 / Accepted: 21 January 2013 /
Published: 23 January 2013

Abstract

: Glycerol is a non-toxic, non-hazardous, non-volatile, biodegradable, and recyclable liquid that is generated as a byproduct in the manufacture of biodiesel fuel from vegetable oils. Due to its easy availability, along with its unique combination of physical and chemical properties, glycerol has recently emerged as an economically appealing and safe solvent for organic synthesis. Recent works have also demonstrated that glycerol can be used as a hydrogen source in metal-catalyzed transfer hydrogenation of organic compounds, such as aldehydes, ketones, olefins and nitroarenes. Herein, the advances reached in this emerging field are reviewed. The utility of glycerol as solvent and reducing agent for the generation of metal nanoparticles is also briefly discussed.
Keywords:
glycerol; green solvent; hydrogen donor; transfer hydrogenation; reduction reactions; metal catalysis; metal nanoparticles

1. Introduction

The impressive and fast development of the biodiesel industries has led to a large surplus of glycerol since about 100 kg of this byproduct are formed per ton of biodiesel (Scheme 1). According to recent estimates [1], world-wide production of glycerol could have reached 2 million tons in 2010 and it is expected to grow in the near future due to the increasing demand for biodiesel, as well as the emergence of other large-scale processes based on the conversion of cellulose and lignocelluloses in which glycerol is also a byproduct. Consequently, glycerol is nowadays in urgent requirement of exploitation [2]. Most efforts in this area are focusing on the development of procedures to convert glycerol into value-added chemicals, which have either been previously prepared from petrochemical sources or suffered from environmental problems during their preparation [1,2,3,4,5,6,7,8,9,10,11,12]. Glycerol reforming for hydrogen production [13,14,15] and its transformation into fuel additives [16] are also active areas of research.

Applsci 03 00055 g003 200
Scheme 1. Overall reaction in the production of biodiesel.

Click here to enlarge figure

Scheme 1. Overall reaction in the production of biodiesel.
Applsci 03 00055 g003 1024

Replacing of hazardous chemicals by more environmentally friendly alternatives is also a matter of current interest, in line with the philosophy of Green Chemistry [17,18]. In this context, the introduction of ecofriendly solvents is a key area [19,20,21,22] because solvents account for 80%–90% of mass utilization in a typical pharmaceutical/fine chemical operational process, and they are therefore responsible for most of the waste generated in the chemical industries and laboratories [23]. Nowadays, most solvents employed are substances derived from fossil fuels and have a negative impact on the health and the environment. In addition to water [24,25,26,27], biomass-derived chemicals are probably the most promising alternatives to replace these harmful solvents [19,20,21,22]. Its renewable origin and unique combination of physicochemical properties, such as high polarity, low toxicity and flammability, high boiling point, ability to form strong hydrogen bonds and to dissolve both organic and inorganic compounds (salts, acids, bases and transition metal complexes), make glycerol a good candidate to be employed as green reaction medium for synthetic chemistry [28]. This innovative way to revalorize glycerol has been very well received by the chemical community and a wide variety of organic reactions and synthetic methodologies have been successfully developed in this medium in recent years [29,30,31,32,33]. Remarkably, in some cases, the use of glycerol as solvent was found to enhance the effectiveness [34] and selectivity [35] of the reactions, and allowed easy product separation [36] and catalyst recycling [37].

Recent works have demonstrated that glycerol can also act both as solvent and hydrogen donor in metal-catalyzed transfer hydrogenation (TH) reactions. TH is recognized as an efficient reduction method of unsaturated organic compounds (ketones, aldehydes, imines, olefins, etc.) and constitutes a safer alternative to the classical catalytic hydrogenations using highly flammable molecular hydrogen [38,39,40,41,42]. Replacing the most commonly employed hydrogen sources in TH reactions, i.e., 2-propanol or formic acid/triethylamine mixtures, by glycerol results not only economically appealing but also more environmentally friendly. Interest in TH processes from glycerol relates also with the concomitant formation of dihydroxyacetone (Scheme 2), the expected oxidized form of glycerol according to the primary and secondary alcohol oxidation potentials [43], due to the industrial relevance of this chemical [44]. The aim of the present review article is to provide a comprehensive account of the advances reached in the use of glycerol as solvent and hydrogen source in metal-catalyzed transfer hydrogenation of organic compounds. The utility of glycerol as solvent and reducing agent for the generation of metal nanoparticles is also highlighted.

Applsci 03 00055 g004 200

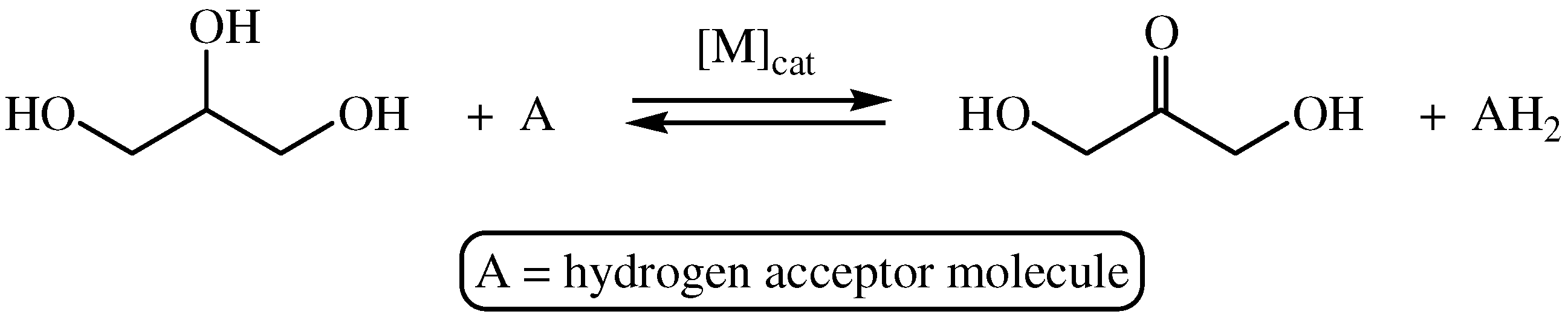

Scheme 2. Generation of dihydroxyacetone from glycerol by transfer hydrogenation (TH).

Click here to enlarge figure

Scheme 2. Generation of dihydroxyacetone from glycerol by transfer hydrogenation (TH).
Applsci 03 00055 g004 1024

2. Transfer Hydrogenation of Carbonyl Compounds in Glycerol

The first report on TH in glycerol, published by Crotti and co-workers in 2009, examined the reduction of acetophenone by the iridium(I) derivatives [Ir(η4-1,5-hexadiene)(N–N)][Cl] (N–N = 3,4,7,8-tetramethyl-1,10-phenanthroline (Me4phen), 4,7-dimethyl-1,10-phenanthroline (Me2phen), 4,4'-dimethyl-2,2'-bipyridine (Me2bipy), 2,2'-bipyridine (bipy)) [45]. The highest rate was achieved employing [Ir(η4-1,5-hexadiene)(Me2phen)][Cl] associated with K2CO3 at 100 °C, but conversion in 1-phenylethanol was quite modest (39%) (Scheme 3). In addition, authors observed the gradual decomposition of the dihydroxyacetone formed, probably favored by the presence of base and the high temperature employed.

Applsci 03 00055 g005 200

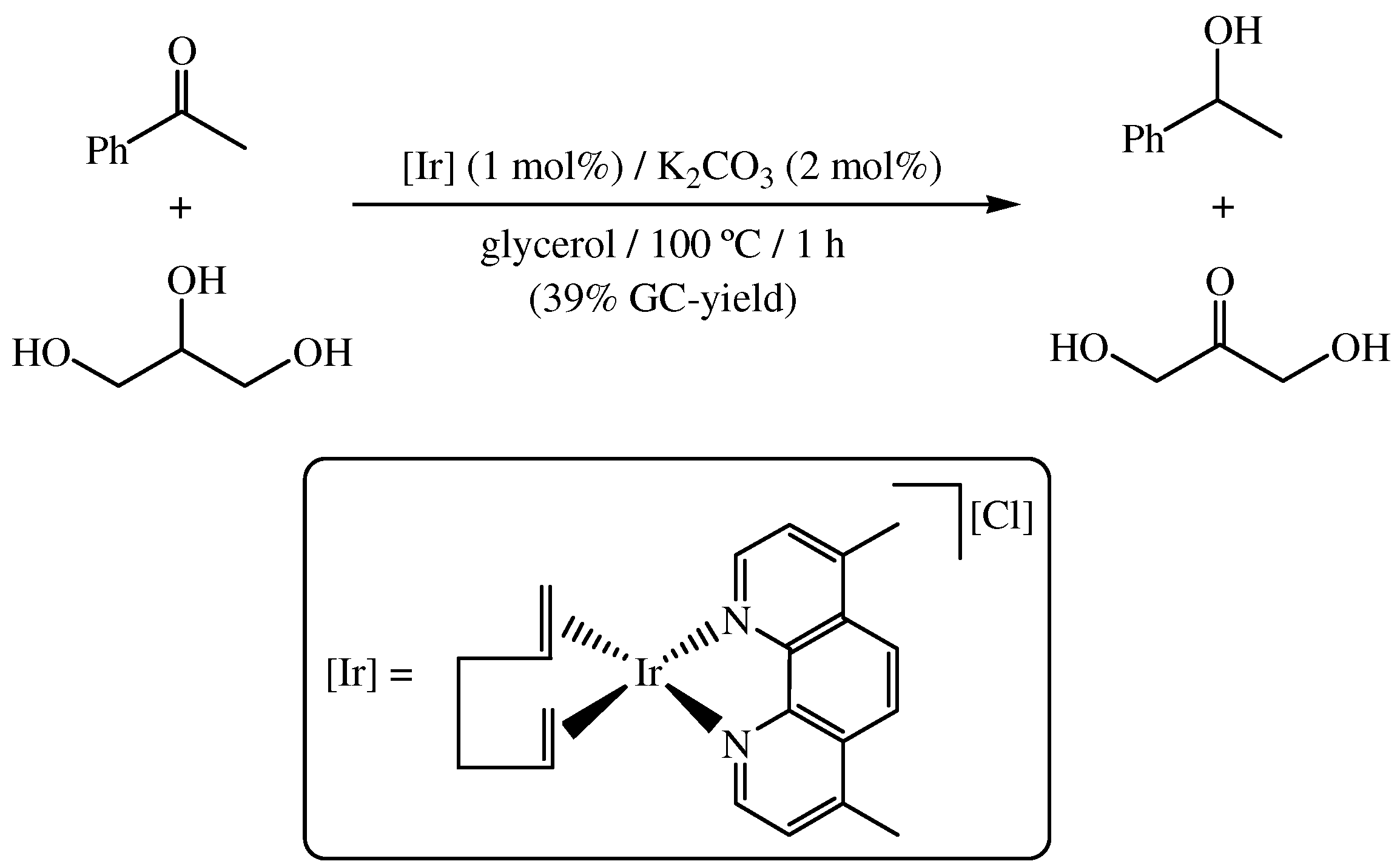

Scheme 3. Iridium-catalyzed transfer hydrogenation of acetophenone in glycerol.

Click here to enlarge figure

Scheme 3. Iridium-catalyzed transfer hydrogenation of acetophenone in glycerol.
Applsci 03 00055 g005 1024

In order to minimize the decomposition of dihydroxyacetone, Crotti and co-workers also explored the ability of the iridium(I) complex 1 (Figure 1), previously described as an efficient catalyst for TH reactions under base-free conditions in isopropanolic media, to promote the reduction of acetophenone in glycerol [46]. Unfortunately, complex 1 turned out to be almost inactive (yields < 8%). In contrast, when benzaldehyde, a more reactive carbonyl compound, was used as the starting material it could be reduced to benzyl alcohol under these base-free conditions, albeit with moderate conversion (up to 46%). Once again, despite the absence of base, the dihydroxyacetone formed still underwent degradation, its final proportion being well below than that of benzyl alcohol (12%–24% vs. 18%–46%).

Applsci 03 00055 g001 200

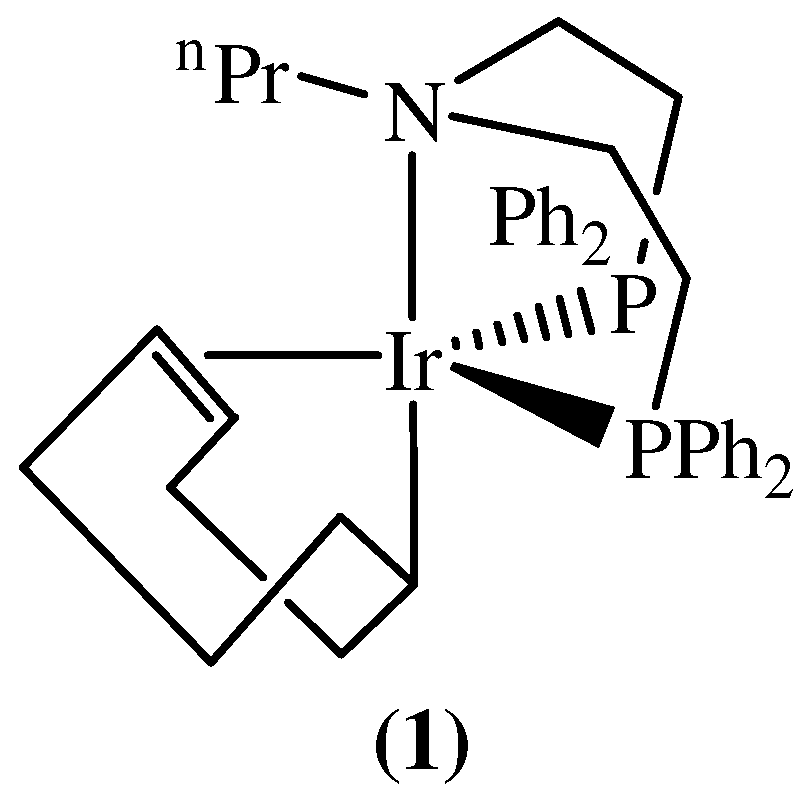

Figure 1. Structure of the iridium(I) complex 1.

Click here to enlarge figure

Figure 1. Structure of the iridium(I) complex 1.
Applsci 03 00055 g001 1024

The hydrogen transfer from glycerol to benzaldehyde was also explored using a catalytic system composed of the ruthenium(II) dimer [{RuCl(µ-Cl)(η6-p-cymene)}2] and KOH (2 mol% of Ru, 12 mol% of base) [47]. Both conventional oil-bath heating (70 °C) and microwaves (MW) irradiation (domestic oven, 900 W) led to moderate yields in benzyl alcohol (33%–48%) after 24 h, and complete transformation of benzaldehyde could only be achieved by increasing the ruthenium loading to 25 mol% [48]. In contrast, when the same reaction was performed under ultrasounds (US) irradiation, using a combination of KOH and NaOH (1–2 mol%), quantitative formation of benzyl alcohol was achieved at 60 °C in 3 h with only 1 mol% of [{RuCl(µ-Cl)(η6-p-cymene)}2] (Scheme 4) [49]. The authors argued that, under sonochemical conditions, the dispersion of the base in glycerol is optimal and this would explain the shorter reaction time observed. In all these reactions, conversion of glycerol to dihydroxyacetone was proposed, but in no case experimental evidences of their detection and quantification were given.

Applsci 03 00055 g006 200

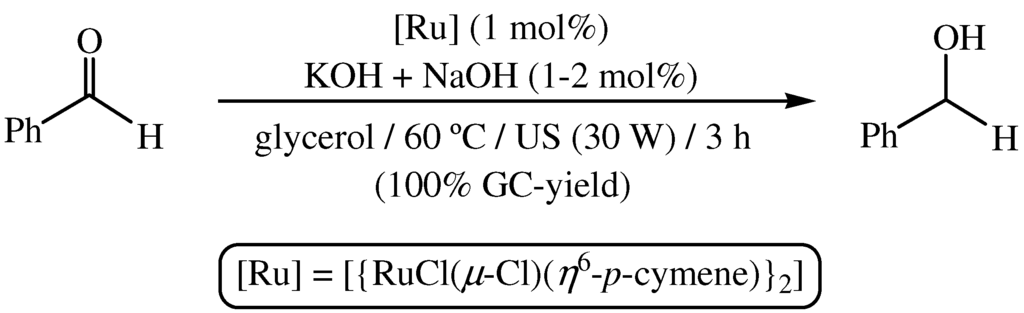

Scheme 4. Ru-catalyzed TH of benzaldehyde in glycerol under sonochemical conditions.

Click here to enlarge figure

Scheme 4. Ru-catalyzed TH of benzaldehyde in glycerol under sonochemical conditions.
Applsci 03 00055 g006 1024

A series of Ir(III) and Ir(I) complexes containing N-heterocyclic carbene (NHC) ligands 2-5 (Figure 2) were studied by Mata and co-workers as potential catalysts for the transfer hydrogenation of carbonyl compounds in glycerol [50,51]. In the presence of KOH (1 equivalents), all of them (2.5 mol% of Ir) were active in the reduction of acetophenone and benzaldehyde, leading to the desired alcohols in low to excellent yields after 7 h of heating in an oil-bath at 120 °C [51]. In general, the reduction of benzaldehyde proceeded with comparatively higher yields than benzophenone (66%–99% vs. 25%–80%), with complexes 3 and 5a being particularly effective for the reduction of the former, and 3 and 4b for the latter. Under the same experimental conditions complex 3 was also able to reduce benzophenone in 91% yield, albeit a longer reaction time was in this case required [50]. In the search of activity improvements, the reduction of acetophenone and benzaldehyde by complexes 25 was studied using MW and US activation instead of classical oil-bath heating [51]. In particular, the use of ultrasounds had a tremendous impact in shortening the reaction times, and very good results were obtained in the reduction of benzaldehyde even with a lower iridium loading (e.g., 73% yield of benzyl alcohol was achieved after 5 min using 1 mol% of complex 4a). Again, optimal dispersion of the base in glycerol was evoked to explain the good results obtained under sonochemical conditions. However, we must note that partial decomposition of complexes 25 into catalytically inactive Ir(0)-containing nanoparticles was observed using MW and US techniques.

Applsci 03 00055 g002 200

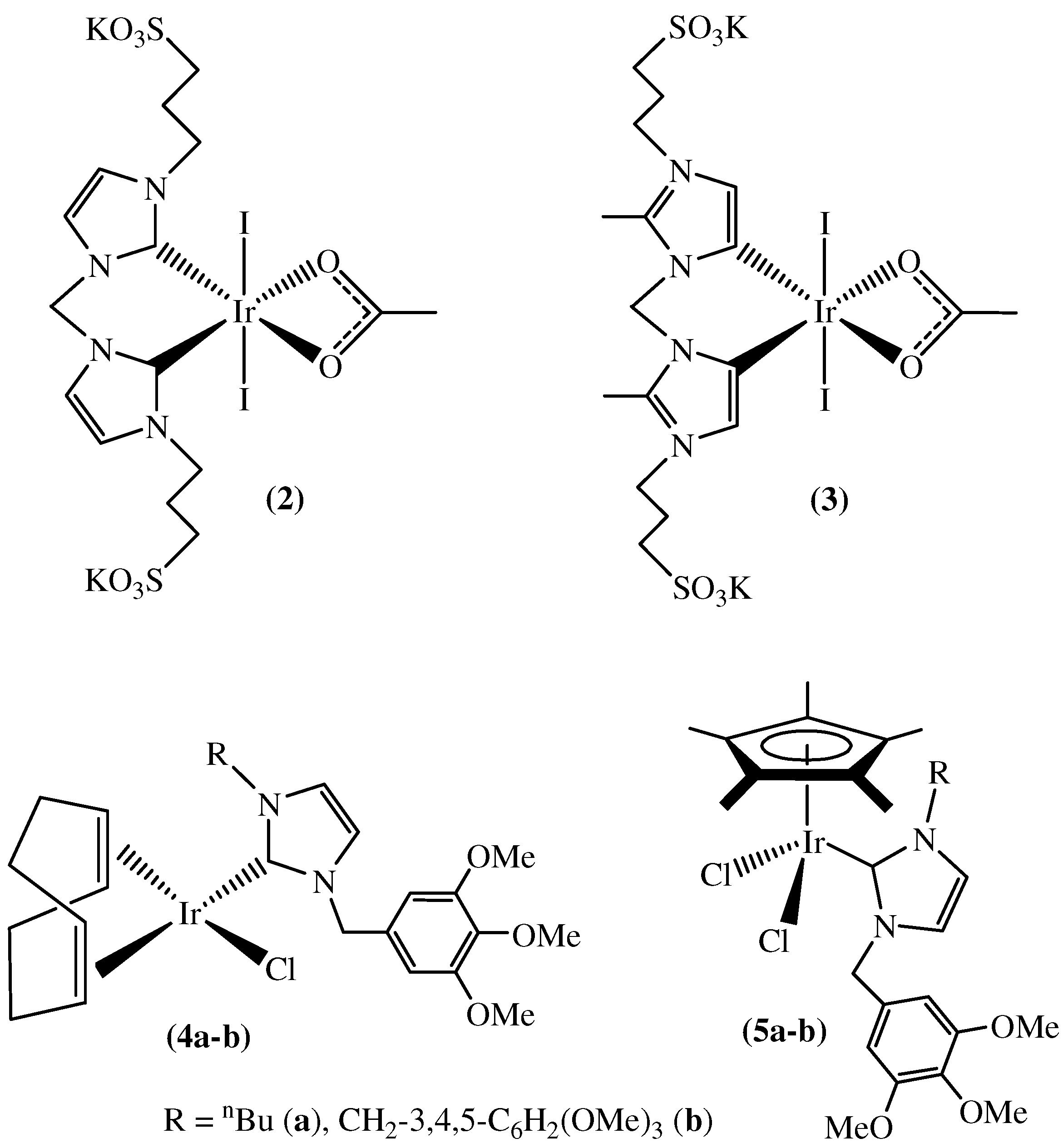

Figure 2. Structure NHC-based iridium catalysts 25.

Click here to enlarge figure

Figure 2. Structure NHC-based iridium catalysts 25.
Applsci 03 00055 g002 1024

Quite recently, Gawande, Branco and co-workers have described an efficient heterogeneous catalyst, consisting of inexpensive ferrite-nickel magnetic nanoparticles (Fe3O4-Ni MNPs), for the transfer hydrogenation of carbonyl compounds in glycerol (Scheme 5) [52]. This system (8.85 mol% of Ni), associated with KOH (2 equivalents), was able to convert selectively benzaldehyde, different acetophenone derivatives and cyclohexanone to the corresponding alcohols in good to excellent yields after heating the reaction mixtures at 80 °C for 2–2.5 h. Remarkably, unlike the examples discussed above, no differences in reactivity between aldehyde and ketone functionalities were observed in this case.

Applsci 03 00055 g007 200

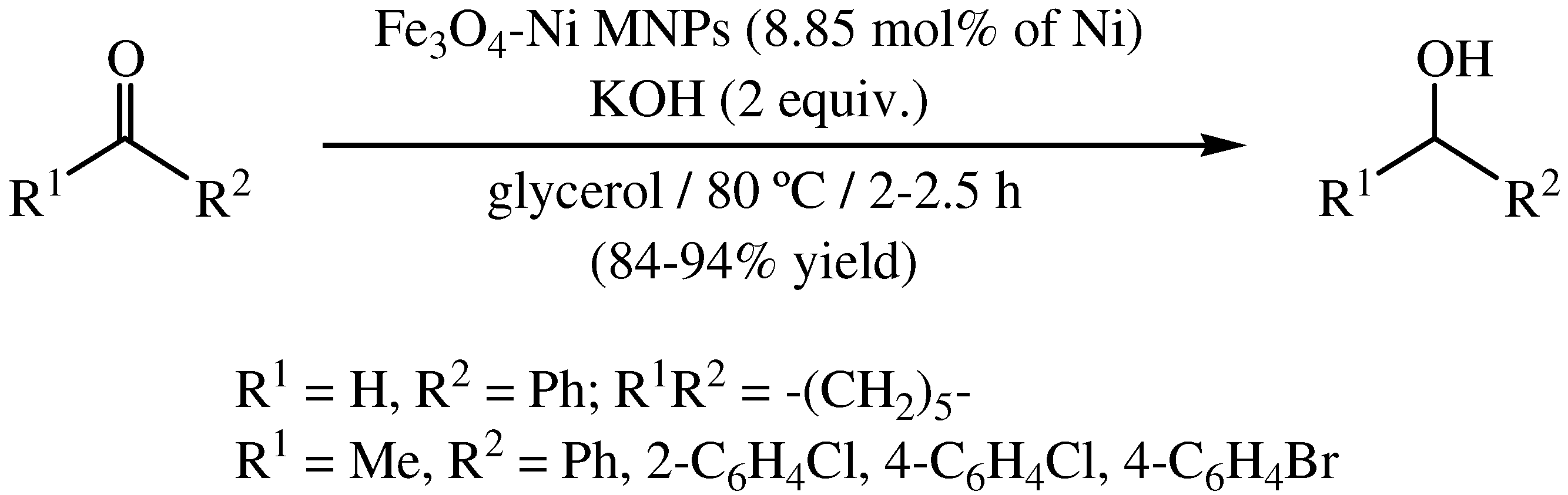

Scheme 5. TH of carbonyl compounds in glycerol using heterogeneous Fe3O4-Ni magnetic nanoparticles (MNPs).

Click here to enlarge figure

Scheme 5. TH of carbonyl compounds in glycerol using heterogeneous Fe3O4-Ni magnetic nanoparticles (MNPs).
Applsci 03 00055 g007 1024

3. Transfer Hydrogenation of Olefins in Glycerol

First examples of the reduction of carbon-carbon double bonds in glycerol were described by Wolfson and co-workers in 2009 [48]. They found that palladium supported on carbon (0.2–0.3 mol% Pd) was able to hydrogenate quantitatively cyclohexene and styrene after 5–9 h of heating at 70 °C in pure glycerol (Scheme 6). However, bulky olefins (i.e., cis-stilbene and 1,1-diphenylethylene) and linear aliphatic alkenes (i.e., 1-hexene and 1-octene) were only partially reduced through this methodology (7%–35% yields) even under MW-irradiation [53]. The steric hindrance associated to the former, and the low solubility of the latter in glycerol, is behind these poorer results. It is noteworthy that, after extraction of the reaction product with diethyl ether (immiscible with glycerol), both the catalyst and glycerol could be recycled three times in the reduction of the model substrate cyclohexene, albeit with a slight decrease in activity after each cycle.

Applsci 03 00055 g008 200

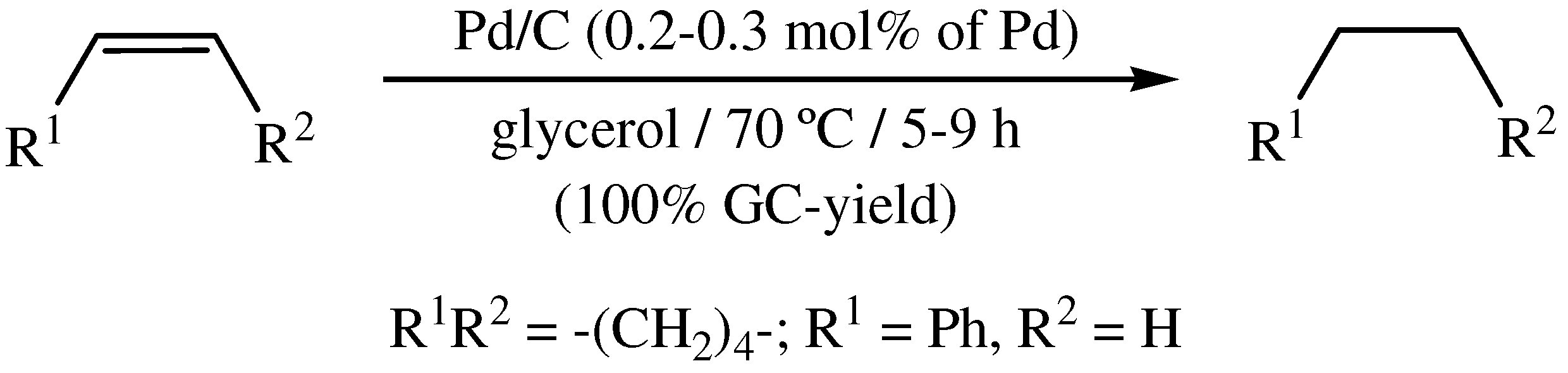

Scheme 6. Pd-catalyzed transfer hydrogenation of olefins in glycerol.

Click here to enlarge figure

Scheme 6. Pd-catalyzed transfer hydrogenation of olefins in glycerol.
Applsci 03 00055 g008 1024

The iridium(III)-NHC complexes 2-3 proved to be also active in the TH of a variety of olefins by glycerol, although their effectiveness was in general only modest [50]. The most relevant results were obtained in the reduction of α,β-unsaturated ketones, where an excellent chemoselectivity was observed. Thus, as shown in Scheme 7, the reduction of benzylideneacetone was very selective in the production of the saturated ketone 4-phenyl-2-butanone, and only traces of the fully hydrogenated compound (i.e., 4-phenyl-2-butenol) were detected. For dibenzylideneacetone, again the hydrogenation of one of the olefinic bonds was more favorable than the reduction of the ketone group, which was in this case not observed. These results contrast with the reduction of cinnamaldehyde for which the TH of the C=C bond is followed by the rapid reduction of the carbonyl group, so that the major final product is the saturated alcohol 3-phenyl-1-propanol. Overall, the reactions depicted in Scheme 7 are in complete accord with the greater tendency shown by the Ir(III) complexes 23 to reduce aldehydes over ketones. TH of phenylacetylene by complexes 23 in glycerol was also explored, but styrene was formed in very low yields (12%–30% after 14 h at 120 °C with 2.5 mol% of 23 and 1 equivalent of KOH). As in the preceding cases, conversion of glycerol to dihydroxyacetone was proposed without experimental confirmation.

Applsci 03 00055 g009 200

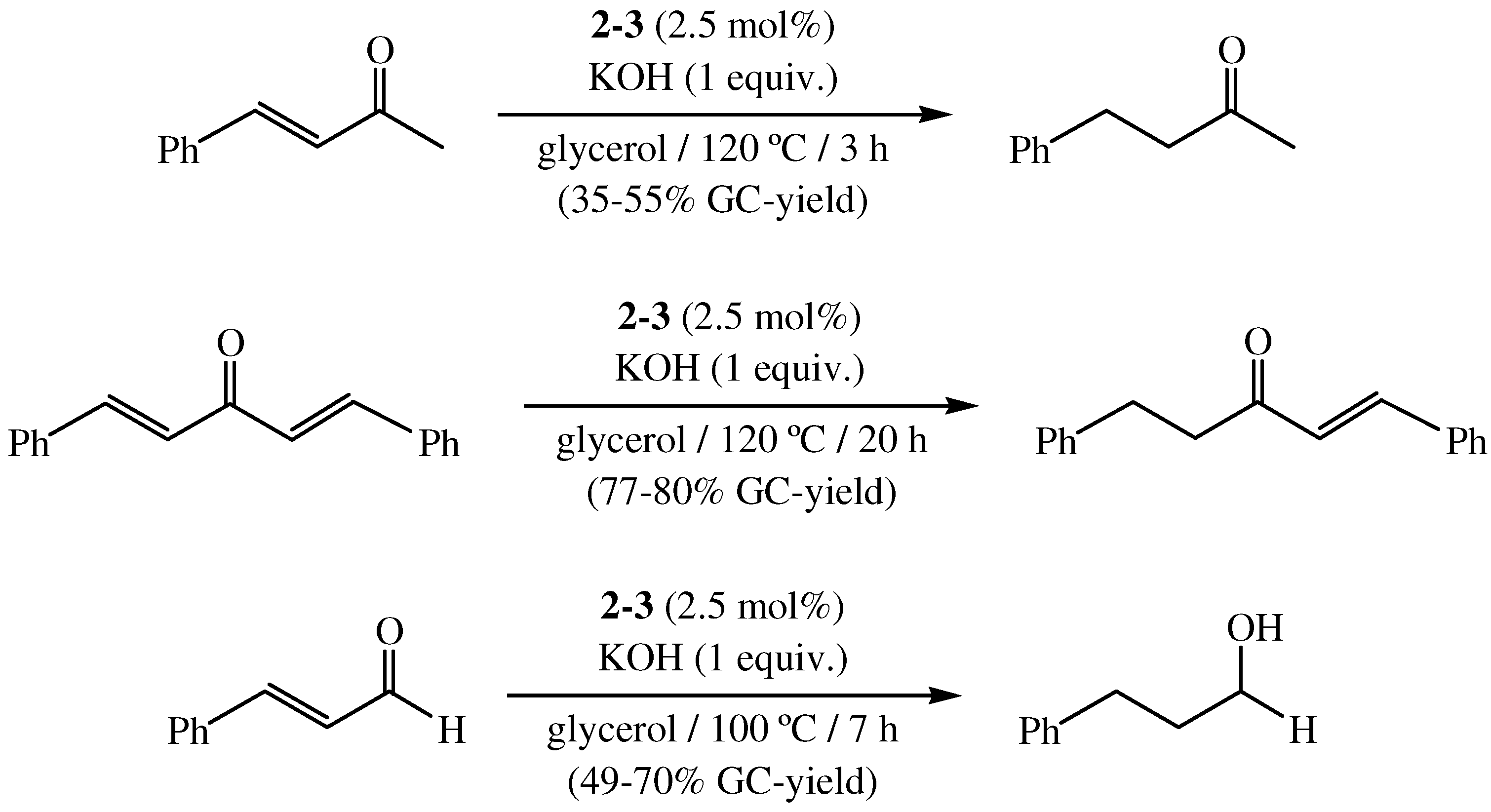

Scheme 7. Ir-catalyzed transfer hydrogenation of α,β-unsaturated carbonyl compounds in glycerol.

Click here to enlarge figure

Scheme 7. Ir-catalyzed transfer hydrogenation of α,β-unsaturated carbonyl compounds in glycerol.
Applsci 03 00055 g009 1024

Reduction of the C=C bond of allylic alcohols in both pharmaceutical (99.5% purity) and technical (87% purity) grade glycerol has been described employing a family of arene-ruthenium(II) complexes [RuCl2(η6-arene)L] (arene = C6H6, p-cymene, mesitylene, C6Me6; L = hydrophilic phosphine ligand) as catalysts [54]. Among them, the best results were obtained with [RuCl2(η6-C6H6)(DAPTA)] (6; DAPTA = 3,7-diacetyl-1,3,7-triaza-5-phosphabicyclo[3.3.1]nonane), which associated with KOH was able to generate the desired saturated alcohols in high yields (up to 90% after 6–15 h of heating at 100 °C) regardless of the purity of the solvent employed (Scheme 8). We must note that this reduction process does not involve a direct transfer of hydrogen from glycerol to the C=C bond of the substrate, but the initial redox-isomerization of the allylic alcohol through C=C bond migration and subsequent transfer hydrogenation of the resulting carbonyl compound. Remarkably, contrary to previous studies carried out in water and 2-propanol [55,56], the use of glycerol as the reaction medium enabled the recycling of the catalyst (up to four consecutive runs).

Applsci 03 00055 g010 200

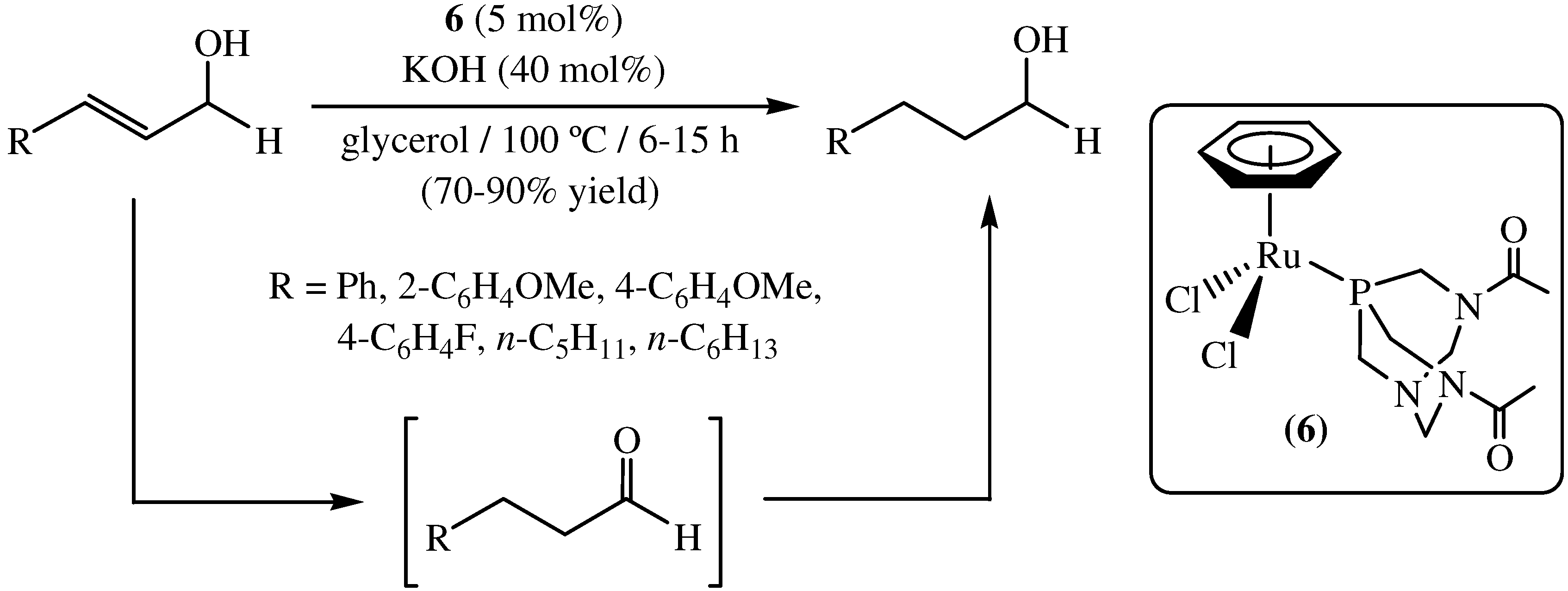

Scheme 8. Ruthenium-catalyzed reduction of allylic alcohols in glycerol.

Click here to enlarge figure

Scheme 8. Ruthenium-catalyzed reduction of allylic alcohols in glycerol.
Applsci 03 00055 g010 1024

In addition to these examples, reduction of linoleic to oleic acid was found to occur during the hydrolysis of soybean oil and tallow using nickel catalysts supported on alumina, effect that was best manifested under 3 h of reaction at 250–270 °C with NiO/Al2O3 as catalyst (Scheme 9) [57]. The glycerol formed during the hydrolysis of the triglycerides behaves as the hydrogen donor, allowing the reduction of the in-situ produced di-unsaturated fatty acid into the mono-unsaturated one.

Applsci 03 00055 g011 200

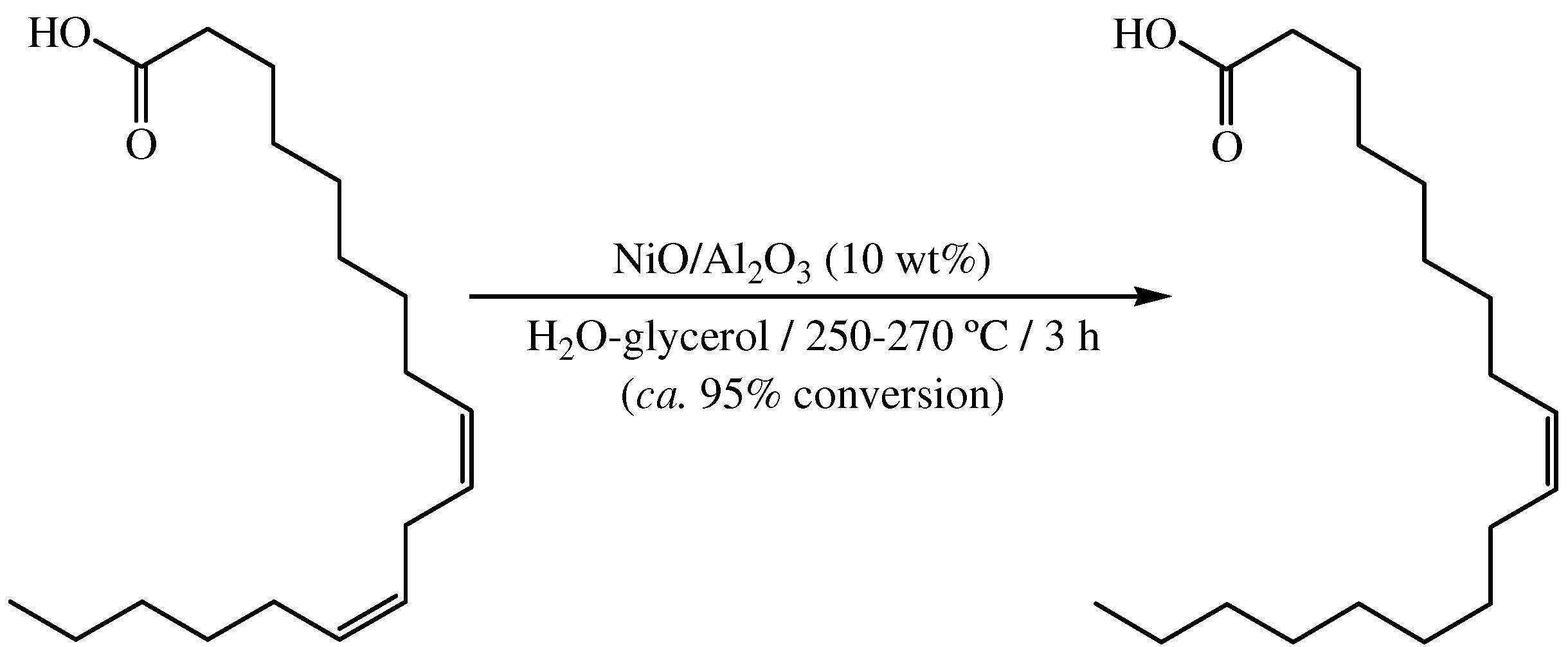

Scheme 9. Transformation of linoleic acid to oleic acid by catalytic TH from glycerol.

Click here to enlarge figure

Scheme 9. Transformation of linoleic acid to oleic acid by catalytic TH from glycerol.
Applsci 03 00055 g011 1024

4. Transfer Hydrogenation of Nitroarenes in Glycerol

Selective reduction of nitroarenes is an important synthetic tool for the preparation of aromatic amines in organic chemistry. The reduction of nitro aromatic compounds is also of considerable interest because these chemicals are common groundwater contaminants and reduction reactions can play a central role in their environmental fate or cleanup. Many methods have been reported in the literature for the reduction of nitroaromatics, including the use of Raney nickel under TH conditions. In this context, Wolfson and co-workers have demonstrated that the reduction of various nitrobenzene derivatives by means of Raney Ni can be performed using glycerol as the solvent and hydrogen donor [48,58]. Reactions, which were typically performed with a stoichiometric amount of Raney Ni and excess of NaOH (2.5 equivalents), delivered the desired anilines in moderate to good yields (44%–81%) after 24 h of heating at 100 °C, with those substrates containing electron-withdrawing substituents being reduced more easily than those with electron-donating groups.

Applsci 03 00055 g012 200

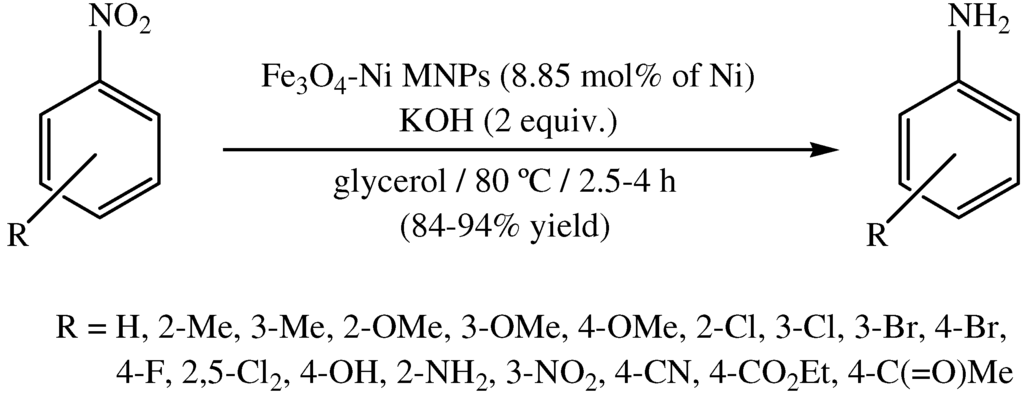

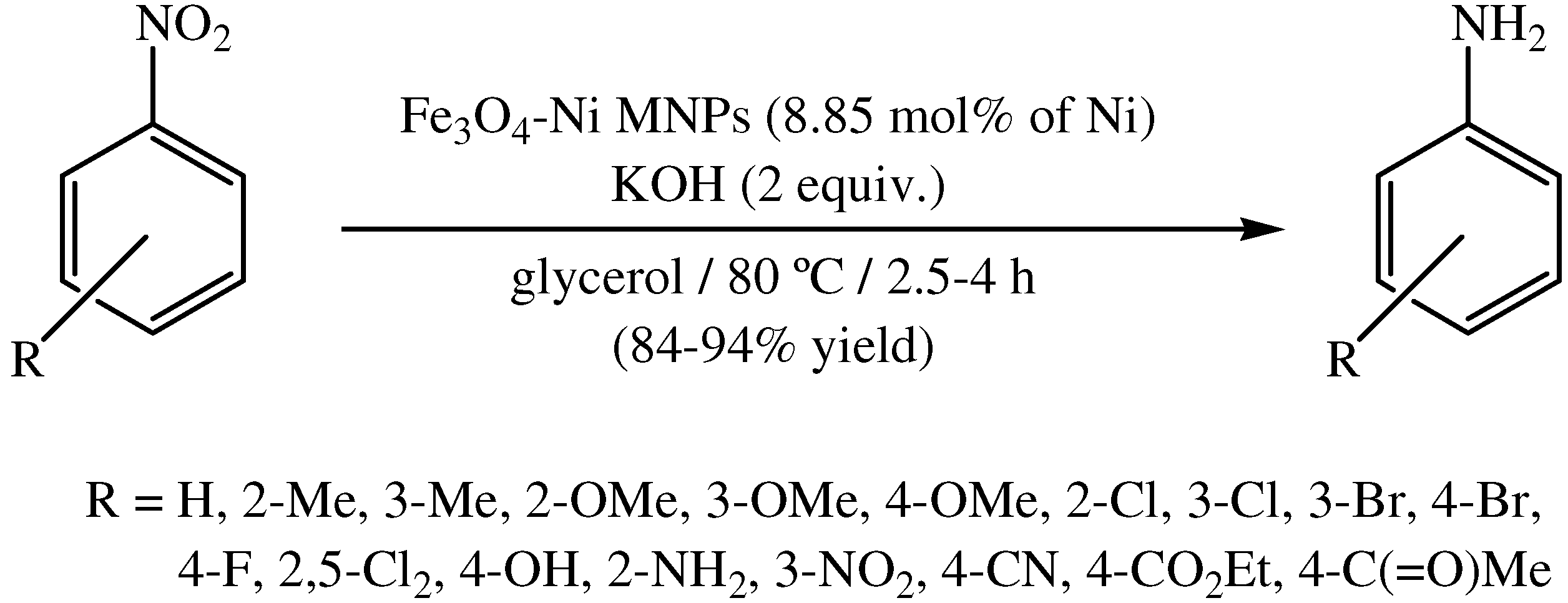

Scheme 10. Transfer hydrogenation of nitroarenes in glycerol using magnetic Fe3O4-Ni nanoparticles.

Click here to enlarge figure

Scheme 10. Transfer hydrogenation of nitroarenes in glycerol using magnetic Fe3O4-Ni nanoparticles.
Applsci 03 00055 g012 1024

Much faster transformations were subsequently described, under milder reaction conditions, using Fe3O4-Ni MNPs as catalyst in combination with KOH (Scheme 10) [52]. Contrary to the preceding case, the electronic nature of the substituents on the aromatic ring did not have a significant influence on the effectiveness of the process. This heterogeneous system also showed an exquisite chemoselectivity, reducing only the nitro group even in the presence of carbonyl functionalities. A stronger interaction of the nitro group to the catalyst surface compared to the carbonyl one was evoked to explain the chemoselectivity observed. It is also worthy of note that, starting from 1,3-dinitrobenzene, selective reduction of only one NO2 functionality took place under the standard reaction conditions. In addition, after separation using a simple magnet, the Fe3O4-Ni MNPs could be reused eight times without any significant loss in catalytic activity and selectivity. Overall, this new methodology represents a real improvement with respect to classical methods based on the use of more expensive and hardly recyclable Raney nickel or Pd and Pt catalysts.

5. Transfer Hydrogenation of Other Organic Molecules in Glycerol

In a recent patented work [59], a method for the preparation of primary alcohols by transfer hydrogenation of carboxylic acids in glycerol has been disclosed (Scheme 11). The reactions, which were performed at 140–150 °C in the presence of inexpensive CoCl2·6H2O as catalyst and KOH, delivered the alcohols in a selective manner, and in excellent yields, after a very short reaction period. This new method represents a good alternative to the classical ones involving the use of molecular hydrogen or NaBH4.

Applsci 03 00055 g013 200

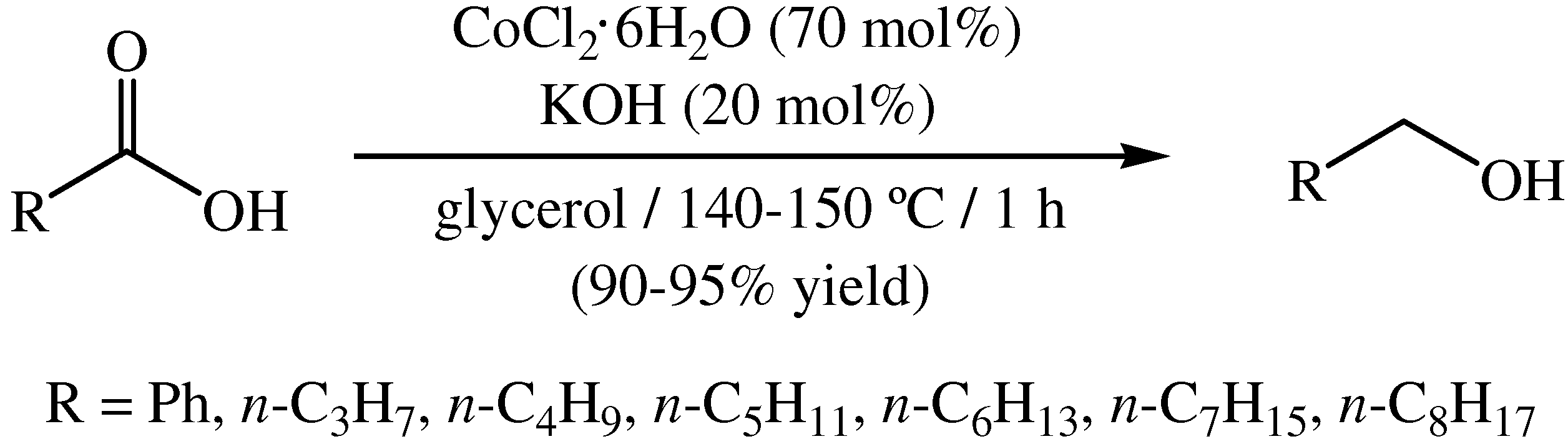

Scheme 11. Transfer hydrogenation of carboxylic acids in glycerol.

Click here to enlarge figure

Scheme 11. Transfer hydrogenation of carboxylic acids in glycerol.
Applsci 03 00055 g013 1024

Aqueous glycerol in the presence of the ruthenium(II) catalyst [RuCl2(PPh3)3] and KOH behaved also as a H-donor to CO2, thus producing formic acid (HCO2H) (Scheme 12) [60]. As determined by 1H and 13C NMR spectroscopy, glycerol was selectively converted into glycolic acid (HOCH2CO2H) by decomposition of the initially formed dihydroxyacetone. Such a decarbonylation process is catalyzed by ruthenium under the basic conditions employed. Unfortunately, in contrast to previous examples employing 2-propanol as the hydrogen source [61], turnover numbers (TON) no higher than a few units could be achieved in this reaction that elegantly transforms two waste products into value-added chemicals.

Applsci 03 00055 g014 200

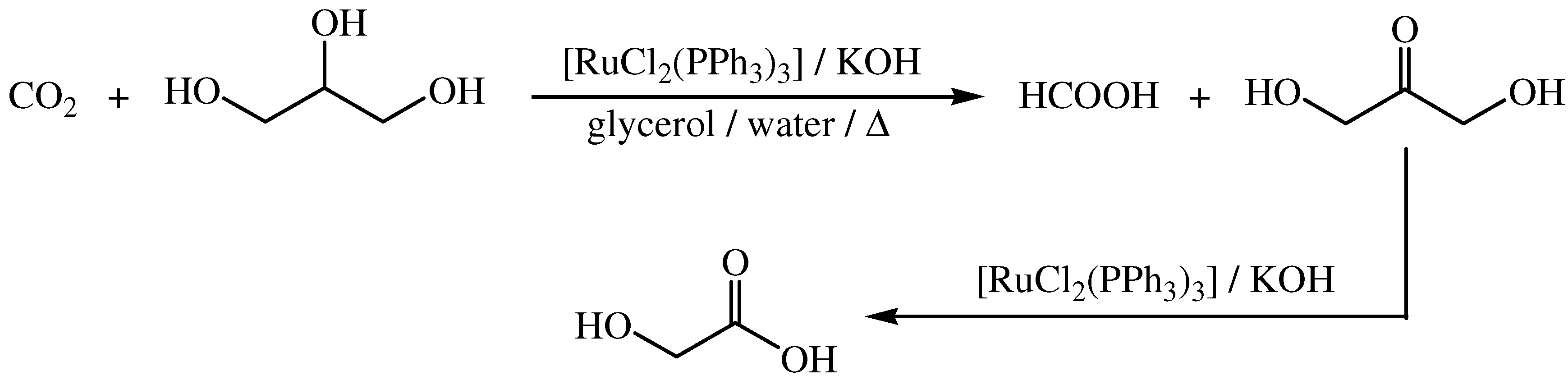

Scheme 12. Transfer hydrogenation of CO2 by aqueous glycerol.

Click here to enlarge figure

Scheme 12. Transfer hydrogenation of CO2 by aqueous glycerol.
Applsci 03 00055 g014 1024

Finally, in the context of a broad study, glycerol was very recently evaluated as a potential hydrogen-donating solvent for the hydrogenolytic depolymerization of lignin, using nickel nanoparticles supported on the mesoporous silica AI-SBA-15 as catalyst under microwave irradiation [62]. After three hours of irradiation at 150 °C, ca. 25 wt% of the initial lignin was converted into the desired bio-oil (a mixture of the monomeric phenolic products syringol, vanillin, syringaldehyde and acetosyringone). This result was superior to that found using 2-propanol as the hydrogen source (ca. 2 wt% of bio-oil), but slightly poorer in comparison to that reached in formic acid (ca. 30 wt% of bio-oil), the best H-donor solvent found in the study. We must also note that, contrary to the case of formic acid, undesirable formation of char was also observed in glycerol (ca. 40 wt%).

6. Glycerol as Solvent and Reductant for the Formation of Metal Nanoparticles

During the last decade there has been extensive research into the synthesis of metal nanoparticles by the so-called polyol process, where a polyalcohol, generally coupled with a base, acts not only as a solvent but also as a mild reducing agent for the reduction of metal salt precursors [63]. In this context, glycerol has been successfully employed in the preparation of a variety of Ag [64,65,66,67,68,69,70,71], Tl [64], Pd [67,72], Pt [67,73,74], Ru [67], Au [75], Pt-Ru [74], Pt-Pd [76,77,78] and Co-Se [79] nanoparticles with various morphologies. Similarly, uniform Mn(OH)2 and MnCO3 nanocrystals with diameters of ca. 20 and 60 nm, respectively, and VO2(B) nanoflakes could be obtained from KMnO4 [80] and V2O5 [81] using glycerol as solvent and reductant.

Quite recently, diameter-controlled (50–200 nm) Ag nanowires were also fabricated from AgNO3 in glycerol under non-stirred microwave irradiation conditions [82]. Sodium dodecyl sulphate (SDS) was used to prevent the growth of the diameter, which could be finely controlled by changing the amounts of AgNO3, glycerol and SDS.

We must note that in comparison with more classical polyols, such as ethylene glycol or propylene glycol, the use glycerol as solvent and reducing agent for metal nanoparticles formation is clearly more convenient because of its lower cost and toxicity.

7. Conclusions and Perspectives

In summary, we have discussed the advent and progress on the use of glycerol as solvent and hydrogen donor for transfer hydrogenation reactions. Although the current body of work in the field is still very limited, from the studies published in the last three years it becomes apparent that this waste generated by the biodiesel industry can be a reliable alternative to replace 2-propanol in the near future. To achieve this goal, the design of new metal catalysts, more effective under milder reaction conditions, is needed. We hope that an increasing number of scientists will explore this interesting and young research field and find broad application of glycerol as economically appealing and environmentally friendly hydrogen-donor solvent for TH reactions. In particular, the challenging reduction of CO2 by glycerol should be studied in deep since, by means of this reaction, two waste products, whose production increases day by day, could be easily revalorized into useful highly value-added chemicals. In this sense, owing to the relevant results described recently by Gawande, Branco and co-workers [52], the use of tailored nanocatalysts should play a key role to achieve success. An increase in the use of glycerol for the production of new nanomaterials is also expected in the near future.

Acknowledgments

Financial support from the “Ministerio de Economía y Competitividad” of Spain (Projects CTQ2010-14796/BQU and CSD2007-00006) is gratefully acknowledged. The authors are also grateful to Pascale Crochet for her useful comments, suggestions and revisions during the preparation of this manuscript.

Conflict of Interest

The authors declare no conflict of interest.
