Appl. Sci. 2012, 2(4), 780-800; doi:10.3390/app2040780

Article
A Design Fuzzy Logic Controller for a Permanent Magnet Wind Generator to Enhance the Dynamic Stability of Wind Farms
Marwan Rosyadi 1,*, S. M. Muyeen 2, Rion Takahashi 1 and Junji Tamura 1
1
Kitami Institute of Technology, 165 Koen-Cho Kitami, Hokkaido 090-8507, Japan; Email: rtaka@mail.kitami-it.ac.jp (R.T.); tamuraj@mail.kitami-it.ac.jp (J.T.)
2
The Petroleum Institute, P.O. Box 2533, Abu Dhabi, UAE; Email: muyeen0809@gmail.com
*
Author to whom correspondence should be addressed; Email: marwanrosyadi@yahoo.co.id; Tel.: +81-157-26-9273; Fax: +81-157-26-9266.
Received: 21 August 2012; in revised form: 29 October 2012 / Accepted: 9 November 2012 /
Published: 22 November 2012

Abstract

: In this paper, a design fuzzy logic controller for a variable speed permanent magnet wind generator connected to a grid system through a LC-filter is proposed. A new current control method of grid side conversion is developed by integrating the fuzzy controller, in which both active and reactive power, delivered to a power grid system, is controlled effectively. The fuzzy logic controller is designed to adjust the gain parameters of the PI controllers under any operating conditions, so that the dynamic stability is enhanced. A new simple method, based on frequency response of the bode diagram, is proposed in the design of the fuzzy logic controller. To evaluate the controller system capabilities, simulation analyses are performed on a small wind farm model system including an induction wind generator connected to an infinite bus. The simulations have been performed using PSCAD/EMTDC. Simulation results show that the proposed control scheme is more effective for enhancing the stability of wind farms during temporary and permanent network disturbances and randomly fluctuating wind speed, compared with that of a conventional PI controller.
Keywords:
wind farm; fuzzy logic control; permanent magnet synchronous generator; AC/DC/AC converter; LC filter; dynamic stability

1. Introduction

Due to the problem of global warming, utilization of distributed generation systems, which are connected with a distribution grid system, has been of interest and has received considerable attention in recent years. As the distributed generation can be located close to load consumers, it can have some merits: increasing the available power, improving the overall system reliability, lowering cost, reducing emissions and expanding energy options [1]. It is well known that wind power is one of the distributed resources. However, connecting wind turbine generators to a distribution grid system leads to stability problems due to the output power fluctuation. Therefore, it is very important to analyze a suitable control system for wind generators connected to the grid.

The wind turbines can be Fixed Speed Wind Turbines with Induction Generator (FSWT-IG) or Variable Speed Wind Turbines with Permanent Magnet Synchronous Generator (VSWT-PMSG). The FSWT-IG has the advantages of mechanical simplicity, low specific mass, robust construction, and cost efficiency [2]. However, its disadvantages are a limited ability for power quality control and terminal voltage fluctuation under steady state condition, due to the uncontrollable reactive power consumption [3]. The VSWT-PMSG is a promising and attractive type of wind turbine concept, in which PMSG can be directly driven by a wind turbine and is connected to the power grid system through the AC/DC/AC power converter. The advantages of VSWT-PMSG are: (1) No gearbox and no brushes, and thus higher reliability; (2) No additional power supply for excitation; (3) The converter permits very flexible control of active and reactive power in cases of normal and disturbed grid conditions [4,5]. Therefore, a combined installation of VSWT-PMSG and FSWT-IG in a wind farm can be efficient due to reduced system investment cost. However, the PMSG has a more complex generator construction and more complicated controller system compared with FSWT-IG. Hence, the design and analysis of the power converter controller system still needs to be improved.

The AC/DC/AC converter of PMSG consists of a stator side converter and a grid side converter linked by dc circuit. The grid side converter has an important role in ensuring the active and reactive power delivered to the network effectively. Parameter change in the grid system can lead to a significant impact on the stability of the control system performance, especially under fault conditions. The deviation of grid system impedances can cause change in the stability gain margin and phase margin of the control system. In addition, the converter is operated at high switching frequencies between 2–15 kHz resulting in high order harmonics, which can disturb sensitive load on the grid and generate power losses [6,7]. To reduce harmonic currents injected to the grid, LC filter is an attractive solution because of its many potential advantages, such as higher harmonic attenuation and smaller inductances compared with an L filter [8]. However, the resonance frequency of the filter can cause stability problems in the control system performance. Hence, determination of gain parameters should be performed carefully in the design process.

Traditionally, the conventional PI controller is a very common in the control of the power converter of PMSG because of its simple structure and good performance in a wide range of operating conditions. PI controllers are simple but can not always effectively control systems with changing parameters or strong nonlinearities, and they may need frequent online retuning of their parameters [9]. Integration of a fuzzy logic control with a conventional PI controller could be an effective way to solve the problem of system parameter change. The fuzzy logic control can be used to adjust the gain parameters of the PI controller for any operating conditions. Hence, a good control performance can be achieved. However, the membership function of the fuzzy set should be carefully determined in the controller design. It is difficult to achieve an optimal controller performance by using a trial and error method.

Based on the view above, design fuzzy logic controller for the grid side converter of PMSG is proposed, in order to enhance the dynamic stability of a small wind farm including FSWT-IG connected to a grid system. To reduce harmonics injected into the grid, the installation of an LC filter is also considered. Section 2 describes VSWT- PMSG and LC filter models used in this study. Section 3 describes the control system of VSWT-PMSG. Section 4 describes a new design method of a fuzzy logic controller for PMSG. Section 5 describes the simulation results in transient and steady state conditions. Finally, Section 6 presents some conclusions regarding this work.

2. VSWT-PMSG and LC Filter Model

2.1. Variable Speed Wind Turbine Model

The mechanical power output of wind turbine captured from the wind power can be calculated as follows [10]:

Applsci 02 00780 i001
where Pw is the captured wind power (W), ρ is the air density (kg/m3), R is the radius of rotor blade (m), Vw is wind speed (m/s), and Cp is the power coefficient.

The value of Cp is depended on tip speed ratio (λ) and blade pitch angle (β) based on the turbine characteristics as follows [11].

Applsci 02 00780 i002
with
Applsci 02 00780 i003
where c1 to c6 denote characteristic coefficients of wind turbine (c1 = 0.5176, c2 = 116, c3 = 0.4, c4 = 5, c5 = 21 and c6 = 0.0068) [11].

The Cp-λ characteristic for different values of β is shown in Figure 1. It is seen that the optimum value of Cp (Cpopt = 0.48) is achieved at λ = 8.1 with β = 0°. This value of λ is set as the optimal value (λopt). Figure 2 depicts the characteristic between the turbine power output and the rotor speed for different wind speeds where the blade pitch angle is set at 0°. The maximum power output (1 pu) of wind turbine is obtained at 12 m/s of wind speed and 1 pu of rotational speed.

Applsci 02 00780 g001 200

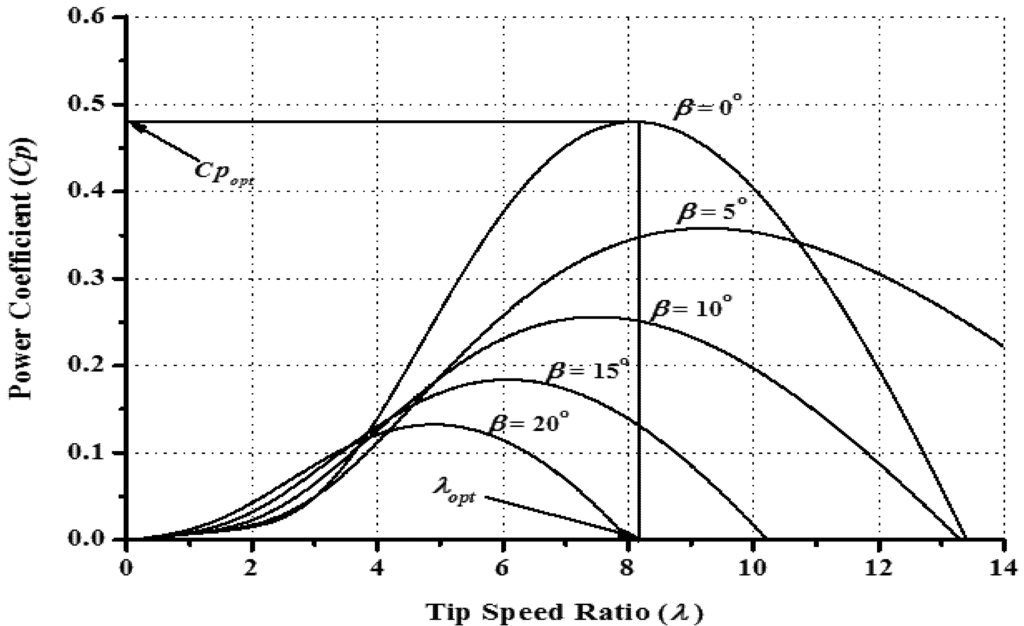

Figure 1. Cpλ characteristic for different pitch angle.

Click here to enlarge figure

Figure 1. Cpλ characteristic for different pitch angle.
Applsci 02 00780 g001 1024
Applsci 02 00780 g002 200

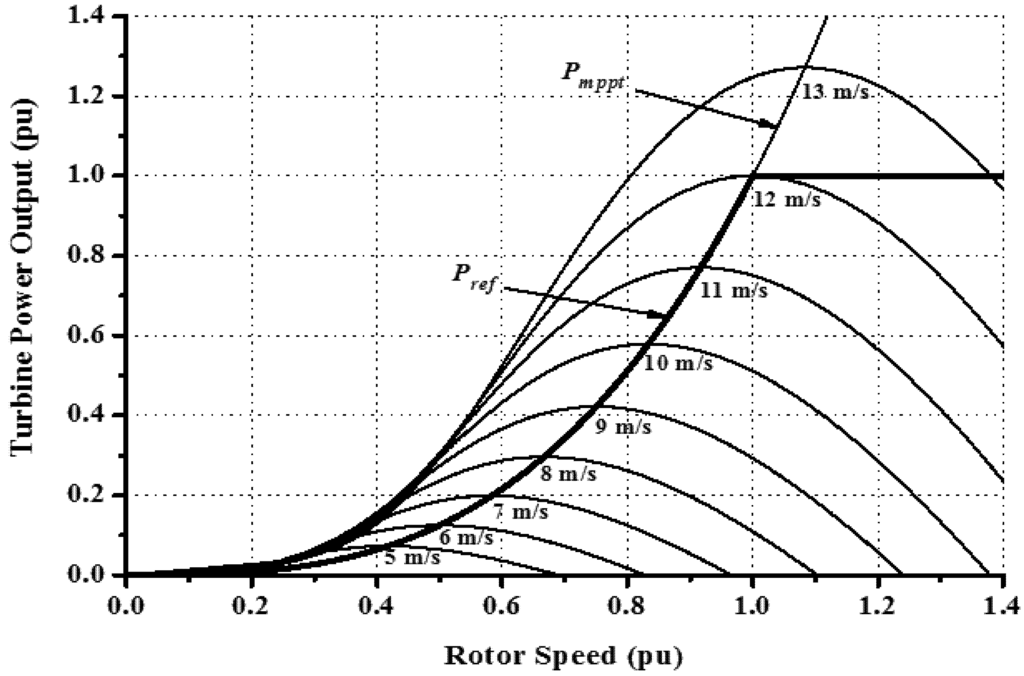

Figure 2. Turbine power characteristic (β = 0°).

Click here to enlarge figure

Figure 2. Turbine power characteristic (β = 0°).
Applsci 02 00780 g002 1024

In variable speed wind turbine, the rotor speed of wind turbine (ωr) is measured in order to determine the Maximum Power Point Tracking (MPPT). The maximum power (Pmppt) can be calculated without measuring the wind speed as expressed in Equation (4) [12]. The reference power (Pref) is limited within the rated power of generator.

Applsci 02 00780 i004

2.2. Permanent Magnet Synchronous Generator Model

The dynamic model of PMSG in the d-q rotating reference frame can be expressed by the following Equation (5) and Equation (6) [13]:

Applsci 02 00780 i005
Applsci 02 00780 i006
With
Applsci 02 00780 i007
Applsci 02 00780 i008
where Vsd and Vsq are stator voltages, Rs is the stator winding resistance, Isd and Isq are stator currents, ωe is the generator rotational speed, ψsd and ψsq are the stator flux linkages, Lsd and Lsq are leakage inductances of the stator winding, Lmd and Lmq are magnetizing inductances, and ψm is the permanent magnet flux linkage. By substituting Equations (7) and (8) into Equations (5) and (6), the differential equations of PMSG can be obtained as follows:
Applsci 02 00780 i009
Applsci 02 00780 i010
where Ld = Lsd + Lmd and Lq = Lsq + Lmq.

Active and reactive powers of PMSG are expressed as follows:

Applsci 02 00780 i011
Applsci 02 00780 i012
and the electrical torque of PMSG can be obtained by Equation (13), where p is the number of poles.

Applsci 02 00780 i013

Based on the above equations, a dynamic block diagram of PMSG in the d-q rotating reference frame can be derived as shown in Figure 3, where s denotes a Laplace operator.

Applsci 02 00780 g003 200
Figure 3. Block diagram of a Permanent Magnet Synchronous Generator (PMSG).

Click here to enlarge figure

Figure 3. Block diagram of a Permanent Magnet Synchronous Generator (PMSG).
Applsci 02 00780 g003 1024

2.3. LC Filter Model

Switching frequency of the converter involves high order harmonics that can disturb sensitive equipment in the grid system [7]. In order to reduce the current harmonics, the LC filter is considered in this paper. To avoid the resonance, a passive damping resistance should be allocated in series with a filter capacitor on the filter. Therefore, in designing the converter controller system, a passive damping resistance should be considered in the model system plant.

Equivalent circuit of single-phase LC filter including transformer impedance is shown in Figure 4. The LC filter is composed of an inverter side inductance (Li) and its parasitic resistance (Ri), a filter capacitor (Cf), and a damping resistance (Rd). Transformer impedance consists of leakage inductance (Lg) and resistance (Rg). Vi and Ii are voltage and current on the converter side of the LC filter. Vg and Ig are voltage and current on the grid side of the transformer. It should be noted that Vcf is a voltage on the filter capacitor (Cf).

Applsci 02 00780 g004 200

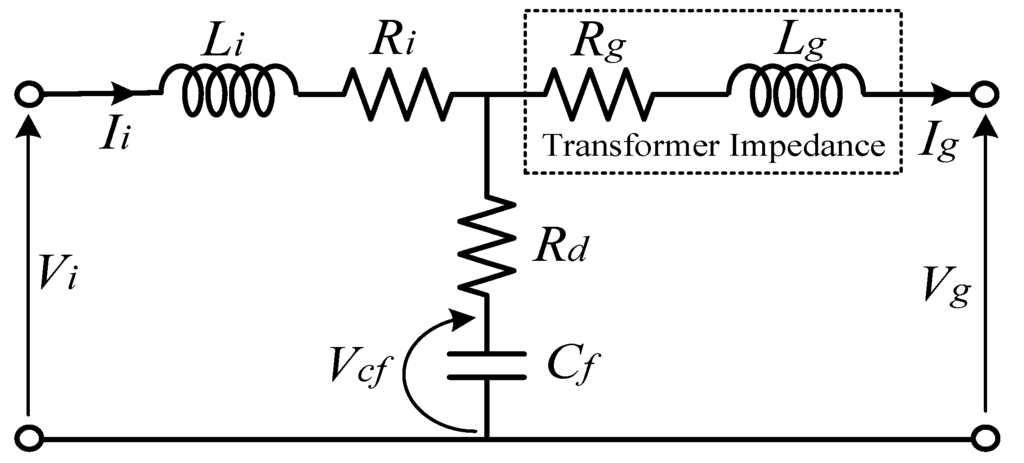

Figure 4. Single phase LC filter equivalent circuit.

Click here to enlarge figure

Figure 4. Single phase LC filter equivalent circuit.
Applsci 02 00780 g004 1024

Differential equations of the grid connected LC filter in d-q rotating reference frame can be written as Equations (14) to (19).

Applsci 02 00780 i014
Applsci 02 00780 i015
Applsci 02 00780 i016
Applsci 02 00780 i017
Applsci 02 00780 i018
Applsci 02 00780 i019

The dynamic block diagram of the grid connected LC filter in the d-q rotating reference frame can be derived as shown in Figure 5.

Applsci 02 00780 g005 200
Figure 5. Block diagram of LC filter.

Click here to enlarge figure

Figure 5. Block diagram of LC filter.
Applsci 02 00780 g005 1024

3. The VSWT-PMSG Control System

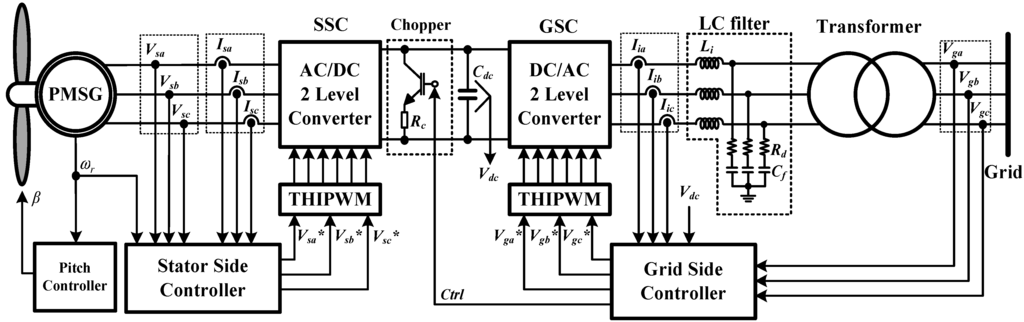

The block diagram of control system for VSWT-PMSG proposed in this paper is shown in Figure 6. The VSWT-PMSG system consists of the following components: a direct drive PMSG, blade pitch controller, AC/DC/AC converters based on two levels of IGBT which are composed of stator side converter (SSC) and grid side converter (GSC), a DC-link circuit composed of a chopper with a resistance (Rc) and a capacitor (Cdc), two voltage source converter controllers (stator side controller and grid side controller), and LC filter with passive damping resistance.

Applsci 02 00780 g006 200
Figure 6. VSWT-PMSG control system.

Click here to enlarge figure

Figure 6. VSWT-PMSG control system.
Applsci 02 00780 g006 1024

The SSC is connected to the stator of PMSG, and it converts the three-phase AC voltage generated by PMSG to DC voltage. The three-phase voltage and current of PMSG are detected on the stator terminal. The rotor speed of PMSG is detected from the rotor of the generator. All outputs of the sensors are fed to the stator side controller as input signals in order to control the voltage references of the stator side converter for modulation.

In the GSC, the converter converts the DC voltage into the three-phase AC voltage of the grid frequency. The converter is connected to the grid system through an LC filter and a step up transformer. The grid current and the grid voltage sensors are detected on the converter side of the LC filter and the high voltage side of the transformer, respectively. The DC voltage (Vdc) is detected on the DC capacitor. Using the grid side controller controls the voltage reference of grid side voltage source converter for modulation. When a fault occurs in the grid, the Vdc increases significantly due to power unbalance between SSC and GSC. In order to protect the DC-link circuit, the controller activates the chopper by a trigger command (Ctrl).

Output power of a wind generator always fluctuates due to the wind speed variations. To maintain the output power of generator under the rated level, a pitch controller is used to regulate rotational speed of PMSG under its rated value.

In modulation technique, Third Harmonic Injection Pulse Wave Modulation (THIPWM) is used in this work. Injection of the third harmonic in the reference voltage makes it possible to utilize the voltage reference without over modulation. In addition, the THIPWM can maximize fundamental amplitude of the output voltage [14].

In this paper, a 2.5 MVA class of VSWT-PMSG is considered. Table 1 presents the system parameters of the grid connected VSWT-PMSG. In order to determine the LC filter parameters, step by step procedures and limitations of the filter parameters presented in [7] are adopted.

Table 1. System parameters.

Click here to display table

Table 1. System parameters.
ComponentParameterSymbolValue
Wind TurbineBlade RadiusR40 m
Rated Wind SpeedVw12 m/s
Rated rotation speedωr2.43 rad/s
Maximum Power CoefficientCpopt0.48
Optimum Tip Speed Ratioλopt8.1
Air densityρ1.225 kg/m3
InertiaJwt10,137,000 kg·m2
PMSGRated VoltageV1.0 kV
Rated Frequencyfe20 Hz
Magnetic Fluxψm1.4 pu
Stator Winding ResistanceRs0.01 pu
The d-axis inductanceLd0.95 pu
The q-axis inductanceLq0.75 pu
Pole pairsp52
AC/DC/AC Power ConverterSSC frequency Switchingfs1 kHz
GSC frequency Switchingfs5 kHz
Grid Frequencyfg50 Hz
DC Link capacitorCdc25000 μF
DC Link voltageVdc1.75 kV
LC FilterInverter side inductanceLi0.6 pu
Inverter side parasitic resistanceRi0.005 pu
Filter capacitorCf0.05 pu
Damping ResistanceRd0.3 pu
Step Up TransformerTransformer inductanceLg0.04 pu
Transformer resistanceRg0.016 pu
Low voltageVTL1.0 kV
High voltageVTH6.6 kV

3.1. Stator Side Controller

The aim of the stator side controller is to control the active and reactive power output of the PMSG. Details of the stator side controller system are presented in a block diagram shown in Figure 7. The rotor angle position (θr) used in the transformation between abc and dq variables is obtained from the rotor speed of generator. The active power (Ps) and reactive power (Qs) of the generator are controlled by the d-axis current (Isd) and the q-axis current (Isq), respectively. The value of active power reference (Pref) is determined by MPPT method of the wind turbine characteristic as shown in Figure 2. For unity power factor operation, the reactive power reference (Qs*) is set to zero. The cross couplings IsdωeLd and IsdωeLq should be compensated by the output of the current controllers in order to improve the tracking capability of the control system. Finally, Vsd* and Vsq* are voltage reference outputs of the current controller, which is used to generate the three phase reference voltage (Vsa*, Vsb*, Vsc*) to control stator currents of the PMSG.

Applsci 02 00780 g007 200

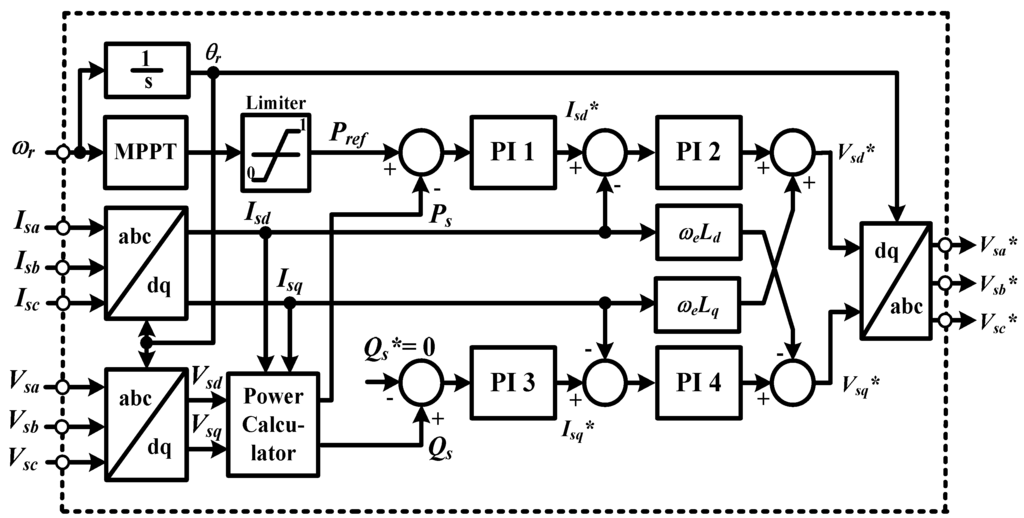

Figure 7. Stator side controller system.

Click here to enlarge figure

Figure 7. Stator side controller system.
Applsci 02 00780 g007 1024

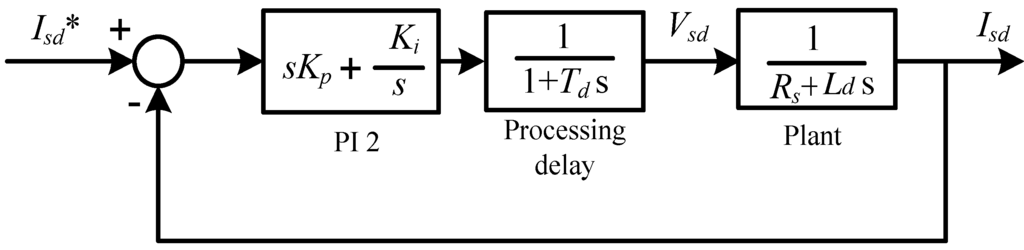

In order to analyze stability performance of the controller system shown in Figure 7, a block diagram of the current loop control shown in Figure 8 is used. In this study, the d-axis and the q-axis components are assumed identical, and hence the plant system can be modeled by using one axis component only as expressed by 1/(Rs + Lds). The controller is composed of a PI controller (PI 2), a processing delay, and a plant system. The time delay (Td) is composed of one sample delay caused by switching frequency and one half sample delay caused by the dead time of PWM converter.

Applsci 02 00780 g008 200
Figure 8. Current control loop of SSC.

Click here to enlarge figure

Figure 8. Current control loop of SSC.
Applsci 02 00780 g008 1024

3.2. Grid Side Controller

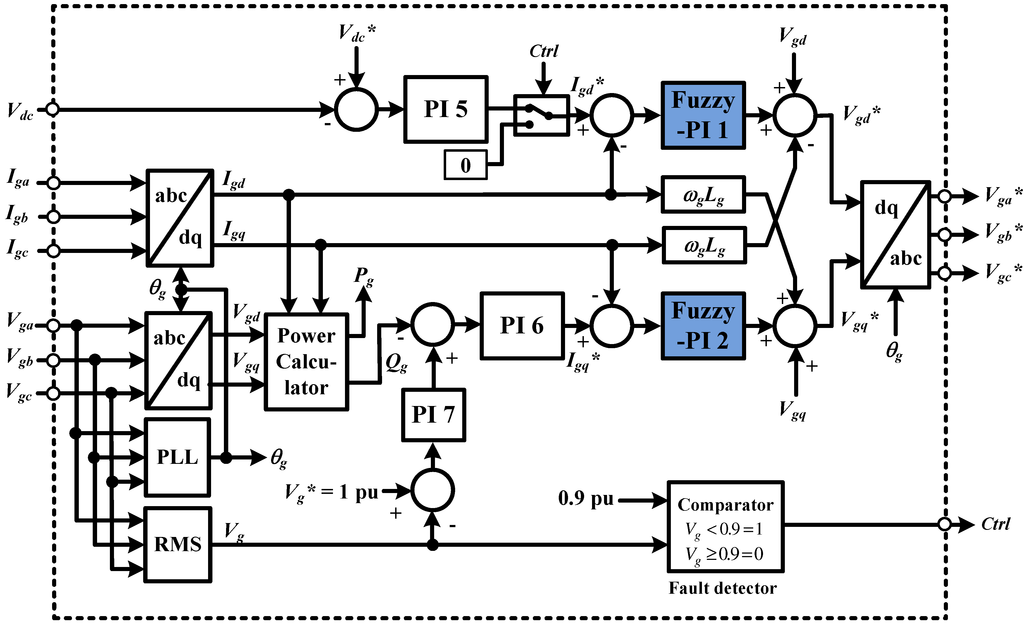

Figure 9 shows a block diagram of the grid side controller system. In this control strategy, the control system based on the d-q rotating reference frame is implemented, which has the same rotational speed as the grid voltage. The three phase grid currents (Iga, Igb, Igc) and the grid voltages (Vga, Vgb, Vgc) are transformed into the d-q rotating reference frame by using Park transformation. The Phase Locked Loop (PLL) [15] is used to extract the grid side phase angle (θg).

Applsci 02 00780 g009 200
Figure 9. Grid side controller system.

Click here to enlarge figure

Figure 9. Grid side controller system.
Applsci 02 00780 g009 1024

The controller is divided into two cascade loop control, one for active power and the other is for the reactive power. When grid voltages on the stationary reference frame are transformed into the d-q rotating reference frame, Vgd is set to constant and Vgq is set to zero. Therefore, the active and reactive power delivered to the grid can be controlled separately by the d-axis current (Igd) and the q-axis current (Igq), respectively. To improve the tracking capability of control system, the cross coupling should be canceled by adding IgdωLg and IgqωLg at the output of the current controllers. For d-axis and q-axis current loop regulation, in this paper, the Fuzzy-PI controllers are applied. The control strategy for the Fuzzy-PI controller will be explained in Section 4. The output of current controller (Vgd* and Vgq*) is transformed into the stationery reference frame (Vga*, Vgb*, Vgc*), which is used as a reference signal for pulse wave modulation.

Under normal operating conditions, the voltage of DC-link capacitor (Vdc) is maintained constant in order to transfer the active power generated by PMSG to the grid. The d-axis current reference signal (Igd*) is determined from the output of the DC-voltage controller, and the q-axis current reference signal (Igq*) is obtained from reactive power controller output. The reactive power reference (Qg*) is set so that the terminal voltage at the high voltage side of the transformer remains constant.

In grid fault condition, the fault detector is activated when the grid voltage decreases under 0.9 pu. The detector sends the control signal command (Ctrl) to trigger the DC link protection. At the same time, the active power transfer to the grid is set to zero.

3.3. Pitch Controller

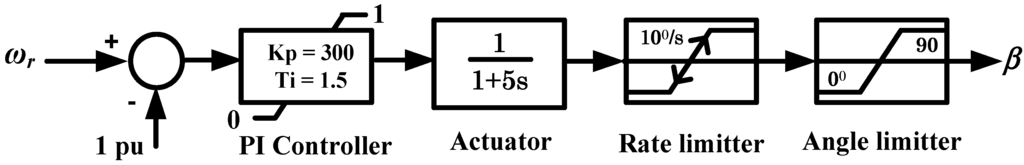

Figure 10 shows the model of the pitch controller for VSWT. The control loop of the pitch actuator is represented by a first-order transfer function with an actuator time constant (Ts = 5) and the pitch rate limiter of 10°/s. A classical PI controller is used to manage tracking error. In VSWT the pitch controller is used to regulate rotational speed of PMSG under its rated value (1 pu).

Applsci 02 00780 g010 200
Figure 10. Pitch controller.

Click here to enlarge figure

Figure 10. Pitch controller.
Applsci 02 00780 g010 1024

4. Fuzzy-PI Controller Design

In order to design a fuzzy logic controller (FLC) for the current control loop, the block diagram of LC filter in the d-q rotating reference frame shown in Figure 6 is considered as a plant system. The plant system can be modelled by using the d-axis component only as shown in Figure 11, where the cross coupling and the grid voltage are neglected. Figure 12 shows a block diagram of the current control loop for GSC. The control system is composed of a Fuzzy-PI controller, a processing delay, and a plant system, using the converter side voltage (Vid) as input and the converter side current (Iid) as output. The FLC is used to adjust the PI parameters according to the input signal error (er). To determine a control signal for proportional signal control (Per) and integral signal control (Ier), an inference engine with rule base having if-then rules in form of “If er, then Per and Ier” is used. The general structure of the fuzzy logic control is shown in Figure 13. The FLC is composed of fuzzification, membership function, rule base, fuzzy inference and defuzzification.

Applsci 02 00780 g011 200
Figure 11. The LC filter in d-axis component only.

Click here to enlarge figure

Figure 11. The LC filter in d-axis component only.
Applsci 02 00780 g011 1024
Applsci 02 00780 g012 200

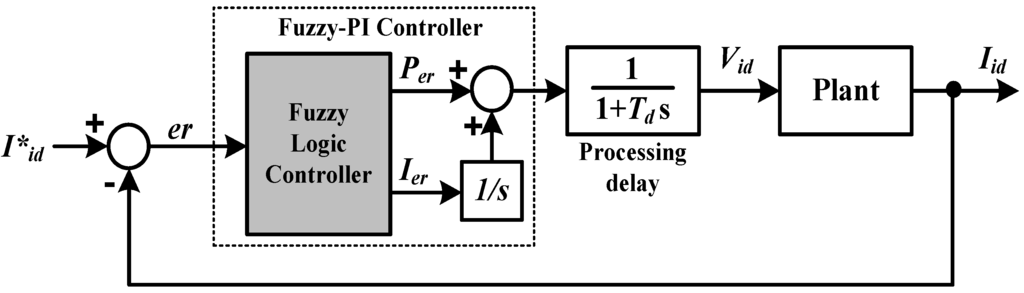

Figure 12. Current control loop of the grid side converter (GSC).

Click here to enlarge figure

Figure 12. Current control loop of the grid side converter (GSC).
Applsci 02 00780 g012 1024
Applsci 02 00780 g013 200
Figure 13. Block diagram of fuzzy logic controller.

Click here to enlarge figure

Figure 13. Block diagram of fuzzy logic controller.
Applsci 02 00780 g013 1024

The fuzzification comprises the process of transforming crisp values into grades of membership for linguistic terms of fuzzy sets. The membership function is used to associate a grade to each linguistic term. For fuzzification, the three variables of the FLC—the error (er) and the outputs of Per and Ier—have five triangle membership functions. The variables fuzzy subsets for input are Negative Big (NB), Negative Small (NS), Zero (Z), Positive Small (PS), and Positive Big (PB). Figure 14 shows the membership function for input er. The interval input of the membership function is set at [−1 to 1] due to the variation of the d-axis or q-axis current between −1 to 1 pu.

Applsci 02 00780 g014 200

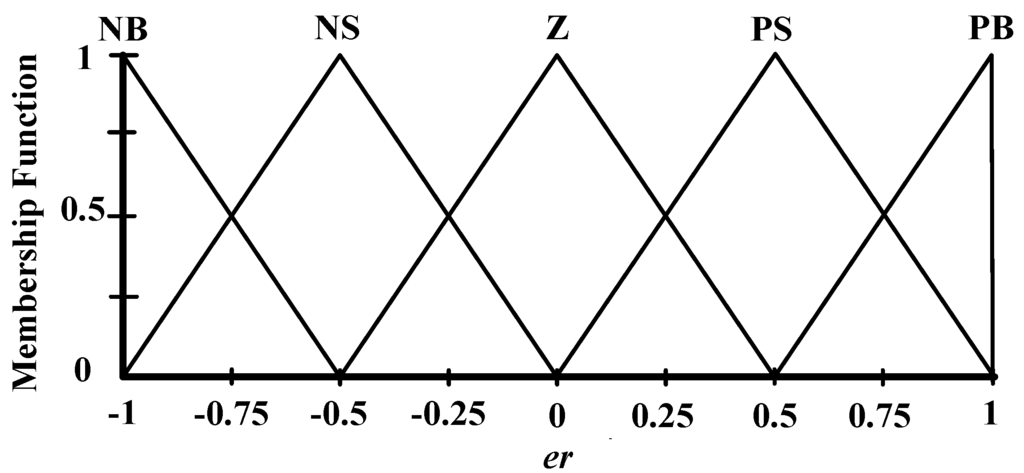

Figure 14. The membership function for input er.

Click here to enlarge figure

Figure 14. The membership function for input er.
Applsci 02 00780 g014 1024

Figure 15 and Figure 16 show the membership functions of output for Per and Ier, respectively. The membership functions are designed based on frequency response of the bode diagram of the current control loop. In this paper the initial gain Kp is obtained by using optimum modulus criterion. The integral time constant (Ti) usually set equal to the plant system time constant (Ltot/Rtot) [6], where Ltot and Rtot are total of series inductances and its parasitic resistances of the plant system, respectively. The integral gain can be calculated by using Ki = Kp/Ti.

Applsci 02 00780 g015 200

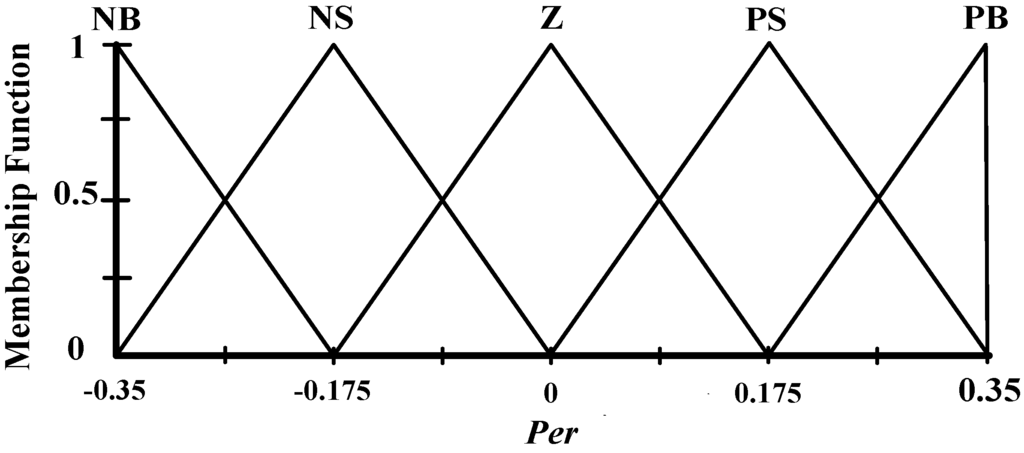

Figure 15. The membership function for output Per.

Click here to enlarge figure

Figure 15. The membership function for output Per.
Applsci 02 00780 g015 1024
Applsci 02 00780 g016 200
Figure 16. The membership function for output Ier.

Click here to enlarge figure

Figure 16. The membership function for output Ier.
Applsci 02 00780 g016 1024
Applsci 02 00780 g017 200
Figure 17. Bode diagram of current control loop of GSC.

Click here to enlarge figure

Figure 17. Bode diagram of current control loop of GSC.
Applsci 02 00780 g017 1024

Figure 17 shows frequency response of the bode diagram of the current loop control of GSC for four different values of Kp and Ki. It is seen that maximum gain with gain margin (Gm) larger than 10 dB and phase margin (Pm) larger than 45° is obtained with Kp = 0.35 and Ki =7.07. Therefore, the interval of membership function for output Per and Ier can be set at [−0.35 to 0.35] and [−7.04 to 7.04] as shown in Figure 15 and Figure 16, respectively.

The rules are set based upon the knowledge and working of the system. The values of Per and Ier for Fuzzy-PI controller of the current regulator are calculated for the changes in the input of the FLC according to the rule base. The number of rules can be set as desired. A rule in the rule base can be expressed in the form:

If (er is NB), then (Per is NB) and (Ier is NB)

If (er is NS), then (Per is NS) and (Ier is NS)

If (er is ZE), then (Per is ZE) and (Ier is ZE)

If (er is PS), then (Per is PS) and (Ier is PS)

If (er is PB), then (Per is PB) and (Ier is PB)

The rule base includes five rules, which are based upon the five membership functions of the input variables to achieve the desired Per and Ier.

In this work, Mamdani’s max-min method is used for inference mechanism. The centre of gravity method is used for defuzzification to obtain Per and Ier, which is given by the following equation:

Applsci 02 00780 i020
where, n is the total number of rules, μi is the membership grade for the i-th rule, and Ci is the coordinate corresponding to respective output or consequent membership function.

To analyse the dynamic performance of current control loop, the linear block model as shown in Figure 11 is used. The analysis has been performed by using Matlab/Simulink. Figure 18 shows step response of the current control loop. The reference for the d-axis current has been varied four times at every 100 ms. It is seen that good performance can be achieved by using proposed Fuzzy-PI controller. The three-phase current on the grid side, as well as Iid, have been observed by using power system blockset as shown in Figure 19. It can be seen that the three phase current tracks the reference very well.

Applsci 02 00780 g018 200

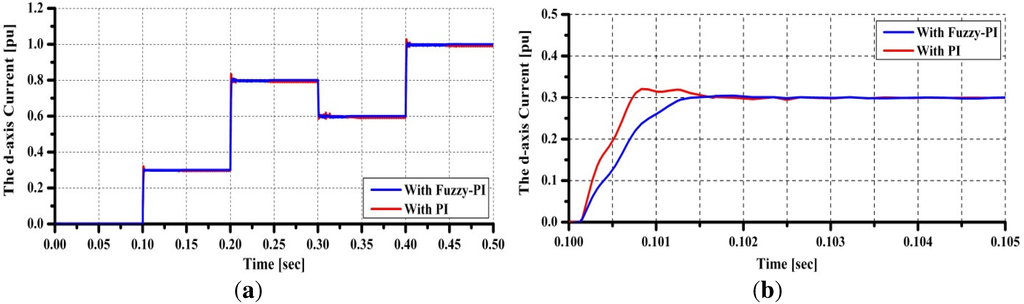

Figure 18. Linear block model analysis.(a) Step response; (b) Zoom of step response at 0.1 s.

Click here to enlarge figure

Figure 18. Linear block model analysis.(a) Step response; (b) Zoom of step response at 0.1 s.
Applsci 02 00780 g018 1024
Applsci 02 00780 g019 200

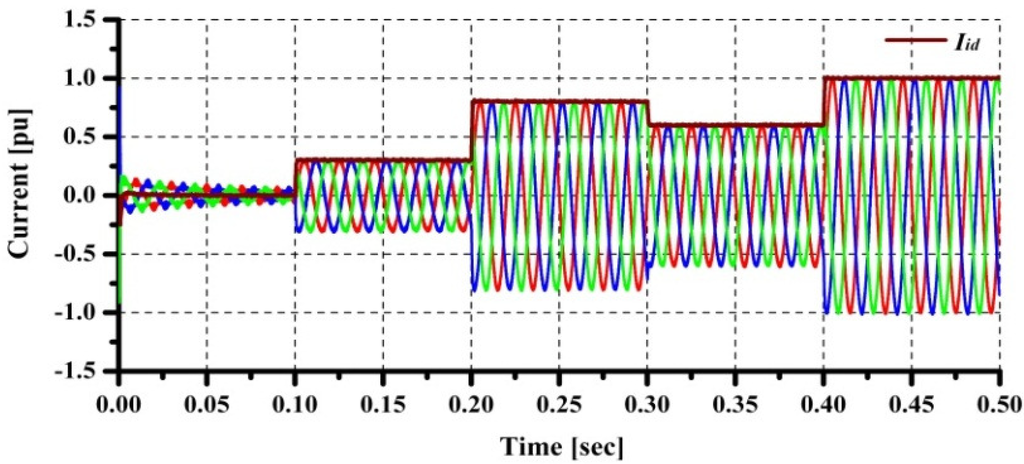

Figure 19. Power system blockset model analysis.

Click here to enlarge figure

Figure 19. Power system blockset model analysis.
Applsci 02 00780 g019 1024

5. Simulation Study

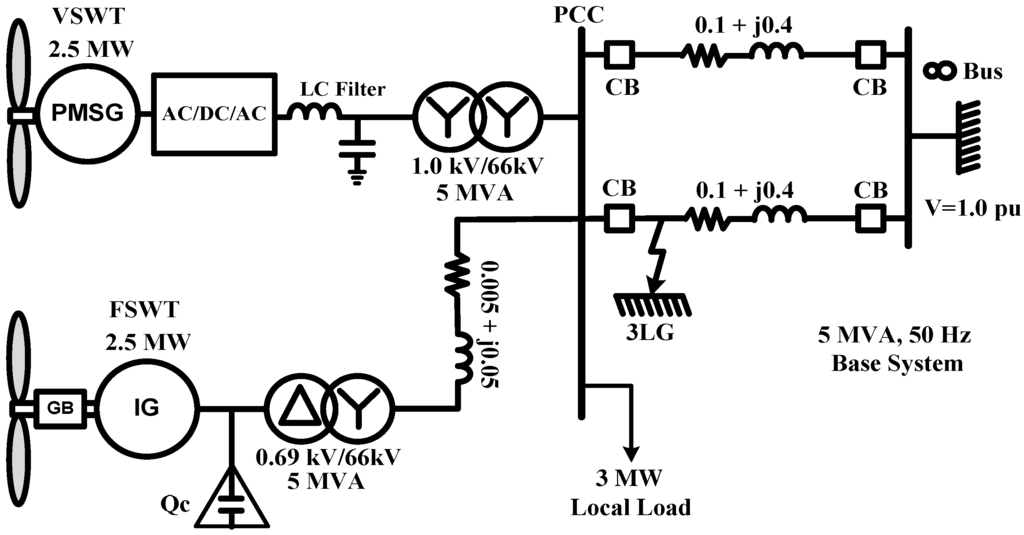

In order to investigate the performance of the proposed control system, combined installation of VSWT-PMSG and FSWT- SCIG in a small wind farm connected to an infinite bus as shown in Figure 20 is analyzed in this study, where the VSWT-PMSG is connected to the infinite bus through AC/DC/AC power converter, LC filter, a 1.0/66 kV step up transformer and a double circuit transmission line. The FSWT-IG rated at 2.5 MW is also connected to the infinite bus via a 0.69/66 kV step up transformer and a single circuit and double circuit transmission lines. The FSWT-IG is controlled only by a pitch angle controller in order to regulate power output of IG under the rated power. Both wind generators are connected at point of common connection (PCC). In order to compensate for reactive power consumption by IG, a capacitor bank (Qc) is installed at the terminal of IG. The value of the capacitor is determined so that the power factor becomes unity at rated power operation. The resistance and reactance of the transmission line is represented in the form of R + jX in per unit as shown in the figure, respectively. The simulation analyses have been performed by using PSCAD/ EMTDC.

Applsci 02 00780 g020 200
Figure 20. Wind farm model.

Click here to enlarge figure

Figure 20. Wind farm model.
Applsci 02 00780 g020 1024

5.1. Transient Stability Analysis

In the transient stability analysis, a symmetrical three line to ground (3LG) fault at the transmission line is considered as network disturbance, as shown in Figure 20. Temporary fault (Case 1) and permanent fault (Case 2) are considered in the simulation study to show the effectiveness of the proposed control. In Case 1, the fault occurs at 0.1 s; the circuit breakers (CBs) on the faulted line are opened at 0.2 s, and at 1.0 s the CBs are re-closed. In Case 2, the fault occurs at 0.1 s; the CBs on the faulted line are opened at 0.2 s, and at 1.0 s the CBs are re-closed, and at 1.1 s the CBs are opened again because the fault is still continuing. In this transient analysis, the wind speeds for the wind generators are kept constant at the rated speed (12 m/s), assuming that the wind speed does not change in short time duration.

The simulation results for the transient stability analysis in Case 1 and Case 2 are shown through Figure 21, Figure 22, Figure 23, Figure 24, Figure 25, Figure 26 and Figure 27. Figure 21 and Figure 22 show responses of reactive power output of PMSG and IG, respectively. It is seen that, by using the proposed controller for PMSG, the grid side converter of PMSG can provide necessary reactive power during 3LG fault. Therefore, the terminal voltage at PCC can return back to the rated value quickly as shown in Figure 23. The rotor speed of IG can also become stable as shown in Figure 24, Figure 25 and Figure 26 show responses of the active power output of PMSG and IG, respectively. The active power can be controlled more effective by using Fuzzy-PI Controller. Figure 27 shows the DC-link voltage response of the PMSG during the fault. From these results, it is clear that the stability of performance of the wind farms can be improved more effectively in the case of PMSG with the Fuzzy-PI controller than that with just PI controller. Moreover, in Case 2, the system becomes unstable when the converter with PI Controller is used for PMSG.

Applsci 02 00780 g021 200

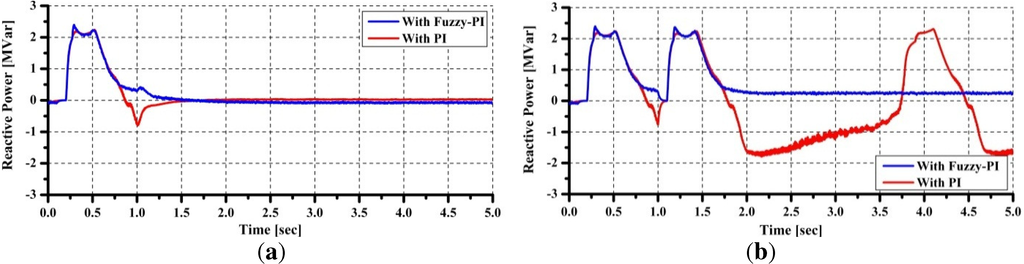

Figure 21. Reactive power output of PMSG.(a) case 1; (b) Case 2.

Click here to enlarge figure

Figure 21. Reactive power output of PMSG.(a) case 1; (b) Case 2.
Applsci 02 00780 g021 1024
Applsci 02 00780 g022 200

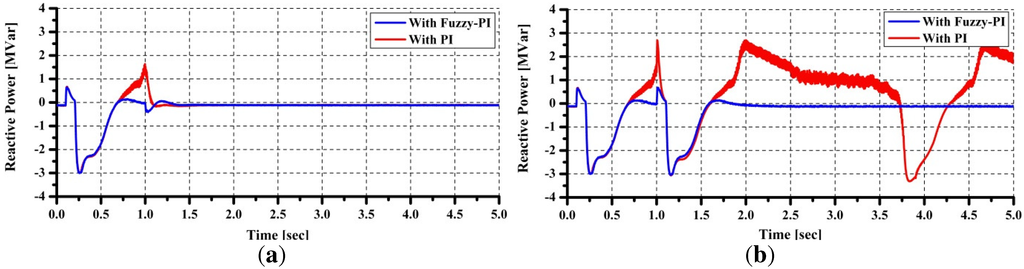

Figure 22. Reactive power output of IG.(a) case 1; (b) Case 2.

Click here to enlarge figure

Figure 22. Reactive power output of IG.(a) case 1; (b) Case 2.
Applsci 02 00780 g022 1024
Applsci 02 00780 g023 200

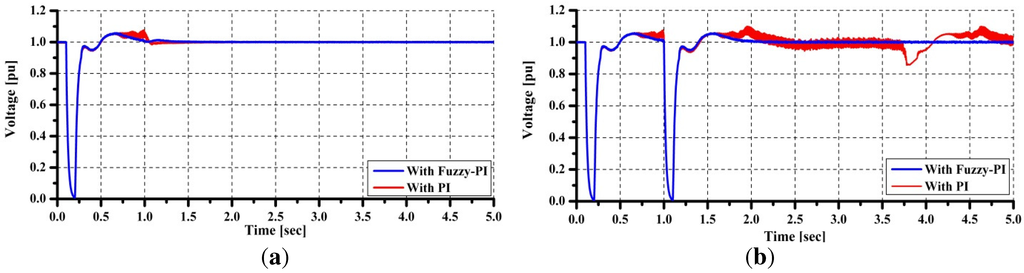

Figure 23. Terminal voltage at PCC.(a) case 1; (b) Case 2.

Click here to enlarge figure

Figure 23. Terminal voltage at PCC.(a) case 1; (b) Case 2.
Applsci 02 00780 g023 1024
Applsci 02 00780 g024 200

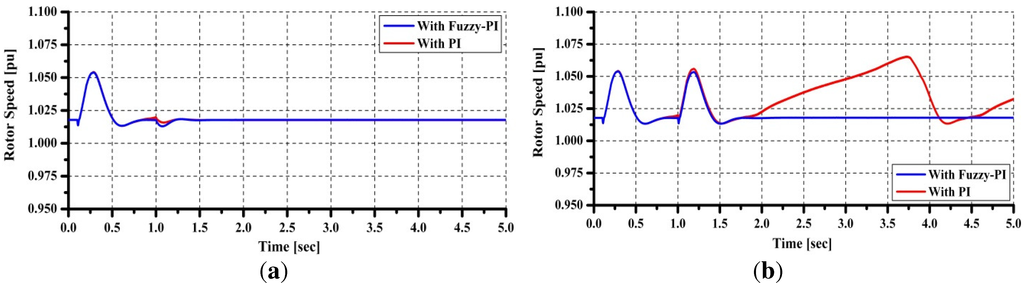

Figure 24. Rotor speed of IG.(a) case 1; (b) Case 2.

Click here to enlarge figure

Figure 24. Rotor speed of IG.(a) case 1; (b) Case 2.
Applsci 02 00780 g024 1024
Applsci 02 00780 g025 200
Figure 25. Active power output of PMSG.(a) case 1; (b) Case 2.

Click here to enlarge figure

Figure 25. Active power output of PMSG.(a) case 1; (b) Case 2.
Applsci 02 00780 g025 1024
Applsci 02 00780 g026 200

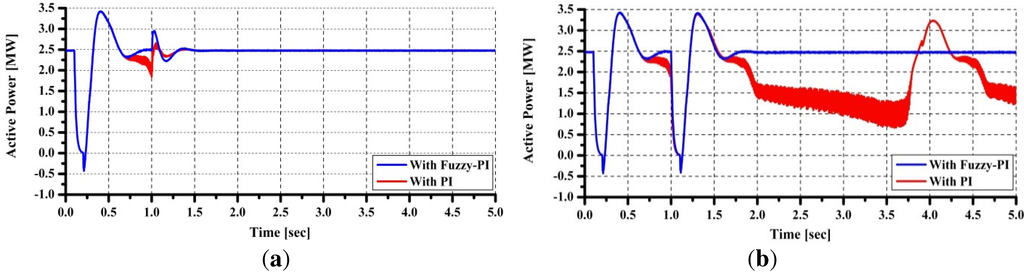

Figure 26. Active power output of IG.(a) case 1; (b) Case 2.

Click here to enlarge figure

Figure 26. Active power output of IG.(a) case 1; (b) Case 2.
Applsci 02 00780 g026 1024
Applsci 02 00780 g027 200

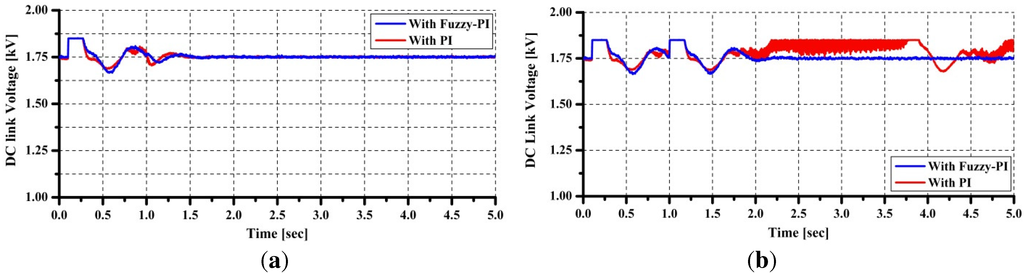

Figure 27. DC link voltage of PMSG.(a) case 1; (b) Case 2.

Click here to enlarge figure

Figure 27. DC link voltage of PMSG.(a) case 1; (b) Case 2.
Applsci 02 00780 g027 1024

5.2. Steady State Analysis with Fuzzy-PI Controller

To evaluate the steady state performance of the proposed system, responses for wind speed data shown in Figure 28 are evaluated for the cases of FSWT-IG and the Fuzzy-PI controlled VSWT-PMSG. Figure 29 shows the active power output of both wind generators. It can be seen that the active power of the wind generators can be delivered to the grid effectively. Figure 30 shows the rotor speed response of the PMSG. The blade pitch angle responses are shown in Figure 31.

Figure 32 shows the reactive power output of both wind generators. It is seen that the reactive power from the grid side converter of VSWT-PMSG provides reactive power compensation for FSWT-IG for voltage regulation. Therefore the voltage at the PCC is controlled almost constant as shown in Figure 33.

Applsci 02 00780 g028 200

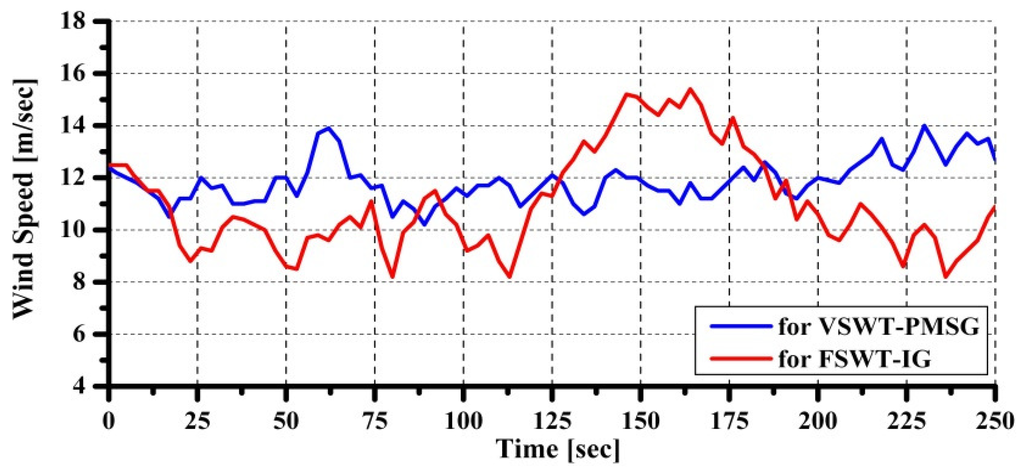

Figure 28. Wind speed data.

Click here to enlarge figure

Figure 28. Wind speed data.
Applsci 02 00780 g028 1024
Applsci 02 00780 g029 200
Figure 29. Active power output of wind generators.

Click here to enlarge figure

Figure 29. Active power output of wind generators.
Applsci 02 00780 g029 1024
Applsci 02 00780 g030 200

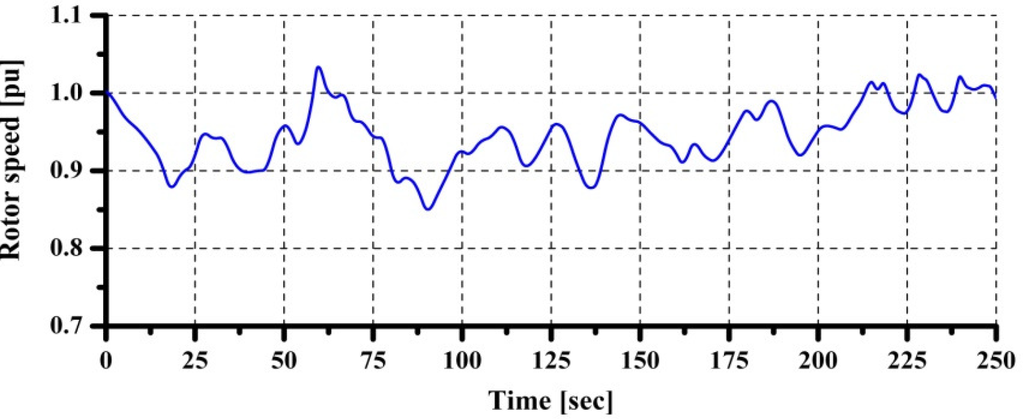

Figure 30. Rotor speed response of VSWT-PMSG.

Click here to enlarge figure

Figure 30. Rotor speed response of VSWT-PMSG.
Applsci 02 00780 g030 1024
Applsci 02 00780 g031 200

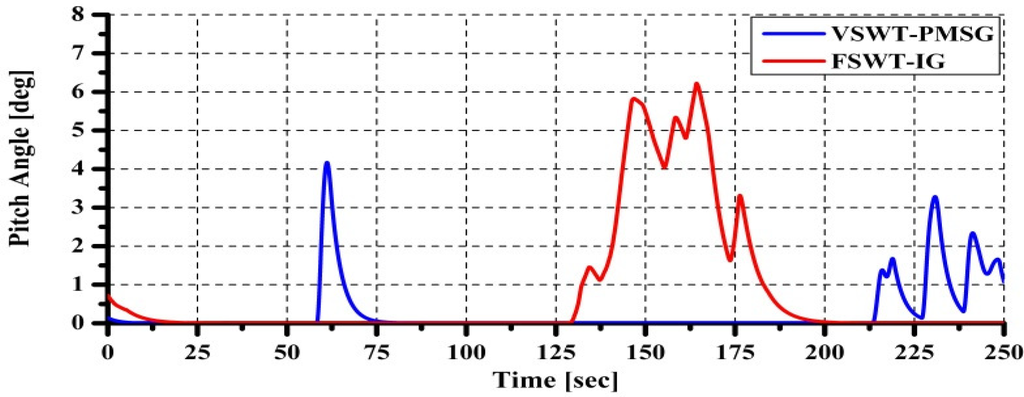

Figure 31. Pitch Angle of wind turbines.

Click here to enlarge figure

Figure 31. Pitch Angle of wind turbines.
Applsci 02 00780 g031 1024
Applsci 02 00780 g032 200
Figure 32. Reactive power outputof wind generators.

Click here to enlarge figure

Figure 32. Reactive power outputof wind generators.
Applsci 02 00780 g032 1024
Applsci 02 00780 g033 200

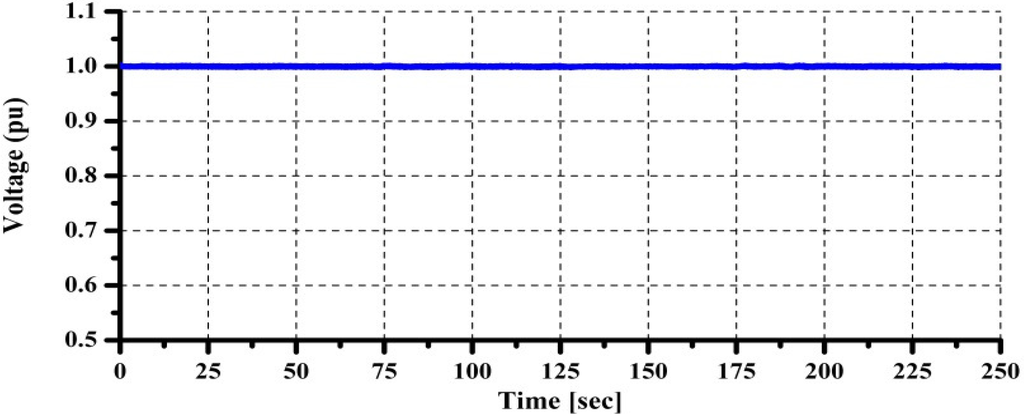

Figure 33. Terminal voltage at PCC.

Click here to enlarge figure

Figure 33. Terminal voltage at PCC.
Applsci 02 00780 g033 1024

6. Conclusions

In this paper, a new Fuzzy-PI controller for variable speed permanent magnet wind generators connected to a power grid through a LC filter is proposed and investigated in order to enhance its dynamic (transient stability and steady state behavior) performances. The membership function of the fuzzy logic control system is designed based on frequency response of the bode diagram. The controller combines fuzzy logic with a classical PI controller in order to adjust the PI gains online. The stabilizing effect of the proposed PMSG system on the fixed speed wind generators is also investigated. The results show that the proposed Fuzzy-PI controller is very effective in improving the transient stability of overall wind farm systems during temporary and permanent fault conditions. The significant effect of the proposed control system has been demonstrated especially in the permanent fault analysis. Moreover, the steady state performance of the proposed system is analyzed using variable wind speed data, and it is demonstrated that the terminal voltage of wind farm under randomly varying wind speed can be controlled constantly.

Acknowledgments

This study was supported by a Grant-in-Aid for scientific Research (B) from The Ministry of Education, Science, Sports and Culture of Japan.

References

  1. Ackermann, T.; Andersson, G.; Söder, L. Distributed generation: A definition. Electr. Power Syst. Res. 2001, 57, 195–204, doi:10.1016/S0378-7796(01)00101-8.
  2. Muyeen, S.M.; Tamura, J.; Murata, T. Introduction. In Stability Augmentation of a Grid Connected Wind Farm; Springer-Verlag: London, UK, 2009; pp. 13–21.
  3. Ackermann, T. Generator and Power Electronics for Wind Turbines. In Wind Power in Power System; John Wiley & Sons: Chichester, UK, 2005; pp. 73–79.
  4. Polinder, H.; de Haan, S.W.H.; Dubois, M.R.; Slootweg, J. Basic Operation Principles and Electrical Conversion Systems of Wind Turbines. In Proceedings of Nordic Workshop on Power and Industrial Electronics, Trondheim, Norway, 14–16 June 2004. Paper 069.
  5. Michalke, G.; Hansen, A.D.; Hartkopf, T. Control Strategy of a Variable Speed Wind Turbine with Multipole Permanent Magnet Synchronous Generator. In Proceedings of European Wind Energy Conference and Exhibition, Milan, Italy, 7–10 May 2007.
  6. Hill, W.A.; Kapoor, S.C. Effect of Two-Level PWM Sources on Plant Power System Harmonics. In Proceedings of The 1998 IEEE Industry Applications ConferenceIEEE-IAS Annual Meeting, St. Louis, MO, USA, 12–15 October 1998; pp. 1300–1306.
  7. Liserre, M.; Blaabjerg, F.; Hansen, S. Design and Control of an LCL-filter based Three-phase Active Rectifier. IEEE Trans. Ind. Appl. 2005, 41, 1281–1291, doi:10.1109/TIA.2005.853373.
  8. Blasko, V.; Kaura, V. A novel control to actively damp resonance in input LC filter of a three-phase voltage source converter. IEEE Trans. Ind. Appl. 1997, 33, 542–550, doi:10.1109/28.568021.
  9. Ferdi, B.; Benachaiba, C.; Dib, S.; Dehini, R. Adaptive PI control of dynamic voltage restorer using fuzzy logic. J. Electron. Eng. Ther. Appl. 2010, 1, 165–173.
  10. Heier, S. Wind Energy Convertion Systems. In Grid Integration of Wind Energy Conversion Systems; John Wiley & Sons Ltd.: Chicester, UK, 1998; pp. 34–36.
  11. MATLAB documentation center. Available online: http://www.mathworks.co.jp/jp/help/ (accessed on 12 March 2012).
  12. Muyeen, S.M.; Al-Durra, A.; Tamura, J. Variable speed wind turbine generator system with current controlled voltage source inverter. Electr. Power Syst. Res. 2010, 80, 328–338, doi:10.1016/j.epsr.2009.09.016.
  13. Li, S.; Haskew, T.A.; Xu, L. Conventional and novel control design for direct driven PMSG wind turbines. Electr. Power Syst. Res. 2010, 80, 328–338, doi:10.1016/j.epsr.2009.09.016.
  14. Farid, O.A.B. A study of new techniques of controlled PWM inverters. Eur. J. Sci. Res. 2009, 32, 77–87.
  15. Muyeen, S.M.; Takahashi, R.; Murata, T.; Tamura, J. A variable speed wind turbine control strategy to meet wind farm grid code requirements. IEEE Trans. Power Syst. 2010, 25, 331–340, doi:10.1109/TPWRS.2009.2030421.
Appl. Sci. EISSN 2076-3417 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
