Review

2D Personality of Multifunctional Carbon Nitrides towards Enhanced Catalytic Performance in Energy Storage and Remediation

by
Gajendra Kumar Inwati
1,*,
Virendra Kumar Yadav
2,
Ismat H. Ali
3,
Sai Bhargava Vuggili
2,4,
Shakti Devi Kakodiya
5,
Mitesh K. Solanki
6,
Krishna Kumar Yadav
7,
Yongtae Ahn
8,
Shalini Yadav
9,
Saiful Islam
10 and
Byong-Hun Jeon
8,*
1
Department of Chemistry, HVHP Institute of Post Graduate Studies and Research, Sarva Vishwavidyalaya, Kadi 382715, India
2
Department of Microbiology, School of Sciences, P P Savani University, Kosamba, Surat 394125, India
3
Department of Chemistry, College of Science, King Khalid University, Abha 61413, Saudi Arabia
4
School of Nano Sciences, Central University of Gujarat, Gandhinagar 382030, India
5
Department of Bioscience, Rani Durgavati University, Jabalpur 482001, India
6
School of Engineering and Applied Sciences, Ahmedabad University, Ahmedabad 380009, India
7
Faculty of Science and Technology, Madhyanchal Professional University, Ratibad, Bhopal 462044, India
8
Department of Earth Resources & Environmental Engineering, Hanyang University, 222-Wangsimni-ro, Seongdong-gu, Seoul 04763, Korea
9
Department of Civil Engineering, Rabindranath Tagore University, Raisen 464993, India
10
Civil Engineering Department, College of Engineering, King Khalid University, Abha 61421, Saudi Arabia
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2022, 12(8), 3753; https://doi.org/10.3390/app12083753
Submission received: 24 February 2022 / Revised: 29 March 2022 / Accepted: 29 March 2022 / Published: 8 April 2022
(This article belongs to the Topic Materials and Surface Treatment Processes Used for Engineering Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Numerous scholars in the scientific and management areas have been overly focused on contemporary breakthroughs in two-dimensional objects for multiple prospective applications. Photochemical and electrocatalytic functions of integrated circuits associated with multi-component tools have been enhanced by designing the macro- and microstructures of the building blocks. Therefore, the current research attempts to explore a larger spectrum of layered graphitic carbon nitrides (g-C3N4) and their derivatives as an efficient catalyst. By executing systematic manufacturing, optimization, and evaluation of its relevance towards astonishing energy storage devices, adsorption chemistry, and remediation, many researchers have focused on the coupling of such 2D carbon nitrides combined with suitable elementals. Hybrid carbon nitrides have been promoted as reliable 2D combinations for the enhanced electrophotocatalytic functionalities, proved by experimental observations and research outputs. By appreciating the modified structural, surface, and physicochemical characteristics of the carbon nitrides, we aim to report a systematic overview of the g-C3N4 materials for the application of energy storages and environments. It has altered energy band gap, thermal stability, remarkable dimensional texturing, and electrochemistry, and therefore detailed studies are highlighted by discussing the chemical architectures and atomic alternation of g-C3N4 (2D) structures.

1. Introduction

Over the last several years, rapid innovations in the field of innovations and research have enabled to upgrade the effectiveness and development of humankind, while the latest developments in modern scientific research have raised global survival and human life. Nevertheless, due to their accurate handling and functionality in numerous purposes such as photonic, pharmaceutical, and environmental implications, multi-component instruments, or equipment, are becoming an essential aspect [1,2]. Notably, as every operation requires energy in some form or another, constant demand in energy storage and conversion has emerged as the most promising situation. Natural resources have been utilized from the beginning of time, and as a result they are depleting owing to unrestricted power consumption and use. Numerous experts in this perspective are attempting to develop an alternative supply to handle such energy-related challenges [3,4]. They have continued to work on multiphase sensors and systems, such as superconductors, capacitors, and solar systems, in addition to storing and transforming photon energy into electrical energy [5,6,7]. Across many sectors, the use of such electronics to gradually shift in individual parts has been encouraged, and it has been demonstrated to be fairly successful in addressing such energy-related issues. Major advances in nanostructured materials and their promising effects have sparked interest among researchers in the professional and technical worlds. In this logic, the intended paragraph aims to cover a broader class of two-dimensional materials, particularly graphitic carbon nitride (g-C3N4) [2,8,9]. The composite group of carbon nitrides loaded with appropriate materials has been emphasized by performing a comprehensive construction, generalization, and exploration of its importance in spectacular superconductors in recent years. By taking into account practical results, several researchers tried to modify the carbon-based doped 2D substances to moderate their physicochemical features, and reported their outstanding catalytic outputs [10,11,12]. In the present environment, multimetallic components of such hybrid substances are being discovered by targeting carbon nitride materials, and a significant method is developed for manufacturing, characterization, and supercapacitor studies in material sciences and their applications [9,12]. It is well addressed that the excellent energy gap, physical and thermodynamic strength, and chemical resistance of these smart 2D materials have already been recognized as a potential technology for power storage, and thus lots of research is carried out in this particular field of materials sciences. Various physicochemical operations were used to modify the chemical constituents and surface finish in atomically layered materials of carbon nitrides for a spectrum of uses [13,14]. The discrete quality of surface, opacity, and catalytic aspects for supercapacitor and environmental applications make them desired candidates among the 2D morphologies in carbon-based materials [8,15]. While the metal and metal-doped semiconducting nanomaterials and their applications were developed by modifying the crystal band structures and surface alteration [16,17], these advanced nano-range materials were found to be very reliable and efficient towards improved performance of macro- and microsystems in modern techniques and apparatus.
In other ways, a slew of new industries and companies have sprung up to develop and produce advanced technologies, which are utilized to make fundamental building components for humankind and everyday life. Because of the growing need for nanocomposites and related ingredients, chemical experiments and enterprises are springing up all over the place. Hazardous residues, co-products, and intermediates, on the other hand, are produced from a variety of industries and laboratories, posing a serious risk to human health as well as the environment [18,19]. Because of their extended lifecycle, toxic effects, and erosion, organic and heavier metal-based building materials are also highly toxic wastes. As a result, they have piqued the interest of scientists and inventors to use innovative equipment and technologies to assess environmental challenges including water, air, and soil qualities cleanup. The studies have revealed several ways to address these ecological consequences, including the development of heterostructures for photocatalytic activity, sewage disposal, and antimicrobial uses [20,21]. Terminated trash from many sources is the primary factor in the spread of different symptoms, which has made human existence more problematic and dangerous in recent years. As a result, people have been able to chronicle the people’s development in improving material design and adaptation. Multiple categories of substances are being produced at the microscopic and nanometer size using nanostructures and nanoscience ideas. The use of nanometer-sized components as predicted analogs or mediators has improved the efficiency of catalytic performance in complex mixtures. The architectural, photonic, and environmental characteristics of this kind of transformed nanomaterials are considered valuable in the production of nanoelectronics, therapeutic instruments, and atmospheric nanosensors [6,7,22]. Alkali, transitional, and radioactive isotopes, including heterocyclic organic molecules, are among the heterostructures whose manufacture and design have been aided by major progress in physical science and research. Diverse elemental constituents in the form of multimetallic nanostructures have been reported and researched for their morphological, spectroscopic, and chemical capabilities. Semiconductors such as CdO, ZnO, Fe3O4, MnO3, TiO2, SnO2, and MgO have been used to increase physicochemical qualities [23,24]. These materials are generally utilized and valued for their biological, microelectronics, and aerospace applications. In comparison to bulk, their small dimensions and greater surface regions have enabled nanoparticles to act as one of the most desirable catalytic alternatives. Doping principles might be used to modify the compositional and electronic structure of these kinds of nanocomposites; hence, a lot of studies have been carried out in this field [25,26,27]. In contrast, additional kinds of conjugated polymers have grown rapidly and evolved in the domain of blended composite materials. Countless hybrid series of such 2D nanostructures, such as carbon-based 2D graphene, reduced graphene-oxides, CNT, carbon nitrides (C3N4), and MoS2, have been found and applied to resolve the energy storage and environmental applications [18,28,29]. In this article, a systematic overview of the 2D carbon nitrides and their derivatives is addressed, including sequential manufacturing, characterizations, uses in energy conversion, and environmental impacts, by discussing their characteristic optical, structural, and surface properties.

2. Developments and Engineering of g-C3N4

The g-C3N4 is a two-dimensional substance having increased nitrogen appropriate to a given active surface area, similar to graphene. These positions are regarded as sensitive regions of the C3N4 framework due to the electrostatic exposure, which aids in catalytic enhancement via photogenerated electrons transmission. Novel chemical approaches could potentially be used to change the photocatalytic efficiency at specific parameters. Due to its good physicochemical robustness and inexpensive price, it has been classified as a soft polymer semicrystalline framework [9,12]. The creation of advanced textiles and their distinctive behavior were investigated in order to construct macro- to nanodevices at a greater scale. Blend compounds are created by mixing some different factors in their natural and altered chemical forms. Carbonaceous and inorganic compounds have been utilized extensively in the creation of a new type of matter, particularly for energy storage technologies and other applications. These materials have been modified to attain the desired qualities for diverse applications, increasing the number of researcher methodologies and pathways to construct these 2D materials [30]. In the field of 2D materials, polymeric g-C3N4 has emerged as the primary focus among the carbon-containing layered structures. The energy bands of CB and VB for the g-C3N4 were studied around 2.7 eV, which is a favorable region in visible light. The catalytic activity of such semiconducting materials fundamentally depends upon the band gap values, and thus the g-C3N4 have an optimal energy which could be altered for the multiple uses in a simple way. The lightweight, flexible character of the g-C3N4 possesses strong mechanical strength and chemical stabilities in order to use as efficient catalysts for biomedical, optoelectronics, and catalysis uses. Furthermore, g-C3N4 has the capacity to endure temperature, strong acid, and basic media. As compared to other hybrid photocatalysts, g-C3N4 can be readily prepared by easy thermal polycondensing using simple N-rich precursors, for example, dicyanamide, cyanamide, melamine, melamine cyanurate, and urea. These cost-effective synthesis and physicochemical properties of g-C3N4 make it a futuristic material for multiple applications [12,31].
The characteristics of the g-C3N4 structures and functionalities could be regulated by determining the electrical, physicochemical, and refractive functions, due to that the non-crystalline to crystalline form and varied compositions affect the catalytic performances. Therefore, the manufacturing process must be moderated by changing the experimental setup during synthesis [32]. Thermolytic fusion of precursor salt, such as melamine (C3N3(NH2)3), cyanamide, and dicyandiamide (C2N4H4, DCDA), is a common novel approach to creating gCN compounds associated with Liebig’s melon. The ribbon-like features are created by connected networks of heptazine (C6N7) subunits, and the production technique produces polymer composites with a limiting constitution around that of Liebig’s melon. The layers of C3N3 (s-triazine) units are linked via sp2-bonded N atoms. In 1982, the composition of the original component “cyamelurine”, also known as tri-s-triazine (C6N7H3), which contains this heptazine strong unit, was first discovered [33]. Komatsu [34] looked into Liebig’s melon and hydromelonate compounds, which he thought could be successors to a substantially graphitic g-C3N4 substance, and assumed it would be made up of sheets of heptazine units joined by trigonal N atoms. Later, Bojdys et al. used DCDA to produce crystalline 2D materials in a molten salt (eutectic LiCl–KCl) solvent solution. Proportions of C6N8.5H1.5Li0.8Cl0.2 were discovered using a mix of analysis approaches. Extensive XRD patterns were discovered in the space group of P63cm, which indicates an interlayer (d002) with 3.36-inch spacing.
To assign high-quality catalysts, many approaches for the synthesis of g-C3N4 and structural modification have been used. The higher-temperature-induced polycondensation process was usually performed in conjunction with calculations at a set time. Purified and polymerized g-C3N4 and nitrogen-rich chemicals with flaming qualities such as urea, melamine, thiourea, and uranic acid are frequently made using this low-cost approach [9,35]. Thermal treatment in a furnace at a temperature is favored by a community of researchers for sequentially preparing g-C3N4, while physical and chemical methods for surface modifications are carried out later. The outcome is often yellow with compacted solid structures. Changes in temperature and acidic media, as well as open situations, have been used to modify microstructures. The superconductive semiconductor g-C3N4 has been investigated as a substance that can be transformed by changing experimental variables. These counterparts are nitrogen-rich molecules that include reactive groups. To obtain the desired qualities, band structures and surface modifications were made. Aside from that, for the fabrication and engineering of polymer nanocomposites or nanosheets such as graphene or CNTs, a variety of synthesis processes have been used [22,36]. The PVD, CVD, and spin coating processes are particularly suited for fabricating these thinned substances in either the platform or substrate materials. Generally, these approaches are used to create atomic network structures under specific input conditions such as vacuum conditions, heat, laser energies, and pulse.

3. Surface and Structural Features of g-C3N4

Due to the very effective method in the domain of light-induced inorganic oxide semiconductors, the photocatalyst performance of g-CNs is seriously hampered. Pristine g-CNs’ low specific surfaces and rapid photoinduced charge pairing allow a severe note to change its architecture and banding locations. The varied geometrical patterns paired with these g-CNs could be used to boost the quick recombination process, leading to increased photoelectrocatalytic or electromechanical activities during catalytic reactions. Nanocrystals in different sizes and shapes, including wires, cylindrical configurations, and nanotubes, are employed to modify the catalytic effect of hybridized g-CNs [9,37]. The core covered component of GCN facilitates improved results of GCN-based photocatalytic device applications to its pp-stacked heterocyclic thicker systems of heptazine (tri-s-triazine) or triazine heterocycles (Figure 1) [38].
Important progress in the physicochemical aspects of composites such as carbon nanotubes, graphite, and other 2D configurations are made in the form of one- and two-carbon nitride films using appropriate processes [18,31]. Nanomaterials, g-CN, and nano-ranged thick polyheptazine sheets were commonly used to distinguish two metal-based semiconductors with suitable topologies. As a result, there is a huge requirement for exfoliated GCN and its counterparts to develop promptly in extended surfaces, which include 2D g-CN films and nanowires.

3.1. Structural and Morphological Aspects

The structure and morphology of the CN are often studied using a TEM or SEM approach that has been used to describe the usual membranous nanosheets with many mesoporous features. At some atmospheric conditions, polycondensation of urea is commonly used to create a similar atomic network structure of the CG. Pure CG frequently has nanosheet-like architectures; however, mixed CG nanocomposites have a variety of topologies based on the synthesis procedure. To explore the features of CN, foundation methods such as FTIR, XRD, HRTEM, SEM, XPS, and others have been developed [22,39]. Alternatively, theoretical methodologies could be used to elucidate the electronic structure, electrical properties, and surface characteristics of these conjugated polymers.
The interfacial and compositional content of the CN, as well as the atomic proportion of pristine and hybrid forms, should be investigated using XPS which is strongly advisable. As a result, a brief overview of the basic properties of CN is emphasized progressively inside this part, utilizing appropriate methodologies. The HRTEM has previously been shown to accurately characterize the structure, distribution, and scattering tendency of mixed or native CN. To examine these sheet-like objects, the regulated electron beam energy (in eV) has been tuned. The strong vacuum, full-beam power, and sample preparation inappropriate solutions all aid in confirming the surface morphology of the CN as well as its derivatives. HRTEM-based studies are commonly observed and could be used for core morphological features, and as a result, this approach has become an indispensable method for evaluating CN morphology. Wider research has been carried out to functionalize such 2D materials using chemical and physical approaches, and HRTEM, AFM, and SEM were used to examine their topology. FTIR is also used to examine the interfacial bonding of CN and cobalt sulfides (hexagonal sheet-like) contact. For the morphological studies, Guan Wu and workers reported layered or sheet-like structures for the g-C3N4 synthesized by different methods. TEM analysis were used to determine the morphology of these layered sheets, shown in Figure 2a, respectively [40,41]. Researchers constructed g-C3N4 by employing a chemical route under the condensation of cyanamide as a molecular starting precursor. The formed sample revealed 2D oriented highly ordered sheet structures of g-C3N4 studied by SEM, shown in Figure 2b–d. However, the XRD profiles of the core g-C3N4 (JCPDS 87-1526) clarify the crystalline nature of 2D structures, Figure 2e. The (002) crystallographic index of g-C3N4 is related to the sharpest peaks for pure g-C3N4 at 2θ = 27.4°. The modest signal at around 2θ = 13.1° relates to triazine units repeating in a plane [41]. This crystallographic plane is ideally considered to determine the solid nature of the synthesized graphitic carbon nitrides by several researchers. The layered structure under nano range shows the difference in intensity as compared to bulk g-C3N4 sheets.

3.2. Crystal Phase Confirmations

The selected area electron diffraction (SEAD) investigation is also quite significant. The diffracted pattern during TEM investigation could also validate the crystal form in terms of single or polycrystalline substances. Based on SAED results, the majority of the studies were deemed to be very legitimate [42,43]. Due to the lightweight atoms involved in carbon nitrites, diffraction patterns in 2D nanosheets are observed to be rare. Due to the distinct diffraction patterns under the SAED pattern in TEM research, heavy metals such as transitional, alkali, and lanthanides have been examined extensively. Understanding phase formations and characteristic d-values for essential sections are aided by the interplanar distance with diffracted spots. Furthermore, Runjia Lin [9] used the TEM to examine the layered frameworks of these 2D films and discovered a considerable distribution variation amongst functionalized carbon nitrite stacks with graphene oxides at different molar ratios. The homogeneity of the CN and graphene-based CN is influenced by surface-functionalized groups and solvent dispersion. Moreover, carbon–nitrides hybrids containing other conjugated polymers such as MoS2, Co–sulfides, and Ni–sulfides were produced and characterized using certain essential methodologies including XRD, which was used to determine the contact between these two-layered materials [44,45].
With the use of crystallographic planes derived from high-resolution TEM, and crystallographic planes in XRD, the creation of heterojunctions between 2D alternating layers might be verified. The critical importance of these heterojunctions in enhancing work capabilities in energy storage devices has been explored and thoroughly explained. For this kind of carbon object, the FTIR method is also employed to detect functional active affinity. Such approaches were used to investigate the modes of vibration of CN and functionalized CN (Figure 3a). The specific C–C and C–N stretched harmonics are unique to the 2D layers in which certain FTIR wavenumber intensities are found.

3.3. Elemental Analysis: g-C3N4

Because CN has a 2D character comparable to that of a thin coating, many processes are utilized to authenticate the layers, as previously indicated. Body, redox arrangements, and chemical ratios are all highly valued using the XPS method, which is one of the most reliable. XPS is utilized to analyze CN frameworks in this circumstance, with specialized analysis conditions such as super vacuum and X-ray frequency. The likely components of the CN may be easily discovered using scanning analysis, but for the functionalized assembly, extraordinary scanning for the individual parts is necessary (see Figure 3b–d).

4. Significance of g-C3N4 towards Energy Storage and Environmental Impacts

Due to its excellent adsorption capacities, excellent power transfer, and huge surface architecture, hybrid carbon nitride has aroused a lot of interest in the last decade. It also has a low resistance and is the strongest carbon nitride allotrope at ambient temperature due to its low resistivity and stability. As reactivity rates increase, organometallic carbide hybrids outperform catalytically active oxides in respect of thermomechanical endurance and oxidation stability. Processing, nanosensors, and rechargeable batteries could all benefit from the catalytically active carbide composition [17,32,33].

4.1. g-C3N4 for Energy Storage (Supercapacitor) Uses

Supercapacitors have sparked attention from scholars due to their high power efficiency, rapid charging rate, and excellent durability. An important research difficulty in the growth of advanced supercapacitors is the development of electro catalysts with a layered form, high electrochemical sensitivity, high surface to volume ratio, and a simple production procedure. Metal-loaded carbides are frequently regarded as 2D alternatives for building electrochemical technologies due to their exceptional oxidation–reduction and high conductivity [47,48]. Its applicability in realistic science and innovation is confined, however, because of its thermodynamically stable layered architectures and reduced reactive sites/area. Hybrid materials have the potential to effectively remedy defects in the changed surface and characteristics of single atomic requirement analysis while also optimizing their separate tools to increase the substance’s positive wealth [49,50].
The g-C3N4 polymers have been discovered to be particularly useful in improving the operation of supercapacitors. Thus, Sharma Meenu et al. [51] conducted CV curves of pure metal oxides such as ZnCo2O4 and g-C3N4@ZnCo2O4 blended electrodes. The enhanced capacitance hits were performed at a scanning speed of 20 mVs−1 from 0.0 to 0.5 V potential. The hybrid CN doped with ZnCo2O4 showed a greater current amplitude. The greatest power rating of the composite g-C3N4@ZnCo2O4 electrode is 157 mAhg−1 at 4 Ag−1. At 10 Ag−1, the single electrode premised on g-C3N4@ZnCo2O4 has capacity retention of 90% after 2500 constant GCD cycles. g-C3N4@ZnCo2O4 materials surpass other carbon-based materials due to their exceptional optical properties, electrical conductivity, and thermally stable system. The insertion of nitrogen to g-C3N4 enhances the surface area and capacitance while maintaining the cyclability of the manufacturing and product. As a result, the g-C3N4@ZnCo2O4 electrode is incorporated into a hard surface apparatus for energy storage research. The electrochemical studies of casting-produced C3N4 electrodes were performed by Roger Gonçalves and co-authors [36] using cyclic voltammetry. A capacitance cost of 113.7 F g−1 at 0.2 A g−1 along with an 89.2% retention were obtained after 5000 charge and discharge cycles at 3.0 A g−1 (Figure 4). The designed electrodes expressed a remarkable specific energy value ≈ 76.5 W h kg−1 at 11.9 W kg−1 operation power. These electrochemical findings are appreciated to lead to carbon nitride-based hybrid materials for improved energy-based applications in optoelectronic devices and sensors.
According to Samarjeet Singh Siwal et al. [15], CuMnO2–gCN exhibits impressive electrocapacitive behavior, with good conductivity (817.85 Ag−1) and deserving rate capability (1000 cycles). Certain metallic elements, such as MnO2 and CuO, are price solutions for transparency, sensitivity, and durability, to name a few further advantages, while CuMnO2 has a high surface area and homogeneous distribution, enabling additional functional zones to be accessible. As a result, CuMnO2–gCN was used as an effective electrochemically active catalyst to boost enhance efficiency, resulting in capacitance of 817.85 Ag−1 after 1000 cycles (stability). It has also been discovered that metal-based metasurfaces, particularly modified metal-oxides, are commonly employed in these electrochemical areas because of their increased electron mobility and hence larger voltage density. Multiphase substances are therefore constructed and exploited to boost conductivities by modifying the electronic structure of metal-oxides through the inclusion of appropriate ions or metals into the electrode material. Transitional and lanthanide host materials, such as oxides and sulfides, have been discovered to be the most desirable composition because they prevent carrier recombination. During studies or measurements, the altered ions cause imperfections in the bulk and interface of the host nanocomposites, triggering electron transport. Kannadasan Thiagarajan and workers [52] employed a hydrothermal technique to produce NiMoO4/g-C3N4 as an electrocatalyst material for electrochemical capacitors systems. The NiMoO4/g-C3N4 composites displayed a higher highest capacitive performance than native NiMoO4 (203 Fg−1) (510 F g−1). The NiMoO4/g-C3N4 hybrid electrocatalyst was also incredibly reliable, with up to 91.8% specific capacity after 2000 charge–discharge cycles. Ultimately, it was discovered that the capacity factor of NiMoO4/g-C3N4 is 11.3 Whkg−1. These findings demonstrated that NiMoO4/g-C3N4 would make an excellent reactive component for electrolytic capacitors. Veena Ragupathi and coworkers [14] created a hemispheric g-C3N4 mixed MnS substance by using the sol–gel technique and discovered a 463.32 F g−1 reversible capacity with a 10 mV s1 scanning speed, with a 98.6 percent specific capacity after 2000 cycles (Figure 5). At 0.005 A g−1 charge density, although, the g-CN functionalized MnS had a superior 403.36 F g−1 maximum power ability.
Likewise, MnS acted as a positive electrode and an activated carbon-based negative electrode to create solid unsymmetrical circuits for the energy storage investigation, which showed 573.9 F g−1 at 0.5 A g1. The particular sphere and packing properties of g-C3N4 improve electron transport while also strengthening the material’s internal structure. Thus, the architecturally formed 2D layers can be used as electrochemical devices to boost the supercapacitor’s functional ability when loaded with inorganic metal-based oxides, or even sulfides. Minmin Liu et al. [22] used the pyrolysis procedure to create g-C3N4@Ni3C 2D structures at ambient temperature. The supercapacitor performances of the developed g-C3N4@Ni3C structures in the form of nanosheets have been excellent. The functional ability of such graft-conjugated polymers was also proved in hydrogen generation by NaBH4 hydrolyzed, as well as a reduction in p–nitrophenol. This method presents a fresh method for the production of sustainable refined fuels from low-cost building ingredients. With respect to structure, the large interfacial sites and volume help increase electrical and chemical catalytic reduction activity. Graphene, activated carbon, C-aerogel, and CNTs are the most often used electrode elements in EDLCs [19,22,31], while additional metal-based frameworks are used to increase the chemical potencies in supercapacitor electrodes. Due to their unusual characteristics, such as high SC ratings, incredible performance/energy densities, and fast reversible electrochemical reactions at the conductive junctions, experts have been attracted to all these metal oxides.
As a result, a research study showed that rGO, GO, pyrrole, and polyaniline, as well as other conducting material chemicals, were employed to increase the conductance of MoS2. Although showing tremendous progress, MoS2 and some other compounds electrical and chemical reactivity continue to be inadequate. The compact MoS2 sheets grafted on g-C3N4 have 2D/2D heterostructures geometries. Sufficient consistency, high surface area, outstanding electron–donor character, cheap, and environmentally friendly nature are some of the improved heterostructure qualities of graphitic carbon nitride [53]. Larger charge redistribution features on the interface coupled with more electrons onto the g-C3N4 boost the substance’s conductance. Polymeric metasurfaces, which are essentially metal nanoparticles connected to layered materials, metal-oxides, and multimetallic frameworks, have been used in the field of science and technology in the past [54,55,56]. The compositional, spectroscopy, and interface alterations of these nano-ranged substances have revealed their beneficial spectrum and physical characteristics, approaching individual dynamics. While the durability and specific energy distribution of double-layered capacitive substances, such as carbon nanotubes, have been established and appreciated, the power output constraint has also drawn a lot of interest. When superior electron capacitive components, such as graphene, activated carbon, metal oxide, transition sulfide, or conducting polymers [57,58], are combined with carbon nanotube-oriented fibers, the conductivity of the native fibers can be greatly increased by maintaining the periodic features. In this context, Peng and colleagues [59] constructed a CNT/graphene composite fiber by covering the as-prepared MWNT assemblies with colloidal GO and spinning them into fibers. The transfer tendency of electrons in the composite fiber is noticeably enhanced because of contact of the pi–pi bond between the graphene oxide sheet and the carbon nanotube, and the graphene oxide layer can reduce carbon nanotube packing and enhance ion pathways. In comparison to naked CNT fiber (630 MPa), the chemical-reduced blended fiber seems to have a mechanical property of 500 MPa, whereas the conductance of the fiber reinforcement can be as strong as 450 20 S/cm. In comparison to the 5.83 F/g of the pure CNT fiber, the mixed fiber’s computed specific capacity was 31.5 F/g, while Foroughi et al. [60] investigated a unique type of inductive carbon nanotube–graphene hybrid fiber under electrospinning chemical-reduced graphene within and covering the face of MWNT fiber during the drawing phase, based on a similar principle [61]. The functionalized fiber had electrical properties of 900 50 S/cm, whereas its impact resistance, stiffness, and modulus of rupture were all about 140 MPa, 2.58 GPa, and 6%, correspondingly. At a scanning speed of 2 mV/s, the specific capacity was considerably enhanced to 111 F/g. The co-spun CNT-based fiber could also improve the fundamental electrocatalytic activity as a comparison to the naked CNT fiber with the use of nanocrystals or nanoflakes. As a result, such nanomaterials or equivalents have been currently widely used in the creation of sophisticated raw resources or components for nanoelectronics and allied equipment [25,62,63].

4.2. Environmental Applications

Scientists are very interested in these materials because of their outstanding electrical and chemical properties. Carbon nitride is found in nature in five different crystalline forms, according to research. Along with its chemical reactivity, mobility, and sensitivity, graphitic carbon nitride (g-C3N4) has received much interest [64,65]. The g-C3N4 is made up of tris-triazine subunits with a lot of extra electrons and has a planar-conjugated shape [46]. Due to the obvious chemical bonding formed between g-C3N4 and metal ions, it is applied to eliminate pollutants from wastewater. To interpret a hybrid iron-oxides nanocomposite (Fe3O4–g-C3N4), Fe3O4 nanostructures loaded on g-C3N4 were designed by Shuangzhen Guo et al. [46] under the ultrasonication method. They used SEM, X-ray diffraction, vibrating sample magnetometer (VSM), Fourier transform infrared, thermogravimetric analysis, and particle size analyzer to investigate the morphology and compositions of the formed catalysts, and the magnetic adsorbent Fe3O4–g-C3N4 was used to extract Cd(II), Pb(II), and Zn(II) from aqueous medium.
Adsorption in real samples: Experiments in electrolytic zinc residue percolate were used to study the adsorption ability of as-prepared Fe3O4–g-C3N4. The effluent was made up to conduct the adsorption studies by purifying it through a membrane filter. The obtained adsorption capacities for the Fe3O4–g-C3N4 nanocatalysts for Cd(II), Pb(II), and Zn(II) were 50.41, 69.38, and 82.31 mg/g, respectively (Figure 6).
However, melamine and industrial waste residue (red mud) were taken as source components in a one-step thermal polymerization process to create the red mud/g-C3N4 (RM–CN) composite [66]. Because of the synergistic effect of adsorption and photocatalysis, RM–CN composites have a massive impact on the removal of organic contaminants from sewage. The surface morphology of RM–CN was considerably enlarged, concerning only CN, due to the inclusion of RM. The refined 0.8 percent RM–CN product (with RM mass concentration of 0.8 wt% in precursor) exhibited considerable photodegradation effectiveness for antibiotics and organic molecules with excellent recycling ability when exposed under visible spectrum (Figure 7).
Therefore, these are some basic studies performed for wastewater learning to protect environmental health. Additionally, numerous nanomaterials and their functionalized phases were studied for their environmental impacts and biomedical significance due to their modified surface, shape, sizes, and band structures [28,62,63]. In the present article, wider information of carbon nitride-based materials is focused on including manufacturing and their applications in medical science and environmental technologies [69,70,71].

5. Summary and Conclusions

The mutual understanding of carbon nitride-based heterostructures for energy storage and conversion is stated in this report. The features of each stage are highlighted and explored regarding the bigger group of g-C3N4 substances. Conversely, two-dimensional polymers such as carbon nitride, graphene, and CNTs materials have been regarded as viable candidates, although this article focuses mostly on carbon nitride. Synthetic processes and elements in the process are used to develop extraordinary physical and chemical strengths and electrocatalytic activity. Moreover, these conducting polymers have found their way into a variety of uses, mostly in power systems, and so this chapter provides a systematic review. To improve the performance of electrochemical devices, a basic investigation of conductive polymers associated with their combinations was examined. Comparatively, the prospective uses of carbon nitrides, as well as their combinations, are explored, exhibiting improved energy storage capacity. Certain principles were also explored by interface alterations, electronic structures, and compositional analysis. Because of current efficiency, two-dimensional frameworks such as graphene, CNTs, and the modified g-C3N4 are recommended for supercapacitance usefulness. The relevance of two-dimensional carbon nitride is explored and expanded to investigate these substances as real and future carbon allotropes for supercapacitors applications. In conclusion, the subject of g-CN appears to be well worth further investigation, and it is expected to yield innovative metamaterials in the same way that related topics such as CNT structures and carbon mixed arrays have. We anticipate that our study and findings will ignite attention in g-CN as a promising advanced substance and will contribute to more progress throughout this intriguing subject.

Author Contributions

Conceptualization, G.K.I. and V.K.Y.; data curation, S.B.V., S.D.K. and G.K.I.; methodology, V.K.Y., G.K.I., S.D.K., M.K.S. and I.H.A.; validation, K.K.Y., I.H.A., Y.A. and S.Y.; formal analysis, G.K.I., B.-H.J., S.I. and Y.A.; resources, K.K.Y., B.-H.J. and S.Y.; writing—original draft preparation, G.K.I., V.K.Y., S.D.K. and M.K.S.; writing—review and editing, G.K.I., S.D.K., V.K.Y., S.I., K.K.Y. and I.H.A.; supervision, G.K.I., K.K.Y. and V.K.Y.; project administration, I.H.A. and B.-H.J.; funding acquisition, I.H.A.; investigation, S.D.K., V.K.Y., S.Y. and S.B.V.; software, Y.A., S.I., M.K.S., G.K.I. and K.K.Y.; visualization, V.K.Y., B.-H.J., I.H.A. and Y.A. All authors have read and agreed to the published version of the manuscript.

Funding

The authors extend their appreciation to the Deanship of Scientific Research at King Khalid University for funding this work through the research groups program under grant number R.G.P. 1/105/42. This work was supported by the Mid-Career Research Program [grant number 2020R1A2C3004237] of the National Research Foundation of the Republic of Korea.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Authors are thankful to the Department of Chemistry, HVHP Institute of Post Graduate Studies and Research, Sarva Vishwavidyalaya, Kadi, Gujarat, 382715, Gujarat, India for providing the technical support.

Conflicts of Interest

The authors declare that there are no conflict of interest.

References

  1. Modi, S.; Prajapati, R.; Inwati, G.K.; Deepa, N.; Tirth, V.; Yadav, V.K.; Yadav, K.K.; Islam, S.; Gupta, P.; Kim, D. Recent Trends in Fascinating Applications of Nanotechnology in Allied Health Sciences. Crystals 2021, 12, 39. [Google Scholar] [CrossRef]
  2. Wang, H.; Yuan, X.; Wu, Y.; Zeng, G.; Chen, X.; Leng, L.; Li, H. Applied Catalysis B: Environmental Synthesis and applications of novel graphitic carbon nitride/metal-organic frameworks mesoporous photocatalyst for dyes removal. Appl. Catal. B Environ. 2015, 174, 445–454. [Google Scholar] [CrossRef]
  3. Mei, E.; State, J.S.; Technol, S.; Jin, E.M.; Jeong, M.; Kang, H.; Gu, H. Science and Technology Photovoltaic Effect of Metal-Doped TiO2 Nanoparticles for Dye- Sensitized Solar Cells Photovoltaic Effect of Metal-Doped TiO2 Nanoparticles for Dye-Sensitized Solar Cells. ECS J. Solid State Sci. Technol. 2016, 5, Q109. [Google Scholar] [CrossRef]
  4. Fan, K.; Ho, W.; Fan, K. Materials Horizons Improving photoanodes to obtain highly efficient dye-sensitized solar cells: A brief review. Mater. Horiz. 2017, 4, 319–344. [Google Scholar] [CrossRef]
  5. Julkapli, N.M.; Bagheri, S.; Bee, S.; Hamid, A. Recent Advances in Heterogeneous Photocatalytic Decolorization of Synthetic Dyes. Sci. World J. 2014, 2014, 692307. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Kumar, P.; Kumar, A.; Ahmad, M.; Kazim, S. Applied Surface Science Surface, optical and photocatalytic properties of Rb doped ZnO nanoparticles. Appl. Surf. Sci. 2020, 514, 145930. [Google Scholar] [CrossRef]
  7. Kumar, G.; Kumar, P.; Roos, W.D.; Swart, H.C. Colloids and Surfaces B: Biointerfaces Thermally induced structural metamorphosis of ZnO: Rb nanostructures for antibacterial impacts. Colloids Surf. B Biointerfaces 2020, 188, 110821. [Google Scholar] [CrossRef] [PubMed]
  8. Zhu, J.; Xiao, P.; Li, H.; Carabineiro, A.C. Graphitic Carbon Nitride: Synthesis, Properties, and Applications in Catalysis. ACS Appl. Mater. Interfaces 2014, 6, 16449–16465. [Google Scholar] [CrossRef]
  9. Idris, A.O.; Oseghe, E.O.; Msagati, T.A.M.; Kuvarega, A.T.; Feleni, U. Graphitic Carbon Nitride: A Highly Electroactive Nanomaterial for Environmental and Clinical Sensing. Sensors 2020, 20, 5743. [Google Scholar] [CrossRef]
  10. Bai, G.; Yuan, S.; Zhao, Y.; Yang, Z.; Choi, S.Y.; Chai, Y.; Yu, S.F.; Lau, S.P.; Hao, J. 2D Layered Materials of Rare-Earth Er-Doped MoS2 with NIR-to-NIR Down- and Up-Conversion Photoluminescence. Adv. Mater. 2016, 28, 7472–7477. [Google Scholar] [CrossRef]
  11. Bao, Z.; Yang, X.; Li, B.; Luo, R.; Liu, B.; Tang, P. The study of CdSe thin film prepared by pulsed laser deposition for CdSe/CdTe solar cell. J. Mater. Sci. Mater. Electron. 2016, 27, 7233–7239. [Google Scholar] [CrossRef]
  12. Zhang, X.; Liao, H.; Liu, X.; Shang, R.; Zhou, Y.; Zhou, Y. Graphitic carbon nitride nanosheets made by different methods as electrode material for supercapacitors. Ionics 2020, 26, 3599–3607. [Google Scholar] [CrossRef]
  13. Lin, Z.; Wang, K.; Wang, X.; Wang, S.; Pan, H.; Liu, Y.; Xu, S.; Cao, S. Carbon-Coated Graphitic Carbon Nitride Nanotubes for Supercapacitor Applications. ACS Appl. Nano Mater. 2020, 3, 7016–7028. [Google Scholar] [CrossRef]
  14. Ragupathi, V.; Panigrahi, P.; Subramaniam, N.G. g-C3N4 doped MnS as high performance electrode material for supercapacitor application. Mater. Lett. 2019, 246, 88–91. [Google Scholar] [CrossRef]
  15. Siwal, S.S.; Zhang, Q.; Sun, C.; Thakur, V.K. Graphitic Carbon Nitride Doped Copper—Manganese Alloy as High—Performance Electrode Material in Supercapacitor for Energy Storage. Nanomaterials 2019, 10, 2. [Google Scholar] [CrossRef] [Green Version]
  16. Inwati, G.K.; Rao, Y.; Singh, M. Thermodynamically induced in Situ and Tunable Cu Plasmonic Behaviour. Sci. Rep. 2018, 8, 3006. [Google Scholar] [CrossRef]
  17. Inwati, G.K.; Kumar, P.; Roos, W.D.; Swart, H.C.; Singh, M. UV-irradiation effects on tuning LSPR of Cu/Ag nanoclusters in ion exchanged glass matrix and its thermodynamic behaviour. J. Alloys Compd. 2020, 823, 153820. [Google Scholar] [CrossRef]
  18. Iqbal, M.Z.; Rehman, A.; Siddique, S. Prospects and challenges of graphene based fuel cells. J. Energy Chem. 2019, 39, 217–234. [Google Scholar] [CrossRef] [Green Version]
  19. Lin, R.; Li, Z.; Abou, I.; Amaiem, E.; Zhang, B.; Brett, D.J.L.; Parkin, I.P. A general method for boosting the supercapacitor performance of graphitic carbon nitride/graphene hybrids. J. Mater. Chem. A 2017, 5, 25545–25554. [Google Scholar] [CrossRef] [Green Version]
  20. Kumar, P.; Mathpal, M.C.; Prakash, J.; Jagannath, G.; Roos, W.D.; Swart, H.C. Plasmonic and nonlinear optical behavior of nanostructures in glass matrix for photonics application. Mater. Res. Bull. 2020, 125, 110799. [Google Scholar] [CrossRef]
  21. Lam, S.-M.; Sin, J.-C.; Mohamed, A.R. Magnetic-Based Photocatalyst for Antibacterial Application and Catalytic Performance. In Nanophotocatalysis and Environmental Applications; Springer: Cham, Switzerland, 2020; pp. 195–215. [Google Scholar] [CrossRef]
  22. Liu, M.; Niu, B.; Guo, H.; Ying, S.; Chen, Z. Simple preparation of g-C3N4@Ni3C nanosheets and its application in supercapacitor electrode materials, hydrogengeneration via NaBH4 hydrolysis and reduction of p-nitrophenol. Inorg. Chem. Commun. 2021, 130, 108687. [Google Scholar] [CrossRef]
  23. Kumar, P.; Chandra, M.; Kumar, G.; Ghosh, S.; Kumar, V.; Roos, W.D.; Swart, H.C. Optical and surface properties of Zn doped CdO nanorods and antimicrobial applications. Colloids Surf. A 2020, 605, 125369. [Google Scholar] [CrossRef]
  24. Sh, F.; Alkaim, A.F.; Salim, S.J.; Omran, A.H. E ff ect of (Ag, Pd) doping on structural, and optical properties of ZnO nanoparticales: As a model of photocatalytic activity for water pollution treatment. Chem. Phys. Lett. 2019, 737, 136828. [Google Scholar] [CrossRef]
  25. Rajendran, S.; Inwati, G.K.; Yadav, V.K.; Choudhary, N.; Solanki, M.B.; Abdellattif, M.H.; Yadav, K.K.; Gupta, N.; Islam, S.; Jeon, B.-H. Enriched Catalytic Activity of TiO2 Nanoparticles Supported by Activated Carbon for Noxious Pollutant Elimination. Nanomaterials 2021, 11, 2808. [Google Scholar] [CrossRef]
  26. Inwati, G.K.; Kumar, P.; Singh, M.; Yadav, V.K.; Kumar, A.; Soma, V.R.; Swart, S.C. Study of photoluminescence and nonlinear optical behaviour of AgCu nanoparticles for nanophotonics. Nano-Struct. Nano-Objects 2021, 28, 100807. [Google Scholar] [CrossRef]
  27. Jiang, X.; Fan, X.; Xu, W.; Zhang, R.; Wu, G. Biosynthesis of Bimetallic Au-Ag Nanoparticles Using Escherichia coli and its Biomedical Applications, ACS Biomater. Sci. Eng. 2020, 6, 680–689. [Google Scholar] [CrossRef]
  28. Fu, J.; Zhu, B.; Jiang, C.; Cheng, B.; You, W.; Yu, J. Hierarchical Porous O-Doped g-C3N4 with Enhanced Photocatalytic CO2 Reduction Activity. Small 2017, 13, 1603938. [Google Scholar] [CrossRef]
  29. Panda, P.K.; Grigoriev, A. Nanoscale Advances Progress in supercapacitors: Roles of two dimensional nanotubular materials. Nanoscale Adv. 2020, 2, 70–108. [Google Scholar] [CrossRef] [Green Version]
  30. Darkwah, W.K.; Ao, Y. Mini Review on the Structure and Properties (Photocatalysis), and Preparation Techniques of Graphitic Carbon Nitride Nano-Based Particle, and Its Applications. Nanoscale Res. Lett. 2018, 13, 388. [Google Scholar] [CrossRef]
  31. Xie, G.; Zhang, K.; Guo, B.; Liu, Q.; Fang, L.; Gong, J.R. Graphene-Based Materials for Hydrogen Generation from Light-Driven Water Splitting. Adv. Mater. 2013, 25, 3820–3839. [Google Scholar] [CrossRef]
  32. Miller, T.S.; Jorge, A.B.; Suter, T.M.; Sella, A.; Corà, F.; McMillan, P.F. Carbon nitrides: Synthesis and characterization of a new class of functional materials. Phys. Chem. Chem. Phys. 2017, 19, 15613–15638. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Leonard, N.J. Synthesis and Structure of Tri-s-triazine. Chem. Soc. 1982, 104, 5497–5499. [Google Scholar]
  34. Komatsu, T. Attempted chemical synthesis of graphite-like carbon nitride. J. Mater. Chem. 2001, 11, 799–801. [Google Scholar] [CrossRef]
  35. Hou, J.; Cao, C.; Idrees, F.; Ma, X. Hierarchical Porous Nitrogen-Doped Carbon Nanosheets Derived from Silk for Ultrahigh-Capacity Battery Anodes and Supercapacitors. ACS Nano 2015, 9, 2556–2564. [Google Scholar] [CrossRef]
  36. Gonçalves, R.; Lima, T.M.; Paixão, M.W.; Pereira, E.C. Pristine carbon nitride as active material for high-performance metal-free supercapacitors: Simple, easy and cheap. RSC Adv. 2018, 8, 35327–35336. [Google Scholar] [CrossRef] [Green Version]
  37. Zhang, J.; Kan, Y.; Gu, L.; Wang, C.; Zhang, Y. Graphite Carbon Nitride and Its Composites for Medicine and Health Applications. Chem.—Asian J. 2021, 16, 2003–2013. [Google Scholar] [CrossRef]
  38. Hwang, S.; Lee, S.; Yu, J.S. Template-directed synthesis of highly ordered nanoporous graphitic carbon nitride through polymerization of cyanamide. Appl. Surf. Sci. 2007, 253, 5656–5659. [Google Scholar] [CrossRef]
  39. Ding, M.; Wang, W.; Zhou, Y.; Lu, C.; Ni, Y.; Xu, Z. Facile in situ synthesis of 2D porous g-C3N4 and g-C3N4/P25 (N) heterojunction with enhanced quantum effect for efficient photocatalytic application. J. Alloys Compd. 2015, 635, 34–40. [Google Scholar] [CrossRef]
  40. Wu, G.; Hu, Y.; Liu, Y.; Zhao, J.; Chen, X.; Whoehling, V.; Plesse, C.; Nguyen, G.T.M.; Vidal, F.; Chen, W. Graphitic carbon nitride nanosheet electrode-based high-performance ionic actuator. Nat. Commun. 2015, 6, 7258. [Google Scholar] [CrossRef] [Green Version]
  41. Davardoostmanesh, M.; Ahmadzadeh, H.; Goharshadi, E.K.; Meshkini, A.; Sistanipour, E. Graphitic carbon nitride nanosheets prepared by electrophoretic size fractionation as an anticancer agent against human bone carcinoma. Mater. Sci. Eng. C 2020, 111, 110803. [Google Scholar] [CrossRef]
  42. Liu, S.X.; Qu, Z.P.; Han, X.W.; Sun, C.L. A mechanism for enhanced photocatalytic activity of silver-loaded titanium dioxide. Catal. Today 2004, 93, 877–884. [Google Scholar] [CrossRef]
  43. Kamal, S.; Balu, S.; Palanisamy, S.; Uma, K.; Velusamy, V.; Yang, T.C.K. Results in Physics Synthesis of boron doped C3N4/NiFe2O4 nanocomposite: An enhanced visible light photocatalyst for the degradation of methylene blue. Results Phys. 2019, 12, 1238–1244. [Google Scholar] [CrossRef]
  44. Ahmad, M.; Ahmad, I.; Ahmed, E.; Shoaib, M.; Khalid, N.R. Facile and inexpensive synthesis of Ag doped ZnO/CNTs composite: Study on the ef fi cient photocatalytic activity and photocatalytic mechanism. J. Mol. Liq. 2020, 311, 113326. [Google Scholar] [CrossRef]
  45. Malik, P.; Gupta, R.; Malik, V.; Ameta, R.K. Emerging nanomaterials for improved biosensing. Meas. Sens. 2021, 16, 100050. [Google Scholar] [CrossRef]
  46. Guo, S.; Wu, K.; Gao, Y.; Liu, L.; Zhu, X.; Li, X.; Zhang, F. Efficient Removal of Zn(II), Pb(II), and Cd(II) in Waste Water Based on Magnetic Graphitic Carbon Nitride Materials with Enhanced Adsorption Capacity. J. Chem. Eng. Data 2018, 63, 3902–3912. [Google Scholar] [CrossRef]
  47. Huang, T.; Fu, Y.; Peng, Q.; Yu, C.; Zhu, J.; Yu, A.; Wang, X. Applied Surface Science Catalytic hydrogenation of p-nitrophenol using a metal-free catalyst of porous crimped graphitic carbon nitride. Appl. Surf. Sci. 2019, 480, 888–895. [Google Scholar] [CrossRef]
  48. Liu, R.; Yang, W.; He, G.; Zheng, W.; Li, M.; Tao, W.; Tian, M. Ag-Modified g-C3N4 Prepared by a One-Step Calcination Method for Enhanced Catalytic Efficiency and Stability. ACS Omega 2020, 5, 19615–19624. [Google Scholar] [CrossRef]
  49. Guo, S.; Zhang, H.; Yang, P.; Chen, Y.; Yu, X.; Yu, B.; Zhao, Y.; Yang, Z.; Liu, Z. Visible-light-driven photoreduction of CO2 to CO over porous nitrogen-deficient carbon nitride nanotubes. Catal. Sci. Technol. 2019, 9, 2485–2492. [Google Scholar] [CrossRef]
  50. Lakhi, K.S.; Park, D.H.; Al-Bahily, K.; Cha, W.; Viswanathan, B.; Choy, J.H.; Vinu, A. Mesoporous carbon nitrides: Synthesis, functionalization, and applications. Chem. Soc. Rev. 2017, 46, 72–101. [Google Scholar] [CrossRef]
  51. Sharma, M.; Gaur, A. Designing of Carbon Nitride Supported ZnCo2O4 Hybrid Electrode for High-Performance Energy Storage Applications. Sci. Rep. 2020, 10, 2035. [Google Scholar] [CrossRef]
  52. Thiagarajan, K.; Bavani, T.; Arunachalam, P.; Lee, S.J.; Theerthagiri, J.; Madhavan, J.; Pollet, B.G.; Choi, M.Y. Nanofiber NiMoO4/g-C3N4 Composite Electrode Materials for Redox Supercapacitor Applications. Nanomaterials 2020, 10, 392. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Yang, Y.; Hu, B.; Zhao, W.; Yang, Q.; Yang, F.; Ren, J.; Li, X.; Jin, Y.; Fang, L.; Pan, Q. Bridging N-doped graphene and carbon rich C3N4 layers for photo-promoted multi-functional electrocatalysts. Electrochim. Acta 2019, 317, 25–33. [Google Scholar] [CrossRef]
  54. Mahmoud, M.H.H.; Ismail, A.A.; Sanad, M.M.S. Developing a cost-effective synthesis of active iron oxide doped titania photocatalysts loaded with palladium, platinum or silver nanoparticles. Chem. Eng. J. 2012, 187, 96–103. [Google Scholar] [CrossRef]
  55. Ekthammathat, N.; Phuruangrat, A.; Thongtem, T. Synthesis and characterization of Ce-doped CuO nanostructures and their photocatalytic activities. Mater. Lett. 2016, 167, 266–269. [Google Scholar] [CrossRef]
  56. Deepa, B.; Rajendran, V. Nano-Structures & Nano-Objects Pure and Cu metal doped WO3 prepared via co-precipitation method and studies on their structural, morphological, electrochemical and optical properties. Nano-Struct. Nano-Objects 2018, 16, 185–192. [Google Scholar] [CrossRef]
  57. Ren, J.; Bai, W.; Guan, G.; Zhang, Y.; Peng, H. Flexible and weaveable capacitor wire based on a carbon nanocomposite fiber. Adv. Mater. 2013, 25, 5965–5970. [Google Scholar] [CrossRef]
  58. Sun, H.; You, X.; Deng, J.; Chen, X.; Yang, Z.; Ren, J.; Peng, H. Novel graphene/carbon nanotube composite fibers for efficient wire-shaped miniature energy devices. Adv. Mater. 2014, 26, 2868–2873. [Google Scholar] [CrossRef]
  59. Lu, Z.; Raad, R.; Safaei, F.; Xi, J.; Liu, Z.; Foroughi, J. Carbon nanotube based fiber supercapacitor as wearable energy storage. Front. Mater. 2019, 6, 138. [Google Scholar] [CrossRef]
  60. Foroughi, J.; Spinks, G.M.; Antiohos, D.; Mirabedini, A.; Gambhir, S.; Wallace, G.G.; Ghorbani, S.R.; Peleckis, G.; Kozlov, M.E.; Lima, M.D.; et al. Highly Conductive Carbon Nanotube-Graphene Hybrid Yarn. Adv. Funct. Mater. 2014, 24, 5859–5865. [Google Scholar] [CrossRef]
  61. Xu, R.; Wei, J.; Guo, F.; Cui, X.; Zhang, T.; Zhu, H.; Wang, K.; Wu, D. Highly conductive, twistable and bendable polypyrrole-carbon nanotube fiber for efficient supercapacitor electrodes. RSC Adv. 2015, 5, 22015–22021. [Google Scholar] [CrossRef]
  62. Kumar, P.; Inwati, G.K.; Mathpal, M.C.; Ghosh, S.; Roos, W.D. Defects induced Enhancement of Antifungal activities of Zn doped CuO nanostructures. App. Sur. Sci. 2021, 560, 150026. [Google Scholar] [CrossRef]
  63. Yadav, V.K.; Choudhary, N.; Khan, S.K.; Malik, P.; Inwati, G.K.; Suriyaprabha, R.; Ravi, R.K. Synthesis and Characterisation of Nano-Biosorbents and Their Applications for Waste Water Treatment. In Handbook of Research on Emerging Developments and Environmental Impacts of Ecological Chemistry; IGI Global: Hershey, Pennsylvania, 2020; Volume 28, pp. 252–290. [Google Scholar] [CrossRef]
  64. Li, Y.; Yang, M.; Xing, Y.; Liu, X.; Yang, Y.; Wang, X.; Song, S. Preparation of Carbon-Rich g-C3N4 Nanosheets with Enhanced Visible Light Utilization for Efficient Photocatalytic Hydrogen Production. Small 2017, 13, 1701552. [Google Scholar] [CrossRef] [PubMed]
  65. Paquin, F.; Rivnay, J.; Salleo, A.; Stingelin, N.; Silva, C. Multi-phase semicrystalline microstructures drive exciton dissociation in neat plastic semiconductors. J. Mater. Chem. C 2015, 3, 10715–10722. [Google Scholar] [CrossRef] [Green Version]
  66. Shi, W.; Ren, H.; Huang, X.; Li, M.; Tang, Y.; Guo, F. Low cost red mud modified graphitic carbon nitride for the removal of organic pollutants in wastewater by the synergistic effect of adsorption and photocatalysis. Sep. Purif. Technol. 2020, 237, 116477. [Google Scholar] [CrossRef]
  67. Wang, H.; Zhang, J.; Yuan, X.; Jiang, L.; Xia, Q.; Chen, H. Photocatalytic removal of antibiotics from natural water matrices and swine wastewater via Cu(I) coordinately polymeric carbon nitride framework. Chem. Eng. J. 2020, 392, 123638. [Google Scholar] [CrossRef]
  68. Zhang, X.; Yu, L.; Zhuang, C.; Peng, T.; Li, R.; Li, X. Highly asymmetric phthalocyanine as a sensitizer of graphitic carbon nitride for extremely efficient photocatalytic H2 production under near-infrared light. ACS Catal. 2013, 4, 162–170. [Google Scholar] [CrossRef]
  69. Li, Y.; Zhang, J.; Wang, Q.; Jin, Y.; Huang, D.; Cui, Q.; Zou, G. Nitrogen-rich carbon nitride hollow vessels: Synthesis, characterization, and their properties. J. Phys. Chem. B 2010, 114, 9429–9434. [Google Scholar] [CrossRef]
  70. Zheng, Y.; Liu, Y.; Guo, X.; Zhang, W.; Wang, Y.X.; Zhang, M.; Li, R.; Peng, Z.; Xie, H.; Huang, Y. In-situ construction of morphology-controllable 0D/1D g-C3N4 homojunction with enhanced photocatalytic activity. Appl. Surf. Sci. 2021, 563, 150317. [Google Scholar] [CrossRef]
  71. Niu, P.; Liu, G.; Cheng, H.M. Nitrogen vacancy-promoted photocatalytic activity of graphitic carbon nitride. J. Phys. Chem. C 2012, 116, 11013–11018. [Google Scholar] [CrossRef]
Applsci 12 03753 g001 550
Figure 1. Structural orientation of a g-C3N4 single layer. N atoms shifted under α and β varieties of locations [38].
Figure 1. Structural orientation of a g-C3N4 single layer. N atoms shifted under α and β varieties of locations [38].
Applsci 12 03753 g001
Applsci 12 03753 g002 550

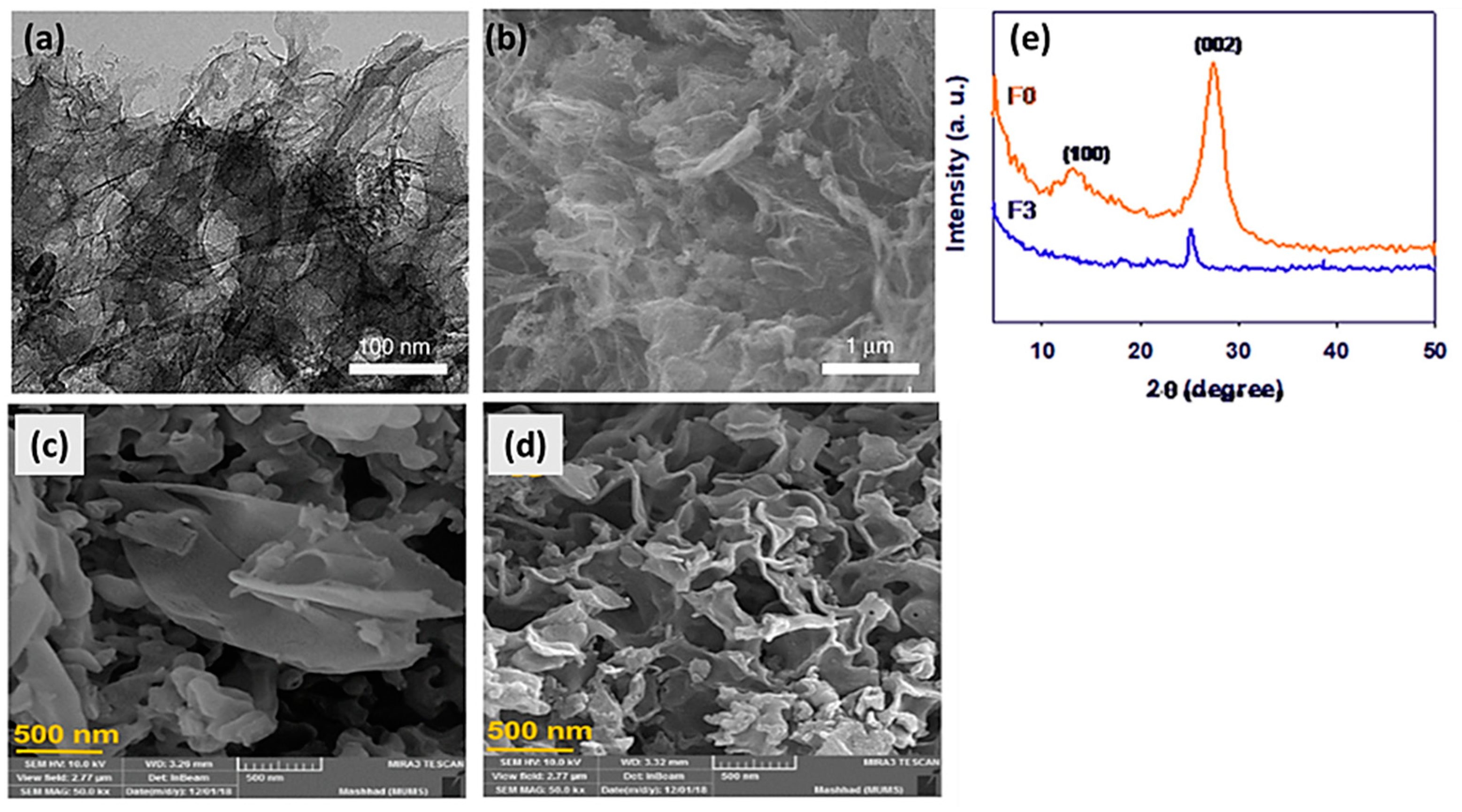

Figure 2. Nanoporous g-C3N4: (a) TEM images of g-C3N4 nanoporous; (b–d) SEM micrographs, (e) XRD profile of g-C3N4 [38].
Figure 2. Nanoporous g-C3N4: (a) TEM images of g-C3N4 nanoporous; (b–d) SEM micrographs, (e) XRD profile of g-C3N4 [38].
Applsci 12 03753 g002
Applsci 12 03753 g003 550

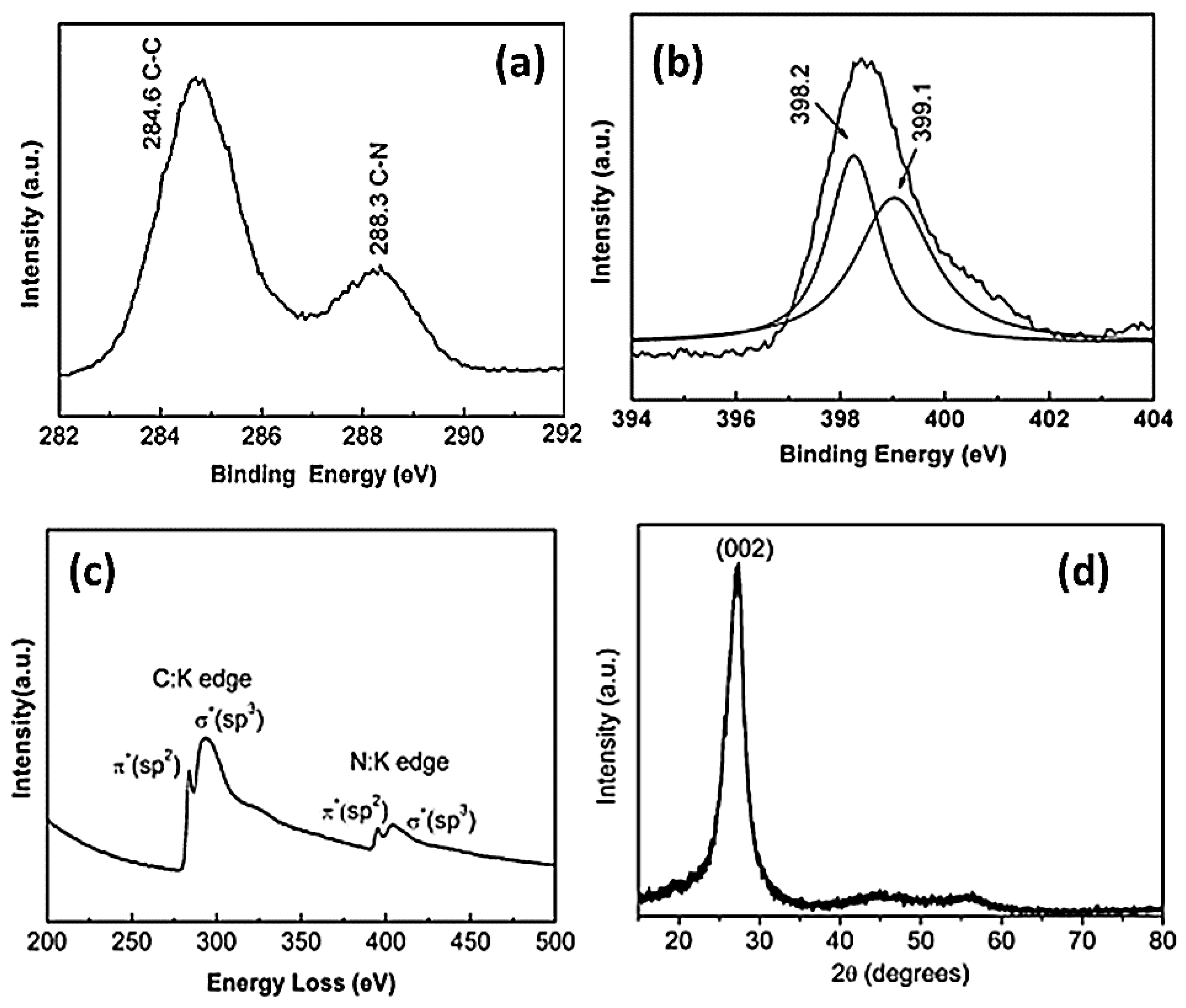

Figure 3. Elemental analysis of the g-C3N4; (a) C1s XPS peaks of g-C3N4; (b) N1s XPS peaks of g-C3N4; (c) electron energy loss spectroscopy spectrum; (d) a characteristic XRD spectra of g-C3N4 [46].
Figure 3. Elemental analysis of the g-C3N4; (a) C1s XPS peaks of g-C3N4; (b) N1s XPS peaks of g-C3N4; (c) electron energy loss spectroscopy spectrum; (d) a characteristic XRD spectra of g-C3N4 [46].
Applsci 12 03753 g003
Applsci 12 03753 g004 550

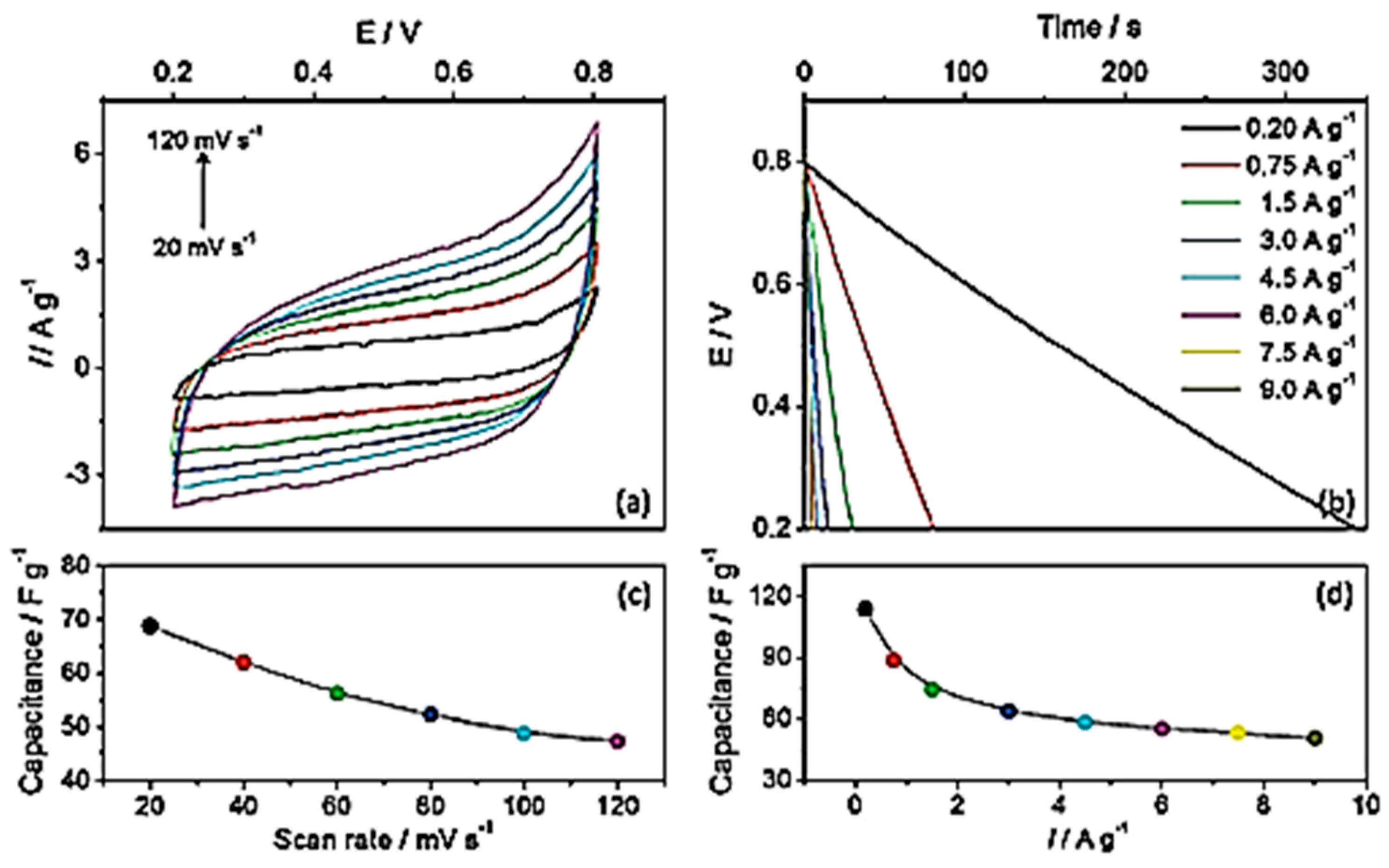

Figure 4. (a) Cyclic voltammetric curves at multiple scans, (b) discharge curves, and specific capacitance, (c) scan rates, (d) specific current [36].
Figure 4. (a) Cyclic voltammetric curves at multiple scans, (b) discharge curves, and specific capacitance, (c) scan rates, (d) specific current [36].
Applsci 12 03753 g004
Applsci 12 03753 g005 550

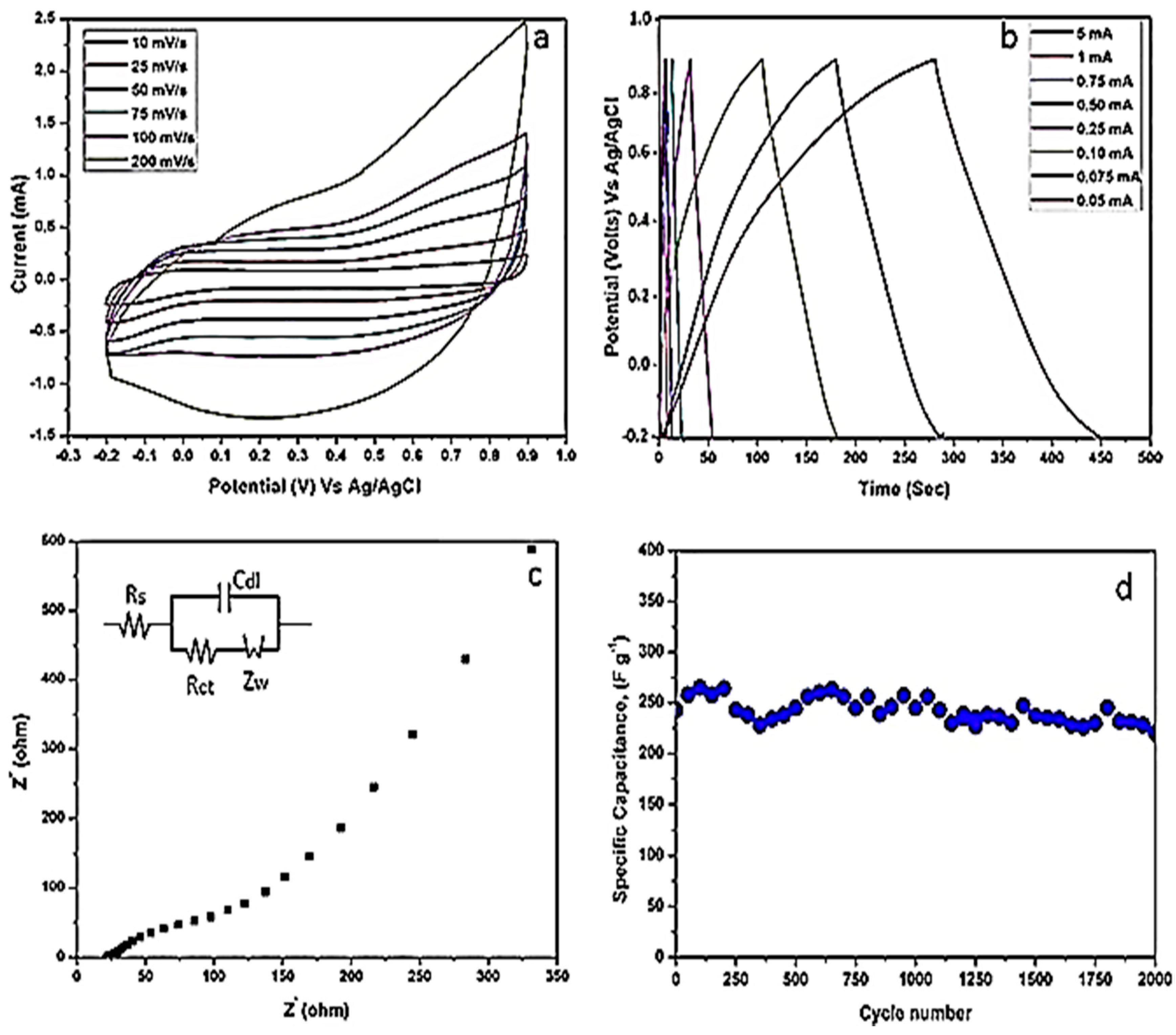

Figure 5. Electrochemical studies for g-CN loaded MnS: (a) CV plots, (b) galvanostatic charge and discharge plots, (c) Nyquist plot, and (d) plots for specific capacitance vs. cycle number [14].
Figure 5. Electrochemical studies for g-CN loaded MnS: (a) CV plots, (b) galvanostatic charge and discharge plots, (c) Nyquist plot, and (d) plots for specific capacitance vs. cycle number [14].
Applsci 12 03753 g005
Applsci 12 03753 g006 550

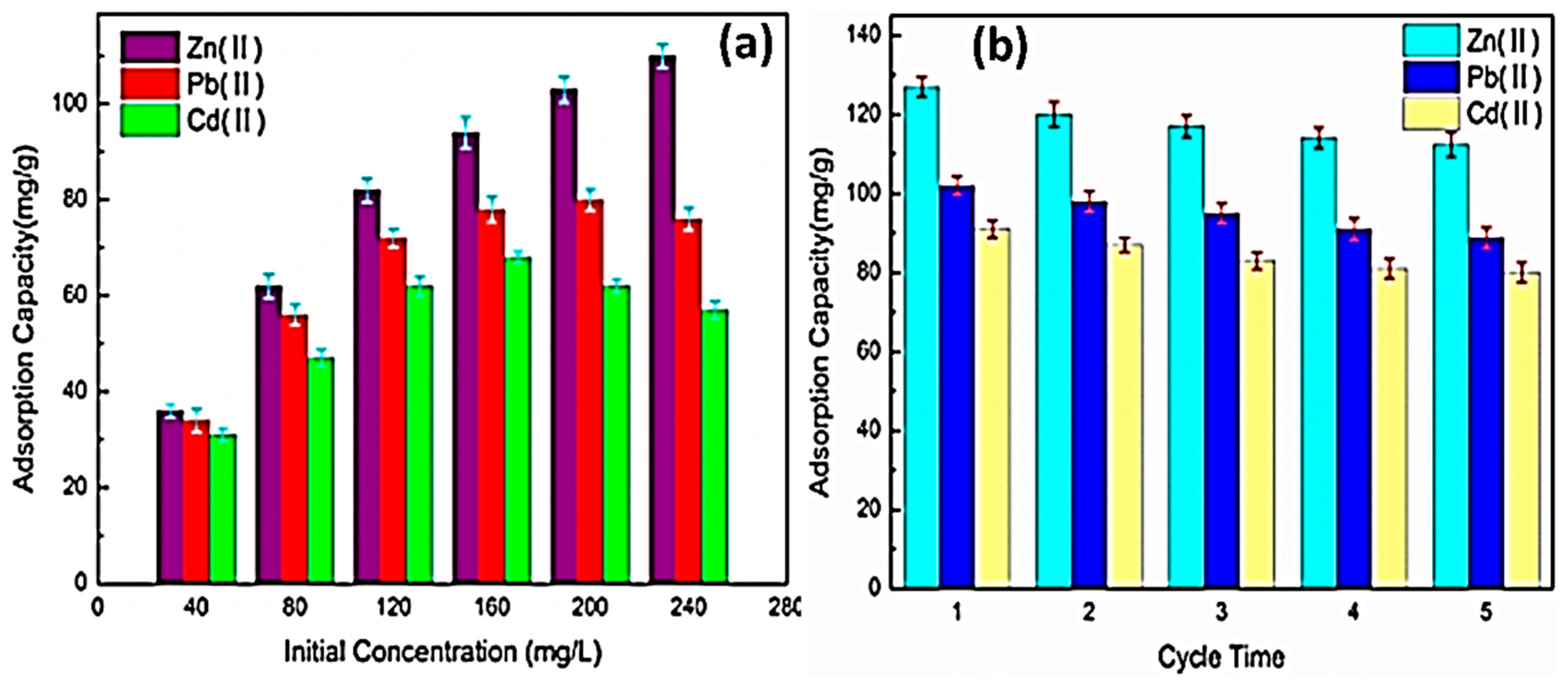

Figure 6. (a) Impact of metal competition on adsorption capacity (metal ion concentration, 200 mg/L), (b) cycle adsorption studies of Zn(II), Cd(II), and Pb(II) by Fe3O4–g-C3N4 [46].
Figure 6. (a) Impact of metal competition on adsorption capacity (metal ion concentration, 200 mg/L), (b) cycle adsorption studies of Zn(II), Cd(II), and Pb(II) by Fe3O4–g-C3N4 [46].
Applsci 12 03753 g006
Applsci 12 03753 g007 550

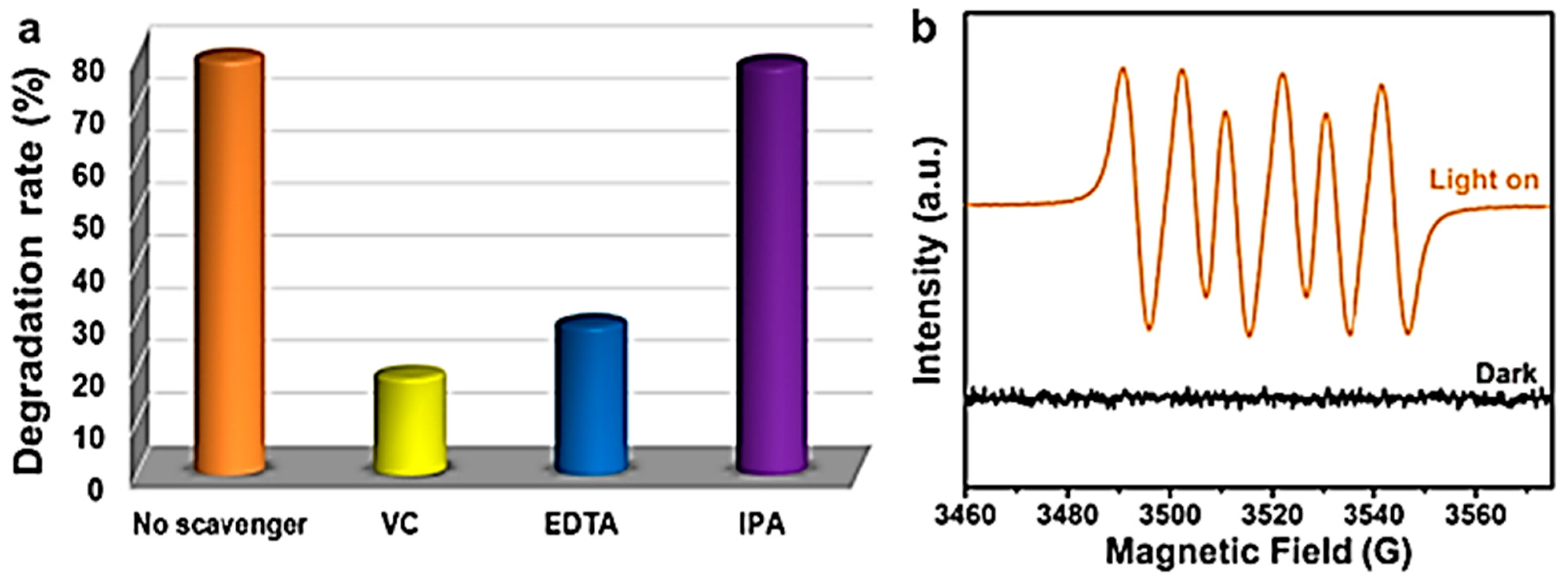

Figure 7. (a) Trapping studies of active moieties throughout photocatalytic degradation of TC over 0.8% RM–CN. (b) ESR bands of % O2− trapped by DMPO over 0.8% RM–CN sample in dark and light irradiation [66]. Cu(I)-loaded conjugated carbon nitride structures (Cu–CNF) along with the heteroatom N and O were structured followed by the ligand charge transfer [67]. Cu–CNF catalysts were employed efficiently to catalyze chlortetracycline hydrochloride chemicals from the deionized water. The elimination rate was high in the case of the river water (68.2%) corresponding to the tap water (45.7%), and swine wastewater (45.7%) (33.1 percent). For the improved catalytic personality of g-CN materials, Xiaohu Zhang and co-workers [68] reported fundamental characteristics by discovering a strong asymmetric phthalocyanine (sensitizer) of graphitic carbon nitride. They used it as efficient photocatalysts material for the production of H2 on the near-IR spectrum. The zinc phthalocyanine derivative (Zn-tri-PcNc) associated with the chenodeoxycholic acid (CDCA) showed a 125.2 µmol h−1 efficiency due to an increased recombination rate. It was found that the photoactivity for H2 is increased by the activated Zn-tri-PcNc dispersed on the 2D g-C3N4 surface and photo-induced free electrons inserted into the CB of g-C3N4, and is captured by supported co-catalyst Pt for H2 generation on water reduction (Figure 8). Concurrently, the oxidized Zn-tri-PcNc is produced via accepting an electron by the reagents which further excites under illumination. The photostability for H2 creation from the Zn-tri-PcNc/g-C3N4 system was traveled on 700 nm monochromatic radiation.
Figure 7. (a) Trapping studies of active moieties throughout photocatalytic degradation of TC over 0.8% RM–CN. (b) ESR bands of % O2− trapped by DMPO over 0.8% RM–CN sample in dark and light irradiation [66]. Cu(I)-loaded conjugated carbon nitride structures (Cu–CNF) along with the heteroatom N and O were structured followed by the ligand charge transfer [67]. Cu–CNF catalysts were employed efficiently to catalyze chlortetracycline hydrochloride chemicals from the deionized water. The elimination rate was high in the case of the river water (68.2%) corresponding to the tap water (45.7%), and swine wastewater (45.7%) (33.1 percent). For the improved catalytic personality of g-CN materials, Xiaohu Zhang and co-workers [68] reported fundamental characteristics by discovering a strong asymmetric phthalocyanine (sensitizer) of graphitic carbon nitride. They used it as efficient photocatalysts material for the production of H2 on the near-IR spectrum. The zinc phthalocyanine derivative (Zn-tri-PcNc) associated with the chenodeoxycholic acid (CDCA) showed a 125.2 µmol h−1 efficiency due to an increased recombination rate. It was found that the photoactivity for H2 is increased by the activated Zn-tri-PcNc dispersed on the 2D g-C3N4 surface and photo-induced free electrons inserted into the CB of g-C3N4, and is captured by supported co-catalyst Pt for H2 generation on water reduction (Figure 8). Concurrently, the oxidized Zn-tri-PcNc is produced via accepting an electron by the reagents which further excites under illumination. The photostability for H2 creation from the Zn-tri-PcNc/g-C3N4 system was traveled on 700 nm monochromatic radiation.
Applsci 12 03753 g007
Applsci 12 03753 g008 550

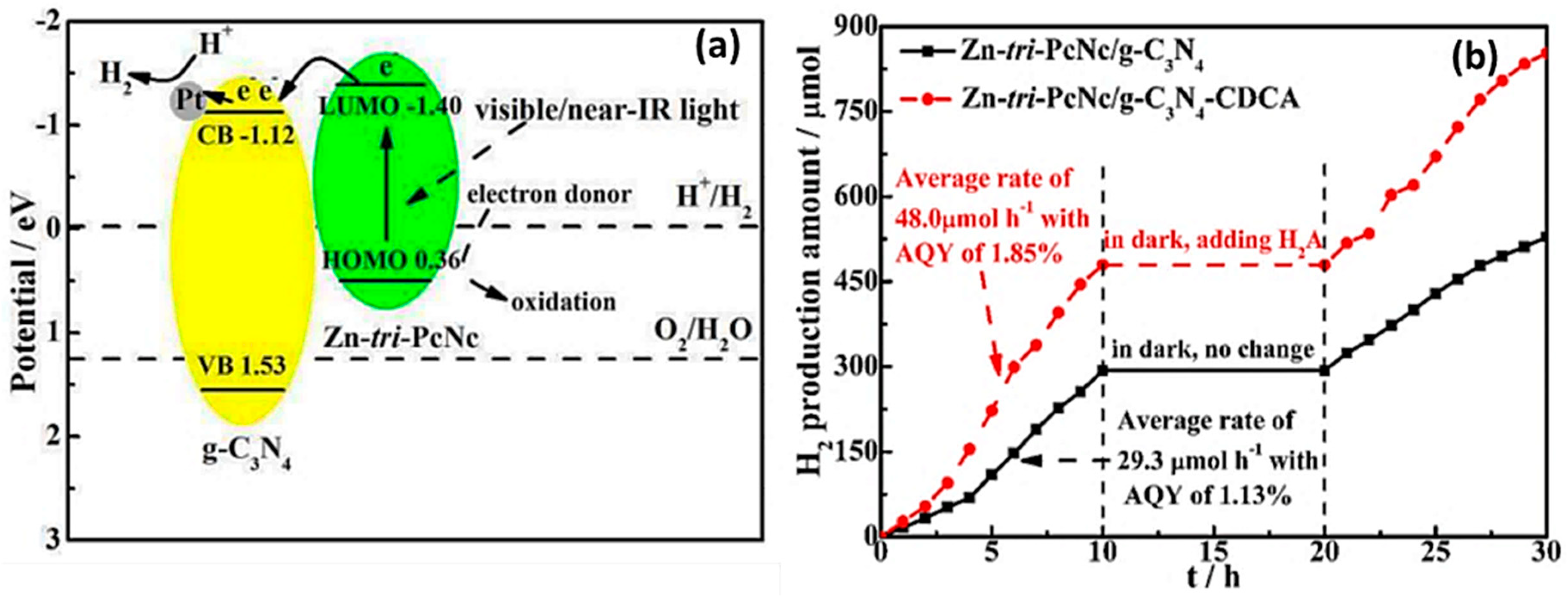

Figure 8. Photocatalytic-based H2 production process (a) and stability for H2 production (b) of Zn-tri-PcNc/g-C3N4 materials.
Figure 8. Photocatalytic-based H2 production process (a) and stability for H2 production (b) of Zn-tri-PcNc/g-C3N4 materials.
Applsci 12 03753 g008
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Inwati, G.K.; Yadav, V.K.; Ali, I.H.; Vuggili, S.B.; Kakodiya, S.D.; Solanki, M.K.; Yadav, K.K.; Ahn, Y.; Yadav, S.; Islam, S.; et al. 2D Personality of Multifunctional Carbon Nitrides towards Enhanced Catalytic Performance in Energy Storage and Remediation. Appl. Sci. 2022, 12, 3753. https://doi.org/10.3390/app12083753

AMA Style

Inwati GK, Yadav VK, Ali IH, Vuggili SB, Kakodiya SD, Solanki MK, Yadav KK, Ahn Y, Yadav S, Islam S, et al. 2D Personality of Multifunctional Carbon Nitrides towards Enhanced Catalytic Performance in Energy Storage and Remediation. Applied Sciences. 2022; 12(8):3753. https://doi.org/10.3390/app12083753

Chicago/Turabian Style

Inwati, Gajendra Kumar, Virendra Kumar Yadav, Ismat H. Ali, Sai Bhargava Vuggili, Shakti Devi Kakodiya, Mitesh K. Solanki, Krishna Kumar Yadav, Yongtae Ahn, Shalini Yadav, Saiful Islam, and et al. 2022. "2D Personality of Multifunctional Carbon Nitrides towards Enhanced Catalytic Performance in Energy Storage and Remediation" Applied Sciences 12, no. 8: 3753. https://doi.org/10.3390/app12083753

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
