Metaheuristic with Cooperative Processes for the University Course Timetabling Problem

Abstract

This work presents a metaheuristic with distributed processing that finds solutions for an optimization model of the university course timetabling problem, where collective communication and point-to-point communication are applied, which are used to generate cooperation between processes. The metaheuristic performs the optimization process with simulated annealing within each solution that each process works. The highlight of this work is presented in the algorithmic design for optimizing the problem by applying cooperative processes. In each iteration of the proposed heuristics, collective communication allows the master process to identify the process with the best solution and point-to-point communication allows the best solution to be sent to the master process so that it can be distributed to all the processes in progress in order to direct the search toward a space of solutions which is close to the best solution found at the time. This search is performed by applying simulated annealing. On the other hand, the mathematical representation of an optimization model present in the literature of the university course timing problem is performed. The results obtained in this work show that the proposed metaheuristics improves the results of other metaheuristics for all test instances. Statistical analysis shows that the proposed metaheuristic presents a different behavior from the other metaheuristics with which it is compared.

1. Introduction

Resource programming is an activity that needs to be performed in different areas, such as distribution of resources for the manufacture of objects, in work centers for the distribution of tasks to staff or customer service, in the scheduling of machines when establishing the sequence of tasks to be carried out [1], in the distribution of products to place them at sale points, in the programming of transport systems [2], in the sequence of processes in industry, commerce and services, on a computer or any other machine [3], among others. Most of these problems are classified as NP [4] problems. To deal with the problem of resource optimization, since the last century, heuristic and metaheuristic methods have been developed and applied to NP-type problems, which can obtain solutions close to the global optimum in a polynomial time without renouncing the search for the optimal solution. The development of specialized heuristics is very important because, to date, there are no exact deterministic optimization methods that can solve NP-type problems in polynomial times [5]. Examples of some heuristic strategies applied to NP-type problems in different areas of knowledge are presented below:

• In [6], the authors consider that, by optimizing multi-objective problems with different characteristics, the strategy must be changing. To achieve this, they apply Learning Automation in an evolutionary algorithm so that it can be adapted to the characteristics of the problem. Authors adjust the reference vector to improve the ability to solve problems with a Pareto front.
• In [7], an adaptive polyploid memetic algorithm for scheduling trucks at a cross-docking terminal is developed. The author proposes a new adaptive algorithm to program the entry and exit of trucks in a terminal. The adaptive algorithm stores copies of the parental chromosomes before applying the crossover operator. Moreover, various hybridization techniques to facilitate the search process are used.
• In [8], they develop a multi-objective evolutionary algorithm. They propose an angle-based selection strategy and a displacement-based density estimation strategy. These two strategies are used in environmental selection to purify the population. They apply diversity and convergence to compare pairs of individuals and eliminate the worst. They indicate that their method can be easily extended to solve other multi-objective optimization problems.
• To improve the efficiency of the distribution of perishable products, in [9], a study with a mathematical formulation of mixed integers is presented and they solve it with an evolutionary algorithm and compare its results with other metaheuristics. The objective is to minimize the total cost incurred during the service of the truck.
• In [10], they address the problem of vehicle route generation by developing a linear mixed integer programming model to minimize the total cost of the supply chain. They use CPLEX to solve the optimization model for small problems and with the metaheuristics of evolutionary algorithm, variable neighborhood search, taboo search and simulated annealing solve the model for large-scale problem cases.
• In [11], the authors present a proposal for distinguishing between bacterial and viral meningitis using genetic programming and decision trees. The authors consider two different cases. In one case, they consider blood parameters as cerebrospinal; in the other, they are based exclusively on blood data. For this, the authors make use of formulations already used before for the same purpose and methodologies based on machine learning. In experimentation, they make use of a genetic algorithm integrated in MATHLAB.

Resource programming is also used in the academic area to obtain the timetabling for students for every school period. Depending on the school level, designing school timetabling is not always an easy task. It becomes a complicated problem, mainly because the resources are always limited and constraints related to the availability of material resources (rooms, laboratories, support material, technologies and others) and human resources (teacher capacity, academic needs, student needs, time availability and others) have to be considered. Furthermore, every school timetabling is specific for a school year. It means that this schedule cannot be generally applied for the next school year since the circumstances and needs frequently change. The university course timetabling problem (UCTP) aims to distribute school resources in space and time to generate course timetabling per week. Course timetabling can be a table where the classes that are given in each room are scheduled, or it can also be timetabling that includes the courses for each student. Likewise, the representation of class timetabling can be one that contains the class schedules or courses depending on the different control restrictions imposed by a university. UCTP is a NP-complete problem [4,12,13]. In order to tackle NP-complete problems, approximate methods are frequently used. Because of the complexity of the UCTP, when it is applied to real-life practical problems, a parallel simulated annealing metaheuristic is implemented to obtain acceptable solutions, close to the optimal solution, in reasonable computation times.

The first attempts to automate course timetabling were made in 1960, where techniques based on simulating design were used to obtain schedules by a manual simulation process [14]. The basic idea of this technique was to first schedule the classes with the highest degree of restrictions.

Subsequently, at the beginning of the 1970s, more generic techniques began to be applied to solve the problem. Some of the best-known research includes algorithms based on integer programming [15] and network flow [16,17,18], among others.

The UCTP problem has also been addressed as a transformation to the coloring graphs problem [19,20], where the vertices represent events and edges represent conflicts.

As well, heuristic approaches based on search techniques are presented. The solution methods vary from constraint satisfaction [21], simulated annealing [22,23], genetic algorithms [24] and tabu search [25]. In [26], a complete study of a theoretical model for UCTP is presented, but they do not consider the teachers’ constraint. They present benchmarks that can be solved by using various heuristics such as ant colony, iterated local search, genetic algorithms, simulated annealing and tabu search. The benchmark is used in this work for the tests by using the parallel simulated annealing algorithm. In [13], a very complete review of various types of timetabling programming and their formulations with genetic algorithms can be found [27,28], including tabu search and constraint satisfaction.

In [29], the construction of a timetabling programmer for academic institutions with a constraint programming model is presented. In [30], a model that applies tabu search with reinforced learning is presented. In [31], they present a model for UCTP with a three-phase approach. At the first phase, a feasible solution is created; in the second phase, they use simulated annealing to order the solution space created; and in the third phase, they also use simulated annealing with a neighborhood structure to improve the solution by the exchange of events. The algorithms of these optimization heuristics are generic and independent of the problem to be optimized and are known under the name of metaheuristics [32].

In [33], a practical case of UCTP is presented. A constructive heuristic is proposed to find solutions for a real-life instance, for the Faculty of Chemical Sciences and Engineering of the Autonomous University of the Morelos state, in Mexico City. In [34], the authors propose a solution of timetabling courses, for specific academic areas, of the Juarez Autonomous University of Tabasco, Mexico. They model the constraints with specification and validation tools, typical of the Unified Modeling Language (UML). They establish their solution strategy through two stages with a version of the tabu search, and a software to test their solution proposal is implemented. In [35], the authors solve a particular case of UCTP, focused on the assignment of teacher-course timetabling for an academic department considering the traditional restrictions of full-time and part-time teachers, academic profiles, availability of the courses and time. They present a linear integer programming model to solve the case of study and obtain the optimal solution with low computational effort through a classic branch and bound algorithm.

In [36], a parallel genetic algorithm to solve UCTP is presented. The authors introduce some parallelization techniques using MPI libraries. They assume the master–slave management structure and, based on the number of processing nodes and the size of the population, the scalability of the system and the quality of the solution is estimated. In [37], the authors present a novel real application to maximize the use of resources. They developed a genetic algorithm which uses a simple weighted sum formula to manage conflicts and contemplate teacher preferences. Moreover, a composite aptitude function that considers the use of space is applied. For the tests, they used a large set of real data from the Faculty of Commerce of the University of Alexandria, in Egypt. In [38], a mixed integer linear programming model is present. A hybrid genetic algorithm (HGA) that includes a tabu search strategy is implemented to solve the model. For the analysis, the authors indicate how to map UCTP to the 3D container packaging problem. The tabu search algorithm is used to compare results with the hybrid genetic algorithm. They show that HGA obtains a better solution than the tabu search algorithm in a reasonable time. In [39], a hybrid algorithm based on parallel genetic algorithm and local search to solve UCTP is presented. They combine direct representation of timetabling with crossover operators to ensure that hard constraints are not violated to always obtain feasible solutions. The authors apply instances of Ben Paechter’s competences and reproduce some of the known results in the state of the art. In [40], they propose to solve UCTP with a hybrid method based on genetic algorithms and tabu search. They propose a mixed linear programming model, which serves as a reference when defining the problem and the constraints to be considered. For the validation, they use real data for the scheduling of the academic periods, semester 1 of 2018 and semester 2 of 2018, for the academic program of Industrial Engineering, at the Industrial Santander University. The results are compared with the data of the timetabling courses manually obtained by the coordinator. The authors say it can take from hours to days to obtain the data manually, depending on the designer’s ability, while their algorithm can obtain the results in a limited time.

As a consequence of the boom that UCTP has had as a model for the assignment and obtaining of timetabling of university courses and the interest of obtaining feasible solutions, in 1995, the International Conference on the Practice and Theory of Automated Timetabling (PATAT) was born. It has been regularly held every 2 years, and its 13th version will be carried out in the year 2022. PATAT also works as a forum for an international community of researchers and practitioners. It has also been supporting a range of competitions and challenges. PATAT is considered as the main conference for the EURO Working Group on Automated Timetabling (EWG-PATAT). Until the fourth conference, held in 2002, UCTP was the main theme and, from 2004, they extended to other topics on timetabling.

In this work, a metaheuristic that addresses the university course timetabling problem (UCTP), which applies processes cooperation with collective communication and point-to-point communication, is presented. It is applied to the UCTP model of Rossi-Doria [26]. A mathematical representation of this model is also proposed.

After the introduction, the paper presents the following sections: Section 2 presents the symbolic representation and the mathematical model of UCTP. Section 3 presents the proposed metaheuristic of simulated annealing with cooperative processes (SACP) that works on a distributed computing system. Section 4 presents the SACP results in efficiency and efficacy; it also includes a statistical analysis of the proposed metaheuristics. Finally, the conclusions of this work are presented.

2. University Course Timetabling Problem (UCTP)

The symbolic representation for the UCTP problem, used to design the data structure, is shown. It stores the representation for the instance to be solved by the proposed metaheuristic. Then, the mathematical formulation of the UCTP optimization model, to represent the benchmark of Rossi-Doria [26], is presented. It defines a target function using soft constraints and also features several sets of hard constraints.

2.1. Symbolic Representation

Table 1. Two-dimensional table of schedules assigned to a room with 45 timeslots.

Slot	Day
	Monday	Tuesday	Wednesday	Thursday	Friday
1	1	2	3	4	5
2	6	7	8	9	10
3	11	12	13	14	15
4	16	17	18	19	20
5	21	t (5, 2) = 22	23	24	25
6	26	27	28	29	30
7	31	32	33	34	35
8	36	37	38	39	40
9	41	42	43	44	45

shows the representation of a timetable with 45 timeslots. The relationship among days (Monday to Friday) and periods (five time periods) forms a set of 45 timeslots which, when scheduling events and assigning them to the timeslots, a timetable for each room is obtained. So, the solution that is obtained in UCTP has as many tables as rooms exist. Therefore, a solution will consist of a set of timetables.

The schedule table is the abstraction of a two-dimensional structure for each room, with the scheduling of the week, which is formed with the days on the X axis and the periods on the Y axis. In this two-dimensional structure, the events that are taught and the students who attend, during the week each of these events are scheduled. In addition, the room must offer the necessary facilities for the event to be carried out. A third dimension is created to form the set of the schedule tables, by scheduling events and students in the different rooms.

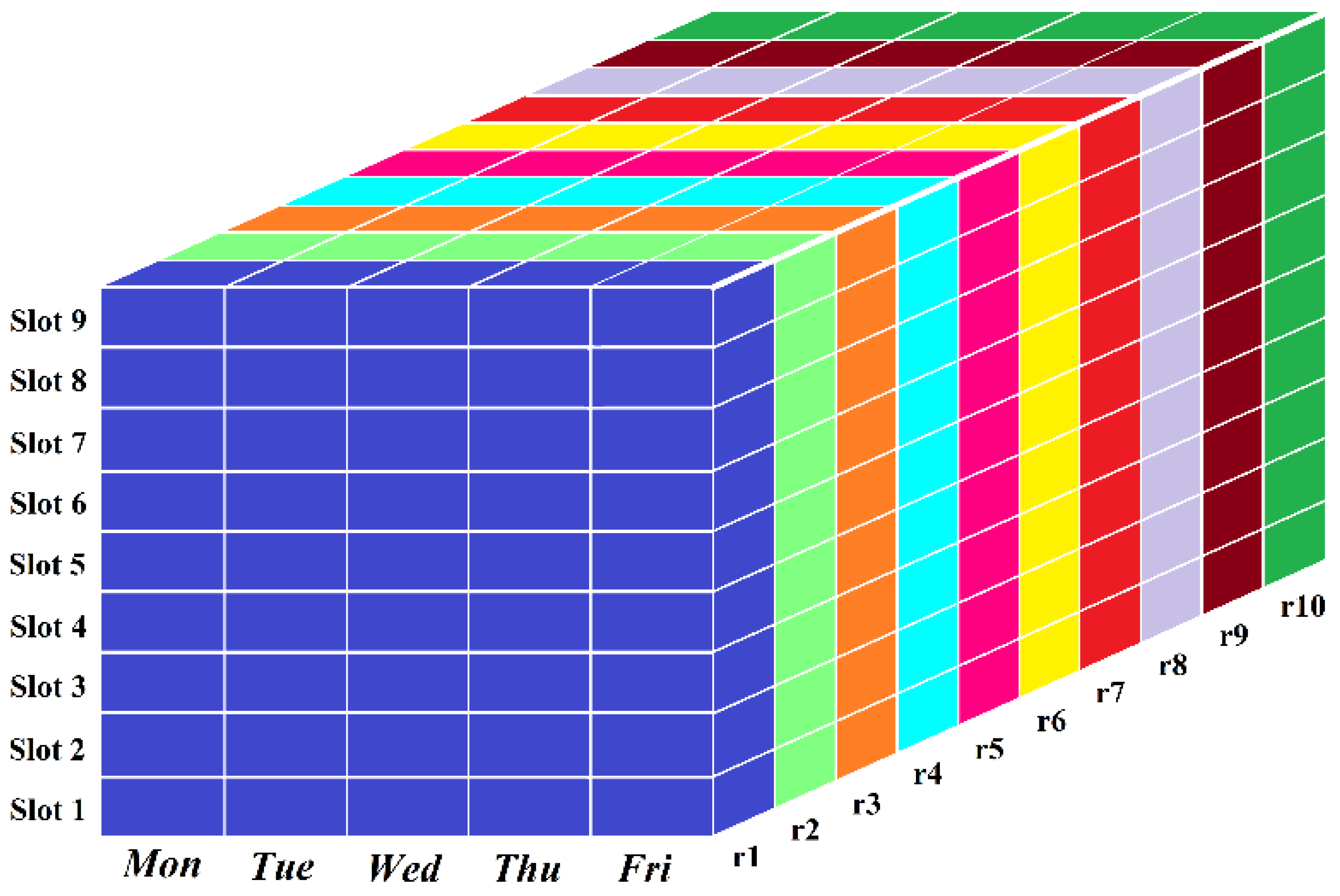

Figure 1 presents a three-dimensional structure with three dimensions: day, period, room. This abstraction of three-dimensional structure can store the UCTP solution by having events assigned to its students. Each coordinate of the matrix, x, y, z, represents a timeslot. This is the structure used by the metaheuristic proposed SACP.

2.2. Optimization Model

According to what Paechter raised in [13,26,41], a feasible solution is the one in which all events are scheduled, assigning them in the possible 45 existing timeslots for each room. This schedule of events considers the capacity of the room, the facilities offered by the room, the needs required by the event and the students who will attend the event. The optimization model is made up of sets of soft constraints and sets of hard constraints. Hard constraints are constraints that must be met to obtain a feasible solution. These constraints are related to the physical resources. Soft constraints are constraints that are preferable to comply with, but they do not need to be met for the solution to have a feasible result. A penalty is assigned, in the objective function, which is to minimize, when the constraints are not met.

The optimization model presents the following sets. The set of events E = {1, 2, 3,…, n_E}, the set of timeslots T = {1, 2, 3,…, 45}, the set of days D = {1, 2, 3, 4, 5}, the set of periods P = {1, 2, 3, 4, 5, 6, 7, 8, 9}, the set of rooms R = {1, 2, 3,…, n_R}, the set of students S = {1, 2, 3,…, n_S} and the set of facilities F = {1, 2, 3,…, n_F}. Equation (1) minimizes the objective function which exclusively accounts for violations committed to the soft constraints, Soft1, Soft2 and Soft3, that are related to each student and that are implicit in functions F1, F2 and F3. The soft constraint Soft1 indicates that a student $s\in S$ should not have class in the last period of the day. The soft constraint Soft2 indicates that a student should not have more than two adjoining classes. The soft constraint Soft3 indicates that a student should not have a single class per day, from the set T = {1, 2, 3,…, 45} of timeslots, which represents 45 h available in a 5-day school week with 9 periods per day. Events can be scheduled with students and the schedule table can be found for each room, where each room can offer different facilities and each event can have different needs. The UCTP optimization model is presented with the formulation from (1) to (7).

$$min OF={\displaystyle \sum }_{s=1}^{n_A}F1\left(s,Soft1\right)+{\displaystyle \sum }_{s=1}^{n_A}F2\left(s,Soft2\right)+{\displaystyle \sum }_{s=1}^{n_A}F3\left(s,Soft3\right)$$

(1)

s.t.

$$\begin{array}{cc}X\left(e,\mathsf{\Phi }\left(t,r\right)\right)=\{\begin{array}{cc}1,& if\mathsf{\Phi }\left(t,r\right)=1 and R\left(r,e\right)=1\\ 0,& In another way\end{array}& \hspace{1em}\hspace{1em}\forall e\in E\end{array}$$

(2)

$$\begin{array}{cc}\hfill {\displaystyle \sum _{t=1}^{45}}{\displaystyle \sum _{r=1}^{n_R}}X\left(e,\mathsf{\Phi }\left(t,r\right)\right)=1\hfill & \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\forall e\in E\end{array}$$

(3)

$$\begin{gathered} \begin{array}{cc}{\displaystyle \sum _{e=1}^{n_E}}X\left(e,\mathsf{\Phi }\left(t,r\right)\right)\le 1& \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\forall t\in T \\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\forall r\in R\end{array} \end{gathered}$$

(4)

$$\begin{gathered} \begin{array}{cc}{\displaystyle \sum _{s=1}^{n_s}}Z\left(s,X\left(e,\mathsf{\Phi }\left(t,r\right)\right)\right)\le Capacity\left(r\right)& \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\forall e\in E \\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\forall t\in T \\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\forall r\in R\end{array} \end{gathered}$$

(5)

$$\begin{gathered} \begin{array}{cc}{\displaystyle \sum _{e=1}^{n_E}}{\displaystyle \sum _{r=1}^{n_R}}Z\left(s,X\left(e,\mathsf{\Phi }\left(t,r\right)\right)\right)\le 1& \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\forall s\in A \\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\forall t\in T\end{array} \end{gathered}$$

(6)

$$t,r,e,s \in \left(N-\left\{0\right\}\right)$$

(7)

The five sets of hard constraints presented from (2) to (6) have to be satisfied to obtain a feasible solution to the optimization model. A pair $\left(t,r\right)$ is defined, where $t\in T$ represents a timeslot and $r\in R$ represents a room, such that:

$$\mathsf{\Phi }\left(t,r\right)=\{\begin{array}{cc}1,& If any e is assigned in t of r \\ 0,& In another way\end{array}$$

(8)

For example, if $\mathsf{\Phi }\left(22,3\right)=1$, this indicates that there is an assigned event in timeslot 22 in room 3. A pair $\left(r,e\right)$ is defined for each $r\in R$ room and for each $e\in E$ event, such that:

$$R\left(r,e\right)=\{\begin{array}{cc}1,& If r meets the needs of e \\ 0,& In another way\end{array}$$

(9)

The set of constraints in (2) indicates that a room r must meet the needs of the event e that is scheduled in timeslot t. If Equations 8 and 9 are true, that is, they have a value of 1, the relation $X\left(e,\mathsf{\Phi }\left(t,r\right)\right)$ is satisfied.

The set of constraints in (3) indicates that all events have to be scheduled. For each $e\in E$, the expression (3) of the set of constraints checks that all events e are scheduled in some timeslot t of some room r $\left(\mathsf{\Phi }\left(t,r\right)=1\right)$ and that meets the needs of the event. Moreover, each event can be scheduled only once in the week and, because of this, the equality must always be 1.

The set of constraints in (4) indicates that, in each room alone, there will be one event at a time. When in some timeslot $t\in T$ and some room $r\in R$, $\left(e,\mathsf{\Phi }\left(t,r\right)\right)=1,$ then the event e is scheduled in the timeslot t of room r, $\left(\mathsf{\Phi }\left(t,r\right)=1\right)$. So $X\left(e’,\mathsf{\Phi }\left(t,r\right)\right)=0, \forall e’\in E$, with $e’\ne e$.

The set of constraints in (5) indicates that room r must have sufficient capacity to attend to the student of the event. To define this constraint, from the expression (10) that indicates that for each student $s\in S$, this will be true, if the student s is attending the event e that occurs in the timeslot t of room r, $\left(\mathsf{\Phi }\left(t,r\right)=1\right)$. So, the number of students in class should not exceed the capacity of the room.

$$Z\left(s,X\left(e,\mathsf{\Phi }\left(t,r\right)\right)\right)=\{\begin{array}{cc}1,& if X\left(e,\mathsf{\Phi }\left(t,r\right)\right)=1, s attends to e\\ 0,& In another way\end{array}$$

(10)

The set of constraints in (6) indicates that a student will not attend more than one event at the same time. For a student $s\in S$, the expression (10) means that if the student s is attending the event e in the room r, then this student will not be able to attend another event e’ in another room in the same timeslot, because $Z\left(s,X\left(e^{\prime },\mathsf{\Phi }\left(t,r\right)\right)\right)=0, \forall e´\in E$, with $e´\ne e$. Hence, when evaluating the expression (6) (with value 0 or 1) of the set of constraints, it indicates that, if the expression (10) is true (equal to 1), and the sum in (6) is 0, the student s does not attend any event in any room in the timeslot t. Otherwise, if the sum in (6) is 1, then the student s attends a single event in a single room in the timeslot t.

In (7), the values of the variables are within the set of natural numbers.

For each of the soft constraints, Soft1, Soft2 and Soft3, that make up the function to be optimized, in Equation (1), each occurrence of violation, of any of these constraints, assigns to the penalty variable the value of one. For the soft constraint Soft1, a timeslot t, an event $e\in E$ and a room $r\in R$ in which is the student $s\in S$, a soft constraint is evaluated for each student (11):

$$F1\left(s,Soft1\right)=\{\begin{array}{cc}1,& If Z\left(s,X\left(e,\mathsf{\Phi }\left(t,r\right)\right)\right)=1,\mathrm{to} t\in 41\le t\le 45 \\ 0,& In another way\end{array}$$

(11)

The penalty for the occurrence of $F1\left(s,Soft1\right)=1$ indicates that a student should not have a class in the last period of the day, which is in $41\le t\le 45$.

For the soft constraint Soft2, there will be a day $d\in D$, a period $p\in P$, for each student $s\in S$ it is defined $PD=\left\{5p+d|0\le p\le 8\right\}$ and for each $\left\{pd1,pd2,pd3\right\}$ subset in PD of three elements, such that $pd1=5\mathrm{p}+d,pd2=pd1+5$ and $pd3=pd1+10$. So, for a $r\in R$ room, a $e\in E$ event, a $d\in D$ day and a $p\in P$ period with $0\le p\le 6$, it is defined in (12):

$$F2\left(s,Soft2\right)=\{\begin{array}{cc}1,& If Z\left(s,X\left(e,\mathsf{\Phi }\left(t,r\right)\right)\right)=1,\mathrm{for} \mathrm{each} s\in \left\{pd1,pd2,pd3\right\} \\ 0,& In another way\end{array}$$

(12)

The penalty of an occurrence $F2\left(s,Soft2\right)=1$, it indicates that a student should not have more than two classes in a row in continuous periods of the same day.

For the soft constraint Soft3, there will be a day $d\in D$, for each student $s\in S$, for each day $d\in D$, it is defined in (13):

$$F3\left(s,Soft3\right)=\{\begin{array}{cc}1,& if{\displaystyle \sum _{r=1}^{n_R}}{\displaystyle \sum _{e=1}^{n_E}}{\displaystyle \sum _{p=0}^8}Z\left(s,X\left(e,\mathsf{\Phi }\left(5p+d,r\right)\right)\right)=1\\ 0,& In another way\end{array}$$

(13)

When a penalty occurs for a student in $F3\left(s,Soft3\right)=1$, it indicates that a student has only one class per day.

For a penalty not to occur in $F3\left(s,Soft3\right)$ then it has to be ${\sum }_{r=1}^{n_R}{\sum }_{e=1}^{n_E}{\sum }_{p=0}^{8}Z\left(s,X\left(e,\mathsf{\Phi }\left(5p+d,r\right)\right)\right)>1$, which indicates that a student has more than one class in one day.

3. Simulated Annealing with Cooperative Processes (SACP)

In this work, the simulated annealing metaheuristic (SA) is used due to the great capacity it presents to obtain good local optimums through the procedure known as the acceptance criterion that allows to improve the solution quickly, escaping from the local optimum. Unlike population-based metaheuristics that require working with a population of solutions to optimize through exploration of the solutions space, SA only requires an initial solution to perform optimization through exploitation of the solutions space. Because this metaheuristic presents an asymptotic convergence over time, in this work, a cooperation of processes is applied to improve the obtaining of results in shorter times, performing a search with exploitation and exploration procedures in the space of solutions. Exploitation is carried out by applying local search to each SA and exploration is carried out by generating a cooperation of distributed processes that executes each of the SA with quenching-type restarts and cooperating with each other to direct the search toward a space of good solutions. This section presents the simulated annealing (SA) metaheuristics with processes cooperation.

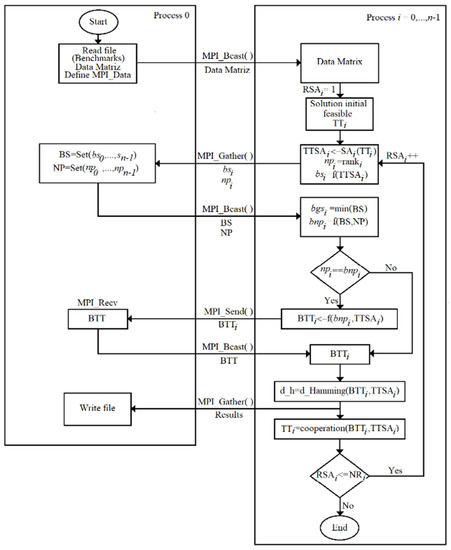

Figure 2 presents a flow diagram of the algorithm. The algorithm generates a SA with restart for each process i, so that in each term of an SA the cooperation between a pair of solutions is carried out. This is the best solution TTSA_i of SA obtained by the process i vs. the best solution obtained by all processes, BTT_i. The full explanation of the algorithm is shown:

• The algorithm begins its execution in process zero by reading the input file that contains the instance information of the problem to be solved.
• The information is stored in a data matrix represented in Figure 1.
• The data types are defined below using the MPI protocol to be able to work with n processes.
• The information received in process i = 0 is sent to each one of the n processes generated using collective communication through the MPI-Bcast function.
• At the beginning, each process i generates a feasible random initial solution TTi. To generate this feasible solution, the Constructive Approach Algorithm is used. This is presented in [33]; this solution is passed to SA.
• At the end of each process i in SA a solution optimized TTSA_i is obtained and collected in process i = 0 through each process i. The best solution bs_i = f(TTSA_i) obtained by the cost function (Equation (1)) in SA, through an arrangement of best solutions, BS = Set (bs₀, …, bs_n-1) and also the number of process npi = ranki that corresponds to the bsi solution by means of a number of processes array, NP = Set(np₀, …, np_n−1). Collective communication with MPI_Gather is applied to send the best cost value bsi (best solution) of each process i, to the process i = 0 and thus obtain the BS array located in process i = 0.
• Applying collective communication with MPI_Bcast, the BS array containing the cost of each solution and its Process Number NP, is sent to each process i.
• On each process i the cost of the best global solution bgs_i = min (BS) is located in BS, which is the same in each process i. However, it is necessary to know in all processes the best number of process bnp_i = f (BS, NP), which contains bgs_i, in order to evaluate the Hamming distance in each process.
• In the bnp_i process, the best solution of all processes is found in the TTSA_i array. This solution is called Best Timetabling BTT_i = f (bnpi, TTSAi).
• Applying point-to-point communication with MPI_Send, the BTT_i array is sent to the process i = 0 and it is received with MPI_Recv.
• In process i = 0, applying collective communication with MPI_Bcast, the best BTT_i solution is distributed to all the processes.
• In each process, the Hamming distance is calculated with d_h = d-Hamming (BTT_i, TTSA_i), evaluating the difference between the two solutions BTT_i vs. TTSA_i. With this, the processes cooperation is carried out because it is carried out by reducing d-Hamming between the solution obtained in TTSA_i vs. BTT.

  12.1

  The Hamming distance is obtained by comparing each timeslot (x, y, z) of both solutions, see Figure 1.

  12.2

  If the same event is stored in the timeslot (x, y, z) of both solutions, then the similarity of both solutions is the same in that timeslot.

  12.3

  If the same event is not stored in the timeslot (x, y, z) of both solutions, then there is no similarity in that timeslot.

  12.4

  The comparison is made between each of the timeslots (x, y, z) of both solutions, BTT_i, TTSA_i, and the degree of difference between both solutions is counted.

  12.5

  A large d-Hamming value indicates that the similarity between BTTi and TTSA_i is very little.

  12.6

  A small d-Hamming value indicates that the similarity between BTT_i and TTSA_i is greater.

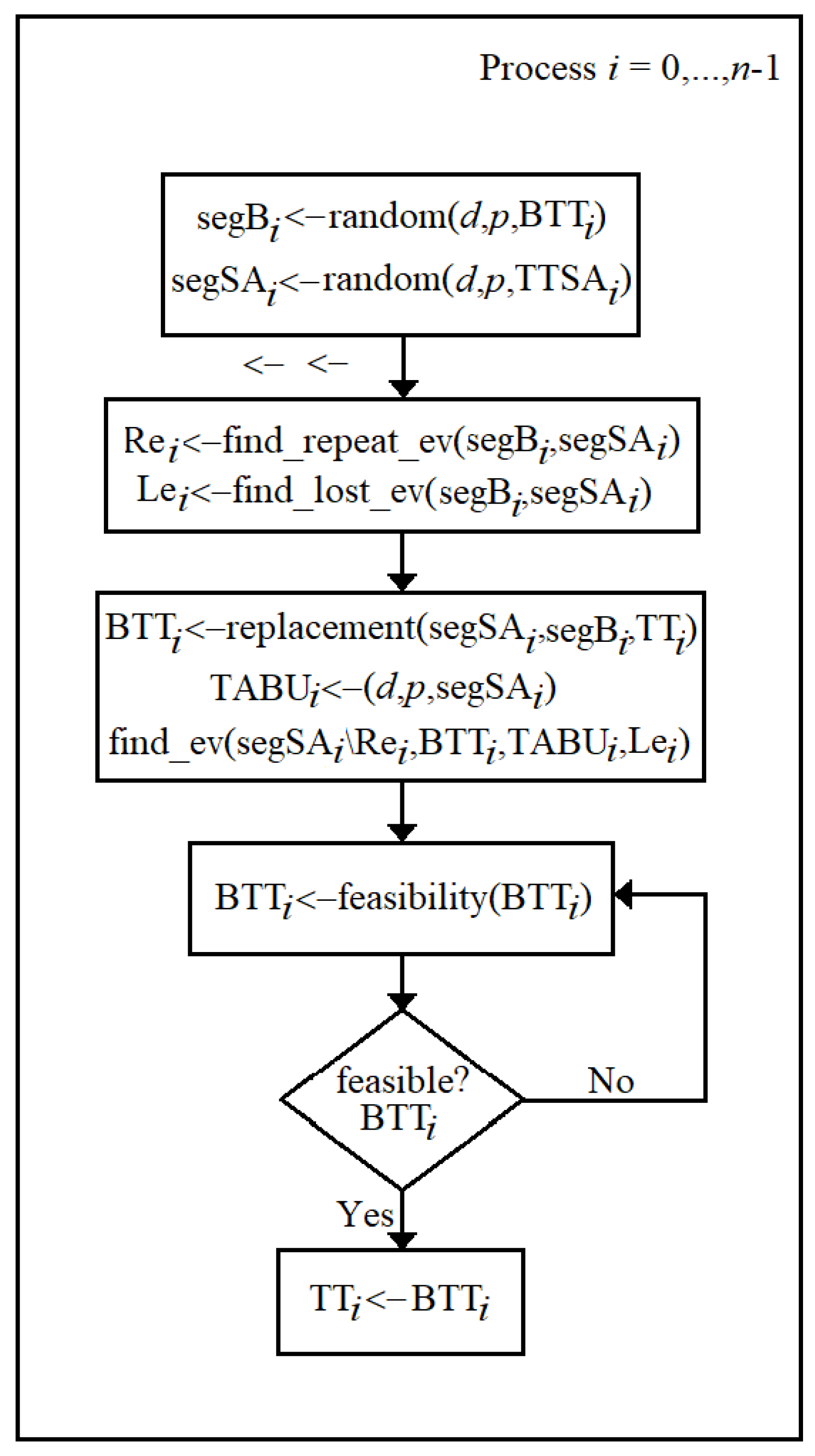

• Figure 3 presents processes cooperation in the flow diagram. TT_i = cooperation (BTTi, TTSAi), brings the best BTTi solution of all processes closer to the best TTSA_i solution of each process by reducing its Hamming distance. Figure 4 presents a simple example of how the processes cooperation is performed.

  13.1

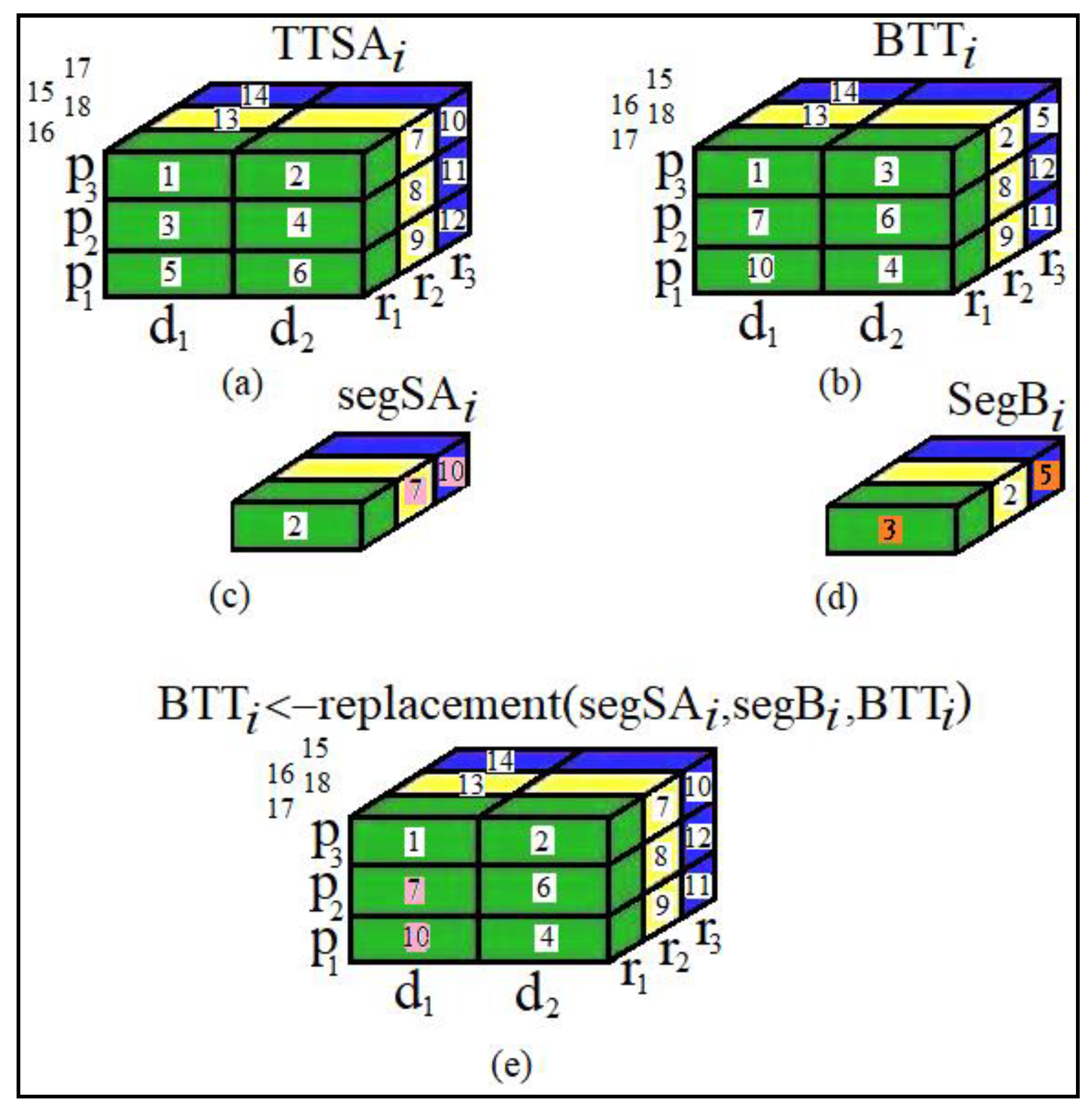

  A segment segSA_i <− random (di,pi,TTSAi) of TTSA_i is taken randomly with coordinates (x, y) = (d_i, p_i) = (d₂, p₃). This segment includes the full depth of the cube, that is (z₁, …, z_n) = (r₁, …, r_n), see Figure 4c.

  13.2

  The segSA_i segment replaces the segBi segment that is located at the same coordinates in the BTT_i solution, so that all constraints for events in that segment are maintained.

  13.3

  The replaced segment segB_i of BTT_i is presented in Figure 4d.

  13.4

  Although the segSA_i replacement segment does not violate constraints in BTTi, there are repeated events in the new BTT_i <− replacement (segSA_i, segBi, BTTi) solution.

  13.5

  To return the feasibility in BTT_i <− feasibility (BTT_i), repeated events Re_i <− find_repeat_ev (segB_i, segSA_i), presented in the segments of replacement segSA_i and segB_i are searched. In the example in Figure 4c,d, the event Re_i = {2} appears as repeated, and this indicates that event 2 will not appear repeated in the new BTT_i solution (Figure 4e).

  13.6

  The remaining events 7 and 10 of segSA_i (Figure 4c) will appear repeated at other coordinates in BTT_i (Figure 4e).

  13.7

  Then, the procedure seeks to insert in BTT_i (Figure 4e) in the position where repeated events 7 and 10 (Figure 4e) are located, to the deleted events Le_i = <− find_lost_ev (segB_i, segSA_i). Figure 4d shows the lost events {3, 5} when its segB_i segment of BTT_i was removed.

  13.8

  The deleted events Le_i = {3, 5}, are tried to be replaced by the events 7 and 10 which are not inserted in Figure 4c. These events 7 and 10 are searched in BTT_i outside the segment inserted segSAi, which is defined as a tabu segment. Le_i events already inserted are proven to meet all constraints to obtain a feasible solution in BTT_i = feasibility (BTT_i) when any of them do not meet any constraints. The events are inserted anyway and an exchange that is feasible with other events is sought randomly (minus the events of the segment inserted segSA_i which is tabu), until achieving the feasibility of BTT_i. Tabu events are not exchanged so as not to increase d-Hamming.

  13.9

  The previous cooperation procedure makes the new BTT_i solution (Figure 4e) more similar to TTSA_i (Figure 4a). This procedure is performed with each of the TTSA_i solutions of each process i and the best BTT_i solution obtained from all processes. Once the BTT_i solution is feasible, it is assigned as the new TT_i = BTT_i, solution to start with the next SA in process i.

• Figure 2 shows cooperation between processes is repeated every time that ends a restart with SA.
• The algorithm counts the RSA_i number of SA restarts (NR). If the total number NR_i, has already been reached, the algorithm ends its execution, otherwise the execution of a new SA begins in process i with the new TT_i = cooperation (BTT_i, TTSA_i) solution, obtained by cooperation between processes. NR_i is the stopping criterion of SACP and is evaluated in each process i.

Algorithm 1 presents the proposed simulated annealing algorithm that is applied in SACP within each process i. Function SA_i (TT_i). The steps are explained below:

• The SA algorithm always requires starting with a solution feasible of the TT_i problem. This feasible solution is evaluated with the objective function in (1) to obtain the bsc_i cost. The best known bsi solution is initialized with the value of bsc_i.
• SA input parameters, such as the control parameter T_i, the length of the Markov chain MCL, the control coefficient α, that controls the decrease in the control parameter and the final value control parameter, with the value T_f, which works as the SA stopping criterion, are initialized.
• Lines 3 and 4, the external cycle of SA is performed as long as T does not reach T_f. In addition, T is decremented with α, see line 28.
• Lines 5 and 6, the internal cycle represents the cycle of Metropolis, and this is repeated until MCL is met, see line 26.
• Line 7, a disturbance is performed by applying the neighborhood structure that exchanges a couple of randomly chosen events to assign each of them in a different timeslot. The TT_i feasibility is evaluated with the sets of constraints presented in (2) to (6) of the optimization model, in case it is not feasible, then the pair of events is returned to its initial position and tested with another pair of events until TT_i is feasible. The new feasible solution is stored in TT_p.
• Line 8, the bsp_c cost of the disturbed TT_p solution is obtained with Equation (1).
• Line 9, the costs of TT_i and TT_p solutions are compared. If a better cost of the disturbed solution is obtained then online 10 and 11, TT_p is accepted as the new TT_i solution.
• Lines 12 to 17, if the cost of bsp_c is less than or equal to that best solution obtained, then TT_p is stored in TTSA_i as the best solution obtained.
• Lines 18 to 23 evaluate the criterion of acceptance of SA. This applies when the bsp_c cost obtained by the disturbance turns out to be greater than the cost of bsc_i.
• Line 18, a random number ρ is generated uniformly distributed between zero and one.
• Line 19, the Boltzmann function is applied to obtain the paccept probability to accept a poor quality bspc solution.
• Line 20, if paccept is greater than ρ, then the bspc solution is accepted as a new solution to continue with SA.
• The SA procedure is repeated as long as T does not reach T_f, see line 4.
• When SA completes its execution, the best found TTSA_i solution and its bs_i cost are returned as a result.

Algorithm 1. Simulated annealing with restart
1	bsci = f(TTi), bsi = bsci
2	Ti = 2, MCL = 400, α = 0.98, Tf = 0.001
3	T = Ti
4	whileT >= Tf  do
5	MC = 0
6	while MC < = MCL do
7	TTp <− perturbation (TTi)
8	bspc = f(TTp)
9	if bspc < = bsci then
10	bsci = bspc
11	TTi <− TTp
12	if bsci < bsi then
13	bsi = bsci
14	TTSAi <− TTi
15	end if
16	end if
17	else
18	ρ = random number between (0,1)
19	$p_{accept}=e^{-\left(\frac{b{s}_{pc}-b{s}_{ci}}{T}\right)}$
20	if ρ < paccept then
21	bsci = bspc
22	TTi <− TTp
23	end if
24	end else
25	MC=MC+1
26	end while
27	T = T*α
28	end while
29	return bsi; TTSAi

4. Computational Results

To perform the efficiency and efficacy tests of the metaheuristic with cooperative processes SACP, a computational cluster, consisting of four nodes, each node with a motherboard with two processors, Intel Xeon six core 3.06 GHz, with a total of 48 cores, 96 GB RAM, Ethernet connection 100BASE-TX, 100 Mbs, O.S. Centos 5.5. MPI libraries GNU. The instances of the university course timetabling problem are those presented by the Metaheuristic Network group [26]. These are the so-called small01, small02, small03, small04, small05, medium01, medium02, medium03, medium04, medium05, large01 and large02.

Table 2. Characteristics of the instances.

Instance	Small	Medium	Large
Events	100	400	400
Rooms	5	10	10
Features	5	5	10
Approx_features_per_room	3	3	5
Percent_feature_use	70	80	90
Students	80	200	400
Max_events_per_student	20	20	20
Max_students_per_event	20	50	100
Periods	9	9	9
Days per week	5	5	5

presents the characteristics of these instances, which can be downloaded from [42]. Computational experiments are limited to a few instances because they are the only ones found in the literature for the optimization model that is presented in this work.

To carry out the tests with SACP, a sensitivity analysis of the main SACP parameters was performed.

Table 3. Tuned simulated annealing values.

Parameter	Tuned Value
Ti	2
Tf	0.001
MCL	400
α	0.98
NR	12
NP	48

presents the tuned values of the parameters by means of a sensitivity analysis, where NP indicates the number of processes running in SACP. The sensitivity analysis was applied according to the procedure presented in [43], which performs a sweep of values for each parameter (T_i, T_f, MCL, α) in interval from a lower bound up to an upper bound. These limits defined taking as the center of these intervals the value of the parameter that is frequently applied to SA in optimization problems.

For the NR parameter, it was tuned according to the execution time limit defined for SACP, and for the NP parameter, it was tuned according to the best results obtained by SACP.

4.1. Landscape and Efficacy of SACP

An analysis of the UCTP landscape was performed for the two large-type instances. The landscape is presented based on three variables, the OF objective function, the Hamming distance and the elapsed time in the SACP execution, which is a function of the NR that is executed in SACP. The execution time was about 8000 s.

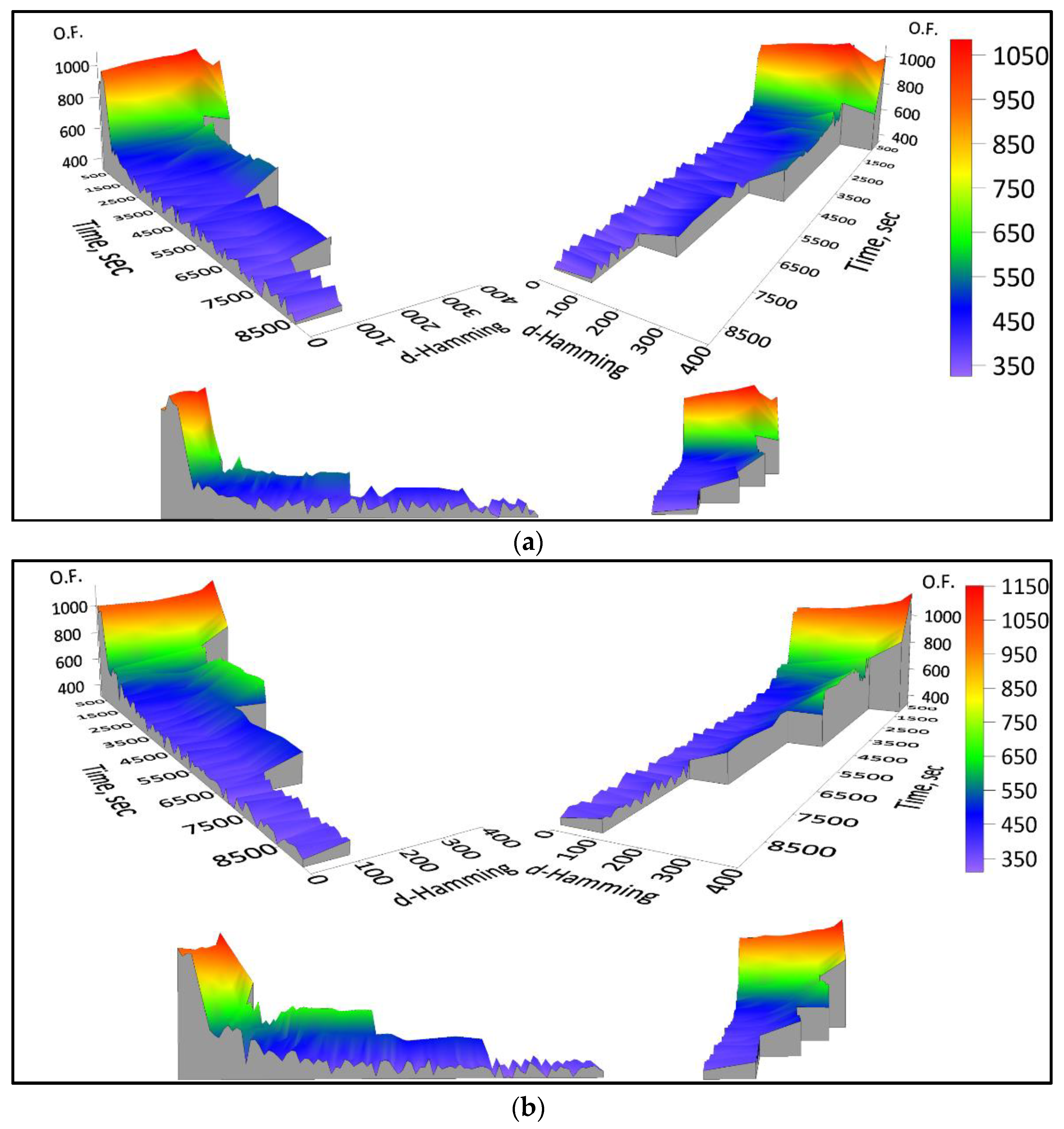

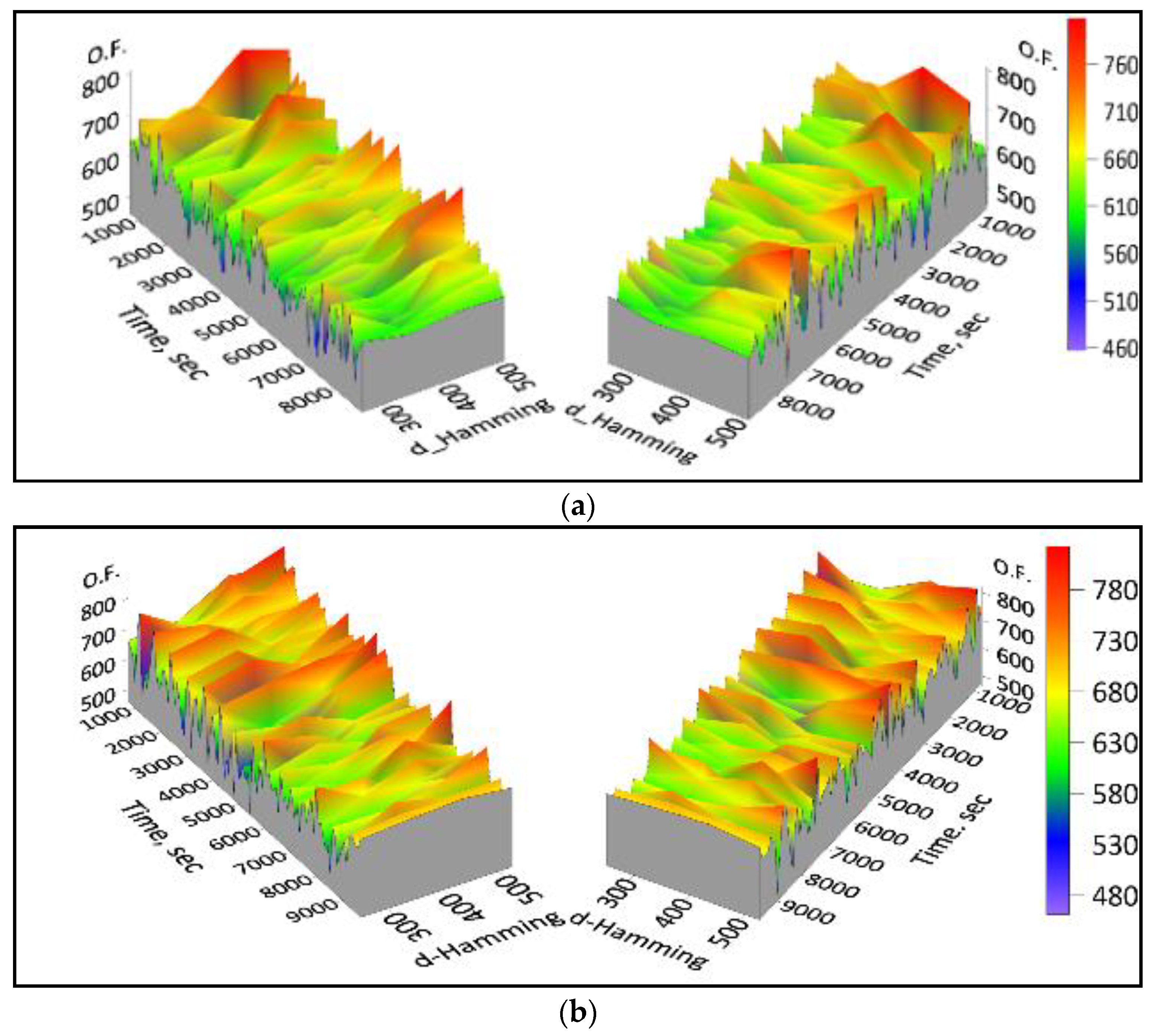

Figure 5a presents the landscape for the instance large01 without applying cooperation between processes. It is observed that, with greater distance Hamming, the behavior of the solutions obtained as a function of time generates lower quality in the evaluation of the objective function with Equation (1). In addition, similarly, a shorter Hamming distance impacts on the behavior of the solutions obtained as a function of time generating a higher quality in the evaluation of the objective function. However, there are solutions that, despite having a large Hamming distance, the quality of their result is very good; the same happens when the Hamming distance is small. It is observed that, between a Hamming distance of 300 to 400, there is a path in which no peaks appear in the landscape. The opposite occurs when the Hamming distance is less than 300 and greater than 500. Figure 5b presents the landscape for the instance large02 without applying the cooperation among processes. Here, there is no clear behavior depending on the distance. As in large01, there are solutions that, despite having a large Hamming distance, the quality of their result is very good. The same happens when the Hamming distance is small. It is also observed that near to a Hamming distance of 400 there is a path in which no peaks appear in the landscape. The opposite occurs when the Hamming distance is less than 300 and greater than 500.

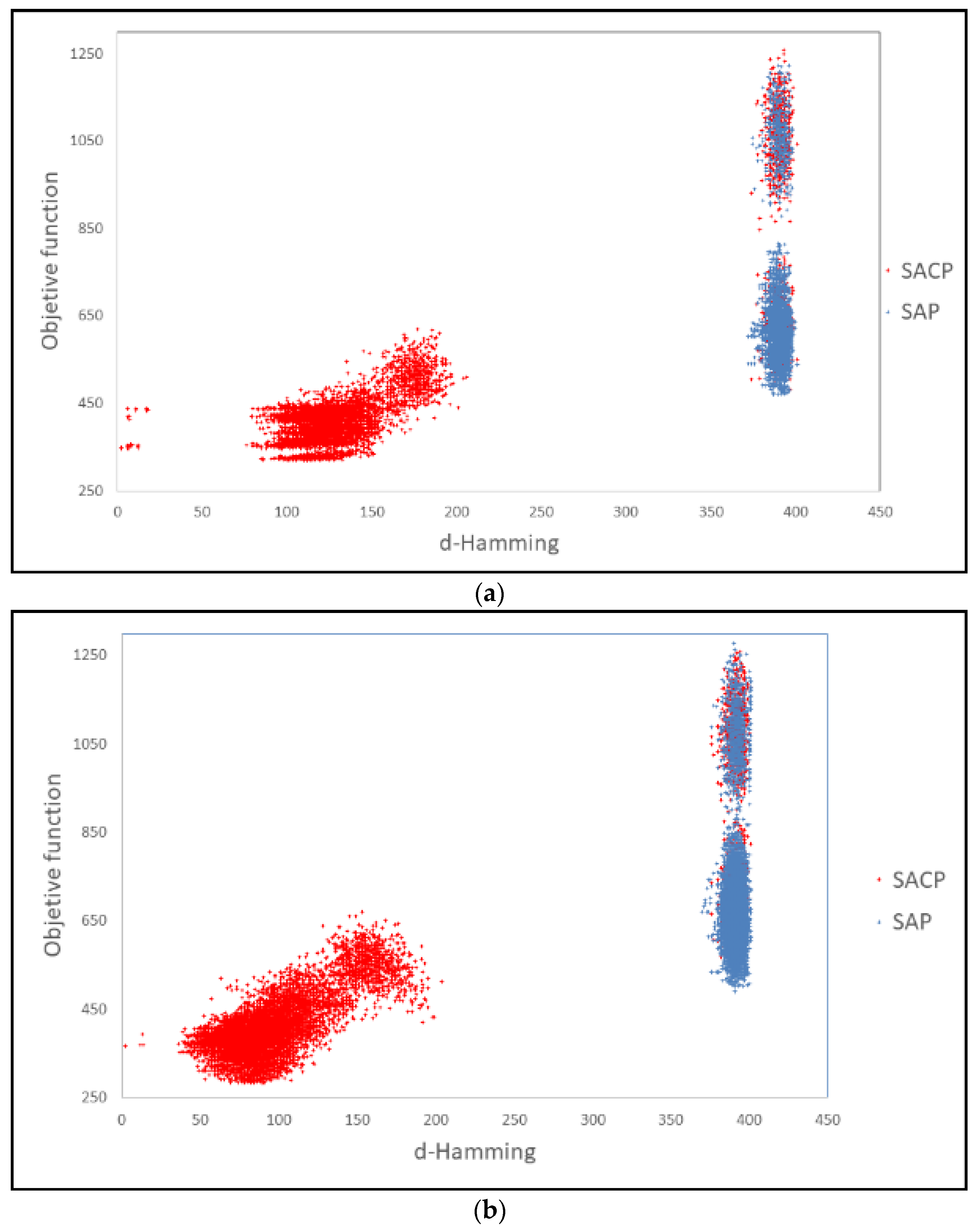

Figure 6 presents the landscape for the instances large01 and large02 applying cooperation between the processes.

Figure 6a presents the landscape for instance large01 applying processes cooperation. It is observed that, with greater distance Hamming, the behavior of the solutions obtained as a function of time generates more clearly lower quality in the evaluation of the objective function with the Equation (1), unlike when there is no processes cooperation. In addition, at a shorter Hamming distance throughout the time interval, the behavior of the solutions obtained as a function of time generates the highest quality in the evaluation of the objective function. Moreover, if we compare Figure 6a,b, it can be observed that the value of the objective function has better quality throughout the interval of time from the application of the cooperation of processes that starts on the surface marked in blue (Figure 6b). It is observed that the best solutions obtained with cooperation are presented when the value of the Hamming distance is close to zero and in the SACP execution time limit.

Figure 6b presents the landscape for the instance large02 applying cooperation among processes. It is observed that, with greater distance Hamming, the behavior of the solutions obtained as a function of time generates more clearly lower quality in the evaluation of the objective function with Equation (1), unlike when there is no processes cooperation. In addition, at a shorter Hamming distance throughout the time interval, the behavior of the solutions obtained as a function of time generates the highest quality in the evaluation of the objective function. It is observed that the best solutions obtained with cooperation are presented when the Hamming distance value is close to zero and in the SACP execution time limit. Moreover, when comparing Figure 5 and Figure 6, it is observed that the value of the objective function is of better quality throughout the time interval from the application of the cooperation of processes that begins on a surface marked in blue (Figure 6).

Based on the analysis carried out of the landscape for large problems, it can be argued that addressing the solutions provided by each SACP process toward a closer appearance with the best solution obtained (the best of all obtained by all processes) on each SACP execution time, allows to considerably improve the final result obtained when cooperation amoung the processes is applied.

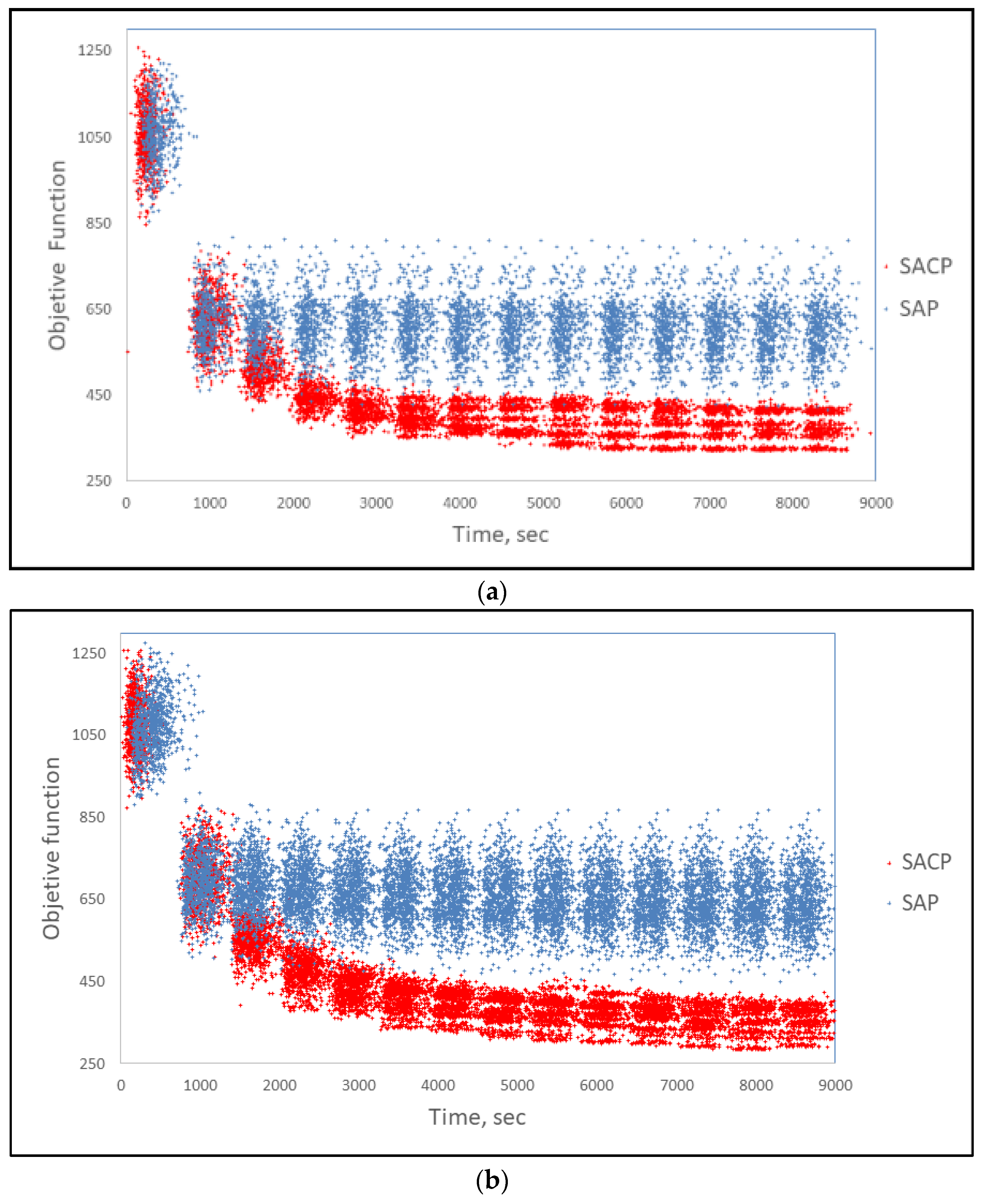

Figure 7 presents the effect of processes cooperation on time function for instances large01 and large02.

Figure 7a presents the effect of processes cooperation for the large01 problem, when SAP (simulated annealing with processes) without processes cooperation and when SACP with processes cooperation are applied. The graph presents infinity of points with blue and red colors. Each point represents a result obtained from some of the 48 processes in execution in SAP and SACP in the time interval of zero to 9000 s. It is observed that, at the beginning when the initial solution is generated where there is no cooperation in SACP, the results are similar as in SAP (0–700 s). When optimization starts with SA, both algorithms improve their solutions, but it is observed that as the execution time progresses, SACP tends to be better than SAP. Additionally, the SACP algorithm reaches an asymptotic convergence.

Figure 7b presents the effect of processes cooperation for the large02 problem, when SAP processes cooperation is not applied (simulated annealing with processes) and when SACP processes cooperation is applied. It is observed that, at the beginning when the initial solution is generated where there is no cooperation in SACP, the results are similar to SAP (0–700 s). When SA optimization is started, both algorithms improve their solutions, but it is observed that as the execution time progresses, SACP tends to be better than SAP and also presents an asymptotic convergence. In this graph, a greater separation is observed between the SAP vs. SACP solutions in Figure 7b. The latter indicates that the processes cooperation applied in SACP for the large02 problem works more efficiently by obtaining a greater difference in SACP vs. SAP results.

Figure 8 presents the behavior of how the value of the objective function is minimized vs. the Hamming distance for the instances large01 and large02.

In both instances in Figure 8a,b, the same behavior occurs, indicating that with a shorter Hamming distance, the result is better; this is observed in SACP. In the case of SAP, the result also improves without reducing the Hamming distance, but the result is of lower quality than in SACP. It is also observed that, for both instances large01 and large02, the best interval for the Hamming distance, in which the best solutions are found, is between 50 and 100.

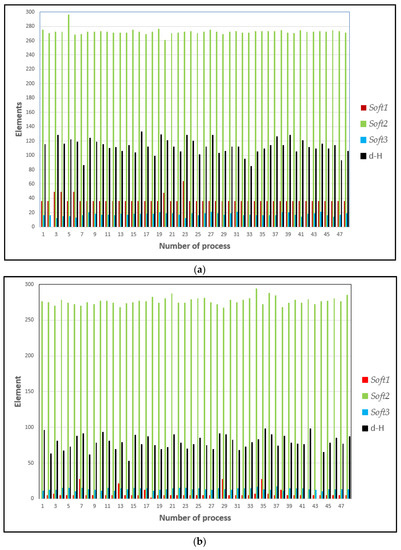

Figure 9 presents the value of the soft constraints and their Hamming distance for the best solution obtained by SACP for each of the 48 processes in execution, for the instances large01 and large02.

Figure 9a shows that, for the large01 instance, the lowest values are always obtained with the Soft3 constraint in the 48 processes. Then, the values obtained with the Soft1 constraint are placed as lowest values and, finally, the ones obtained with the Soft2 constraint. This behavior is observed in all the processes. This indicates that SACP has more problems optimizing the Soft2 constraint, and it is easier to optimize the Soft3 constraint. The longest Hamming distance in a process does not exceed the value of 140.

Figure 9b shows that, generally, the lowest value is for the Soft1 constraint in 43 of 48 processes, and the Soft3 constraint follows and the Soft2 constraint is at the end. This indicates that SACP has more problems optimizing the Soft2 constraint, and it is easier to optimize the Soft1 constraint. The longest distance Hamming does not exceed the value of 100. Optimizing soft constraints depends on the instance, because in large01 it is best optimized in the order of Soft3 −> Soft1 −> Soft2, while in large02 it is best optimized in the order of Soft1 −> Soft3 −> Soft2.

Table 4. Results of simulated annealing metaheuristic with cooperation of processes (SACP) and simulated annealing metaheuristic with processes (SAP) but without cooperation.

Problem	SACP
	Min	Max	Mean	t s	σ	Mode	Median
Easy01	0	0	0	6	0	0	0
Easy02	0	0	0	8	0	0	0
Easy03	0	0	0	5	0	0	0
Easy04	0	0	0	6	0	0	0
Easy05	0	0	0	5	0	0	0
Medium01	44	60	50.69	4049.36	4.80	50	50
Medium02	48	56	51.5	4004.90	3.06	54	51
Medium03	57	77	57	3967.19	8.54	57	55
Medium04	47	62	51.7	3979.48	5.54	52	52
Medium05	7	20	11.8	3651.59	3.77	12	11.5
Large01	321	411	377.7	8354.97	32.51	407	379
Large 02	285	390	346.5	8656.48	32.93	390	358
Problem	SAP
	Min	Max	Mean	t s	σ	Mode	Median
Easy01	0	0	0	7	0	0	0
Easy02	0	0	0	8	0	0	0
Easy03	0	0	0	7	0	0	0
Easy04	0	0	0	5	0	0	0
Easy05	0	0	0	5	0	0	0
Medium01	53	60	55.8	3899.92	2.44	57	55.5
Medium02	48	62	52	3954.85	7.29	46	52.5
Medium03	58	65	60.9	3885.50	4.07	65	61
Medium04	48	59	53.6	3901.92	3.66	54	54
Medium05	16	25	21.8	3560.87	3.43	22	22
Large 01	410	504	478.22	8339.55	22.98	488	484
Large 02	450	528	500.33	8617.84	22.79	507	507

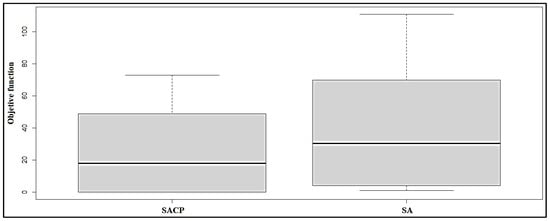

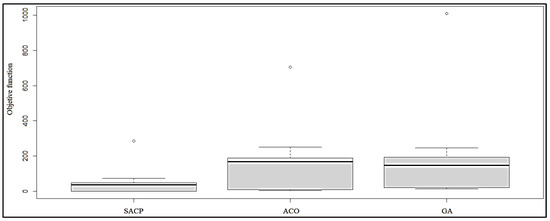

presents the results obtained with SACP and SAP. Execution times and number of executions in SACP and SAP are the same. For each problem size, the times are different to be able to compare SACP (equal time in SAP) with other algorithms existing in the literature and using the same instances (ACO, GA, ILS, TS, SA).

For small instances, the number of executions for each instance is 100, and for medium and large instances, the number of executions for each instance is 30. For large problems, the execution time limit is 9000 s; for medium problems, the execution time limit is 4000 s; and for small problems, the recorded time is the time to obtain the global optimum. In all small instances, the global optimum is obtained with SACP. For small03, SACP obtained the optimum in 82 of 100 executions in the first iteration where processes cooperation is not yet applied, and for the remaining 18 executions, only a second iteration of SACP was required to obtain the global optimum. For small04, SACP obtained the optimum in 91 of 100 executions in its first iteration where processes cooperation is not yet applied, and for the remaining 9 executions, only a third iteration of SACP was required to obtain the global optimum. For the other small instances, SACP only required the execution of a single iteration to obtain the optimal solution; naturally the first execution of SACP does not apply processes cooperation. In the case of SAP, the global optimum is also obtained in all small instances, according to the mean, mode, median and standard deviation. The time is similar and does not reach more than 10 s in both cases (SACP vs. SAP).

In the case of medium and large instances, SACP is always better than SAP in obtaining the best solution. The best mean and median value is for SACP; in the case of mode, SAP is best only in medium02. In the standard deviation, SAP is best in all except medium02. The execution time is a little longer for SACP because cooperation between processes is applied in this algorithm, which is a little more time consuming, and in SAP there is no cooperation between the processes.

Table 5. Comparison of results obtained by the SACP metaheuristic with other results obtained by other metaheuristics at a time limit of 9000 s for large problems, 900 s for medium problems and 90 s for small problems.

Problem	Metaheuristics
	SACP	ACO	GA	ILS	TS	SA
Easy01	0–0(1)	0–7(4)	0–19(5)	0–5(3)	0–34(6)	0–3(2)
Easy02	0–0(1)	0–15(4)	1–30(6)	0–10(3)	0–27(5)	0–6(2)
Easy03	0–0(1)	0–12(4)	0–22(5)	0–7(3)	0–29(6)	0–4(2)
Easy04	0–0(1)	0–7(4)	0–21(5)	0–6(3)	0–24(6)	0–5(2)
Easy05	0–0(1)	0–5(3)	0–13(5)	0–6(4)	0–21(6)	0–1(2)
Medium01	48(1)	182(6)	181(5)	120(3)	172(4)	71(2)
Medium02	49(1)	194(6)	170(4)	121(3)	183(5)	70(2)
Medium03	73(1)	252(6)	246(5)	171(3)	226(4)	111(2)
Medium04	49(1)	168(6)	148(4)	107(3)	163(5)	65(2)
Medium05	36(1)	176(4)	208(5)	142(3)	238(6)	55(2)
Large01	321(1)	* (6)	* (6)	900(2)	1170(3)	* (6)
Large02	285(1)	705(3)	1010(5)	690(2)	1000(4)	* (6)
Average ranking	1	4.7	5	2.9	5	1.8

presents a comparison of the best results obtained with SACP and other algorithms present in the literature. In the case of small problems, the best and worst result is presented in each algorithm. As can be seen for small01, in 100 executions, SACP always finds the global optimum (0–0) and, for example, in 100 executions, GA (0–19) finds the global optimum but not always, so the worst value found is 19. The value presented in the table in parentheses is the average rank and, as it can be seen, SACP always achieves first place in all the revised instances. In some cases, some algorithms presented in the literature do not find a solution for large instances, this is represented with * (ACO, GA and SA), which does not happen in SACP because it always finds solutions for any instance.

4.2. Statistical Analysis

The test data are the values obtained by each algorithm (SACP, ACO, GA, ILS, TS, SA) with respect to its objective function (Table 5). For small instances, all algorithms find the global optimum solution, and for the statistical analysis purposes, the worst value obtained by each algorithm is used in order to know if there are differences in the effects of each type of algorithm in the worst of the results obtained. For the other medium and large instances, the statistical analysis uses the best value obtained in each algorithm.

The null hypothesis, H₀ in Equation (14), indicates that the means of the results are equal. The alternative hypothesis, Equation H₁ in (15), points out that the means are not equals or at least one is different. Statistical analysis tests whether the null hypothesis is true. If the null hypothesis is true, then there will be no difference in the effects of the analyzed algorithms.

$$H_0:\overline{X_1}=\overline{X_2}=\dots =\overline{X_r}$$

(14)

$$H_1:Not all are the same$$

(15)

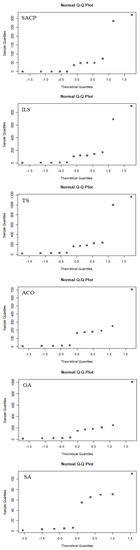

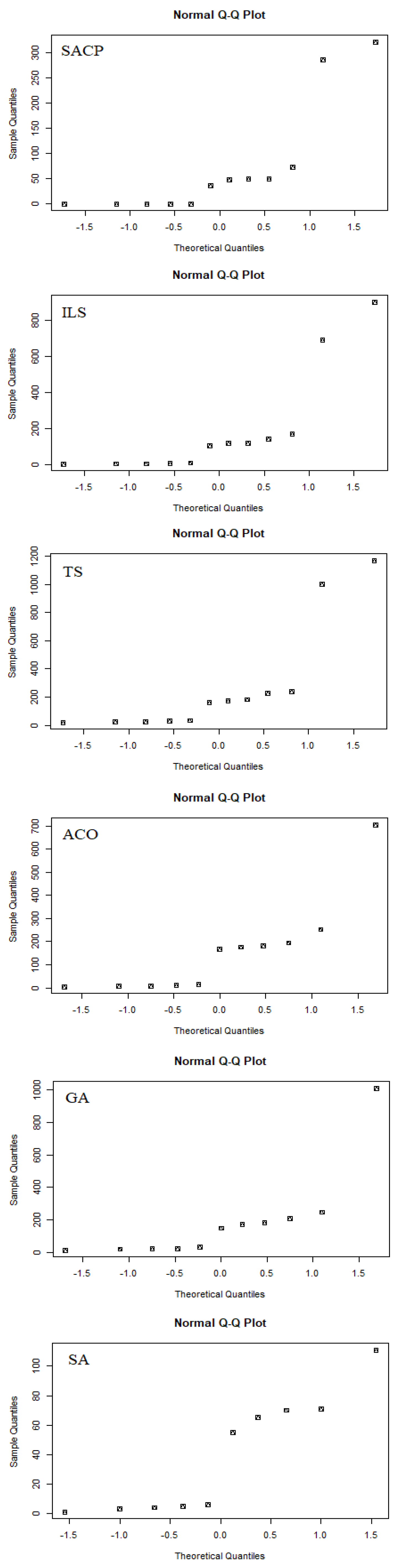

For conducting the statistical analysis, both data normality and homoscedasticity are first verified. Figure 10 presents the normality of the data of each algorithm. The results show that there is no normality in the data of any algorithm since the points are not located on the diagonal of the graphs.

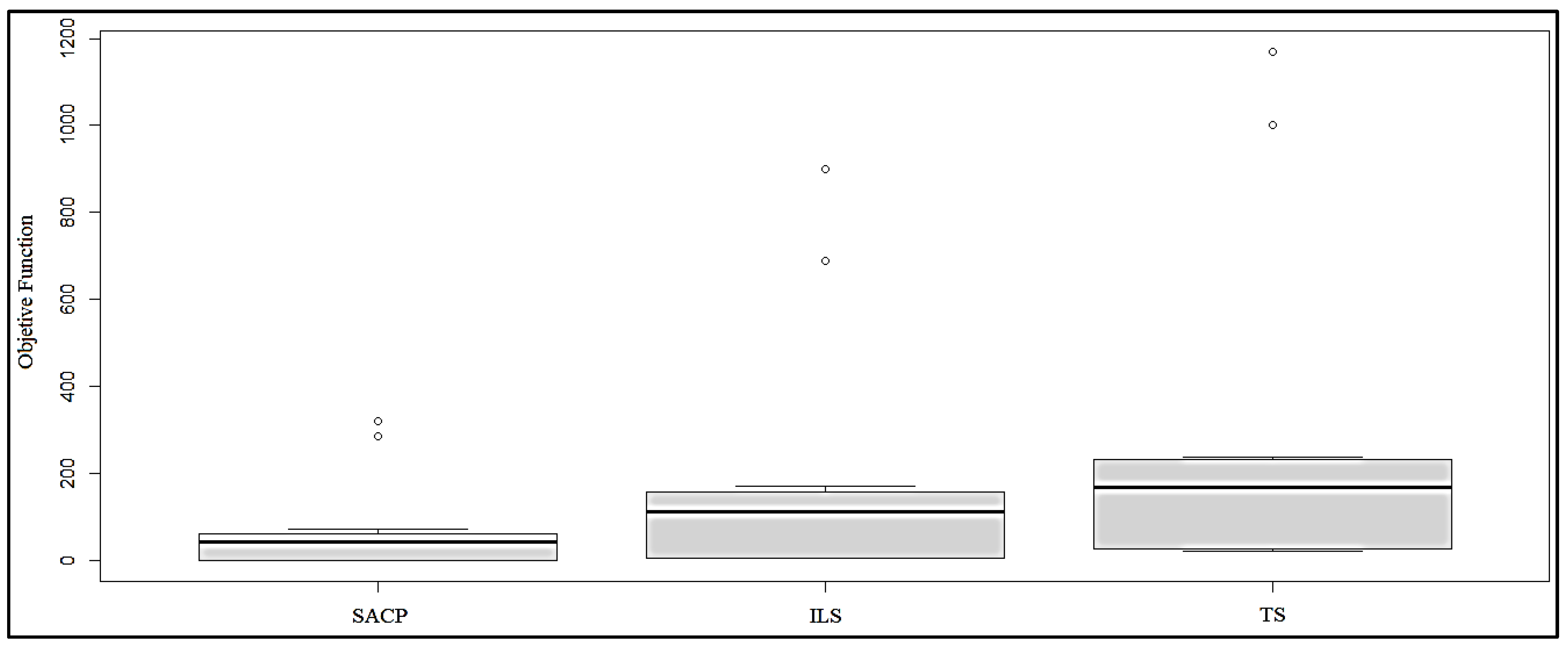

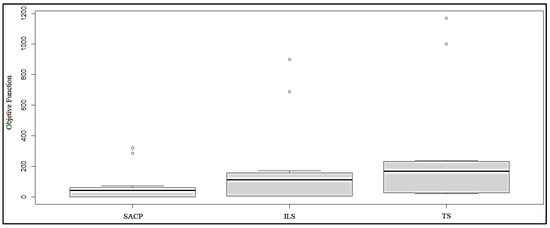

The homoscedasticity analysis for SACP, ILS and TS for the same number of data is performed graphically with the boxplot. Figure 11 shows that the boxes are not the same, since there is a greater dispersion of data in the TS box, and ILS follows and, finally, the least dispersion has SACP. TS presents the greatest variance and SACP is the one that has the smallest variance of the three algorithms. Therefore, a common variance cannot be admitted. It indicates that there is no homoscedasticity between the three algorithms. Applying the Bartlett test with the Bartlett-test function of R [44], the p-value = 0.001169 is found (0.001169 < 0.05), this shows that there are different variances; therefore, it is confirmed that there is no homoscedasticity when having a small p-value.

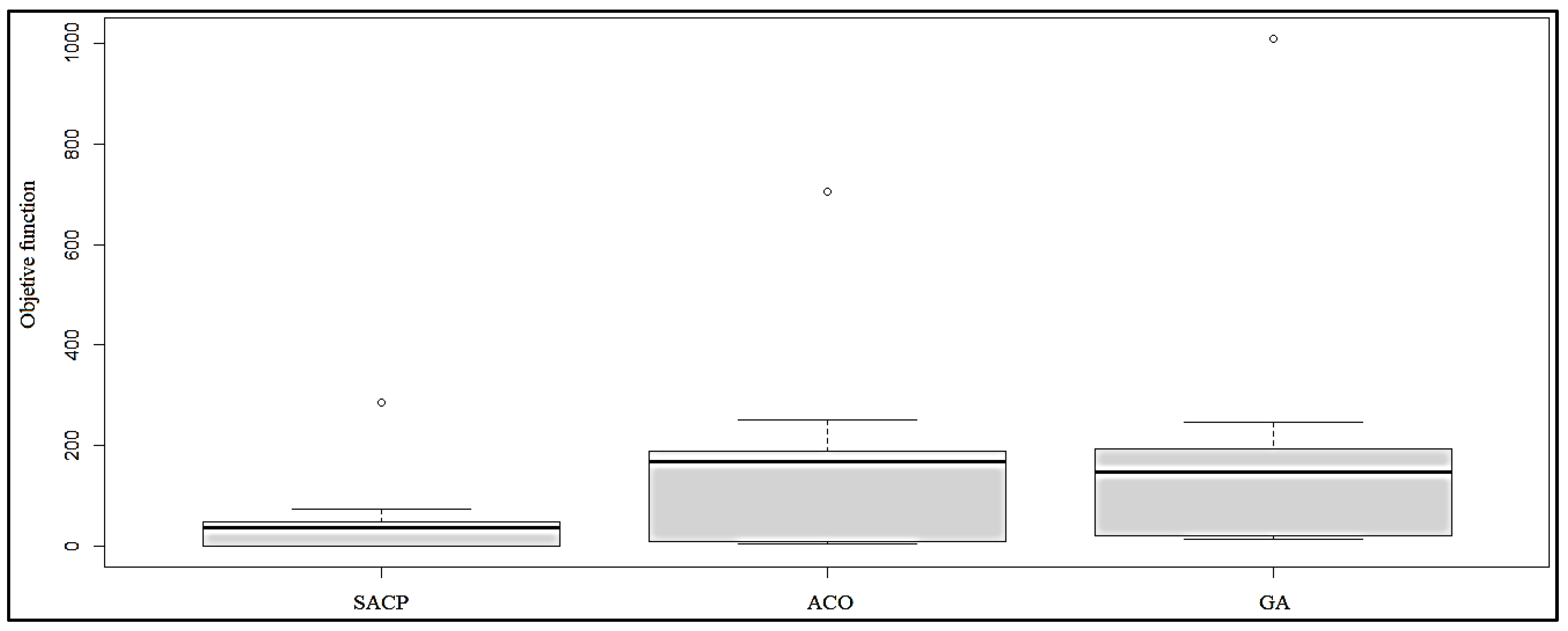

The homoscedasticity analysis for SACP, ACO and GA for the same number of data is performed graphically with the boxplot. Figure 12 shows that the boxes are not the same, since a greater dispersion of data is observed in the ACO and GA boxes and the lower dispersion is presented in SACP. SACP is the algorithm that has the least variance. Therefore, a common variance cannot be admitted, which indicates that there is no homoscedasticity. Applying the Bartlett test with the Bartlett-test function of R [44], the p-value = 0.002409 is found (0.002409 < 0.05), this shows that there are different variances; therefore, there is no homoscedasticity when having a small p-value.

The homoscedasticity analysis for SACP and SA for the same number of data is performed graphically with the boxplot. Figure 13 shows that the boxes are not the same since a greater dispersion of data is observed in the SA box and the lower dispersion is presented by SACP. The greatest variance is observed in SA, while SACP has the smallest variance. So, a common variance cannot be admitted so there is no homoscedasticity. Homoscedasticity is analyzed with the Bartlett test, applying the Bartlett-test function of R [44]. The p-value 0.3233 > 0.05 indicates that there are very similar variances; therefore, the Bartlett test indicates that there is homoscedasticity when having a p-value that exceeds the significance level of 0.05.

In order to know if there are significant differences in the behavior of the objetive function values obtained by the algorithms, it is required to analyze the results obtained by the six algorithms. As there are not both assumptions of normality and homoscedasticity of the data provided by the six algorithms, and also because the number of data analyzed by each algorithm is small, Kruskal–Wallis non-parametric method, proposed by William Henry Kruskal and Whallen Wallis [45], will be applied. The Kruskal–Wallis test requires that the observations of each algorithm, which must be different, be presented in ranges. The Equation (16) presents the Kruskal–Wallis test. If there are observations with equal values, then Equation (16) is divided by the relation (17), where H is the value of the contrast statistic, C is the number of the algorithms to analyze (in this case there are six algorithms), n_i is the number of observations in the ith algorithm (number of results of each algorithm), N = ∑n_i is the total number of results of all algorithms and R_i is the sum of the ranges in the ith algorithm.

$$H=\frac{12}{N\left(N+1\right)}{\displaystyle \sum }_{i=1}^C\frac{R_i^2}{n_i}-3\left(N+1\right)$$

(16)

In relation 17, the sum is over all groups of repeated data and $T=t^3-t$ is for each group of repeated data. Where t is the number of repeated results in the group.

$$1-\frac{\sum T}{N^3-N}$$

(17)

From Table 5, the first ten data, which are the results for small and medium problems, are taken from each algorithm in order to make a comparison of all the algorithms. The Kruskal–Wallis test is applied with the Kruskal-test function of R [44] to obtain the p-value. The contrast statistic H is 26.304 and the p-value is 7.79 × 10⁻⁵ < 0.05; therefore, the null hypothesis of equality of the effects of algorithms is rejected. This indicates that there are differences in the effects of algorithm types by having a p-value lower than their significance level.

Post Hoc Comparisons

Since the Kruskal–Wallis test is significant, it implies that at least two groups of algorithms from among those compared are significantly different, but does not indicate which ones. To find out, it is necessary to make a comparison between them. Comparison is made with the results obtained from SACP metaheuristic vs. results obtained by each metaheuristic presented in Table 5 (metaheuristic 1 vs. metaheuristic 2) as follows SACP vs. ACO, SACP vs. GA, SACP vs. ILS, SACP vs. TS and SACP vs. SA, with the Mann Whitney Wilcoxon method [46] represented by Equations (18)–(20), where n₁ is the number of results obtained by metaheuristic 1, n₂ is the number of results obtained of metaheuristic 2, R₁ is the sum of the ranges in metaheuristic 2.

$$H=\min \left(H_1,H_2\right)$$

(18)

$$H_1=n_1{n}_2+\frac{n_1\left(n_1+1\right)}{2}-R_1$$

(19)

$$H_2=n_1{n}_2+\frac{n_2\left(n_2+1\right)}{2}-R_2$$

(20)

The Mann Whitney Wilcoxon test is applied between each pair of algorithms with the Wilcox-test function of R [44] with the first 5 data from each algorithm to obtain the p-value in small problems.

Table 6. Post hoc test and average ranking for multiple p-values comparisons between SACP vs. other algorithms taking only data from small instances.

Algorithm	Average Rank	SACP p-Values
		Post Hoc Wilcoxon–Mann–Whitney
SACP	1	-
SA	2	0.005346
ILS	3.2	0.005189
ACO	3.8	0.005189
GA	5.2	0.005346
TS	5.8	0.005346

presents the results of the Mann Whitney Wilcoxon test. It is observed in the SACP comparison with each of the other algorithms that there are differences in the effects between each pair of algorithms compared because the p-value does not exceed the significance level which is 0.05. Moreover, in Table 6, it is observed that SACP has the best average rank and TS the worst.

Again, the Mann Whitney Wilcoxon test is applied between each pair of algorithms with the Wilcox-test function of R [44] with the following 5 data from each algorithm to obtain the p-value in medium problems.

Table 7. Post hoc test and average ranking for multiple p-values comparisons between SACP vs. other algorithms taken only data from medium instances.

Algorithm	Average Rank	SACP p-Values
		Post Hoc Wilcoxon–Mann–Whitney
SACP	1	-
SA	2	0.074910
ILS	3	0.008816
GA	4.6	0.008816
TS	4.8	0.008816
ACO	5.6	0.008816

presents the results of the Mann Whitney Wilcoxon test. It is observed in the comparison of SACP with each of the other algorithms that there are differences in the effects between each pair of algorithms compared because the p-value does not exceed the level of significance that is 0.05. Moreover, in Table 7, it is observed that SACP has the best average rank and ACO the worst. In the case of p-value with SA, it exceeds the significance value of 0.05; however, SACP has a better average rank and also SA does not obtain results for any of the large problems. In the case of SACP, in all the executions carried out of the algorithm, feasible results are obtained for the large problems.

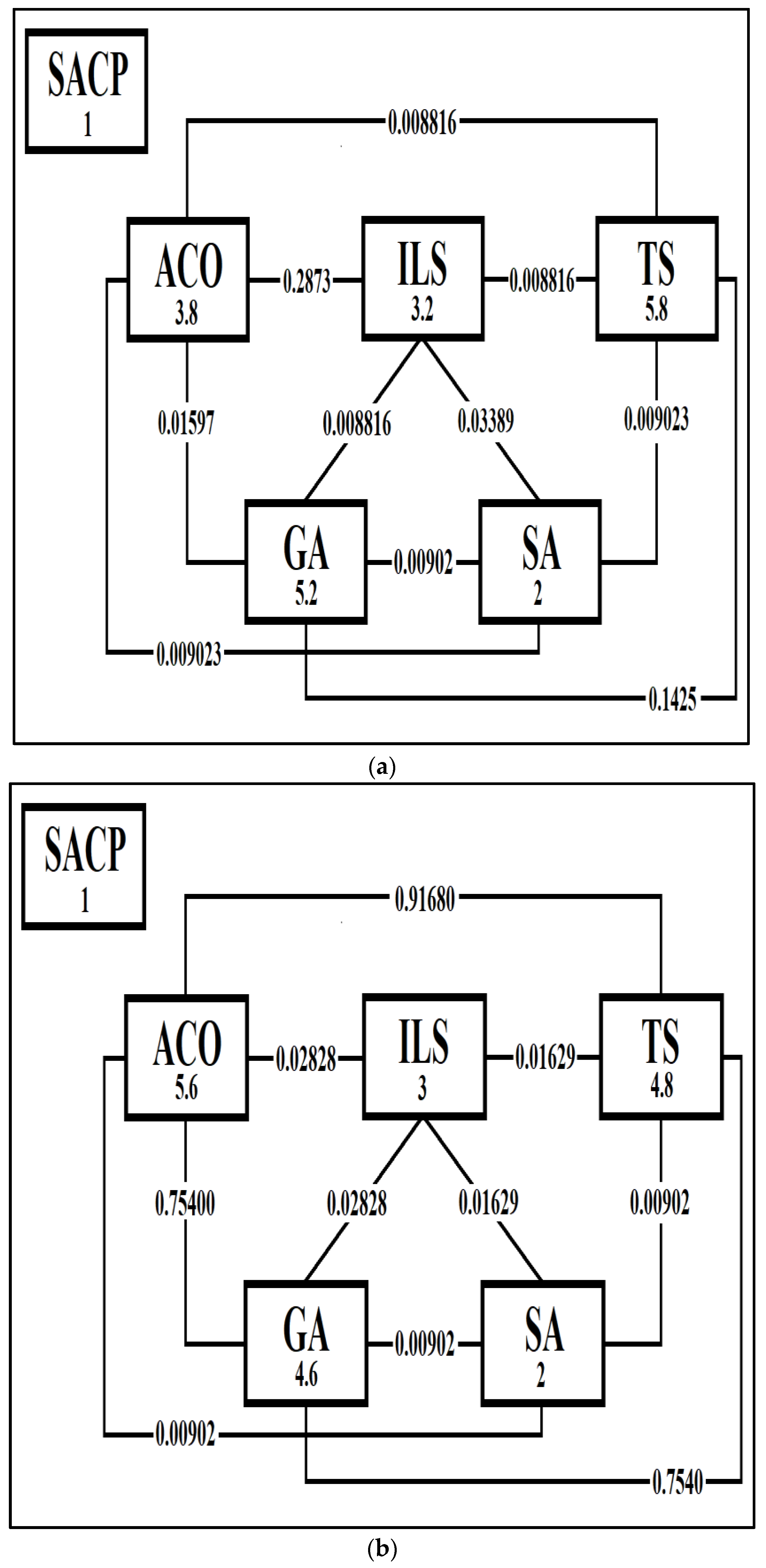

Figure 14 presents the p-values in pairs of algorithms that were compared with SACP for small and medium instances. Figure 14a presents the p-values between a pair of algorithms that were compared with SACP for small instances. It is observed that among eight pairs of them, there is also a difference in the effects of the types of algorithms by having a lower p-value at its significance level, such as ACO vs. TS, ACO vs. SA, ACO vs. GA, ILS vs. TS, ILS vs. SA, ILS. However, also between two pairs of them, there are no differences in the effects of the types of algorithms, as these have a p-value greater than their level of significance, such as ACO vs. ILS with a p-value of 0.2873 and GA vs. TS with a p-value of 0.1425.

The average rank is presented in the box for each algorithm, which classifies the best algorithm in terms of its results, with SACP being the best average rank. Figure 14b presents the p-values between a pair of algorithms that were compared with SACP for medium instances. It is observed that, among seven pairs of them, there are also differences in the effects of algorithm types by having a p-value lower at its significance level, such as ACO vs. SA, ACO vs. ILS, ILS vs. TS, ILS vs. GA, ILS vs. SA. However, also between three pairs of them, there are no differences in the effects of the types of algorithms as they have a p-value greater than their level of significance, such as ACO vs. TS with a p-value of 0.754, ACO vs. GA with a p-value of 0.754 and GA vs. TS with a p-value of 0.754. The average rank is presented in the box for each algorithm, which classifies the best algorithm in terms of its results, with SACP being the best average rank.

4.3. SACP Efficiency

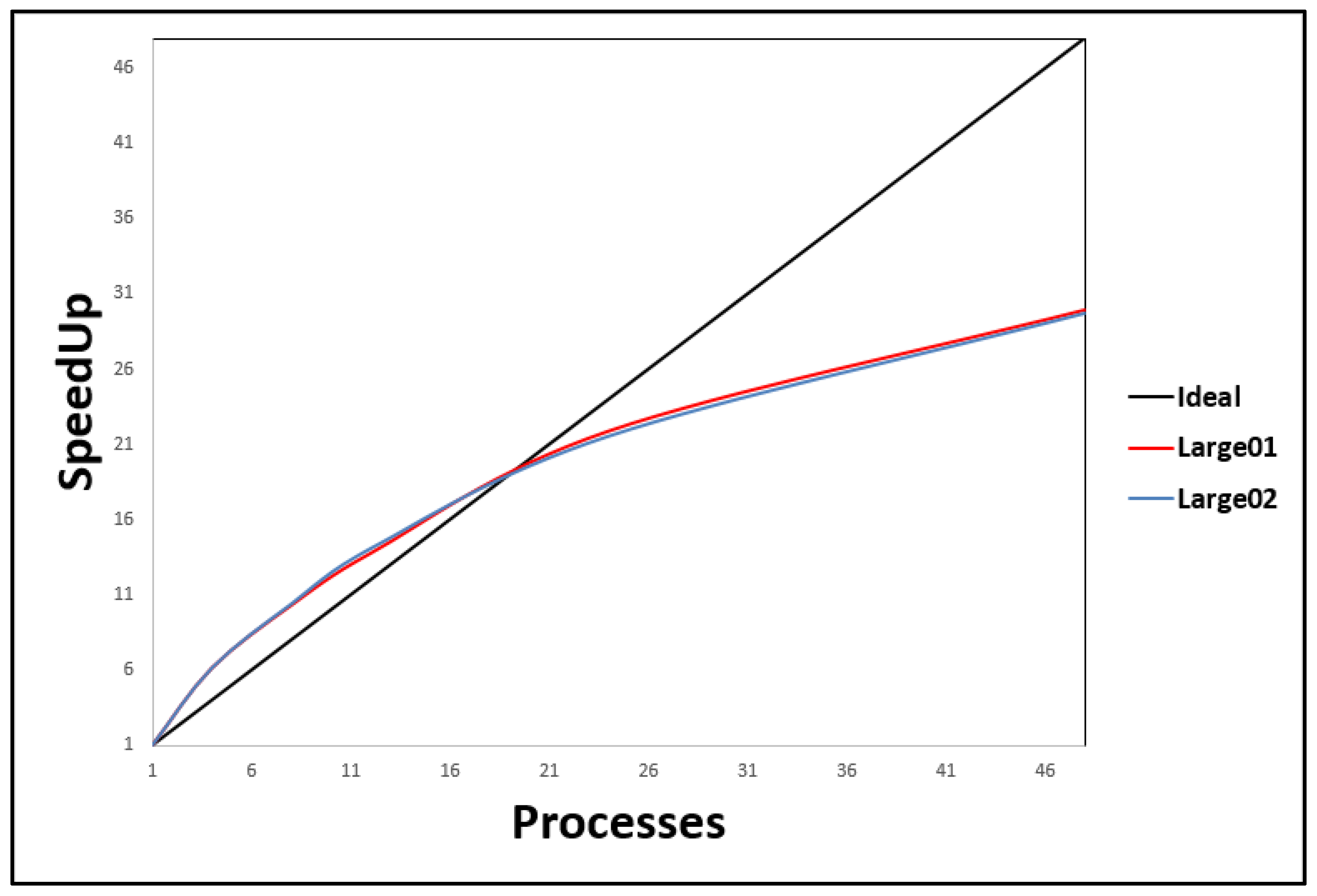

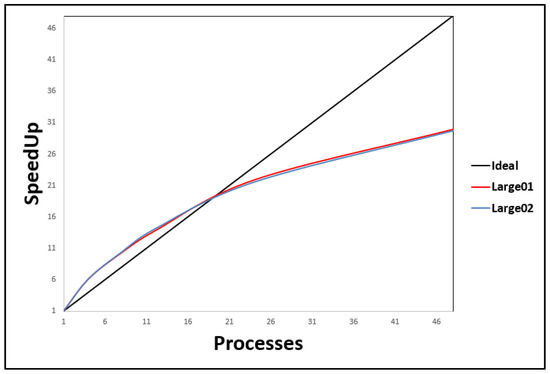

Figure 15 presents the efficiency of SACP evaluated for large instances. It can be seen that, up to 21 processes, efficiency presents a superlinear speedup above the ideal. This is because the first 12 processes in SACP are executed on a single node of the computational cluster and does not require communication with the other three nodes of the cluster. From 21 processes onwards, efficiency begins to decrease considerably. This is due to two things. First of all, that communication between nodes is performed with an Ethernet 100BASE-TX, 100 Mbs connection, which slows down the sending of messages from SACP between nodes. Second, that SACP carries out cooperation between processes, which implies that in each iteration there is always communication between all the processes that are executed at all nodes of the cluster, applying collective communication and point-to-point communication.

5. Conclusions

It is concluded that applying processes cooperation in SACP, through addressing of the solutions of each process using the Hamming distance in each iteration of the algorithm, allows improving the final result obtained.

Optimizing values in the soft constraints with SACP for large problems has a different complexity since the degree of difficulty in optimization increases in the order of Soft3 −> Soft1 −> Soft2 for large01 and in the order of Soft1 −> Soft3 −> Soft2 for large02.

The efficacy of SACP is the highest compared to five heuristics proposals found in the literature, ACO, GA ILS, TS and SA. SACP always achieves first place in all revised instances (average ranking). Furthermore, in some cases, some algorithms in the literature do not find a solution for large instances (ACO, GA and SA), which does not happen in SACP because it always finds solutions for any instance.

Statistical analysis shows that, in the SACP comparison with each of the other algorithms, there are differences in the effects of SACP with the other algorithms compared because the p-value does not exceed the significance level of 0.05. In the case of the p-value obtained with respect to SA, it exceeds the significance value of 0.05 for very little. Added to this, SACP has a better average rank than SA and SA also does not obtain results for any of the large problems. In the case of SACP, in all the executions carried out by the algorithm, feasible results are obtained for the large problems. SACP efficiency is very good when using a single node in the cluster, but it is quickly reduced by having to use more than one node in the cluster, further added to the communication between processes that each iteration of the algorithm requires to apply processes cooperation.

The limitations found for this work were that no more test instances were found for the presented optimization model with which more results could be presented, nor were other works found that will present other optimization methods to compare the efficacy of SACP.

In future works, the aim will be to improve the speedup by applying better communication between cluster nodes with the infinband network. A better and more efficient compiler such as INTEL will also be used instead of the free GNU compiler.

Some future needs are the elaboration of new test instances of the optimization model and the development of heuristics of populations that present results for the optimization model presented in this work with which more robust comparative tests can be carried out.
