Partial Least Squares Regression Approach in the Analysis of Damage Intensity Changes to Prefabricated RC Buildings during the Long Term of Mining Activity

Abstract

This article presents the results of the analysis of the extent of damage to 138 multi-storey buildings with reinforced concrete prefabricated structure, which are located in the mining terrain of the Legnica-Głogów Copper District. These objects are residential and public utility buildings of up to 43 years old, erected in industrialized prefabricated technologies: large-block and large-panel systems. The research was based on the results of technical condition inventory carried out in 2002, 2007 and 2012. As part of the analysis, the damage intensity index w_u was established for individual structural and finishing elements of the studied buildings. This index is defined on a six-point scale, which includes a detailed description of the extent of damage that corresponds to the successive degrees of intensity. As part of the research, the databases were significantly expanded and the generalized formulas of the damage intensity index w_u for individual groups of buildings were verified. For this purpose, the partial least squares regression (PLSR) method was applied. Thereafter, the analysis of changes of this intensity in time was carried out and the relations between the extent of damage and the impacts of mining exploitation were examined. The approach presented in this paper and obtained research results are characterized by a high degree of utilitarianism and can be applied to increase the efficiency in the optimal maintenance management of buildings, including planning of repairs and retrofits throughout the technical life cycle of the buildings.

1. Introduction

The idea of sustainable development is a multidimensional concept that emphasizes the integration and achievement of a dynamic balance between economic, social and environmental aspects [1]. One of the fundamental assumptions of this doctrine is to achieve social balance by, among others, increasing the economic and environmental efficiency of planned building development projects. In recent years, there has been an intensive growth of issues in the field of sustainable development. This includes the field of civil engineering and its branch in the form of building engineering [2,3,4]. Sustainability, in addition to improving building materials to be used in recently erected buildings, also extends to existing structures. An important factor leading to the development of existing buildings is the consideration of the often-negative impacts of the external environment impacts. Environmental impacts include earthquakes induced by geogenic (e.g., tectonic plate movements) [5] as well as those with anthropogenic origins (e.g., underground mining).

Underground mining interferes with the rock mass and leads to the formation of stresses and strains inside the rock mass, which may result in the occurrence of deformations on the ground surface and mining tremors which, in turn, may have an adverse effect on building structures [6,7,8,9]. During the inventory of the technical condition of buildings in mining terrain, special attention should be paid to the assessment of the extent and intensity of damage, especially in the context of determining the causes of their formation as well as ways of their repair [10,11]. Correct assessment of the technical condition is the basis for maintenance management of the building, in particular, planning and determining the scope of future repair works [12,13,14].

Damage to building structures is generally considered according to two criteria: safety and serviceability. They are the basis at the design stage and are verified during the technical life cycle of buildings. However, nowadays, with the development of the idea of energy-efficient construction and reductions in CO2 emissions into the atmosphere, the range of requirements for buildings has been extended to include demands for energy consumption and durability. All this is included in the idea of sustainable development in buildings industry [15,16]. Currently, the result of such efforts is a transformation of the so far binding safety and serviceability criteria, which is to include also socio-economic and environmental aspects [17]. As a result, the range of necessary conditions to be fulfilled is considerably extended, forcing the use of multiple-criteria decision-making (MCDM) methods in the design process [18,19].

From the technical and social point of view, multifamily residential and public utility buildings erected in large-block and large-panel systems are a particularly important group of buildings [20]. This also includes mining areas. In works [21,22,23,24], a proposal was presented for a universal classification of damage intensity of particular elements of buildings, both of masonry construction, prefabricated building structures, and skeleton objects. Then, on the basis of this classification, the methodology (in the field of data mining) was established for determining generalized damage intensity indices for particular types of buildings.

The aim of the research presented in this paper was to verify the generalized formulas of the damage intensity index w_u of large-block and large-panel buildings as a linear combination of w_ui indices describing damage to its components (structural and secondary) based on extended databases. Another purpose was analysis of changes in the intensity of damage to them in time and examination of relations between the extent of damage and the impact of mining exploitation.

The research was based on the database on the construction, technical condition and potential causes of damage of 64 buildings erected in the large-block system and 74 buildings erected in the large-panel system, located in the Legnica-Głogów Copper District (LGCD). Over the entire period of their lifetime, these buildings have been subjected to mining impacts in the form of surface deformation and rock mass tremors. For these buildings, 22 indices describing the damage of all their structural and secondary elements were initially specified [21,22]. Taking into account a relatively large number of variables (22 damage intensity indices w_ui) and statistically significant mutual correlations between some of the indicators, it was found that there is a need for preliminary assessment and selection of variables for the purpose of establishing linear models of the damage intensity index in the analysed groups of buildings.

2. Materials and Methods

2.1. Methodology of the Research

The partial least squares regression (PLSR) method, based on the results of the NIPALS (nonlinear partial least squares) iterative algorithm [25,26,27,28,29], was used to determine the damage intensity index of large-block and large-panel buildings.

Basically, the PLSR method can be divided into two simultaneous procedures [25]. The first involves identification of the principal components in the input variable space, and the second the relationships binding these components with the dependent variable. As part of this study, the PLSR method was used at the level of individual principal components and their subsequent verification. Such a course of action allows finding one of the most efficient linear combinations between input variables.

The PLSR method assumes that both the variables from the input space X and output space Y can be written as the sum of the linear combinations of the vectors t and p as well as q and u, i.e., the scores and loadings. These relationships have the following form [26]:

$$X_{}={\displaystyle \sum }_{i=1}^a{t}_i^{}{p}_i^{}=T{P}_{}^T$$

(1)

$$Y_{}={\displaystyle \sum }_{i=1}^a{q}_i^{}{u}_i^{}=Q{U}_{}^T$$

(2)

where:

$X=\{x_1,x_2,\dots ,x_i,\dots ,x_m\}$—the input variable space,

$Y=\{y_1,y_2,\dots ,y_i,\dots ,y_m\}$—the output variable space,

a—arbitrarily determined number of principal components,

$t,p$—parameters of linear combinations: scores,

$q,u$—parameters of linear combinations: loadings,

T, Q—block scoring matrix (n X a),

$P^T,U^T$—block loading matrix (a X m).

The PLSR method, in the classical form based on the NIPALS iterative algorithm, leads to finding vectors w and c (normalized vectors t and u) in order to consequently maximize the covariance between the projected input and output variable space to the normalized directions t and u, respectively (w and c) [27]:

$${\left[\mathrm{cov}\left(t,u\right)\right]}^2={\left[\mathrm{cov}\left(Xw,Yc\right)\right]}^2={\max }_{\left|r\right|=\left|s\right|=1}{\left[\mathrm{cov}\left(Xr,Ys\right)\right]}^2$$

(3)

As a result, using the NIPALS iterative procedure [25] the decomposition of the vectors of the state of the input variables and the dependent variable (1) and (2) was obtained, as assumed at the beginning. The individual component vectors of the matrix P are the tangent coefficients of the subsequent principal components identified during the construction of the PLSR model.

2.2. Database of Buildings

The information used in this research was collected during technical condition inventories of 138 buildings with reinforced concrete prefabricated structure carried out in 2002, 2007 and 2012. 64 of these structures were built in the large-block system (Figure 1a) and 74 were built in large-panel system (Figure 1b). All buildings located in the database constitute buildings in the mining area of the Legnica-Głogów Copper District (LGCD). In addition to construction data, the database contains information on indicators describing the risk of mining impacts.

2.2.1. Technical Characteristics of Large-Block Buildings

Among the 64 large-block buildings collected in the database, 50 have a residential function, 13 are public utility buildings, while one object has a residential-commercial function. The public facilities were built in the school large block (SLB) system and the rest in the large block (LB) system. Most of the large-block objects are located in multi-segment buildings. In 93.7% of cases, these buildings have no more than five stories. The dominant construction system is the transverse system of load-bearing walls. The described buildings are characterized by high stiffness, which results from the nature of the reinforced concrete prefabricated structure made of what is called “Żerań brick”. The structure consists of wall plates connected to each other by vertical joints and horizontally stiffened by floor slabs connected to the walls by tie beam. The foundation and basement walls of all investigated buildings are made as RC or concrete. The ceilings are made as precast reinforced concrete.

2.2.2. Technical Characteristics of Large-Panel Buildings

All 74 large-panel buildings collected in the database have a residential function. A total of 42 of them were erected in WWP system, and the rest in Wk-70 or Wk-70/SG system. A major part of the buildings was erected in semi-compact (40.5%) or compact (28.4%) development. In 87.8% of cases, these buildings have four or five storeys. In the remaining cases it is eleven storeys. The dominant system of load-bearing walls, similar as in the case of large-block buildings, is transverse. The described group of buildings is characterized by construction consisting of precast reinforced concrete elements, wall panels connected with each other with, e.g., steel connectors and concrete. Horizontal stiffness in the WWP system is ensured by reinforced concrete slabs, while in the Wk-70 system there are hollow-core slabs which are also used in large-block systems. The foundation and basement walls of described objects were made as RC or concrete.

2.2.3. Building Technical Condition Indicators

Degree of Technical Wear

The measure of the technical condition of a building structure is its technical wear s_z (e.g., [9]). In this study, the degree of technical wear was determined for individual buildings using the weighted average method, considering individual constructional and technological solutions. The examined objects are characterized by the degree of wear with average values from 17.8% in 2002 to 25.1% in 2012 for large-panel, and from 27.4% in 2002 to 36.7% in 2012 for large-block buildings.

Damage Intensity Index

In order to investigate the contribution of damage to the technical wear of buildings, changes in damage intensity over time and the relationship between the extent of damage and the impact of mining exploitation, a qualitative index of damage intensity w_ui was determined for individual structural and non-structural elements (e.g., [21,22]). A total of 22 elements were identified (

Table 1. Intensity indices of damage to components of a building structure [22].

Designation	Index Description
Components of load-bearing structure
wu1	Intensity of damage to foundations
wu2	Intensity of damage to load-bearing walls of the basement or to foundation walls
wu3	Intensity of damage to interior and exterior overground load-bearing walls (including lintels and walls under windows)
wu4	Intensity of damage to firewalls
wu5	Intensity of damage to components of framed load-bearing structure (columns, transoms)
wu6	Intensity of damage to ceilings over basements
wu7	Intensity of damage to ceilings over higher levels, flat roof (roof covering)
wu8	Intensity of damage to stairs
wu9	Intensity of damage to balconies and loggias (as well as eaves and cornices)
wu10	Intensity of damage to roof structure
Secondary components (finishing elements)
wu11	Intensity of damage to partition walls
wu12	Intensity of damage to internal plasters and wall cladding
wu13	Intensity of damage to floors (floor layers)
wu14	Intensity of damage to chimney walls
wu15	Intensity of damage to bracings (elements ensuring spatial rigidity)
wu16	Intensity of damage to infill (or curtain) walls
wu17	Intensity of damage to facade (facade layers)
wu18	Intensity of damage to damp-proof insulation
wu19	Intensity of damage to roofing
wu20	Intensity of damage to flashings, gutters and downpipes
wu21	Intensity of damage to joinery
wu22	Intensity of damage to exterior elements (entrances to buildings, platforms, terraces, wall trims, etc.)

), for which this index was defined on a 6-point scale, in which w_ui = 0 means no damage, w_ui = 1—insignificant damage (range from 0 to 10%), w_ui = 2—moderate damage (range from above 10 to 30%), w_ui = 3—intensive damage (range from above 30 to 50%), w_ui = 4 (and 5)—very intensive damage (range above 50%). Figure 2 shows examples of damage to the load-bearing structure and secondary components.

The analysis of the value of the damage intensity index w_ui for individual building elements in the studied groups showed that there was insignificant, moderate or, in individual cases, intensive damage.

The damage intensity index of entire buildings was then determined as linear combinations of the indices describing the damage of their component parts. The partial least squares regression (PLSR) approach from data mining presented in Section 2 was used to update the generalized damage index formula w_u.

Taking into account the specificity of the studied buildings, it was found that the description of the generalized damage index w_u for the studied groups of buildings are linear combinations (

Table 2. Directional coefficients of the linear combination of components occurring at individual damage indices determined by the PLSR method.

Group of Buildings	a2	a3	a7	a9	a11	a12	a13	a17	a20	a22
Large-block	0.057	0.058	0.064	-	0.039	0.015	0.037	0.044	-	-
Large-panel	0.054	0.048	0.031	0.031	0.061	0.053	0.046	0.034	0.037	0.015

) of the damage indices of structural and finishing elements w_ui with the general form of the formula:

w_u = a₁w_u1 + … + a_nw_un

(4)

The formula calculated for large-block buildings does not take into account the values of indicators w_u9, w_u20, w_u22, as contrary to large-panel buildings, they turned out to be insignificant in this group. The w_u values determined for particular buildings fall within the categories of insignificant and moderate.

The average rate of technical wear presented in

Table 3. Characteristics of the technical condition of the studied groups of buildings.

Group of Buildings	Large-Block			Large-Panel
Inventory Year	2002	2007	2012	2002	2007	2012
Average age	27.8	32.8	37.8	18.6	23.6	28.6
Average degree of technical wear sz [%]	27.4	31.7	36.7	17.8	21.9	25.1
Average building damage intensity index wu [%]	6.0	6.7	7.3	5.9	7.3	7.9
Damage contribution in technical wear(wu/sz) [%]	22%	21%	20%	33%	33%	31%
Increase in average damage intensity index wu between consecutive inventories [%]	-	0.7	0.6	-	1.4	0.6

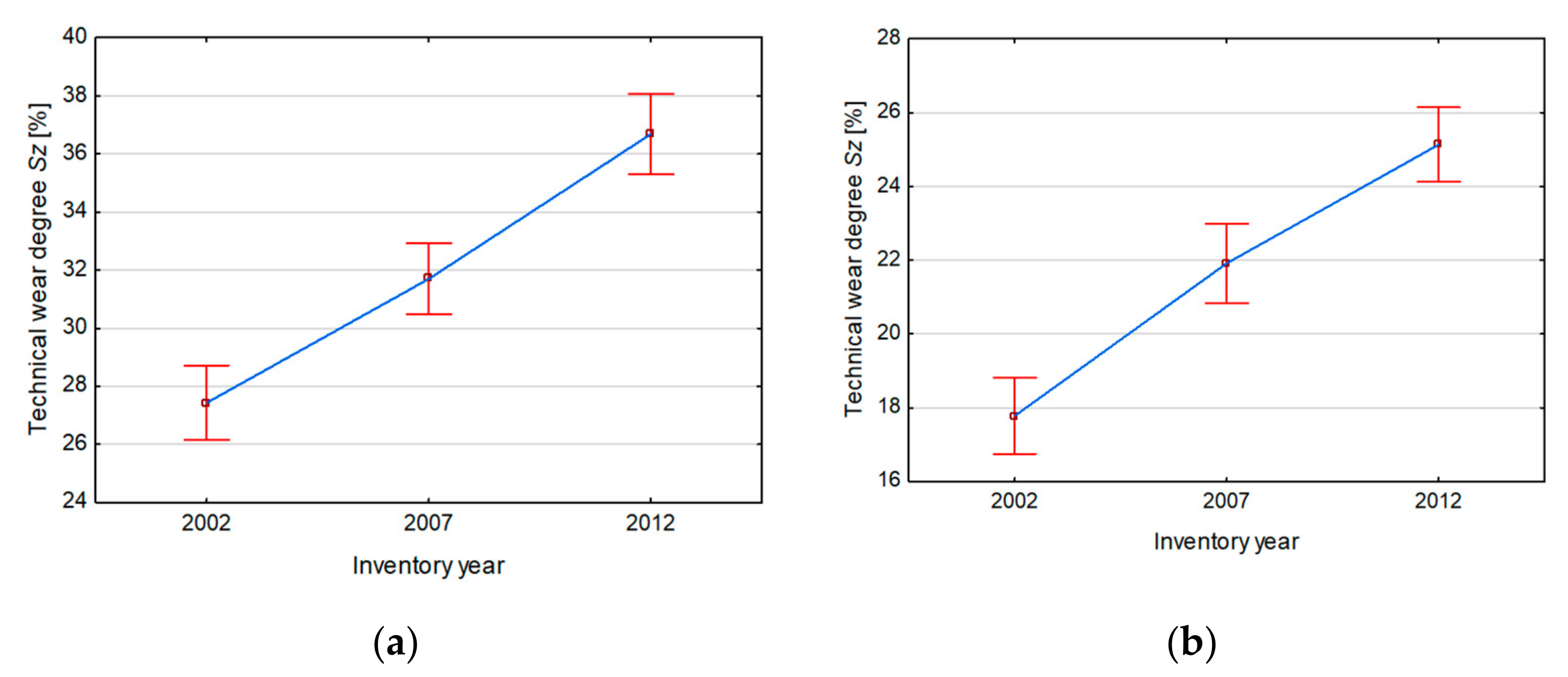

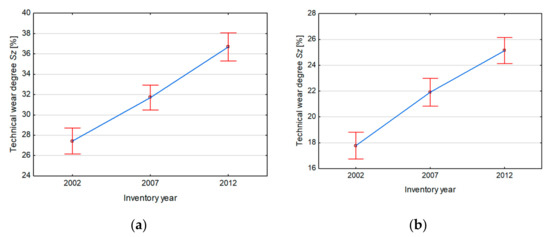

and Figure 3 indicates a very similar rate of wear growth between 2002 and 2007 in the group of large-block (by 4.3% over five years) and large-panel buildings (by 4.1% over five years). Between 2007 and 2012, an increase in the rate of consumption growth was recorded in the group of large-block (up to 5.0% over five years) and a decrease in the group of large-panel buildings (down to 3.2% over five years). This situation may be caused by differences in the quality of maintenance of buildings. In the group of large-block buildings, between 2002 and 2007 there was a much higher number of renovations carried out than between 2007 and 2012. This is particularly true for public utility buildings (including schools), which are exposed to accelerated wear due to their operating conditions.

In 2002, the average values of the damage intensity index in the compared groups of buildings were similar at the level of 5.9 ÷ 6.0% (Figure 4). In the group of large-block buildings, a similar rate of increase of the damage index was observed between 2002 and 2012, at the level of 0.6 ÷ 0.7%, while among the large-panel buildings an increase of the index by 1.4% until 2007 and by 0.6% until 2012 was observed.

2.2.4. Indicators Describing the Risk of Mining Impacts on Buildings

Continuous Surface Deformation Hazard Index

Taking into account the specificity of continuous ground deformations in the LGCD and the character of the analysed buildings (large-block and large-panel buildings, in most cases up to five storeys in height), the horizontal strain of ground ε was assumed as the basic measure of threat of continuous surface deformations. On the basis of information obtained from mines about mining exploitation performed in the studied regions, each building was assigned a maximum value of horizontal deformation ε_max, which occurred in the analysed periods of building existence, i.e., from the date of construction to 2002, then in 2003–2007 and in 2008–2012.

The obtained values of ε_max are within the limits of mining site Categories I and II for most cases (

Table 4. Summary of average values of indicators describing the hazard for buildings from mining impacts.

Inventory Year	2002	2007	2012
Average of the maximum values of horizontal deformation εmax [mm/m]	1.73	1.60	1.53
Average of the maximum horizontal components of the vibration acceleration PGAH [m/s2]	0.76	0.91	0.26
Average impact of tremors on technical wear asg [m/s2]	2.74	3.15	3.19
Average number of tremors with PGAH ≥ ap = 0.12 m/s2 N [pcs.]	166	35	7

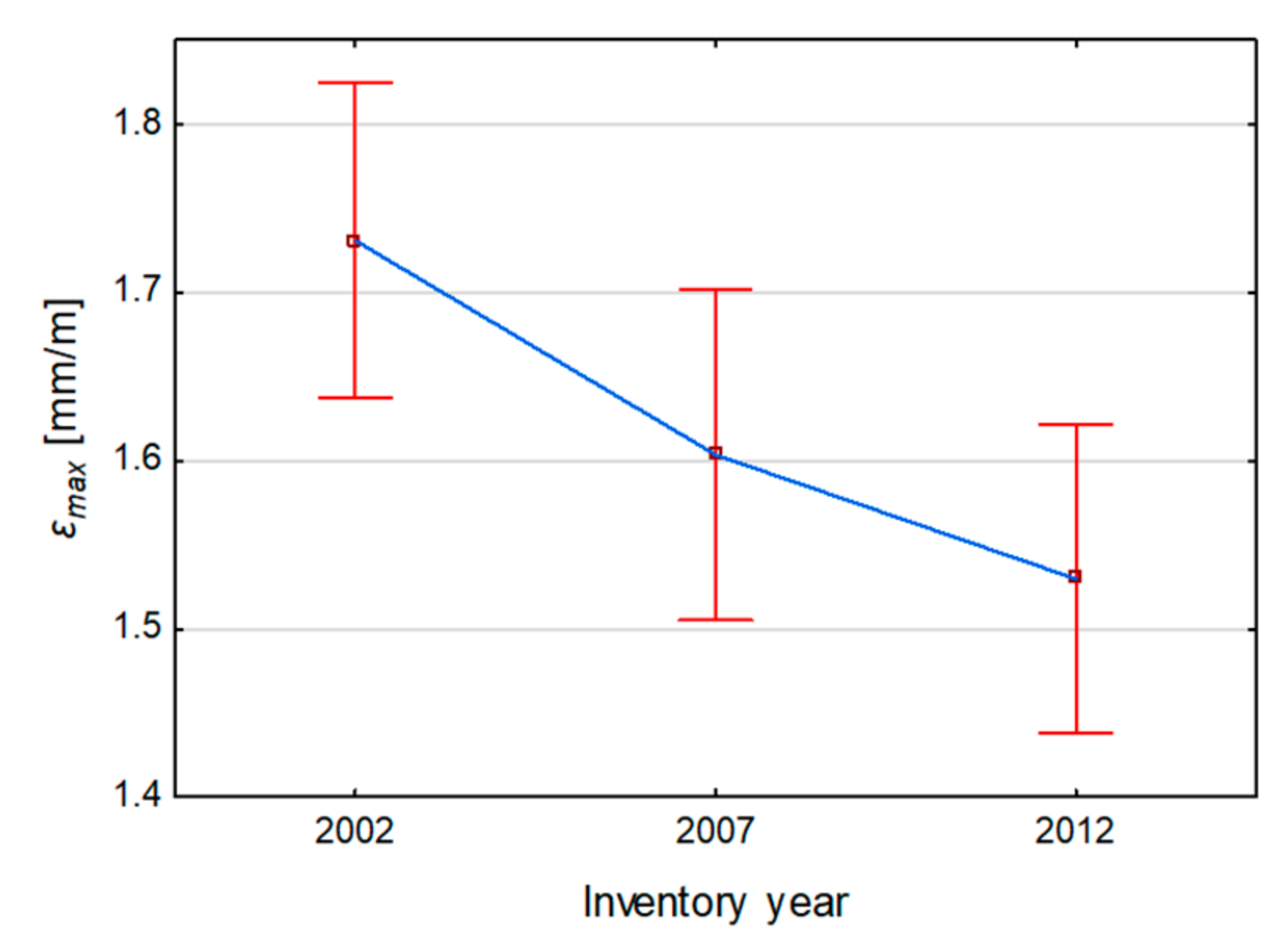

and Figure 5).

In case of evaluation of the safety of the structures, the horizontal component of vibration acceleration PGA_H (horizontal peak ground acceleration) or its velocity PGV_H (horizontal peak ground velocity) is generally taken as the basic indicator for evaluating the risk of mining tremors. Therefore, the multiplicity of tremors acting on the building is not taken into account.

Such a procedure does not allow evaluation of the influence of tremors on technical wear of a building. The analysis should take into account repeatability of tremors, i.e., the number and individual intensities of all seismic phenomena significantly affecting the object during its lifetime.

A research paper [30] presents the concept of a_sg (geometric sum of maximum horizontal accelerations) index, which is a measure of the effects of mining tremors on the technical wear of buildings. It was defined as the geometric sum of peak values of the horizontal component of ground vibration acceleration at the building foundation. Taken into account were only those tremors that occurred during the lifetime of the building and whose peak values at its location are higher than a preset threshold value a_p, below which the impact of the tremor on the technical wear of the building is considered negligible. Studies presented in [30] have shown that the optimal threshold value is a_p = 0.12 m/s². The value of a_sg index was calculated by the formula:

$$a_{sg}\left(x,y\right)=\sqrt{{\displaystyle }\sum _{k=1}^{n}PG{A}_H{}_k{\left(x,y\right)}^2}; PG{A}_H{}_k\left(x,y\right)\ge a_p$$

(5)

On the basis of the mine catalogues of tremors for individual buildings, the PGA_H values from all recorded seismic phenomena in the individual analysed time intervals (from the date of construction to 2002, in 2003–2007 and in 2008–2012) were determined. They range from 0.15 to 1.38 [m/s²].

For the a_sg index, all tremors that occurred during the entire lifetime of the facility and whose peak acceleration values at the site were higher than a_p = 0.12 m/s² were considered (Table 4 and Figure 6). The a_sg values ranged from 2.10 to 3.45 [m/s²].

3. Results and Discussions

3.1. Analysis of Changes in the Intensity of Building Damage and Mining Impacts over Time

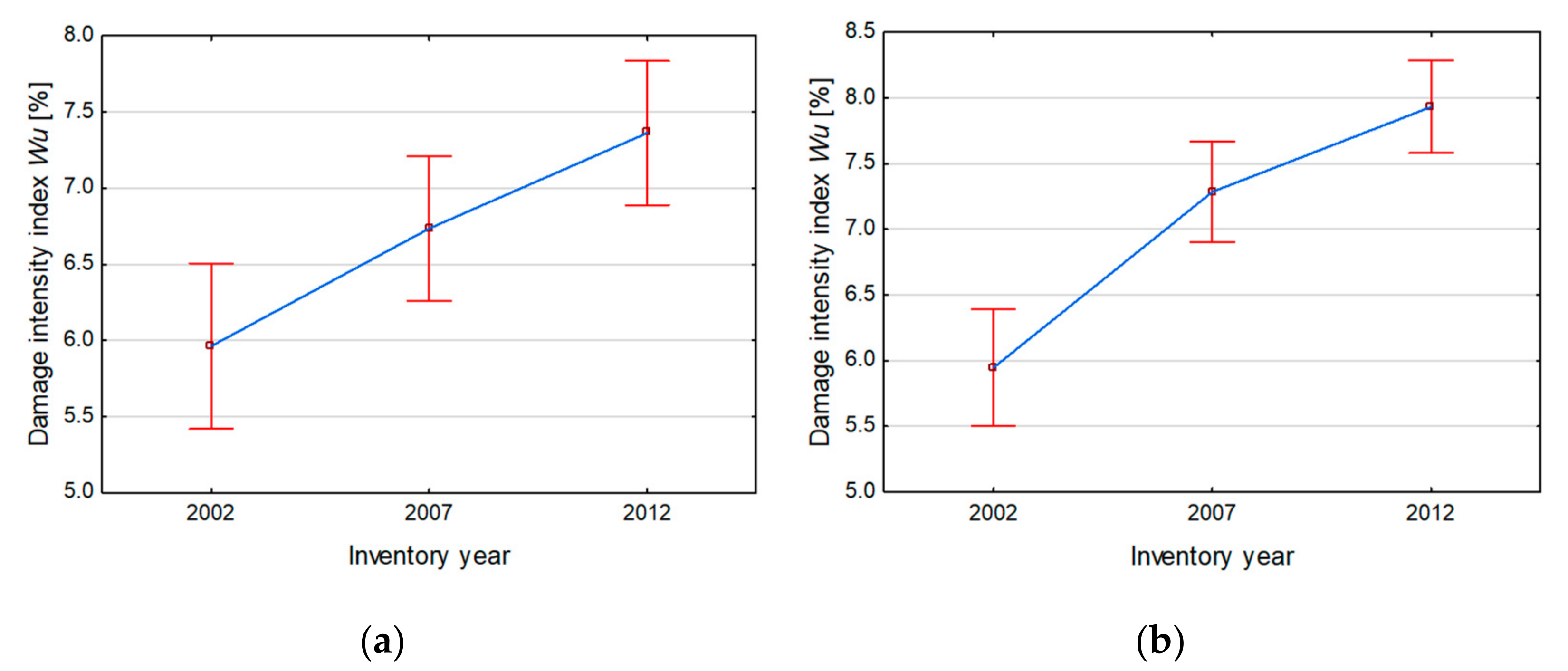

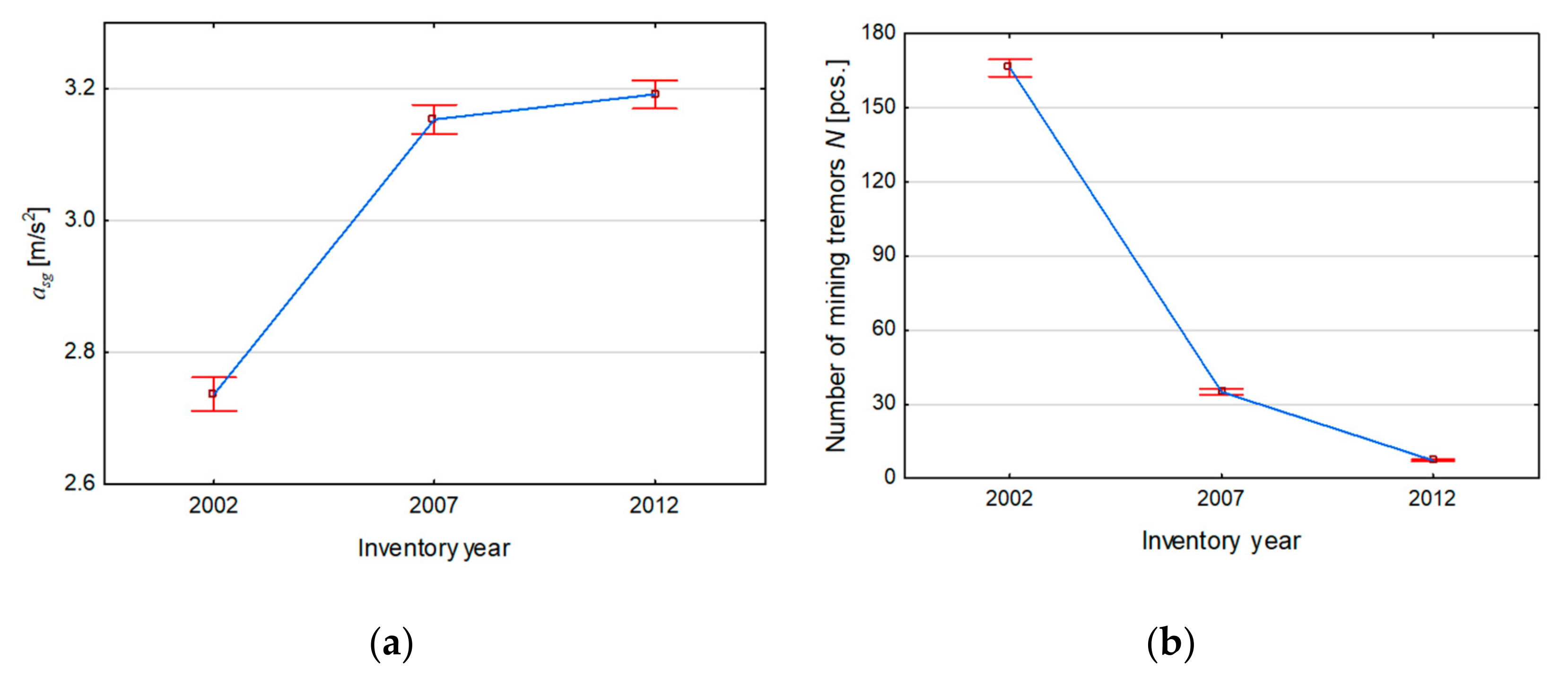

Table 3 and Table 4 and Figure 3, Figure 4, Figure 5 and Figure 6 present the changes over time of the average values of the technical condition parameters (s_z, w_u) and indicators of the development hazard from mining impact (ε_max, PGA_H i a_sg).

It was found that with the passage of time not only the degree of wear s_z of the studied buildings increases, but also the extent of their damage represented by w_u. Despite the increase in natural wear associated with the passage of time, as a result of repairs and maintenance of the studied buildings, a decrease in the contribution of damage in technical wear (w_u/s_z) is observed from 22% in 2002 to 20% in 2012 for large-block buildings and from 33% to 31% for large-panel buildings. This may also indicate a decrease in the intensity of impacts that are potential causes of damage. The results of the dependency analyses in the studied groups of buildings are certainly influenced by construction-material differentiation and age difference. For example, large-block buildings are on average more than nine years older than the buildings built with large-panel technology, and this allows us to think that natural wear directly related to the age of the building plays a bigger role in the technical wear of large-block buildings.

The analysis of trends in changes of average values of mining influence indicators, i.e., ε_max and PGA_H, indicates that in recent years there has been a decrease in both the values of horizontal ground deformation and the intensity of mining tremors.

With lower parameters of the most intense tremors (decrease in the average value of the PGA_H index), there is a smaller increase in the value of the a_sg index, which also takes into account the repetition of tremors affecting the building.

3.2. Research on the Relationship between the Extent of Damage Intensity Index and Mining Impacts

The purpose of this study was to see if there was a significant relationship between the damage intensity index of buildings w_u and their components w_ui, and mining impacts in the form of:

• Continuous ground deformations, described by maximum values of horizontal deformations ε_max,
• Mining tremors, which were measured using two indices PGA_H and a_sg.

They were determined individually for each building. In the case of PGA_H, all tremors which occurred in the analysed periods of the building existence were taken into account, that is from the date of construction to 2002, in 2003–2007 and 2008–2012. In the case of a_sg, the basis was the increments of the index over the reported time intervals.

Pearson’s linear correlation test was used. In addition to the correlation coefficient R, the significance level p of the obtained result was also calculated. The critical level was taken as p = 0.05.

The results of the conducted research for large-block buildings are summarized in

Table 5. Correlation tests between w_ui index and indicators of surface deformation influence (ε_max) and mining tremor influence (a_sg and PGA_H) performed for large-block buildings. Significant values are bolded.

Damage Intensity Index	Correlations between wui and εmax		Correlations between wui and asg		Correlations between wui and PGAH
wui	R	p	R	p	R	p
wu2	0.071	0.325	0.763	0.000	0.061	0.402
wu3	0.154	0.033	0.852	0.000	0.096	0.186
wu7	0.143	0.048	0.707	0.000	0.072	0.318
wu11	0.151	0.036	0.853	0.000	0.099	0.174
wu12	0.158	0.028	0.690	0.000	−0.086	0.234
wu13	0.137	0.058	0.798	0.000	0.157	0.029
wu17	0.074	0.307	0.501	0.000	0.213	0.003
wu	0.145	0.045	0.866	0.000	0.122	0.093

R—correlation coefficient, p—significance level.

, while those for large-panel buildings in

Table 6. Correlation tests between w_ui index and indicators of surface deformation influence (ε_max) and mining tremor influence (a_sg and PGA_H) performed for large-panel buildings. Significant values are bolded.

Damage Intensity Index	Correlations between wui and εmax		Correlations between wui and asg		Correlations between wui and PGAH
wui	R	p	R	p	R	p
wu2	0.161	0.017	0.800	0.000	0.384	0.000
wu3	0.138	0.041	0.817	0.000	0.339	0.000
wu7	0.100	0.140	0.718	0.000	0.348	0.000
wu9	0.073	0.283	0.310	0.000	0.062	0.356
wu11	0.150	0.026	0.698	0.000	0.353	0.000
wu12	0.127	0.059	0.827	0.000	0.401	0.000
wu13	0.135	0.045	0.657	0.000	0.401	0.000
wu17	0.092	0.173	0.759	0.000	0.359	0.000
wu20	0.219	0.001	0.603	0.000	0.193	0.004
wu22	−0.014	0.841	0.469	0.000	0.357	0.000
wu	0.156	0.020	0.891	0.000	0.427	0.000

R—correlation coefficient, p—significance level.

. The cases where significant positive correlations were found are highlighted.

3.2.1. Dependence of Damage Intensity of Large-Block Buildings on Mining Impacts

The results presented in Table 5 show significant correlations between horizontal ground deformations ε_max and indices:

• Intensity of damage to interior and exterior overground load-bearing walls (including lintels and walls under windows) w_u3,
• Intensity of damage to ceilings over higher levels, flat roof (roof covering) w_u7,
• Intensity of damage to partition walls w_u11,
• Intensity of damage to internal plaster and wall cladding w_u12.

The results of correlation tests between maximum acceleration components PGA_H and damage intensity indices has only showed significant correlations for floors w_u13 and facade layers w_u17.

The highest correlation coefficients with values of R = 0.501 ÷ 0.853 were obtained between the a_sg index describing the influence of mining tremors and the damage indices of all significant elements.

In addition, for the horizontal ground deformations ε_max and the mining tremors index a_sg, significant correlations were found with the w_u index determined for the whole building, which are 0.145 and 0.866, respectively. The significance level of the PGA_H index was close to the critical level (p = 0.05).

3.2.2. Dependence of Damage Intensity of Large-Panel Buildings on Mining Impacts

The results presented in Table 6 show significant correlations between horizontal ground deformations ε_max and indices:

• Intensity of damage to load-bearing walls of the basement or to foundation walls w_u2,
• Intensity of damage to interior and exterior overground load-bearing walls (including lintels and walls under windows) w_u3,
• Intensity of damage to partition walls w_u11,
• Intensity of damage to floors (floor layers) w_u13,
• Intensity of damage to flashings, gutters and downpipes w_u20.

The results of the correlation study between the damage indices w_ui and the maximum horizontal components of vibration acceleration PGA_H indicate a significant correlation R = 0.193 ÷ 0.401 with the damage of all analysed building elements except for the damage to balconies and loggias (as well as eaves and cornices) w_u9.

The highest correlation coefficients with values of R = 0.310 ÷ 0.827, as in the case of large-block buildings, were shown between the index describing the influence of mining tremors a_sg, and the damage indices of all significant elements.

For both maximum deformation ε_max and the effect of a_sg and PGA_H tremors, significant correlations were found with the w_u index determined for the whole building, which are 0.156, 0.891, and 0.427, respectively.

The biggest share in the variability of the damage intensity index for both large-block and large-panel buildings is determined by the a_sg tremors index. As shown in Table 4 and Table 5, it obtains much higher values of correlation than the PGA_H index. This confirms that its definition is correct. Slightly higher values of correlation occur in case of large-panel buildings. This may be caused by repair work, which influences the total elimination or reduction of the scope of damages. Large-panel buildings are on average nine years younger and the scale of renovations they have been undergone so far is lower than in case of objects erected in large-block technology.

4. Conclusions

The subject of this study was a group of 138 prefabricated reinforced concrete buildings, consisting of 64 buildings in large-block technology and 74 buildings in large-panel technology. All buildings are located in the mining area of the LGCD and over their entire lifetime they have been subjected to mining impacts in the form of continuous ground deformation and mining tremors. The results of the analysis of the change over time in the intensity of their damage, found in the three inventories conducted in 2002, 2007 and 2012, and the relationship between the extent of their damage and the impact of mining exploitation are presented.

The research was based on the level of technical wear of the buildings s_z and on the damage intensity indices w_ui for constructional and secondary components. Using the PLSR method and the extended database, linear formulas of generalized damage index w_u were verified for groups of large-block and large-panel buildings. Based on the obtained formulas, the generalized damage index w_u and the increments of the damage index which occurred in the periods between successive inventories were determined. Each building was assigned the maximum values of mining impact indices which occurred in the analysed periods of building existence, i.e., from the date of construction to 2002, then in 2003–2007 and in 2008–2012. The index describing the impact of continuous ground deformations ε_max and indices representing dynamic impacts: a_sg and PGA_H were adopted.

The analysis of changes in the damage intensity index of the analysed buildings during their 10-year period of use confirmed a continuous increase in the scope of damage represented by the w_u index. In case of large-block buildings, the damage intensity growth rate remains at a similar level. It is different in case of large-panel buildings, where after a significant increase of w_u index by 1.4% in the period of 5 years between 2002 and 2007, in the last five-year period it increases by 0.6%.

In the ten years of use (2002–2012), a decrease in the share of w_u damage in the technical wear s_z of large-block buildings was also observed, from 22% to 20%, and in the case of large-panel buildings from 33% to 31%. These changes occur at lower intensities of mining impacts observed in recent years, which is evidenced by a decrease in the average values of the indicators of the hazard of the analysed buildings from mining impacts (ε_max and PGA_H) and a decrease in the growth of the a_sg index.

In turn, the results of the research on the dependence of the scope of damage to buildings on the mining impact indicate significant correlations between the w_u index determined for the whole building and the damage to its elements and the dynamic impact index a_sg. In the case of horizontal ground deformation ε_max and peak values of ground vibration acceleration in the place of object location PGA_H, lower correlations with damage were found only for some building components. These results demonstrate the significant influence of the multiplicity of shaking impacts represented by the a_sg index on the intensity of building damage, which confirms the results of previous analyses conducted for traditional single-family housing and LGCD masonry multi-story buildings.

Correctly identifying and classifying damage to individual components and the building as a whole provides opportunities not only for building administration, but leads to proper management, saves time, materials and money, and prevents potential defects and unplanned building shutdowns.
