The Application of Fuzzy Theory in the Evaluation of Visual Images of Smartphone Rear Cameras

Abstract

In the present era, technology is developing rapidly. Smartphones play a significant part in people’s lives. However, the research on smartphones mainly focuses on the area of technological realization. The purposes of this study were to examine the relationship between the various rear cameras in smartphones and consumer perceptions, and to understand consumers’ purchasing intentions and preferences. Through the methods of multidimensional scaling (MDS), factor analysis and triangular fuzzy numbers, the visual images of the smartphone rear cameras were analyzed and discussed. The results indicate that the visual images taken by different shapes of rear camera are quite distinct in the categories of innovative and fashionable, and simple and pure, but less distinct in the categories of harmonious and ordered, premium and technical, and superior and valuable. Through a comprehensive comparison, four groups whose images were similar were created. The outcome effectively reflects the potential consumer demands for smartphone rear camera patterns, providing insights for design practices in the smartphone industry.

1. Introduction

The use of smartphones is currently almost ubiquitous. According to the applications of smartphones in our daily lives, their functions have been divided into the following categories: productivity—emails; information searching—news website browsing; social interacting—social media; leisure and entertainment—games; and transactions—shopping history checking, etc. [1]. In a Pew Research study [2], 46 percent of smartphone users expressed that they could not live without a smartphone. Statistics indicate that the average smartphone owning ratio across the globe is 43 percent, and in the United States, it is 72 percent [3]. It is also estimated that over 5 billion people in the world possess mobile devices, more than half of which are smartphones [4]. With the evolution of fifth generation (5G) networks, smartphones are able to assist users and realize more potential in the Internet of Things (IOT), and in education, entertainment and mobile payments [5,6,7].

Through one experiment, it was found that price, brand preference, social impact and features affect consumer decision-making regarding smartphone purchasing, yet online surfing and demands on Wireless Fidelity (Wi-Fi) facilities result in users caring less about the price of smartphones [8]. However, with the evolution of technologies—various technical challenges have disappeared—smart devices have transformed rapidly, and function is no longer the dominant aspect in terms of consumer decision-making. The research of Jain and Singh [9] has also indicated that it is the psychographic factors that impact consumer buying willingness the most. The brands in the market are varied, and the options available to users are increasingly plentiful. Besides users’ demands regarding functions, the aesthetic perceptions and psychographic impacts exerted by outside shaping and images are also matters of great importance.

There exist a great many brands and kinds of smartphones. In Taiwan alone, there are a dozen brands on the market, all with certain differences in the form of the rear camera. Designs of different types may stimulate different consumer feelings, which further affect their preferences for forms [10]. In the design and development of new products, which are based on designers’ past experience and aesthetic feelings, there might exist a gap between consumer and designer feelings. Users may have a different product image perception from that of designers, which would directly influence their degree of fondness for products. Therefore, an objective scheme for analysis and research into links between different kinds of rear cameras and various human visual and psychological factors, probing into users’ evaluations of various rear camera visual images, is conducive to narrowing perception gap between designers and users regarding the forms rear camera, while on the other hand improving smartphone design value, and providing assistance to phone makers, designers and users.

Therefore, designers should aim to satisfy users’ potential psychological demands, and complement R&D engineering work, so as to render a better smartphone user experience. The existing smartphones, size proportion, colors, rear case materials and rear cameras are all factors which collectively influence users’ preferences for phone appearance. Most of the products are now taking the form of full display screens, creating a uniform look and style in the front. Consequently, the emphasis of design falls to the rear camera, which is regarded as an important element of smartphone’s appearance and form.

From the above, it is clear that smartphones will be increasingly used and developed with amplitude in the future. A product’s appearance is one of the most important factors influencing users’ purchasing decisions, and different forms of products may bring different perceived values [11]. Emotion is an essential factor influencing customers’ buying behavior [10]. Many researchers have attempted to apply statistical techniques to determine how product design features affect consumers’ emotions, including regression analysis, fuzzy rule-based approaches and genetic algorithms [12,13,14,15]. Using these research methods, companies can design products that meet the consumers’ emotional needs and indirectly influence their willingness to purchase products. However, most of the existing studies on the connection between smartphones and consumers’ emotions focus on the overall appearance of smartphones and application interfaces [16,17,18]; there is less research on the design of smartphones’ rear cameras. The results of this study are more rigorous, as representative samples were selected through a scientific sample selection method (i.e., multidimensional scaling (MDS)) and the samples were re-imaged in 2D to avoid interference from other factors, such as color.

The goals of this study were to analyze and explore consumers’ visual and psychological perceptions of various forms of smartphone rear cameras, and to understand consumers’ purchasing intentions and preferences, through objective methods such as Kansei engineering and fuzzy theory. We hope that the findings of this study will serve as a good reference for relevant practitioners, designers and consumers.

2. Materials and Methods

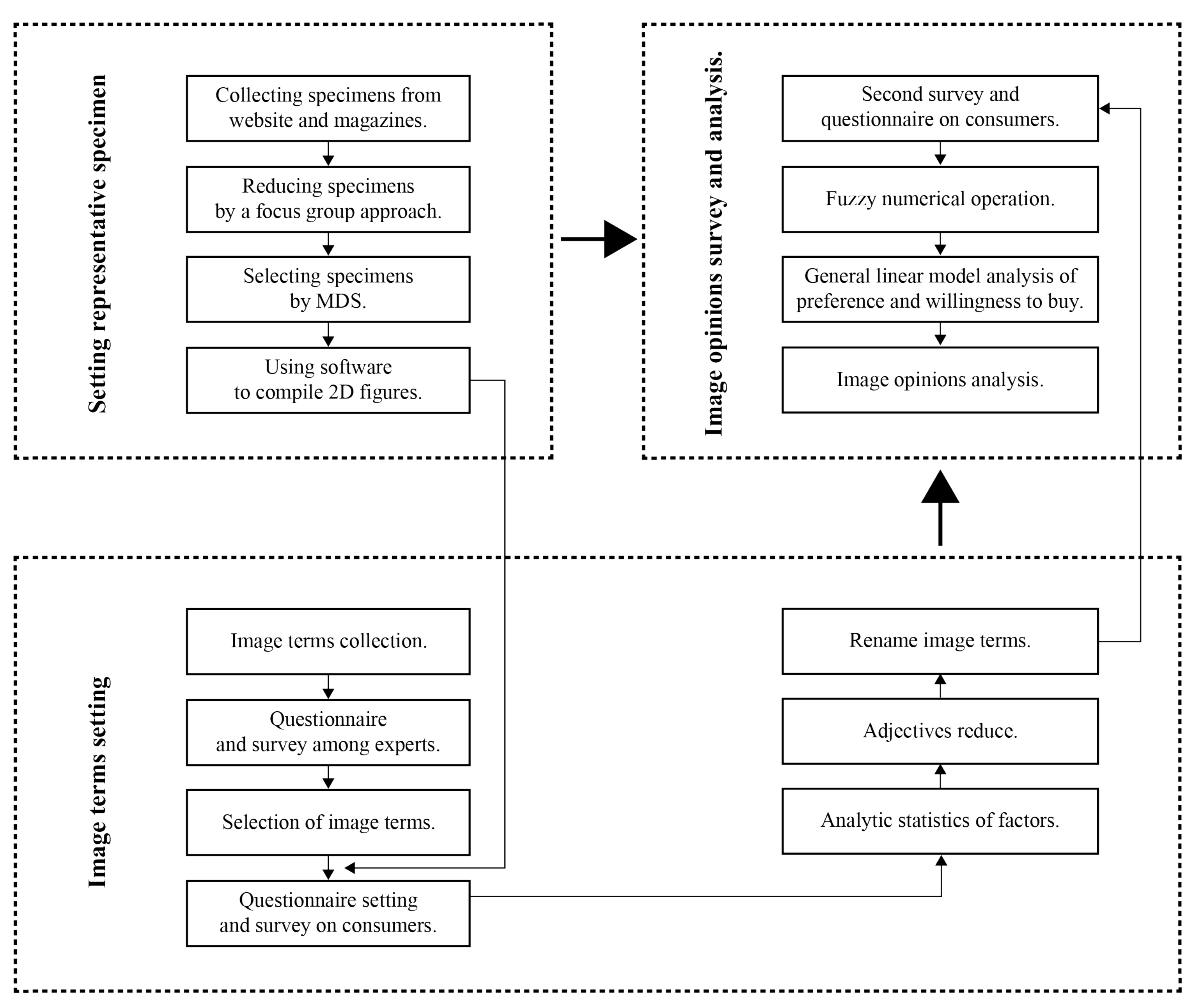

2.1. Research Structure and Process

As a consumer-oriented technique for new product design development, Kansei engineering can translate participants’ feelings into design elements [19]. The purposes of this paper are to: (1) Help designers identify adjectives that highlight sustainability and innovation of smartphone rear cameras in new product design in order to incorporate emotional information into their design considerations. (2) To determine the perceived value of sustainability in smartphone rear camera design. (3) Integrate users’ emotional perceptions to discuss purchasing desire and preferences for smartphone rear cameras. The smartphones on the Taiwanese market were taken as the subject of this research study. Opinions on visual images of various smartphone rear cameras were investigated. The research framework is illustrated in Figure 1.

2.2. Selecting Representative Samples

Multidimensional scaling (MDS) is a multi-variable analysis technique that reduces dimensions. Contrary to factor analysis, it adopts a distance matrix among spots as the input source, finding a space with fewer dimensions, and also a configuration of spots in that space (each spot stands for a consideration), enabling the configuration within which the distance between points is consistent with the input resource [20,21,22,23]. When choosing the optimum number of dimensions, it might refer to the minimum stress index in each dimension quantity scenario. The range of the value of the stress index is from 0 to 1. A lower the stress index reflects a more appropriate dimension. With respect to Kruskal’s interpretation, the matching degree under different stress indices is as in

Table 1. Kruskal stress index interpretation.

Stress	Matching Degree
0.200	Poor
0.100	Fair
0.050	Good
0.025	Excellent
0.000	Perfect

.

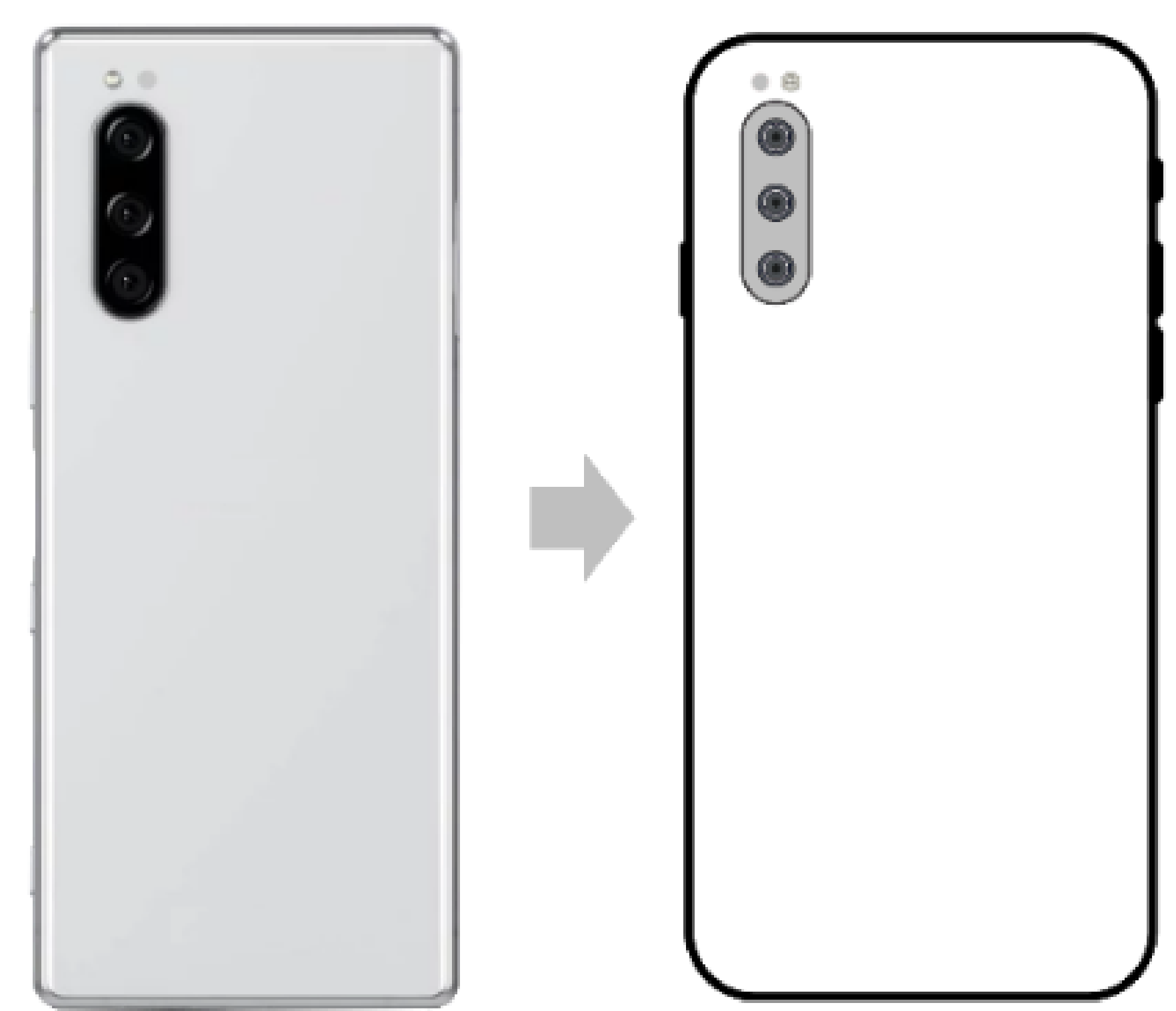

Materials in this research were taken from official smartphone websites and smartphone magazines. During the process, a total of 256 images of the rear elevation of smartphones which were clear and devoid of interference from the background were collected as samples. As there was a large number of samples, the focus group approach was applied to reduce the number, leaving 99 smartphone samples. The Adobe Photoshop software was used for coding the remaining samples; the gray scale process was performed and trademarks were removed, eliminating effects resulting from colors and brands. Afterwards, 12 experts were invited to take part in the testing (including 3 product design practitioners with 5+ years of experience, 5 doctoral candidates and 4 lecturers in the design department). Based on their subjective feelings, the morphological characteristics of the rear cameras from the samples were grouped by similarity (the morphological characteristics included lens, flashlight, sensors and contour of the external camera, Figure 2). A total of 7–15 groups were created, based on which the similarity matrix was formed, and it was then converted into a dissimilarity matrix for MDS analysis. Lastly, the MDS results were taken as sorted variables, using cluster analysis for sample clustering, providing the final and most significant samples.

2.3. Extraction and Factor Analysis of Images Adjectives

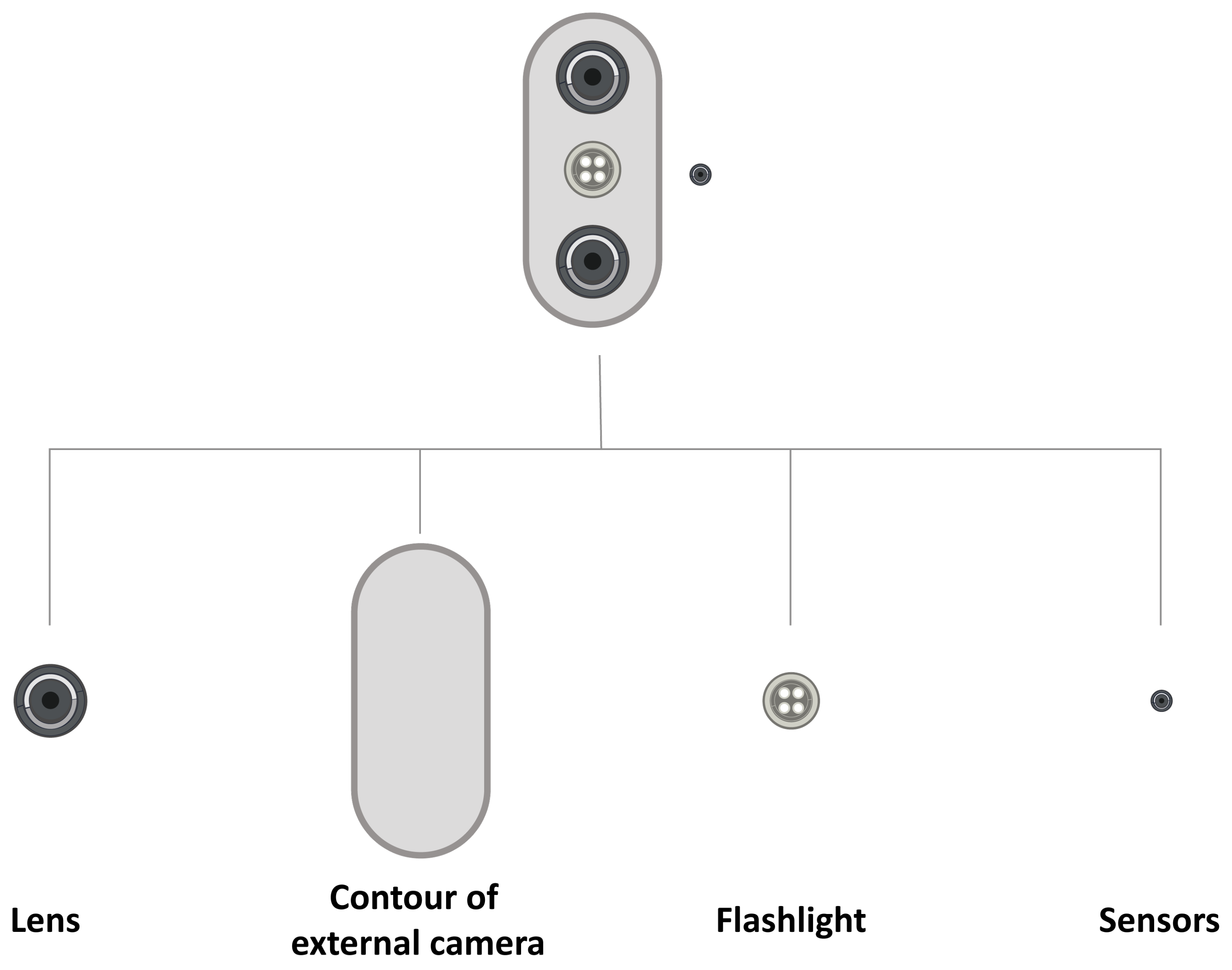

The adjectives relevant to the visual images of the smartphone rear cameras were sourced from each smartphone website and news website in Taiwan (news coverage of smartphone releases). After subjective sorting, 150 adjectives were picked for a further questionnaire to be administered to experts. Using the questionnaire method, the adjectives were sorted. A total of 17 experts were invited to take part in the experiment, including 2 secondary school Chinese language teachers, 10 postgraduates and 5 doctoral candidates majoring in design. The participants were asked to select, from the 150 images adjectives, 40–50 that best matched the visual images of the smartphone rear cameras. Lastly, the 40 most recognized adjectives were selected for further analysis according to mean selected times.

Factor analysis is generally used for the simplification of complex data [24]. Its main goal is to use a smaller number of dimensions to indicate the former data structure whilst reserving most of the information contained in the former structure [21]. Brown [25] defined factor analysis as one statistical method used for a determined number of factors in demand, and for explaining correlations in one set of variates. One factor is the equivalent of multi-correlated variates combined; it is therefore capable of measuring homogenous features. In short, factor analysis was adopted in this study to limit the number of images adjectives. In this phase, the 40 image adjectives were acquired, and consumer surveys were filled out using a Likert 5-point scale to obtain vocabulary differences. The degree scale consisted of “non-matching to a great extent”, “non-matching”, “normal”, “matching” and “matching to a great extent.” The questionnaires were collected from 134 participants (i.e., 61 males and 73 females). We implemented factor analysis for the acquired results, eliciting corresponding factor elements in image adjectives. Lastly, the factors were renamed according to the features of the image adjectives in the factor elements.

2.4. Visual Image Opinions in Fuzzy Operation

Fuzzy theory is a scientific approach for the research and treatment of obscure phenomena, and was first put forward by Zadeh in 1965 [26]. Zadeh held that humans’ ideas, deductions and awareness of matters are substantially ambiguous in themselves. It is therefore necessary to apply fuzzy and logical concepts to describe priority degrees of matters. Through the membership function, it is possible to quantize subjects’ inner feelings, converting feelings into numerical values between 0 and 1, where the value denotes the potential influential factors and their respective impacts [26,27,28].

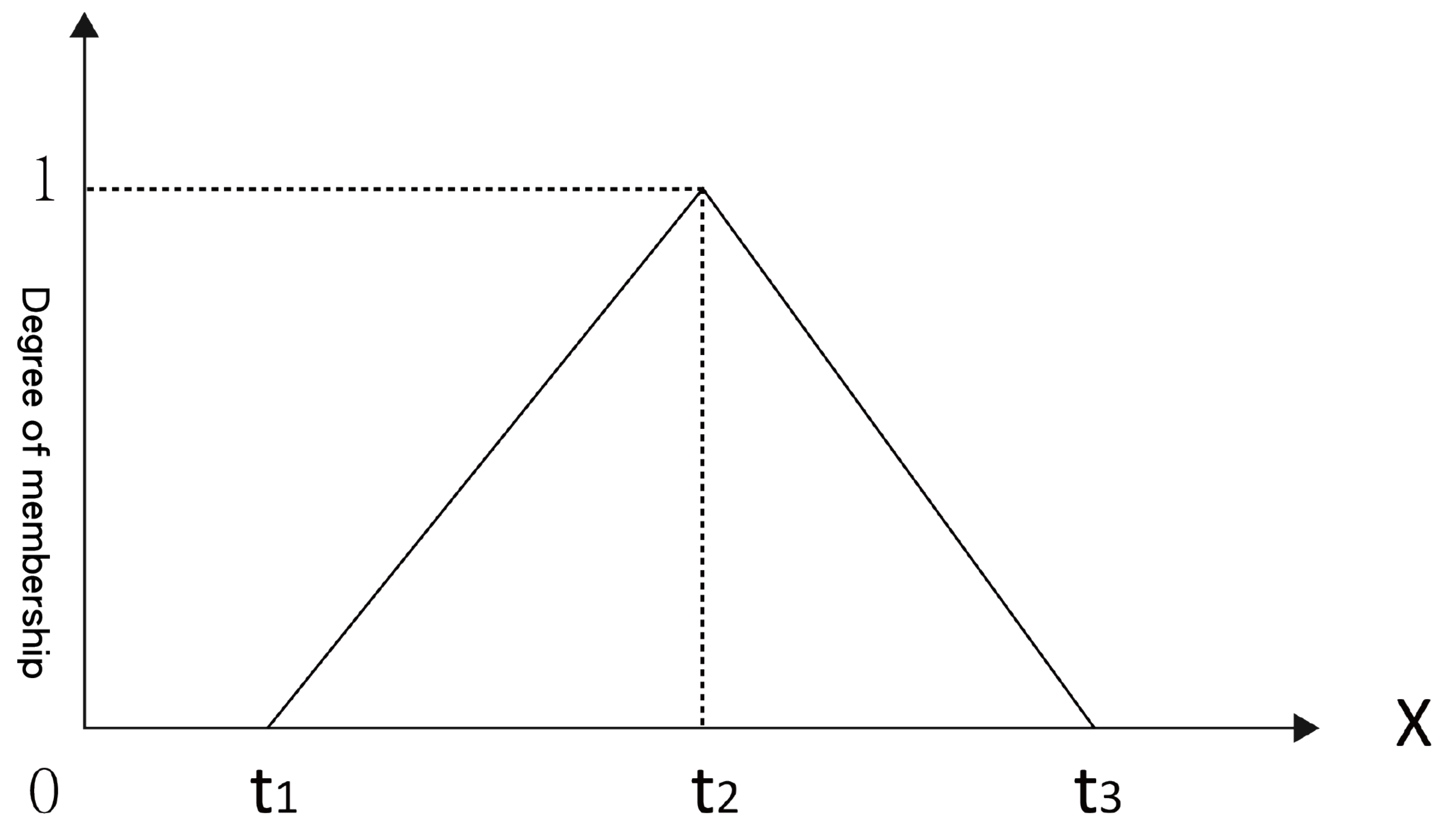

Fuzzy theory, in the application of meaning measuring, is an optimum approach for research. Nowadays, there are numerous design studies that have adopted fuzzy theory [13,29,30]. These studies usually adopt fuzzy numbers, of which the regular types are triangular fuzzy number, trapezoidal fuzzy number and normal fuzzy number, of which the triangular fuzzy number is the most common. What is special about the triangular fuzzy number is its affiliated function. The distribution of probabilities is in the form of a triangle [31]. Presuming one triangular fuzzy number int function ${\mu }_i\left(x\right)$, it is $t=(t_1,t_2,t_3)$, when $t_1,t_2$, and $t_3$ is a real number and $t_1\le t_2\le t_3$. This affiliated function is shown in Figure 3 [32].

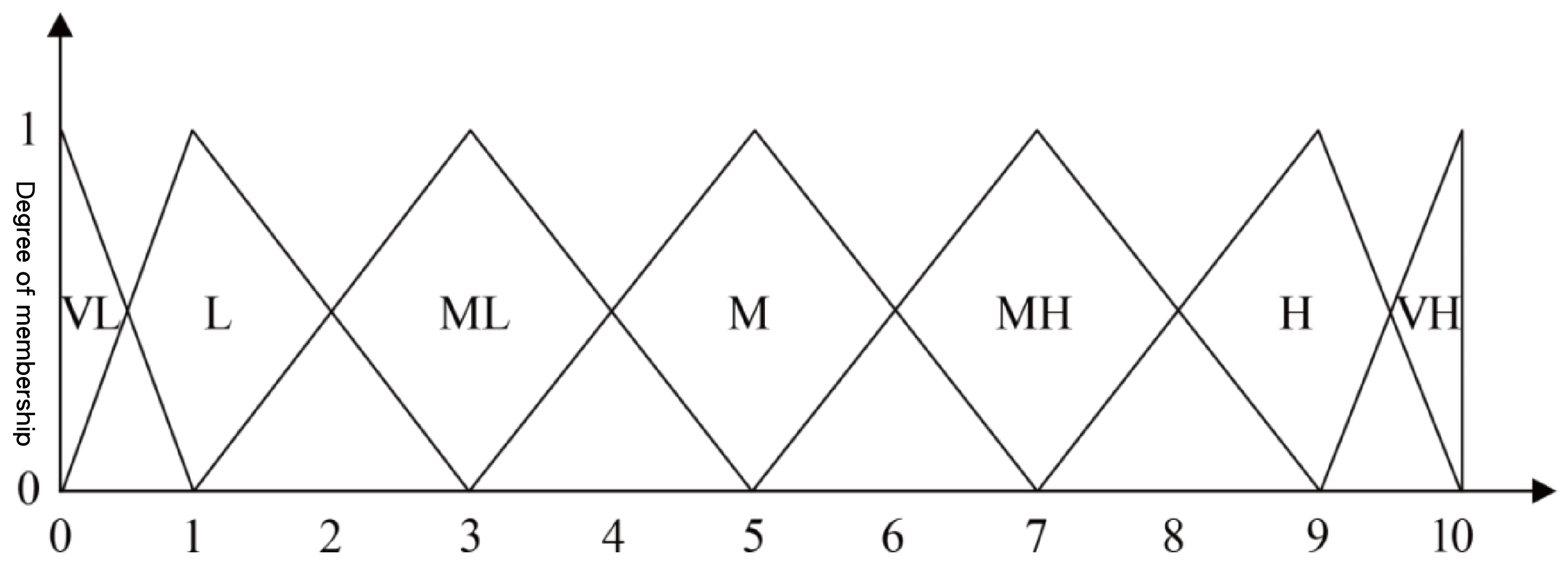

This research study takes fuzzy meanings of seven grades as the ranking approach (see

Table 2. Linguistic variables for the importance and the ratings.

Linguistic Variables	Triangular Fuzzy Numbers
Very Low (VL)	(0,0,1)
Low (L)	(0,1,3)
Medium Low (ML)	(1,3,5)
Medium (M)	(3,5,7)
Medium high (MH)	(5,7,9)
High (H)	(7,9,10)
Very High (VH)	(9,10,10)

). Users were asked to rank the representative samples. The fuzzy ranking results were achieved by the 7-grade triangular affiliating function, making fuzzy meanings triangular fuzzy numbers after quantization. The triangular affiliating function is shown in Figure 4.

For further analysis and comparison, defuzzification triangular fuzzy numbers in the affiliating function result in crisp values. The maximizing set and minimizing set method, put forward by Chen in 1985 [33], is the most common method for defuzzification and was adopted in this research. The principle is to make use of weights of two triangular fuzzy numbers to restore them to total utility values.

The questionnaire adopted in this research study was designed based on the fuzzy meaning principle. The questionnaire was administered with a 7-point Likert scale with 11 samples paired with five groups of factors; e.g., how would you rate sample S14 regarding being innovative and fashionable? How would you rate sample S14 regarding being harmonious and ordered? How would you rate sample S14 regarding being premium and technical? How would you rate sample S14 regarding being superior and valuable? How would you rate sample S14 regarding being simple and pure? This helped to identify the consumers’ opinions on 11 rear camera samples. After defuzzification of the outcome, the total utility value of each form of visual image was obtained, diagrams and charts were drawn up and further analysis was performed on the 11 samples. The outcomes can provide insights for phone makers, designers and users.

3. Results and Discussions

3.1. Selection Results of the Representative Samples

The research, by means of MDS analysis, reached the best outcome with six dimensions (Stress = 0.03452, RSQ = 0.98297), as shown in

Table 3. The stress and RSQ values of different dimensions of multidimensional scaling (MDS) analysis.

Dimensions	Stress	RSQ
2	0.13782	0.90352
3	0.06962	0.96207
4	0.04902	0.97458
5	0.04141	0.97865
6	0.03452	0.98297

.

The result of MDS was taken as a sorted variable, and by means of cluster analysis, the samples were divided into 11 categories, and the distance of each sample to the category center was also obtained (see

Table 4. The results of cluster analysis.

Sample	Category	Distance	Sample	Category	Distance
S33	1	0.969	S49	7	0.58004
S27	2	0.55683	S50	8	0.85775
S99	3	0.67183	S14	9	0.93969
S47	4	0.33529	S58	10	0.54329
S39	5	0.7289	S74	11	0.2692
S95	6	1.08983

). The one with the least distance to the center is the representative sample of its category. Besides, to reduce brand perception, which might seem rigid, or the influence of the phone’s form, the software Adobe Illustrator was applied to convert these 11 representative samples into uniformly shaped 2D images (see Figure 5). The final converted 11 representative samples are shown in Figure 6.

3.2. Results of the Images Adjective Extraction and Factor Analysis

Using the questionnaire method with expert participants, the image adjectives were sorted. A total of 17 experts were invited to take part in the experiment, including two secondary school Chinese language teachers, 10 postgraduates and 5 doctoral candidates majoring in design. Those participants were asked to select, from 150 adjectives, and with reference to the 2D diagrams of the representative samples (selected via the multi-scaling method), 40–50 adjectives that matched best with the visual images of the rear cameras of the smartphones. Lastly, based on mean selected times, the 40 most recognized terms were selected for further analysis (see

Table 5. The 40 adjectives that were most recognized.

Scientific	Quality	Modern	Precise	Concise
Fascinating	Practical	Superior	Premium	Valuable
Advanced	Mechanical	Smart	Dense	Ordered
Durable	Future	Technical	Simple	Quality
Unique	Detailed	Fashionable	Rigid	Spotlit
Sequential	Harmonious	Convenient	Exquisite	Solid
Groundbreaking	Innovative	Balanced	Original	Uniform
Creative	Newfangled	Rational	Individual	Classic

).

The 40 most recognized adjectives were combined with the 11 representative samples for the images questionnaire. The results of the questionnaire were input into SPSS (a statistical software package) for analysis. Then through T test, 34 distinctive adjectives were sorted for the first factor analysis. After component analysis, 30 factors that contained load capacity values greater than 0.6 were chosen for the second factor analysis. The outcome is shown in

Table 6. Thirty adjective factors with absolute load capacity values greater than 0.6.

Adjectives	Initial	Extraction	Adjectives	Initial	Extraction
Concise	1.000	0.703	Simple	1.000	0.731
Fascinating	1.000	0.745	Quality	1.000	0.755
Superior	1.000	0.743	Unique	1.000	0.692
Premium	1.000	0.678	Fashionable	1.000	0.659
Valuable	1.000	0.635	Rigid	1.000	0.634
Mechanical	1.000	0.622	Spotlit	1.000	0.728
Ordered	1.000	0.727	Sequential	1.000	0.720
Durable	1.000	0.752	Harmonious	1.000	0.744
Future	1.000	0.674	Convenient	1.000	0.723
Technical	1.000	0.666	Solid	1.000	0.724
Groundbreaking	1.000	0.750	Innovative	1.000	0.756
Balanced	1.000	0.628	Original	1.000	0.742
Uniform	1.000	0.742	Creative	1.000	0.725
Newfangled	1.000	0.742	Rational	1.000	0.686
Individual	1.000	0.726	Classic	1.000	0.706

.

The KMO, after factor analysis, together with the Bartlett testing result, indicates that the KMO value was 0.931, showing that the analysis material was appropriate. Bartlett’s spherical testing value was 3191.715 (df = 435, p = 0.000), reaching significance, which represents that the relative matrix in the origin cluster contained common factors.

In contrast, in

Table 7. Total variance explained.

Factor of Component	Initial Eigenvalues			Squares Loading Extraction			Transformed Squares Loading
	Total	Variance (%)	Accumulative (%)	Total	Variance (%)	Accumulative (%)	Total	Variance (%)	Accumulative (%)
1	14.827	49.422	49.422	14.827	49.422	49.422	6.785	22.617	22.617
2	2.212	7.372	56.794	2.212	7.372	56.794	5.063	16.878	39.495
3	1.705	5.684	62.478	1.705	5.684	62.478	3.369	11.229	50.724
4	1.330	4.434	66.913	1.330	4.434	66.913	3.184	10.614	61.338
5	1.186	3.953	70.866	1.186	3.953	70.866	2.858	9.528	70.866

, the total variance denotes five factors with values greater than 1, and shows a total variance quantity of 70.866 percent. From the transformed matrix, as shown in

Table 8. Transformed component matrices.

Adjectives	Component
	1	2	3	4	5
Individual	0.770	0.247	0.162	0.208	0.051
Spotlit	0.768	0.277	0.159	0.153	0.118
Groundbreaking	0.767	0.031	0.311	0.155	0.201
Innovative	0.760	0.218	0.336	0.114	0.061
Unique	0.755	0.104	0.014	0.220	0.250
Original	0.748	0.265	0.175	0.227	0.174
Newfangled	0.728	0.384	0.182	0.162	0.074
Fashionable	0.587	0.284	0.216	0.250	0.353
Creative	0.575	0.541	0.193	0.183	0.177
Classic	0.498	0.129	0.494	0.095	0.434
Rational	0.110	0.766	0.294	0.004	−0.040
Ordered	0.013	0.749	0.042	0.383	0.135
Sequential	0.301	0.725	0.210	0.114	0.217
Rigid	0.295	0.700	0.173	0.160	0.030
Uniform	0.331	0.652	0.147	0.005	0.431
Balanced	0.410	0.564	0.202	0.177	0.264
Mechanical	0.198	0.560	0.021	0.518	−0.014
Harmonious	0.312	0.551	0.247	−0.026	0.531
Convenient	0.237	0.337	0.686	−0.006	0.287
Durable	0.139	0.244	0.666	0.457	0.141
Solid	0.363	0.364	0.656	0.151	0.084
Quality	0.422	0.195	0.546	0.354	0.340
Technical	0.379	0.155	0.502	0.454	0.199
Superior	0.250	0.150	0.233	0.669	0.395
Future	0.487	0.042	0.210	0.616	0.111
Valuable	0.292	0.381	0.315	0.547	−0.082
Fascinating	0.489	0.164	−0.174	0.545	0.389
Premium	0.188	0.203	0.448	0.539	0.333
Concise	0.221	−0.033	0.147	0.255	0.753
Simple	0.113	0.361	0.292	0.143	0.695

, five components of the last factor analysis are extremely distinct from each other, without coinciding with other factors. Therefore, the 30 adjectives and five components from this factor analysis were able to be further used.

In this research, it was necessary to acquire adjectives that are appropriate for evaluating the visual images of smartphone rear cameras. Therefore, using factor analysis, from 150 adjectives, 30 image adjective clusters were created, consisting of five factors. The outcome was the creation of five basic dimensions of images for further research: innovative and fashionable; harmonious and ordered; premium and technical; superior and valuable; and simple and pure (see

Table 9. Factor renaming list.

Factor	Factor Naming	Adjective Groups
1	Innovative and Fashionable	Individual; Spotlit; Groundbreaking; Innovative; Unique; Original; Newfangled; Fashionable; Creative; Classic
2	Harmonious and Ordered	Rational; Ordered; Sequential; Rigid; Uniform; Balanced; Mechanical; Harmonious
3	Premium and Technical	Convenient; Durable; Solid; Quality; Technical
4	Superior and Valuable	Superior; Future; Valuable; Fascinating; Premium
5	Simple and Pure	Concise; Simple

).

3.3. The Results of Fuzzy Operation

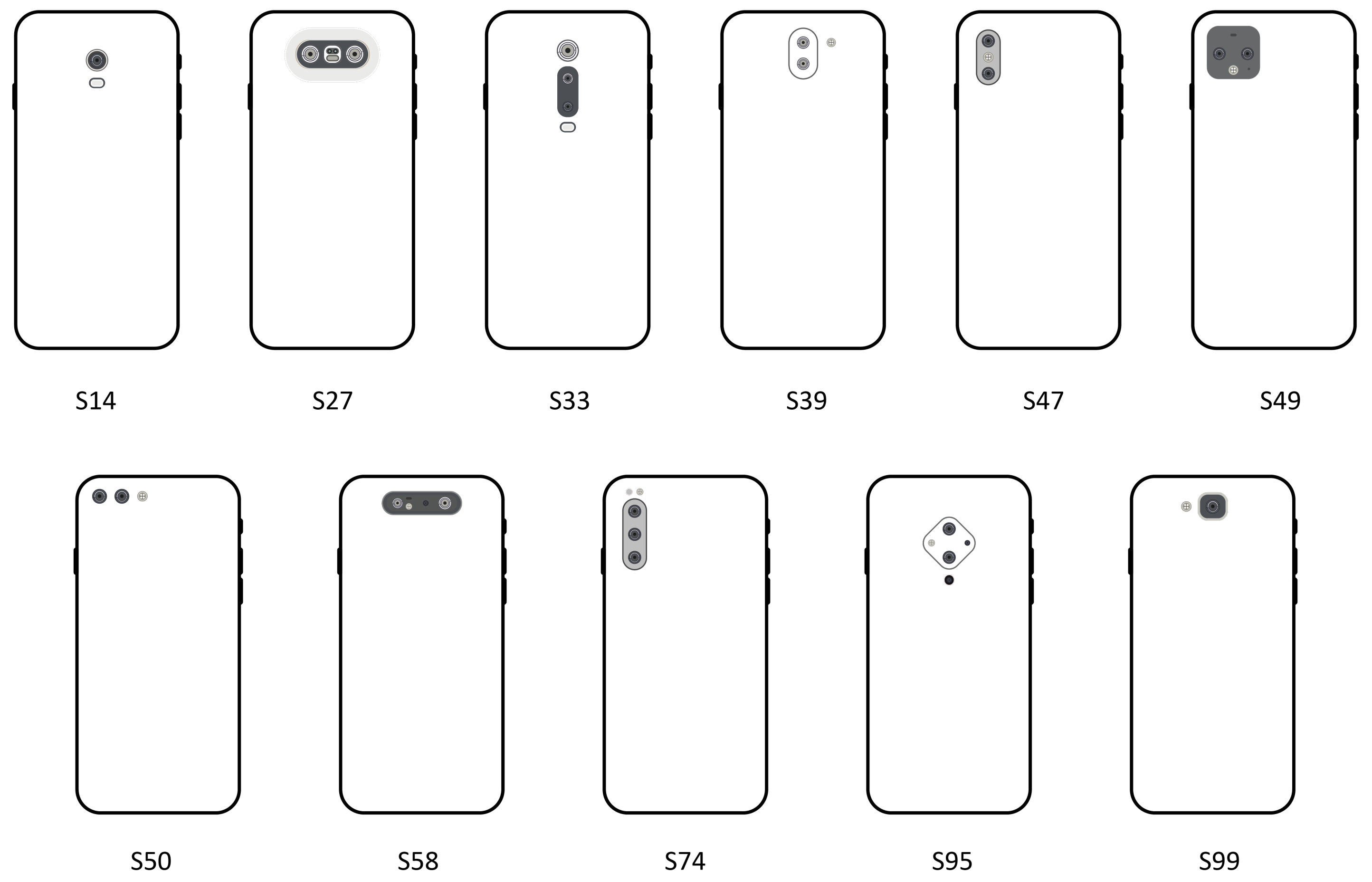

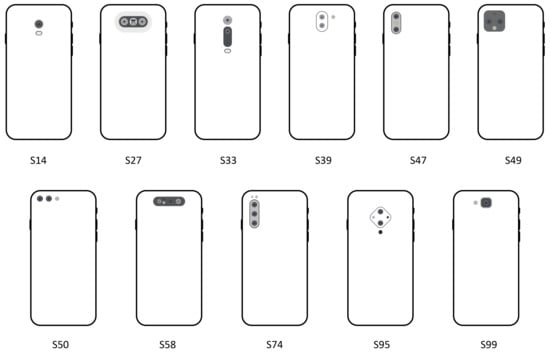

Based on 11 representative samples (i.e., 2D images) from Figure 6, in combination with the five categories of renamed visual image adjectives in Table 9, a visual images evaluation questionnaire was devised in accordance with the 7-phase fuzzy meaning scale, as shown in Table 2. A total of 155 participants, 72 males and 83 females, were invited for the experiment by using the convenience sampling method. Their ages ranged from 18 to 40 years old. The questionnaire outcome, through the triangular affiliating function, quantified fuzzy meaning into triangular fuzzy numbers. After adding together and averaging, the mean values are shown in

Table 10. The sequence and means of the visual evaluations of the samples of the smartphone rear cameras.

Innovative and Fashionable	Harmonious and Ordered	Premium and Technical	Superior and Valuable	Simple and Pure
S95 (5.0 6.7 9.0)	S47 (4.5 6.4 8.1)	S74 (4.3 6.2 7.8)	S74 (4.5 6.3 7.9)	S47 (4.8 6.6 8.2)
S74 (4.2 6.0 7.7)	S74 (4.4 6.3 7.9)	S33 (3.9 5.8 7.5)	S95 (4.0 5.8 7.4)	S39 (4.6 6.4 8.0)
S33 (4.0 5.8 7.5)	S39 (4.1 5.9 7.6)	S95 (4.0 5.8 7.4)	S33 (3.6 5.5 7.3)	S14 (4.9 6.6 8.0)
S47 (3.7 5.6 7.4)	S33 (3.9 5.8 7.5)	S47 (3.8 5.7 7.4)	S47 (3.6 5.4 7.2)	S99 (4.2 6.0 7.6)
S50 (3.8 5.5 7.2)	S50 (3.8 5.6 7.3)	S50 (3.6 5.4 7.1)	S58 (3.6 5.4 7.2)	S50 (4.0 5.8 7.5)
S58 (3.6 5.4 7.1)	S14 (3.9 5.6 7.2)	S58 (3.5 5.3 7.1)	S50 (3.2 5.0 6.8)	S74 (3.8 5.6 7.4)
S27 (3.9 5.5 7.0)	S99 (3.6 5.4 7.2)	S39 (3.2 5.1 6.9)	S27 (3.5 5.2 6.8)	S33 (3.4 5.1 6.8)
S49 (3.4 5.1 6.7)	S58 (3.7 5.5 7.2)	S27 (3.5 5.2 6.8)	S99 (2.8 4.6 6.3)	S58 (3.1 4.9 6.7)
S14 (3.2 4.8 6.4)	S95 (3.7 5.5 7.2)	S99 (3.2 5.0 6.8)	S49 (2.9 4.6 6.3)	S95 (3.1 4.8 6.6)
S99 (3.0 4.7 6.4)	S27 (3.0 4.7 6.3)	S14 (3.4 5.1 6.8)	S14 (2.9 4.5 6.2)	S27 (2.3 3.8 5.5)
S39 (2.3 4.0 5.8)	S49 (2.5 4.0 5.7)	S49 (2.9 4.5 6.2)	S39 (2.5 4.2 6.0)	S49 (2.0 3.5 5.3)

. Then, by the sequence of visual image evaluation samples, the fuzzy triangular diagram was drawn (see Figure 7).

The triangular fuzzy number in Table 10, after defuzzification with the absolute utility value formula, produced the absolute utility value of the 11 representative visual image evaluations (

Table 11. The total utility values of 11 samples of smartphone rear cameras.

Samples	Innovative and Fashionable	Harmonious and Ordered	Premium and Technical	Superior and Valuable	Simple and Pure
S14	0.3976	0.5387	0.4621	0.4034	0.6859
S27	0.4794	0.4146	0.4742	0.4973	0.3384
S33	0.5154	0.5625	0.5617	0.5388	0.5000
S39	0.3071	0.5790	0.4603	0.3628	0.4929
S47	0.4919	0.6436	0.5468	0.5278	0.6849
S49	0.4317	0.3248	0.3731	0.4155	0.3037
S50	0.4821	0.5382	0.5048	0.4722	0.5856
S58	0.5278	0.4750	0.4681	0.5246	0.4925
S74	0.5391	0.6283	0.6196	0.6496	0.5625
S95	0.6341	0.5246	0.5626	0.5792	0.4647
S99	0.3869	0.5135	0.4478	0.4134	0.6090

). The detailed calculation is as follows:

Presume n numbers of triangular fuzzy number in an affiliating function; define it as $\widetilde{{\mathbf{t}}_{\mathbf{i}}}=({\mathbf{t}}_{\mathbf{1}},{\mathbf{t}}_{\mathbf{2}},{\mathbf{t}}_{\mathbf{3}})$ , $\mathbf{i}$ =1, 2,…,$\mathbf{n}$; in this way, the minimum ${\mu }_G\left(x\right)$ and maximum ${\mu }_M\left(x\right)$ are respectively G and M. The absolute utility value of ${\mathbf{U}}_{\mathbf{T}}\left({\tilde{\mathbf{t}}}_{\mathbf{i}}\right)$ is as Equation 1 shows:

$$\begin{array}{c}{\mathbf{U}}_{\mathbf{T}}\left({\tilde{\mathbf{T}}}_{\mathbf{I}}\right)=\left[\frac{\left({\mathbf{T}}_{\mathbf{I}\mathbf{3}}-{\mathbf{X}}_{\mathbf{MIN}}\right)}{\left(\left({\mathbf{X}}_{\mathbf{MAX}}-{\mathbf{X}}_{\mathbf{MIN}}\right)+\left({\mathbf{T}}_{\mathbf{I}\mathbf{3}}-{\mathbf{T}}_{\mathbf{I}\mathbf{2}}\right)\right)}+\mathbf{1}-\frac{\left({\mathbf{X}}_{\mathbf{MIN}}{-\mathbf{t}}_{\mathbf{i}\mathbf{1}}\right)}{\left(\left({\mathbf{X}}_{\mathbf{MAX}}-{\mathbf{X}}_{\mathbf{MIN}}\right)+\left({\mathbf{T}}_{\mathbf{I}\mathbf{2}}-{\mathbf{T}}_{\mathbf{I}\mathbf{1}}\right)\right)}\right]/\mathbf{2},\hfill \\ \mathbf{i}=1,2,\dots ,\mathbf{n}\hfill \end{array}$$

(1)

The above results state:

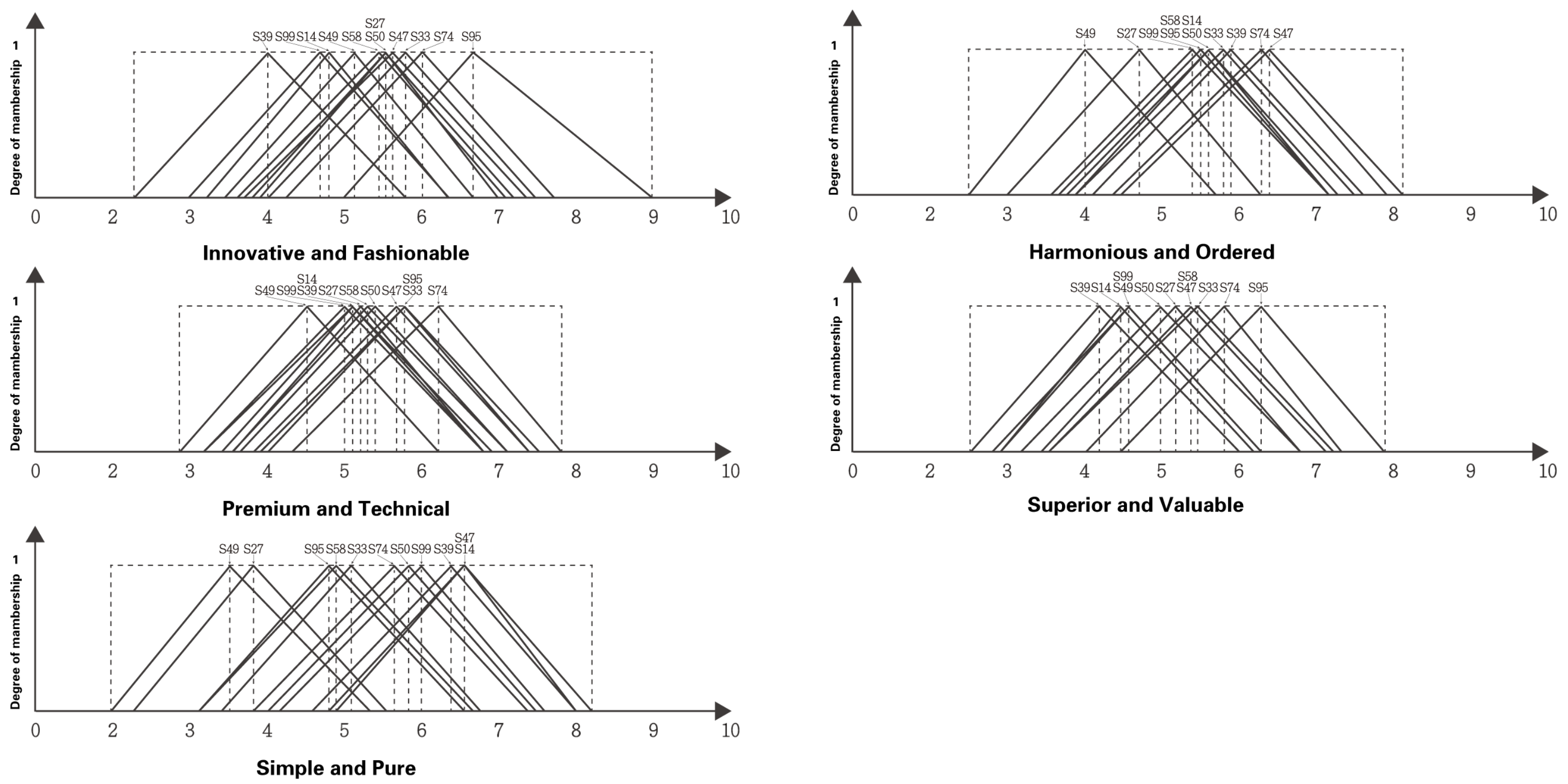

In Figure 7, it is shown that different smartphone rear cameras received different visual evaluations in the categories of “fashionable and technical” and “superior and valuable”; yet in the categories of “premium and technical” and “superior and valuable”, the distinctions were limited.

As shown in Table 10 statistics, sample S14 received the highest grades in the evaluation for the category “simple and pure”; sample S47 received high grades in categories “harmonious and ordered” and “simple and pure”; sample S74 received great grades in each evaluation, achieving its best grades in “premium and technical” and “superior and valuable”; sample S95 received good grades except in “superior and valuable”, and its highest grade appeared in the evaluation of “superior and valuable”. The above results can also be summarized as follows:

From Figure 7, it can be seen that different smartphone rear cameras have apparently different visual qualities in the categories of “fashionable and technical,” and “superior and valuable,” while in the categories of “premium and technical” and “superior and valuable,” the distinctions are limited.

As shown in Table 10, sample S14 received the highest grade in the evaluation for the category “simple and pure”; sample S47 received high grades in both the “harmonious and ordered” and “simple and pure” categories; sample S74 received great grades in each evaluation, achieving its best grades in “premium and technical” and “superior and valuable”; sample S95 received good grades except for “superior and valuable,” and its highest grade appeared in the evaluation of “innovative and fashionable.”

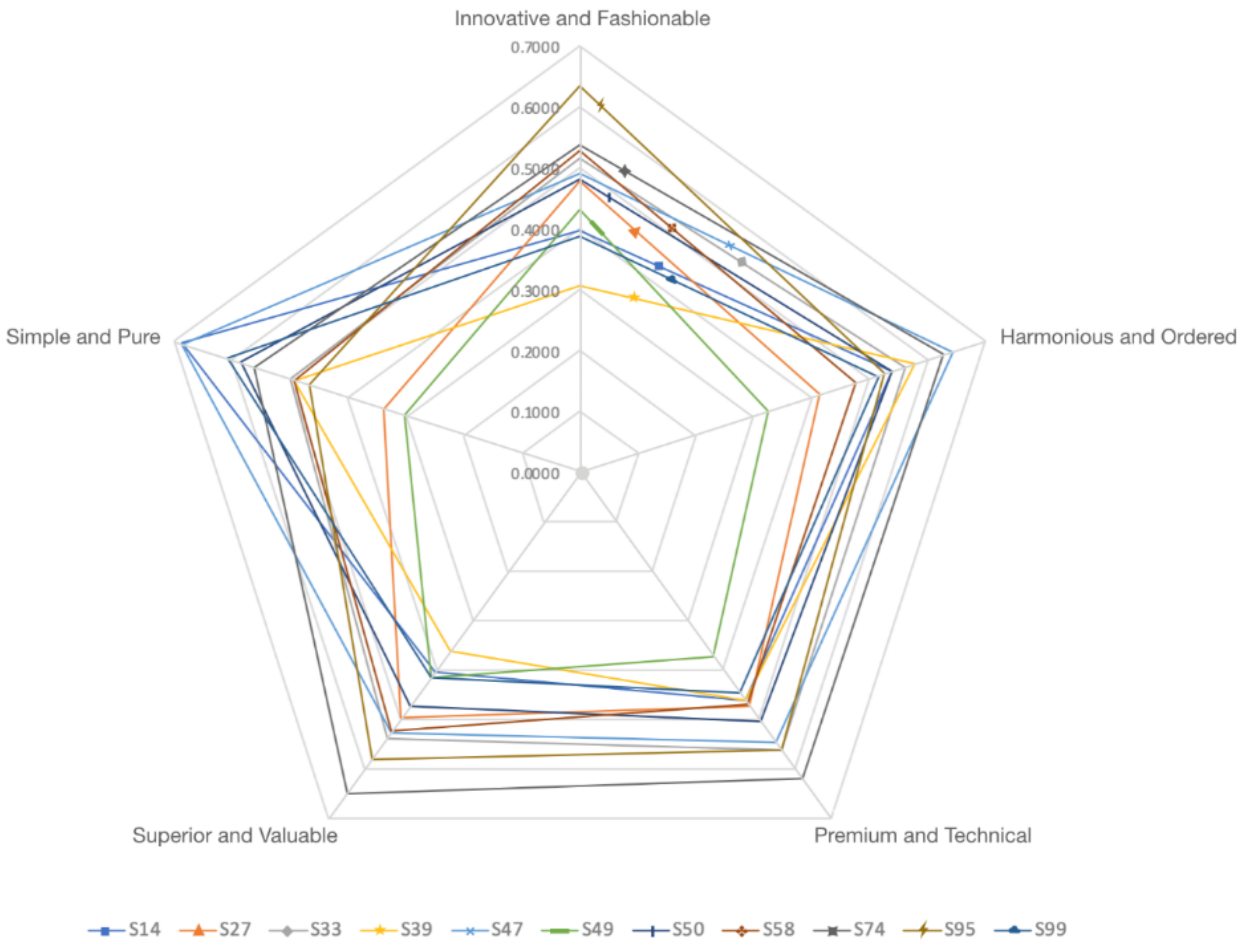

Images evaluation grades, after further processing with a radar map (see Figure 8) and a comprehensive comparison, led to the four clusters of the entire visual images evaluation: (a) similar images appeared in S14 and S99, and they both acquired high evaluation grades in “superior and valuable”; (b) for S27, S39 and S49, the linear radius was within the innermost ring, indicating that the visual images were close on the whole, and low grades were received for each images evaluation; (c) S33, S47, S74 and S95 possessed similar visual images on the whole, with relatively higher grades for each evaluation, and an even distribution; (d) S50 and S58 had similar linear radii devoid of extreme highs or extreme lows, denoting an interim level in each visual image evaluation.

3.4. The Results of the Effect of Willingness to Buy

According to the results of the general linear model shown in

Table 12. The results of the general linear model.

Source	SS	DF	MS	F	P	$\mathit{\eta }$2	LSD
Rear cameras (11 samples)	182.419	10	18.242	11.170	0.000 **	0.092	S14 < S47
							S14 > S27, S49, S58.
							S27 < S14, S33, S39, S47, S50, S58, S74, S95, S99.
							S33 < S39, S47, S50, S74;
							S33 > S27, S49.
							S39 < S47;
							S39 > S27, S33, S49, S58, S95.
							S47 > S14, S27, S33, S39, S47, S50,
							S58, S74, S95, S99.
							S49 < S14, S33, S39, S47, S50, S58, S74, S95, S99.
							S95, S99.
							S50 < S47;
							S50 > S27, S33, S49, S58.
							S58 < S14, S39, S47, S50, S74, S99;
							S58 > S27, S49.
							S74 < S27, S33, S47, S49, S59, S95.
							S95 < S39, S47, S74
							S95 > S27, S49.
							S99 < S47;
							S99 > S27, S49, S58.

** Significantly different at $\alpha$ = 0.01 level (p < 0.01).

, it was revealed that the purchasing intentions toward different smartphone rear cameras showed significant differences (F${}_{(10,1100)}$ = 11.170, p = 0.000). The results from the post hoc test (i.e., LSD) results show specific differences between samples; i.e., participants were significantly more willing to purchase S14 than S27, S49 and S58; however, participants perceived S14 as significantly less worthy than S47. Participants’ purchasing intentions for S27 were significantly lower than for S14, S33, S39, S47, S50, S58, S74, S95 and S99; participants’ purchasing intentions for S33 were significantly higher than for S27 and S49; participants’ purchasing intentions for S33 were significantly lower than for S39, S47, S50 and S74; participants’ purchasing intentions for S39 were significantly higher than for S27, S33, S39, S47, S50 and S99; participants’ purchasing intentions for S39 were significantly higher than for S27, S33, S49, S58 and S95; participants’ purchasing intentions for S39 were significantly lower than those for S47; participants’ purchasing intentions for S47 were significantly higher than those for S14, S27, S33, S39, S47, S50, S58, S74, S95 and S99; participants’ purchasing intentions for S49 were significantly lower than those for S14, S33, S39, S47, S50, S58, S74, S95 and S99; participants’ purchasing intentions for S50 were significantly higher than those for S27, S33, S49 and S58; participants’ purchasing intentions for S50 were significantly lower than those for S47; participants’ purchasing intentions for S58 were significantly higher than those for S27 and S49; participants’ purchasing intentions for S58 were significantly lower than those for S14, S39, S47, S50, S74 and S99; participants’ purchasing intentions for S74 were significantly lower than for S27, S33, S47, S49, S59 and S95; participants’ purchasing intentions for S95 were significantly higher than for S27 and S49; participants’ purchasing intentions for S95 were significantly lower than for S39, S47 and S74; participants’ purchasing intentions for S99 were significantly higher than for S27, S49 and S58; participants’ purchasing intentions for S99 were significantly higher than for S27, S49 and S58; participants’ purchasing intentions for S99 were significantly lower than for S47.

Based on the mean results, participants expressed higher purchasing intentions for S39 (M = 4.04, SD = 1.22) and S47 (M = 4.43, SD = 1.29), and higher purchasing intentions for S14 (M = 3.87, SD = 1.47), S27 (M = 3.12, SD = 1.62), S33 (M = 3.54, SD = 1.41), S49 (M = 3.05, SD = 1.55), S50 (M = 3.93, SD = 1.46), S58 (M = 3.52, SD = 1.35), S74 (M = 3.99, SD = 1.44), S95 (M = 3.60, SD = 1.56) and S99 (M = 3.80, SD = 1.29), for which they expressed the lowest purchasing intentions. However, participants perceived a significant difference between S39 and S47 (i.e., S39 < S47). Although participants expressed a willingness to purchase both S39 and S47, participants were significantly more willing to purchase S47 than S39.

Besides, combined with the fuzzy logic results (see Section 3.4), participants scored S39 and S47 higher on the harmonious and ordered dimension, 0.5790 and 0.6436, respectively. However, S49 had a lower score for the harmonious and ordered dimension. This suggests that the harmonious and ordered dimension is likely to be an important factor influencing participants’ purchasing intentions.

3.5. The Results of the Effect of Preference

According to the results of the general linear model shown in

Table 13. The results of the general linear model.

Source	SS	DF	MS	F	P	$\mathit{\eta }$2	LSD
Rear cameras (11 samples)	169.342	10	16.93	10.80	0.000 **	0.89	S14 < S47
							S14 > S27, S49, S58,
							S27 < S14, S33, S39, S47, S50, S58, S74, S95
							S99,
							S33 < S39, S47, S74,
							S33 > S27, S49,
							S39 > S27, S49, S58, S95, S99,
							S47 > S14, S27, S33, S49, S50, S58, S74, S95
							S99
							S49 < S14, S33, S39, S47, S50, S58, S74, S95
							S99,
							S50 < S47,
							S50 > S27, S49, S58,
							S58 < S14, S39, S47, S50, S74, S95, S99,
							S58 > S27, S49,
							S74 < S47,
							S74 > S27, S33, S49, S58,
							S95 < S39, S47,
							S95 > S27, S49,
							S99 < S39, S47,
							S99 > S27, S49, S58.

** Significantly different at $\alpha$ = ;0.01 level (p < 0.01).

, the main effect of preference for different smartphone rear cameras showed significant differences (F${}_{(10,1100)}$ = 10.80, p = 0.000 < 0.01). The post hoc test (i.e., LSD) results showed specific differences between samples; i.e., participants’ preference for S14 was significantly stronger than for S27, S49 and S58; participants’ preference for S14 was significantly weaker than for S47; participants’ preference for S27 was significantly weaker than for S14, S33, S39, S47, S50, S58, S74, S95 and S99; participants’ preference for S33 was significantly stronger than for S27 and S49; participants’ preference for S33 was significantly weaker than for S39, S47 and S74; participants’ preference for S39 was significantly stronger than for S27, S49, S58, S95 and S99; participants’ preference for S47 was significantly stronger than for S14, S27, S33, S49, S50, S58, S74, S95 and S99; participants had a significantly weaker preference for S49 than for S14, S33, S39, S47, S50, S58, S74, S95 and S99; participants had a significantly stronger preference for S50 than for S27, S49 and S58; participants had a significantly weaker preference for S50 than for S47; participants had a significantly stronger preference for S58 than for S27 and S49; participants had a significantly weaker preference for S58 than for S14, S39, S47, S50, S74, S95 and S99; participants had a significantly stronger preference for S74 than for S27, S33, S49 and S58; participants had a significantly weaker preference for S74 than for S47; participants had a significantly stronger preference for S95 than for S27 and S49; participants had significantly weaker preference was significantly weaker than for S39 and S47; participants’ preference for S99 was significantly stronger than for S27, S49 and S58; participants’ preference for S99 was significantly weaker than for S39 and S47.

Based on the mean results, participants expressed comparative preferences for S39 (M = 4.25, SD = 1.20), S47 (M = 4.47, SD = 1.27) and S74 (M = 4.11, SD = 1.37); and for S14 (M = 3.94, SD = 1.54), S27 (M = 3.24, SD = 1.57), S33 (M = 3.68, SD = 1.38), S49 (M = 3.20, SD = 1.54), S50 (M = 3.99, SD = 1.51), S58 (M = 3.59, SD = 1.27), S95 (M = 3.78, SD = 1.55) and S99 (M = 3.87, SD = 1.29) they indicated the opposite. However, participants perceived a significant difference between S47 and S74 (i.e., S47 > S74). Although participants expressed a preference for both S47 and S74, participants liked S47 significantly more than S74.

4. Conclusions

This research applied a consolidated approach of MDS, cluster analysis, questionnaires among experts, factor analysis and fuzzy theory to study the visual images of smartphone rear cameras. Due to the fact that the accuracy of the evaluation samples and image adjectives would have further affected the objectivity and accuracy of the research outcome, we first used MDS and cluster analysis to sort out the representative samples; then through an expert-questionnaire and factor analysis, the image adjectives were efficiently selected. Lastly, triangular fuzzy number operation in the area of fuzzy theory was used to further analyze the visual image evaluations of the smartphone rear cameras. The sample selection method in this study was a scientific technique. This study differed from previous studies in that the samples were converted to 2D images to avoid confounding factors, such as color and brand preference. The study also unpacked the composition of the smartphone rear camera (as shown in Figure 2) so that companies and designers can make better use of the findings of this study.

The outcomes show that different shapes of smartphone rear cameras present unique visuals. A total of 11 representative samples had distinct evaluation results in the dimensions of “innovative and fashionable” and “simple and pure,” but narrow distinctions in the aspects of “harmonious and ordered,” “premium and technical” and “superior and valuable.” Some of the samples contained similarities on the whole; for instance, for S14 and S99, some evaluation results were similar. Therefore, alternatives to those two might be taken into account by phone makers and designers.

The results of this research can be applied in the development of new smartphones. For the direction of further research, combining phone size proportion and colors might be considered. The approaches that have been shown in this paper, devised for the acquisition of visual image evaluation values of smartphone rear camera forms, entailed the establishment of an auxiliary design system for smartphones. Matters worthy of consideration are that disparities exist in the lives of users from different countries, which might lead to varied sentimental demands and aesthetic preferences. The participants were all from Taiwan or Mainland China, so they had similar cultural backgrounds. It is also advised that further research may take cultural background as a variate. If the inclination towards visual images on the part of users is correctly handled, then smartphones that comply to consumer thoughts and demands can be devised.
