Buildings 2012, 2(2), 43-62; doi:10.3390/buildings2020043

Article
Tall-Building Projects Sustainability Indicator (TPSI): A New Design and Environmental Assessment Tool for Tall Buildings
Binh K. Nguyen 1 and Hasim Altan 1,*
1
School of Architecture, The University of Sheffield, The Arts Tower, Western Bank Sheffield, S10 2TN, UK; Email: binhshef1985@gmail.com (B.K.N); Email: h.altan@sheffield.ac.uk (H.A)
*
Author to whom correspondence should be addressed; Email: h.altan@sheffield.ac.uk; Tel.: +44-0-114-222-0375; Fax: +44-0-114-222-0315.
Received: 13 February 2012; in revised form: 21 March 2012 / Accepted: 9 April 2012 /
Published: 16 April 2012

Abstract

: The paper presents the features of Tall-building Projects Sustainability Indicator (TPSI)—a “Sustainability Rating System” that specializes in tall-building projects. The system comprises two components; the “Technical Manual” in the form of a booklet and the “Calculator” in the form of an Excel tool. It can be used as a “design tool” and/or as a “checklist” to compare and to improve the sustainable performance of tall-building design schemes. At the same time, the system can be used to evaluate the sustainability of existing tall-building projects. The first version of the TPSI rating system (TPSI 2012 Version) was released as an online tool (GreenLight) and thoroughly examined and validated by multiple parties.
Keywords:
tall building; high-rise project; building sustainability; rating system; assessment method; environmental rating

1. Introduction

The market place for the design and construction of high performance buildings is dynamic and ever evolving. Professionals throughout the building industry use assessment rating systems to evaluate and differentiate their products or designs [1]. After more than 20 years of development, sustainable rating systems have become invaluable as sustainable development is now the global trend. Among the numerous developed rating tools, tall-building evaluation is a neglected area [2]. As there is as yet no specialized rating system for tall-buildings, most of the existing systems are used for all types of projects, which causes inappropriate and inaccurate decisions [2]. This research aims to improve the quality of tall-buildings’ sustainability assessment activities by developing a new sustainability rating system named “TPSI—Tall-building Projects Sustainability Indicator”. It has also established a set of standards for sustainable tall-buildings, which can be utilized for many purposes.

2. Gaps in Existing Rating Systems

2.1. The Confusion between “Green” and “Sustainable”

Environmentally progressive building practice is currently described using a variety of different tags: “green design”, “ecological design” or “sustainable design”. Although discussions regarding the most appropriate terminology describing environmentally progressive buildings can be deteriorated to meaningless semantics, the distinction between the notions of “green” and “sustainable” is critical in structuring environmental assessment methods [3]. These fundamental differences, surprisingly, often are neglected in existing rating systems. In original rating systems such as BREEAM (UK) or LEED (USA), these differences were quite well defined. In later generations of ratings systems (i.e., the systems that have been developed based on one or several original ones), the line between “green” and “sustainable” gradually faded away.

2.2. The Confusion between “Quantitative” and “Qualitative” Criteria

Assessing “building sustainability” performance, which is largely an issue of energy and mass flows, must be described in quantitative terms. On the other hand, the wider range of performance issues necessary within an assessment of “green” currently cannot avoid using more qualitative metrics to evaluate a building comprehensively [3]. A good combination of quantitative and qualitative criteria will ensure a thorough and sufficient evaluation. In contrast, any confusion will lead to inadequate structure of assessment criteria as a result of the ineffectiveness of the assessment.

2.3. The Confusion between “Assessment” and “Design”

This common confusion causes troubles for both the system’s developer (when building up assessment criteria) and users (when choosing among versions and using them to evaluate their buildings). For instance, although conceived as assessment tools to evaluate a completed building design, some existing rating systems such as BREEAM (UK), LEED (USA), GBTool (International), CASBEE, HK-BEAM (Hong Kong), etc. are commonly used as design tools. Whether or not a single system can function equally effectively as an assessment and as a design tool, is an important question. If the answer is “yes”, then what would be necessary in an assessment tool to enable it to be useful in design? The answer lies in the structure of the assessment framework and with the skill and enterprise of the users [4].

2.4. Specialization

Tall-buildings have very distinctive technical and architectural features in comparison to other types of building. Low and medium-rise buildings, whether residential, commercial centers, schools or offices, all have similar construction, operation and demolition procedures. Tall-buildings, on the other hand, have totally different procedures and there is a need for specialized assessment criteria to be adequately evaluated. Existing rating systems which are commonly used to assess tall-buildings, such as BREEAM Office, CASBEE New Construction, GREEN STAR Office Design or HK-BEAM New Buildings, seriously lack dedicated assessment criteria for tall-buildings. Specifically, in the following areas: Construction technologies and procedures, foundation construction, building services, social and economic aspects, material utilization, energy utilization, earthquake management, living quality inside tall-buildings, etc. [2].

2.5. Bulkiness

The systems of assessment criteria of existing tools such as BREEAM, LEED, CASBEE, GREEN STAR, etc. are often very rich in technical contents. Normally an individual architect cannot even finish the assessment process on his own because of lacking specialized technical knowledge. It often takes several days or even several weeks to finish an assessment (data collection, data input, document gathering, etc.) [2]. This then becomes a major issue in the design stage, where these tools are likely to be used again and again to test different design solutions.

3. TPSI Rating System

3.1. The Visions

The visions for TPSI rating scheme encompass the following main points:

TPSI is strictly a “Design” tool. Its interface, assessment method, result presentation and other features are dedicated to improving sustainable performance at the early stages of projects.

TPSI is specialized for high-rise buildings only (i.e., buildings of more than 20 stories). This means TPSI has a unique and dedicated system of assessment criteria and assessment methods, which increases the accuracy of the evaluations over other rating schemes.

TPSI is designed to be a user friendly, concise and handy tool. Assessment criteria are simplified and presented in an easy-to-understand way. The data inputting process will be speeded up. Technical inputs that are difficult to retrieve will be limited. TPSI is able to produce quick and sufficient evaluations, which makes it most suitable at the design stage when comparing different design schemes.

TPSI’s assessment criteria system is a harmony of Quantitative and Qualitative criteria.

Assessment results are presented in a well-defined and easy-to-communicate manner.

Results are in presented in the form of ratings, charts and graphs, enhancing the comparability of the outputs.

Setting a higher standard for sustainable tall-buildings/projects.

3.2. The Structure of TPSI

The TPSI system (2012 Version) comprises two components: The “Manual” (in the form of a booklet), and The “Calculator” (in the form of a Microsoft Excel tool). Users will claim “credits” for their tall building project by demonstrating compliance with the assessment criteria that are detailed in the “Manual”. The achieved credits will be inputted into the “Calculator” accordingly. The “Calculator” will then produce assessment results in form of ratings (percentage), charts, graphs, comments and recommendations on how to improve the design, etc.

3.3. Scope of Assessment

3.3.1. Types of Buildings that can be Assessed by TPSI

TPSI is specialized for buildings of more than 20 stories or more than 60 meters in height, regardless of their functions. There are many reasons for this choice of threshold, but the most important one is: 20 stories is the threshold where all the design, planning, construction, maintenance and deconstruction of a building change dramatically. This threshold was actually set a long time ago by the renowned architect/engineer Fazlur Khan in 1969 [5]. Khan classified structural systems for tall buildings relating to their height with considerations for efficiency in his “Heights for Structural Systems” diagrams (see Figure 1). According to Khan’s work, the 20 stories is the efficiency limit (in term of both structural and economic aspects) of concrete framed structures. He also further suggested that steel structures should not be less than 20 stories to be most sufficient.

Buildings 02 00043 g001 200
Figure 1. Classification of tall building structures by Fazlur Khan (top: Steel; bottom: Concrete).

Click here to enlarge figure

Figure 1. Classification of tall building structures by Fazlur Khan (top: Steel; bottom: Concrete).
Buildings 02 00043 g001 1024

This 20 stories threshold was again confirmed by Ali and Moon in 2007. In their very thorough research [6], they have established that the Efficient Height Limit of the traditional concrete interior-rigid-frame structure is 20 stories. When surpassing this threshold, the elements affecting height, such as lateral forces, shear lag, structure self-weight, elevator and other types of space allocations, economic, construction technologies, maintenance requirements, etc. necessitate further considerations of structure, in particular, and design strategies in general.

Please note that there are many theories and definitions for tall-buildings. This 20 stories threshold is chosen because it is most suitable for TPSI only; it is not an attempt to set a new definition that can be applied everywhere.

3.3.2. Stages of Assessment

TPSI is most suitable to be used during the following stages:

Design Stage: a Design Stage Assessment represents the performance of the tall-building prior to the beginning of operations on site. To complete an assessment at this stage, the design must be advanced to the point where the relevant information is available to enable the user to demonstrate, in a robust manner, the building’s performance against the reporting and evidential criteria of the TPSI Technical Manual. A design stage assessment cannot be verified by a third party due to the lack of actual documented evidences.

Post-Construction Stage: The Post-Construction Assessment represents the final “as built” performance and TPSI rating. A post-construction assessment can be verified by a third party if all documented evidences are available.

3.3.3. Types of Projects that can be Assessed by TPSI

A TPSI assessment can be carried out at the above stages for the following types of tall-building projects:

Whole new tall-building;

Major refurbishments of existing tall-buildings;

New-build extensions to existing tall-buildings;

A combination of new-build and existing building refurbishment;

New-build or refurbishments which are part of a larger mixed use building;

Existing building fit-out.

3.4. Assessment Criteria System—The “Manual”

TPSI contains 119 default issues divided into eight categories, covering all aspects of sustainable tall building development. These eight categories are further divided into two main groups. There is one additional category that allows users to earn extra credits for innovative features of their project or for exceeding the design standard stated in the “Manual”. A certain number of “credits” are available for each issue. Table 1 summarizes TPSI’s assessment criteria system and corresponding credits.

Table Table 1. TPSI’s system of assessment criteria.

Click here to display table

Table 1. TPSI’s system of assessment criteria.
B—Building PerformanceCreditsE—Environmental PerformanceCredits
B1. Project Management (PM)29E1. Resources Consumption (RC)44
PM1. Basic Principles3RC1. Land Use & Re-use2
PM2. Environmental Management5RC2. Land Use Efficiency1
PM3. Site Investigation3RC3. On-site Resources1
PM4. Whole-life Approach2RC4. Annual Water Consumption4
PM5. Site Design Appraisal1RC5. Monitoring and Control2
PM6. Choice of Construction Process1RC6. Water Efficient Irrigation1
PM7. Construction Site impacts4RC7. Water Harvesting and Recycling3
PM8. Construction Safety2RC8. Water Efficient Facilities & Appliances1
PM9. Contractual & Procurement3RC9. Innovative Wastewater Technologies1
PM10. Commissioning2RC-P1. Basic Energy PerformanceRequired
PM11. Operation Management Plan1RC10. Energy Use Reduction18
PM12. Building User Guide1RC11. Energy Use in Car Parks & Public Areas2
PM13. Demolition Management Plan1RC12. Low or Zero Carbon Technologies4
B2. Indoor Environmental Quality (IEQ)35RC13. Clothes Drying Facilities1
IEQ-P1. Minimum VentilationRequiredRC14. Energy Efficient Appliances1
IEQ1. Water Quality1RC15. Metering and Monitoring2
IEQ2. Plumbing and Drainage1E2. Material Aspects (MA)20
IEQ3. Biological Contamination1MA-P1. Timber Used for Temporary WorksRequired
IEQ4. Waste Disposal Facilities1MA1. Materials Specification8
IEQ5. ETS control1MA2. Certified Wood1
IEQ6. Construction IAQ Management2MA3. Rapidly Renewable Materials2
IEQ7. Outdoor Sources of Air Pollution2MA4. Recycled Content2
IEQ8. Indoor Sources of Air Pollution3MA5. Regional Materials2
IEQ9. IAQ in Car Parks1MA6. Building Reuse1
IEQ10. Increased Ventilation1MA7. Modular and Standardized Design1
IEQ11. Natural Ventilation1MA8. Prefabrication1
IEQ12. Localized Ventilation2MA9. Efficient Structure Design1
IEQ13. Ventilation in Common Areas2MA10. Design for Robustness1
IEQ14. Thermal Comfort Design2E3. Environmental Loading (EL)32
IEQ15. Thermal Zoning1EL1. Construction/Demolition Waste2
IEQ16. Natural Lighting & Glare2EL2. Recycled and Secondary Aggregates1
IEQ17. Interior Lighting 12EL3. Waste Recycle Facilities1
IEQ18. Interior Lighting 21EL4. Compactor/Baler1
IEQ19. High Frequency Lighting1EL5. Compositing1
IEQ20. Lighting Zones and Control1EL6. Land Pollution1
IEQ21. View Out1EL7. Refrigerant Use and Leakage3
IEQ22. Room Acoustics1EL8. NOX Emissions3
IEQ23. Noise Isolation0EL9. Water Pollution1
IEQ24. Background Noise1EL10. Flood Risk3
IEQ25. Indoor Vibration1EL11. Noise Pollution1
IEQ26. Private Open Space1EL12. Light Pollution1
IEQ27. Visual Privacy1EL13. Overshadowing and Views1
B3. Building Services (BS)17EL14. Protection of Ecological Value1
BS1. Access for Persons with Disability1EL15. Mitigation of Ecological Impacts2
BS2. Amenity Features1EL16. Enhancement of Ecological Value3
BS3. Water Supply & Drainage System1EL17. Long-term Impact on Bio-diversity2
BS4. Electrical Equipment1EL18. Surrounding Microclimate4
BS5. HVAC System1E4. Social & Economic Aspects (SE)16
BS6. Communications & IT Equipment1SE1. Public Transport3
BS7. Service Life of Components2SE2. Pedestrian and cyclist3
BS8. Maintenance of Core Functions1SE3. Maximum Car Parking Capacity1
BS9. Security1SE4. Travel Plan1
BS10. Fire Safety and Evacuation3SE5. Neighborhood Amenities1
BS11. Lifts1SE6. Local Character1
BS12. Escalator & Walkways1SE7. Historic Environment1
BS13. Earthquake Resistance2SE8. Life Cycle Cost and Payback Time2
B4. Design Features (DF)12SE9. Affordability of Rental/Cost Levels1
DF1. Energy Efficient Building Layout2SE10. Support of Local Economy1
DF2. Provision of Space1SE11. Mixed-use Development1
DF3. Maintenance Management2
DF4. Spatial Flexibility3Innovations (IN)16
DF5. Spatial Margin2IN1. Innovative Strategies & Technologies5
DF6. Floor Load Margin1IN2. Exemplary Performance11
DF7. Adaptability of Facilities1

3.5. Assessment Methodology

There are two main elements that can determine a Tall-building’s rating:

The Total Score; and

The Balance Factor (or TPSI Factor).

3.5.1. The Total Score

The TPSI Total Score is calculated as follows:

For each TPSI section, the users must determine the number of credits achieved in accordance with TPSI’s assessment criteria (detailed in the “Manual”). The percentage of the credits achieved is calculated for each TPSI section.

A weighting system is applied to all Section Scores to reflect the importance of each category.

The percentage of credits achieved is then multiplied by the corresponding TPSI Sections’ weighting factor. This gives the “Section Score”.

Section Scores and the Innovation Section score are then added together to give the Total Score.

3.5.2. The TPSI Factor

The TPSI Factor is calculated as follow:

As shown in Table 1, the assessment criteria are grouped into two main categories: the “B Group” which stands for “Building Performance”, and the “E Group” which stands for “Environmental Performance”. The main idea behind this is to assess the balance between the building’s performance and the loadings to the environment in order to achieve that performance level (see Figure 2).

Buildings 02 00043 g002 200

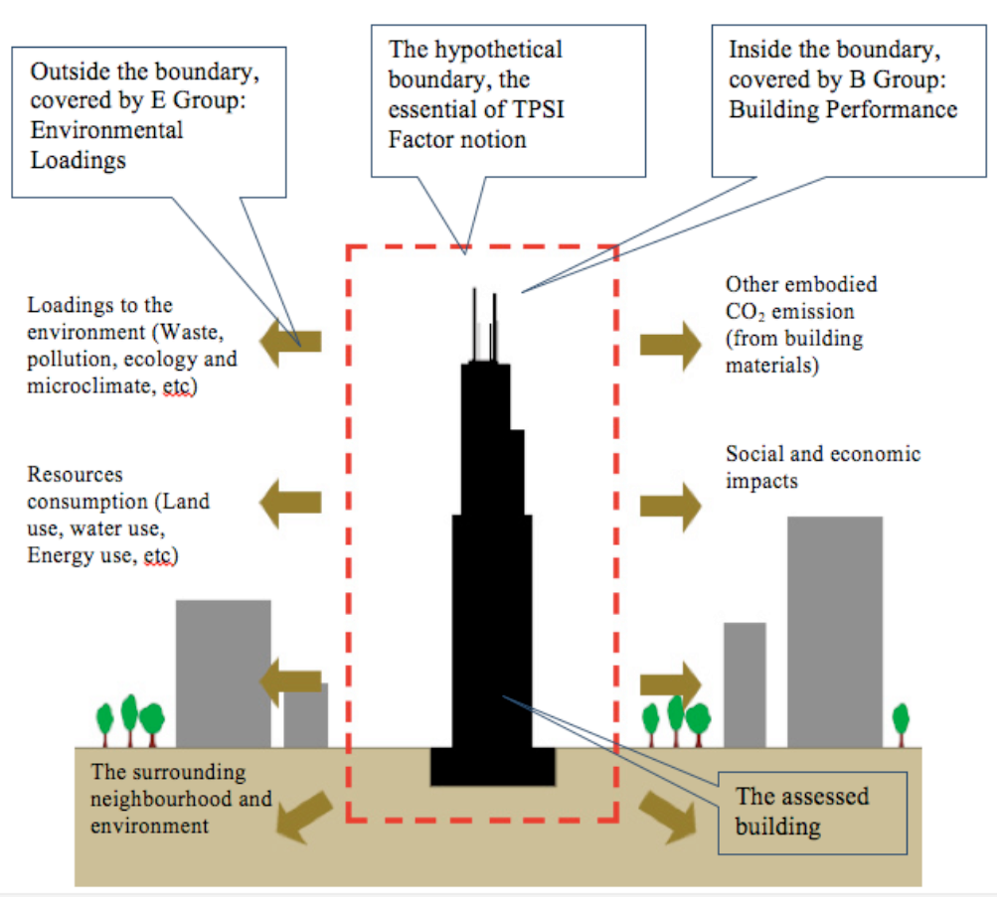

Figure 2. The mechanism behind TPSI Factor.

Click here to enlarge figure

Figure 2. The mechanism behind TPSI Factor.
Buildings 02 00043 g002 1024

The percentage of the credits achieved is calculated for both groups. These are expressed as the Total Score for B and the Total Score for E.

The TPSI factor is defined as B/EL: EL (Environmental Loadings) = 100%—Total Score for E.

B and EL are plotted on a graph, with EL on the X axis and B on the Y axis. The higher the B value and the lower the EL value, the steeper the gradient and the more sustainable the building is (see Figure 3).

Buildings 02 00043 g003 200

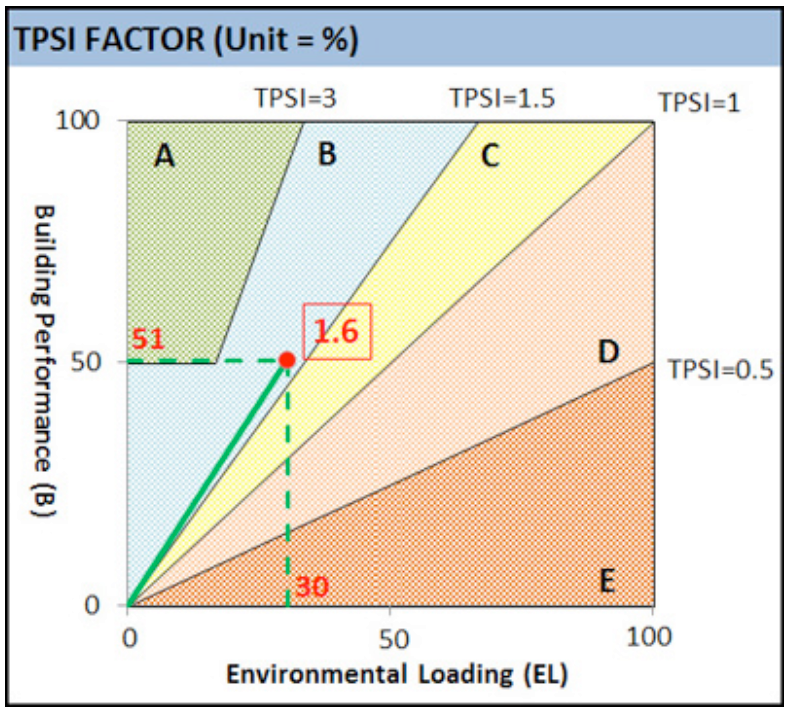

Figure 3. A sample calculation of TPSI Factor.

Click here to enlarge figure

Figure 3. A sample calculation of TPSI Factor.
Buildings 02 00043 g003 1024

3.5.3. TPSI Rating

TPSI introduces a labeling classification of five levels to rate the sustainable performance of a tall-building project (A, B, C, D, E—with A being optimal) (see Table 2). The users do not have to do any of these calculations themselves, including the calculations related to special issues (i.e., issues that can be scoped out or can be achieved by default, prerequisite issues, etc.). They only have to claim the credits using the TPSI Calculator. All the calculations and results are automatically generated.

Table Table 2. TPSI ranking.

Click here to display table

Table 2. TPSI ranking.
RankTotal ScoreTPSI FactorComments
E

3.6. Assessment Process—The “Calculator”

The “Calculator” incorporates all assessment mechanisms into an intricately coded Excel tool. All the users have to do is to put in the project’s information and claim the credits achieved. The Calculator will automatically calculate the Section Scores, apply the weighting, calculate the Total Score and TPSI Factor, produce graphs, charts, design recommendations, etc. TPSI Calculator is password-protected so users cannot change the core contents of the software; they can only input the project information and claim credits where awarded. TPSI Calculator 2012 Version contains 13 tabs in total (see Table 3).

Table Table 3. Summary of TPSI Calculator’s tabs.

Click here to display table

Table 3. Summary of TPSI Calculator’s tabs.
Tab NameDescriptionNote
INTRODUCTION- Credits
HOW TO USE- What do TPSI rankings mean?
PROJECT INFO.Project InformationInput tab
B1. PMAssessment criteria according to 4 categories of Group B—Building PerformanceAssessment tabs
B2. IEQ
B3. BS
B4. DF
E1. RCAssessment criteria according to 4 categories of Group E—Environmental Performance
E2. MA
E3. EL
E4. SE
INAssessment criteria according to “Innovation” category
RESULTResult Presentation

3.6.1. How to Use

The simplified steps to assess a tall-building project using TPSI are as follow:

Step 1: Enter the required project details into the “Project Info” tab. Refer to the notes at the end of the “Project Info” tab for instructions on inputting related information.

Step 2: Switch to the next tab (“B1. PM”). Input the archived credits for each issue by selecting from the drop-down lists. Summarize the design considerations for the related category in the box at the end of the tab.

Step 3:         During the assessment process, refer to the TPSI Technical Manual 2012 Version for further guidance on assessment criteria/procedures and required evidence in order to score  each corresponding issue.

Step 4:         For some particular issues, there are options to scope out some or all available credits. Select the appropriate available credits from the drop-down list and then input achieved credits as in Step 2. Refer to the TPSI Technical Manual 2012 Version for requirements needed to scope out available credits.

Step 5:         Repeat Steps 2–4 for all remaining tabs (from “B2. IEQ” to “IN”).

Step 6:         Switch to the last tab (“Result”) for assessment results.

3.6.2. “Project Info” Tab and the Dynamic Weighting System

A weighting system is applied to all Category Scores to reflect the importance of each category. The default weighting factors applied to each assessment criteria category is as shown in Table 4. The default weighting factors were determined by consulting the criteria systems of some popular existing rating systems such as BREEAM, LEED, CASBEE, Green Star, HK-BEAM, etc. However, this weighting system is not fixed, it can automatically change based on the project’s characteristics.

Table Table 4. Default weighting factors.

Click here to display table

Table 4. Default weighting factors.
CategoriesB1B2B3B4E1E2E3E4IN
Weighting factors11%14%9%8%18%8%15%9%8%

It is critical to understand that the value of weighting factors, important as it is, should not be central to an environmental rating tool. Assigning weighting factor to reflect the importance of a certain aspect toward overall sustainability is indeed a very good strategy. However, even with internationally renowned systems such as BREEAM or LEED, the allocation of credits (another expression of weighting factors), is always an internal process and cannot be correct everywhere. A single set of weighting factors cannot represent the interrelation of sustainability aspects of all countries and regions worldwide. Trying to establish an “ideal” set of weighting factors, is therefore a rather pointless endeavor. In fact, it is more reasonable to allow the alteration of weighting factors according to different contexts (the Dynamic Weighting System). Green Star has adopted this strategy successfully: employing different weighting factors for different states of Australia, so the system can be used in various regions with higher accuracy.

By applying a dynamic weighting system, TPSI can adapt itself to different contexts and different types of tall-building projects. Changing the weighting factor of each category means changing its contribution towards the overall score and also reflecting its varied importance in different contexts, and therefore it produces a more accurate evaluation. This is a highly important advantage of TPSI over other existing rating systems.

Figure 4 shows some screenshots of the “Project Info” tab. This is where users fill in information about their tall-building project (project name, location, completion date, construction and gross floor area, number of floors, height, occupancy, climate zone, building type, special technical systems, structure types, etc.). All these data will be used to calculate the weighting factor for each criteria category. At the moment, TPSI 2012 Version’s weighting factors are dependent on three factors:

-       Climate zones (Cold-polar, Hot-humid, Hot-dry or Temperate);

-       Project’s social context (City-centers or Rural Areas);

-       Building types (Mixed-use, Office, Commercial, Residential, Hotel, Health-care or Education).

Buildings 02 00043 g004 200

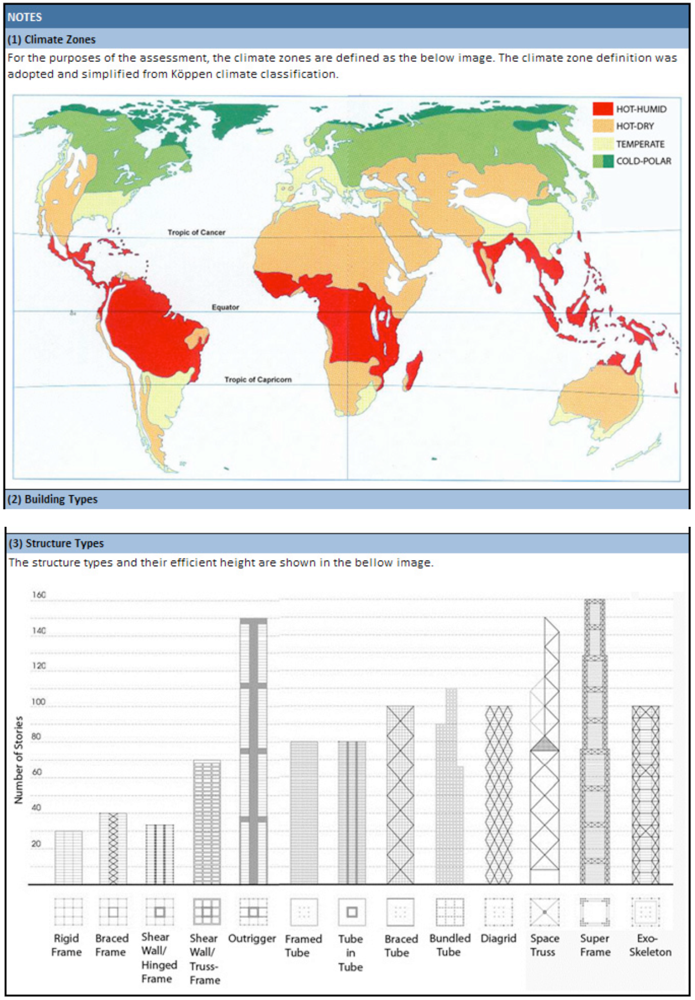

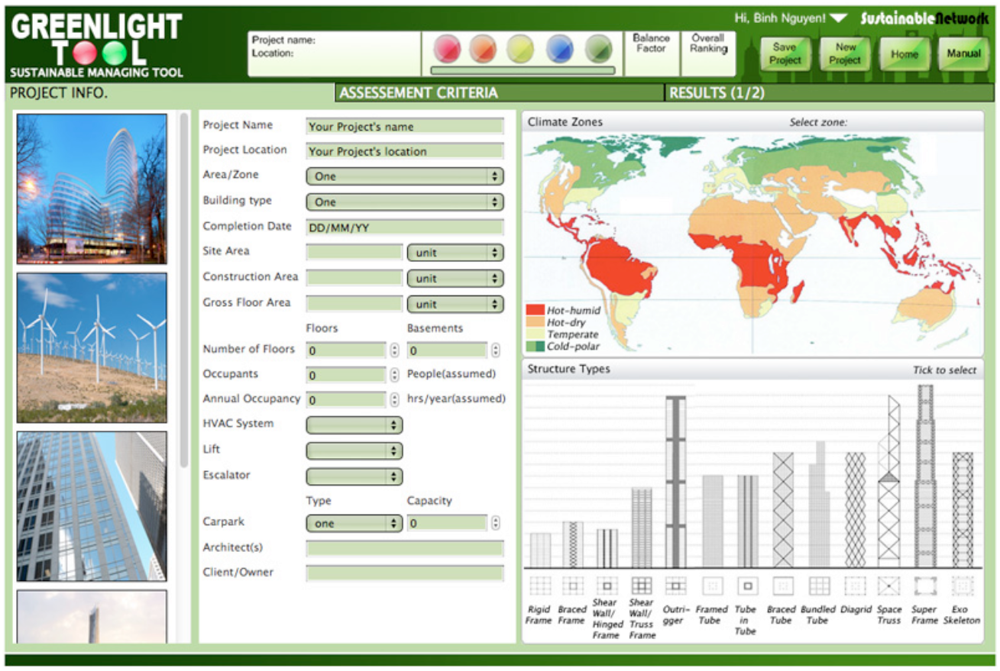

Figure 4. “Project Info” tab—screenshots.

Click here to enlarge figure

Figure 4. “Project Info” tab—screenshots.
Buildings 02 00043 g004 1024

3.6.3. Assessment Tabs

Users will claim credits for their project using nine assessment tabs, according to eight main categories and an “Innovation” category. These nine tabs are similar in terms of layout. Figure 5 shows a sample screenshot of one of the assessment tabs. Users do not have to finish off an “Assessment” tab before switching to another one. They can freely examine and work with TPSI issues in the order provided or according to their own priorities, thus gradually improving their project’s aspects as it is being developed. Some issues allow the option out of cancellation in case they are not appropriate to the project. Section Scores are automatically updated and design recommendations to improve project’s performance are generated.

Buildings 02 00043 g005 200

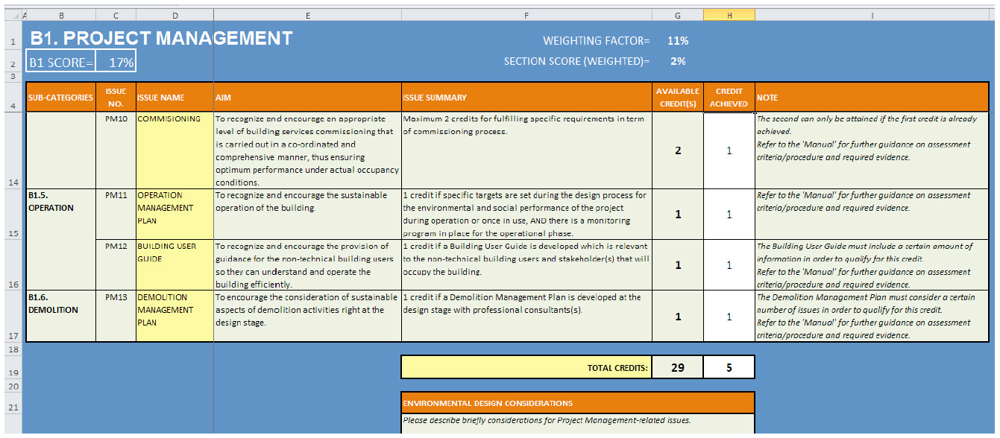

Figure 5. Sample screenshot of an Assessment tab.

Click here to enlarge figure

Figure 5. Sample screenshot of an Assessment tab.
Buildings 02 00043 g005 1024

3.6.4. “Result” Tab

The “Result” Tab presents the assessments, evaluations, charts, graphs, design recommendations, summaries, overall ranking and other outcomes of the evaluation process. Figure 6 shows an example of some main charts, graphs and ranking available in the “Result” tab.

4. TPSI in Practice

4.1. The Trial Period

The Trial Period, which commenced in October 2010, was divided into two main phases: the Self-testing Phase and the External-testing phase (or the Interview Process). During the Self-testing Phase, with the acknowledgement and support of Christopher Jones Studentship (University of Sheffield, School of Architecture), technical issues of TPSI were solved; and the first complete version of TPSI was ready to use. In the External-testing Phase, various aspects of TPSI were scrutinized and evaluated by multiple parties; and, based on the participants’ feedbacks, TPSI was continuously perfected.

Buildings 02 00043 g006 200

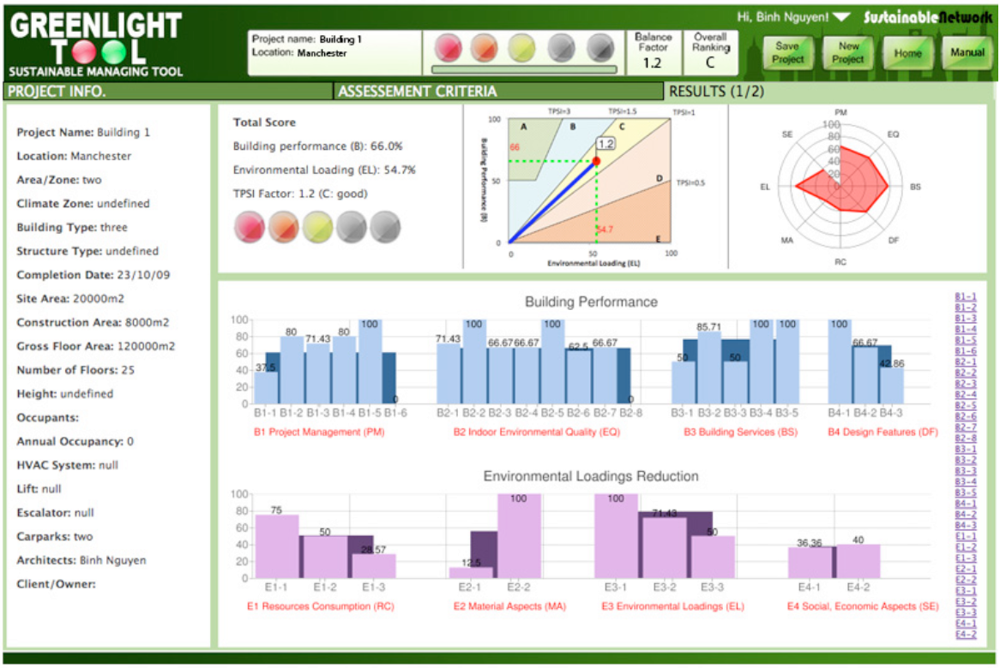

Figure 6. “Result” tab—screenshot.

Click here to enlarge figure

Figure 6. “Result” tab—screenshot.
Buildings 02 00043 g006 1024

TPSI was thoroughly reviewed during the Interview Process by a criteria system of nine categories (see Table 5). The Interview Process produced a reliable comparison between TPSI and other well-established existing rating systems (i.e., BREEAM, LEED, CASBEE, etc.) when being used in the case studies (tall-building projects).

Table Table 5. Points achieved by rating systems as a result of the Interview Process.

Click here to display table

Table 5. Points achieved by rating systems as a result of the Interview Process.
TitleTPSIBREEAMLEEDCASBEEHK-BEAMLOTUSGreen MarkGreen Star
Availability (/10)89978877
Methodology (/15)1211111210101111
Applicability (/20)1715151413111212
Data Collecting (/8)65756666
Accuracy (/12)101010119888
User-friendliness (/5)54534445
Results Presentation (/8)86776666
Standard Level (/10)88888777
Performance Improvement (/12)119877687
Total (/100)8577807472666969

Based on the opinions of the participants (Table 5), TPSI’s performance in the case studies was rated highest (85 points). This result is considered to be reliable considering the class and credibility of the interviewees as well as the number of case studies. The “Applicability” of TPSI was very well appreciated (scored 17/20 points compared to 15 points of both BREEAM and LEED), which proved the suitability and effectiveness of the assessment criteria system. Its “Methodology” point was also higher than that of BREEAM and LEED (12/15 compared to 11/15), which means the assessment process functioned smoothly. The design of TPSI Calculator earned it the highest score in the “Results Presentations” criterion (8/8). Most importantly, tall-building projects that utilized TPSI had improved their sustainability aspects more than all other rating systems, expressed by the “Performance Improvement” point of 11/12, compared to 9/12, 8/12 and 7/12 of BREEAM, LEED and CASBEE respectively.

The Interview Process also revealed TPSI’s drawbacks. While TPSI’s “Availability” can only be improved after it becomes available to general users, other features can be enhanced. The “Data Inputting” process, at the moment, is over scored by LEED (6/8 compared to 7/8). This has been foreseen as a limitation of the research, since the human resources are not enough to build up some of assessment mechanisms, resulting in the fact that users have to refer to external standards while working in several TPSI issues. Also, the standard level of TPSI was not rated higher than that of BREEAM and LEED although it was one of the initial goals. This feature has been improved by the modification of TPSI Issues’ requirements.

To conclude, the Trial Period indicated TPSI’s advantages and disadvantages when being used in reality, which in turn helped in perfecting the rating system. It has successfully confirmed TPSI’s values as well as the contributions of the research. Opportunities also arose during this period, which afforded further development of the research and extra validation of TPSI rating system.

4.2. The KTA Proof of Concept Funded TPSI Project

In March 2011, the research received a £ 50,000 EPSRC (the Engineering and Physical Sciences Research Council of the UK) funding from the University of Sheffield’s Knowledge Transfer Account (KTA) to develop TPSI further into a commercial online rating tool. A KTA Proof of Concept project was established, which was named “TPSI Project”, and is now under development.

The core of the project is the development of TPSI into a Web-based Design/Rating Tool (under the new name—“GreenLight”). The online tool will allow users to:

Log in and register their high-rise projects;

Use the online system to assess the sustainability of their projects;

Use the online system as a design tool or a checklist to follow up and manage their projects throughout its’ stages;

View other rated projects, compare them with their own projects, learn from the others;

Communicate with other users;

The online tool would be a huge library of tall-building projects. The system would not simply be a rating tool anymore. It will collect all information about a project when it is registered (design, technical information, sustainable strategies, etc.) and make them valuable to other users.

The second stage is to develop a social-network for individuals and organizations that work in the Built Environment worldwide, named “Sustainable Network”. The network will create an online community, an all-in-one stop for anyone involved in the Built Environment. Users will have access to an open and interactive community filled with opportunities. The network will also be equipped with interactive design and management applications. A free Projects Library will also be opened to the public where users can get information about Sustainable Projects worldwide. Users themselves will help in developing this library.

TPSI and other third-party applications will be available on this network, making it the perfect platform to promote and publicize the TPSI rating scheme. This is what has been missing from other rating schemes, and what will make this project unique, apart from the tool itself. Figures 7–10 show some screenshots of the GreenLight online tool and the Sustainable Network. Both the tool and the network will be available at: http://www.sustainable-network.org.

Buildings 02 00043 g007 200
Figure 7. GreenLight Tool—Screenshot.

Click here to enlarge figure

Figure 7. GreenLight Tool—Screenshot.
Buildings 02 00043 g007 1024
Buildings 02 00043 g008 200
Figure 8. GreenLight Tool—Sample building assessment.

Click here to enlarge figure

Figure 8. GreenLight Tool—Sample building assessment.
Buildings 02 00043 g008 1024
Buildings 02 00043 g009 200

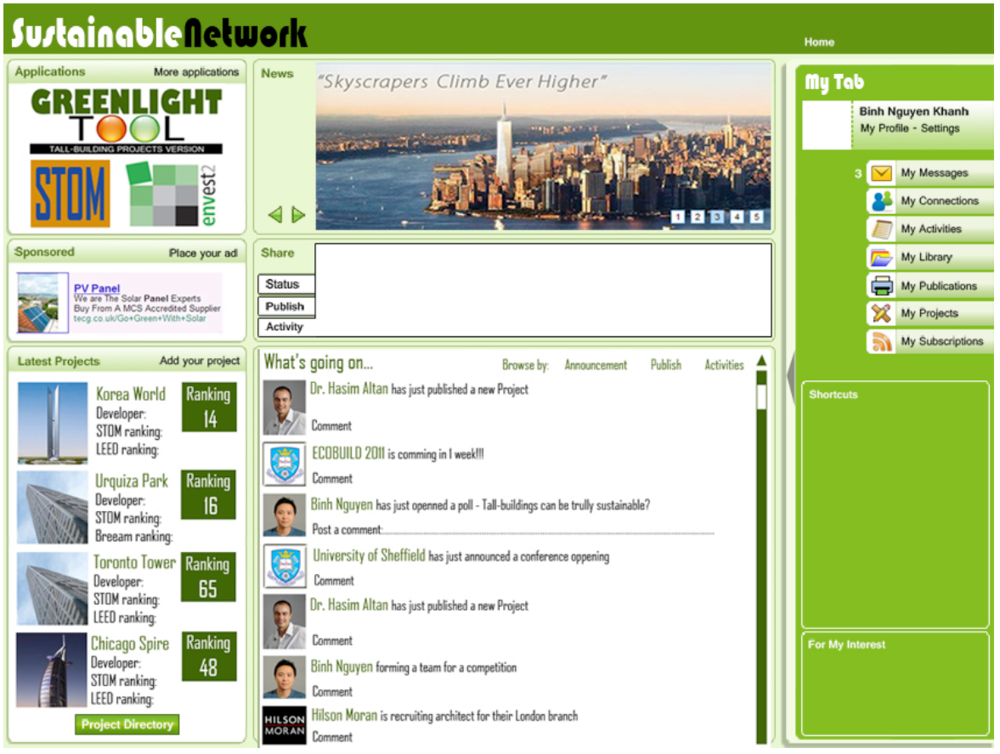

Figure 9. Sustainable Network—screenshot.

Click here to enlarge figure

Figure 9. Sustainable Network—screenshot.
Buildings 02 00043 g009 1024
Buildings 02 00043 g010 200

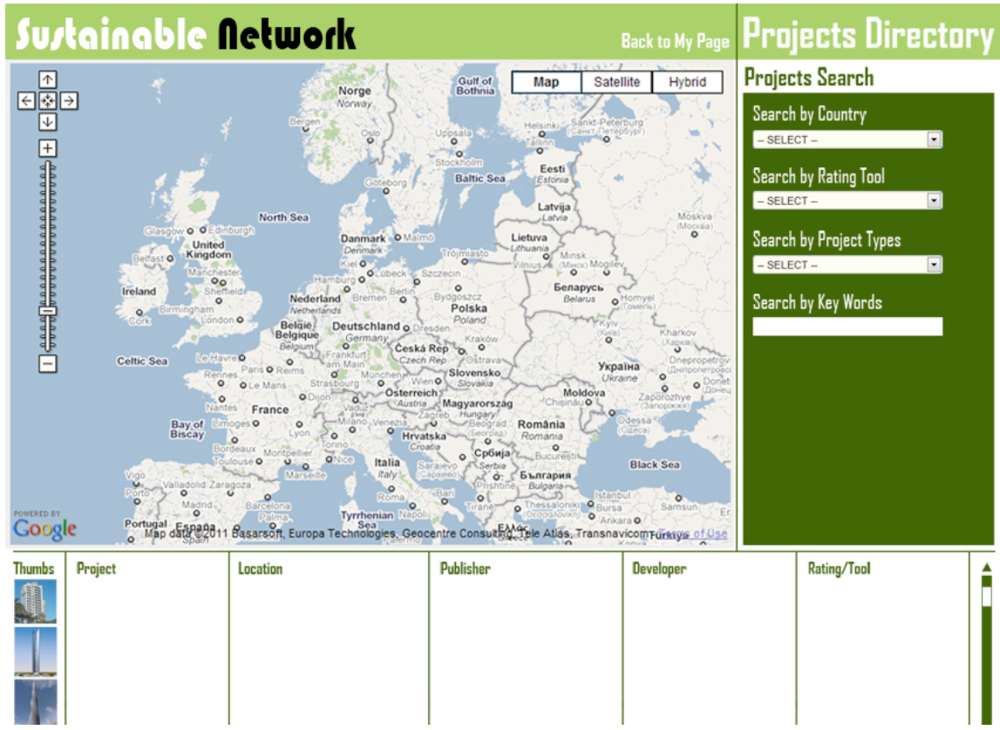

Figure 10. Sustainable Network—Project Directory.

Click here to enlarge figure

Figure 10. Sustainable Network—Project Directory.
Buildings 02 00043 g010 1024

5. Conclusions

TPSI Rating System is the outcome of an intensive research into tall-buildings and the assessment of their sustainability. The System not only contributes to the development of sustainability evaluation methods but also raises a new standard for high-performance tall-buildings. This paper summarizes the main features and advantages of TPSI, which proved to be effective in reality. The creation of TPSI has been appraised positively by multiple parties. Its values and advantages have also been validated in many tall-building projects both inside and outside of the UK. With the development of this online tool and the Sustainable Network, it is believed that TPSI will offer remarkable contributions to the Built Environment.

Acknowledgements

The authors would like to acknowledge the support of the University of Sheffield (UK); School of Architecture for providing the Christopher Jones Studentship and the KTA Proof of Concept Fund. In particular, Building Environments Analysis Unit (BEAU) research centre for providing suitable grounds for such an important project to take place (www.beau-research.co.uk). Other experts also participated during the market research phase, namely Professor Lorna Walker of Walker Consulting Ltd and Pascale Scheurer of Surface to Air Architects. Further support was also provided by Vietnamese Ministry of Construction and Vietnam Green Building Council during the trial period of TPSI Tool.

References

  1. Rauch, E.M.; Fowler, K.M. Sustainable Building Rating Systems Summary; Pacific Northwest National Laboratory,US Department of Energy: Washington, DC, USA, 2006.
  2. Nguyen, B.K. TPSI—Tall-Building Projects Sustainability Indicator. PhD thesis, The University of Sheffield, Sheffield, UK.
  3. Cole, R.J. Building environmental assessment methods: Clarifying intentions. Build. Res. Inf. 1999, 27, 230–246, doi:10.1080/096132199369354.
  4. Mitchell, L.; Cole, R.J. Customizing and using GBTool: Two case-study projects. Build. Res. Inf. 1999, 27, 257–275, doi:10.1080/096132199369372.
  5. Khan, F.R. Recent Structural Systems in Steel for High-Rise Buildings. In Proceedings of the British Constructional Steelwork Association Conference on Steel in Architecture, 24–26 November 1969; London, UK.
  6. Moon, K.S.; Ali, M.M. Structural developments in tall buildings: Current trends and future prospects. Archit. Sci. Rev. 2007, 50, 205–223, doi:10.3763/asre.2007.5027.
  7. Altan, H.; Nguyen, B.K. TPSI—Tall-Building Projects Sustainability Indicator. In Proceedings of 2011 International Conference of Green Buildings and Sustainable Cities—Procedia Engineering, Bologna, Italy, September 2011; 21, pp. 387–394.
  8. Altan, H.; Nguyen, B.K. Comparative Review of Five Sustainability rating systems. In. In Proceedings of the 2011 International Conference of Green Buildings and Sustainable Cities—Procedia Engineering, Bologna, Italy, September 2011; 21, pp. 376–386.
  9. Altan, H.; Nguyen, B.K. Strategies to Reduce Lateral Forces on High-rise Buildings that Use Diagrid Structural System. In. In Proceedings of the 2011 World Congress on Engineering and Technology—IEEE Press, Shanghai, China, November 2011; 5, pp. 795–798.
  10. Nguyen, B.K. Assemble high-rise housing—A solution to Vietnam’s housing issues [in Vietnamese]. Archit. J. Vietnam Archit. Assoc. 2009, 167, 27–32.
  11. Beetstra, F. Beyond LCA: Building Related Environmental Decisions. In Proceedings of the CIB TG8 2nd International Conference on Buildings and the Environment, Paris, France, June 1997; 2, pp. 565–573.
  12. Leaman, A.; Bordass, W. Future buildings and their services. Build. Res. Inf. 1997, 25, 3–16.
  13. Bose, R.K. Energy Efficient Cities: Assessment Tools and Benchmarking Practices; World Bank Publications: Washington, DC, USA, 2010.
  14. Campbell, E. Assessment of Tools for Rating the Performance of Existing Buildings: A Report on the Options; GVRD: Vancouver, BC, Canada, 2006.
  15. Stankovic, S.; Campbell, N.S. Wind Energy for the built Environment; Economic Development Office,Corporation of London: London, UK, 2001.
  16. Cole, R.J. Charting the future: Emerging trends in building environmental assessment methods. Build. Res. Inf. 1998, 26, 3–16, doi:10.1080/096132198370065.
  17. Larsson, N.; Cole, R.J. Preliminary Assessment of the GBC Assessment Process. In Proceedings of Green Building Challenge ’98, Vancouver, Canada, October 1998; 2, pp. 251–267.
  18. Elkington, J. Cannibals with Forks: The Triple Bottom Line of 21st Century Business; New Society Publishers: Vancouver, BC, Canada, 1998.
  19. Ryce, T.; Fenner, R.A. Comparative Analysis of Two Building Rating Systems—Part 1: Evaluation. In Proceedings of the Institution of Civil EngineersEngineering Sustainability, New Orleans, USA, March 2008; 161, pp. 55–63.
  20. Shulte, K.W.; Wilkinson, S.; Bilos, A.; Reed, R. International comparison of sustainable rating tools. J. Sustain. Real Estate 2009, 1, 1–22.
  21. Altan, H. Sustainability Design vs. Energy Performance. In Proceedings of the Oxford Conference 2008: A Re-Evaluation of Education in Architecture, Oxford, UK, July 2008; pp. 177–182.
Buildings EISSN 2075-5309 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
