Evaluation of Building Energy Savings Achievable with an Attached Bioclimatic Greenhouse: Parametric Analysis and Solar Gain Control Techniques
Abstract
:1. Introduction
2. Materials and Methods

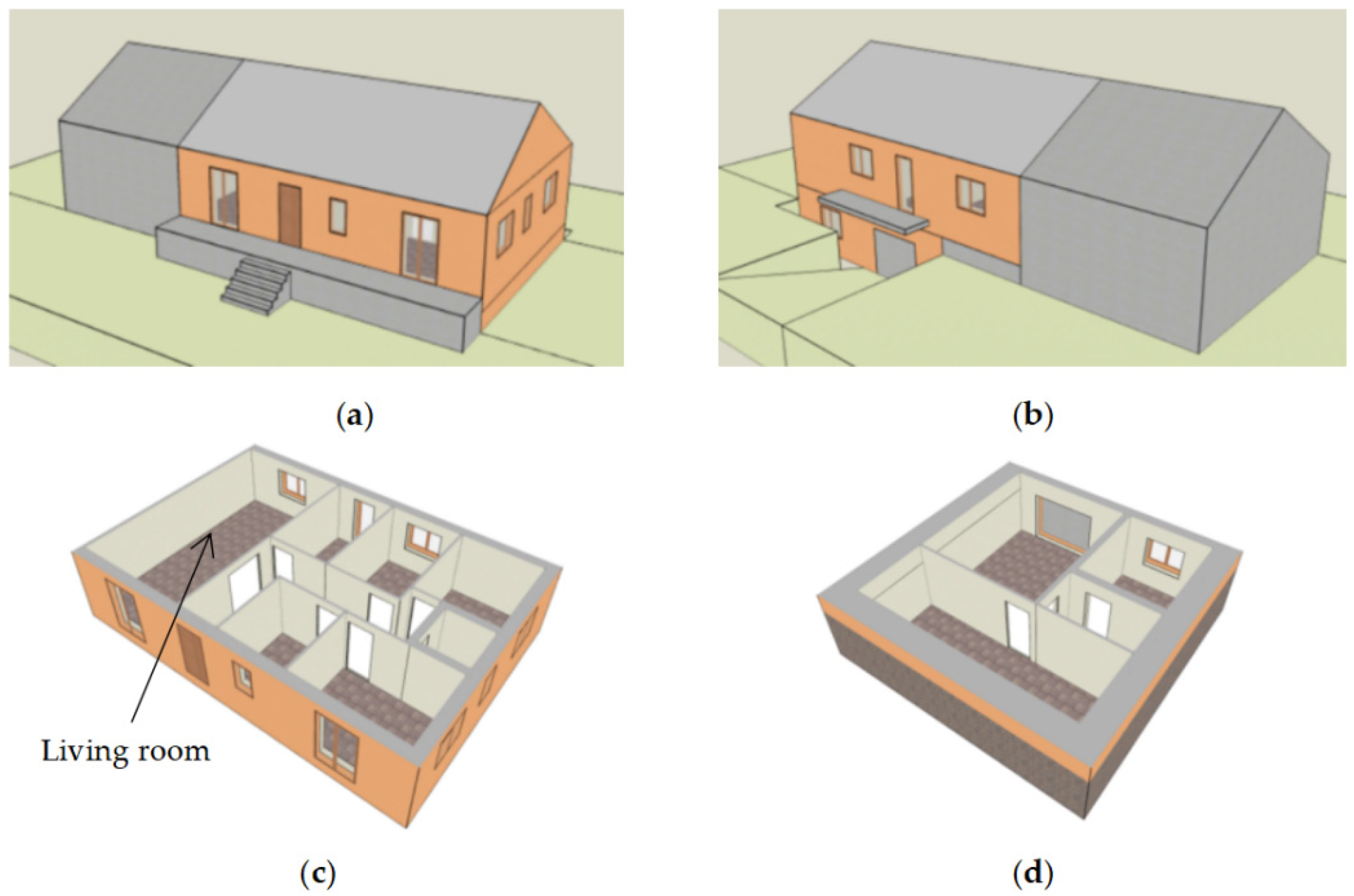

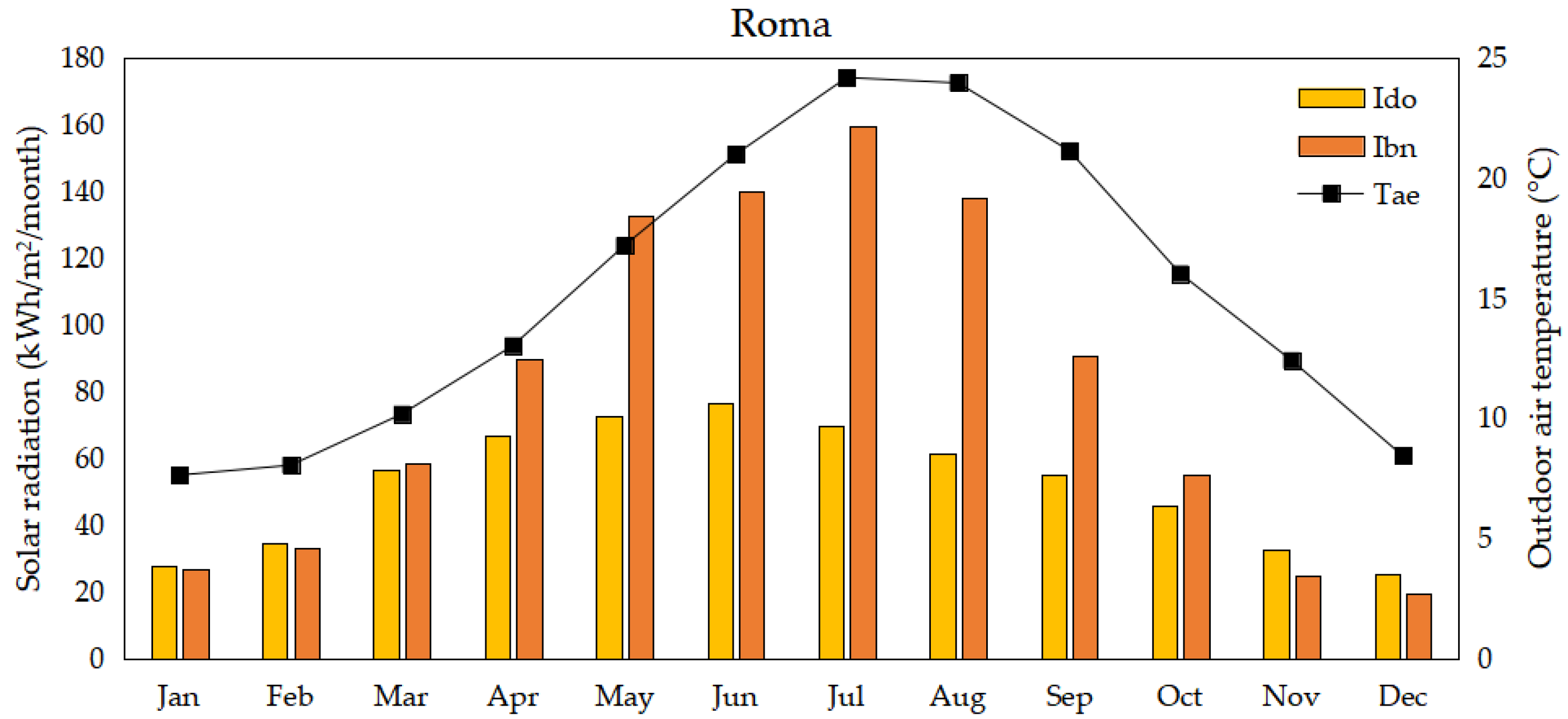

2.1. Reference Building

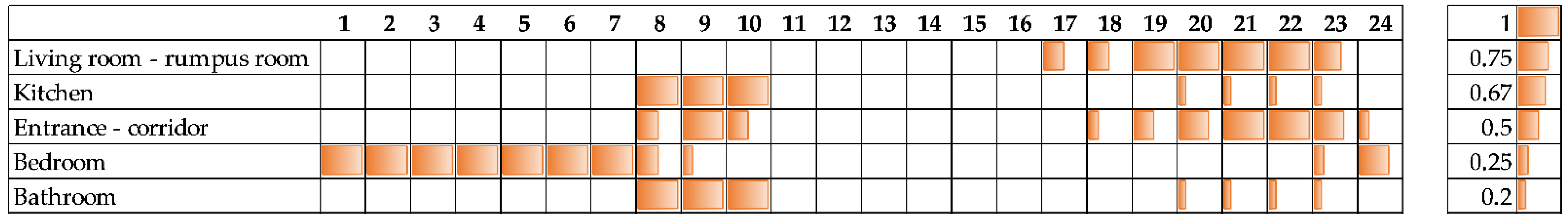

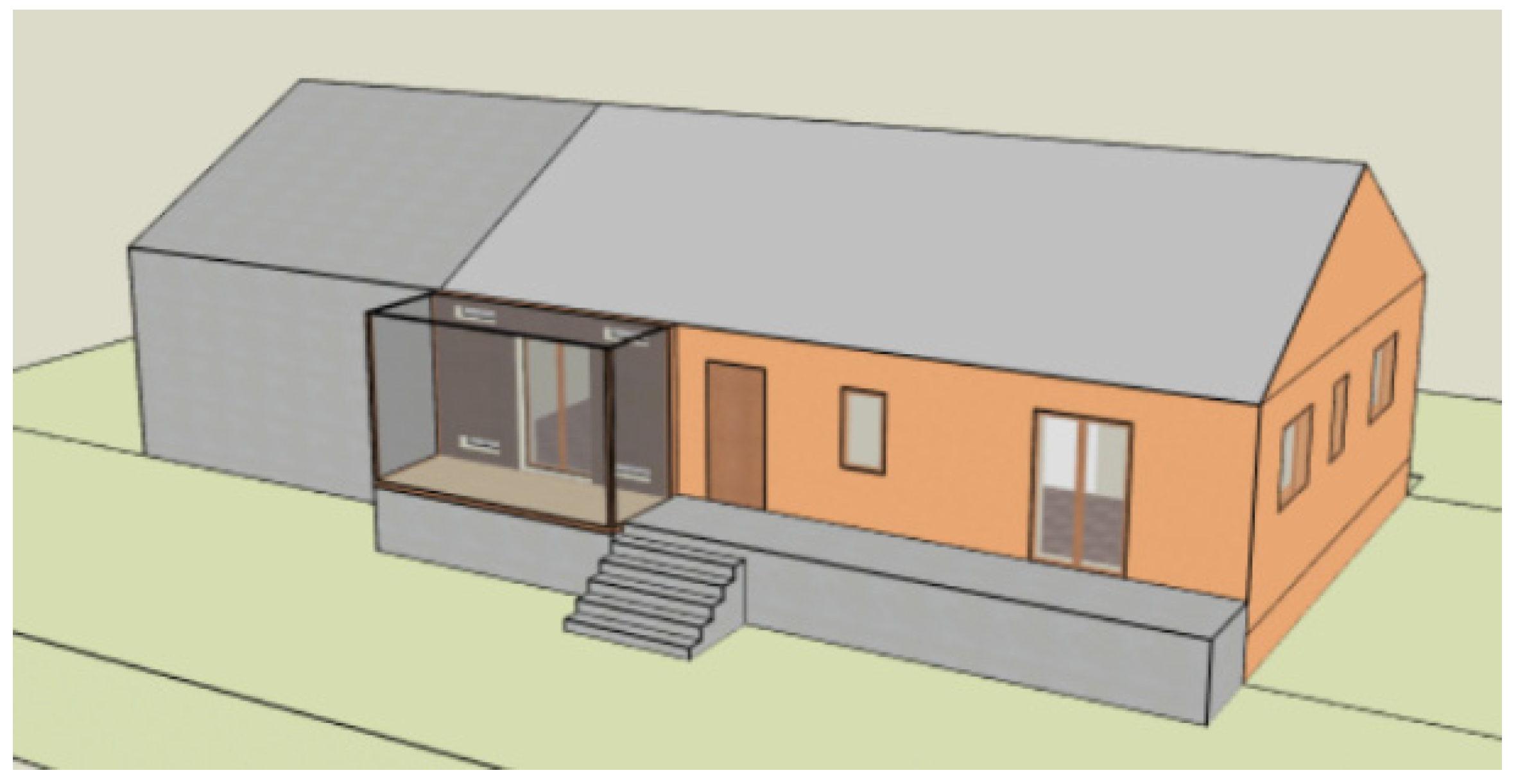

2.2. Modelling of the Attached Solar Greenhouse

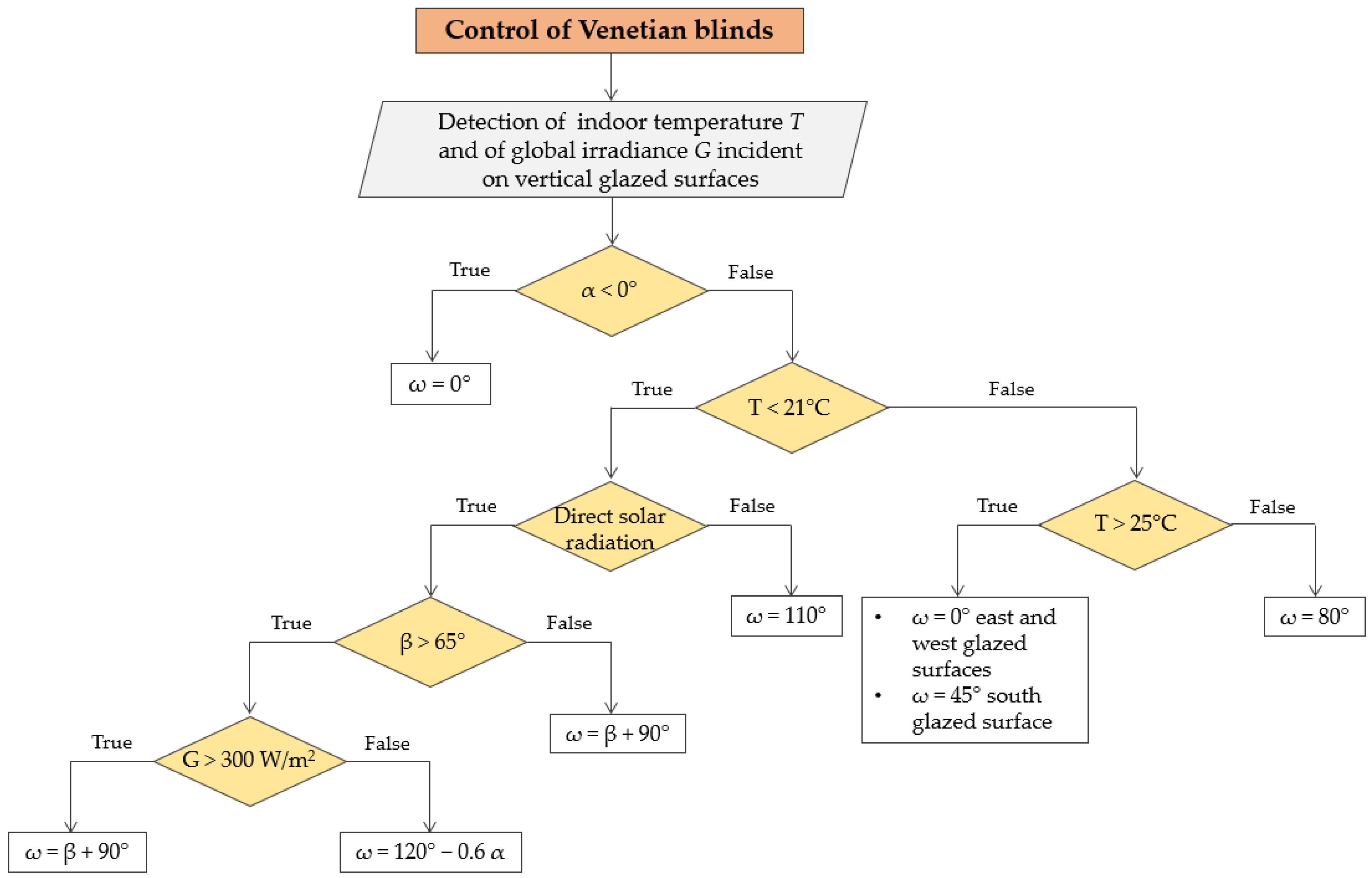

2.3. Control Techniques
- The air temperature in the greenhouse is lower than in the living room and the air temperature in the living room is higher than 25 °C (cooling mode);
- The air temperature in the greenhouse is higher than in the living room and the air temperature in the living room is below 21 °C (heating mode).
2.4. Parametric Analysis
- Greenhouse depth:
- 1.5 m;
- 2 m;
- 2.5 m.
- Type of glass constituting the greenhouse envelope (values for solar gain, direct solar transmission and transmittance (W/m2K) are given in brackets):
- 6 mm single-glazing (0.819, 0.775, 5.778);
- 3/13/3 mm double glazing with air in the cavity (0.764, 0.705, 2.716);
- 3/13/3 mm double glazing with argon in the cavity (0.764, 0.705, 2.556);
- 3/13/3 mm low-emission double glazing with argon in the cavity (0.649, 0.538, 1.512).
- Thermal storage mass inside the greenhouse:
- 5 cm floor thickness, no thermal mass on the wall;
- 10 cm floor thickness, no thermal mass on the wall;
- 20 cm floor thickness, 10 cm floor thickness;
- 30 cm floor thickness, 20 cm floor thickness.
- Use of SPBs:
- With SPBs;
- Without SPBs.
- Greenhouse ventilation methods in summer:
- East and west windows open at 50% at night;
- East and west windows open at 100% at night;
- East and west windows open at 50% all day;
- East and west windows open at 100% all day.
- Locality:
- Genoa, Italy (latitude 44°23′);
- Rome, Italy (latitude 41°54′);
- Capo Palinuro, Italy (latitude 40°1′).
3. Results and Discussion
3.1. Parametric Performance Analyses with Attached Solar Greenhouse

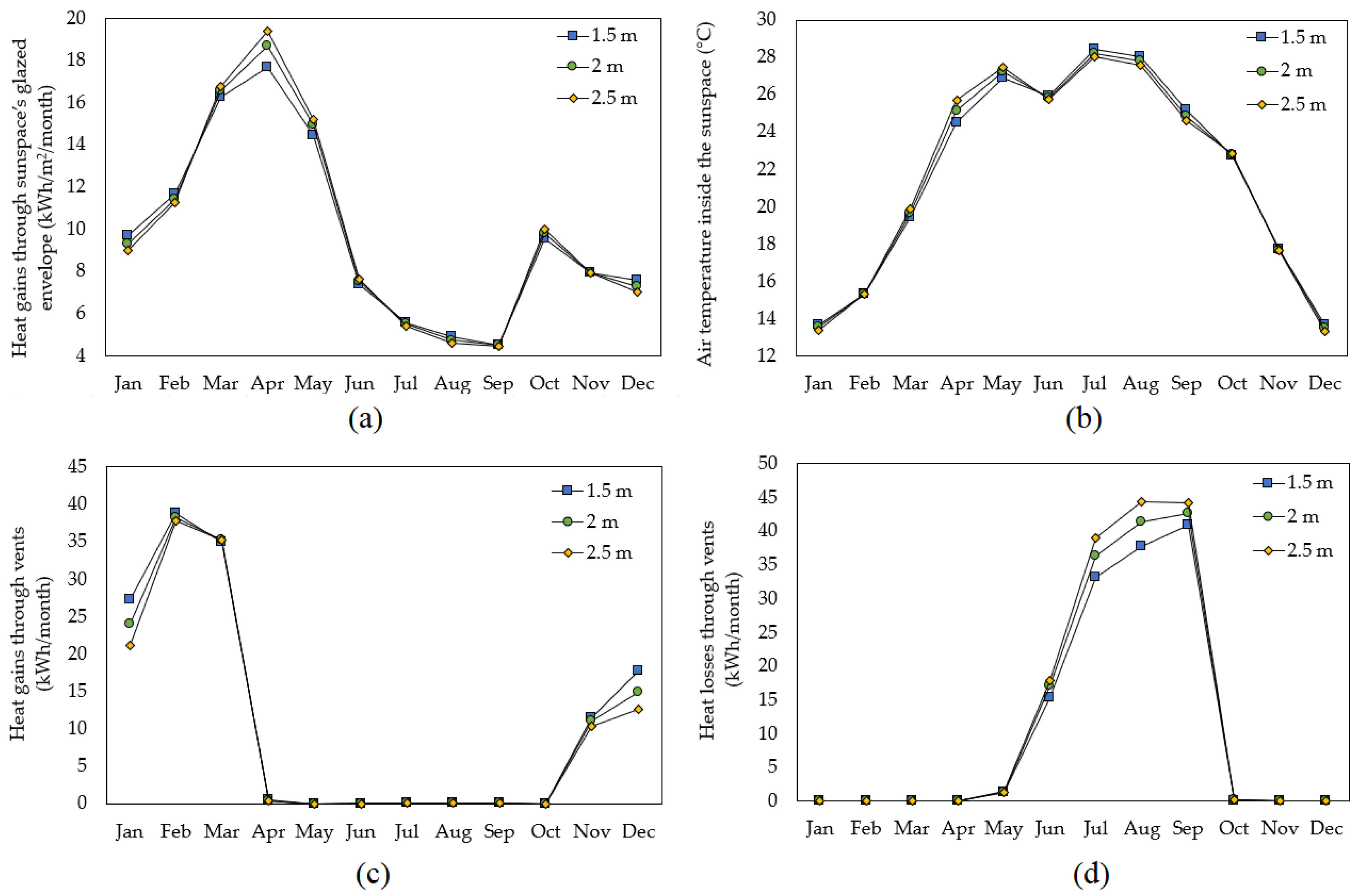

3.1.1. Influence of Sunspace Depth

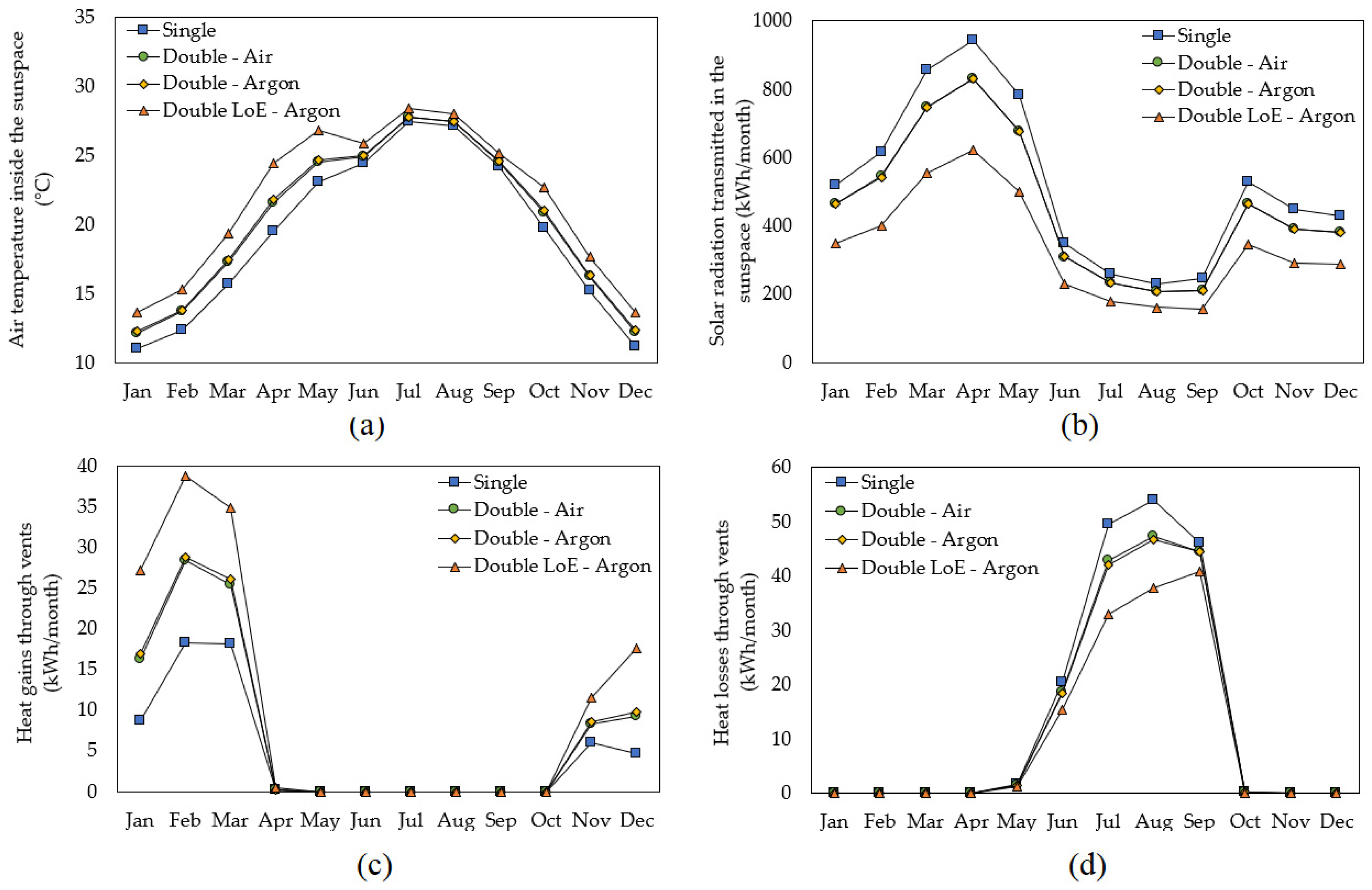

3.1.2. Influence of Glass Type

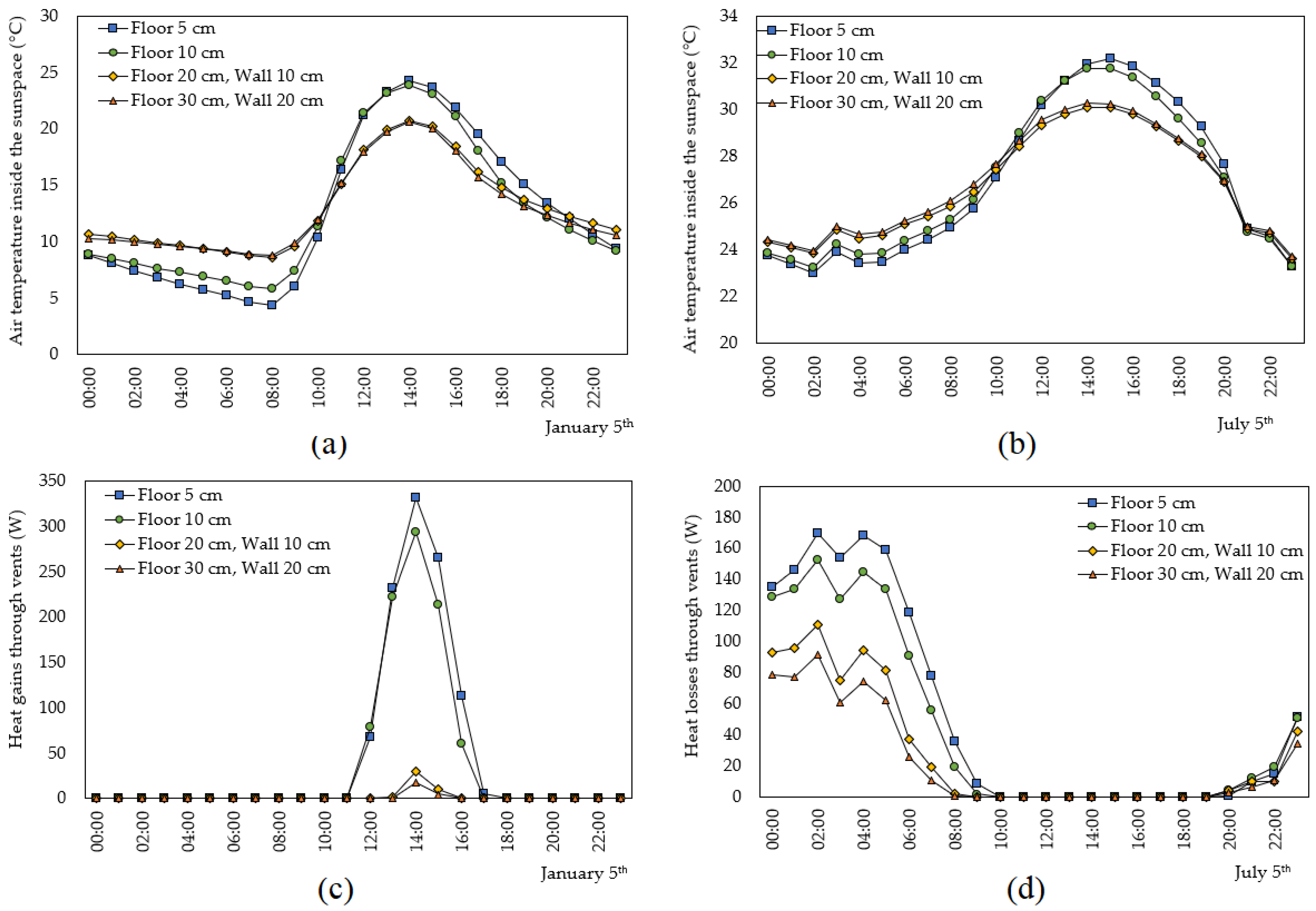

3.1.3. Influence of Thermal Mass

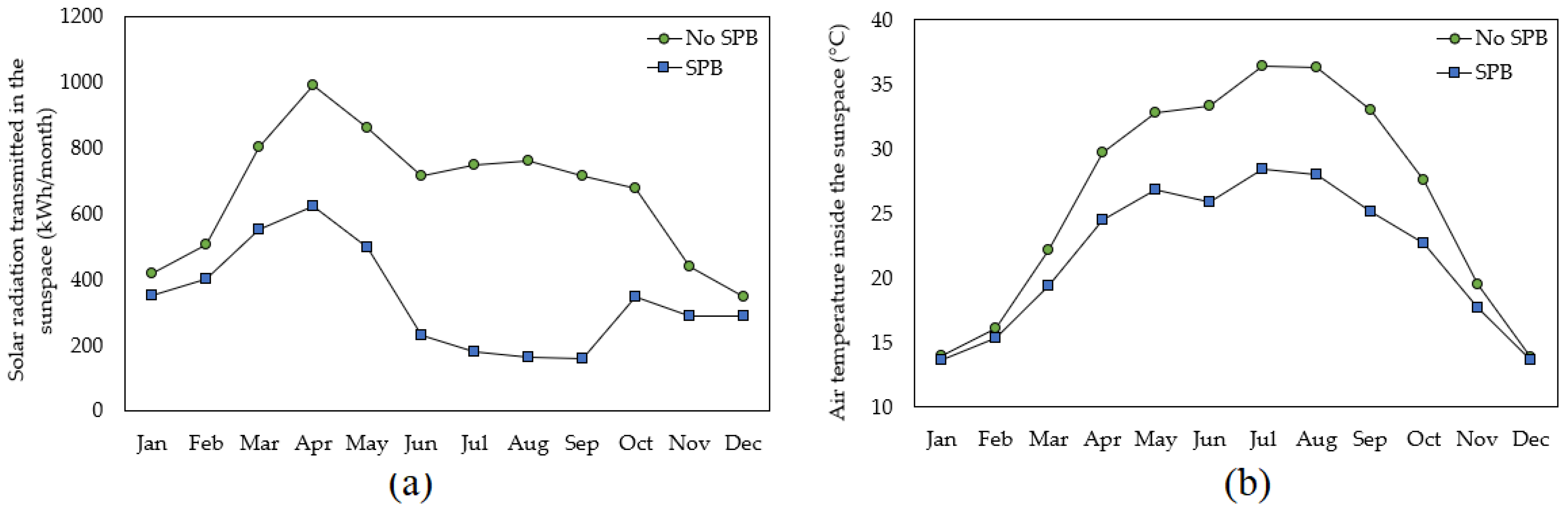

3.1.4. Influence of Solar Photovoltaic Blinds

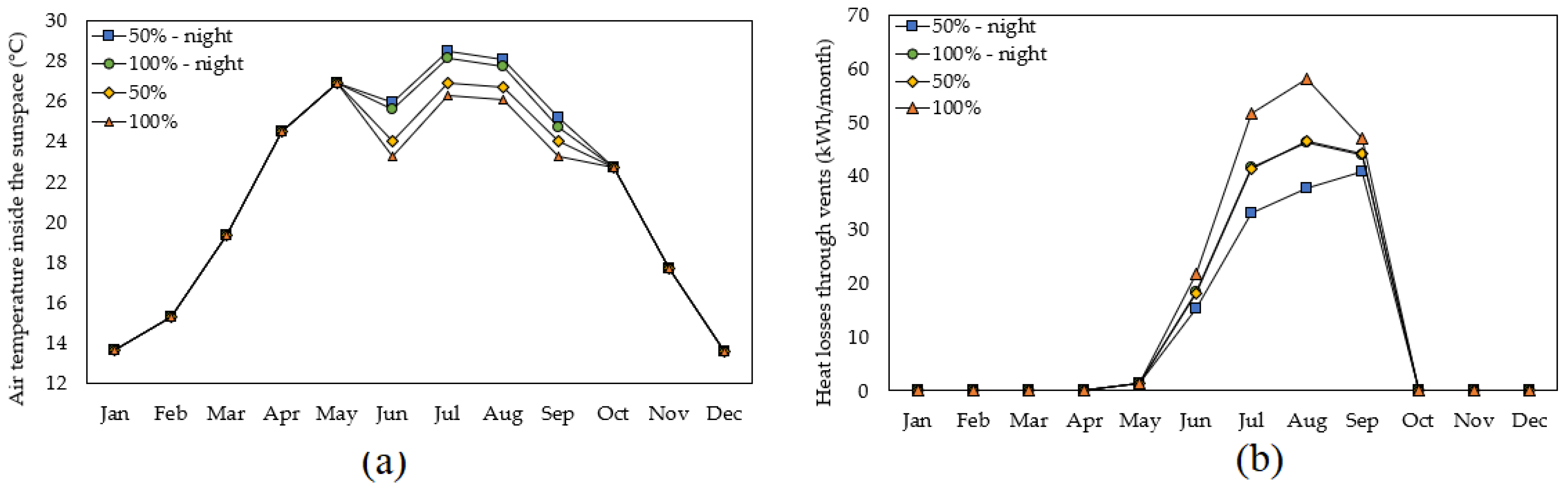

3.1.5. Influence of Greenhouse Summer Natural Ventilation

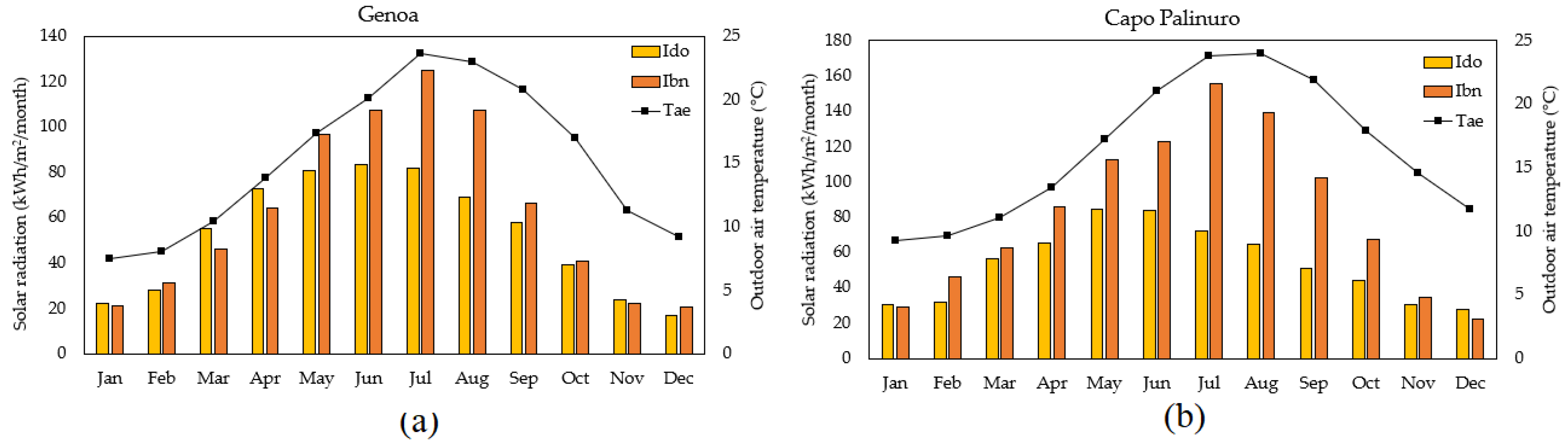

3.1.6. Influence of Locality
3.2. Comparison with the Case Where the Separation Wall Is without Insulation

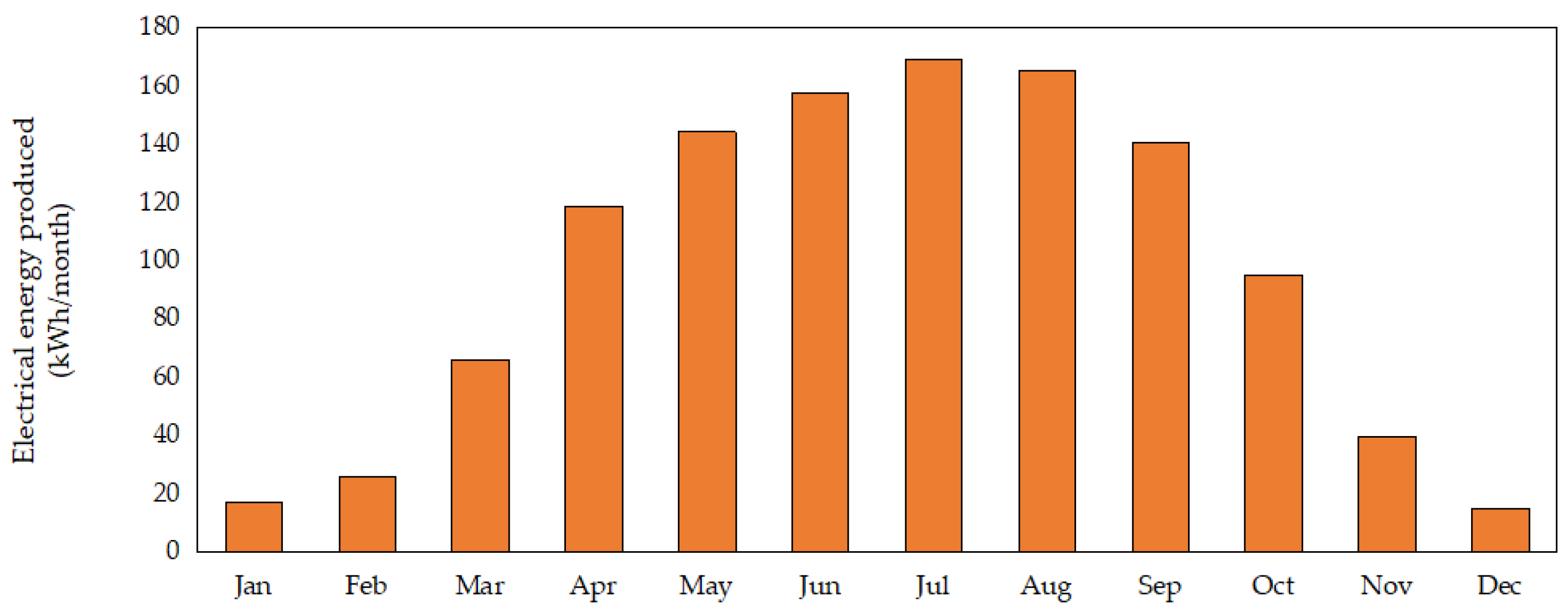

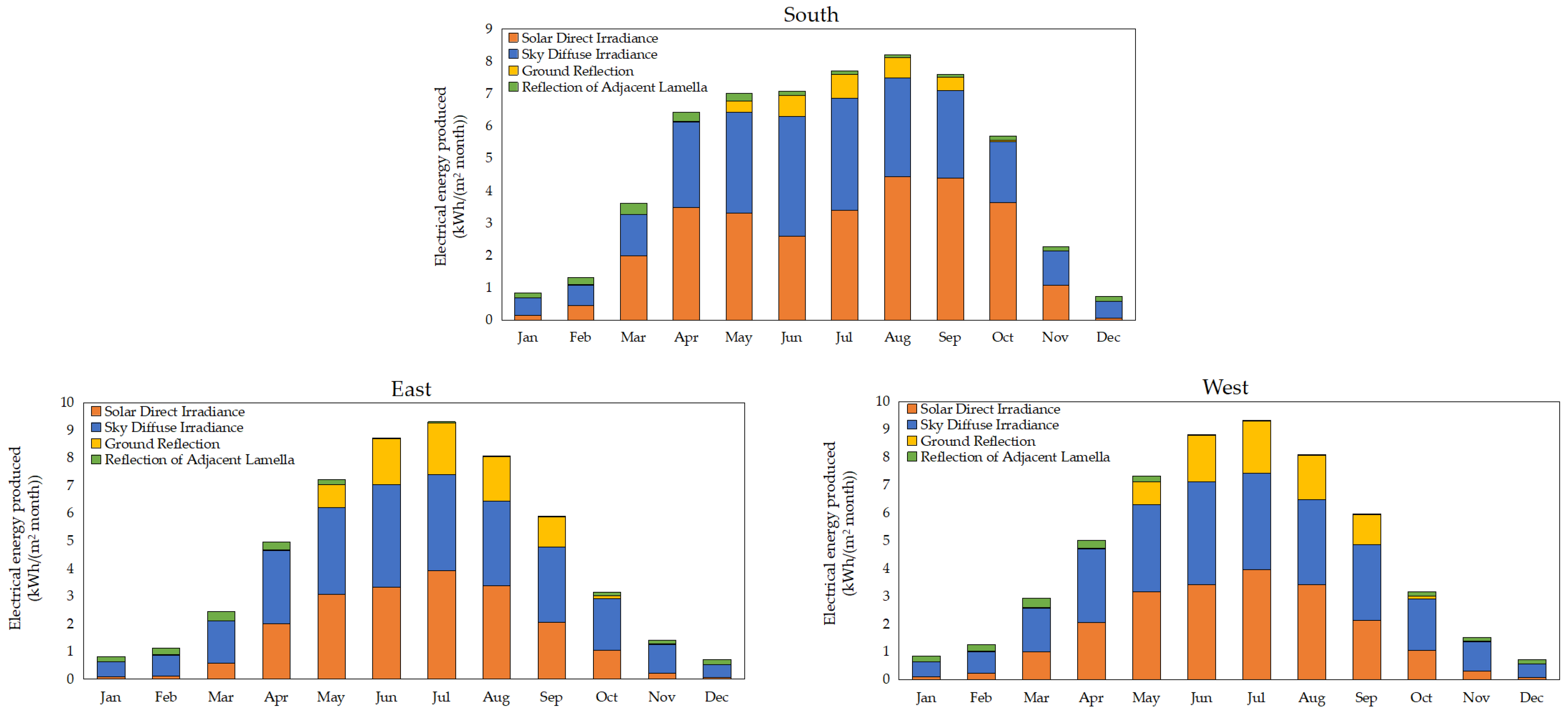

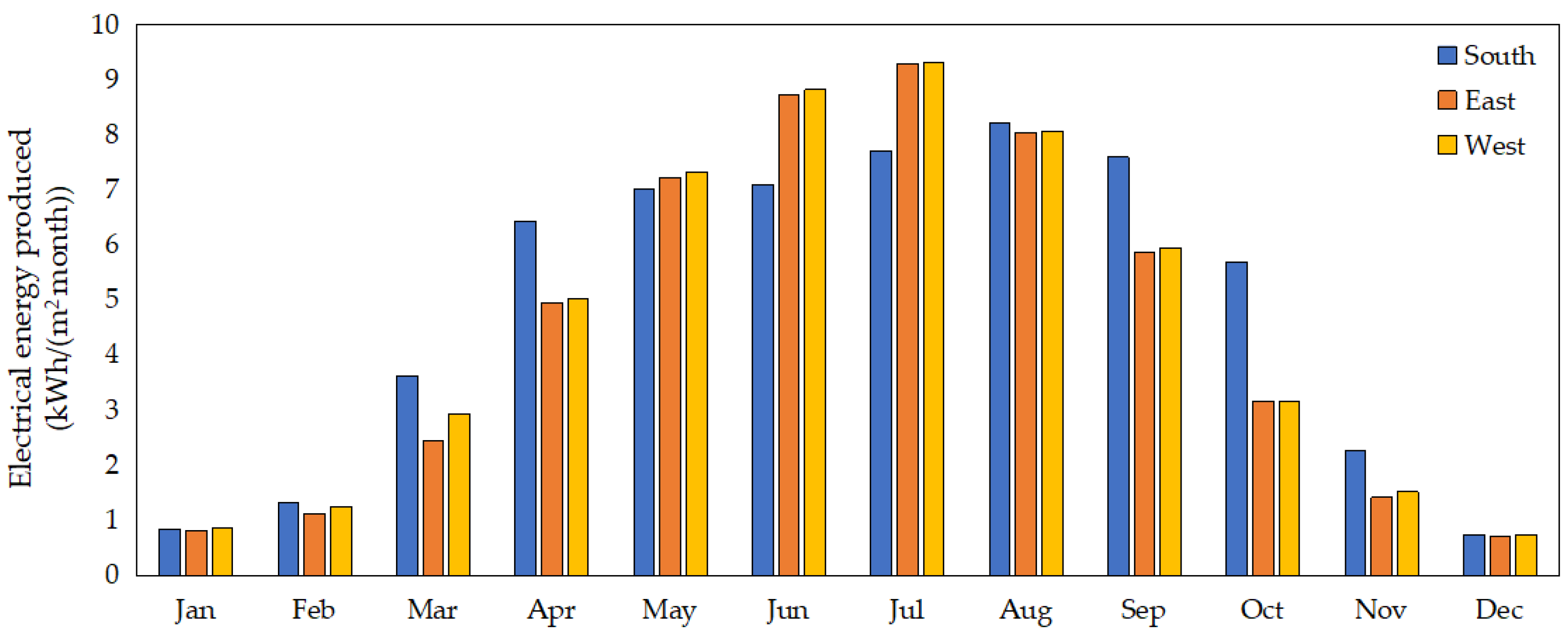

3.3. SPBs Electricity Production
3.4. Summary of Results
- The solar greenhouse with reduced depth allows greater energy savings in winter, as the smaller amount of transparent surface area contributes to the reduction of heat loss;
- The use of low-emissivity double glazing in the construction of the greenhouse envelope results in greater gains in winter, while in summer their use is counterproductive in the absence of adequate measures to combat overheating;
- The presence of accumulation mass in the greenhouse is counterproductive in the case of an insulated separation wall, as temperatures inside the greenhouse are mitigated by reducing heat exchange through the vents;
- The use of sunscreens in summer is of paramount importance in reducing temperatures inside the greenhouse, as is an adequate level of ventilation;
- The analysis by location showed that energy savings are greater in southern Italy, as it is characterized by a higher level of solar radiation.
- Depth of 1.5 m;
- Floor with 5 cm thick accumulation material;
- 3/13/3 mm low-emission double glazing envelope with argon in the cavity;
- Solar shading system;
- East and west windows open 100% all day.
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Arumugam, C.; Shaik, S. Air-conditioning cost saving and CO2 emission reduction prospective of buildings designed with PCM integrated blocks and roofs. Sustain. Energy Technol. Assess. 2021, 48, 101657. [Google Scholar] [CrossRef]
- Bevilacqua, P.; Benevento, F.; Bruno, R.; Arcuri, N. Are Trombe walls suitable passive systems for the reduction of the yearly building energy requirements? Energy 2019, 185, 554–566. [Google Scholar] [CrossRef]
- Bruno, R.; Bevilacqua, P.; Cirone, D.; Perrella, S.; Rollo, A. A Calibration of the Solar Load Ratio Method to Determine the Heat Gain in PV-Trombe Walls. Energies 2022, 15, 328. [Google Scholar] [CrossRef]
- Chan, H.-Y.; Riffat, S.B.; Zhu, J. Review of passive solar heating and cooling technologies. Renew. Sustain. Energy Rev. 2010, 14, 781–789. [Google Scholar] [CrossRef]
- Szyszka, J.; Bevilaqua, P.; Bruno, R. A statistical analysis of an innovative concept of Trombe Wall by experimental tests. J. Build. Eng. 2022, 62, 105382. [Google Scholar] [CrossRef]
- Vukadinović, A.V.; Radosavljević, J.M.; Djordjević, A.V.; Bonić, D.M. Estimation of Indoor Temperature for a Passive Solar Residential Building with an Attached Sunspace during the Heating Period. Environ. Prog. Sustain. Energy 2018, 38, 13127. [Google Scholar] [CrossRef]
- Bruno, R.; Bevilacqua, P.; Rollo, A.; Barreca, F.; Arcuri, N. A Novel Bio-Architectural Temporary Housing Designed for the Mediterranean Area: Theoretical and Experimental Analysis. Energies 2022, 15, 3243. [Google Scholar] [CrossRef]
- Ulpiani, G.; Giuliani, D.; Romagnoli, A.; di Perna, C. Experimental monitoring of a sunspace applied to a NZEB mock-up: Assessing and comparing the energy benefits of different configurations. Energy Build. 2017, 152, 194–215. [Google Scholar] [CrossRef]
- Mihalakakou, G.; Ferrante, A. Energy conservation and potential of a sunspace: Sensitivity analysis. Energy Convers. Manag. 2000, 41, 1247–1264. [Google Scholar] [CrossRef]
- Bataineh, K.M.; Fayez, N. Analysis of thermal performance of building attached sunspace. Energy Build. 2011, 43, 1863–1868. [Google Scholar] [CrossRef]
- Grudzińska, M. Thermal and Optical Properties of the Sunspace Casing as Factors Influencing Temperature Rise in Greenhouse Systems. Materials 2021, 14, 7411. [Google Scholar] [CrossRef]
- Sun, H.; Calautit, J.K.; Jimenez-Bescos, C. Examining the regulating impact of thermal mass on overheating, and the role of night ventilation, within different climates and future scenarios across China. Clean. Eng. Technol. 2022, 9, 100534. [Google Scholar] [CrossRef]
- Aelenei, D.; de Azevedo Leal, H.; Aelenei, L. The Use of Attached-sunspaces in Retrofitting Design: The Case of Residential Buildings in Portugal. Energy Procedia 2014, 48, 1436–1441. [Google Scholar] [CrossRef] [Green Version]
- Chiesa, G.; Simonetti, M.; Ballada, G. Potential of attached sunspaces in winter season comparing different technological choices in Central and Southern Europe. Energy Build. 2017, 138, 377–395. [Google Scholar] [CrossRef]
- Mihalakakou, G. On the use of sunspace for space heating/cooling in Europe. Renew. Energy 2002, 26, 415–429. [Google Scholar] [CrossRef]
- Monge-Barrio, A.; Sánchez-Ostiz, A. Energy efficiency and thermal behaviour of attached sunspaces, in the residential architecture in Spain. Summer Conditions. Energy Build. 2015, 108, 244–256. [Google Scholar] [CrossRef]
- Givoni, B. Characteristics, design implications, and applicability of passive solar heating systems for buildings. Sol. Energy 1991, 47, 425–435. [Google Scholar] [CrossRef]
- Mellalou, A.; Riad, W.; Mouaky, A.; Bacaoui, A.; Outzourhit, A. Optimum design and orientation of a greenhouse for seasonal winter drying in Morocco under constant volume constraint. Sol. Energy 2021, 230, 321–332. [Google Scholar] [CrossRef]
- Ma, L.; Zhang, X.; Li, D.; Arıcı, M.; Yıldız, C.; Li, Q.; Zhang, S.; Jiang, W. Influence of sunspace on energy consumption of rural residential buildings. Sol. Energy 2020, 211, 336–344. [Google Scholar] [CrossRef]
- Bastien, D.; Athienitis, A.K. Passive thermal energy storage, part 2: Design methodology for solaria and greenhouses. Renew. Energy 2017, 103, 537–560. [Google Scholar] [CrossRef]
- Rempel, A.R.; Rempel, A.W.; Gates, K.R.; Shaw, B. Climate-responsive thermal mass design for Pacific Northwest sunspaces. Renew. Energy 2016, 85, 981–993. [Google Scholar] [CrossRef]
- Daemei, A.B.; Eghbali, S.R.; Khotbehsara, E.M. Bioclimatic design strategies: A guideline to enhance human thermal comfort in Cfa climate zones. J. Build. Eng. 2019, 25, 100758. [Google Scholar] [CrossRef]
- Kuhn, T.E.; Buhler, C.; Platzer, W.J. Evaluation of overheating protection with sun-shading systems. Sol. Energy 2000, 69, 59–74. [Google Scholar]
- Kirimtat, A.; Kundakci Koyunbaba, B.; Chatzikonstantinou, I.; Sariyildiz, S. Rewiew of a simulation modeling for shading devices in buildings. Renew. Sustain. Energy Rev. 2016, 53, 23–49. [Google Scholar] [CrossRef]
- Datta, G. Effect of fixed horizontal louver shading devices on thermal performance of building by TRNSYS simulation. Renew. Energy 2001, 23, 497–507. [Google Scholar]
- Nicoletti, F.; Carpino, C.; Cucumo, M.A.; Arcuri, N. The Control of Venetian Blinds: A Solution for Reduction of Energy Consumption Preserving Visual Comfort. Energies 2020, 13, 1731. [Google Scholar] [CrossRef] [Green Version]
- Carletti, C.; Sciurpi, F.; Pierangioli, L.; Asdrubali, F.; Pisello, A.L.; Bianchi, F.; Sambuco, S.; Guattari, C. Thermal and lighting effects of an external venetian blind: Experimental analysis in a full scale test room. Build. Environ. 2016, 106, 45–56. [Google Scholar] [CrossRef]
- Kuhn, T.E. State of the art of advanced solar control devices for buildings. Sol. Energy 2017, 154, 112–133. [Google Scholar] [CrossRef]
- Pillai, D.S.; Shabunko, V.; Krishna, A. A comprehensive review on building integrated photovoltaic systems: Emphasis to technological advancements, outdoor testing, and predictive maintenance. Renew. Sustain. Energy Rev. 2022, 156, 111946. [Google Scholar] [CrossRef]
- Martín-Chivelet, N.; Kapsis, K.; Wilson, H.R.; Delisle, V.; Yang, R.; Olivieri, L.; Polo, J.; Eisenlohr, J.; Roy, B.; Maturi, L.; et al. Building-Integrated Photovoltaic (BIPV) products and systems: A review of energy-related behavior. Energy Build. 2022, 262, 111998. [Google Scholar] [CrossRef]
- Yu, G.; Yang, H.; Luo, D.; Cheng, X.; Ansah, M.K. A review on developments and researches of building integrated photovoltaic (BIPV) windows and shading blinds. Renew. Sustain. Energy Rev. 2021, 149, 111355. [Google Scholar] [CrossRef]
- Hong, S.; Choi, A.-S.; Sung, M. Development and verification of a slat control method for a bi-directional PV blind. Appl. Energy 2017, 206, 1321–1333. [Google Scholar] [CrossRef]
- Bahr, W. A comprehensive assessment methodology of the building integrated photovoltaic blind system. Energy Build. 2014, 82, 703–708. [Google Scholar] [CrossRef]
- Suarez López, M.J.; Gutiérrez Trashorras, A.J.; Parrondo Gayo, J.L.; Blanco Marigorta, E. Analysis of an Attached Sunspace with a Thermal Inertia Floor. Energies 2018, 11, 1136. [Google Scholar] [CrossRef] [Green Version]
- Nicoletti, F.; Cucumo, M.A.; Arcuri, N. Building-integrated photovoltaics (BIPV): A mathematical approach to evaluate the electrical production of solar PV blinds. Energy 2023, 263, 126030. [Google Scholar] [CrossRef]
- Cucumo, M.; Ferraro, V.; Kaliakatsos, D.; Marinelli, V. Simulation of the Thermal Behaviour of Buildings Equipped with low-Emissivity Glazed Components: A Performance Analysis, December 2013. Int. J. Heat Technol. 2013, 31, 111–118. [Google Scholar] [CrossRef]
- Satola, D.; Wiberg, A.H.; Singh, M.; Babu, S.; James, B.; Dixit, M.; Sharston, R.; Grynberg, Y.; Gustavsen, A. Comparative review of international approaches to net-zero buildings: Knowledge-sharing initiative to develop design strategies for greenhouse gas emissions reduction. Energy Sustain. Dev. 2022, 71, 291–306. [Google Scholar] [CrossRef]
- Manzano-Agugliaro, F.; Montoya, F.G.; Sabio-Ortega, A.; García-Cruz, A. Review of bioclimatic architecture strategies for achieving thermal comfort. Renew. Sustain. Energy Rev. 2015, 49, 736–755. [Google Scholar] [CrossRef]
- Stasi, R.; Liuzzi, S.; Paterno, S.; Ruggiero, F.; Stefanizzi, P.; Stragapede, A. Combining bioclimatic strategies with efficient HVAC plants to reach nearly-zero energy building goals in Mediterranean climate. Sustain. Cities Soc. 2020, 63, 102479. [Google Scholar] [CrossRef]
- Xuan, H.; Ford, B. Climatic applicability of downdraught cooling in China. Arch. Sci. Rev. 2012, 55, 273–286. [Google Scholar] [CrossRef]
Material | Thickness (m) | Conductivity (W/m K) | Spec. Heat (J/kg K) | Density (kg/m3) | |
---|---|---|---|---|---|
Insulated external wall (U = 0.281 W/m2K) | External plaster | 0.005 | 1.4 | 1000 | 2000 |
EPS insulation | 0.1 | 0.0385 | 1200 | 30 | |
Hollow bricks | 0.3 | 0.39 | 840 | 866.67 | |
Internal plaster | 0.015 | 0.7 | 1000 | 1400 | |
Insulated basement wall (U = 0.268 W/m2K) | Pebbles | 0.4 | 1.2 | 840 | 1700 |
Synthetic material sheets | 0.01 | 0.23 | 900 | 1100 | |
EPS insulation | 0.1 | 0.0418 | 1200 | 30 | |
Hollow bricks | 0.3 | 0.39 | 840 | 866.67 | |
Internal plaster | 0.02 | 0.7 | 1000 | 1400 | |
Insulated internal wall (U = 0.274 W/m2K) | Internal plaster | 0.01 | 0.7 | 1000 | 1400 |
Masonry (hollow bricks) | 0.08 | 0.48 | 840 | 2000 | |
EPS insulation | 0.1 | 0.0385 | 1200 | 30 | |
Masonry (hollow bricks) | 0.08 | 0.48 | 840 | 2000 | |
Internal plaster | 0.01 | 0.7 | 1000 | 1400 | |
Adjacent units partition wall (U = 0.736 W/m2K) | Internal plaster | 0.02 | 0.7 | 1000 | 1400 |
Soundproofing bricks | 0.3 | 0.265 | 1000 | 1200 | |
Internal plaster | 0.02 | 0.7 | 1000 | 1400 |
Material | Thickness (m) | Conductivity (W/m K) | Spec. Heat (J/kg K) | Density (kg/m3) | |
---|---|---|---|---|---|
Insulated floor slab (U = 0.248 W/m2K) | Ceramic tiles | 0.01 | 1.3 | 840 | 2300 |
Concrete mortar screed | 0.06 | 1.06 | 1000 | 2000 | |
EPS insulation | 0.14 | 0.0418 | 1200 | 30 | |
Slab blocks | 0.26 | 0.67 | 840 | 842.31 | |
Internal plaster | 0.01 | 0,7 | 1000 | 1400 | |
Roof cover (U = 0.257 W/m2K) | Stainless steel | 0.002 | 17 | 460 | 7900 |
EPS insulation | 0.05 | 0.0418 | 1200 | 30 | |
Steel | 0.002 | 50 | 450 | 7800 | |
Concrete | 0.03 | 1.162 | 1000 | 2000 | |
EPS insulation | 0.09 | 0.0418 | 1200 | 30 | |
Slab blocks | 0.26 | 0.7429 | 840 | 1146.15 | |
Internal plaster | 0.02 | 0.7 | 1000 | 1400 | |
Ground floor (U = 0.270 W/m2K) | Ceramic tiles | 0.01 | 1.3 | 840 | 2300 |
Concrete mortar screed | 0.08 | 1.08 | 1000 | 1600 | |
EPS insulation | 0.09 | 0.034 | 1200 | 50 | |
Reinforced concrete | 0.315 | 1.91 | 1000 | 2400 | |
Synthetic material sheets | 0.005 | 0.23 | 900 | 1100 | |
Pebbles and crushed stones | 0.4 | 0.7 | 840 | 1500 |
Zone | Occupancy Density (People per m2) | Metabolic Rate (W per Person) |
---|---|---|
Living/rumpus room | 0.0188 | 110 |
Kitchen | 0.0237 | 160 |
Entrance—corridor | 0.0196 | 180 |
Bedrooms | 0.0229 | 90 |
Bathroom | 0.0187 | 120 |
Conductivity (W/m K) | Specific Heat (J/kg K) | Density (kg/m3) | |
---|---|---|---|
Concrete block | 1.63 | 1000 | 2300 |
Depth (m) | Energy Needs (kWh) | Variation from Reference Case | ||
---|---|---|---|---|
Heating | Cooling | Heating | Cooling | |
1.5 | 1570.0 | 805.7 | −8.6% | −15.6% |
2.0 | 1580.3 | 790.9 | −8.0% | −17.1% |
2.5 | 1591.8 | 780.1 | −7.3% | −18.2% |
Glazing Type | Energy Needs (kWh) | Variation from Reference Case | ||
---|---|---|---|---|
Heating | Cooling | Heating | Cooling | |
Single | 1643.6 | 757.7 | −4.3% | −20.6% |
Double—Air | 1608.8 | 776.7 | −6.4% | −18.6% |
Double—Argon | 1604.5 | 778.7 | −6.6% | −18.4% |
Double LoE—Argon | 1570.0 | 805.7 | −8.6% | −15.6% |
Thermal Mass | Energy Needs (kWh) | Variation from Reference Case | ||
---|---|---|---|---|
Heating | Cooling | Heating | Cooling | |
Floor 5 cm | 1570.0 | 805.7 | −8.6% | −15.6% |
Floor 10 cm | 1581.8 | 817.2 | −7.9% | −14.4% |
Floor 20 cm, wall 10 cm | 1630.7 | 847.1 | −5.1% | −11.2% |
Floor 30 cm, wall 20 cm | 1649.9 | 849.2 | −4.0% | −11.0% |
Presence of SPBs | Energy Needs (kWh) | Variation from Reference Case | ||
---|---|---|---|---|
Heating | Cooling | Heating | Cooling | |
With SPBs | 1570.0 | 805.7 | −8.6% | −15.6% |
Without SPBs | 1510.0 | 1071.7 | −12.1% | +12.3% |
Ventilation | Energy Needs (kWh) | Variation from Reference Case | ||
---|---|---|---|---|
Heating | Cooling | Heating | Cooling | |
50%—only night | 1570.0 | 805.7 | −8.6% | −15.6% |
100%—only night | 1570.0 | 775.7 | −8.6% | −18.7% |
50%—all day | 1570.0 | 775.5 | −8.6% | −18.7% |
100%—all day | 1570.0 | 738.8 | −8.6% | −22.6% |
Locations | Energy Needs (Reference Building/Building with Sunspace) (kWh) | Variation from Reference Case | ||
---|---|---|---|---|
Heating | Cooling | Heating | Cooling | |
Genoa | 1897.9/1757.5 | 679.8/579.7 | −7.4% | −14.7% |
Rome | 1718.0/1570.0 | 954.2/805.7 | −8.6% | −15.6% |
Capo Palinuro | 862.9/735.2 | 1090.1/955.9 | −14.8% | −12.3% |
Separation Wall | Energy Needs (kWh) | Variation from Reference Case | ||
---|---|---|---|---|
Heating | Cooling | Heating | Cooling | |
Insulated | 1570.0 | 805.7 | −8.6% | −15.6% |
Not insulated | 1617.4 | 849.8 | −5.9% | −10.9% |
