Study on Pores in Ultrasonic‐Assisted TIG Weld of Aluminum Alloy

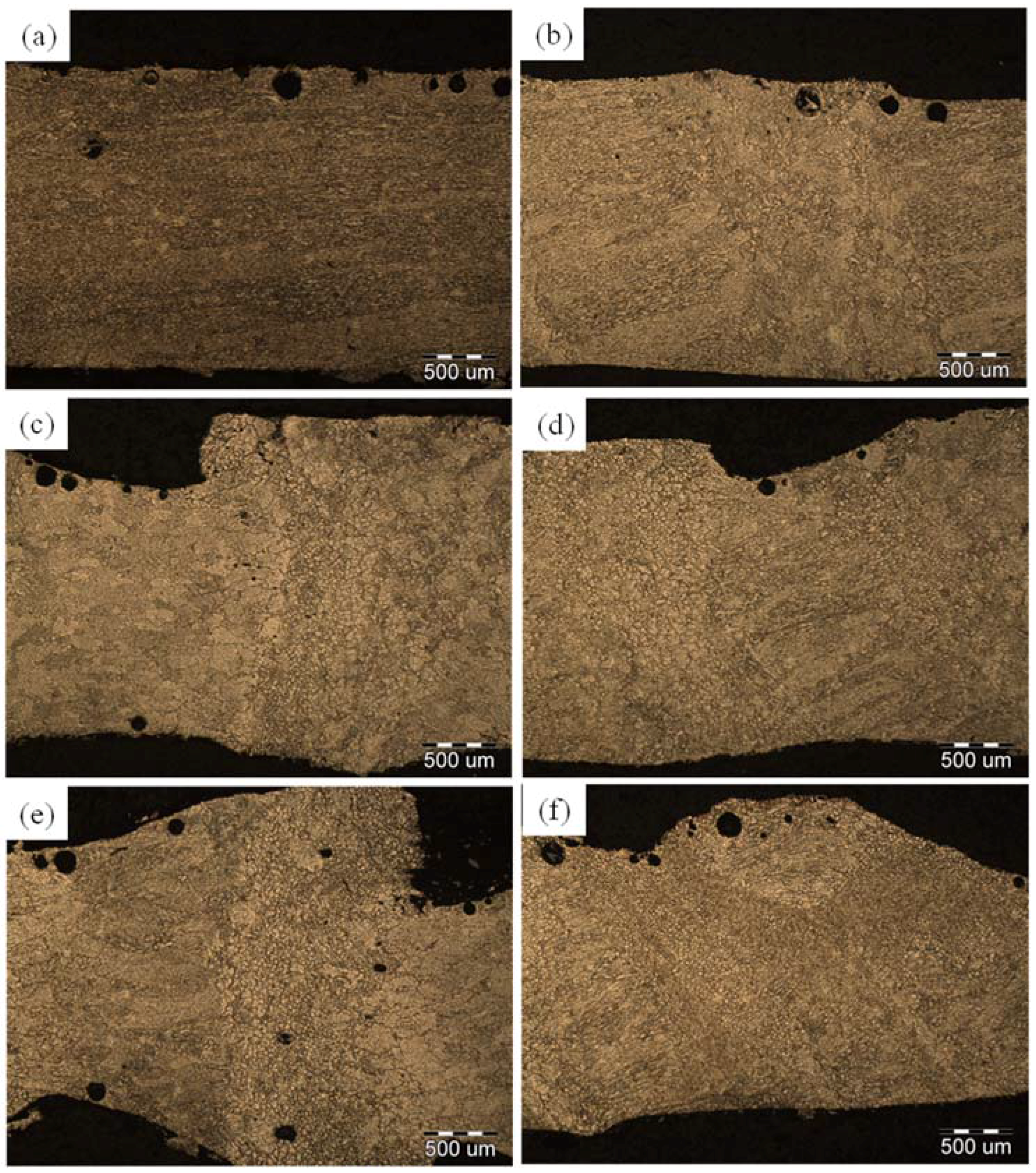

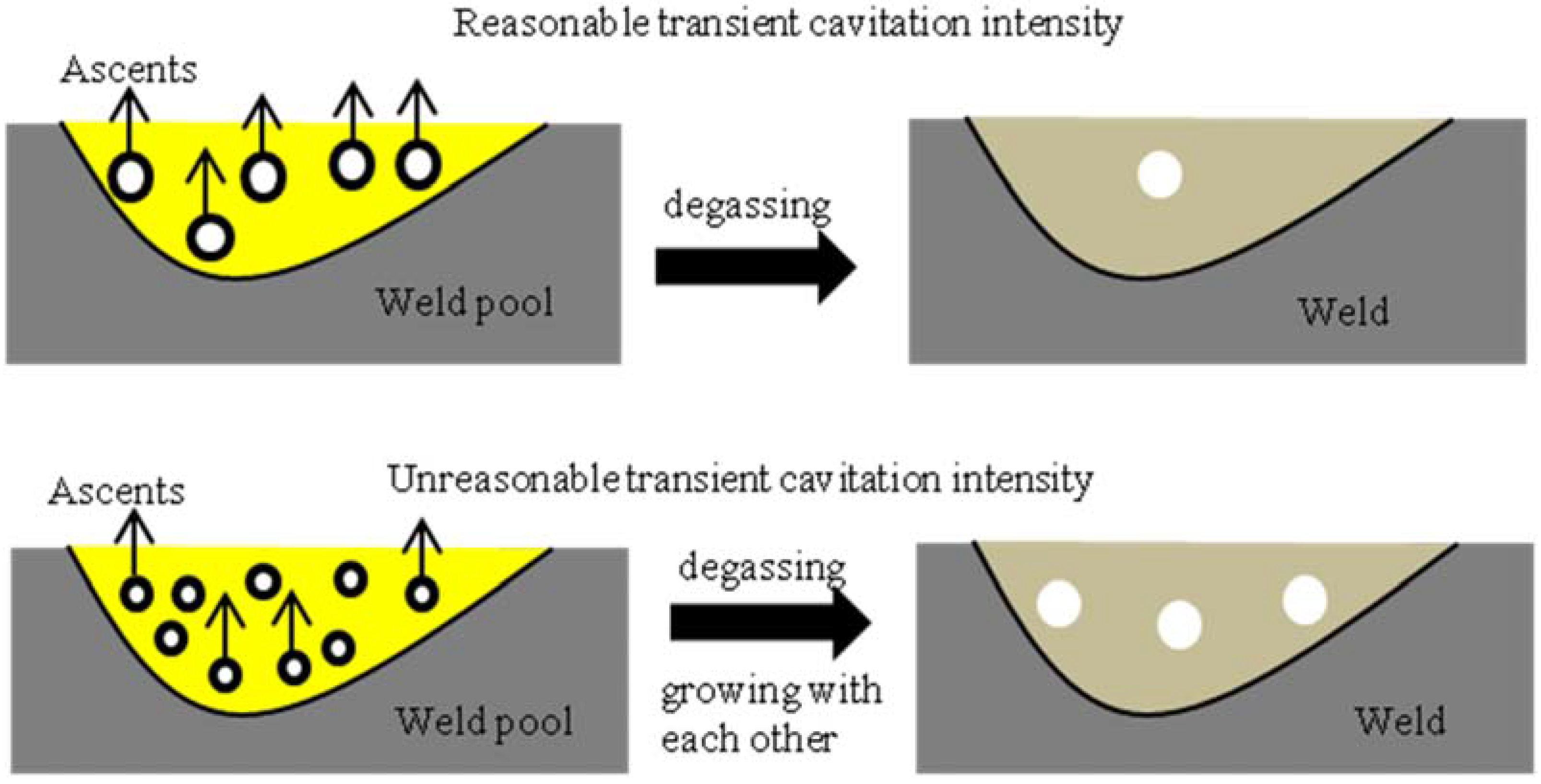

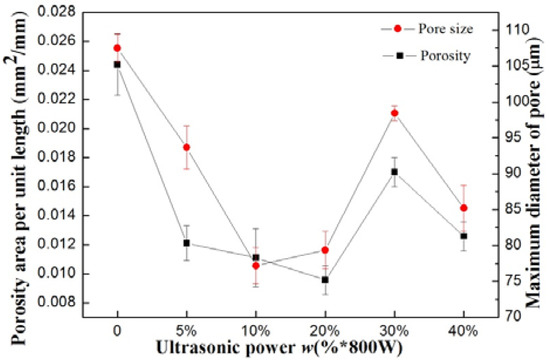

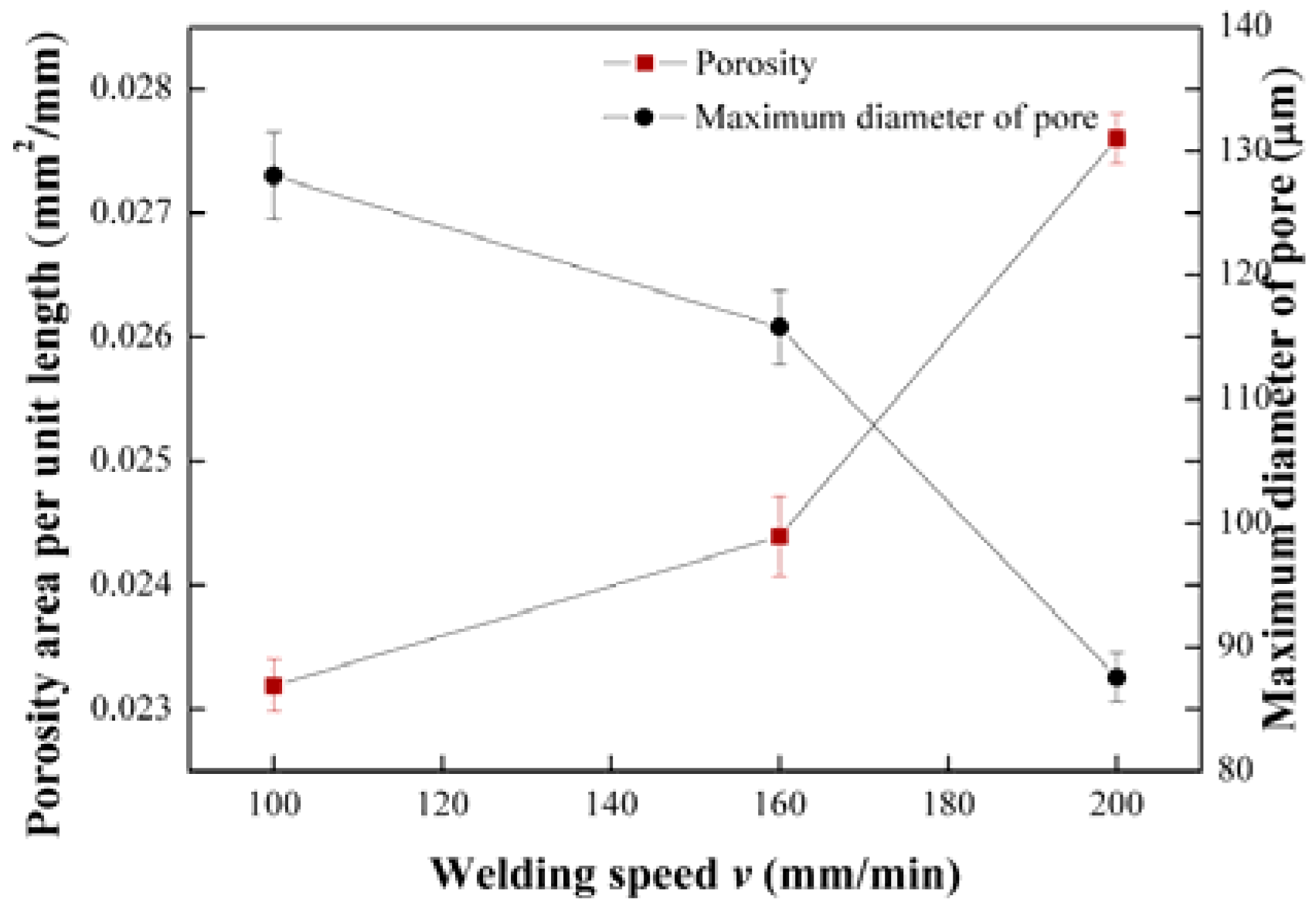

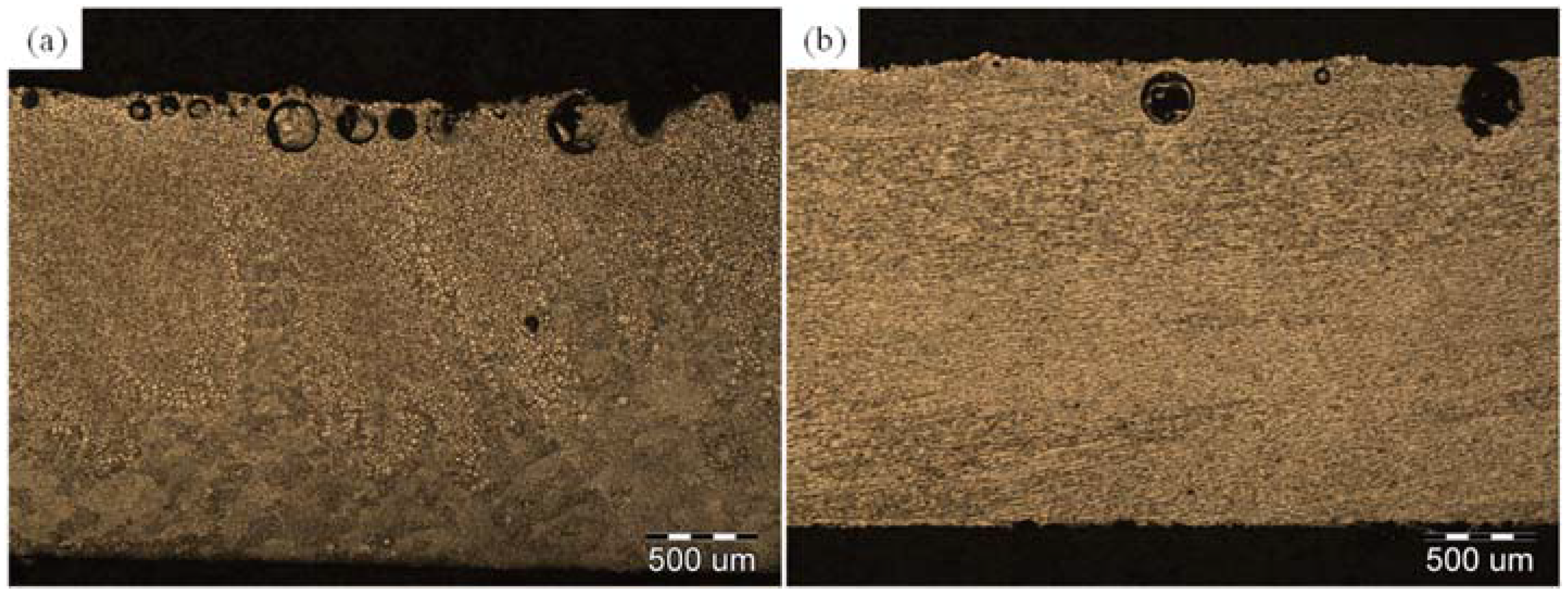

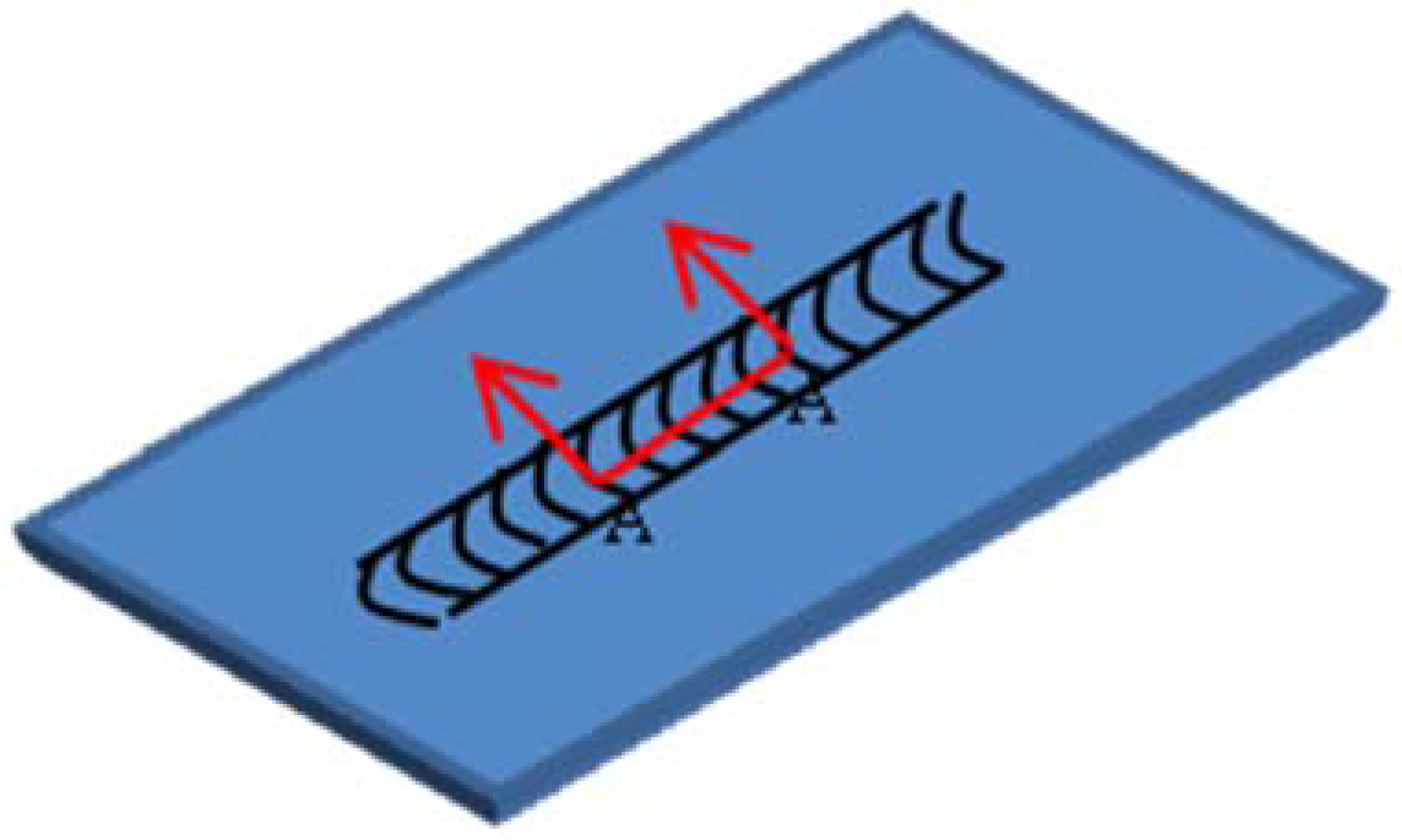

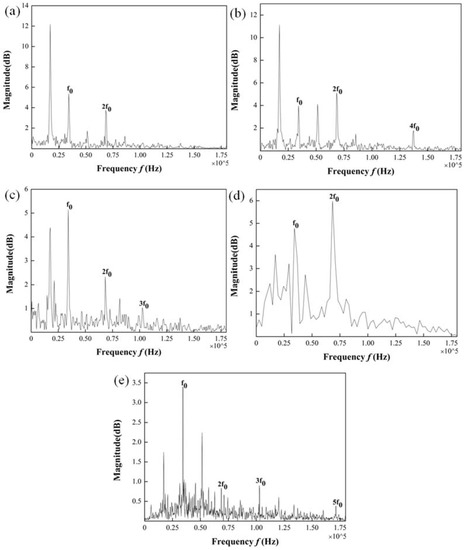

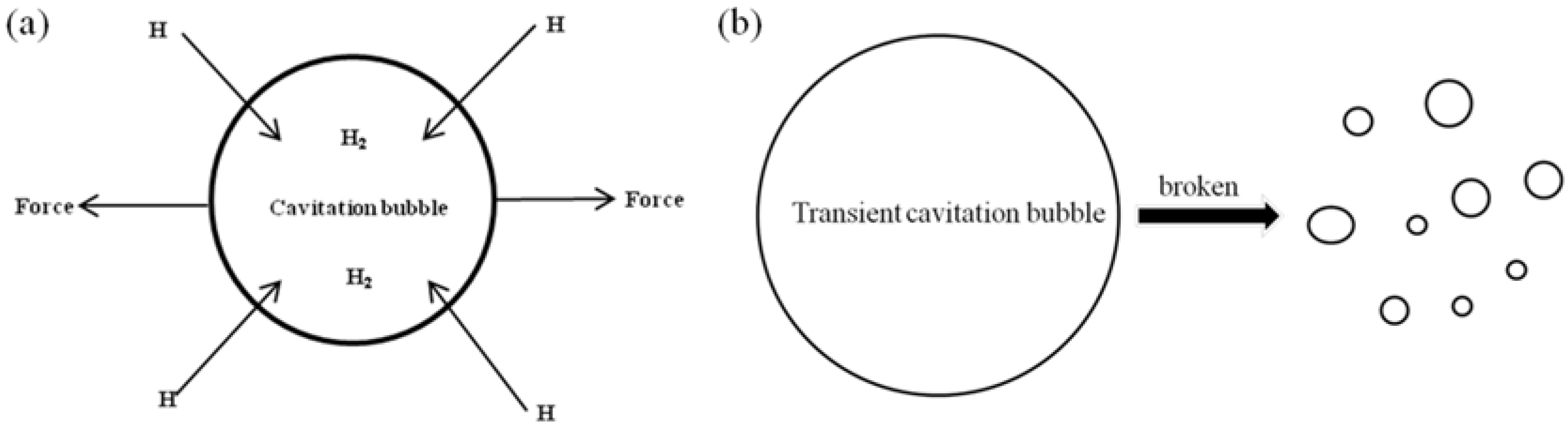

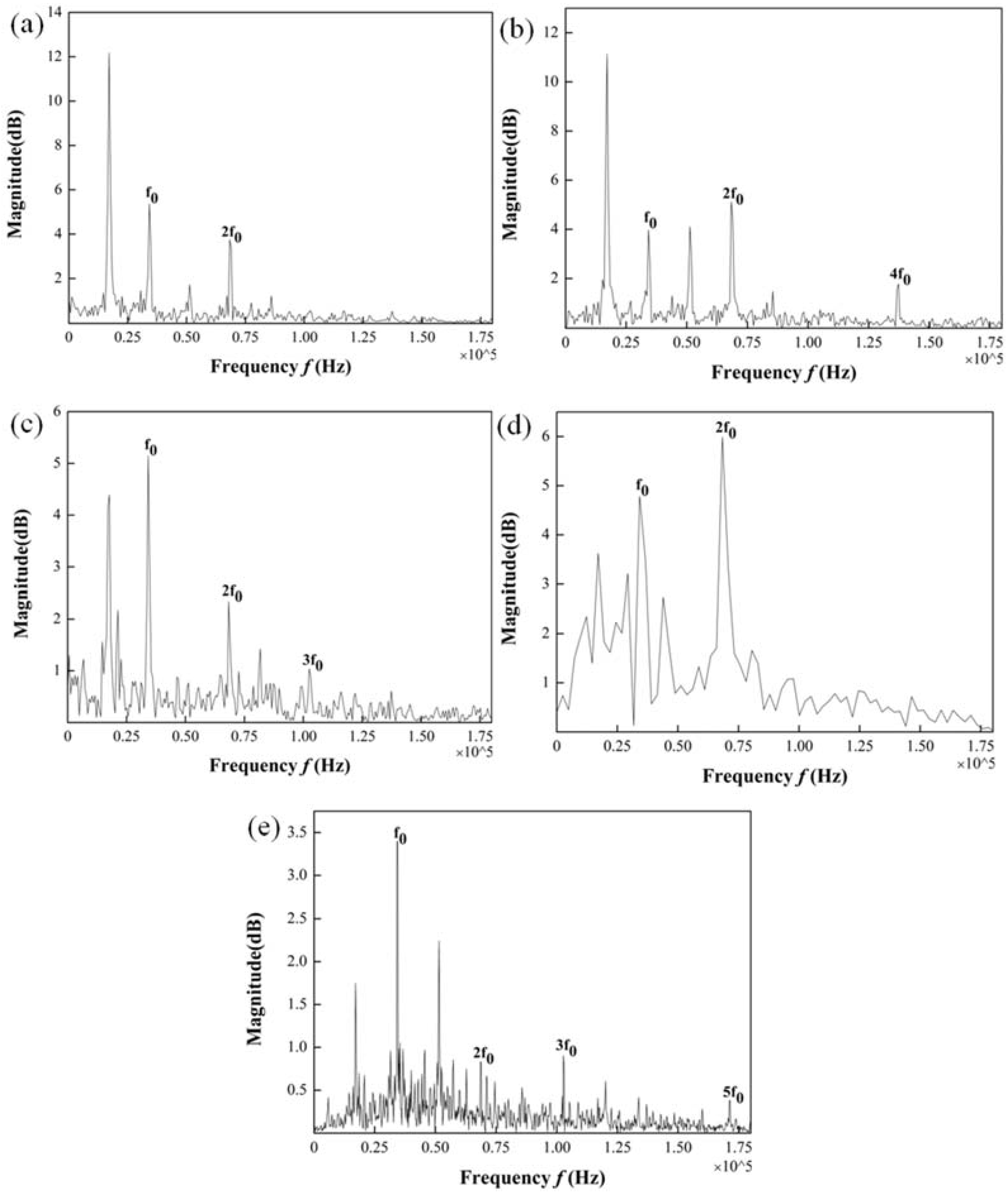

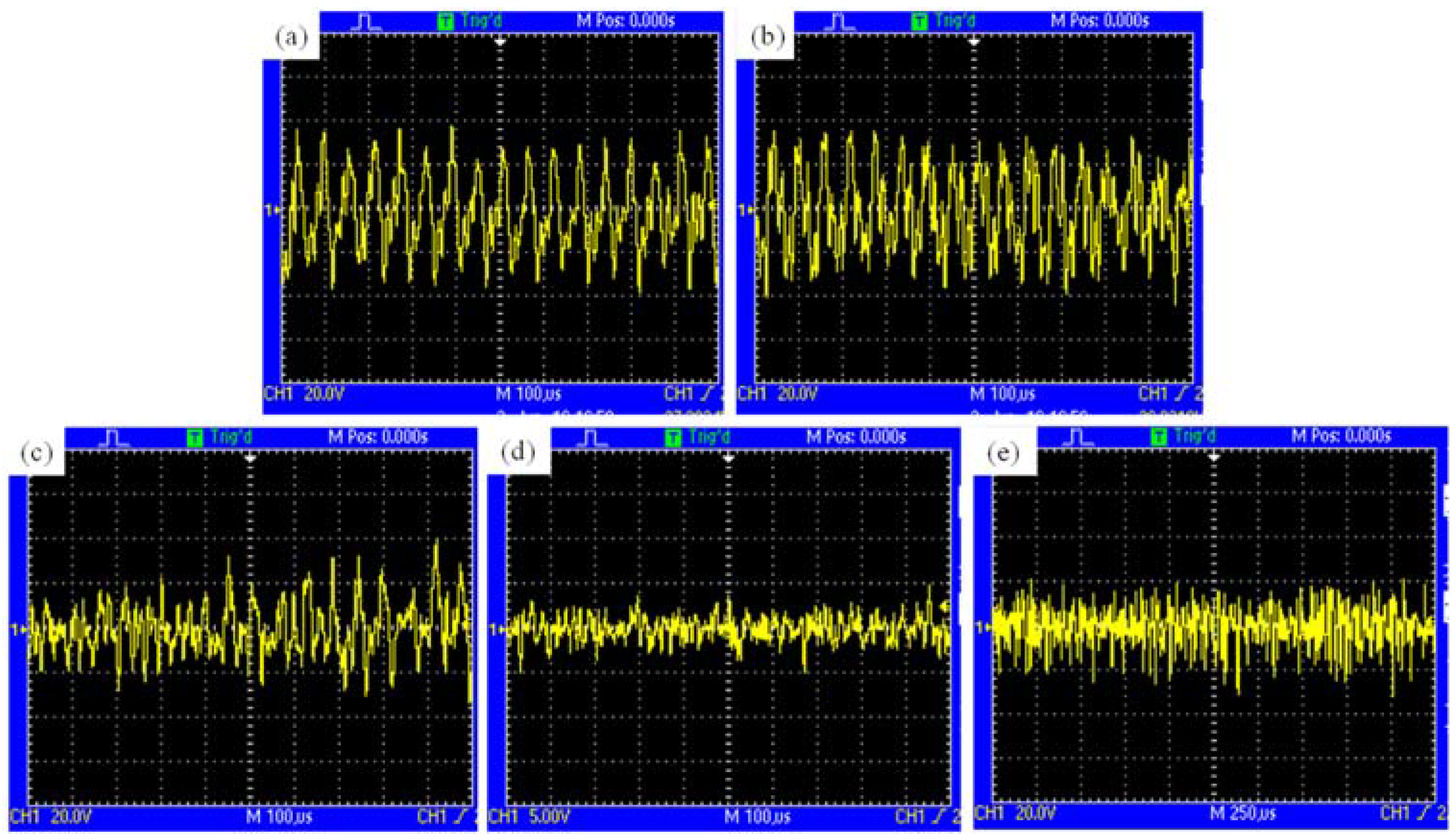

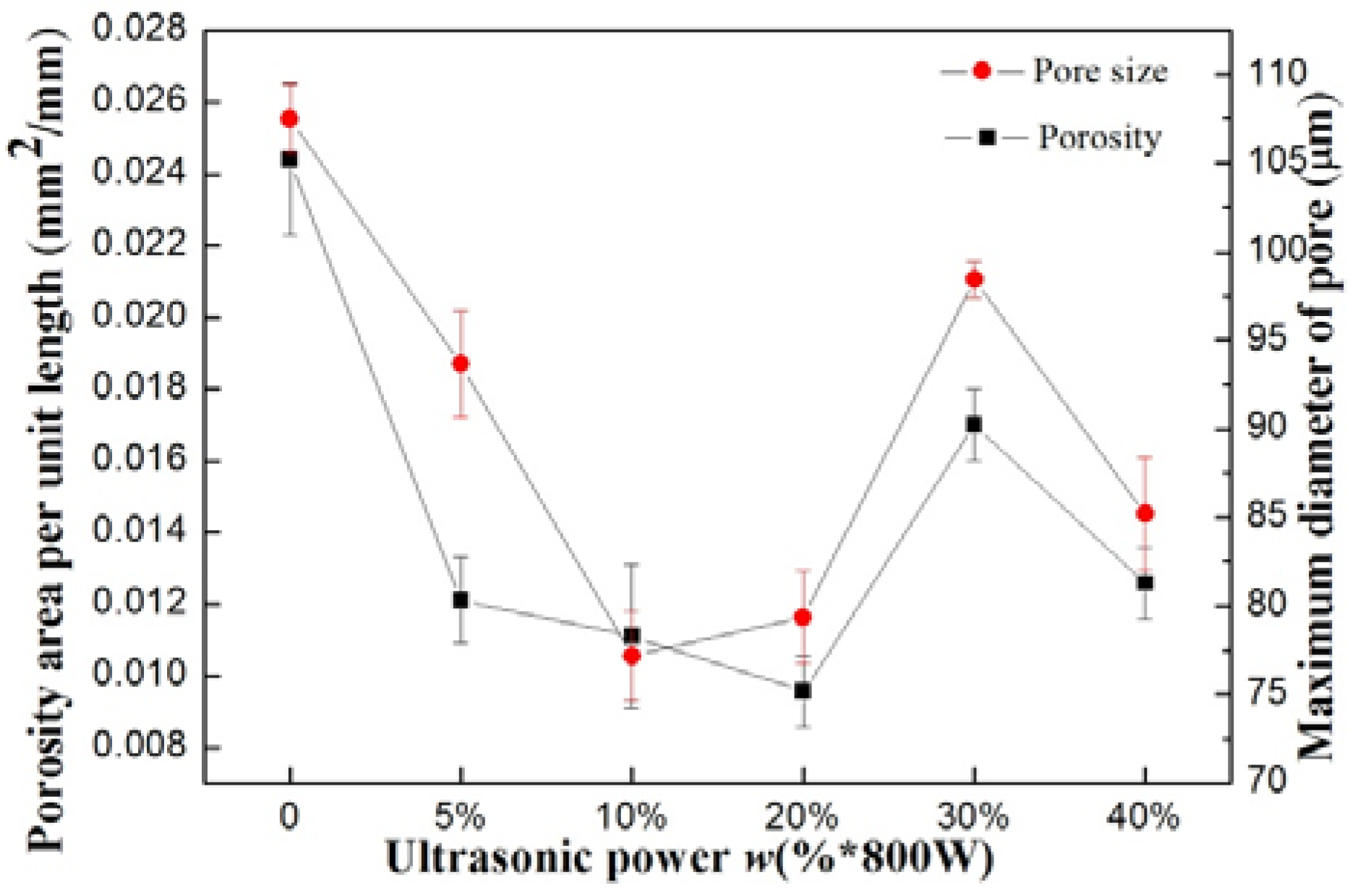

AbstractUltrasonic‐assisted tungsten inert gas welding was carried out on a thin plate of 2195 Al‐Li alloy, and the characteristics of the weld pores were analyzed in terms of their size and porosity. The effects of welding speed and ultrasonic power on the porosity and size of the pores were investigated. The pores were found to occur primarily adjacent to the surface of the weld. The porosity decreased and the size increased with a decrease in welding speed. The effect of ultrasonic power on the characteristics of the pores was different from that of the welding speed. The porosity and size of the pores decreased and then increased with an increase in ultrasonic power. A relationship was found between the transient cavitation intensity and the characteristics of pores. An increasing transient cavitation intensity results in a decrease in the porosity and size of pores when the transient cavitation intensity is lower. However, it can result in an increase in the porosity and pore size when the transient cavitation intensity further increases. Finally, the influencing mechanism of cavitation on welding pores was discussed. View Full-Text
Share & Cite This Article
Chen, Q.; Ge, H.; Yang, C.; Lin, S.; Fan, C. Study on Pores in Ultrasonic‐Assisted TIG Weld of Aluminum Alloy. Metals 2017, 7, 53.
Chen Q, Ge H, Yang C, Lin S, Fan C. Study on Pores in Ultrasonic‐Assisted TIG Weld of Aluminum Alloy. Metals. 2017; 7(2):53.Chicago/Turabian Style
Chen, Qihao; Ge, Hongliang; Yang, Chunli; Lin, Sanbao; Fan, Chenglei. 2017. "Study on Pores in Ultrasonic‐Assisted TIG Weld of Aluminum Alloy." Metals 7, no. 2: 53.
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
