Next Article in Journal
Strong and Stable Nanocomposites Prepared by High-Pressure Torsion of Cu-Coated Fe Powders
Previous Article in Journal
Synthesis, Characterization, and Cytotoxicity of a Novel Gold(III) Complex with O,O′-Diethyl Ester of Ethylenediamine-N,N′-Di-2-(4-Methyl)Pentanoic Acid
Article Menu

Export Article

Open AccessArticle
Metals 2016, 6(9), 227; doi:10.3390/met6090227

Microstructure and Dry-Sliding Wear Behavior of B4C Ceramic Particulate Reinforced Al 5083 Matrix Composite

1
The Key Laboratory of Bionic Engineering, Ministry of Education, Jilin University, Changchun 130025, China
2
School of Mechanical, Aerospace and Civil Engineering, University of Manchester, Manchester M139PL, UK
3
State Key Laboratory of Automotive Simulation and Control, Jilin University, Changchun 130025, China
*
Author to whom correspondence should be addressed.
Academic Editor: Manoj Gupta
Received: 17 August 2016 / Revised: 14 September 2016 / Accepted: 14 September 2016 / Published: 21 September 2016
View Full-Text   |   Download PDF [7385 KB, uploaded 21 September 2016]   |

Abstract

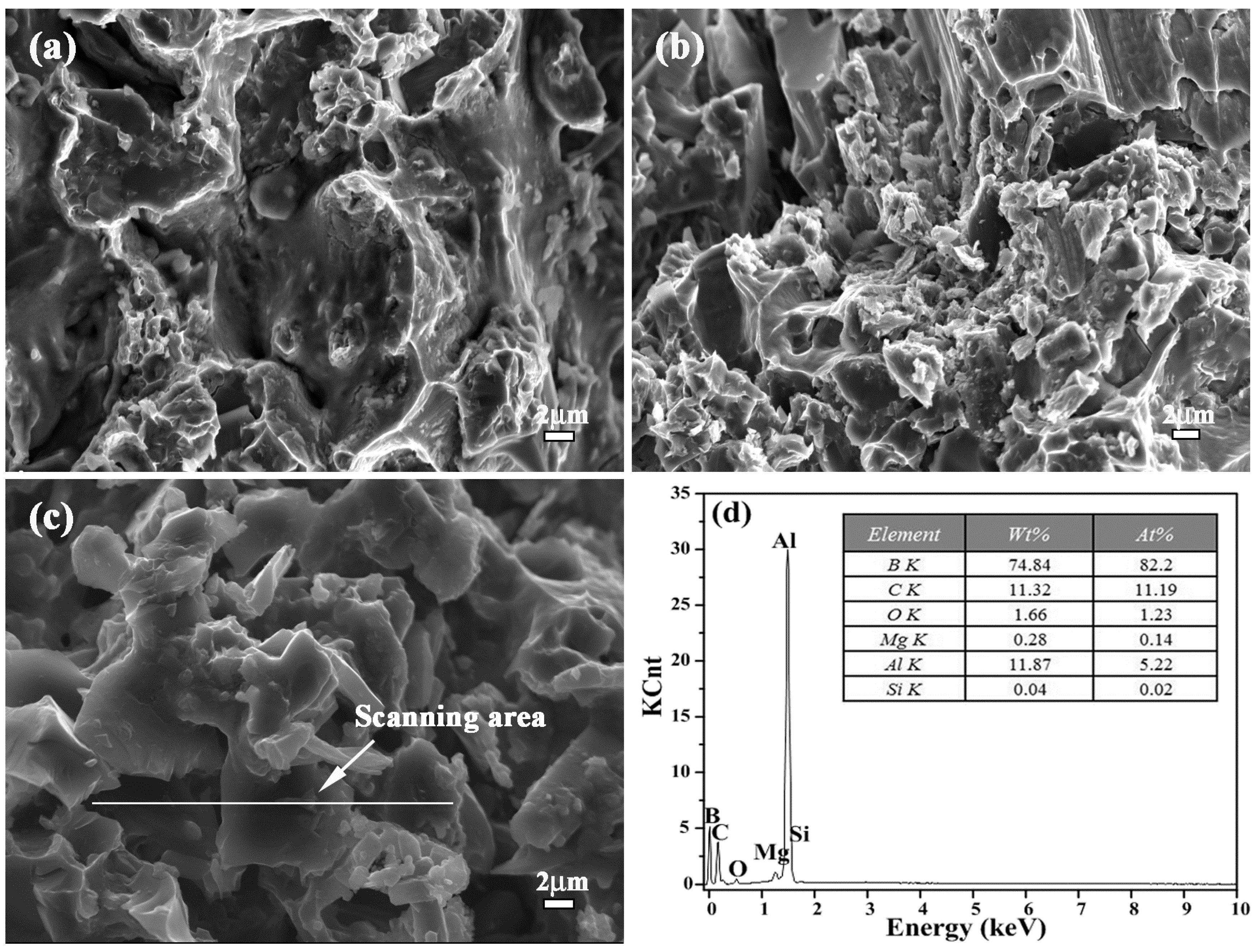

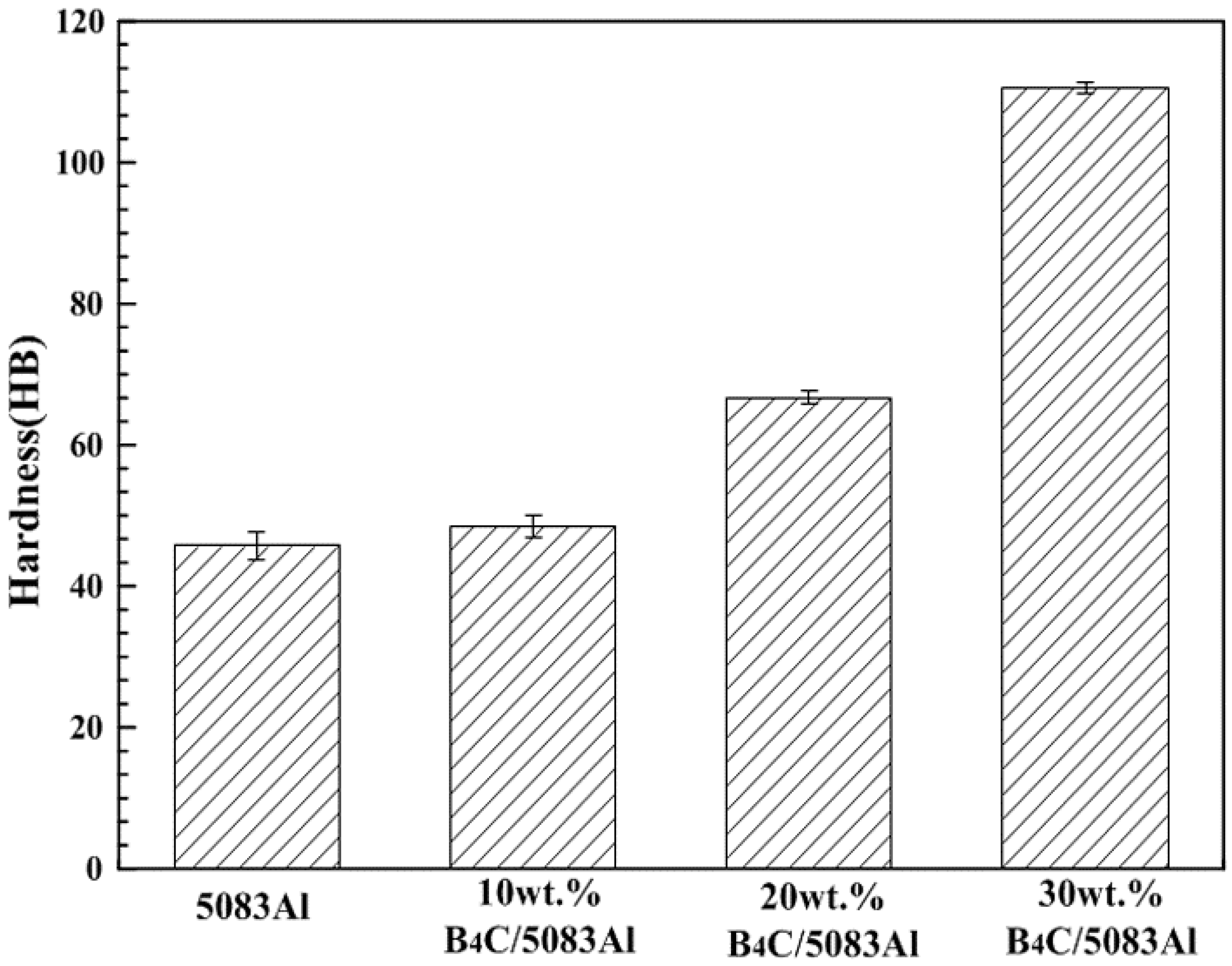

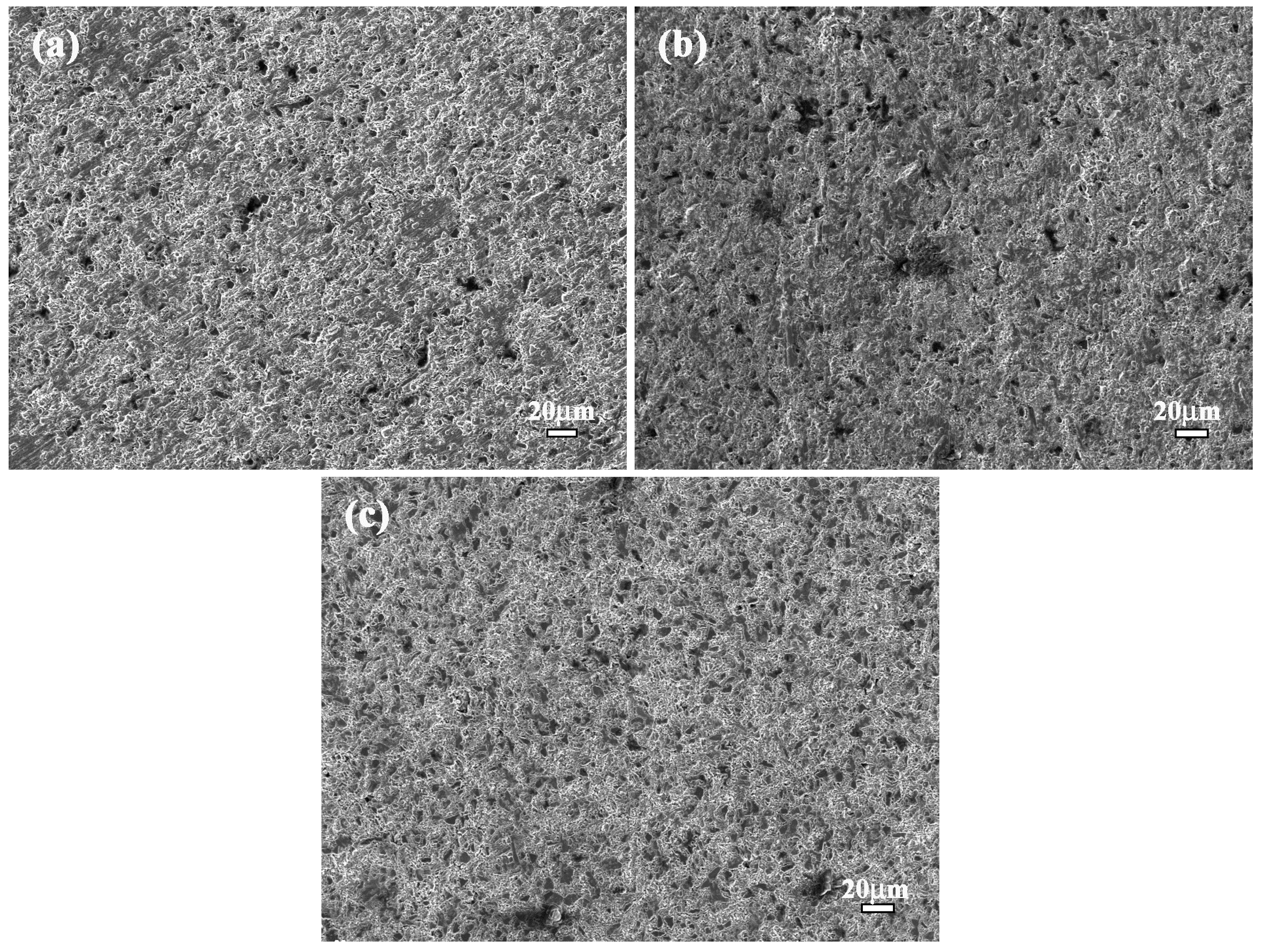

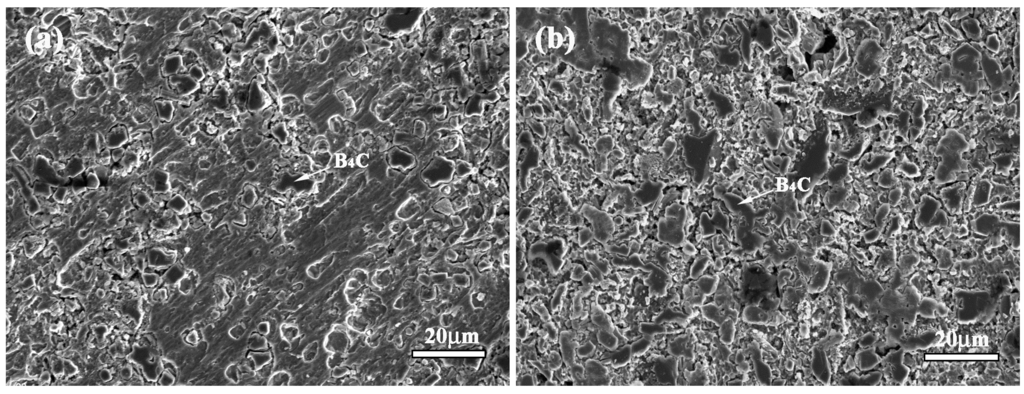

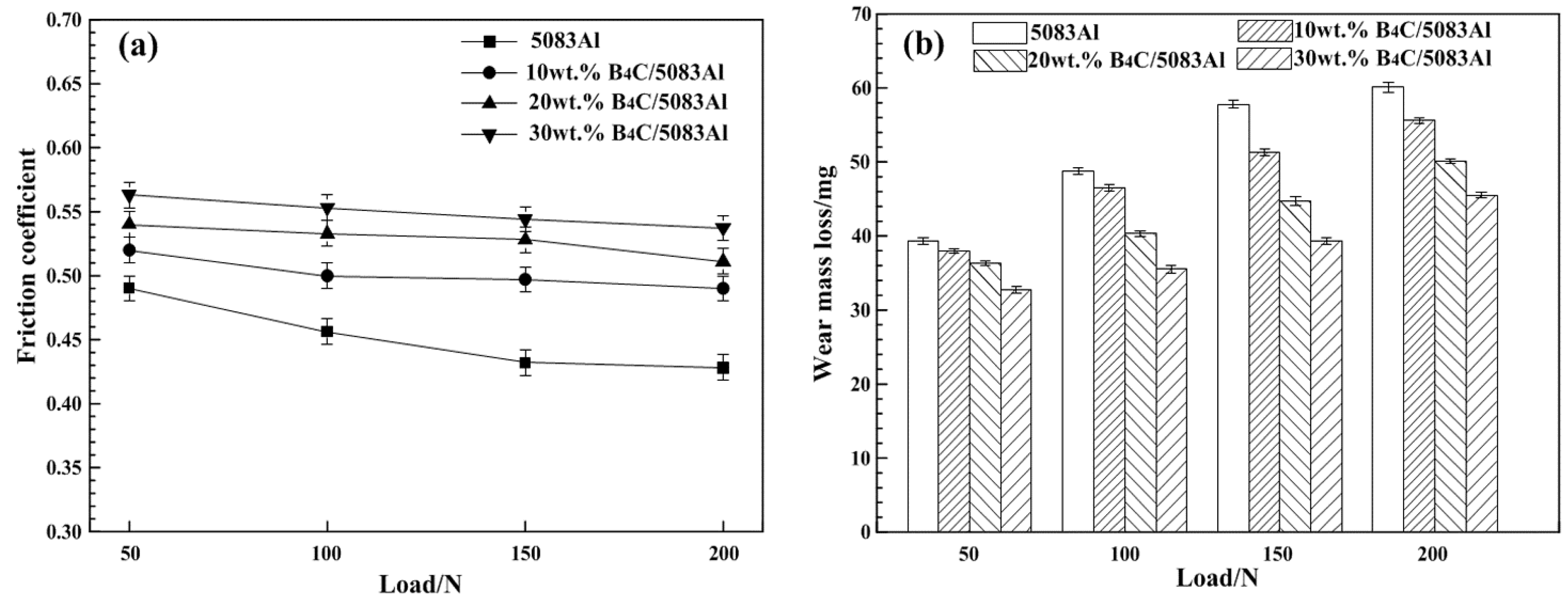

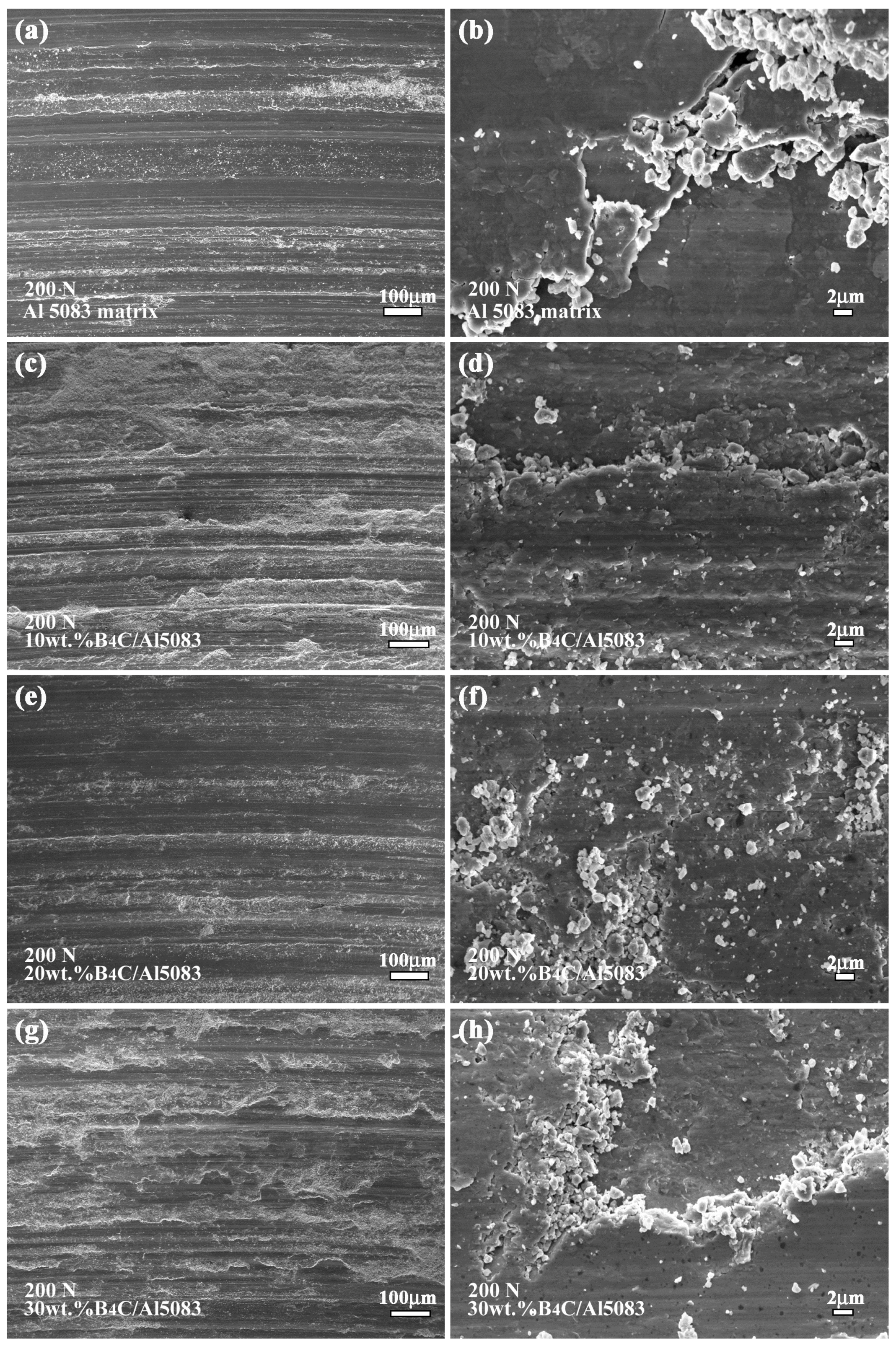

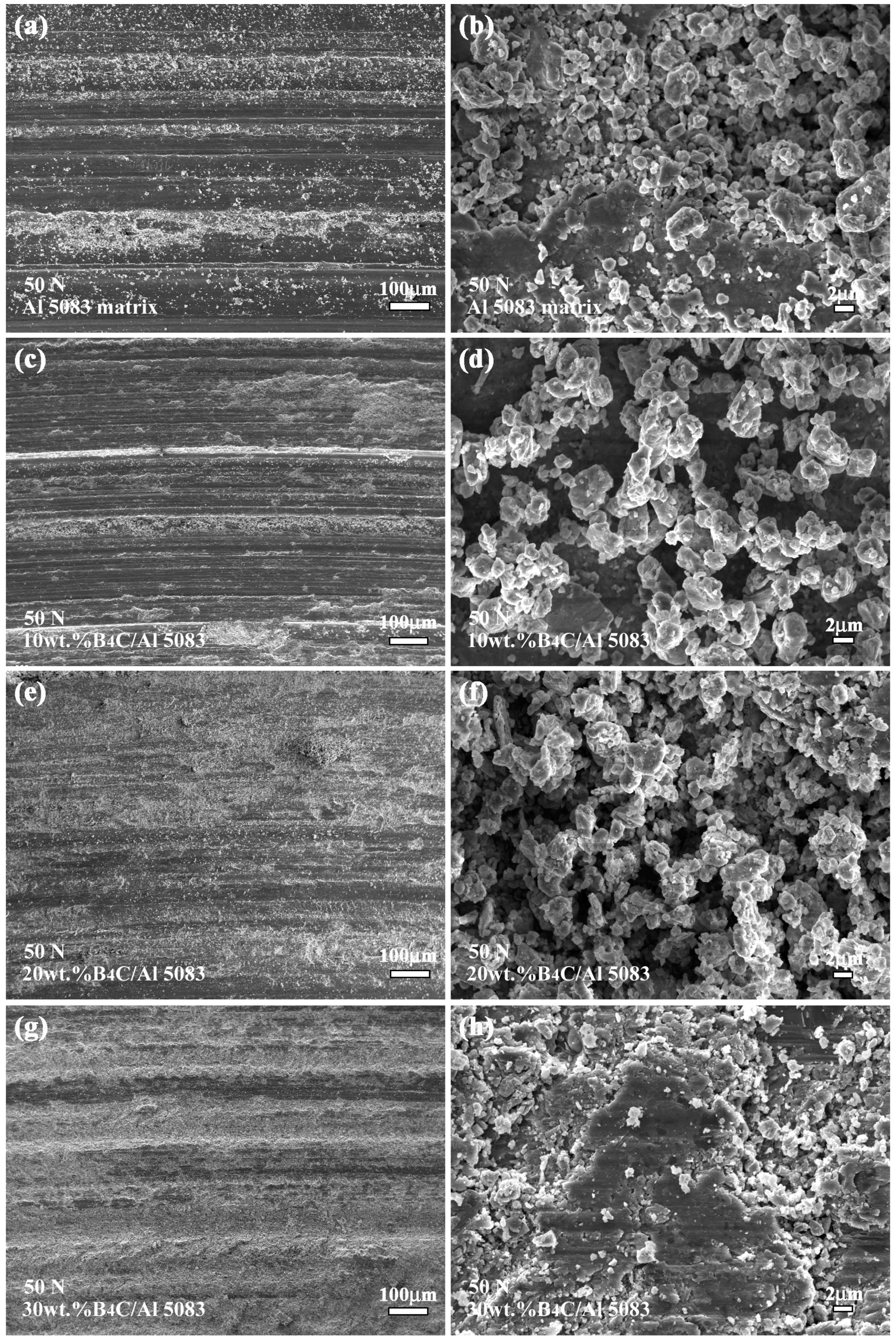

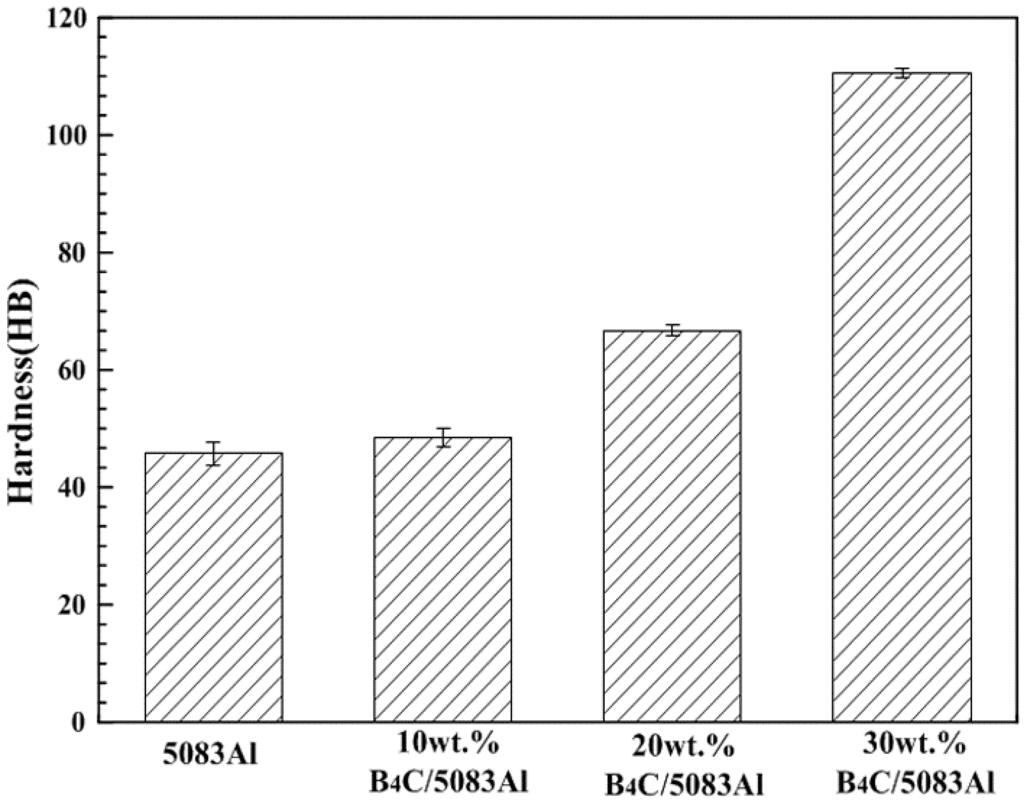

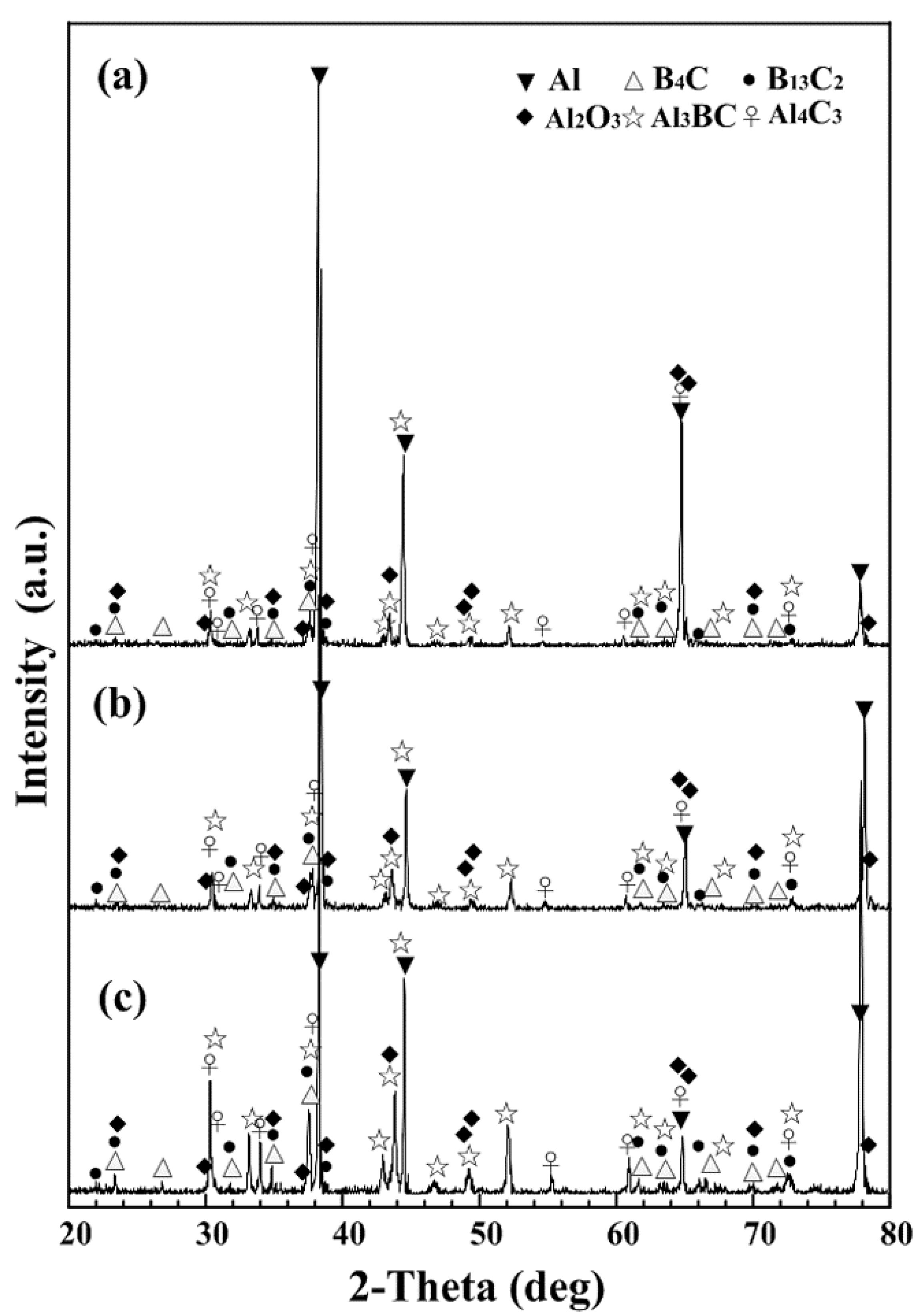

B4C ceramic particulate–reinforced Al 5083 matrix composite with various B4C content was fabricated successfully via hot-press sintering under Argon atmosphere. B4C particles presented relative high wettability, bonding strength and symmetrical distribution in the Al 5083 matrix. The hardness value, friction coefficient and wear resistance of the composite were higher than those of the Al 5083 matrix. The augment of the B4C content resulted in the increase of the friction coefficient and decrease of the wear mass loss, respectively. The 30 wt % B4C/Al 5083 composite exhibited the highest wear resistance. At a low load of 50 N, the dominant wear mechanisms of the B4C/Al 5083 composite were micro-cutting and abrasive wear. At a high load of 200 N, the dominant wear mechanisms were micro-cutting and adhesion wear associated with the formation of the delamination layer which protected the composite from further wear and enhanced the wear resistance under the condition of high load. View Full-Text
Keywords: aluminum matrix composite; hot pressed sintering; ceramic; wear aluminum matrix composite; hot pressed sintering; ceramic; wear
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Zhao, Q.; Liang, Y.; Zhang, Z.; Li, X.; Ren, L. Microstructure and Dry-Sliding Wear Behavior of B4C Ceramic Particulate Reinforced Al 5083 Matrix Composite. Metals 2016, 6, 227.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
