Next Article in Journal
Differential Scanning Calorimetry and Thermodynamic Predictions—A Comparative Study of Al-Zn-Mg-Cu Alloys
Next Article in Special Issue
Water Droplet Erosion Performance of Laser Shock Peened Ti-6Al-4V
Previous Article in Journal
Understanding Low Cycle Fatigue Behavior of Alloy 617 Base Metal and Weldments at 900 °C
Previous Article in Special Issue
Effects of Warm Laser Peening on Thermal Stability and High Temperature Mechanical Properties of A356 Alloy
Article Menu

Export Article

Open AccessArticle
Metals 2016, 6(8), 179;

Investigation on a Novel Laser Impact Spot Welding

School of Mechanical Engineering, Jiangsu University, Zhenjiang 212013, China
Author to whom correspondence should be addressed.
Academic Editor: Patrice Peyre
Received: 29 June 2016 / Revised: 20 July 2016 / Accepted: 28 July 2016 / Published: 3 August 2016
(This article belongs to the Special Issue Laser Shock Processing on Metal)
View Full-Text   |   Download PDF [6985 KB, uploaded 3 August 2016]   |

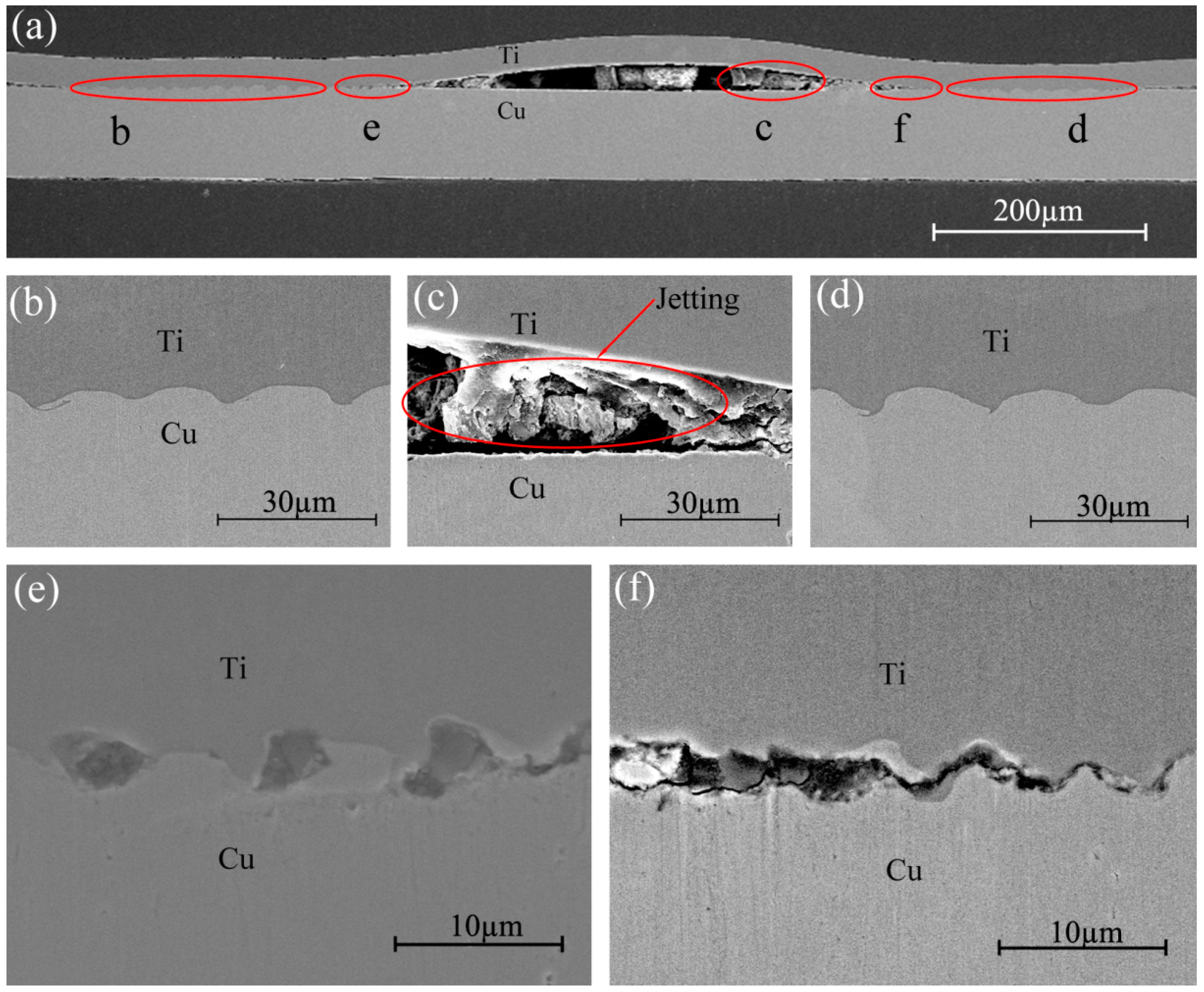

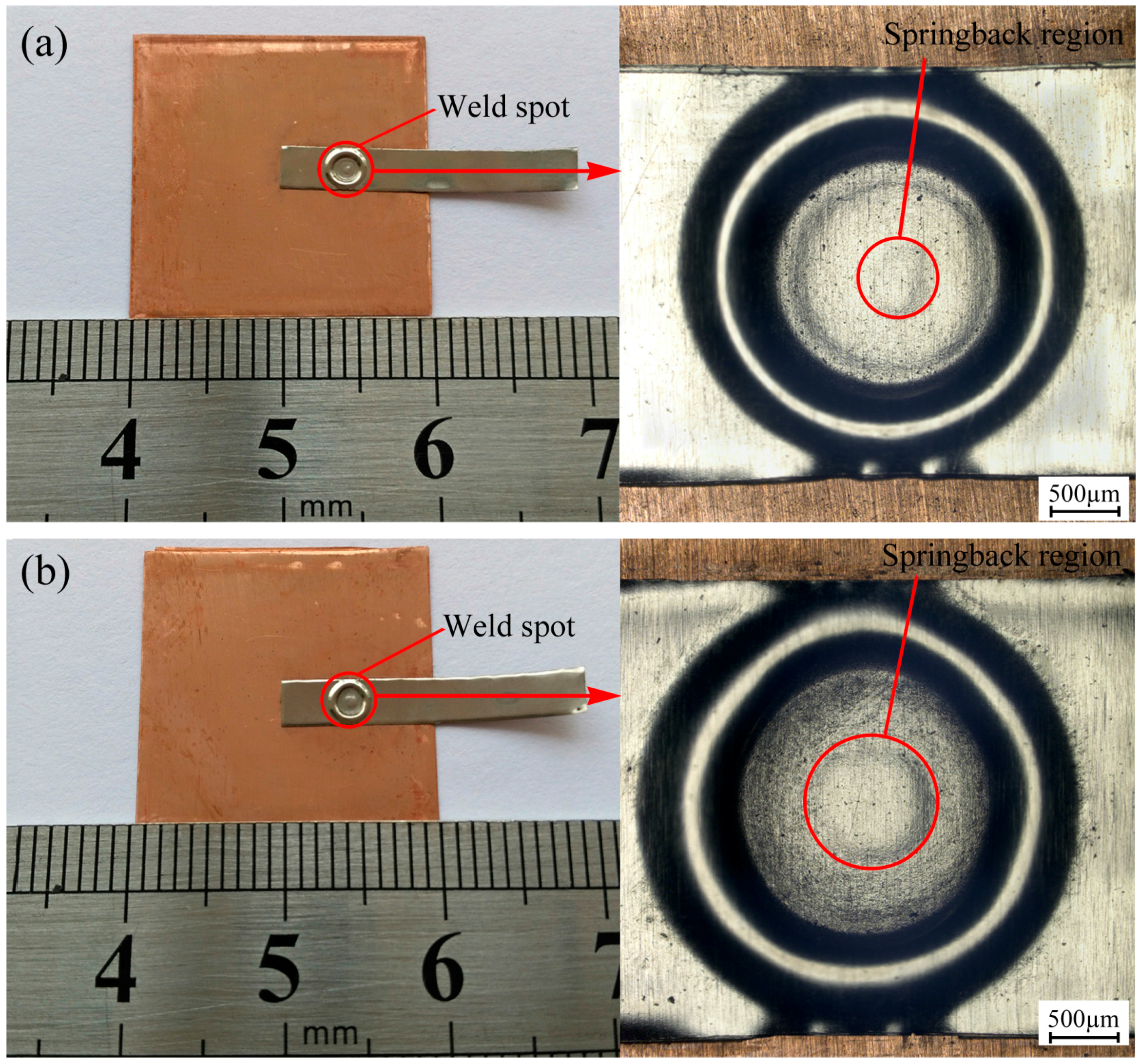

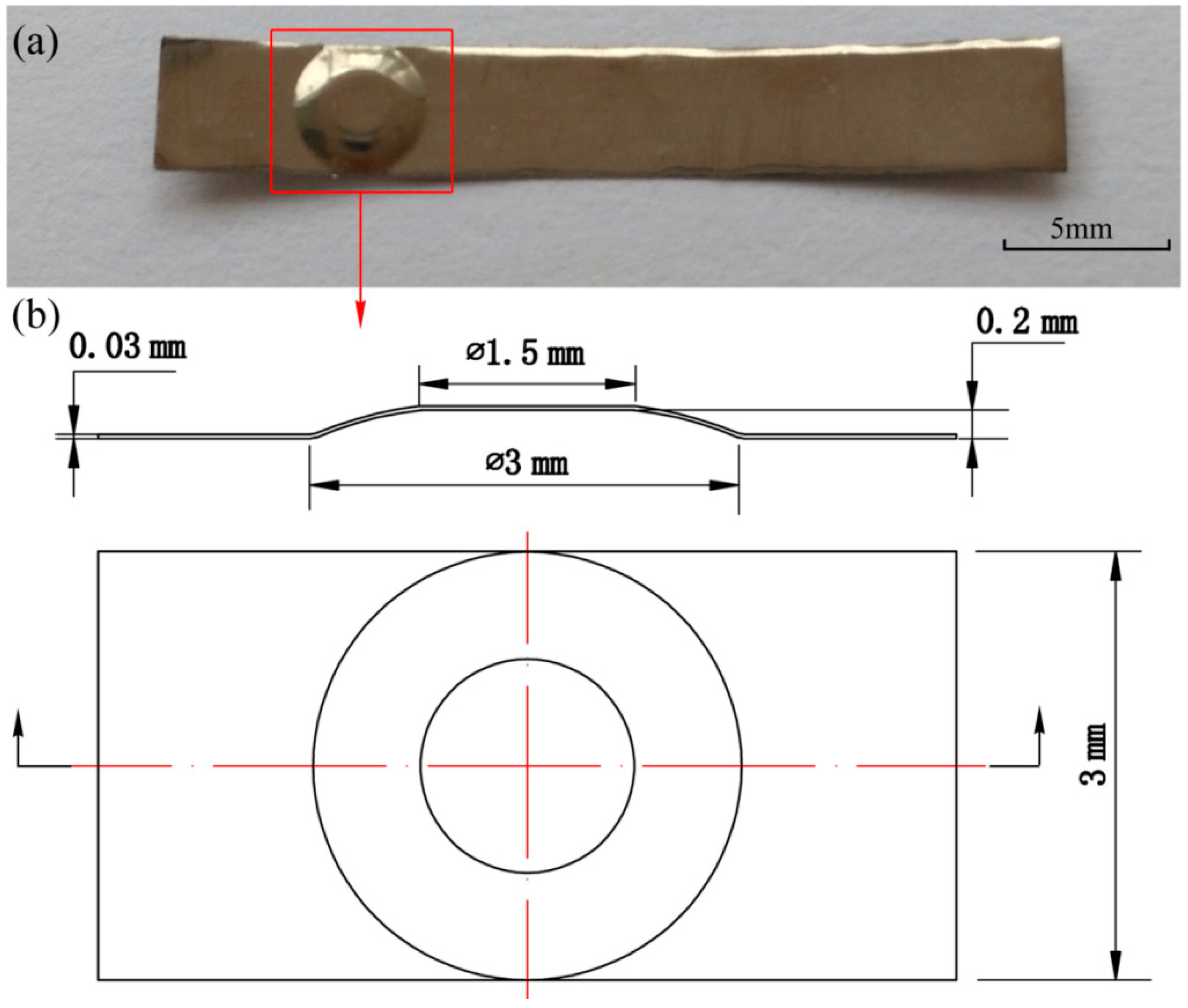

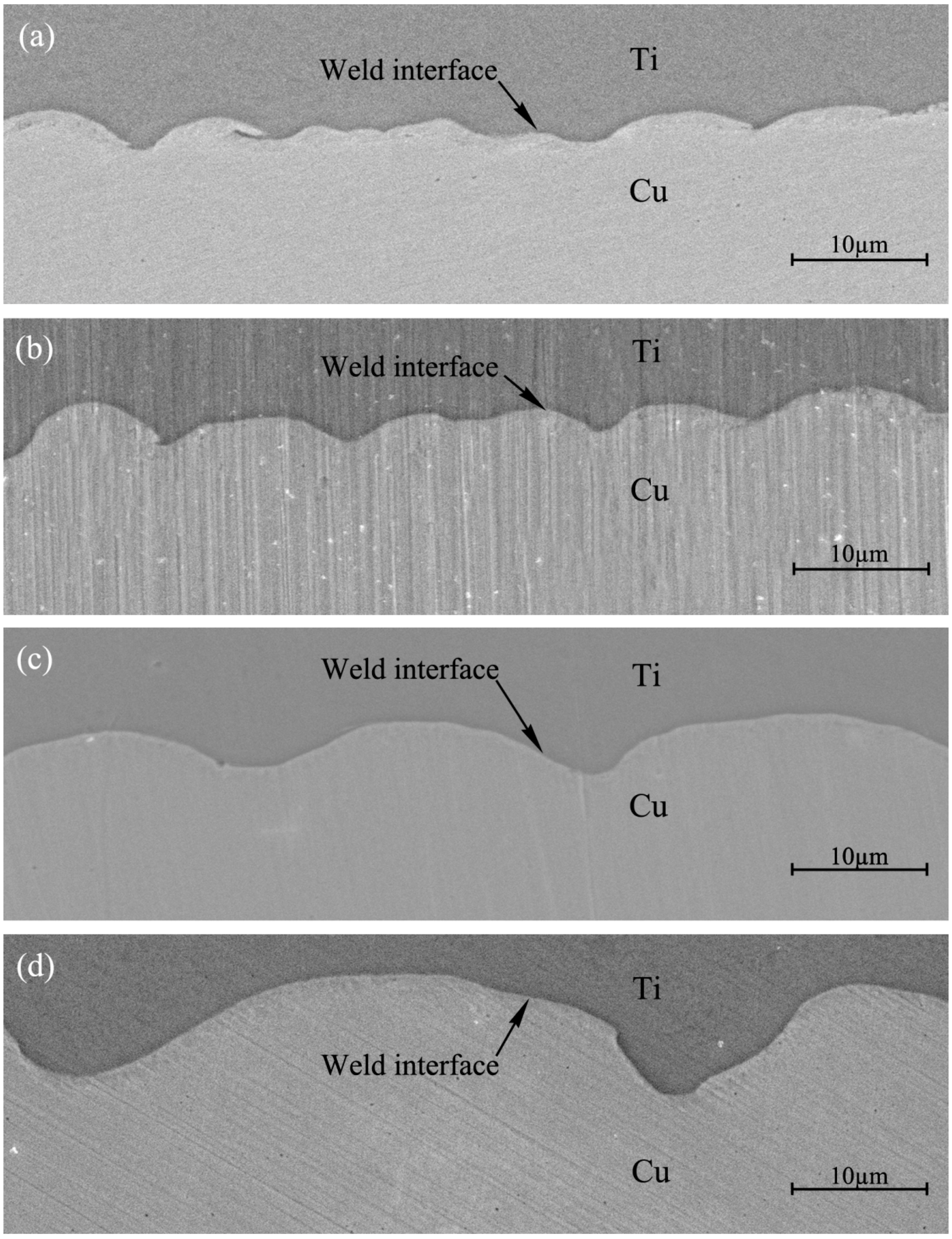

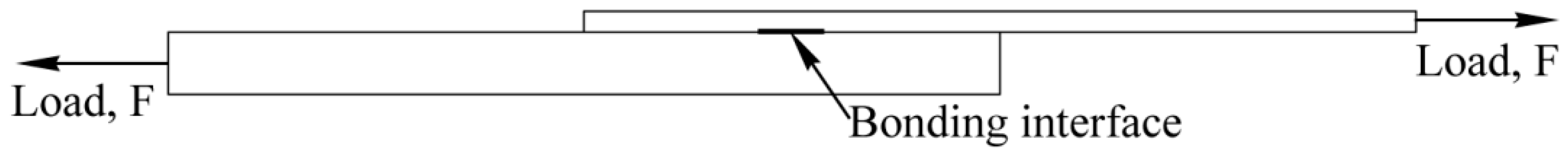

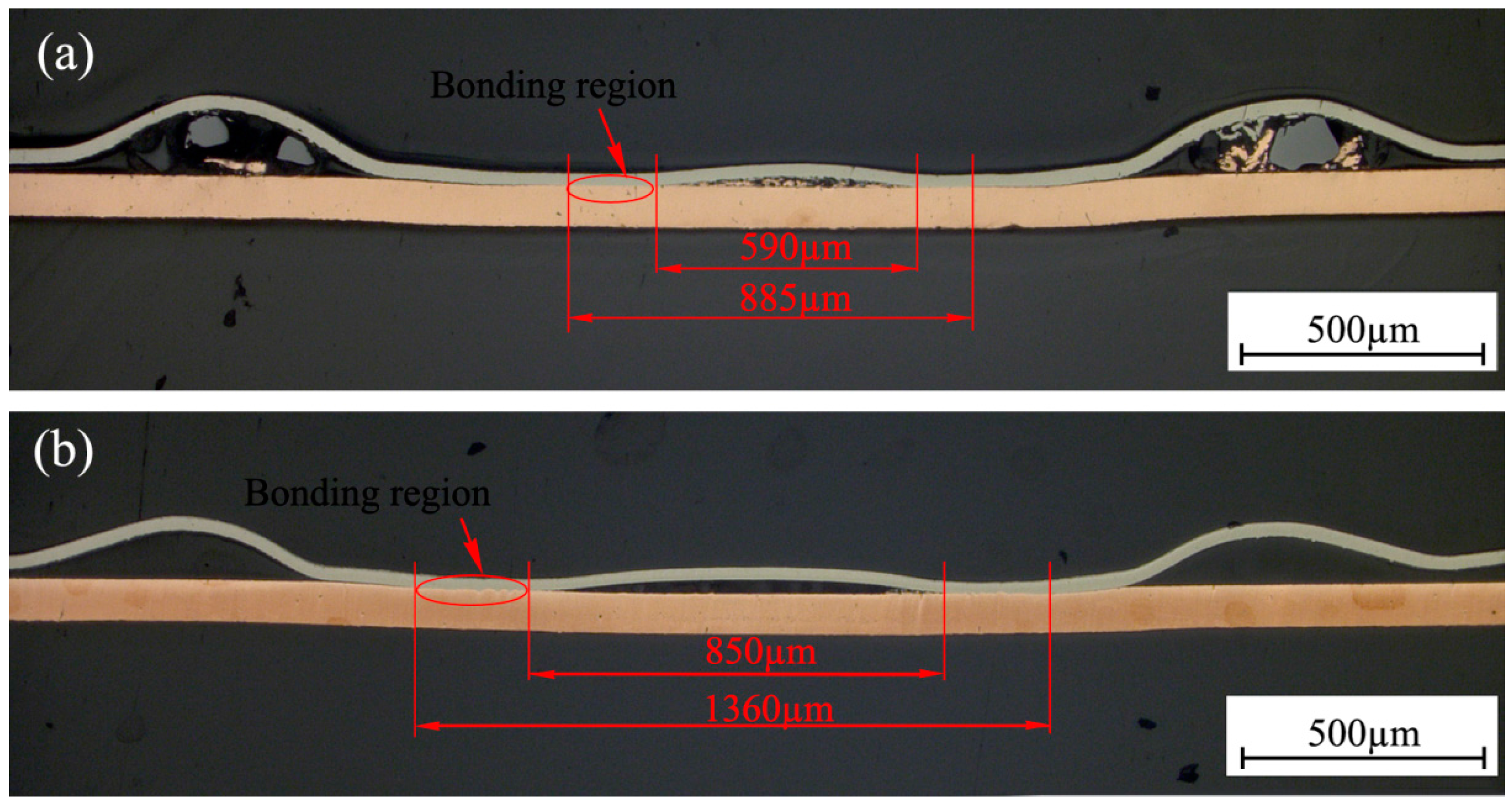

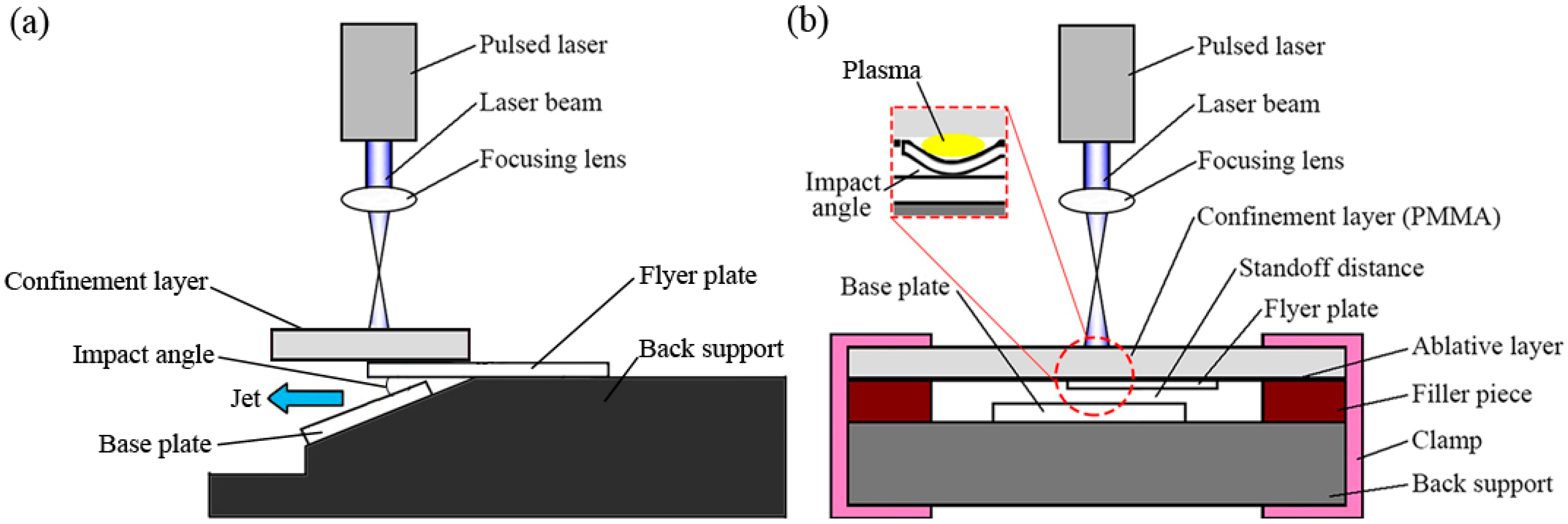

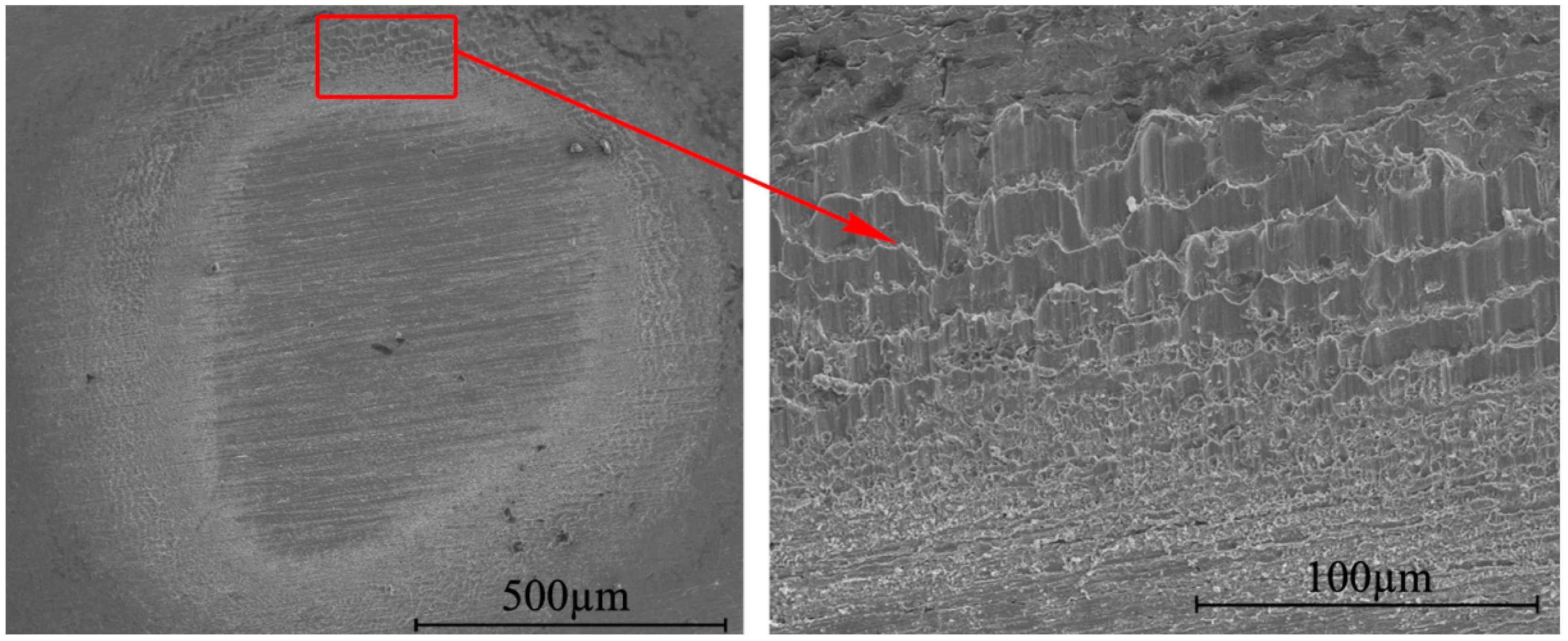

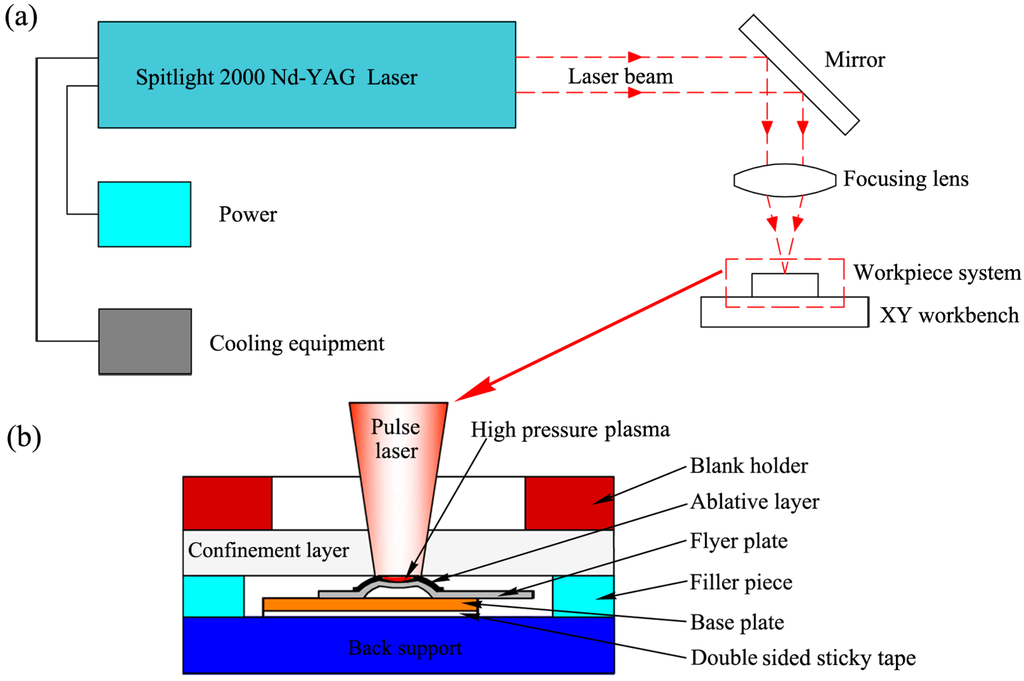

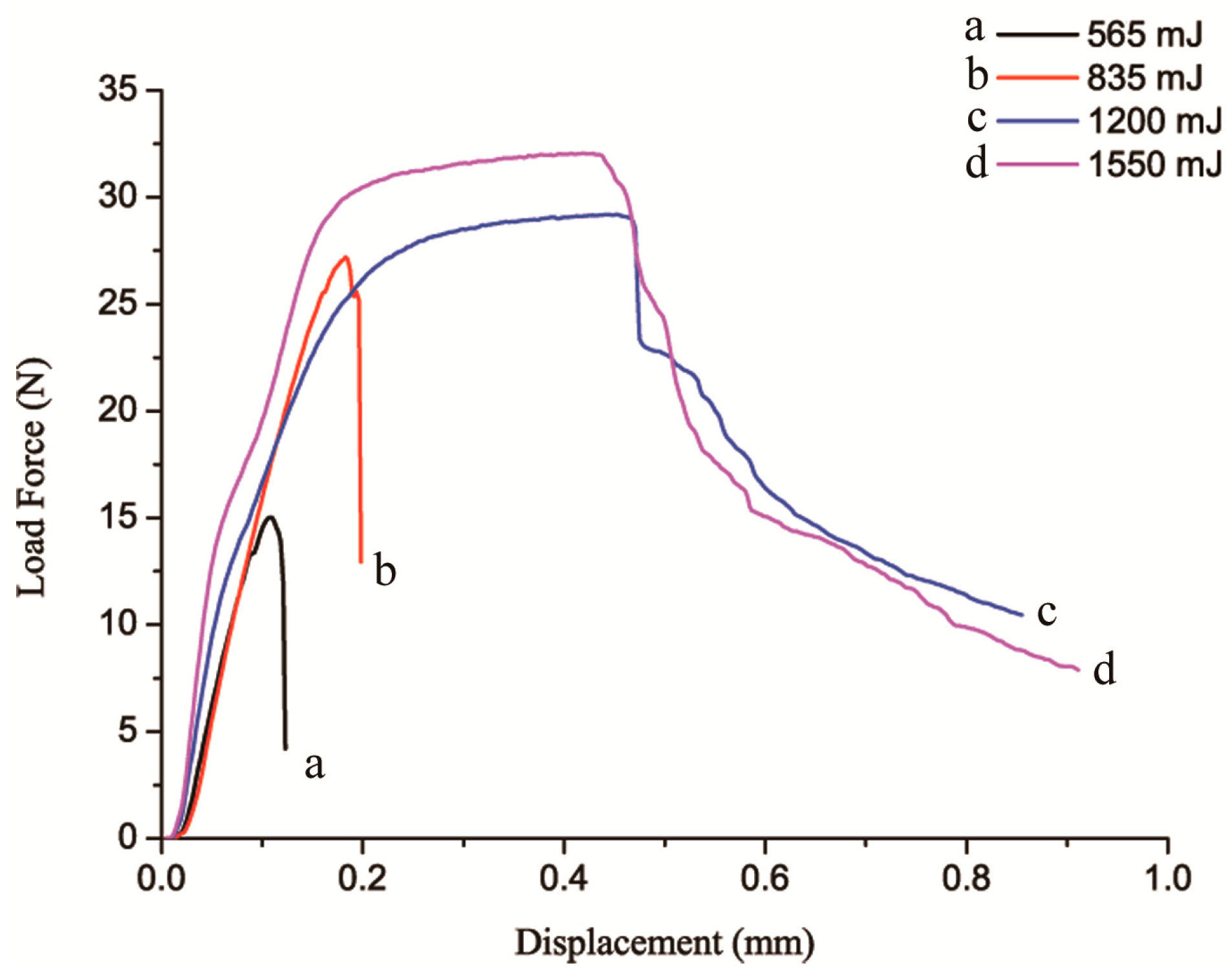

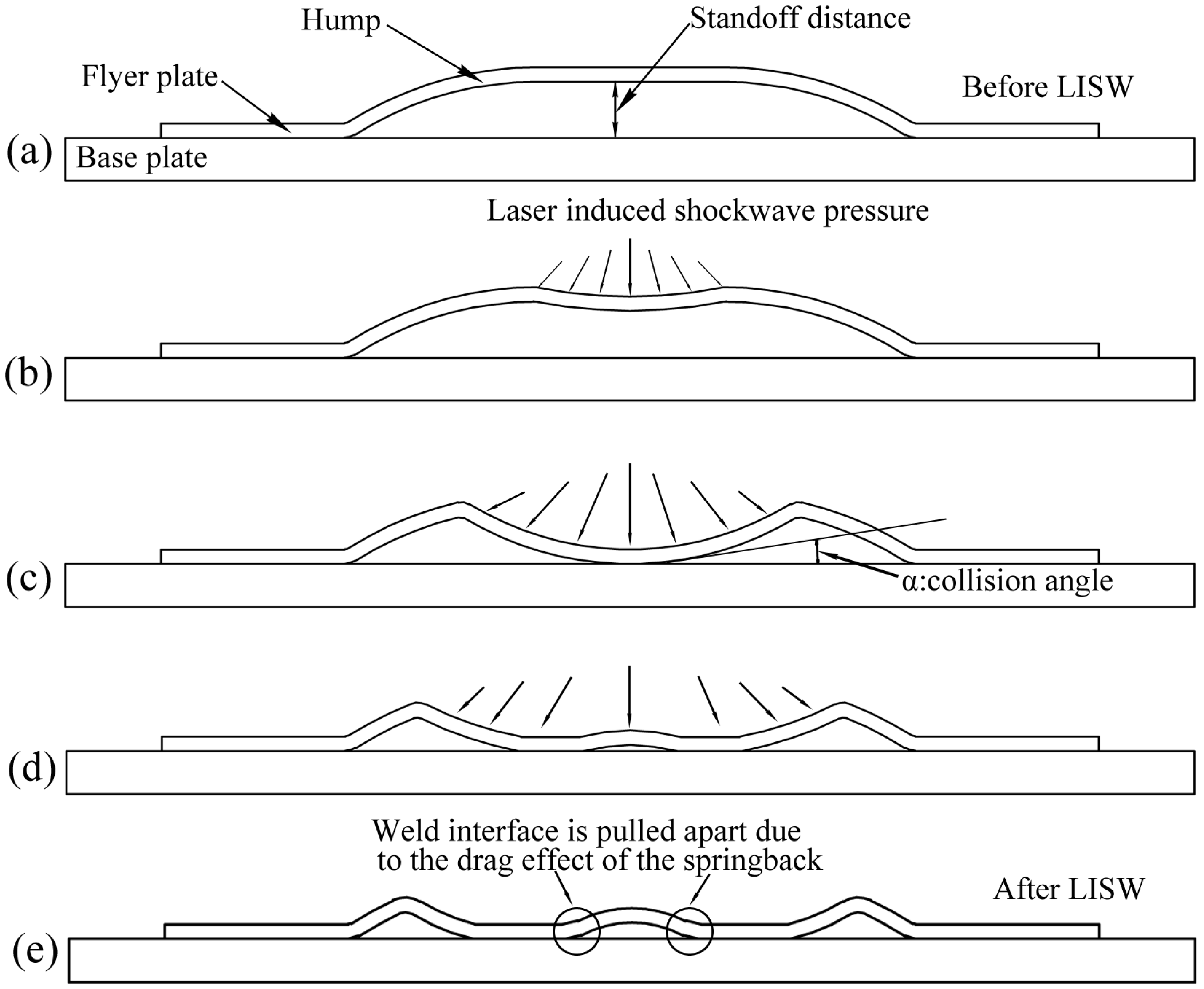

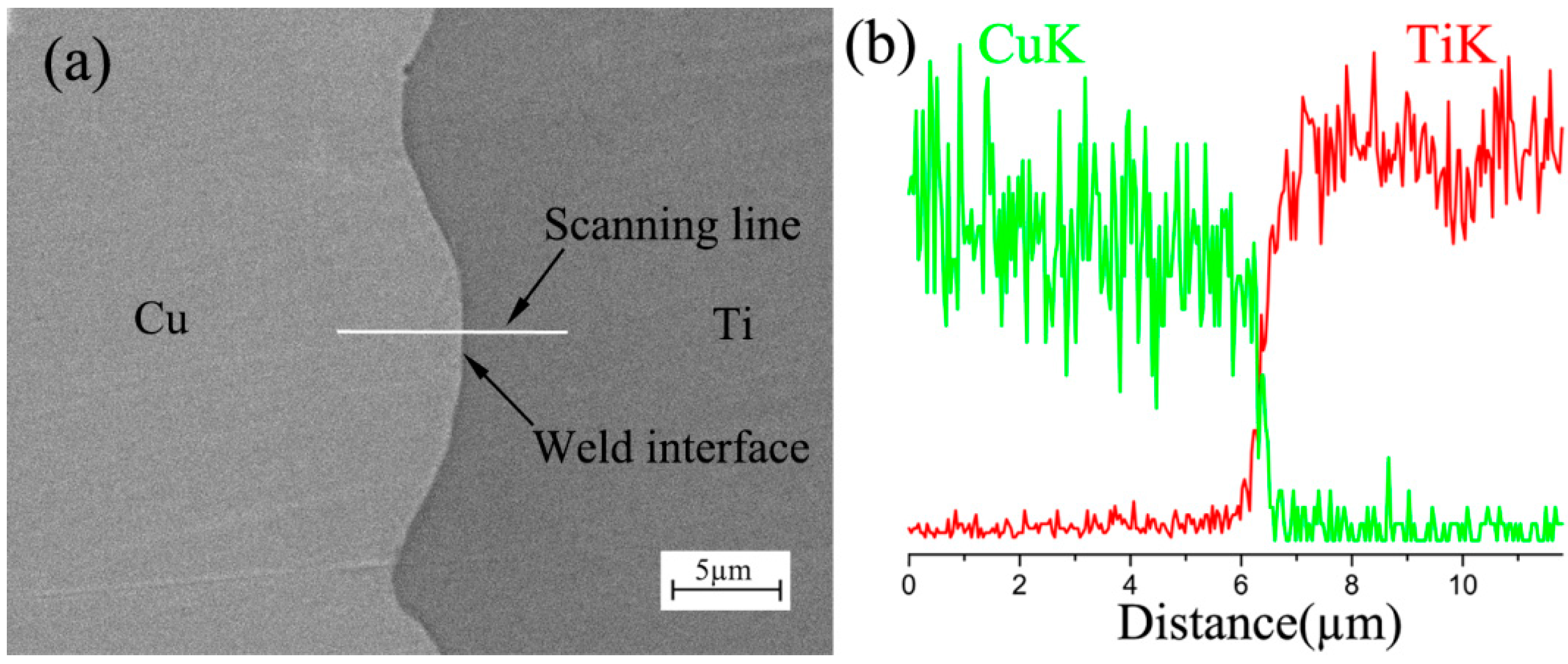

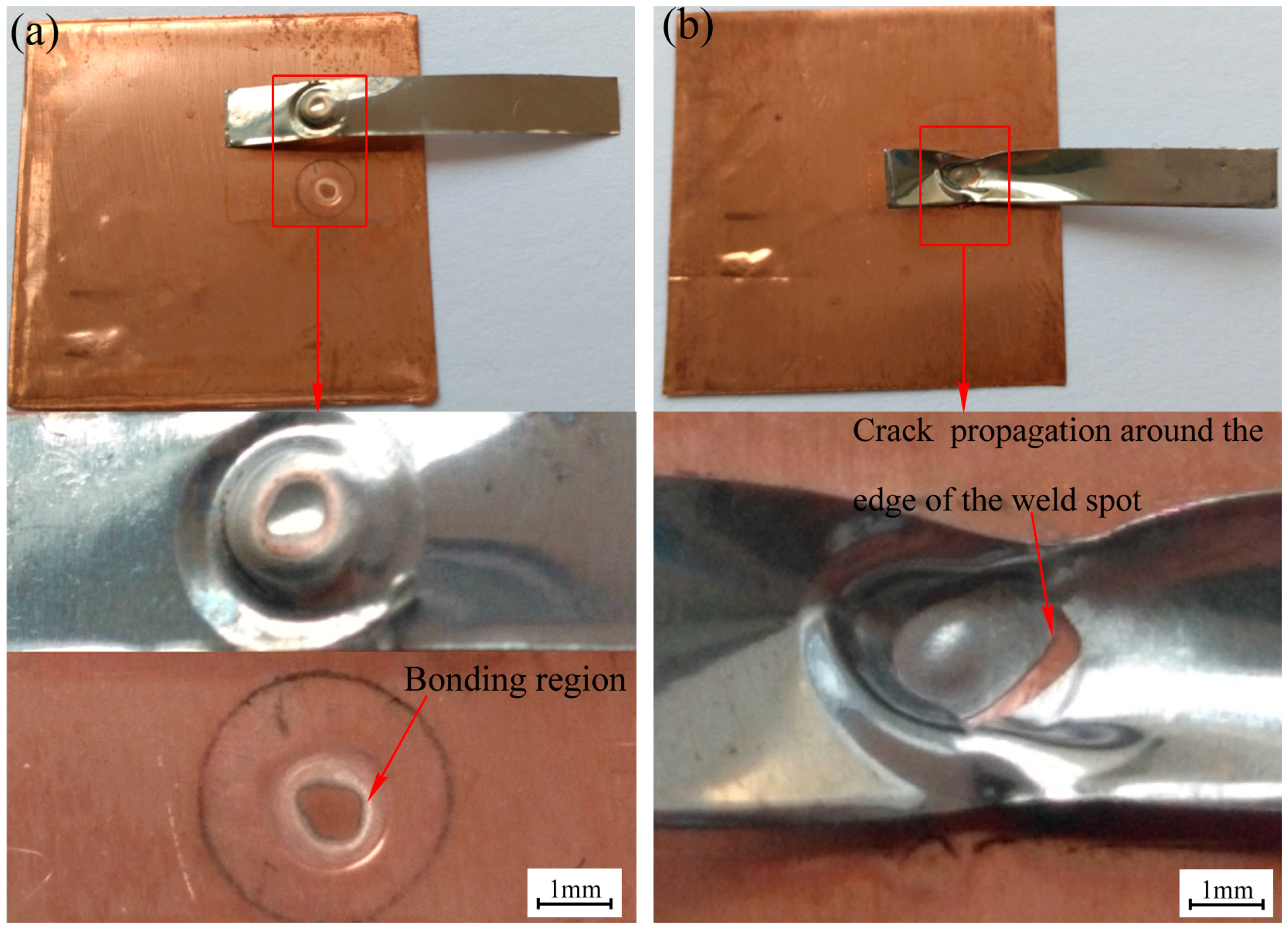

In this paper a novel laser impact spot welding (LISW) method is described, in which a hump was formed on the flyer plate on the intended welding spot location by local pre-forming. When the flyer and base plates were placed together to perform welding, the two plates kept in contact over their entire surfaces except at the hump, where a local air gap was enough to guarantee the impact velocity and collision angle to achieve spot welding using laser pulse energy. The presented approach was implemented to join thin titanium foils to copper foils under low laser energy system. Joints with regular shapes were obtained. The microstructure in the weld interface was studied with scanning electron microscopy (SEM) and energy dispersive spectroscopy (EDS). It was found that the jetting occurred at the central region of the weld spots due to oblique impact. Wave features were observed in the weld interfaces. The impact energy was found to have significant influence on the wave’s characteristics. Moreover, SEM images and EDS analysis did not show apparent element diffusion across the weld interface. Besides, the lap shearing test was used to characterize the mechanical properties of the spot welded joints. View Full-Text
Keywords: laser impact spot welding; wavy interface; jet formation; lap shearing test; laser impact welding laser impact spot welding; wavy interface; jet formation; lap shearing test; laser impact welding

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Liu, H.; Gao, S.; Yan, Z.; Li, L.; Li, C.; Sun, X.; Sha, C.; Shen, Z.; Ma, Y.; Wang, X. Investigation on a Novel Laser Impact Spot Welding. Metals 2016, 6, 179.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
