Next Article in Journal
Study on the Surface Integrity of a Thin-Walled Aluminum Alloy Structure after a Bilateral Slid Rolling Process
Next Article in Special Issue
Tensile Fracture Behavior of Progressively-Drawn Pearlitic Steels
Previous Article in Journal
Properties Evaluation of Thin Microhardened Surface Layer of Tool Steel after Wire EDM
Previous Article in Special Issue
Characterization of Precipitates in a Microalloyed Steel Using Quantitative X-ray Diffraction
Article Menu

Export Article

Open AccessArticle
Metals 2016, 6(5), 98; doi:10.3390/met6050098

Monotonic and Cyclic Behavior of DIN 34CrNiMo6 Tempered Alloy Steel

Department of Mechanical Engineering, ISEC, Polytechnic Institute of Coimbra, Rua Pedro Nunes, Quinta da Nora, 3030-199 Coimbra, Portugal
CEMUC, Department of Mechanical Engineering, University of Coimbra, Rua Luís Reis Santos, Pinhal de Marrocos, 3030-788 Coimbra, Portugal
Author to whom correspondence should be addressed.
Academic Editor: Isabel Gutierrez
Received: 29 March 2016 / Revised: 18 April 2016 / Accepted: 21 April 2016 / Published: 26 April 2016
(This article belongs to the Special Issue Microalloyed Steel)
View Full-Text   |   Download PDF [8451 KB, uploaded 26 April 2016]   |

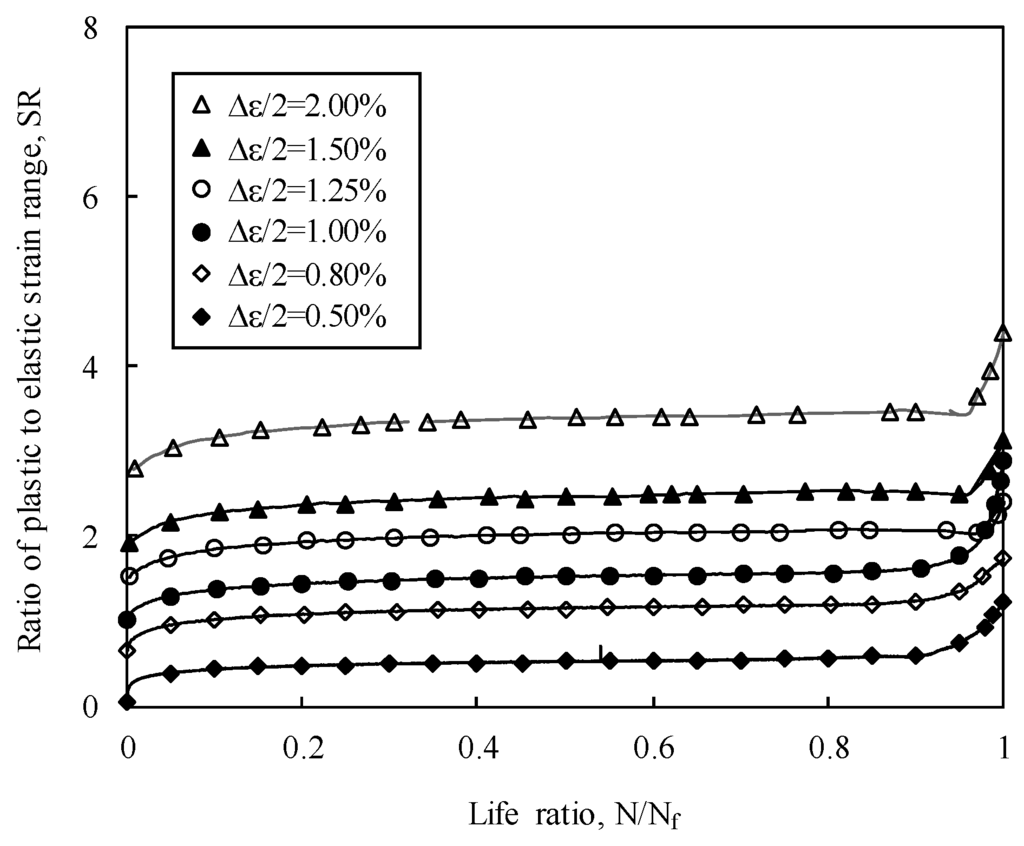

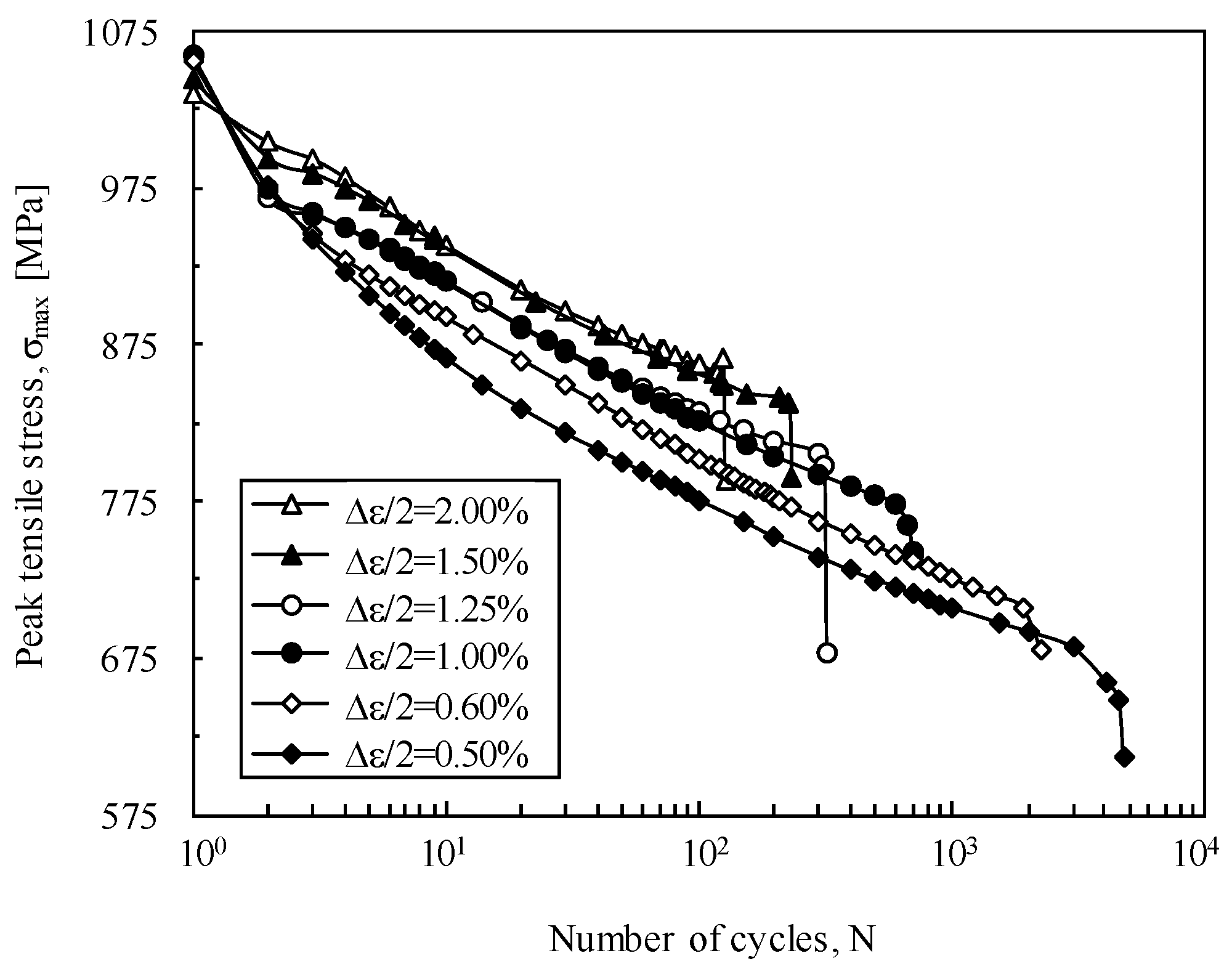

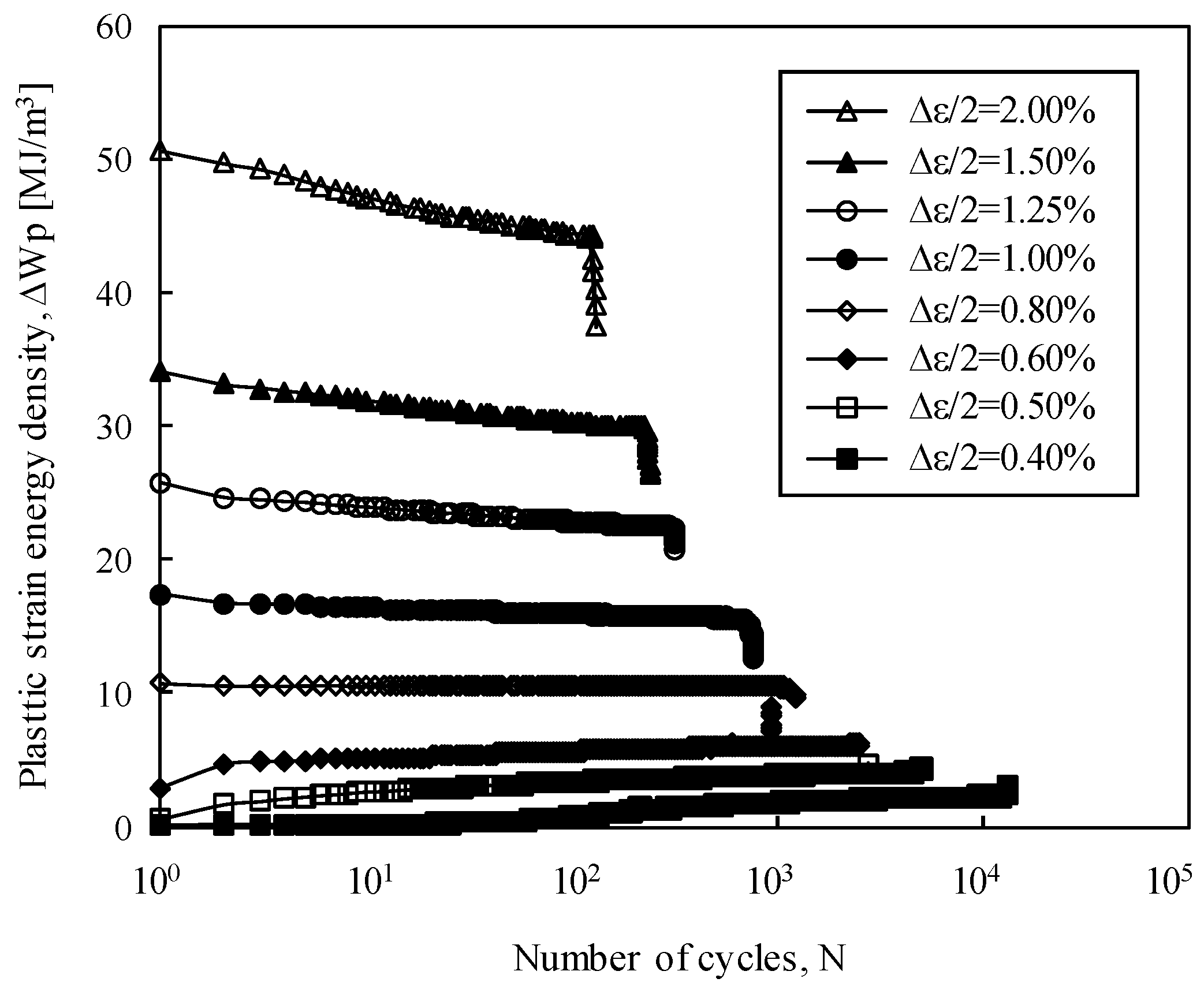

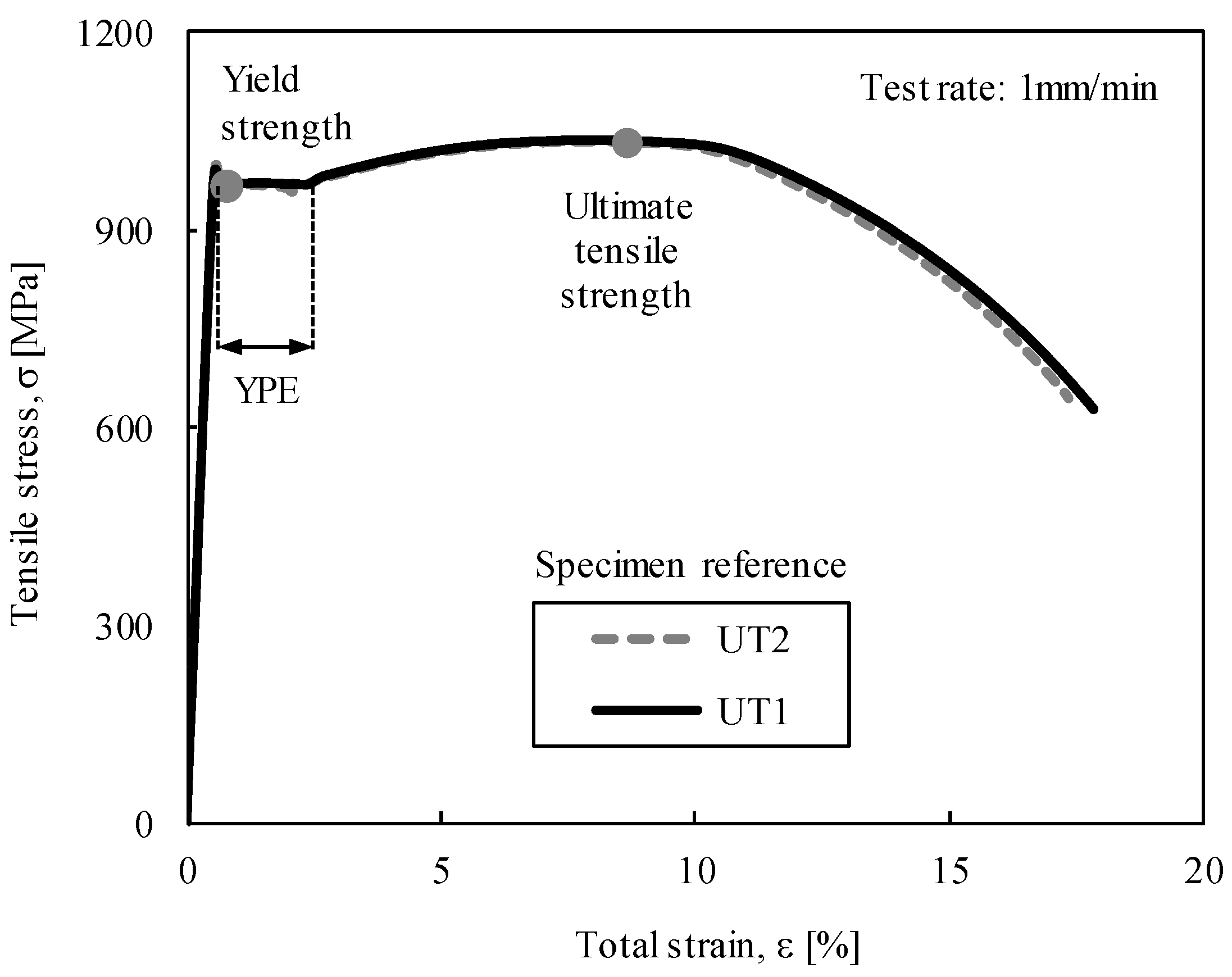

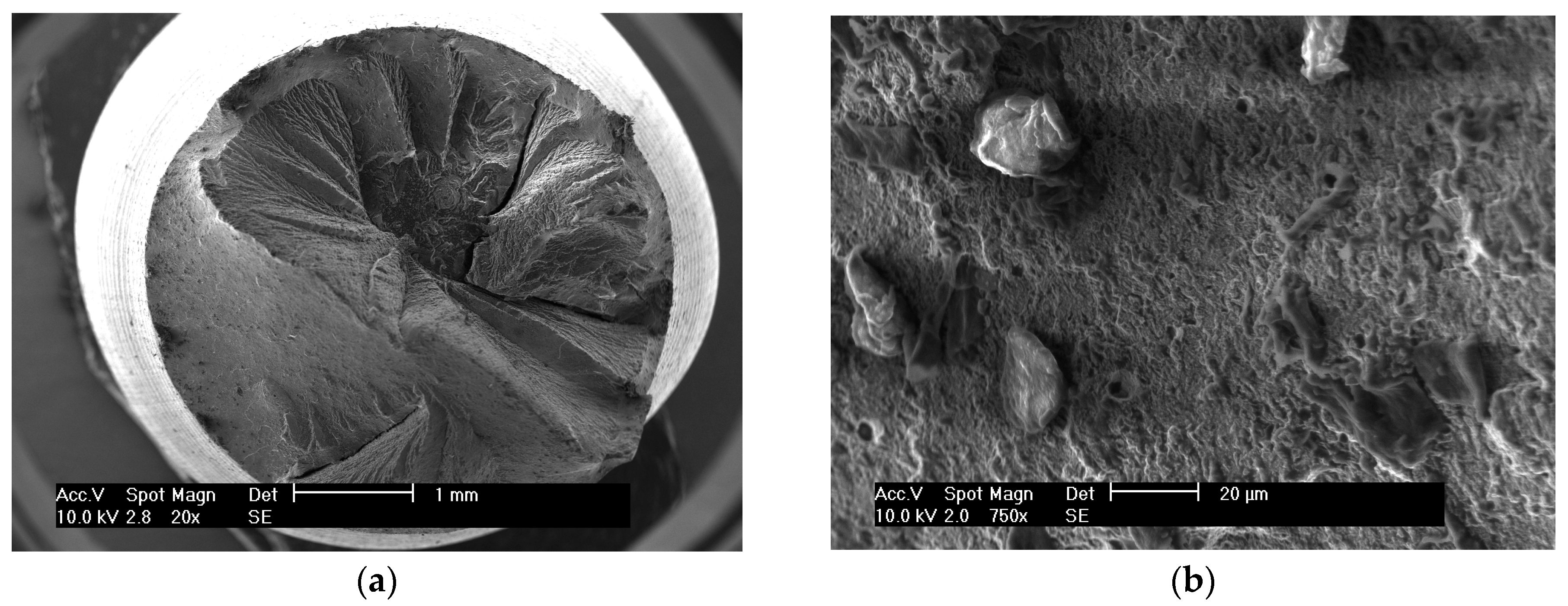

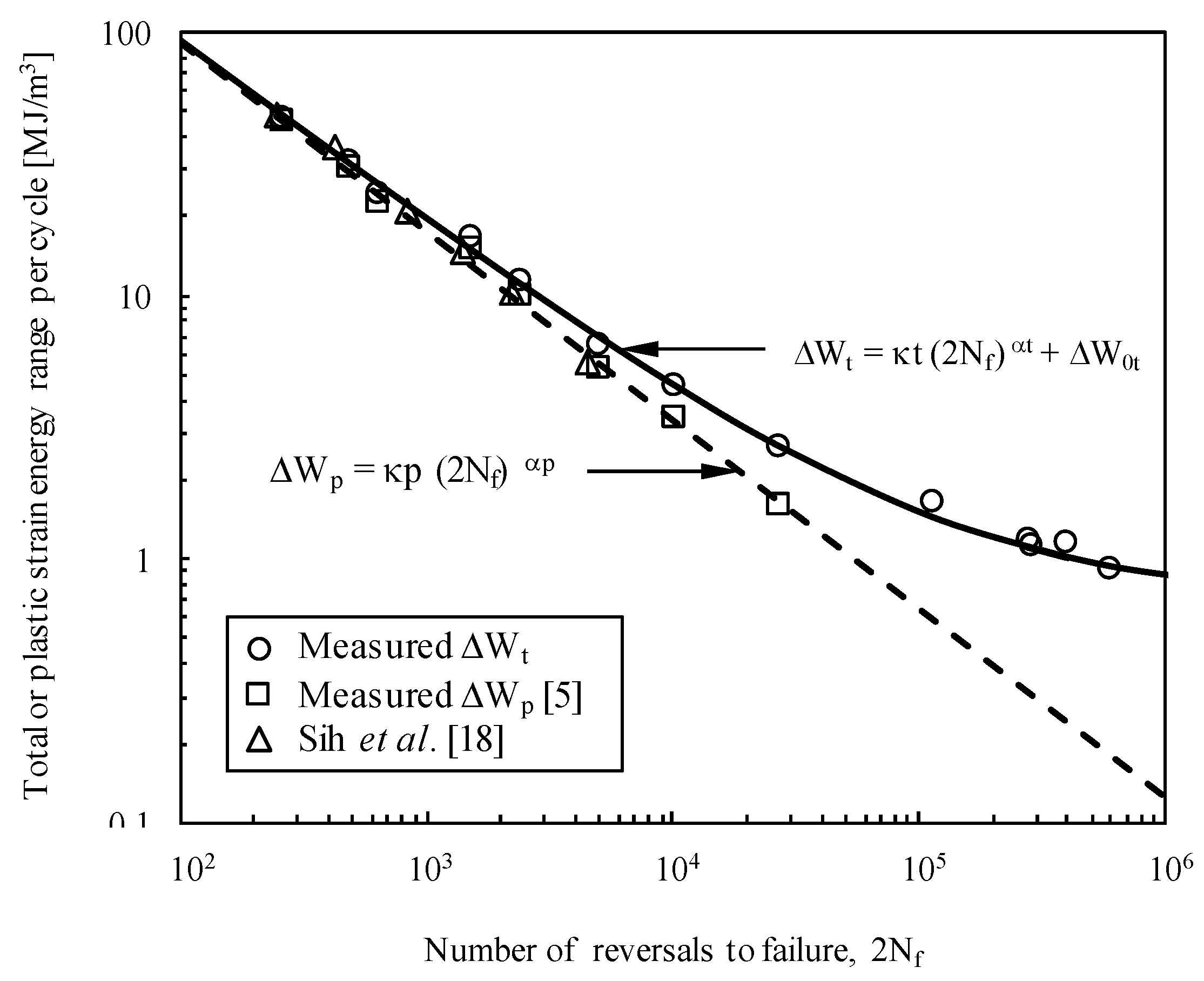

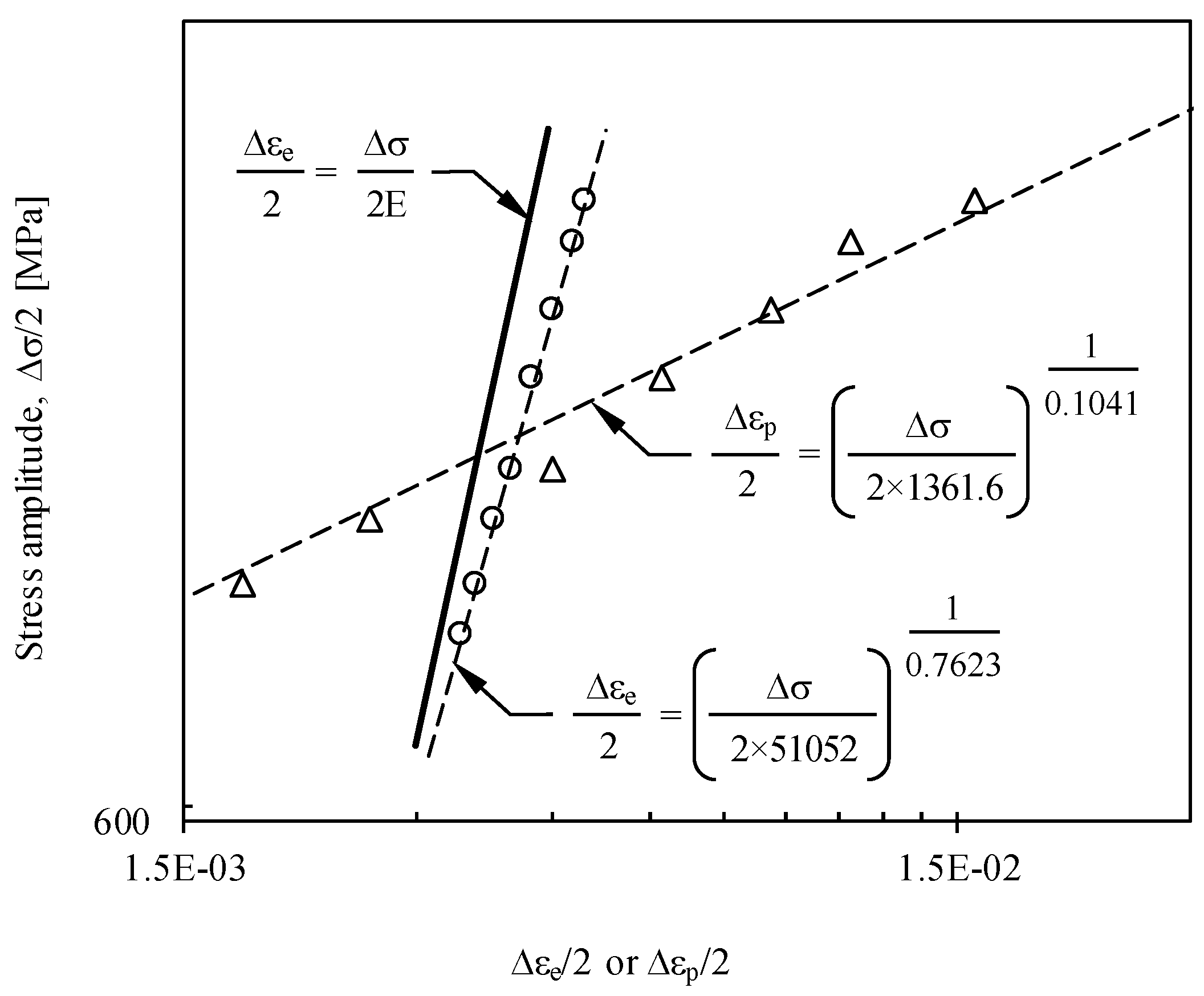

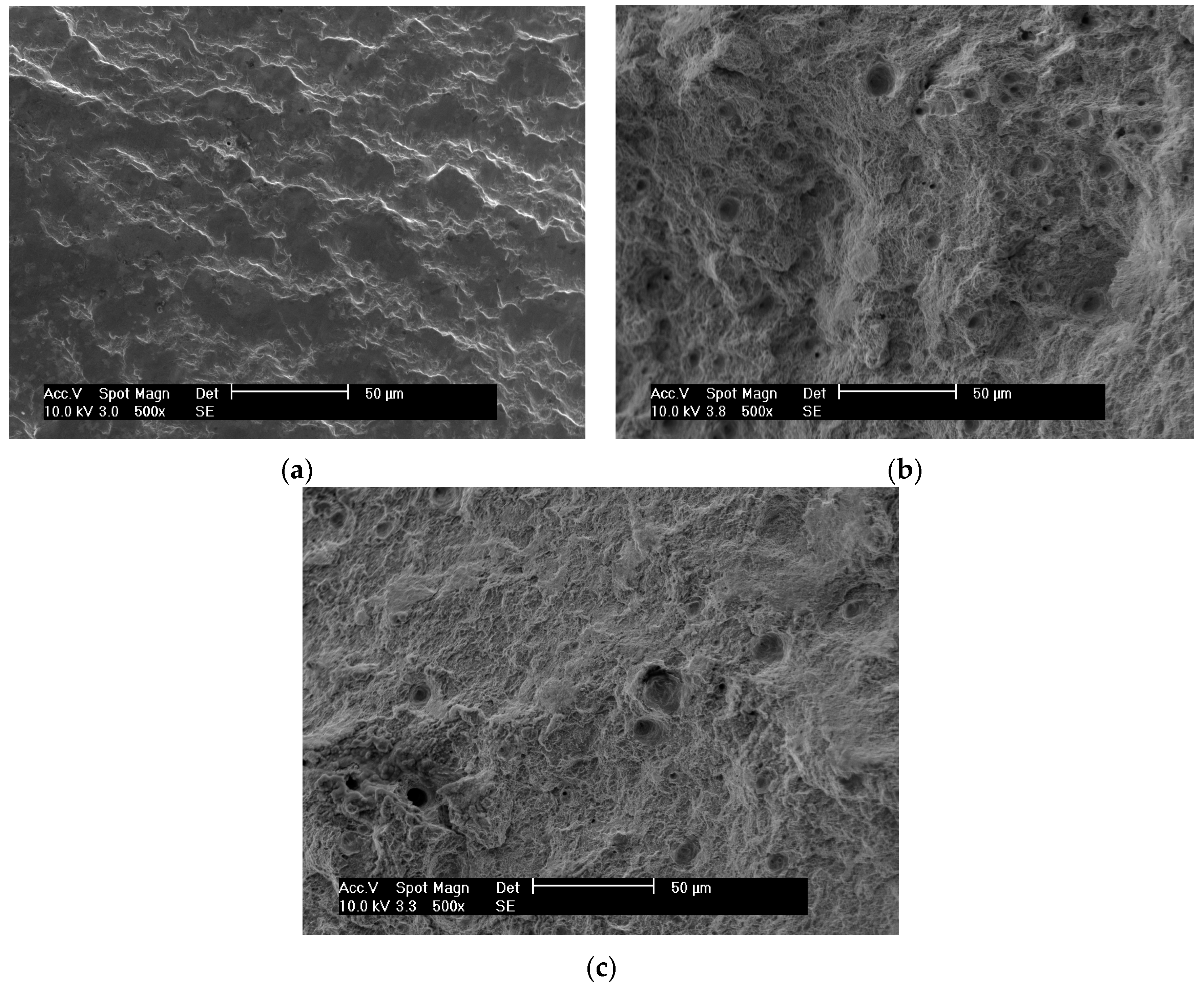

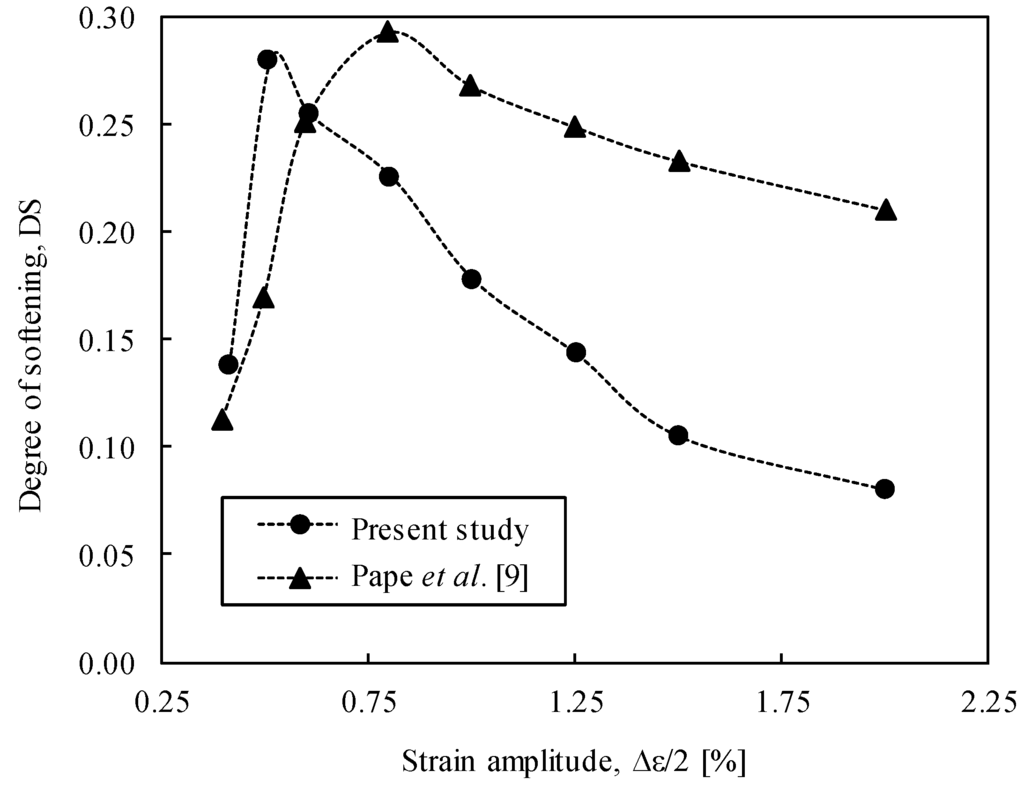

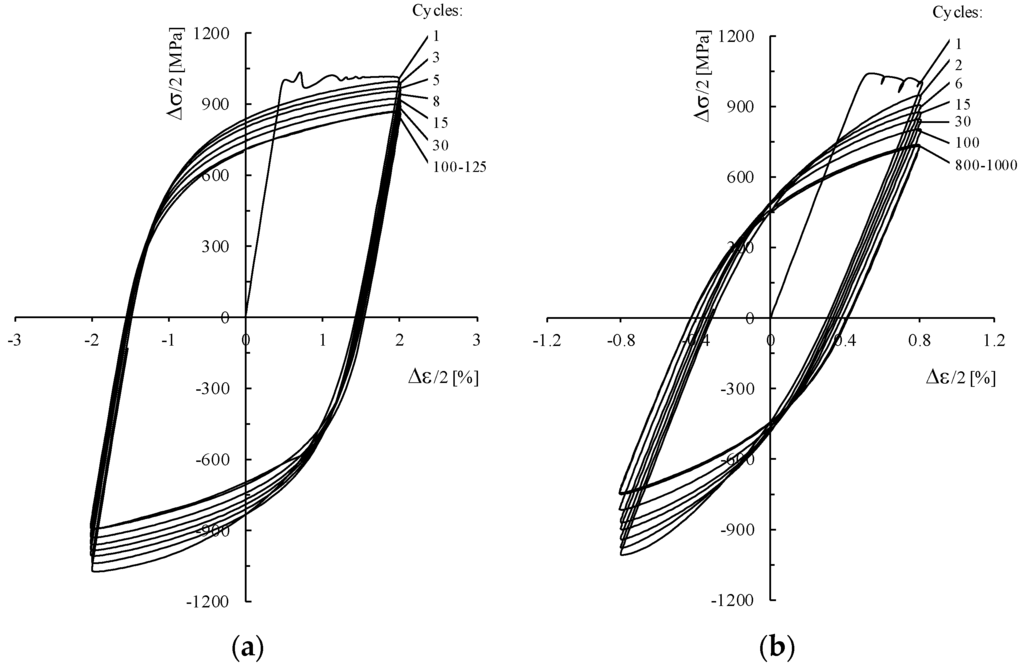

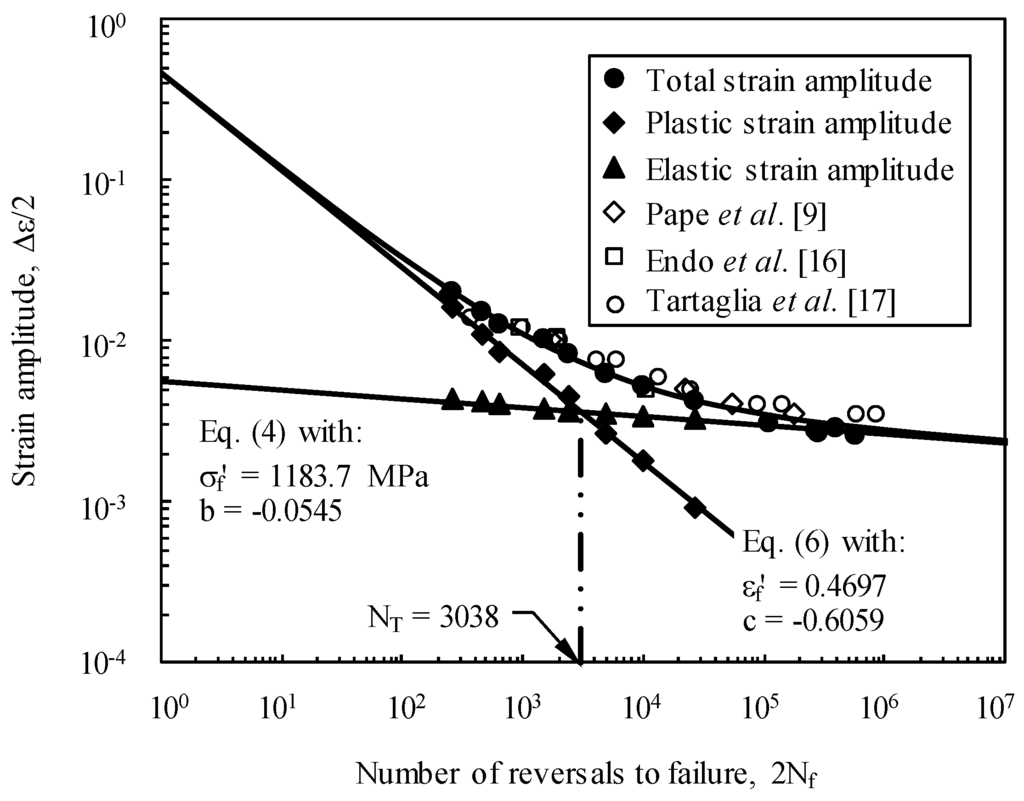

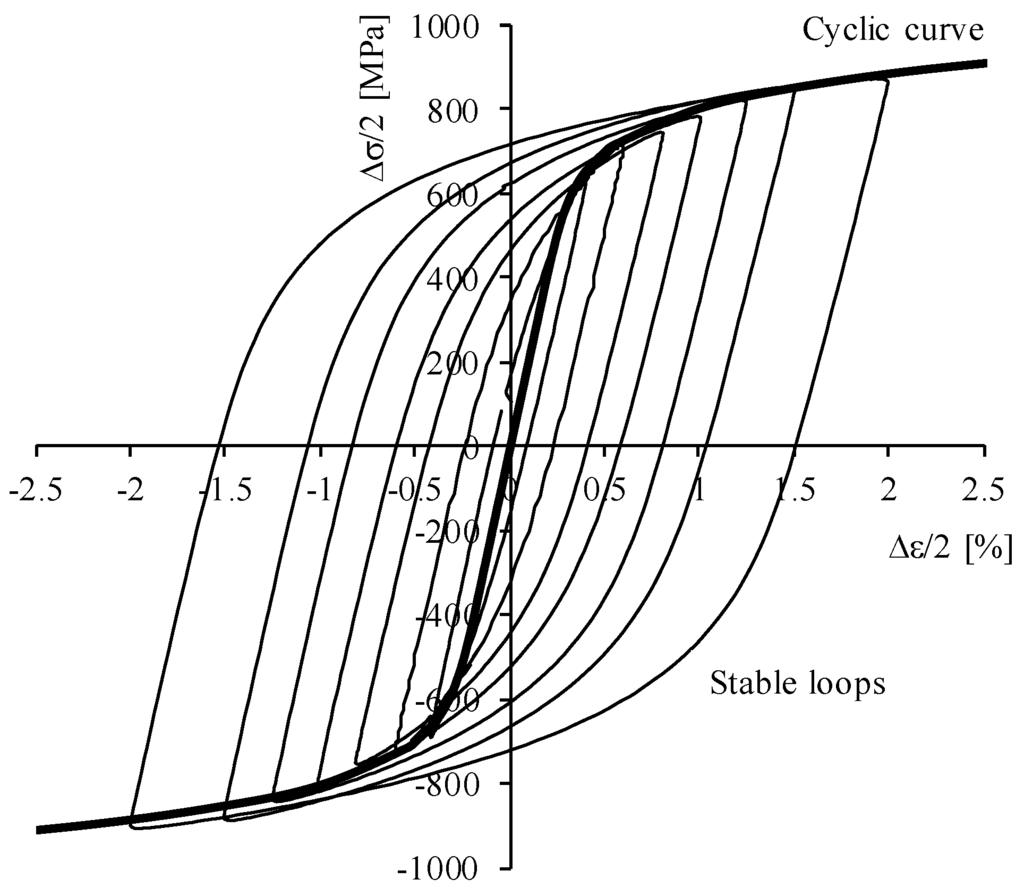

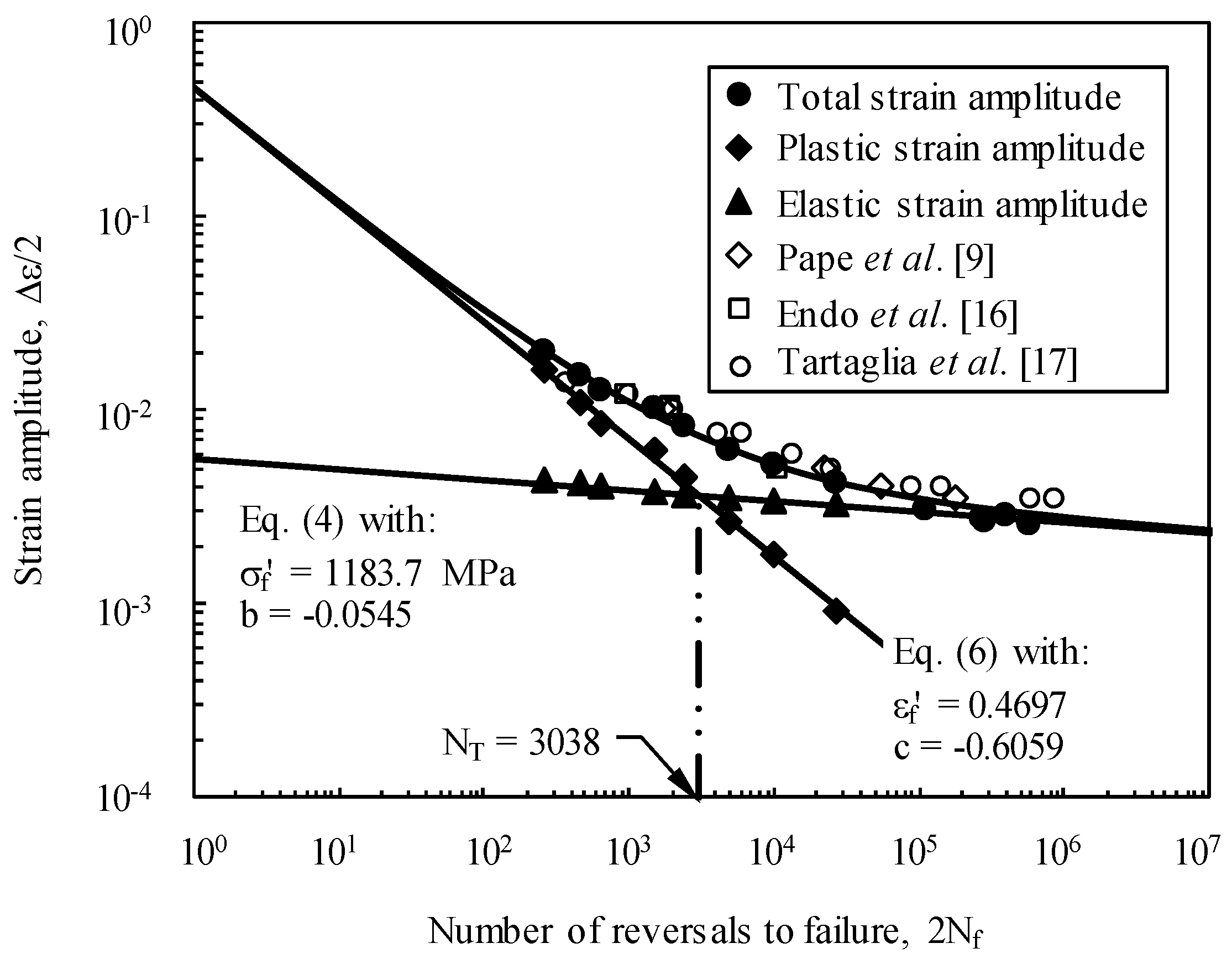

This paper aims at studying the monotonic and cyclic plastic deformation behavior of DIN 34CrNiMo6 high strength steel. Monotonic and low-cycle fatigue tests are conducted in ambient air, at room temperature, using standard 8-mm diameter specimens. The former tests are carried out under position control with constant displacement rate. The latter are performed under fully-reversed strain-controlled conditions, using the single-step test method, with strain amplitudes lying between ±0.4% and ±2.0%. After the tests, the fracture surfaces are examined by scanning electron microscopy in order to characterize the surface morphologies and identify the main failure mechanisms. Regardless of the strain amplitude, a softening behavior was observed throughout the entire life. Total strain energy density, defined as the sum of both tensile elastic and plastic strain energies, was revealed to be an adequate fatigue damage parameter for short and long lives. View Full-Text
Keywords: DIN 34CrNiMo6; low-cycle fatigue; high strength steel; martensitic steel; cyclic deformation behavior; monotonic tensile test DIN 34CrNiMo6; low-cycle fatigue; high strength steel; martensitic steel; cyclic deformation behavior; monotonic tensile test

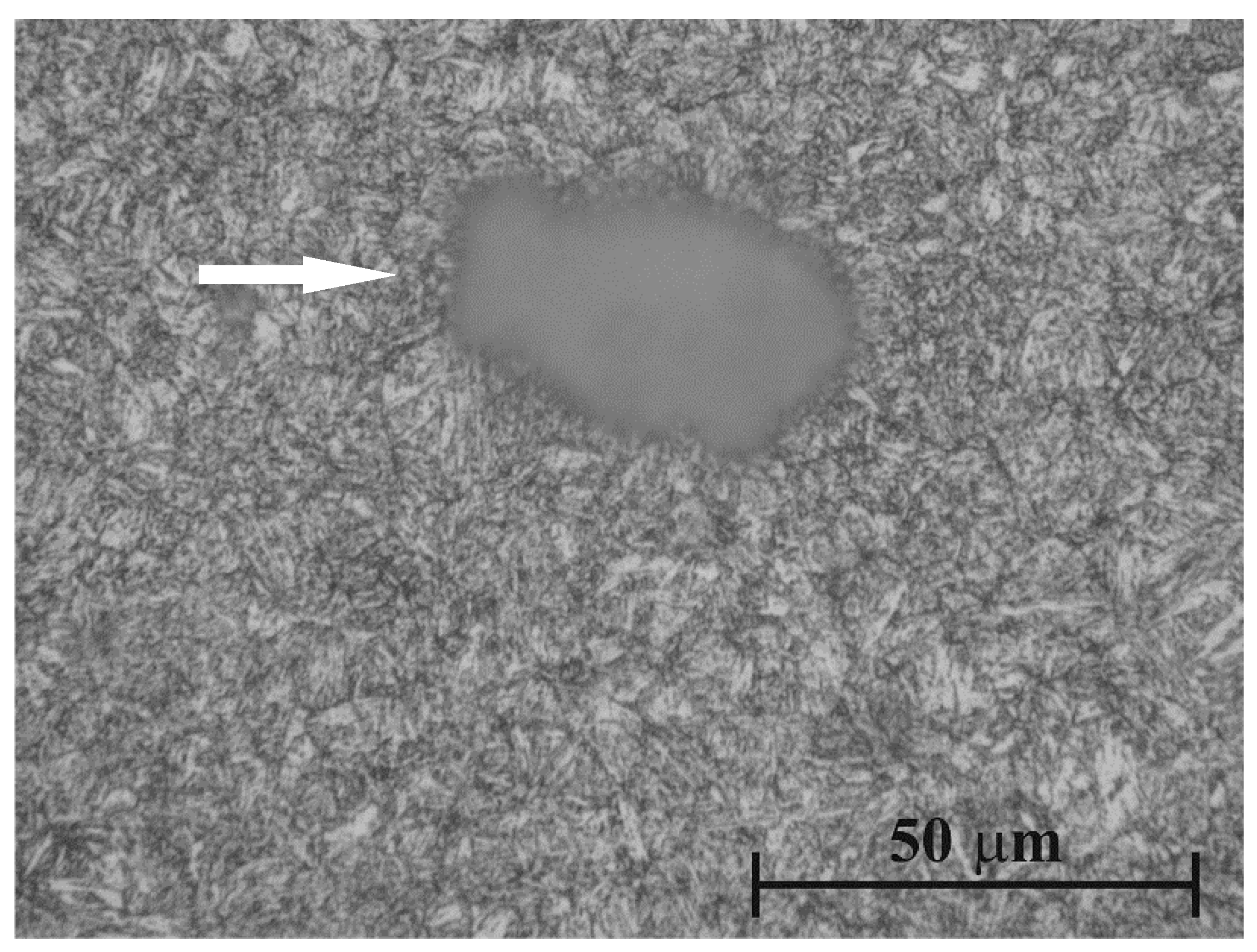

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Branco, R.; Costa, J.D.M.; Antunes, F.V.; Perdigão, S. Monotonic and Cyclic Behavior of DIN 34CrNiMo6 Tempered Alloy Steel. Metals 2016, 6, 98.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
