Next Article in Journal
Weldability and Monitoring of Resistance Spot Welding of Q&P and TRIP Steels
Next Article in Special Issue
In Situ Observation of Crystal Rain and Its Effect on Columnar to Equiaxed Transition
Previous Article in Journal
The Co-B Amorphous Alloy: A High Capacity Anode Material for an Alkaline Rechargeable Battery
Previous Article in Special Issue
The Role of the Bainitic Packet in Control of Impact Toughness in a Simulated CGHAZ of X90 Pipeline Steel
Article Menu

Export Article

Open AccessArticle
Metals 2016, 6(11), 268;

Grain Boundary Assemblies in Dynamically-Recrystallized Austenitic Stainless Steel

Laboratory of Mechanical Properties of Nanostructured Materials and Superalloys, Belgorod State University, Pobeda 85, Belgorod 308015, Russia
Author to whom correspondence should be addressed.
Academic Editor: Soran Birosca
Received: 26 September 2016 / Revised: 28 October 2016 / Accepted: 2 November 2016 / Published: 7 November 2016
(This article belongs to the Special Issue Process-Structure-Property Relationships in Metals)
View Full-Text   |   Download PDF [4297 KB, uploaded 7 November 2016]   |

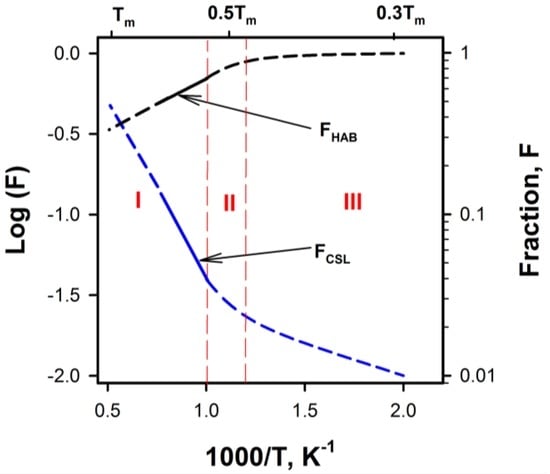

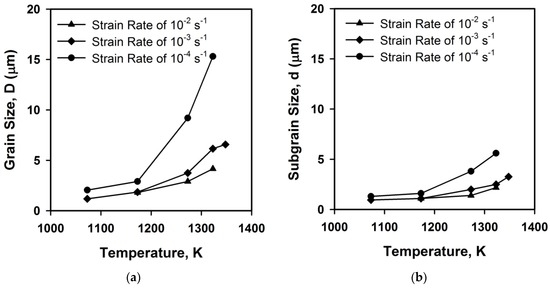

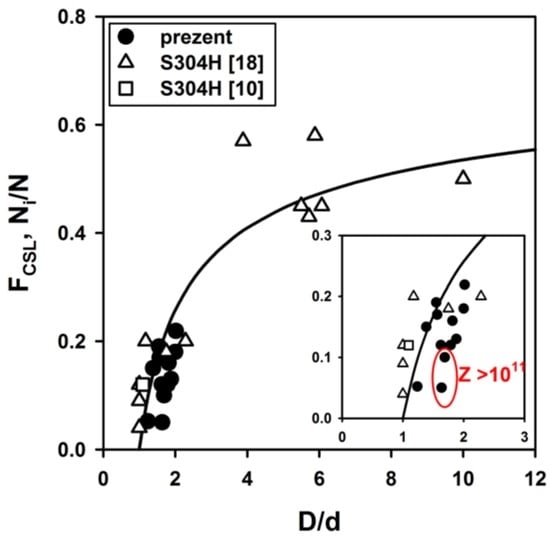

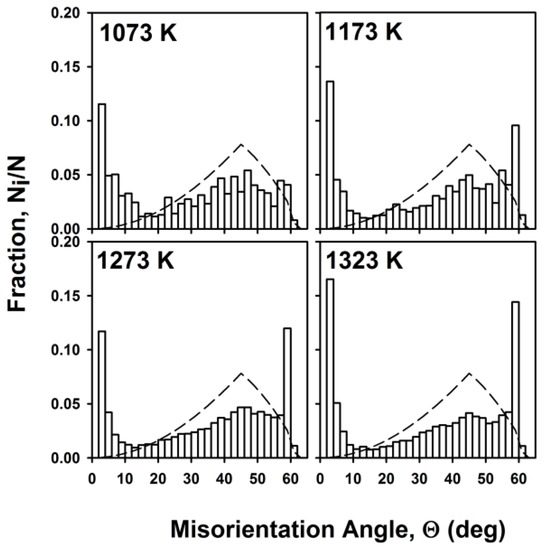

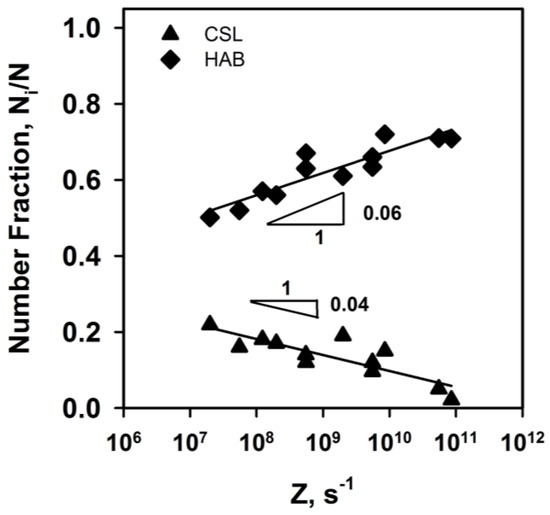

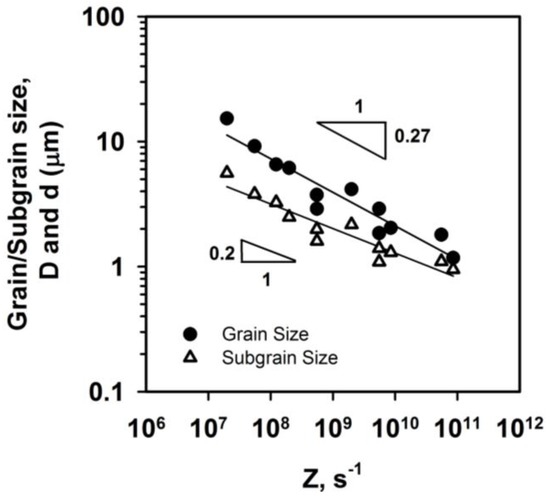

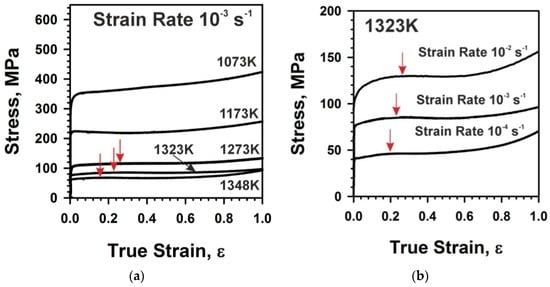

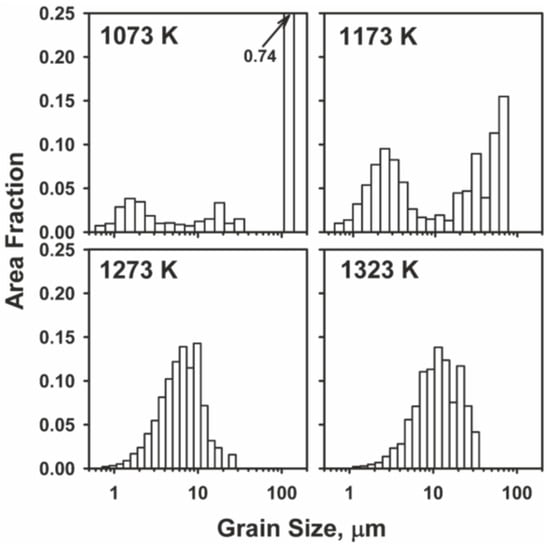

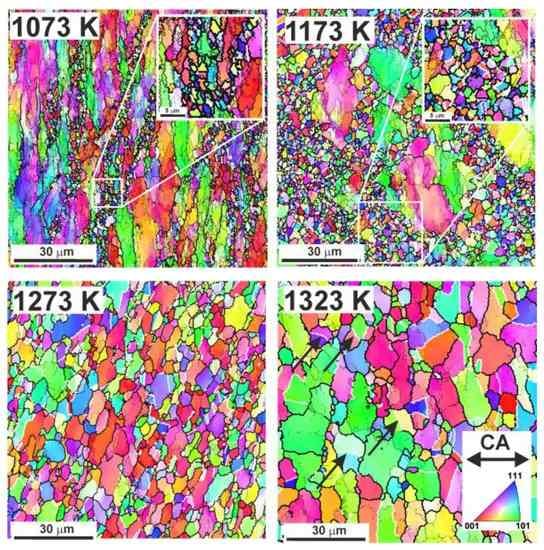

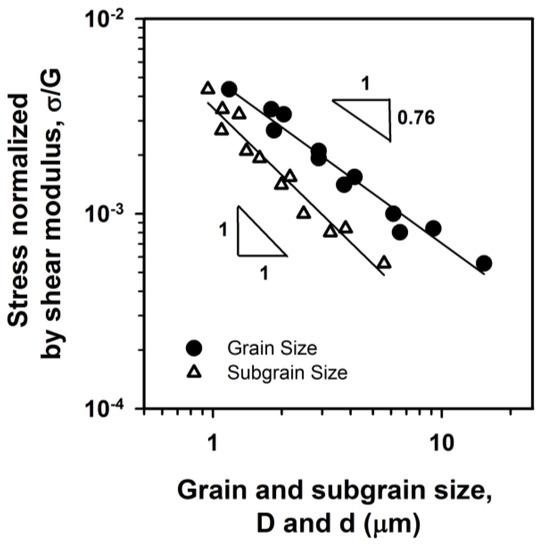

The grain boundary misorientation distributions associated with the development of dynamic recrystallization were studied in a high-nitrogen austenitic stainless steel subjected to hot working. Under conditions of discontinuous dynamic recrystallization, the relationships between the grain or subgrain sizes and flow stresses can be expressed by power law functions with different grain/subgrain size exponents of about −0.76 (for grain size) or −1.0 (for subgrain size). Therefore, the mean grain size being much larger than the subgrain size under conditions of low flow stress gradually approaches the size of the subgrains with an increase in the flow stress. These dependencies lead to the fraction of high-angle boundaries being a function of the flow stress. Namely, the fraction of ordinary high-angle boundaries in dynamically-recrystallized structures decreases with a decrease in the flow stress. On the other hand, the fraction of special boundaries, which are associated with annealing twins, progressively increases with a decrease of the flow stress. View Full-Text
Keywords: dynamic recrystallization; austenitic stainless steel; grain boundary engineering; hot working dynamic recrystallization; austenitic stainless steel; grain boundary engineering; hot working

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Tikhonova, M.; Dolzhenko, P.; Kaibyshev, R.; Belyakov, A. Grain Boundary Assemblies in Dynamically-Recrystallized Austenitic Stainless Steel. Metals 2016, 6, 268.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
