Open AccessArticle
Minerals 2018, 8(6), 245; https://doi.org/10.3390/min8060245

Selective Liberation of High-Phosphorous Oolitic Hematite Assisted by Microwave Processing and Acid Leaching

1
College of Resources and Environmental Engineering, Wuhan University of Science and Technology, Wuhan 430081, China
2
Hubei Key Laboratory for Efficient Utilization and Agglomeration of Metallurgic Mineral Resources, Wuhan University of Science and Technology, Wuhan 430081, China
*
Author to whom correspondence should be addressed.
Received: 12 April 2018 / Revised: 27 May 2018 / Accepted: 29 May 2018 / Published: 7 June 2018
(This article belongs to the Special Issue Process Mineralogy of Critical Metals)
View Full-Text   |   Download PDF [5078 KB, uploaded 14 June 2018]   |

Abstract

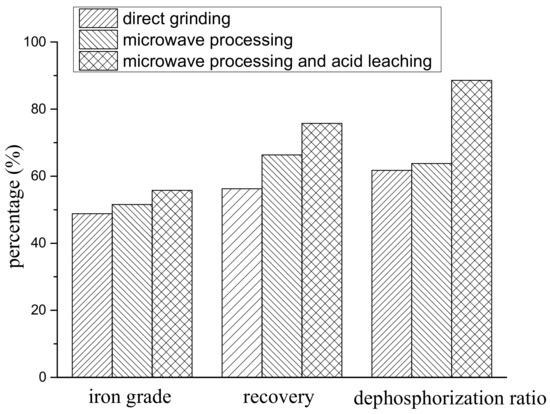

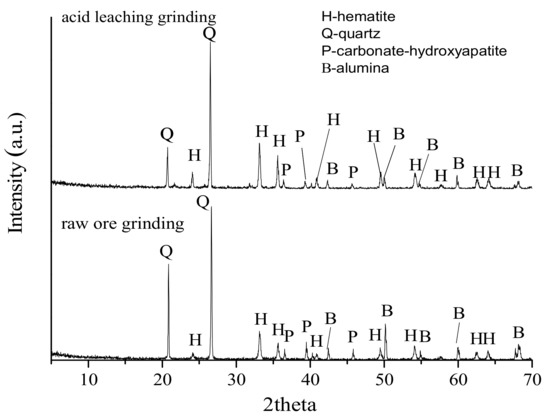

The release of valuable minerals from the associated gangues is called liberation. Good liberation is essential to the subsequent separation stage. Selective liberation is advantageous to improve the degree of liberation. Oolitic hematite is one of the typical refractory iron ores in China, and its resources are abundant. However, owing to its fine dissemination and complex mineralogical texture, the conventional grinding processes are inefficient in improving the selective liberation of oolitic hematite. In this study, microwave processing and acid leaching were used to assist the liberation of oolitic hematite. The assisted liberation of the oolitic hematite mechanisms of microwave processing and acid leaching were studied by using scanning electron microscope (SEM), X-ray diffraction (XRD), BET specific surface area detection method (BET) and the transflective microscope method. The results indicated that microwave processing can reduce the mechanical strength of oolitic hematite and improve the liberation of hematite, and acid leaching can improve the microwave-assisted liberation efficiency and reduce the content of phosphorus in the grinding product. Compared to direct grinding, the liberation of hematite increased by 54.80% in the grinding product, and especially, the fractions of −0.038-mm and 0.05–0.074 mm increased significantly; however, there was no obvious change in other grain sizes, and the dephosphorization ratio reached 47.20% after microwave processing and acid leaching. After the two stages, the iron grade and recovery of the magnetic separation product increased by 14.26% and 34.62%, respectively, and the dephosphorization ratio reached 88.59%. It is demonstrated that microwave processing and acid leaching comprise an efficient method to improve the liberation of hematite and the dephosphorization ratio of oolitic hematite. The two-stage treatment can achieve selective liberation of oolitic hematite, which is beneficial to the following magnetic separation. View Full-Text
Keywords: oolitic hematite; microwave; acid leaching; selective liberation; dephosphorization oolitic hematite; microwave; acid leaching; selective liberation; dephosphorization
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Cai, X.; Qian, G.; Zhang, B.; Chen, Q.; Hu, C. Selective Liberation of High-Phosphorous Oolitic Hematite Assisted by Microwave Processing and Acid Leaching. Minerals 2018, 8, 245.
