Next Article in Journal
Pore Structure and Fractal Characteristics of Niutitang Shale from China
Previous Article in Journal
Lauric Acid Hybridizing Fly Ash Composite for Thermal Energy Storage
Previous Article in Special Issue
Experimental Evaluation of Efficient Si Dissolution from Perlite at Low Level Activator’s Concentration
Article Menu
Issue 4 (April) cover image

Export Article

Open AccessArticle
Minerals 2018, 8(4), 162; doi:10.3390/min8040162

Property and Microstructure of Waterborne Self-Setting Geopolymer Coating: Optimization Effect of SiO2/Na2O Molar Ratio

1
SOBUTE New Materials Co., Ltd., Nanjing 211103, China
2
State Key Laboratory of High Performance Civil Engineering Materials, Nanjing 210008, China
3
Shenzhen Key Laboratory of Civil Engineering Durability, Shenzhen University, Shenzhen 518060, China
*
Author to whom correspondence should be addressed.
Received: 12 February 2018 / Revised: 31 March 2018 / Accepted: 13 April 2018 / Published: 17 April 2018
(This article belongs to the Special Issue Geopolymers)

Abstract

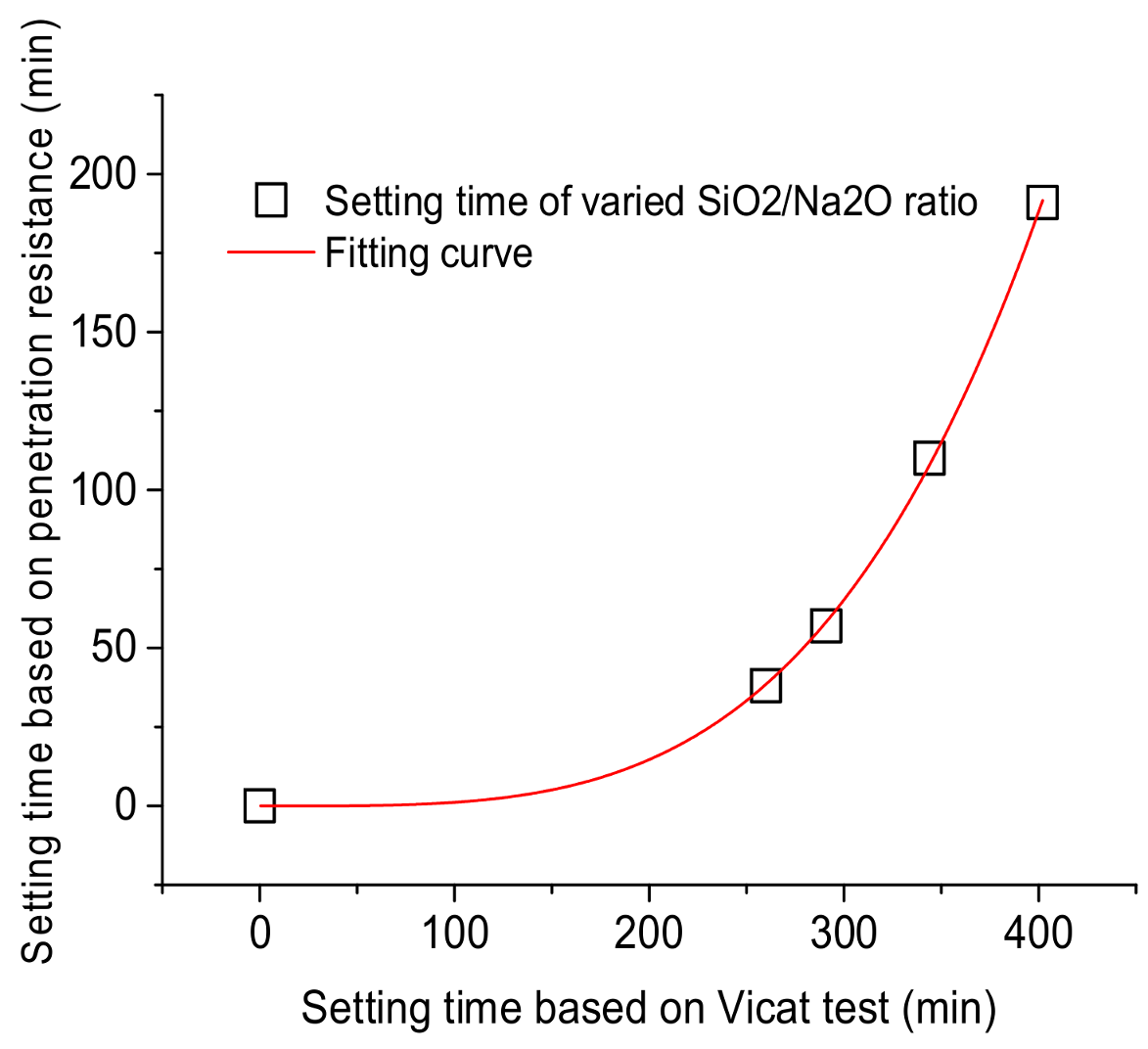

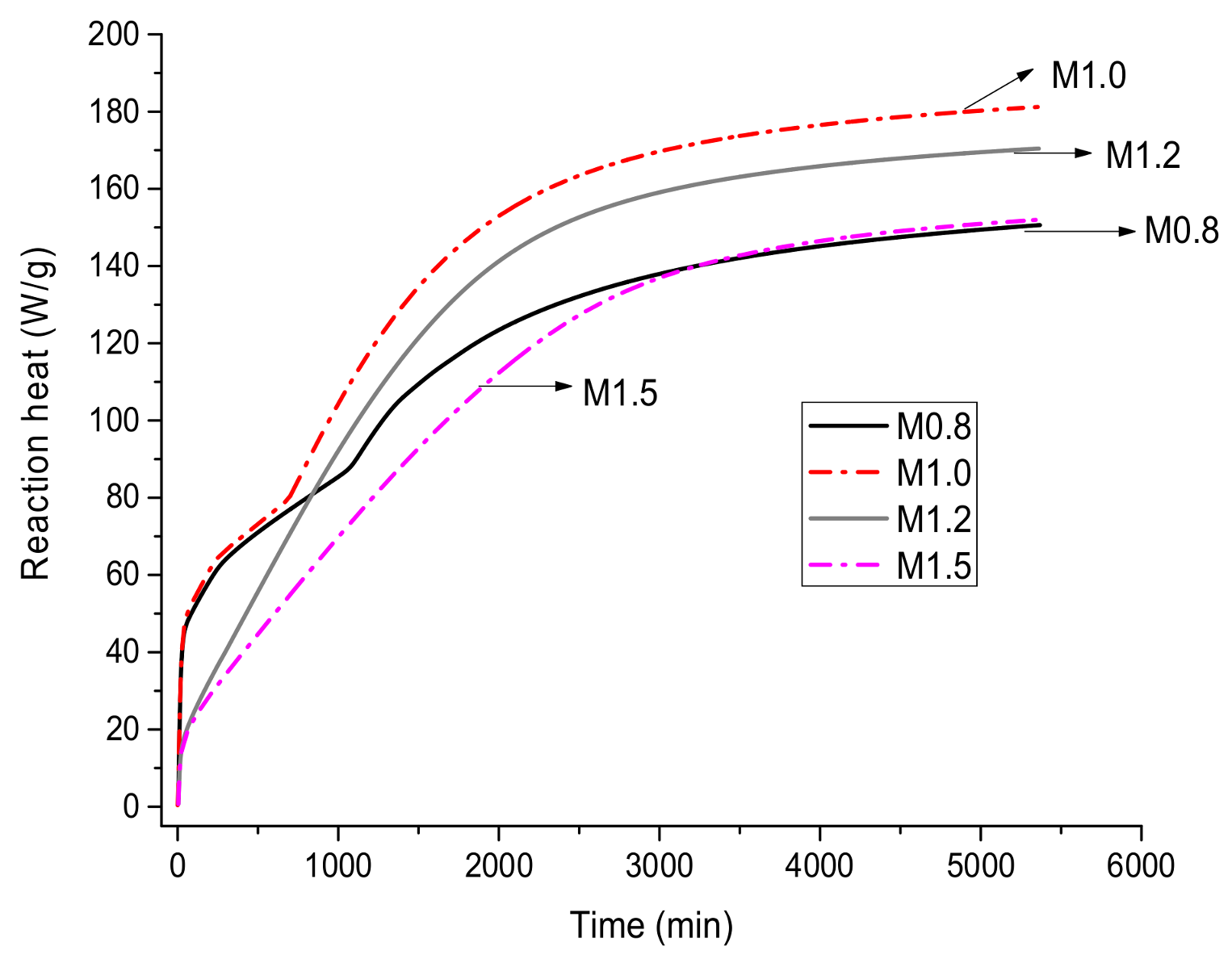

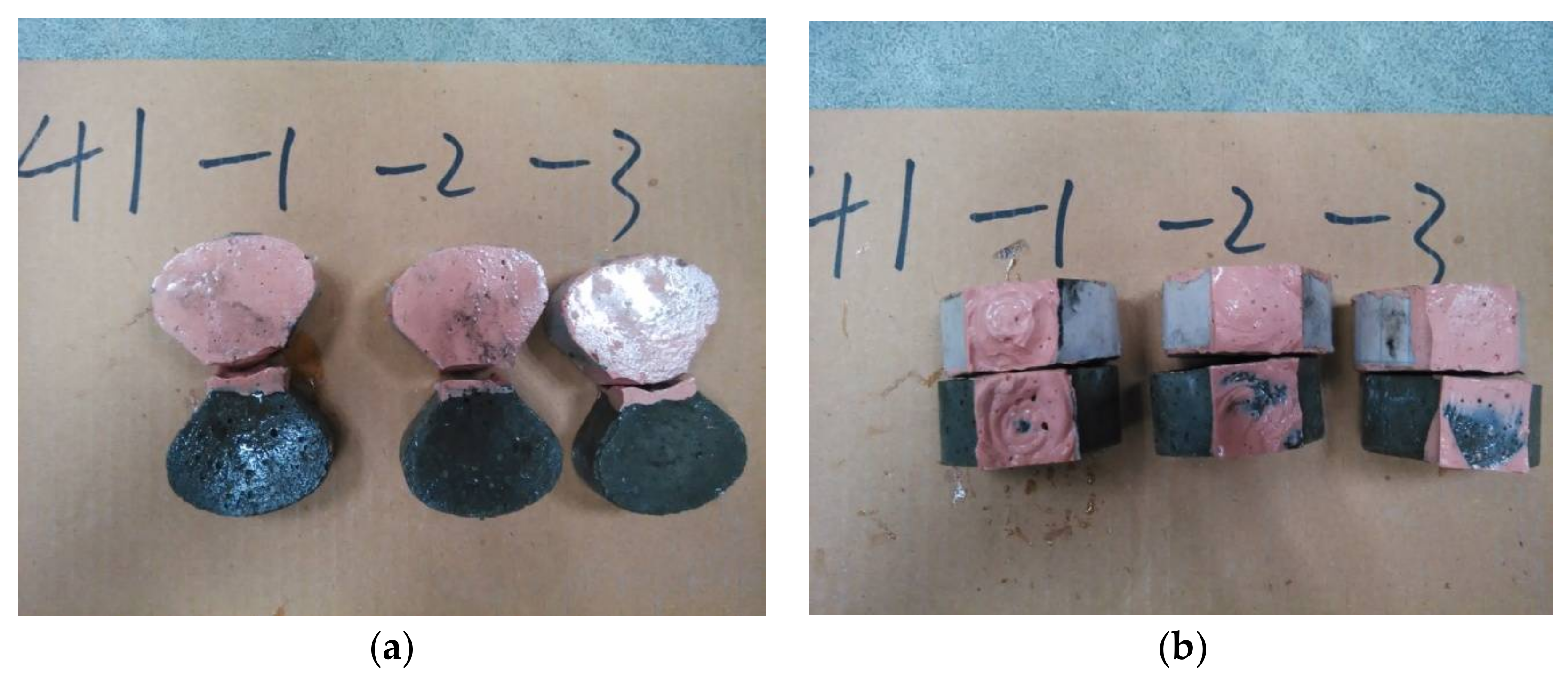

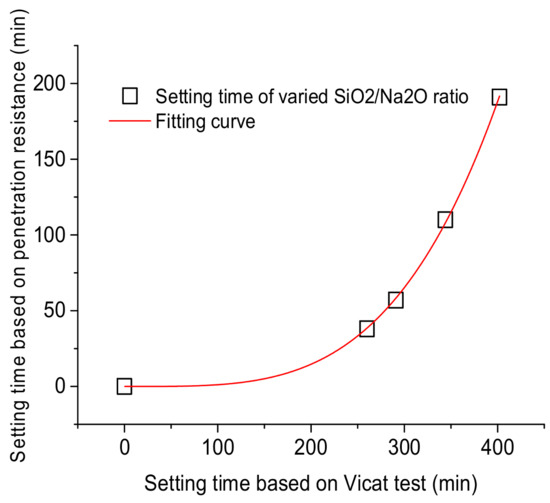

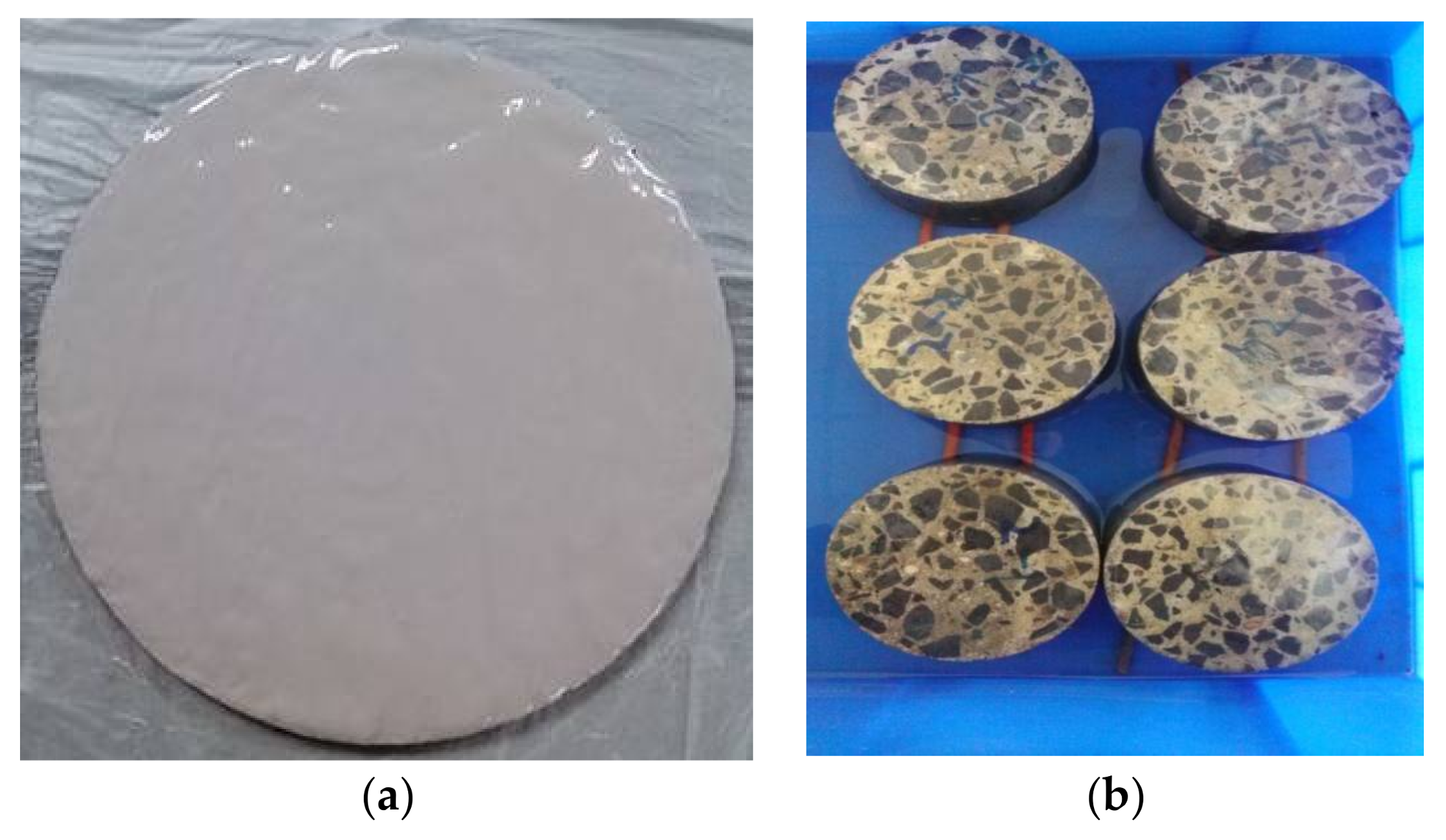

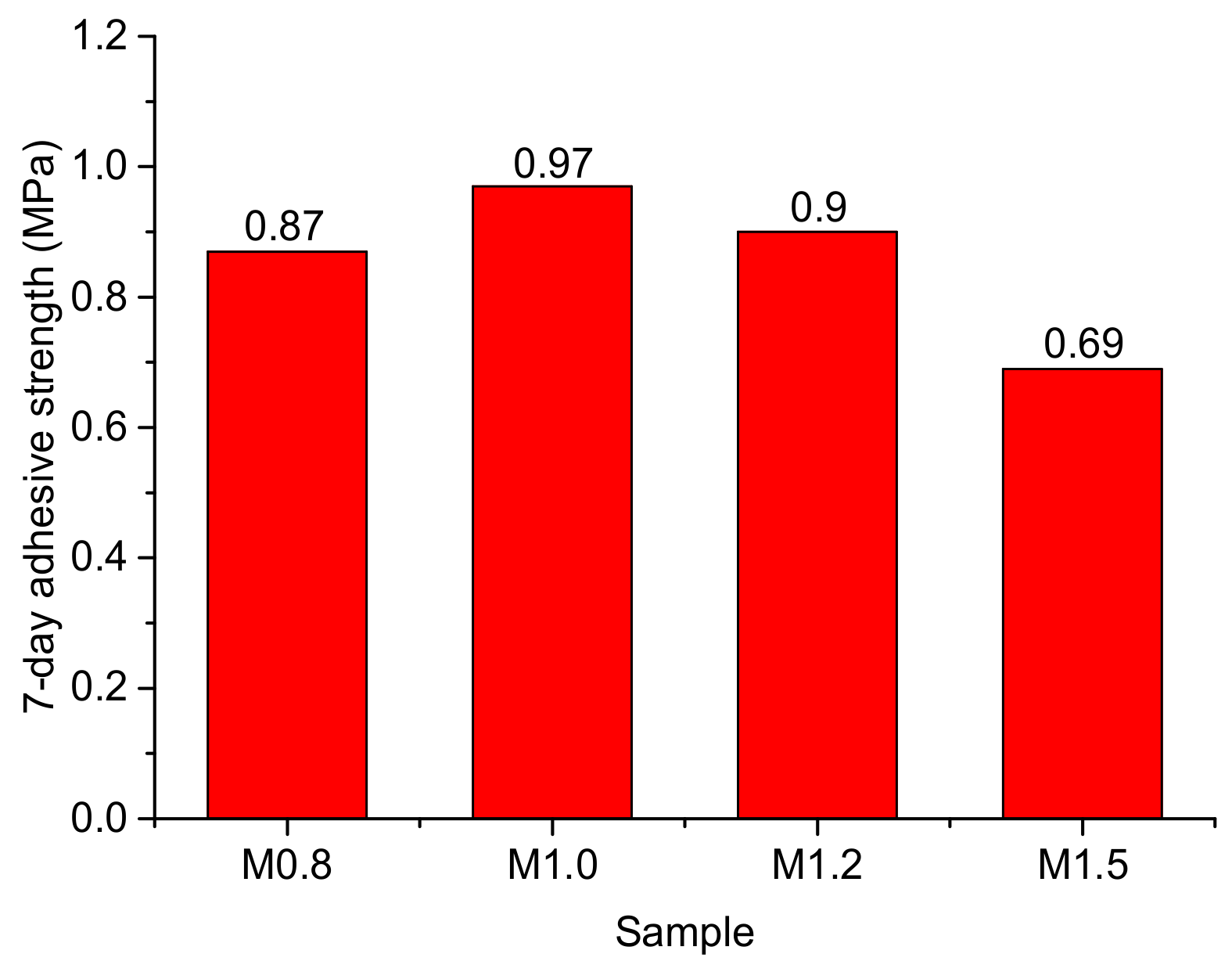

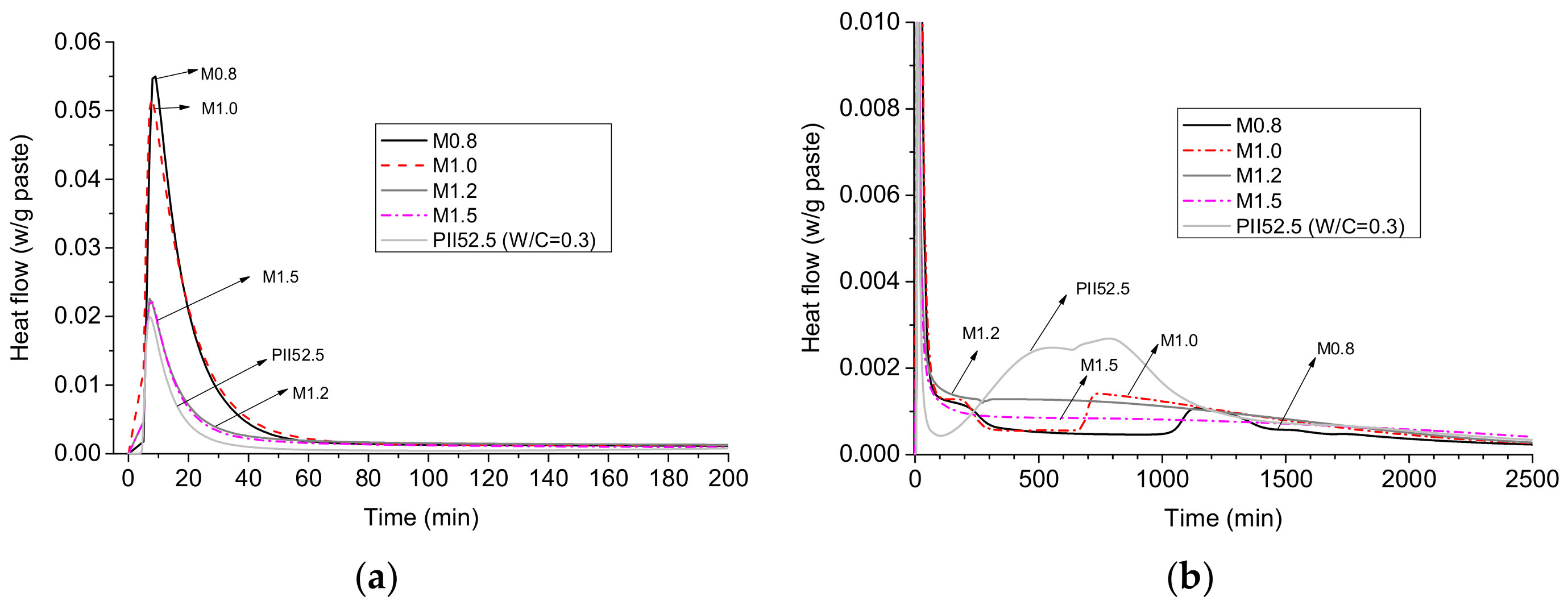

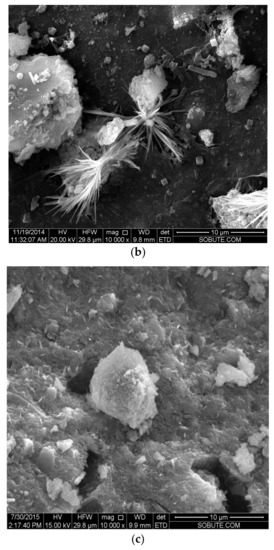

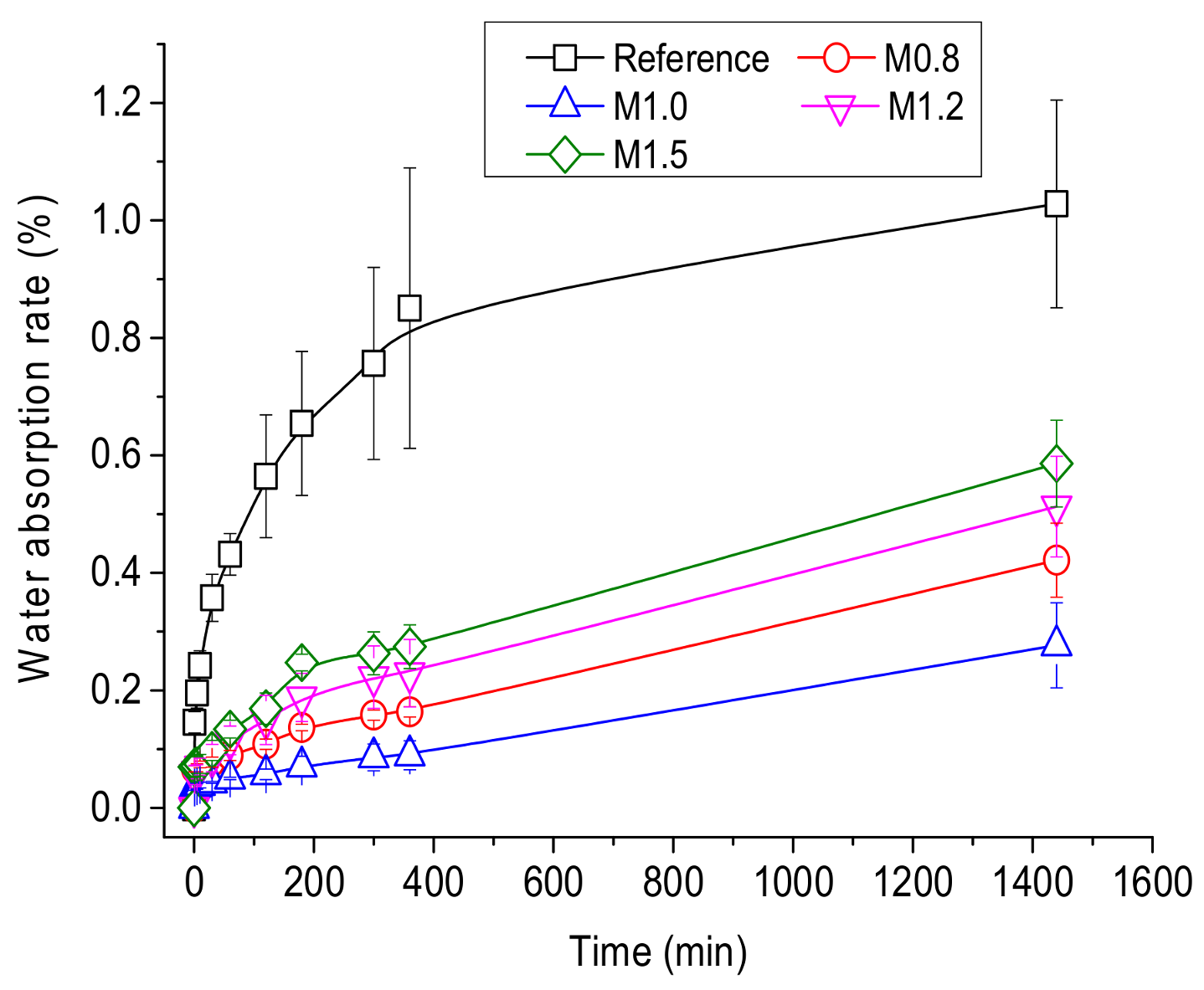

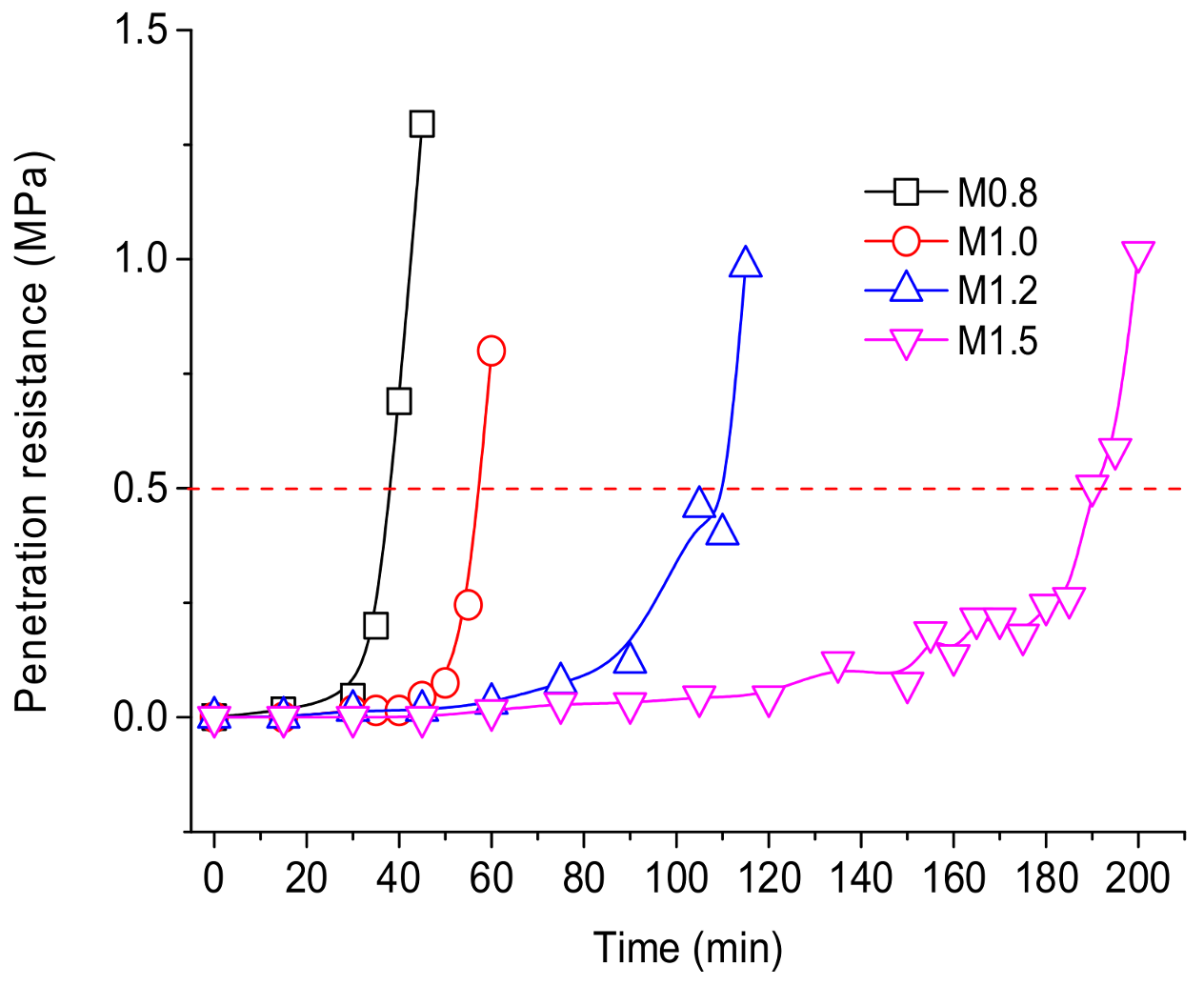

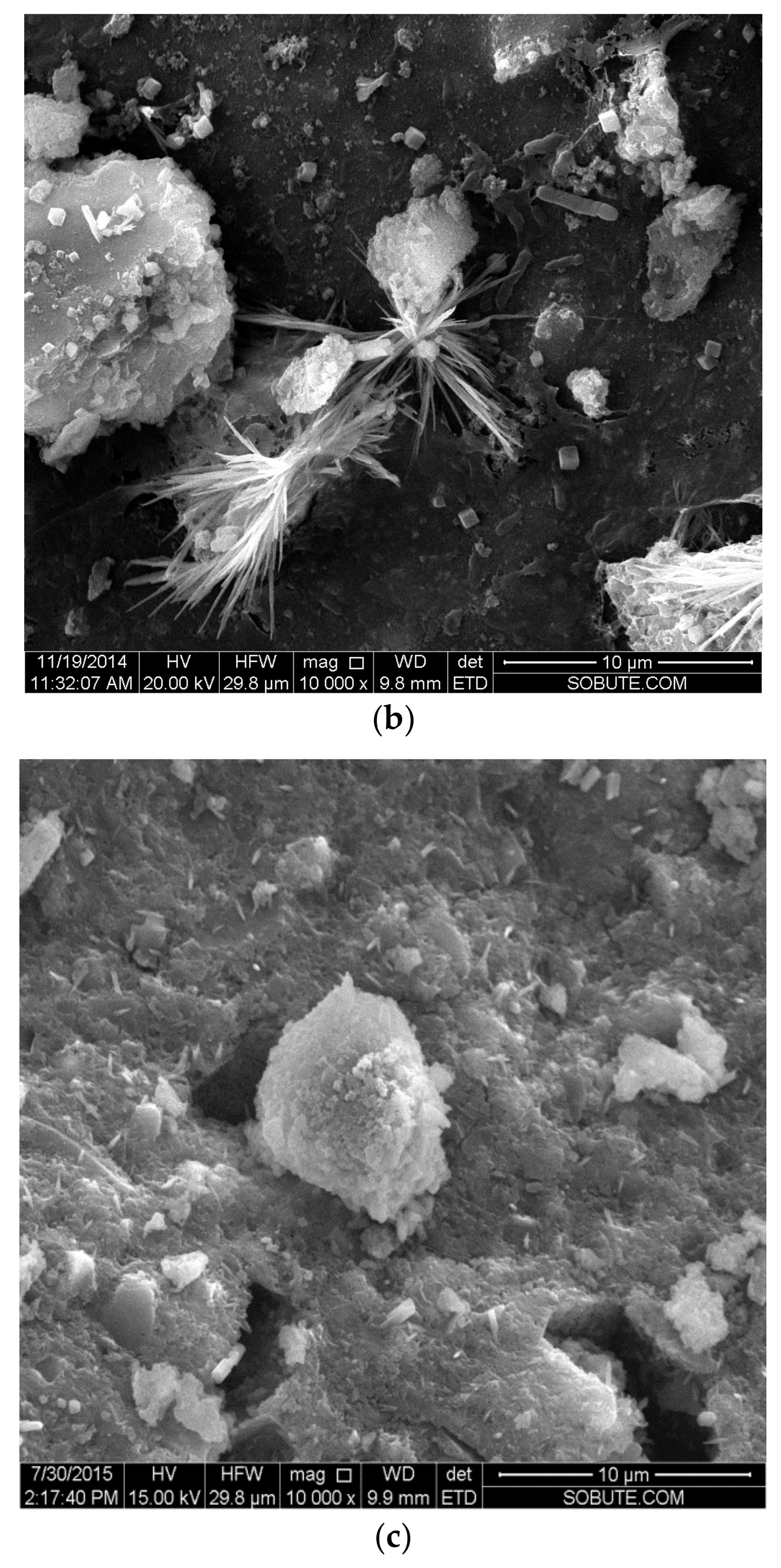

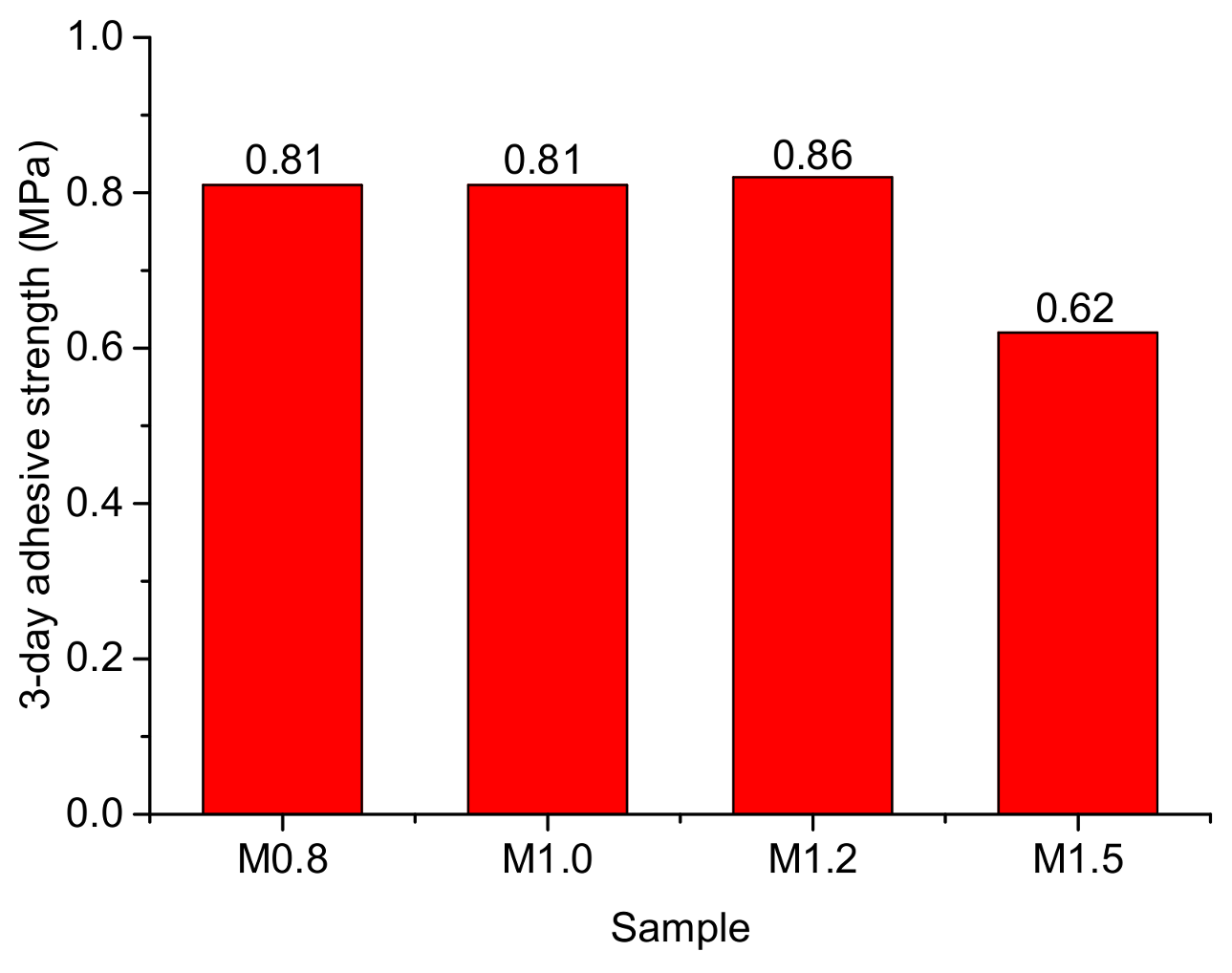

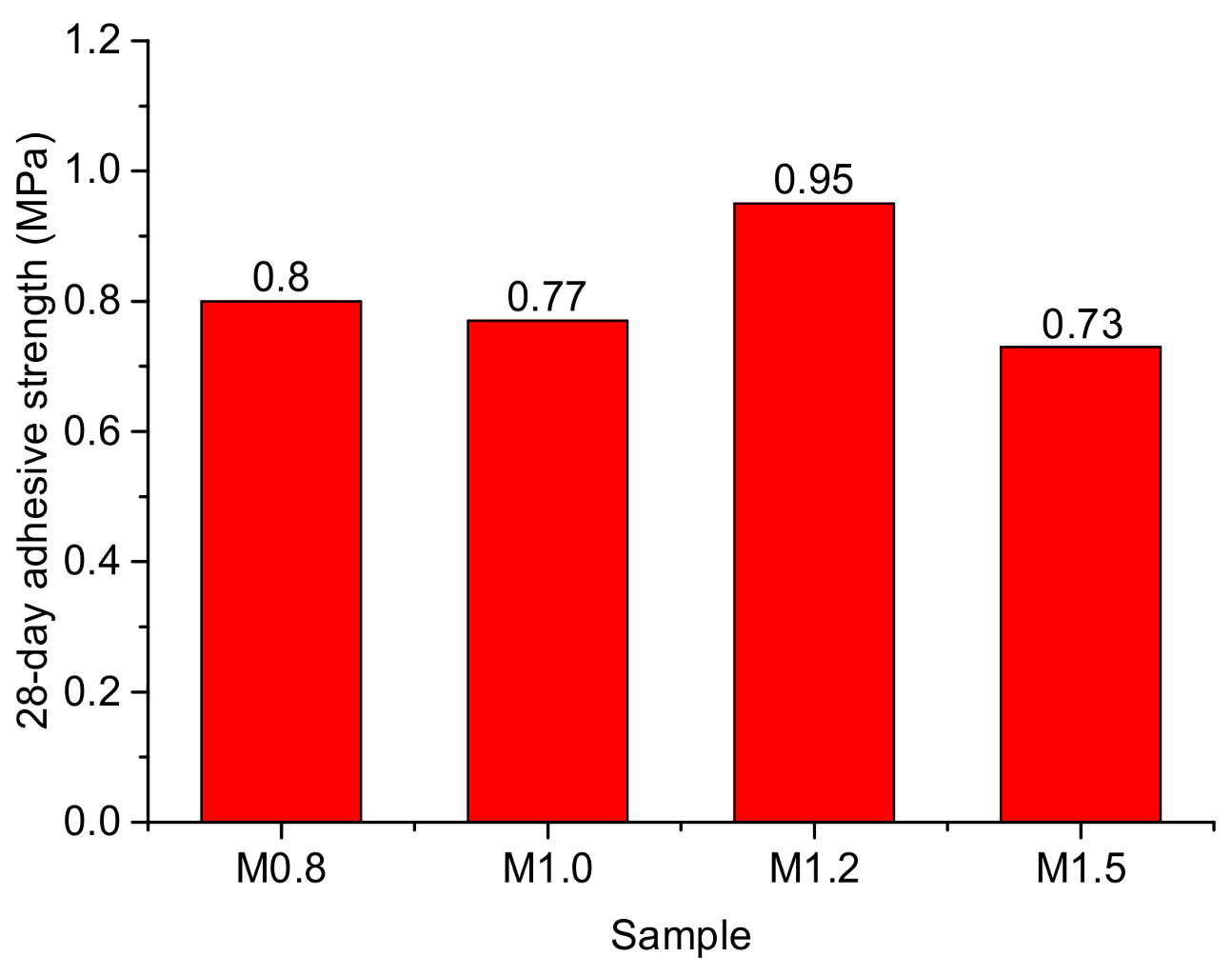

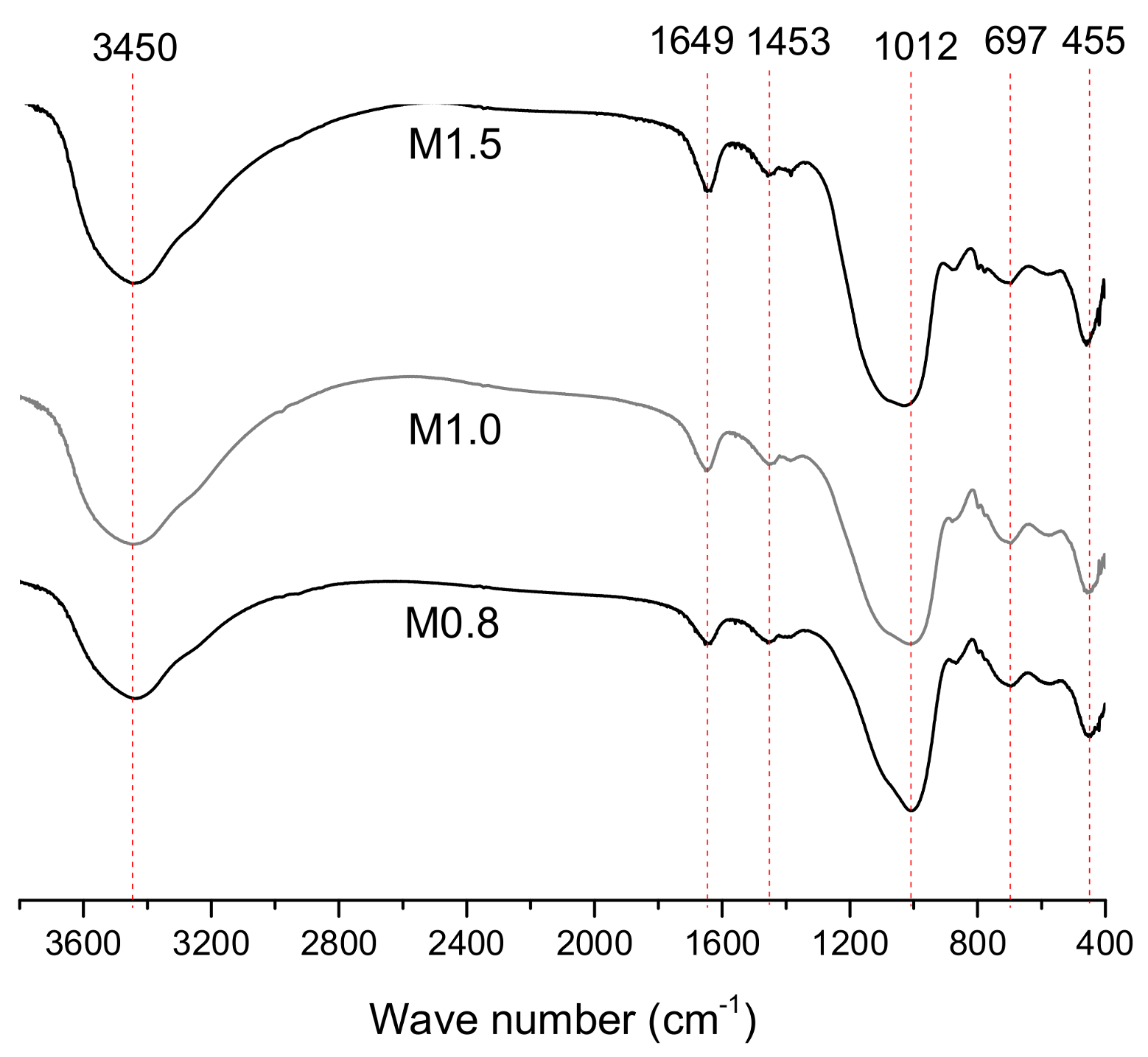

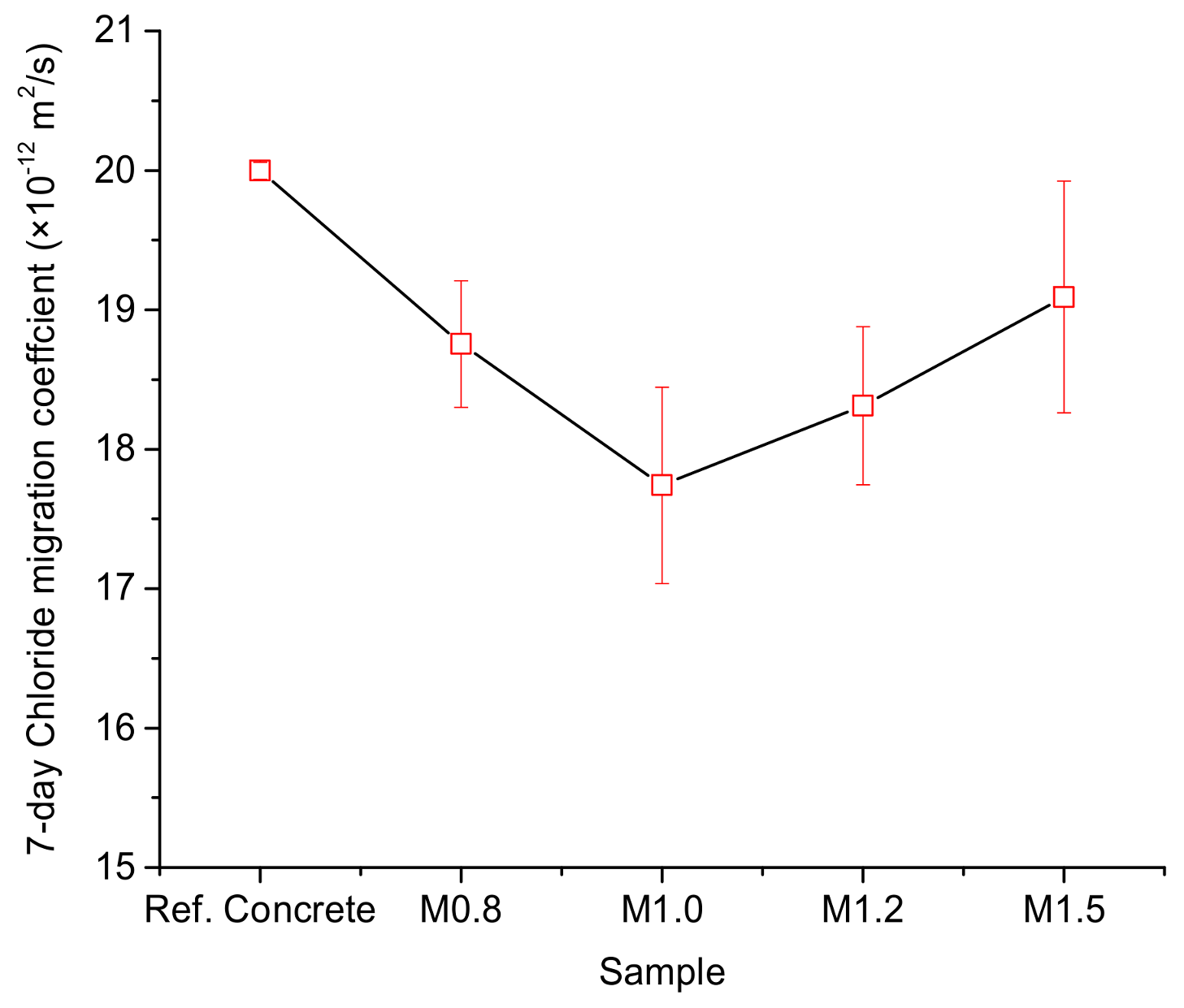

As a kind of coating material, the inorganic coating of alkali-activated metakaolin geopolymer cured at high temperature has been studied a lot for special applications. To our best knowledge, however, not much attention has been given to investigate the influence of SiO2/Na2O molar ratio on property of the geopolymer coating. This paper is, thus, dedicated to investigate the role of SiO2/Na2O molar ratio on property and microstructure of metakaolin-based geopolymer coating at ambient temperature. The effects on setting behavior, adhesive strength, shrinkage deformation and permeability are discussed. Multiple experiments were used to reveal microstructure changes of the geopolymer coating with different ratios of SiO2/Na2O, including Mercury Intrusion Porosimetry (MIP), Scanning Electron Microscope (SEM) and Fourier Transform Infrared Spectroscopy (FTIR). The results indicated that the optimal ratio of SiO2/Na2O was 1.0 for good properties of adhesive strength, shrinkage and impermeability. In addition, it has been found that the setting time of geopolymer coating increased with SiO2/Na2O ratio which increased from 0.8 to 1.5. That agrees well with the other property and results of exothermal rate of alkali-activated metakaolin. As for the microstructural changes, the SiO2/Na2O ratio of 1.0 reduced pore size and porosity of the geopolymer coating and particularly increased volume percentage of pores with a size lower than 20 nm. Besides, FTIR results suggested that geopolymer prepared by the ratio of 1.0 was likely to produce more heterogeneous geopolymer due to a greater silicate structural reorganization. View Full-Text
Keywords: inorganic coating; geopolymer; alkali-activated metakaolin; SiO2/Na2O ratio; property; microstructure inorganic coating; geopolymer; alkali-activated metakaolin; SiO2/Na2O ratio; property; microstructure
Figures

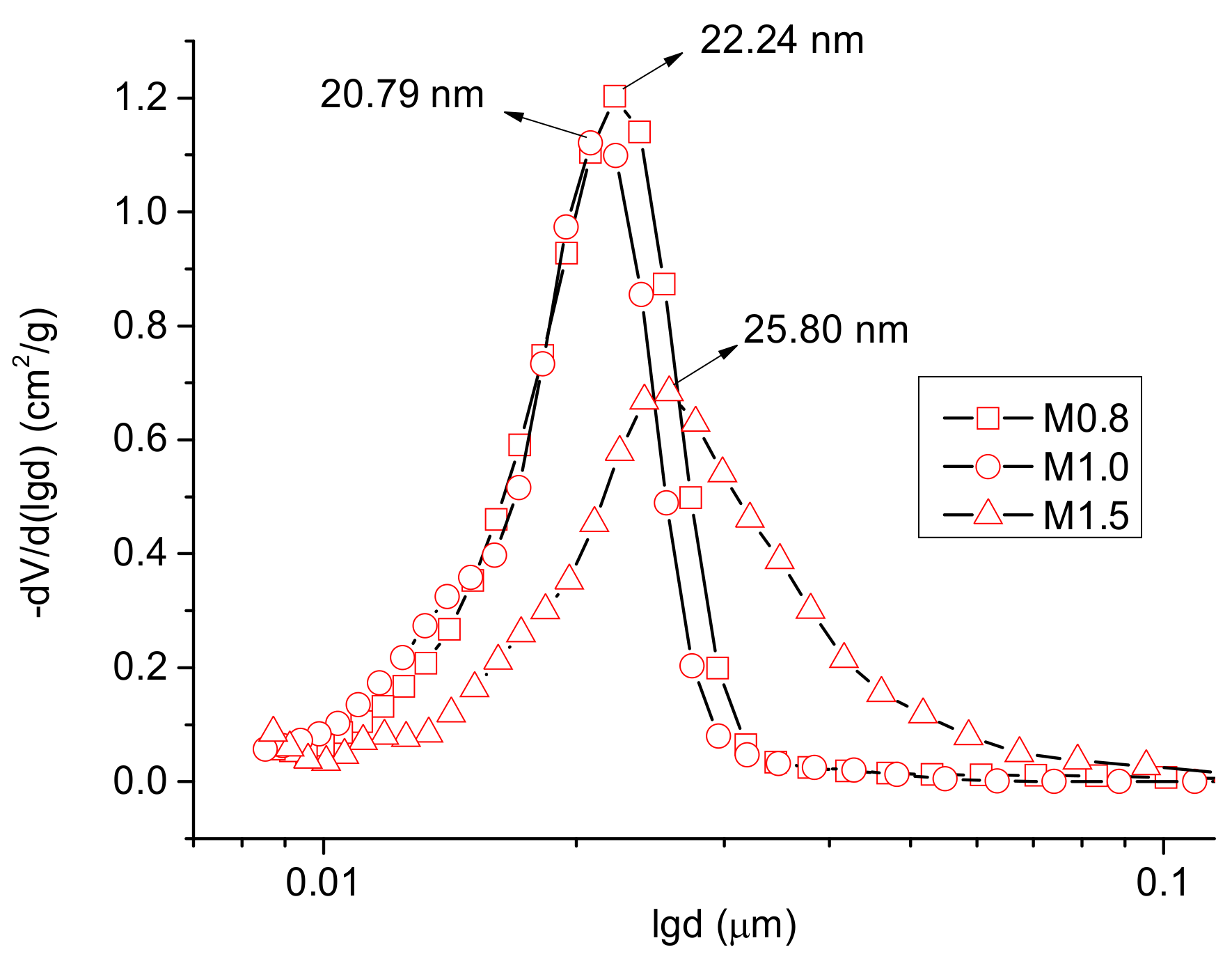

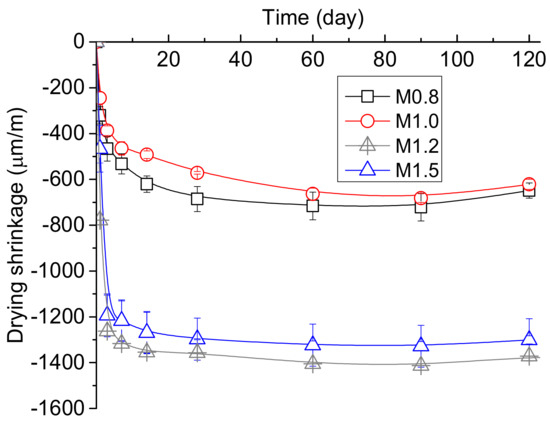

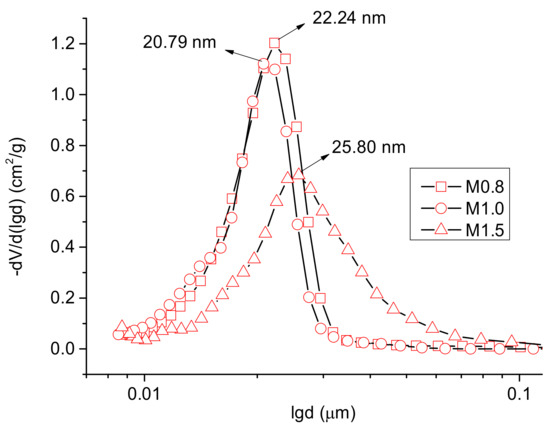

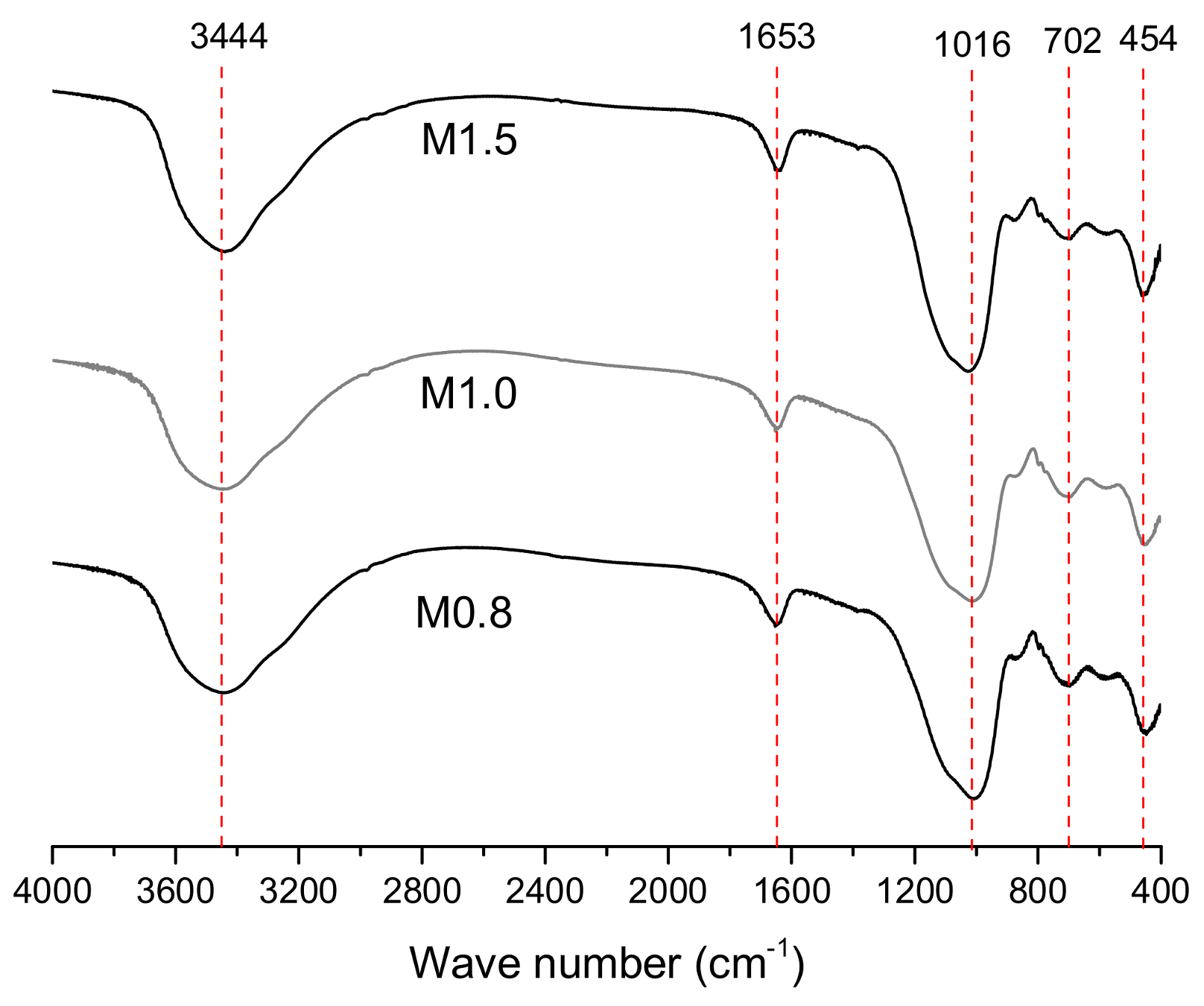

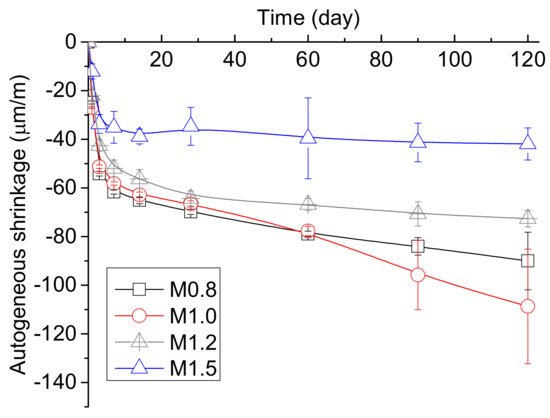

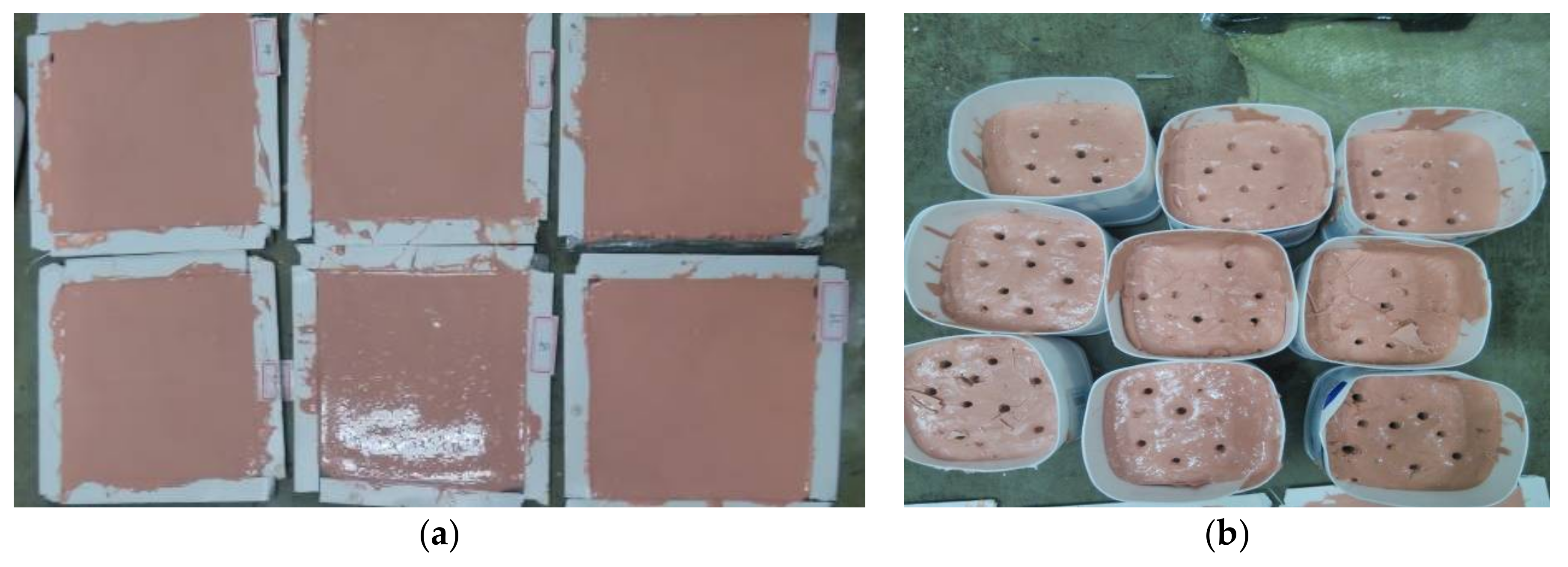

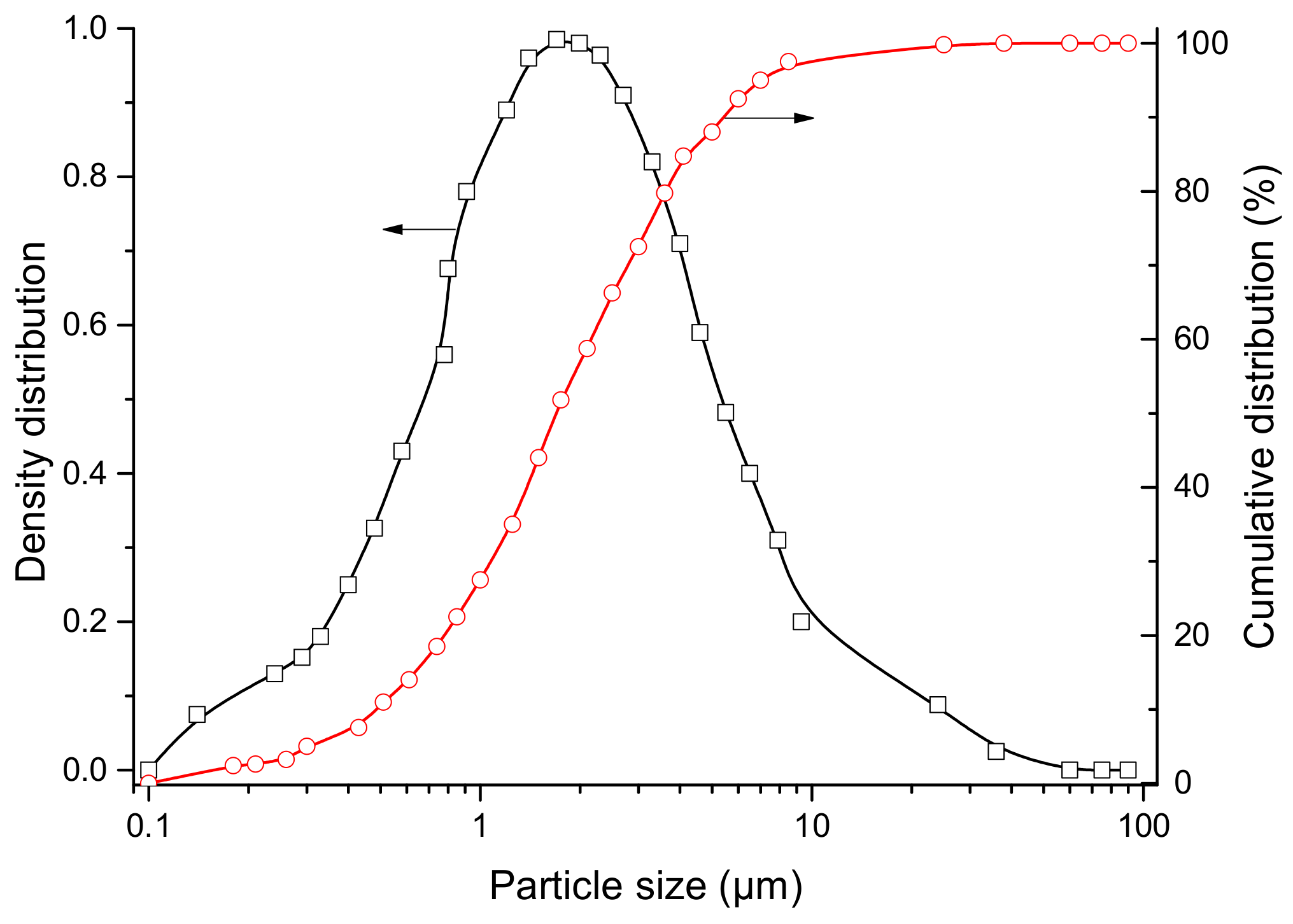

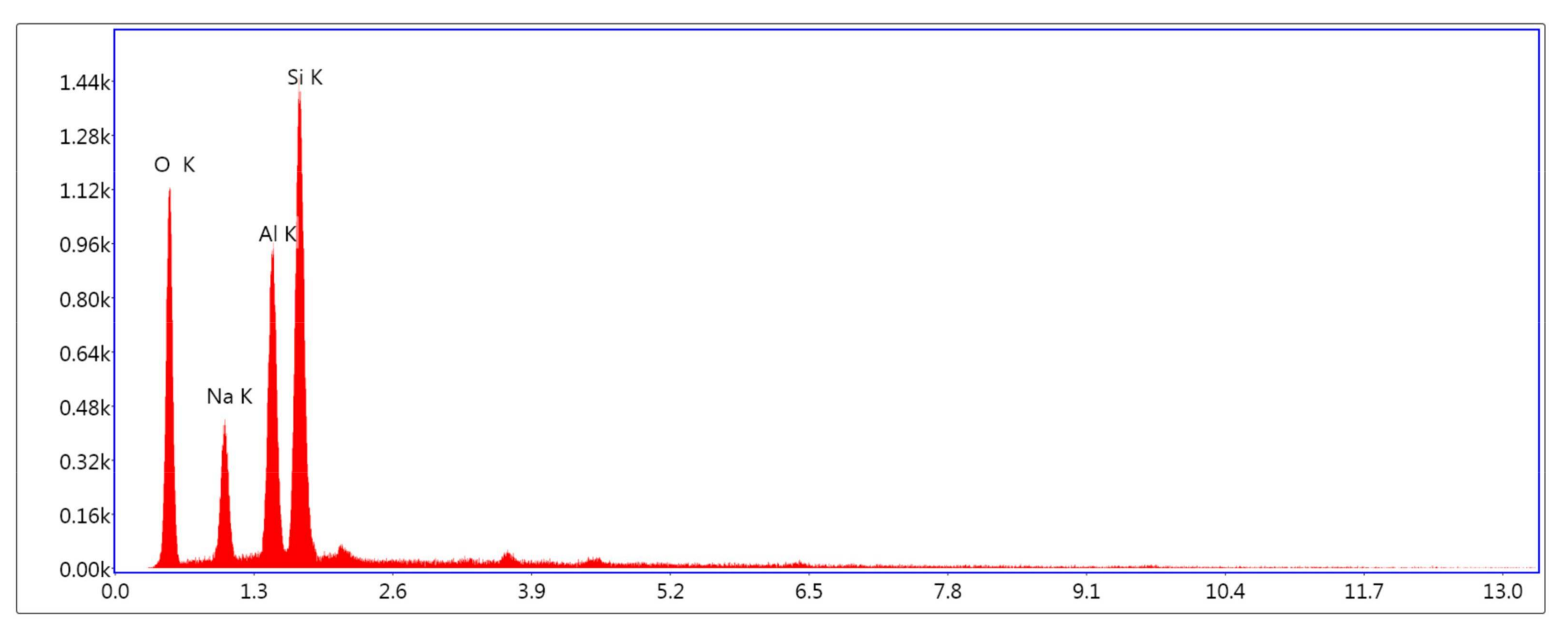

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Mu, S.; Liu, J.; Liu, J.; Wang, Y.; Shi, L.; Jiang, Q. Property and Microstructure of Waterborne Self-Setting Geopolymer Coating: Optimization Effect of SiO2/Na2O Molar Ratio. Minerals 2018, 8, 162.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Minerals EISSN 2075-163X Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
