Field Application of Accelerated Mineral Carbonation

1
Ecosystem Science and Management, University of Wyoming, 1000 E. University Ave, Laramie, WY 82071, USA
2
Chemical Engineering, Brigham Young University, Provo, UT 84602, USA
*
Author to whom correspondence should be addressed.
Minerals 2014, 4(2), 191-207; https://doi.org/10.3390/min4020191
Submission received: 11 January 2014 / Revised: 15 March 2014 / Accepted: 18 March 2014 / Published: 26 March 2014
(This article belongs to the Special Issue CO2 Sequestration by Mineral Carbonation: Challenges and Advances)

Abstract

:
Globally, coal-fired power plants are the largest industrial source of carbon dioxide (CO2). CO2 emissions from flue gas have potential for direct mineralization with electrostatic precipitator fly ash particles in the field. Demonstration scale accelerated mineral carbonation (AMC) studies were conducted at the Jim Bridger Power Plant, a large coal fired power plant located in Wyoming, USA. AMC produces kinetically rapid conditions for increased rates of mineralization of CO2, sulfur dioxide (SO2) and mercury (Hg) on fly ash particles. Control and AMC reacted fly ash particles were investigated for: change in carbon (expressed as CaCO3), sulfur (expressed as SO42−), and mercury (Hg) contents; topology and surface chemical composition by scanning electron microscope/energy dispersive X-ray spectroscopy analysis; chemical distribution of trace elements; and aqueous mineral solubility by the toxicity characteristic leaching procedure. Results of the AMC process show an increase in C, S, and Hg on AMC fly ash particles suggesting that multiple pollutants from flue gas can be removed through this direct mineral carbonation process. Results also suggest that the AMC process shifts soluble trace elements in fly ash to less leachable mineral fractions. The results of this study can provide insight into potential successful field implementation of AMC.

Graphical Abstract

1. Introduction

In 2012, coal fired power plants were responsible for 37% of electrical generation in the United States [1]. Approximately 70% of China’s [2] and 40% of India’s [3] total energy were also supplied by coal in 2012. The size of these three countries highlights the importance coal plays in the domestic and global energy portfolio. Total global carbon emissions from the consumption of energy in 2011 were 35,578 Mt [4]. The products of the coal combustion process are flue gas and solid byproducts (e.g., fly ash particles, bottom ash, and boiler slag). Flue gas CO2 emissions from coal fired power plants totaled 1718 Mt in the USA in 2011 [4]. Total annual solid byproducts in the USA are approximately 130 Mt, of which roughly 70 Mt is fly ash particles. Nationally, 35% of fly ash particles were used for beneficial purposes such as concrete additives. The remaining fly ash particles were disposed of in landfills or holding ponds. The use of fly ash particles for beneficial purposes varies worldwide; for example, it is 30% in India and China [5,6], whereas it is nearly 100% in Germany and The Netherlands [7]. Fly ash is used in construction most widely as a substitute for Portland cement in concrete as well as in wallboard, bricks, and other materials. It can be also be utilized as fill material in mining.
Both fly ash particles and flue gas contain trace elements. The levels of these trace elements depend on: the source of coal used [8], the specific conditions of the combustion process, the physical [9] and chemical properties [10,11] of the fly ash particles, the type of fly ash particle collection system [12], and the flue gas desulfurization system [13]. Based on the U.S. Resource Conservation and Recovery Act [14] of 1976, coal combustion products (CCP) are classified as non-hazardous materials and can be disposed of in lined impoundments. This classification has come under increased scrutiny following several incidents in which fly ash particles were inadvertently released into the environment, most notably the fly ash slurry holding pond spill at a Tennessee Valley Authority power plant in 2008 [15]. Numerous studies have examined the presence, the water solubility, and chemical leaching potential of major and trace elements in fly ash particles [10,12,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30]. A recent review of both major and trace elements by Izquierdo et al. [31] provides a comprehensive reference for research conducted on acidic and alkaline fly ash elemental mobility across a wide range of pH values.
In the United States, proposed regulations on flue gas emissions from coal powered electrical generation, combined with increasing awareness of the potential effect these emissions have on anthropogenic climate change, have led to increased research on technologies to reduce and remove them before being emitted to the atmosphere. Early research focused on removal of flue gas SO2, a major component of acid rain. This research led to the flue gas desulphurization techniques such as wet gas scrubbing with caustic solutions, which are widely employed today. The recent research in this field has focused on CO2, the largest of the greenhouse gas emissions from coal-fired power plants. Technologies that have been researched are generally distinguished into separation/capture technologies and storage technologies [32,33]. Separation and capture technologies include membrane separation, sorbent capture, solvents (monoethanolamine) and other integrated processes. Storage processes include geologic sequestration and enhanced oil and gas recovery, which are arguably not a permanent storage solution. After all the efforts and research applied to this issue, few economically sound, industry-wide applications have resulted. This is due to many factors, including, but not limited to, the costs of: separation of CO2 from the flue gas stream, capture of the CO2 once it is separated, transportation from the source to the disposal site, and appropriate long term disposal or storage solutions for the CO2 [32]. One method that has the potential to directly capture and store CO2 is mineral carbonation. Mineral carbonation differs from many other methods of CO2 capture and storage by changing flue gas CO2 into carbonate minerals. Mineral carbonation of CO2 (e.g., atmospheric or flue gas) with different sources of minerals (e.g., natural [34], spent oil shale [35] or fly ash [36,37,38,39]) have been studied. However, most of these studies were conducted at laboratory scale.
The focus of the research in this paper is aimed at reducing emissions from coal-fired power plants using a novel method of mineral carbonation of flue gas CO2 with power plant fly ash particles. Fly ash from coal-fired power plants is found in many developed and developing countries. As mentioned previously, the amount of fly ash put to beneficial use varies by country drastically. For example, Germany and the Netherlands use nearly all of their fly ash for beneficial use. In the United States, China, and India it is around 30%–35%, resulting in large quantities of fly ash that is disposed in landfills or placed in holding ponds. The potential of fly ash for carbonation worldwide was reported to be ~7 Mt C/year by Renforth et al. [40]. The novel process is termed accelerated mineral carbonation (AMC). The AMC process relies on generating optimal conditions for nearly instantaneous mineral carbonation of flue gas CO2 onto the surface of the fly ash particles. This process differs from other studies because it is a direct mineralization process for multiple pollutants from flue gas with short reaction times. A small pilot scale AMC process was successfully tested at a large coal power plant prior to the current demonstration scale AMC process [41]. The AMC process has shown promise not only in removing flue gas CO2, but also SO2 and Hg, as well as minimizing the mobility and leaching of trace elements in the fly ash [42,43,44]. However, for this current study, we made several modifications to the demonstration apparatus (Figure 1). These modifications included addition of a screw conveying system to accurately deliver the required amount of fly ash from the electrostatic precipitator hopper to the fluidized bed reactor and installation of better controls for reactor temperature and pressure, and moisture of flue gas leaving the humidifier into the fluidized bed reactor (FBR). We conducted three experiments with 0–120 min reaction time, at 60 °C heater/humidifier temperature, ~21 kPa gauge pressure, and 16% of flue gas moisture. Control and flue gas CO2 reacted fly ash samples were analyzed for carbon, sulfur, and mercury and subjected to studies of scanning electron microscopy/energy dispersive X-ray spectroscopy (SEM/EDS), toxicity characteristic leaching, and mineral fractionation. Data from these studies were used to discuss the direct mineralization of flue gas CO2, SO2, and Hg by fly ash particles using the AMC process.

2. Materials and Methods

2.1. Demonstration Scale Accelerated Mineral Carbonation Field Testing

The AMC study was conducted at the Jim Bridger Power Plant (JBPP), a 2120 MW coal fired electrical generation plant, owned by PacifiCorp, located near Point of Rocks, Wyoming, USA. JBPP consumes approximately 19,900 t of low sulfur sub-bituminous coal per day to feed its four independent power generating units, each unit capable of producing 530 MW. Post-combustion flue gas sulfur removal at JBPP is accomplished by a wet Na2CO3 scrubber.
The AMC demonstration scale process (Figure 1) is located at Unit 2 of JPBB. In the AMC process, a continuous slipstream of flue gas is piped from the outlet of the flue gas stack (after all scrubbing/treatment processes) through a moisture reducing (or knockout) drum (MRD) to a blower (model 1602 Atlantic Blower (Carrollton, TX, USA), producing approximately 0.094 m3/s, STP), which slightly pressurizes the flue gas. From the blower, the flue gas is routed through a water reservoir in the heater/humidifier (H/H) drum, before finally fluidizing and reacting with a batch of ash in the fluidized bed reactor (FBR). The fly ash particles for each batch experiment conveyed by a screw conveyor (UCC Corp., Waukegan, IL, USA) directly from the electrostatic precipitator hopper above the reactor. The temperature of the fly ash particles entering the FBR is approximately 70 °C. The fly ash bed depth was approximately 45 cm (~300–350 kg) in each experiment.

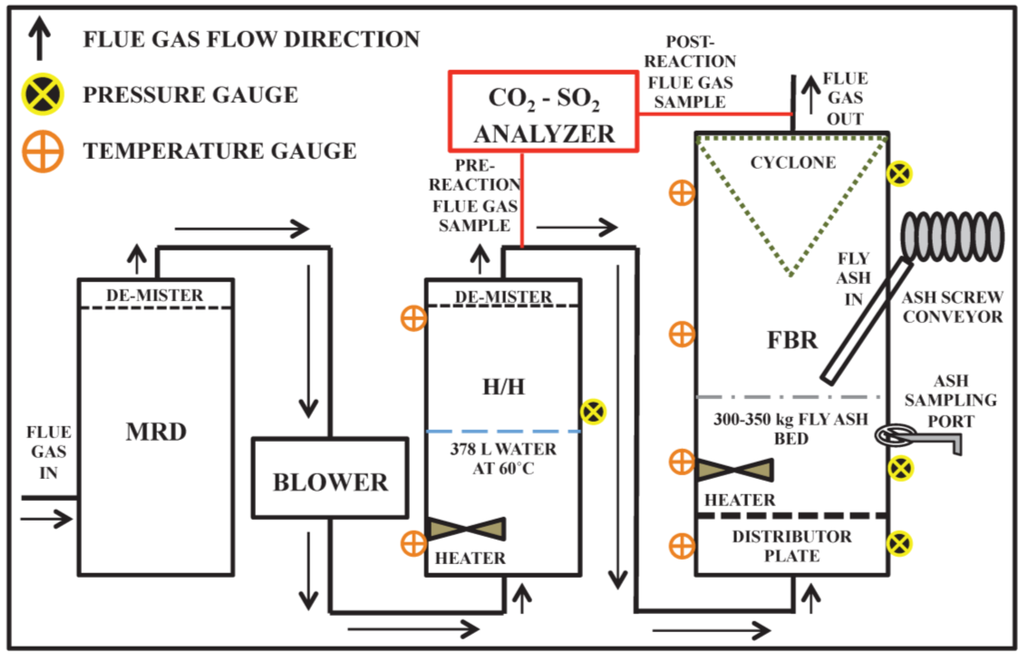

Figure 1. Schematic of accelerated mineral carbonation (AMC) process design (not to scale).
Figure 1. Schematic of accelerated mineral carbonation (AMC) process design (not to scale).
Minerals 04 00191 g001
The FBR has an operating section of 0.9 m diameter and 3.0 m length with a perforated distributor plate containing 9 mm diameter holes to distribute the flue gas to provide proper fluidization of the fly ash particles, a heater (ASB Heating Elements Ltd., Toronto, ON, Canada), a cyclone to separate the fly ash particles from the flue gas as it leaves the FBR, and a pressure control valve with controller (Leslie Controls, Inc, Tampa, FL, USA). The flue gas temperature entering the MRD is approximately 50 °C. Both the MRD and H/H drums contain demister screens to remove entrained water droplets from the flue gas to protect the blower and the FBR, respectively. The H/H drum is filled with 378 L of plant process water, which is heated (ASB Heating Elements Ltd.) to condition the flue gas to the desired humidity. The temperature of the H/H in this study was 60 °C, which is approximately 16 mol % moisture. Pressure (Ashcroft gauges), temperature (Omega Engineering thermocouples), and CO2 and SO2 concentrations (Horiba continuous emissions flue gas analyzer) are continuously monitored at strategic locations noted in Figure 1. However, we did not report flue gas measurement of CO2 and SO2 for two reasons: (1) the Horiba instrument presented problems with calibration and measurement due to condensation of water in the sample lines during the testing; and (2) the flue gas supplied was constantly replenished with CO2 and SO2 during the reaction, which rendered the small differentials in concentration not meaningful to analyze in the gas samples. For these reasons, the removal of CO2 and SO2 from the flue gas was calculated based on C and S contents of control and treated fly ash samples. A detailed description of the demonstration scale AMC process is available in Reddy et al. [42,43]. Fly ash solubility and fractionation data from a pilot scale AMC process at JBPP, smaller than the current demonstration scale conducted at JBPP, is detailed in Bhattacharya et al. [44].
Experimental conditions in the fluidizing bed were as follows: fly ash temperature of 70 °C, flue gas temperature of 60 °C corresponding to ~16 mol % moisture, and ~21 kPa gauge pressure. Three separate experiments were conducted on different days, each with the same experimental conditions. Fly ash samples were collected directly out of the FBR before the reaction (control), during the reaction at 10 min and 30 min through a sampling valve, and directly out of the FBR at 120 min or the end of the experiment (final). The samples were sealed immediately after sampling and transported to the lab for analysis. The chemical composition of control fly ash samples from Unit 2 electrostatic precipitator hoper was gathered from JBPP.

2.2. Total Carbon, Sulfur, and Mercury

Samples from three separate tests at 60 °C humidifier water temperature were analyzed for total carbon, sulfur, and mercury by the Wyoming Department of Agriculture Analytical Services Laboratory, Laramie, WY, USA. Analysis was accomplished using a CE Elantech EA 1112 elemental combustion analyzer (Thermo Scientific, Waltham, MA, USA) for carbon and sulfur. Mercury analysis was performed by an Agilent 7500ce inductively coupled plasma mass spectrometer (ICP-MS). All other analyses described next were performed on ash samples from one of the 60 °C humidifier water temperature tests.

2.3. Scanning Electron Microscopy-Energy Dispersive X-Ray Spectroscopy

Scanning electron microscopy (SEM) and energy dispersive X-ray spectroscopy (EDS) were used to determine the texture and composition of the surface of the control and AMC fly ash particles. Analysis was conducted at Colorado State University, Ft. Collins, CO, USA on a JSM-6500F (JEOL, Tokyo, Japan) SEM coupled with a NORAN System SIX (Thermo Fisher Scientific, Waltham, MA, USA) EDS. Samples were prepared by coating, mounting, and inserting into the JSM-6500F. Analysis was performed by examining SEM images and performing EDS measurements on areas of interest.

2.4. Sequential Chemical Fractionation of Trace Elements

Sequential chemical fraction of the trace elements (Al, Cr, Mn, Cu, Zn, As, Se, Pb, Cd, and Hg) in the fly ash was conducted following a slightly modified method of Tessier et al. [45] at the Water Quality Laboratory, College of Agriculture and Natural Resources, University of Wyoming, Laramie, WY, USA. The sequences of extraction are water soluble, exchangeable, carbonate bound, oxide bound, organic matter bound, and the residual fraction, as detailed in Table 1. The modified methodology uses 1 g of fly ash with the following extraction fluids in 50 mL centrifuge tubes:
Table 1. Sequential chemical fraction procedure, modified from Tessier et al. [45].
Table 1. Sequential chemical fraction procedure, modified from Tessier et al. [45].
FractionExtractant FluidProcedure
Exchangeable0.5 M Mg(NO3)230 min shaking at 120 rpm
Carbonate1 M NaOAc5 h shaking at 120 rpm
Oxide0.08 M NH2OH·HCl6 h shaking at 120 rpm
Organic Matter0.02 M HNO3 and H2O22 h shaking at 120 rpm at 85 °C
ResidualConcentrated HNO32 h shaking at 120 rpm
Recovery of the extractant fluid was performed through centrifugation at 10,000 rpm. Supernatant was removed and analyzed. To wash the remaining residue of the previous extractant fluid, samples were rinsed with 8 mL deionized water between every step, centrifuged again for 30 min at 10,000 rpm, and supernatant disposed. Analysis of the leachate fluid was performed using ICP-MS for cations and ion chromatography (IC) for anions at Wyoming Department of Agriculture Analytical Services Laboratory, Laramie, WY, USA.

2.5. Toxicity Characteristic Leaching Procedure (TCLP)

Toxicity characteristic leaching procedure (TCLP) was conducted at the ALS Environmental laboratory in Ft. Collins, CO, USA. TCLP is one of the measurements used to determine if a disposal product is classified as a hazardous or non-hazardous waste based on the leaching of certain elements of concern. The TCLP is often used when wastes are disposed of in a landfill. Slightly more than half of JBPP fly ash is disposed of in a local landfill, with the remaining portion being used in cement production. The current study examined leachability of trace elements including As, Ba, Cd, Cr, Pb, Se, Ag and Hg. The purpose of the TCLP test is to help predict the mobility and leaching potential of these trace elements from fly ash before and after the AMC process.

3. Results and Discussion

3.1. Elemental Composition and Distribution on Fly Ash Particles

The composition of fly ash particles and the distribution of elements on their surfaces and interiors are important when discussing elemental solubility and fractionation, with an emphasis on control fly ash samples and of changes on AMC fly ash samples. A model for fly ash particles has been proposed [46], with the particles composed of a thin exterior surface of differing composition from the interior of the fly ash particle. Subsequent studies featuring SEM-EDS and XRD analysis [25,47,48] indicate general agreement with their findings. The exterior is proposed to be made up of inorganic oxides and hydroxides and reactive aluminosilicate glass, while the interior is primarily a less reactive aluminosilicate matrix [24]. The exterior shell has been found to contain elements, both trace and major, that undergo phase changes during the combustion process, form small particles upon cooling, and can attach to the surface of the aluminosilicate matrices that form the larger fly ash particles [49]. The interior of the particle is less reactive and composed primarily of aluminosilicates with a distribution of various cations and anions. Major cations, anions, and trace elements are not all evenly distributed between the silicate and non-silicate phases of the fly ash particles [24]. The fly ash particles in this study were from low sulfur sub-bituminous coal with an initial carbon content of 35–45 wt %. The combustion of the coal results in fly ash particles with inorganic oxides and hydroxides and amorphous aluminosilicates [26,50]. The approximate distribution of chemical species in JBPP fly ash particles is shown in Table 2.
Table 2. Distribution of chemical species on Jim Bridger Power Plant (JBPP) fly ash particles (wt %).
Table 2. Distribution of chemical species on Jim Bridger Power Plant (JBPP) fly ash particles (wt %).
Componentwt %
SiO260.04
Al2O319.67
CaO5.86
Fe2O34.66
MgO3.85
K2O2.00
N2O1.00
Loss on Ignition0.60
The amorphous silicates are primarily Si, Al, and Ca minerals [25,47]. The pH of the fly ash is 11.5–12.5. The physical size of the fly ash is approximately 40 µm, spherical in shape, with very low moisture content. The flue gas is relatively low in SO2 (20–25 ppm) and NOx (100–120 ppm) concentrations, contains 11–13.5 mol % CO2, 66–70 mol % N2, 10–20 mol % moisture and trace amounts of Hg, As, and various other trace elements. The pH of the flue gas is 3.3 [41,42].

3.2. Demonstration Scale Studies

During demonstration scale AMC testing, fly ash samples collected were: control, 10 min, 30 min, and 120 min (or final). The controlling factors in the AMC process are the chemical and physical properties of the fly ash and flue gas and the conditions in which they are mixed. Three factors influencing the chemical composition of the fly ash are the combustion process, the mineralogy and chemical composition of parent coal, and the ash collection method.
The fly ash particles and flue gas exiting the combustion chamber are reactive due in part to their respective intrinsic properties; fly ash particles with alkaline pH, high metal oxide content, and warm temperature and flue gas with high CO2 content, presence of SO2 and NOx, low pH, optimized moisture content from the H/H, and warm temperature. In addition to these properties, the conditions created within the process to facilitate AMC include increased in pressure to 21 kPa guage in the FBR, mixing via the fluidizing bed in the FBR, and conditioning of the flue gas via the H/H. The combination of these factors results in an increased rate of mineral carbonation of fly ash inorganic oxides and hydroxides and flue gas CO2 and SO2. As an example, Summers et al. [51] investigated the combined effect of CO2 and SO2 in mineral carbonation. Results from these studies show that small fraction of SO2 in the flue gas in fact enhances the mineral carbonation of CO2. The formation of carbonates and sulfates in fly ash through the AMC process can be explained by the following example reactions involving CaO and CO2 and SO2 [43]:
Carbonates:
CO2 (g) (flue gas) + H2O (moisture in flue gas) ↔ H2CO3 (carbonic acid)
CaO (fly ash particles) + H2CO3 (carbonic acid) ↔ CaCO3 (calcite) + H2O
The overall Reaction (3) results from combining Reactions (1) and (2):
CO2 (g) (flue gas) + CaO (fly ash particles) ↔ CaCO3 (calcite)
Sulfates:
2SO2 (flue gas) + O2 + 2CaO (fly ash) ↔ 2CaSO4 (anhydrite)
The total carbon, sulfur and mercury content of the fly ash particles after the AMC process (Table 3) increased from the control sample to the final sample. As noted in Section 2.2, C, S, and Hg were calculated by the reported methods. To obtain the values for CaCO3 and SO42−, conversion factors were multiplied by the elemental value. The conversion factor is the molecular weight of the compound divided by the molecular weight of the individual element. This equals to 8.33 for CaCO3, and 3.0 for SO42−. These data are averaged from three experiments. The control value is based on two samples collected prior to the experiments. These data are averaged from three separate experiments at ~16% moisture in the flue gas. The control value is based on two of the experiments.
Table 3. CaCO3 (wt %), SO4 (wt %), and Hg (mg/kg) content of JBPP control and AMC fly ash samples.
Table 3. CaCO3 (wt %), SO4 (wt %), and Hg (mg/kg) content of JBPP control and AMC fly ash samples.
SampleCaCO3 (wt %)SO42− (wt %)Hg (mg/kg)
Control2.88 ±0.960.48 ±0.030.12 ±0.09
10 min3.11 ±1.571.21 ±0.190.27 ±0.12
30 min3.67 ±1.531.35 ±0.130.25 ±0.08
Final3.86 ±1.281.42 ±0.140.30 ±0.11
These data indicate formation of carbonates, as the only potential source for an increase in carbon content of the fly ash in the AMC process was due to flue gas CO2. Carbonates have been shown to form during hydrolysis of calcium oxides and hydroxides in alkaline fly ash as well as in the presence of CO2 [46,52]. This is possibly occurring in the AMC samples due to the high relative moisture and 11.0%–13.5% CO2 contained in the flue gas. Examination of the interaction of atmospheric and flue gas SO2 with fly ash particles indicates that it is possible for anhydrite (CaSO4), gypsum (CaSO4·2H2O), amorphous calcium sulfate, or various other sulfate minerals to be formed on the surface of the particles of alkaline fly ashes [25,31,50]. The observed increase in total sulfur on the AMC samples is likely due to the interaction with the 20–25 ppm SO2 in the flue gas. Tsuchiai et al. [53] found that SO2 oxidized to SO3 and then was converted to CaSO4 by the presence of NOx, which the flue gas also contains. The observed neutralization of the high pH in the control sample to the AMC sample suggests that more calcium will be available as Ca2+ to react with either CO2 or SO2. Extensive studies on mercury [13,54,55,56,57,58,59,60] have suggested that the majority of Hg in post desulfurization flue gas is typically in elemental form, which can be oxidized by soluble inorganic oxides (i.e., CaO) or chlorine [60], and potentially adsorb to unburned carbon in the fly ash. However, since fly ash from JBPP has low or insignificant unburned carbon content, this mechanism might not explain the increase in mercury content of the fly ash. Studies have shown that mercury can also coprecipitate as HgCO3 with calcite in fly ash or adsorb to the calcite surface [61], which might be happening during the AMC process.

3.3. SEM/EDS

SEM/EDS images and data (Figure 2) suggest an increase in the carbon content from the control to the AMC samples. In the control SEM image (Figure 2a), spherical fly ash particles are visible with little crystal structure formation or variation in their general shapes. The corresponding EDS data suggest that aluminum, oxygen, calcium, magnesium, and silicon are the primary elements at the point of analysis. In the 10 min (Figure 2b) and 30 min (Figure 2c) SEM images, formation of crystals and a change from the uniform shape observed in the control occurs. Correspondingly, an increase in carbon is noted in both EDS data. This increase in carbon content is attributable to the formation of amorphous or crystalline carbonate minerals. The SEM/EDS data (Figure 2c) showed significant amount of carbon and sulfur in 30 min flue gas reacted sample. From this investigation we conclude that carbonation of flue gas CO2 takes place in the presence of SO2 gas.

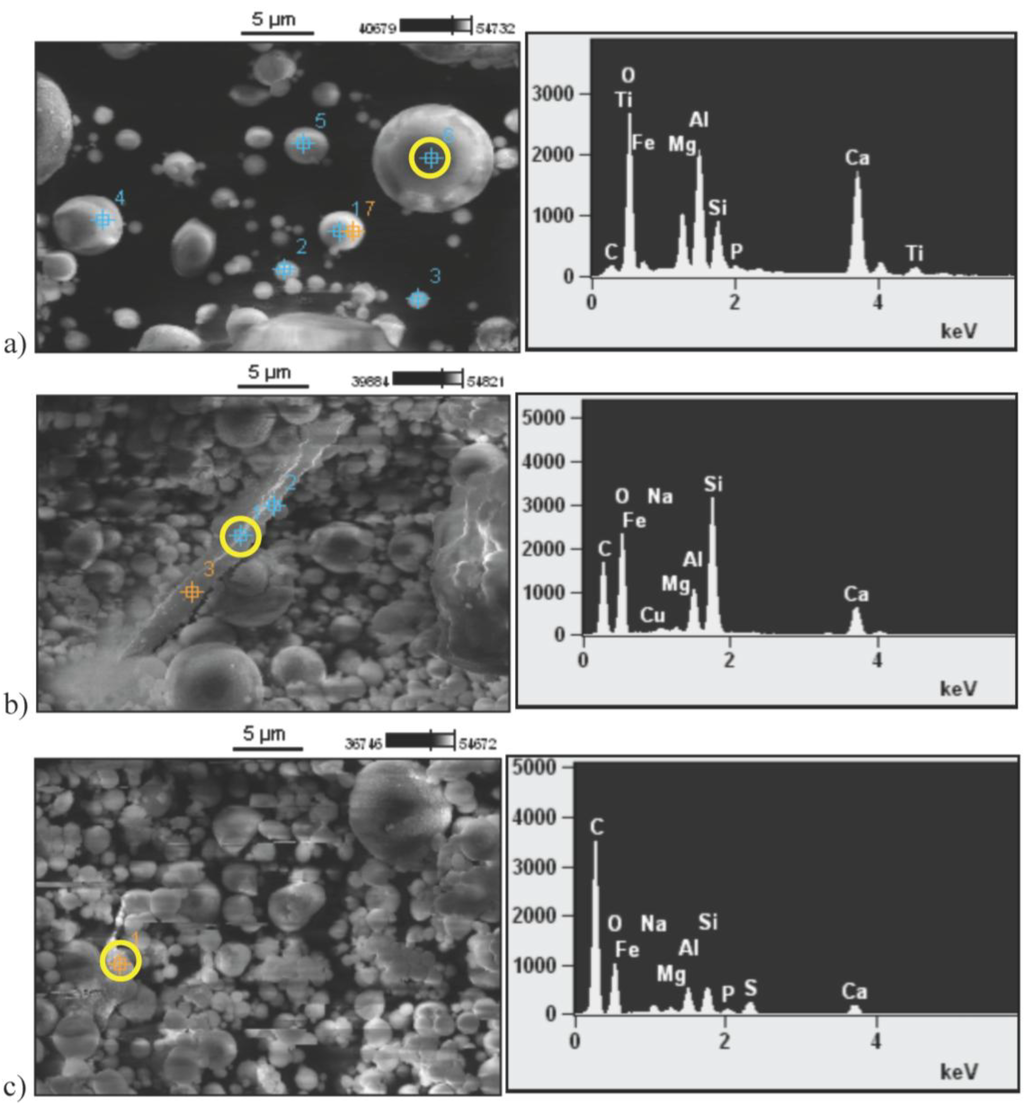

Figure 2. Scanning electron microscopy (SEM) images with corresponding X-ray spectroscopy (EDS) spectra: (a) control; (b) 10 min; (c) 30 min. Point in the yellow circle corresponds to the respective EDS spectra.
Figure 2. Scanning electron microscopy (SEM) images with corresponding X-ray spectroscopy (EDS) spectra: (a) control; (b) 10 min; (c) 30 min. Point in the yellow circle corresponds to the respective EDS spectra.
Minerals 04 00191 g002

3.4. Sequential Chemical Fractionation of Trace Elements

Trace element (As, Cd, Cr, Cu, Hg, Mn, Pb, Se, Ti, Zn) fractionation data (Figure 3) suggest a large increase in the carbonate fraction and, to a lesser extent, oxide bound fraction for arsenic, chromium, copper, and zinc in the AMC process samples. An increase in the oxide fraction for manganese and aluminum was also observed. Lead, selenium, cadmium, mercury and titanium were either below instrumental detection limits or if present, were found at very low concentrations in all fractions. This suggests that their mobility would not pose a problem in either the control or AMC samples. To attempt to interpret possible effects on the distribution of lead, selenium, cadmium, and mercury as a result of the AMC process would be difficult due to the lack of definitive data.
Arsenic (Figure 3a) chemical fractions changed in distribution from the control to the AMC samples. This change results in a decrease in the exchangeable fraction and an increase in the carbonate, oxide, and residual bound arsenic, with minimal change observed in the organic matter bound from the control to the AMC samples. Narukawa et al. [62] found similar results for the majority of arsenic bound to carbonates and oxides in a sequential leaching procedure similar to the current study. The increase in the carbonate fraction of arsenic is possibly attributed to adsorption onto the surface of calcite [31,63]. The measured increase in the oxide bound form is possibly due to absorption with iron oxide [27] or to a lesser extent aluminum oxide [63]. The AMC samples potentially reduced the mobility of arsenic in the environment by increasing the concentrations in the less soluble carbonate, oxide, and residual fractions when compared to the control sample.
Chromium (Figure 3b) fractionation data from the AMC process show the greatest increases in the oxide and organic matter bound fraction when compared to the control samples. Lesser increases are observed in the exchangeable and residual bound AMC samples compared to the control, with little discernable difference in the carbonate bound fraction. Chromium is known to adsorb with iron and aluminum oxides at slightly alkaline pH [64]. Chromium has been shown to be associated with organic matter in the depositional environment of the coal, and depending on total concentration and coal combustion methods, can be associated with the organic matter content in the fly ash particles [31]. Chromium in the AMC samples increased in all the fractions except carbonate bound, where no difference is detectable. Although chromium has been suggested to be an element of concern in the environment, the more toxic hexavalent species in fly ash particles is readily reduced to trivalent chromium by interaction with flue gas SO2 [31], which the AMC process promotes. This change in oxidation state can limit the potential environmental hazards of chromium.
Copper (Figure 3c) exhibits a noticeable increase in the carbonate and oxide bound fractions of the AMC samples compared to the control. There are very slight increases in the organic matter and residual fractions from AMC to control and no detectable difference in the exchangeable fraction. Copper can be adsorbed onto the aluminum oxides in fly ash particles [31,65], and this association might help explain the exhibited increase in oxide bound fractions of copper in the AMC samples. In addition to adsorption on aluminum oxides, formation of copper carbonate, oxide, or hydroxide minerals is possible [65,66]. Formation of these may increase the carbonate bound fraction of copper. The observed increases in copper in both carbonate and oxide fractions indicates that more copper is being fixed in these respective fractions in AMC samples compared to the control.

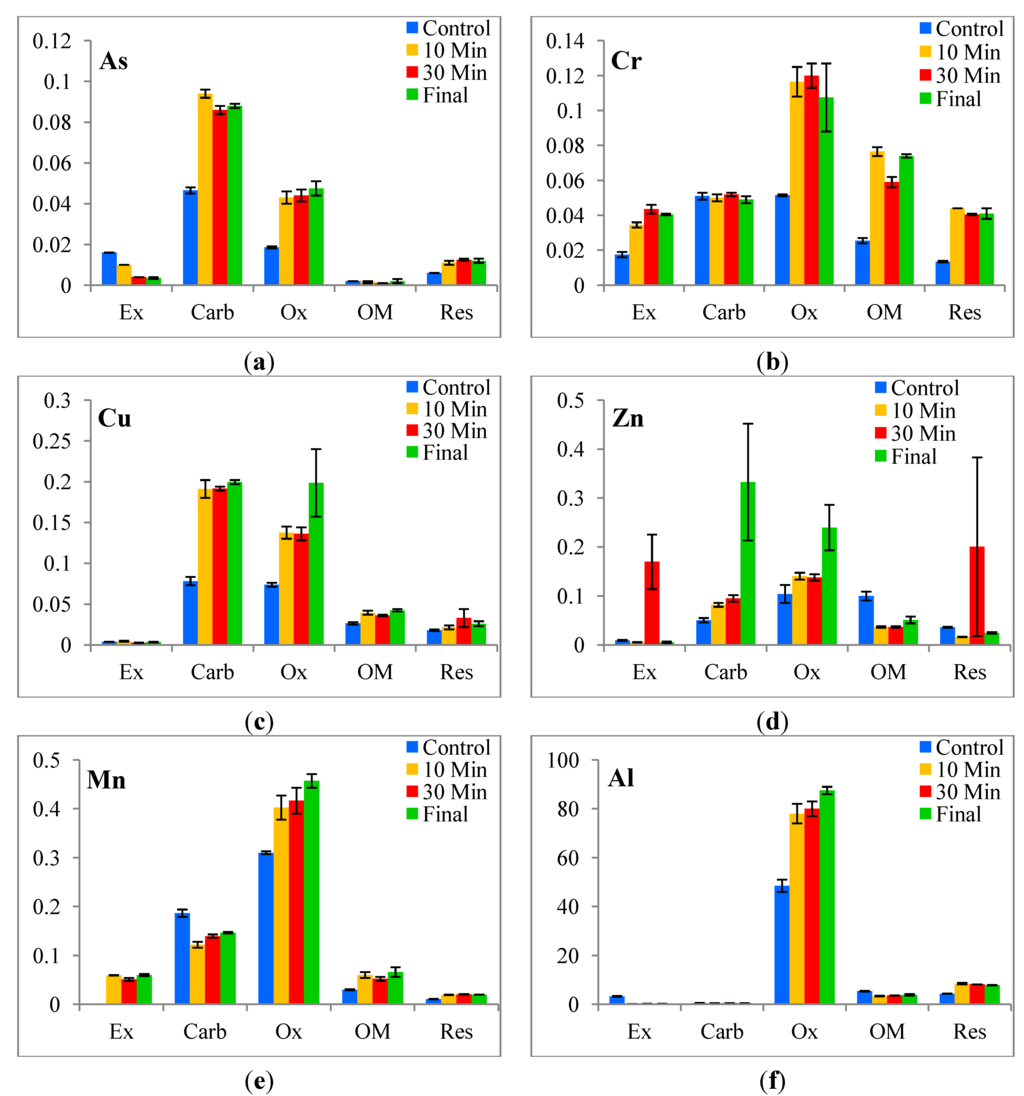

Figure 3. Sequential chemical fractionation concentrations (mg/L) for the selected trace elements: (a) arsenic; (b) chromium; (c) copper; (d) zinc; (e) manganese; (f) aluminum Fractions: Ex = exchangeable; Carb = carbonate; Ox = oxide; OM = organic matter; Res = residual.
Figure 3. Sequential chemical fractionation concentrations (mg/L) for the selected trace elements: (a) arsenic; (b) chromium; (c) copper; (d) zinc; (e) manganese; (f) aluminum Fractions: Ex = exchangeable; Carb = carbonate; Ox = oxide; OM = organic matter; Res = residual.
Minerals 04 00191 g003
Zinc (Figure 3d) displays an increase in the carbonate and oxide bound fractions and a decrease in the organic matter fraction from the control to the AMC samples. Exchangeable and residual fractions do not exhibit an appreciable difference. Zinc has been suggested to associate with aluminum oxides [67] or be present as zinc oxide or hydroxide in fly ash [31]. The observed increase in carbonate bound zinc can possibly be explained by adsorption of zinc onto calcite [68] or some other carbonate species or perhaps the formation of a zinc carbonate species.
Manganese (Figure 3e) shows slight increases in exchangeable and oxide bound fractions from the control to AMC samples. Carbonate, organic matter, and residual fractions show slight changes, but the magnitude of the difference is very minimal. Kim and Kazonich [24] found manganese in higher quantities in the silicate bound forms. This could mean a possible association with aluminum oxides that leach from the fly ash inner matrix and are available to scavenge manganese. The manganese increase in the exchangeable fraction from control to AMC samples is difficult to explain.
Aluminum (Figure 3f) shows an increase in the oxide fraction from the control to AMC samples, with little observable change in any of the other fractions. Aluminum is a major constituent of fly ash particles, and by decreasing the pH in the AMC samples, increased amounts can possibly be dissolved from the glassy inner matrix and then form hydroxide or oxide species.

3.5. Toxicity Characteristic Leaching Procedure

TCLP experiments were carried out to determine if the AMC process would possibly altered the classification of fly ash particles from its currently non-hazardous status. Results of the TCLP are shown in Table 4. All of the constituents sampled for in the TCLP analysis are well below the limits in both the control and AMC samples.
Table 4. Toxicity characteristic leaching procedure (TCLP) concentrations (mg/L).
Table 4. Toxicity characteristic leaching procedure (TCLP) concentrations (mg/L).
TCLP (mg/L)AsBaCdCrHgPbSeAg
Reporting Limit5.01001.05.00.25.01.05.0
Control******0.21*
30 min******0.18*
Final******0.18*
Note: * = below the lower limit of quantitation.

4. Conclusions

Results of this study suggest changes in the fly ash geochemistry as a result of the demonstration scale AMC process. Increases in C, S, and Hg were observed, suggesting a mechanism of capture from flue gas onto the surface of the fly ash particles during the AMC process. Analysis of SEM/EDS, sequential chemical fractionation, and TCLP further provided evidence for the direct mineralization of flue gas CO2, SO2, and Hg by fly ash particles.
SEM/EDS analysis show changes in the morphology from uniform, spherical particles observed in the control to crystal structures and less uniformity in the shape in the AMC samples, and chemical composition shown by an increase in carbon content of the AMC samples, indicative of carbonation of the fly ash particles. Sequential chemical fractionation data show an increase in the carbonate and oxide bound forms of arsenic, copper, and possibly zinc. Increases in the oxide bound forms of chromium, manganese, and aluminum were observed. Chromium and manganese were the only two trace elements with an apparent increase in the exchangeable forms. TCLP data did not indicate any difference due to AMC process.
The results of the AMC process on fly ash major and trace element mobility are important to determine if this process can potentially be implemented at an industrial scale. The conclusion of the experiments and analysis suggest direct mineralization of flue gas CO2, SO2, and Hg is possible in the field at a large scale through the AMC process. As a complement to the mineralization of multiple flue pollutants, this study also suggests that the AMC process possibly alters some elements of concern in the fly ash to less mobile fractions.
Future study on the AMC process on other coal-fired power plants would help to determine if the AMC process results are applicable to a wide range of conditions. Additionally, increasing the AMC reaction to industrial scale would be needed to determine if it is cost effective and efficient [42]. Fly ash and flue gas conditions vary between different power plants and studies with differing conditions would elucidate if the AMC process works elsewhere. Potential beneficial end uses of the carbonated fly ash include use as an amendment for naturally or anthropogenically created sodic soils. The effect of the AMC process on the pozzolanic properties of fly ash needs to be studied if the beneficial use as construction material, and especially as a replacement for Portland cement, is to be retained. Additional studies could examine application in any industrial setting where an alkaline solid waste and acidic flue gas are produced, including but not limited to: steel industry, cement industry, and solid waste incinerators.

Acknowledgments

The authors would like to thank Dr. Ajay Kumar Sankara Warrier for his contributions in sampling and analysis for the project. We would also like to thank Ryan Taucher, Roger Warner, Dan Miller, Jim Sedey, and Jerry Dickson at Jim Bridger Power Plant, PacifiCorp, and the University of Wyoming Office of Research and Economic Development. Funds for this project were contributed by PacifiCorp, University of Wyoming Ecosystem Science and Management, and the Department and Office of Research and Economic Development.

Author Contributions

K. J. Reddy conceived the original idea. K. J. Reddy and Morris D. Argyle designed and developed AMC rector skid. Brandon Reynolds, K. J. Reddy, and Morris D. Argyle all participated in conducting experiments. Brandon Reynolds collected the data. All authors participated in writing of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.
