Antibodies 2013, 2(3), 392-414; doi:10.3390/antib2030392
Abstract: IgG antibodies are the basis of some of the most effective therapeutics developed over the last 20 years. These antibodies are highly specific, have long serum-half lives, and can be produced relatively routinely, making them ideal drugs for immunotherapy. The degree of regulation on IgG antibody effector functions by the composition of the single, N-linked glycan attached to the Fc is increasingly appreciated. IgG antibodies with identical protein sequences can gain a 50-fold potency, in terms of initiating antibody-dependent cellular cytotoxicity (ADCC) by removal of the single fucose residue from the Fc glycan. Conversely, the addition of sialic acid to the terminus of the Fc glycan converts IgG antibodies into anti-inflammatory mediators, capable of suppressing autoantibody driven inflammation. This review will discuss the contribution of the Fc glycan to IgG antibody effector functions, the regulation of the antibody glycosylation in vivo, implications for the rational design of IgG antibody-based therapeutics, and touch upon the contribution of glycosylation to other immunoglobulin isotypes.
Antibodies play key roles in humoral adaptive immune response by binding to specific antigens and linking them to the innate immune system. The ability of antibodies to harness such immunity is attributed to their unique structure, and has been successfully exploited in development of therapeutic treatments for many disease types, including cancers, autoimmune diseases, and inflammatory disorders [1,2,3,4,5,6,7].
Antibodies are comprised of basic structural units of two identical heavy and two identical light polypeptide chains. These chains are linked by disulfide bonds forming a “Y”-shaped structure . Human immunoglobulins can be categorized into five classes (IgG, IgA, IgD, IgE, and IgM) referencing the heavy chain. IgG and IgA antibodies are further separated into four (IgG1-4) and two subclasses (IgA1-2), respectively. Recognition of specific antigens is mediated by the antigen-binding fragment (Fab), corresponding to the top ends of the fork of the Y-shaped structure (Figure 1). Effector functions are initiated by binding of the fragment crystallizable region (Fc), the stem of the Y, to effector proteins such as Fc receptors (FcRs). The Fab fragments are comprised of variable and constant domains of light and heavy chains, while Fc fragments are comprised entirely of constant domains of heavy chains. Each antibody class has distinct circulation profiles and effector functions. In serum, the most abundant class with longest half-life is IgG comprising 75% of antibodies in circulation. IgM and IgA are the next most abundant at 10% and 15%, respectively and have markedly shorter serum half-lives. On the other hand, in mucosal secretion, IgA is the most abundant class and acts as the first line of defense against pathogens invading at the mucosal sites . IgE is the least abundant in the circulation (<0.01%), however, it can remain in tissues bound to receptors on mast cells for up to two weeks .
Immunoglobulins elicit their effector functions through interactions of the Fc portion with distinct target molecules and receptors. A single N-linked glycan is present in the Fc portion of all IgG subclasses. This glycan is essential for initiation of many IgG effector functions. Additionally, each antibody class has unique glycosylation profile which will be discussed in more details in the following sections. This review will focus on the contribution of the glycan to IgG biology, and will discuss IgE, IgA, and IgM glycobiology.
2. IgG and FcγRs
IgG mediates an array of effector functions by its ability to interact specifically with Fc γ receptors (FcγRs), the neonatal FcR (FcRn), and the initiator of the classical complement cascade, C1q. Members in the canonical FcγR family can be classified into activating and inhibitory FcγRs. Initiation of the activating or inhibitory signal cascade requires FcγR aggregation as a result of FcγR cross-linking by IgG immune complexes . IgG can activate leukocytes by binding to activating FcγRs (FcγRIA, FcγRIIA, FcγRIIC, and FcγRIIIA) that typically signal through an immunoreceptor tyrosine-based activation motif (ITAM). Activation of this signaling pathway leads to pro-inflammatory activity resulting in destruction and clearance of antigens by phagocytosis, ADCC, and promotion of antigen presentation . In contrast, IgG binding to the inhibitory FcγR (FcγRIIB) triggers signals through an immunoreceptor tyrosine-based inhibitory motif (ITIM), thereby dampening cellular activation. Many immune cells including macrophages, dendritic cells, neutrophils express both activating and inhibitory FcγRs, the eventual signal elicited by IgG is governed by the affinity of IgG subclasses to distinct FcγRs (Kd = 10−7–10−9 M) and the combination of expression level and pattern of FcγRs [13,14,15].
To predict the degree of pro-inflammatory activity of a specific isotype, the binding affinity of a particular IgG isotype for an activating FcγR in relation to the inhibitory FcγRIIB, activating-to-inhibitory (A/I) ratio, can be applied . For example, a ratio of 1 indicates no preferential binding to either activating or inhibitory FcγRs and a ratio above or below 1 indicates a preferred binding to the activating or inhibitory FcγR, respectively. Thus, increasing A/I ratios are indicative of more potent ADCC induction . In human, IgG3 has the largest A/I ratio followed by IgG1 subclasses, indicating that IgG3 or IgG1 would be good candidates for therapeutic antibodies to elicit ADCC. Furthermore, polymorphisms of human FcγRIIA and FcγRIIIA allotypes are known to alter the binding affinity to IgG. Studies have shown that FcγRIIIA 158V/V and FcγRIIA 131H/H peripheral blood mononuclear cells (PBMC) exhibit a higher affinity to IgG and also an enhanced ADCC compared to their respective FcγRIIIA 158F/F and FcγRIIA 131R/R allotypes [17,18,19,20,21,22]. Indeed, an improved clinical response has also been associated with FcγRIIIA 158V/V or FcγRIIA131H/H patients treated with therapeutic monoclonal antibody IgG1, including anti-CD20 (Rituximab) for follicular lymphoma , anti-Human Epidermal Growth Factor Receptor 2 (HER2) (Trastuzumab) for metastatic breast cancer [22,24], and anti-epidermal growth factor receptor (EGFR) (Cetuximab) for metastatic colorectal cancer . Furthermore, a study demonstrated that modification of the amino acid residues at the binding pocket of Trastuzumab to FcγRs increased the affinity and also ADCC to the lower-affinity allotype FcγRIIIA 158F/F . Thus, maximizing the A/I ratio by pairing an optimized variant of a particular antibody isotype to the patient allotypes is likely to improve the clinical efficacy mediated by therapeutic antibodies.
In addition to the canonical FcγRs, IgG binds to a major histocompatibility complex (MHC) class I-related receptor, neonatal FcR (FcRn). This interaction elicits two main functions: it allows transcellular transportation of maternal IgG to foetus across the placenta, and it prolongs the half-life of serum IgG by preventing degradation from catabolism . Thus, FcRn is responsible for the half-life of up to 21 days in circulation of an IgG molecule. Furthermore, IgG can bind to C1q component of the classical complement cascade and activate complement-dependent cytotoxicity (CDC) by forming transmembrane channels, membrane attack complex, resulting in osmotic lysis of the target cell .
3. The Contribution of the Fc Glycan to IgG

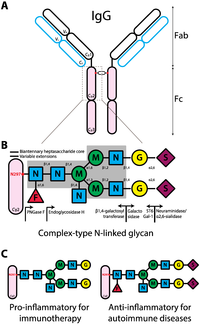

IgG Fc fragment is comprised of two domains of the constant heavy chain (Figure 1a, Cγ2 and Cγ3). A key component of IgG is located at the conserved N-linked glycosylation site, asparagine-297 (N297), near the hinge region in the Cγ2 domain (Figure 1a). X-ray crystallography studies of IgG Fc suggest that the glycans on N297 are concealed in the cavity between two Cγ2 domains [28,29]. The N-linked glycans influence the steric hindrance between the two heavy chains, maintaining the IgG Fc in an opened conformation . Removal of glycans results in collapse of the heavy chains , ablating binding to FcγRs and C1q, and abrogating ADCC and CDC [31,32].
The glycans at N297 have a complex-type biantennary structure, comprising core heptasaccharides and variable extensions of monosaccharides, including an addition of fucose to core N-acetylglucosamine (GlcNAc), GlcNAc to the bisecting mannose, galactose to GlcNAc on the biantennary arms, and terminal sialic acid (Figure 1b). As a consequence of variable extensions, the glycan is tremendously heterogeneous; in humans over 30 glycoforms on the single IgG heavy chain have been identified [27,33,34,35]. Pairing of different glycans on each IgG heavy chain further increases the diversity of IgG glycoforms.
The majorities of human IgG Fc glycans are highly fucosylated (>92%)  and can be separated into three subsets as determined by the number of terminal galactose, IgG; G0F (~35%), G1F (~35%), and G2F (~16%) for the fucosylated glycans terminating in zero, one or two galactose, respectively. A small proportion of these IgG Fc glycans contains a bisecting GlcNAc (>11%). Only 5~10% of IgG Fc glycoforms are mono-sialylated. Furthermore, <1% of IgG Fc glycoforms have two sialic acids [33,35,36,37]. These differential compositions of the N-linked glycans determine the effector functions by altering the affinity of IgG to activating or inhibitory FcγRs .
3.1. Pro-Inflammatory IgG Fc Glycans
The core fucose plays a major role regulating the magnitude of ADCC. Fractionation using Lens culinaris agglutinin (LCA) lectin affinity chromatography showed that enhanced ADCC is associated with the low fucosylated IgG1 fraction. Conversely, the highly fucosylated IgG1 fraction showed reduced ADCC . Overexpression of α1,6-fucosyltransferase (FUT8) in a hybridoma that produces low levels of fucosylated IgG1 (YB2/0) also decreased the ability of these antibodies to elicit ADCC . Several expression systems have been used to produce afucosylated recombinant human IgG, for example, Chinese hamster ovary (CHO) fucosyltransferase-deficient variant line (Lec13)  or mutant tobacco-related plant species Nicotiana benthamiana lacking plant-specific N-glycan residues [41,42]. Regardless of the expression systems, afucosylated IgG exhibited a marked increase (up to 50-fold) in binding affinity to human FcγRIIIA, NK cell-mediated ADCC, and antiviral activity measured by antibody-dependent cell-mediated virus inhibition (ADCVI) assays [40,41]. In vivo studies also showed that afucosylated IgG had an increased ADCC potency in an immunotherapy mouse model [16,43] and provided better antiviral protection when mice were challenged against lethal dose of virus . The increased affinity is attributed to reduced steric hindrance from the loss of fucose, promoting increased glycan-glycan interactions between FcγRIIIA and afucosylated Fc [44,45].
The addition of GlcNAc to the bisecting mannose by co-overexpressing the recombinant IgG1 and β1,4-N-acetylglucosaminyltransferase III (GnTIII) in CHO cells also increased the binding affinity to FcγRIIIA and ADCC. However, the increase in affinity is modest when compared to afucosylated glycoforms, with enhancement of 10- to 20-fold [39,46,47].
Although several studies have showed that agalactosylated IgG has decreased CDC [48,49], other studies demonstrated that agalactosylated IgG activates the complement system by increasing binding to an activator of CDC, mannose-binding lectin (MBL) [50,51]. The increased MBL-binding in agalactosylated IgG, however, did not translate into increased CDC in vivo, as no difference was observed between differentially galactosylated IgG in the knockout mice of MBL or C3 (a component in complement cascade) . Furthermore, removal of the terminal galactose on IgG Fc glycans by sequential treatment of neuraminidase and galactosidase failed to alter the A/I ratio and ADCC of IgG, or IgG-elicited inflammatory response in the mouse model of rheumatoid arthritis . This strongly disputes a direct involvement of galactose in IgG-elicited pro-inflammatory activity. However, recent evidence suggests that agalactosylated IgG may have some roles in antiviral activity . In HIV patients where the symptoms are controlled (i.e., high viral inhibition), the global pool of IgG shifted to agalactosylated glycoforms. Additionally, the agalactosylated IgG was associated with an increase in ADCVI, which may be explained by an increase binding to FcγRIIIA; treatment of IgG with galactosidase was shown to have an increased binding to FcγRIIIA beads .
3.2. Anti-Inflammatory IgG Fc Glycans
The addition of terminal galactose residues to the IgG Fc glycans can exhibit anti-inflammatory activity. A recent study showed that highly galactosylated IgG1 mediates anti-inflammatory activity by facilitating the association of the inhibitory receptor FcγRIIB and a C-type lectin–like receptor dectin-1 suggesting a novel role for terminal galactose on IgG Fc glycans . This association results in inhibition of C5a receptor (C5aR)-mediated inflammatory responses. The anti-inflammatory activity appears to be subclass specific, as highly galactosylated IgG2a failed to initiate such inhibition . Further studies are needed to understand how highly galactosylated IgG1-immune complexes are formed in vivo and how the in vivo immune complexes facilitate the association of FcγRIIB and dectin-1 to elicit anti-inflammation.
Several studies have suggested that terminal sialic acid residues on IgG Fc glycans mediates anti-inflammatory responses [54,55,56,57,58]. The addition of terminal sialic acid residues on IgG Fc glycans has been shown to greatly reduce ADCC in vivo and in vitro. This effect is independent of α2,3- or α2,6-linkage, and is attributed to the decreased binding affinity of sialylated IgG for their respective canonical FcγRs [54,55,59]. The presence of terminal sialic acid, specifically, the α2,6- and not the α2,3-linkage, is indispensible in mediating the anti-inflammatory activity of IgG [54,55,56,58].
Intravenous gammaglobulin (IVIG) is a therapeutic preparation of monomeric IgG antibodies prepared from the plasma of tens of thousands of donors. It was developed as an antibody replacement therapy (400–600 mg/kg) for immunocompromised individuals unable to produce their own IgG antibodies. However, when administered at a high dose (1–2 g/kg), IVIG exhibits general anti-inflammatory properties, and is used at this dose to treat various diseases mainly associated with autoimmune settings, such as immunothrombocytopenia (ITP), multiple sclerosis, systemic lupus erythematosus (SLE), and chronic inflammatory demyelinating neuropathy [60,61,62].
Many mechanisms, including activities from both Fab and Fc portions of IgG molecule, have been suggested to underlie IVIG-elicited anti-inflammatory activity . More recently, α2,6-sialylated IgG Fc were identified to play a key role in inducing anti-inflammatory activity of IVIG treatment in the rheumatoid arthritis [54,55], nephrotoxic nephritis  and ITP models . Specifically, complete removal of N-linked glycans by PNGase F, or a more selective removal of terminal sialic acid by neuraminidase or α2,3/2,6 sialidase abolished IVIG protection in those autoimmune disease models [54,55,58]. However, no difference was observed when α2,3-sialic acid was removed using α2,3-sialidase . The anti-inflammatory role of α2,6-sialylated IgG was further confirmed using the recombinant form to mimic the protective effect mediated by IVIG . It is important to note that compared to Fc, Fab portion of human IgG is highly sialylated; 15–20% of human IgG has highly sialylated N-linked glycans on the Fab portion of human IgG . Enrichment of sialylated IgG from intact IVIG by Sambucus nigra agglutinin (SNA) lectin fractionation predominantly yields IgG with sialic acid on the Fab portion and exhibits no anti-inflammatory activity when tested in the mouse ITP model [64,65].
Little was known of the mechanism underlying sialylation-induced anti-inflammatory activity until recently, sialylated IgG was shown to require C-type lectins mouse SIGN-R1 (specific intracellular adhesion molecule-grabbing non-integrin R1) or the human orthologue DC-SIGN (dendritic-cell-specific ICAM-3 grabbing non-integrin). There is precedent for interactions between an immunoglobulin with C-type lectins, for example, IgE is known to engage a C-type lectin CD23. Importantly, a recent study showed remarked similarities between a model of DC-SIGN/sialylated-IgG-Fc complex with crystalized structure CD23/IgE-Fc complex . It is known that binding of IgE to CD23 cannot be inhibited by monosaccharides  and thus the interaction is not via glycans but through protein-protein interaction. As mentioned above, sialylated IgG glycoform has reduced binding to their respective canonical FcγRs [54,55,59], suggesting a conformation change of IgG upon sialic acid addition to the Fc. This conformational change may explain the phenomenon of sialylated IgG binding to DC-SIGN and also the lack of competition between IgG and known ligands of the DC-SIGN carbohydrate recognition domain (CRD) . Although conflicting results have been reported on the binding of sialylated IgG (or sialylated Fc) to DC-SIGN based on different ELISA binding assays [57,66,68], data from in vivo experiments using SIGN-R1−/− or humanized DC-SIGN mice demonstrated that DC-SIGN or SIGN-R1 are indispensible in sialylation-dependent anti-inflammatory activity of IVIG. It is possible that detection of the interaction between sialylated IgG Fc and DC-SIGN requires cell-based binding assays, as binding conditions established for high affinity ligands, including gp120, may not be appropriate to detect this specific protein-protein interaction . Although, anti-tumour IgG recovered from melanoma patients bound DC-SIGN in a sialylation-dependent manner, as determined by an ELISA-based method .
Specifically, the protective effect of sialylated IVIG-derived Fc was abolished in SIGN-R1−/− mice and can be rescued in SIGN-R1−/− mice expressing DC-SIGN in the mouse model of rheumatoid arthritis [56,57]. Similar finding was observed using SIGN-R1 blocking antibody in the mouse model of ITP . Interestingly, in the mouse model of rheumatoid arthritis, the anti-inflammatory activity mediated by sialylated IVIG-derived Fc was shown to be TH2 pathway-dependent. On the other hand, in the mouse model of ITP, TH2 pathway does not seem to be involved in the sialylation-dependent protection mediated by IVIG . This suggests that differential cytokine milieu may be responsible for the sialylation-dependent pathway of IVIG immunomodulation in different diseases.
IVIG may also recruit pathways independent of sialylated IgG to initiate anti-inflammation. Studies showed that desialylation of IVIG by neuraminidase failed to abolish the protective effect of IVIG in a mouse ITP model  and in an in vitro assay of human whole blood stimulation by lipopolysaccharides and phytohaemagglutinin (PHA) . Additionally, compared to IVIG, enriched sialylated IgG Fc did not further inhibit PHA-stimulated cytokine secretion from human whole blood . Alternative mechanisms have been suggested to underlie the suppression of inflammation by IVIG, including saturation of FcRn, competition with FcγRs, or anti-idiotypic antibodies .
It is unquestionable that N-linked IgG Fc glycans are important in determining distinct effector functions. Recently, a study using solution Nuclear Magnetic Resonance (NMR), which allows characterization of conformationally labile systems such as polysaccharides, revealed that the glycan on IgG Fc are more exposed structurally than previously shown . This technique may provide detailed characterization of the interaction between glycans on IgG Fc and the respective receptor and give further insight into the immunomodulatory role of IgG Fc glycans. Furthermore, the ability of each component on the Fc glycans to fine-tune the strength and specificity of the signals can be fully exploited for designing therapeutic antibodies. Indeed, as ADCC is one of the crucial mechanisms in killing tumour cells, the recently developed IgG antibodies for cancer therapy are glycoengineered to eliminate fucose on the Fc glycans in order to improve the efficacy in killing tumours [43,72,73] (Figure 1c).
4. IgG Glycovariants under Physiological and Patho-Physiological Conditions
The glycosylation pattern of human serum IgG varies markedly depending on the physiological status of individuals. Studies have shown that the level of galactosylated and sialylated serum IgG increases during pregnancy and decreases postpartum [74,75]. Similarly for aging, galactosylation levels on IgG have been shown to increase from birth to the age of 25 years and then decrease subsequently. The level of sialylated IgG was also shown to decrease during aging. Furthermore, the decrease in galactosylation and sialylation was associated in particular, in females and not males, suggesting sexual dimorphism may also play a role [76,77].
IgG glycosylation is also altered in diseased states. Compared to healthy individuals, there is a marked increase of agalactosylated and asialylated serum IgG in individuals with autoimmune diseases [51,78,79,80,81], infectious diseases [81,82] and tumours [83,84]. It is still unclear whether the disease affects the glycosylation of all or just antigen-specific IgG, which then contribute to the overall change observed in total IgG. Studies have shown that antigen-specific IgG involved in the pathogenesis of some diseases are agalactosylated and asialylated. For example, anti-citrullinated protein antibodies in rheumatoid arthritis and anti-proteinase 3 antibodies in Wegener’s granulomatosis [80,85]. A study further showed that the glycosylation pattern of antigen-specific IgG differed from the total IgG; the pattern also differed between serum and the site of inflammation, for example, synovial fluid . Thus, the glycosylation pattern of antigen-specific IgG may be locally tailored by the inflammatory microenvironment to shape the effector functions. Importantly, the altered glycosylation pattern observed in the studies of patients with rheumatoid arthritis and Wegener’s granulomatosis showed a correlation between reduced galactosylated and sialylated IgG and an increase in disease activity. Conversely, an increase in galactosylated and sialylated IgG was associated with disease remission [79,80]. As mentioned above, during pregnancy, the glycosylation pattern of IgG fluctuates; the increase in galactosylation and sialylation strongly correlates with the remission in pregnant rheumatoid arthritis patients and the reverse is true post-partum [74,75]. It is still unclear whether galactosylation, sialylation, or other factors are involved in improved rheumatoid arthritis; more work will be required to fully understand the role they have in patients with alleviated symptoms.
In contrast to the apparent differences observed in the levels of galactosylation and sialylation in pregnant women and rheumatoid arthritis patients, it is still unclear whether the level of fucose or bisecting GlcNAc on IgG Fc glycans alters in these individuals. In rheumatoid arthritis patients, although a study reported no difference in fucosylated IgG , another has reported an increase in fucosylation . Using a mouse model, repeated immunization of mice was shown to sequentially increase fucosylation on antigen-specific IgG based on lectin-ELISA , supporting an increase in fucosylated IgG in an inflammatory setting. In rheumatoid arthritis patients, a separate study reported a 20% increase in GlcNAc , however, it did not differentiate between antenna or bisecting GlcNAc, thus the reported increase in GlcNAc could also represent the exposure of antenna GlcNAc from the decrease in galactosylation. In contrast to the association of galactose and sialic acid with disease remission during pregnancy of rheumatoid arthritis patients, these patients were reported to have unaltered levels of fucose or bisecting GlcNAc on IgG Fc [74,86].
To date, little is known of the causal link between changes in glycan compositions on IgG Fc during various physiological and pathophysiological conditions. It has been reported that the environmental factors could modulate glycosylation of IgG Fc ; in vitro stimulation of human B cells with a natural metabolite of vitamin A, all-trans retinoic acid, reduced the levels of galactosylation and sialylation on IgG Fc. In contrast, stimulation with T-cell secreted immune-stimulating cytokine, IL-21, or bacterial DNA-mimic CpG, increases the galactosylated and sialylated IgG . However, in the same study, no differences were observed in the IgG Fc glycosylation pattern stimulated by the pro-inflammatory cytokines involved in rheumatoid arthritis, including IL-6 or TNF-α. Interestingly, some reports have shown that combined treatment of infliximab (anti-TNF-α neutralizing antibody) and methotrexate in rheumatoid arthritis patients increased the galactosylated IgG, indicating that TNF-α may be involved in regulating IgG glycosylation pattern [90,91].
Although some environmental factors can influence the IgG glycosylation patterns, the identity and the role of downstream targets remain to be elucidated. As the composition of IgG Fc glycans is dependent on the regulation of glycosyltransferases and glycosidases (Figure 1b), it is speculated that the expression and activity of these enzymes are differentially regulated in response to stimulation of environmental factors. Indeed, several studies showed that rheumatoid arthritis patients have a decreased galactosyltransferase activity in B cells compared to controls [92,93,94], consistent with an increase in agalactosylated IgG. As the mRNA and protein expression of β1,4-galactosyltransferase were not shown to change in B cells of rheumatoid arthritis patients, the decrease may be explained by the differential expression of serum β1,4-galactosyltransferase isoforms in rheumatoid arthritis patients [95,96,97]. Alternatively, it has been suggested that polyclonal B cells express different levels of β1,4-galactosyltransferase, and the pathological conditions of RA might select for clonal expansion of B cells expressing low levels of β1,4-galactotransferase .
The enzyme crucial for the addition of α2,6-sialic acid to glycan termini is β-galactoside α2,6-sialyltransferase 1 (ST6Gal-1). Using a mouse model, it has been reported that ST6Gal-1 deletion results in more severe pulmonary inflammation , consistent with the importance of sialic acid in anti-inflammation [54,56]. Recently, ST6Gal-1 driven by liver-specific promoter P1 in the systemic circulation was shown to be important for the addition of α2,6-sialic acid on the serum IgG Fc glycan . As the P1 promoter does not induce the expression of ST6Gal-1 in B cells, the reduction in serum sialylated IgG in P1-deficient mice is attributed to the decreases in circulatory ST6Gal-1 .
Thus, it has been established that IgG glycosylation patterns differ under various physiological and pathophysiological conditions. However, the specific factors that control IgG glycosylation are not clear, and under current investigation. Importantly, defining the regulation of IgG glycan may represent a novel therapeutic strategy for cancer and autoimmune diseases.
5. The Role of Glycans in IgE Biology
Perhaps the most well known IgE-mediated effector function is initiation of type I immediate hypersensitivity. Responsible for both allergic responses and anaphylaxis, this hypersensitivity reaction is triggered by cross-linking of IgE that are already bound to the high-affinity FcεRI (Kd = 10−10 M) on mast cells and basophils . The ensuing activation leads to degranulation and secretion of pharmacologically active substances such as histamine, leukotriene, and prostaglandin. This results in vasodilation, smooth muscle contraction, and an increase in vasopermeability. Additionally, IgE binds to the low-affinity FcεRII (Kd = 10−6 M) to regulate IgE synthesis and facilitate antigen presentation of B cells to T cells, resulting in epitope spreading [101,102].

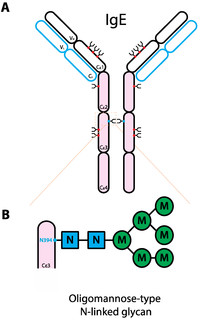

In comparison to IgG, less is known as to the role glycans play in mediating IgE effector functions. As IgG Fc glycans are key to IgG-mediated effector functions, it is possible that Fc glycans would also be important for immunoglobulins of other classes. Interestingly, among all immunoglobulin classes, IgG is the least glycosylated. There is one conserved N-linked glycosylation site on each heavy chain and the total weight of glycosylation on the γ heavy chains contributes to ~2–3% of the molecular weight of IgG . On the other hand, IgE is heavily glycosylated; there are six complex-type biantennary (N140, N168, N218, N265, N371, N383) and one oligomannose-type (N394) conserved N-linked glycosylation sites on the constant region of each heavy chain. The total glycan weight on ε heavy chains contributes to ~12% of the molecular weight of IgE  (Figure 2).
Although several studies have examined the role of IgE Fc glycans in interacting with FcεRI, the results remain inconclusive. Removal of IgE Fc glycans by the combined enzymatic treatment of neuraminidase, Endo F, and PNGase F  or site directed mutagenesis of both N265 and N371  neither affected the binding to FcεRI nor the passive sensitization of basophil in releasing histamine. However, this finding is not supported by others; binding of IgE molecules or IgE-Fc fragments to FcεRI was shown to significantly reduce upon PNGase F treatment [107,108]. Mutagenesis of the conserved N394 site, which corresponds to N297 on IgG Fc , also reduced the binding to FcεRI . Thus, further studies will be required confirm the role of IgE in binding to FcεRI.
Interestingly, unlike FcγRs or FcεRI, FcεRII also known as CD23, is not part of the immunoglobulin superfamily; it is a C-type lectin. As IgE is heavily glycosylated, it was initially speculated that the glycans on IgE are responsible for binding to FcεRII. However, it was demonstrated that instead of reduced binding as predicted, deglycosylated IgE had an increased binding to FcεRII on the B cells . In line with this, double mutation of N265Q and N371Q on IgE Fc also had a higher affinity than the respective wild-type to FcεRII . This suggests that IgE glycans may alter FcεRII-mediated effector responses but not as a result of carbohydrate binding. This is further supported by another study where high concentrations of an array of mono- or disaccharides were unable to inhibit the binding of IgE to FcεRII , indicating that the binding is not mediated via carbohydrate binding but instead through protein-protein interaction. In addition to FcεRs, many other proteins also bind to IgE, for example, CD21, galectin-3, and surfactant protein D. These interactions may have a role in regulating IgE responses in allergy and asthma [33,101,112].
In summary, existing studies on IgE glycosylation are in favor of N-linked Fc glycans having a minimal role on binding to FcεRI. The finding that the loss of glycans on IgE increases binding to FcεRII suggests that glycans may have an attenuative role in mediating FcεRII-mediated effector functions, similar to the effect of polysialylation on Neural Cell Adhesion Molecule (NCAM) .
6. The Role of Glycans in IgA Biology
IgA is most well known for its role in mucosal immunity by mediating immune exclusion, a process where adhesion of pathogens on epithelium is prevented. Furthermore, IgA can modulate inflammatory activity as a result of activating or inhibitory signals initiated through FcαRI (CD89) . The diversity of IgA-mediated effector functions is partly attributed to its forms. Human IgA mainly exists in three forms, namely monomer, dimer, and secretory. Secretory IgA (SIgA) is important for immune exclusion. Additionally, IgA in immune complexes triggers activating ITAM-Syk pathway resulting in pro-inflammatory activity such as ADCC and phagocytosis. On the other hand, monomeric IgA was reported to dampen the inflammatory signal by partially phosphorylate the ITAM on FcRγ that results in recruitment of SHP-1 phosphatase .
In addition to forms, human IgA exists in two isotypes: IgA1 and IgA2. IgA2 can be further divided into two subisotypes: IgA2m(1) and IgA2m(2). In human serum, IgA1 accounts for ~85% of total IgA and is predominantly in monomeric form whereas mucosal IgA primarily exists in polymeric form including dimeric and secretory form. Compared to IgG where the only glycosylation site is conserved across the isotypes, the sites in IgA vary between isotypes and subisotypes. IgA1 has two N-linked complex-type glycosylation sites at N263 on the Cα2 domain and N459 on the tailpiece, and nine O-linked glycosylation sites in the hinge region (Figure 3a). In general, fewer than six O-linked sites are glycosylated . IgA2m(2) has five N-linked glycosylation sites (N166, N211, N263, N337, N459) whereas IgA2m(1) has similar sites as IgA2m(2) without N211 [33,115]. The importance of N-linked glycans on IgA Fc is currently unclear. One study showed that neither of the N-linked glycans on IgA1 Fc seem to be critical for FcαRI binding; the binding of IgA1 to FcαRI was unaltered by N263A mutation or deletion of C-terminal tailpiece containing N459 . However, another study reported that IgA1 binding to FcαRI was abolished when the asparagine residue on the Cα2 domain was mutated to glutamine (Q) . Future studies are required to clarify whether N-linked glycans on IgA1 Fc modifies FcαRI binding and the subsequent effector functions. Interestingly, patients with an autoimmune disease that debilitates the exocrine glands, namely primary Sjögren’s syndrome, were shown to have an increased level of sialylated monomeric serum IgA1 compared to healthy controls . The addition of sialic acid was suggested to hinder the clearance of IgA, resulting in excess amount of serum IgA and thus the immune complexes.

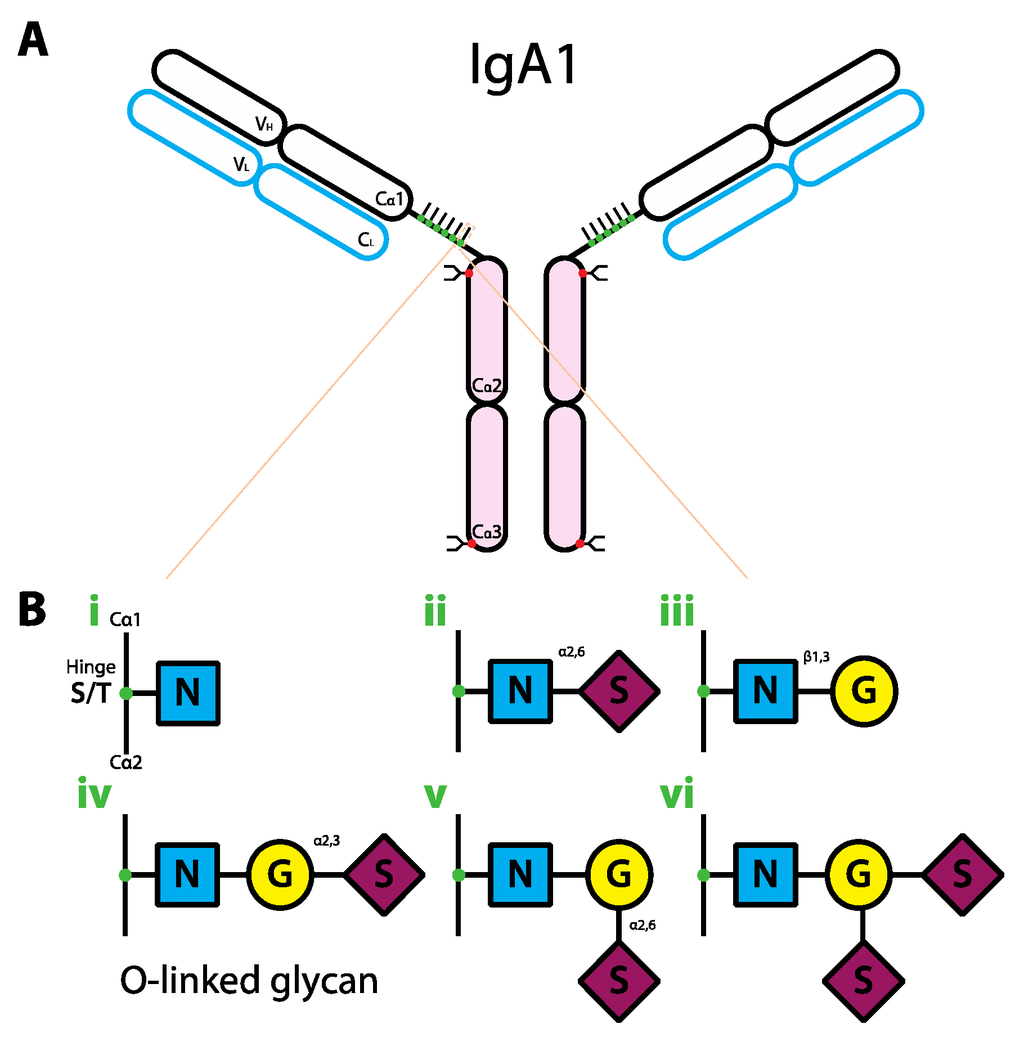

In comparison with N-linked glycans, O-linked glycans on the IgA hinge region appear to be important. There are six IgA1 O-linked glycovariants [116,117] (Figure 3b) and the predominant forms were shown to be the glycovariants with at least the core GlcNAc and β1,3-linked galactose  (Figure 3biii–vi). Aberration in O-linked glycan composition on IgA has been linked to IgA nephropathy. Indeed, peripheral blood cells from IgA nephropathy patients were shown to produce primarily agalactosylated O-linked IgA1 glycans with either terminal or sialylated GlcNAc compared to controls  (Figure 3bi–ii). The agalactosylated IgA acts as an autoantigen that gets subsequently targeted by glycan-specific IgG and/or IgA1 autoantibodies, leading to IgA-IgG or IgA-IgA immune complexes . The level of these immune complexes has been reported to correlate with the disease activity , however, the pathogenesis of IgA nephropathy caused by these immune complexes is not completely understood. It is known that the increase in serum IgA-containing immune complexes is likely to reduce hepatic clearance of IgA, thus promoting an increase in renal deposits. The eventual renal injury is thought to be partly caused by an increase in cytokines or growth factors produced by the IgA-containing renal deposits [116,123]. Alteration of either N- or O-linked glycans on IgA appeared to be partly responsible for the increased level of IgA-containing immune complexes and possibly the development of autoimmune diseases.
7. The Role of Glycans in IgM Biology
IgM is the immunoglobulin class associated with primary immune response, as it is the first immunoglobulin produced in response to antigen exposure. Glycan analysis showed that IgM is highly glycosylated like IgE, it has five N-linked glycosylation sites including three complex- and two oligomannose-type  (Figure 4). Although GlcNAc-terminating IgM glycoforms bind MBL, the binding is lost when IgM is bound to antigen, suggesting antigen-bound IgM does not trigger complement pathway. The binding of MBL to IgM may facilitate the removal of IgM aggregates by opsonisation .
In conclusion, minor modification of glycans on the Fc portion of IgG can have significant impact on the receptor binding and the effector functions. It is remarkable that the presence of a single sugar on IgG Fc glycans significantly manipulates the effector functions. The addition of fucose to promote ADCC is a powerful tool when designing therapeutic antibodies for cancer. Furthermore, the ability of terminal sialic acid to completely switch IgG-mediated effector functions from pro- to anti-inflammatory activity opens a novel avenue for future design of anti-inflammatory therapeutic antibodies (Figure 1c). The role of individual sugar modification on other immunoglobulin isotypes requires further investigation. Combining glycan modification with the knowledge of antibody isotypes and FcγRs polymorphisms of the patients, the future of personalized therapeutic antibodies with maximal efficacy for individuals awaits.
We thank Maya Kitaoka for careful reading and helpful comments of the manuscript.
Conflict of Interest
The authors declare no conflict of interest.
