Water 2017, 9(3), 164; doi:10.3390/w9030164

Groundwater Simulations and Uncertainty Analysis Using MODFLOW and Geostatistical Approach with Conditioning Multi-Aquifer Spatial Covariance

1
Department of Bioenvironmental Systems Engineering, National Taiwan University, Taipei 10617, Taiwan
2
Department of Civil Engineering, National Chiao-Tung University, Hsinchu 30010, Taiwan
3
Manysplendid Engineering Consultants Co., Ltd, Taipei 10670, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editor: Karl-Erich Lindenschmidt
Received: 12 December 2016 / Accepted: 20 February 2017 / Published: 24 February 2017
View Full-Text   |   Download PDF [8696 KB, uploaded 6 March 2017]   |

Abstract

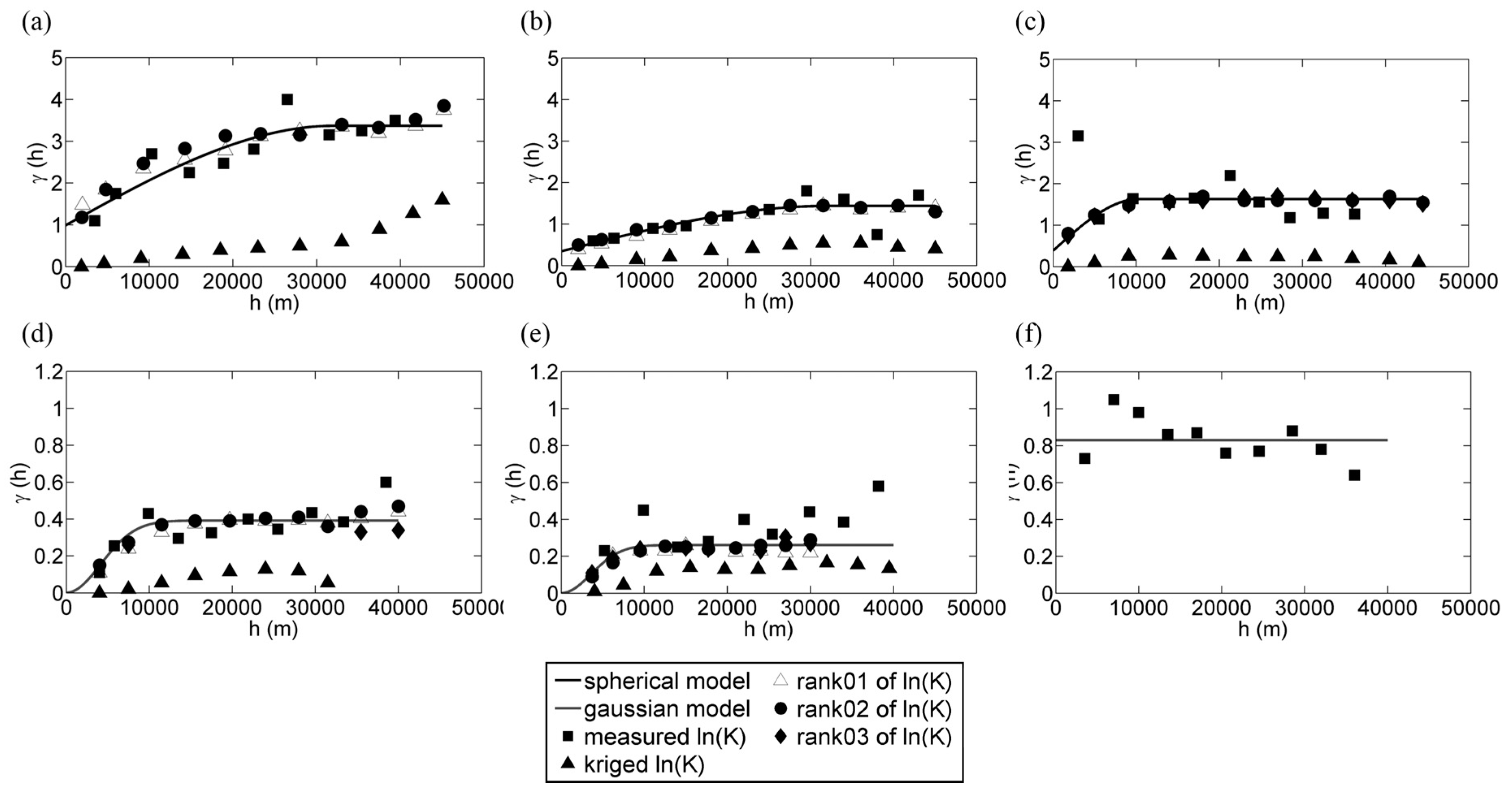

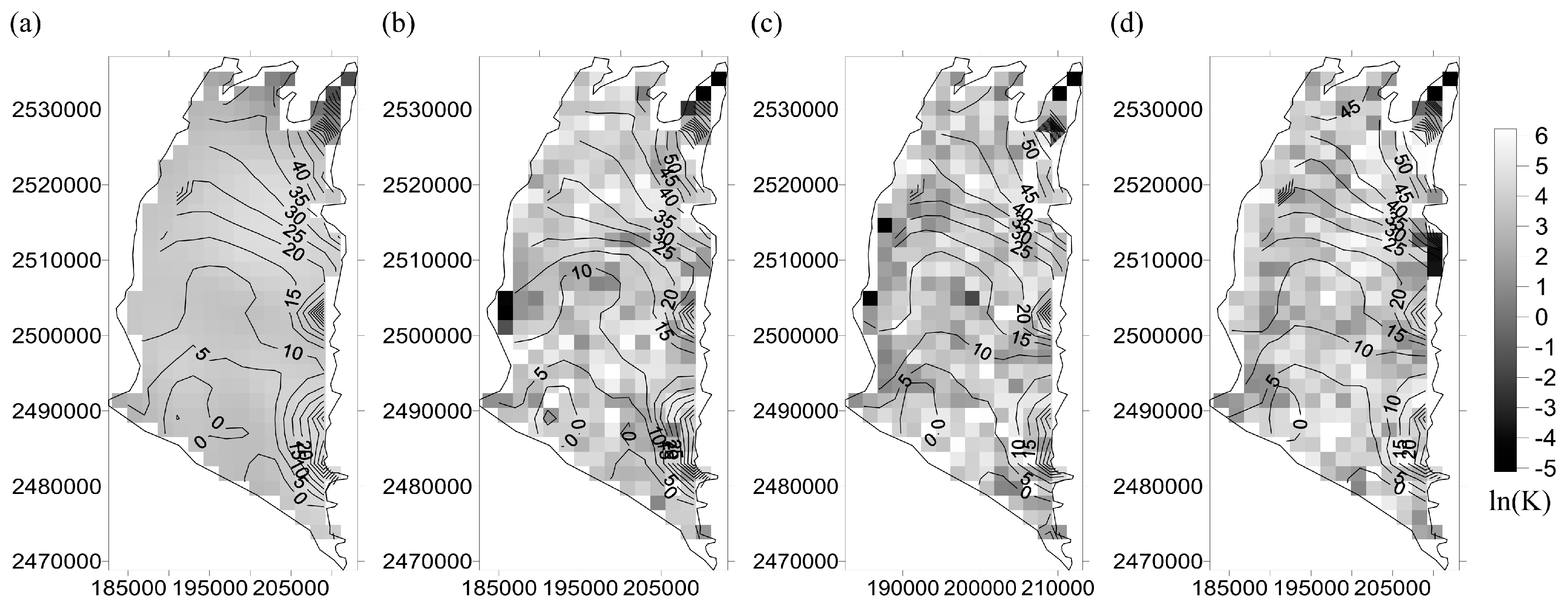

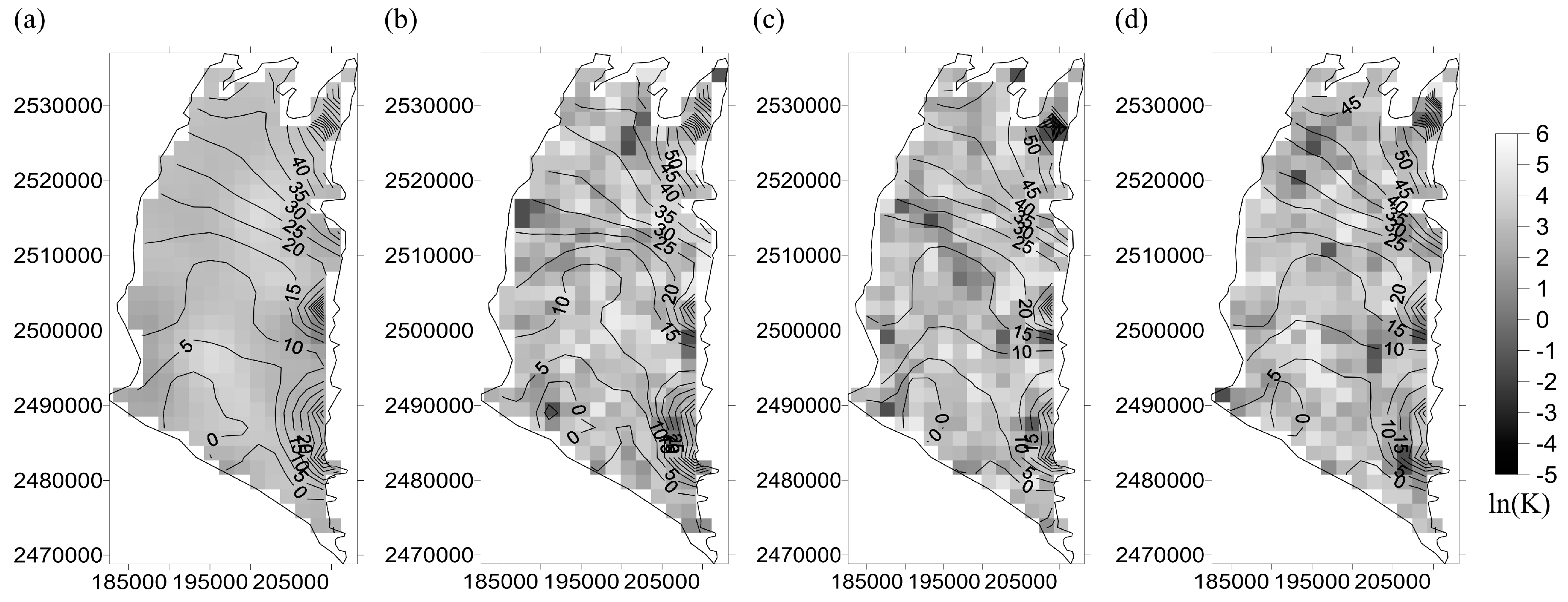

This study presents an approach for obtaining limited sets of realizations of hydraulic conductivity (K) of multiple aquifers using simulated annealing (SA) simulation and spatial correlations among aquifers to simulate realizations of hydraulic heads and quantify their uncertainty in the Pingtung Plain, Taiwan. The proposed approach used the SA algorithm to generate large sets of natural logarithm hydraulic conductivity (ln(K)) realizations in each aquifer based on spatial correlations among aquifers. Moreover, small sets of ln(K) realizations were obtained from large sets of realizations by ranking the differences among cross-variograms derived from the measured ln(K) and the simulated ln(K) realizations between the aquifer pair Aquifer 1 and Aquifer 2 (hereafter referred to as Aquifers 1–2) and the aquifer pair Aquifer 2 and Aquifer 3 (hereafter referred to as Aquifers 2–3), respectively. Additionally, the small sets of realizations of the hydraulic conductivities honored the horizontal spatial variability and distributions of the hydraulic conductivities among aquifers to model groundwater precisely. The uncertainty analysis of the 100 combinations of simulated realizations of hydraulic conductivity was successfully conducted with generalized likelihood uncertainty estimation (GLUE). The GLUE results indicated that the proposed approach could minimize simulation iterations and uncertainty, successfully achieve behavioral simulations when reduced between calibration and evaluation runs, and could be effectively applied to evaluate uncertainty in hydrogeological properties and groundwater modeling, particularly in those cases which lack three-dimensional data sets yet have high heterogeneity in vertical hydraulic conductivities. View Full-Text
Keywords: geostatistical simulation; hydraulic conductivity; groundwater flow; cross-semivariogram; generalized likelihood uncertainty estimation (GLUE); conditioning spatial covariance; multi-aquifer geostatistical simulation; hydraulic conductivity; groundwater flow; cross-semivariogram; generalized likelihood uncertainty estimation (GLUE); conditioning spatial covariance; multi-aquifer
Figures

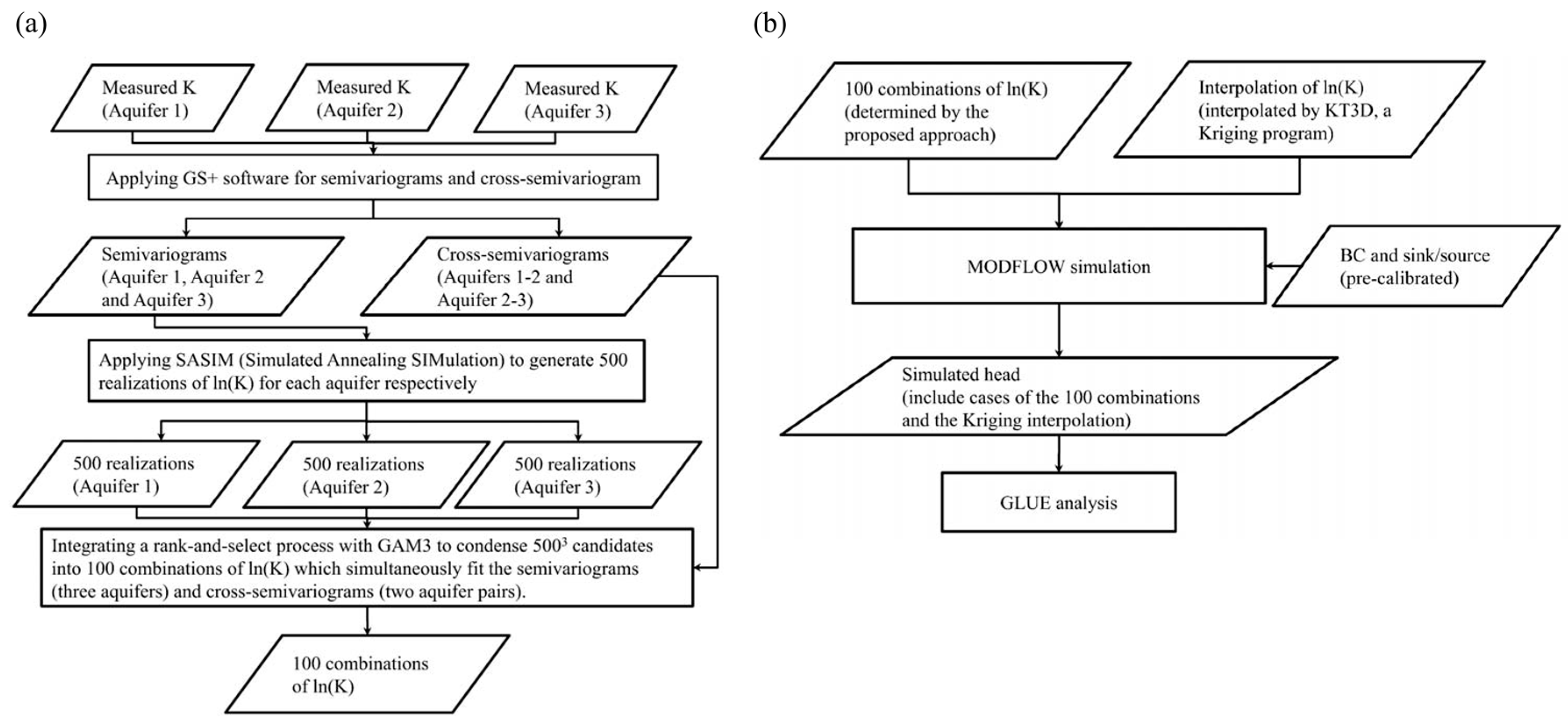

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
