The Life Cycle CO2 (LCCO2) Evaluation of Retrofits for Water-Saving Fittings
Yasutoshi Shimizu
ESG Promotion Department, TOTO LTD., 2-1-1, Nakashima, Kokurakita-ku, Kitakyushu 802-8601, Japan; E-Mail: yasutoshi.shimizu@jp.toto.com; Tel.: +81-93-952-3315; Fax: +81-93-952-3468
Received: 27 February 2013; in revised form: 17 May 2013 / Accepted: 20 May 2013 /
Published: 31 May 2013

Abstract

: As part of measures being taken against global warming, the reduction of CO2 emissions by retrofitting for water-saving fittings in homes is spreading throughout the world. However, although this retrofitting reduces the environmental impact at the use stage, it generates new impacts at the production and disposal stages. In addition, there has been little research that discusses the reduction in environmental impact obtained by retrofitting from the viewpoint of the overall life cycle of such fittings. In this paper, an evaluation of the environmental impact of retrofitting in terms of the entire life cycle was carried out for toilet bowls and showerheads. The findings show that even for a toilet bowl that generates a large environmental load at the production stage, there is no overall increase in the environmental impact by retrofitting for the average usable life of 20 years.
Keywords:
global warming; CO2 reduction; water; saving-water; retrofit

1. Introduction

In recent years, studies related to water use, energy consumption, and CO2 emissions have been conducted globally; and targets for CO2 emission factors or energy consumption rates of water have been established in several countries, including Australia Britain, Japan, and Taiwan [1,2,3,4]. Furthermore, it has been clarified that water use-origin CO2 emissions by housing fittings such as toilets and showers account for several percent of the total CO2 emission of each country [5,6]. Owing to the progress made in such environmental research, water-saving labeling and subsidies to accelerate the retrofitting of old fittings for water-saving ones have been realized in many countries. Furthermore, a carbon credit project based on retrofitting with water-saving fitting has been launched in Japan. In addition, a bilateral offset credit system has been examined with China and Vietnam [5,7,8,9].

The environmental impact differs greatly depending on the fitting, with there being a great difference in impact for a 25 kg ceramic toilet bowl, which is fired in a kiln at about 1200 °C for 24 h, and a 200 g showerhead produced by plastic injection molding.

From a viewpoint of the whole life cycle of a product, the environmental impact improvement by retrofit is reduced by the load of production stage. Although there is some LCCO2 evaluation research into housing construction [10,11,12], there is no research which discusses the environmental effect of the retrofit through the whole life cycle.

The timing for the retrofit of fittings varies from less than 10 years to up to 30 years. The duration distributions of toilet bowls and showerheads, as reported in a previous paper, are shown in Figure 1 [13].

The environmental efficiencies of household fittings improve every year. In consideration of this, the influence of a retrofit in terms of the environmental impact for the entire life cycle of a fitting was evaluated, and suitable duration times to minimize the impact for the entire life cycle were also discussed.

Water 05 00629 g001 1024

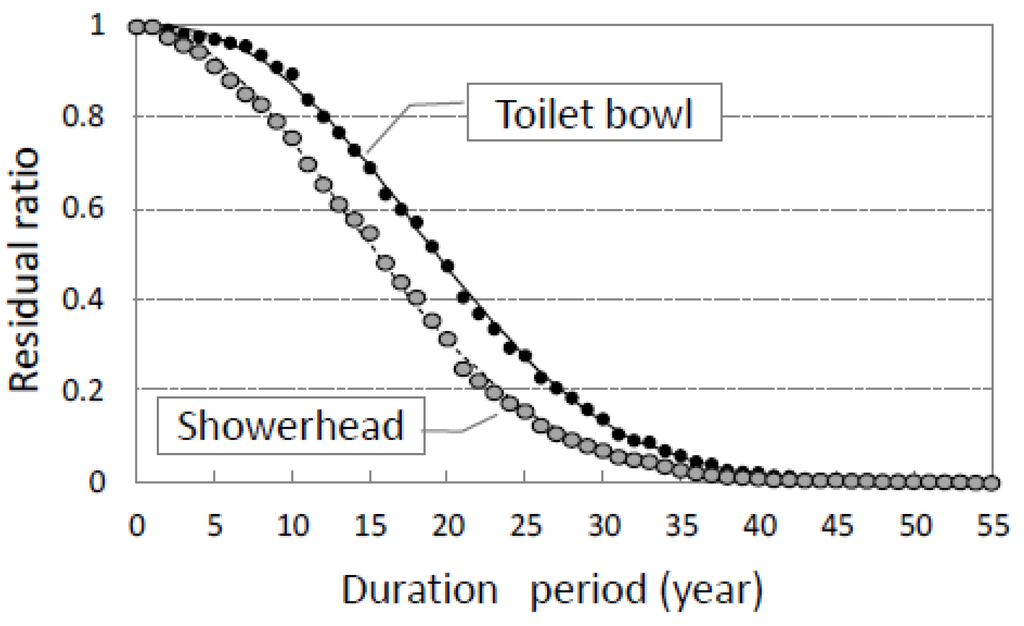

Figure 1. Duration distributions for household fittings.

Click here to enlarge figure

Figure 1. Duration distributions for household fittings.
Water 05 00629 g001 1024

2. Calculation Method

The outline of life cycle CO2 (LCCO2) evaluation is shown in Figure 2. In general LCCO2 inventory analysis, one cycle from production stage to use and disposal stages of product is taken into consideration. This technique cannot estimate the effect of retrofit. Therefore, this research evaluated through the life cycle of two or more products introduced by retrofit. The eco-efficiency of the fitting supplied to the market assumes that it was improved at the annual rate, α. The total environmental impact for a specified period, T, within repeating retrofits, was compared under various conditions. The total environmental impact is the sum of the production, use and abandonment stage loads. In the evaluation, the influence of each parameter on the annual rate average value of the total environmental impact within T period: εt(ave) is discussed. The relation between εt(ave) and each parameter is shown in Equation (1). Here, n is the number of retrofits within T period, Ea, and Ec are the environmental impacts of the production and disposal stages, respectively, and εb is the annual value of the impact of the use stage.

Water 05 00629 i001

A toilet bowl and a showerhead were chosen as the evaluation targets, and the parameters were extracted from previous papers. Since toilet bowls and showerheads were replaced within 30 years, as shown in Figure 1, the evaluation period, T, was set to 30 years. The environment impacts were expressed by the CO2 emissions, and Ea and Ec were assumed not to change with each retrofit.

Water 05 00629 g002 1024

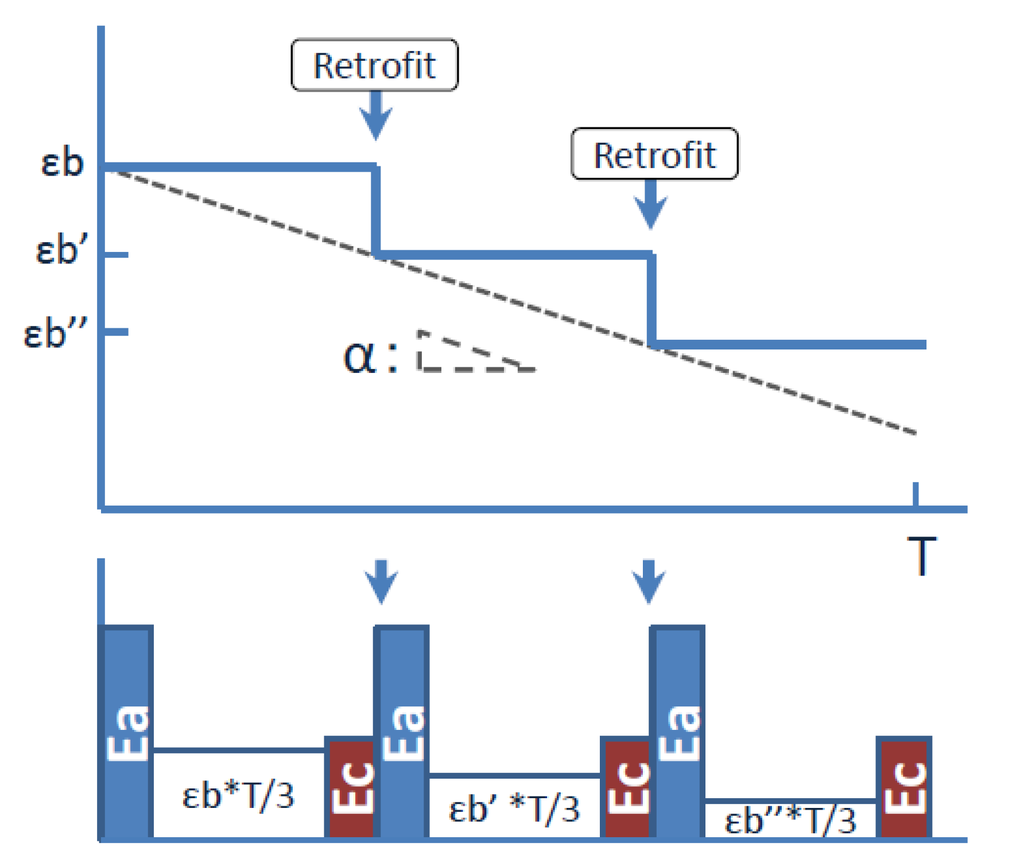

Figure 2. Outline of evaluation concept.

Click here to enlarge figure

Figure 2. Outline of evaluation concept.
Water 05 00629 g002 1024

3. Results and Discussion

3.1 Determination of Parameters

In Japan, the LCCO2 calculation rules are determined as Product Category Rules by the Japan Environmental Management Association for Industry, and the LCCO2 data on different products are released with these calculations according to the rules [14]. The LCCO2 data for toilet bowls have also been published [15]. The outline of a calculation model and the LCCO2 data are shown in Table 1 and Figure 3, respectively [14,15]. In the calculation, 0.59 kg CO2/m3 was adopted as CO2 emission factor of water, and the duration was set as 10 years. From these results, Ea, εb, and Ec were determined as shown in Table 2. Ea was expressed as a sum of three stages of raw material production, production and distribution. Based on the above calculation rules, the parameters of showerheads were also determined. It became apparent that the environmental impacts of the production and disposal stages for a toilet bowl were far larger than the impact of the use stage, as shown in (Ea + Ec)/εb in Table 2.

Table Table 1. Use stage calculation model for toilet bowls in homes.

Click here to display table

Table 1. Use stage calculation model for toilet bowls in homes.
ParameterMaleFemale
Number of eliminationsDefecation: 1/(person·day)
Urination: 3/(person·day)
Number of family members22
Number of uses365 days/year
Table Table 2. Environmental impacts of toilet bowls and showerheads.

Click here to display table

Table 2. Environmental impacts of toilet bowls and showerheads.
ItemEa + Ec (kg CO2)εb (kg CO2/year)(Ea + Ec)/εb
Toilet bowl100.513.47.5
Showerhead0.7238.90.002
Water 05 00629 g003 1024

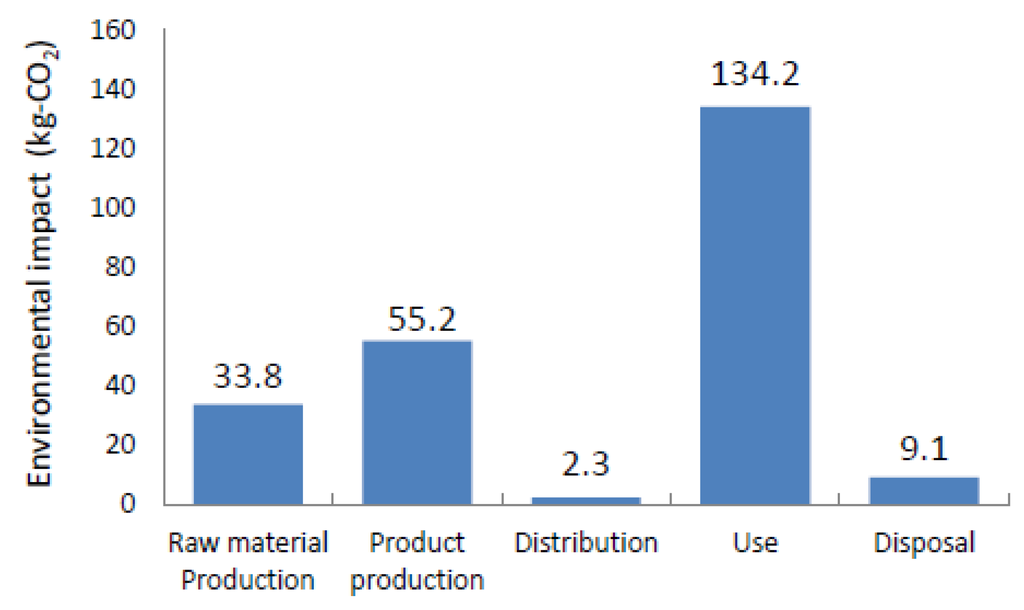

Figure 3. The life cycle CO2 (LCCO2) data for toilet bowls.

Click here to enlarge figure

Figure 3. The life cycle CO2 (LCCO2) data for toilet bowls.
Water 05 00629 g003 1024

Next, the eco-efficiency improvement rate, α, of each product was determined. For the toilet bowl, the amount of flush water was regarded as the environmental performance, and α was determined as an approximation of an annual performance improvement rate based on the transition data of the performance of the toilet bowl sold to each fiscal year. The amount of flush water was calculated according to Table 1. In the design of a toilet bowl, the amount of flush water is established as the quantity required to discharge the filth from the bowl and transport it more than 10 m in a sewage pipe. Those evaluation methods are specified as The Filth Discharge Performance Test [16] and The Transport Performance Test [17] in Japan. In Japan, although there are no legal regulations regarding water saving, the development of water-saving performance is progressing as part of market demand to reduce running costs.

The traditional toilet bowl design achieved fluidity due to the potential energy of the water in the tank positioned above the bowl. A reduction in the amount of flush water was achieved by lessening the fluid resistance of the trap parts, etc. As a result, although the amount of flush water was 16 L up until the start of the 1970s, a 13 L toilet bowl appeared in 1976, and since then, the reduction has been progressing continuously. In the newest water-saving toilet bowls, it has evolved into a new flushing system that causes a whirlpool using the pressure of tap water, instead of the traditional system using the potential energy of stored water [18]. The flushing system of a toilet bowl and the change in the amount of water used per family are shown in Figure 4, Figure 5, respectively, which show that α of a toilet bowl can be approximated as an annual rate improvement of 3%.

For the showerhead, the flow rate was adopted as the environmental performance in this evaluation. With respect to showerheads being installed in newly built houses, the recommended flow rate is prescribed in an act promoting energy saving in Japan. In response to the act, a measurement method for the flow rate for showers has been established by the Japan Valve Manufacturers’ Association [19], with the aim of supplying showerheads that both meet users’ satisfaction requirements and save water. The measurement method used evaluates the amount of water saving under the optimum flow rate from which user satisfaction is obtained. The optimum flow rate is determined by sensory analysis, which measures the relationship between a user’s degree of satisfaction and the flow rate. A monitor evaluator receives a shower stream on a breast as raising the flow rate gradually, and determines the five-step evaluation as shown in Figure 6.

In the act mentioned above, a shower flow rate of less than 8.5 L/min is recommended. Therefore, bubble-flow showers, which introduce air into the water stream to reduce the water flow rate, have been developed in Japan and in European countries in recent years. The newest shower structure and the transition of the flow rate are shown in Figure 7, Figure 8, respectively, which show that α of the shower was approximated at an annual rate improvement of 1%.

Water 05 00629 g004 1024
Figure 4. Toilet bowl flushing types.

Click here to enlarge figure

Figure 4. Toilet bowl flushing types.
Water 05 00629 g004 1024
Water 05 00629 g005 1024

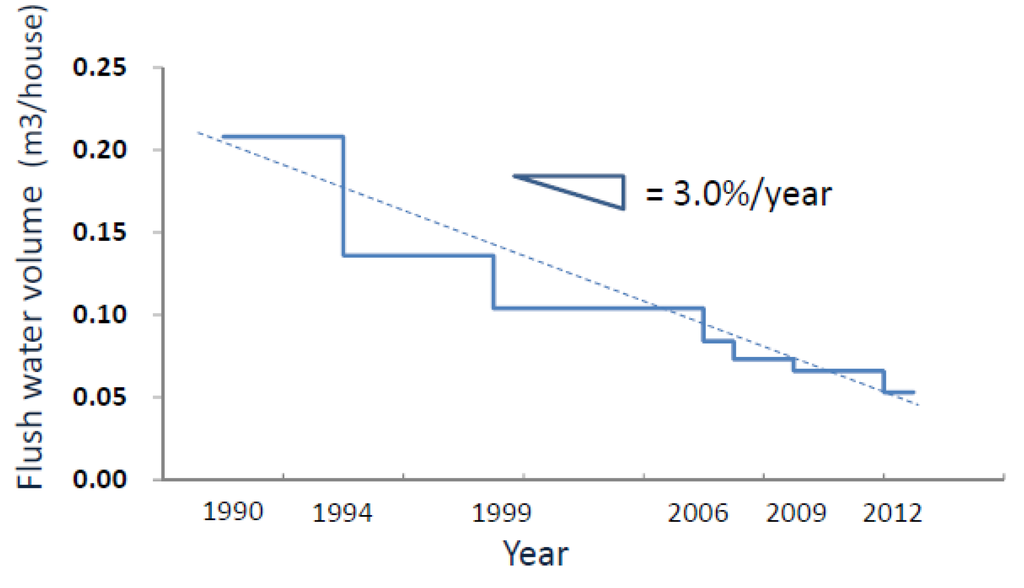

Figure 5. Eco-efficiency improvement rate α of toilet bowl.

Click here to enlarge figure

Figure 5. Eco-efficiency improvement rate α of toilet bowl.
Water 05 00629 g005 1024
Water 05 00629 g006 1024

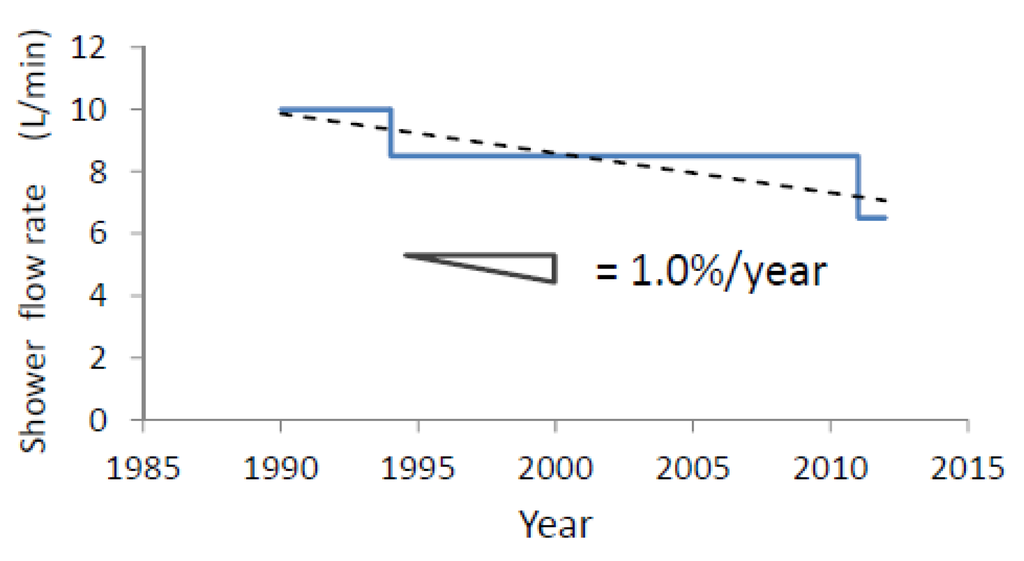

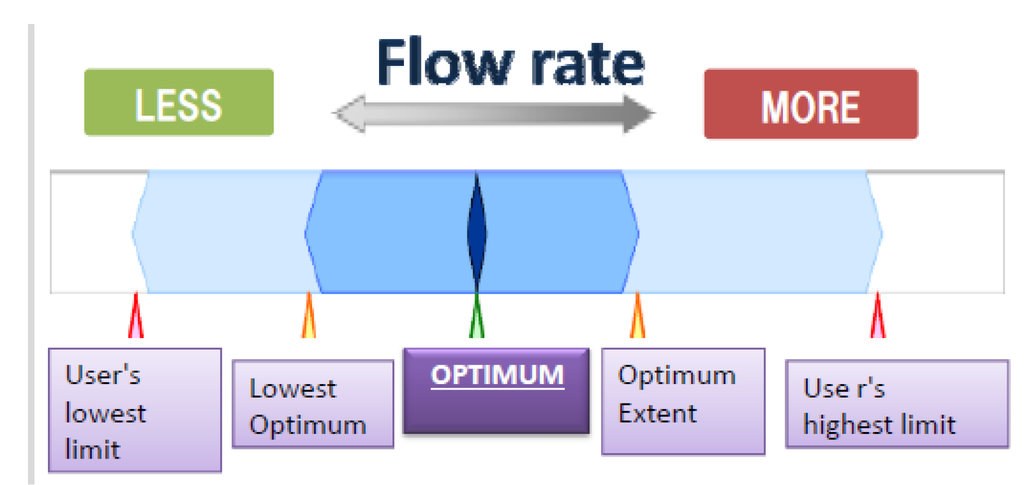

Figure 6. Graph of flow rate evaluation for shower.

Click here to enlarge figure

Figure 6. Graph of flow rate evaluation for shower.
Water 05 00629 g006 1024
Water 05 00629 g007 1024

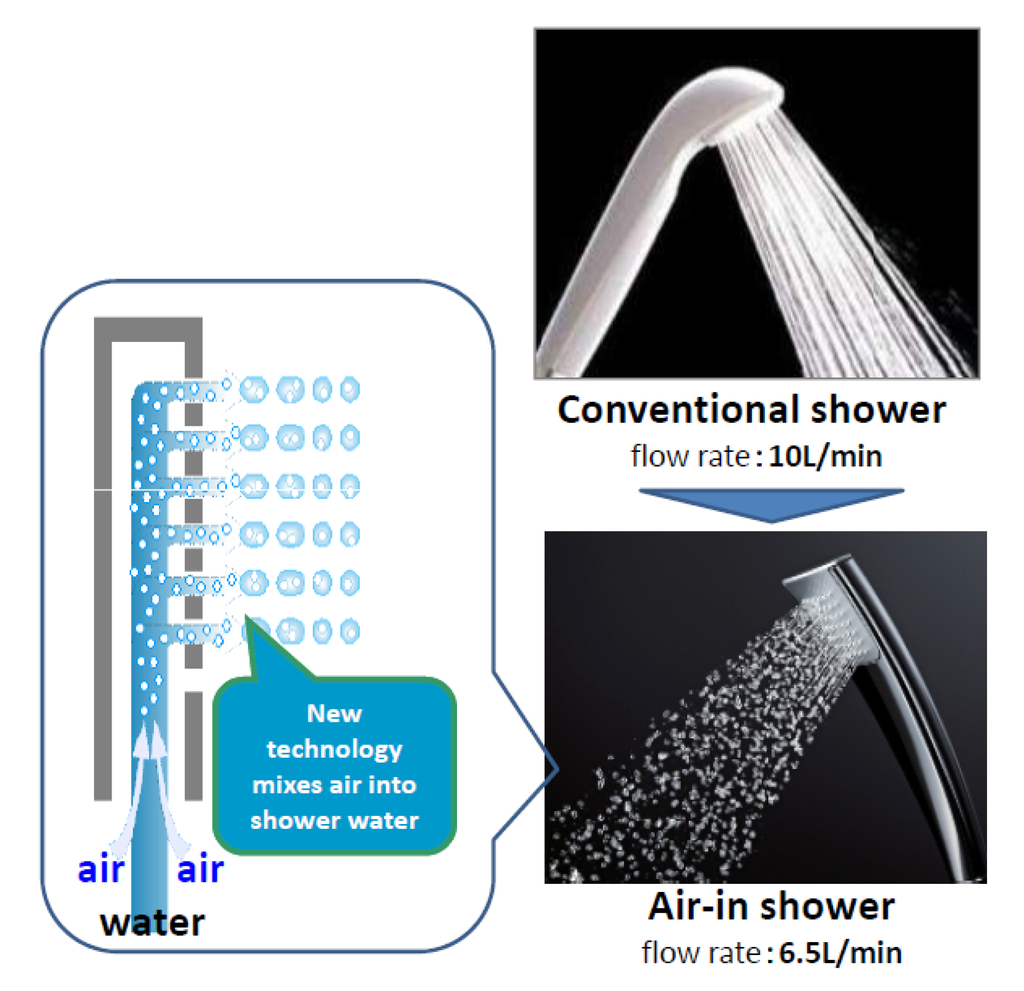

Figure 7. Outline of water-saving shower in Japan.

Click here to enlarge figure

Figure 7. Outline of water-saving shower in Japan.
Water 05 00629 g007 1024
Water 05 00629 g008 1024
Figure 8. Eco-efficiency improvement rate, α, of showerhead.

Click here to enlarge figure

Figure 8. Eco-efficiency improvement rate, α, of showerhead.
Water 05 00629 g008 1024

3.2 Influence of Number of Retrofits on Total Environmental Impact

An example that evaluates the influence of the number retrofits, n, to total environmental impact, εt(ave), is shown in Figure 9. The findings of this study indicate that there is an optimum retrofit frequency to minimize εt(ave) for the product, whereby eco-efficiency is improved every year. This optimum retrofit frequency is decided by α and (Ea + Eb)/εb.

As shown by the X symbol in Figure 10, the total impact, εt(ave), for a toilet bowl was found not to increase for one retrofit in 30 years (duration period of 15 years).

Since the loads for the production and disposal stages of a shower were small as compared with the use stage, an early retrofit could reduce εt(ave), as shown in Figure 11.

As shown in Figure 1, in the Japanese market, a shower and toilet bowl are replaced at about 13 and 20 years, respectively [9]. From the viewpoint of the environmental impact reduction as determined by this research, this is judged to be proper retrofit timing. Moreover, retrofits aiming at making an environmental contribution occur 2 years earlier than on average, as described in a previous paper [9]. The promotion of a retrofit by provision of a spread subsidy, etc., can reduce not only the impact of use stage, εb, but the total impact, εt(ave), in a shower.

Water 05 00629 g009 1024

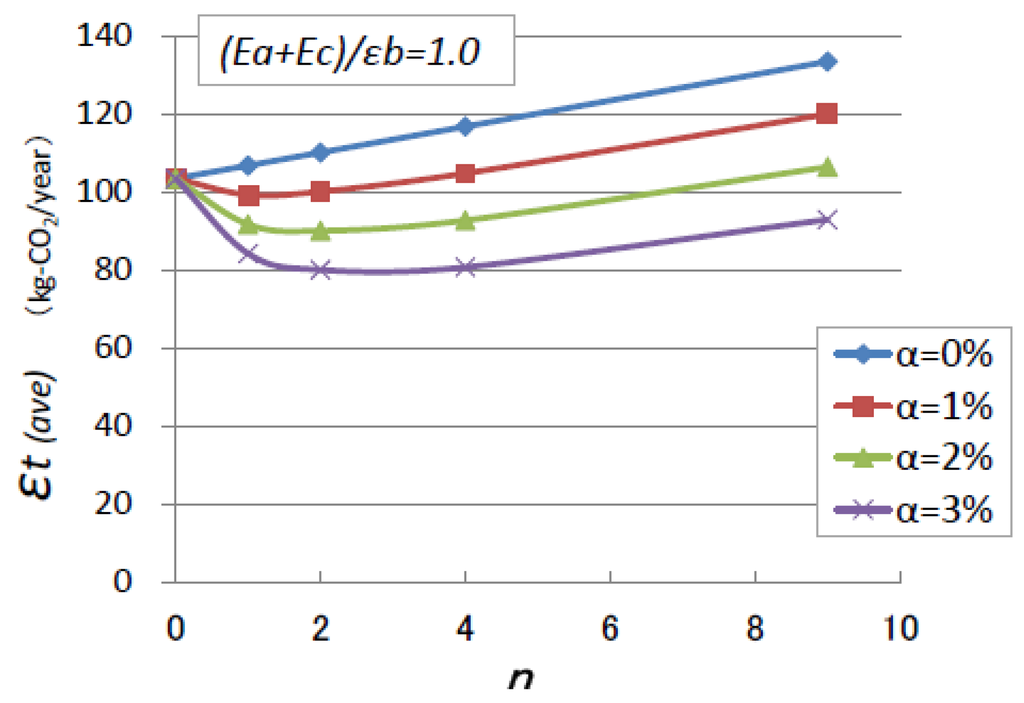

Figure 9. Relationship between εt and n.

Click here to enlarge figure

Figure 9. Relationship between εt and n.
Water 05 00629 g009 1024
Water 05 00629 g010 1024

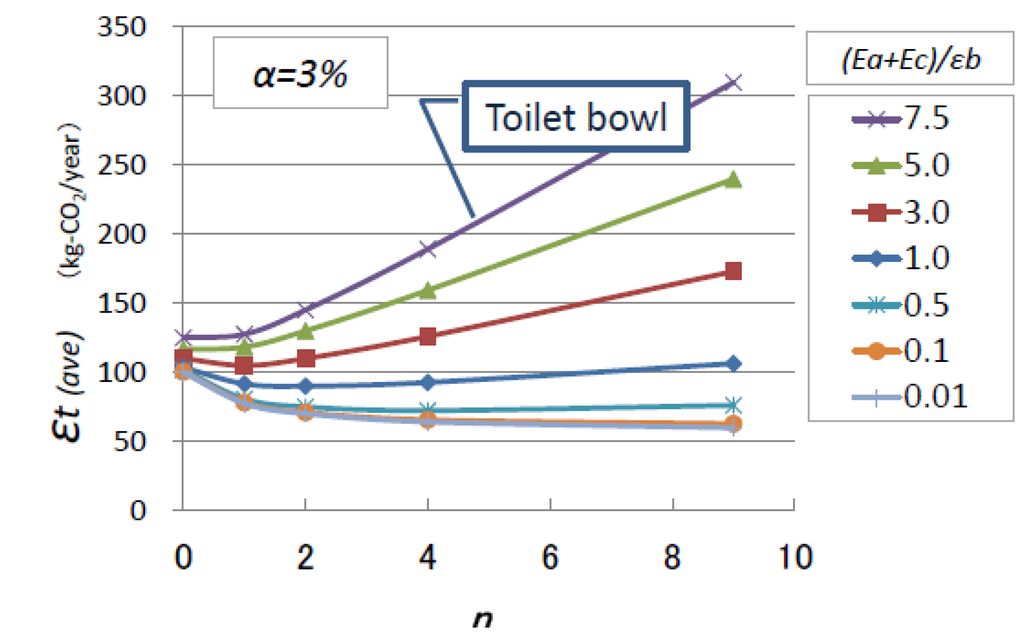

Figure 10. Environmental impacts of toilet bowls.

Click here to enlarge figure

Figure 10. Environmental impacts of toilet bowls.
Water 05 00629 g010 1024
Water 05 00629 g011 1024

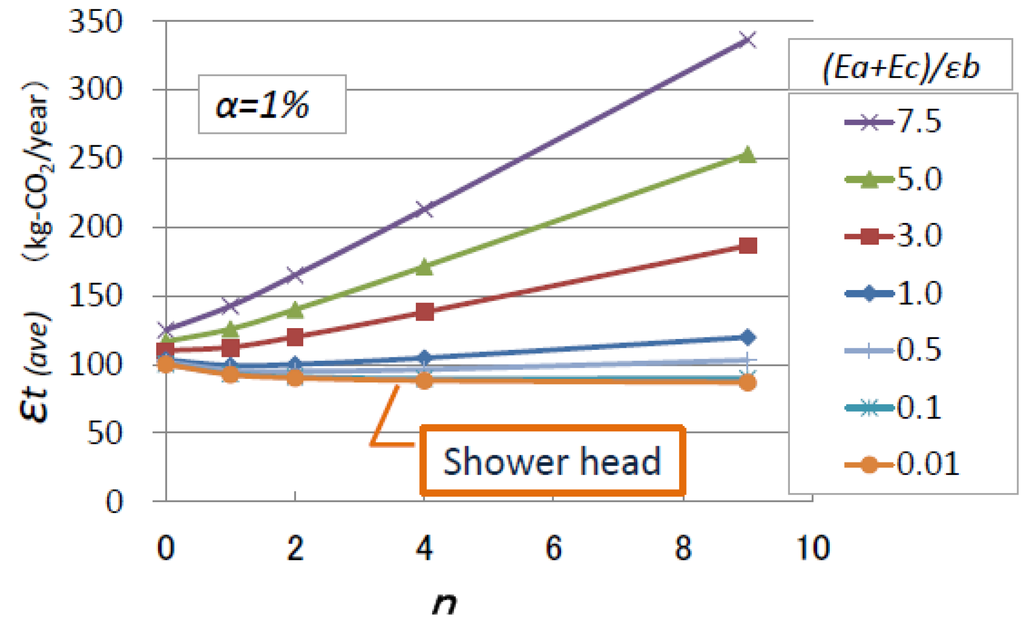

Figure 11. Environmental impacts of showerheads.

Click here to enlarge figure

Figure 11. Environmental impacts of showerheads.
Water 05 00629 g011 1024

4. Conclusions

In recent years, studies associating water use and CO2 emissions have been performed globally. In Japan, research related to the water-saving performance of bathroom fixtures such as toilets and showers that reduce CO2 emissions has also progressed, and hence, Housing-Eco-Point subsidies have been introduced to promote the replacement of traditional toilets with water-saving ones. However, as for sanitation products that consume large amounts of energy in the production and disposal stages, there has been a question as to whether the reduction in environmental impact obtained by retrofitting cancels the burden imposed by the impacts of the production and disposal stages. In the case of a retrofit at 20 years (average duration period of the present toilet bowl), it transpires that the environmental impact at the use stage can be reduced without raising the total impact. Moreover, even if a showerhead is retrofitted in just several years, it is shown that not only the impact at the use stage but the total impact offers a reduction.

In this study, various parameters were determined from data ranging from 1990 to the present. Within this period, thanks to the development of computer simulation technology, improvements in the eco-efficiencies of fittings have progressed every year, as fitting a linear approximation. However, the water-saving performance of the toilet bowl is nearing its limit, and no great reductions can be expected in the future. In order to predict all the environmental impact reductions resulting from future retrofits, a study on predicting α by index approximation will be needed.
