Pollutant Removal Efficiency of a Bioretention Cell with Enhanced Dephosphorization

Department of Civil and Construction Engineering, National Taiwan University of Science and Technology, Taipei 106, Taiwan
*
Author to whom correspondence should be addressed.
Water 2022, 14(3), 396; https://doi.org/10.3390/w14030396
Submission received: 31 December 2021 / Revised: 22 January 2022 / Accepted: 25 January 2022 / Published: 28 January 2022
(This article belongs to the Special Issue Urban Runoff Control and Sponge City Construction)

Abstract

:
Low impact development can contribute to Sustainable Development Goals (SDGs) 2, 6, 7, 11, and 13, and bioretention cells are commonly used to reduce nonpoint source pollution. However, although bioretention is effective in reducing ammonia nitrogen and chemical oxygen demand (COD) pollution, it performs poorly in phosphorus removal. In this study, a new type of enhanced dephosphorization bioretention cell (EBC) was developed; it removes nitrogen and COD efficiently but also provides excellent phosphorus removal performance. An EBC (length: 45 m; width: 15 m) and a traditional bioretention cell (TBC) of the same size were constructed in Anhui, China, to treat rural nonpoint source pollution with high phosphorus concentration levels. After almost 2 years of on-site operation, the ammonium nitrogen removal performance of the TBC was 81%, whereas that of the EBC was 78%. The COD removal rates of the TBC and EBC were 51% and 65%, and they removed 51% and 92% of the total phosphorus, respectively. These results indicate that the TBC and EBC have similar performance in the removal of ammonium nitrogen and COD, but the EBC significantly outperforms the TBC in terms of total phosphorus removed.

1. Introduction

Rapid urbanization is increasingly affected by extreme weather events. The frequent occurrence of short-duration intense rainfall creates pollution sources such as surface runoff, which lead to urban nonpoint source pollution [1]. China is affected not only by urban nonpoint source pollution but also by the environmental pollution caused by runoff rainwater in rural areas. Rural runoff rainwater contains nonpoint source pollution from human activities, livestock, and agriculture. Therefore, the pollution concentration in rural runoff is higher than that of urban runoff, particularly in terms of nutrients [2].
Low impact development (LID) practices can purify and reintegrate contaminated runoff into the hydrological cycle by increasing infiltration, reducing runoff velocity, and reducing pollutant load [3]. Macedo et al. [4] proposed that a new-generation LID model with the capacity to contribute to Sustainable Development Goals (SDGs) 2 (zero hunger), 6 (clean water and sanitation), 7 (affordable and clean energy), 11 (sustainable cities and communities), and 13 (climate action) [5]. The implementation of LID practices that align with SDGs is guided by the phrase “Think globally, act locally,” which is increasingly used in the lexicon of sustainable development [6]. Bioretention cells are commonly used to reduce nonpoint source pollution because of their runoff and pollution control capabilities and their role as a landscape feature.
Bioretention was developed in Prince George County, Maryland, USA, in the 1990s [7]. Bioretention is an LID approach that can be used to address nonpoint source pollution [8]. The composition of a typical bioretention system includes plantings, a mulch layer, planting soil, filter fabric, a sand layer, a gravel bed, an outflow pipe, and geotextiles (Figure 1). Bioretention mainly uses processes such as filtration, adsorption, plant uptake, and biological transformation to reduce the pollutants generated by runoff [9]. Most studies that aimed to improve the pollution removal ability of bioretention have focused on changing the composition of the planting soil (e.g., changing the ratio of perlite to vermiculite) [10]. Le Coustumer et al. [11] reported that adding compost to planting soil can increase the water permeability and pollutant removal rate of bioretention; the improvement in performance achieved through this method is greater than that achieved by adding 10% vermiculite and 10% perlite to planting soil. In general, the effect of bioretention on phosphorus reduction is relatively unstable, and it can easily cause clogging in the long term [12].
Fan et al. [13] proposed that if a proper submerged space is established inside a bioretention cell, the denitrification effect can be significantly increased. Li et al. [14] developed two groups of lab-scale bioretention cells. The first group of bioretention cells was filled with coarse gravel, medium gravel, fine gravel, and planting soil in order from bottom to top according to the model used for traditional bioretention cells (TBCs). For the second group of bioretention cells, the order of the fillers was reversed, such that the coarse gravel became the top layer (Figure 2). The test results indicated that the TBC was slightly more effective than the inverted cell in removing ammonium nitrogen (NH4+), with the removal percentages of the traditional cell being between 96.6% and 99.7% and those of the inverted cell being between 80.5% and 97.4%. However, the inverted bioretention cell had a significantly higher nitrate (NO3-N) removal efficiency than the traditional cell. This is because the inverted bioretention cell can form an anoxic zone at its bottom and accelerate the denitrification reaction. Moreover, a series of bioretention box experiments involving various runoff inflow characteristics were performed by Davis et al. [15]. Their experimental results indicated that increasing or decreasing the hydrogen ion concentration (pH) from a neutral level leads to the release of phosphorus in the upper soil, resulting in the poor phosphorus removal performance of bioretention cells.
Numerous studies have demonstrated that bioretention cells provide favorable nitrogen removal performance but poor phosphorus removal performance. For algal growth, nitrogen is generally a limiting nutrient in coastal and oceanic waters, whereas phosphorus tends to be a limiting nutrient in freshwater systems [16]. If runoff rainwater with a high phosphorus concentration flows directly into rivers or lakes, it may cause water eutrophication. To date, no study has demonstrated that TBCs have sufficient phosphorus removal efficiency. Therefore, the present study modified the materials inside a bioretention cell and developed an enhanced dephosphorization bioretention cell (EBC).

2. Materials and Methods

2.1. Enhanced Dephosphorization Bioretention Cell

The lowermost layer of the EBC is a mixed filter material layer instead of a gravel bed, as is the case in TBCs. The mixed filter material layer primarily comprises soil mixture layers (SMLs) and permeable layers (PLs). Figure 3 illustrates the enhanced dephosphorization bioretention system. The SMLs are 40 cm wide, 60 cm long, and 10 cm high, and they are stacked in layers. The SMLs are separated from each other by a 10 cm gap (at the top, bottom, left, and right sides of each SML) that is filled by the PL. The SMLs comprise approximately 70% to 80% of on-site soil mixed with approximately 20% to 30% of additional materials (e.g., active charcoal powder, organic matter, and iron).
Among the various materials that form SMLs, the soil serves as a habitat for microorganisms, and the active charcoal powder adsorbs high amounts of organic matter in wastewater, thus enhancing the efficiency of organic matter decomposition. The organic matter (e.g., sawdust, straw, corn cobs, and kenaf) serves as nutrients for microorganisms, and the iron materials effectively adsorb phosphates. The materials are mixed and packed into fiber bags, which are then stacked to form the SMLs, with each layer being separated by a PL. A PL comprises aggregates of gravel, pumice, or zeolite measuring approximately 1–5 mm in diameter. Aggregates should be of consistent size to reduce the risk of clogging and to facilitate the dispersion of water in the system. Moreover, the surface of the aggregates that constitute a PL also serves as a habitat for nitrobacteria and adsorbs the organic matter in wastewater. Therefore, both layers actively remove pollutants from wastewater [17].

2.2. Study Site

Chaohu Lake, situated in the central region of Anhui Province, is the fifth largest shallow freshwater lake in China with a surface area of 775 km2 and watershed area of 12,938 km2. Chaohu Lake plays a key role in the social, economic, and ecological functions of the local basin. However, the excessive discharge of industrial and municipal wastewater caused by rapid industrialization and urbanization has led to the heavy pollution of Chaohu Lake [18,19,20,21]. To improve the water quality of Chaohu Lake, the nutrients flowing into the lake must first be reduced.
The study site is located to the northeast of Chaohu Lake (Figure 4). GPS coordinates of the study site are 31°40.01′ N, 117°40.73′ E. The sub-watershed area of the study site is approximately 520,000 m2. It includes 440,000 m2 of farmland and 80,000 m2 of rural land. When it rains, the runoff flushes agricultural and rural nonpoint source pollution into the Jiyu River (which flows into Chaohu Lake), resulting in severe eutrophication in Chaohu Lake.
Agricultural nonpoint source pollution and urban domestic sewage are the main sources of nitrogen and phosphorus in Chaohu Lake [22,23]. In the experience of the authors, bioretention cells are often used to purify nonpoint source pollution. Therefore, in the present study, a TBC and an EBC were constructed on site, and their effectiveness in removing nutrients was compared. The two bioretention cells had the same dimensions (45 m length, 15 m width, and 1.2 m depth). Detailed cross-sectional views of the two cells are illustrated in Figure 5.

2.3. Construction Steps

A 675 m2 TBC and a 675 m2 EBC were constructed to treat the nonpoint source pollution and agricultural irrigation tailwater generated in an area measuring 520,000 m2. The treatment rate of this case was 1:770, and the construction steps were as follows.
  • Excavation: Two adjacent pits with the same depth of 1.2 m were excavated at the site. Because the soil provided sufficient strength, the excavation could be performed vertically and no earth-retaining facility was required (see Figure 6a).
  • Installation of geomembrane: A 2-mm-thick geomembrane was spread around the pit of each cell to prevent groundwater from entering the cells (see Figure 6b).
  • Filling of cells with gravel: The TBC and EBC were, respectively, filled with 500-mm- and 100-mm-thick gravel layers (see Figure 6c).
  • Installation of outflow pipes: A polyvinyl chloride (PVC) pipe with a 3-in diameter was placed in the gravel layer and connected by a porous PVC pipe with a 2-in diameter (see Figure 6d).
  • Filling of SMLs and PLs: The inside of the EBC was filled with two layers of SMLs and two layers of PLs; the thickness of each layer was 100 mm (see Figure 6e).
  • Installation of geotextiles and filling of coarse sand: After geotextiles were laid on top of the gravel or PL, the cells were filled with a 100-mm-thick coarse sand layer (see Figure 6f).
  • Installation of geotextiles: Geotextiles were laid over the coarse sand layer to separate the planting soil and coarse sand layer (see Figure 6g).
  • Filling of planting soil: The two cells were filled with a 500-mm-thick layer of planting soil (see Figure 6h).
  • Planting: Photinia serratifolia, Ficus microcarpa cv. Golden Leaves, and Ehretia microphylla Lamk were planted in the two bioretention cells (see Figure 6i).
  • Installation of a weir: To allow the water in the channel to flow into the retention tank, a weir was installed to raise the water level (see Figure 6j).
  • Installation of inlet pipes: 4-in PVC pipes were used to divert water from the weir into the bioretention cells (see Figure 6k).
  • Operation: Contaminated water was drained into the bioswales of the bioretention cells to allow for infiltration and purification. The purified water was then discharged into the river using gravity (see Figure 6l).

3. Results and Discussion

The two bioretention cells were completed in March 2019. To elucidate their effectiveness in removing pollutants, a 2-year sampling survey was conducted. Sampling was performed once a month, and a total of 24 samples were collected for analysis. Suspended solids (SS), chemical oxygen demand (COD), ammonium nitrogen (NH4+-N), total nitrogen (TN), total phosphorus (TP), and phosphate (PO4) were tested in the present study.

3.1. Suspended Solid

Table 1 and Figure 7 shows the test results for SS that were obtained through a 2-year experiment that was conducted between May 2019 and April 2021. The results indicate that the concentration of SS was higher during the rainy season from June to October. When contaminated water flows into the bioretention cells, SS decrease significantly. Because of the filtering function of the material inside the bioretention cells, they have a significant effect on SS removal. The average removal percentages of the TBC and EBC were 85% and 83%, respectively. The TBC and EBC have similar average removal percentages, indicating their favorable performance for SS reduction. However, the bioswales and pebbles on the surface of the bioretention cells required regular cleaning to avoid clogging due to the excessive accumulation of mud. Moreover, Student’s t-test was used to was used to determine whether the performance of TBC and EBC were different. For SS removal, the T-value of TBC and EBC is 47.5%. If the significance level (α = 5%) was used, the test result showed that there was no difference in SS removal performance between TBC and EBC.

3.2. Chemical Oxygen Demand

The test results for COD are presented in Table 2 and Figure 8. Both the TBC and EBC performed poorly for COD removal in the early stage of the facility’s operation. This is because, at that stage, the microbial system within the bioretention cells was not fully established, and the ability of the microbes to biodegrade COD was not fully developed. However, after approximately half a year, stable pollution removal results were observed. The TBC’s average pollution removal efficiency for COD was approximately 51%, and that of the EBC was 65%. The EBC outperformed the TBC, and the outflow concentration of the EBC was relatively stable. The first reason for this performance disparity is that the PLs in the EBC comprise zeolite, which can perform the function of adsorption. The second reason is that the SMLs in the EBC contains natural organic materials (e.g., rice stalks and rice husks), and the decomposed plant fiber can provide a carbon source and cultivate cellulose-degrading bacteria that biodegrades COD. However, both the TBC and EBC exhibited favorable COD biodegradation performance because the planting soil was sufficiently conducive to the cultivation of a microbial system. The T-value of COD removal between TBC and EBC was 0.2%. It showed that the performance of TBC and EBC in COD removal was different.

3.3. Ammonium Nitrogen

The bioretention cells efficiently removed NH4+-N from inflow water. Table 3 and Figure 9 presents the test results for NH4+-N. The concentration of NH4+-N in inflow water was noticeably higher during the farming season from April to October. However, the concentration of NH4+-N in inflow water was lower from August to October 2019 because the area was affected by a drought and reduced rainfall during that time. For the removal of NH4+-N, the TBC and EBC exhibited similar performance. The average removal percentages of the TBC and EBC were 81% and 78%, respectively. Thus, both of these systems have favorable performance for NH4+-N removal. The T-value of NH4+-N removal between TBC and EBC was 26.0%. The test result showed that there was no difference in NH4+-N removal performance between TBC and EBC.

3.4. Total Nitrogen

As indicated by Table 4 and Figure 10, under an average TN inflow of 2.23 mg/L, the average TN removal efficiency was 50% and 67% for the TBC and EBC, respectively. During the farming season, the concentration of TN was higher relative to other seasons. Nitrification coupled with denitrification is the main removal process for TN. When wastewater flows into the bioretention cells, the microorganisms in their cell systems begin to produce nitrification and denitrification reactions to reduce TN. For the TBC, a slight denitrification reaction only occurs in the planting soil layer. However, for the EBC, the denitrification reaction not only occurs in the planting soil layer but also in the mixed filter material layer. Luanmanee et al. [24] reported that the low C/N ratio of pretreated wastewater tends to result in low TN removal due to a lack of carbon available for denitrification. Consequently, in the present study, the TBC was less effective at removing TN. The addition of active charcoal powder and organic matter to the SML potentially provided a sufficient carbon source for microorganisms. Under aerobic conditions, NH4+-N is converted into NO3--N through biological nitrification, and the resulting NO3-N then infiltrates into the SML, where nitrogen gas is formed through biological denitrification under anaerobic conditions and contributes to efficient TN removal (Figure 11). Therefore, the TN removal performance of the EBC is superior to that of the TBC. The T-value of TN removal showed that the performance of TBC and EBC in TN removal was different.
To determine the nitrification and denitrification reactions in the EBC system, samples from PL and SML materials were collected (through drilling) for microbial analysis. Because the 16S rRNA gene, which is present in all bacteria, is highly conserved and can be easily amplified using universal primers, environmental microbial analyses are often performed using 16S rRNA amplicon sequencing [25]. Moreover, sequences are clustered into bins called operational taxonomic units (OTUs) on the basis of similarity. In the absence of traditional systems of biological classification, such as those available for macroscopic organisms, OTUs serve as pragmatic proxies for species (microbial or metazoan) at different taxonomic levels. For several years, OTUs have been the most commonly used units of diversity, especially for the analysis of small subunit 16S (for prokaryotes) or 18S rRNA (for eukaryotes) [26] marker gene sequence datasets. Figure 12 presents the microbial analysis results for PLs and SMLs.
The experimental results indicate that the main dominant bacteria of PLs are aerobic nitrifying bacteria. Ammonia oxidizing bacteria are responsible for oxidizing NH4+-N to NO2-N, and nitrite oxidizing bacteria (NOB) are responsible for oxidizing NO2-N to NO3-N. In PLs, the nitration reaction can be completed through the two aforementioned reactions. Therefore, both the TBC and EBC provide a favorable nitration reaction for NH4+-N. However, the denitrification reaction is mainly influenced by anaerobic denitrifying bacteria. The test results indicate that the anaerobic bacteria in SMLs consisted of 2818 OTUs, which is 4.6 times the amount detected in the PLs (612 OTUs). When the agricultural runoff water with NH4+-N flows into the mixed filter material layer, the aerobic bacteria of the PLs first nitrify the NH4+-N into NO2-N and NO3-N. Subsequently, the water flows into the SMLs (anaerobic zone), where it undergoes denitrification, which reduces NO3-N and NO2-N to N2. Therefore, the TN removal performance of the EBC is superior to that of the TBC.

3.5. Total Phosphorus and Phosphate

The phosphorus in the runoff from agricultural land is a key component of nonpoint source pollution, and it can accelerate the eutrophication of lakes and streams [27]. Therefore, the effective reduction of the phosphorus in agricultural runoff is a crucial task. Table 5 and Figure 13 chart the TP concentrations of the inflow into the cells, the outflow from the TBC, and the outflow from the EBC. The nonpoint source pollution during the fertilization period contained a relatively high TP concentration relative to the subsequent period. The average concentration of TP in inflowing water was 0.761 mg/L. After TBC purification, the average concentration of TP in the outflow was 0.362 mg/L, indicating a removal percentage of 51%. However, the average concentration of TP after EBC purification was 0.059 mg/L, indicating a removal percentage of 92%. These results indicate that the TP removal effect of the EBC is superior to that of the TBC. The T-value of TP removal between TBC and EBC was <0.1%. It showed that the performance of TBC and EBC in TP removal was significantly different.
Table 6 and Figure 14 presents the performance of the TBC and EBC for the removal of phosphate (PO43−) in water. The average concentration of phosphate in inflow was 0.625 mg/L. However, the phosphate removal percentage of the TBC (49%) was significantly higher than that of the EBC (90%), indicating that the EBC was more effective than the TBC in removing phosphate. In the TBC, the phosphate removal percentage differed significantly over time. In the EBC, the phosphate removal percentage did not exhibit significant changes over time. This indicates that the EBC is more stable than the TBC in removing phosphate. The T-value of PO43− removal also showed that the performance of TBC and EBC in PO43− removal was significantly different.
Normally, the phosphorus in agricultural runoff contains particulate and dissolved forms. The particulate phosphorus in water can be removed through filtering. Therefore, both the TBC and EBC can remove particulate phosphorus through the filtration of water in the upper planting soil. However, dissolved phosphorus is generally difficult to remove through filtration. In the EBC, a specific ratio of iron particles is mixed into its SMLs. Phosphorus can be adsorbed by the Al and Fe hydroxides in the soil. As discussed in an earlier section of this paper, the inside of SMLs presents an anaerobic state (Figure 15). In such an environment, the iron added to SMLs transforms into ferrous iron (Fe2+), which is subsequently translocated to PLs and oxidized to ferric ion (Fe3+); Fe3+ aids the coprecipitation of PO43− from percolating wastewater [28]. Under anaerobic conditions, the reaction mechanism through which PO43− produces Fe3(PO4)2 is expressed by Equation (1). Equations (2) and (3) express the aforementioned reaction mechanism of PO43− under aerobic conditions. The final reaction product of iron ions and phosphate precipitates at the bottom of a bioretention cell. Sato et al. [29] monitored a case in Japan using SMB to treat domestic sewage and used mass balance to calculate TP removal efficiency. It shows that 110 kg of metal iron fix 52 kg of P, and its service life is more than 10 years. The SML of this study used the same percentage of metal iron content as in the previous study. As the TP concentration of agriculture non-point source pollution is much lower than that of domestic sewage, the service life of this study site can be expected to be longer than 10 years.
3Fe2+ + 2PO43− → Fe3(PO4)2 (↓)
Fe3+ + PO43− → FePO4 (↓)
Fe(OH)3 + H3PO4 → FePO4 (↓) + 3H2O

4. Conclusions

The results of the present study indicate that both the TBC and EBC can purify agricultural nonpoint source pollution. The removal percentages for SS, COD, and NH4+-N were similar in the TBC and EBC. However, for TN, TP, and PO43− removal, the EBC significantly outperforms the TBC. Regarding the composition of the two bioretention cells, the only difference is the bottom material. The TBC uses a gravel bed, whereas the EBC uses a mixed filter material layer. The two layers that form the mixed filter material layer comprise an aerobic layer and an anaerobic layer. The aerobic layers (PLs) consist of zeolite, and they alternate with the anaerobic layers (SMLs). The zeolite in the aerobic layers increases the adsorption of NH4+-N and reacts to nitrate through the reaction of nitrifying bacteria. Moreover, zeolite can enhance the oxidation and precipitation of mobile ferrous iron to high-surface-area ferric oxide, which improves phosphorus sorption. In the anaerobic layer formed by SMLs, nitrate is converted into nitrous oxide and nitrogen (denitrification), and ferrous iron is oxidized to mobile ferric iron, which exits the anaerobic layer and reacts to FePO4 with the PO43− in the aerobic layer. As a result, relative to the TBC, the EBC provides superior removal performance for TN, TP, and PO43−. The use of the EBC to purify agricultural nonpoint source pollution results in greater pollution removal efficiency, and consequently, contributes to SDGs such as environmental sustainability, clean water, and food security.

Author Contributions

C.-C.H.: Conceptualization, writing manuscript draft and supervision; Y.-X.L.: Investigation, formal analysis and data curation. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Data used in this study are duly available from the first authors on reasonable request.

Acknowledgments

The authors are grateful to the Editor and anonymous reviewers for their constructive comments and suggestions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, Y.; Engel, B.A.; Flanagan, D.C.; Gitau, M.W.; McMillan, S.K.; Chaubey, I.A. Review on effectiveness of best management practices in improving hydrology and water quality: Needs and opportunities. Sci. Total Environ. 2017, 601, 580–593. [Google Scholar] [CrossRef] [PubMed]
  2. Nordman, E.E.; Isely, E.; Isely, P.; Denning, R. Benefit-cost analysis of stormwater green infrastructure practices for Grand Rapids, Michigan, USA. J. Clean. Prod. 2018, 200, 501–510. [Google Scholar] [CrossRef]
  3. Fletcher, T.; Andrieu, H.; Hamel, P. Understanding, management and modelling of urban hydrology and its consequences for receiving waters: A state of the art. Adv. Water Resour. 2013, 51, 261–279. [Google Scholar] [CrossRef]
  4. Macedo, M.B.; Oliveira, T.R.P.; Oliveira, T.H.; Gomes Junior, M.N.; Brasil, J.A.T.; Lago, C.A.F.; Mendionda, E.M. Evaluating low impact development practices potentials for increasing flood resilience and stormwater reuse through lab-controlled bioretention systems. Water Sci. Technol. 2021, 84, 1103–1124. [Google Scholar] [CrossRef] [PubMed]
  5. Macedo, M.B.; Gomes Junior, M.N.; Oliveira, T.R.P.; Giacomoni, M.H.; Imani, M.; Zhang, K.; Lago, C.A.F.; Mendiondo, E.M. Low impact development practices in the context of united nations sustainable development goals: A new concept, lessons learned and challenges. Critical Reviews in Environ. Sci. Technol. 2021. [Google Scholar] [CrossRef]
  6. Charlesworth, S.M. A review of the adaptation and mitigation of global climate change using sustainable drainage in cities. J. Water Clim. Chang. 2010, 1, 165–180. [Google Scholar] [CrossRef]
  7. Prince George’s County Department of Environmental Resources (PGDER). Design Manual for Use of Bioretention in Stormwater Management; Division of Environmental Management, Water-Shed Protection Branch: Landover, MD, USA, 2007. [Google Scholar]
  8. Goh, H.W.; Lem, K.S.; Azizan, N.A.; Chang, C.K.; Talei, A.; Leow, C.S.; Zakaria, N.A.A. Review of bioretention components and nutrient removal under different climates—Future directions for tropics. Environ. Sci. Pollut. Res. 2019, 26, 14904–14919. [Google Scholar] [CrossRef]
  9. Davis, A.P.; Shokouhian, M.; Sharma, H.; Minami, C. Laboratory study of biological retention for urban stormwater management. Water Environ. Res. 2001, 73, 5–14. [Google Scholar] [CrossRef]
  10. Davis, A.P.; Hunt, W.F.; Traver, R.G.; Clar, M. Bioretention technology: Overview of current practice and future needs. J. Environ. Eng. 2009, 135, 109–117. [Google Scholar] [CrossRef]
  11. Le Coustumer, S.; Fletcher, T.D.; Deletic, A.; Barraud, S.; Poelsma, P. The influence of design parameters on clogging of stormwater biofilters: A large-scale column study. Water Res. 2012, 46, 6743–6752. [Google Scholar] [CrossRef]
  12. Hatt, B.E.; Fletcher, T.D.; Deletic, A. Hydraulic and pollutant removal performance of fine media stormwater filtration systems. Enviro. Sci. Technol. 2008, 42, 2535–2541. [Google Scholar] [CrossRef] [PubMed]
  13. Fan, G.; Ning, R.; Huang, K.; Wang, S.; You, Y.; Du, B.; Yan, Z. Hydrologic characteristics and nitrogen removal performance by different formulated soil medium of bioretention system. J. Clean. Prod. 2021, 290, 125873. [Google Scholar] [CrossRef]
  14. Li, Y.; Zhang, Y.; Yu, H.; Han, Y.; Zuo, J. Enhancing nitrate removal from urban stormwater in an inverted bioretention system. Ecol. Eng. 2021, 170, 106315. [Google Scholar] [CrossRef]
  15. Davis, A.P.; Shokouhian, M.; Sharma, H.; Minami, C. Water quality improvement through bioretention media: Nitrogenand phosphorus removal. Water Environ. Res. 2006, 78, 284–293. [Google Scholar] [CrossRef] [PubMed]
  16. Howarth, R.W.; Marino, R. Nitrogen as the limiting nutrient for eutrophication in coastal marine ecosystems: Evolving views over three decades. Limnol. Oceanogr. 2006, 51, 364–376. [Google Scholar] [CrossRef] [Green Version]
  17. Ho, C.C.; Wang, P.H. Efficiency of a Multi-Soil-Layering System on Wastewater Treatment Using Environment-Friendly Filter Materials. Int. J. Environ. Res. Public Health 2015, 12, 3362–3380. [Google Scholar] [CrossRef]
  18. Tong, Y.; Lin, G.; Ke, X. Comparison of microbial community between two shallow freshwater lakes in middle Yangtze basin, East China. Chemosphere 2005, 60, 85–92. [Google Scholar] [CrossRef]
  19. Yang, L.; Lei, K.; Meng, W. Temporal and spatial changes in nutrients and chlorophyll-α in a shallow lake, Lake Chaohuhu, China: An 11-year investigation. J. Environ. Sci. 2013, 25, 1117–1123. [Google Scholar] [CrossRef]
  20. Kong, X.; Jørgensen, S.; He, W. Predicting the restoration effects by a structural dynamic approach in Lake Chaohuhu, China. Ecol. Model. 2013, 266, 73–85. [Google Scholar] [CrossRef]
  21. Yang, X.; Cui, H.B.; Liu, X.S.; Wu, Q.A.; Zhang, H. Water pollution characteristics and analysis of Chaohuhu Lake basin by using different assessment methods. Environ. Sci. Pollut. Res. 2020, 27, 18168–18181. [Google Scholar] [CrossRef]
  22. Liu, E.; Shen, J.; Birch, G. Human-induced change in sedimentary trace metals and phosphorus in Chaohu Lake, China, over the past half-millennium. J. Paleolimnol. 2012, 47, 677–691. [Google Scholar] [CrossRef]
  23. Gao, H.; Lv, C.; Song, Y. Chemometrics data of water quality and environmental heterogeneity analysis in Pu River, China. Environ. Earth Sci. 2015, 73, 5119–5129. [Google Scholar] [CrossRef]
  24. Luanmanee, S.; Attanandana, T.; Masunaga, T. The efficiency of a multi-soil-layering system on domestic wastewater treatment during the ninth and tenth years of operation. Ecol. Eng. 2001, 18, 185–199. [Google Scholar] [CrossRef]
  25. Nguyen, N.P.; Warnow, T.; Pop, M.; White, R. A perspective on 16S rRNA operational taxonomic unit clustering using sequence similarity. NPJ Biofilms Microbiomes 2016, 2, 16004. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Sommer, S.A.; Woudenberg, L.V.; Lenz, P.H.; Cepeda, G.; Goetze, E. Vertical gradients in species richness and community composition across the twilight zone in the North Pacific Subtropical Gyre. Mol. Ecol. 2017, 26, 6136–6156. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Daniel, T.C.; Sharpley, A.N.; Lemunyon, J.L. Agricultural Phosphorus and Eutrophication: A Symposium Overview. J. Environ. Qual. 1998, 27, 251–257. [Google Scholar] [CrossRef] [Green Version]
  28. Wakatsuki, T.; Esumi, H.; Omura, S. High Performance and N&P Removal On-Site Municipal Wastewater Treatment System by Multi-Soil-Layering Method. Water Sci. Technol. 1993, 27, 31–40. [Google Scholar]
  29. Sato, K.; Iha, Y.; Luanmanee, S.; Masunaga, T.; Wakatsuki, T. Long term on-site experiments and mass balances in waste water treatment by multi-soil-layering system. In Proceedings of the 17th World Congress of Soil Science, Bangkok, Thailand, 14–21 August 2002; Volume 1261, pp. 1–10. [Google Scholar]

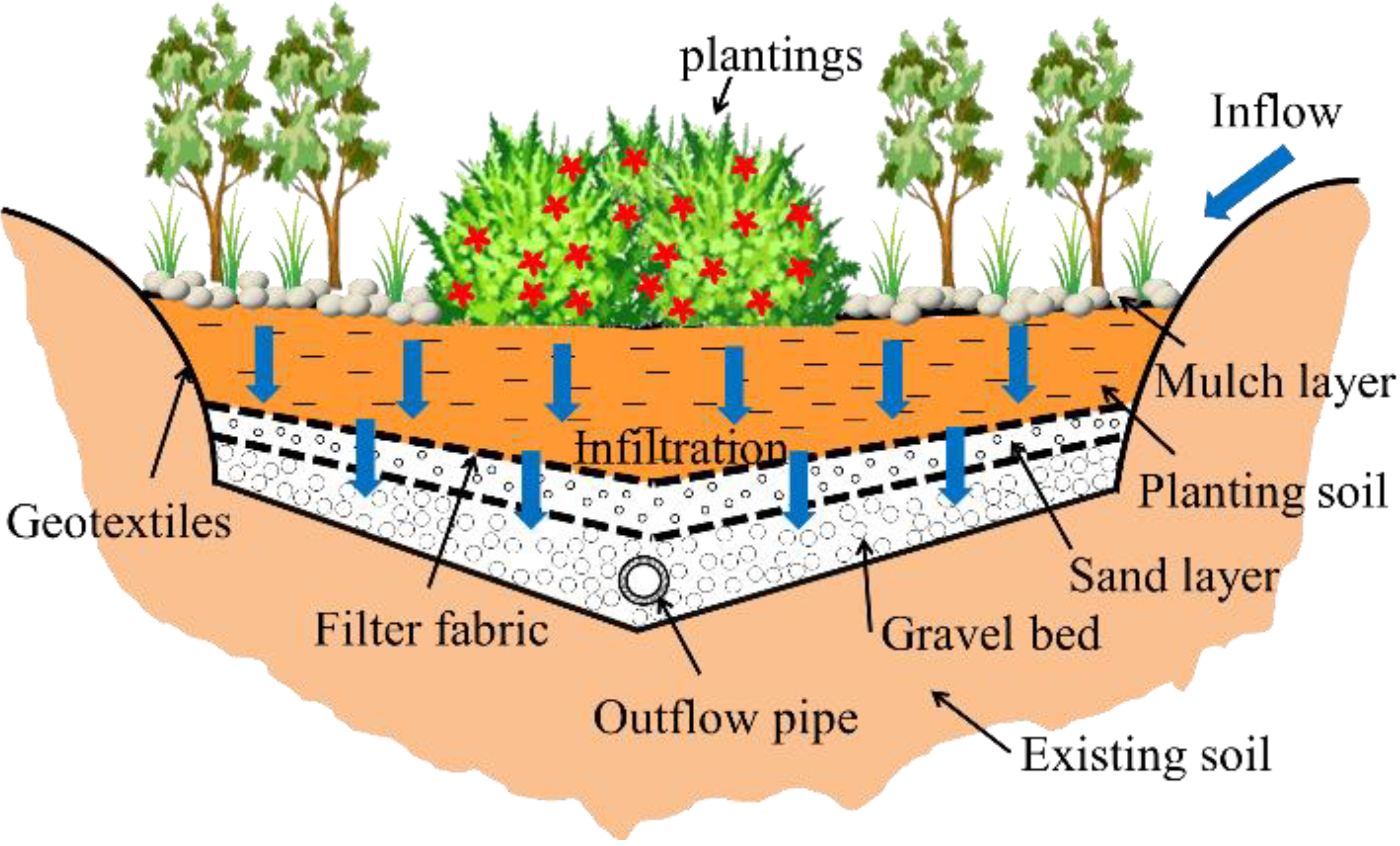

Figure 1. Typical bioretention system.
Figure 1. Typical bioretention system.
Water 14 00396 g001

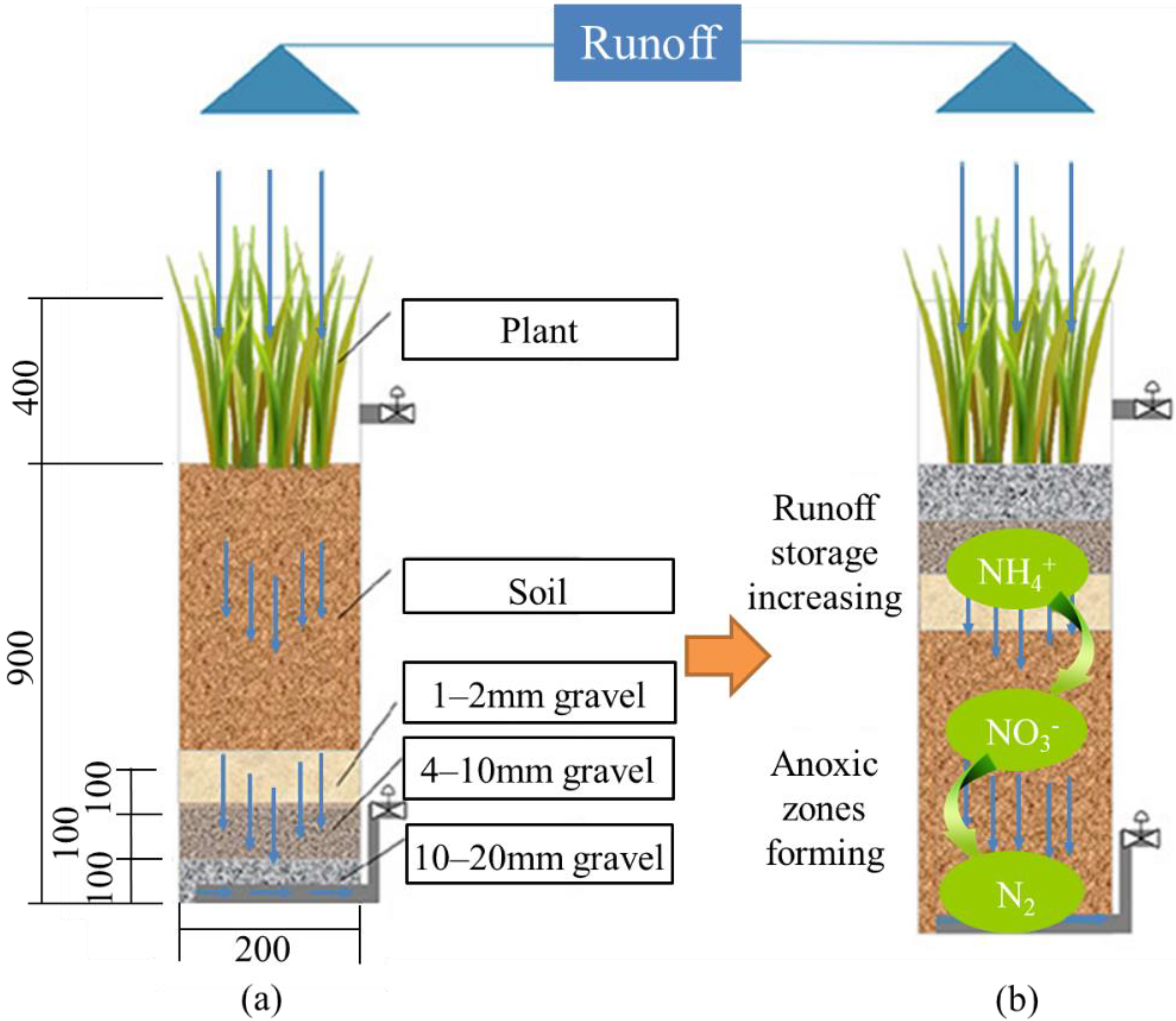

Figure 2. Profile of the retention cell (a) traditional, (b) inverted.
Figure 2. Profile of the retention cell (a) traditional, (b) inverted.
Water 14 00396 g002

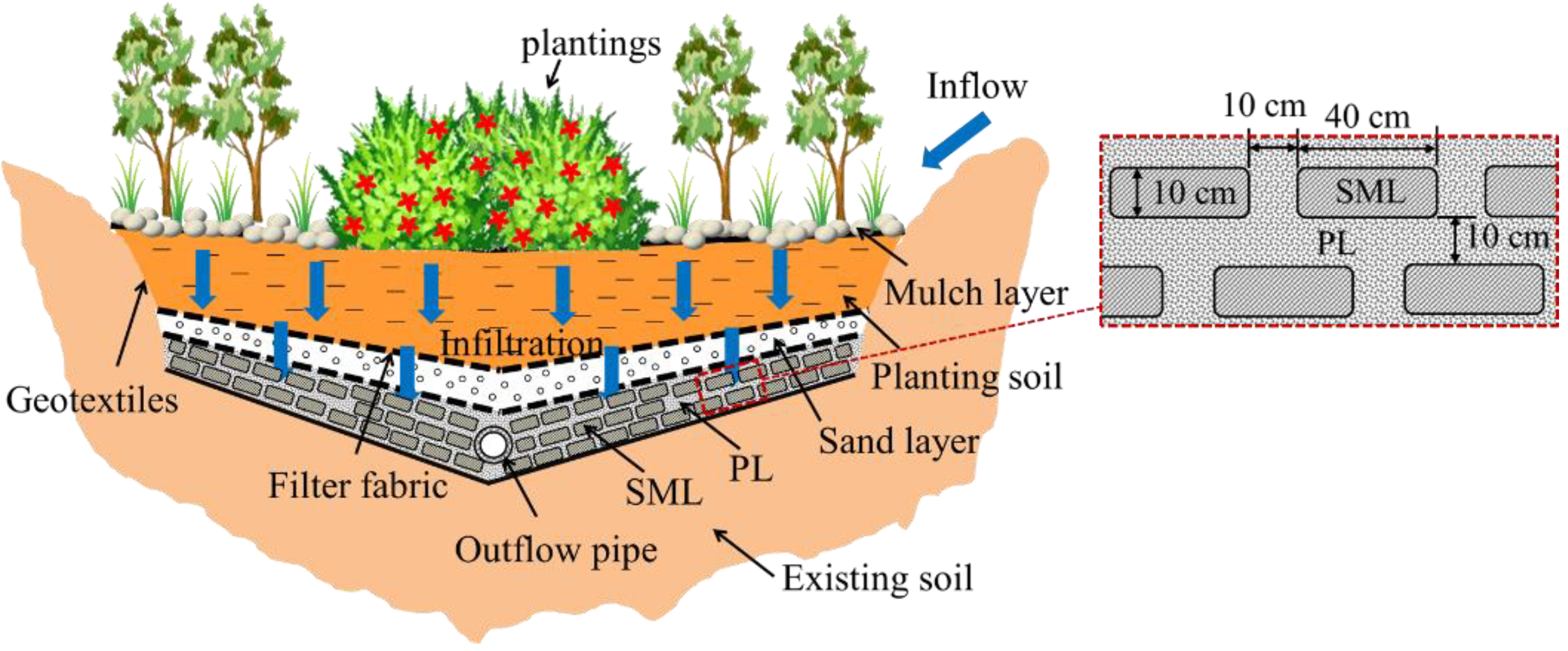

Figure 3. Enhanced dephosphorization bioretention cell (EBC). SML, soil mixture layer; PL, permeable layer.
Figure 3. Enhanced dephosphorization bioretention cell (EBC). SML, soil mixture layer; PL, permeable layer.
Water 14 00396 g003

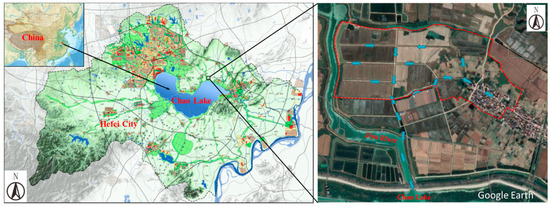

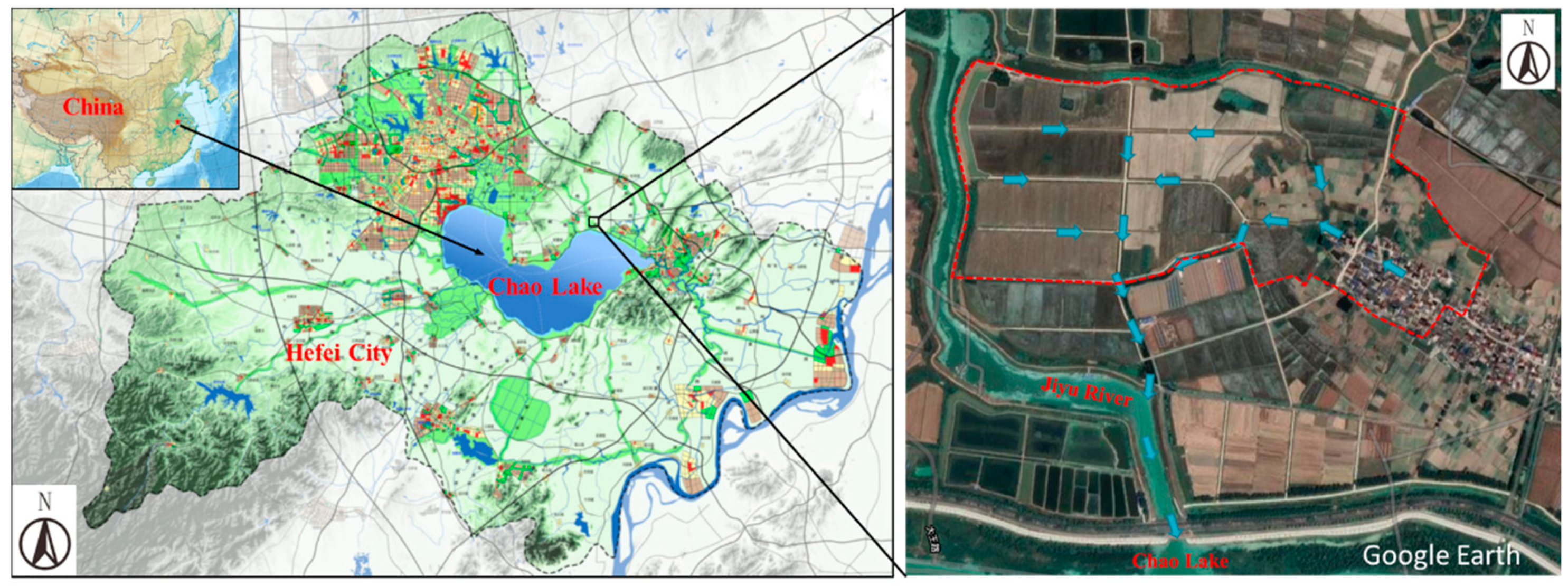

Figure 4. Location of study site in Chaohu Lake.
Figure 4. Location of study site in Chaohu Lake.
Water 14 00396 g004

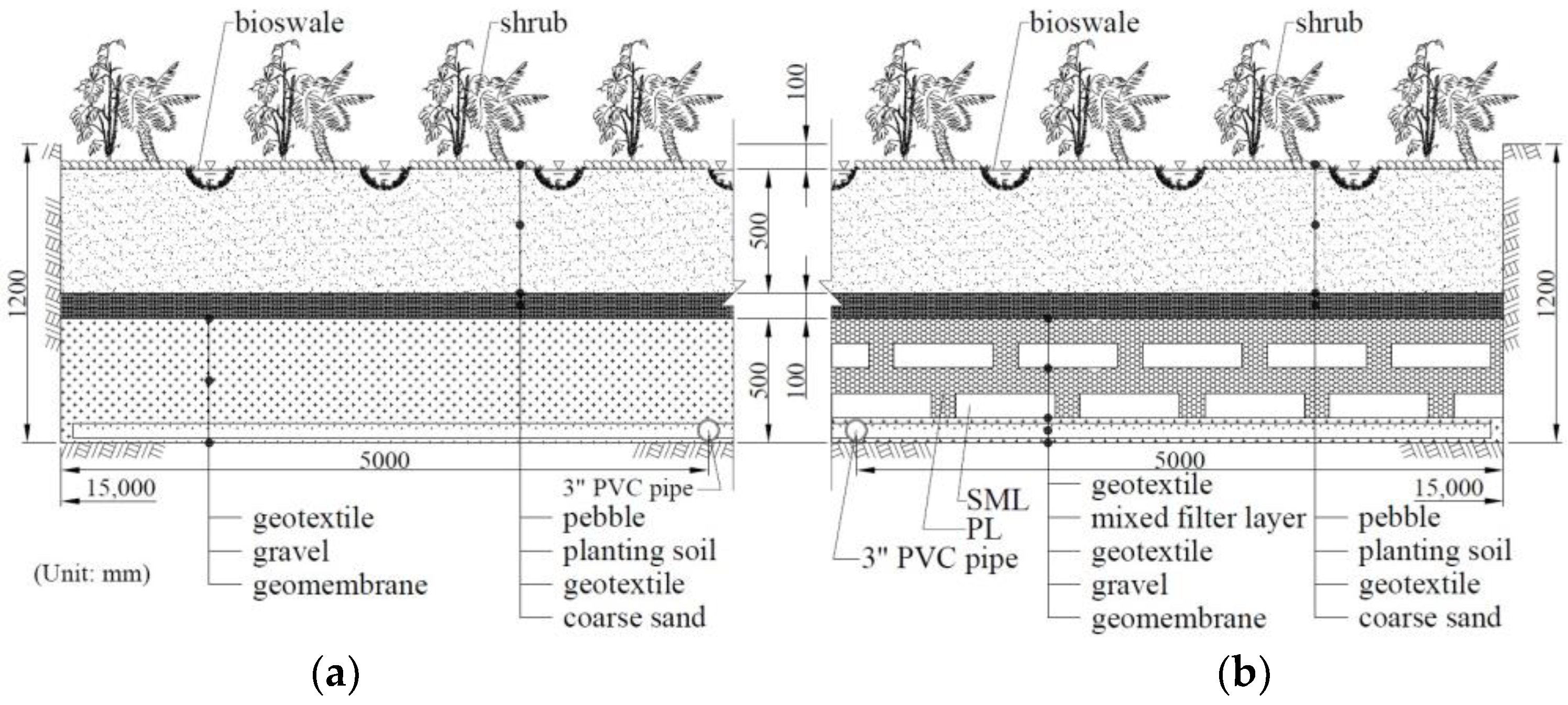

Figure 5. Cross-sectional view of bioretention cells: (a) traditional bioretention cell (TBC) and (b) EBC.
Figure 5. Cross-sectional view of bioretention cells: (a) traditional bioretention cell (TBC) and (b) EBC.
Water 14 00396 g005

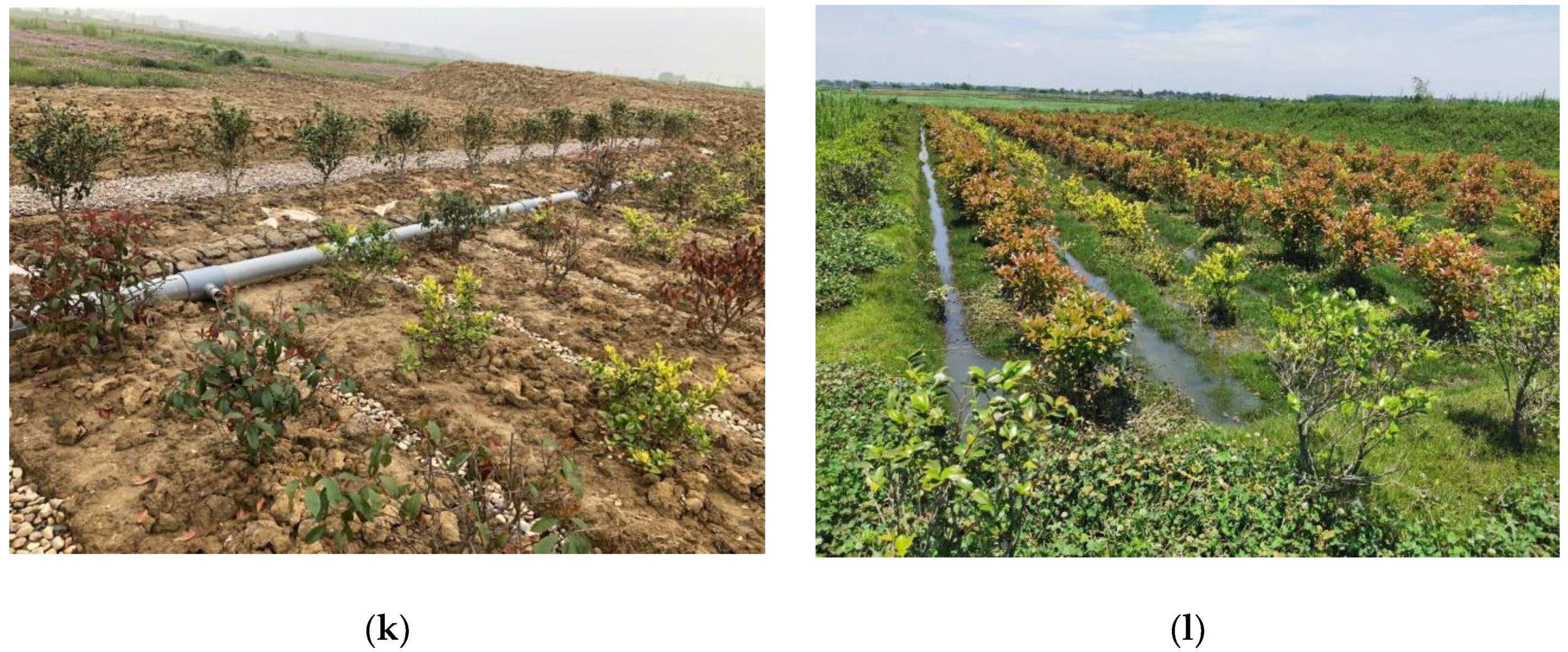

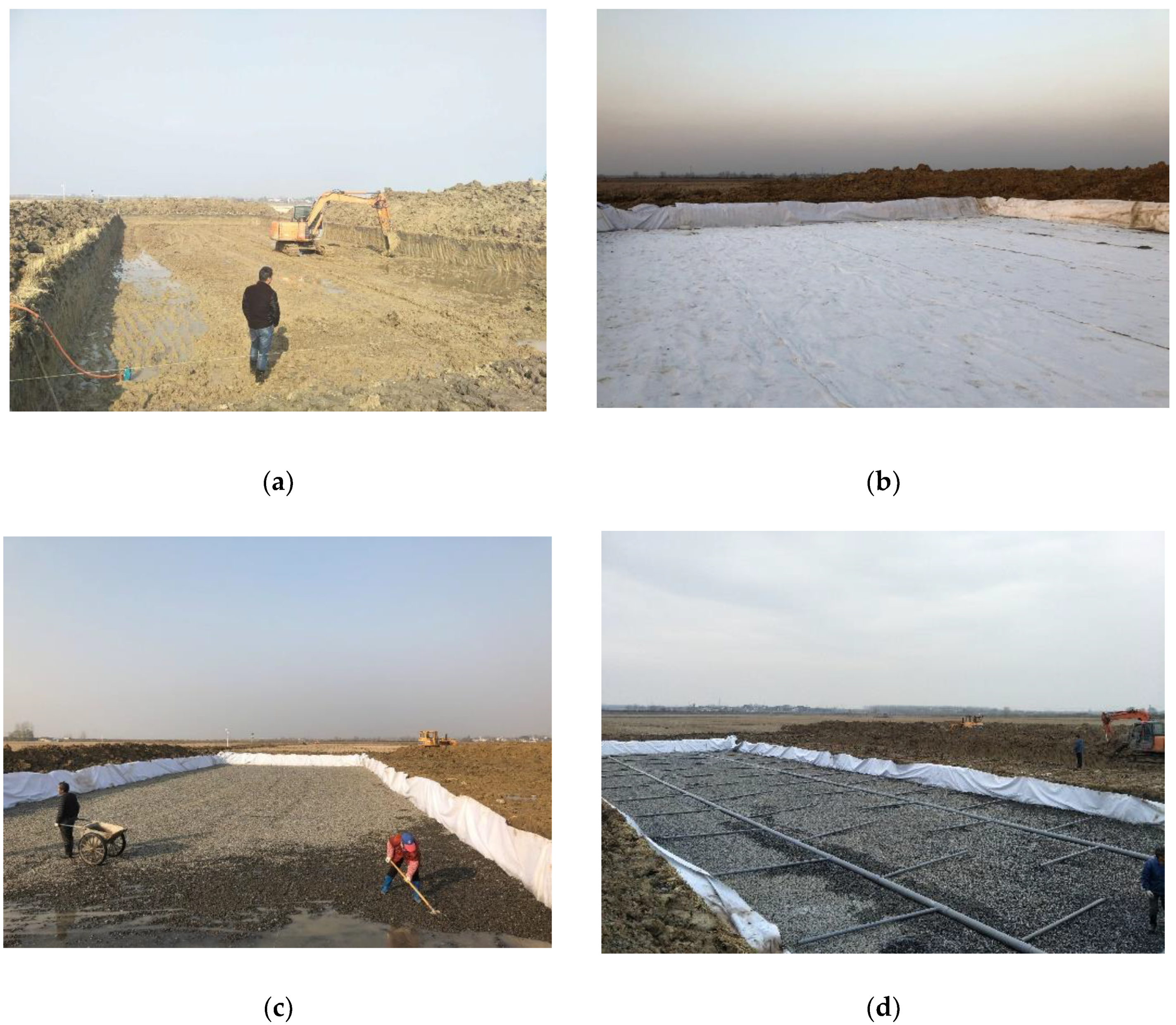

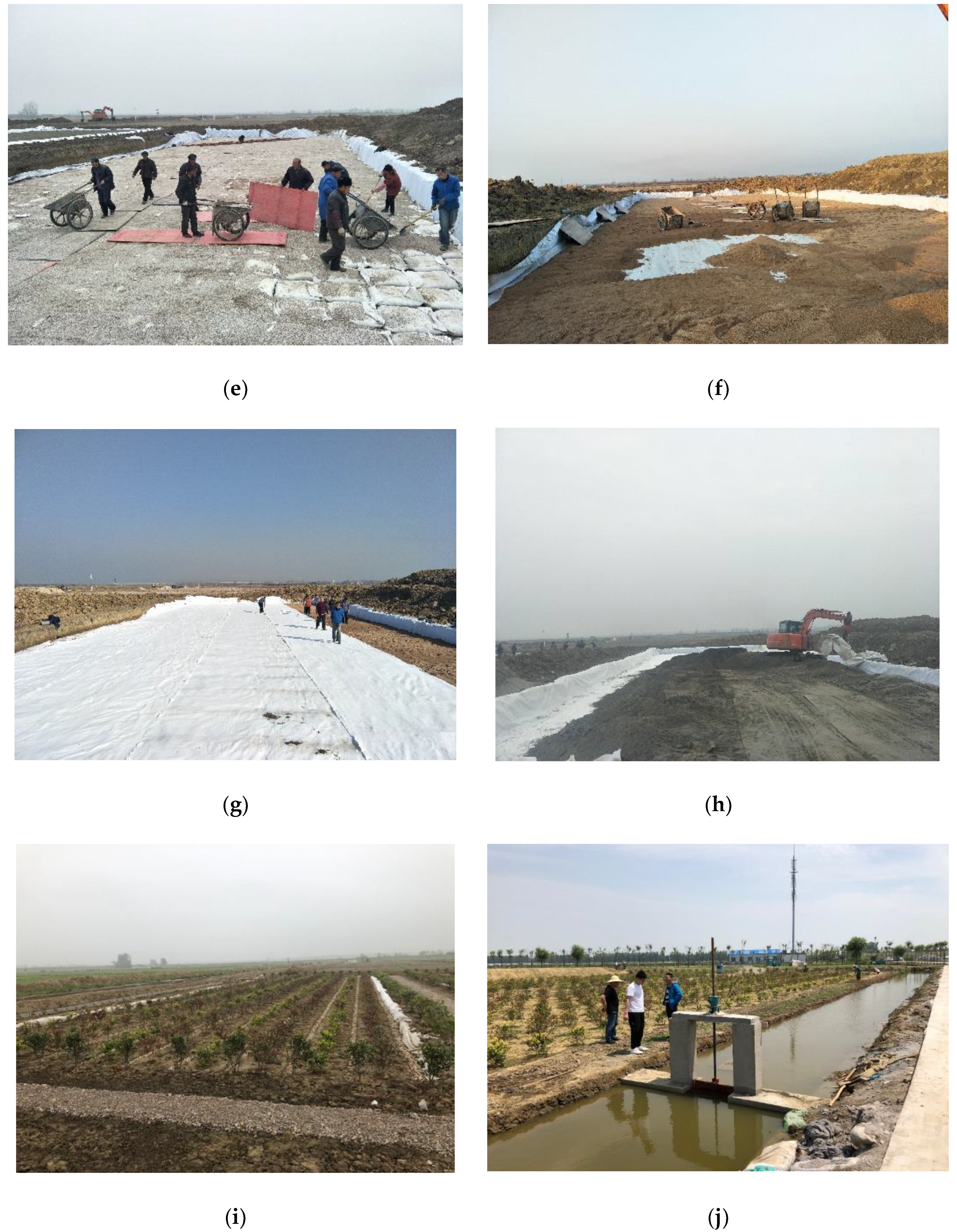

Figure 6. Construction steps: (a) excavation; (b) installation of geomembrane; (c) filling of gravel; (d) installation of outflow pipes; (e) filling of SMLs and PLs; (f) filling of coarse sand; (g) installation of geotextiles; (h) filling of planting soil; (i) planting; (j) installation of a weir; (k) installation of inlet pipes; (l) operation.
Figure 6. Construction steps: (a) excavation; (b) installation of geomembrane; (c) filling of gravel; (d) installation of outflow pipes; (e) filling of SMLs and PLs; (f) filling of coarse sand; (g) installation of geotextiles; (h) filling of planting soil; (i) planting; (j) installation of a weir; (k) installation of inlet pipes; (l) operation.
Water 14 00396 g006aWater 14 00396 g006bWater 14 00396 g006c

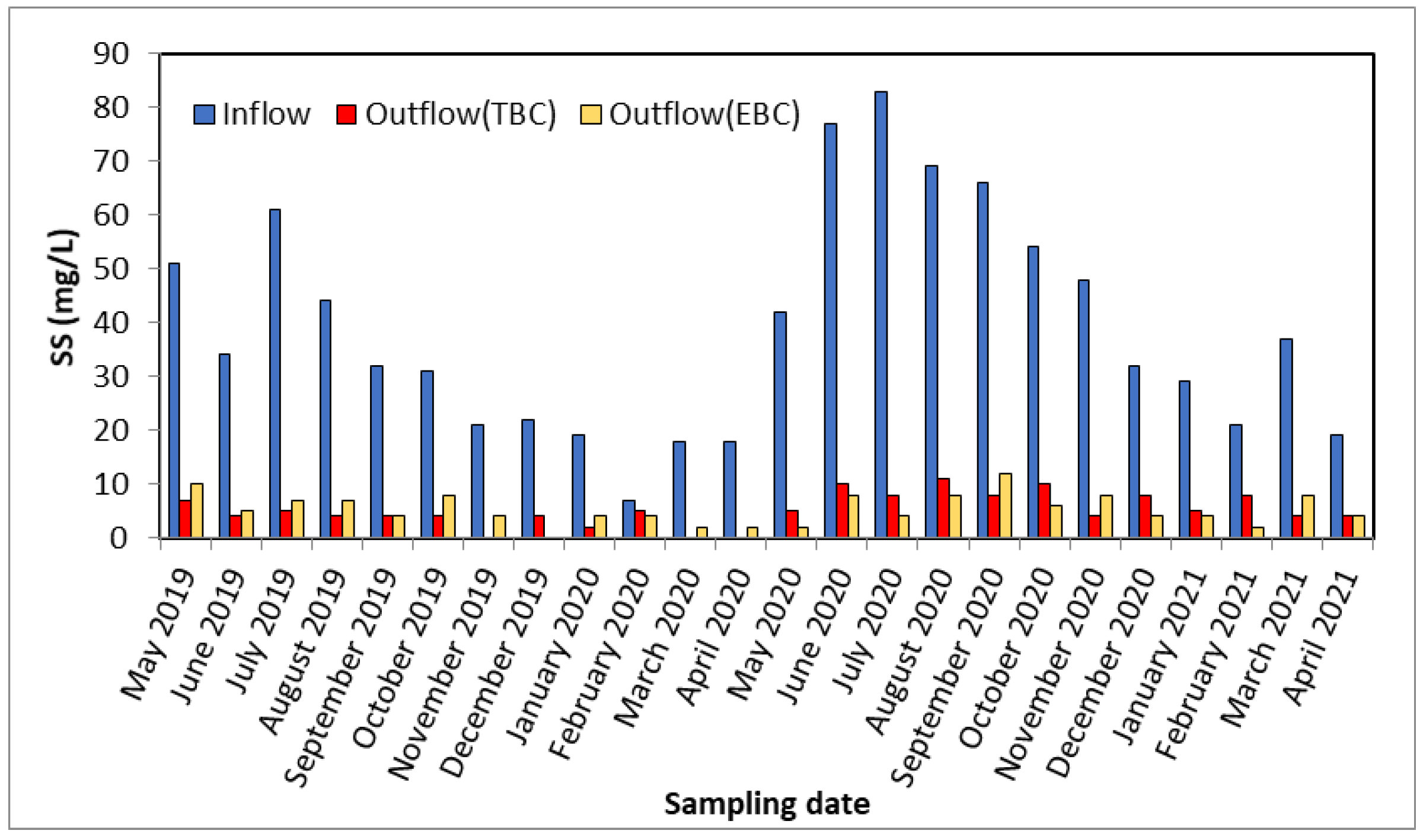

Figure 7. Suspended solid (SS) levels during the 2-year experiment.
Figure 7. Suspended solid (SS) levels during the 2-year experiment.
Water 14 00396 g007

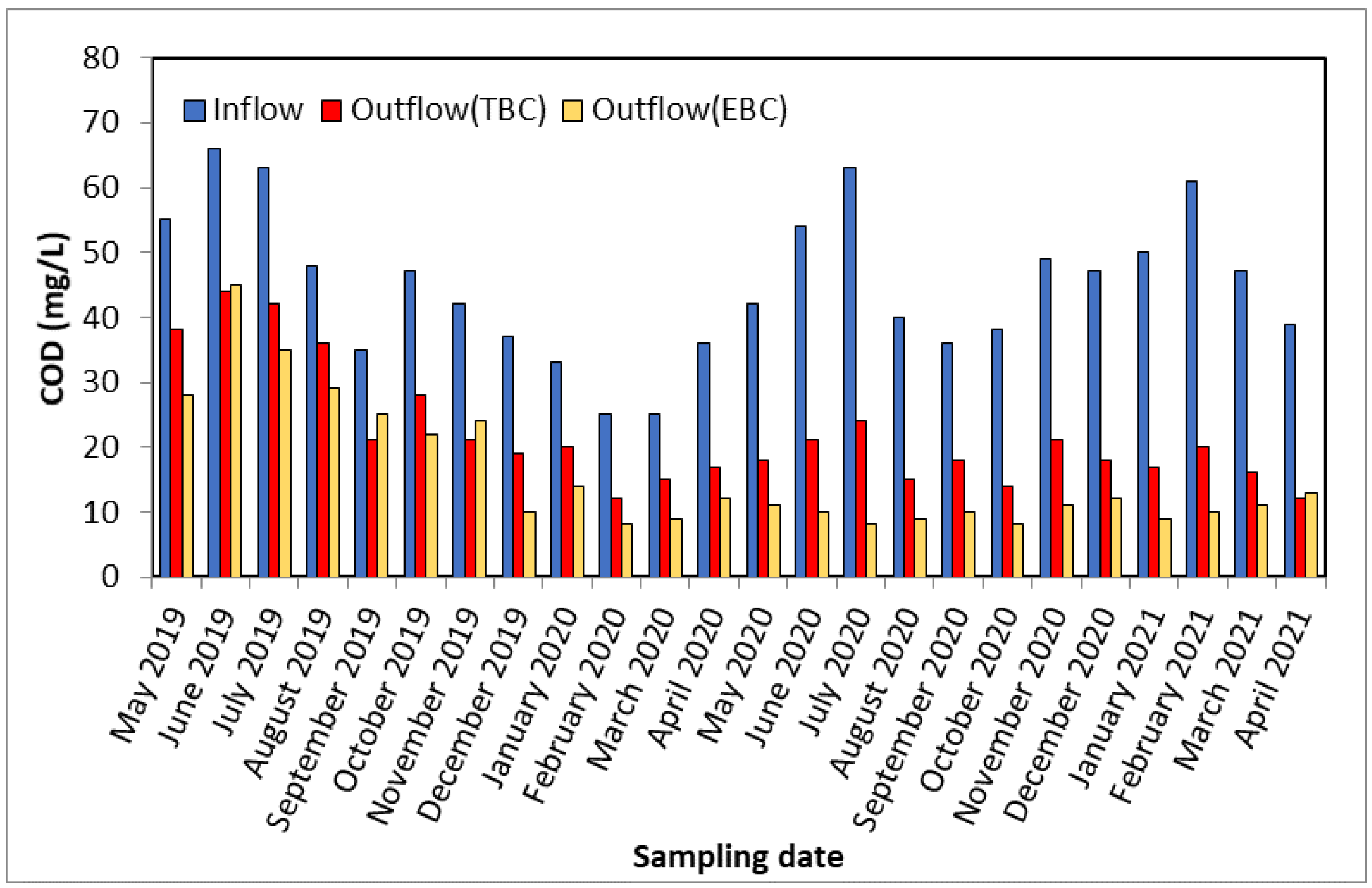

Figure 8. Chemical oxygen demand (COD) during the 2-year experiment.
Figure 8. Chemical oxygen demand (COD) during the 2-year experiment.
Water 14 00396 g008

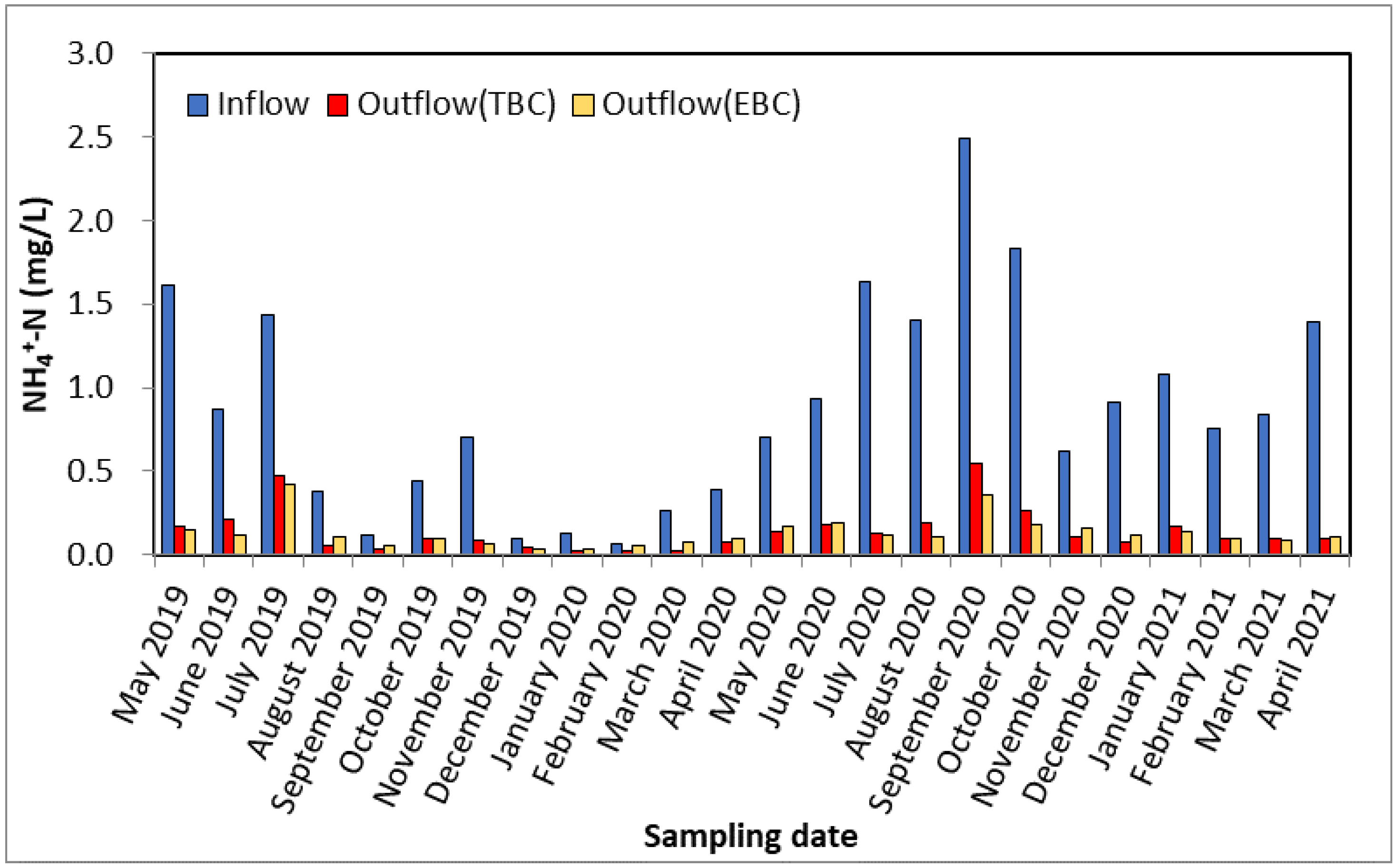

Figure 9. Ammonium nitrogen (NH4+-N) levels during the 2-year experiment.
Figure 9. Ammonium nitrogen (NH4+-N) levels during the 2-year experiment.
Water 14 00396 g009

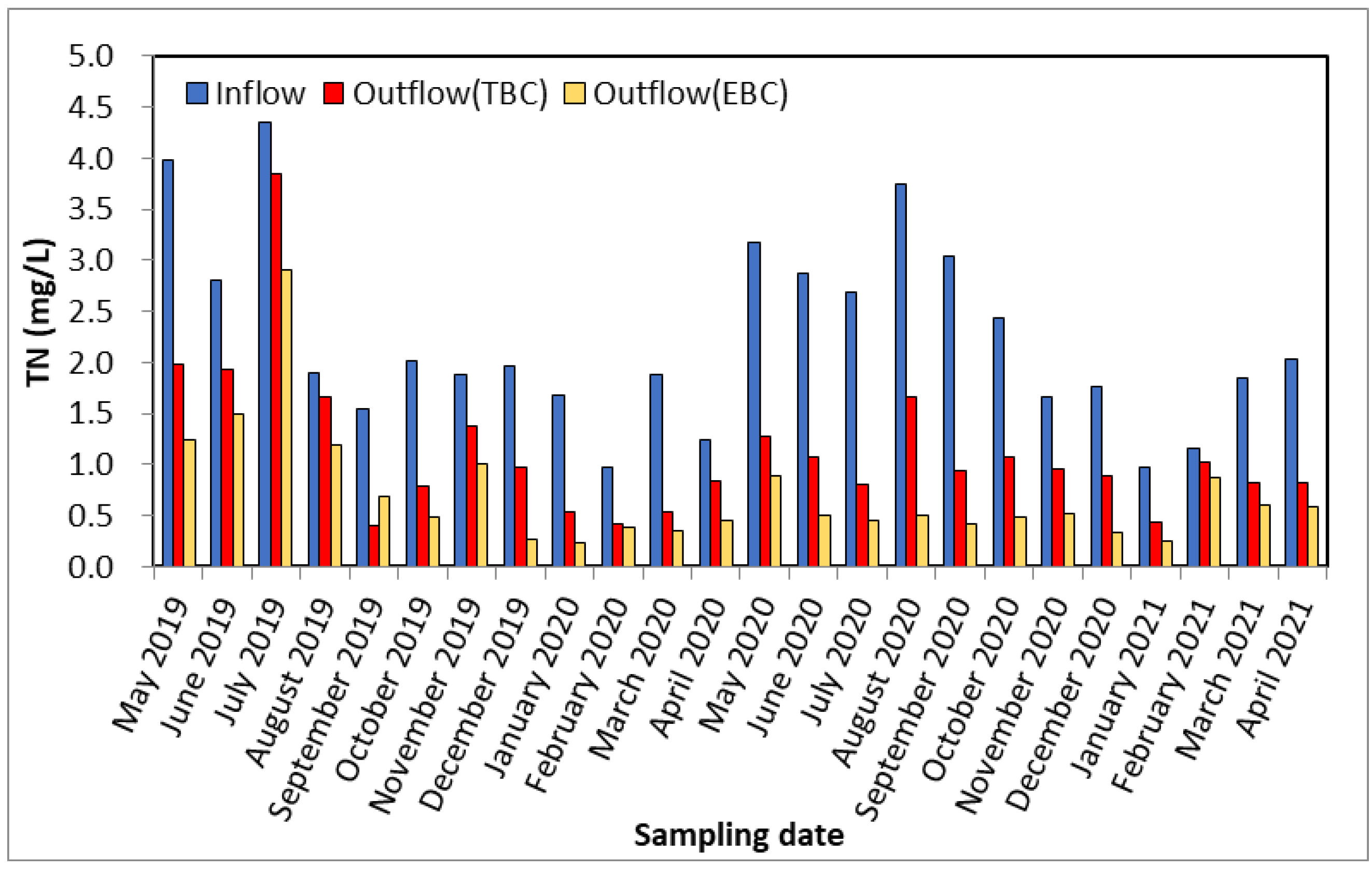

Figure 10. Total nitrogen (TN) levels during the 2-year experiment.
Figure 10. Total nitrogen (TN) levels during the 2-year experiment.
Water 14 00396 g010

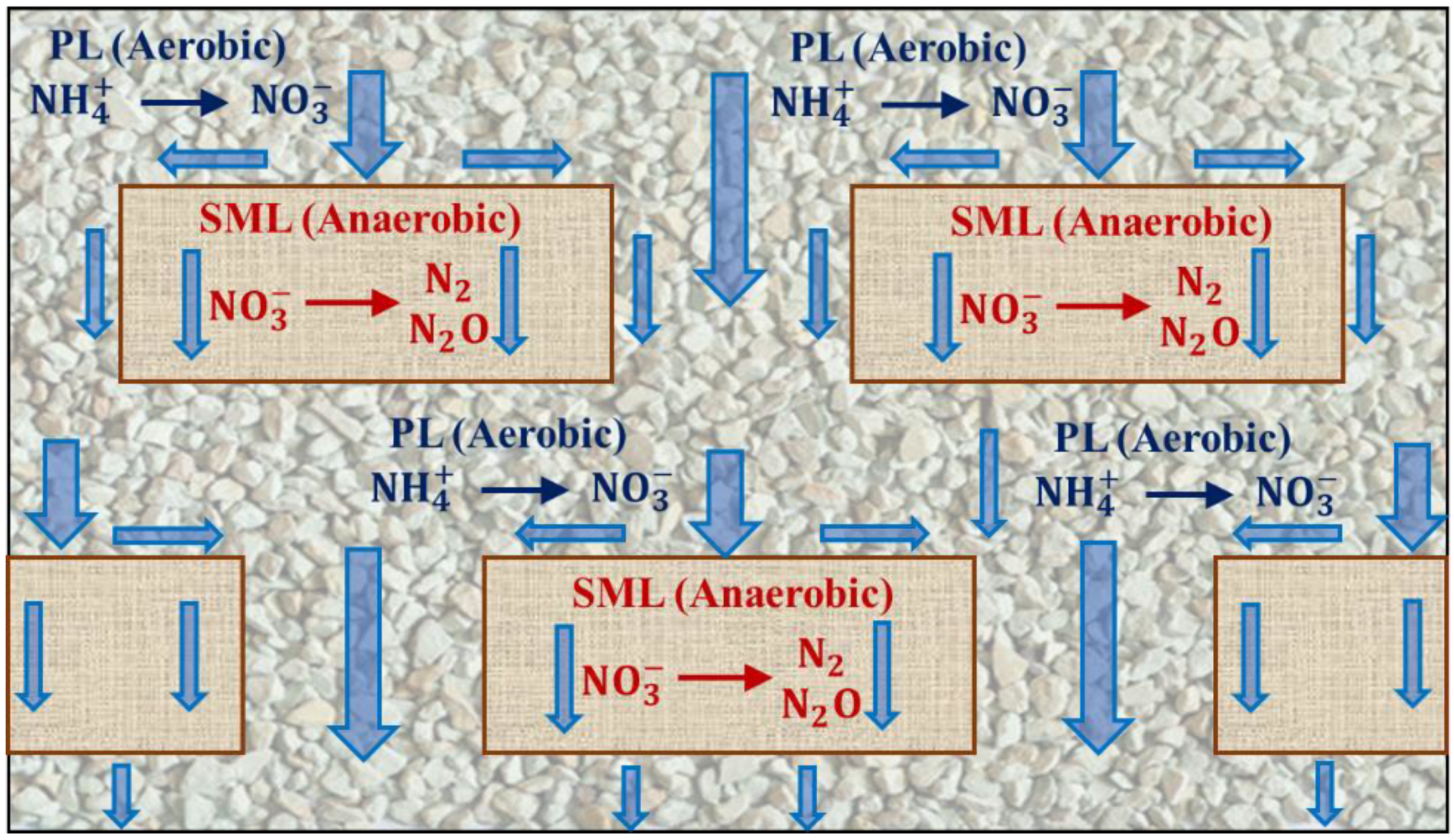

Figure 11. Nitrification and denitrification process in the mixed filter material layer.
Figure 11. Nitrification and denitrification process in the mixed filter material layer.
Water 14 00396 g011

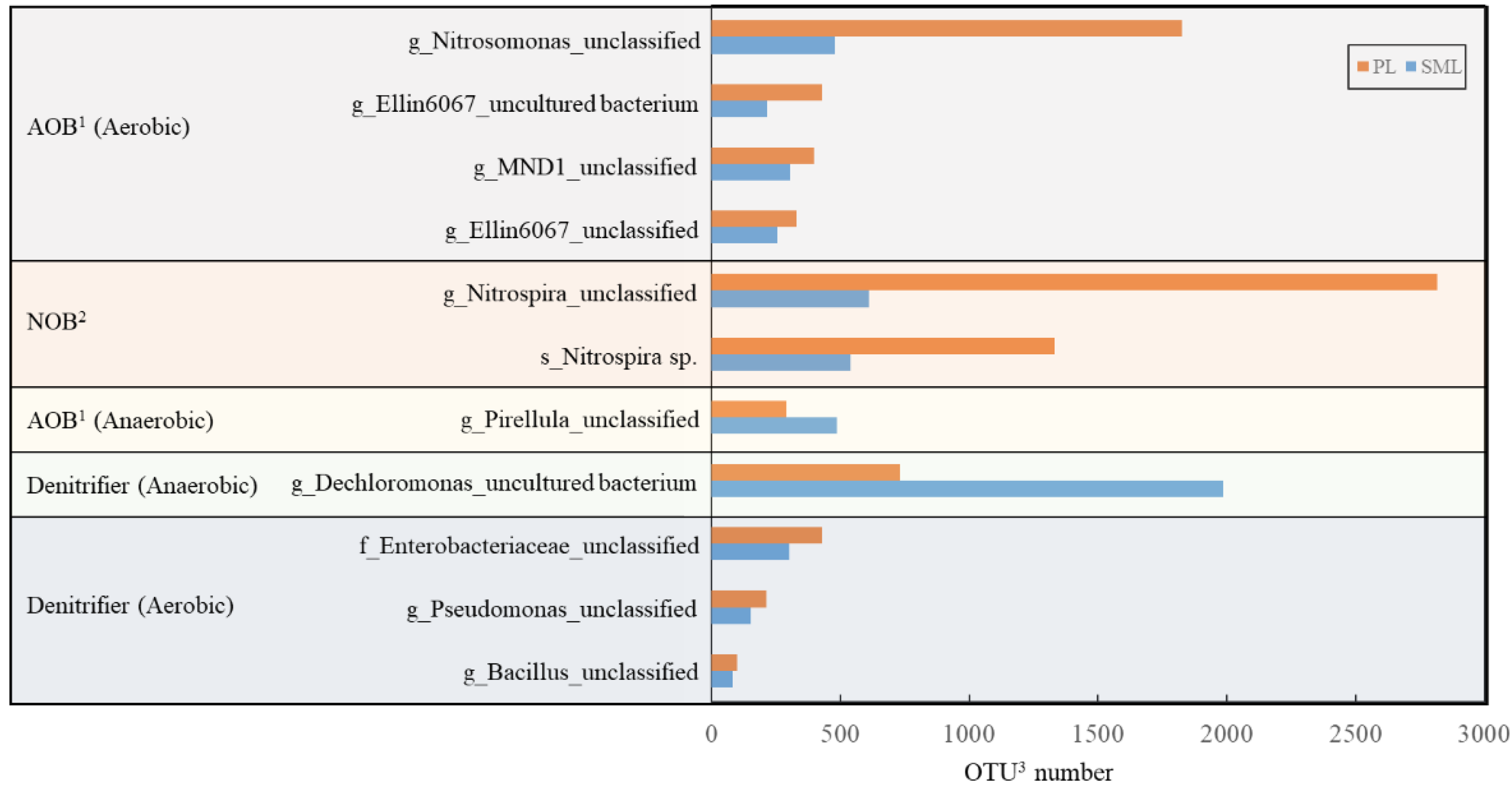

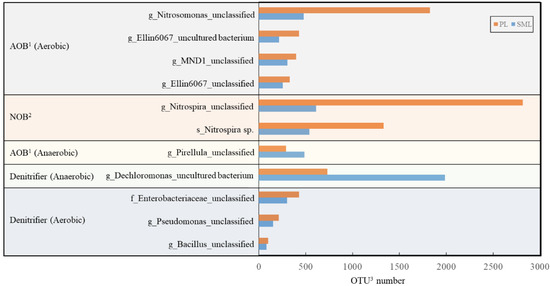

Figure 12. Microbial analysis results for PLs and SMLs. 1 AOB: ammonia oxidizing bacteria. 2 NOB: nitrite oxidizing bacteria. 3 OTU: Operational taxonomic unit.
Figure 12. Microbial analysis results for PLs and SMLs. 1 AOB: ammonia oxidizing bacteria. 2 NOB: nitrite oxidizing bacteria. 3 OTU: Operational taxonomic unit.
Water 14 00396 g012

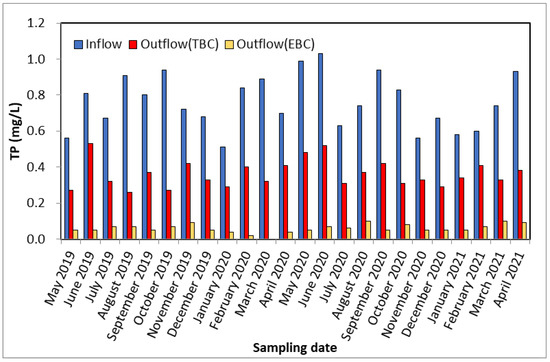

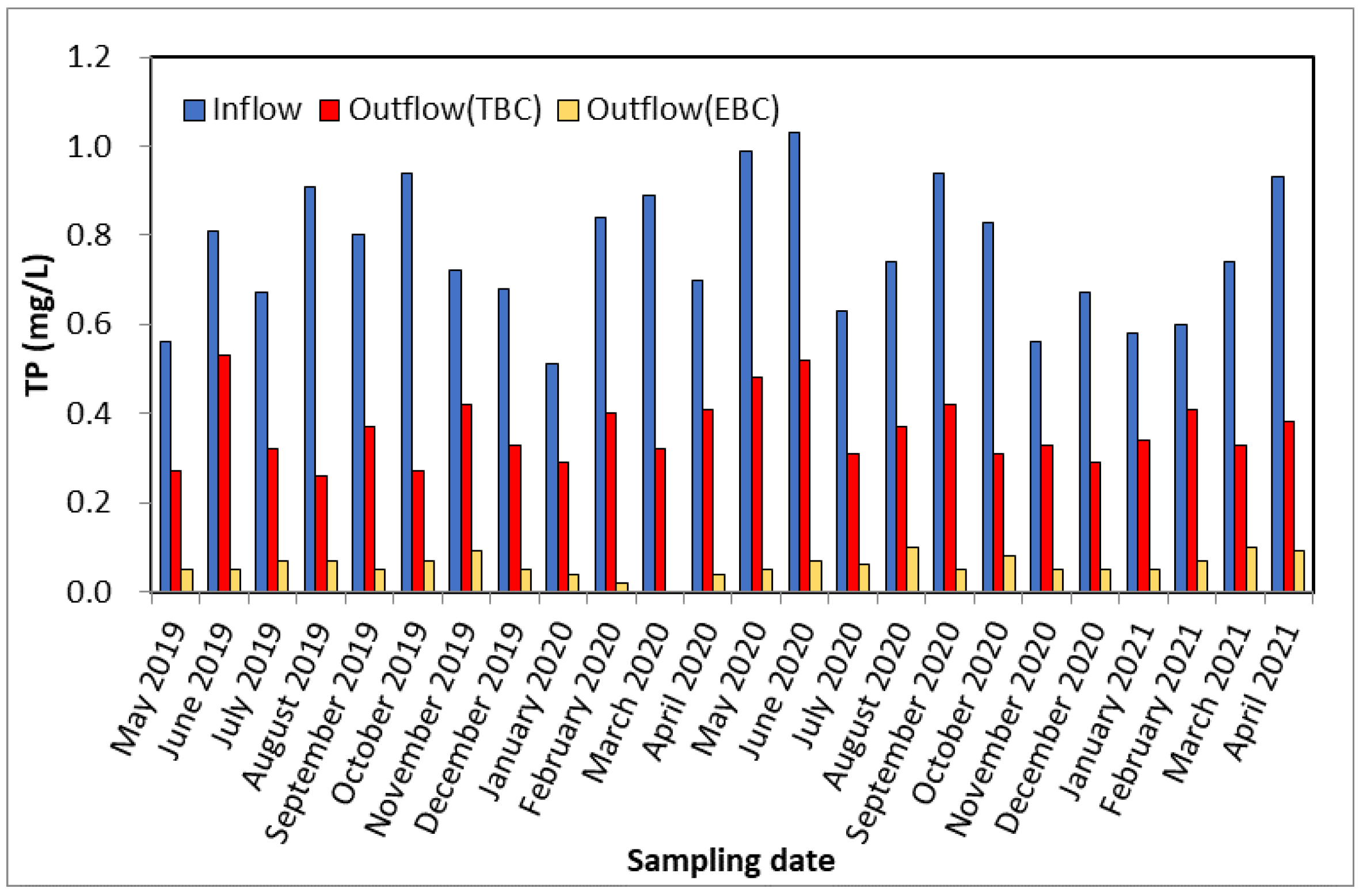

Figure 13. Total phosphorus (TP) levels during the 2-year experiment.
Figure 13. Total phosphorus (TP) levels during the 2-year experiment.
Water 14 00396 g013

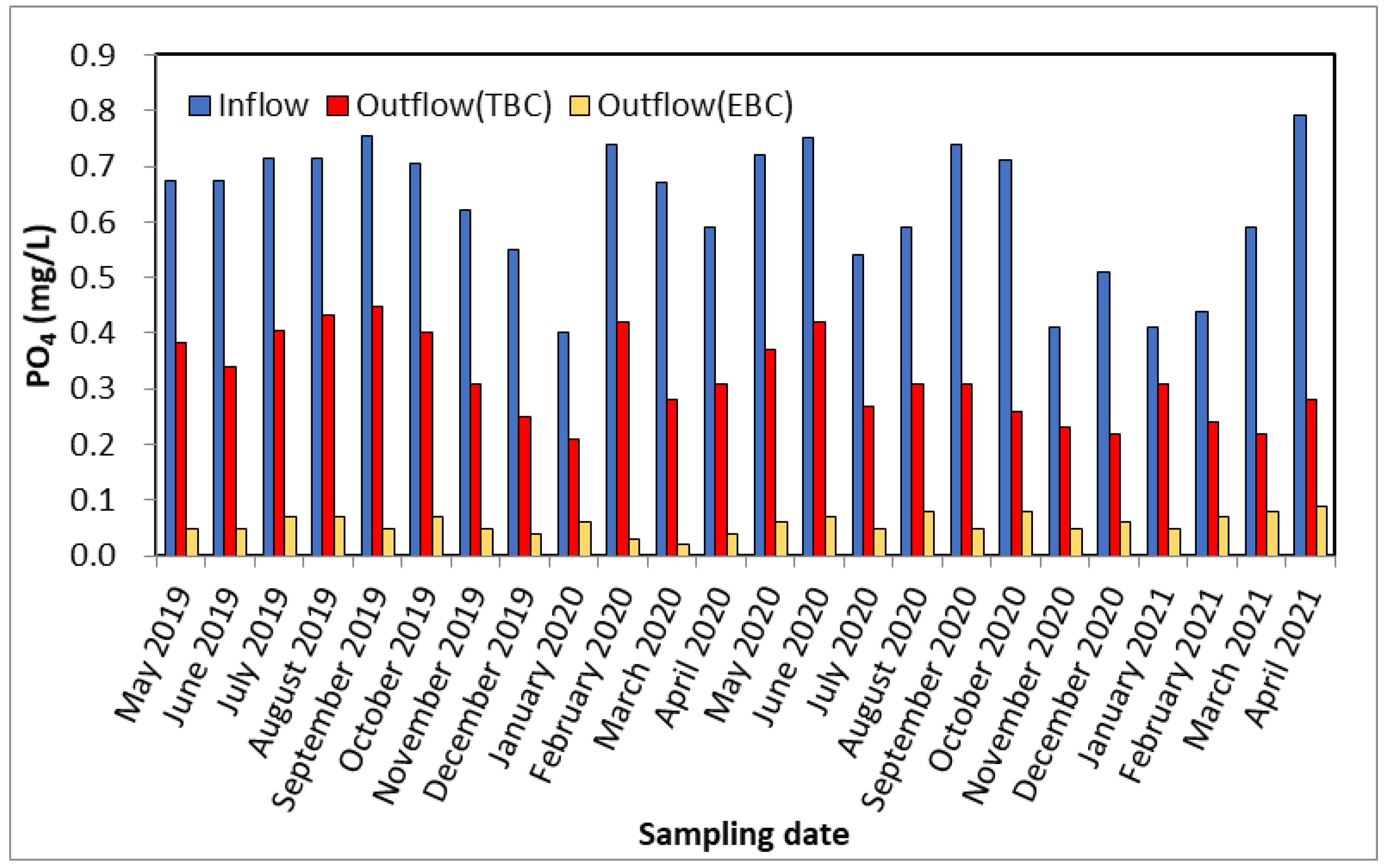

Figure 14. Phosphate (PO43−) levels during the 2-year experiment.
Figure 14. Phosphate (PO43−) levels during the 2-year experiment.
Water 14 00396 g014

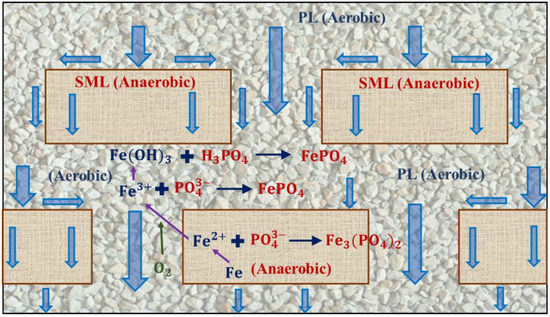

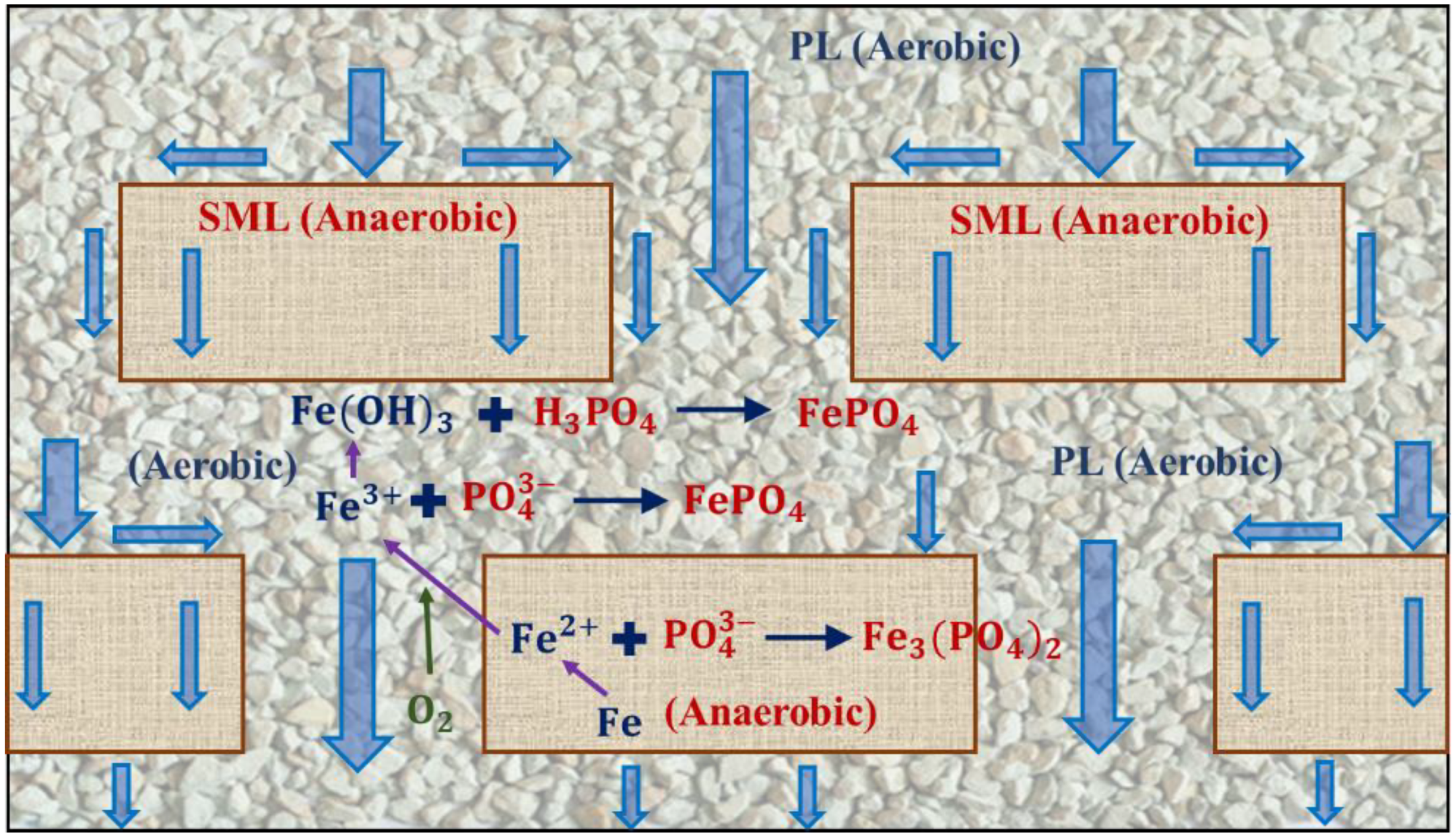

Figure 15. Iron ions and phosphate reaction process in the mixed filter material layer.
Figure 15. Iron ions and phosphate reaction process in the mixed filter material layer.
Water 14 00396 g015
Table 1. The concentration and removal percentage of SS during the 2-year experiment.
Table 1. The concentration and removal percentage of SS during the 2-year experiment.
DateConcentration (mg/L)Removal Percentage (%)
Ci 1Co,TBC 2Co,EBC 3TBCEBC
May 2019517108680
June 201934458885
July 201961579289
August 201944479184
September 201932448888
October 201931488774
November 2019210410081
December 2019224082100
January 202019248979
February 20207542943
March 2020180210089
April 2020180210089
May 202042528895
June 2020771088790
July 202083849095
August 2020691188488
September 2020668128882
October 2020541068189
November 202048489283
December 202032847588
January 202129548386
February 202121826290
March 202137488978
April 202119447979
Average39558583
T-test value 47.5
1 Inflow concentration. 2 Outflow concentration of TBC. 3 Outflow concentration of EBC.
Table 2. The concentration and removal percentage of COD during the 2-year experiment.
Table 2. The concentration and removal percentage of COD during the 2-year experiment.
DateConcentration (mg/L)Removal Percentage (%)
Ci 1Co,TBC 2Co,EBC 3TBCEBC
May 20195538283149
June 20196644453332
July 20196342353344
August 20194836292540
September 20193521254029
October 20194728224053
November 20194221245043
December 20193719104973
January 20203320143958
February 2020251285268
March 2020251594064
April 20203617125367
May 20204218115774
June 20205421106181
July 2020632486287
August 2020401596378
September 20203618105072
October 2020381486379
November 20204921115778
December 20204718126274
January 2021501796682
February 20216120106784
March 20214716116677
April 20213912136967
Average4522165165
T-test value 0.2
1 Inflow concentration. 2 Outflow concentration of TBC. 3 Outflow concentration of EBC.
Table 3. The concentration and removal percentage of NH4+-N during the 2-year experiment.
Table 3. The concentration and removal percentage of NH4+-N during the 2-year experiment.
DateConcentration (mg/L)Removal Percentage (%)
Ci 1Co,TBC 2Co,EBC 3TBCEBC
May 20191.610.170.159090
June 20190.870.220.127586
July 20191.430.480.426670
August 20190.340.060.118472
September 20190.120.040.066952
October 20190.440.100.097879
November 20190.710.090.078891
December 20190.100.050.034869
January 20200.120.030.037775
February 20200.060.020.056817
March 20200.270.030.089071
April 20200.390.070.108174
May 20200.710.140.178176
June 20200.930.180.198179
July 20201.630.130.129292
August 20201.400.190.118792
September 20202.490.540.357886
October 20201.830.270.188590
November 20200.620.110.168275
December 20200.910.080.129187
January 20211.080.170.148487
February 20210.760.100.108787
March 20210.840.090.098989
April 20211.390.100.109393
Average0.880.140.138178
T-test value 26
1 Inflow concentration. 2 Outflow concentration of TBC. 3 Outflow concentration of EBC.
Table 4. The concentration and removal percentage of TN during the 2-year experiment.
Table 4. The concentration and removal percentage of TN during the 2-year experiment.
DateConcentration (mg/L)Removal Percentage (%)
Ci 1Co,TBC 2Co,EBC 3TBCEBC
May 20193.991.981.245069
June 20192.801.941.503146
July 20194.353.842.901233
August 20191.901.661.191337
September 20191.540.410.687356
October 20192.010.790.486176
November 20191.881.371.012746
December 20191.970.970.265187
January 20201.680.540.246886
February 20200.970.420.385761
March 20201.880.530.367281
April 20201.240.840.463263
May 20203.181.270.896072
June 20202.871.080.506283
July 20202.680.810.467083
August 20203.741.670.515586
September 20203.040.940.426986
October 20202.431.070.485680
November 20201.660.960.524269
December 20201.760.890.344981
January 20210.980.430.255674
February 20211.161.020.871225
March 20211.840.830.615567
April 20212.030.830.595971
Average2.231.130.715067
T-test value 0.1
1 Inflow concentration. 2 Outflow concentration of TBC. 3 Outflow concentration of EBC.
Table 5. The concentration and removal percentage of TP during the 2-year experiment.
Table 5. The concentration and removal percentage of TP during the 2-year experiment.
DateConcentration (mg/L)Removal Percentage (%)
Ci 1Co,TBC 2Co,EBC 3TBCEBC
May 20190.560.270.055291
June 20190.810.530.053594
July 20190.670.320.075290
August 20190.910.260.077192
September 20190.800.370.055494
October 20190.940.270.077193
November 20190.720.420.094288
December 20190.680.330.055193
January 20200.510.290.044392
February 20200.840.400.025298
March 20200.890.320.026498
April 20200.700.410.044198
May 20200.990.480.055295
June 20201.030.520.075093
July 20200.630.310.065190
August 20200.740.370.105086
September 20200.940.420.055595
October 20200.830.310.086390
November 20200.560.330.054191
December 20200.670.290.055793
January 20210.580.340.054191
February 20210.600.410.073288
March 20210.740.330.105586
April 20210.930.380.095990
Average0.760.360.065192
T-test value <0.1
1 Inflow concentration. 2 Outflow concentration of TBC. 3 Outflow concentration of EBC.
Table 6. The concentration and removal percentage of PO43− during the 2-year experiment.
Table 6. The concentration and removal percentage of PO43− during the 2-year experiment.
DateConcentration (mg/L)Removal Percentage (%)
Ci 1Co,TBC 2Co,EBC 3TBCEBC
May 20190.670.380.054393
June 20190.670.340.054993
July 20190.720.410.074390
August 20190.720.430.073990
September 20190.750.450.054193
October 20190.710.400.074390
November 20190.620.310.055092
December 20190.550.250.045593
January 20200.400.210.064885
February 20200.740.420.034396
March 20200.670.280.025897
April 20200.590.310.044793
May 20200.720.370.064992
June 20200.750.420.074491
July 20200.540.270.055091
August 20200.590.310.084786
September 20200.740.310.055893
October 20200.710.260.086389
November 20200.410.230.054488
December 20200.510.220.065788
January 20210.410.310.052487
February 20210.440.240.074584
March 20210.590.220.086386
April 20210.790.280.096589
Average0.630.320.064990
T-test value <0.1
1 Inflow concentration. 2 Outflow concentration of TBC. 3 Outflow concentration of EBC.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ho, C.-C.; Lin, Y.-X. Pollutant Removal Efficiency of a Bioretention Cell with Enhanced Dephosphorization. Water 2022, 14, 396. https://doi.org/10.3390/w14030396

AMA Style

Ho C-C, Lin Y-X. Pollutant Removal Efficiency of a Bioretention Cell with Enhanced Dephosphorization. Water. 2022; 14(3):396. https://doi.org/10.3390/w14030396

Chicago/Turabian Style

Ho, Chia-Chun, and Yi-Xuan Lin. 2022. "Pollutant Removal Efficiency of a Bioretention Cell with Enhanced Dephosphorization" Water 14, no. 3: 396. https://doi.org/10.3390/w14030396

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
