1. Introduction
The Damariscotta River Estuary is home to over 40 hectares of aquaculture, primarily American oyster, along with blue mussel, scallops, and seaweed [
1]. The river produces the majority of Maine’s oysters, between one million and three million units per year, and has a financial impact of millions of dollars each year [
2]. The Damariscotta River features archaeological evidence of the negative impacts of climate change on shellfish. Oyster middens are mounds of human-disposed oyster shells, which line the edges of the river near Newcastle and Damariscotta and were formed from 200 BC to 1000 AD [
3]. At the time the middens were discovered, there was an absence of oysters in the region. Increasing salinities and corresponding predators (oyster drill) and diseases (dermo and vibrio) were introduced to the system via climate change effects, leading to the extinction of the local oyster population, which has since rebounded. The Gulf of Maine waters are warming faster than 99% of the world’s ocean [
4], which can impact water quality and wave climates [
5]. Due to the direct and indirect effects of climate change on the aquaculture industry, there is considerable economic interest in understanding how hydrodynamics influence various parameters relevant to oyster growth, including turbidity, pH, salinity, and chlorophyll concentration.
Previous research into the Damariscotta estuary explored the unique features of the headland located north of a constricted sill at Glidden Ledges, and its effects on tidal dynamics [
6]. A gyre forms upstream of the headland during the flood phase, which enhances inland flow over the eastern channel and is countered by seaward flow over the western shoals. This gyre results in opposing lateral shear structures in velocity that flow over each other, thus creating a vertical shear structure. Because of these secondary flows, tidal and intratidal patterns of lateral advection and stress divergence emerge. Lateral advection effects tend to dominate the dynamics near the surface, and bottom friction effect forces dominate at the bottom during neap tide and throughout the water column during spring tide. Recent research has also shown that floating oyster farms in the upper reach of the estuary induce surface friction effects that reduce flow through the region, influencing fluid momentum across the estuary [
7].
Long-term transport of particles relevant to oyster aquaculture in tidally-driven converging estuaries is dominated by the tidal characteristics of the system. As the tide interacts with the surrounding bathymetry, several nonlinear forcing mechanisms such as advection and bottom friction interact with the dominant tide to create irregular high frequency overtides [
8]. These barotropic overtides tend to be an order of magnitude smaller in water level amplitude than the dominant tidal harmonics, but their along-channel velocities can be quite significant and therefore impact long-term material transport [
9]. These effects are compounded by constrictions which may either amplify or attenuate tidal energy flux depending on the shape of the constrictions and the composition of the river bed [
10].
Previous research into the effects of tidal asymmetry, including flood–ebb difference in tidal amplitude and in duration on water quality has mostly pertained to sediment transport and salinity. Seasonal variation in semidiurnal and quarter-diurnal (M2 and M4) tidal phases can result in similar variation in material transport, and sediment flux may vary by 10% to 50% per year [
11]. Sediment flux may also be influenced by tidal reflection off dams or constrictions. In estuaries with low river flows, suspended particulate matter originates from resuspension by tidal shear stresses acting on the riverbed [
12].
Dissipation of kinetic energy plays an important role in the distribution of sediment in the estuary. Turbulent kinetic energy (TKE) production can be estimated as a product of the Reynolds stresses and the velocity shear [
13]. According to Simpson et al. [
14], TKE production is cubically related to the depth-mean tidal current speed and oscillates at double the frequency of the dominant tidal harmonic; therefore, semidiurnal tidal frequencies result in quarter-diurnal dissipation frequencies.
It has long been established that the patterns of tidal and subtidal flow in an estuary contribute to regions of estuary turbidity maxima, which can store up to a year of an estuary’s supply of sediment [
15]. Phase differences between current velocity and suspended sediment caused by flood–ebb tidal velocity asymmetry can contribute to the residual fluxes of sediment [
16]. Reynolds stresses in the flow alongside vertical velocity shear give rise to elevated rates of production of turbulent kinetic energy, which causes sediment to be lifted from the estuarine bottom [
17]. Tidal patterns of sediment are correlated with tidal patterns in other water quality metrics, as sediment porewater has lower pH and oxygen than fresh river water [
18]. In addition, since sediment inhibits sunlight and the development of phytoplankton, a link can be drawn between turbulence and chlorophyll measurements [
19].
Research into correlations between tidal harmonics and other water quality parameters has been limited. In a coupled hydrodynamic and biochemical model, it was shown that phytoplankton bloom rates are dependent on the relative time scales of plankton growth and advection [
20]. Blooms tend to flourish when freshwater discharge rates are low; however, some advection is necessary to ensure delivery of nutrients. Excess flow viscosity, which is inherently linked to dissipation, results in the production of sea foam which enhances chlorophyll production [
19]. This may imply that dissipation and chlorophyll concentration operate on the same harmonic scale but out of phase.
Although there is considerable research into how tidal harmonics affect tidal asymmetry and thus material transport, there has been little research into how tidal patterns affect water quality on temporal scales. Metrics such as turbidity, salinity, and chlorophyll are generally researched through a spatial lens, or a long-term temporal lens, in terms of transport distances and subtidal flow. For example, longer estuaries tend to have greater concentrations of suspended particulate matter than shorter estuaries, due to their longer flushing times [
21]. Longer flushing times may contribute to increased development of plankton and bacteria, as there is more opportunity for nutrients to be absorbed [
22]. Climate change may play a role in algae production in estuaries, as irregular cycles of rainfall during the wet season followed by drought during the dry season can cause a cycle of increased inflow of nutrients followed by long residence times [
23].
It is well known that waste products inherent in finfish aquaculture contribute to algae blooms on a variety of spatial and temporal scales [
24]. However, a recent study concluded that there is no correlation between oyster aquaculture and the biomass of
Zostera marina, but they may have an effect on the biome of organizations that live on seagrass [
25]. In addition, the management and maintenance of aquaculture structures may significantly increase sediment concentrations within the water column [
26].
This project asks how the geometry of a tidally driven estuary affects patterns of asymmetries and irregularities in tidal flow. The objectives of this work are to characterize the tidal behavior of this system, demonstrate how tides influence water quality, and describe their spatial variability. In a complex estuary like the Damariscotta River, an improved understanding of intratidal patterns may help to inform aquaculture siting, long-term trends, and the potential effects of climate change on aquaculture viability. First, the paper discusses the tidal dynamics of the estuary and describes how as the estuary converges, the diurnal and semidiurnal amplitudes remain steady, while the overtidal constituents are amplified. Next, transect data at three sites are utilized to explain how the varying bathymetry along the estuary results in tidal and quarter-diurnal patterns of TKE dissipation, and how dissipation is linked to increased turbidity primarily if the region of elevated dissipation extends to the estuarine bottom. The inverse link between turbidity and chlorophyll is also analyzed. Finally, the paper discusses the direct temporal correlation between the tidal harmonics of along-channel current velocity and the related harmonics of turbidity, salinity, chlorophyll, and pH.
Study Area
The Damariscotta River is a mesotidal glacially carved estuary in midcoast Maine with very little freshwater input (
Figure 1). The estuary originates in Damariscotta Lake near the town of Newcastle and flows 30 km southward, draining into the Gulf of Maine (
Figure 1). The estuary is generally convergent, with a width of 975 m at the mouth and 45 m at the head. The Damariscotta river is relatively short (wave number × estuary length
) and semidiurnally dominant (form factor = (diurnal amplitudes)/(semidiurnal amplitudes) = 0.142), with low discharge rates. Freshwater input is governed by the operation of Damariscotta Lake Dam, with a discharge ranging from 0.1 to 12
/s in 2016, with a wet season in the spring and a dry season in the summer and fall. Tidal ranges vary from 2.2 to 3.6 m from neap and spring tide at the mouth, respectively, and average annual precipitation is ∼1200 mm of rainfall and ∼1750 mm of snowfall [
27]. Monthly precipitation ranges from ∼80 mm per month in the dry season to ∼120 mm per month in the wet season. Snowfall typically begins in late November and ends in early April, with the highest rates of ∼350 mm per month in January and February.
Multibeam bathymetry data shows that bedrock constrictions and sill morphology resulted in uneven distributions of sediment throughout the Holocene epoch [
28]. Shipp et al. [
29] identified eight sills or constrictions that define seven basins along with Salt Bay, which lies at the end of the estuary, but there are three significant constrictions that divide Damariscotta River geographically and dynamically into four primary regions. Fort Island, located 7.1 km landward of the coast, occupies about 75% of the cross-sectional area and is considered by [
30] to be the official starting point of the estuary. Mid range in Damariscotta river lies Clark Cove, a right-angle bend in the river that is home to the Darling Marine Center and several aquaculture farms. Finally, Glidden Ledges is a 200 m wide constriction in the northern reach, which is characterized by large quantities of stored sediment and intertidal flats bounding a thalweg (
Figure 1). Although the most sediment is stored in the northern region, the thickest sediment layers lie in isolated deposits in the middle and southern regions; however, around the Clark Cove constriction, much of the riverbed is exposed bedrock. The region of Damariscotta River between Fort Island and Clark Cove, the region between Clark Cove and Glidden Ledges, and the region north of Glidden Ledges are referred to as the southern, central, and northern reaches, respectively. Buoy and satellite derived data of chlorophyll-a, water temperature, and turbidity demonstrate that the northern reaches of the estuary are especially suitable for oyster aquaculture [
31]. The high concentration of chlorophyll-a in the northern reaches is due in part to the high degree of light penetration in the area, reaching down to the benthic layer [
32].
4. Discussion
This paper illustrates how irregularities in estuarine channel geometry, such as curvature and constrictions, contribute to tidal nonlinearity in water quality in the middle and upper reaches of a tidally driven estuary. Specifically, channel complexities contribute to intratidal harmonics of water elevation and current velocity, which in turn result in flood–ebb asymmetries. These asymmetries likely enhance net surface transport of suspended particulates, which are connected to all metrics of water quality relevant to shellfish aquaculture.
4.1. Upstream Tidal Evolution
Landward from the coast to the city of Newcastle, the diurnal constituent of water elevation declined slightly, and the semidiurnal constituent amplified slightly. On the other hand, the overtide harmonics, although small relative to the semidiurnal harmonic, were amplified by two- or threefold up the estuary. The exception was at Fort Island where the D4 overtide amplitude increased to 2.2% of D2, then dropped down to 1% of D2 at Clark Cove. The D2 tide was standing, although it did exhibit progressive characteristics typical in short converging estuaries, as the tidal propagation velocity was proportional to the e-folding length [
37]. The tide advanced by
throughout the estuary, with the fastest increase in phase through the Fort Island constriction. In an idealized prismatic channel, one might expect water level amplitudes and current velocity amplitudes to be directly correlated, and for most harmonics, this was somewhat the case. The one exception was the quarter-diurnal harmonic, of which the current velocity but not the water level amplitude was diminished near Clark Cove. In general, overtides are amplified where the river is narrowest [
38]. The high amplification of D4 between South Bristol and Fort Island can be explained by the constrictions around the island, which may enhance overtides via wave reflection [
39] and bed stress [
40].
The D4 overtide attenuated in the region between Clark Cove and Briar Cove and amplified as it was forced through the Glidden Ledges constriction near Briar Cove, reaching a maximum amplitude of 2.9% of D2 at New Castle. Since the D4 overtides are caused by a variety of forces, including bottom friction, depth variational friction, and, to a lesser extent, advection and nonlinear continuity [
41], the influence of constrictions on this constituent are varied and often unintuitive [
6]. On the other hand, the D6 overtide amplitude, as it was solely caused by bottom friction, was inversely proportional to the estuary depth. Similarly to D4, there was a strong amplification of D6 through Briar Cove, and it reaches a maximum relative amplitude of 2.3% of D2 at Newcastle. This implies that the overtide amplitudes were amplified by the shape of the converging or constricted channels.
The relative phase lag between the D2, D4, and D6 tides can be used to determine flood/ebb dominance along the estuary, meaning that either flood or ebb flow is of a higher velocity than the other, although the dominant phase is of shorter duration. North of Clark Cove, the phase lag between D2 and D4 was about
, which suggests ebb dominance by the definition proposed by Friedrichs and Aubrey [
42]. By averaging over flood and ebb cycles, the flood phase tended to be of longer duration than the ebb phase, up to 25 min longer near Newcastle, but the ebb currents were on average about 12% stronger. This means that over sufficiently long periods of time, any particulates in the estuary will be flushed out through the river mouth. The mean amplitude of flood currents near Hog Island, according to the LOBO buoy, was 0.233 m/s, compared to ebb currents with a mean amplitude of 0.261 m/s. Similarly, at Clark Cove, the mean amplitude of flood currents was 0.119 m/s, whereas ebb currents had a mean amplitude of 0.129 m/s. The phase lag between D2 and D6 north of Clark Cove was about 300
, and according to Blanton et al. [
43], the D6 overtide had a distortion effect on the tidal cycle, contributing further to ebb tidal dominance based on the phase angle
.
4.2. Dissipation and Water Quality
Throughout the estuary, TKE dissipation () tended to be elevated during peak flood and peak ebb. This implies that manifests as a quarter-diurnal harmonic, as it oscillates twice during a semidiurnal tidal cycle. However, also tended to be larger either in the flood or in the ebb phase, which implies that intratidal asymmetry presents itself as a semidiurnal harmonic. As turbidity is linked to at the surface, the harmonics in serve as an explanation for why the D4 and D2 harmonics of turbidity were on the same order of magnitude, even though D4 amplitudes in tidal elevation and surface velocity were a fraction of the D2 amplitudes. Chlorophyll concentration had similar harmonics but oscillates out of phase with turbidity. Specifically, chlorophyll tended to be elevated during the slack periods when turbidity was lowest. Chlorophyll also tended to be flood–ebb symmetric, except in the northern reach during the wet season.
The estuary had a vertically sheared structure at the coast, as higher salinity water from the Gulf of Maine flows inland below the surface and fresh water flows seaward at the surface. The vertical structure persisted at the Clark Cove bend and was most apparent during peak ebb and flood. During neap tide, was elevated at the surface during the slack period between flood and ebb and throughout the water column during the slack period between ebb and flood.
Elevated levels of
correlated with similarly elevated levels of turbidity only if the region of high
extended to the bottom, where turbulence and shear stresses could enhance the suspension of sediment. Increased stratification during flood phase limits the extent of upward extent of sediment suspension, contributing to reduced turbidity at the surface [
44]. Therefore, elevated turbidity in the slack period between flood and ebb was observed at Clark Cove only in spring tide, when
was increased throughout the entire water column. Chlorophyll concentrations were by and large negligible near Clark Cove, although, as expected, they were somewhat higher at the surface than at the bottom.
Further upstream, at the Glidden Ledges constriction, the flow dynamics were heavily influenced by the 600 m constriction, in which flow was forced through the constriction and into the eastern channel during flood phase [
6]. In this region, elevated
was observed throughout the water column but only in the flood phase. This time period of high
correlated with elevated turbidity as sediment was suspended, and with reduced chlorophyll concentration as sunlight was blocked. During the ebb phase, current velocities were extremely diminished below the surface. This encourages the continued suspension of sediment, which was why turbidity was observed at the surface in this phase.
In the northern reach, near Hog Island, the structure becomes a mix of lateral and vertical shear as the distorting effects of Glidden Ledges were somewhat diminished. Here, both turbidity and chlorophyll levels were significantly higher than any other region of the estuary, and this was the case throughout the water column and in both the flood and ebb phases. The higher turbidity levels were likely due to the high volume of sediment storage, as well as the shallow bathymetry that allowed surface-level shear patterns to extend to the estuarine bottom. Chlorophyll was elevated because the temperature here was on average 2 C higher than the middle and outer estuary, which makes the region especially viable for aquaculture. TKE dissipation was highest at the bottom throughout the entire tidal cycle, and throughout the water column during the flood phase.
At both Clark Cove and Hog Island, the D4 constituent of turbidity was on the same magnitude of spectral power as the D2 constituent, at least at the surface (

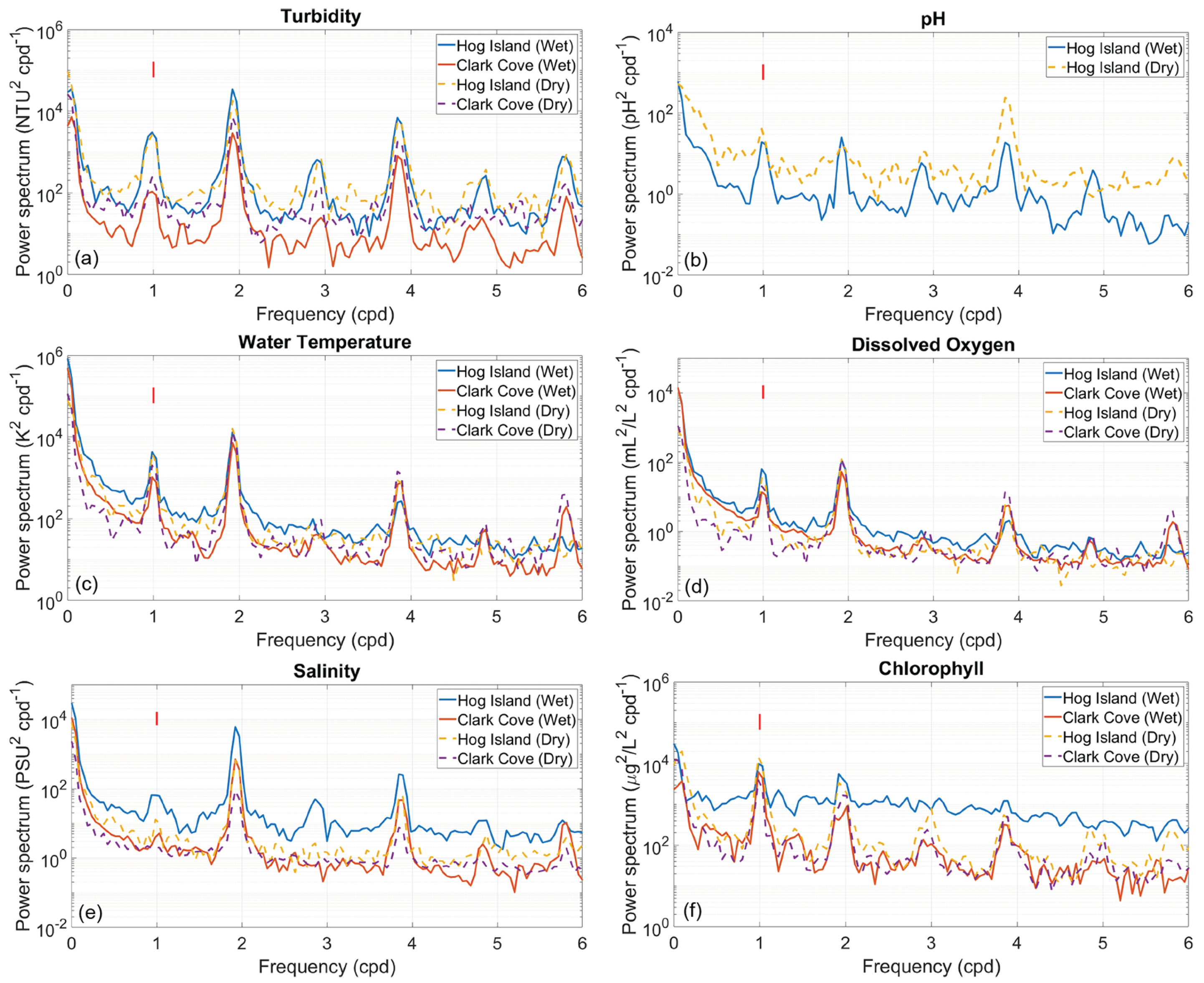

Figure 8a). This is because turbidity tended to elevate during both the flood and ebb phase, resulting in four oscillations per day. During the dry season, this D4 harmonic in turbidity was observed throughout the water column, while during the wet season, it was primarily observed below the surface (not shown). The monthly tidal constituents were roughly equal in magnitude to the D2 and D4 constituents, which is common in tidally-driven estuaries [
12]. Chlorophyll concentration oscillates primarily on a solar diurnal basis, as sunlight is necessary for plankton productivity. Higher frequency oscillations do occur in chlorophyll, but these were not due to the tides. They were due to intratidal interactions of the daily cycle of light exposure with vertical stratification in chlorophyll concentration [
45].
4.3. Harmonics of Water Quality
Speaking more generally, intratidal asymmetry in along-channel current velocity tended to have an outsized influence in intratidal asymmetry on water quality metrics related to particulate concentration, especially due to their links to TKE dissipation. This was especially true for turbidity, which we used as a proxy for suspended sediment, and for chlorophyll concentration. Elevated turbidity, as measured by the surface buoys near Clark Cove and Hog Island, was heavily correlated with near the surface. Just as Glidden Ledges divided the estuary between a vertical and lateral shear structure, it also divided the estuary as to whether at the surface was higher during the ebb or flood phase. South of Glidden Ledges, the estuary behaved mainly as a converging channel, in which high salinity water flowed through the bottom layer of the estuary during flood phase, rose to the surface during the slack period, and was transported out during ebb. North of Glidden Ledges, surface was higher during flood as water was forced through the constriction and into the channel. Salinity was higher during spring tide than neap tide, as salt water was able to travel a further distance inward from the Gulf of Maine. However, and turbidity were higher in flood phase during neap tide because the lower velocity waters allow for greater suspension of sediment. Because of the high quantity of stored sediment and reflection off the Damariscotta Lake Dam, monthly and semidiurnal amplitudes of turbidity were higher in the wet season than the dry season in the northern reach.
The tidal composition of salinity was comparable to that of the along-channel current velocity. Salinity tended to be elevated when strong flood velocities transport saltier water landward from the Gulf Maine. Water temperature was highest during ebb, as shallower, upstream water that had been warmed by the sun was being advected seaward past the LOBO buoy and had a diurnal amplitude of about 4
C. Dissolved oxygen, on the other hand, tended to oscillate alongside with flood tide, as the surface tended to be more oxygen-rich. For both of these metrics, the relative power of the D4 and D6 components was the same as that of the D2 constituent. Finally, pH was unusual in that the D4 component was significantly more influential than the D2 component, likely due to intratidal interactions between tidal cycles of turbidity and the lower pH of sediment porewater. Since along-channel flow harmonics were correlated with TKE dissipation harmonics at double the frequency [
14], explaining tidal relationships between TKE dissipation and water quality metrics helps to explain the relatively strong intratidal components of turbidity, pH, water temperature, and dissolved oxygen.
The harmonics of pH near Hog Island were especially unusual in that the D4 component was the primary driver of variability, especially in the dry season; however, no clear pattern of flood–ebb asymmetry was apparent. One possible explanation is that peak flood and ebb velocities interacting with the bottom driven by D4 overtides mobilize sediment into the water column. On a quarter-diurnal time scale, turbidity, the best indicator of suspended sediment, was in phase with along-channel currents, and the water was most turbid when currents were highest. Sediment porewater had lower pH and oxygen than regular river water [
18], and sediment blocks sunlight, which affects temperature and chlorophyll levels.
The research presented in this paper demonstrates that frictional forces imposed by an irregular bathymetry influence tidal harmonics with a disproportionately significant effect on the analogous harmonics of turbidity, salinity, and pH. As the depth variation and bottom friction nonlinear forcing mechanisms were affected by flow rates and estuarine depth, their affects may be amplified or diminished by rising sea levels and higher precipitation. The northern region is exceptionally viable for oyster aquaculture because its lateral shear patterns assist in the retention of suspended nutrient particles. A possible consequence of climate change is that reduced friction may decrease exchange rates and transport distances. The upper estuary may witness higher turbidity and oxygen levels, and lower salinity and acidity, due to increased flushing times. However, should Glidden Ledges become overflooded by frequent storm events, materials may flush out of the estuary more rapidly. This would be a detriment to oyster aquaculture, and more research is necessary to determine the effects of climate change on particle retention in the northern region.
5. Conclusions
The irregular, converging bathymetry of the Damariscotta River Estuary significantly affects its tidal dynamics, including its tidal amplitudes, shear structure, and material transport rates. Each region of the estuary has its own unique nonlinear forcing dynamics that affect rates of dissipation and play disproportionately large roles in the health of the estuary. For example, multiple constrictions throughout the estuary cause along-channel shear flow to evolve from a vertical to a lateral to a diagonal structure, and the overtide components of water elevation steadily amplify upstream. These overtides, along with the shear structure, result in enhanced harmonic patterns of sediment suspension and TKE dissipation. Enhanced TKE dissipation causes enhanced turbidity if the region of high dissipation extends to the bottom, and tidal cycles in turbidity can be linked to opposing tidal cycles in chlorophyll concentration. Most importantly, the lateral shear structure in the upper estuary also assists in particle retention, which aids the region in being a particularly suitable site for shellfish aquaculture.
The dynamics of the estuary and its effects on water quality metrics are important to understanding both the key sites for aquaculture and the effects of climate change on aquaculture, and with additional flow data, we can shed more light on the behavior of fluid and material transport in other glacially carved estuaries. Numerical models that attempt to predict ideal sites for establishing aquaculture farms would be advised to consider patterns of irregular bathymetry in their framework.
