When A. brasilense CBG497 was subjected to replicon analysis by the plasmid Eckhardt method, five plasmids could be evidenced [18]. Pulse-field gel electrophoresis analysis confirmed the presence of five plasmids, with estimated sizes of 1.8 Mbp, 0.73Mbp, 0.65 Mbp, 0.60 Mbp and 0.15 Mbp (data not shown). The whole genome sequence of A. brasilense CBG497 was obtained by the 454 pyrosequencing technology and after assembly a total of 156 contigs was obtained and clustered into six scaffolds corresponding to the six expected replicons. It comprises a chromosome of 2.9 Mbp and plasmids of 1.6 Mbp, 0.731 Mbp, 0.488 Mbp, 0.606 Mbp and 0.149 Mbp that correspond respectively to p1, p2, p3, p4 and p6 of A. brasilense Sp245. Thus, the same nomenclature as the one used for A. brasilense Sp245 was applied to designate these plasmids. According to PFGE data, only the sequence of p3 seems incomplete (estimated size of 650 kb versus a sequenced size of 488 kb); consequently, genome coverage is estimated at 97%–98%.

General genomic features of A. brasilense CBG497 and of the three other Azospirillum strains used in this study are presented in Table 1. Genome size ranges from 6.5 Mbp (A. brasilense CBG497) to 7.6 Mbp (Azospirillum sp. B510). All strains are composed of seven replicons except A. brasilense CBG497 which contains only six. For all strains, only the biggest replicon has a typical chromosomal OriC replication origin whereas all the other replicons have repABC/parAB plasmid-type replication systems. Some of the latters have been classified as chromids [12,13]; p1, p2 and p4 of A. brasilense CBG497 also fulfill the chromid criteria as they contain respectively 40, 6 and 9 of the essential core genes that are found on the chromosome in other species [13,18]. The smallest replicon, p6, is a typical plasmid for all strains studied and displays the lowest of the averaged GC content, which suggests an external origin by HGT; such an observation was previously made for Rhizobium etli and Rhizobium leguminosarum [19].

Chromids and plasmids comprise the largest proportion of the total genome, with 55.2% for A. brasilense CBG497, 56.4% for A. lipoferum 4B and Azospirillum sp. B510, and 59.8% for A. brasilense Sp245. So, in addition to possessing the largest number of chromids among all prokaryotic genomes sequenced to date, Azospirillum has the biggest proportion of its genome on non-chromosomal replicons.

Before undertaking comparative genomic analysis, the relatedness between Azospirillum sp. B510 and the other Azospirillum strains used in this study was clarified. Azospirillum sp. B510 was previously shown to be related to the species A.lipoferum to which it was originally affiliated [20]. Subsequent studies revealed that it was closer to the species A. oryzae than to the species A. lipoferum [10]. Since new species of Azospirillum have recently been described, a 16S rRNA phylogenetic tree was constructed, and this confirmed that strain B510 was more closely related to the species A. oryzae and A. zeae (Supplementary Figure S1). Recently, the average nucleotide identity was determined between A. lipoferum 4B and Azospirillum sp. B510, and was found to be 91% [12] supporting the fact that these two strains belong to different species [21].

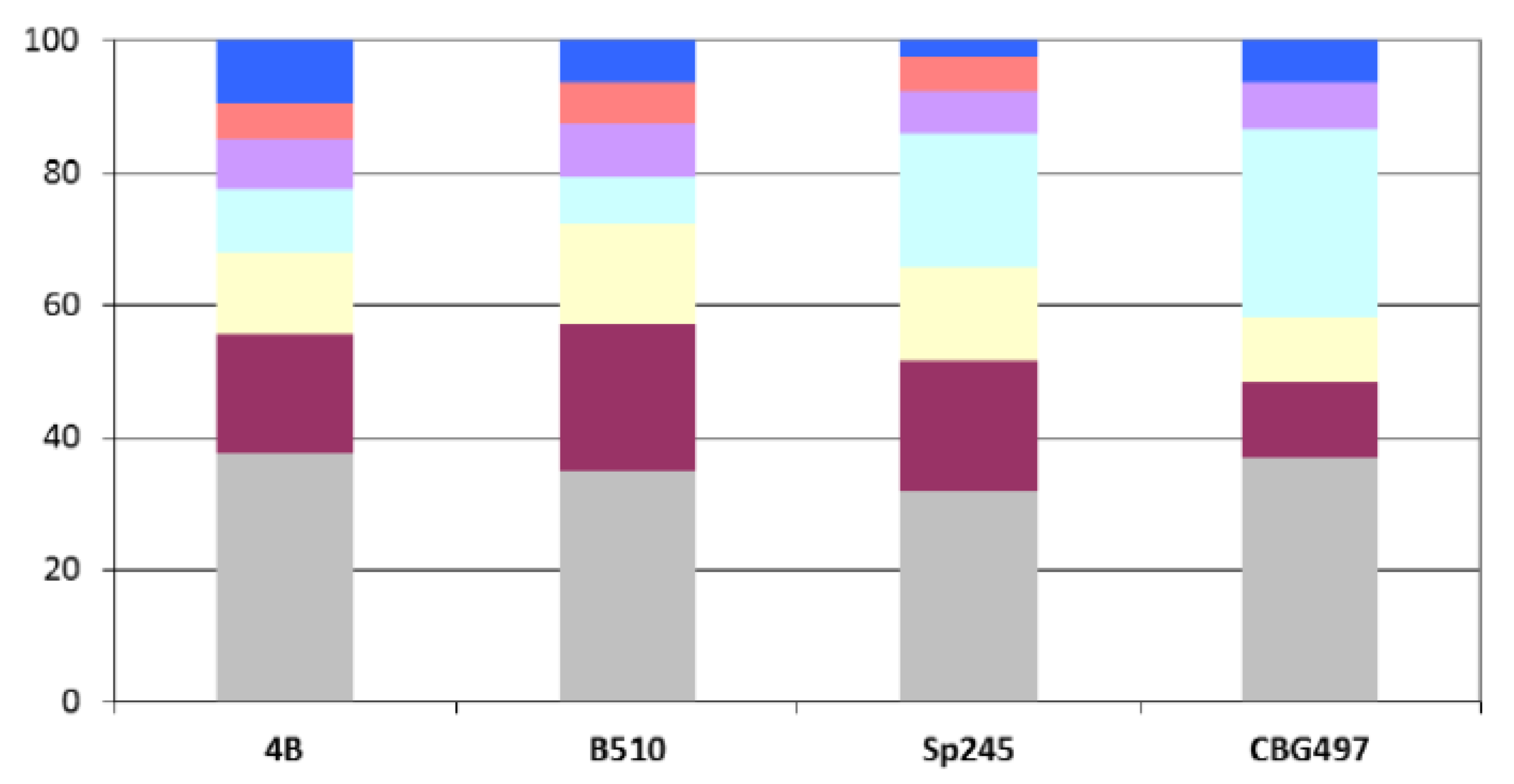

A first comparative analysis was undertaken in order to classify proteins into families and hence to evaluate the genomic relatedness among Azospirillum strains in terms of protein coding content. As the draft sequence of A. amazonense Y2 is composed of 1,617 contigs with only 3,319 predicted CDS, far fewer than what is expected for its 7.3 Mbp genome-size, it was excluded for the comparative analysis. The predicted proteins of the four remaining Azospirillum genome sequences (a total of 27,400 proteins) were clustered using the MCL algorithm [22]. About 47% of the protein families identified (2,600 out of 5,575) are shared by the four strains (Figure 1); the two A. brasilense strains share 74% of the protein families (4,136 out of 5,575) whereas the A. lipoferum and Azospirillum sp. pair share 66% of the protein families (3,667 out of 5,575). Other combinations share between 51.2% and 54.6% of the protein families; these results are in accordance with A. lipoferum 4B and Azospirillum sp. B510 belonging to different species but to species more closely related than the A. brasilense and A. lipoferum species. A number of protein families are exclusive to individual genomes (Figure 1). As for proteins that do not appear in any protein families, their number is quite variable from one strain to another (949 for A. brasilense CBG497; 2,311 for A. brasilense Sp245; 1,203 for A. lipoferum 4B; 1,768 for Azospirillum sp. B510) and not surprisingly is in direct correlation with genome size. Repartition of these unique proteins among replicons shows that the biggest proportion (>60%) is located outside the chromosome, and that the repartition is variable from one strain to another (Figure 2). For each genome, the array of unique proteins contain approximately 20% of ancestral proteins, 30 to 43% of proteins previously classified as horizontally acquired and the rest being classified as unassigned [12]; this last category consists of proteins having no orthologues in the nr database of Genbank. Some of the unique proteins with assigned functions will be discussed in subsequent sections.

The most probable set of orthologous proteins shared by the four Azospirillum strains and by the phylogenetically related Rhodospirillum centenum SW strain was identified by a reciprocal best blast hit criterion. Rhodospirillum rubrum was not included in the analysis as this strain is more related to the genus Magnetospirillum than to Azospirillum (data not shown). A total of 1,151 proteins is shared by these five strains (Supplementary Table S1); this minimal gene set can be considered as the “ancestral” core genome (designated ANC-core) as it contains nearly exclusively (95%) proteins previously classified as ancestral using the scheme developed previously [12]. As expected, the ANC-core is largely encoded by the chromosome and by p1 (from 85% to 90%) in the four Azospirillum strains (Figure 3A).

The same procedure was applied to identify the Azospirillum core genome (designated AZO-core) i.e., the set of orthologous proteins shared by the four Azospirillum strains. A total of 2,328 proteins (including the 1,151 of the ANC-core) is shared by the four strains, representing between 30% to 38% of the total encoded proteins within a genome (Supplementary Table S1). A similar study undertaken on four other Rhodospirillaceae belonging to the Magnetospirillum genus estimated the magnetobacterial core genome at about 891 genes, which represents 18 to 24% of the total proteins encoded by those genomes [23]. Three different species of Streptococcus were shown to share around half of their genes [24].

The AZO-core set is also dominated by proteins of ancestral origin (74%) but contains more than a fifth (22%) of proteins encoded by horizontally acquired genes and a small proportion of proteins encoded by genes whose origin could not be resolved (4%). The repartition among replicons shows that AZO-core is mainly chromosomally-encoded (from 62% to 65% according to the strain considered) (Figure 3B). The non-chromosomal proportion of AZO-core is unevenly distributed among strains. There is a strong dominance of p1 in the A. brasilense strains (p1 > p4 > p2), which might be attributable to the size of this replicon; genes of the AZO-core that are p1-encoded in A. brasilense strains are found on the chromosome in the two other strains. For A. lipoferum and Azospirillum sp. strains, the non-chromosomal proportion of AZO-core is mainly found on p1, p3 and p5 (Figure 3B); orthologues of those p3- and p5-encoded genes are scattered on the different replicons bearing AZO-core genes in A. brasilense (i.e., chromosome, p1, p2 and p4) (data not shown). So, it appears that p3, p5 (absent in CBG497) and p6 are accessory replicons for A. brasilense, which is in accordance with their plasmid (versus chromid) status. For A. lipoferum 4B and Azospirillum sp. B510, the unique defined plasmid p6, appears to be a dispensable replicon. The p2 chromid of those two strains bears very few AZO-core genes, which is in accordance with the very small number of house-keeping genes previously identified on this replicon [12] and with the observation of p2 loss at high frequency in A. lipoferum 4B [14].

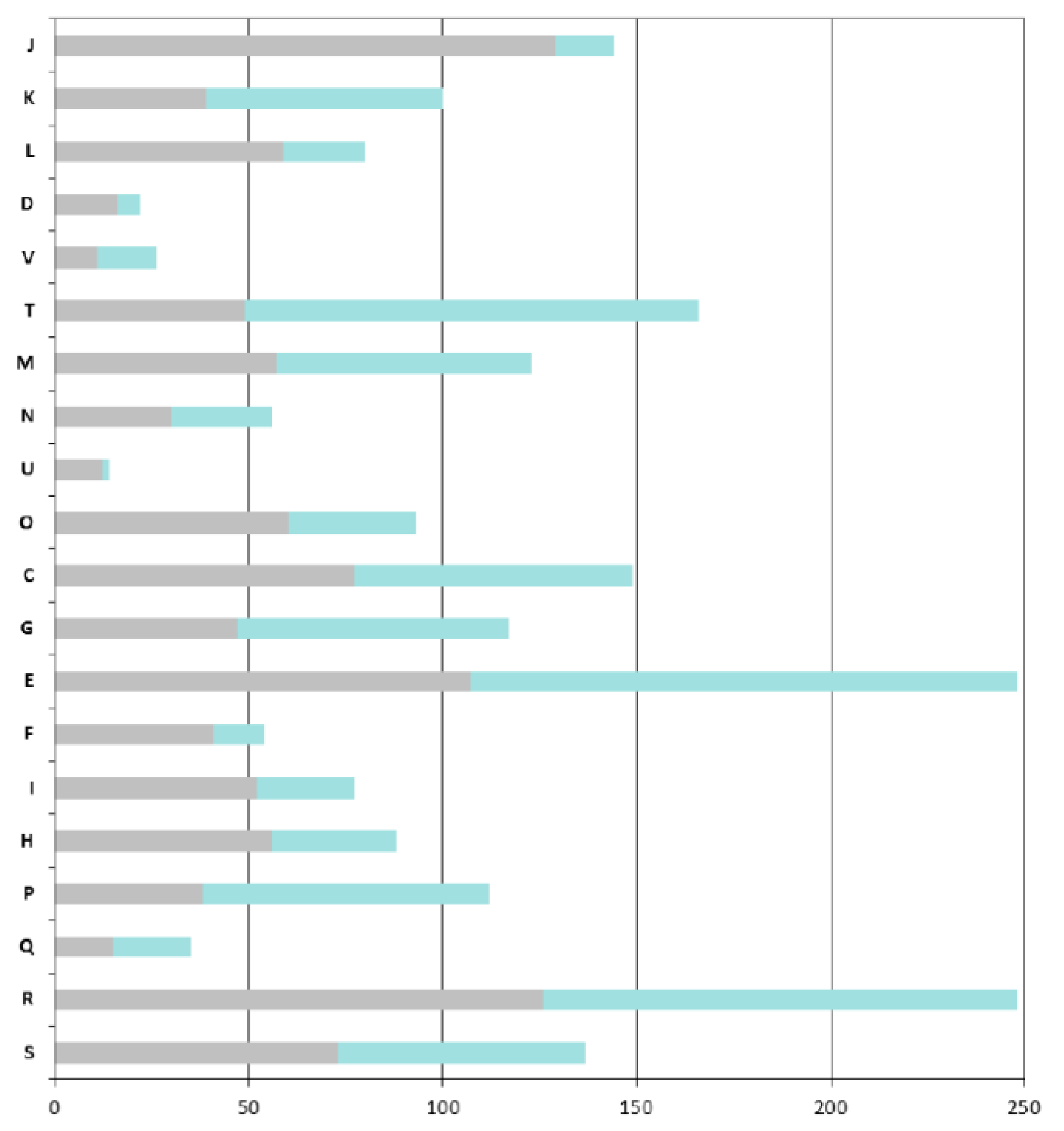

As expected, the COGs that are overrepresented in the ANC-core are mainly those involved in “house-keeping” functions: COGs J (Translation, ribosomal structure and biogenesis), C (Energy production and conversion), O (Post-translational modifications, protein turnover, chaperones), M (Cell wall / membrane / envelope biogenesis), E (Amino acid transport and metabolism) and H (Coenzyme transport and metabolism) (Figure 4).

A particular focus on genes found in the AZO-core that are absent in the ANC-core shows that Azospirillum is more adapted to life in fluctuating environments; indeed the AZO-core contains many additional genes involved in signal transduction (COG T, such as two-component histidine kinases, diguanylate cyclases, methyl-accepting chemotaxis receptors) and regulation of transcription (COG K); around 8% of the additional genes encode regulators of two-component systems, transcriptional regulators (mainly LysR, GntR and LuxR-FixJ families) and sigma factors (Figure 4). Adaptation to the rhizosphere is also illustrated by the enrichment of COG G and more importantly COG E, corresponding respectively to “carbohydrate transport and metabolism” and to “amino acid transport and metabolism” (this latter category also includes metabolism of organic acids, compounds that are abundant in the rhizosphere). Azospirillum has acquired numerous transport systems (representing 18% of the genes that are specific to the AZO-core); those transporters, mainly ABC transporters (scattered through COGs E, G, and I), can serve to internalize the wide diversity of organic and mineral compounds present in the rhizosphere (notably organic compounds exuded by plant roots) or to expel putative plant toxic compounds via MDR efflux pumps. Genes likely involved in bacterial surface properties are also enriched (COG M), such as those involved in the processing of complex sugars (LPS, EPS), increasing the ability of Azospirillum to attach to roots. Genes involved in direct plant-growth promotion do not belong to the AZO-core and seem to have been gained specifically after speciation events or by individual strains (see below). One exception is the PQQ operon, allowing the synthesis of the cofactor pyrroloquinoline quinone, a compound displaying plant growth-promoting properties [25].

The rates of evolution were evaluated for the components of the AZO-core; in order to perform this, the rates of nucleotide substitution per synonymous (Ks) and non-synonymous (Ka) were calculated for a subset of 1,807 AZO-core genes (for those being chromosomal in all strains and those being non-chromosomal in all strains). All the orthologous groups are under negative selection (Figure 5). Nevertheless many non-chromosomal genes show higher Ka and Ks values than the chromosomal genes, as illustrated by the slopes of the regression lines, suggesting that negative selection is less constrained for genes outside the chromosome. Such an observation was previously made with the Rhizobium core genome [19].

The focus was then put on genes with assigned functions that are restricted to a unique strain or to a subgroup of Azospirillum strains. A part of the corresponding genes falls into unique protein families described earlier (see section 2.2 and Figure 1) and have mainly been acquired by horizontal gene transfer. Their relevance to interaction with plants and adaptation to the rhizosphere is discussed.

Chemotaxis and motility are primordial for the initiation of root colonization in a wide range of rhizobacteria. The chemotaxis system integrates environmental signals into an appropriate bacterial response by using a dedicated signal transduction pathway. Whereas the AZO-core contains genes implicated in flagellum biosynthesis and genes belonging to the four common chemotaxis operons, specific genes confirm the presence of one and two additional operons respectively in A. lipoferum 4B and in Azospirillum sp. B510 [12]. Consequently, those two strains, and notably Azospirillum sp. B510, contain a significant number of unique genes encoding methyl-accepting proteins, able to detect various physicochemical cues and to relay information to the flagellar motors via a signal transduction cascade.

Interactions between plant and bacterial polysaccharides are thought to mediate bacterial aggregation and attachment processes [26,27]. The AZO-core contains genes whose involvement in biosynthesis of exopolysaccharide (EPS) and lipopolysaccharide (LPS) was demonstrated, such as noeL, noeJ and rmlD [7,28]; however, the presence of several unique genes suggests that EPS and LPS components might differ from one Azospirillum strain to another, a feature previously reported for LPS [7]. Only A. brasilense strains possess additional clusters of ancestral genes involved in EPS biosynthesis and/or transport (such as AZOBR_p310279, AZOBR_p330029, AZOBR_p60088, AZCBG_p60114, AZCBG_230032). Besides, A. brasilense genomes contain an additional gene involved in LPS biosynthesis and acquired by HGT (AZCBG_p190020; AZOBR_p210177). These genes might be relevant for the adaptation of azospirilla strains to their environment [29].

Azospirillum strains have gained different root-adhesion mechanisms. Indeed, TAD pili are exclusive to the A. brasilense species; these pili play an essential role in biofilm formation, colonization and pathogenesis in various genera [30] and their role in biofilm formation was recently assessed in A. brasilense Sp245 [12]. Cellulose synthesis is another mechanism by which bacteria can tightly bind to the roots [31]. Gene(s) involved in cellulose synthesis and acquired by HGT are found exclusively in A. lipoferum 4B and Azospirillum sp. B510.

Cellulases and hemicellulases likely contribute to endophytic plant colonization, a property described for A. brasilense Sp245 and Azospirillum sp. B510 [20,32]. Azospirillum genomes were previously shown to encode a substantial number of glycosyl hydrolases (from 26 to 34), some of them likely capable of degrading plant cell wall [12]. However, some CAZy families are restricted to a species; genomes of A. lipoferum 4B and Azospirillum sp. B510 encode cellulases belonging to the GH8 and GH16 (licheninase) families whereas A. brasilense strains possess an endoglucanase of the GH12 family (AZOBR_p440082 and AZCBG_p490023). Both A. brasilense strains possess unique glycosyl hydrolase-encoding genes with no orthologues in any other Azospirillum genomes.

The contribution of nitrogen fixation to plant growth promotion by Azospirillum is controversial; however, greenhouse and field inoculation experiments significantly reduced the required dozes of nitrogen fertilization [1]. In addition to the nitrogen fixation cluster that has been inherited vertically, A. brasilense Sp245 genome harbours a second cluster for nitrogen fixation (AZOBR_p350011 to AZOBR_p350024). This cluster encodes a vanadium nitrogenase and may have been horizontally transferred from Rhodopseudomonas palustris; an integrase lies just downstream of this operon (AZOBR_p350032). As the genome of A. brasilense CBG497 is not closed (part of the p3 is missing), the occurrence of this operon was searched by PCR: amplification with primers for vnfX (AZOBR_p350013), vnfD (AZOBR_p350020) and vnfH (AZOBR_p350022) was negative, suggesting that this operon has been acquired recently by A. brasilense Sp245.

Phosphate solubilization represents another important trait for enhancement of plant nutrition [33]. Interestingly, A. lipoferum 4B and Azospirillum sp. B510 may have acquired the ability to solubilize inorganic phosphates through the secretion of gluconic acid. Oxidation of glucose into gluconic acid takes place in the periplasm and is assumed by a PQQ-dependent glucose dehydrogenase (AZOLI_p50302 / AZL_e01560) [34]. No orthologue was found in the A. brasilense genomes; such a property which has been scarcely reported in the Azospirillum genus [35] deserves to be investigated.

Plant growth promotion by Azospirillum is thought to occur essentially through modulation of the plant hormonal balance via the synthesis of phytohormones, notably the phytohormone indole-3-acetic acid (IAA), or via the degradation of phytohormones or precursors of phytohormones, such as 1-aminocyclopropane-1-carboxylic acid (ACC) [36]. A. brasilense Sp245 is well-known to produce IAA from tryptophan (Trp) through the indole-3-pyruvate (IPyA) biosynthetic pathway [37,38,39]. One key enzyme of this pathway, encoded by ppdC/ipdC, is the indole-3-pyruvate decarboxylase, which mediates conversion of indole-3-pyruvate into indole-3-acetaldehyde (second step of the pathway). This gene is present in the genome of the two A. brasilense strains (AZOBR_40354 and AZCBG_190067), but absent from genomes of A. lipoferum 4B and Azospirillum sp. B510. The first and third steps of the IPyA pathway correspond respectively to the conversion of tryptophan into IPyA and of indole-3-acetaldehyde into IAA. These steps are catalyzed by enzymes, respectively aromatic aminotransferases and NAD-dependent aldehyde dehydrogenase, which are common and non-specific enzymes. Recently, the contribution of hisC1, which encodes an aromatic amino acid aminotransferase-1 (AAT1), to IAA production was evidenced in A. brasilense Sp7 [40]. Homologues sharing identity levels higher than 75% with AAT1 from Sp7 were found in all four Azospirillum genomes (AZOLI_1579, AZCBG_330158, AZOBR_120044, AZL_012940).

In Sp245, it was shown that an ipdC knockout mutant still produced 10% of the wild-type IAA production level [39], indicating that other metabolic pathways contribute, even though to a lesser extent, to IAA production. Indeed, a large set of genetic and biochemical studies strongly suggest that A. brasilense might possess a triptamine (TAM) and an indole-3-acetonitrile (IAN) pathway [41,42]. The IAN pathway corresponds to the conversion of Trp into indole-3-acetaldoxime (IAox), of IAox into IAN and then of IAN into IAA. In Arabidopsis thaliana, two cytochrome P450 enzymes (CYP79B2 and CYT79B3) catalyze the formation of IAox from Trp, and two nitrilase genes NIT1 and NIT2 have been shown to contribute to IAA biosynthesis in vivo [41,43]. P-blast search performed on Azospirillum genomes with the two nitrilase protein sequences from A. thaliana revealed a putative nitrilase in A. brasilense Sp245 (AZOBR_p350044, respectively 48.9% and 49.84% identity with NIT1 and NIT2) and in Azospirillum sp. B510 (AZL_020600, respectively 36.09% and 34.78% identity); those genes were previously classified as HGT [12].

The indole-3-acetamide pathway (IAM) involves the decarboxylation of Trp into IAM by a Trp monooxygenase (iaaM), and the hydrolysis of IAM into IAA by an indole acetamide hydrolase (iaaH). The existence of this pathway was suggested in Azospirillum sp. B510, with candidates for iaaM and iaaH represented respectively by AZL_b03560 and AZL_b03580 [10], two genes that are unique to the B510 genome. However, AZL_b03560 appears rather encoding a triptamine oxidase that might be involved in the conversion of TAM into indole-3-acetaldehyde. In B510, it seems that IAM is produced rather from the conversion of IAN to IAM by a nitrile hydratase rather than directly from Trp by a Trp monooxygenase. Consistently, no homologues of iaaM from Agrobacterium tumefaciens, Dickeya dadantii or Pseudomonas syringae pv. syringae were found in any Azospirillum genomes. Interestingly, eight clustered genes unique to the B510 genome and previously classified as HGT encode putative nitrile hydratases (AZL_a09780, AZL_a09790, AZL_a09810, AZL_a09820, AZL_a09830, AZL_a09840, AZL_a09850, AZL_a09860) and are located near a transposase and a tRNA. Future studies are required to verify if all those genetic determinants are implicated in IAA biosynthesis in those strains, since HPLC analyses revealed the ability to produce IAA in the presence of Trp for A. brasilense Sp245 and CBG497 but this production was negligible for A. lipoferum 4B and Azospirillum sp. B510 (our unpublished results).

Besides the ability to produce IAA, it was investigated whether Azospirillum strains are able to catabolize this phytohormone. IAA catabolism has been characterized in some rhizobacteria such as Pseudomonas putida, and relies on the presence of the iac locus (for IAA catabolism) constituted of 10 genes with coding similarity to enzymes acting on indole or amidated aromatics and to proteins with regulatory or unknown function [44,45]. Homologs of the iac genes are present in A. lipoferum 4B (AZOLI_p10981 to AZOLI_p10991) and Azospirillum sp. B510 (AZL_a08890 to AZL_a08810). The IAA catabolism phenotype was investigated and a slight growth on 5 mM IAA as sole carbon and nitrogen source was observed in the two strains while no growth was observed in the two A. brasilense strains (data not shown). Thus, it appears that, unlike A. brasilense strains, A. lipoferum 4B and Azospirillum sp. B510 may not be able to produce IAA but can metabolize such a substrate.

The deamination of ACC is another key activity involved in the modulation of the plant hormonal balance by rhizobacteria. ACC is the immediate precursor of plant ethylene, and its deamination leads to a decrease of ethylene production in plants. Because ethylene inhibits root growth and may be produced in too large amounts during plant stress response, bacterial ACC deamination can enhance both root system development and plant stress tolerance [46]. The ACC deaminase activity is encoded by acdS that is widely distributed in Proteobacteria; among the Azospirillum genus, this gene is mostly harboured by strains of the A. lipoferum species and has been acquired by HGT [12,47,48]. Accordingly, acdS and acdR (encoding a lrp-like transcriptional activator of acdS) are absent from the A. brasilense Sp245 and CB497 genomes, whereas they lie on the second largest chromid in A. lipoferum 4B (i.e., AZOLI_p20559 and AZOLI_p20560) and in Azospirillum sp. B510 (i.e., AZL_b04170 and AZL_b04180).

The plant hormonal balance might also be modulated by the degradation of salicylate into catechol via salicylate 1-monooxygenase (EC 1.14.13.1). Such an enzyme was identified in A. lipoferum 4B and in A. brasilense strains (AZOLI_p20435 / AZOBR_p480008 / AZCBG_p410058). AZOLI_p20435 displays only 36-37% identity with the A. brasilense orthologs and 81% to NahG of Pseudomonas fluorescens SBW25 whereas the A. brasilense orthologs display strong identity (67%–68%) with NahW of Burkholderia xenovorans LB400; this observation is consistent with two independent acquisitions through HGT [12]. Nevertheless only A. lipoferum 4B harbors the metabolic pathway for catechol degradation (see below) and thus may use salicylate as a source of energy and carbon.

Examination of strain-specific genes revealed specific catabolic properties that might be relevant for adaptation to the rhizosphere. A complete ribose degradation pathway was identified in A. lipoferum 4B and Azospirillum sp. B510 involving a ribokinase (rsbK, AZOLI_p20179 / AZL_b03490), a deoxyribokinase/ribokinase (deoK, AZOLI_p20643 / AZL_b05870), and a deoxyribose mutarotase (deoM, AZOLI_p20642 / AZL_b05860). The catabolic pathway of myo-inositol was identified only in Azospirillum sp. B510 (AZL_b00950 and AZL_b01030 to AZL_b01060).

A. lipoferum 4B and Azospirillum sp. B510 may have the ability to degrade the organophosphonate 2-aminoethylphosphonate. Organophosphonates are quite abundant in nature, primarily as components of phosphonolipids, but also as constituents of polysaccharides, glycoproteins, glycolipids and several antibiotics. The enzymes catalyzing the first two steps, i.e., 2-aminoethylphosphonate-pyruvate transaminase (phnW, AZOLI_p20203 / AZL_a10490) and phosphonoacetaldehyde hydrolase (phnX, AZOLI_p20204 / AZL_a10480) are present only in those two genomes.

Azospirillum sp. B510 may degrade and use the aliphatic amine methylamine as a nitrogen source. Various aliphatic amines can be emitted in agricultural systems, notably methylamine (MMA), dimethylamine and trimethylamine [49]. An alternative MMA oxidative pathway different from the direct oxidation carried out by MMA dehydrogenase was fully characterized on Methyloversatilis universalis FAM5 [50]. This eight gene cluster composed of mgdABCD, gms and mgsABC is present in other methylotrophs [51,52] and in nonmethylotrophs, including Agrobacterium tumefaciens C58 which can grow using MMA as sole nitrogen source. The genome of Azospirillum sp. B510 carries this cluster (AZL_a09510 to AZL_a09580), next to purU and folD encoding respectively formyltetrahydrofolate deformylase and methylenetetrahydrofolate dehydrogenase/cyclohydrolase that are necessary for the detoxification of formaldehyde generated by this metabolic pathway [53].

Degradation of aromatic compounds (i.e., organic molecules containing one or more aromatic rings mainly produced by plants) is dominated by aerobic and anaerobic bacteria and aerobic fungi [54]. The aerobic catabolism of aromatic compounds usually involves the oxygenolytic hydroxylation of the aromatic ring, producing central dihydroxylated aromatic intermediates (e.g., catechol, protocatechuate, gentisate, homoprotocatechuate, homogentisate and hydroxyhydroquinone). These intermediates are then cleaved by different types of ring-cleavage dioxygenases, generating aliphatic compounds that funnel into the tricarboxylic acid (TCA) cycle through a small number of central pathways [55]. Degradation of a broad spectrum of aromatic natural and xenobiotic compounds relies on two central intermediates: catechol and protocatechuate. A. lipoferum 4B and Azospirillum sp. B510 can degrade these compounds via the β-ketoadipate pathway (Figure 6); they also possess enzymes allowing the conversion of benzoate and 4-hydroxybenzoate into protocatechuate. In addition, Azospirillum sp. B510 can convert benzoate into catechol. Both strains can also metabolise gentisate (2,5-dihydroxybenzoate). A. brasilense strains seem to be less versatile as only the meta-cleavage pathway of protocatechuate degradation has been identified; catabolism of gallate and methylgallate might be present but one of the key enzymes (EC 4.2.1.83) could not be identified. Experimentally, growth on protocatechuate as the sole carbon source was observed for all strains except A. brasilense CBG497 (data not shown). As for transporters, A. brasilense strains possess a protocatechuate transporter with strong identity to a Bradyrhizobium transporter (AZOBR_p310195 in Sp245 and a gene present on the missing part of p3 in CBG497 as revealed by PCR). A gene encoding hydroxybenzoate transporter is found adjacent to the gentisate degradation pathway in A. lipoferum 4B and Azospirillum sp. B510 (AZOLI_p20645 and AZL_a09170) and displays identity with pcaK of Ralstonia. PcaK functions as a chemoreceptor for chemotaxis towards aromatic acids [56]. Additional hydroxybenzoate transporters are encoded by the genome of Azospirillum sp. B510 (AZL_a07380 and AZL_b03660).

The phenylacetate catabolic pathway is the central route where catabolic pathways of many aromatic compounds converge and are directed to the TCA cycle [57]. The aerobic degradation of phenylacetate by epoxidation of CoA thioesters occurs in ~16% of all bacterial species with sequenced genomes [54]. Within the genomes of Azospirillum, only A. lipoferum 4B and Azospirillum sp. B510 strain harbour the complete paa catabolic cluster; 11 of these loci are located on the p4/d replicon (AZOLI_p40257 to AZOLI_p40267), whereas paaX, paaY, and paaF (which is duplicated) are located onto the chromosome, thus constituting five different clusters, an organization previously reported in Pseudomonas putida [58]. Seven of the genes located on p4 (paaA, paaB, paaC, paaD, paaE, paaN and paaJ) have been classified as horizontally transferred whereas the others have been classified as ancestral [12], suggesting a complex evolution of this catabolic pathway. The functionality of the paa genes was assessed as both strains were able to grow on phenylacetic acid as the sole carbon source, whereas the A. brasilense strains showed no growth (Supplementary Figure S2).

Thus, A. lipoferum 4B and Azospirillum sp. B510 seem to be more versatile for aromatic compound degradation than A. brasilense strains; indeed, in addition to the above-mentioned pathways, several aromatic ring-hydroxylating dioxygenases could be identified. It will be interesting to determine if this versatility is related to the composition of the host plant exudates, as a result of niche-specific adaptation. This versatility could also be related to environmental conditions, such as soil type and cultural practices (like flooding for rice) that can greatly influence the microbial community.

Azospirillum strains are not equally equipped for iron acquisition, an important component of bacterial metabolism. Discrepancies are observed at the level of siderophores biosynthesis and uptake. A 14 kb region that spans AZOLI_p20158 to AZOLI_p20165 is predicted to be involved in pyochelin biosynthesis and appeared to be exclusively present in the A. lipoferum 4B genome. The corresponding genes, classified as HGT [12], show protein identity levels greater than 45% with those of Pseudomonas fluorescens and a high degree of synteny. A cluster of genes involved in enterobactin biosynthesis was specifically found in the two A. brasilense strains (AZOBR_p350073 to AZOBR_p350079 / ACBG_p22001 to AZCBG_p22007). A. brasilense Sp245 possesses a unique cluster of eight genes predicted to be involved in siderophore transport (AZOBR_220054 to AZOBR_p220061); a gene encoding a fecI–type sigma factor is located directly upstream of this cluster (AZOBR_p220053) and is similar to PsbS/PvdS, a sigma-70 ECF of Pseudomonas (56% of identity at the protein level with PsbS of Pseudomonas sp. B10). PvdS was shown to regulate the transcription of pyoverdine biosynthesis genes under iron starvation in P. aeruginosa [59]. A hemin ABC transporter is also present in the genomes of A. brasilense Sp245 and A. lipoferum 4B. As plant colonization ability has been shown to be linked to iron acquisition systems [60], discrepancies observed among azospirilla could be relevant.

Plants are capable of producing reactive oxygen species (ROS), as a defence mechanism against both pathogenic and symbiotic bacteria [61,62]. Living organisms have built up mechanisms to protect themselves against oxidative stress, with antioxidant enzymes such as catalase and superoxide dismutase, small proteins like thioredoxin and glutaredoxin, and molecules such as glutathione. Comparative genomic analysis shows that next to common mechanisms, several enzymes involved in the oxidative stress response differ among Azospirillum species. For example, a gene encoding a superoxide dismutase (SodA) is found uniquely in A. brasilense strains (AZOBR_p440007 / AZCBG_p410047), whereas a gene encoding a catalase is present in A. lipoferum 4B and in Azospirillum sp. B510 (AZOLI_p10486 / AZL_a00280). Moreover, a bifunctional catalase-peroxidase (KatG) is only found in A. lipoferum 4B (AZOLI_p30178). The deduced amino acid sequence of this ORF have 80% identity with the KatG protein of Rhizobium etli, and is directly located downstream of the gene encoding the OxyR transcription factor. KatG plays a role in survival during stationary-phase in R. etli, but is not essential for nodulation and nitrogen fixation in symbiosis with Phaseolus vulgaris [63].

Components of a type VI secretion system (T6SS) have previously been identified in the three published genomes and classified as HGT [12]; however the T6SS components display discrepancies among strains. A region with an organization similar to that of Alpha-proteobacteria (such as Azorhizobium) is located on the chromosome of A. lipoferum 4B (AZOLI_0998 to AZOLI_1020) and Azospirillum sp. B510 (AZL_017990 to AZL_017770). A second region exclusive to A. lipoferum 4B (AZOLI_p30482 to AZOLI_p30489) displays similarities with T6SS of Bradyrhizobium japonicum USDA110. A third region unrelated to the previous ones lies on the biggest chromid of the two A. brasilense strains and of Azospirillum sp. B510, and may have been acquired from Beta-proteobacteria.

T6SS are involved in a broad variety of bacterial functions: from pathogenesis (by delivering effectors to target eukaryotic cells) to biofilm formation and stress sensing [64]. This large set of functions is reflected by a vast diversity of regulatory mechanisms [65]. T6SS can also confer toxicity towards other bacteria, providing a means of interspecies competition to enhance environmental survival [66]. Upregulation of A. brasilense Sp245 T6SS in response to exposure to IAA, as could happen in the rhizosphere, favors a role in plant-bacteria interactions [67]; the role of T6SS thus deserves to be investigated.

Several ORFs in all four Azospirillum genomes have been annotated as laccase-like; however, only one ORF (AZOLI_p30139 in A. lipoferum 4B and AZL_c02540 in Azospirillum sp. B510) possesses two typical copper-binding motifs [68]. Laccases- or laccase-like multicopper oxidases (EC 1.10.3.2) catalyze the oxidation of various substrates, such as phenols, diamines and metals, coupled with the reduction of molecular oxygen to water. The first report of a prokaryotic laccase is from A. lipoferum 4B [69], where it was shown to play a role in melanization and utilization of plant phenolic compounds [70]. Moreover, laccase-positive strains are less sensitive to the inhibitory action of quinone analogs due to rearrangements of their respiratory chain, a feature that might be a competitive advantage in the rhizosphere in the presence of quinone compounds [71]. A survey of bacterial laccases suggests they are an advantageous trait for a rhizosphere bacterium as they are involved in various functions such as copper resistance, manganese oxidation, pigmentation, oxidation of toxic compounds, and destruction of reactive oxygen species [72].

The extraordinary genome plasticity of Azospirillum has been evidenced by experimental data [14,73] and by whole genome alignments [12]. However, comparison of the AZO-core and the ANC-core does not allow the identification of key determinants that could partly explain this genomic plasticity, such as genes encoding recombinases, resolvases or topoisomerases.

Genomic regions carrying prophage elements seem to be specific to each strain; the only related element present in the AZO-core encodes a phage-related lysozyme (AZOLI_2690 / AZL_003440 / AZOBR_20012 / AZCBG_120001). This gene is absent from the ANC-core despite its initial assignment as ancestral [12]; this discrepancy comes from the fact that an orthologue is present in the genome of Magnetospirillum magneticum but absent from the genome of R. centenum used here to establish the ANC-core. The genomic context of this gene is identical in the four Azospirillum strains but does not display any other phage-related genes, suggesting that this gene is a phage remnant.

In A. brasilense Sp245, a unique region encompassing about 65 kb (from AZOBR_p340083 to AZOBR_p340194) contains several ORFs of phage origin and many ORFs encoding proteins of unknown function, and is framed by transposase/integrase. This region could correspond to the 65-kb prophage previously isolated from this strain [15]. This putative prophage of A. brasilense Sp245 shows no homology to a prophage sequence obtained from A. brasilense Cd, an observation which is consistent with the absence of hydridization signal previously reported [15]; in addition, this region has no equivalent in the genome of A. brasilense CBG497. Blast search in the genome of A. brasilense CBG497 using the sequence of A. brasilense Cd prophage reveals a single hit with the above mentioned ORF encoding a phage-related lysozyme (AZCBG_120001); no other ORF of phage origin was found in the genome of A. brasilense CBG497. The release of phage particles upon induction by mitomycin C was previously reported for several strains of Azospirillum [15]. When the same procedure was applied to A. brasilense CBG497, no lysis was observed indicating that CBG497 hosts no mitomycin C-inducible prophage (data not shown). Whereas all phages from A. brasilense strains displayed genomes sizes from 62 to 65 kb, phages from A. lipoferum strains (including 4B) and from Azospirillum sp. B510 displayed a size of about 10 kb. Several pieces of evidence imply that these small prophages are rather gene transfer agents (GTA) than real prophages [15]. GTAs typically package bacterial genome fragments and atypically package a portion of their own genome and constitute conspicuous mechanisms of generalized transduction; they seem to be widespread among Alpha-proteobacteria [74]. However identification of GTA genes from sequenced genomes is not always straighforward as GTA genes can be scattered throughout the genome [74,75].

Two chromosomal regions with their putative att sites were previously identified as prophages in the genome of Azospirillum sp. B510 [10]: B510PP01, a region of 66.7 kb that is partially duplicated (60.2 kb) and B510PP02, a region of approximately 20 kb. Only the two ORFs framing B510PP01 (i.e., AZL_008150 and AZL_008670) have orthologues in the A. lipoferum 4B genome (respectively, AZOLI_2072 and AZOLI_2071), suggesting that this phage may no longer be present in the latter strain. Blast searches with GTA genes of Rhodobacter capsulatus (accession number AF181080) identify putative GTA genes in the two duplicated sequences of B510PP01 (identity >25%); moreover, a stretch of four contiguous genes (encoding terminase / portal protein / prohead protease / capsid) display a similar organization than the corresponding GTA genes of R. capsulatus. Thus it is likely that B510PP01 or part of B510PP01 corresponds to a GTA.

Four prophage regions are present in A. lipoferum 4B. First, a chromosomal region of 31.4 kb (AZOLI_1757 to AZOLI_1794) harbours four genes (AZOLI_1775 to AZOLI_1771) that despite no homology at the DNA level display a similar organization with GTA genes of R. capsulatus encoding terminase, phage portal protein, phage prohead protease and capsid. This region could correspond to the phage particles containing random 10-kb fragments of host genomic DNA [15]. Three other regions bear chromids (AZOLI_p10448 to AZOLI_p10472, 25.5 kb; AZOLI_p10780 to AZOLI_p10794, 13.6 kb; AZOLI_p20026 to AZOLI_p20039, 13.1 kb) and have similarities with lambda-type or Mu-type prophages.The tRNAs lie upstream or downstream of these three regions.

So A. lipoferum 4B and Azospirillum sp. B510 have been subjected to multiple phage infection events, that may have contributed to genomic rearrangements. Moreover, GTA mediating generalized transduction may have contributed to acquisition of foreign DNA.

Other elements that certainly contribute to the high genomic plasticity of Azospirillum genomes are CRISPR sequences (i.e., Clustered Regularly Interspaced Short Palindromic Repeats); CRISPR are thought to be involved in repartition of genome copies during cell division, to facilitate recombination and act as a defence mechanism against phages [76]. CRISPR were previously identified in 4B (126), B510 (153) and Sp245 (12) [12] and searched in CBG497 using the CRISPR web interface [77]. Seventeen CRISPR could thus be identified in the genome of A. brasilense CBG497 (on chromosome and on p2). Such smaller numbers of CRISPR in the genomes of A. brasilense strains might be due to their unclosed status or to their limited exposure to phage infections. Finally, a detailed analysis of the two closed genomes (those of A. lipoferum 4B and Azospirillum sp. B510) revealed the presence of multiple insertion sequences scattered in all the replicons [12]: 99 IS belonging to 37 different families in A. lipoferum 4B and 310 IS belonging to 59 different families in Azospirillum sp. B510. Altogether, these features may have contributed to shape Azospirillum genome and to promote rearrangements between the different replicons.

DNA extraction of A. brasilense CBG497 and sequencing using the pyrosequencing method was performed as previously described [18]. 156 contigs were assembled into six replicons according to the genome organization of A. brasilense Sp245 using the MUMer software [78]. The sequence and annotations are available from the MicroScope platform [79,80].

The 16S rRNA sequences were downloaded from EMBL. The sequences were first aligned using MUSCLE [81] and a maximum likelihood tree was generated using the SeaView platform [82]. To cluster protein families, BLAST-P comparisons of ‘‘all versus all’’ complete proteomes of A. brasilense CBG457, A. brasilense Sp245, A. lipoferum 4B and Azospirillum sp. B510 were done. Clustering was achieved with MCL using an e-value of 10^-7 and an inflation parameter of 1.2 [22].

The most probable set of orthologous proteins shared by the four Azospirillum strains (designated AZO core) was identified using a reciprocal best-hit criterion. To that end, all the predicted proteins of one genome were searched against the other predicted proteomes and vice versa using BLAST with cutoff e-value of 10⁻¹² and employing the Blosum-80 matrix [83]. In addition to this criterion, to be included in an orthologue group, the alignment region between the subject protein and the query protein had to be at least 75%, and there had to be at least 35% similarity of both query and target sizes. 2,328 orthologue groups were identified in Azospirillum. Exclusive genes were recorded as those with no hit in the genomes at e-value of <10⁻⁶. COG categories for each orthologue group were retrieved from the MaGe platform on the genome of A. lipoferum 4B; when several COGs were attributed, the COG with the highest score was retained. The same procedure was performed with an additional genome, that of Rhodospirillum centenum SW, to determine the ancestral core genome (designated ANC core). The number of nucleotide substitutions per synonymous site ‘‘Ks’’ and the number of nucleotide substitutions per non-synonymous site ‘‘Ka’’ were determined with the KaKs Calculator v1.2 software testing all different selection models and model averaging [84].

PCR amplifications were performed according to the Taq polymerase manufacturer (Invitrogen, Cergy-Pontoise, France) in 25 μL using 50 ng of template DNA. The amplification cycle consisted of an initial 5 min at 95 °C; 35 cycles of 30 s at 95 °C, 30 s at annealing temperature, and 30 s at 72 °C; followed by a final 7-min extension at 72 °C. Genomic DNA was extracted from bacterial cultures grown for 20 h in LBm broth with a DNeasy Tissue Kit (Qiagen, Courtaboeuf, France) according to the manufacturer’s instructions. The following PCR primers (synthesized by Invitrogen) have been used: F9504 (GATCAGGCCCAAGTCAACCT) and F9505 (GTTCAGCAGGTCCAGGATGT) for vnfX (AZOBR_p350013); F9510 (GCATGATCGTCTACACCACCT) and F9511 (GATGCCGTACTGCTTCTTCAG) for vnfD (AZOBR_p350020); F9536 (GTCAAGACCATGTCGAAGACC) and F9537 (GGAGTTCTTCAGCTCCAGGAT) for vnfH (AZOBR_p350022); F9528 (ATGGGGCTGGTGATCTTCTAC) and F9529 (GAAGATGCTGGTGAAGTCGAG) for AZOBR_p310195 (coding for a protocatechuate transporter).

For degradatation of aromatic compounds, precultures of Azospirillum were performed in AB malate 0.2% over 16 to 20 h at 28 °C under agitation. Cells were pelleted, washed and inoculated at an optical density of 0.05 into AB medium containing 0.1% phenylacetate or protocatechuate as sole carbon source. Stock solutions of aromatic compounds were prepared at 20% (w/v) in dimethyl sulphoxide. Growth was performed at 28 °C under agitation and monitored at 580 nm for the experiment with phenylacetate.

For utilization of IAA, cells were precultured and washed as above and were inoculated into AB medium containing 5 mM IAA as sole carbon source (stock solution of IAA at 0.5 M was prepared in acetonitrile). Growth was performed at 28 °C under agitation and recorded after three days.

Induction of phage particles by mitomycin C treatment was performed on A. brasilense CBG497 as previously described [15].
