Water and Nitrogen Regulation Effects and System Optimization for Potato (Solanum tuberosum L.) under Film Drip Irrigation in the Dry Zone of Ningxia China

Abstract

Potatoes require water and fertilizer management systems to optimize economic outcomes and fertilizer use, especially in arid areas such as Ningxia, China. In this study, three irrigation quotas (1200 (W1), 1650 (W2), and 2100 (W3) m³/hm²) and three nitrogen application treatments (110 (N1), 190 (N2), and 270 (N3) kg/hm²) were evaluated. Potato growth, final yield, and quality indices were assessed in relation to fertility periods, irrigation utilization efficiency, nitrogen and fertilizer bias productivity, and economic efficiency, using the TOPSIS model. Stem thickness and plant height varied significantly with irrigation and nitrogen treatments; total yield and vitamin C, reducing sugar, and starch contents were the highest under the W3N1, W3N1, W1N2, and W2N3 treatments, increasing by 54.56, 17.00, 69.00, and 45.00%, respectively, compared with those in the control. The regression relationships between water and nitrogen regulation and yield, irrigation water use efficiency, nitrogen fertilizer bias productivity, and economic efficiency agreed with the binary quadratic regression model, and the coefficients of determination (R²) were >0.85. W3N1 was optimal for model yield, nitrogen fertilizer bias productivity, and economic efficiency, and W1N3 was optimal for irrigation water use efficiency. Our findings will help optimize potato management in central Ningxia.

1. Introduction

Potato is one of the four staple food crops in China [1]. Therefore, the potato industry plays an important role in ensuring food security in China and protecting the ecological environment [2]. Water and nitrogen supplies are the two major factors limiting crop productivity, including that of potatoes [3], and are key determinants of grain yield [4]. Current trends in potato yield are insufficient to meet the needs of the doubling in food demand expected by 2050 [5]. Furthermore, crop yield losses owing to water scarcity are an increasing threat to agriculture worldwide [6], and yield improvements are dependent on nitrogen accumulation. Thus, nitrogen fertilization research is essential to improve crop yields and environmental viability [7,8]. Furthermore, an integrated consideration of optimizing the synergistic effects of irrigation and nitrogen fertilization is key to achieving sustainable agricultural goals.

Since 1980, nitrogen fertilizer application in China has increased dramatically, and the proportion of nitrogen input has now reached levels that diminish crop yield returns. Nitrogen use efficiency in crop production is crucial to sufficiently address food security, soil degradation, and climate change [9]. Water and fertilizer application are important factors for crop growth; specifically, large nitrogen inputs during crop growth can help improve grain yield and quality [10,11,12]. Drip irrigation coupled with water-fertilizer integration can significantly improve crop yield relative to conventional water-fertilizer treatments [13]. Sub-membrane drip irrigation is a common agricultural irrigation method practiced in oasis agroecosystems in northwest China’s arid regions, as it can improve agricultural production by suppressing soil evaporation [14]. Previous studies have demonstrated that appropriate irrigation and nitrogen management practices can help obtain high yields in wheat [15]. Potato yield, water conservation, and increased potato water use efficiency can be effectively achieved by simulated irrigation methods compared to automatic irrigation methods in the field [16]. Lower N application reduces potato tuber yield, and appropriate N application and subsurface drip irrigation can result in higher biomass, yield, and water use efficiency [17]. Appropriate limited single irrigation and the control of the soil water content levels can increase the total yield, water use efficiency, and the leaf area index [18]. Miguel et al. [19] determined that water and nitrogen have strong interactions in agricultural systems by studying methods to simultaneously improve water and nitrogen use efficiency. Management practices that aim to reduce nitrogen losses and maintain farm productivity should thus optimize both nitrogen and water use. Sadras et al. [20] analyzed the interactions between water and nitrogen from physiological, agronomic, economic, breeding, and modeling perspectives by comparing phenotypic changes in wheat in Australia, the UK, Argentina, and Italy. Their results showed that increased N uptake was correlated with yield increases and helped preserve grain protein content. High levels of water irrigation combined with N application resulted in increased cotton yields and water productivity [21]. Optimal water-N patterns can also be used to achieve high rice yields and reduce N losses [22]. Low/high-frequency N application combined with water-saving irrigation can significantly reduce water and N availability to achieve food security and efficient resource use in rice production while maintaining stable yields [23]. Therefore, understanding the water and nitrogen coupling relationship is key for producing high-quality potatoes with greater yields while maintaining efficient use of water and fertilizer resources. To achieve this, further research is required to elucidate the response mechanisms of potatoes to water and nitrogen regulation.

Previous studies investigating optimal water and nitrogen models only utilized certain indicators, as balancing the multiple objectives involved with water and fertilizer efficiency, yield, and economic benefits is challenging. Therefore, this aspect requires further investigation. Moreover, studies investigating the multi-objective optimization of water and fertilizer regulation in relation to potato production, economic benefits, and environmental benefits in the semi-arid areas of Ningxia are limited.

Therefore, in this study, we investigated the effects of water and nitrogen regulation on potato growth, yield, quality, water use efficiency, nitrogen fertilizer bias productivity, and economic efficiency based on local conditions and described and quantified the responses to the different factors examined. A mathematical model was constructed based on water and nitrogen regulation, and each index was based on a binary quadratic regression model. Following this, the model was optimized using the TOPSIS model to analyze each index and determine the optimal amounts of irrigation water and nitrogen application. The results of this study will provide a scientific theoretical basis and practical guidance to achieve high yields while reducing water and fertilizer application in potato cultivation under film drip irrigation in the arid areas of Ningxia, China.

2. Materials and Methods

2.1. Experimental Site

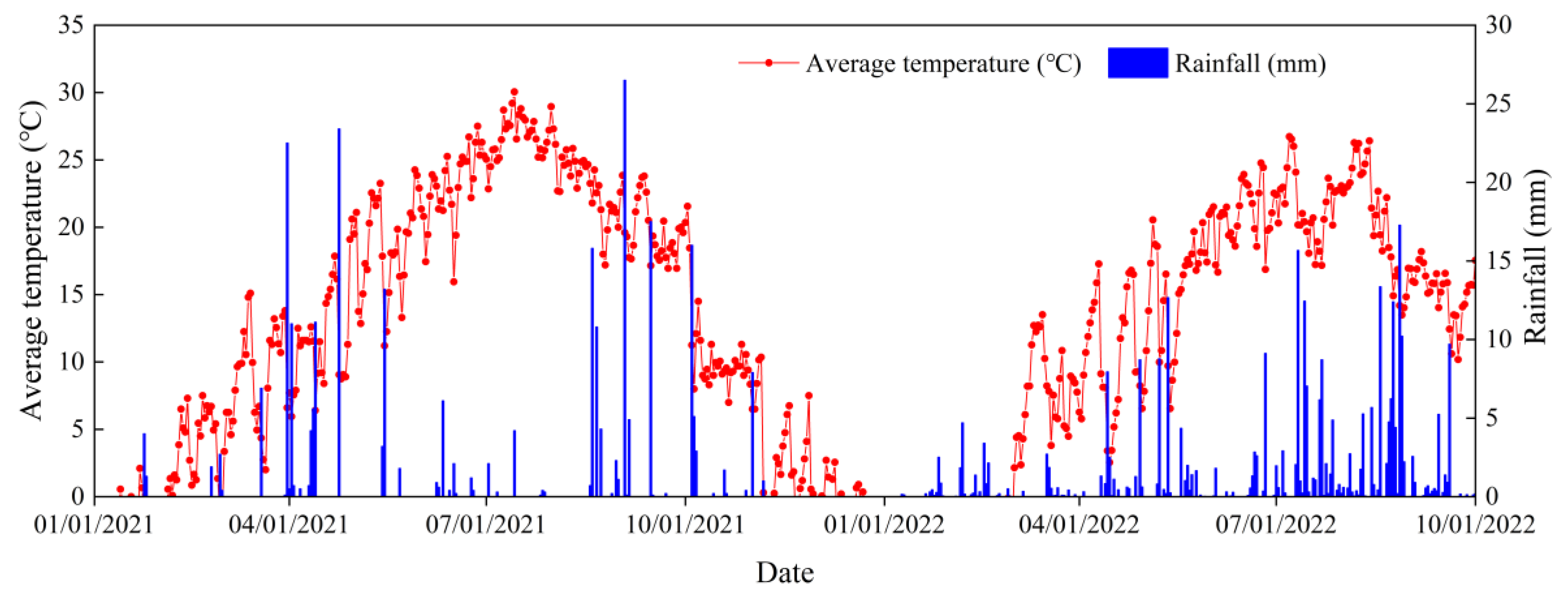

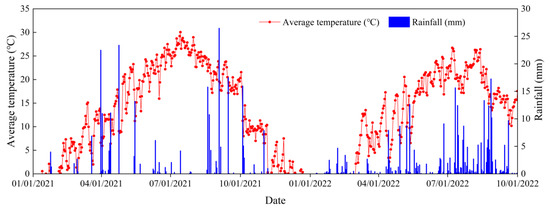

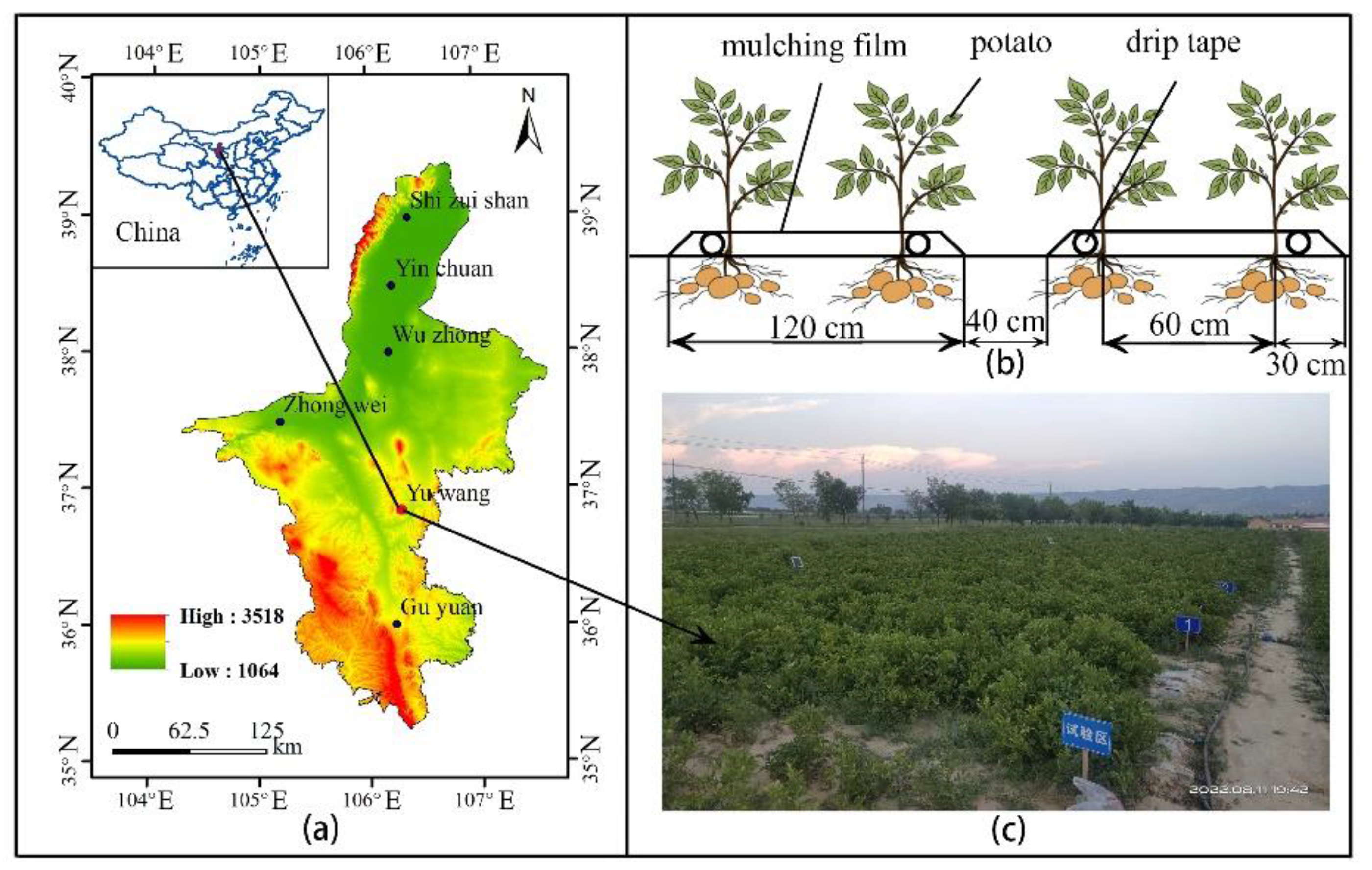

Field experiments were conducted in 2021 and 2022 at a site located in Yuwang Town, Concentric County, Wuzhong City, Central Ningxia, China, a typical region in this arid zone (36°48′2″ N, 106°21′53″ E, altitude 1489 m), as shown in Figure 1a. The area has an arid continental climate, with large temperature differences between day and night, year-round drought, low levels of rain, long light hours, strong surface evaporation, and groundwater below 10 m, with an average rainfall of approximately 270 mm and annual evaporation of approximately 2325 mm from 2012 to 2022. Rainfall and temperature during the potato growing season are shown in Figure 2. The soil at the test site was defined as sandy loam, and the basic physical and chemical properties of the soil in the 0–20 cm tillage layer before sowing were as follows [24]: bulk weight, 1.41 g/cm³; field water holding capacity, 21.8%; pH, 8.57; total salt, 0.6 g/kg; organic matter, 6.65 g/kg; alkaline nitrogen, 38 mg/kg; fast-acting phosphorus, 3.94 mg/kg; fast-acting potassium, 130 mg/kg; total nitrogen, 0.027%. The total nitrogen, phosphorus, and potassium contents were 0.027, 0.064, and 1.74%, respectively.

2.2. Experimental Design

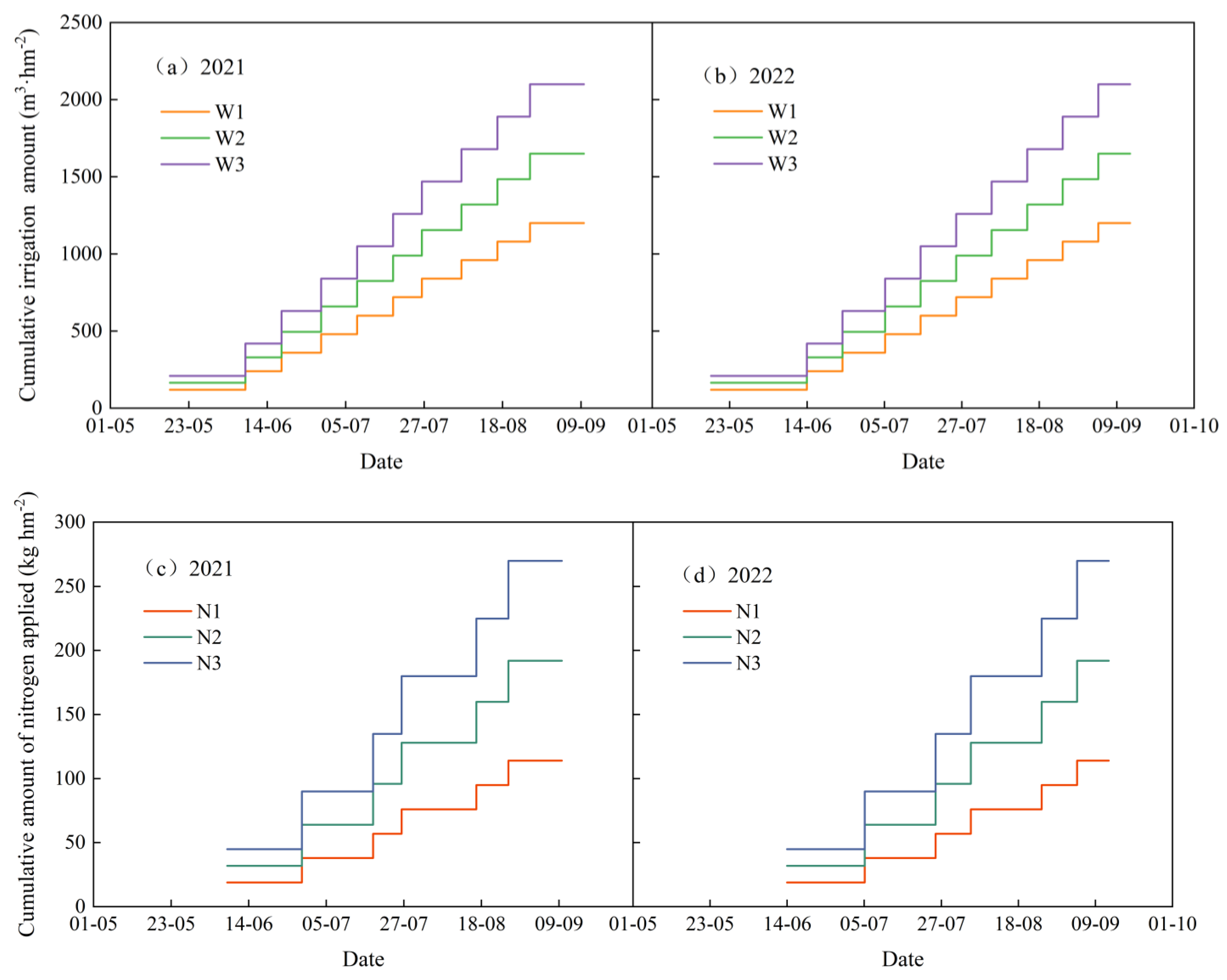

The irrigation quota for under-membrane drip irrigation was set by referencing the “Ningxia Potato Drip Irrigation Planting Technology Regulations” issued by the Department of Water Resources of Ningxia Hui Autonomous Region in 2017 [25]. Three drip irrigation levels and three nitrogen application levels were designed, and the actual local production without irrigation and N application was used as the control group CK. The irrigation treatments were as follows: W3, 2100 m³·hm⁻²; W2, 1680 m³·hm⁻² (water saving: 20%); and W1, 1260 m³·hm⁻² (water saving: 40%). The N application treatments were as follows: N3, 270 kg·hm⁻²; N2, 190 kg·hm⁻² (30% N reduction); and N1, 110 kg·hm⁻² (60% N reduction). The specific irrigation and N application amounts are shown in Figure 3. Calcium superphosphate (12% phosphorus, 82.5 kg/kg/hm²) and potassium sulfate (50% potassium, 150 kg/kg/hm²) were selected as the basal applications, and nitrogen fertilizer was applied multiple times using water–fertilizer integration (nitrogen fertilizer is 46% urea). The chasing period was carried out six times according to the seedling stage, tuber formation stage, tuber growth stage, and starch accumulation stage (1:2:2:1). Irrigation was carried out 10 times according to the shoot growth period, seedling stage, tuber formation stage, tuber growth stage, and starch accumulation stage (1:2:3:3:1), as shown in

Table 1. Allocation ratio of the irrigation and N applications during the potato fertility periods.

Potato Growth	Bud Growth Period (5.10–6.5)	Seedling Stage (6.6–6.25)	Tuber Formation Period (6.26–7.25)	Tuber Growth Period (7.26–8.20)	Starch Accumulation Period (8.21–10.5)	Total
Percentage of irrigation water	8.85% (1)	17.7% (2)	31.86% (3)	32.74% (3)	8.85% (1)	100%
Percentage of nitrogen application	0	16.7% (1)	33.3% (2)	33.3% (2)	16.7% (1)	100%

Note: The number of irrigation and N applications per growth stage is indicated in parentheses.

.

Each treatment was set up with three replications for a total of 30 plots. The potato variety ‘qingshu9’ was tested in the experiment; ‘qingshu9’ is a potato variety bred by the Institute of Biotechnology, Qinghai Academy of Agricultural and Forestry Sciences by crossing 3875213 × APHRODITE; it is drought-resistant, cold-resistant, and resistant to late blight and ring rot. Drip irrigation planting mode was applied, as shown in Figure 1b,c. Seed potatoes were sown on 30 April 2021 and 1 May 2022 and planted with a distance of 50 cm between plants and 60 cm between rows, with 10 plants in each row and 40 potatoes in each plot. A planting density of 33,345 plants·ha⁻¹ was maintained in each plot. Each plot, with an area of 17.6 m² (5.5 m × 3.2 m, length × width), was surrounded by protection rows, with the width of the protection rows between the plots being 1 m and that of the outer protection rows being 2 m. Each plot was equipped with an independent branch control unit, including a water meter, gate valve, and pressure gauge. Fertilizer application, pesticide application, and other agronomic measures were performed according to local practices. Detoxified seed potatoes were selected before planting; first, when selecting seed potatoes, old, deformed, damaged, diseased, and rotten potatoes were eliminated, and qualified seed potatoes were germinated and stored in warm indoor conditions prior to sowing. The germination length was 0.5–1 cm. Thereafter, seed potatoes were cut 2–3 d prior to sowing, ensuring that 1–2 bud eyes remained on each cut block. The cutter used for cutting was disinfected with 75% alcohol to prevent the spread of infection during the cutting process. Potatoes were harvested on 2 October 2021 and 3 October 2022.

2.3. Measurement Items and Methods

2.3.1. Potato Growth

Three potato plants were selected from different treatments in each plot to represent the overall growth in the plot, and the stem thickness and plant height were measured and averaged. Stem thickness was measured using Vernier calipers with an accuracy of 0.1 mm; plant height was measured using a steel ruler with an accuracy of 1 mm.

2.3.2. Determining Yield and Yield Components

At maturity, potatoes with good growth in a 2 × 2 m area were harvested and randomly boxed from each test plot and weighed on an electronic balance (0.01 g) to evaluate yield composition (classified according to the national standard “GB/T31784-2015 potato commercial potato grading and inspection protocol”: small potatoes ≤ 75 g, 75 g < medium potatoes ≤ 150 g, large potatoes > 150 g). The average yield of single plants was calculated, and the total yield of potatoes per hectare was determined for the different treatments according to the planting density.

2.3.3. Potato Quality

To determine potato quality [26], vitamin C (VC), reducing sugar, and starch contents were determined using the 2,6-dichloroindophenol titration, potassium permanganate titration, and acid hydrolysis methods, respectively.

2.3.4. Irrigation Water Use Efficiency

Irrigation water use efficiency (iWUE) was defined as follows [27]:

$$\mathit{iWUE}=\mathit{Y}/\mathit{I}$$

(1)

where iWUE is the irrigation water use efficiency, Y is the potato yield (kg/hm²), and I is the irrigation water supplied according to the potato fertility stage (m³/hm²).

2.3.5. Nitrogen Fertilizer Biased Productivity

Nitrogen fertilizer biased productivity (PFP) was defined as follows [28]:

$$\mathit{PFP}=\mathit{Y}/\mathit{FT}$$

(2)

where PFP is the fertilizer bias productivity, Y is the potato yield (kg/hm²), and FT is the total nitrogen fertilizer application (kg/hm²).

2.3.6. Economic Benefits

The economic benefits (EB) were calculated as described previously [29,30]:

$$\mathit{EB}=\mathit{YR}- \mathit{IW}- \mathit{NW}- \mathit{OW}- \mathit{PW}$$

(3)

where EB is economic benefit (CHY/hm²), YR is the potato yield income (CHY/hm²), IW is the irrigation water input (CHY/hm²), NW is the nitrogen application input (CHY/hm²), OW is other inputs, and PW is the manual labor cost (CHY/hm²).

2.4. Multi-Objective Decision Making and TOPSIS Evaluation

The technique for order preference by similarity to ideal solution (TOPSIS) was used to identify a solution from the feasible solution set by defining the positive ideal solution and the negative ideal solution for the decision problem so that it was closest to the positive ideal solution and farthest from the negative ideal solution [31].

(1) Nine treatments were set as evaluation objects, with nine evaluation indicators including fruit yield, iWUE, PFP, and EB. The evaluation indicators were normalized to establish a normalized matrix:

$${\mathit{z}}_{\mathit{i}\mathit{j}}=\frac{{\mathit{x}}_{\mathit{i}\mathit{j}}}{\sqrt{{{\displaystyle \sum }}_{\mathit{i}=1}^{\mathit{n}}{\mathit{x}}_{\mathit{i}\mathit{j}}^2}}$$

(4)

where z_ij is the j index normalized value in i treatment; x_ij is the j index value in the i treatment. i = 1, 2,⋅⋅⋅, n; j = 1, 2,⋅⋅⋅, m;

(2) The ideal solution (Z_ij⁺) and the negative solution (Z_ij⁻) were determined to form the ideal solution vector Z⁺ and the negative solution vector Z⁻, respectively:

$${\mathit{Z}}_{\mathit{i}\mathit{j}}{}^{+}=\left({\mathit{z}}_{\mathit{i}1}{}^{+},{\mathit{z}}_{\mathit{i}1}{}^{+},{\mathit{z}}_{\mathit{i}3}{}^{+}\dots \dots {\mathit{z}}_{\mathit{i}\mathit{j}}{}^{+}\right)$$

(5)

$${\mathit{Z}}_{\mathit{i}\mathit{j}}{}^{-}=\left({\mathit{z}}_{\mathit{i}1}{}^{-},{\mathit{z}}_{\mathit{i}1}{}^{-},{\mathit{z}}_{\mathit{i}3}{}^{-}\dots \dots {\mathit{z}}_{\mathit{i}\mathit{j}}{}^{-}\right)$$

(6)

where Z_ij⁺ and Z_ij⁻ represent the maximum and minimum values of the evaluation object in the j-th index, respectively;

(3) The Euclidean distances (D_i⁺ and D_i⁻) were determined:

$${\mathit{D}}_{\mathit{i}}^{+}=\sqrt{{\displaystyle \sum }_{\mathit{j}=1}^{\mathit{m}}{\left[{\mathit{w}}_{\mathit{j}}\times \left({\mathit{z}}_{\mathit{i}\mathit{j}}-{\mathit{Z}}_{\mathit{i}\mathit{j}}^{+}\right)\right]}^2}$$

(7)

$${\mathit{D}}_{\mathit{i}}^{-}=\sqrt{{\displaystyle \sum }_{\mathit{j}=1}^{\mathit{m}}{\left[{\mathit{w}}_{\mathit{j}}\times \left({\mathit{z}}_{\mathit{i}\mathit{j}}-{\mathit{Z}}_{\mathit{i}\mathit{j}}^{-}\right)\right]}^2}$$

(8)

where w_j is the weight of indicator j;

(4) The relative proximity coefficient R_i of each treatment was calculated; that is, the proximity between the evaluation object and the optimal scheme was calculated as follows:

$${\mathit{R}}_{\mathit{i}}=\frac{{\mathit{D}}_{\mathit{i}}^{-}}{{\mathit{D}}_{\mathit{i}}^{+}+{\mathit{D}}_{\mathit{i}}^{-}}.$$

(9)

2.5. Data Analysis

Microsoft Excel 2019 was used for data collation, Origin 2018 for plotting, and SPSS 26.0 for statistical analysis, and Duncan’s multiple comparisons were used to test for significance (p < 0.05).

3. Results

3.1. Effect of Water and Nitrogen Regulation

3.1.1. Potato Growth

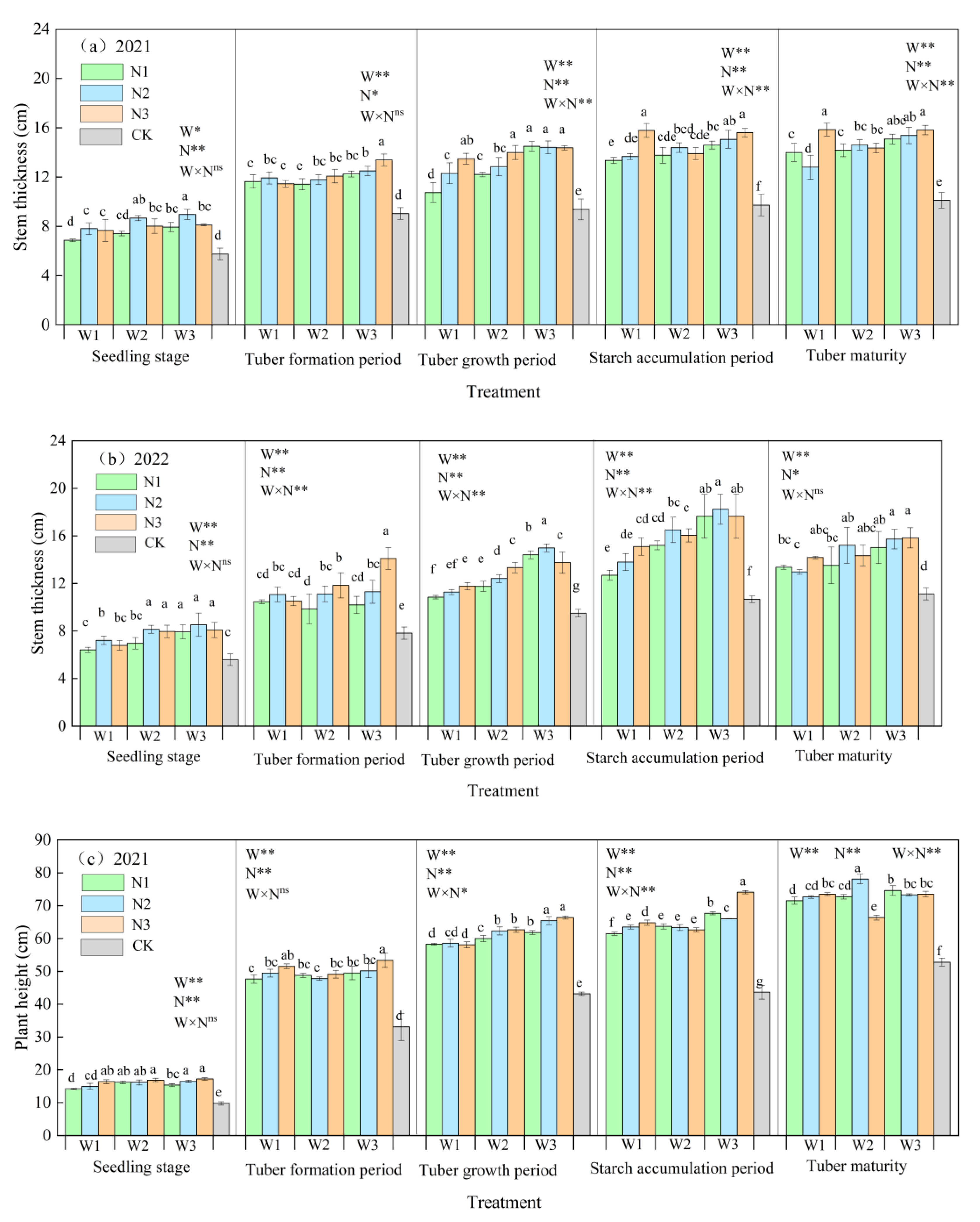

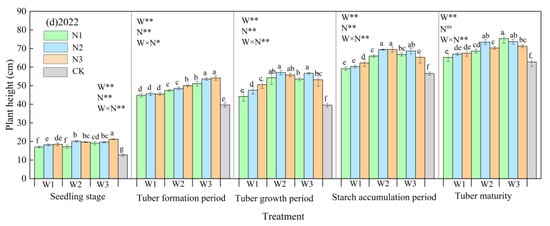

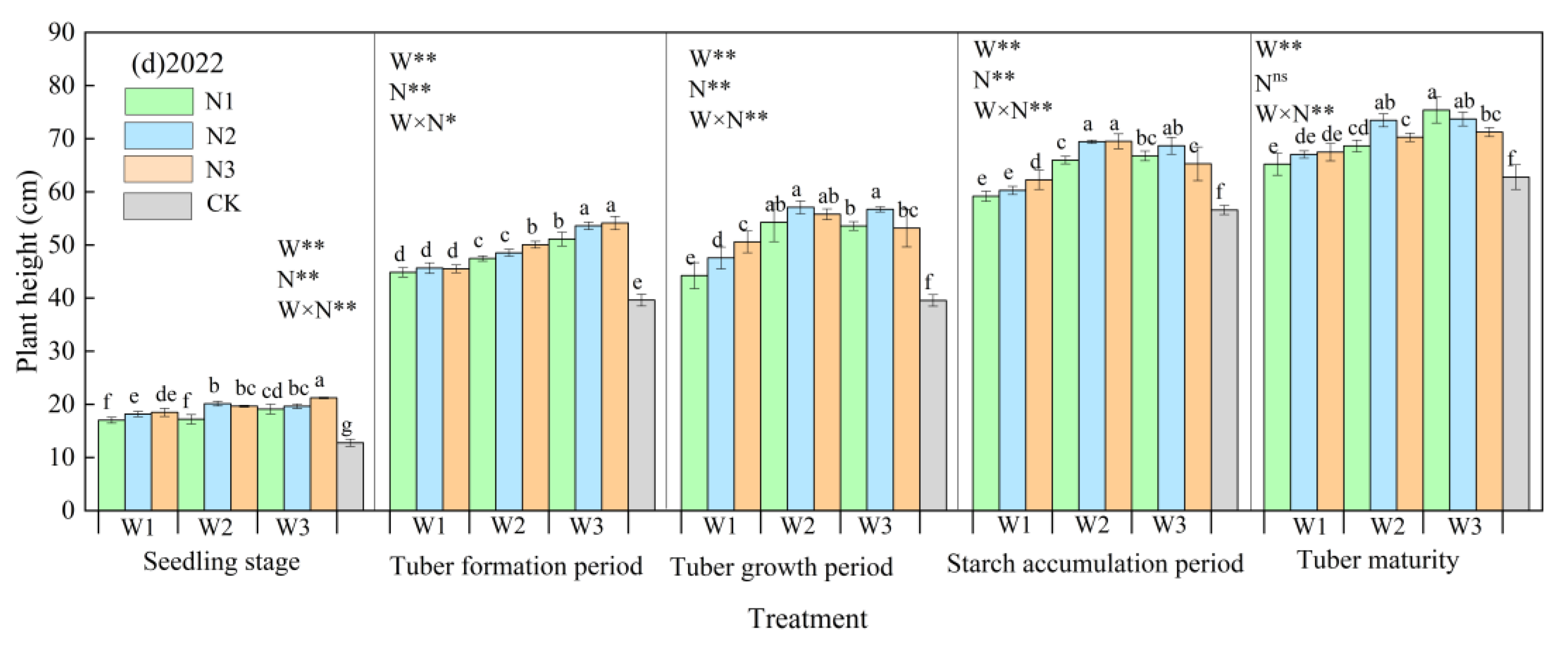

Figure 4 shows the effects of water and nitrogen regulation on potato growth. We observed that the differences between the treatments over the two years were consistent. The stem thickness of potato plants was significantly (p < 0.05) affected by the different water and nitrogen treatments and increased as the fertility period progressed. Under the same irrigation conditions, the stem thickness at the seedling stage showed a trend of increasing and decreasing with increasing N application. Overall, the W3N3 treatment yielded significantly better results with respect to stem thickness compared with the other treatments, showing an increase of 66.04–76.21% compared with the CK. Tuber formation under the W1 irrigation quota followed the same trend as that at the seedling stage, and tuber formation under the W2 and W3 irrigation quotas increased with increasing N application. Moreover, stem thickness was the highest under the W3N3 treatment. The change in the tuber growth stage increased with N application, and no significant change was observed under the W3 irrigation quota; the trends observed at the starch accumulation and maturity stages were consistent, and the stem thickness was the highest under the W3N3 treatment. At the same N application rate, the stem thickness decreased and subsequently increased with increasing irrigation quotas (except at maturity). At maturity, the stem thickness under the N1 and N2 treatments increased with increasing irrigation quotas, whereas that under the N3 treatment showed a trend of increasing and then decreasing owing to the aging potato stalks.

Plant height was significantly affected by the different water and nitrogen treatments (p < 0.05). Under the same irrigation conditions, plant height in the W1 treatment at the seedling stage showed an increasing trend, followed by a decreasing trend with increasing N application. Plant height under the W3N2 treatment was the highest at the seedling, tuber growth, and starch accumulation stages, with an average increase of 54.22, 55.70, 62.95, and 49.34% compared to the CK, and plant height under the W3N3 treatment was the highest at the tuber formation and maturity stages. Under the same conditions of nitrogen application, the plant height under each treatment showed a decreasing and a subsequently increasing trend with the increases in irrigation quota at the seedling and tuber growth stages. Plant height under the N1 treatment gradually increased with the irrigation quota at the tuber formation and starch accumulation stages, and that under the N2 and N3 treatments showed a decreasing trend followed by a subsequent increase. Plant height under the N1 treatment gradually increased, that under the N2 treatment initially increased and then decreased, and plant height under the N3 treatment showed a decreasing and subsequently increasing trend at the maturity stage. These results indicate that increased water N treatments could significantly improve potato growth.

3.1.2. Potato Yield

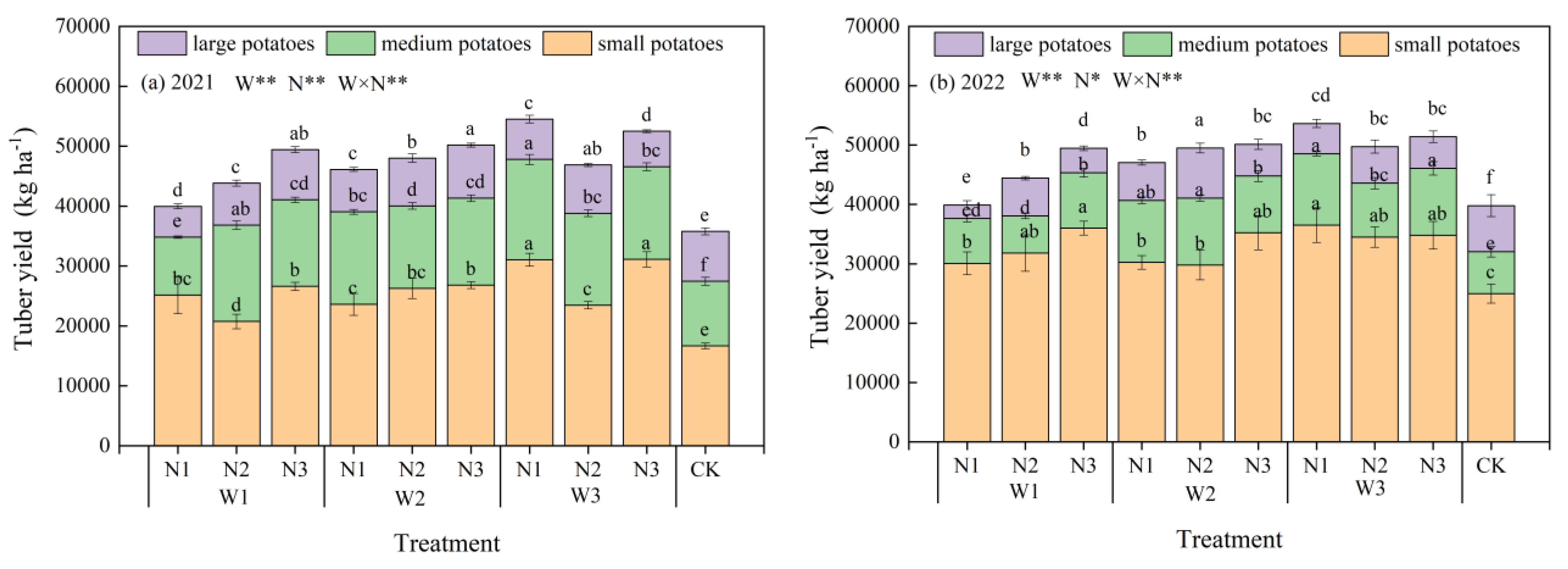

The effects of the water and N regulation on potato yield are shown in Figure 5. The level of irrigation and N application had a significant effect on the yield components (p < 0.05), and the differences between treatments were consistent between the two years. The total potato yield was 39,931.68–54,085.48 kg/hm², showing an increase of 2139.35–16,293.14 kg/hm² or 43.11–66.00% compared with that in the CK. Under the same irrigation quota, potato yield under the W1 and W2 treatments showed an increasing trend with increasing N applications, whereas that under the W3 treatment showed a decreasing trend followed by an increasing trend. Under the same N application treatments, potato yield under the N1 and N3 treatments increased with increasing irrigation quotas, whereas that under the N2 treatment showed an increasing and a subsequent decreasing trend. The yield under the W3N1 treatment was the highest, which increased by 52.36% when compared with that in the CK; thus, the highest yield could be obtained with increased irrigation and low nitrogen application, with excessive nitrogen application causing a significant decrease in yield. The yield of large potatoes was the highest under the W3N1 and W3N3 treatments, increasing by 86.22% and 86.67%, respectively, compared with that in the CK. The yield of medium potatoes was the highest under the W1N2 and W3N1 treatments, showing an increase of 49.14% and 55.32%, respectively, compared with that in the CK, whereas the yield of small potatoes was the largest under the W2N3 treatment, increasing by 6.27% compared with that in the CK. Overall, the analysis showed that potato yield was more sensitive to irrigation than N application and that the maximum irrigation quota and N applications were favorable for large potato yield but not for total yield. Therefore, only appropriate irrigation and N application rates are beneficial for potato yield improvement.

3.1.3. Potato Quality

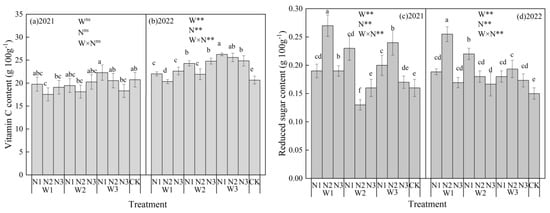

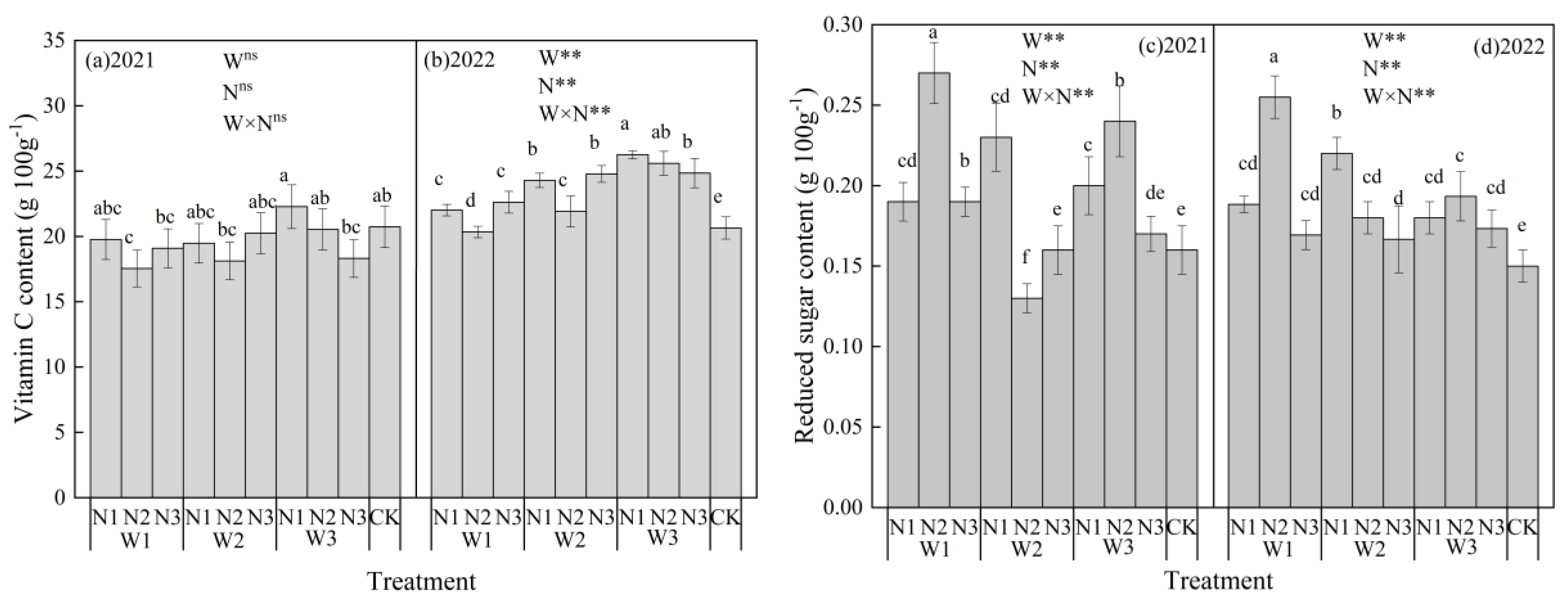

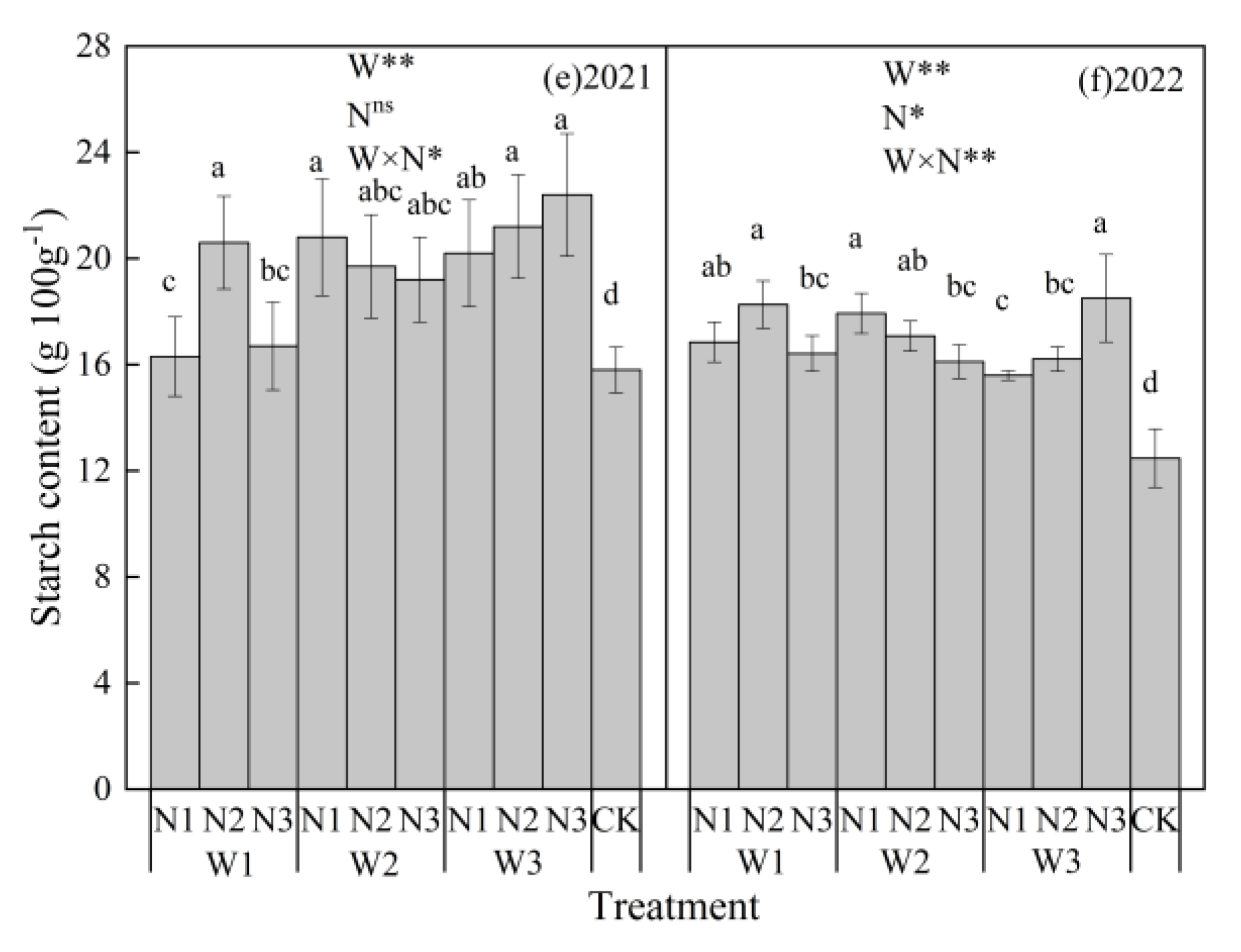

The effects of the different water and nitrogen regulations on potato quality are shown in Figure 6. Potato VC content under the same irrigation quotas under the W1 and W2 treatments initially decreased and then increased with N application, whereas that under the W3 treatment showed a decreasing trend with the same N application. The VC content under the N1 treatment showed a trend of decreasing and then increasing with the irrigation quota, and that under the N2 treatment showed a gradual increase. The VC content under the N3 treatment showed a trend of increasing and then decreasing. The VC content under the W3N1 treatment was the highest, with an average increase of 17% compared with that in the CK. The reducing sugar content significantly differed among treatments, with W1N2 and W3N2 treatments exhibiting significantly higher contents than those observed under the other treatments, being 69% and 39% higher compared with those in the CK, respectively. The potato starch content under the W3N3 treatment was the highest, with an average increase of 45% compared with that in the CK. In summary, all quality indicators were affected differently by the absence of water and nitrogen, indicating that water and nitrogen can significantly improve potato quality.

3.2. Effect of Water and Nitrogen Regulation on Irrigation Water Use Efficiency, Nitrogen Fertilizer Bias Productivity, and Economic Efficiency

The effects of water and nitrogen regulation on irrigation water-use efficiency and nitrogen PFP are shown in

Table 2. Effects of water and nitrogen regulation on irrigation water use efficiency and nitrogen fertilizer bias productivity.

Year	Treatments	Yield kg·hm−2	Irrigation Volume m3·hm−2	iWUE	Total N Fertilizer Application kg	PFP kg·kg−1
2021	W1N1	39,968.72g	1200	33.31g	110	363.35g
	W1N2	43,842.50f	1200	36.54f	190	230.75f
	W1N3	49,424.70cd	1200	41.19cd	270	183.05cd
	W2N1	46,127.25ef	1560	29.57ef	110	419.34ef
	W2N2	48,006.92cde	1560	30.77cde	190	252.67cde
	W2N3	50,189.03bc	1560	32.17bc	270	185.89bc
	W3N1	54,530.74a	2100	25.97a	110	495.73a
	W3N2	46,868.25de	2100	22.32de	190	246.68de
	W3N3	52,499.85ab	2100	25.00ab	270	194.44ab
	CK	35,790.30h	2100	17.04h	150	238.60h
2022	W1N1	39,894.65d	1200	33.25d	110	362.68d
	W1N2	44,439.21c	1200	37.03c	190	233.89c
	W1N3	49,459.19ab	1200	41.22ab	270	183.18ab
	W2N1	46,955.98bc	1560	30.10bc	110	426.87bc
	W2N2	49,504.43ab	1560	31.73ab	190	260.55ab
	W2N3	50,111.87ab	1560	32.12ab	270	185.6ab
	W3N1	53,640.21a	2100	25.54a	110	487.64a
	W3N2	49,749.52ab	2100	23.69ab	190	261.84ab
	W3N3	51,423.99ab	2100	24.49ab	270	190.46ab
	CK	39,794.37f	2100	18.95f	150	265.30f

Note: Different letters after the values in the same column indicate significant differences between treatments (p < 0.05). iWUE, irrigation water use efficiency; PFP, fertilizer biased productivity.

. Irrigation water-use efficiency decreased with decreasing irrigation quotas at different N applications and was slightly different at the same irrigation quotas; that is, the W1 and W2 treatments exhibited increased iWUE with increasing N applications, and the iWUE under W3 treatment showed a decreasing and subsequently increasing trend. The highest iWUE was found in the W1N3 treatment, which increased by 123% compared with that in the CK. This indicates that the irrigation quota has a greater effect on the irrigation water use efficiency than N application. PFP is an important indicator that reflects the combined effects of the local soil base nutrient level and fertilizer dosage. As shown in

Table 3. Effect of water and nitrogen regulation on economic efficiency.

Year	Treatment	Water Costs	Fertilizer Costs	Other Costs	Labor Costs	Total Input Costs	Yield Gains	Economic Benefits (CNY/hm2)
2021	W1N1	4800.00	1955.00	847.00	2250.00	9852.00	67,946.82	58,094.82
	W1N2	4800.00	2275.00	847.00	2250.00	10,172.00	74,532.25	64,360.25
	W1N3	4800.00	2595.00	847.00	2250.00	10,492.00	84,021.99	73,529.99
	W2N1	6240.00	1955.00	847.00	2250.00	11,292.00	78,416.33	67,124.33
	W2N2	6240.00	2275.00	847.00	2250.00	11,612.00	81,611.77	69,999.77
	W2N3	6240.00	2595.00	847.00	2250.00	11,932.00	85,321.35	73,389.35
	W3N1	8400.00	1955.00	847.00	2250.00	13,452.00	92,702.26	79,250.26
	W3N2	8400.00	2275.00	847.00	2250.00	13,772.00	79,676.03	65,904.03
	W3N3	8400.00	2595.00	847.00	2250.00	14,092.00	89,249.75	75,157.75
	CK	/	2115.00	847.00	2250.00	5212.00	60,843.51	55,631.51
2022	W1N1	4800.00	1955.00	847.00	2250.00	9852.00	67,820.90	57,968.90
	W1N2	4800.00	2275.00	847.00	2250.00	10,172.00	75,546.67	65,374.67
	W1N3	4800.00	2595.00	847.00	2250.00	10,492.00	84,080.63	73,588.63
	W2N1	6240.00	1955.00	847.00	2250.00	11,292.00	79,825.17	68,533.17
	W2N2	6240.00	2275.00	847.00	2250.00	11,612.00	84,157.53	72,545.53
	W2N3	6240.00	2595.00	847.00	2250.00	11,932.00	85,190.17	73,258.17
	W3N1	8400.00	1955.00	847.00	2250.00	13,452.00	91,188.36	77,736.36
	W3N2	8400.00	2275.00	847.00	2250.00	13,772.00	84,574.18	70,802.18
	W3N3	8400.00	2595.00	847.00	2250.00	14,092.00	87,420.79	73,328.79
	CK	/	2115.00	847.00	2250.00	5212.00	67,650.42	62,438.42

Note: Irrigation water, 4 CNY m⁻¹; urea, 4 CNY kg⁻¹; calcium superphosphate, 2 CNY kg⁻¹; potassium sulfate, 9 CNY kg⁻¹; potato labor cost, 150 CNY mu ⁻¹; potato Ningxia market average price, 1.7 CNY kg⁻¹.

, potato N PFP was higher under the N1 treatment than that under other treatments at the same irrigation rate, and the highest N PFP was 487.64–495.73 kg/kg under the W3N1 treatment, which indicates that the maximum N fertilizer productivity bias and improved N fertilizer utilization can be obtained at a low N application rate.

The economic benefits of each treatment were analyzed by calculating the inputs and benefits of each treatment according to the local economic conditions (Table 3). The highest economic benefit was observed under the W3N1 treatment, with an increase of 33.48% compared with that in the CK. Under the same irrigation quota, the economic benefits of N1 and N2 showed an increasing trend, whereas N3 showed an increasing and then decreasing trend, indicating that appropriate input applications of N could increase the economic benefits. In the N1 treatment, the economic efficiency increased with the irrigation quota, which indicated that the irrigation amount could increase the economic efficiency with low N application; in the N2 treatment, the economic efficiency increased with the irrigation quota and then decreased, which indicated that the economic efficiency decreased with increased irrigation. In contrast, the economic efficiency did not change significantly under the high water and high fertilizer treatments. In summary, examining the three different water and nitrogen treatments in the experimental design, a moderate increase in water and fertilizer inputs was conducive to improving economic benefits; in actual production, farmers can reduce the water and nitrogen inputs, which will lead to more substantial economic benefits.

3.3. Interaction Effects of Water and Nitrogen Regulation on Yield, Irrigation Water Use Efficiency, Nitrogen and Fertilizer Bias Productivity, and Economic Efficiency

Based on the data obtained, four models were developed to predict yield (Y), iWUE, PFP, and EB with irrigation quotas and N application as dependent variables and irrigation water (W) and pure nitrogen application (N) as independent variables. A regression analysis was conducted to establish a binary quadratic regression equation, as shown in

Table 4. Regression relationship between water and nitrogen regulation and yield, irrigation water use efficiency, nitrogen fertilizer bias productivity, and economic efficiency.

Year	Dependent Variable	Regression Equation	R2
2021	Y	Y1 = 6902.82475 + 38.62586166W − 0.004839012346W2 + 0.3996197557N2 − 0.07896940836WN	0.890
	iWUE	iWUE1 = 52.9508439 − 0.021943699310W + 0.03813119892N + 0.000005859315017W2 + 0.00020698097448N2 − 0.00005985044414WN	0.984
	PFP	PFP1 = 457.353369 + 0.31334747347W − 3.912016346N − 0.000028904191564W2 + 0.009938078578N2 − 0.0008358779081WN	0.988
	EB	EB1 = 6690.11241 + 61.76638016W − 0.008226316872W2 + 0.6712452012N2 − 0.13478706255WN	0.851
2022	Y	Y2 = −9095.38809 + 47.76779682W + 111.33762089N − 0.007494790809W2 + 0.10675963542N2 − 0.08026080958WN	0.956
	iWUE	iWUE2 = 43.8408005 − 0.016293068416W + 0.09862280702N + 0.000004180384088W2 + 0.00004739583333N2 − 0.00006049890351WN	0.989
	PFP	PFP2 = 367.841533 + 0.3772425026W − 3.398549616N − 0.00005005829904W2 + 0.008434114583N2 − 0.0008037920322WN	0.994
	EB	EB2 = −20074.09519 + 77.20515958W + 185.27410855N − 0.012741114540W2 + 0.18149114583N2 − 0.13644341192WN	0.937

Note: EB, economic benefits; Y, yield.

, which shows the relationship of irrigation and N application with potato yield, iWUE, N PFP, and economic efficiency. All R² values were > 0.85, and the predicted values were significantly correlated with the measured values; therefore, the four models could better predict the changes in water and N regulation for each index.

The corresponding values of the water and nitrogen variables with the maximization of each indicator were calculated using the binary quadratic regression equation established for each indicator for the irrigation quotas and N applications (

Table 5. Maximum yield, water use efficiency, biased fertilizer productivity, and economic efficiency, and their corresponding irrigation and N application rates.

Year	Irrigation Quotas m3/hm2	Nitrogen Fertilizer Amount Kg/hm2	Yield kg/hm2	iWUE kg/m3	PFP kg/kg	EB CNY/hm2
2021	2100.00	110	53,270.56	25.58	484.76	77,107.71
	1200.00	270	49,831.87	41.05	189.17	74,226.64
	2099.97	110	53,270.31	25.58	484.75	77,107.39
	2100.00	110	53,270.56	25.58	484.76	77,107.71
2022	2100.00	110	53,163.64	25.51	481.83	76,926.19
	1200.00	270	49,272.90	40.79	185.26	73,271.9
	2099.97	110	53,163.42	25.51	481.83	76,925.93
	2100.00	110	53,163.64	25.51	481.83	76,926.19

). The maximum irrigation water and N application for yield, N PFP, and EB were 2100 m³·hm⁻² and 110 kg·hm⁻², respectively, and the maximum irrigation water and N application for iWUE were 1200 m³·hm⁻² and 270 kg·hm⁻², respectively. The maximum irrigation water and N application for yield, N PFP, and EB were maximized, whereas the maximum irrigation water and N application for irrigation water-use efficiency were maximized at the lowest level. Utilization efficiency was maximized with the lowest irrigation quota and largest N application.

3.4. Optimization of Efficient Water and Nitrogen Regulation System for Potato in the Central Dry Zone of Ningxia Based on the TOPSIS Model

To further reflect the role of water and nitrogen regulation on potato yield, iWUE, nitrogen PFP, and economic efficiency, the entropy weight TOPSIS comprehensive evaluation model was used to seek the most efficient irrigation water and nitrogen fertilizer program for potato in the central Ningxia arid zone.

Table 6. Statistics of TOPSIS judging indicators.

Year	Treatments	Di+	Di−	Ri	Rank	Year	Treatments	Di+	Di−	Ri	Rank
2021	W1N1	0.1942	0.2737	0.585	3	2022	W1N1	0.254	0.2162	0.4599	4
	W1N2	0.3018	0.224	0.426	5		W1N2	0.3545	0.0882	0.1991	9
	W1N3	0.3499	0.2679	0.4336	4		W1N3	0.411	0.0745	0.1535	10
	W2N1	0.1808	0.2913	0.617	2		W2N1	0.1956	0.2734	0.5829	2
	W2N2	0.3006	0.1785	0.3725	6		W2N2	0.311	0.1243	0.2856	7
	W2N3	0.3612	0.1801	0.3327	7		W2N3	0.3763	0.0938	0.1996	8
	W3N1	0.2115	0.3605	0.6302	1		W3N1	0.153	0.3551	0.6988	1
	W3N2	0.3485	0.1082	0.237	10		W3N2	0.2658	0.1878	0.4141	5
	W3N3	0.3837	0.1238	0.2439	9		W3N3	0.3386	0.1615	0.3229	6
	CK	0.3873	0.1506	0.2801	8		CK	0.2423	0.2815	0.5374	3

Note: Si* and Si are the Euclidean distances, and Ci* is the relative closeness.

shows the score rankings for each treatment and also shows that the W3N1 treatment has the highest total score ranking, and the CK has the lowest total score ranking. This experiment recommended the W3N1 treatment as a better water and nitrogen coupling model for potato cultivation in the central dry zone of Ningxia.

4. Discussion

Ningxia is located in the northwest arid inland region of China, and the natural water resources in this area have been limited in recent years. Drought and water shortages are the main causes of low and unstable potato yields in the region, causing tuber deformation. High nitrogen fertilizer applications increase input costs and also reduce the yield. Therefore, exploring a reasonable irrigation system and nitrogen application strategy could provide both theoretical and technical references to increase potato yield and improve quality.

Plant height is an important indicator of potato growth, and the crop stem is the main carrier of nutrients and water. It also supports the stability of leaves, flowers, and fruits, as well as photosynthesis and nutrient storage [32,33]. The results of this study showed that the irrigation quota and amount of nitrogen applied significantly affect plant height and stem thickness and that the stem thickness at the seedling stage initially increased and then decreased with the amount of nitrogen applied; plant height showed a gradual increase with the amount of irrigation and nitrogen applied. Notably, high irrigation and nitrogen application were not conducive to increased plant stem thickness, and this highlights the importance of the reasonable use of nitrogen fertilizer [34]. Overall, potato plant height and stem thickness were sensitive to the amount of water and nitrogen supplied at all fertility stages and varied considerably under field conditions. Moreover, irrigation had a greater impact on potato growth compared to N application.

Improved yield and quality are two of the main objectives of water and nitrogen regulation [35]; the average yield of potato-converted hectares was 39,931.68−54,085.48 kg/hm², with an average increase of 2139.35−16,293.14 kg/hm² compared to that under the CK, equivalent to an average increase of 43.11−66%. Potato yield was the highest under the W3N1 treatment; the N2 treatment showed a trend of increasing and then decreasing with irrigation water, and potato yield increased with the increase in irrigation [30]. Potato quality in terms of VC, reducing sugar, and starch contents improved under the different treatments compared with that under the CK, and the highest values for these parameters were noted under the W3N2, W1N2, W3N3, and W3N2 treatments, showing an increase of 7.00, 50.00, and 33.00%, respectively. Moreover, increased irrigation and nitrogen application had a positive effect on yield [36].

Irrigation water-use efficiency is an important indicator for evaluating the efficiency of agricultural irrigation water use in irrigation areas [37,38,39,40]. iWUE was greatest under the W1N3 treatment, as the irrigation quota is an important parameter affecting irrigation water use efficiency [41]. PFP is an important indicator of the combined effects of local soil-base nutrient levels and fertilizer dosage [42]. Potato nitrogen PFP was higher in the same irrigation quota under the N1 treatment than that under the other treatments, and the highest and lowest nitrogen PFP were observed under the W3N1 and W1N3 treatments, respectively. This was because lower N applications and higher irrigation rates increased the N PFP, and the N PFP gradually increased with increasing N application at the same irrigation rate [43]. Economic efficiency is a key index for comprehensively evaluating and reflecting the technical and economic feasibility of planting. Unreasonable fertilizer applications reduce the economic efficiency and yield-to-input ratio of potatoes [44]. The highest economic efficiency was achieved under the W3N1 treatment, with a 42.46% increase compared with the CK; therefore, controlling the N fertilizer application amount is an important agronomic measure to improve potato yield, economic efficiency, and N fertilizer utilization. Our results suggest that water is the main factor for increasing yield in the arid areas of central Ningxia; however, different fertilizer application rates can be utilized to achieve better results. Obtaining high tuber yields in semi-arid areas without adequate water supply is extremely challenging. Other possibilities that can be investigated to optimize irrigation water and chemical fertilizer use include adopting new genotypes characterized by more efficient responses to irrigation and fertilization and which have been improved for earlier tuberization, higher harvest index, and better sink/source balance. The water and fertilizer saved may be used more profitably to irrigate and fertilize supplemental lands in a manner that supports more efficient and rational land use from an economic as well as environmental perspective [45].

Many scholars have investigated the reciprocal effects of yield, iWUE, N and PFP, and economic efficiency using regression methods and other models [46,47,48], which showed that the R² of the binary quadratic regression equation established by each indicator with irrigation quota and nitrogen application was > 0.85, which could better predict the effects of the changes in water and nitrogen regulation on each indicator. The optimal irrigation water and N application rates for better yield, N fertilizer bias productivity, and economic efficiency were 2100 m⁻³ hm⁻² and 110 kg⁻¹ hm⁻², respectively, and the optimal irrigation water and N application rates for irrigation water use efficiency were 1200 m⁻³ hm⁻² and 110 kg⁻¹ hm⁻², respectively. TOPSIS is a widely used evaluation method [49], and to further illustrate the optimal solution, the present study concluded that the W3N1 treatment (with irrigation at 1200 m³·hm⁻² and N application at 110 kg·hm⁻²) was the most efficient treatment based on TOPSIS. This treatment can be used as an improved water and nitrogen control model for potato cultivation in the central arid zone of Ningxia.

5. Conclusions

Under the same conditions of irrigation, the variation patterns for stem thickness in the seedling stage showed a trend of increasing and decreasing with the increase in nitrogen application; however, plant height did not show a significant trend at the seedling stage under the W1 treatment. Under the same conditions of nitrogen application, the stem thickness initially decreased and subsequently increased with the increase in irrigation quota at each fertility stage. Plant height initially decreased and then increased with the increase in irrigation quota under each treatment at the seedling and tuber growth stages.

Under the same irrigation conditions, the W1 and W2 treatments showed an increasing trend with increasing N application, and the W3 treatment showed a decreasing trend followed by an increasing trend. The N1 and N3 treatments showed an increasing trend with increasing N application, and the N2 treatment showed an increasing trend followed by a decreasing trend. The VC, reducing sugar, and starch contents of potatoes were highest under the W3N2, W1N2, and W3N3 treatments.

Irrigation water use efficiency tended to decrease with decreasing irrigation quotas at different N application rates. Potato N fertilizer bias productivity was higher under the N1 treatment than that under other treatments with the same irrigation quotas, and showed an increase under the N1 and N2 treatments and an increase and a subsequent decrease under the N3 treatment with the same irrigation quotas.

The binary quadratic regression equation for water and nitrogen was established with the objectives of yield, N fertilizer productivity, economic efficiency, and irrigation water use efficiency, and we concluded that water and nitrogen could significantly improve potato yield, N fertilizer productivity, and economic efficiency. The effect of irrigation water was greater than that of N application, and we observed a significant interaction between water and nitrogen. A regression equation was used to obtain the optimal water and nitrogen combination for different objectives in the dry zone of Ningxia.

The TOPSIS model was used for comprehensive analysis under water and nitrogen regulation test conditions. Irrigation quota and nitrogen application rates of 2100 m³·hm⁻² and 110 kg·hm⁻², respectively, could ensure optimal yield, quality, and economic benefits in potato growing areas in the central Ningxia arid zone, thus achieving the goals of high yield, high quality, and water and fertilizer conservation.
