Influence of Functionalization Degree on the Rheological Properties of Isocyanate-Functionalized Chitin- and Chitosan-Based Chemical Oleogels for Lubricant Applications
Abstract
:1. Introduction
2. Experimental Section
2.1. Materials
2.2. General Methods
2.3. Functionalization Reaction of Chitosan and Chitin with HMDI
Functionalized Polymer & | Starting material [equiv.] * | HMDI [equiv.] * | Et3N [equiv.] * | Toluene [mL] |
---|---|---|---|---|
CSAN-1 | 1.00 (Chitosan) | 0.50 | 1.00 | 100 |
CSAN-2 | 1.00 (Chitosan) | 0.25 | 0.50 | 100 |
CSAN-3 | 1.00 (Chitosan) | 0.13 | 0.25 | 100 |
CSAN-4 | 1.00 (Chitosan) | 0.06 | 0.13 | 100 |
CTIN-1 | 1.00 (Chitin) | 0.50 | 1.0 | 100 |
CTIN-2 | 1.00 (Chitin) | 0.25 | 0.50 | 100 |
CTIN-3 | 1.00 (Chitin) | 0.13 | 0.25 | 100 |
CTIN-4 | 1.00 (Chitin) | 0.06 | 0.13 | 100 |
2.4. Preparation of Oleogels
2.5. Thermogravimetric Analysis (TGA)
2.6. Fourier Transform Infrared (FTIR) Spectroscopy
Thickener agent | Concentration [%, w/w] | Code Applied * |
---|---|---|
Chitosan | 30 | CSAN-30 |
CSAN-1 | 30 | CSAN-1-30 |
CSAN-2 | 30 | CSAN-2-30 |
CSAN-3 | 30 | CSAN-3-30 |
CSAN-4 | 30 | CSAN-4-30 |
CSAN-3 | 15 | CSAN-3-15 |
CSAN-3 | 25 | CSAN-3-25 |
CSAN-3 | 35 | CSAN-3-35 |
Chitin | 30 | CTIN-30 |
CTIN-1 | 30 | CTIN-1-30 |
CTIN-2 | 30 | CTIN-2-30 |
CTIN-3 | 30 | CTIN-3-30 |
CTIN-4 | 30 | CTIN-4-30 |
CTIN-2 | 15 | CTIN-2-15 |
CTIN-2 | 25 | CTIN-2-25 |
2.7. Rheological Characterization
3. Results and Discussion

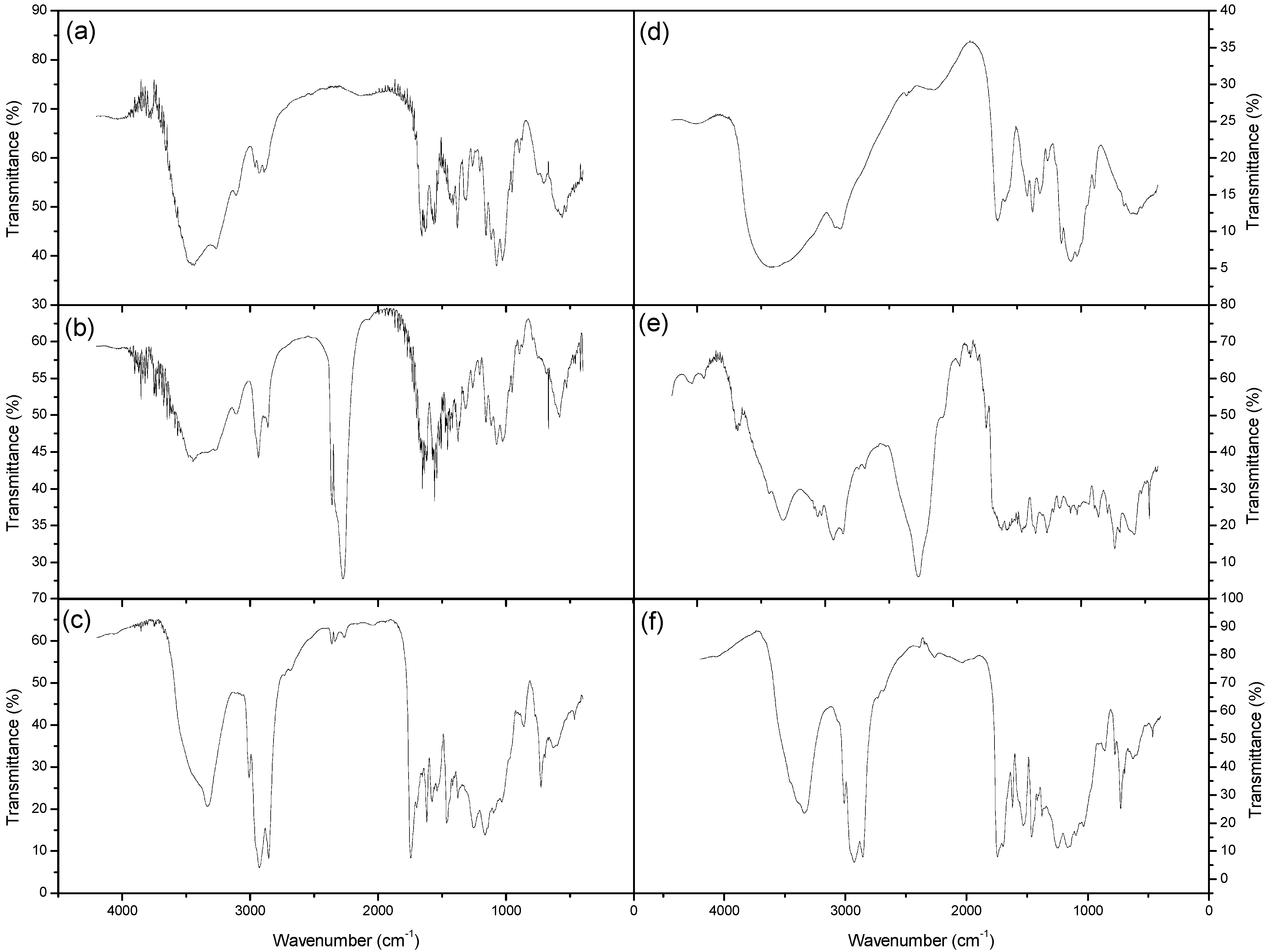

3.1. Spectroscopic Characterization
Functional group | Signals | |
---|---|---|
CTIN-1 (cm−1) | CSAN-1 (cm−1) | |
–OH + =NH | 3338 | 3330 |
C–H aliph | 2934 | 2936 |
N=C=O | 2275 | 2271 |
C=O | 1623 | 1741 |
N–H | 1574 | 1580 |
C–N or C–OH | 1259 | 1266 |
C–O or C–OC | 1076 | 1082 |

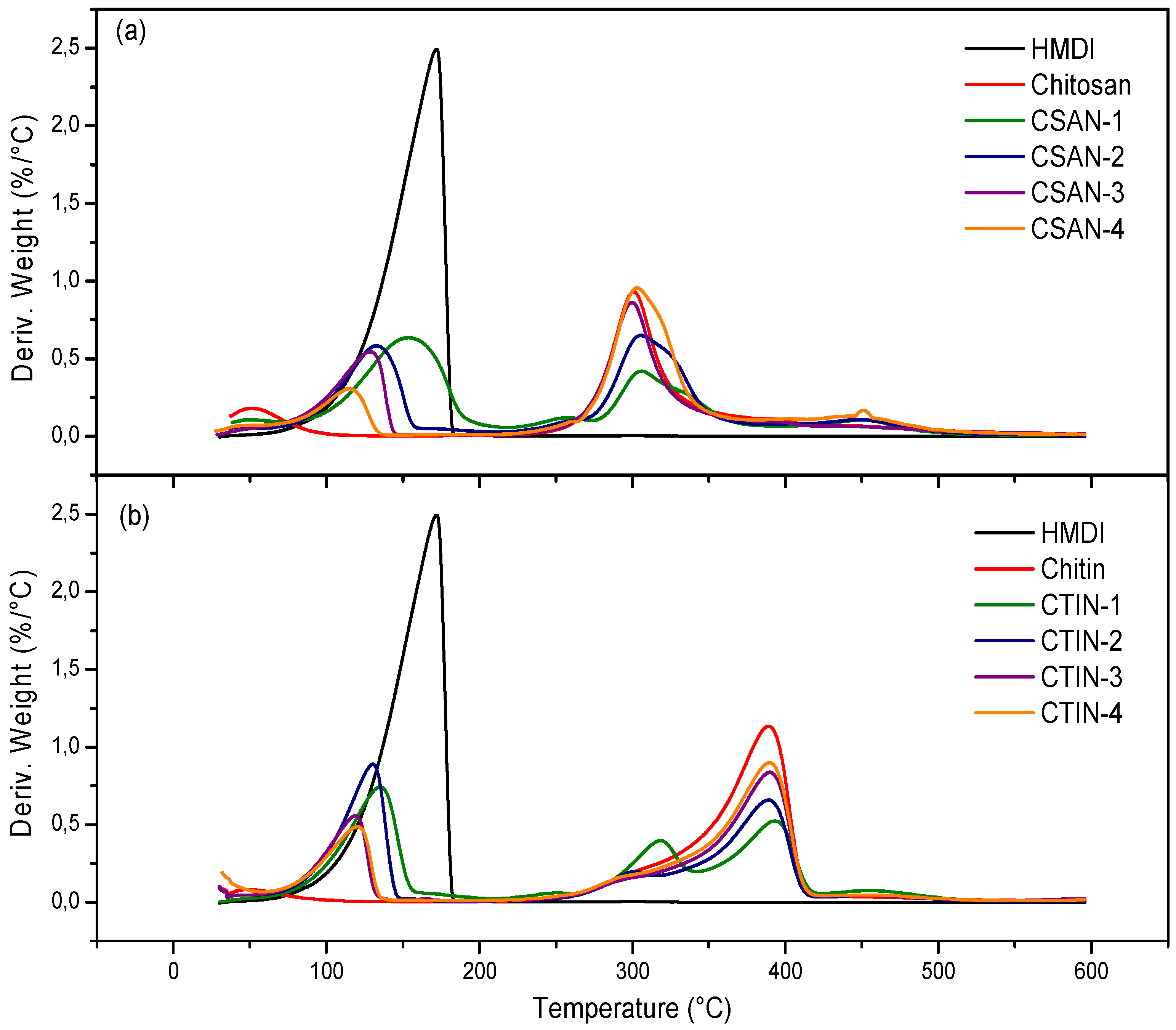

3.2. Thermogravimetric Characterization
Sample | Tonset [°C] | Tmax [°C] | Tfinal [°C] | ΔW [%] | Residue [%] |
---|---|---|---|---|---|
Chitosan | 281 | 301 | 472 | 57 | 34 |
Chitin | 343 | 389 | 405 | 23 | 72 |
HMDI | 137 | 172 | 178 | 99 | 1 |
CSAN-1 | 122/240/292/429 | 153/258/306/450 | 179/266/340/483 | 44/6/26/9 | 11 |
CSAN-2 | 107/283/431 | 133/306/448 | 150/335/486 | 30/43/9 | 15 |
CSAN-3 | 93/271/391/416 | 129/300/395/443 | 143/324/410/520 | 24/41/3/7 | 25 |
CSAN-4 | 83/274/388/445 | 116/303/401/450 | 133/339/406/464 | 14/51/4/11 | 20 |
CTIN-1 | 93/224/283/361/444 | 135/251/318/393/453 | 154/260/334/414/512 | 34/2/17/25/6 | 16 |
CTIN-2 | 106/275/363/439 | 130/302/389/454 | 140/309/403/494 | 34/10/36/4 | 16 |
CTIN-3 | 83/337/442 | 119/390/459 | 132/411/511 | 22/53/4 | 21 |
CTIN-4 | 83/336/441 | 121/390/463 | 134/411/512 | 22/58/4 | 16 |
Sample | Tonset [°C] | Tmax [°C] | Tfinal [°C] | Residue [%] | ΔW [%] |
---|---|---|---|---|---|
CSAN-30 | 278/357 | 302/389/449 | 319/482 | 4 | 19/77 |
CSAN-1-30 | 297 | 344/386/452 | 481 | 8 | 92 |
CSAN-2-30 | 301 | 339/389/451 | 481 | 10 | 90 |
CSAN-3-30 | 276/353/433 | 307/386/447 | 321/412/483 | 6 | 17/66/11 |
CSAN-4-30 | 266/355 | 302/387/443 | 319/481 | 8 | 26/66 |
CTIN-30 | 340/441 | 381/459 | 409/495 | 11 | 80/9 |
CTIN-1-30 | 324/439 | 379/446 | 410/482 | 3 | 83/14 |
CTIN-2-30 | 327/444 | 376/450 | 405/485 | 5 | 82/13 |
CTIN-3-30 | 326/443 | 374/449 | 406/462 | 6 | 83/11 |
CTIN-4-30 | 328/425 | 373/449 | 404/486 | 4 | 86/10 |

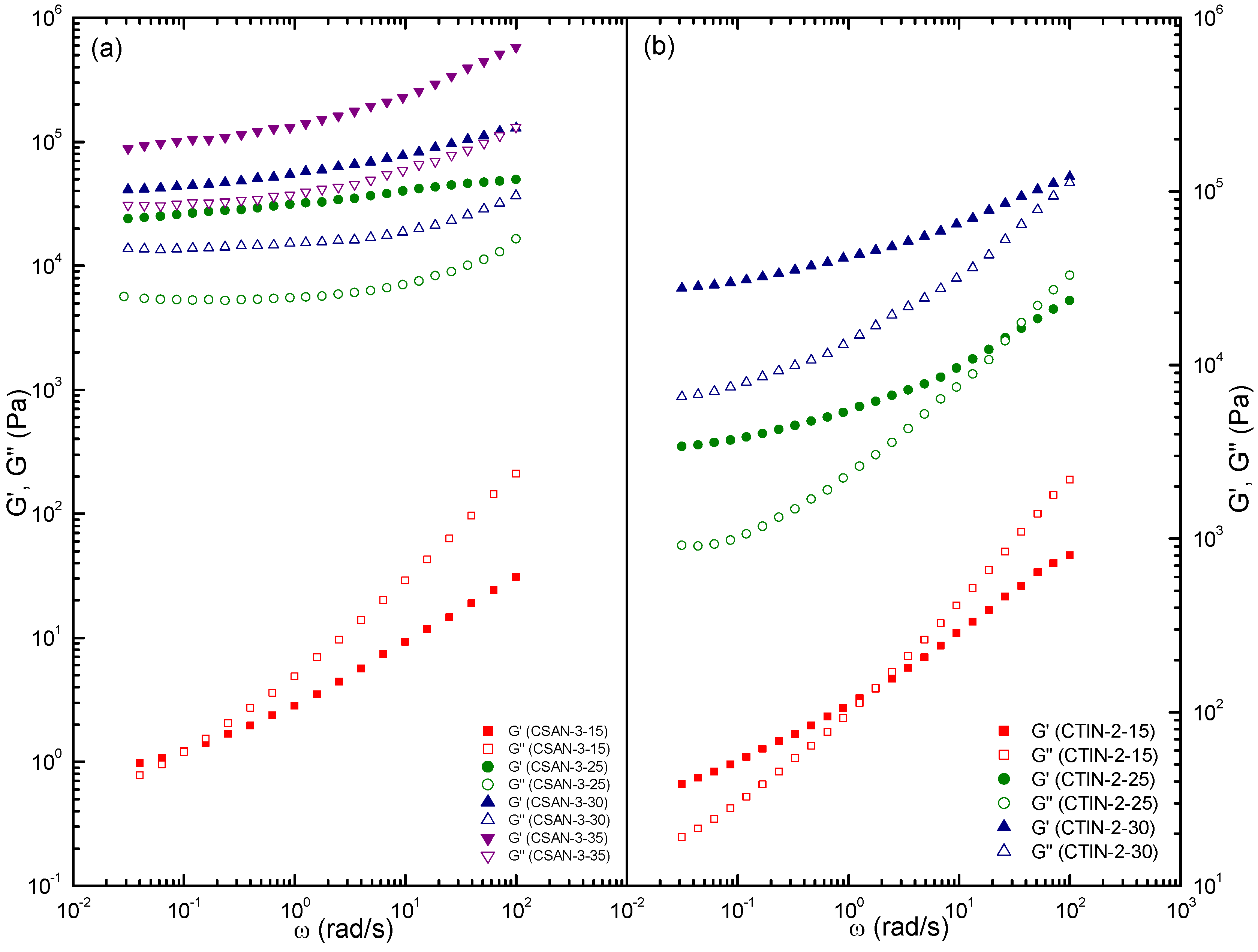

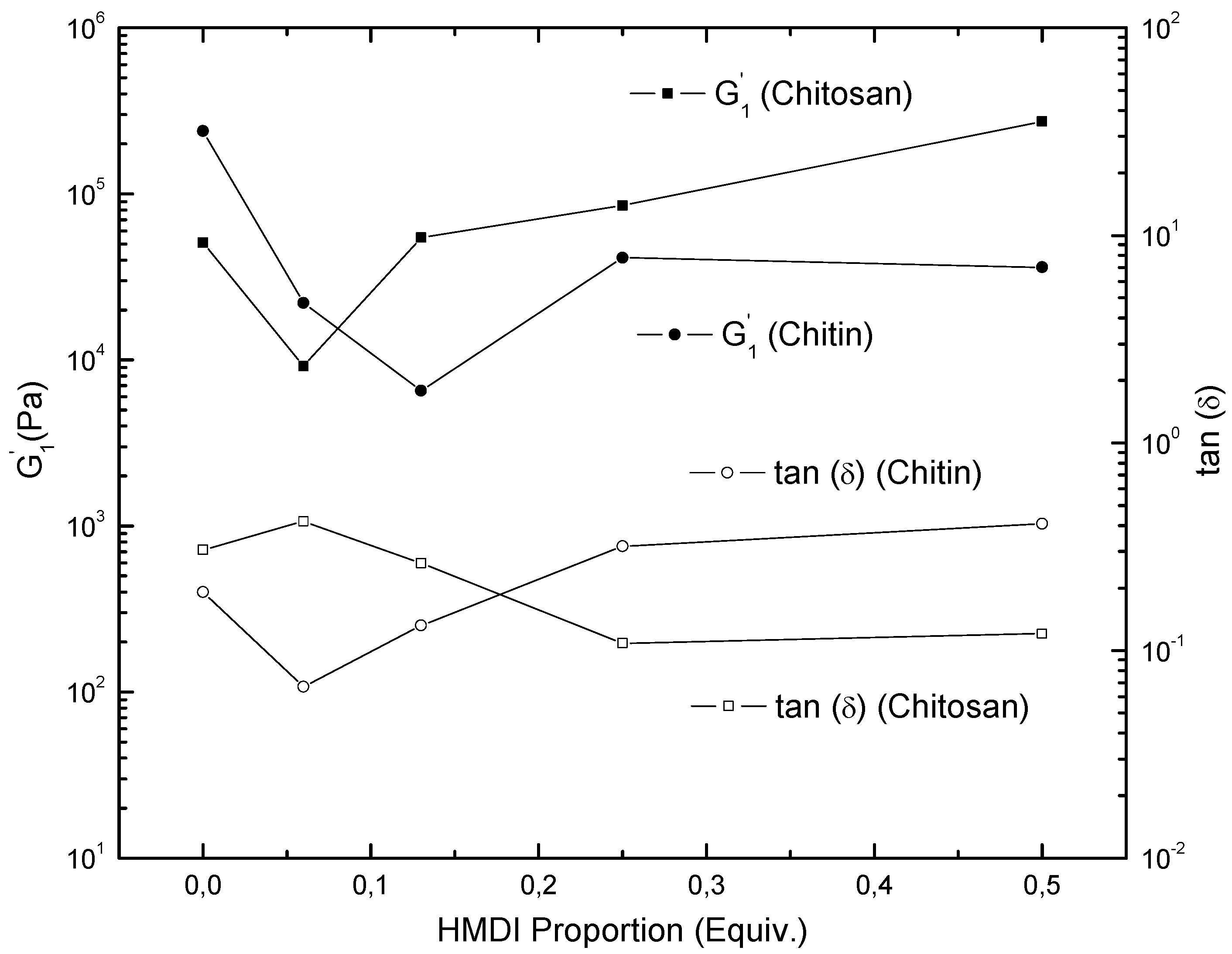

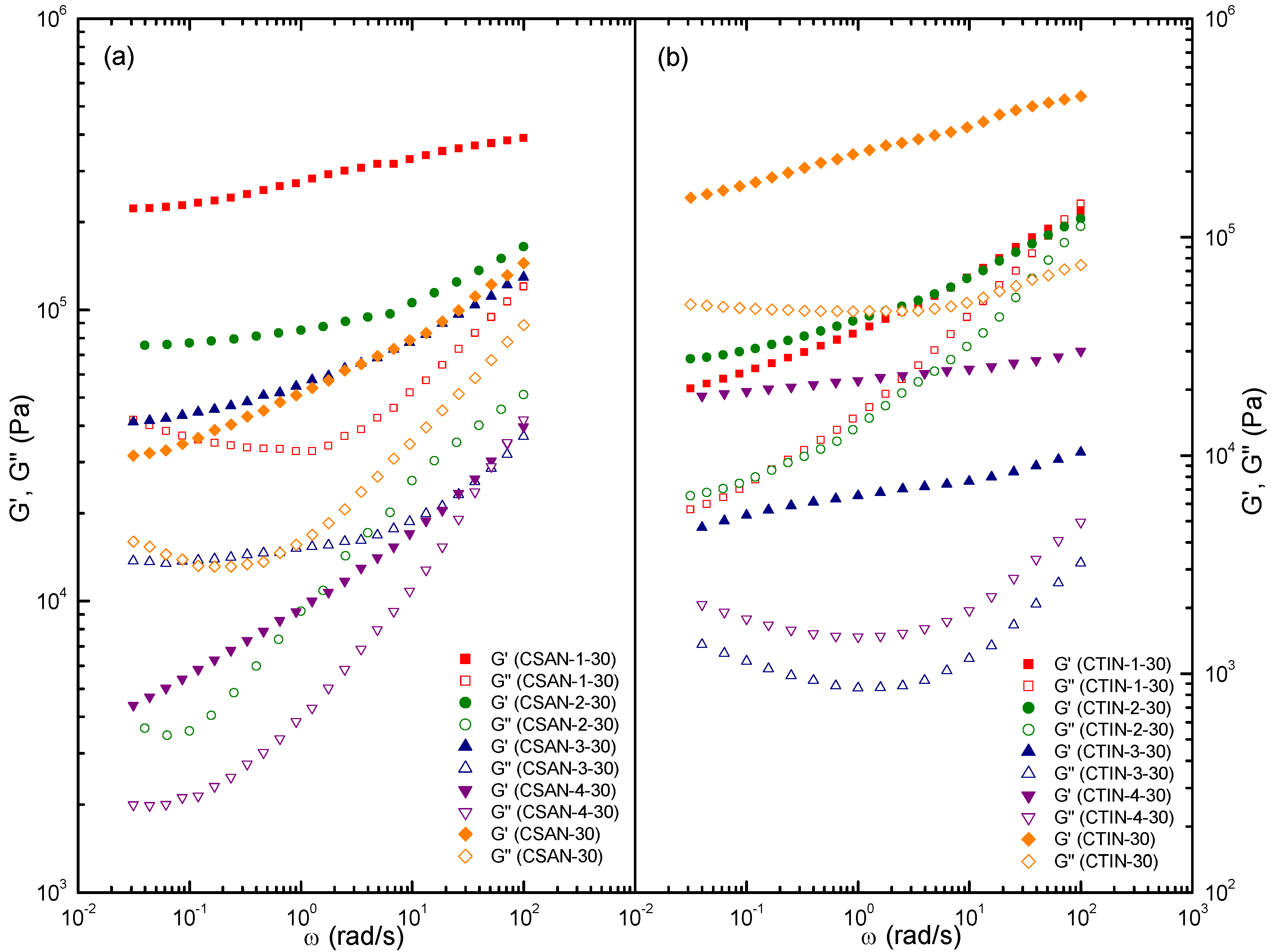

3.3. Rheology of Chitosan- and Chitin-Based Oleogels
4. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Dutty, N.; Blonk, H.C.G.; Beindorff, C.M.; Cazade, M.; Bot, A.; Duchateau, G.S.M.J.E. Organogel-based emulsion systems, micro-structural features and impact on in vitro digestion. J. Am. Oil Chem. Soc. 2009, 86, 733–741. [Google Scholar] [CrossRef]
- Wang, K.K.; Jia, Q.A.; Han, F.; Liu, H.Z.; Li, S.M. Self-assembled l-alanine derivative organogel as in situ drug delivery implant: Characterization, biodegradability, and biocompatibility. Drug Dev. Ind. Pharm. 2010, 36, 1511–1521. [Google Scholar] [CrossRef]
- Lupi, F.R.; Gabriele, D.; Baldino, N.; Mijovic, P.; Parisi, O.I.; Puoci, F. Olive oil/policosanol organogels for nutraceutical and drug delivery purposes. Food Funct. 2013, 4, 1512–1520. [Google Scholar]
- Satapathy, D.; Biswas, D.; Behera, B.; Sagiri, S.S.; Pal, K.; Pramanik, K. Sunflower-oil-based lecithin organogels as matrices for controlled drug delivery. J. Appl. Polym. Sci. 2013, 129, 585–594. [Google Scholar]
- Terech, P.; Weiss, R.G. Low-mass luminescent organogels. In Surface Characterization Methods: Principles, Techniques and Applications; Milling, A.J., Ed.; Marcel Dekker: New York, NY, USA, 1999; pp. 285–344. [Google Scholar]
- Bag, B.G.; Dinda, S.K.; Dey, P.P.; Mallia, V.A.; Weiss, R.G. Self-assembly of esters of arjunolic acid into fibrous networks and the properties of their organogels. Langmuir 2009, 25, 8663–8671. [Google Scholar]
- Banerjee, S.; Das, R.K.; Terech, P.; de Geyer, A.; Aymonier, C.; Loppinet-Serani, A.; Raffy, G.; Maitra, U.; del Guerzo, A.; Desvergne, J.P. Hybrid organogels and aerogels from co-assembly of structurally different low molecular weight gelators. J. Mater. Chem. C 2013, 1, 3305–3316. [Google Scholar] [CrossRef]
- Bot, A.; Veldhuizen, Y.S.J.; den Adel, R.; Roijers, E.C. Non-TAG structuring of edible oils and emulsions. Food Hydrocoll. 2009, 23, 1184–1189. [Google Scholar] [CrossRef]
- Lupi, F.R.; Gabriele, D.; Baldino, N.; Seta, L.; de Cindio, B.; de Rose, C. Stabilization of meat suspensions by organogelation: A rheological approach. Eur. J. Lipid Sci. Technol. 2012, 114, 1381–1389. [Google Scholar]
- Carretti, E.; Dei, L.; Weiss, R.G.; Baglioni, P. A new class of gels for the conservation of painted surfaces. J. Cultural Herit. 2008, 9, 386–393. [Google Scholar] [CrossRef]
- Carretti, E.; Bonini, M.; Dei, L.; Berrie, B.H.; Angelova, L.V.; Baglioni, P.; Weiss, R.G. New frontiers in materials sciences for art conservation: responsive gels and beyond. Acc. Chem. Res. 2010, 43, 751–760. [Google Scholar] [CrossRef]
- Terech, P.; Weiss, R.G. Low molecular mass gelators of organic liquids and the properties of their gels. Chem. Rev. 1997, 97, 3133–3160. [Google Scholar]
- George, M.; Funkhouser, G.P.; Weiss, R.G. Organogels with complexes of ions and phosphorus-containing amphiphiles as gelators. Spontaneous gelation by in situ complexation. Langmuir 2008, 24, 3537–3544. [Google Scholar] [CrossRef]
- Mallia, V.A.; George, M.; Blair, D.L.; Weiss, R.G. Robust organogels from nitrogen-containing derivatives of (R)-12-Hydroxystearic acid as gelators: Comparisons with gels from Stearic acid derivatives. Langmuir 2009, 25, 8615–8625. [Google Scholar]
- Sawalha, H.; Venema, P.; Bot, A.; Floter, E.; van der Linden, E. The influence of concentration and temperature on the formation of gamma-oryzanol + I-2-sitosterol tubules in edible oil organogels. Food Biophys. 2011, 6, 20–25. [Google Scholar]
- D’Anna, F.; Vitale, P.; Marullo, S.; Noto, R. Geminal imidazolium salts: A new class of gelators. Langmuir 2012, 28, 10849–10859. [Google Scholar] [CrossRef]
- Toro-Vazquez, J.F.; Morales-Rueda, J.; Torres-Martinez, A.; Charo-Alonso, M.A.; Mallia, V.A.; Weiss, R.G. Cooling rate effects on the microstructure, solid content and rheological properties of organogels of amides derived from Stearic and (R)-12-hydroxystearic acid in vegetable oil. Langmuir 2013, 29, 7642–7654. [Google Scholar]
- Morales-Rueda, J.A.; Dibildox-Alvarado, E.; Charo-Alonso, M.A.; Toro-Vázquez, J.F. Rheological properties of Candelilla wax and dotriacontane organogels measured with a true-gap system. J. Am. Oil Chem. Soc. 2009, 86, 765–772. [Google Scholar] [CrossRef]
- Toro-Vazquez, J.F.; Morales-Rueda, J.; Mallia, V.A.; Weiss, R.G. Relationship between molecular structure and thermo-mechanical properties of Candelilla wax and amides derived from (R)-12-hydroxystearic acid as gelators of safflower oil. Food Biophys. 2010, 5, 193–202. [Google Scholar] [CrossRef]
- Laredo, T.; Barbut, S.; Marangoni, A.G. Molecular interactions of polymer oleogelation. Soft Matter. 2011, 7, 2734–2743. [Google Scholar]
- Co, E.D.; Marangoni, A.G. Organogels: An alternative edible oil-structuring method. J. Am. Oil Chem. Soc. 2012, 89, 749–780. [Google Scholar] [CrossRef]
- Zetzl, A.K.; Marangoni, A.G.; Barbut, S. Mechanical properties of ethylcellulose oleogels and their potential for saturated fat reduction in frankfurters. Food Funct. 2012, 3, 327–337. [Google Scholar]
- Alvarez-Mitre, F.M.; Toro-Vazquez, J.M.; Moscosa-Santillan, M. Shear rate and cooling modeling for the study of Candelilla wax organogels’ rheological properties. J. Food Eng. 2013, 119, 611–618. [Google Scholar] [CrossRef]
- Patel, A.R.; Schatteman, D.; Lesaffer, A.; Dewettinck, K. A foam-templated approach for fabricating organogels using a water-soluble polymer. RSC Adv. 2013, 3, 22900–22903. [Google Scholar] [CrossRef]
- Patel, A.R.; Schatteman, D.; de Vos, W.H.; Lesaffer, A.; Dewettinck, K. Preparation and rheological characterization of shellac oleogels and oleogel-based emulsions. J. Colloid Interface Sci. 2013, 411, 114–121. [Google Scholar] [CrossRef]
- Gravelle, A.J.; Barbut, S.; Marangoni, A.G. Fractionation of ethylcellulose oleogels during setting. Food Funct. 2013, 4, 153–161. [Google Scholar] [CrossRef]
- Sánchez, R.; Franco, J.M.; Delgado, M.A.; Valencia, C.; Gallegos, C. Development of new green lubricating grease formulations based on cellulosic derivatives and castor oil. Green Chem. 2009, 11, 686–693. [Google Scholar]
- Sánchez, R.; Franco, J.M.; Delgado, M.A.; Valencia, C.; Gallegos, C. Thermal and mechanical characterization of cellulosic derivatives-based oleogels potentially applicable as biolubricating greases: Influence of ethyl cellulose molecular weight. Carbohydr. Polym. 2011, 83, 151–158. [Google Scholar]
- Sánchez, R.; Franco, J.M.; Delgado, M.A.; Valencia, C.; Gallegos, C. Rheological and mechanical properties of oleogels based on castor oil and cellulosic derivatives potentially applicable as bio-lubricating greases: Influence of cellulosic derivatives concentration ratio. J. Ind. Eng. Chem. 2011, 17, 705–711. [Google Scholar]
- Núñez, N.; Martín-Alfonso, J.E.; Eugenio, M.E.; Valencia, C.; Díaz, M.J.; Franco, J.M. Preparation and characterization of gel-like dispersions based on cellulosic pulps and castor oil for lubricant applications. Ind. Eng. Chem. Res. 2011, 50, 5618–5627. [Google Scholar] [CrossRef]
- Núñez, N.; Martín-Alfonso, J.E.; Eugenio, M.E.; Valencia, C.; Díaz, M.J.; Franco, J.M. Influence of eucalyptus globulus Kraft pulping severity on the rheological properties of gel-like cellulose pulp dispersions in castor oil. Ind. Eng. Chem. Res. 2012, 51, 9777–9782. [Google Scholar] [CrossRef]
- Núñez, N.; Martín-Alfonso, J.E.; Valencia, C.; Sánchez, M.C.; Franco, J.M. Rheology of new green lubricating grease formulations containing cellulose pulp and its methylated derivative as thickener agents. Ind. Crop. Prod. 2012, 37, 500–507. [Google Scholar] [CrossRef]
- Lea, C.W. European development of lubricant derived from renewable resources. Ind. Lubr. Tribol. 2002, 54, 268–274. [Google Scholar]
- Wilson, B. Lubricants and functional fluids from renewable sources. Ind. Lubr. Tribol. 1998, 50, 6–15. [Google Scholar] [CrossRef]
- Gryglewicz, S.; Muszynski, M.; Nowicki, J. Enzymatic synthesis of rapeseed oil-based lubricants. Ind. Crop. Prod. 2013, 45, 25–29. [Google Scholar] [CrossRef]
- Hashem, A.I.; AbouElmagd, W.S.I.; Salem, A.E.; El-Kasaby, M.; El-Nahas, A.M. Conversion of some vegetable oils into synthetic lubricants. Energy Source A 2013, 35, 397–400. [Google Scholar] [CrossRef]
- Zulkifli, N.W.M.; Kalam, M.A.; Masjuki, H.H.; Shahabuddin, M.; Ynus, R. Wear characteristics of a palm oil-based TMP (trimethylolpropane) ester as an engine lubricant. Energy 2013, 54, 167–173. [Google Scholar] [CrossRef]
- Salih, N.; Salimon, J.; Jantan, F.N. Synthesis and characterization of palm kernel oil based trimethylolpropane ester. Asian J. Chem. 2013, 25, 9751–9754. [Google Scholar]
- García-Zapateiro, L.A.; Franco, J.M.; Valencia, C.; Delgado, M.A.; Gallegos, C. Viscous, thermal and tribological characterization of oleic and ricinoleic acids-derived estolides and their blends with vegetable oils. J. Ind. Eng. Chem. 2013, 19, 1289–1298. [Google Scholar] [CrossRef]
- García-Zapateiro, L.A.; Franco, J.M.; Valencia, C.; Delgado, M.A.; Gallegos, C.; Ruiz-Mendez, M.V. Chemical, thermal and viscous characterization of high-oleic sunflower and olive pomace acid oils and derived estolides. Grasas y Aceites 2013, 64, 497–508. [Google Scholar] [CrossRef]
- Gallego, R.; Arteaga, J.F.; Valencia, C.; Franco, J.M. Chemical modification of methyl cellulose with HMDI to modulate the thickening properties in castor oil. Cellulose 2013, 20, 495–507. [Google Scholar] [CrossRef]
- Gallego, R.; Arteaga, J.F.; Valencia, C.; Franco, J.M. Rheology and thermal degradation of isocyanate-functionalized methyl cellulose-based oleogels. Carbohydr. Polym. 2013, 98, 152–160. [Google Scholar] [CrossRef]
- Gallego, R.; Arteaga, J.F.; Valencia, C.; Franco, J.M. Isocyanate-functionalized chitin and chitosan as gelling agents of castor oil. Molecules 2013, 18, 6532–6549. [Google Scholar] [CrossRef]
- Rinaudo, M. Chitin and chitosan: properties and applications. Prog. Polym. Sci. 2006, 31, 603–632. [Google Scholar] [CrossRef]
- Alves, N.M.; Mano, J.F. Chitosan derivatives obtained by chemical modifications for biomedical and environmental applications. Int. J. Biol. Macromol. 2008, 43, 401–414. [Google Scholar] [CrossRef]
- Dias, A.M.A.; Cortez, A.R.; Barsan, M.M.; Santos, J.B.; Brett, C.M.A.; de Sousa, H.C. Development of greener multi-responsive chitosan biomaterials doped with biocompatible ammonium ionic liquids. ACS Sustain. Chem. Eng. 2013, 1, 1480–1492. [Google Scholar] [CrossRef]
- Kumar, R.; Muzzarelli, M.N.V.; Muzzarelli, R.A.A.; Sashiwa, C.H.; Domb, A.J. Chitosan chemistry and pharmaceutical perspectives. Chem. Rev. 2004, 104, 6017–6084. [Google Scholar] [CrossRef]
- Skjak-Braek, G.; Anthonsen, T.; Sandford, P.A. Chitin and Chitosan-Sources, Chemistry, Biochemistry, Physical Properties and Applications; Elsevier: London, UK, 1989; pp. 51–70. [Google Scholar]
- Muzzarelli, R.A.A. Genepin-crosslinked chitosan hydrogels as biomedical and pharmaceutical aids. Carbohydr. Polym. 2009, 77, 1–9. [Google Scholar] [CrossRef]
- Bersch, P.C.; Nies, B.; Liebendorfer, A. Evaluation of the biological properties of different wound dressing materials. J. Mater. Sci. Mater. M 1995, 6, 231–240. [Google Scholar]
- Kurita, K.; Kojima, T.; Munakata, T.; Akao, H.; Mori, T.; Nishiyama, Y. Preparation of non-natural branched chitin and chitosan. Chem. Lett. 1998, 27, 317–318. [Google Scholar]
- Sashiwa, H.; Shigemasa, Y. Chemical modification of chitin and chitosan 2: Preparation and water soluble property of N-acylated or N-alkylated partially deacetylated chitins. Carbohydr. Polym. 1999, 39, 127–138. [Google Scholar] [CrossRef]
- Heras, A.; Rodriguez, N.M.; Ramos, V.M. N-methylene phosphonic chitosan: A novel soluble derivative. Carbohydr. Polym. 2001, 44, 1–8. [Google Scholar] [CrossRef]
- Rinaudo, M. New way to crosslink chitosan in aqueous solution. Eur. Polym. J. 2010, 46, 1537–1544. [Google Scholar] [CrossRef]
- Prabaharan, M.; Mano, J.F. Chitosan derivatives bearing cyclodextrin cavities as novel adsorbent matrices. Carbohydr. Polym. 2006, 63, 153–166. [Google Scholar] [CrossRef]
- Chiu, S.; Chung, T.; Giridhar, R.; Wu, W. Immobilization of β-cyclodextrin in chitosan beads for separation of cholesterol from egg yolk. Food Res. Int. 2004, 37, 217–223. [Google Scholar] [CrossRef]
- Chen, S.; Tsao, C.; Chang, C.; Wu, Y.; Liu, Z.; Lin, C.; Wang, C.; Hsieh, K. Synthesis and characterization of thermal-responsive chitin-based polyurethane copolymer as a smart material. Carbohydr. Polym. 2012, 88, 1483–1487. [Google Scholar] [CrossRef]
- Ziaa, K.M.; Bhattia, I.A.; Barikanib, M.; Zuberc, M.; Sheikh, M.A. XRD studies of chitin-based polyurethane elastomers. Int. J. Biol. Macromol. 2008, 43, 136–141. [Google Scholar] [CrossRef]
- Baxter, A.; Dillon, M.; Taylor, K.D.A.; Roberts, G.A.F. An Improved Method for IR Determination of the Degree of N-Acetylationof Chitosan. Int. J. Biol. Macromol. 1992, 14, 166–169. [Google Scholar] [CrossRef]
- Poirier, M.; Charlet, G. Chitin fractionation and characterization in N,N-dimethylacetamide/lithium chloride solvent system. Carbohydr. Polym. 2002, 50, 363–370. [Google Scholar] [CrossRef]
- Takahashi, T.; Imai, M.; Suzuki, I. High-potential molecular properties of chitosan and reaction conditions for removing p-quinone from the aqueous phase. Biochem. Eng. J. 2005, 25, 7–13. [Google Scholar] [CrossRef]
- Paulino, A.T.; Simionato, J.I.; Garcia, J.C.; Nozaki, J. Characterization of chitosan and chitin produced from silkworm chrysalides. Carbohydr. Polym. 2006, 64, 98–103. [Google Scholar] [CrossRef]
- Mythili, C.V.; Malar Retna, A.; Gopalakrishnan, S. Synthesis, mechanical, thermal and chemical properties of polyurethanes based on cardanol. Bull. Mater. Sci. 2004, 27, 235–241. [Google Scholar] [CrossRef]
- Gupta, R.K. Polymer and Composite Rheology, 2nd ed.; Marcel Dekker: New York, NY, USA, 2000. [Google Scholar]
- Sánchez, M.C.; Franco, J.M.; Valencia, C.; Gallegos, C.; Urquiola, F.; Urchegui, R. Atomic force microscopy and thermo-rheological characterization of lubricating greases. Tribol. Lett. 2011, 41, 463–470. [Google Scholar] [CrossRef]
- Martín-Alfonso, J.E.; Valencia, C.; Sánchez, M.C.; Franco, J.M.; Gallegos, C. Rheological modification of lubricating greases with recycled polymers from different plastics waste. Ind. Eng. Chem. Res. 2009, 48, 4136–4144. [Google Scholar] [CrossRef]
- Martin-Alfonso, J.E.; Valencia, C.; Sanchez, M.C.; Franco, J.M.; Gallegos, C. Development of new lubricating grease formulations using recycled LDPE as rheology modifier additive. Eur. Polym. J. 2007, 43, 139–149. [Google Scholar] [CrossRef]
- Franco, J.M.; Delgado, M.A.; Valencia, C.; Sánchez, M.C.; Gallegos, C. Mixing rheometry for studying the manufactured of lubricating greases. Chem. Eng. Sci. 2005, 60, 2409–2418. [Google Scholar] [CrossRef]
- Moreno, G.; Valencia, C.; Franco, J.M.; Gallegos, C.; Diogo, A.; Bordado, J.C.M. Influence of molecular weight and free NCO content on the rheological properties of lithium lubricating greases modified with NCO-terminated prepolymers. Eur. Polym. J. 2008, 44, 2262–2274. [Google Scholar] [CrossRef]
© 2014 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
Share and Cite
Gallego, R.; González, M.; Arteaga, J.F.; Valencia, C.; Franco, J.M. Influence of Functionalization Degree on the Rheological Properties of Isocyanate-Functionalized Chitin- and Chitosan-Based Chemical Oleogels for Lubricant Applications. Polymers 2014, 6, 1929-1947. https://doi.org/10.3390/polym6071929
Gallego R, González M, Arteaga JF, Valencia C, Franco JM. Influence of Functionalization Degree on the Rheological Properties of Isocyanate-Functionalized Chitin- and Chitosan-Based Chemical Oleogels for Lubricant Applications. Polymers. 2014; 6(7):1929-1947. https://doi.org/10.3390/polym6071929
Chicago/Turabian StyleGallego, Rocío, Mercedes González, Jesús F. Arteaga, Concepción Valencia, and José M. Franco. 2014. "Influence of Functionalization Degree on the Rheological Properties of Isocyanate-Functionalized Chitin- and Chitosan-Based Chemical Oleogels for Lubricant Applications" Polymers 6, no. 7: 1929-1947. https://doi.org/10.3390/polym6071929
