Abstract

: Poly(2-(methacryloyloxy)ethyl phosphorylcholine)-b-poly(N,N-diethyl acrylamide) (PMPCm-PDEAn) was synthesized via reversible addition-fragmentation chain transfer (RAFT) controlled radical polymerization. Below, the critical aggregation temperature (CAT) the diblock copolymer dissolved in water as a unimer with a hydrodynamic radius (Rh) of ca. 5 nm. Above the CAT the diblock copolymers formed polymer micelles composed of a PDEA core and biocompatible PMPC shells, due to hydrophobic self-aggregation of the thermo-responsive PDEA block. A fluorescence probe study showed that small hydrophobic small guest molecules could be incorporated into the core of the polymer micelle above the CAT. The incorporated guest molecules were released from the core into the bulk aqueous phase when the temperature decreased to values below the CAT because of micelle dissociation.
Keywords:
block copolymers; micelles; RAFT polymerization; water-soluble polymers; critical aggregation temperature

1. Introduction

Phospholipids are a component of lipid bilayers in cell membranes; thus, they are of interest in the biochemical and biomedical fields as unique substrates. The phosphorylcholine group of 2-(methacryloyloxy)ethyl phosphorylcholine (MPC) is a component of cell membranes [1,2]. MPC can be polymerized with other vinyl monomers, and the properties and functions of MPC polymers can be controlled by changing comonomers. Polymers with water-soluble MPC units show excellent biocompatibility and antithrombogenicity.

In water, many N-substituted polyacrylamides show phase separation upon heating [3], and the temperature at which phase transition occurs is called the lower critical solution temperature (LCST). The most extensively studied polymer is poly(N-isopropylacrylamide) (PNIPAM) [4]. Below the LCST, the PNIPAM chains are dissolved as extended coils, while above the LCST they collapse into compact globules in a coil-to-globule transition [5]. Poly(N,N-diethylacrylamide) (PDEA) is also a thermo-responsive polymer similar to PNIPAM. The LCST of PDEA is reported to be between 25 and 35 °C, depending on molecular weight, concentration, and external additives [6]. The LCST is mainly governed by the balance between hydrogen bonds and hydrophobic interactions among alkyl side chains [7]. Therefore, the LCST is accompanied by sharp changes in the degree of hydration, chain mobility, hydrophobicity, and so on.

Lowe et al. [8] reported the synthesis of diblock copolymers (PMPCm-PDEAn) composed of hydrophilic PMPC and thermo-responsive PDEA blocks and investigated their thermo-responsive association behavior in water using NMR and dynamic light scattering (DLS) measurements. We were interested in the detailed thermo-responsive association behavior of PMPCm-PDEAn and the potential for controlled release of guest molecules, such as drugs, in the cores of polymer micelles. We focused on diblock copolymers based on a hydrophilic shell-forming PMPC block and a thermo-responsive core-forming PDEA block (Figure 1). PMPCm-PDEAn can be molecularly dissolved in water below the LCST for the PDEA block, as the PDEA block is hydrophilic under these conditions. However, when the temperature is elevated above LCST, the PDEA block becomes hydrophobic because of the breaking of hydrogen bonding interactions between the pendant amide bond in the PDEA block and water molecules, leading to the formation of micelles with a dehydrated PDEA core and hydrated PMPC shells. These polymer micelles can incorporate in their hydrophobic core hydrophobic guest molecules, such as pyrene and adriamycin hydrochloride (ADR).

Polymers 06 00846 g001 200
Figure 1. Polymer structure of diblock copolymers (PMPCm-PDEAn).

Click here to enlarge figure

Figure 1. Polymer structure of diblock copolymers (PMPCm-PDEAn).
Polymers 06 00846 g001 1024

2. Experimental Section

2.1. Materials

2-(Methacryloyloxy)ethyl phosphorylcholine (MPC) was prepared as previously reported and recrystallized from acetonitrile [9]. N,N-Diethyl acrylamide (DEA) was dried over 4 Å molecular sieves and purified by distillation under reduced pressure. 4-Cyanopentanoic acid dithiobenzoate (CPD) was synthesized according to the method reported by McCormick and co-workers [10]. Pyrene was purified by recrystallization from methanol. 4,4′-Azobis(4-cyanopentanoic acid) (V-501, >98%) and adriamycin hydrochloride (ADR), from Wako Pure Chemical, were used as received without further purification. Water was purified with a Millipore Milli-Q system. Other reagents were used as received.

2.2. Preparation of Poly(2-(methacryloyloxy)ethyl phosphorylcholine)-Based Chain Transfer Agent (PMPC64)

A poly(2-(methacryloyloxy)ethyl phosphorylcholine) (PMPC)-based chain transfer agent was prepared using a modified method reported previously [11]. MPC (50.2 g, 170 mmol) was dissolved in 290 mL of water, and then CPD (696 mg, 2.31 mmol) and V-501 (80.7 mg, 0.288 mmol) were added to the solution. The mixture was deoxygenated by purging with Ar gas for 30 min. Polymerization was carried out at 70 °C for 2 h. After cooling the reaction mixture with an ice bath, the solution was dialyzed against pure water for a week. PMPC64 was recovered by freeze-drying (19.1 g, 38.0% conversion). The number-average molecular weight (Mn(NMR)) and degree of polymerization (DP) for PMPC64 were 1.89 × 104 and 64, respectively, as estimated from 1H nuclear magnetic resonance (NMR) terminal group analysis. The molecular weight distribution (Mw/Mn), estimated from gel-permeation chromatography (GPC), was 1.19.

2.3. Preparation of Diblock Copolymers

A typical procedure for block copolymerization is as follows. PMPC64 (2.00 g, Mn(NMR) = 1.89 × 104, Mw/Mn = 1.19), DEA (2.58 g, 20.3 mmol), and V-501 (5.92 mg, 0.0210 mmol) were dissolved in 32.0 mL of methanol. The solution was placed in a glass ampoule and outgassed on a vacuum line by six freeze-pump-thaw cycles, and then the ampoule was vacuum-sealed. Polymerization was carried out at 70 °C for 24 h. The reaction mixture was poured into a large excess of diethyl ether to precipitate the resulting polymer. The polymer (PMPC64-PDEA66) was purified by reprecipitation from methanol into a large excess of diethyl ether (2.64 g, 57.6% conversion). The Mn(NMR) and Mw/Mn values for PMPC64-PDEA66 were 2.82 × 104, Mw/Mn = 1.21, respectively.

To investigate the relationship between polymerization time and conversion, the monomer conversion was determined by 1H NMR spectroscopy. Predetermined amounts of DEA, PMPC64, and V-501 were dissolved in methanol. The solution was transferred to an NMR tube containing an NMR lock tube of D2O and degassed by purging with Ar gas for 30 min. The cap was sealed and the solution was heated at 70 °C in a preheated oil bath for varying lengths of reaction time. Polymerization was terminated by rapid cooling with an ice bath. The monomer conversion estimated from 1H NMR was monitored as a function of reaction time.

2.4. Measurements

GPC measurements were performed with a GPC system composed of a Tosoh DP-8020 pump, a Tosoh RI-8021 refractive index detector, and Shodex 7.0 μm bead size GF-7M HQ column (molecular weight range 107–102) using a phosphate buffer (pH 9) containing 20 vol% acetonitrile as an eluent at a flow rate of 0.6 mL/min at 25 °C. Sample solutions were filtered with a 0.2-μm pore size membrane filter before measurements. The Mn(GPC) and Mw/Mn for the polymers were calibrated with standard sodium poly(styrenesulfonate) samples.

1H NMR spectra were obtained with a Bruker DRX-500 spectrometer. The sample solutions of the block copolymers at a polymer concentration (Cp) of 5.0 g/L for 1H NMR measurements were prepared in D2O containing 0.1 M NaCl. The temperature was changed from 24 °C to 60 °C with a heating or cooling rate of 1 °C/min.

Percent transmittance (T%) for 0.1 M NaCl aqueous solutions of diblock copolymer was measured with a U-3000 spectrophotometer (Hitachi, Tokyo, Japan) with a 1.0 cm path length quartz cell at various temperatures. The temperature was changed from 20 °C to 60 °C with a heating or cooling rate of 0.5 °C/min.

Static light scattering (SLS) and dynamic light scattering (DLS) measurements were performed at 25 °C with an Otsuka Electronics Photal DLS-7000HL light scattering spectrometer equipped with a 5000E multi-τ digital time correlator (ALV, Langen, Germany). Sample solutions for SLS and DLS measurements were filtered with a 0.2-μm pore size membrane filter. For SLS measurements, a He-Ne laser (10 mW at 632.8 nm) was used as a light source. The weight-average molecular weight (Mw), z-average radius of gyration (Rg), and second virial coefficient (A2) values were estimated from the relation:

Polymers 06 00846 i001
where Rθ is the Rayleigh ratio, K = 4π2n2(dn/dCp)2/NAλ4, with n being the refractive index of the solvent, dn/dCp being the refractive index increment against Cp, NA being Avogadro’s number, and λ being the wavelength (= 632.8 nm), while q = (4πn/λ)sin(θ/2) with θ being the scattering angle. By measuring Rθ for a set of Cp and θ, values of Mw, Rg, and A2 were estimated from Zimm plots. Toluene was used for calibration of the instrument. Values of dn/dCp were determined with an Otsuka Electronics Photal DRM-1020 differential refractometer at a wavelength of 632.8 nm. For DLS measurements, an He-Ne laser (10 mW at 632.8 nm) was used as a light source. The hydrodynamic radius (Rh) was calculated using the Einstein-Stokes relation Rh = kBT/6πηD, where kB is Boltzmann’s constant, T is the absolute temperature, and η is the solvent viscosity.

Excitation emission spectra for pyrene were recorded on a Hitachi F-2500 fluorescence spectrophotometer. A pyrene-saturated aqueous stock solution was prepared as previously [12]. Sample solutions were prepared by mixing aliquots of stock solutions of the polymer and pyrene (2.0 × 10−7 M) in 0.1 M NaCl aqueous solutions. Excitation spectra were monitored at 390 nm. Excitation and emission slit widths were maintained at 2.5 and 20 nm, respectively.

2.5. Release Experiments

The release of ADR from the polymer micelles and blank experiments were performed according to a modified literature procedure [13]. The release was monitored by a V-530 UV/VIS spectrophotometer (Jasco, Tokyo, Japan) equipped with a magnetic stirrer using a 1.0 cm path length quartz cell as a diffusion cell contained in a small glass cell separated from the surrounding solution by a dialysis membrane with a molecular weight cutoff of 15,000. First, 0.3 mL of a 0.1 M NaCl aqueous solution of ADR (0.06 mM) with and without PMPC64-PDEA66 (Cp = 50 g/L) was put inside a small glass cell. The temperature of the solution was maintained at 25 and 50 °C. The small glass cell, capped with a dialysis membrane with an o-ring, was immersed into 3.0 mL of 0.1 M NaCl with same the temperature as that of the blank and polymer solutions in the quartz cell. The cumulative amount of ADR released from the small glass cell was monitored by absorption at 480 nm.

3. Results and Discussion

We prepared PMPC64 via RAFT using CPD as a water-soluble CTA. The Mn(NMR) value, calculated from 1H NMR peak area intensities of pendant methylene protons and terminal phenyl protons (Table 1), was 1.89 × 104. The Mn(GPC) and Mw/Mn values were 8.62 × 103 and 1.19, estimated from GPC. A notable observation was the marked deviation of Mn(GPC) from Mn(NMR). To verify the true molecular weight of PMPC64, SLS measurements were performed. The Mw value of 2.04 × 104 determined by SLS was in fair agreement with Mn(NMR), using Mw/Mn = 1.19. It should be mentioned that Mn(GPC) values estimated by GPC are only apparent values, probably because sodium poly(styrenesulfonate) was used as a standard for molecular weight calibration, compared to PMPC64, which has a bulky phosphorylcholine side chain.

Table Table 1. Characteristics of poly(2-(methacryloyloxy)ethyl phosphorylcholine)-b-poly(N,N-diethyl acrylamide) (PMPCm-PDEAn).

Click here to display table

Table 1. Characteristics of poly(2-(methacryloyloxy)ethyl phosphorylcholine)-b-poly(N,N-diethyl acrylamide) (PMPCm-PDEAn).
Sample codeMn(NMR) a × 10−4Mn(GPC) b × 10−3Mw(SLS) c × 10−4Mw/Mn bA2 × 104 (mol·mL·g−2) cRg (nm) ddn/dCp mL/g
PMPC641.898.622.041.197.719.60.139
PMPC64-PDEA222.268.102.951.267.3413.70.134
PMPC64-PDEA352.438.353.061.264.4216.20.139
PMPC64-PDEA462.578.303.461.224.0918.30.138
PMPC64-PDEA662.828.303.891.217.8122.60.146

a estimated by 1H NMR in methanol-d4; b estimated by GPC; c estimated by SLS in 0.1 M NaCl aqueous solution; d estimated by DLS at Cp = 5.0 g/L in 0.1 M NaCl aqueous solution at 25 °C.

To prepare the thermo-responsive diblock copolymer, DEA was polymerized via RAFT radical polymerization in methanol using the PMPC64 macro-chain transfer agent. Figure 2 shows the pseudo-first-order kinetics plot for the polymerization of DEA in the presence of PMPC64 at 70 °C under Ar in methanol containing a sealed tube of D2O to lock the NMR frequency. Monomer consumption was monitored by 1H NMR spectroscopy as a function of polymerization time. There was an induction period of ca. 30 min, which may have been due to a slow rate of formation of the radical fragment [14]. A monomer conversion of 83% was reached within 5 h. The downward curvature was observed, which indicates a decrease in the concentration of propagating radicals.

Polymers 06 00846 g002 200

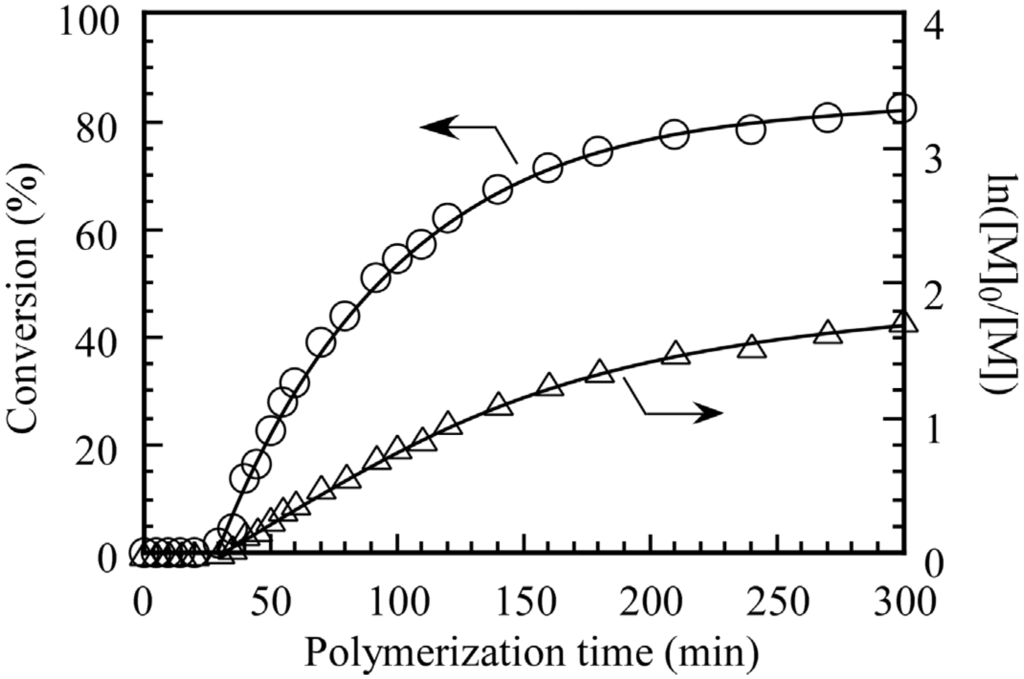

Figure 2. Time–conversion (○) and the first-order kinetic plots (△) for polymerization of DEA in the presence of PMPC64 (Mn(NMR) = 1.89 × 104, Mw/Mn = 1.19) in methanol at 70 °C. [M]0 and [M] are the concentrations of the monomer at polymerization time = 0 and the corresponding time, respectively.

Click here to enlarge figure

Figure 2. Time–conversion (○) and the first-order kinetic plots (△) for polymerization of DEA in the presence of PMPC64 (Mn(NMR) = 1.89 × 104, Mw/Mn = 1.19) in methanol at 70 °C. [M]0 and [M] are the concentrations of the monomer at polymerization time = 0 and the corresponding time, respectively.
Polymers 06 00846 g002 1024

The Mn(GPC) values estimated from GPC were only apparent values because sodium poly(styrenesulfonate) was used as a standard for molecular weight calibration. To verify the true molecular weight of PMPCm-PDEAn, SLS measurements were performed (Figure 3). The Mn(NMR) for PMPCm-PDEAn was calculated from 1H NMR in D2O at 25 °C (Figure 4a). The Mw(SLS) values of PMPCm-PDEAn, determined by SLS, were in fair agreement with Mn(NMR), using Mw/Mn. Apparent Mw, Rg, and A2 for the diblock copolymers at 25 °C, determined by SLS measurement, are listed in Table 1. The dn/dCp values at 633 nm for the polymers at 25 °C are listed in Table 1. The same PMPC64 macro-chain transfer agent of Mn(NMR) = 1.89 × 104 was used to prepare a series of PMPC64-PDEAn with different PDEA block lengths. The DP values for PMPC and PDEA blocks were calculated based on 1H NMR. Table 1 lists the molecular parameters of the polymers.

Polymers 06 00846 g003 200

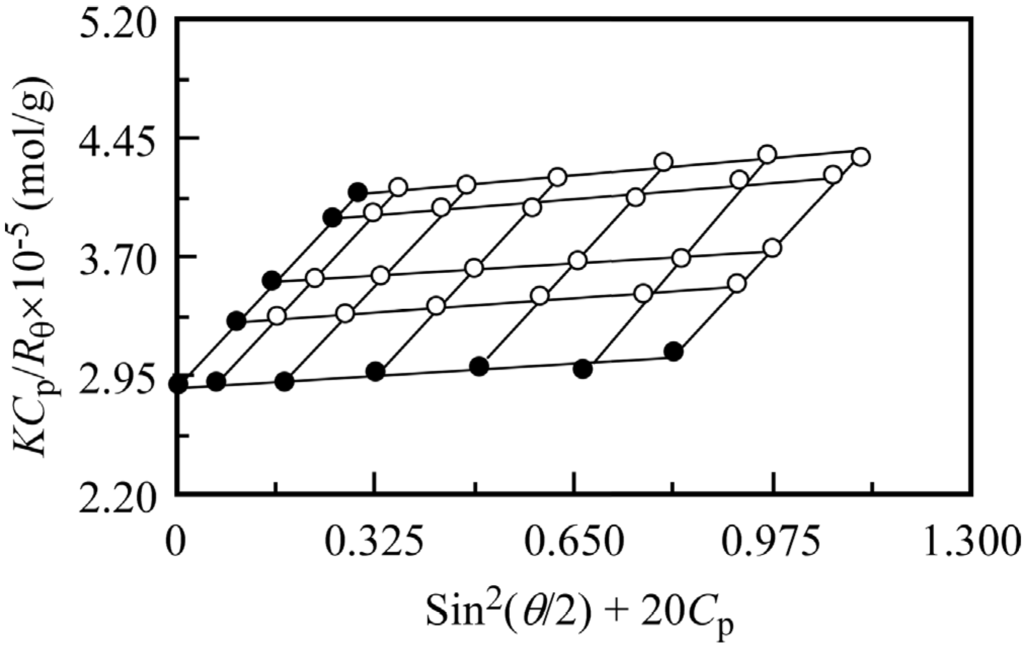

Figure 3. Typical example of a Zimm plot for PMPC64-PDEA46 in 0.1 M NaCl at 25 °C. The polymer concentration was varied from 5 to 10 g/L. The Rayleigh ratio (Rθ) is determined by subtracting the solvent scattering from the total scattering for the solutions.

Click here to enlarge figure

Figure 3. Typical example of a Zimm plot for PMPC64-PDEA46 in 0.1 M NaCl at 25 °C. The polymer concentration was varied from 5 to 10 g/L. The Rayleigh ratio (Rθ) is determined by subtracting the solvent scattering from the total scattering for the solutions.
Polymers 06 00846 g003 1024

To study heat-induced association of the diblock copolymers, 1H NMR spectra for the block copolymers were measured at different temperatures in D2O containing 0.1 M NaCl. Figure 4 compares typical 1H NMR spectra for PMPC64-PDEA66 measured at 25 and 60 °C. At 25 °C the diblock copolymer chains are fully solvated and molecularly dissolved in water—i.e., a “unimer” state—and all signals expected for each block were observed. The resonance bands in the 0.8–1.4 ppm region were attributed to the sum of the α-methyl protons in the main chain and the methyl protons in the pendant N,N-diethylamino group. The methylene protons in the main chain of the PMPC and PDEA blocks were observed at 1.6 and 2.0 ppm, respectively. The resonance peak at 2.6 ppm was attributed to the methine proton in the main chain of the PDEA block. The resonance bands at 3.1–3.5 ppm were assigned to the methyl protons of the pendant trimethyl ammonium group of the PMPC block and the methylene protons in the pendant N,N-diethylamino group of the PDEA block, respectively. The methylene protons in the pendant phosphorylcholine group of the PMPC block were observed at 3.6–4.5 ppm. The composition of the block copolymer was determined from the area intensity ratio of the resonance bands due to the methine proton in the main chain of the PDEA block at 2.6 ppm and the methylene protons of the pendant phosphorylcholine of the PMPC block at 3.6 ppm at 25 °C, because these peaks were relatively isolated from the other peaks. The intensity of resonance peaks corresponding to the PDEA block decreased at an elevated temperature of 60 °C, which implies poor solvation and reduced mobility of the PDEA block. Considering its chemical structure, the block copolymer should form a core-shell-type polymer micelle with dehydrated PDEA blocks forming a core and hydrophilic PMPC blocks forming a shell.

Polymers 06 00846 g004 200
Figure 4. Comparison of 1H NMR spectra for PMPC64-PDEA66 at 25 °C (a) and 60 °C (b) in D2O containing 0.1 M NaCl at Cp = 5.0 g/L. Asterisks represent peaks due to solvent.

Click here to enlarge figure

Figure 4. Comparison of 1H NMR spectra for PMPC64-PDEA66 at 25 °C (a) and 60 °C (b) in D2O containing 0.1 M NaCl at Cp = 5.0 g/L. Asterisks represent peaks due to solvent.
Polymers 06 00846 g004 1024

Figure 5 shows the peak intensity ratio for the methine proton at 2.6 ppm in the main chain of the PDEA block and the methylene protons of the pendant phosphorylcholine group of the PMPC block at 3.6 ppm as a function of temperature. The peak intensity ratio is normalized with the ratio at 25 °C. When the temperature is increased from 24 °C, the normalized intensity ratios for PMPC64-PDEA35 and PMPC64-PDEA22 were almost constant, independent of the temperature. The normalized peak intensity ratios for PMPC64-PDEA66 and PMPC64-PDEA46 were practically constant below 37 and 47 °C, respectively. The intensity ratios for PMPC64-PDEA66 and PMPC64-PDEA46 decreased with increasing temperature, reaching minimum values of 0.4 and 0.6, respectively. These findings indicate that the motion of the methine protons in the PDEA blocks for PMPC64-PDEA66 and PMPC64-PDEA46 was restricted above a certain temperature. These results suggest that the onset of micellization occurs at lower temperatures for polymers with longer DEA block lengths.

Polymers 06 00846 g005 200

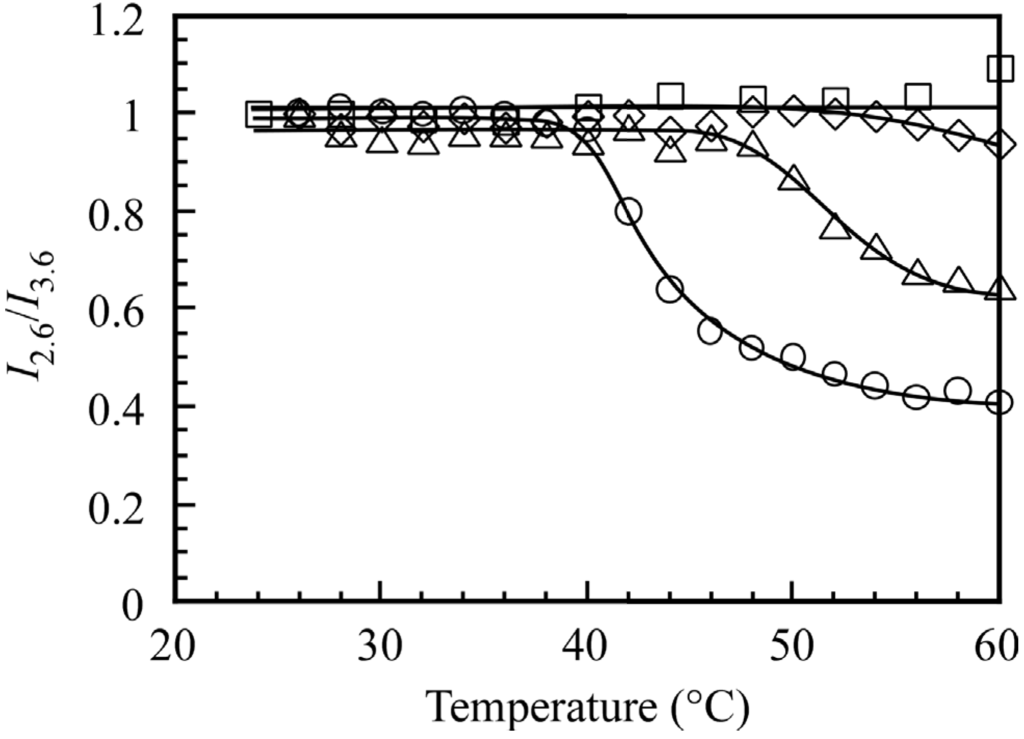

Figure 5. Peak intensity ratio of I2.6/I3.6 normalized to the ratio at 25 °C for PMPC64-PDEA66 (○), PMPC64-PDEA46 (△), PMPC64-PDEA35 (◇), and PMPC64-PDEA22 (□) in D2O containing 0.1 M NaCl at Cp = 5.0 g/L as a function of temperature.

Click here to enlarge figure

Figure 5. Peak intensity ratio of I2.6/I3.6 normalized to the ratio at 25 °C for PMPC64-PDEA66 (○), PMPC64-PDEA46 (△), PMPC64-PDEA35 (◇), and PMPC64-PDEA22 (□) in D2O containing 0.1 M NaCl at Cp = 5.0 g/L as a function of temperature.
Polymers 06 00846 g005 1024

In 0.1 M NaCl aqueous solution, the diblock copolymer undergoes a transition from a molecularly dissolved unimer state at low temperatures to a micellar state above the critical association temperature (CAT). Figure 6 shows values of T% monitored at 600 nm for an aqueous solution of the diblock copolymers at Cp = 5.0 g/L. The T% value for PMPC64-PDEA66 is 100% below 38 °C and the solution shows no Tyndall scattering. T% decreases with increasing temperature, reaching 30% above 50 °C. Tyndall scattering at 50 °C, which is characteristic of micellar solutions, was visually confirmed. The solution, which was turbid above the CAT, became clear again when the solution was cooled below the CAT. The CAT values for the diblock copolymers were estimated from a break in the T% versus temperature plot. The CAT values for PMPC64-PDEA66, PMPC64-PDEA46, PMPC64-PDEA35, and PMPC64-PDEA22 were estimated at 38, 43, 44, and 54 °C, respectively. The CAT values for PMPCm-PDEAn increased as the thermo-responsive PDEA block length decreased. These observations are consistent with the aforementioned 1H NMR data (Figure 5).

Polymers 06 00846 g006 200

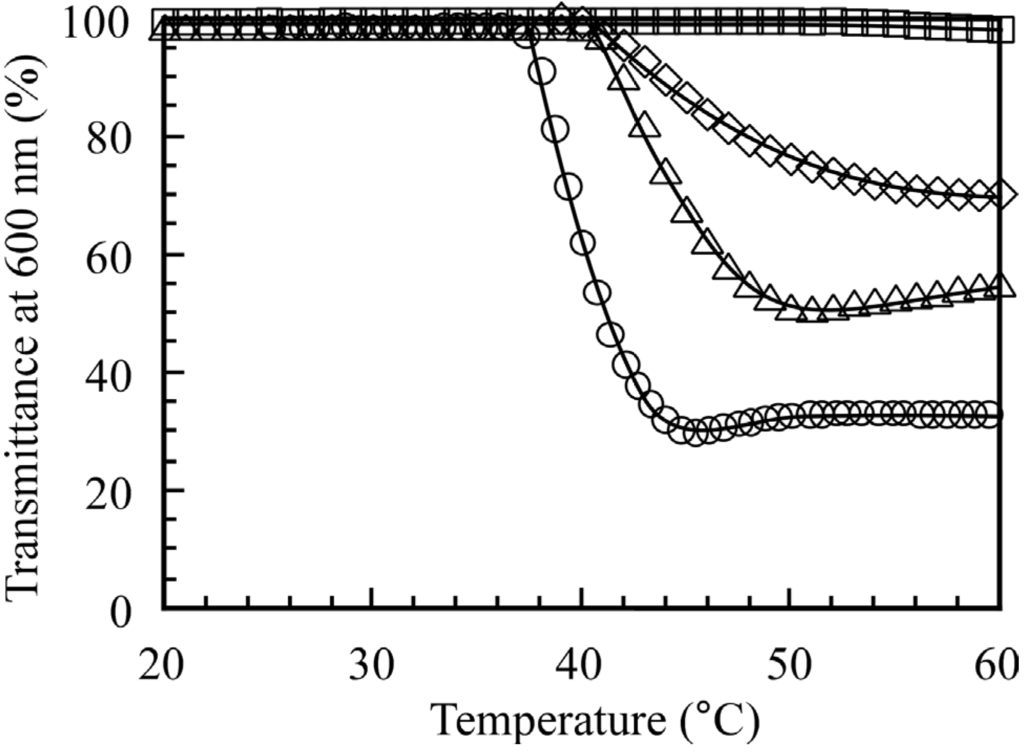

Figure 6. Percent transmittance (T%) at 600 nm for 0.1 M NaCl aqueous solutions of PMPC64-PDEA66 (○), PMPC64-PDEA46 (△), PMPC64-PDEA35 (◇), and PMPC64-PDEA22 (□) at Cp = 5.0 g/L as a function of temperature.

Click here to enlarge figure

Figure 6. Percent transmittance (T%) at 600 nm for 0.1 M NaCl aqueous solutions of PMPC64-PDEA66 (○), PMPC64-PDEA46 (△), PMPC64-PDEA35 (◇), and PMPC64-PDEA22 (□) at Cp = 5.0 g/L as a function of temperature.
Polymers 06 00846 g006 1024

Heat-induced association behavior for the diblock copolymers was confirmed by DLS measurements. The hydrodynamic radius (Rh) for the diblock copolymer was measured in 0.1 M NaCl aqueous solution. Figure 7 shows DLS relaxation time distributions for PMPC64-PDEA66 at Cp = 5.0 g/L at 25, 42, and 60 °C. The distributions were unimodal at 25 and 60 °C with different relaxation times. A faster relaxation mode at 25 °C was attributed to a unimer state with Rh = 3.2 nm, whereas the slower relaxation time at 60 °C was attributed to polymer aggregates with Rh = 95 nm. At 42 °C, the relaxation time distribution was found to be bimodal. The fast and slow modes were attributed to unimers and polymer aggregates.

Polymers 06 00846 g007 200

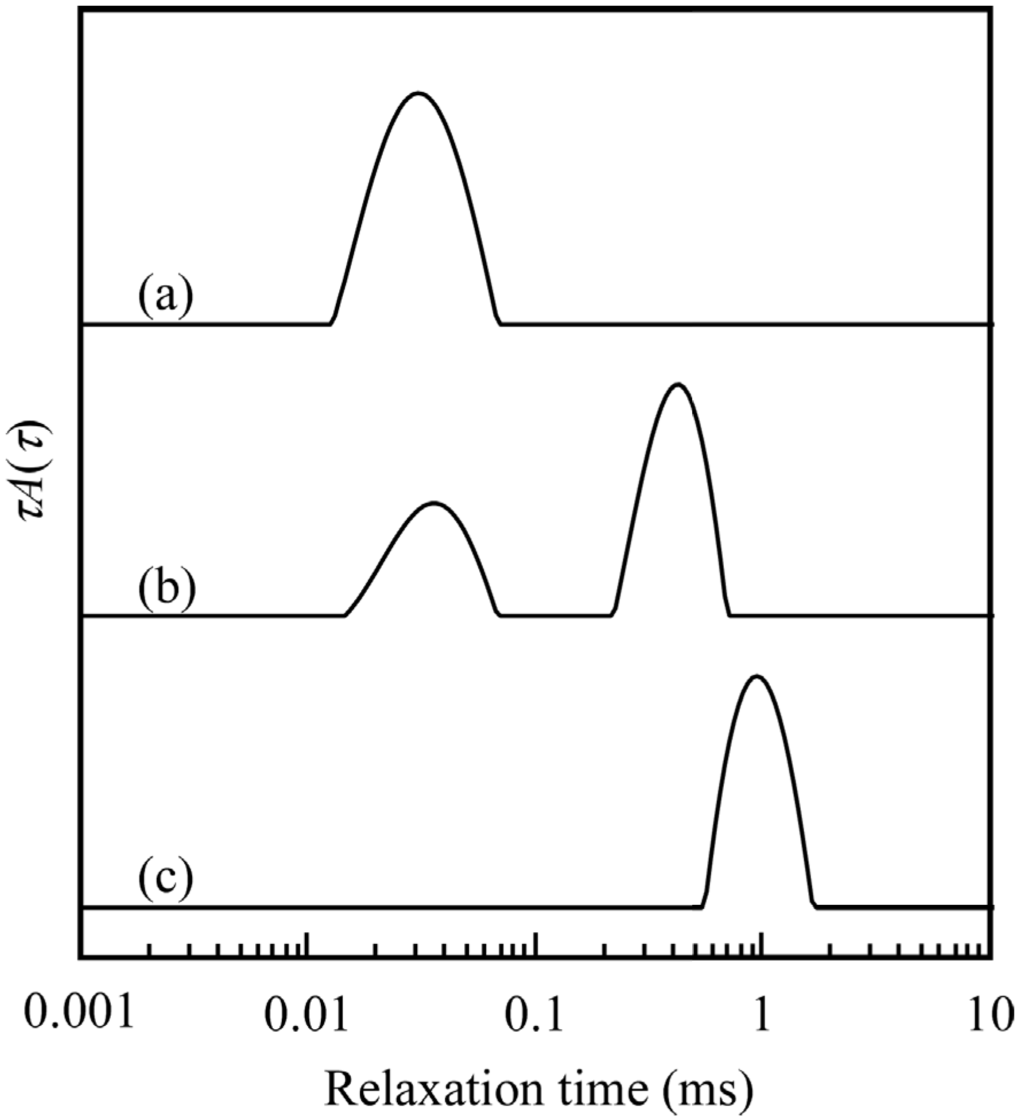

Figure 7. Typical examples of DLS relaxation time distributions for PMPC64-PDEA66 at Cp = 5.0 g/L in 0.1 M NaCl at 25 °C (a), 42 °C (b), and 60 °C (c).

Click here to enlarge figure

Figure 7. Typical examples of DLS relaxation time distributions for PMPC64-PDEA66 at Cp = 5.0 g/L in 0.1 M NaCl at 25 °C (a), 42 °C (b), and 60 °C (c).
Polymers 06 00846 g007 1024

The Rh values for the diblock copolymers, determined by DLS measurement, are plotted as a function of temperature in Figure 8a. The Rh values for the diblock copolymers below a certain temperature were in the order of ca. 5 nm, suggesting that all of the polymers existed in a unimer state. Upon an increase in temperature, the Rh values for PMPC64-PDEA66, PMPC64-PDEA46, PMPC64-PDEA35, and PMPC64-PDEA22 began to increase at 42, 44, 50, and 57 °C. These observations indicate the formation of polymer micelles above certain temperatures. As temperature was further increased, the Rh values for PMPC64-PDEA66, PMPC64-PDEA46, and PMPC64-PDEA35 started to decrease. These observations suggest that aggregates of the PDEA blocks became more compact due to further dehydration of the PDEA blocks as the temperature was increased beyond the CAT, or the aggregation number (Nagg) of the multipolymer aggregate decreased with increasing temperature. The scattering intensity is proportional to Mw, because the intensity is linearly related to Rθ/Cp (i.e., Rθ/CpMw). Therefore, the observation that the scattering intensities are nearly constant above CAT (Figure 8b) suggests that Nagg is practically constant. The absolute scattering intensity is not important to obtain DLS data, however for SLS measurements the absolute scattering intensity is important to determine correct Rθ. The accurate SLS data for the polymer micelle solutions at high temperature cannot be obtained, because there is multiple scattering from the turbid solution at 60 °C (Figure 6).

Polymers 06 00846 g008 200

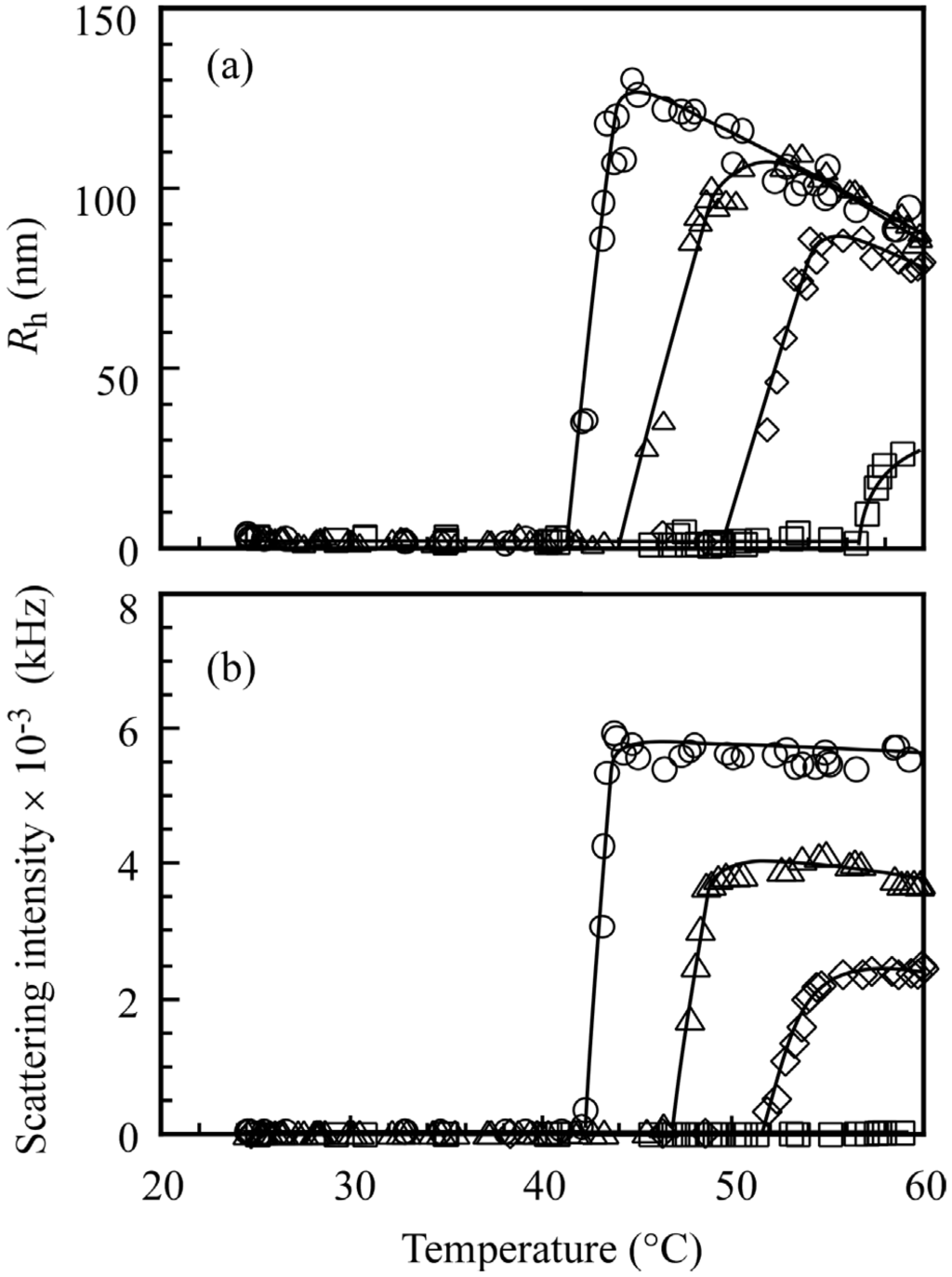

Figure 8. (a) Hydrodynamic radius (Rh) and (b) scattering intensity for PMPC64-PDEA66 (○), PMPC64-PDEA46 (△), PMPC64-PDEA35 (◇), and PMPC64-PDEA22 (□) at Cp = 5.0 g/L in 0.1 M NaCl as a function of temperature.

Click here to enlarge figure

Figure 8. (a) Hydrodynamic radius (Rh) and (b) scattering intensity for PMPC64-PDEA66 (○), PMPC64-PDEA46 (△), PMPC64-PDEA35 (◇), and PMPC64-PDEA22 (□) at Cp = 5.0 g/L in 0.1 M NaCl as a function of temperature.
Polymers 06 00846 g008 1024

Excitation spectra of pyrene in 0.1 M NaCl aqueous solution in the presence of the block copolymers at varying temperatures were obtained. The excitation spectrum in the case of PMPC64-PDEA66 showed peaks associated with the (0-0) band of pyrene at 335 nm below the CAT, and the peak shifted to 338 nm at 60 °C. It is known that the (0-0) band in pyrene excitation spectra in water shifts to longer wavelengths when pyrene is solubilized in hydrophobic domains [15]. Thus, we estimated the ratio of the intensity at 338 nm relative to that at 335 nm (I338/I335), and this is plotted in Figure 9 as a function of temperature. It is known that the dithiobenzoate group at the polymer chain end prepared via RAFT is responsible for pyrene fluorescence quenching [16]. We measured only the relative intensity ratio of the excitation emission spectra. Therefore, the quenching effect can be ignored to some degree. The I338/I335 values for PMPC64-PDEA35 and PMPC64-PDEA22 were almost constant independent of the temperature. This observation indicates that the hydrophobic domain formed from the PDEA blocks could not incorporate the pyrene probes, presumably because of the low hydrophobicity of the core. As temperature was increased, the I338/I335 value for PMPC64-PDEA66 and PMPC64-PDEA46 began to increase at 34 and 44 °C. When the temperature was increased from 25 to 60 °C and subsequently decreased to 25 °C, the thermo-responsive emission spectral changes were found to be completely reversible without hysteresis.

The CAT values for the block copolymers were measured using various methods, including 1H NMR, T%, Rh, scattering intensity, and pyrene fluorescence. These CAT values did not always coincide, depending on the measurement method. For example, the CATs for PMPC64-PDEA66 estimated from 1H NMR, Rh, and fluorescence methods were 37, 42, and 36 °C, respectively, presumably due to the difference in the sensitivity of the measurement methods.

Polymers 06 00846 g009 200

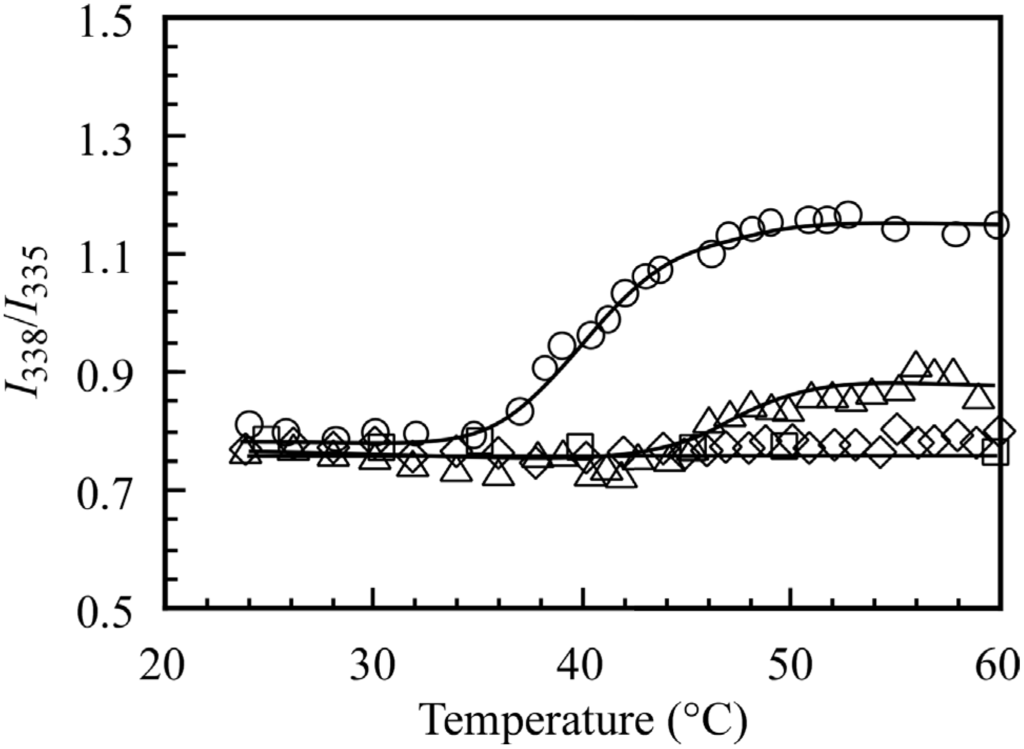

Figure 9. I338/I335 in pyrene excitation spectra in the presence of PMPC64-PDEA66 (○), PMPC64-PDEA46 (△), PMPC64-PDEA35 (◇), and PMPC64-PDEA22 (□) at Cp = 5.0 g/L as a function of temperature in 0.1 M NaCl aqueous solution.

Click here to enlarge figure

Figure 9. I338/I335 in pyrene excitation spectra in the presence of PMPC64-PDEA66 (○), PMPC64-PDEA46 (△), PMPC64-PDEA35 (◇), and PMPC64-PDEA22 (□) at Cp = 5.0 g/L as a function of temperature in 0.1 M NaCl aqueous solution.
Polymers 06 00846 g009 1024

The capture and release of small hydrophobic guest drugs by PMPCm-PDEAn in 0.1 M NaCl aqueous solution may be easily controlled by changing the temperature. We studied the thermo-responsive release behavior of PMPC64-PDEA66, applying a dialysis method, with ADR as a guest drug [17]. Above the CAT, PMPC64-PDEA66 formed polymer micelles with a hydrophobic core, sufficient to keep ADR captured in the interior. Below the CAT, however, the polymer micelles dissociated, and ADR was released from the core into the aqueous bulk phase. Figure 10 represents the time course of the cumulative permeation of ADR through the dialysis membrane at 25 and 50 °C. For comparison, data without PMPC64-PDEA66 at 25 and 50 °C are presented along with control data. At 25 °C, the rate of permeation of ADR through the membrane was almost same in the presence and absence of PMPC64-PDEA66; however, the permeation rate of ADR without PMPC64-PDEA66 at 50 °C was much faster than that at 25 °C. At 50 °C, the permeation rate of ADR from the polymer micelle was slow compared to the control experiment without the polymer. From these observations, it was concluded that the PMPC64-PDEA66 polymer micelle can retain captured ADR in its core at 50 °C. It is noteworthy that the release rate from the PMPC64-PDEA66 polymer micelle at 50 °C was slightly higher than that at 25 °C. This observation suggests that the polymer micelle cannot completely incorporate ADR into its core at 50 °C, because the diffusion coefficient of ADR at 50 °C is much higher than at 25 °C. To create a temperature-responsive micelle containing such a molecule without leaking the hydrophobic medication at temperatures higher than the CAT, it is necessary to improve the molecular design of the diblock copolymer—for example, by extending the hydrophobic block length.

Polymers 06 00846 g010 200

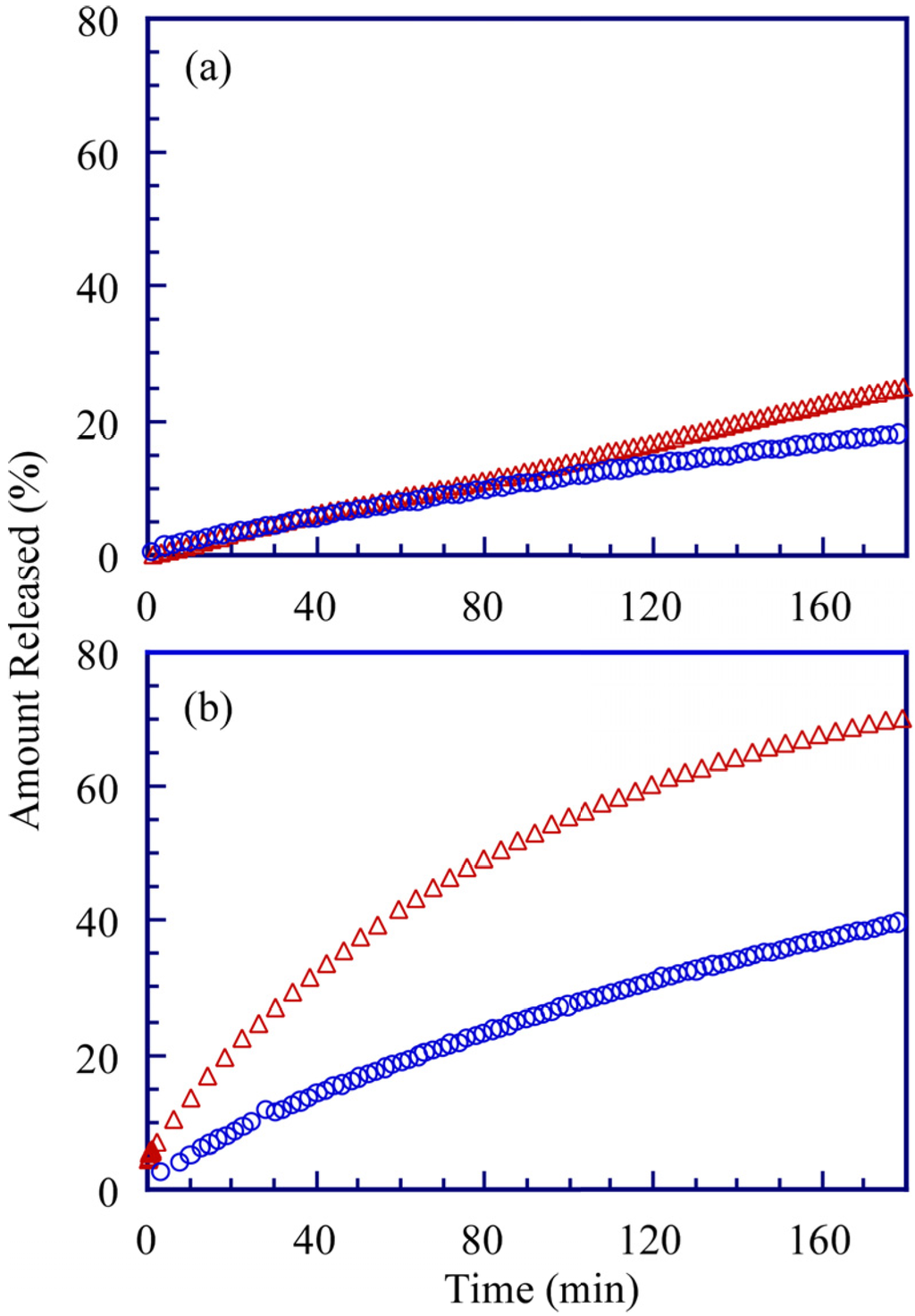

Figure 10. Cumulative ADR release to environment at 25 °C (a) and 50 °C (b). In the blank release ( Polymers 06 00846 i002), ADR (0.06 mM) solution without polymer was released into 0.1 M NaCl aqueous solution. ADR solution with PMPC64-PDEA66 (○) was released into 0.1 M NaCl aqueous solution.

Click here to enlarge figure

Figure 10. Cumulative ADR release to environment at 25 °C (a) and 50 °C (b). In the blank release ( Polymers 06 00846 i002), ADR (0.06 mM) solution without polymer was released into 0.1 M NaCl aqueous solution. ADR solution with PMPC64-PDEA66 (○) was released into 0.1 M NaCl aqueous solution.
Polymers 06 00846 g010 1024

4. Conclusions

Thermo-responsive diblock copolymers were prepared via RAFT controlled/living radical polymerization. Diblock copolymers, composed of hydrophilic biocompatible PMPC blocks of the same DP (= 64) and thermo-responsive PDEA blocks with different DPs (= 22, 35, 46, and 66), were synthesized. These diblock copolymers formed polymer micelles composed of a hydrophobic PDEA core and hydrophilic PMPC shells in water above the CAT. The CAT values decreased as the DP of the PDEA block increased. PMPC64-PDEA66 and PMPC64-PDEA46 can incorporate hydrophobic guest molecules such as pyrene into the hydrophobic PDEA core above the CAT. Guest molecules such as ADR can also be incorporated into the hydrophobic PDEA core above the CAT, which allows controlled release from the core to the bulk aqueous phase below the CAT. However, leakage of ADR from the hydrophobic core above the CTA cannot be entirely prevented. Therefore, to avoid the leakage of guest molecules from the core above the CAT, it is necessary to improve the system by increasing the chain length of PDEA block.

Acknowledgments

This work was financially supported by a Grant-in-Aid for Scientific Research (22350106) from the Japan Society for the Promotion of Science (JSPS), and the Cooperative Research Program “Network Joint Research Center for Materials and Devices”.

Conflicts of Interest

The authors declare no conflict of interest.
