Next Article in Journal
Molecular Weight and Crystallization Temperature Effects on Poly(ethylene terephthalate) (PET) Homopolymers, an Isothermal Crystallization Analysis
Next Article in Special Issue
Thermo-Responsive and Biocompatible Diblock Copolymers Prepared via Reversible Addition-Fragmentation Chain Transfer (RAFT) Radical Polymerization
Previous Article in Journal
Optimal Focusing and Scaling Law for Uniform Photo-Polymerization in a Thick Medium Using a Focused UV Laser
Polymers 2014, 6(2), 565-582; doi:10.3390/polym6020565
Article

Synthesis of Narrow Molecular Weight Distribution Norbornene-Lactone Functionalized Polymers by Nitroxide-Mediated Polymerization: Candidates for 193-nm Photoresist Materials

1
 and
2,*
1 Max Planck Institute for Polymer Research, Ackermannweg 10, 55128 Mainz, Germany 2 Department of Chemical Engineering, McGill Institute of Advanced Materials (MIAM), Centre for Self-Assembled Chemical Structures (CSACS), McGill University, 3610 University Street, Montreal, QC H3A 0C5, Canada
* Author to whom correspondence should be addressed.
Received: 16 January 2014 / Revised: 10 February 2014 / Accepted: 17 February 2014 / Published: 21 February 2014
(This article belongs to the Special Issue Controlled/Living Radical Polymerization)
View Full-Text   |   Download PDF [587 KB, uploaded 21 February 2014]   |

Abstract

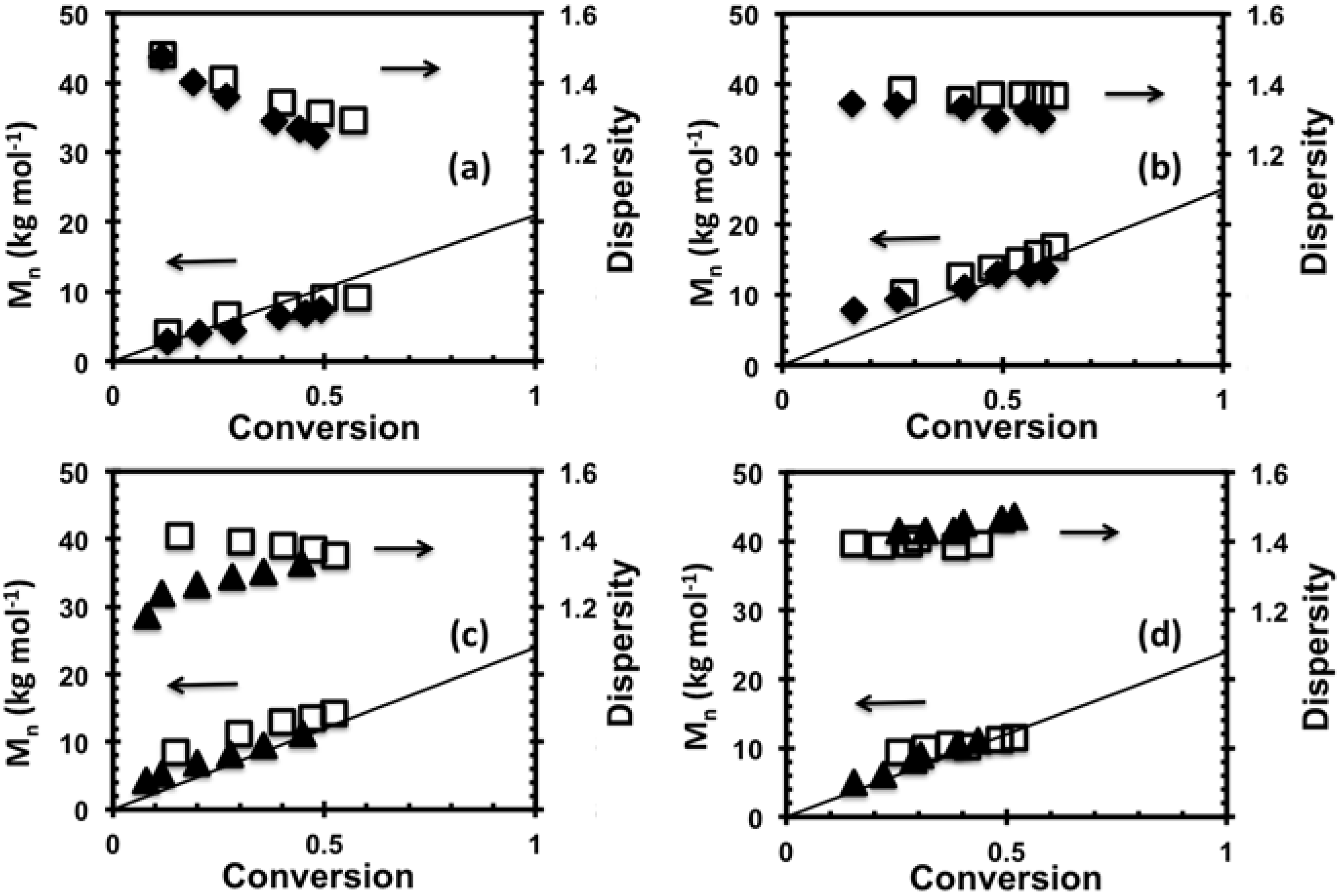

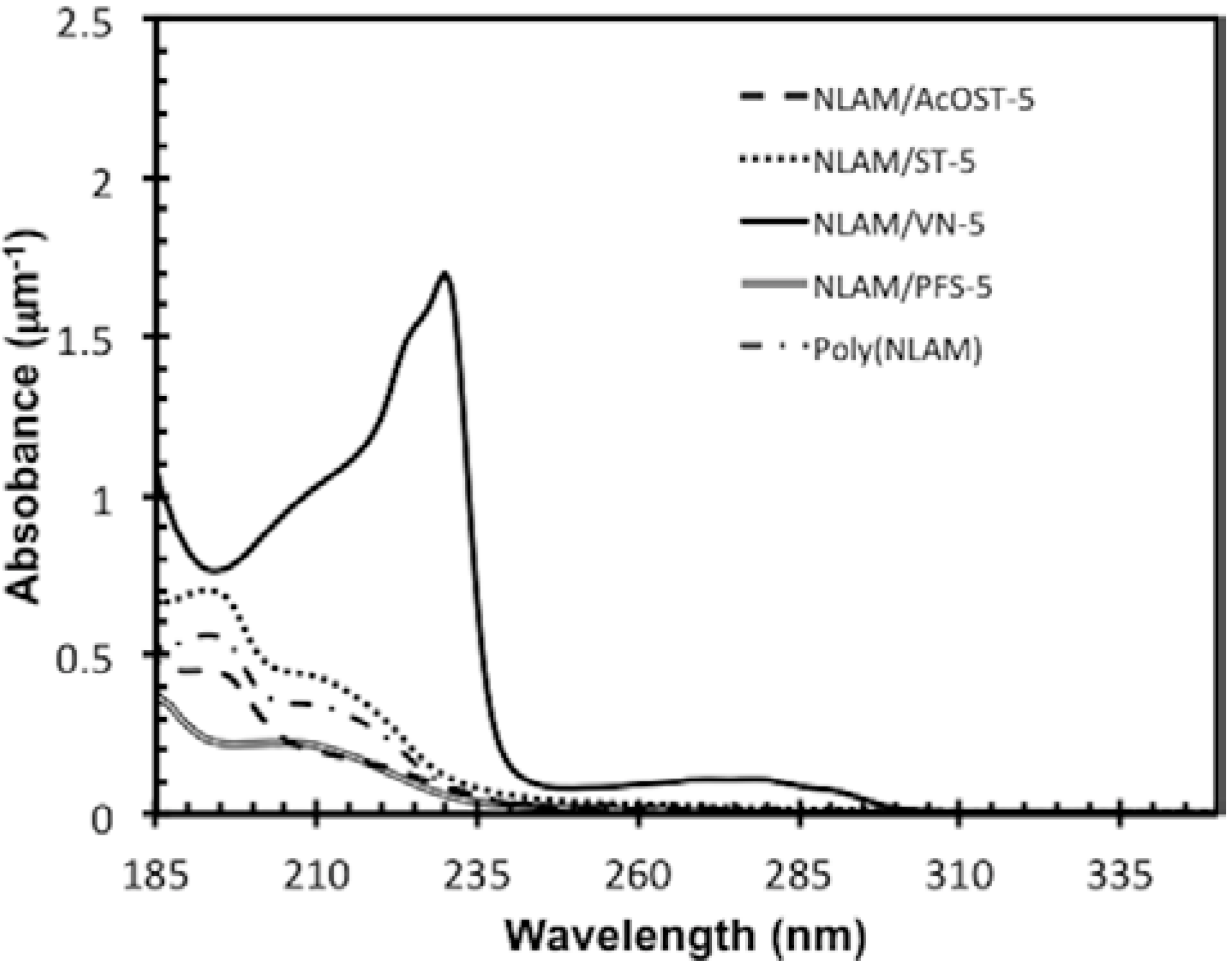

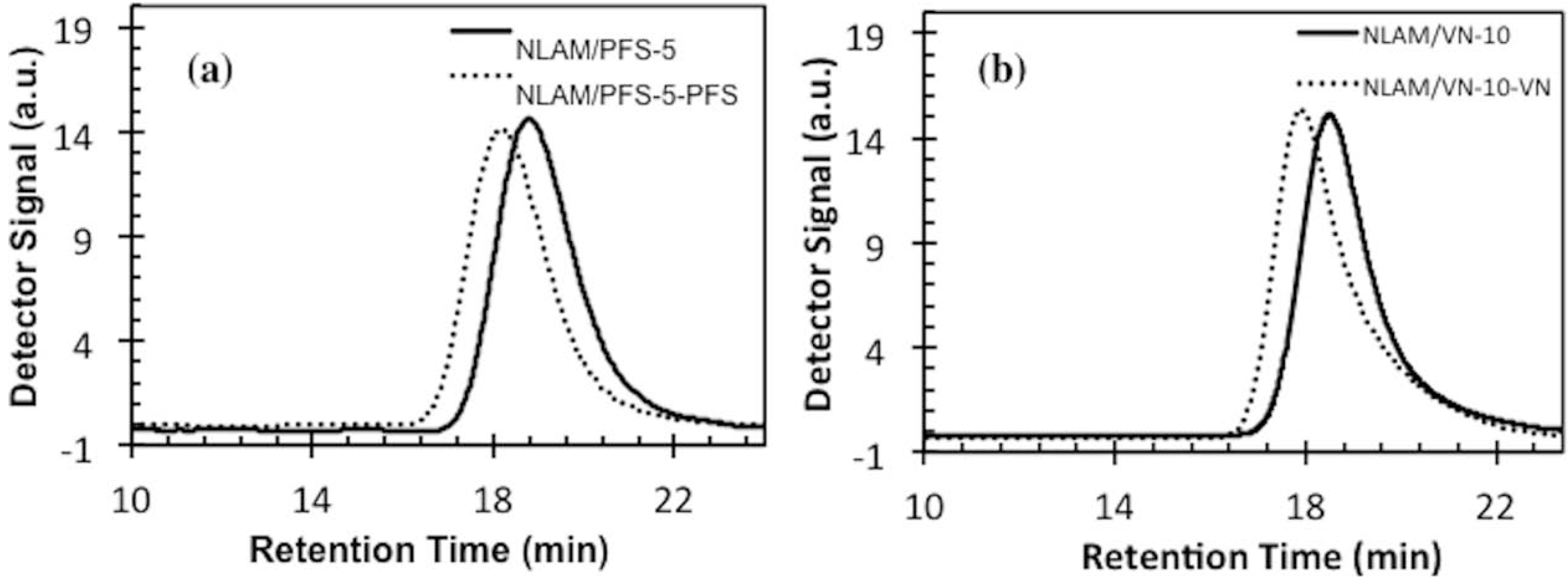

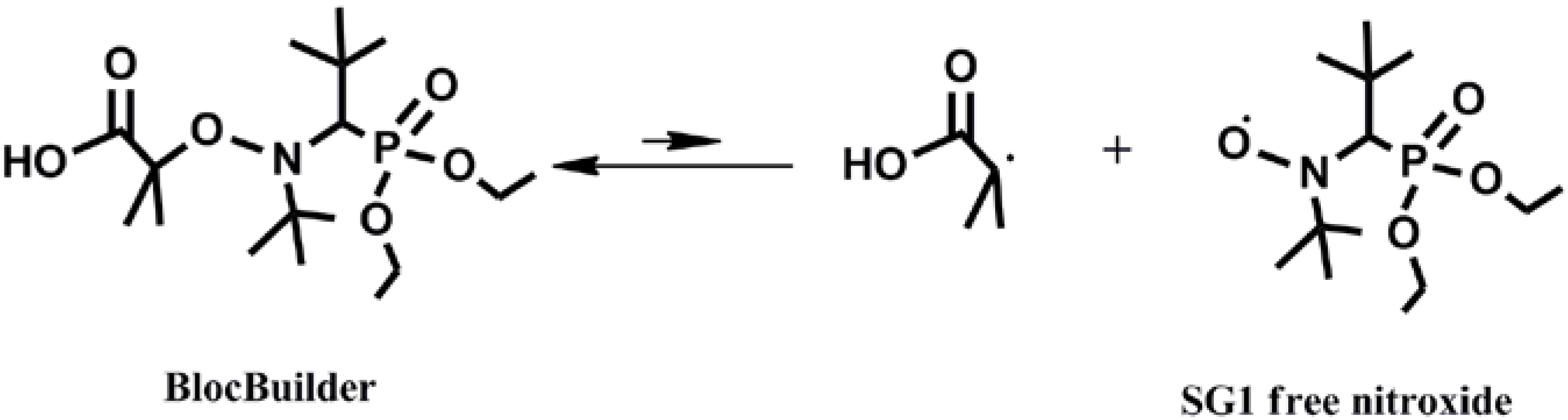

One hundred ninety three-nanometer candidate photoresist materials were synthesized by nitroxide-mediated polymerization (NMP). Statistical copolymerizations of 5-methacryloyloxy-2,6-norboranecarbolactone (NLAM) with 5–10 mol% of controlling co-monomers (which are necessary for controlled polymerizations of methacrylates by NMP with the initiator used) in the feed, such as styrene (ST), p-acetoxystyrene (AcOST), 2-vinyl naphthalene (VN) and pentafluorostyrene (PFS), using the unimolecular BlocBuilder® initiator in 35 wt% dioxane solution at 90 °C were performed. As little as 5 mol% controlling comonomer in the feed was demonstrated to be sufficient to lead to linear evolution of number average molecular weight  with respect to conversion up to 50%, and the resulting copolymers had dispersities  of ~1.3 in most cases, an attractive feature for reducing line width roughness (LWR) in photoresists. The copolymers generally showed relatively low absorbance at 193 nm, comparable to other 193-nm candidate photoresists reported previously, despite the inclusion of a small amount of the styrenic co-monomers in the copolymer.
Keywords: nitroxide-mediated polymerization; copolymerization; 193-nm photoresists nitroxide-mediated polymerization; copolymerization; 193-nm photoresists
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
SciFeed

Share & Cite This Article

Further Mendeley | CiteULike
Export to BibTeX |
EndNote |
RIS
MDPI and ACS Style

Wang, Z.J.; Maric, M. Synthesis of Narrow Molecular Weight Distribution Norbornene-Lactone Functionalized Polymers by Nitroxide-Mediated Polymerization: Candidates for 193-nm Photoresist Materials. Polymers 2014, 6, 565-582.

View more citation formats

Related Articles

Article Metrics

For more information on the journal, click here

Comments

[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
