Next Article in Journal / Special Issue
Synthesis of Star Poly(N-vinylcarbazole) by Microwave-Assisted Reversible Addition-Fragmentation Chain Transfer Polymerization (RAFT)
Previous Article in Journal
Hybrid Magnetic Hydrogel: A Potential System for Controlled Drug Delivery by Means of Alternating Magnetic Fields
Previous Article in Special Issue
Controlled Photoradical Polymerization Mediated by 2,2,6,6-Tetramethylpiperidine-1-Oxyl
Article Menu

Export Article

Open AccessArticle
Polymers 2012, 4(2), 1170-1182; https://doi.org/10.3390/polym4021170

Synthesis of Well-Defined, Water-Soluble Hyperbranched Polyamides by Chain-Growth Condensation Polymerization of AB2 Monomer

1
Department of Material and Life Chemistry, Kanagawa University, Rokkakubashi, Kanagawa-ku, Yokohama 221-8686, Japan
2
Department of Material and Life Science, Seikei University, Kichijoji-Kitamachi, Musashino-shi, Tokyo 180-8633, Japan
*
Author to whom correspondence should be addressed.
Received: 12 March 2012 / Revised: 18 April 2012 / Accepted: 8 May 2012 / Published: 14 May 2012
(This article belongs to the Special Issue Living Polymerization Techniques)
View Full-Text   |   Download PDF [435 KB, uploaded 14 May 2012]   |

Abstract

Condensation polymerization of 5-aminoisophthalic acid methyl ester 1 bearing a N-tri(ethylene glycol) methyl ester (TEG) chain as an AB2 monomer was conducted and the properties of the resulting hyperbranched polyamides (HBPA) were investigated. When the polymerization of 1 was carried out with N-methyl core initiator 2b at various feed ratios of 1 to 2b ([1]0/[2b]0) in the presence of LiHMDS and LiCl at −10 °C, the Mn values of the obtained HBPA increased in proportion to the [1]0/[2b]0 ratio from 7 to 46 (Mn = 3810–18600), retaining a narrow molecular weight distribution (Mw/Mn = 1.11–1.19). The HBPA was soluble in water, and a 0.25 wt.−% aqueous solution of the HBPA exhibited a lower critical solution temperature (LCST). The cloud point was 21–23 °C, which is about 30 °C lower than that of the corresponding poly(m-benzamide) with the N-TEG unit. View Full-Text
Keywords: hyperbranched polymer; chain-growth condensation polymerization; LCST; thermally responsive polymer hyperbranched polymer; chain-growth condensation polymerization; LCST; thermally responsive polymer

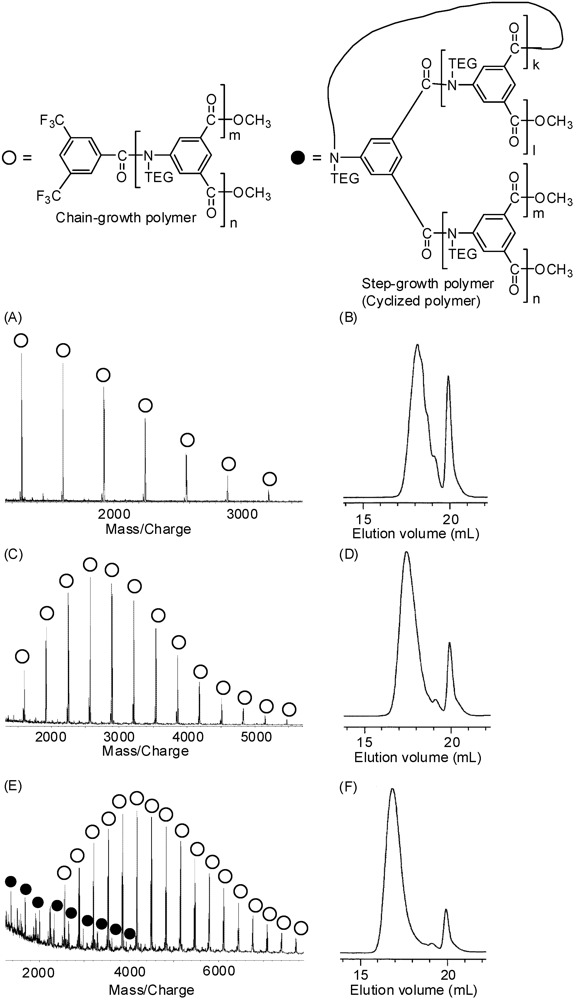

Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Share & Cite This Article

MDPI and ACS Style

Ohta, Y.; Kamijyo, Y.; Yokoyama, A.; Yokozawa, T. Synthesis of Well-Defined, Water-Soluble Hyperbranched Polyamides by Chain-Growth Condensation Polymerization of AB2 Monomer. Polymers 2012, 4, 1170-1182.

Show more citation formats Show less citations formats

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
