Open AccessThis article is
- freely available
Synthesis and Characterization of Poly(3-hexylthiophene)-b-Polystyrene for Photovoltaic Application
Graduate School of Bio-Applications and Systems Engineering, Tokyo University of Agriculture and Technology, 2-24-16 Nakacho, Koganei-shi, Tokyo 184-8588, Japan
* Author to whom correspondence should be addressed.
Received: 10 January 2011; in revised form: 12 February 2011 / Accepted: 24 February 2011 / Published: 1 March 2011

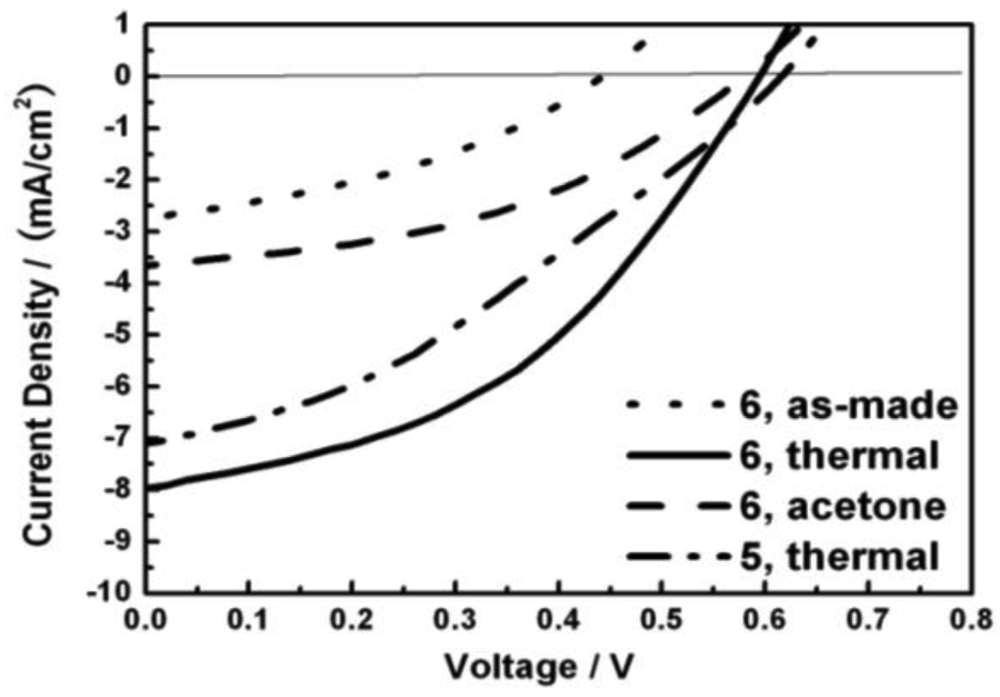

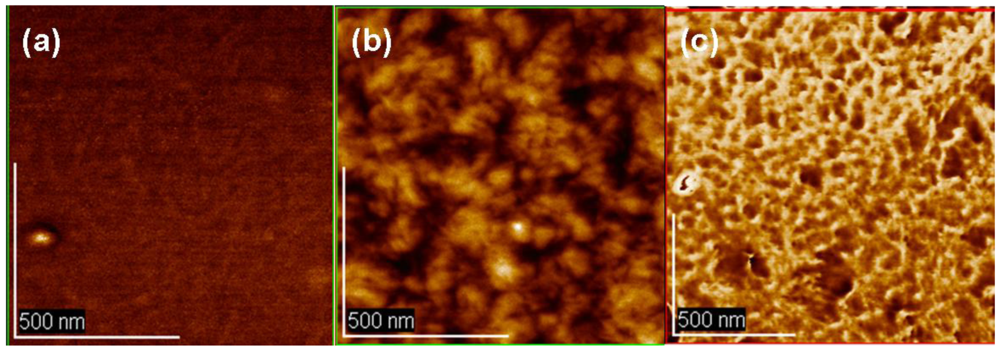

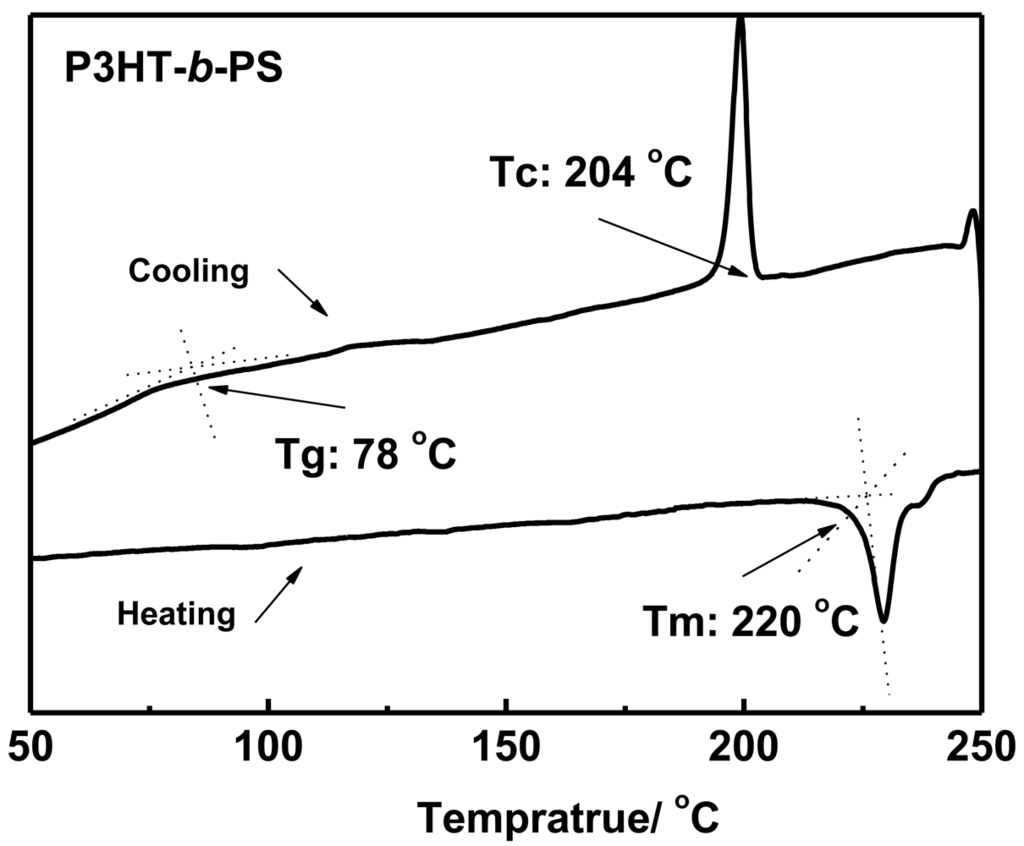

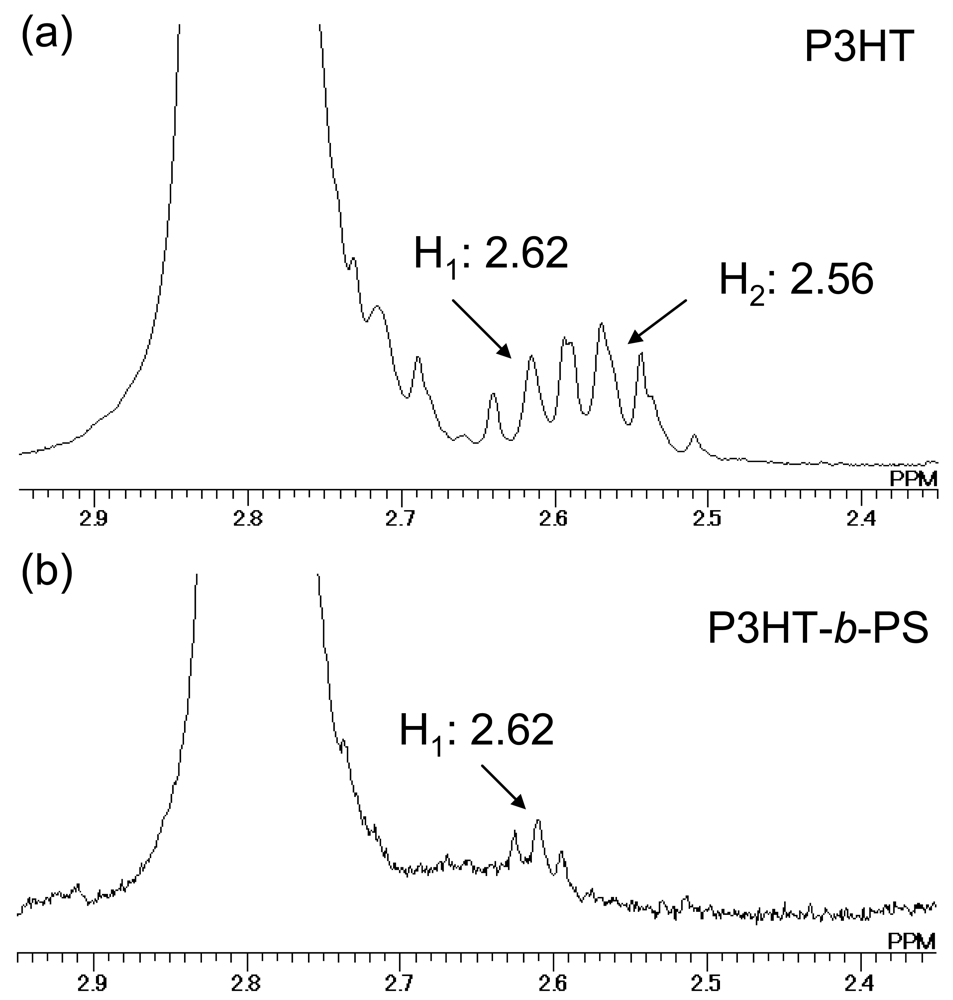

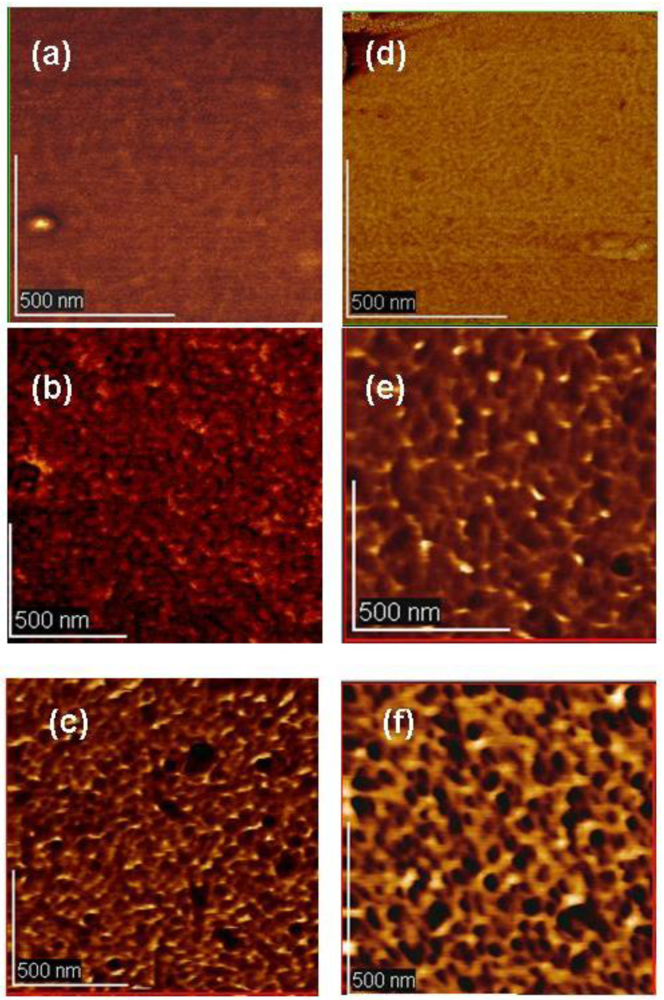

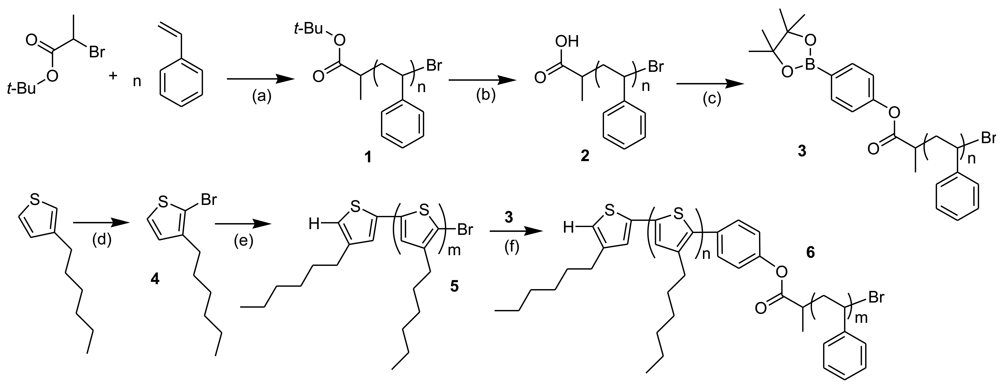

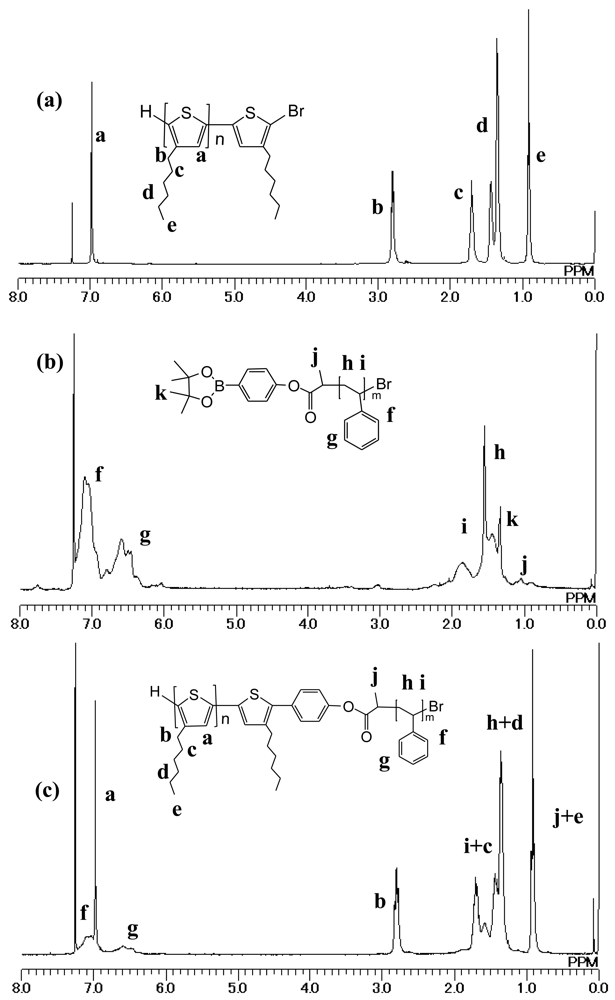

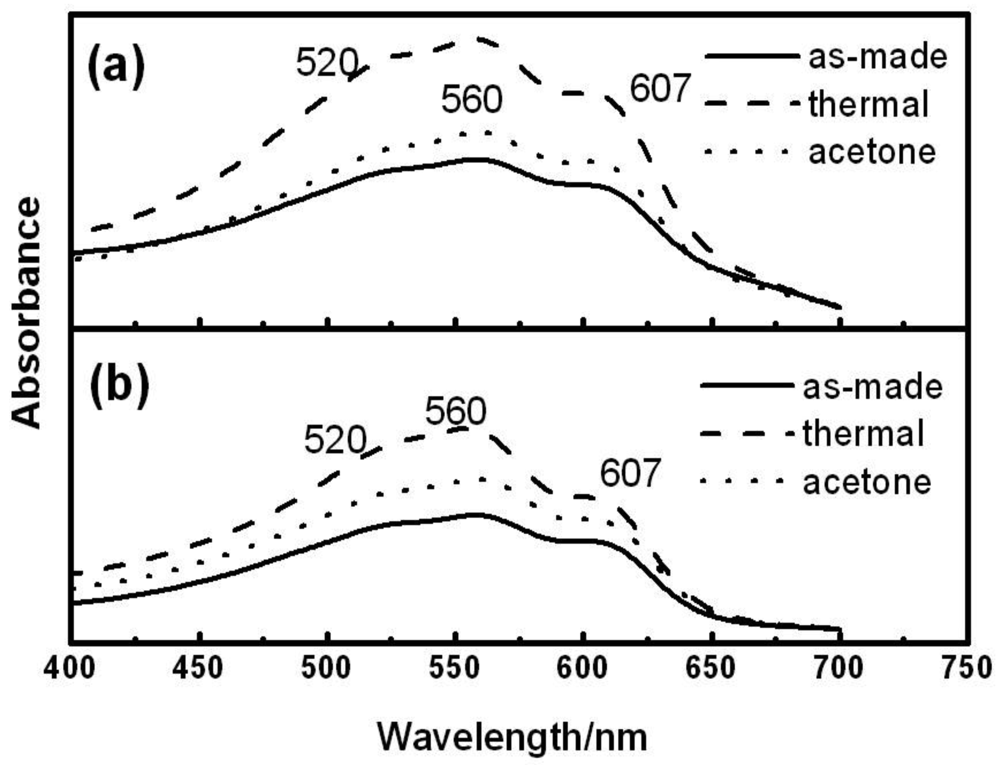

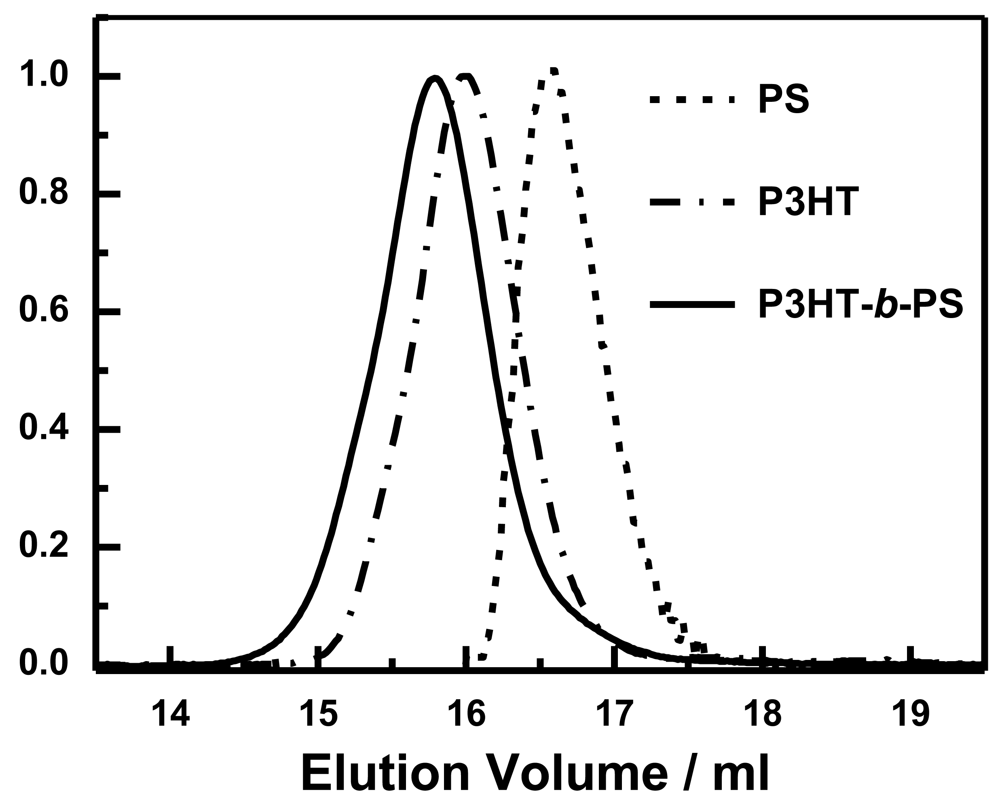

Abstract: Poly(3-hexylthiophene)-block-polystyrene (P3HT-b-PS) was synthesized by Suzuki coupling reaction between P3HT and PS, prepared by Grignard metathesis polymerization and atom transfer radical polymerization (ATRP), respectively. The formation of block copolymer was confirmed by gel permeation chromatography (GPC) and NMR. Differential scanning calorimetry (DSC) thermogram of block copolymers showed glass transition of PS block and melting/crystallization of P3HT block, suggesting a microphase separated structure, which was also confirmed by atomic force microscopy (AFM) images and UV-vis absorption spectra. The annealing effect on the morphology of the composite films consisting of P3HT-b-PS and [6,6]-phenyl-C61-butyric acid methyl ester (PCBM) was investigated. Photovoltaic cells fabricated using P3HT-b-PS and PCBM were evaluated.
Keywords: poly(3-hexylthiophene); polystyrene; block copolymer; morphology; photovoltaic cell
Citations to this Article
Cite This Article
MDPI and ACS Style
Gu, Z.; Tan, Y.; Tsuchiya, K.; Shimomura, T.; Ogino, K. Synthesis and Characterization of Poly(3-hexylthiophene)-b-Polystyrene for Photovoltaic Application. Polymers 2011, 3, 558-570.
Gu Z, Tan Y, Tsuchiya K, Shimomura T, Ogino K. Synthesis and Characterization of Poly(3-hexylthiophene)-b-Polystyrene for Photovoltaic Application. Polymers. 2011; 3(1):558-570.
Gu, Zhijie; Tan, Ying; Tsuchiya, Kousuke; Shimomura, Takeshi; Ogino, Kenji. 2011. "Synthesis and Characterization of Poly(3-hexylthiophene)-b-Polystyrene for Photovoltaic Application." Polymers 3, no. 1: 558-570.
