Open AccessArticle
Crystals 2017, 7(9), 274; doi:10.3390/cryst7090274

Atomic-Force Microscopy Analyses on Dislocation in Extinction Bands of Poly(dodecamethylene terephthalate) Spherulites Solely Packed of Single-Crystal-Like Lamellae

Department of Chemical Engineering, National Cheng Kung University, No. 1, University Road, Tainan 701-01, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editor: Helmut Cölfen
Received: 25 June 2017 / Revised: 8 September 2017 / Accepted: 8 September 2017 / Published: 11 September 2017
(This article belongs to the Special Issue Crystal Morphology and Assembly in Spherulites)
View Full-Text   |   Download PDF [5790 KB, uploaded 11 September 2017]   |

Abstract

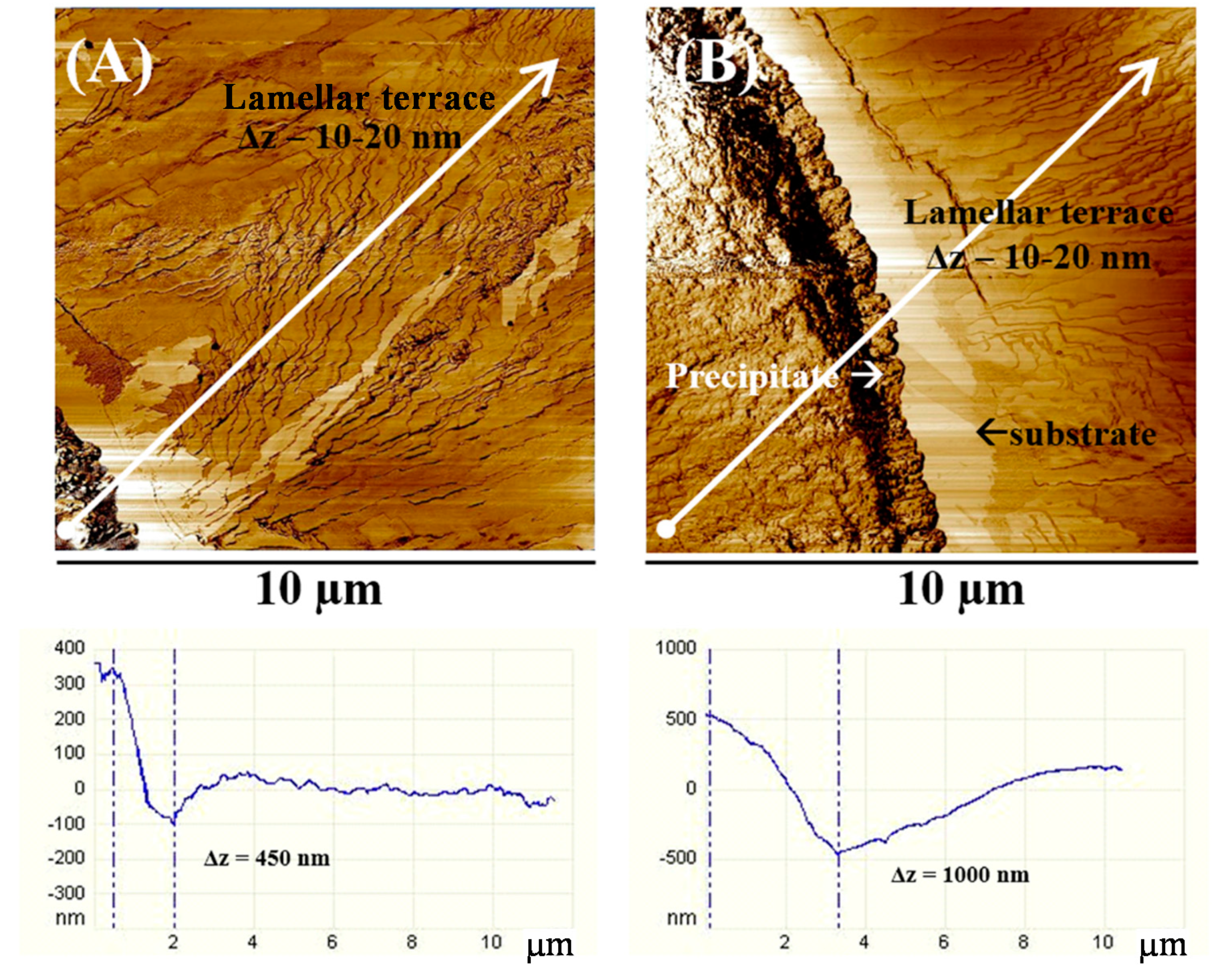

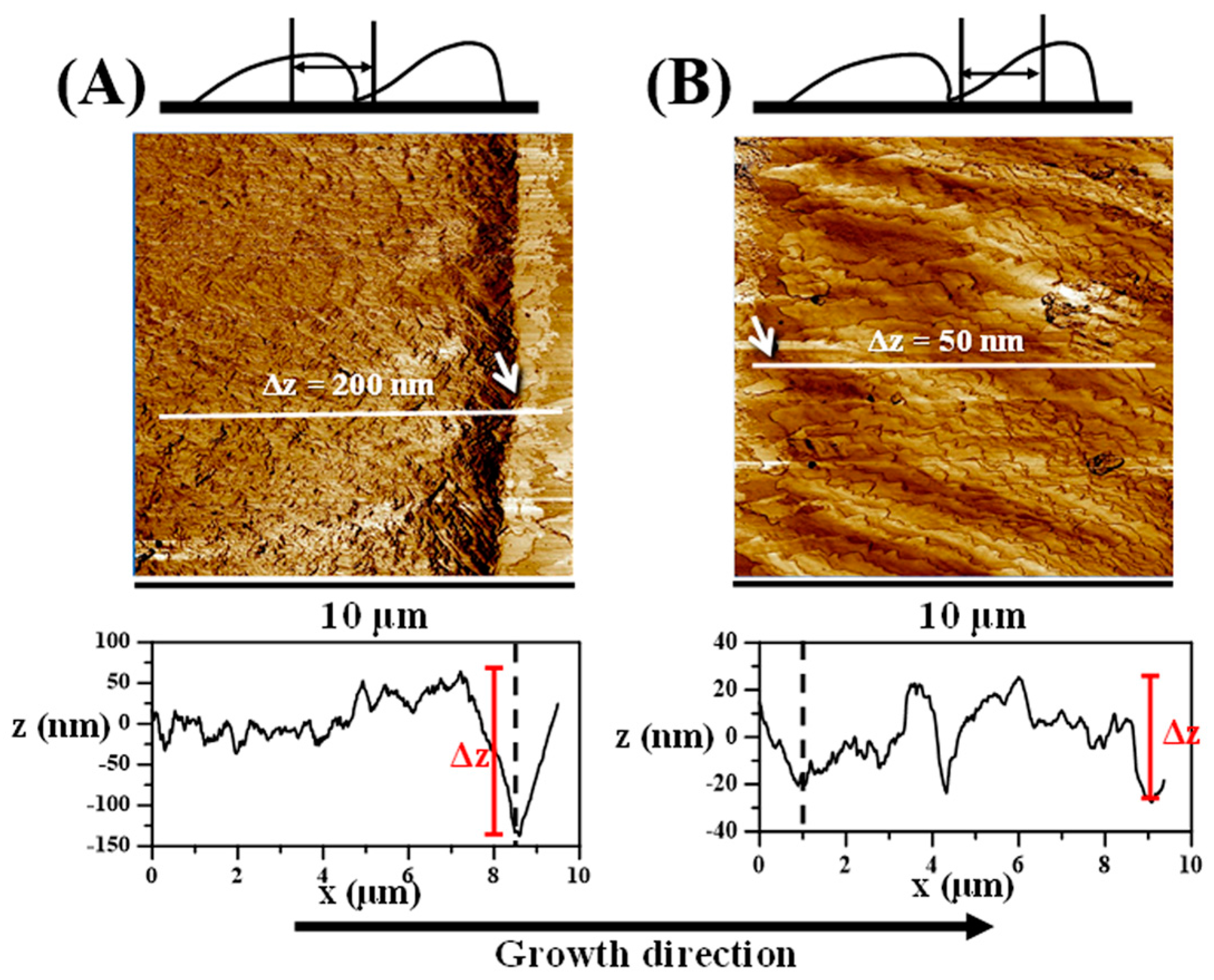

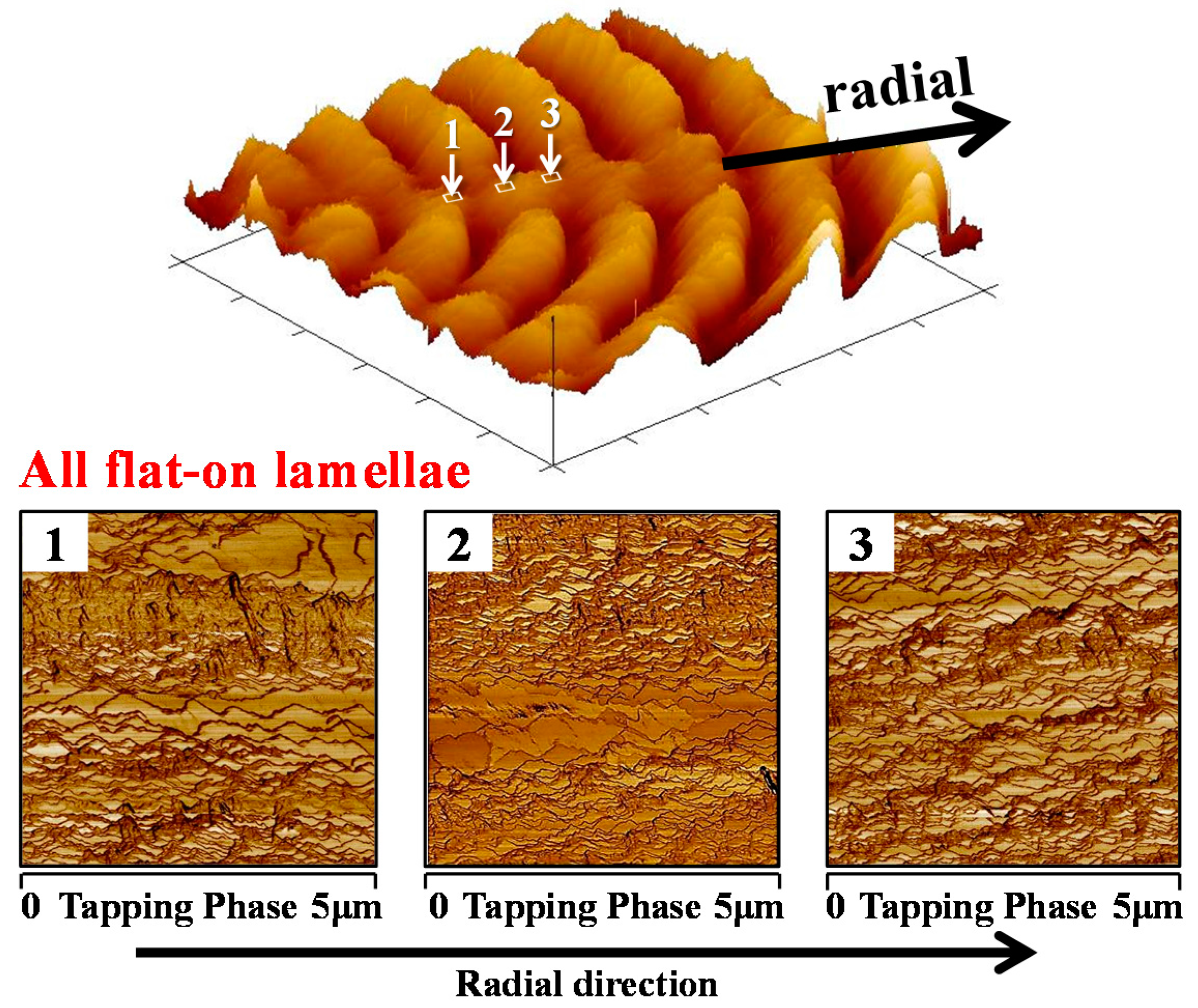

This study, using atomic-force and polarized-optical light (AFM and POM) microscopies on the extinction banded spherulites of poly(dodecamethylene terephthalate) (P12T) at high Tc = 110 °C with a film thickness kept at 1–3 µm, has verified that banded spherulites can be composed of stacks of entirely single-crystal-like lamellae free of any twisting, flipping, or bending, and no branching of lamellae. Defects in the crystal packing of extinction bands are present in both intra-band and inter-band regions. The intra-band defects originate from the miss-match in spiral-circling into circular bands while the inter-band defects are in the interfaces between successive bands where single crystals in the ridge are jammed to deformation, then suddenly precipitate prior to initiating another cycle of banding. The fish-scale lamellae, at the initiation of a cycle, are orderly packed as terrace-like single crystals; conversely, near or on the defected regions, they are highly jammed or squeezed and deformed to beyond recognition of their original single-crystal nature. View Full-Text
Keywords: polymer crystallization; lamellar assembly; poly(dodecamethylene terephthalate); dislocation; extinction bands polymer crystallization; lamellar assembly; poly(dodecamethylene terephthalate); dislocation; extinction bands
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Woo, E.M.; Lugito, G.; Yang, C.-E.; Chang, S.-M. Atomic-Force Microscopy Analyses on Dislocation in Extinction Bands of Poly(dodecamethylene terephthalate) Spherulites Solely Packed of Single-Crystal-Like Lamellae. Crystals 2017, 7, 274.
