Crystals 2012, 2(2), 193-212; doi:10.3390/cryst2020193

Article
Ammonia Uptake and Release in the MnX2–NH3 (X = Cl, Br) Systems and Structure of the Mn(NH3)nX2 (n = 6, 2) Ammines
Hazel Reardon , James M. Hanlon , Michael Grant , Imogen Fullbrook and Duncan H. Gregory *
WestCHEM, School of Chemistry, University of Glasgow, Joseph Black Building, Glasgow G12 8QQ, UK; Email: hazelr@chem.gla.ac.uk (H.R.); jamhan@chem.gla.ac.uk (J.M.H.); michaelgrant262@gmail.com (M.G.); 0706652f@student.gla.ac.uk (I.F.)
*
Author to whom correspondence should be addressed; Email: duncan.gregory@glasgow.ac.uk; Tel.: +44-141-330-6438; Fax: +44-141-330-4888.
Received: 21 February 2012; in revised form: 18 March 2012 / Accepted: 30 March 2012 /
Published: 10 April 2012

Abstract

: Hexa-ammine complexes, Mn(NH3)6X2 (X = Cl, Br), have been synthesized by ammoniation of the corresponding transition metal halide and characterized by Powder X-ray diffraction (PXRD) and Raman spectroscopy. The hexa-ammine complexes are isostructural (Cubic, Fm-3m, Z = 4; a = 10.2742(6) Å and 10.527(1) Å for X = Cl, Br respectively). Temperature programmed desorption (TPD) demonstrated that ammonia release from Mn(NH3)6X2 complexes occurred in three stages corresponding to the release of 4, 1 and 1 NH3 equivalents respectively. The chloride and bromide both exhibit a deammoniation onset temperature below 323 K. The di-ammoniates from the first desorption step were isolated during TPD measurements and their crystal structures determined by Rietveld refinement against PXRD data (X = Cl: orthorhombic Cmmm, a = 8.1991(9) Å, b = 8.2498(7) Å, c = 3.8212(4) Å, Z = 2; X = Br: orthorhombic Pbam, a = 6.0109(5) Å, b = 12.022(1) Å, c = 4.0230(2) Å, Z = 2).
Keywords:
manganese; ammines; chloride; bromide; structure; Raman; ammonia storage; hydrogen storage

1. Introduction

Fossil fuel depletion and societal demands are driving the need for more sustainable fuels. Hydrogen, a plausible high energy density alternative to fossil fuels, must comply with stringent performance requirements in order to be economically viable and safe for commercial and public use [1]. It may be safely stored in a solid material and subsequently exploited to drive fuel cells, which form the basis of many automotive power systems [2]. The storage of hydrogen in the solid state presents major technical challenges however, with the performance of many candidate materials hampered by poor thermodynamic and/or kinetic H2 sorption properties. Synthesis, understanding and ultimately improvement of the properties of novel materials for hydrogen storage are critical to the development of sustainable energy stores and delivery systems [3,4,5,6,7].

The storage of hydrogen as ammonia presents an alternative to conventional metal/complex hydride stores. Previous work on ammines, M(NH3)mXn, (where M = metal and X = halide; typically 1 ≥ m ≥ 9 and 1 ≥ n ≥ 3) has highlighted their potential as indirect hydrogen stores [8,9]. However, structural characterization of metal ammines and their decomposition products is required to understand fully the mechanisms by which ammonia release occurs and hence establish where improvements may be made for such systems. Research on metal ammines as solid-state gas stores has recently focused on Mg(NH3)6Cl2 [10,11,12,13]. This ammine has an exceptional high gravimetric capacity of ammonia and hence hydrogen (51.8 wt% and 9.2 wt% respectively), while the apparent toxicity of the ammonia held within the complex is less than that of alternative fuels such as methanol and gasoline [14]. Mg(NH3)6Cl2 releases ammonia in three stages, with the initial release of 4 ammonia equivalents occurring at 350 K, and subsequent single equivalent ammonia releases at 500 K and 620 K. Similarly, the complexation of transition metals with ammonia is well known and transition metal ammines, such as Fe(NH3)nCl2 and Ni(NH3)nCl2 [15,16], offer flexibility in the design of systems with tunable ammonia release thermodynamics. Such compounds are now at the point of being understood and developed. Hence there is scope for solid state ammonia stores both for ammonia-fed solid oxide fuel cells (SOFCs) at high temperature or via catalytic conversion of ammonia to hydrogen for use in polymer electrolyte membrane (PEM) FCs at lower temperature. Currently commercial liquid/gaseous ammonia is the predominant feed for high temperature systems [17,18,19,20], where most research efforts are focused on use of ammonia in SOFCs [21,22].

One ammine system with promising desorption behavior is Mn(NH3)Cl2 [23]. The relatively high gravimetric capacity of ammonia—and hence potentially hydrogen capacity—in Mn(NH3)6Cl2 and also Mn(NH3)6Br2 indicates the potential of these materials for development as ammonia and/or hydrogen stores (Table 1).

Table Table 1. Theoretical gravimetric capacities for manganese halide ammines.

Click here to display table

Table 1. Theoretical gravimetric capacities for manganese halide ammines.
AmmineNH3 content/wt%H2 content/wt%
Mn(NH3)6Cl244.837.89
Mn(NH3)6Br232.255.74

Olovosson originally proposed that transition metal hexa-ammines should form with cubic K2PtCl6-type structures [24]. Almost 30 years later, single crystal X-ray data confirmed this premise for a number of transition metal hexa-ammines synthesized in supercritical ammonia, including Mn(NH3)6Cl2 [25]. The unit cell of the ammine, highlighting the arrangement of isolated octahedral [Mn(NH3)6]2+ complex cations and Cl counter anions is shown in Figure 1. The decomposition of Mn(NH3)6Cl2 has been studied on two occasions previously and the thermodynamic parameters for desorption are listed in Table 2 [23,26]. By contrast, little is known regarding the deammoniation profile of Mn(NH3)6Br2 and the structures of the lower ammonia adducts of both the chloride and bromide are unknown. We describe here a systematic study of the deammoniation behavior of the manganese chloride and bromide hexa-ammines. By using a combination of powder X-ray diffraction (PXRD) and Raman spectroscopy, we have confirmed the structure of Mn(NH3)6Cl2, determined the structure of the hexa-ammmine Mn(NH3)6Br2 and the respective diammines Mn(NH3)2Cl(Br)2 and verified the decomposition pathway in these systems from the fully ammoniated compounds to the respective dihalides.

Crystals 02 00193 g001 1024

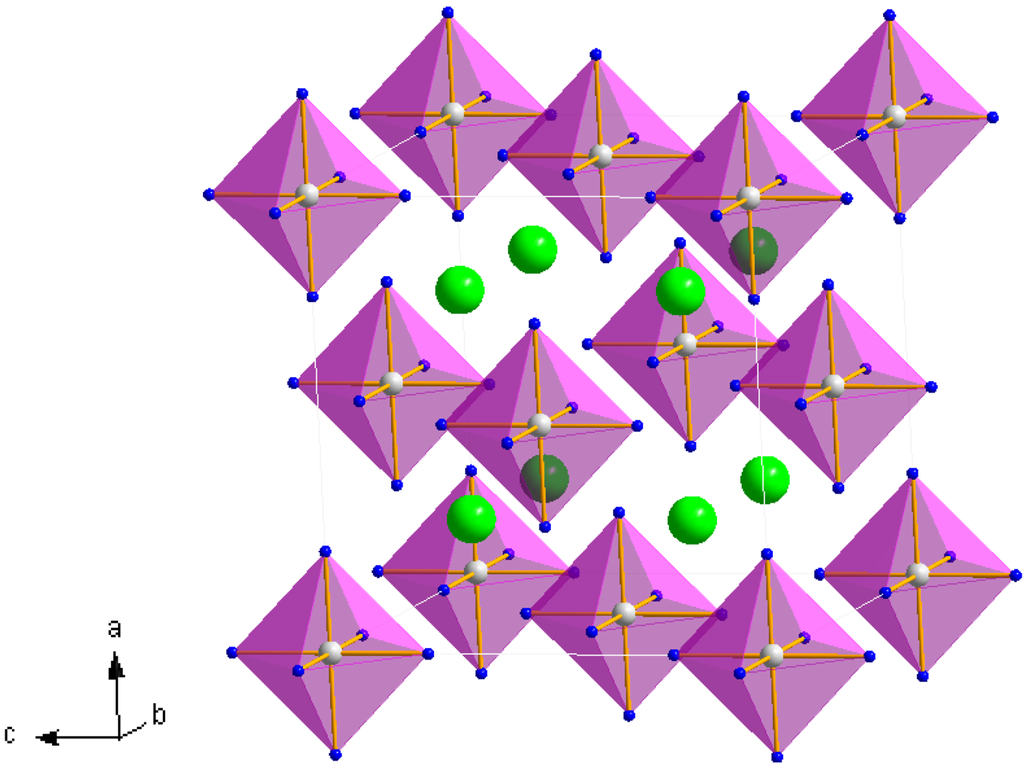

Figure 1. K2PtCl6-type cubic structure of Mn(NH3)6Cl2 [24]. Mn (grey spheres), N (blue spheres), Cl (green spheres).

Click here to enlarge figure

Figure 1. K2PtCl6-type cubic structure of Mn(NH3)6Cl2 [24]. Mn (grey spheres), N (blue spheres), Cl (green spheres).
Crystals 02 00193 g001 1024
Table Table 2. Reaction entropy and enthalpy values for the decomposition of manganese halide ammines given by Wentworth et al. [26] Values in parenthesis are from the work of Lepinasse and Spinner [27].

Click here to display table

Table 2. Reaction entropy and enthalpy values for the decomposition of manganese halide ammines given by Wentworth et al. [26] Values in parenthesis are from the work of Lepinasse and Spinner [27].
Hexa-ammine → di-ammineDi-ammine → mono-ammineMono-ammine → dihalide
Δ S100 Δ HΔ S100 Δ HΔ S100 Δ H
(J/K mol)(kJ/mol)(J/K mol)(kJ/mol)(J/K mol)(kJ/mol)
Cl148.5347.28 (47.42)153.5571.13 (71.02)153.9784.10 (84.20)
Br149.7953.14152.3076.99154.3983.68

Subscript (100) value refers to the vapor pressure, 100 Torr, of ammonia at which ammine equilibria have been characterized at a given temperature for the corresponding complexes. Values listed here are based on experimental data, which established the T100 (temperature at which P = 100 torr) and ΔH in order to calculate ΔS100 (=ΔH/T100), allowing subsequent data fitting to the Nernst equation [28].

2. Results and Discussion

2.1. Structural Characterization of the Hexa-ammines, Mn(NH3)6X2 (X = Cl, Br)

Reaction of MnCl2 and MnBr2 with ammonia gas at room temperature led to white air-sensitive powders of the ammine complexes, 1 and 2 respectively. Raman spectra for 1 and 2 are shown in Figure 2 By comparison with published data for transition metal hexa-ammine complexes, the bands for 1 and 2 could be fully assigned to N–H and Mn–N vibrations (Table 3) [29,30,31,32,33]. Previous IR studies on the M(NH3)6I2 (M = Mn, Fe) complexes have suggested that the rotation of ammonia molecules about the M-N axis is possible [34]. From the results presented here we can establish that this is also the case at least for Mn(NH3)6Br2 owing to the degenerate (δd) band observed in the Raman spectra at 1590 cm−1 and also the large H-H bond lengths suggested from XRD refinements (Table 3, Table 4, Table 5 and Table 6). Despite the apparent absence of the equivalent δd band in the Raman spectrum of 1, there are sizeable intermolecular distances between neighbouring H atoms in the ammonia molecules (indeed the partially occupied H positions in the model assume dynamic disorder) and no obvious structural reason why rotation should not occur, suggesting that the band is simply too weak in the spectrum of 1 to be observed. This is consistent with the study by Eβmann et al. who infer that the rotation of the ammonia molecules about the M-N axis in a number of transition metal ammine chlorides and bromides is free at room temperature [25]. Further, the rotational effects observed for the ammonia molecules in single crystals of Ni(NY3)6X2 (Y = H, D and X = Br, I, NO3, PF6) as investigated by neutron diffraction are described in more detail by Schiebel et al. [35,36].

Table Table 3. Raman data for Mn(NH3)6X2 (X = Cl, Br).

Click here to display table

Table 3. Raman data for Mn(NH3)6X2 (X = Cl, Br).
CompoundRaman Shift/cm−1
νasνsνsδdδsδasρrνδ
(NH3)(NH3)(NH3)(HNH)(HNH)(HNH)(NH3)(MN)(MNM)
1333532553155-12461079644323166
2332132433149159012391076557322150
Table Table 4. Crystallographic data for hexa-ammines 1 and 2.

Click here to display table

Table 4. Crystallographic data for hexa-ammines 1 and 2.
Compound12
FormulaMn(NH3)6Cl2Mn(NH3)6Br2
Crystal SystemCubicCubic
Space GroupFm-3mFm-3m
a10.2742(6)10.528(1)
Volume/Å31084.5(2)1166.8(4)
Z44
Formula Weight/g912.1201267.728
Calculated density, ρX/g·cm−31.3971.804
No of data40184137
No of parameters2936
Rwp0.0550.073
Rp0.0430.058
χ21.1011.073
Table Table 5. Atomic parameters for 1 and 2 from Rietveld refinement against PXRD data.

Click here to display table

Table 5. Atomic parameters for 1 and 2 from Rietveld refinement against PXRD data.
AtomMn(NH3)6Cl2 (1)Mn(NH3)6Br2 (2)
Mn, 4a (0,0,0)
Uiso × 100/Å25.7(4)3.3(3)
X, 8c (¼, ¼, ¼)
Uiso × 100/Å25.4(4)5.0(2)
N, 24e (x, 0, 0)
X0.218(1)0.220(2)
Uiso × 100/Å26.0(7)6.3(9)
H, 96k (x, x, z)
X0.066(4)0.055(3)
Z0.265(3)0.248(5)
Uiso × 100/Å22.52.5
Occupancy0.750.75
Crystals 02 00193 g002 1024

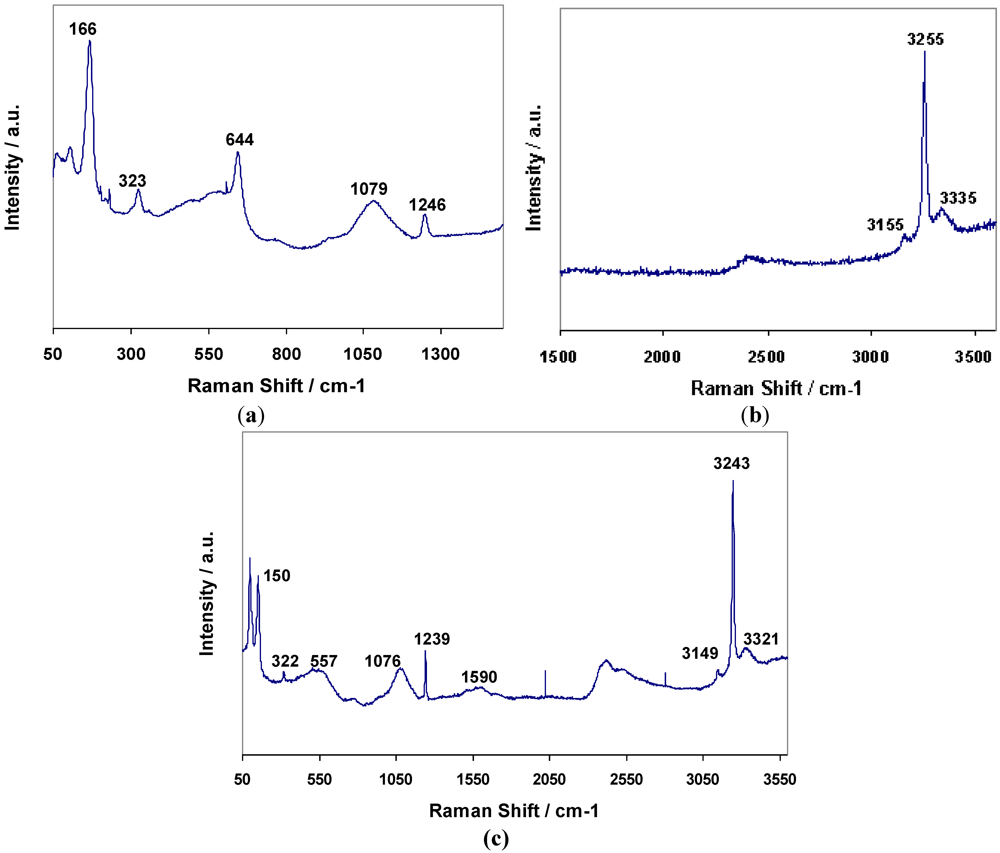

Figure 2. Raman spectra for 1; (a) 50–1500 cm−1, (b) 1500–3600 cm−1, and 2 (c) 50–3600 cm−1.

Click here to enlarge figure

Figure 2. Raman spectra for 1; (a) 50–1500 cm−1, (b) 1500–3600 cm−1, and 2 (c) 50–3600 cm−1.
Crystals 02 00193 g002 1024
Table Table 6. Interatomic distances and angles for 1 and 2.

Click here to display table

Table 6. Interatomic distances and angles for 1 and 2.
Distance or angle/Å or °Mn(NH3)6Cl2 (1)Mn(NH3)6Br2 (2)
8 × Mn–X/Å4.44886(19) 4.5586(4)
6 × Mn–N/Å2.239(15) 2.313(18)
N–H/Å1.07(5) 0.88(6)
3.183(34) × 5
3.210(26) × 63.94(5) × 2
4.05(4) × 44.99(4) × 3
H1–H1/Å2.89(8) × 22.86(8) × 2
3.97(4) × 2
4.19(5) × 23.78(8) × 2
4.81(7) × 23.95(8) × 2
4.83(7)4.51(10) × 2
X–Mn–X/°70.529(2) × 2109.471(5) × 3
70.529(4) 70.529(5) × 2
109.471(4) × 3180.000
179.972(1)

Initial search-matching procedures for the PXRD powder pattern of 1 revealed a match with that of the corresponding Mg analogue (PDF card No: 01-075-6756) and the pattern could be indexed to a cubic cell with a = 10.442 Å [9]. Although there is no refined crystal structure for Mn(NH3)6Br2, Watt and Manhas reported XRD data (and elemental analysis) for the hexa-ammine formed by the reaction of MnBr2 with liquid ammonia [37]. The PXRD data obtained for 2 matched well with the pattern of Fe(NH3)6Br2 (PDF card No: 01-085-2095), which was generated using the Powdercell software package from single crystal structural data, and could thus be indexed to a cubic unit cell with a = 10.249 Å [25,38]. From the observed reflections, it was thus deduced that Mn(NH3)6Br2 and Mn(NH3)6Cl2 were isostructural. Subsequent Rietveld refinements for 1 and 2 were performed taking the previous single crystal X-ray structure of Mn(NH3)6Cl2 and isostructural Fe(NH3)6Br2 as the respective starting models [25]. The refinements of 1 and 2 were performed following an identical strategy in which the background coefficients (GSAS Function 8, a reciprocal interpolation function), scale factor and the unit cell parameters were varied in the initial cycles. The atomic parameters, peak profile parameters and isotropic displacement parameters (for non-hydrogen atoms) were varied subsequently. Modeling of the peak shapes used function 2, the Thompson-Cox-Hastings pseudo-Voigt function. The final crystallographic results for 1 and 2 are presented in Table 4, atomic parameters in Table 5 and interatomic distances angles in Table 6. Profile plots for the refinements are shown in Figure 3 and Figure 4.

Crystals 02 00193 g003 1024

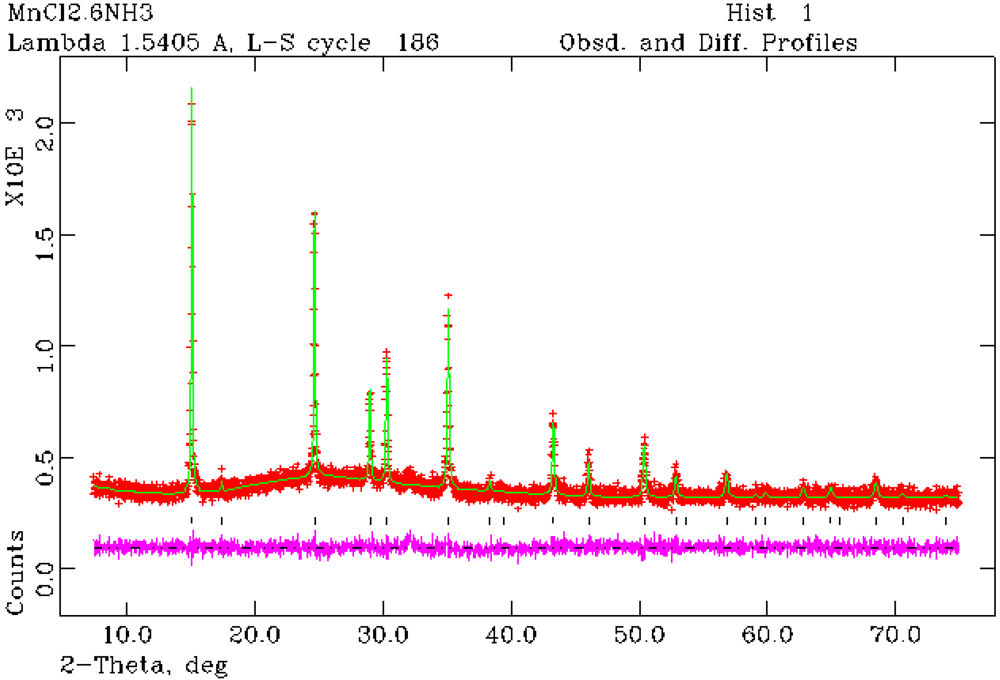

Figure 3. Rietveld refinement profile for 1 from PXRD data. Crosses indicate the observed data, the upper continuous line shows the calculated profile and the lower continuous line the difference profile. Tick marks show reflection positions for cubic Mn(NH3)6Cl2.

Click here to enlarge figure

Figure 3. Rietveld refinement profile for 1 from PXRD data. Crosses indicate the observed data, the upper continuous line shows the calculated profile and the lower continuous line the difference profile. Tick marks show reflection positions for cubic Mn(NH3)6Cl2.
Crystals 02 00193 g003 1024
Crystals 02 00193 g004 1024

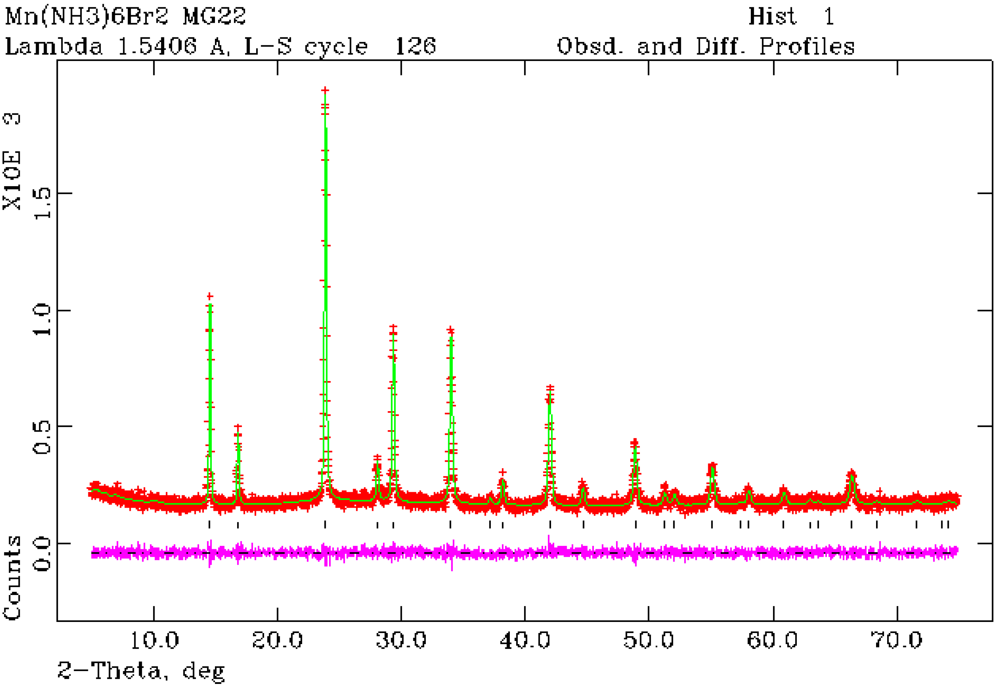

Figure 4. Rietveld refinement profile for 2 from PXRD data. Crosses indicate the observed data, the upper continuous line shows the calculated profile and the lower continuous line the difference profile. Tick marks show reflection positions for cubic Mn(NH3)6Br2.

Click here to enlarge figure

Figure 4. Rietveld refinement profile for 2 from PXRD data. Crosses indicate the observed data, the upper continuous line shows the calculated profile and the lower continuous line the difference profile. Tick marks show reflection positions for cubic Mn(NH3)6Br2.
Crystals 02 00193 g004 1024

Structure refinement against PXRD data confirmed that Mn(NH3)6Cl2 (1) forms with the cubic K2[PtCl6]-type structure as previously reported from single crystal X-ray analysis [24]. Rietveld refinement has also established for the first time that Mn(NH3)6Br2 also crystallizes with the K2[PtCl6]-type structure and is thus isostructural with the chloride and Fe(NH3)6Br2 (Figure 4) [25]. The hexa-ammine structures can be considered to be composed of a FCC lattice of isolated octahedral complex ammoniate cations, i.e., [Mn(NH3)6]2+, with halide anions, X (X = Cl, Br), occupying the tetrahedral interstices of the unit cell in a distorted close-packed cubic configuration (Figure 1) [39]. Although these [Mn(NH3)6]2+ octahedra are effectively isolated, Sørensen et al. haveevoked the concept of weakly bound-[Mn(NH3)6]–X—“chains” in rationalizing the ammonia sorption mechanism [23]. These chains are thus composed of metal octahedra connected along the chain length via the interceding halide anions. Alternatively, the cubic hexa-ammine structure could be viewed as a simple cubic lattice of halide anions with nitrogen occupying the faces of each halide cube and manganese located in the body centers of alternate halide cubes.

We observe that the cubic structure expands as a result of the replacement of Cl by Br as would be anticipated from ionic radii arguments [40,41]. Previously reported structural models of the hexa-ammines have defined partially occupied hydrogen positions (96 k sites that are 75% occupied) reflecting the dynamic disorder of the ammonia ligands in the octahedral cations. Although it would not be expected that powder X-ray diffraction methods could resolve the positions and disorder of the hydrogen with any great accuracy, we were tentatively able to vary the hydrogen coordinates and achieve stable, convergent refinements with reasonable N–H bond distances. The Mn–N distances in the complex cations are similar to those observed for other transition metals in equivalent ammoniates and the bond length increases slightly from chloride to bromide [25].

2.2. Deammoniation of the Hexa-ammines by TPD

The TGA results collected to 773 K for 1 and 2 (Figure 5, Figure 6 and Table 7) show a 3-stage mass loss in each case which, by simultaneous MS analysis of the gases released, is associated solely with the loss of ammonia. The DTA data indicate four distinct endothermic events with minima at 379.3 K, 490.6 K, 556.7 K and 574.5 K respectively for 1, and three distinct endothermic events at 407.5 K, 516.6 K and 565.2 K for 2 that correlate to each mass loss for both complexes. Careful isolation of the di- and mono-ammoniated compounds using TG-DTA has been possible by ceasing the heating process at the appropriate stage of decomposition. For the chloride complex, TGA analysis to 398 K and 498 K allowed isolation of the di- and mono-ammoniated decomposition products respectively. Slightly higher temperatures were used to isolate the di- and mono-ammoniates for the bromide; 423 K and 523 K respectively. The increase in deammoniation temperatures from the 1 to 2 is unsurprising upon consideration of the respective enthalpies for the ammines in Table 2.

Table Table 7. De-ammoniation parameters of Mn(NH3)6Cl2 (Mn(NH3)6Br2).

Click here to display table

Table 7. De-ammoniation parameters of Mn(NH3)6Cl2 (Mn(NH3)6Br2).
StepExpected number of equivalent ammonia molecules lostExpected weight loss/%Observed weight loss/%Onset temperature of deammoniation, Ti/KFinal temperature of deammoniation, Tf/K
1429.8 (21.5)26.9 (19.8)300.8 (298.5)401.1 (428.6)
217.5 (5.4)7.8 (5.5)410.3 (449.6)504.0 (528.4)
317.5 (5.4)7.2 (5.5)504.0 (528.4)590.1 (584.5)
Total644.8 (32.3)41.8 (30.8)--
Crystals 02 00193 g005 1024

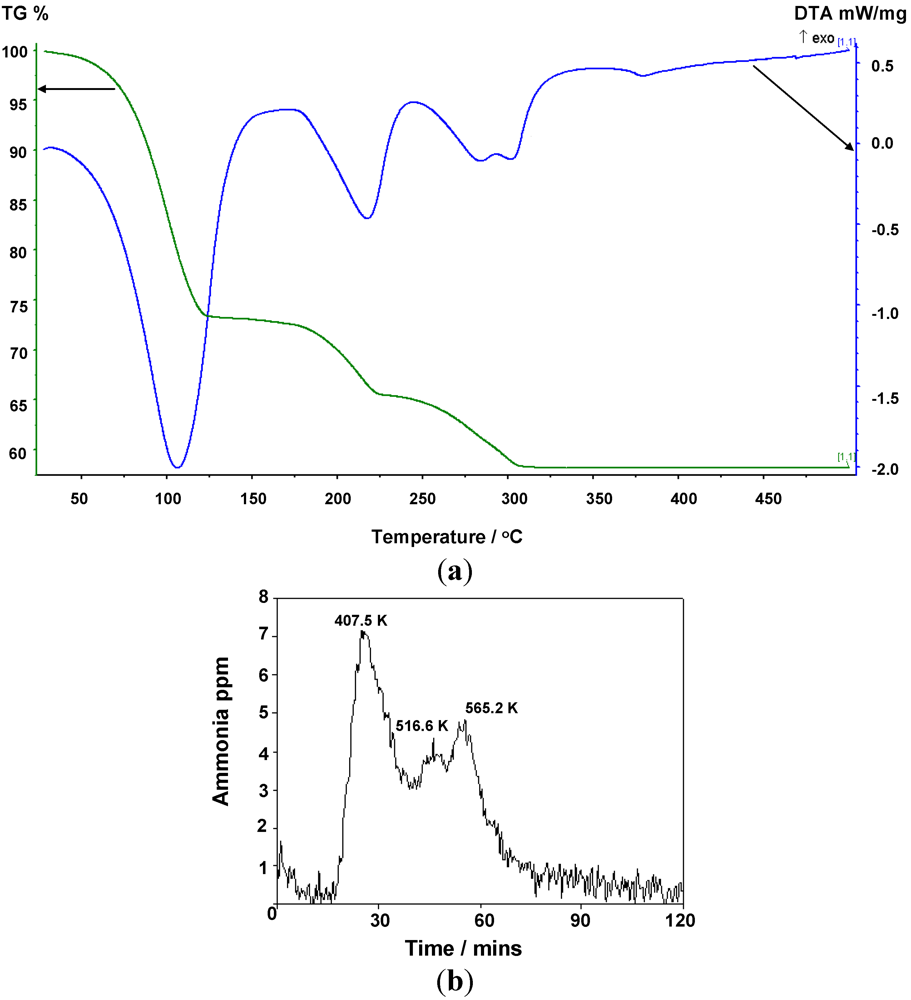

Figure 5. (a) TG-DTA data, and (b) corresponding MS data for the thermal decomposition of Mn(NH3)6Cl2.

Click here to enlarge figure

Figure 5. (a) TG-DTA data, and (b) corresponding MS data for the thermal decomposition of Mn(NH3)6Cl2.
Crystals 02 00193 g005 1024
Crystals 02 00193 g006 1024

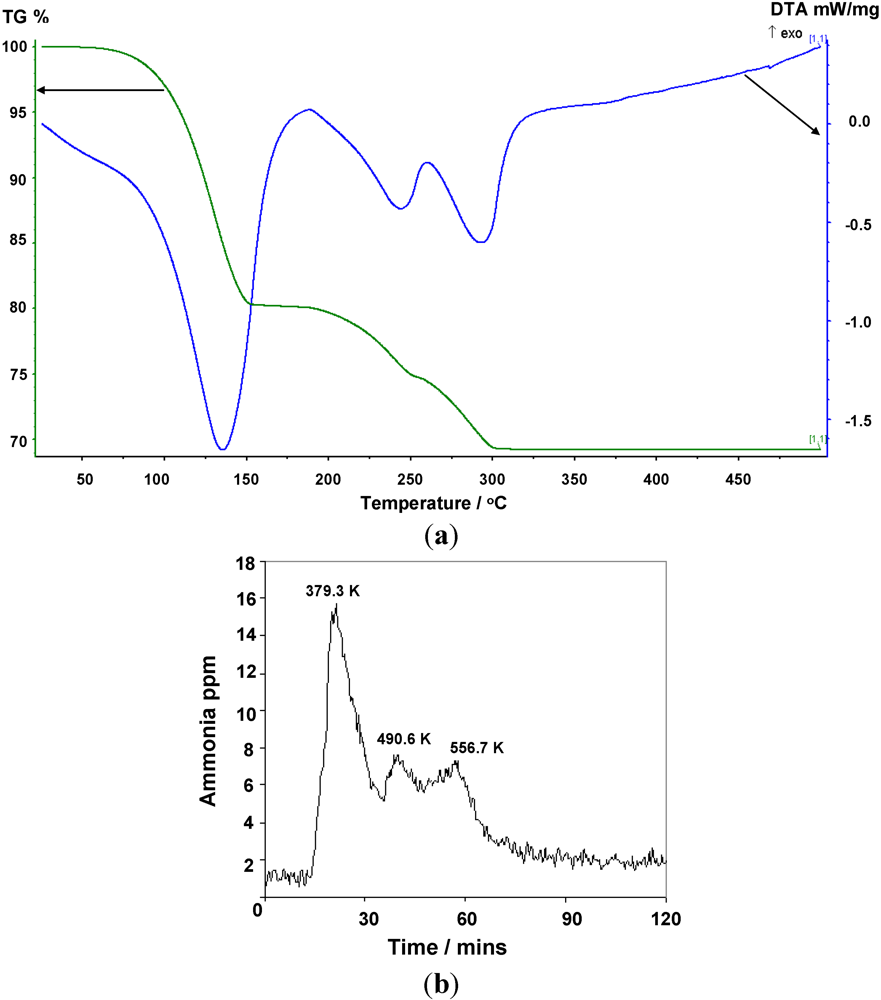

Figure 6. (a) TG-DTA data, and (b) corresponding MS data for the thermal decomposition of Mn(NH3)6Br2.

Click here to enlarge figure

Figure 6. (a) TG-DTA data, and (b) corresponding MS data for the thermal decomposition of Mn(NH3)6Br2.
Crystals 02 00193 g006 1024

Reaction Scheme 1 hence describes the anticipated route by which the chloride and bromide ammoniates release ammonia in accordance with the TPD data observed in this study. These are comparable with data observed in literature for various dichloride ammines [9]. The TGA profile in Figure 6 suggests that weight loss for 1 occurs almost immediately (marginally above room temperature) and in contrast to previous work, ammonia desorption is complete below 600 K. The bromide, 2, begins to desorb ammonia at a higher temperature than the chloride commensurate with its higher desorption enthalpy (Table 2), but this onset still lies below 373 K.

Crystals 02 00193 i001

Although ostensibly both halides exhibit a three-step loss of ammonia with increasing temperature, it is evident from close examination of the chloride DTA profile (Figure 5) that the transformation from the presumed mono-ammine to the deammoniated chloride, MnCl2, appears to progress through two closely spaced (almost overlapping) thermal events. Indeed, a change in the slope of the TGA profile at the same temperature as the double minimum in the DTA trace (556.7 and 574.5 K) would also suggest that the loss of the final ammonia molecule is not a stoichiometric process from mono-ammine to MnCl2. This TG-DTA profile is in agreement with two (or more) gas releases from nominal Mn(NH3)Cl2 measured by Sørensen et al., although the equivalent desorption in their study appeared to occur at a temperature ca. 80 K above that seen herein [9]. By contrast, the temperature range over which the dibromide deammoniates is narrower, which results in the successive deammoniation steps being less widely spaced (in temperature and time) and, for example a stability domain for the nominal mono-ammine of only several K. Although the final desorption step has not yet been resolved into more than one event in either the DTA or TGA traces, the asymmetry of the DTA peak and the fluctuations in slope of the TGA trace would suggest an analogous non-stoichiometric decomposition from mono-ammine to dihalide to that observed for 1. A mechanism for ammonia absorption/desorption for M(NH3)nCl2 (M = Mg, Mn, Ni) ammines was proposed by Sørensen et al. using DFT calculations. This model indicated that ammonia molecules could enter and leave the bulk interface via the zipping/unzipping of the loosely-bound “chains” of octahedral ML6 groups (where L could be either NH3 and/or Cl depending on n) to allow conservation of the metal coordination geometry independent of n. This model necessarily also involves structural rearrangement in the bulk after each successive sorption step. In the later deammoniation steps, for example, it would be necessary not only for Cl to substitute for NH3 in each ML6 octahedron, but also for the resulting octahedra to condense and form edge sharing chains. The structures of the lower Mn ammines are discussed in more detail below, but the non-stoichiometric decomposition from mono-ammine to dihalide observed above could be rationalized in the intermediate loss of one NH3 unit for every two Mn centers in the edge-sharing octahedral clusters in Mn(NH3)X2 and a process as described in Scheme 2:

Crystals 02 00193 i002

2.3. Structural Characterization of the Lower Ammoniates

Decomposition of 1 and 2 to 398 K and 423 K respectively in the TG-DTA experiments led to small samples (ca. 50 mg) of air-sensitive, light pink and light orange/brown powders (3 and 4) respectively. Decomposition of 1 and 2 conducted to higher temperatures, 498 and 523 K respectively, led to air-sensitive, pink and light orange/brown powders to give the nominal mono-ammoniated complexes, 5 and 6 respectively. After weight losses were complete for both systems a blackened solid mass (7) and an orange/brown powder (8) respectively were the result. Raman spectra for 3 and 4 are shown in Figure 7a,b respectively, and assignments are given in Table 8. The bands for 3 and 4 have been assigned to N–H and Mn–N vibrations based on the premise that similar bonding modes exist in both the hexa- and di-ammines. The presence of the weak degenerate δd band at 1599 cm−1 in 4 would suggest that there is similar dynamic disorder (rotation) of NH3 groups in the diammines to that observed in the hexammines (and again this band is observable in the bromide but not the chloride).

Crystals 02 00193 g007 1024

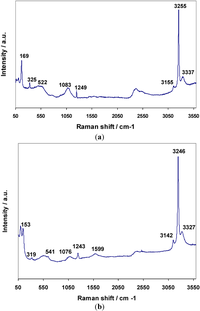

Figure 7. Raman data for (a) Mn(NH3)2Cl2 and (b) Mn(NH3)2Br2.

Click here to enlarge figure

Figure 7. Raman data for (a) Mn(NH3)2Cl2 and (b) Mn(NH3)2Br2.
Crystals 02 00193 g007 1024
Table Table 8. Raman data for Mn(NH3)2X2 (X = Cl, Br).

Click here to display table

Table 8. Raman data for Mn(NH3)2X2 (X = Cl, Br).
CompoundRaman Shift/cm−1
νasνsνsδdδsδasρrνδ
(NH3)(NH3)(NH3)(HNH)(HNH)(HNH)(NH3)(MN)(MNM)
3333732553155-12491083522325169
4332732463142159912431076541319153

Initial search-matching procedures for the PXRD powder pattern of 3 revealed a match with the Mg analogue (PDF card No: 01-073-4070) and the pattern could be indexed to an orthorhombic unit cell with a = 8.180 Å, b = 8.200 Å, c = 3.750 Å [41]. From the observed reflections, it was deduced that 3 was isostructural with Fe(NH3)2Cl2 and Mg(NH3)2Cl2 and matched well to a powder pattern generated using Powdercell in which Mn was placed on the Fe positions of the orthorhombic Cmmm Fe(NH3)2Cl2 structure [15]. Inspection of patterns for 4 revealed a match with that of the corresponding Mg analogue (PDF card No: 01-089-6789) [38,41]. The pattern for 4 could be indexed to an orthorhombic unit cell with a = 5.944 Å, b = 11.876 Å, c = 3.983 Å and it was apparent that 4 was isostructural with Fe(NH3)2Br2 and Mg(NH3)2Br2 (orthorhombic Pbam) [16,38,41].

Subsequent Rietveld refinements for 3 and 4 were performed taking the previous single crystal X-ray structures of the relevant isostructural iron ammines as the respective starting models [16]. The refinements were conducted using PXRD data collected from the di-ammine products from the TG-DTA experiments,i.e., 3 and 4, which were isolated by heating 1 and 2 to 398 K and 423 K respectively. The refinements of 3 and 4 were performed following a similar sequence in which the background coefficients (GSAS Function 8, a reciprocal interpolation function), scale factor and the unit cell parameters were varied in the initial cycles. The peak profile parameters, atomic parameters including isotropic displacement parameters (for non-hydrogen atoms) were varied subsequently. Modeling of the peak shapes was performed using the Thompson-Cox-Hastings pseudo-Voigt function (function 2 in GSAS). It was not possible in the refinements of either 3 or 4 to refine the positions or displacement parameters of the hydrogen atoms, so these were fixed at values from the literature models of the equivalent iron compounds [16]. The final crystallographic results for 3 and 4 are presented in Table 9, atomic parameters in Table 10 and interatomic distances and angles in Table 11. (STA data for the isolation of the di-ammines and profile plots for the refinements can be found in the supplementary material).

Table Table 9. Crystallographic data from Rietveld refinement of PXRD data for di-ammines, 3 and 4.

Click here to display table

Table 9. Crystallographic data from Rietveld refinement of PXRD data for di-ammines, 3 and 4.
Compound34
FormulaMn(NH3)2Cl2Mn(NH3)2Br2
Crystal SystemOrthorhombicOrthorhombic
Space GroupCmmmPbam
a8.1991(9)6.0109(5)
b8.2498(7)12.022(1)
c3.8212(4)4.0230(2)
Volume/Å3258.47(7)290.72(4)
Z22
Formula Weight/g319.812497.616
Calculated density, ρX/g cm−32.0552.842
No of data32903410
No of parameters3436
Rwp0.0340.065
Rp0.0250.048
χ22.1828.303
Table Table 10. Atomic parameters for 3 and 4 from Rietveld refinement against PXRD data.

Click here to display table

Table 10. Atomic parameters for 3 and 4 from Rietveld refinement against PXRD data.
CompoundMn(NH3)2Cl2 (3)Mn(NH3)2Br2 (4)
Mn2a (0,0,0)2a (0,0,0)
Uiso1.0(2)2.0(2)
X4h (x, 0, ½)4 h (x, y, ½)
X0.2244(6)0.2439(9)
Y00.3904(2)
Uiso0.4(3)1.65(9)
N4i (0, y, 0)4g (x, y, 0)
X00.193(3)
Y0.270(2)0.140(2)
Uiso2.502.50
H(1)16 r (x, y, z)8 i (x, y, z)
X0.0450.355
Y0.3120.109
Z0.1580.143
Uiso2.502.50
Occupancy0.750.75
H(2) 8 i (x, y, z)
X 0.220
Y 0.177
Z 0.143
Uiso 2.50
Occupancy 0.75
Table Table 11. Interatomic distances and angles for 3 and 4.

Click here to display table

Table 11. Interatomic distances and angles for 3 and 4.
Distance or angle/Å or°Mn(NH3)2Cl2 (3)Mn(NH3)2Br2 (4)
Mn–N/Å2.231(16) ×22.046(30) ×2
Mn–X/Å2.653(4) ×42.855(3) ×4
N–H(1)/Å0.786(7) ×41.190(13) ×2
N–H(2)/Å 0.743(19) ×2
X–H/Å2.57(5) ×42.743(5) ×2
H(1)–H(1)/Å0.72(9)1.151(1)
0.93(6)
0.58(9)
H(1)–H(2)/Å 1.152(1)
1.628(1)
H(2)–H(2)/Å 1.151(1)
X–Mn–X/°87.85(16)89.57(13)
92.15(16)90.43(13)
179.966(1)179.980(1)

The unit cell parameters of 3 are slightly larger than those in both the isostructural magnesium and iron chloride ammines as would be expected by comparison of the respective ionic radii of high spin Mn2+vs. Mg2+ and high spin Fe2+ (and as is also the case for the respective hexa-ammines) [37,38,40,41]. A representation of the structure of 3 is given in Figure 8. The structure is composed of edge sharing Mn(NH3)2Cl4 octahedra (which can be termed as Crystals 02 00193 i003 chains in which the trans-NH3 groups are thus terminal and the halide groups are bridging) which propagate parallel to the [001] direction. The chains are effectively aligned parallel in the (110) plane throughout the structure with each chain translated by half the [001] face diagonal with respect to its nearest neighbour. Leineweber et al have also rationalised the orthorhombic structure in terms of CsCl-type motifs and described isostructural Mg(NH3)2Cl2 as a brick-like arrangement of double CsCl units in the ab plane [38,41]. The Mn–N bond length in 3 is broadly similar to those in the hexa-ammmines, 1 and 2, and close to those observed in the equivalent magnesium and iron compounds [16,38,41].

Crystals 02 00193 g008 1024

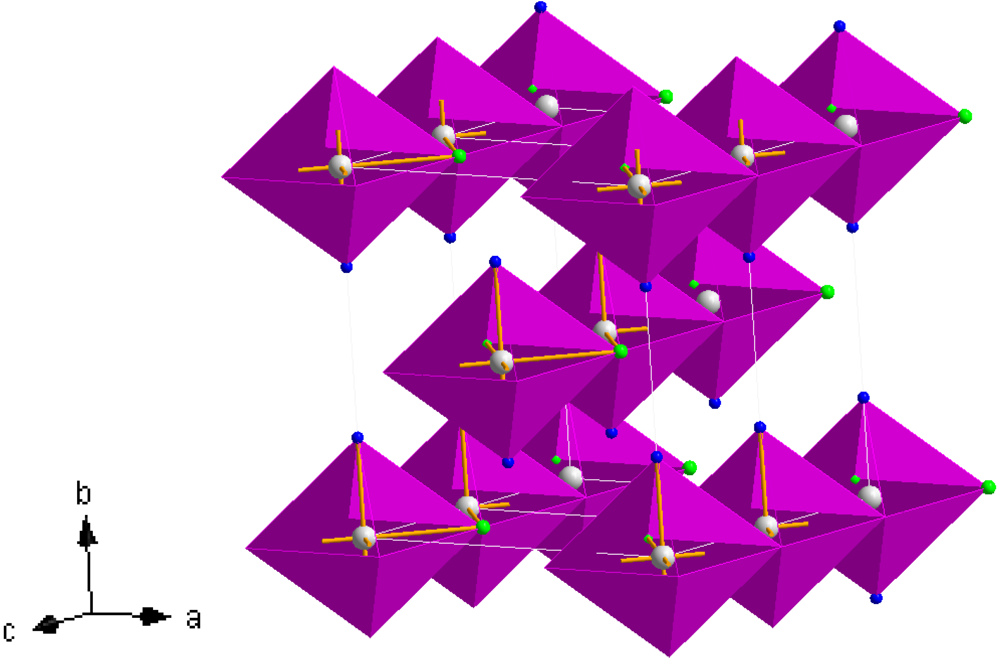

Figure 8. Crystal structure of 3, Mn(NH3)2Cl2; Mn (white sphere), Cl (green spheres), N (blue spheres) [38,41].

Click here to enlarge figure

Figure 8. Crystal structure of 3, Mn(NH3)2Cl2; Mn (white sphere), Cl (green spheres), N (blue spheres) [38,41].
Crystals 02 00193 g008 1024

4 is isostructural with Fe(NH3)2Br2 and Mg(NH3)2Br2 (Figure 9) [16,38,41]. As with 3, the unit cell of 4 is larger than the Fe and Mg analogues. Similar to 3, 4 is composed of Crystals 02 00193 i004 chains (where Br replaces Cl as X). The key difference in the structures of 3 and 4 lies in the relative arrangement of these edge sharing octahedral chains. As Bremm and Meyer point out, the packing of the chains in the Pbam structures is hexagonal as opposed to the tetragonal sequence in the Cmmm compounds [16]. Hence, successive rows of edge-sharing octahedra running parallel to the [110] direction are rotated by 90°. Following the double CsCl unit notation used by Leineweber et al, the units are arranged in a herringbone pattern in the ab plane in the bromide (as opposed to the brick-like arrangement in the chloride). Mn–X distances are longer in 4 than 3 as would be expected on coordination of the metal to the larger halides [37,40]. The Mn–N distance in 4 is shorter however and comparable to that observed in Fe(NH3)2Cl2. Inevitably from the mismatch in Mn–N and Mn–X bond lengths in both 3 and 4 the MnX4(NH3)2 octahedra are axially compressed in both compounds. We are unable to draw any firm conclusions regarding the positions or dynamics of the hydrogens from our relatively limited models from PXRD. The Mg(ND3)2X2 compoundshave been studied by neutron diffraction to resolve such issues and a similar approach would be required in the Mn–NH3X systems to understand the relationships of NH3 rotational disorder with halide and temperature [42].

Crystals 02 00193 g009 1024

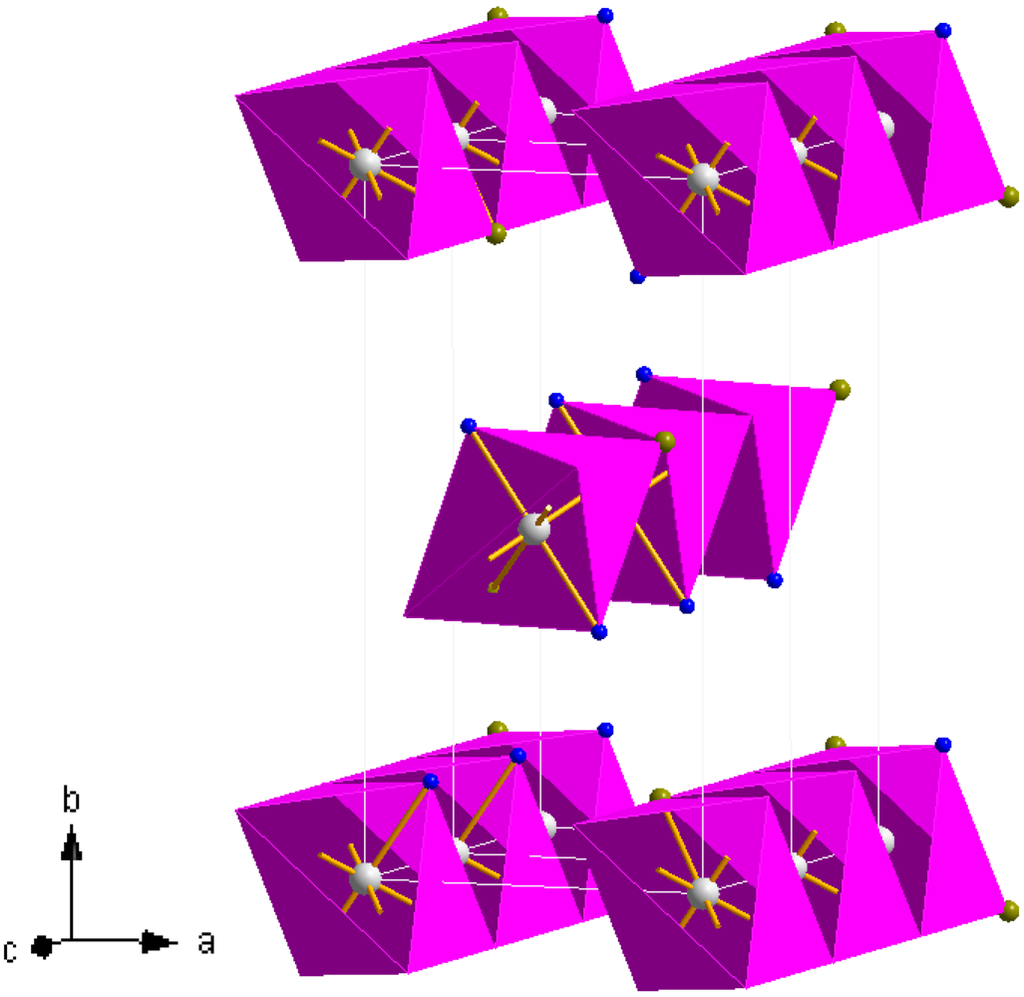

Figure 9. Crystal structure of 4, Mn(NH3)2Br2; Mn (white sphere), Br (yellow spheres), N (blue spheres) [38,41].

Click here to enlarge figure

Figure 9. Crystal structure of 4, Mn(NH3)2Br2; Mn (white sphere), Br (yellow spheres), N (blue spheres) [38,41].
Crystals 02 00193 g009 1024

Further de-ammoniation of 1 and 2 to yield the anticipated mono-ammoniated complexes 5 and 6 was performed although isolation of these phases is yet to be achieved owing to the apparent narrow stability range (prior to further desorption). In the available literature, among the transition metal ammines only the Fe(NH3)Cl2 and Ni(NH3)X2 (X = Cl, Br) have been crystallographically characterized giving hexagonal P63/mmc and monoclinic I2/m structures for the Fe and Ni compounds respectively [16,43]. Further heating of 1 and 2 gave rise to 7 and 8 which were amorphous by PXRD. Raman spectra for 7 and 8 showed no notable features over the measurement range and none of the bands that were present in 14 from which one could infer that deammoniation was complete as suggested by the thermogravimetric data.

3. Experimental Section

MnCl2 (Alfa Aesar, anhydrous, 97%) and MgBr2 (Sigma Aldrich, anhydrous, 98%) powders were prepared for ammoniation in an N2-filled recirculating glovebox (Saffron Scientific; 1 ppm H2O, 1 ppm O2). Each halide was weighed and contained in a silica reaction tube fitted with a septum cap and parafilm prior to removal from the glovebox. In a fume hood, ammonia (BOC, anhydrous ammonia gas, 99.98%) was flowed over the transition metal halides at room temperature for 16 h, utilizing a water trap on the exhaust flow. The resultant products (1 and 2) were collected in the glovebox and prepared for the appropriate characterization methods below.

Room temperature powder X-ray diffraction (PXRD) experiments were conducted with a PANalytical XPERT Pro MPD diffractometer in Bragg-Brentano reflection geometry (Cu Kα1 radiation) using a bespoke air sensitive sample holder [44]. Diffraction data for phase identification were typically collected for 5° ≤ 2θ ≤ 85° with a 0.017° step size with scan times of from 1–12 h. Diffraction data were compared to patterns in the ICDD (JCPDS) powder diffraction file (PDF) using the PANalytical High Score Plus software package. Additional data for the structure refinement of selected samples were collected over longer scan times (12 h; 5° ≤ 2θ ≤ 85° with a step size of 0.017°). All data were indexed where possible using the CELREF software package and refined by least squares fitting [45]. Structure refinements were performed using the Rietveld method via GSAS and EXPGUI software [46,47].

Temperature programmed desorption, via thermogravimetric-differential thermal analysis-mass spectrometry (TG-DTA-MS; Netzsch STA 409 and Hiden Analytical HPR20 using Ar carrier gas) was conducted in an Ar-filled recirculating glovebox (MBraun UniLab; <0.1 ppm H2O, 0.1 ppm O2). Using alumina sample pans, the hexa-ammine samples were initially heated to 773 K under a flow of Ar gas at a rate of 5 K min−1 to fully de-ammoniate the sample. In initial experiments, MS data were collected up to 200 amu but in later runs only data at values for argon, ammonia, water, nitrogen and hydrogen were collected, given the absence of any other detectable species. Finally, the hexa-ammines were heated again to lower temperatures as appropriate to partially de-ammoniate them and to allow isolation of the decomposition products. Evolved gas analysis by simultaneous mass spectrometry using a Faraday cup detector was employed to provide definitive evidence of ammonia loss during TGA analysis.

Room temperature Raman spectroscopy (Horiba LabRam HR confocal microscope, 532.17 nm green laser, 100 μm aperture, 600 groves/mm grating, Synapse CCD) was used to identify the Raman active bands in the ammines, and hence confirm the vibrational bonding modes occurring in the fully and partially ammoniated complexes. The samples were held in sealed glass capillaries to prevent exposure to air/moisture.

4. Conclusions

MnCl2 and MnBr2 uptake ammonia readily at room temperature to form the respective hexa-ammoniate adducts. Mn(NH3)6Cl2 and Mn(NH3)6Br2 release near-theoretical equivalents of ammonia in a three stage release process as evidenced by TG-DTA-MS. 4, 1 and 1 equivalents respectively of ammonia are lost by both the chloride and bromide. Generally each respective release occurs at a higher temperature in the bromide system although both hexa-ammines appear to begin losing ammonia under ambient conditions. The hexa-ammine complexes, Mn(NH3)6Cl2 and Mn(NH3)6Br2, form with the K2[PtCl6]-type structure, with Raman data consistent with compounds containing NH3 and are comparable to those in related magnesium and iron ammoniates.The product of the first de-ammoniation steps in each system is confirmed as the diammines Mn(NH3)2Cl2 and Mn(NH3)2Br2 respectively, which are isostructural with the corresponding Mg and Fe chloride and bromide compounds. Further ammonia loss events would suggest decomposition first to the respective monoamines and finally to the deammoniated dihalides.

Acknowledgments

DHG thanks the EPSRC for funding under grants EP/E040071/1 and EP/I022570/1 and the EPSRC, the Materials KTN and EADS Innovation Works for a CASE studentship for HR.

References

  1. DOE Technical Plan—Storage (2011 Interim Update). Available online: http://www1.eere.energy.gov/hydrogenandfuelcells/mypp/pdfs/storage.pdf (accessed on 20 February 2012).
  2. Sørensen, B. Hydrogen and Fuel Cells: Emerging Technologies and Applications, 2nd ed.; Academic Press: New York, NY, USA, 2005. [Google Scholar]
  3. Mandal, T.K.; Gregory, D.H. Hydrogen Storage Materials: present scenarios and future directions. Ann. Rep. Prog. Chem. Sect. A 2009, 105, 21–54. [Google Scholar]
  4. Mandal, T.K.; Gregory, D.H. Hydrogen: a future energy vector for sustainable development. J. Mech. Eng. Sci. 2010, 224, 539–558. [Google Scholar]
  5. Orimo, S.; Nakamori, Y.; Eliseo, J.R.; Züttel, A.; Jensen, C.M. Complex Hydrides for Hydrogen Storage. Chem. Rev. 2007, 107, 4111–4132. [Google Scholar]
  6. Grochala, W.; Edwards, P.P. Thermal Decomposition of the Non-Interstitial Hydrides for the Storage and Production of Hydrogen. Chem. Rev. 2004, 104, 1238–1315. [Google Scholar]
  7. Schlapbach, L.; Züttel, A. Hydrogen-storage materials for mobile applications. Nature 2001, 414, 353–358. [Google Scholar]
  8. Christensen, C.H.; Sørensen, R.Z.; Johannessen, T.; Quaade, U.J.; Honkala, K.; Elmøe, T.D.; Køhler, R.; Nørskov, J.K. Metal ammine complexes for hydrogen storage. J. Mater. Chem. 2005, 15, 4106–4108. [Google Scholar]
  9. Sørensen, R.Z.; Hummelshøj, J.S.; Klerke, A.; Reves, J.B.; Vegge, T.; Nørskov, J.K.; Christensen, C.H. Indirect, Reversible High-Density Hydrogen Storage in Compact Metal Ammine Salts. J. Am. Chem. Soc. 2008, 130, 8660–8668. [Google Scholar]
  10. Hwang, I.-C.; Drews, T.; Seppelt, K. Mg(NH3)6Hg22, a Mercury Intercalation Compound. J. Am. Chem. Soc. 2000, 122, 8486–8489. [Google Scholar]
  11. Jacobsen, H.S.; Hansen, H.A.; Andreasen, J.W.; Shi, Q.; Andreasen, A.; Feidenhans’l, R.; Nielsen, M.M.; Ståhl, K.; Vegge, T. Nanoscale structural characteriszation of Mg(NH3)6Cl2 during NH3 desorption: An in situ small angle X-ray scattering study. Chem. Phys. Lett. 2007, 441, 255–260. [Google Scholar]
  12. Tsubota, M.; Hino, S.; Fujii, H.; Oomatsu, C.; Yamana, M.; Ichikawa, T.; Kojima, Y. Reaction between magnesium ammine complex compound and lithium hydride. Int. J. Hydrogen Energy 2010, 35, 2058–2062. [Google Scholar]
  13. Tekin, A.; Hummelshøj, J.S.; Jacobsen, H.S.; Sveinbjørnsson, D.; Blanchard, D.; Nørskova, J.K.; Vegge, T. Ammonia dynamics in magnesium ammine from DFT and neutron scattering. Energy Environ. Sci. 2010, 3, 448–456. [Google Scholar]
  14. Klerke, A.; Christensen, C.H.; Nørskov, J.K.; Vegge, T. Ammonia for hydrogen storage: challenges and opportunities. J. Mater. Chem. 2008, 18, 2304–2310. [Google Scholar]
  15. Leineweber, A.; Jacobs, H. Preparation and Crystal Structures of Ni(NH3)2Cl2, and of Two Modifications of Ni(NH3)2Br2 and Ni(NH3)2I2. J. Solid State Chem. 2000, 152, 381–387. [Google Scholar] [CrossRef]
  16. Bremm, S.; Meyer, G. Reactivity of Ammonium Halides: Action of Ammonium Chloride and Bromide on Iron and Iron(III) Chloride and Bromide. Z. Anorg. Allg. Chem. 2003, 629, 1875–1880. [Google Scholar]
  17. Lan, R.; Irvine, J.T.S.; Tao, S. Ammonia and related chemical as potential indirect hydrogen storage materials. Int. J. Hydrogen Energy 2012, 37, 1482–1494. [Google Scholar]
  18. Fuerte, A.; Valenzuela, R.X.; Escudero, M.J.; Daza, L. Ammonia as efficient fuel for SOFC. J. Power Sources 2009, 192, 170–174. [Google Scholar]
  19. Farhad, S.; Hamdullahpur, F. Conceptual design of a novel ammonia-fuelled portable solid oxide fuel cell system. J. Power Sources 2010, 195, 3084–3090. [Google Scholar]
  20. Ishak, F.; Dincer, I.; Zamfirescu, C. Thermodynamic analysis of ammonia-fed solid oxide fuel cells. J. Power Sources 2012, 202, 157–165. [Google Scholar]
  21. Ma, S.; Wang, J.; Yan, Z.; Dai, W.; Lu, B. Thermodynamic analysis of a new combined cooling, heat and power system driven by solid oxide fuel cell based on ammonia-water mixture. J. Power Sources 2011, 196, 8463–8471. [Google Scholar]
  22. Baniasadi, E.; Dincer, I. Energy and exergy analyses of a combined ammonia-fed solid oxide fuel cell system for vehicular applications. Int. J. Hydrogen Energy 2011, 36, 11128–11136. [Google Scholar]
  23. Sørensen, R.Z.; Hummerlshøj, J.S.; Klerke, A.; Reves, J.B.; Vegge, T.; Nørskov, J.K.; Christensen, C.H. In direct, reversible high-density hydrogen storage in compact metal ammine salts. J. Am. Chem. Soc. 2008, 130, 8660–8668. [Google Scholar]
  24. Olovosson, I. Packing Principles in the Structures of Metal Ammine Salts. Acta. Crystallogr. 1965, 18, 889–893. [Google Scholar]
  25. Eβmann, R.; Kreiner, G.; Niemann, A.; Rechenbach, D.; Schmieding, A.; Sichla, T.; Zachwieja, U.; Jacobs, H. The Structures of some Hexaammine Metal(II) Halides of 3d Metals: [V(NH3)6]I2, [Cr(NH3)6]I2, [Mn(NH3)6]Cl2, [Fe(NH3)6]Cl2, [Fe(NH3)6]Br2, [Co(NH3)6]Br2, [Ni(NH3)6]Cl2. Z. Anorg. Allg. Chem. 1996, 622, 1161–1166. [Google Scholar]
  26. Wentworth, W.E.; Raldrow, W.M.; Corbett, G.E. Correlation of Thermodynamic Properties for Dissociation of Ammines of Divalent Metal Halides. Inorg. Chem. Acta 1978, 30, L299–L301. [Google Scholar]
  27. Lepinasse, E.; Spinner, B. Cold production through coupling of solid-gas reactors I: Performance analysis. Rev. Int. Froid 1994, 17, 309–322. [Google Scholar]
  28. Biltz, W.; Hüttig, G.F. Über die Ammoniakate der Magnesiumhalogenide. Z. Anorg. Allg. Chem. 1921, 119, 115–131. [Google Scholar] [CrossRef]
  29. Schmidt, H.; Müller, A. Skeletal Vibrational Spectra, Force Constants, and Bond Properties of Transition Metal Ammine Complexes. Inorg. Chem. 1975, 14, 2183–2187. [Google Scholar] [CrossRef]
  30. Schmidt, H.; Müller, A. Vibrational Spectra and Force Constants of Pure Ammine Complexes. Coord. Chem. Rev. 1976, 19, 41–97. [Google Scholar]
  31. Sacconi, L.; Sabatini, A.; Gans, P. Infrared Spectra from 80 to 2000 Cm−1 of Some Metal-Ammine Complexes. Inorg. Chem. 1964, 3, 1772–1774. [Google Scholar]
  32. Larkin, P. IR and Raman spectra—Structure Correlations: Characteristic Group Frequencies. In Infrared and Raman Spectroscopy, 1st ed.; Elsevier: Amsterdam, The Netherlands, 2011. [Google Scholar]
  33. Plus, R. Spectroscopie Raman de Mg(NH3)6Cl2 et Mg(ND3)6Cl2. J. Raman Spectrosc. 1973, 1, 551–563. [Google Scholar]
  34. Jacobs, H.; Brock, J.; Stüve, C. Rontgenographische Strukturbestimmung und IR-Spektroskopische Untersuchungen an Hexaammindiiodiden, [M(NH3)6I2], von Eisen und Mangan. J. Less-Common. Met. 1987, 134, 207–214. [Google Scholar] [CrossRef]
  35. Schiebel, P.; Hoser, A.; Prandl, W.; Heger, G.; Schweiss, P. Orientational disorder in Ni(NH3)2I2. Evidence for rotation-translation coupling. J. Phys. I. France 1993, 3, 987–1006. [Google Scholar] [CrossRef]
  36. Schiebel, P.; Hoser, A.; Prandl, W.; Heger, G.; Paulus, W.; Schweiss, P. Proton density and orientational potential in nickelhexammine salts: a thermodynamic analysis of rotation-translation coupling. J. Phys. Condens. Matter 1994, 6, 10989–11005. [Google Scholar]
  37. Watt, M.; Manhas, B.S. Replacement of polydentate ligands in Mn(II) complexes by ammonia. J. Inorg. Nucl. Chem. 1966, 28, 1945–1947. [Google Scholar]
  38. Kraus, W.; Nolze, G. POWDER CELL—a program for the representation and manipulation of crystal structures and calculation of the resulting X-ray powder patterns. J. Appl. Cryst. 1996, 29, 301–303. [Google Scholar]
  39. Schefer, J.; Schwarzenbach, D.; Fischer, P.; Koetzle, T.; Larsen, F.K.; Haussühl, S.; Rüdlinger, M.; McIntyre, G.G.; Birkedal, H.; Bürgi, H.-B. Neutron and X-ray Diffraction Study of the Thermal Motion in K2PtCl6 as a function of Temperature. Acta Crystallogr. 1998, B54, 121–128. [Google Scholar]
  40. Shannon, R.D. Revised Effective Ionic Radii and Systematic Studies of Interatomic Distances in Halides and Chalcogenides. Acta Crystallogr. 1976, A32, 751–767. [Google Scholar]
  41. Leineweber, A.; Friedriszik, M.W.; Jacobs, H. Preparation and Crystal Structures of Mg(NH3)2Cl2, Mg(NH3)2Br2, Mg(NH3)2I2. J. Solid State Chem. 1999, 147, 229–234. [Google Scholar]
  42. Leineweber, A.; Jacobs, H.; Fischer, P.; Böttger, G. Uniaxial Orientational Order-Disorder Transitions in Diammine Magnesium Halides, Mg(ND3)2Cl2 and Mg(NH3)2Br2, Investigated by Neutron Diffraction. J. Solid State Chem. 2001, 156, 487–499. [Google Scholar]
  43. Leineweber, A.; Jacobs, H.; Ehrenberg, H. Crystal Structure of Ni(NH3)Cl2 and Mg(NH3)Br2. Z. Anorg. Allg. Chem. 2000, 626, 2146–2152. [Google Scholar]
  44. Barker, M.G.; Begley, M.J.; Edwards, P.P.; Gregory, D.H.; Smith, S.E. Synthesis and crystal structures of the new ternary nitrides Sr3CrN3 and Ba3CrN3. J. Chem. Soc., Dalton Trans. 1996, 11, 1–5. [Google Scholar]
  45. Laugier, J.; Bochu, B. ENSP/Laboratoire des Matériaux et du Génie Physique, LMGP-Suite Suite of Programs for the Interpretation of X-ray Experiments. Available online: http://www.inpg.fr/ LMGP and http://www.ccp14.ac.uk/tutorial/lmgp/ (accessed on 20 February 2012).
  46. Larson, A.C.; von Dreele, R.B. General Structure Analysis System (GSAS); Los Alamos National Laboratory Report LAUR: 86-748, Los Alamos, NM, USA, 1995. [Google Scholar]
  47. Toby, B.H. EXPGUI, a graphical user interface for GSAS. J. Appl. Cryst. 2001, 34, 210–213. [Google Scholar]
Crystals EISSN 2073-4352 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
