Catalytic Studies of Sodium Hydroxide and Carbon Monoxide Reaction
Sushant Kumar *, Vadym Drozd and Surendra K. Saxena
Center for the Study of Matter at Extreme Conditions, College of Engineering and Computing, Florida International University, Miami, FL 33199, USA; Email:
Author to whom correspondence should be addressed; Email: Tel.: +1-305-496-6655; Fax: +1-305-348-3070.
Received: 25 September 2012; in revised form: 5 November 2012 / Accepted: 20 November 2012 / Published: 27 November 2012


: We have studied the effect of ball milling on alumina mixed nickel, magnetite and Raney nickel on the reaction: 2NaOH(s) + CO (g) = Na2CO3 (s) + H2 (g) and determined the optimum particle size for the catalysts. The best performance was shown by a 2 h ball milled Raney nickel with average crystallite size of 209 Å. This reaction serves the dual purpose of carbon sequestration and yielding hydrogen gas.
catalyst; ball milling; crystallite size; carbon sequestration

1. Introduction

Sodium hydroxide (NaOH) has been used as a reactant to facilitate various reactions yielding hydrogen (H2). Its inclusion in the reaction brings many advantages such as lowered operating temperature and reduced consumption of heat. We have earlier studied the interaction of NaOH with methane (CH4), carbon monoxide (CO) and carbon(C) [1,2]. Recently, Reichman et al. [3] have also suggested a similar approach named ovonic renewable hydrogen (ORH). This method uses NaOH for the reformation of organic matter to produce H2. Kamo et al. [4] pyrolyzed dehydrochlorinated polyvinyl chloride (PVC) and activated carbon with NaOH and steam to generate H2 and sodium carbonate (Na2CO3). This process has CH4, ethane (C2H6) and carbon dioxide (CO2) as byproducts in minor percent. Onwudili and William [5] performed the hydrothermal gasification of glucose and other biomass to produce H2. NaOH was used as a promoter in this case.

The necessity to sequester carbon emission during the production of H2 is the main goal of this work. Once this problem is solved, various technologies are already in existence which can use H2 as a fuel-carrier in many applications. Other than using alternate energies for electrolysis of water or the biological methods, no techniques are available to produce carbon emission free H2 from fossil fuels. Many researchers worldwide have realized the need to produce H2 without any CO2 emission [1,6,7,8,9,10,11,12,13,14]. Carbon monoxide (CO) is a toxic gas emitted by power plants and blast furnaces with a severe impact on global warming. Generally, water-gas shift reaction uses steam to lock CO and produces CO2 and H2. A vast emission of anthropogenic gas (CO2) is a major drawback of the water-gas shift reaction. We propose to solve this problem of carbon emission using a hydroxide as a reactant with CO gas [2]. One should note that the present scheme serves the dual purpose of CO capture and H2 production.

2NaOH (s) + CO (g) → Na2CO3(s) +H2 (g) ΔH = −119 kJ (600 °C)

However, if NaOH is to be produced for carbonation, the method proposed here cannot be regarded as carbon-emission free because NaOH itself is produced from electrolysis of brine, which is very energy intensive process. Instead, if we use NaOH that is a byproduct from existing chlor-alkali plants, we can produce Na2CO3 and H2 gas using reaction (1). Na2CO3 is a valuable byproduct and has many applications in chemical industries. Apart from the fact that the production of NaOH is an energy intensive process, there is also an imbalance between the global H2 demand and NaOH production; hence reaction (1) cannot be seen as a global solution for H2 gas. However, reaction (1) will be certainly helpful in mitigating the vast emission of greenhouse gases during production of H2.The purpose of present work is to study the effect of catalysis on the carbonation of the hydroxide. It is highly desirable to lower the reaction time or even the operating temperature of exothermic reaction (1). Thus, we have examined several catalysts to accelerate reaction (1).

Nickel is a low cost, highly active and widely employed catalyst for industrial application [15,16,17,18,19]. Raney nickel catalysts possess high catalytic activity due to its highly porous microstructure and high surface area. It is extensively used in various industrial processes and also in organic synthesis process [20,21].Fe3O4 (magnetite) acts as a catalyst for water gas shift reaction (CO (g) + H2O (g) ↔ CO2 (g) +H2 (g), ΔH = −41.1kJ/mol) [22,23].

Previous results [24,25,26] show strong effect of the catalyst’s geometric factor, electronic factor and surface imperfections. Beeck [27] correlated the catalytic activity to the lattice parameter of the contact surface. The electronic factors are dependent on the extent to which d-band of the crystal filled up by the electrons [28,29]. The effect of the imperfections is due to the surface imperfections (e.g., kinks, screw dislocations) which can also behave as catalytically active sites [30]. Therefore, it is important to investigate the possible relation between the catalyst grain size and the reaction rate.

In this work, different sized catalysts were prepared by mechanical milling. Mechanical milling is one of the common methods for milling powder materials to obtain uniform distribution of composition [31]. It is quite often employed due to its simplicity, low cost, and ability to form a large number of different materials [32]. During milling, powder particles experience intensive deformation which leads to various crystal defects such as lattice strains, dislocations, vacancies and morphological changes [31,33]. Here, we have studied the changes in catalysts powder morphology, average particle size and crystallite size with milling time. We also examined the relation between kinetics of reaction (1) and morphological and structural changes in the catalysts.

2. Experimental Study

2.1. Catalyst Preparation

The catalysts used in this work are alumina (Al2O3) mixed nickel, magnetite and Raney nickel. Nickel Powder (-100 mesh), Raney nickel (-325 mesh) and alumina were delivered by Sigma Aldrich, Acros Organics and Good Fellow respectively. The various sizes of these catalysts were obtained using planetary Retsch PM100 ball mill. The cylindrical ball milling container has internal diameter of 1.6" and internal length of 1.6". The powder to ball weight ratio was 1/54. Magnetite was ball milled for 1 and 2 h. Al2O3 mixed nickel was prepared in 2:1 ratio by weight. Then, this mixture was ground for 1 or 2 or 4 h. For Raney nickel, milling time was 2 and 4 h. The same revolution speed (250 rpm) was maintained for grinding all the catalyst particles.

2.2. Catalyst Characterization

X-ray diffraction patterns for different catalysts were obtained using Bruker GADDS/D8 X-ray system with Apex Smart CCD Detector and Mo direct-drive rotating anode (50 kV; 20mA). The surface morphology of the catalyst was studied using JEOL JSM-5910-LV and JEOL JSM-6330F scanning electron microscope.

Image J software was used to determine the average particle size of catalysts. A total of nearly 50 particles of each catalyst were taken into consideration from 3–4 SEM images.

2.3. Reaction Study

Anhydrous NaOH with a purity of 98% was supplied by Sigma Aldrich. About 0.10 g of NaOH was dissolved using 1 mL of distilled water in an alumina boat. Then, the catalyst (3 wt.% of NaOH) was mixed with the solution. After that, the alumina boat was placed at the hot spot position in an alumina tubular furnace (18.5" long and 0.7" in diameter). The detailed experimental set up is explained elsewhere [1].

Nitrogen (N2) gas was allowed to flow at the rate of 50 mL/min until the required temperature was achieved. After that, N2 flow was ceased and CO was passed through the reaction chamber at the rate of 20 mL/min.

The reaction (1) was studied at several temperatures using various sizes of the different catalysts. The extent of the reaction (1) was evaluated by calculating the amount of Na2CO3 formed. The method used is the titration of mixture of formed soda ash and un-reacted NaOH against 0.1009 N volumetric standard solution of nitric acid (Aldrich). The equivalents can be detected by using acid-base indicators; here phenolphthalein and methyl orange were the indicators. NaHCO3 does not form in the reaction but it does during titration:

Na2CO3 + HNO3→ NaHCO3+ NaNO3
and then

3. Results and Discussion

3.1. Characterization of Catalysts

3.1.1. Catalysts Crystallite Size

Catalyst crystallite size was determined by broadening of diffraction peaks using Scherrer’s equation:

D = 0.9λ/(β − β0)cosθ
where, λ = wavelength of X-ray radiation (Mo Kα1 = 0.7093171 Å), β = breadth at half maximum intensity of a diffraction peak; β0 = instrumental broadening of diffraction peaks; θ = Bragg angle.

Instrumental diffraction peak broadening was determined by measuring X-ray diffraction standard LaB6.

Crystallite size represents the size of coherently diffracting domain and it cannot be always considered as particle size because of the presence of polycrystalline aggregates.

The powder X-ray diffraction pattern for Al2O3 mixed nickel catalysts (2:1 wt.%) (Figure 1a) shows the presence of alumina and nickel peaks. Few initial peaks of Al2O3 disappeared as prolonged ball milling was carried out leading to the amorphorization of Al2O3. No oxidation of nickel was observed throughout the ball milling time. The calculated crystallite sizes for alumina mixed nickel ball milled for 1, 2 and 4 h are 184, 158 and 150 Å respectively.

X-ray diffraction pattern for Fe3O4 catalyst ball milled for different times are shown in Figure 1b. As the crystallite sizes decreased due to prolonged ball milling, diffraction peaks shift towards the low angle direction and peak widths increase. The crystallite size of coarser magnetite (in micron) decreased to 181 and 169 Å for 1 and 2 h ball milling time respectively.

Figure 1c depicts the X-ray diffraction pattern for variously ball milled Raney nickel. Peak width broadening can be observed for prolonged ball milling time. The crystallite sizes for raw, 2 and 4 h ball milled Raney nickel are 413, 209 and 190 Å respectively. Table 1 summarizes the crystallite sizes of all the variously ball milled catalysts.

During the prolonged milling time, the energy produced by ball milling drastically reduces the grain sizes and thus increases the lattice strain. It is a fact that the milling may cause several modifications such as vacancies [34]; atomic site interchanges [32] and dislocations [25]. Raney nickel is composed mainly of single element nickel and hence nullifies the effect of any atomic site interchanges for different ball milling time. Other modifications could be the formation of vacancies and dislocations in the unit cells of the catalysts powder particles. The developed lattice strain caused by mechanical milling is attributed to plastic deformation which is the generation and movement of dislocations [35,36]. According to Fecht [37], the generation and movement of dislocations could decrease grain size. High lattice strain implies to a high density of dislocation formation and which contributes to a reduction in grain size. If the grain size of catalysts particle decreases slowly that means there is a relatively less formation and movement of dislocations. Here, for both 2 h ball milled alumina mixed nickel and 2 h ball milled Raney nickel, there is a relatively higher % reduction in crystallite sizes. This suggests that the mechanical milling caused a severe plastic deformation to these catalysts powder particles.

Table 1. Crystallite size of variously ball milled catalysts.
Table 1. Crystallite size of variously ball milled catalysts.
Ball milling time (h)Al2O3 Mixed nickel (Å)Magnetite (Å)Raney nickel (Å)
0-Micron size413
Figure 1. XRD Pattern for variously ball milled (a) Al2O3: Ni (b) magnetite (c) Raney nickel.
Figure 1. XRD Pattern for variously ball milled (a) Al2O3: Ni (b) magnetite (c) Raney nickel.
Catalysts 02 00532 g001 1024

3.1.2. Morphology and Particle Size Analysis

Scanning electron microscope (SEM) was used to determine the surface morphology of the catalysts. Al2O3 mixed nickel ball milled for 2 h, shown in (Figure 2a), exhibits sponge- like morphology and consists of many small particles. The average particle sizes are 3.24, 3.26 and 2.80 µm for the milling time of 1, 2 and 4 h, respectively.

Figure 2b shows the surface morphology for variously ball milled magnetite catalyst particles. Coarse magnetite has relatively larger average particle size. The average particle sizes are 4.56, 3.09 and 2.62 µm for the milling time of 0, 1 and 2 h respectively. One should note that average particle size of magnetite decreases with increase in ball milling time.

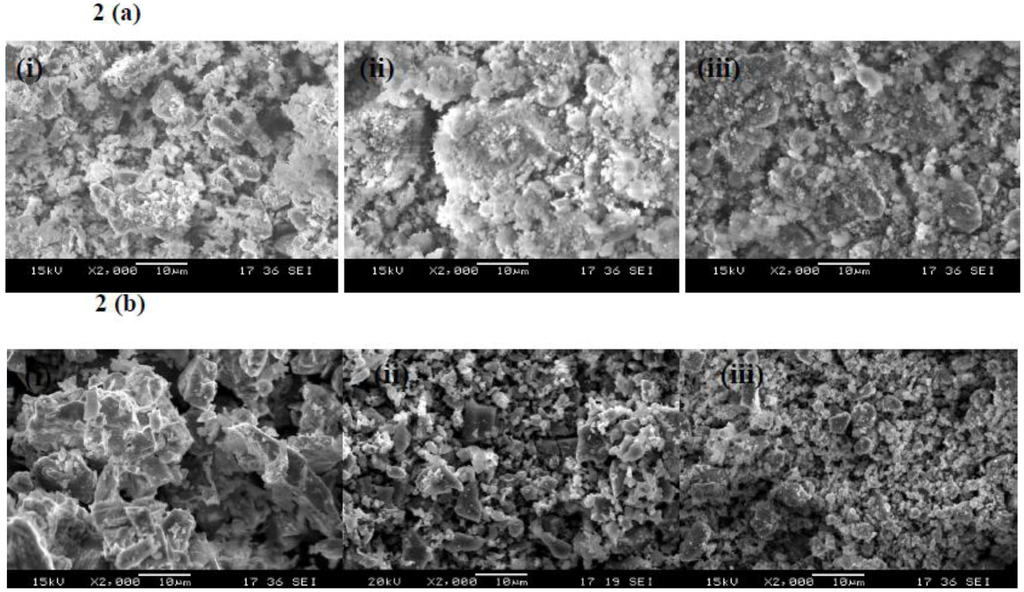

Figure 2. SEM image of (a) alumina supported Nickel ball milled for (i) 1h. (ii) 2 h. (iii) 4 h and (b) Magnetite ball milled for (i) Without (ii) 1 h (iii) 2 h ball milling at 2000× each.
Figure 2. SEM image of (a) alumina supported Nickel ball milled for (i) 1h. (ii) 2 h. (iii) 4 h and (b) Magnetite ball milled for (i) Without (ii) 1 h (iii) 2 h ball milling at 2000× each.
Catalysts 02 00532 g002 1024

Figure 3 depicts the SEM images for variously ball milled Raney nickel. A relatively high number of openings or caves are observed for 2 h ball milled catalyst as shown in Figure 3iv. The globular particles of 2 h ball milled catalyst can be assumed to be a stacked layer of flaky disk particles (formed as an attrition product of raw Raney nickel). However, further attrition of these globular particles changed them back to platelet structure (Figure 3iii).

Moreover, the sizes of Raney nickel particles varied significantly over different ball milling periods. Initially, raw Raney nickel particles are almost spherical in shape and have a very wide distribution of the particle sizes. The average particle size of raw, 2 and 4 h ball milled Raney nickel are 11.74, 15.72, and 13.72 µm respectively.

It is well known that milling process is controlled by the two processes of cold welding and fracture [38,39]. Figure 4 illustrates the change in average particle size with milling time for variously ball milled catalysts. It also demonstrates the dominant stages of milling process with time for different catalysts. The particle size and morphology of catalysts are determined by the competition between cold welding and fracture process. The average particle sizes of Raney nickel increases until 2 h milling time which is attributed to the dominant cold welding process. However, fracture process dominates only after 2 h and causes a decrease in the average particle size for 4 h milling time. Al2O3 mixed nickel catalyst also shows the similar trends. Al2O3 mixed nickel has almost constant particle size for first 2 h and then decrease in the average particle size was observed. It means that initially cold welding was dominant process and after 2 h milling time, it was the fracture process which prevailed. However, magnetite showed a different tendency for the milling process. The decrease in the magnetite average particle size with milling time is due to the dominant fracture process. It should be noted that for Al2O3 mixed nickel and Raney nickel, fracture process dominates only after 2 h milling time.

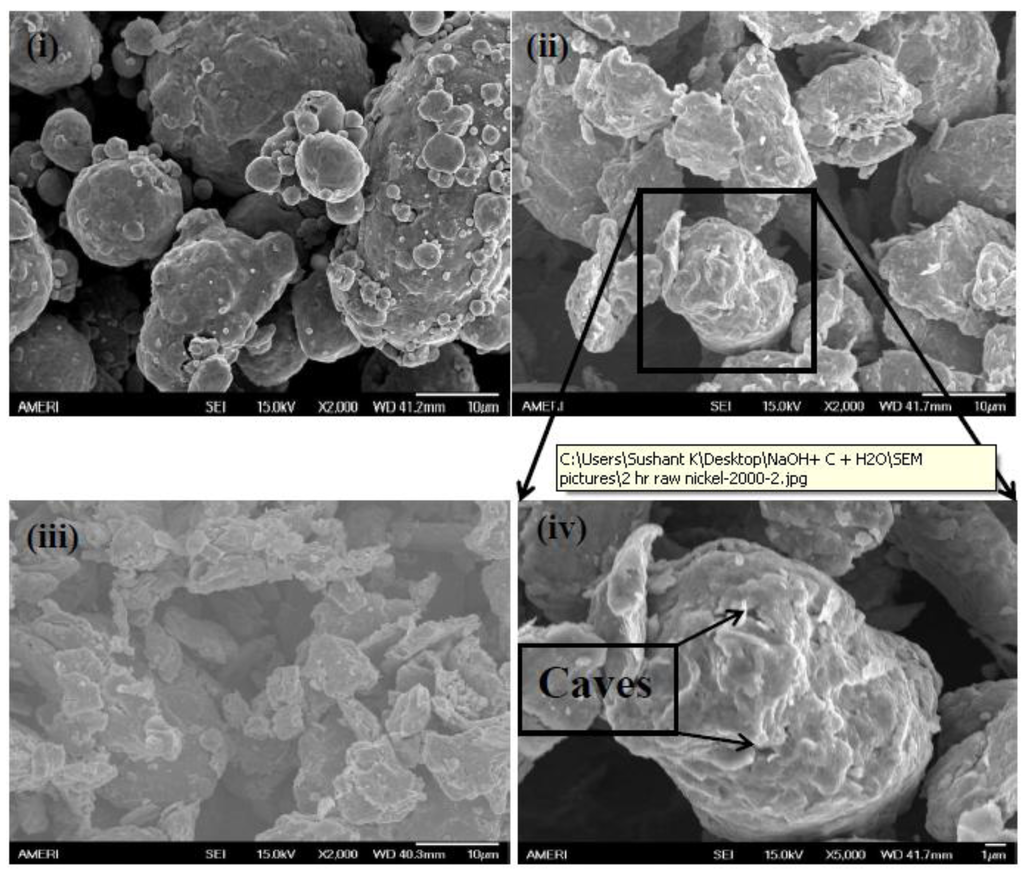

Figure 3. SEM image of Raney nickel (i) without; (ii) 2 h; (iii) 4 h ball milling at 2000× each and (iv) 2hball milled Raney nickel with pores (at 5000×).
Figure 3. SEM image of Raney nickel (i) without; (ii) 2 h; (iii) 4 h ball milling at 2000× each and (iv) 2hball milled Raney nickel with pores (at 5000×).
Catalysts 02 00532 g003 1024

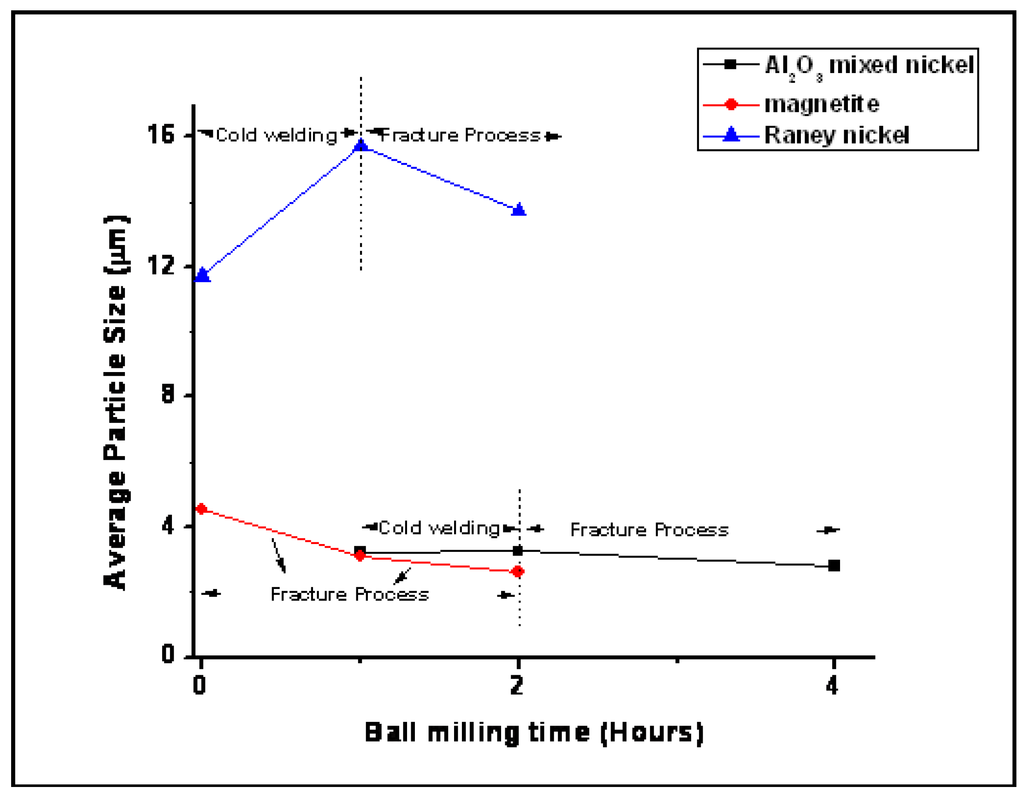

Figure 4. Change of average particle size of catalysts with milling time.
Figure 4. Change of average particle size of catalysts with milling time.
Catalysts 02 00532 g004 1024

3.2. Reaction Results

The curves for % conversion of NaOH to Na2CO3 in the presence of variously ball milled Al2O3 mixed nickel, magnetite and Raney nickel catalysts at 300 °C are shown in Figure 5, Figure 6 and Figure 7 respectively. A substantial increase in the % conversion of NaOH to Na2CO3 was observed due to addition of the catalyst. However, a clear distinction between the catalytic activities for these catalysts becomes discernible only after a 30 min run (Figure 5, Figure 6 and Figure 7). The obvious reason could be due to the formation of product Na2CO3, which once formed shows catalytic activity for the reaction [40].

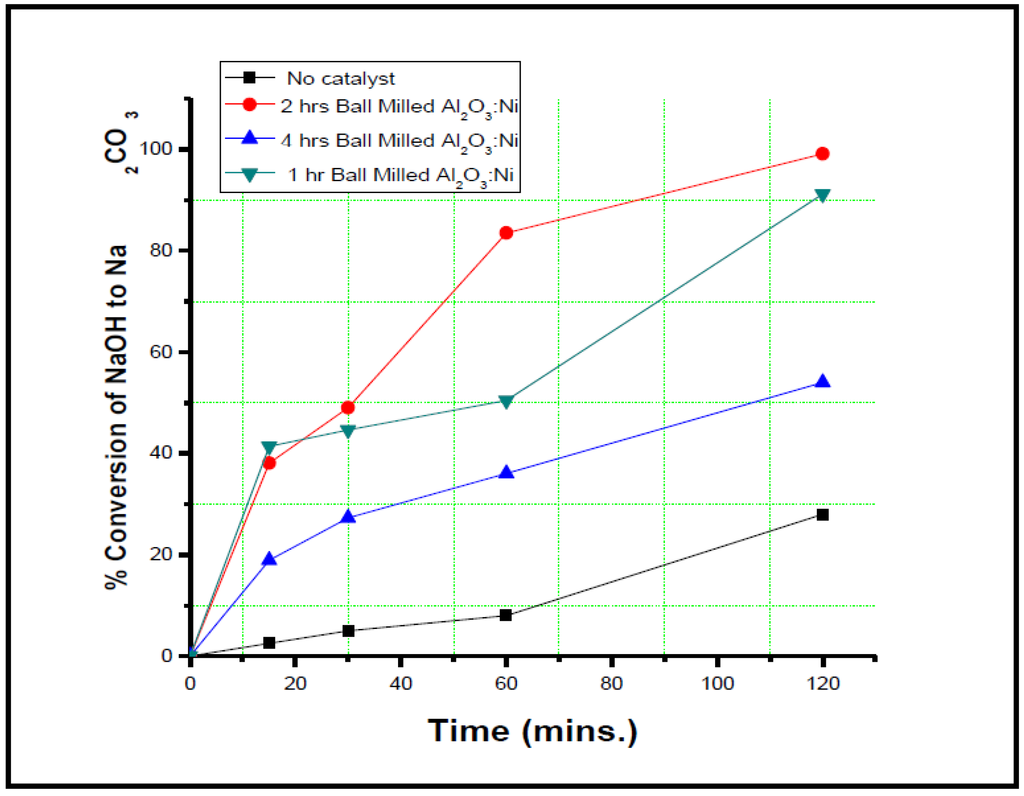

Figure 5. % Conversion of NaOH to Na2CO3 for variously ball milled Al2O3: Ni (2:1) (wt.%) at 300 °C. 2 h ball milling time has exhibited the best result.
Figure 5. % Conversion of NaOH to Na2CO3 for variously ball milled Al2O3: Ni (2:1) (wt.%) at 300 °C. 2 h ball milling time has exhibited the best result.
Catalysts 02 00532 g005 1024

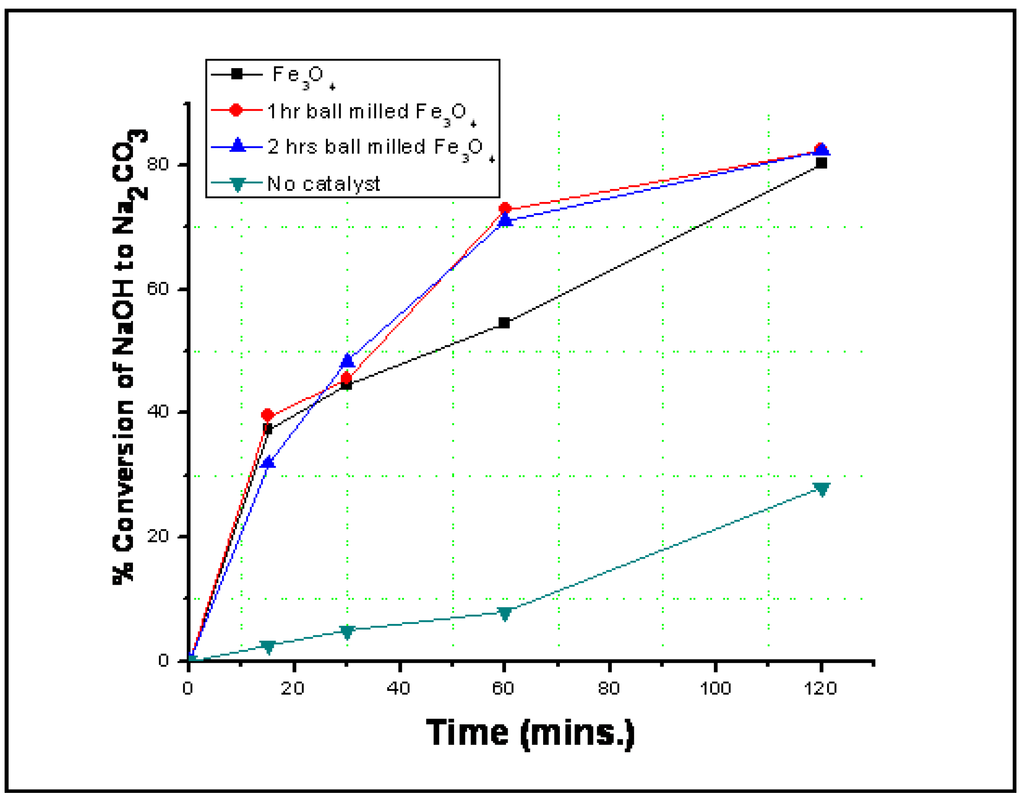

Figure 6. % Conversion of NaOH to Na2CO3 for variously ball milled Magnetite at 300 °C. 1 and 2 h Ball milling time has exhibited comparable result.
Figure 6. % Conversion of NaOH to Na2CO3 for variously ball milled Magnetite at 300 °C. 1 and 2 h Ball milling time has exhibited comparable result.
Catalysts 02 00532 g006 1024

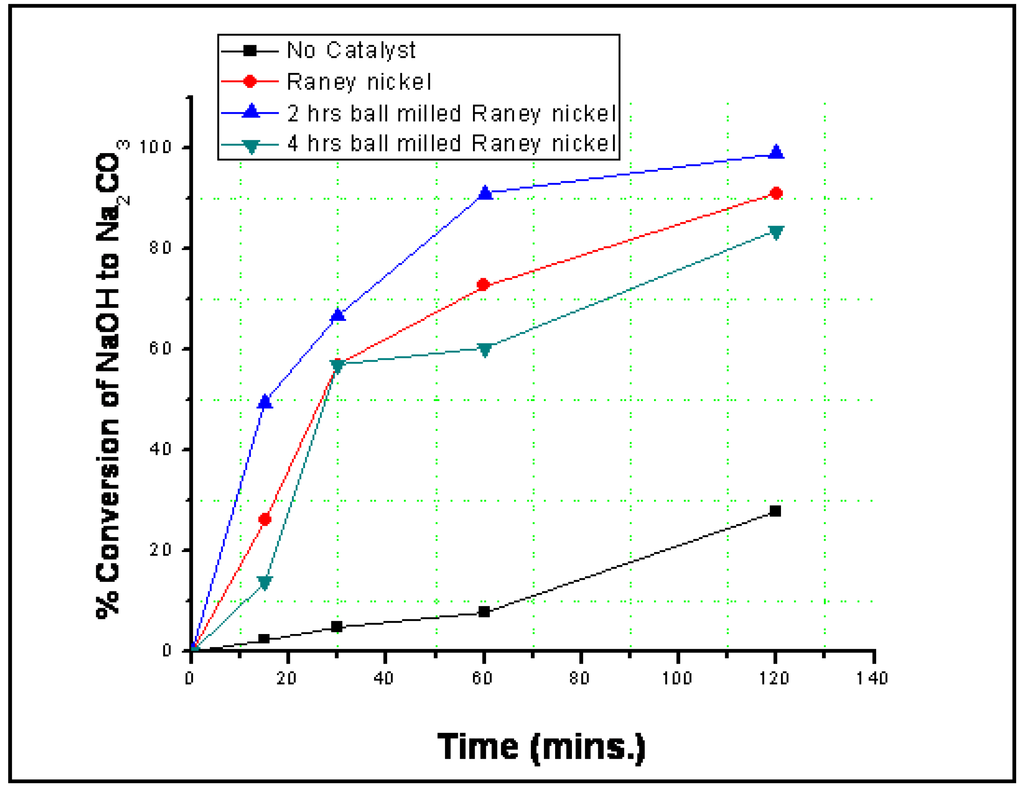

Figure 7. % Conversion of NaOH to Na2CO3 for Raney nickel at 300 °C. 2 h ball milling time has exhibited the best result.
Figure 7. % Conversion of NaOH to Na2CO3 for Raney nickel at 300 °C. 2 h ball milling time has exhibited the best result.
Catalysts 02 00532 g007 1024

A 2 h ball milled Al2O3 mixed nickel catalyst was catalytically most effective compared to other Al2O3 mixed catalysts. The purpose to add Al2O3 with nickel was to avoid the chance of agglomeration. In our previous work [11], we observed that nickel particles tend to agglomerate when ball milled in the absence of dispersant (such as alumina) [11]. In this study, we have minimized the coalescence by mixing alumina with nickel. X-ray diffraction study (Figure 1a) confirms the amorphorization of alumina over prolonged milling time. Smaller crystallite size for Al2O3 mixed nickel was generated as ball milling time was increased. Therefore, a better specific surface area and thus a better reaction yield were expected but the amorphorization of alumina particles has caused the reverse effect. Therefore, the effective surface area available for the adsorption of the gas was decreased and hence a relatively lower reaction yield was observed. Higher mechanical attrition and thermally induced deactivation could be another major cause for low catalytic activity of 4 h alumina mixed nickel. It can also be observed that the maximum% reduction in crystallite size was observed for 2 h of ball milling time for alumina mixed nickel catalysts. Therefore, an increase in the formation and movement of dislocations or vacancies as well as exchange of atomic site positions have led to the increased catalytic activity for 2 h ball milled alumina mixed nickel catalysts.

In the experiments using magnetite as a catalyst, the reaction yield shows a similar reaction yield for 1 and 2 h milling time (Figure 6). Due to the larger crystallite size, coarser magnetite has a low surface area to volume ratio. The poor reaction yield in the presence of coarser magnetite was in consistent with its relative larger particle size. When magnetite was milled for 1 h, crystallite size reduced from several microns to 181 Å and that causes an increase in the catalytic activity. But for 2 h milling time, crystallite size reduced by only 12 Å compared to 1 h ball milled magnetite. Therefore, there is a relatively less plastic deformation for 2 h ball milled magnetite. Hence, 2 h ball milled exhibited identical catalytic activity to that of 1 h. Thus, it can be stated that the reaction yield goes hand in hand to the particle size of magnetite. 1 and 2 h ball milled magnetite has comparable crystallite size and therefore their reaction yields are also similar.

The effect for the use of Raney nickel catalyst on reaction (1) is illustrated in Figure 7. The curve shows that 2 h ball milled Raney nickel catalysts have the best results. 4 h ball milled Raney nickel catalysts have a low catalytic effect on reaction (1). The deactivation of 4 h ball milled Raney nickel can be due to either a high mechanical abrasion of the catalysts surface or thermally induced deactivation. The cold welding process dominates until 2 h of mechanical milling time for Raney nickel catalysts. As well as maximum % reduction in crystallite size was also observed for 2 h milling time only. Therefore, a large number of formations and movement of dislocations or vacancies have led to an increased catalytic activity for 2 h ball milled Raney nickel catalysts. However, there is a relatively less reduction in the crystallite size for 4 h milling time. Moreover, X-ray diffraction pattern for 4 h ball milling time clearly shows the amorphorization for the catalyst. Hence, 4 h milling time decreased the catalytic activity of Raney nickel.

Raw Raney nickel has a very wide distribution of particle sizes. Due to globular shape, they possess higher surface area. The globular particles are formed by the agglomeration of the disk-shaped particles by folding, enclosure, unfolding and pile-up [41]. Large number of open pores or caves formation allowed 2 h ball milled Raney nickel to show the highest catalytic activity compared to others. In summary, globular particles for Raney nickel has shown a better effect on reaction (1) compared to platelet like structure.

4. Conclusions

The exothermic reaction between NaOH and CO leads to the formation of Na2CO3 and H2. This method of generating H2 can be regarded as a carbon-free emission method. At 300 °C in the presence of 2 h ball milled alumina mixed nickel or Raney nickel catalyst, the reaction showed almost 100% conversion for a 120 min run. However, in the presence of 2 h ball milled Raney nickel, reaction (1) has highest % conversion of NaOH to Na2CO3 at any reaction time. In conclusion, 2 h ball milled globular Raney nickel has an overall best effect for NaOH-CO reaction. Moreover, particle size of the catalysts has an effect on the reaction yield. Longer milling causes a decrease in the catalytic activity for both alumina mixed nickel or Raney nickel catalysts. The equal crystallite size of 1 and 2 h ball milled magnetite has shown similar reaction yield.


  1. Saxena, S.; Kumar, S.; Drozd, V.A. Modified steam-methane-reformation reaction for hydrogen production. Int. J. Hydrog. Energy 2011, 36, 4366–4369. [Google Scholar] [CrossRef]
  2. Saxena, S.K.; Drozd, V.; Durygin, A. A fossil-fuel based recipe for clean energy. Int. J. Hydrog. Energy 2008, 33, 3625–3631. [Google Scholar] [CrossRef]
  3. Reichman, B.; Mays, W.; Strebe, J.; Fetcenko, M. Ovonic Renewable Hydrogen (ORH—low temperature hydrogen from renewable fuels. Int. J. Hydrog. Energy 2010, 35, 4918–4924. [Google Scholar] [CrossRef]
  4. Kamo, T.; Takaoka, K.; Otomo, J.; Takahashi, H. Effect of steam and sodium hydroxide for the production of hydrogen on gasification of dehydrochlrinated poly (vinyl chloride). Fuel 2006, 85, 1052–1059. [Google Scholar] [CrossRef]
  5. Onwudili, J.A.; Williams, P.T. Role of sodium hydroxide in the production of hydrogen gas from the hydrothermal gasification of biomass. Int. J. Hydrog. Energy 2009, 34, 5645–5656. [Google Scholar] [CrossRef]
  6. Wang, H.Z.; Leung, D.Y.C.; Leung, M.K.H. A review on hydrogen production using aluminum and aluminum alloys. Renew. Sustain. Energy Rev. 2009, 13, 845–853. [Google Scholar] [CrossRef]
  7. Ahmad, S.; Aitani, A.; Rahman, F.; Al-Dawood, A.; Al-Muhaish, F. Decomposition of hydrocarbons to hydrogen and carbon. Appl. Catal. A 2009, 359, 1–24. [Google Scholar] [CrossRef]
  8. Muradov, N. Hydrogen via methane decomposition: An application for decarbonization of fossil fuels. Int. J. Hydrog. Energy 2001, 26, 1165–1175. [Google Scholar] [CrossRef]
  9. Drozd, V.; Saxena, S.K.; Garimella, S.V.; Durygin, A. Hydrogen release from a mixture of NaBH4 and Mg(OH)2. Int. J. Hydrog. Energy 2007, 32, 3370–3375. [Google Scholar] [CrossRef]
  10. Kalinci, Y.; Hepbasli, A.; Dincer, I. Biomass-based hydrogen production: A review and analysis. Int. J. Hydrog. Energy 2009, 34, 8799–8817. [Google Scholar] [CrossRef]
  11. Kumar, S.; Saxena, S.; Drozd, V.A. Modified method for production of Hydrogen from Methane. Int. J. Energy Res. 2012, 36, 1133–1138. [Google Scholar] [CrossRef]
  12. Muradova, N.Z.; Veziroglu, T.N. Green path from fossil-based to hydrogen economy: An overview of carbon-neutral technologies. Int. J. Hydrog. Energy 2008, 33, 6804–6839. [Google Scholar] [CrossRef]
  13. Ishida, M.; Otsuka, K.; Takenaka, S.; Yamanaka, I. One-step production of CO- and CO2 -free hydrogen from biomass. J. Chem. Tech. Biotech. 2005, 80, 281–284. [Google Scholar] [CrossRef]
  14. Su, S.; Li, W.; Bai, Z.; Xiang, H.; Bai, J. Effects of ionic catalysis on hydrogen production by the steam gasification of cellulose. Int. J. Hydrog. Energy 2010, 35, 4459–4465. [Google Scholar] [CrossRef]
  15. Pistonesi, C.; Juan, A.; Irigoyen, B.; Amadeo, N. Theoretical and experimental study of methane steam reforming reactions over nickel catalyst. Appl. Surface Sci. 2007, 253, 4427–4437. [Google Scholar] [CrossRef]
  16. Matsumura, Y.; Nakamori, T. Steam reforming of methane over nickel catalysts at low reaction temperature. Appl. Catal. 2004, 258, 107–114. [Google Scholar] [CrossRef]
  17. Hou, K.; Hughes, R. The kinetics of methane steam reforming over a Ni/α-Al2O catalyst. Chem. Eng. J. 2001, 82, 311–328. [Google Scholar] [CrossRef]
  18. Numaguchi, T.; Shoji, K.; Yoshida, S. Hydrogen effect on α-Al2O3 supported Ni catalyst for steam methane reforming reaction. Appl. Catal. A 1995, 133, 241–262. [Google Scholar] [CrossRef]
  19. Nozaki, T.; Muto, N.; Kado, S.; Okazaki, K. Dissociation of vibrationally excited methane on Ni catalyst Part 1. Application to methane steam reforming. Catal. Today 2004, 89, 57–65. [Google Scholar]
  20. Hauptmann, H.; Walter, W.F. The action of raney nickel on organic sulfur compounds. Chem. Rev. 1962, 62, 347–404. [Google Scholar] [CrossRef]
  21. Gerhard, E.; Helmut, K. Bulk Catalysts and supports. Prep. Solid Catal. 1997, 1, 30–34. [Google Scholar]
  22. Lund, C.R.F.; Kubsh, J.E.; Dumesic, J.A. Water-Gas Shift Over Magnetite-Based Catalysts: Nature of Active Sites for Adsorption and Catalysis. ACS Symp. Ser. 1985, 279, 313. [Google Scholar] [CrossRef]
  23. Rethwisch, D.G.; Phillips, J.; Chen, Y.; Hayden, T.F.; Dumesic, J.A. Water gas shift over magnetite particles supported on graphite: Effects of treatments in CO/CO2 and H2/H2O gas mixtures. J. Catal. 1985, 91, 167–180. [Google Scholar]
  24. Beeck, O. Catalysis and the Adsorption of Hydrogen on Metal Catalysts. Adv. Catal. 1950, 2, 151–195. [Google Scholar] [CrossRef]
  25. Trapnell, B.M.W. Specificity in catalysis by metals. Quart. Rev. 1954, 8, 404–421. [Google Scholar] [CrossRef]
  26. Gregg, S.J. The Surface Chemistry of Solids; Reinhold Pub. Corp.: New York, NY, USA, 1969; p. 233. [Google Scholar]
  27. Beeck, O. Catalysis—A challenge to the Physicist. Rev. Mod. Phys. 1945, 17, 61–71. [Google Scholar] [CrossRef]
  28. Couper, A.; Eley, D.D. The parahydrogen conversion of palladium-gold alloys. Discuss. Faraday Soc. 1950, 8, 172–184. [Google Scholar] [CrossRef]
  29. Dowden, D.A.; Reynolds, P.W. Some reactions over alloy catalysts. Discuss. Faraday Soc. 1950, 8, 184–190. [Google Scholar] [CrossRef]
  30. Hofer, E.M.; Hintermann, H.E. Correlation between catalytic activity of Raney nickel and its structure. Trans. Faraday Soc. 1964, 60, 1457–1465. [Google Scholar] [CrossRef]
  31. Suryanarayan, C. Mechanical alloying and milling. Prog. Mater. Sci. 2001, 46, 1–184. [Google Scholar] [CrossRef]
  32. Koch, C.C. Synthesis of nanostructured materials by mechanical milling: Problems and opportunities. Nanostruct. Mater. 1997, 9, 13–22. [Google Scholar] [CrossRef]
  33. Guerrero-Paz, J.; Jaramillo-Vigueras, D. Nanometric grain formation in ductile powders by low energy ball milling. Nanostruct. Mater. 1999, 11, 1123–1132. [Google Scholar] [CrossRef]
  34. Zhou, L.Z.; Guo, J.T.; Jiang, T.D.; Wang, S.H. Investigation of defects in a mechanically alloyed nanocrystalline NiAl alloy by positron annihilation spectroscopy. J. Mater. Sci. Lett. 1998, 17, 137–139. [Google Scholar]
  35. Liang, G.; Huot, J.; Schulz, R. Hydrogen storage properties of the mechanically alloyed LaNi5-based materials. J. Alloys Compd. 2001, 320, 133–139. [Google Scholar] [CrossRef]
  36. Mohamed, F.A. A dislocation model for the minimum grain size obtainable by milling. Acta Mater. 2003, 51, 4107–4119. [Google Scholar] [CrossRef]
  37. Fecht, H.J. Nanostructure formation by mechanical attrition. Nanostruct. Mater. 1995, 6, 33–42. [Google Scholar] [CrossRef]
  38. Zhou, J.B.; Rao, K.P. Structure and morphology evolution during mechanical alloying Ti-Al-Si powder systems. J. Alloys Compd. 2004, 384, 125–130. [Google Scholar] [CrossRef]
  39. Zhao, X.; Ding, Y.; Ma, L.; Shen, X.; Xu, S. Structure, morphology and electrocatalytic characteristics if nickel powders treated by mechanical milling. Int. J. Hydrog. Energy 2008, 33, 6351–6356. [Google Scholar] [CrossRef]
  40. Lee, S. Alternative Fuels; Taylors& Francis: Washington, DC, USA, 1996; p. 127. [Google Scholar]
  41. Lee, G.G.; Hashimoto, H.; Watanabe, R. Development of Particle Morphology during Dry Ball Milling of Cu Powder. Mater. Trans. JIM 1995, 36, 548–554. [Google Scholar]
