Review

Spatiotemporal pH Heterogeneity as a Promoter of Cancer Progression and Therapeutic Resistance

by
David E. Korenchan
1 and
Robert R. Flavell
1,2,*
1
Department of Radiology and Biomedical Imaging, University of California, San Francisco, CA 94143, USA
2
Department of Pharmaceutical Chemistry, University of California, San Francisco, CA 94143, USA
*
Author to whom correspondence should be addressed.
Cancers 2019, 11(7), 1026; https://doi.org/10.3390/cancers11071026
Submission received: 21 June 2019 / Revised: 17 July 2019 / Accepted: 18 July 2019 / Published: 20 July 2019
(This article belongs to the Special Issue Metastatic Progression and Tumour Heterogeneity)
Browse Figures
Versions Notes

Abstract

:
Dysregulation of pH in solid tumors is a hallmark of cancer. In recent years, the role of altered pH heterogeneity in space, between benign and aggressive tissues, between individual cancer cells, and between subcellular compartments, has been steadily elucidated. Changes in temporal pH-related processes on both fast and slow time scales, including altered kinetics of bicarbonate-CO2 exchange and its effects on pH buffering and gradual, progressive changes driven by changes in metabolism, are further implicated in phenotypic changes observed in cancers. These discoveries have been driven by advances in imaging technologies. This review provides an overview of intra- and extracellular pH alterations in time and space reflected in cancer cells, as well as the available technology to study pH spatiotemporal heterogeneity.

1. Introduction

In their seminal paper on the hallmarks of cancer [1], Hanahan and Weinberg proposed several common features of neoplasia, largely caused by genomic changes, that promote tumor development. Although genetic mutation is a necessary component of tumorigenesis, this must necessarily be accompanied by disruptions in cellular homeostasis, reflected in changes in metabolism and transport, which can be adapted according to cellular needs. These modifications both craft what has been referred to as the 'tumor microenvironment”, an extracellular milieu that further promotes tumor development and inhibits antitumor immune activity, as well as cell–cell heterogeneity within tumors, which a growing body of research is supporting as a crucial factor in understanding overall tumor function [2].
Alterations in pH in cancer represent one of the principal known disruptions in cellular and tissue homeostasis. While initial interest was sparked by the observation that tumor tissues are significantly more acidic than their normal counterparts, recent research has delved into how intracellular and extracellular pH changes play a role in promoting tumor initiation, growth, survival, and metastasis. The body of research on pH suggests that global measurements of pH do not capture the full story; rather, the ability of cells to tune pH locally between organelles or between cells, as well as to respond to kinetic changes affecting pH, plays a crucial role in the development and maintenance of the cancer phenotype.
In this review article, we will summarize known findings on pH alterations in cancer and suggest how spatiotemporal heterogeneity in pH works to promote tumor survival and progression. We will also discuss the available methodologies for measuring pH on spatial and temporal scales, as well as potential opportunities for further technical development in elucidating how pH influences tumor behavior.

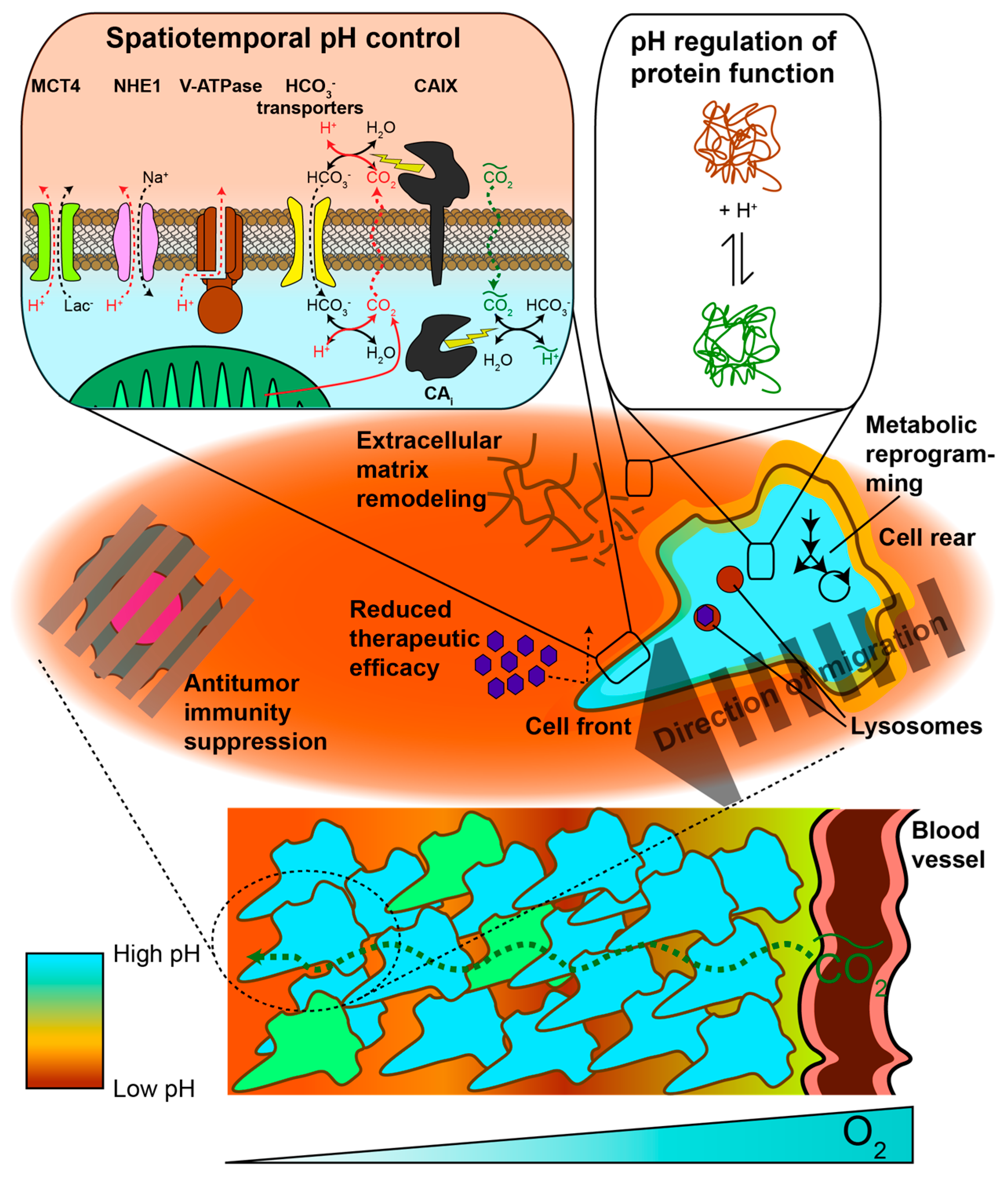

2. pH Heterogeneity in Space

Interstitial acidification in cancer has been known for several decades, based upon electrode pH measurements [3]. More recently, it has been suggested that interstitial acidification may be accompanied by cytosolic alkalinization. There is also growing interest in the altered pH of subcellular compartments, including endosomes and lysosomes. Several excellent reviews have summarized properties and associated phenotypic changes of both intra- and extracellular pH in the context of cancer [4,5,6]. Some salient details will be mentioned here. Normal tissue may demonstrate an intracellular pH (pHi) and an extracellular pH (pHe) of about 7.2 and 7.4, respectively. In cancer, pHe decreases to 7.0 or lower, leading to a reversal in the pHi–pHe gradient across the cell membrane. Somewhat more controversial is the claim that pHi significantly increases in the context of cancer, although in silico models based upon enzymatic pH-dependent activity profiles suggest that an alkaline pHi confers maximal cell proliferation, upregulated glycolysis, and survival under hypoxia [7]. Changes in pH are closely linked with alterations in membrane transporter expression and function, which change transport kinetics of protons and small ions including sodium, chloride, bicarbonate, and lactate [8]. As will be discussed, pHi,e changes can lead to altered protein behavior and are associated with many phenotypic changes in cancer progression, including invasion, proliferation, stemness, aggressiveness, immune suppression, vascularization, and metastasis. Figure 1 summarizes pH-related changes in transporter expression, protein function, and cellular phenotype that are associated with cancer.

2.1. Protonation as a Post-Translational Modification

Modulation of protein function based on pH represents a regulatory mechanism that can be rapid as well as locally constrained. Small changes in local pH can significantly affect the ratio of protonated versus deprotonated amino acid residues on a protein, depending on the acid dissociation constant (pKa) of the side chain. Thus, single amino acid mutations in which the side chain pKa moves in or out of the physiological pH range (e.g., arginine to histidine, or vice versa) can result in either a gain or loss of protein pH sensitivity. These pH-related changes in function are well-described for particular proteins in a recent review [9]. A few examples are detailed below. Proteins that contain pH-sensitive residues or domains affecting activity include calcineurin [10], sodium-proton exchanger 1 (NHE1) [11], cofilin [12], talin [13], and cancer signaling proteins including endothelial growth factor receptor (EGFR), and transcription factor p53 [14]. Proteins found in the extracellular space, notably proteases such as matrix metalloproteinase 3; urokinase-type plasminogen activator; and cathepsins B, D, and L, also exhibit pH-dependent activity and may in fact only be activated at low pHe values [15]. Interestingly, arginine-to-histidine mutations feature prominently in a subset of cancers, including acute myeloid leukemia, colorectal, esophageal, low grade glioma, kidney chromophobe, medulloblastoma, pancreatic, prostate, stomach, and uterine malignancies, suggesting that these cancers may have accompanying changes in pHi to regulate protein activity [16]. Thus, by tuning pH locally and temporally tumors can alter intracellular and extracellular protein functionality.

2.2. Intracellular pH

Generally speaking, interest in pHi changes (including subcellular compartments other than the cytosol) has surrounded alterations in protein expression and function as a result of protonation state. We will discuss cellular changes that result from intracellular pH alterations.

2.2.1. Spatial Regulation of Protein Activity via Subcellular pH Heterogeneity

Localized control of pHi within subcellular compartments can be accomplished based upon expression and localization of proton and other ion transporters. Spatial heterogeneity in pHi can therefore contribute to phenotypic hallmarks of cancer. During cell migration, a high pHi at the cell front induces formation of focal adhesion complexes, mitigated in particular by pH-dependent talin-actin binding [13], whereas a low pHi at the cell rear promotes focal adhesion destabilization as well as myosin contraction [15]. Localization of NHE1 or MCT4 at the leading edge of migration can generate the higher pHi required for cellular adhesion. Endosomes and lysosomes have a markedly reduced pH compared to the cytosol (6.2 and 4.5–5.0, respectively) [17], and the degree of acidity plays a crucial role in regulating lysosomal protein function. Lysosomal pH within tumor cells may therefore provide information regarding chemotherapeutic resistance, as increased vacuolar-type ATPase (V-ATPase) expression is linked with drug localization in lysosomes [18].

2.2.2. Intercellular pHi Heterogeneity within Tumors

An intriguing area of investigation involves the influence of pHi in cellular heterogeneity within a tumor. This is because an individual cell’s fate and function can be strongly affected by pHi. Studies of pHi in the context of eye development in Drosophila melanogaster has revealed that increased proton efflux and a resultant rise in pHi are sufficient to induce dysplasia, and that proton efflux inhibition in cancer cell lines induces lethality [19]. Additionally, extracellular ATP was shown to cause intracellular acidification in prostate cancer cells, leading to growth arrest via disruption of Ca2+ homeostasis [20]. pHi is tightly regulated, and pharmacologic inhibition of proton export significantly reduces tumor growth [21]. These studies suggest a link between a high pHi and oncogenic events and proliferation in mammalian cells. However, pHi plays a role in both normal development and oncogenesis. Increases in pHi were shown to be necessary for the efficient differentiation of both Drosophila follicle cells and mouse embryonic stem cells. Presumably, cancer stem cells might tend to promote a lower pHi than surrounding cancer cells in order to prevent differentiation until necessary. Thus, measuring pHi heterogeneity between cells in a tumor mass could potentially distinguish functional regions of the tumor for the purpose of designing therapeutic strategies to disrupt intercellular symbiosis.

2.3. Extracellular pH

Far from being merely a side-effect of increased metabolic fluxes, the lower pHe observed in tumors can also vary spatially, forming gradients within the interstitial space as well as cooperating with the alkaline pHi to generate a tumor environment favorable for therapeutic resistance and metastasis. We will briefly discuss the current mechanisms underlying interstitial acidification, then summarize the effects of pHe spatial heterogeneity on tumors.

2.3.1. Metabolic and Physiological Contributors to Spatial Gradients and Acidic pHe

Interstitial acidification, independent of its tumor-promoting properties, is generally viewed as a byproduct of altered metabolism coupled with changes in perfusion within tumors. Free protons diffuse with a diffusion constant of ~1 × 10−4 cm2/s, which is fast enough compared to proton export rates to diminish the formation of spatial gradients outside the cell. However, proton diffusion through gels simulating the extracellular matrix has been measured as ~6 × 10−6 cm2/s [22], almost two orders of magnitude slower than free proton diffusion and on the same order as water diffusion through biological tissue (~2 × 10−6 cm2/s) [23]. This suggests that protons largely diffuse as mobile buffer species such as phosphate or carbon dioxide. As a cancer grows and outdistances its local blood supply, tumor regions become hypoxic, although they remain with diffusive distance of glucose [24]. This has traditionally been understood to lead to HIF-1α stabilization, which in turn induces overexpression of glycolytic enzymatic subunits (e.g., LDHA), proton-exporting transporters such as monocarboxylate transporter 4 (MCT4), and carbonic anhydrase 9 (CAIX). Increased lactate metabolic flux coupled with proton-lactate co-export via MCT4 is generally accepted to be a major mechanism of interstitial acidification, with a variety of other mechanisms also contributing (Figure 1). For example, V-ATPase and MCT4 are both major acidification mechanisms in human breast cancer cell lines [25]. Acidification has also been shown to occur in glycolysis-deficient Chinese hamster cells [26,27], suggesting that proton export pathways independent of lactate play a major role in this particular model. Therefore, depending upon the genetic and metabolic state of the tumor, a variety of mechanisms contribute to interstitial acidification.
Recent studies have suggested that pHe gradients may be present throughout a tumor mass, and that these gradients, as well as the pHi–pHe gradient across the cell membrane, promote tumor growth and survival. Experimental evidence suggests that free proton diffusion through tumor interstitium is very small and that the majority of proton diffusion takes place by way of mobile buffers [22]. It has been hypothesized that various interstitial acidification mechanisms may be present throughout a tumor mass depending on oxygen/metabolite availability, transporter expression, and carbonic anhydrase (CA) activity, contributing to a pH gradient throughout the tumor [6]. Additionally, stromal cells near a lesion may shape pHe gradients by forming a syncytium that can take up acidic byproducts and transport them away from the site of metabolism, as has been demonstrated in co-cultures of myofibroblasts and colorectal cancer cells [28]. An intriguing area of research is the contribution of CAIX to gradient sculpting of both pHi and pHe within cell spheroids and in vivo xenografts. HCT116 human colon carcinoma spheroids transfected to constitutively express CAIX diminish pHi gradients between the spheroid core and periphery [29] while simultaneously increasing pHe gradients [30]. When these cells were implanted in a mouse and imaged with a 1H MRSI pH agent, the resulting tumors only demonstrated voxel pHe values below 6.93, suggesting that CAIX acts as a “pH-stat” and keeps pHe below a certain level [31]. Another interesting finding is that acid-extruding bicarbonate transporters such as solute carrier family 4, members 4 and 9 (SLC4A4 and SLC4A9) are hypoxia-inducible and are therefore likely expressed along with CAIX in hypoxic tumor regions [32]. Mathematical modeling of bicarbonate-CO2 exchange, diffusion, and cellular metabolism predicts that the effect of CAIX catalysis on pHi and pHe heterogeneity is strongly dependent upon metabolic pathways and proton transport mechanisms. Whereas cells that mainly produce CO2 or import HCO3- to titrate intracellular protons benefit greatly from higher CAIX activity, cells which export protons directly are minimally or even negatively affected by expressing CAIX [33]. Thus, interactions between cellular metabolism, proton export, CO2 diffusion, and bicarbonate-CO2 interconversion all give rise to the pHe observed in tumors.

2.3.2. Acidic pHe Can Alter Tumor Metabolism

Interstitial acidification that may be caused by altered metabolism can in turn affect metabolic pathways. Ippolito et al. discovered in a prostate neuroendocrine carcinoma (PNEC) cell line that glutamate decarboxylase (GAD) activity in cell lysates increased when the cells were incubated in acidic media (pH 6.5) and decreased in alkaline media (pH 8.5) [34]. Interestingly, glutamate-ammonia ligase (GLUL) demonstrated higher activity in both acidic and alkaline media relative to physiologic pH (pH 7.4). The measured activities correlated with changes in protein expression as well. In a following study, the group discovered that altering the culture media pH significantly altered metabolic pathways in the same cell line, with acidic pH favoring oxidative phosphorylation and alkaline pH stimulating nutrient consumption [35]. In keeping with this finding, they demonstrated that PNEC and human prostate cancer cell lines were more susceptible to niclosamide inhibition of mitochondrial function at acid pH and more susceptible to nutrient deprivation at alkaline pH. These findings are intriguing in that they suggest that pHe measurements can aid in identifying metabolic heterogeneity within a tumor in order to devise therapeutic strategies against tumor subregions.

2.3.3. Spatial pHe Gradients Promote Healthy Cell Death, Tumor Aggressiveness, and Therapeutic Resistance

Spatial regulation of tumor pHe has a profound impact upon tumor aggressiveness, survival, and treatment resistance. The lower tumor pHe forms a gradient with the less acidic interstitium of normal tissue, promoting a net proton flow that may in turn induce normal cell toxicity [36]. Normal cells may be unable to cope with the acid load because they are less able to remove intracellular protons as effectively as tumor cells. The resulting interstitial acidification could activate caspase activity, leading to apoptosis [37]. Interestingly, loss of p53 in cancer cells seems to protect against acidic pHe-dependent induction of apoptosis as well [38]. Spatial fluctuations in pHe can affect cellular migration and invasion. Prior in vivo studies of breast and colon cancer cells implanted in mice have established that tumors grow preferentially along gradients of decreasing pHe, and that overexpression of glucose transporter 1 (GLUT1) and NHE1 transporters at the leading edge drives invasion [39]. The high transmembrane pHi–pHe gradient can also act as a defense mechanism against weakly basic chemotherapeutic agents, since these will preferentially protonate in the interstitium, pick up a net positive charge, and be prevented from cell internalization. This likely explains why extracellular alkalinization via bicarbonate buffer therapy was shown to enhance doxorubicin (pKa = 7.6) uptake in MCF-7 xenografts in vivo [40]. Several effects of acidic pHe on antitumor immune cell activity have been documented. Acid pHe-dependent lactate import can induce anergy in human cytotoxic T-cells in vitro [41], and pH neutralization in vitro reverses anergy for human and murine infiltrating T-lymphocytes [42]. Acidosis leads to greater antigen uptake and presentation in dendritic cells (DCs) [43]; however, tumor-derived lactate could also play a role in inducing a tumor-favorable phenotype in DCs [44]. Bicarbonate therapy leads to more effective tumor cell killing by natural killer (NK) cells, suggesting a role for pHe in modulating NK cell activity [45]. Finally, low pHe also affects cellular differentiation status. Acid pHe promotes the expression of glial stem cell markers [46] and promotes epithelial-to-mesenchymal transition in Lewis lung carcinoma cells [47].
Because transmembrane proton exporters and CA isoforms play a prominent role in cancer, several inhibitors have been designed against these targets. A good review on CA inhibitors has been written by Singh et al. [48]. Other inhibitors include amiloride derivatives against NHE1, proton pump inhibitors (PPIs) against V-ATPase, and MCT inhibitors such as 4,4′-di-isothiocyanostilbene-2,2′-disulfonate (DIDS) [49]. Additionally, a large body of literature exists on designing pH-sensitive drug delivery systems [50] or prodrugs [51] that release the drug or form the active therapeutic agent when they encounter the acidic tumor microenvironment.

3. pH Heterogeneity in Time

Studying alterations in pH distributions around, between, and within cells does not fully capture the underlying biological changes in cancer. Alterations in tumor pH happen on various timescales, ranging from transient, rapid fluctuations to slow, progressive changes. The fast-switching ability of pH-sensing protons potentially lends itself to respond to rapid changes in pH. Furthermore, tumor cells are known to undergo hypoxic-normoxic cycles as they outdistance their blood supply [24]. These cycles likely imply associated changes in pH, which can modulate cell behavior. Additionally, changes in regulation of carbonic anhydrase isoforms can affect the timescale of transient pH changes and thus increase or decrease tumor cell sensitivity to pH transients. The study of pH modulation kinetics represents an intriguing area of tumor biology that is only beginning to be elucidated. Finally, pHi,e in solid tumors can change over the course of disease progression in order to suit the changing needs and objectives of tumor cells. The following section highlights salient findings regarding temporal pH changes.

3.1. Carbonic Anhydrase Kinetics

The changes in protein expression for various isoforms of carbonic anhydrase, notably CAIX, are well-known for many cancers [52]. As alluded to in Section 2.2.1, CAIX activity can enable higher metabolic fluxes for rapidly-dividing cancer cells by accelerating HCO3-/CO2-mediated “acid venting”, which clears away acidic byproducts that might otherwise back up actively-utilized metabolic pathways. Biological studies and mathematical modeling of lactic acid-producing muscle tissue demonstrate the role of extracellular carbonic anhydrase in sustaining high metabolic flux and clearance to blood [53,54]. One of the important features of CAIX in particular is that because its expression is regulated via HIF1α, it is expressed along with other metabolism-related proteins such as LDHA, MCT4, and SLC4A4/9. Additionally, although CAIX and other hypoxia-induced proteins can be expressed through non-canonical HIF pathways, the catalytic activity of CAIX may be enhanced under hypoxic conditions [55]. As mentioned in Section 2.2.1, CAIX catalysis enhances metabolic fluxes depending upon the metabolic pathways utilized by cancer cells. Therefore, measuring bicarbonate-CO2 exchange kinetics in vivo could serve as an indicator of metabolic capacity. Gallagher et al. measured differences in CAIX activity of HCT116 cells with and without constitutive CAIX expression implanted subcutaneously in mice. Although the CAIX-expressing cells demonstrated a faster rate of conversion in vitro, a slower interconversion was observed for these same cells in vivo, which they attributed to the lower in vivo tumor pHe reducing overall CAIX enzymatic activity [56]. This highlights the complex phenomena that may contribute to pH regulation in vivo.

3.2. Effects of pHi Transients on Tumor Cells

A very intriguing study was recently performed by Hulikova et al. regarding CA isoforms and coupling with CO2 fluctuations [57]. The authors discovered that although expression of intracellular CA isoforms in various cell lines did not enhance proton diffusion throughout the cytosol, they did sensitize cytosolic pHi to CO2 fluctuations, enabling it to oscillate in response to oscillating pCO2. Mathematical modeling of pCO2-pHi coupling revealed that the downregulation of intracellular CAi acted as a sort of low-pass filter, reducing the amplitude of more rapid pHi fluctuations. Intriguingly, the mammalian target of rapamycin complex 1 (mTORC1) pathway activation as measured by lower ribosomal protein S6 kinase (S6K) phosphorylation was achievable by exposing HCT116 cells to sharp pCO2 fluctuations, whereas phosphorylation state did not significantly correlate with the average pHi. CA inhibition with acetazolamide or knockdown of intracellular carbonic anhydrase 2 (CAII) significantly altered S6K phosphorylation state. The authors concluded that this coupling between pCO2 and pHi represents a potent signaling mechanism that can alter cellular activity, particularly for intracellular CA-expressing tumor cells experiencing rapid pCO2 fluctuations. The authors also suggested that downregulation of CAi isoforms may confer a survival advantage of tumor cells over healthy cells, allowing them greater control over pHi as pCO2 fluctuates. At the same time, they proposed that cancers cells with high CAi activity near aberrant blood vessels experiencing sharp pCO2 fluctuations would experience mTOR-dependent changes in metabolism and perfusion, elicited by changes in intracellular [Ca2+]. These results suggest that a technique that can measure temporal pHi fluctuations could identify tumors or tumor regions that are activating particular oncogenic pathways, thereby facilitating tumor characterization. It also proposes a mechanism by which pH-sensing proteins could become activated or deactivated by temporal pH changes.

3.3. Tumor pHe Decreases Over Time During Tumorigenesis and Disease Progression

While rapid fluctuations in tumor pHi,e may regulate cancer cell function and metabolism, pHi,e changes over a slower time scale (e.g., weeks to months) may play an important role in cancer progression. For example, it has been demonstrated that changes in pancreatic pHe result from chronic inflammatory pancreatitis and after secretin administration, and it has been hypothesized that this could drive pancreatic cancer development [58]. This hypothesis is further supported by evidence that low pHe is associated with local invasion [39] and metastatic disease [59]. Moreover, alterations in metabolic phenotype, including increased production of lactic acid, are upregulated in disease progression, thereby inducing a higher degree of acidosis (Figure 1). These indirect lines of evidence suggest a temporal link between changes in tumor pH and an invasive, metastatic phenotype.
The hypothesis that tumor pHe decreases during disease progression could be directly tested in spontaneous genetically engineered models (GEM), which allow monitoring of tumors from early precursors to high-grade, metastatic, lethal tumors [60]. Recently, we have evaluated the pHe of the Transgenic Adenocarcinoma of the Mouse Prostate (TRAMP) model in both early- and late-stage tumors. This is a spontaneous GEM which proceeds from hyperplasia to low-grade tumors, ultimately progressing to high-grade disease, metastasis, and death [61]. We hypothesized that pHe would decrease based on prior data indicating increased production of lactic acid in high-grade tumors [62], as well as the observation that treatment with sodium bicarbonate blocked tumorigenesis in this model [63]. Supporting the hypothesis, we found that there was a significant decrease in pHe in mice bearing high-grade tumors compared against low-grade counterparts [64]. Therefore, there is an accumulating body of both indirect and direct evidence supporting the hypothesis that a temporal decrease in pHe could represent a biomarker of tumor disease progression.

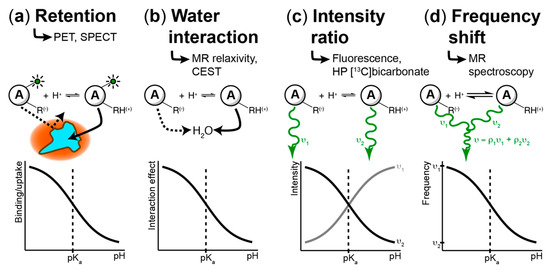

4. Techniques to Measure pH Spatiotemporal Heterogeneity

The interstitial acidification that accompanies cancer was first discovered using pH microelectrodes [3]. Today, many methodologies exist for studying pH changes in time and space, covering a wide range of modalities, including nuclear methods such as positron emission tomography (PET) and single-photon emission computerized tomography (SPECT), fluorescence, and magnetic resonance. The principles underlying chemical agents that detect pH changes are summarized in Figure 2. These techniques rely on a variety of mechanisms to generate image contrast, and they operate over a wide range of spatial resolution scales. To the best of our knowledge, the only techniques that have reported tumor pHe in patients are microelectrodes (5.85–7.68 over many tumor types) [3], 11C-DMO PET (6.88–7.26 in brain tumors/metastases) [65], and acido-chemical exchange saturation transfer (acidoCEST) MRI (6.58 in metastatic ovarian cancer) [66]. In this section, we will briefly summarize the range of techniques available for studying pH heterogeneity; these have also been discussed in a recent review [67].

4.1. Fluorescence-Based Measurements

Various fluorescent dyes and proteins exhibit a wavelength shift upon protonation, enabling ratiometric pHi,e calculation by measuring fluorescent output at each wavelength. In general, fluorescence methods including microscopy have very high spatial resolution (<1 µm), allowing subcellular measurements of pH gradients, although applications to whole animal and clinical imaging are limited by low penetration of light through tissue. An exemplary review covering pH-sensitive fluorescent dyes is Han et al. [68]. Generally, pH imaging studies with fluorescent dyes are constrained to 60 minutes in length. One notable approach to pH measurement in various intracellular compartments involves transfecting cells with a genetic construct encoding a pH-sensitive fluorescent protein (e.g., pHluorin) modified with a targeting domain that will localize the protein to the desired organelle [69,70]. This approach also extends the imaging timescale beyond that achievable with fluorescent dyes. The low depth of tissue penetration for fluorescence in the visible spectrum can be overcome through the use of agents emitting in the near-infrared range, which have a deeper tissue penetration compared with visible light [71,72], allowing imaging in murine models. A different way to overcome the tissue penetration limitations of fluorescence dyes in preclinical in vivo studies is by constructing a dorsal window chamber. Some studies have demonstrated the use of SNARF-1 fluorescent dye with a dorsal window chamber in order to study proton gradients and flow in tumor tissue [36] and to observe tumor cell migration along pHe gradients [39]. In theory, a similar approach could be utilized for intraoperative fluorescence imaging of pH in patients, which has been reported using other fluorescence molecular imaging probes [73], although this has not been reported to date.

4.2. PET/SPECT-Based Imaging Methods

Several radiolabeled tracers have been developed in order to study pHe in vivo, including 11C-dimethyloxazolidinedione (DMO) [65], 11CO2 [74], and 123I-labeled derivatives of malonic acid [75]. One elegant example of probe design is 64Cu-conjugated pH-low insertion peptide (pHLIP), which anchors the radioisotope into cell membranes in regions where pHe is below 7.0. We have reported the synthesis of various caged derivatives of 18F-fluorodeoxyglucose (FDG) that demonstrate pHe-sensitive localization in vivo by caging group release in acidic pHe followed by uptake via glucose transporters. By using different amine-containing caging groups varying in pKa, we could tune the pH sensitivity of FDG uptake [76]. PET/SPECT-based approaches can be readily implemented for in vivo imaging with good spatial resolution (1–2 mm); however, their primary limitation is that they cannot measure absolute pHe, but only indicate regions below a certain threshold pHe. Although arterial blood sampling along with imaging can be fit to a model to estimate pH values [65,74], these pH values have not been correlated with microelectrode measurements. Nevertheless, these techniques may prove to be useful in a clinical setting if threshold pH values can be demonstrated to sensitively and selectively identify or characterize lesions.

4.3. MR-Based Techniques

Magnetic resonance offers spectral sensitivity that enables absolute pH quantification with high tissue penetration depth, making it a well-studied technique for pHi,e measurement. Major techniques under investigation include spectroscopic methods and chemical exchange saturation transfer (CEST) based methodologies.

4.3.1. Chemical Exchange Saturation Transfer (CEST)

CEST approaches represent a rapidly-developing field of study for pHe measurement which has the advantage of high spatial resolution (0.1–2 mm) but potentially low sensitivity; a comprehensive review has been written by Chen et al. [77]. Generally, CEST techniques are able to measure pHe by determining relative rates of protonation and deprotonation, typically for amide functional groups on either endogenous molecules or administered contrast agents. A recent study demonstrated more robust and accurate measurement of pHe using the acidoCEST method, which relies upon exogenous contrast agent administration [78]. In an elegant study, Longo et al. combined CEST pHe measurements with FDG PET imaging, demonstrating an inverse correlation between tumor pHe and glucose uptake [79]. It is noteworthy that acidoCEST with the FDA-approved CT contrast agent iopamidol to measure pHe has been demonstrated in patients with high-grade invasive ductal carcinoma and with metastatic ovarian cancer [66].

4.3.2. MR Relaxometry

In this method, paramagnetic contrast agents with a predictable, pH-dependent change in spin-lattice (T1) relaxation time are administered and used to measure tissue pH. A major strength of this method is high signal-to-noise ratio and spatial resolution (0.2–2 mm); however, a second, pH-insensitive contrast agent must also be administered to accurately measure pH. For example, Gillies et al. used a pH-dependant chelate, GdDOTA-4AmP5−, paired with a pH-independent analog, GdDOTP5−, to generate high spatial resolution maps of tissue pHe in a rat glioma model [80]. A variety of other agents have been reported [81,82] for this purpose.

4.3.3. MR Spectroscopic Approaches

Magnetic resonance spectroscopy can be used to measure tumor pHi,e by measuring the chemical shift of a nucleus in a molecule with a pKa close to the physiological range and determining the pH from a previously-constructed MR titration curve. This has been described for a variety of chemical compounds and nuclei, including 31P, 1H, and 19F. 31P MR spectroscopy can be used to measure pHi based on the chemical shift of the inorganic phosphate peak. Administration of 3-aminopropylphosphonate (3-APP) followed by 31P MR spectroscopy can be used to measure pHe [83,84,85]. Similarly, 1H MR spectroscopic imaging of imidazole-containing compounds, notably (±)2-(imidazol-1-yl)3-ethoxycarbonylpropionic acid (IEPA) [86] and (±)2-(imidazol-1-yl)succinic acid (ISUCA) [31,87,88], can generate in vivo pHe maps and therefore be used to study pHe heterogeneity. Similar approaches have been reported with 19F-containing agents [89]. With the exception of 31P, MR imaging approaches can capture pHe heterogeneity with acceptable spatial resolution (1–2 mm) and in a reasonable timeframe (10–30 min), however it cannot measure pHi or capture kinetic pH changes. Both these limitations are linked with low signal-to-noise or contrast-to-noise ratios.

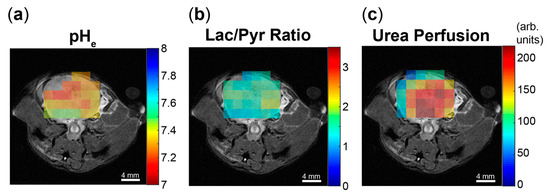

4.3.4. Hyperpolarized (HP) 13C MR Imaging

The dramatic gain in MR signal attainable through dissolution dynamic nuclear polarization (d-DNP) [90] provides unique opportunities to capture spatial as well as temporal changes in pHe. Importantly, the ability to polarize, inject, and image multiple agents simultaneously [91] or in the same imaging session holds great promise for simultaneously measuring pH and related metabolic or physiological processes, such as glycolysis and perfusion. pHe mapping with HP [13C]bicarbonate represents the majority of HP pH imaging and has been demonstrated in tumors [91,92,93], perfused lungs [94,95], and other tissues [96,97]. pHi can also be quantified from HP 13CO2 produced from [1-13C]pyruvate in organs with high pyruvate dehydrogenase flux, most notably the heart [98,99]. Although the short T1 of [13C]bicarbonate/13CO2 (~10 s in vivo [91,92,93,97,100]) poses a significant challenge for obtaining sufficient spatial resolution, recent advances in hyperpolarization approaches, including HP precursor decarboxylation [93,94,101], as well as advanced HP imaging sequences [96,102,103], can provide significant gains in available HP signal and its effective utilization. Nevertheless, HP image resolution (2–10 mm) is currently coarser than other modalities and MR approaches. Figure 3 demonstrates hyperpolarized pHe imaging using an optimized [13C]bicarbonate method along with HP measures of glycolysis and perfusion in the TRAMP mouse model of prostate cancer. Other 13C-labeled compounds have also demonstrated pH sensitivity that are potentially amenable to in vivo pHe imaging, including N-(2-acetamido)-2-aminoethanesulfonic acid (ACES) [104], diethylmalonic acid (DEMA) [105], zymonic acid [106,107], and amino acid derivatives [108]. Notably, zymonic acid was applied to pH imaging in kidneys and in a mammary tumor model [106]. Taken together, these data demonstrate robust tumor pHe measurements using a variety of HP 13C MRI methods.
Importantly, high HP signal gains can also be used to measure kinetic phenomena, such as CA-catalyzed [13C]bicarbonate-13CO2 exchange, on a sufficiently short timescale (0.1–1 s resolution). Gallagher et al. studied differences in both pHe and bicarbonate-CO2 exchange within HCT116 xenografts that either overexpressed CAIX or did not [56]. The bicarbonate-to-CO2 forward reaction rate was quantified by selective saturation of the HP 13CO2 resonance. They found that CAIX-overexpressing tumors demonstrated a pHe that was 0.15 units lower, similar to results in cell spheroids [30], but a paradoxically slower exchange rate, which they attributed to a pH-dependent reduction in CAIX activity. It may be possible to measure both pHe and exchange rate in vivo through MR spectroscopic techniques similar to the ones employed in this study, although the injected HP [13C]bicarbonate must be given sufficient time to equilibrate if pHe is to be accurately measured.
HP approaches may also enable in vivo kinetic measurements of pHi, which represents a tantalizing subject of investigation. One elegant example of this was demonstrated in perfused rat hearts, where hyperpolarized [1-13C]pyruvate was decarboxylated to form 13CO2, enabling intracellular measurement of pH by comparison with the bicarbonate resonance. The HP bicarbonate/CO2 data clearly show differences in measured pHi dynamics with and without CA inhibition, suggesting the ability to quantify CA-catalyzed intracellular bicarbonate-CO2 interconversion [98]. Similarly, HP 13C-labeled organic phosphates formed from [U-13C,U-2H]glucose, including glyceronephosphate and 3-phosphoglycerate, have been shown to enable pHi quantification in yeast cells [109]. A similar approach in which a HP 13C-labeled compound is taken up in mammalian cells and subsequently phosphorylated to generate a pH-sensing moiety that may be feasible. Additionally, an existing HP pH agent such as a dicarboxylic acid could be derivatized to form an ethyl ester, as has been demonstrated with [1-13C]pyruvate to enhance blood–brain barrier crossing [110]. The ester groups could then be cleaved inside the cell to generate the carboxylic acid moieties and regain pH-sensing ability. Both these approaches may introduce significant toxicity concerns; nevertheless, these or other HP approaches could open the way to measuring pHi spatiotemporal fluctuations in vivo.

5. Conclusions

Measuring average pH in tumors provides useful information but fails to describe the complex dynamics of the tumor microenvironment. The spatial heterogeneity surrounding, among and within cells plays a major role in driving the aggressive tumor phenotype. Rather than serving as merely a byproduct of altered metabolism, pH variation throughout a tumor generates the necessary conditions to alter protein functionality throughout cells, preserve cellular differentiation capacity, reduce therapeutic uptake, shut down antitumor immune activity, and promote cellular migration and metastasis. In addition, the kinetic processes that influence pH may hold a great deal of information regarding tumor initiation, metabolism, and cellular maintenance. Many imaging and measurement techniques have been developed in order to study both pHi and pHe. Hyperpolarized 13C in particular holds great promise for capturing both spatial and temporal heterogeneity within tumors based on its ability to estimate kinetic rate constants in an imaging setting. Further development of these and other in vivo pH measurement techniques will help to reveal the complex role that proton transport plays in tumor development and therapy.

Funding

R.R.F. acknowledges support from the National Institutes of Health (R21-EB026012), the Department of Defense (Physician Research Training Grant PC150932), University of California Cancer Research Committee Award (CRN-19-581541), a UCSF Research Allocation Program Pilot Award, and the Prostate Cancer Foundation David Blitzer Young Investigator Award.

Conflicts of Interest

The authors declare no conflict of interest.
