Fabrication of Electromagnetically-Driven Tilted Microcoil on Polyimide Capillary Surface for Potential Single-Fiber Endoscope Scanner Application

1
National Key Laboratory of Science and Technology on Micro/Nano Fabrication, School of Electronics Information and Electrical Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
2
Institute of Biomedical and Health Engineering, Shenzhen Institute of Advanced Technology, Chinese Academy of Science, Shenzhen 518055, China
3
Graduate School of Systems Life Science, Kyushu University, Fukuoka 819-0395, Japan
*
Author to whom correspondence should be addressed.
Received: 25 December 2017 / Revised: 17 January 2018 / Accepted: 26 January 2018 / Published: 1 February 2018
(This article belongs to the Special Issue MEMS Technology for Biomedical Imaging Applications)
View Full-Text   |   Download PDF [3793 KB, uploaded 1 February 2018]   |

Abstract

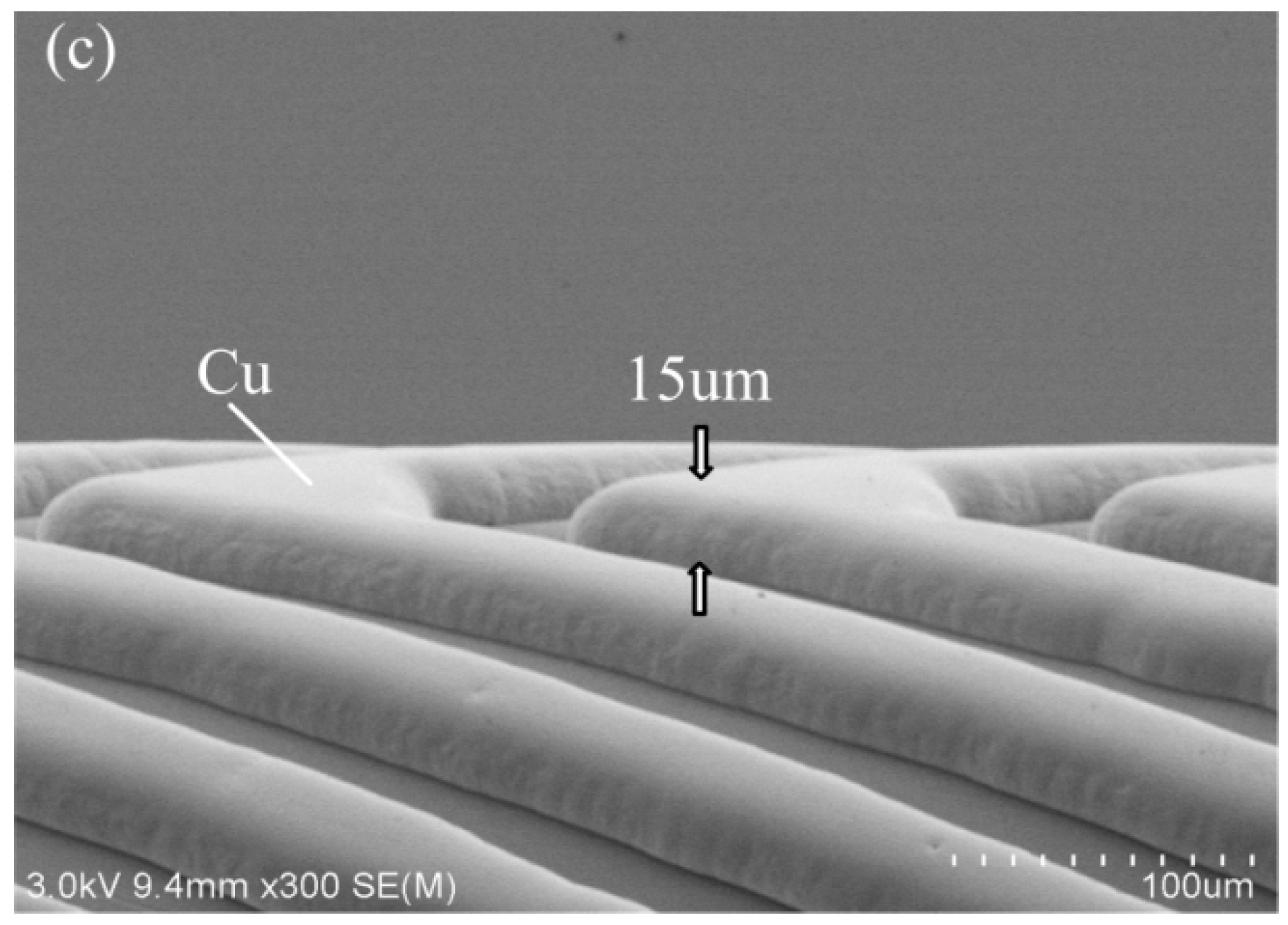

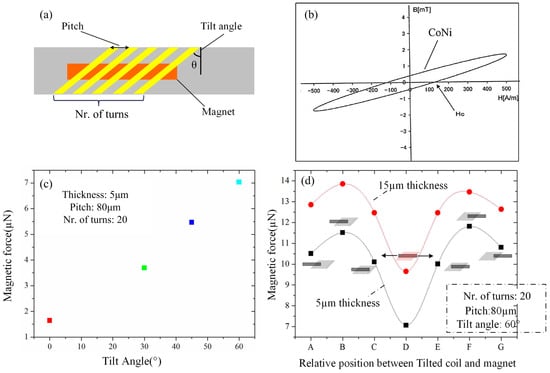

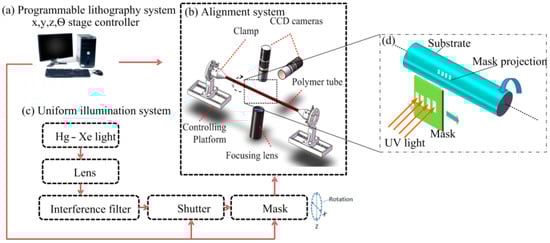

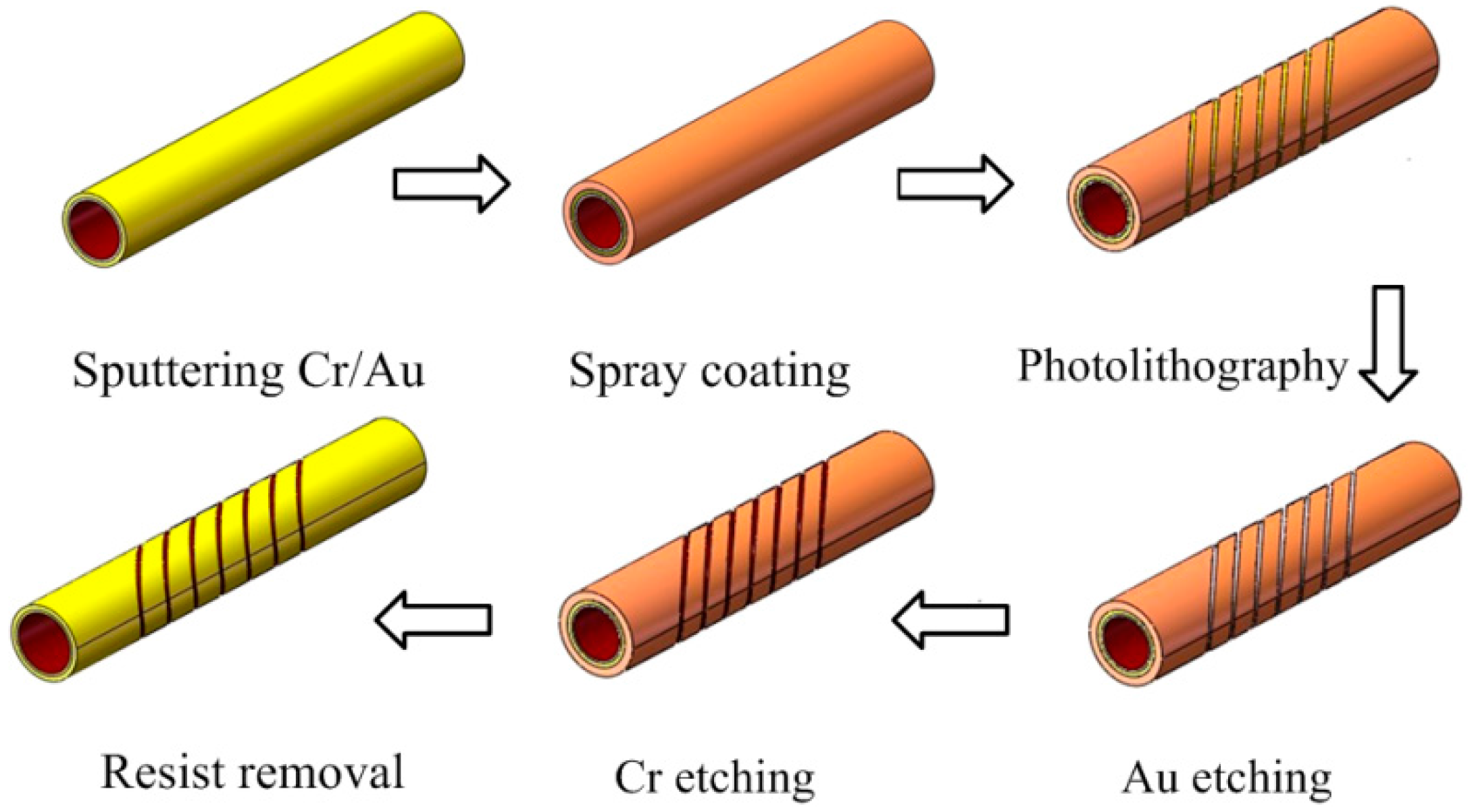

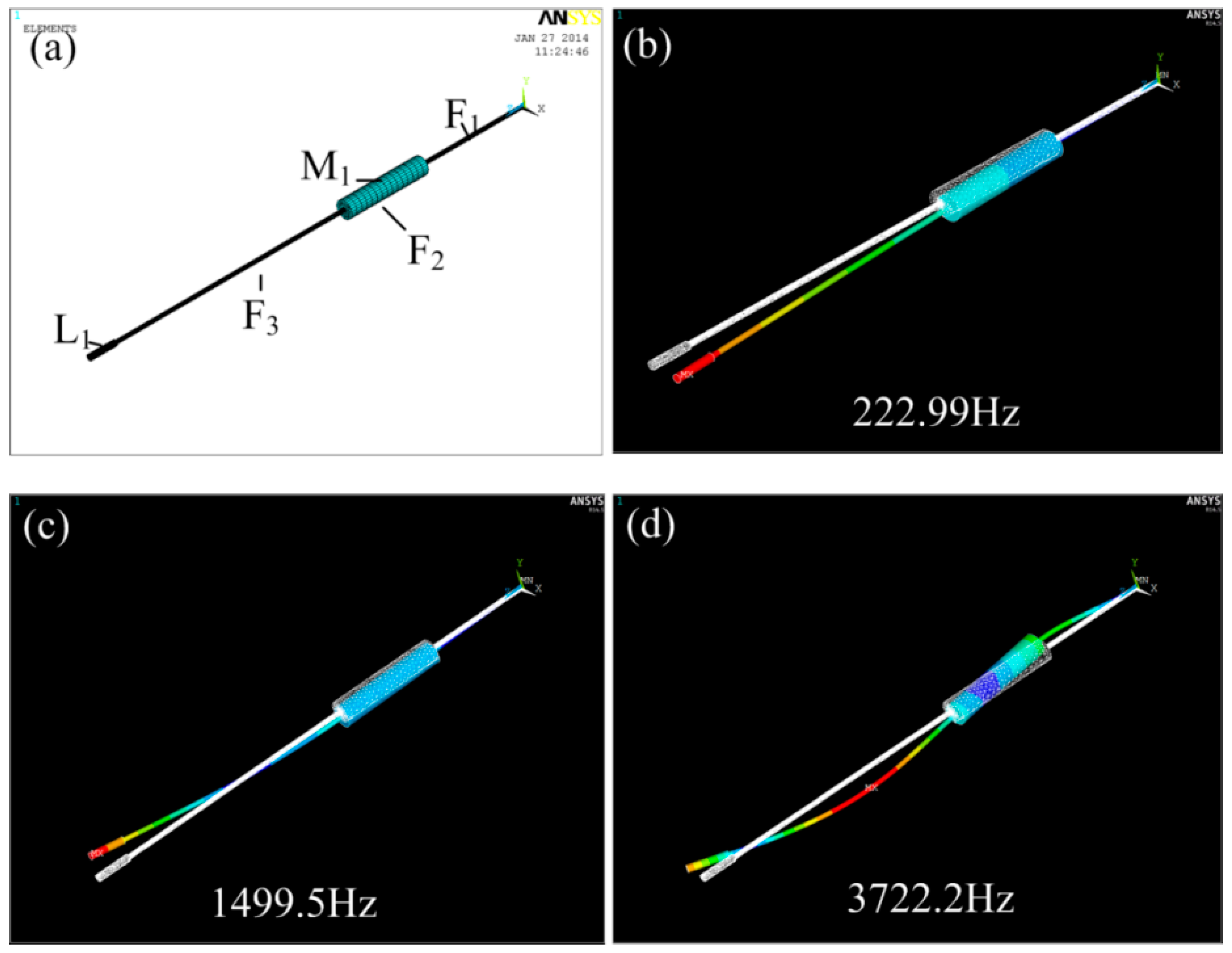

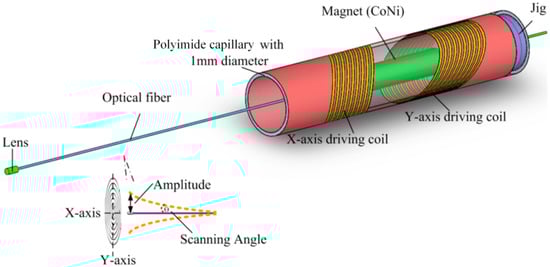

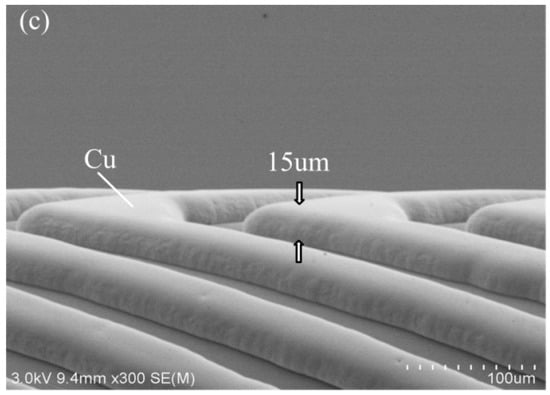

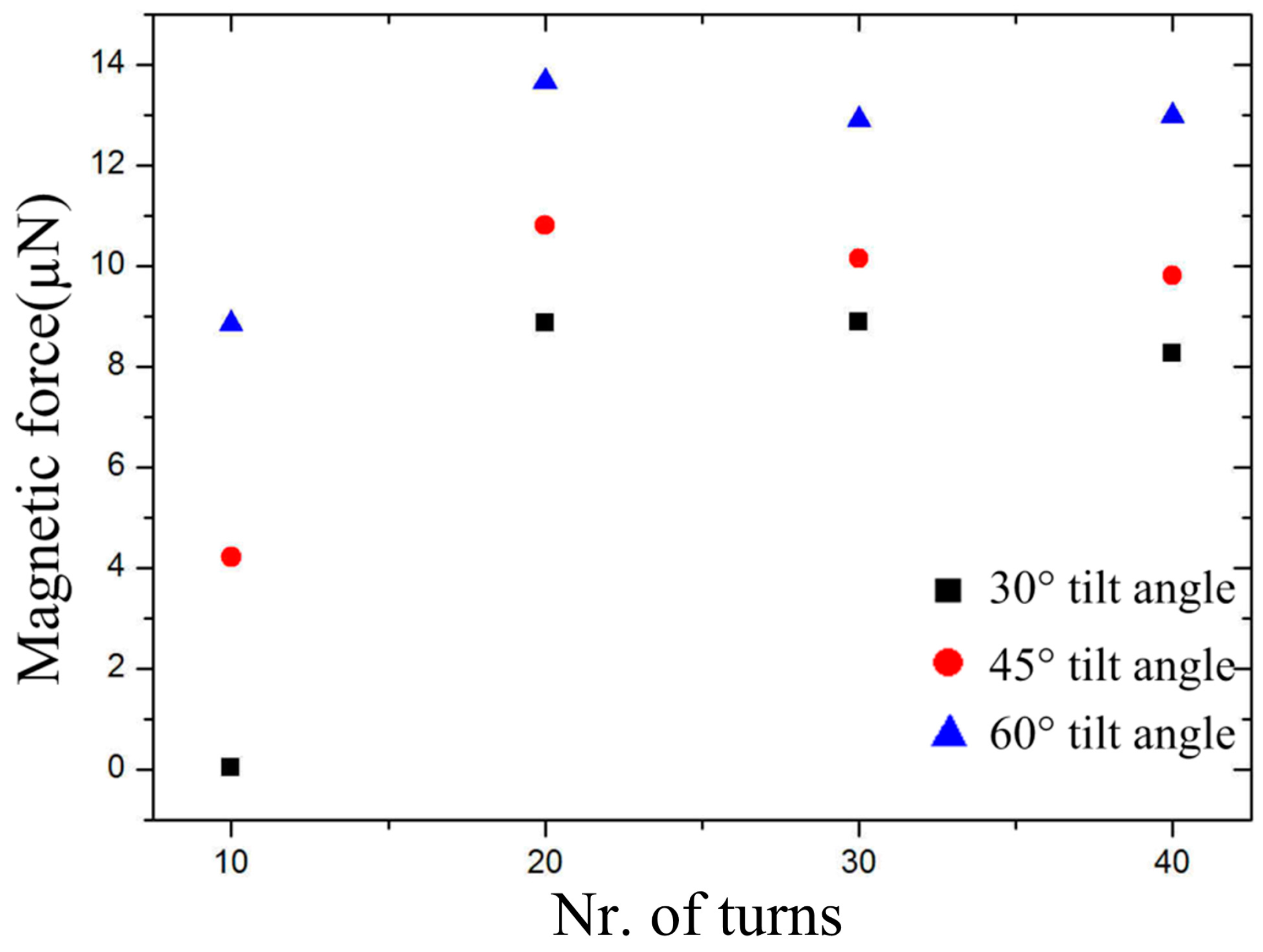

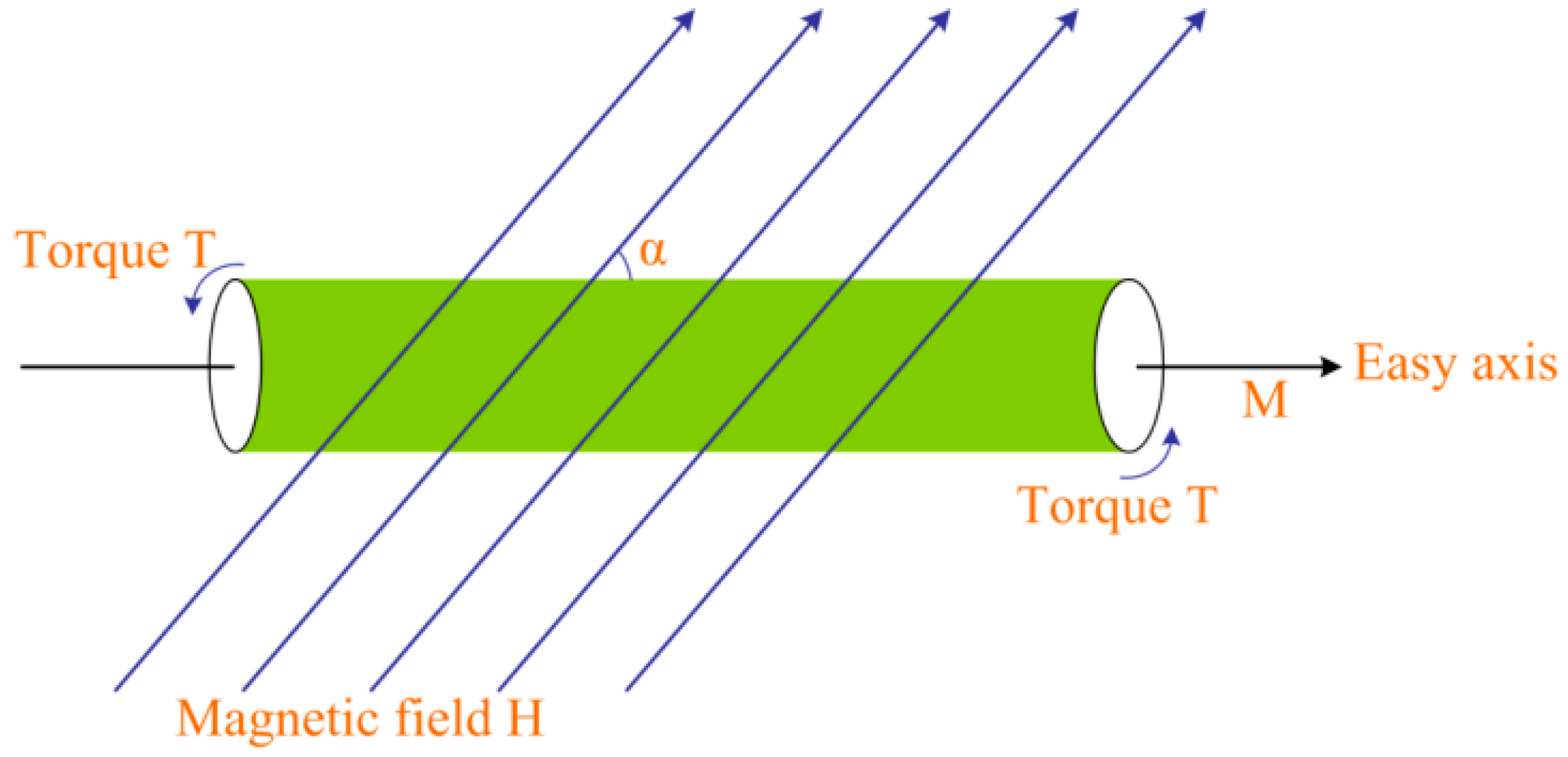

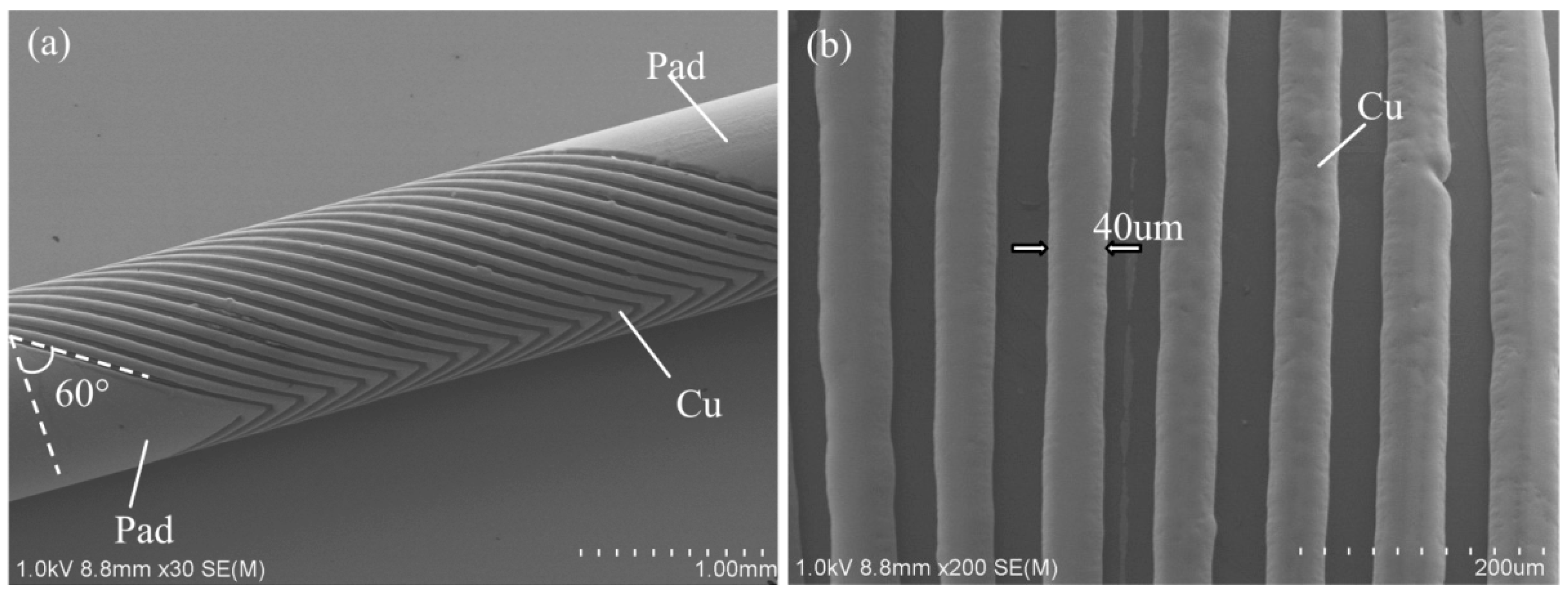

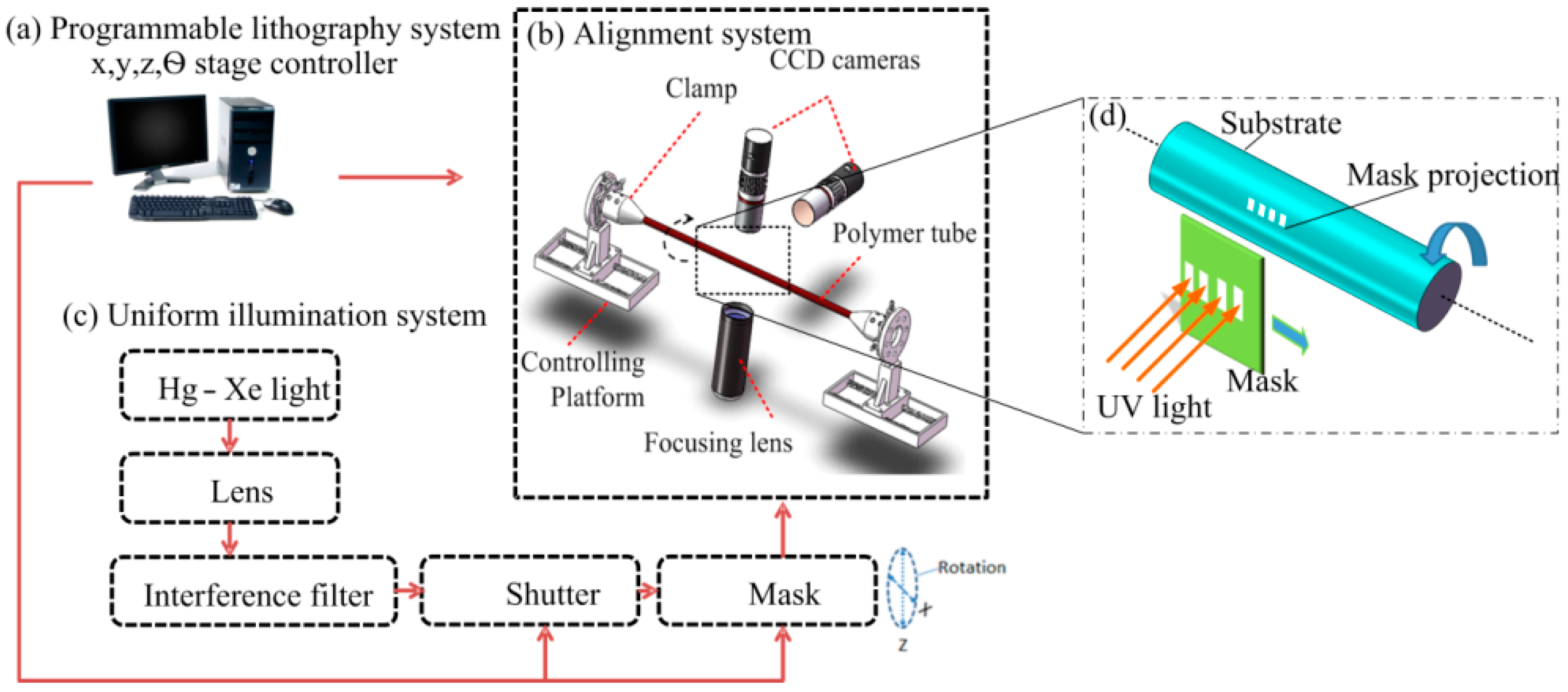

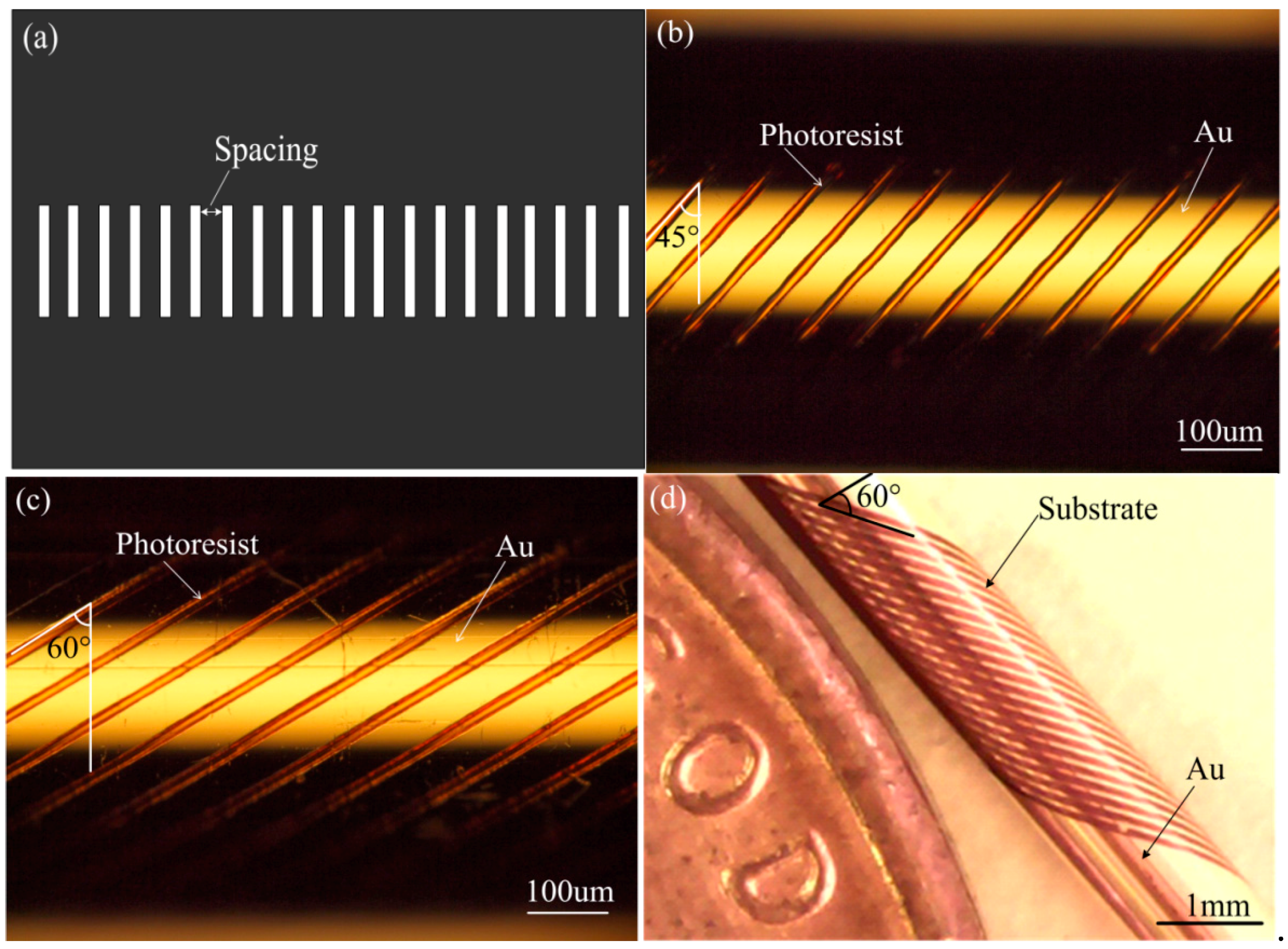

The design and fabrication of a Micro-electromechanical Systems (MEMS)-based tilted microcoil on a polyimide capillary are reported in this paper, proposed for an electromagnetically-driven single-fiber endoscope scanner application. The parameters of the tilted microcoil were optimized by simulation. It is proved that the largest driving force could be achieved when the tilt-angle, the pitch and the coil turns of the designed microcoil were 60°, 80 µm and 20, respectively. The modal simulation of the designed fiber scanner was carried out. The prototypes of the tilted microcoils were fabricated on the surface of polyimide capillary with 1 mm-diameter using our developed cylindrical projection lithography system. The dimensions of the two tilted microcoils were as follows: one was tilt-angle 45°, line width 10 ± 0.2 µm, coil pitch 78.5 ± 0.5 µm, and the other was tilt-angle 60°, line width 10 ± 0.2 µm, coil pitch 81.5 ± 0.5 µm. Finally, a direct mask-less electroplating process was employed to fabricate the copper microcoil with 15 µm thickness on the gold (Au) seed-layer, and the corresponding line width was expanded to 40 µm. View Full-Text
