Micromachines 2018, 9(2), 42; https://doi.org/10.3390/mi9020042

The Application of Chemical Foaming Method in the Fabrication of Micro Glass Hemisphere Resonator

Key Laboratory of Micro/Nano Systems for Aerospace, Ministry of Education, Northwestern Polytechnical University, Xi’an 710072, China
*
Author to whom correspondence should be addressed.
Received: 20 November 2017 / Revised: 18 January 2018 / Accepted: 19 January 2018 / Published: 24 January 2018
(This article belongs to the Special Issue Micro-Resonators: The Quest for Superior Performance)
View Full-Text   |   Download PDF [3776 KB, uploaded 26 January 2018]   |

Abstract

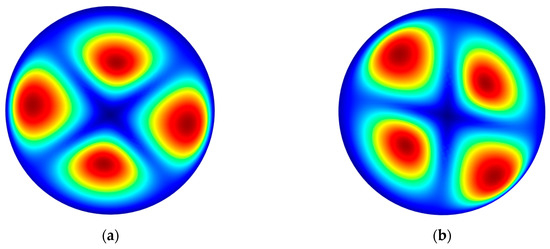

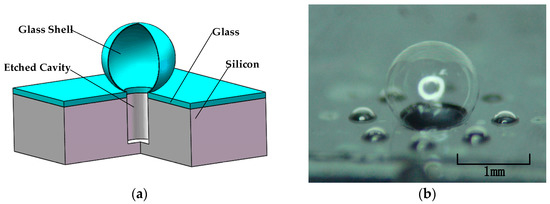

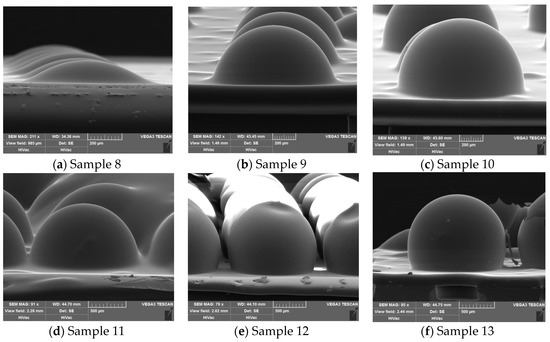

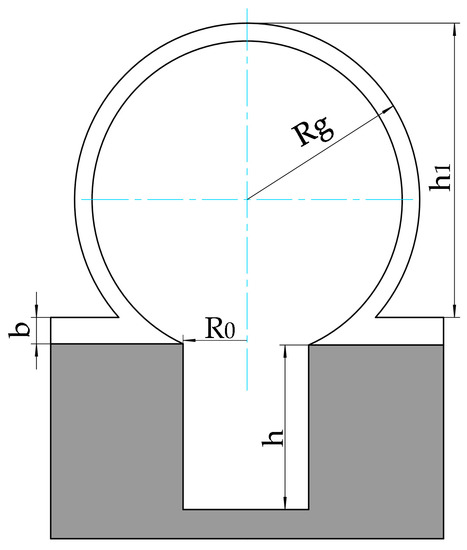

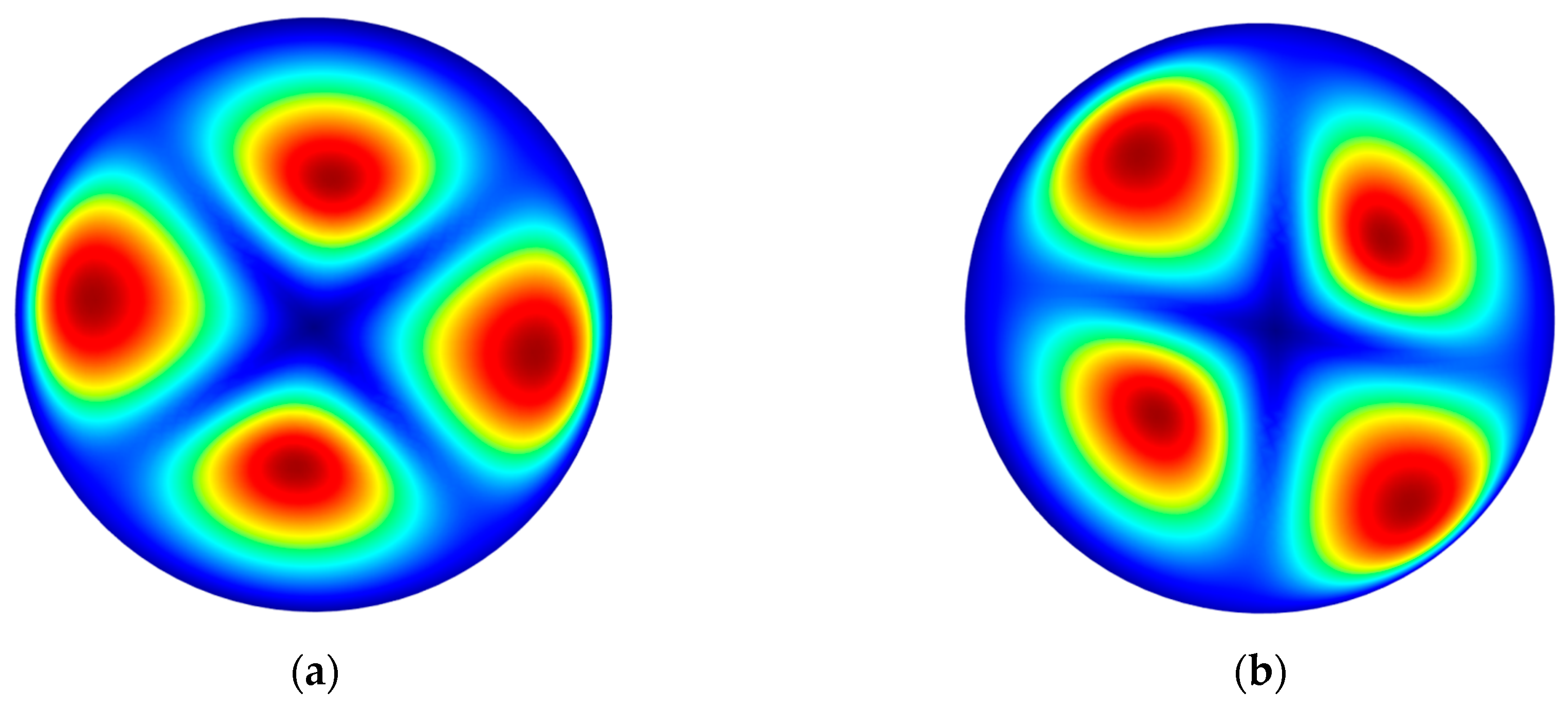

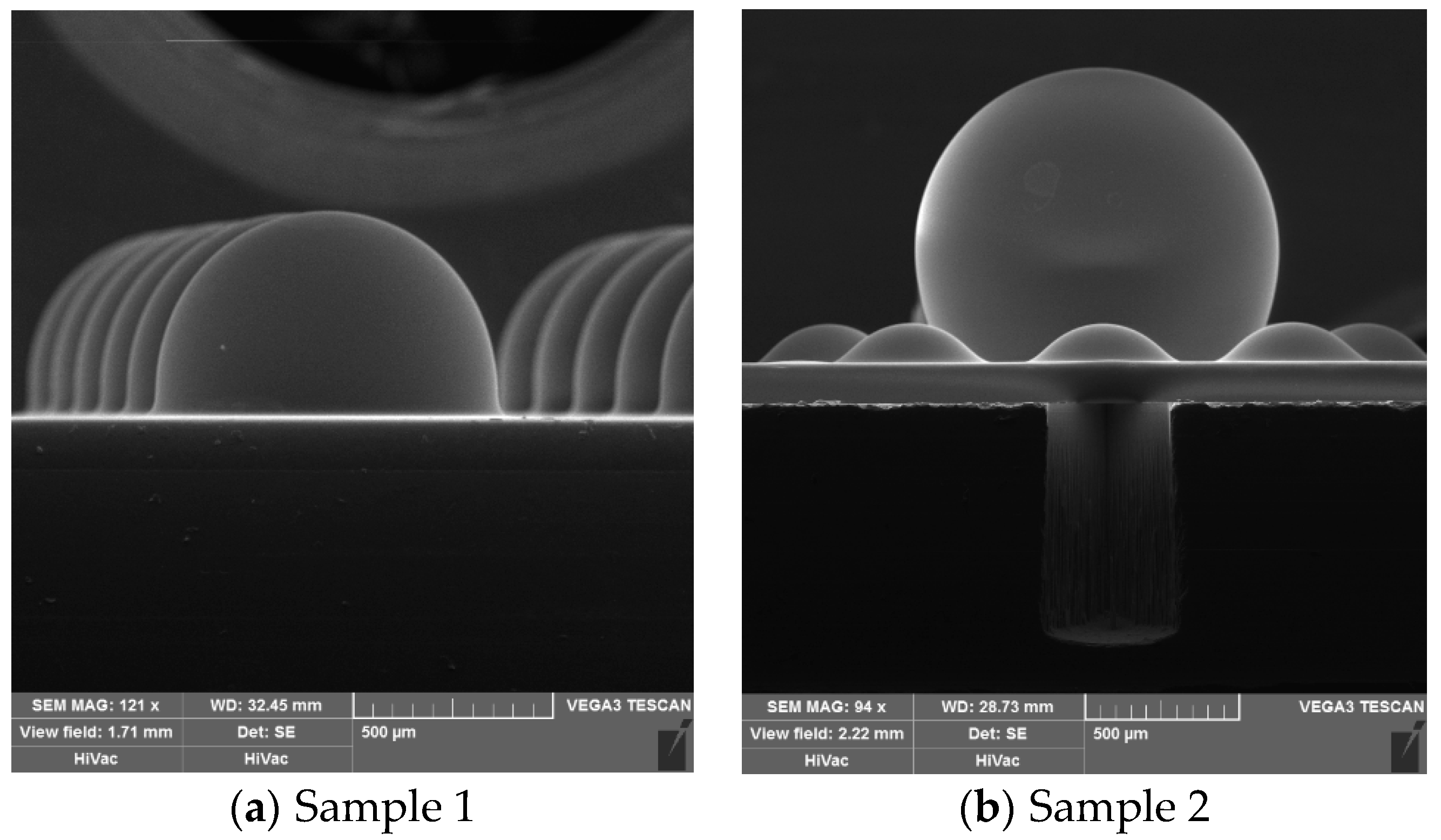

Many researchers have studied the miniaturization of the hemisphere resonator gyroscope for decades. The hemisphere resonator (HSR), as the core component, has a size that has been reduced to the submillimeter level. We developed a method of batch production of micro-hemisphere shell resonators based on a glass-blowing process to obtain larger hemisphere shells with a higher ratio of height to diameter (H/D), we introduced the chemical foaming process (CFP) and acquired an optimized hemisphere shell; the contrasted and improved H/D of the hemisphere shell are 0.61 and 0.80, respectively. Finally, we increased the volume of glass shell resonator by 51.48 times while decreasing the four-node wineglass resonant frequencies from 7.24 MHz to 0.98 MHz. The larger HSR with greater surface area is helpful for setting larger surrounding drive and sense capacitive electrodes, thereby enhancing the sensitivity of HSR to the rotation. This CFP method not only provides more convenience to control the shape of a hemisphere shell but also reduces non-negligible cost in the fabrication process. In addition, this method may inspire some other research fields, e.g., microfluidics, chemical analysis, and wafer level package (WLP). View Full-Text
Keywords: hemisphere resonator gyroscope; hemisphere resonator; chemical foaming process; glassblowing; hemisphere shell; hollow glass microsphere; micro electro mechanical systems (MEMS) hemisphere resonator gyroscope; hemisphere resonator; chemical foaming process; glassblowing; hemisphere shell; hollow glass microsphere; micro electro mechanical systems (MEMS)
Figures

Figure 1
