Micromachines 2017, 8(7), 207; doi:10.3390/mi8070207

Article
Electroceutical Approach for Impairing the Motility of Pathogenic Bacterium Using a Microfluidic Platform
Ryan Berthelot, Kristina Doxsee and Suresh Neethirajan *
BioNano Laboratory, School of Engineering, University of Guelph, Guelph, ON N1G 2W1, Canada
*
Correspondence: Tel.: +1-519-824-4120
Received: 23 May 2017 / Accepted: 27 June 2017 / Published: 29 June 2017

Abstract

:
Electrotaxis, or galvanotaxis, refers to the migration pattern of cells induced in response to electrical potential. Electrotaxis has not been explored in detail in bacterial cells; information regarding the impact of current on pathogenic bacteria is severely lacking. Using microfluidic platforms and optical microscopy, we designed a series of single- and multi-cue experiments to assess the impact of varying electrical currents and acetic acid concentrations on bacterial motility dynamics in pathogenic multi-drug resistant (MDR) strains of Pseudomonas aeruginosa and Escherichia coli. The use of the microfluidic platform allows for single-cue experiments where electrical current is supplied at a range that is biocidal to bacteria and multi-cue experiments where acetic acid is combined with current to enhance disinfection. These strategies may offer substantial therapeutic benefits, specifically for the treatment of biofilm infections, such as those found in the wound environment. Our results showed that an application of current in combination with acetic acid has profound inhibitory effects on MDR strains of P. aeruginosa and E. coli, even with brief applications. Specifically, E. coli motility dynamics and cell survival were significantly impaired starting at a concentration of 0.125 mA of direct current (DC) and 0.31% acetic acid, while P. aeruginosa was impaired at 0.70 mA and 0.31% acetic acid. As these strains are relevant wound pathogens, it is likely that this strategy would be effective against similar strains in vivo and could represent a new approach to hasten wound healing.
Keywords:
electrotaxis; P. aeruginosa; cell motility; galvanotaxis; microfluidics; wound healing

1. Introduction

Antibiotic resistance is a long-standing issue, and continues to be a growing problem around the globe. The number and prevalence of multi-drug resistant (MDR) bacterial strains is steadily increasing, and infecting more than 2 million people each year in the United States and causing some 23,000 deaths [1]. An important contributor to antibiotic resistant infection is biofilm infection; by definition, biofilms are inherently resistant to antimicrobials, warranting up to 1000 times the dose required to clear non-biofilm infections [2]. Therefore, alternative strategies to disinfection (e.g., electrocidal, electroceutical, and mechanical approaches) have gained interest and represent potentially powerful weapons against recalcitrant biofilm infection. Although the impact of current on mammalian cells is fairly well understood, information regarding its effect on pathogenic MDR bacterial strains is lacking.
A number of studies have investigated bacterial responses to electrical fields and applied current. For example, the motility of Escherichia coli cells has been evaluated in capillaries as a facet of soil remediation initiatives [3], and Tetrahymena pyriformis’ electrotactic behaviors have been investigated with the goal of developing a microrobot [4]. The efficacy of electrical stimulation as a means of bacteriostatic control in the areas of wound healing [5,6] and biofilm remediation [7,8,9] has also been investigated in recent years. However, data on the cellular motility and electrotactic and galvanotactic behaviors of MDR bacterial species (in response to the external application of current), especially at the single cellular level, are rather limited. Electrical stimulation, particularly in the 0.050–0.500 mA direct current (DC) range, has been shown to reduce the number of viable cells, as determined by colony forming units in our previous studies. However, the underlying mechanisms by which electrical currents exert these effects in bacterial cells are poorly understood. Not only can current affect viability, but it can also impact the motility of bacterial organisms. However, the effect of current on the motility of pathogenic bacteria, especially at the single cell level, has not been extensively explored.
The migration and motility of cells plays an important role in wound healing. Diverse cellular factors, such as chemical and electrical cues, guide the directional migration of several organisms [10]. For example, leukocytes (e.g., lymphocytes and neutrophils) can detect and follow gradients of tissue-derived chemoattractants [11] and electric fields generated endogenously at wound sites to foster healing and antimicrobial defense [12]. Therefore, the strategic application of current could augment natural wound healing responses in mammalian cells, while targeting pathogenic bacteria. MDR strains of Pseudomonas aeruginosa and Escherichia coli are of particular interest in the wound environment, as they are common wound pathogens that possess motility systems critical to biofilm formation; directed motility toward a surface and the eventual loss of the flagella are essential steps in biofilm formation in these organisms [13]. Pseudomonas aeruginosa, a major cause of nosocomial infections, frequently infects open wounds and can cause sepsis and necrosis [14]. This organism infects approximately one-third of all burn wounds [15]. Additionally, Pseudomonas aeruginosa can have negative influences in both the industrial and environmental fields, causing dairy spoilage [16] and issues in water treatment systems [17]. Therefore, applying electric potential could be a complementary approach in addition to using chemical-based drugs to overcome the issue of recalcitrant, multi-drug resistant bacteria. Novel electroceutical technologies incorporating low voltage/current within a wound dressing have shown some promise, and could be implemented as a wearable electrical-based treatment system [18]. Therefore, understanding electrotaxis behaviors in MDR strains of bacteria will provide researchers with relevant information concerning the ranges of electric potential that could be applied to chronic or acute wound infections, depending on the infecting strains and their relative sensitivities.
A systematic understanding of the kinetics of the bacteria and the interplay mechanisms between single cells to the varying electrical properties will aid in developing enhanced electroceutical approaches that may prevent bacterial attachment and inhibit pathogenic bacterial growth in a wound microenvironment. Our study is a preliminary step towards the development of wound healing strategies through a better understanding of the relationship between single cell motility and electrical potential. Further studies using microfluidic platforms that would mimic the wound environment to validate the findings from the preliminary experiments would be essential.
Such electroceutical strategies combine chemical disinfection with the application of current. Acetic acid (AA) is one promising chemical candidate that may be effective in such strategies, as it is an effective, safe, and economical antimicrobial agent capable of inhibiting pathogenic and MDR strains of bacteria, even when these strains grow as a biofilm [15,19]. Although studies support the use of AA in combination with electrical stimulation as a disinfection strategy, additional measurements of the chemotactic and electrotactic behaviors of MDR strains are needed to engineer and fabricate an effective wound healing device. Therefore, we chose to compare the effects of AA or electrical stimulation (ES) alone (single cue) with those of a combination of AA and ES (multi-cue) on the chemotaxis of pathogenic species relevant to wound infection.
Our results show that combinations of AA and electrical stimulation are highly effective in reducing the motility of MDR strains of P. aeruginosa and E. coli, which is likely to impede infection and biofilm formation. Our results help to deepen our understanding of the effects of electroceutical approaches on pathogenic bacteria, suggesting that motility is one heavily impacted factor. This information may aid in the design of highly effective wound healing devices and/or strategies.

2. Materials and Methods

2.1. Experimental Parameter Design

Care was taken in the selection of various experimental parameters, which will be discussed herein. Our preliminary studies support that both E. coli and P. aeruginosa show little to no response to alternating current (AC) stimulation, but a bacteriostatic effect is observed when exposed to anodal and cathodal direct current (DC) [20,21]. The delivery of 0.200 mA for 4 h/day over four days reduced P. aeruginosa biofilms on Teflon and titanium discs [9], and exposure to 0.100 mA resulted in observable biofilm reductions after four days [14]. Further, in vivo studies have shown that skin ulcers colonized with P. aeruginosa and treated with µA cathodal DC resulted in pathogen-free ulcers within days of treatment [12]. Additional studies revealed that the delivery of current through carbon-filled electrodes to micro-organisms in intact human skin at 0.075 and 0.100 mA resulted in bactericidal effects at 4 and 24 h, beneath the positive electrode [22]. We selected P. aeruginosa strain BK-76, isolated from canine ear skin infections, and E. coli strain ATCC 8099, because these are relevant wound pathogens that exhibit antimicrobial resistance.
To minimize the risk of pH or temperature fluctuations, while selecting an effective current range, we elected to administer 0.07, 0.125, or 0.175 mA DC to the cells, as these doses in the range of 0.075–0.200 mA have bactericidal effects. Based on a study performed at the Mayo Clinic, the deployment of low dose electric current in the urinary tract was determined to be safe; a study of electrified catheters in sheep resulted in no chemical or physical changes/trauma to tissues or urine within the urinary tract when administering 0.400 mA of current [14]. However, it is unknown as to how inflamed, and possibly necrotized, skin wounds would respond to currents as great as 0.400 mA of DC, which is why we selected a lower 0.175 mA dose as the upper limit. The bacterial suspension consisted of either P. aeruginosa or E. coli suspended in filtered deionized water. This was done to reduce the complexity of the electrochemical products produced at the anode/cathode, allowing for a clearer observation of the bacterial response to current in terms of their chemotactic behavior. When the bacteria were observed microscopically in the prepared solution, they exhibited a high level of free motility.
Previous studies have shown a minimum inhibitory concentration of 0.31% AA to be an effective treatment against a multitude of tested pathogens, including MDR strains of E. coli and P. aeruginosa [15]. This same concentration of AA was also found to be effective in inhibiting biofilm formation [15]. Therefore, we chose to use 0.31% as the chemical component of our electroceutical approach (multi-cue experiments).
Electrotaxis and chemotaxis have been studied separately in mammalian cells due to the complications in designing simultaneous chemical mixing and electrical field gradients in a single device [11]. The development of specialized microfluidic devices has allowed researchers to test the impact of electric fields as well as controlled chemical gradients, although this is still challenging for practical application in a wound dressing. Therefore, we elected to use a single uniform concentration of AA in combination with the application of various currents.

2.2. Cell Culture

Bacterial suspensions were prepared by centrifuging cultures grown in 5 mL of Tryptic Soy Broth medium in the shaker at 200 rpm for 5 h at 37 °C. The media was extracted and centrifuged at 3750 rpm for 5 min to concentrate the cells. Upon pouring off the supernatant and redistributing the cells in filtered deionized water, the process was repeated two times. The cells were subsequently diluted with filtered deionized water and injected into the microfluidic device for viewing. The above procedure was also followed for the culturing of the cells for the electroceutical experiments, except 6.9 µL of 45% AA was added to 993.1 µL of the bacterial solution to achieve a 0.31% AA concentration prior to injection into the microfluidic channel.

2.3. Metrics Acquisition

Copper electrodes (diameter, 4 mm) were inserted into ports A and B and into the bacterial suspension of the glass bottom fused silica microfluidic system (Figure 1). The desired ampere levels of 0, 0.07, 0.125, and 0.175 mA were achieved by the use of a current amplifier and a 55 Ω resistor, giving the corresponding voltage values of 0, 3.850, 6.875, and 9.625 V respectively. A Nikon Ti-U Eclipse Microscope (Nikon Instruments Inc., Melville, NY, USA) was used to image the cells at the following settings: Phase 2 contrast with the use of D & GIF filters, 40X Objective with the collar ring set to 1.3 mm, 1.5X magnification, 1.0 Gain, and recorded at 90 fps by use of the Nikon NIS-Elements software for real time imaging. The regions along the entire microfluidic channel were imaged and recorded for 40 s. The use of a flow-free microfluidic device, composed of a fused silica chip, minimizes flow-induced shear stress on cell migration and movement in a static gradient environment [23,24,25,26], and allows quantitative evaluations of cell migration in spatiotemporally complex chemoattractant fields that mimic in vivo situations [27]. In addition, the miniaturization drastically reduces the Joule heating effect [28], thereby reducing the chance of any thermotaxis by the cells. The methodology for the data analysis conducted in this study was adopted from our previous study, Wright et al. 2014 [29]. The cellular characteristic analyzed in this study includes the Forward Migration Index (FMI), where FMI X and FMI Y indicate the efficiency of the forward migration of cells and how they relate to the direction of both axes. Directness is a quantitative representation of linearity with respect to cell trajectory.

2.4. Statistical Tracking and Data Analysis

ImageJ (http://rsb.info.nih.gov/ij/) was used to track the cellular frame by frame coordinates, and the Ibidi Chemotaxis and Migration Tool software (Ibidi Software, Munich, Germany) was used to calculate the cellular motility metrics of the combined cell tracks. The total number of cell tracks for each setting was 70. At least five independent experiments were carried out. All of the quantitative data were presented as the mean value ± standard deviation. The Student’s t-test was applied to compare two distinct groups. p value <0.05 was considered to be statistically significant.

3. Results and Discussion

Both E. coli and P. aeruginosa experience a reduction in cellular speed (Figure 2 and Figure 3) and an increase in the forward migration index (FMI) in response to the application of DC, along the chemotactic gradient plotted on the y-axis (Figure 4). There is also a significant increase in directness with current application (Table 1), relative to the baseline (0 mA). The resulting average cellular speeds for E. coli were 9.7 ± 0.5 µm/s, 5.0 ± 0.4 µm/s, 6.0 ± 0.4 µm/s, and 4.6 ± 0.3 µm/s for 0 mA, 0.07 mA, 0.125 mA, and 0.175 mA DC, respectively (Figure 2). The resulting average cellular speeds for P. aeruginosa were 44 ± 3 µm/s, 34 ± 2 µm/s, 40 ± 2 µm/s, and 75 ± 3 µm/s for 0 mA, 0.07 mA, 0.125 mA, and 0.175 mA DC, respectively (Figure 2). The differences in the response to current between E. coli and P. aeruginosa, as measured by the change in cellular speed, likely reflect differences in their motility and chemo/electrotactic sensing systems [30]. This may help to explain why there is an increase in cellular speed in P. aeruginosa at 0.175 mA (relative to baseline), while the application of any current reduces cellular speed in E. coli. However, 0.07 and 0.125 mA currents reduced the motility of both organisms, indicating that there may be an optimal range of current that will predictably and consistently impact several pathogenic bacterial species.
Both species experienced a reduction in average cellular speed (Figure 3), FMI (Figure 5), and directness (Table 1) with the introduction of 0.31% AA alone, relative to baseline (no AA). These results indicate that treatment with AA significantly impairs bacterial motility, even when used alone. Furthermore, treatment with AA has equivalent effects on both species, pointing to a broader, more conserved mechanism of action.
Studies have found that bacterial cellular Adenosine triphosphate (ATP) processes are disrupted by exposure to AA [19], which is one reason why AA has great potential as an antimicrobial agent. Weak acids can cross bacterial membranes more readily than strong acids, because of the equilibrium between their ionized and non-ionized forms, the latter of which can freely diffuse across hydrophobic membranes. This ultimately collapses the proton gradients necessary for ATP synthesis. When AA dissociates, it acidifies the cytoplasm, causing acid-induced proton unfolding and membrane/DNA damage [19]. This effect is specific to bacteria, because host somatic cells contain cholesterol, which controls cell permeability; the interior of the phospholipid bilayer is occupied by hydrophobic fatty acid chains such that the membrane is impermeable to water-soluble molecules and most biological molecules, including ions [28]. There are also other theories that support the notion of the reduction of bacterial motility from the application of electrical current. Direct electron transfer between the bacteria and the anode, which emits the electrical current, results in inactivation of the attached bacteria to surfaces [31]. A combination of electro-osmotic and electro-attractive forces may drive bacterial random motion during the interaction between the electric current and the bacterial cell [32].
The resulting average cellular speeds for E. coli in the presence of 0.31% AA were 0.091 ± 0.005, 0.085 ± 0.002, 0.072 ± 0.003, and 0.074 ± 0.002 µm/s for 0 mA, 0.07 mA, 0.125 mA, and 0.175 mA DC, respectively (Figure 3). The resulting average cellular speeds for P. aeruginosa in the presence of 0.31% AA were 0.085 ± 0.002, 0.075 ± 0.002, 0.081 ± 0.001, and 0.083 ± 0.002 µm/s for 0 mA, 0.07 mA, 0.125 mA, and 0.175 mA DC, respectively (Figure 3).
A reduction in cellular speed relative to baseline (0.31% AA, no current) (Figure 2 and Figure 3) (p < 0.05) was pronounced for both E. coli and P. aeruginosa upon electroceutical application. The most dramatic reductions in speed occurred at 0.070 mA DC for P. aeruginosa, while E. coli was equally impaired at higher currents (0.125 and 0.175 mA DC). These results suggest that there is an ideal current range in an electroceutical setting for E. coli, which would be upwards of 0.125 mA, while the ideal range for P. aeruginosa would be less than 0.125 mA for both single and multi-cue situations (namely 0.07 mA). However, a current of approximately 0.07 mA may be effective across a broader range of strains, meaning that a single application of current (with AA, especially) could provide powerful disinfection in the context of a wound infection. A very pronounced reduction in FMI was also observed at 0.175 mA DC for E. coli and at 0.07 mA for P. aeruginosa when single-cue ES was compared to our electroceutical approach (AA + current) (Figure 6a,b).
Clearly, P. aeruginosa responds well to both electrical stimulation and our electroceutical approach at 0.70 mA DC, while E. coli is more responsive at higher current (0.175 mA DC). It is not surprising that E. coli and P. aeruginosa respond differently to the electrical characteristics of their environment, as their chemotactic sensing systems differ. P. aeruginosa has a more complex sensing system than most microbes, with multiple chemotaxis genes that constitute several chemotaxis systems with defined functions [33]. E. coli uses a two-component regulatory system, consisting of an extracellular sensor and response regulator [30] that is more susceptible to oxidative stress than P. aeruginosa [33]. Hence, electroceutical device design should take into account the differing impacts that such disinfection strategies may have on several relevant wound pathogens. In the case of P. aeruginosa, quorum sensing (QS) plays a prominent role in its virulence and biofilm formation, which may offer an ideal target for anti-biofilm therapies.
Oxidative and nitrosative stresses, which can be augmented by electroceutical approaches, play important roles in bacterial inhibition/elimination in vivo. In particular, E. coli can be toxified by as little as 5 µM extracellular hydrogen peroxide [34,35], and because it is a small uncharged molecule, hydrogen peroxide diffuses across membranes rapidly and has the ability to cause profuse DNA damage when the intracellular concentration rises to 1 µM [24]. P. aeruginosa, on the other hand, has developed a multitude of defense mechanisms to tolerate stress conditions, even H2O2 at relatively high levels, but remains susceptible to other oxidative stressors [33]. The buildup of electrochemical oxidative products at the anode and cathode would occur with the application of electrical current, and while electrical stimulation alone may be a successful strategy for disinfection, in combination with AA, these effects are likely to be augmented. Combining AA with electrical stimulation should enhance disinfection, as AA has the ability to disrupt essential ATP processes and cause cellular DNA damage, thereby impairing both the ability to communicate and initiate defense mechanisms.
As motility is one microbial defense against opsonization by the host’s immune defenses, locomotive impairment would effectively trap bacterial cells, allowing for their clearance by migrating phagocytic leukocytes. Since migratory cell behavior in the presence of electrical cues is a naturally existing process within the human body, if we take the 0.1 µA/mm2 DC current density generated as a lower limit for directing leukocyte migration for wound healing, the corresponding current density settings tested here are likely to induce leukocyte migration that would accelerate the natural wound healing process while simultaneously inhibiting opportunistic pathogens. An applied electric field within the physiological range can also induce the directional electrotaxis of epithelial cells and fibroblasts, along with neutrophils and endothelial cells, suggesting a potential role in cellular positioning during wound healing [36]. Because phagocytic neutrophils and monocytes are up to 20 µm in diameter, have cell walls that actively prohibit the entry of water soluble molecules [28], and have a negative surface potential, unlike invading pathogens, they can migrate to the wound site unaffected. As a consequence, our electroceutical approach could create a bacterial trap that would accelerate the natural wound healing process, while augmenting bacterial clearance.

4. Conclusions

Using microfluidic platforms, optical microscopy, and bacterial tracking software, this study indicates that the combination of electrical stimulation and acetic acid could potentially be a viable electroceutical approach in controlling bacterial migration and preventing infection by pathogenic bacteria. Single-cue (current or AA only) and multi-cue (current and AA combined) experiments were conducted on multi-drug resistant strains of E. coli and P. aeruginosa. The cell motility of both E. coli and P. aeruginosa in 0.31% AA showed impairment at current values of 0.125 mA and 0.07 mA respectively, as well as a significant decrease in the FMI for both cell types. Electroceutical approaches to treating bacterial infection, such as those described in this experiment, could offer viable alternatives to overused antibacterial agents, and have potential applications in decreasing wound healing times.

Acknowledgments

The authors sincerely thank the Natural Sciences and Engineering Research Council of Canada (NSERC #400705), and the Ontario Ministry of Research and Innovation (MRI #300102) for funding this study.

Author Contributions

S.N. conceptualized and designed the study, and contributed to the data’s analysis and the manuscript’s preparation. R.B. and K.D. performed the experiments and wrote the manuscript with S.N. All authors have read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Centers for Disease Control and Prevention (CDC). Antibiotic Resistance Threats in the United States; Centers for Disease Control and Prevention (CDC): Atlanta, GA, USA, 2013.
  2. Ceri, H.; Olson, M.E.; Stremick, C.; Read, R.R.; Morck, D.; Buret, A. The Calgary biofilm device: New technology for rapid determination of antibiotic susceptibilities of bacterial biofilms. J. Clin. Microbiol. 1999, 37, 1771–1776. [Google Scholar] [PubMed]
  3. Liu, Z.; Chen, W.; Papadopoulos, K.D. Electrokinetic movement of Escherichia coli in capillaries. Environ. Microbiol. 1999, 1, 99–102. [Google Scholar] [CrossRef] [PubMed]
  4. Kim, D.H.; Kim, P.S.S.; Lee, K.; Kim, J.; Kim, M.J. Galvanotactic behavior of Tetrahymena pyriformis under electric fields. J. Micromech. Microeng. 2013, 23, 1–9. [Google Scholar] [CrossRef]
  5. Asadi, M.R.; Torkaman, G. Bacterial inhibition by electrical stimulation. Adv. Wound Care 2014, 3, 91–97. [Google Scholar] [CrossRef] [PubMed]
  6. Rowley, B.A.; McKenna, J.M.; Chase, G.R.; Wolcott, L.E. The influence of electrical current on an infecting microorganism in wounds. Ann. N. Y. Acad. Sci. 1974, 238, 543–551. [Google Scholar] [CrossRef] [PubMed]
  7. Kim, Y.W.; Subramanian, S.; Gerasopoulos, K.; Ben-Yoav, H.; Wu, H.C.; Quan, D.; Carter, K.; Meyer, M.T.; Bentley, W.E.; Ghodssi, R. Effect of electrical energy on the efficacy of biofilm treatment using the bioelectric effect. npj Biofilms Microbiomes 2015, 15016, 1–8. [Google Scholar] [CrossRef]
  8. Gall, I.; Herzberg, M.; Oren, Y. The effect of electric fields on bacterial attachment to conductive surfaces. Soft Matter 2013, 9, 2443–2452. [Google Scholar] [CrossRef]
  9. Schmidt-Malan, S.M.; Karau, M.J.; Cede, J.; Greenwood-Quaintance, K.E.; Brinkman, C.L.; Mandrekar, J.N.; Patel, R. Antibiofilm activity of low-amperage continuous and intermittent direct electrical current. Antimicrob. Agents Chemother. 2015, 59, 4610–4615. [Google Scholar] [CrossRef] [PubMed]
  10. Sandvik, E.L.; McLeod, B.R.; Parker, A.E.; Stewart, P.S. Direct electric current treatment under physiologic saline conditions kills Staphylococcus epidermidis biofilms via electrolytic generation of hypochlorous acid. PLoS ONE 2013, 8. [Google Scholar] [CrossRef] [PubMed]
  11. Li, J.; Lin, F. Microfluidic devices for studying chemotaxis and electrotaxis. Trends Cell Biol. 2011, 21, 489–497. [Google Scholar] [CrossRef] [PubMed]
  12. Zhao, M.; Song, B.; Pu, J.; Wada, T.; Reid, B.; Tai, G.; Wang, F.; Guo, A.; Walczysko, P.; Gu, Y.; et al. Electrical signals control wound healing through phosphatidylinositol-3-OH kinase-γ and PTEN. Nature 2006, 442, 457–460. [Google Scholar] [CrossRef] [PubMed]
  13. Sauer, K.; Camper, A.K.; Ehrlich, G.D.; Costerton, J.W.; Davies, D.G. Pseudomonas aeruginosa displays multiple phenotypes during development as a biofilm. J. Bacteriol. 2002, 184, 1140–1154. [Google Scholar] [CrossRef] [PubMed]
  14. Voegele, P.; Badiola, J.; Schmidt-Malan, S.M.; Karau, M.J.; Greenwood-Quaintance, K.E.; Mandrekar, J.N.; Patel, R. Antibiofilm activity of electrical current in a catheter model. Antimicrob. Agents Chemother. 2016, 60, 1476–1480. [Google Scholar] [CrossRef] [PubMed]
  15. Halstead, F.D.; Rauf, M.; Moiemen, N.S.; Bamford, A.; Wearn, C.M.; Fraise, A.P.; Lund, P.A.; Oppenheim, B.A.; Webber, M.A. The antibacterial activity of acetic acid against biofilm-producing pathogens of relevance to burns patients. PLoS ONE 2015, 10, e0136190. [Google Scholar] [CrossRef] [PubMed]
  16. Oliveira, G.B.D.; Favarin, L.; Luchese, R.H.; McIntosh, D. Psychrotrophic bacteria in milk: How much do we really know? Braz. J. Microbiol. 2015, 46, 313–321. [Google Scholar] [CrossRef] [PubMed]
  17. Ronen, A.; Duan, W.; Wheeldon, I.; Walker, S.; Jassby, D. Microbial attachment inhibition through low-voltage electrochemical reactions on electrically conducting membranes. Environ. Sci. Technol. 2015, 49, 12741–12750. [Google Scholar] [CrossRef] [PubMed]
  18. Ghatak, P.D.; Schlanger, R.; Ganesh, K.; Lambert, L.; Gordillo, G.M.; Martinsek, P.; Roy, S. A wireless electroceutical dressing lowers cost of negative pressure wound therapy. Adv. Wound Care 2015, 4, 302–311. [Google Scholar] [CrossRef] [PubMed]
  19. Bjarnsholt, T.; Alhede, M.; Jensen, P.Ø.; Nielsen, A.K.; Johansen, H.K.; Homøe, P.; Høiby, N.; Givskov, M.; Kirketerp-Møller, K. Antibiofilm properties of acetic acid. Adv. Wound Care 2015, 4, 363–372. [Google Scholar] [CrossRef] [PubMed]
  20. Watters, C.; Kay, M. Eradication of Wound Biofilms by Electrical Stimulation; Springer: Heidelberg, Germany, 2014; pp. 425–447. [Google Scholar]
  21. Preiss, L.; Neethirajan, S. Single cells of Pseudomonas aeruginosa exhibit electrotaxis and durotaxis behaviours. bioRxiv 2015. [Google Scholar] [CrossRef]
  22. Maadi, H.; Haghi, M.; Delshad, R.; Kangarloo, H.; Mohammadnezhady, M.A.; Hemmatyar, G.R. Effect of alternating and direct currents on Pseudomonas aeruginosa growth in vitro. Afr. J. Biotechnol. 2010, 9, 6373–6379. [Google Scholar]
  23. Chung, S.; Sudo, R.; Mack, P.J.; Wan, C.R.; Vickerman, V.; Kamm, R.D. Cell migration into scaffolds under co-culture conditions in a microfluidic platform. Lab Chip 2009, 9, 269–275. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, Z.; Chen, W.; Yuan, B.; Xiao, L.; Liu, D.; Jin, Y.; Quan, B.; Wang, J.O.; Ibrahim, K.; Wang, Z.; et al. In vitro model on glass surfaces for complex interactions between different types of cells. Langmuir 2010, 26, 17790–17794. [Google Scholar] [CrossRef] [PubMed]
  25. Abhyankar, V.V.; Lokuta, M.A.; Huttenlocher, A.; Beebe, D.J. Characterization of a membrane-based gradient generator for use in cell-signaling studies. Lab Chip 2006, 6, 389–393. [Google Scholar] [CrossRef] [PubMed]
  26. Chung, B.G.; Lin, F.; Jeon, N.L. A microfluidic multi-injector for gradient generation. Lab Chip 2006, 6, 764–768. [Google Scholar] [CrossRef] [PubMed]
  27. Kim, S.; Kim, H.J.; Jeon, N.L. Biological applications of microfluidic gradient devices. Integr. Biol. 2010, 2, 584–603. [Google Scholar] [CrossRef] [PubMed]
  28. Cooper, G.M.; Hausman, R.E. The Cell: A Molecular Approach, 6th ed.; Sinauer Associates: Sunderland, MA, USA, 2013; pp. 58–62, 557–564. [Google Scholar]
  29. Wright, E.; Neethirajan, S.; Warriner, K.; Retterer, S.; Srijanto, B. Single cell swimming dynamics of Listeria monocytogenes using a nanoporous microfluidic platform. Lab Chip 2014, 14, 938–946. [Google Scholar] [CrossRef] [PubMed]
  30. Wuichet, K.; Zhulin, I.B. Origins and diversification of a complex signal transduction system in prokaryotes. Sci. Signal. 2010, 3, ra50. [Google Scholar] [CrossRef] [PubMed]
  31. Nakayama, T.; Wake, H.; Ozawa, K.; Kodama, H.; Nakamura, N.; Matsunaga, T. Use of a titanium nitride for electrochemical inactivation of marine bacteria. Environ. Sci. Technol. 1998, 32, 798–801. [Google Scholar] [CrossRef]
  32. Hong, S.H.; Jeong, J.; Shim, S.; Kang, H.; Kwon, S.; Ahn, K.H.; Yoon, J. Effect of electric currents on bacterial detachment and inactivation. Biotechnol. Bioeng. 2008, 100, 379–386. [Google Scholar] [CrossRef] [PubMed]
  33. Imlay, J.A.; Hassett, D.J. Oxidative and nitrosative stress defence systems in Escherichia coli and Pseudomonas aeruginosa: A model organism of study versus a human opportunistic pathogen. In Stress Response in Pathogenic Bacteria; Kidd, S.P., Henderson, B., Wilson, M., Eds.; Library of Congress Cataloging-in-Publication Data: Oxfordshire, UK, 2011. [Google Scholar]
  34. Darnton, N.C.; Turner, L.; Rojevsky, S.; Berg, H.C. On torque and tumbling in swimming Escherichia coli. J. Bacteriol. 2007, 189, 1756–1764. [Google Scholar] [CrossRef] [PubMed]
  35. Niepa, T.H.; Gilbert, J.L.; Ren, D. Controlling Pseudomonas aeruginosa persister cells by weak electrochemical currents and synergistic effects with tobramycin. Biomaterials 2012, 33, 7356–7365. [Google Scholar] [CrossRef] [PubMed]
  36. Lin, F.; Baldessari, F.; Gyenge, C.C.; Sato, T.; Chambers, R.D.; Santiago, J.G.; Butcher, E.C. Lymphocyte electrotaxis in vitro and in vivo. J. Immunol. 2008, 181, 2465–2471. [Google Scholar] [CrossRef] [PubMed]

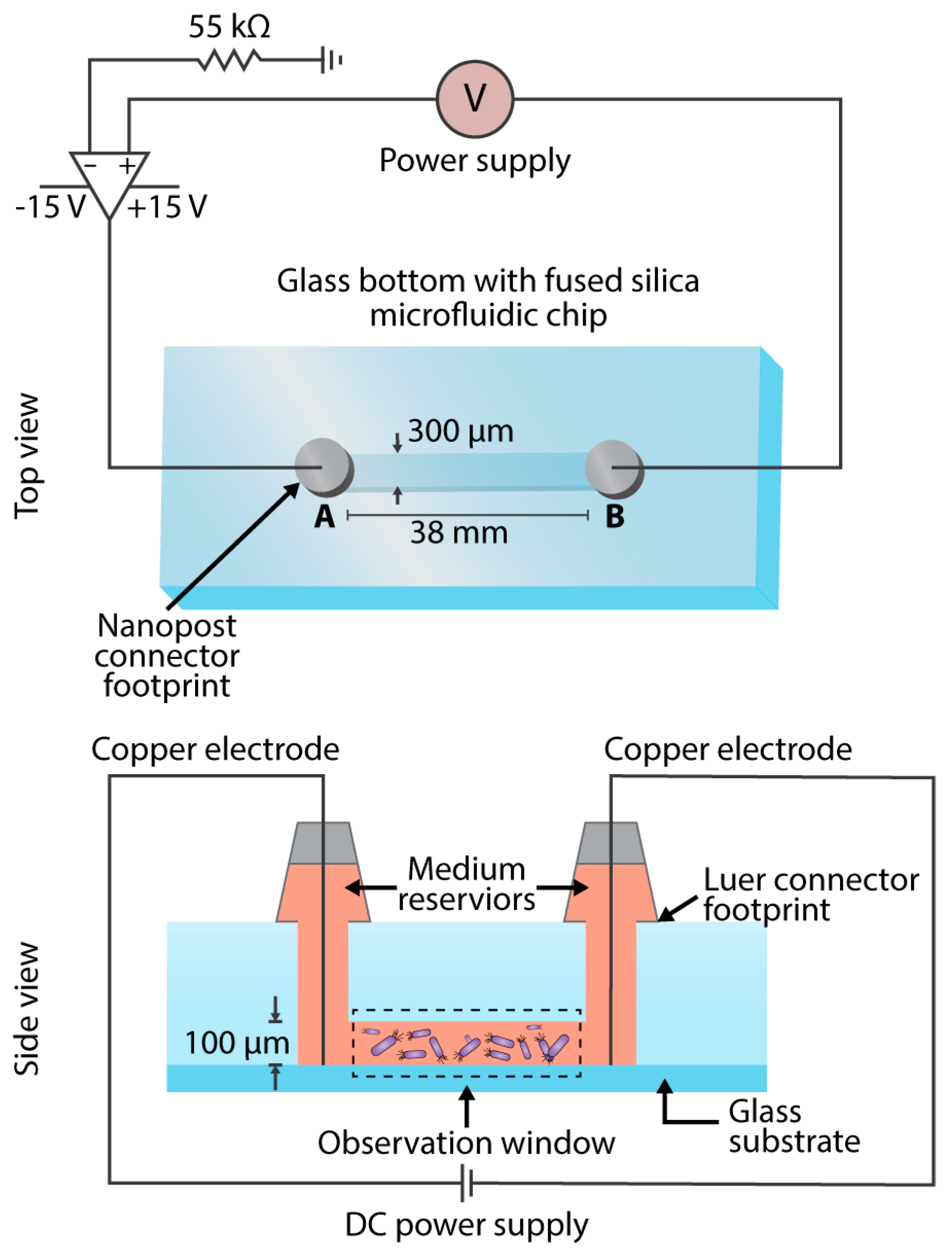

Figure 1. Illustration of the microfluidic experimental setup for bacterial electrotaxis assays. Schematic of the circuit used for generating the desired electric current in the investigation of the swimming dynamics of individual bacterial cells. Abbreviation: DC, direct current.
Figure 1. Illustration of the microfluidic experimental setup for bacterial electrotaxis assays. Schematic of the circuit used for generating the desired electric current in the investigation of the swimming dynamics of individual bacterial cells. Abbreviation: DC, direct current.
Micromachines 08 00207 g001

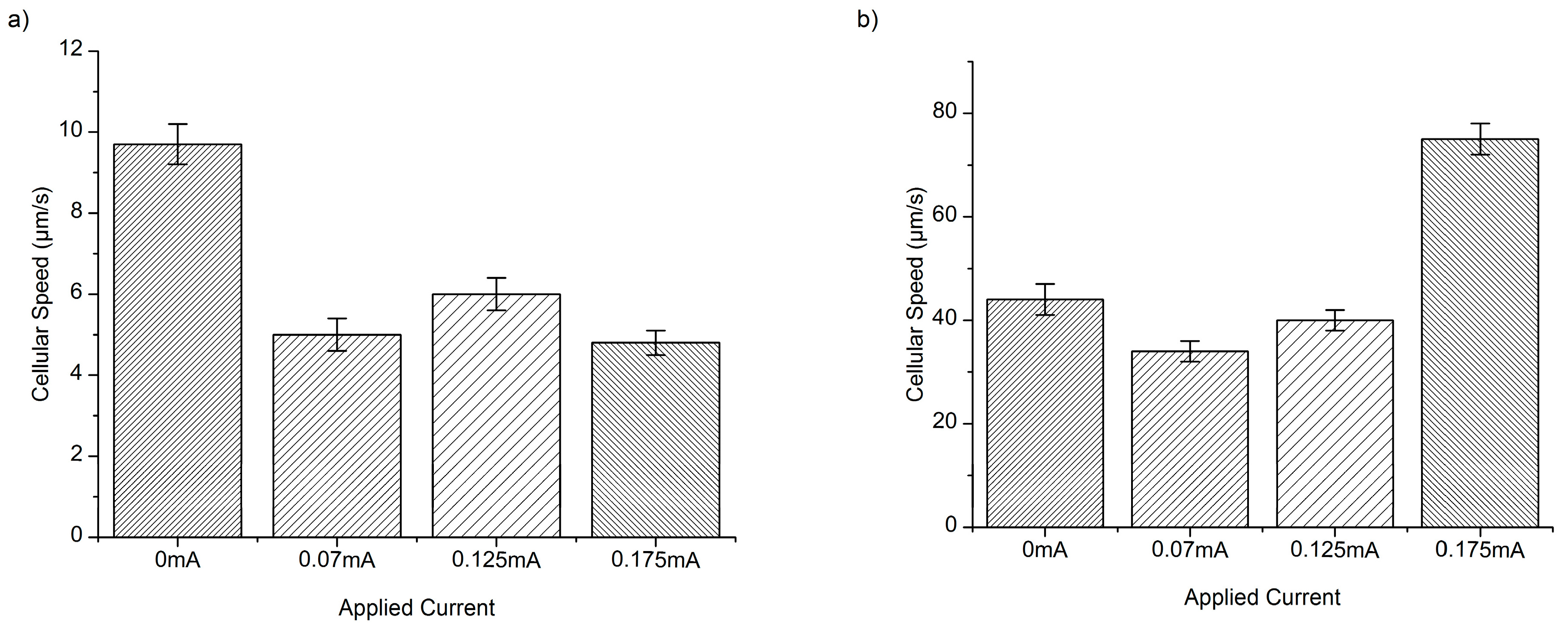

Figure 2. Escherichia coli (a) and Pseudomonas aeruginosa (b) cellular speed distribution in µm/s in response to electrical stimulation alone at applied current settings listed in mA. E. coli shows the greatest response to electrical stimulation alone at 0.07 and 0.175 mA, while P. aeruginosa shows the greatest response at 0.07 mA within the standard error.
Figure 2. Escherichia coli (a) and Pseudomonas aeruginosa (b) cellular speed distribution in µm/s in response to electrical stimulation alone at applied current settings listed in mA. E. coli shows the greatest response to electrical stimulation alone at 0.07 and 0.175 mA, while P. aeruginosa shows the greatest response at 0.07 mA within the standard error.
Micromachines 08 00207 g002

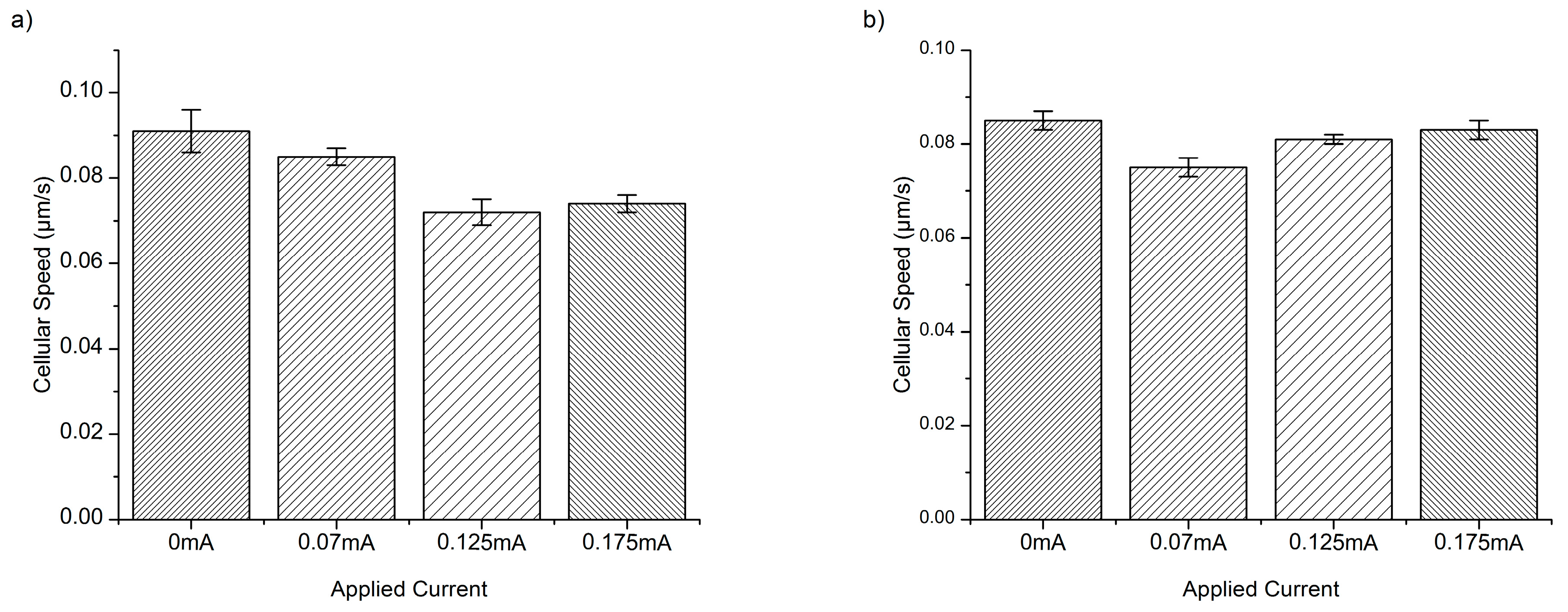

Figure 3. E. coli cellular speed distribution in µm/s in response to electrical stimulation and 0.31% acetic acid (AA) specific currents (a). Results indicate a great reduction in cellular speed upon electroceutical treatment. E. coli was equally responsive to both 0.125 mA and 0.175 mA settings. Results indicate a great reduction in cellular speed with electroceutical treatment of P. aeruginosa (b) at the 0.07 mA setting.
Figure 3. E. coli cellular speed distribution in µm/s in response to electrical stimulation and 0.31% acetic acid (AA) specific currents (a). Results indicate a great reduction in cellular speed upon electroceutical treatment. E. coli was equally responsive to both 0.125 mA and 0.175 mA settings. Results indicate a great reduction in cellular speed with electroceutical treatment of P. aeruginosa (b) at the 0.07 mA setting.
Micromachines 08 00207 g003

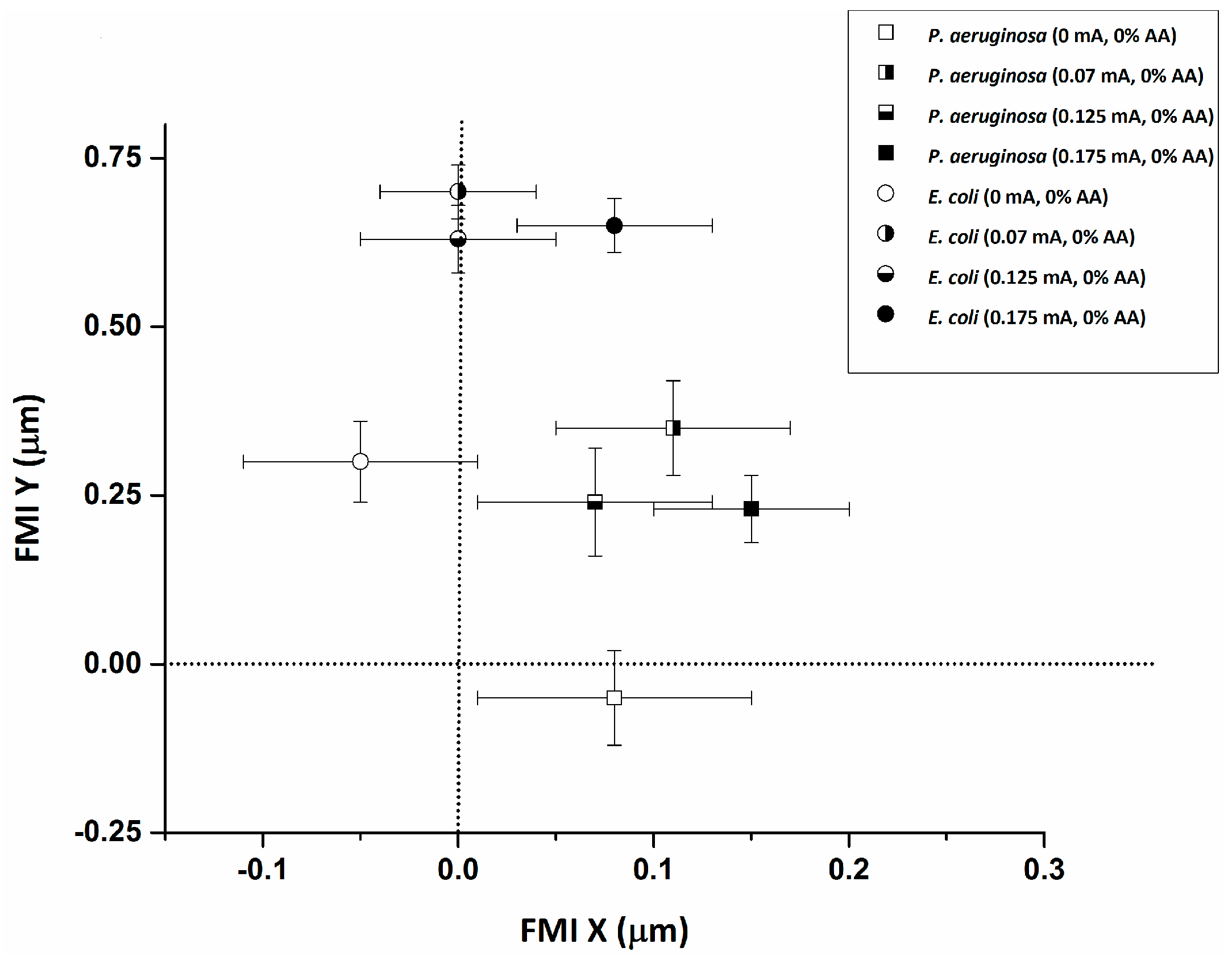

Figure 4. The average forward migration index (FMI) in the x and y directions for E. coli and P. aeruginosa in response to the application of current is plotted. The results denote increased migration along the electrotactic gradient (y axis) with the application of current (relative to 0 mA baseline).
Figure 4. The average forward migration index (FMI) in the x and y directions for E. coli and P. aeruginosa in response to the application of current is plotted. The results denote increased migration along the electrotactic gradient (y axis) with the application of current (relative to 0 mA baseline).
Micromachines 08 00207 g004

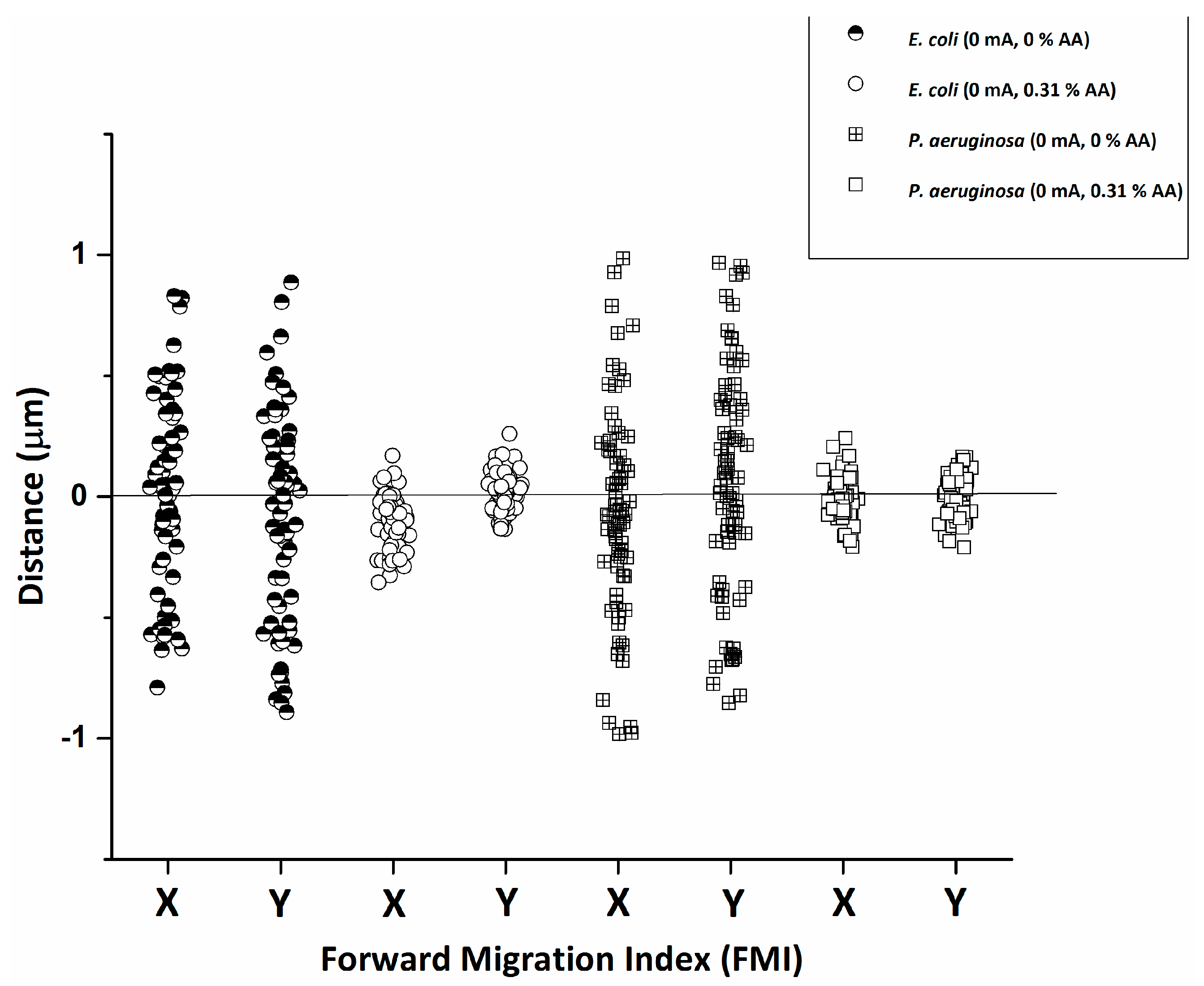

Figure 5. Vertical scatter indicating forward migration index (FMI) distribution in x and y directions for E. coli and P. aeruginosa comparing the effect of 0.31% AA alone on cells. Results indicate a drastic reduction in migration in both the x and y directions with the application of AA.
Figure 5. Vertical scatter indicating forward migration index (FMI) distribution in x and y directions for E. coli and P. aeruginosa comparing the effect of 0.31% AA alone on cells. Results indicate a drastic reduction in migration in both the x and y directions with the application of AA.
Micromachines 08 00207 g005

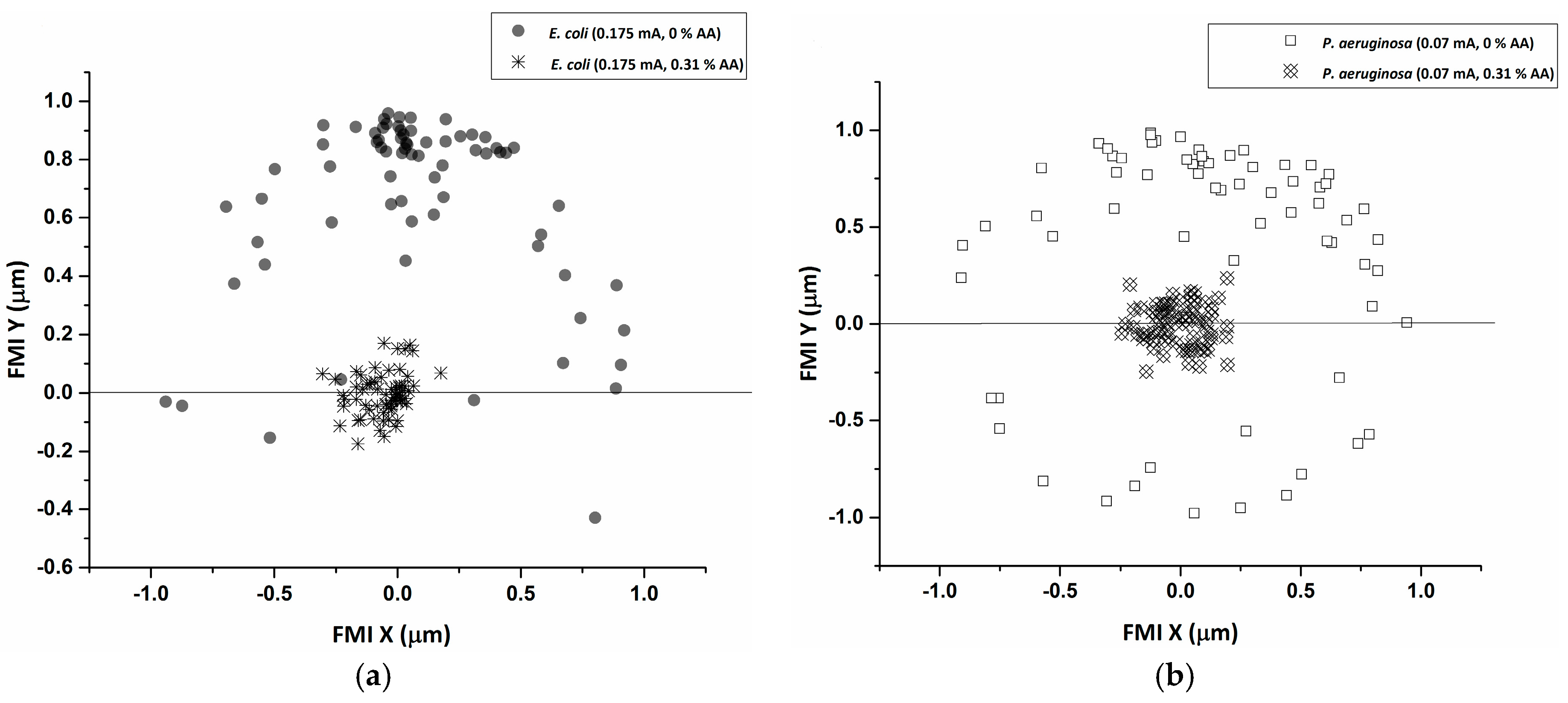

Figure 6. (a) The forward migration index (FMI) distribution for E. coli at the 0.175 mA setting in the presence and absence of 0.31% AA. The results indicate a drastic reduction in overall migration when 0.31% AA was applied in combination with an electrical current of 0.175 mA. (b) The FMI distribution for P. aeruginosa at a 0.07 mA setting in the presence and absence of 0.31% AA. The results indicate a drastic reduction in overall migration when 0.31% AA was applied in combination with an electrical current of 0.07 mA.
Figure 6. (a) The forward migration index (FMI) distribution for E. coli at the 0.175 mA setting in the presence and absence of 0.31% AA. The results indicate a drastic reduction in overall migration when 0.31% AA was applied in combination with an electrical current of 0.175 mA. (b) The FMI distribution for P. aeruginosa at a 0.07 mA setting in the presence and absence of 0.31% AA. The results indicate a drastic reduction in overall migration when 0.31% AA was applied in combination with an electrical current of 0.07 mA.
Micromachines 08 00207 g006
Table 1. Directness values for E. coli and P. aeruginosa affected by applied current and/or percentage of acetic acid (AA). Results indicate an increase in directness relative to baseline with the application of current alone, but a decrease in directness with the application of AA alone or with current.
Table 1. Directness values for E. coli and P. aeruginosa affected by applied current and/or percentage of acetic acid (AA). Results indicate an increase in directness relative to baseline with the application of current alone, but a decrease in directness with the application of AA alone or with current.
Acetic Acid (AA) ConcentrationBacteria Type0 mA0.07 mA0.125 mA0.175 mA
0%E. coli0.74 ± 0.030.90 ± 0.020.82 ± 0.020.83 ± 0.02
P. aeruginosa0.79 ± 0.030.82 ± 0.020.87 ± 0.020.86 ± 0.05
0.31%E. coli0.16 ± 0.010.13 ± 0.010.10 ± 0.010.10 ± 0.01
P. aeruginosa0.11 ± 0.010.14 ± 0.010.12 ± 0.010.11 ± 0.01
